FORD F PICKUP 1992

background image

SYSTEM WIRING DIAGRAMS

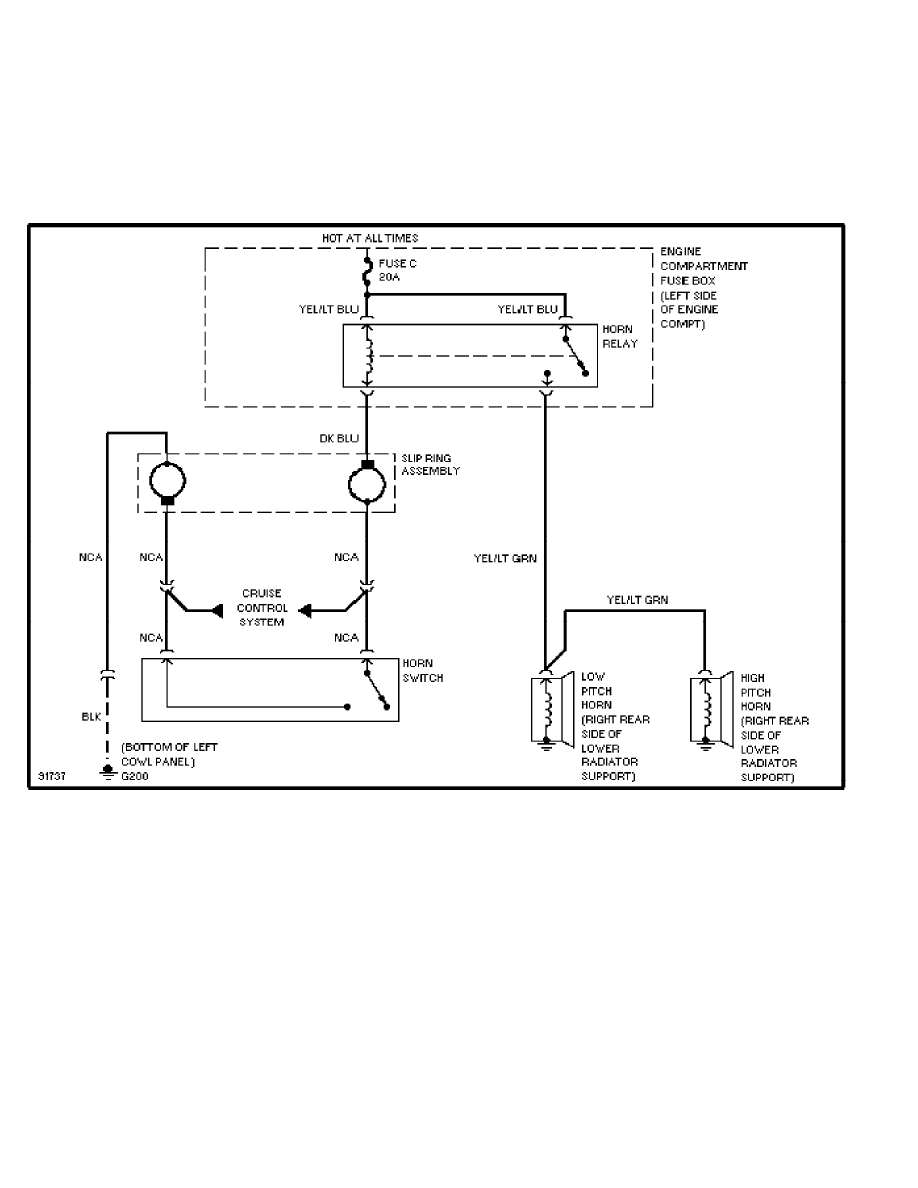

Horn Circuit

1992 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 07:04PM

background image

SYSTEM WIRING DIAGRAMS

Power Door Lock Circuit (p. 2)

1992 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 07:04PM

background image

SYSTEM WIRING DIAGRAMS

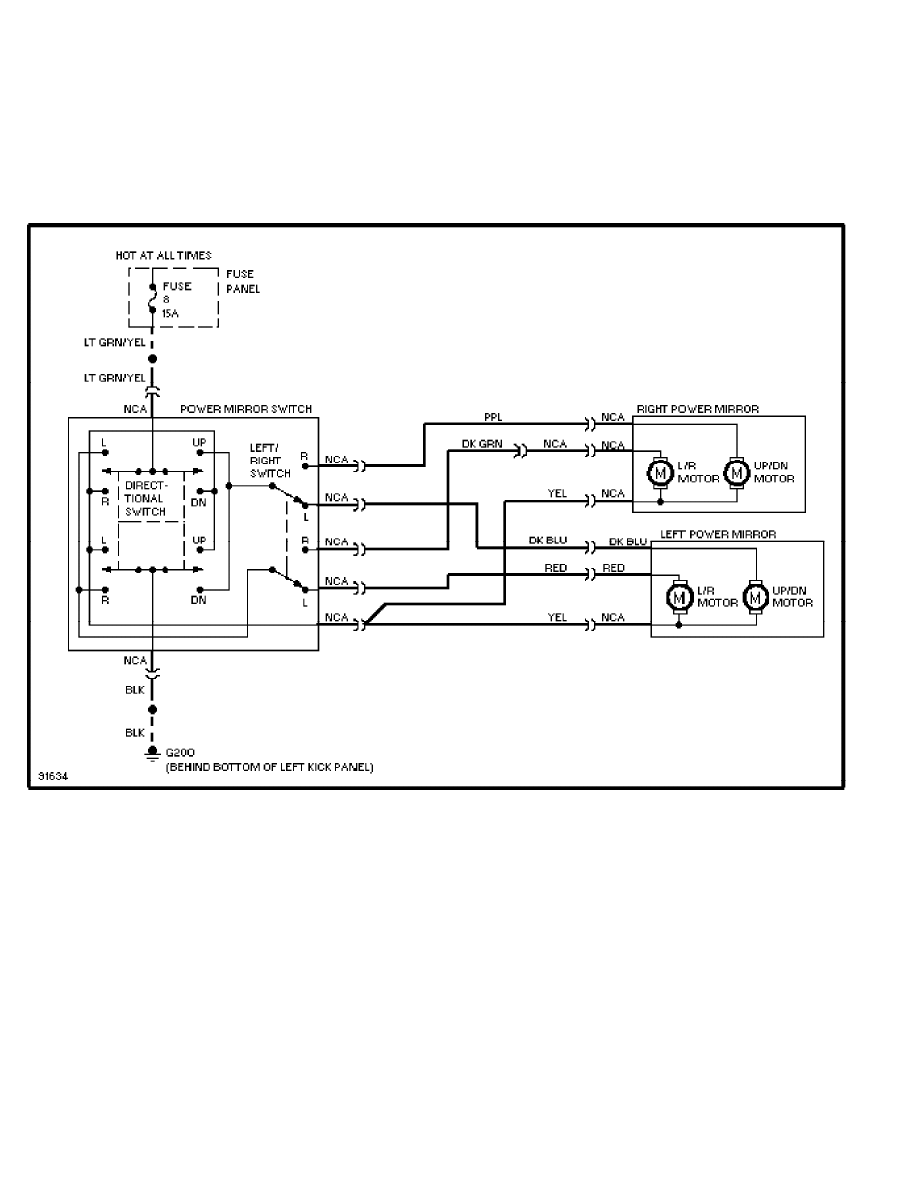

Power Mirror Circuit (p. 3)

1992 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 07:04PM

background image

SYSTEM WIRING DIAGRAMS

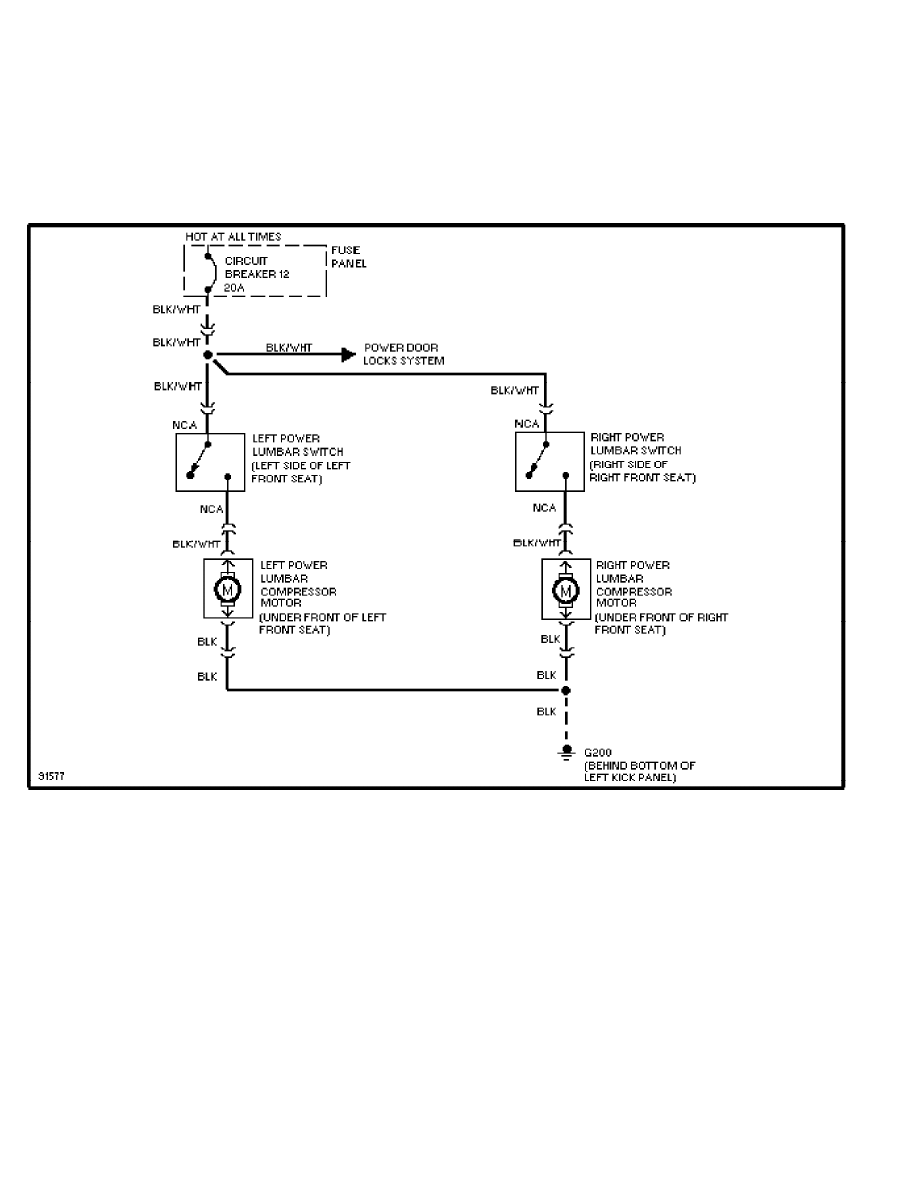

Lumbar Circuit, W/ Captain's Chairs (p. 4)

1992 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 07:04PM

background image

SYSTEM WIRING DIAGRAMS

Lumbar Circuit, W/ Cloth Bench (p. 5)

1992 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 07:04PM

background image

SYSTEM WIRING DIAGRAMS

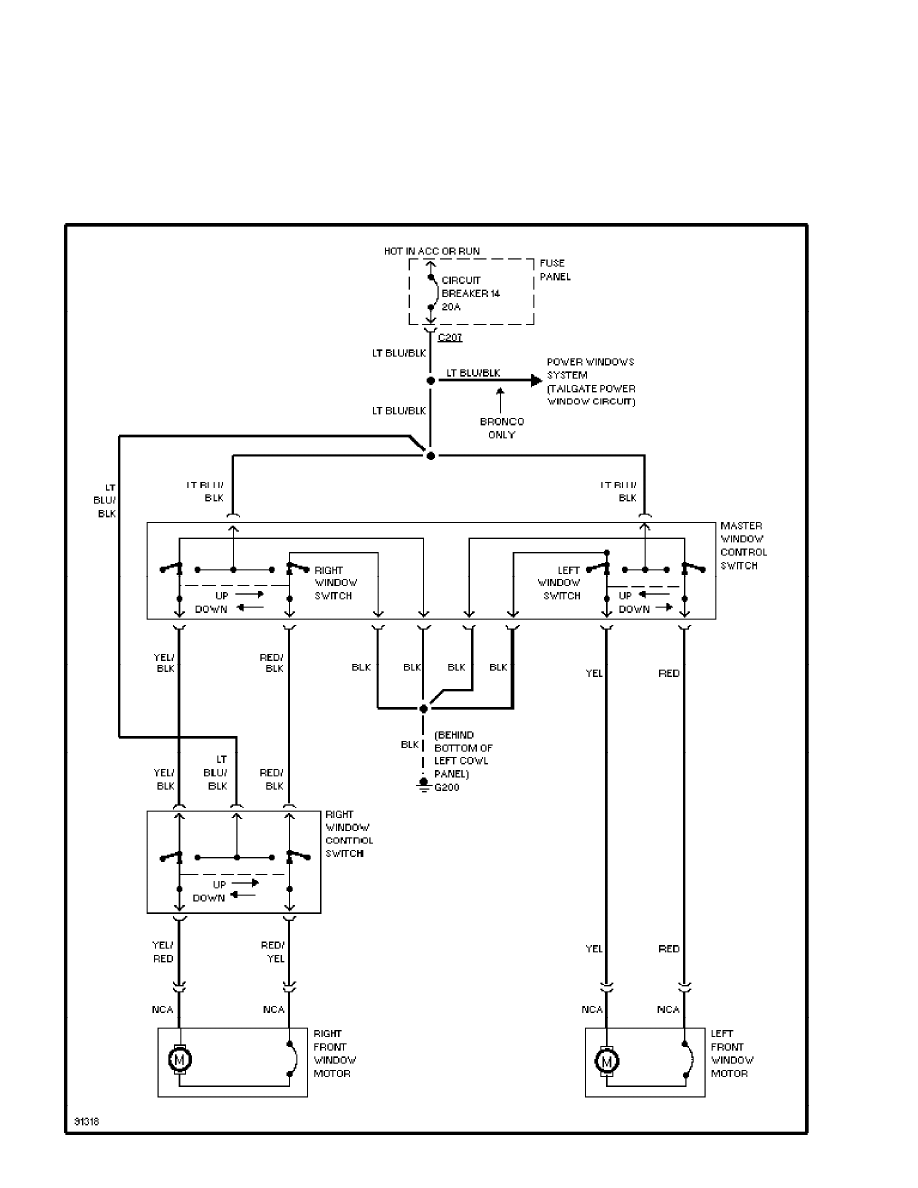

Power Windows Circuit (p. 6)

1992 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 07:04PM

background image

SYSTEM WIRING DIAGRAMS

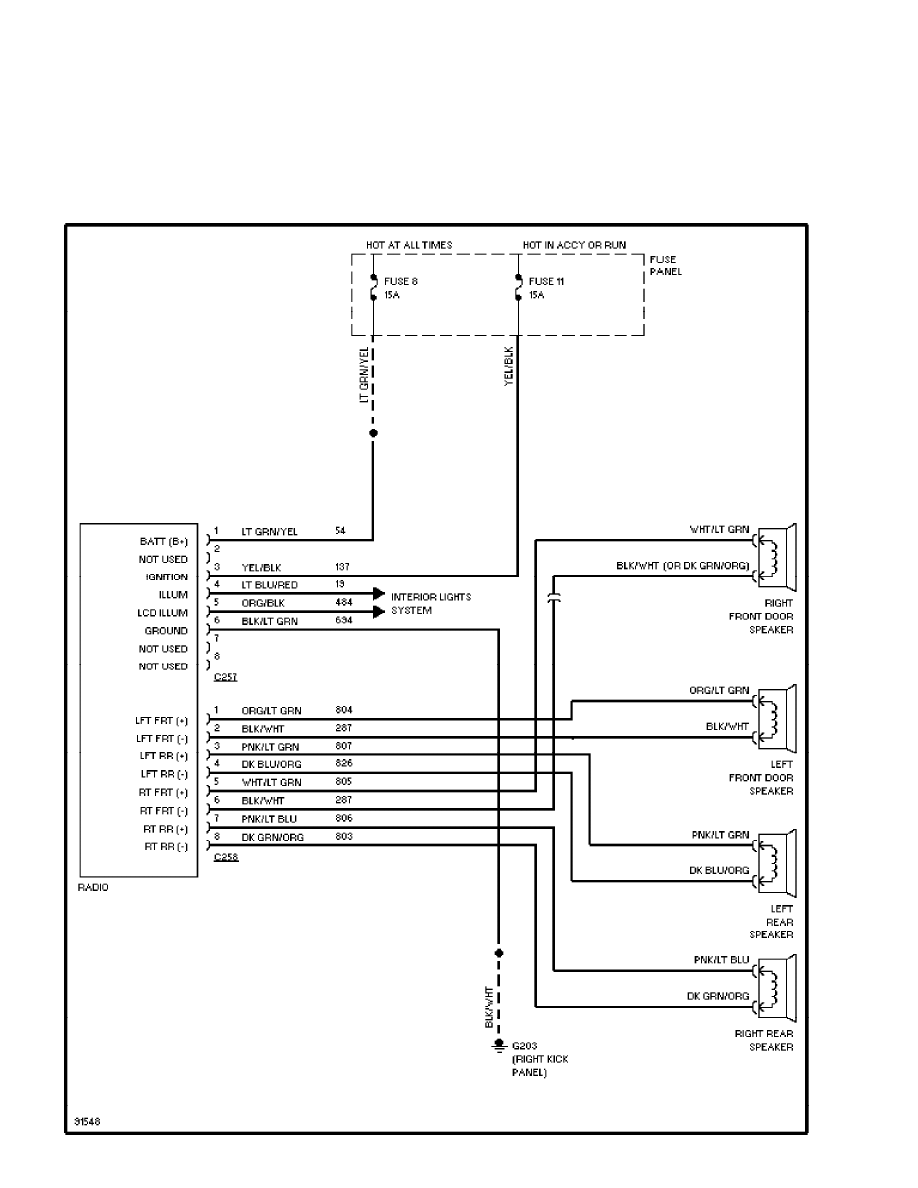

Radio Circuits (p. 7)

1992 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 07:04PM

background image

SYSTEM WIRING DIAGRAMS

4.9L, Charging Circuit (p. 8)

1992 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 07:04PM

background image

SYSTEM WIRING DIAGRAMS

4.9L, Starting Circuit (p. 9)

1992 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 07:04PM

background image

SYSTEM WIRING DIAGRAMS

5.0L, Charging Circuit (p. 10)

1992 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 07:04PM

background image

SYSTEM WIRING DIAGRAMS

5.0L, Starting Circuit (p. 11)

1992 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 07:04PM

background image

SYSTEM WIRING DIAGRAMS

5.8L, Charging Circuit (p. 12)

1992 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 07:04PM

background image

SYSTEM WIRING DIAGRAMS

5.8L, Starting Circuit (p. 13)

1992 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 07:04PM

background image

SYSTEM WIRING DIAGRAMS

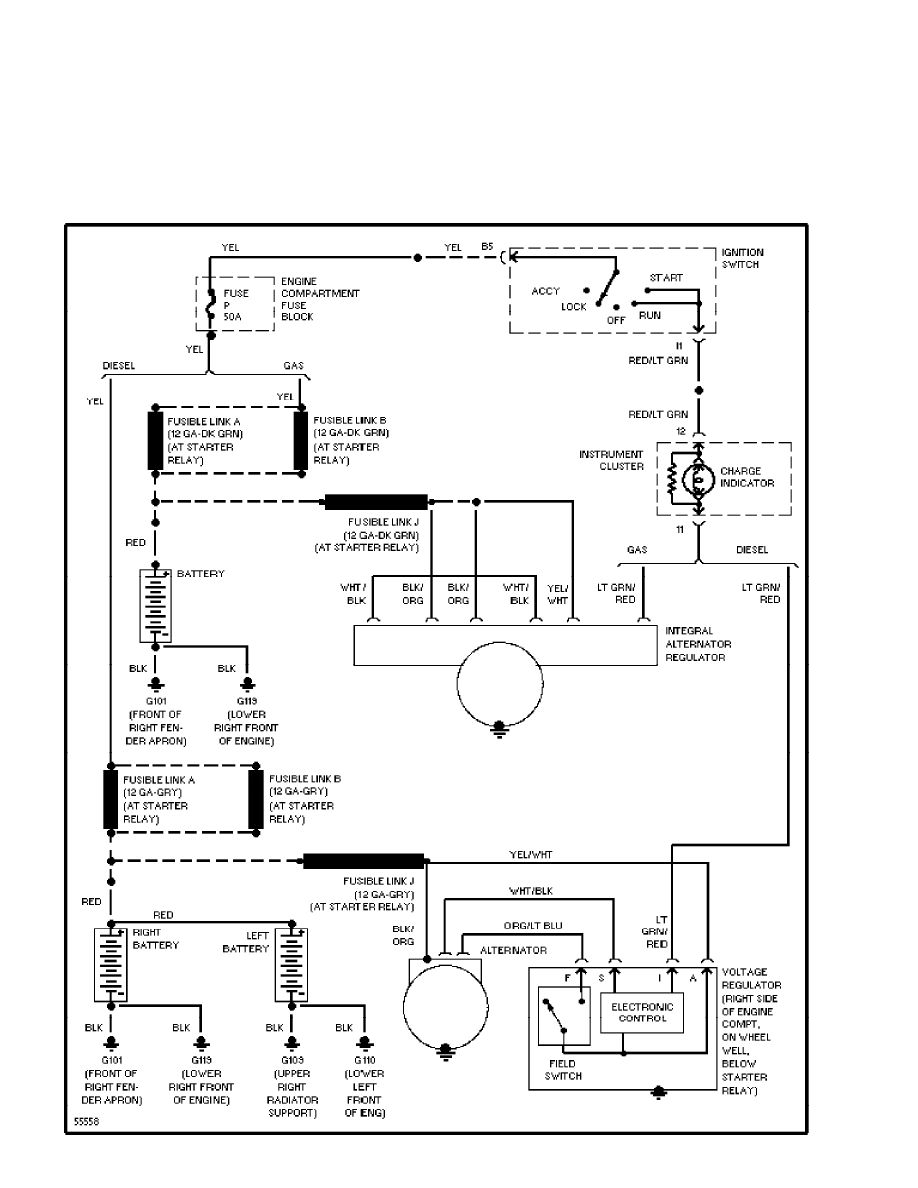

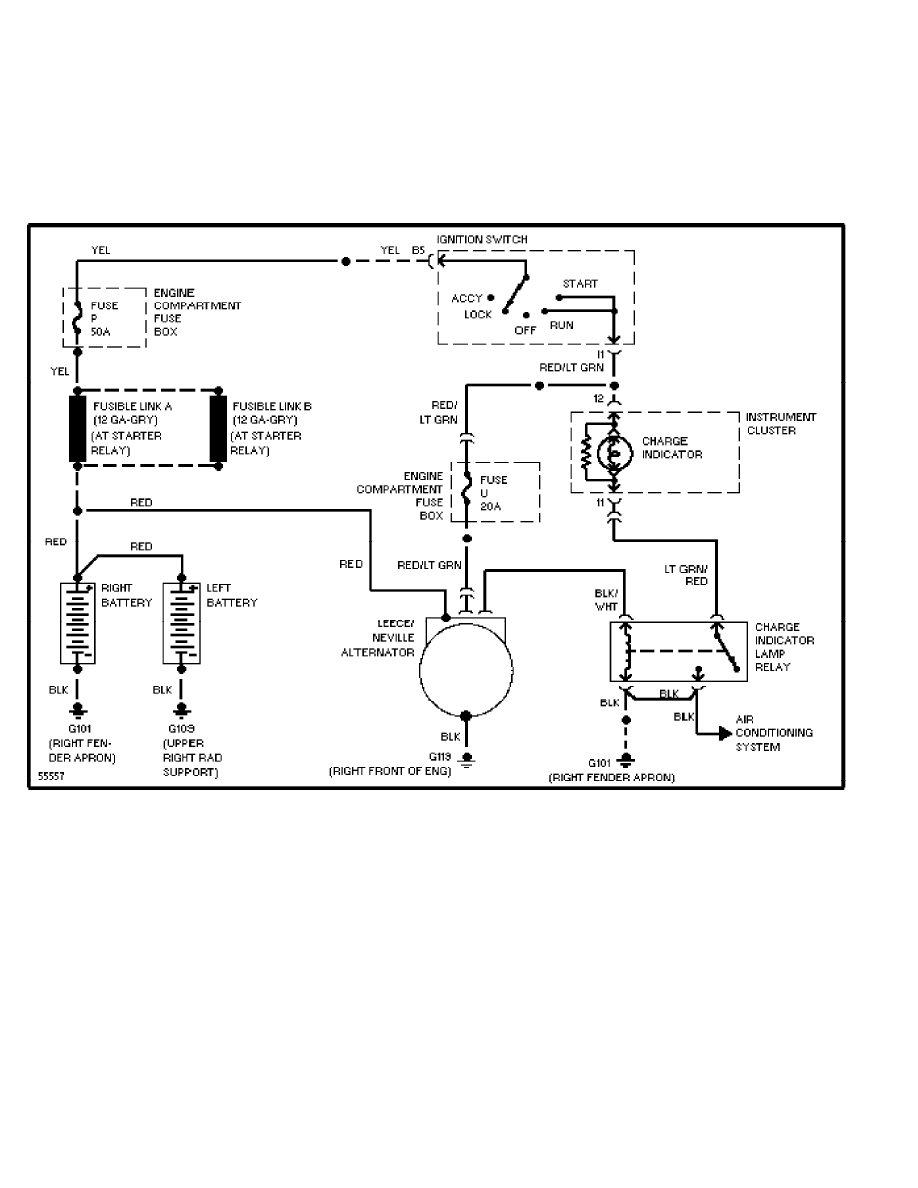

7.3L, Charging Circuit (p. 14)

1992 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 07:04PM

background image

SYSTEM WIRING DIAGRAMS

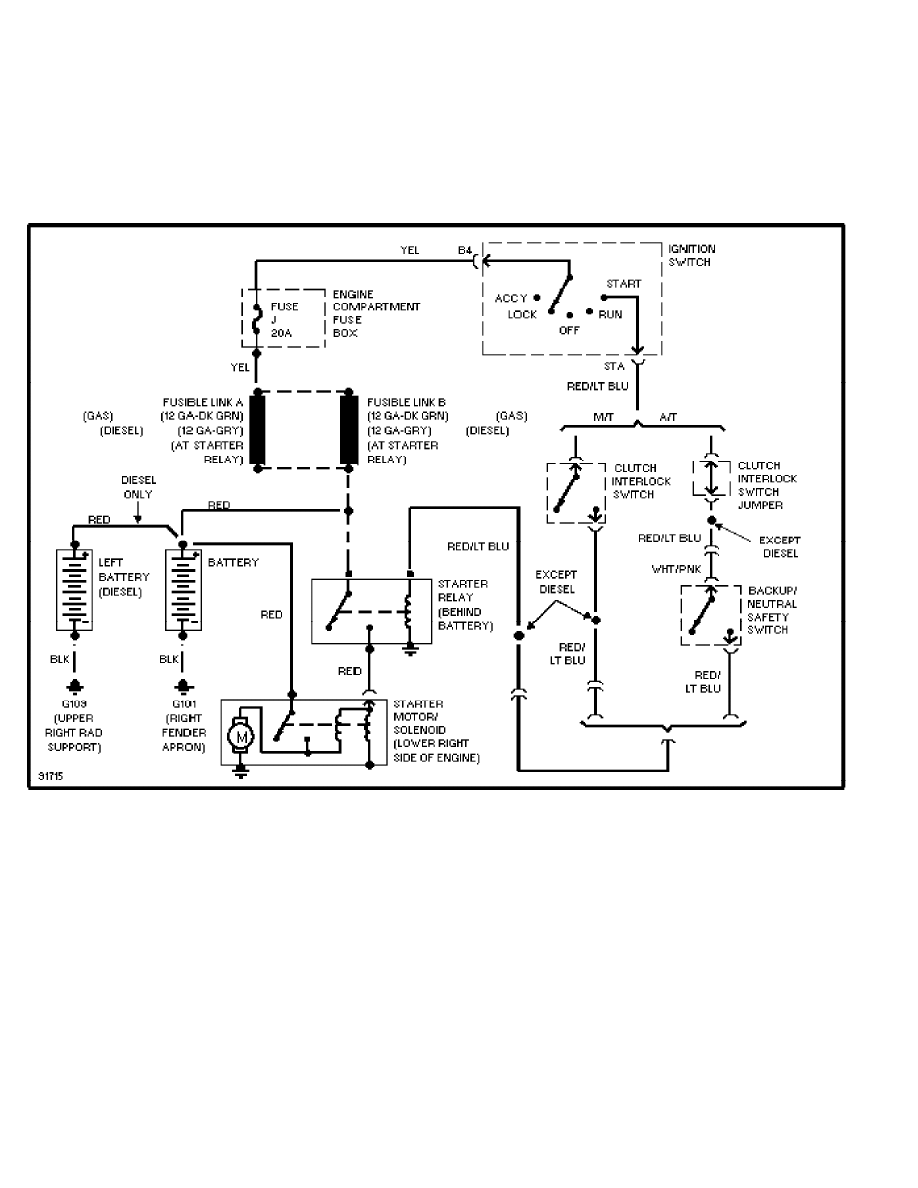

7.3L, Starting Circuit (p. 15)

1992 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 07:04PM

background image

SYSTEM WIRING DIAGRAMS

7.5L, Charging Circuit (p. 16)

1992 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 07:04PM

background image

SYSTEM WIRING DIAGRAMS

7.5L, Starting Circuit (p. 17)

1992 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 07:04PM

background image

SYSTEM WIRING DIAGRAMS

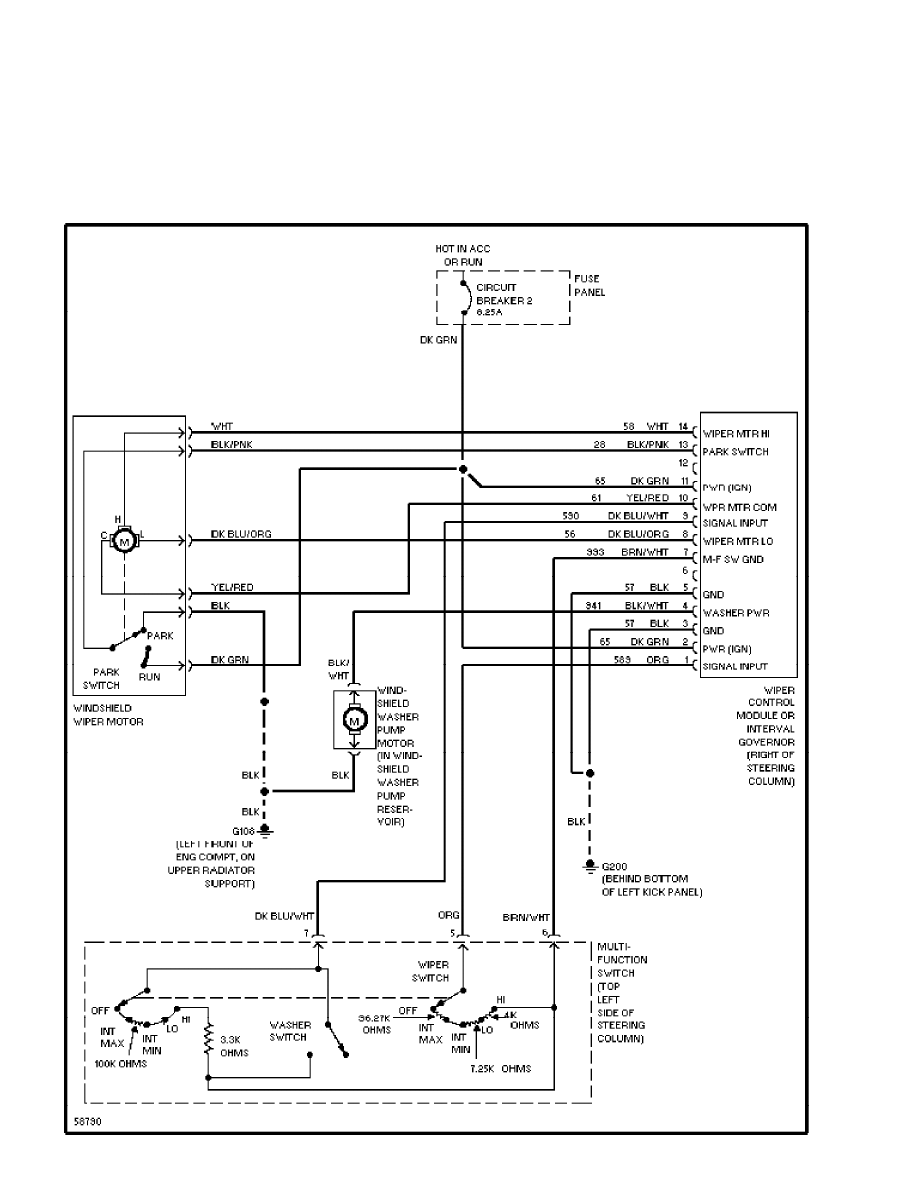

Wiper/Washer Circuit (p. 18)

1992 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 07:04PM

background image

WIRING DIAGRAMS

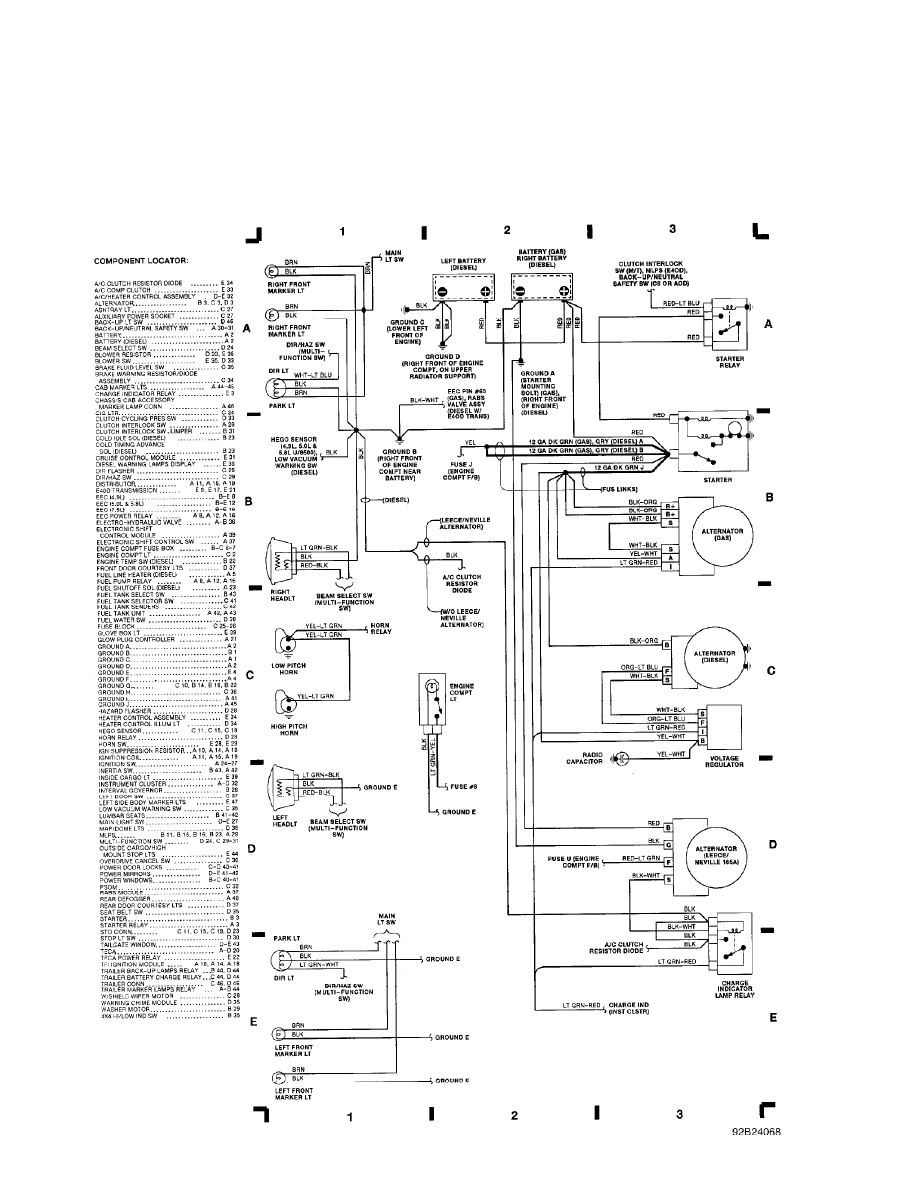

Fig. 1: Engine Compartment & Headlights (Grids 1-3)

1992 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 07:05PM

background image

WIRING DIAGRAMS

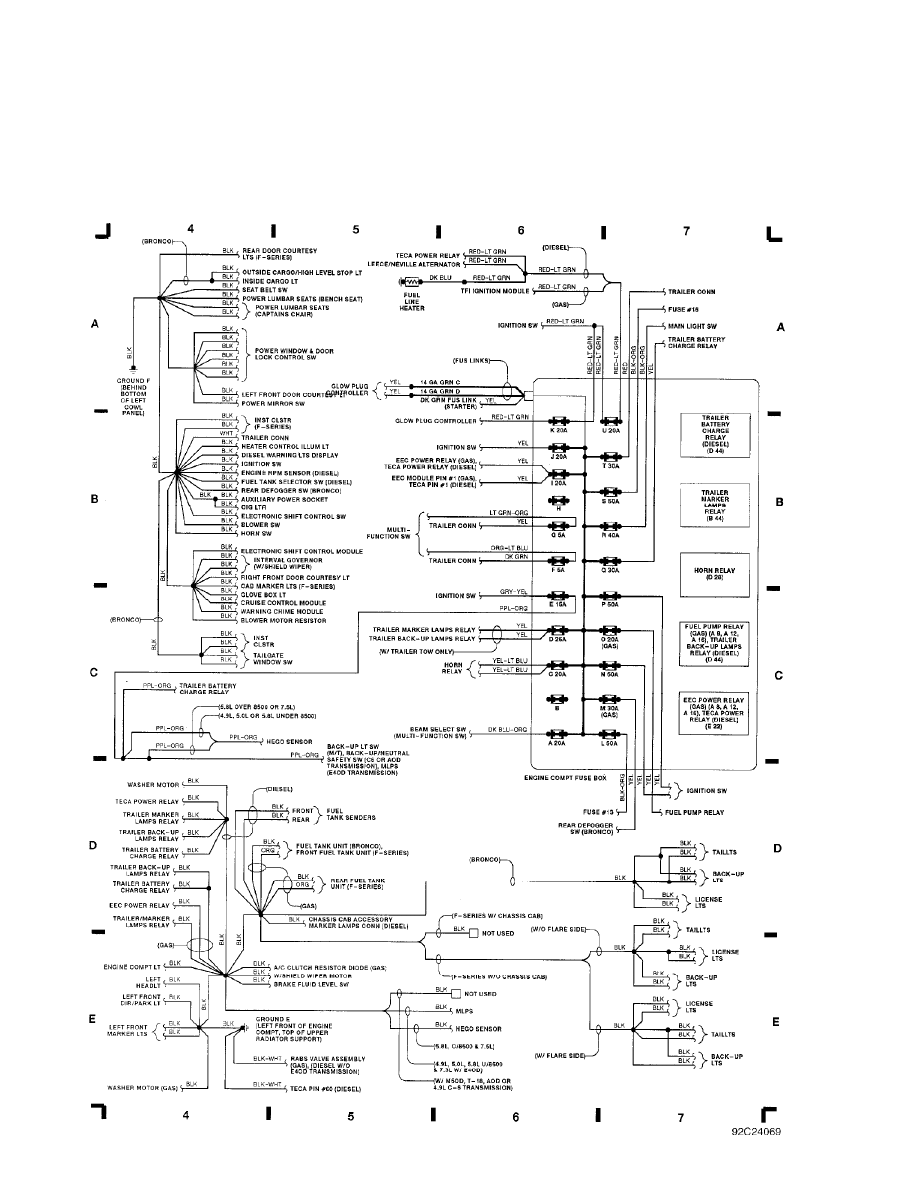

Fig. 2: Engine Compartment Fuse Box (Grids 4-7) (p. 2)

1992 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 07:05PM

background image

WIRING DIAGRAMS

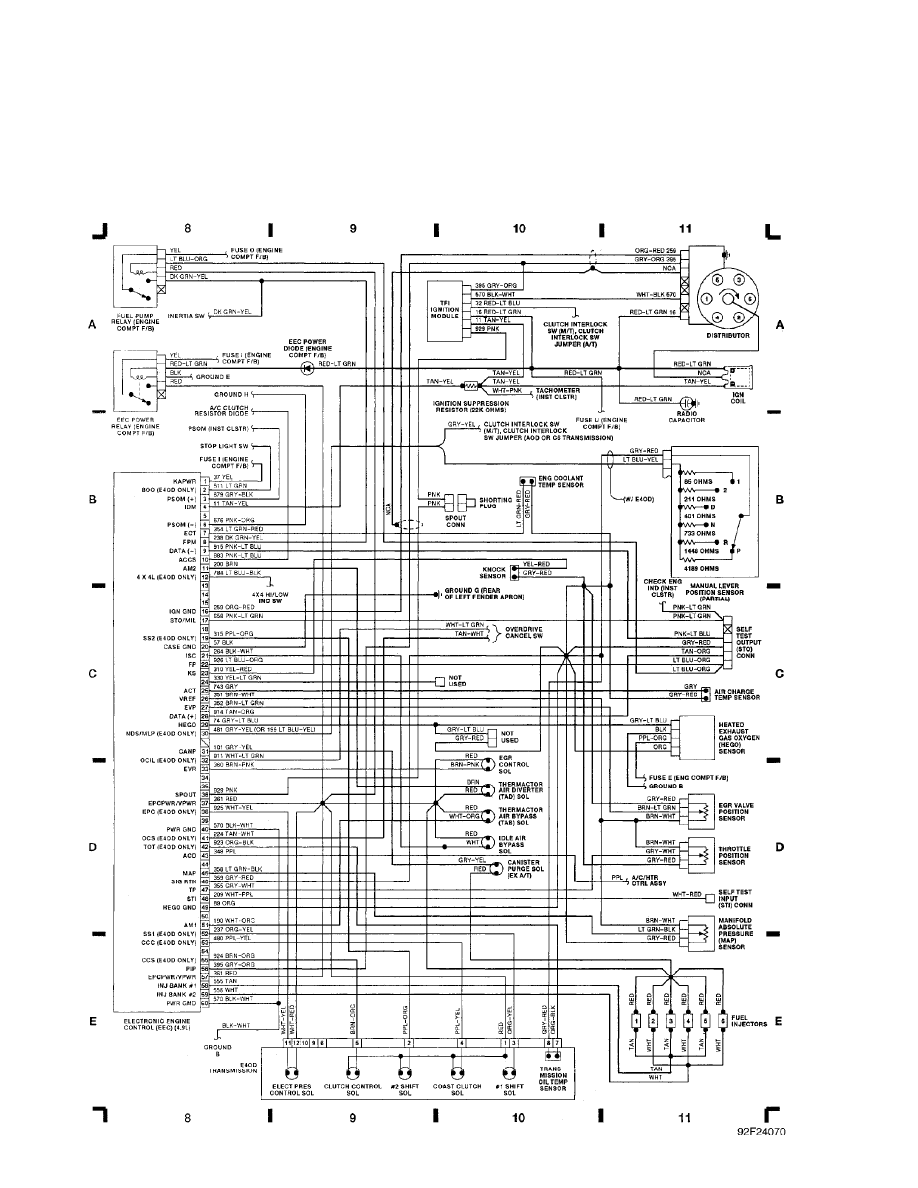

Fig. 3: Electronic Engine Control (EEC) (4.9L) (Grids 8-11) (p. 3)

1992 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 07:05PM

background image

WIRING DIAGRAMS

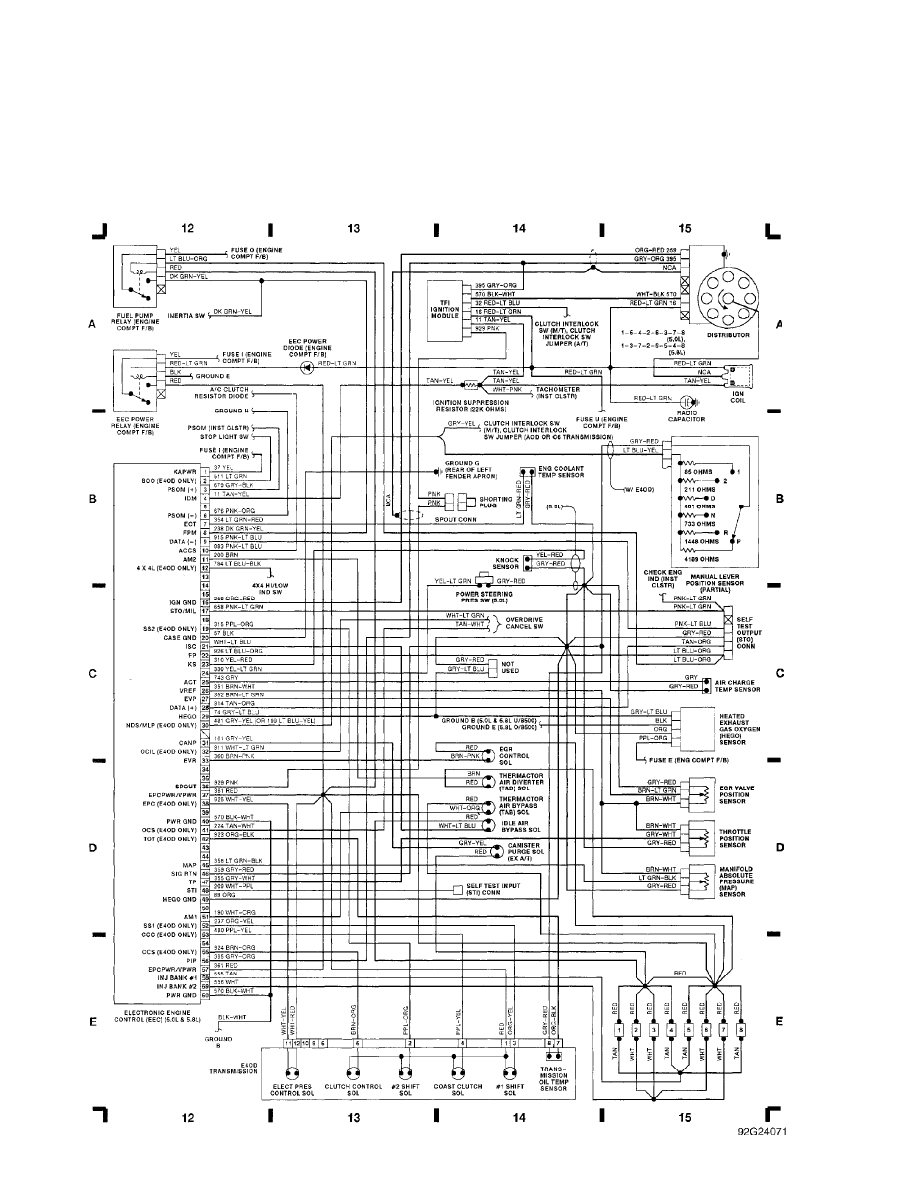

Fig. 4: Electronic Engine Control (EEC) (5.0L 5.8L) (Grids 12-15) (p. 4)

1992 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 07:05PM

background image

WIRING DIAGRAMS

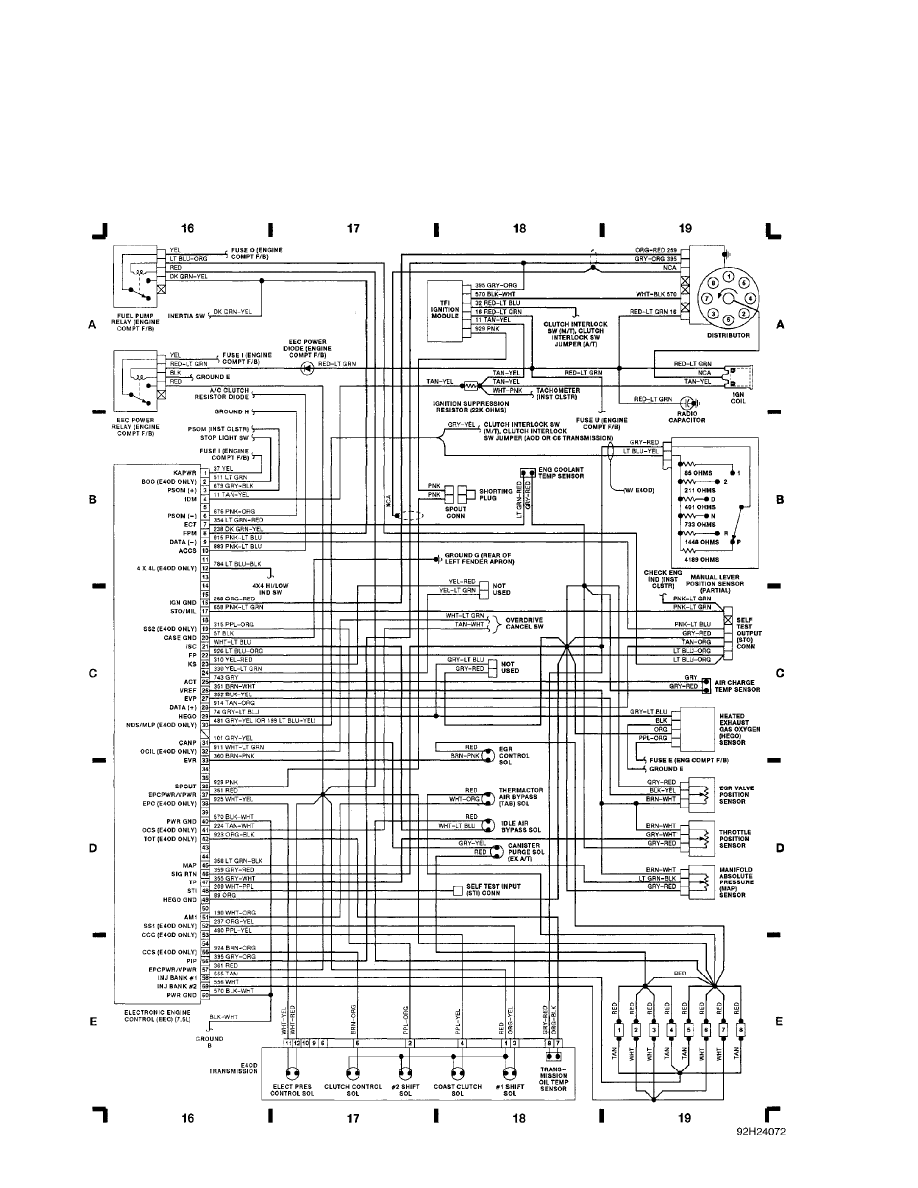

Fig. 5: Electronic Engine Control (EEC) (7.5L) (Grids 16-19) (p. 5)

1992 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 07:05PM

background image

WIRING DIAGRAMS

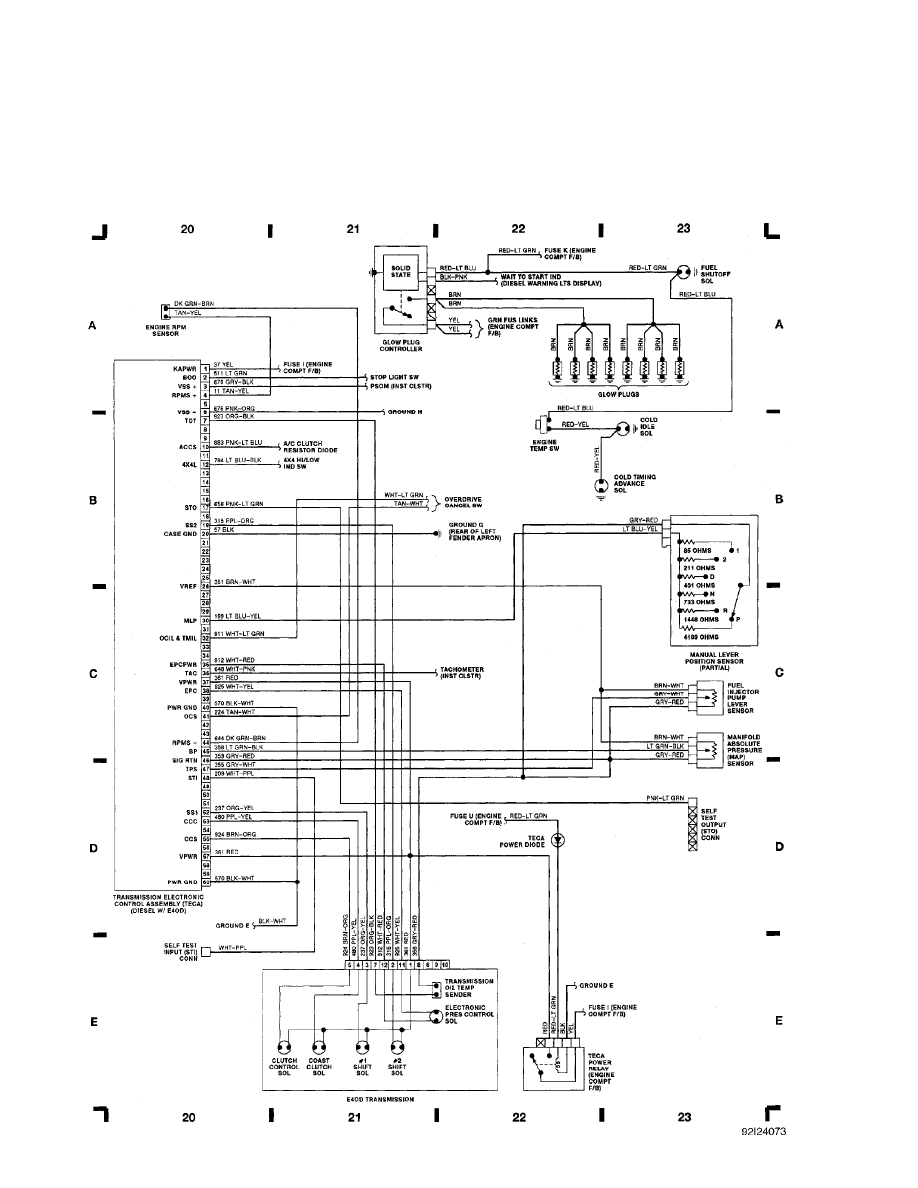

Fig. 6: Control Assembly TECA (Diesel W/ E4OD) (Grids 20-23) (p. 6)

1992 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 07:05PM

background image

WIRING DIAGRAMS

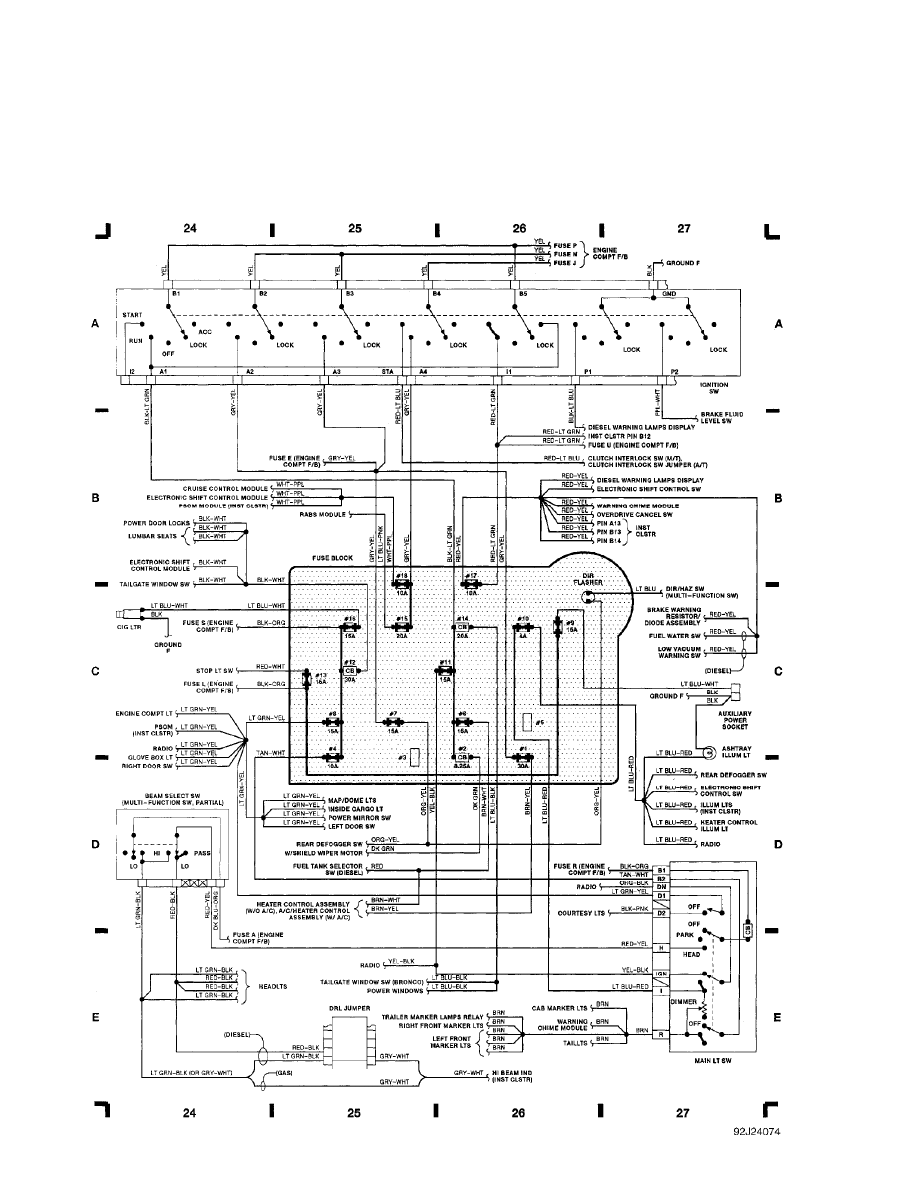

Fig. 7: Fuse Block & Ignition Switch (Grids 24-27) (p. 7)

1992 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 07:05PM

background image

WIRING DIAGRAMS

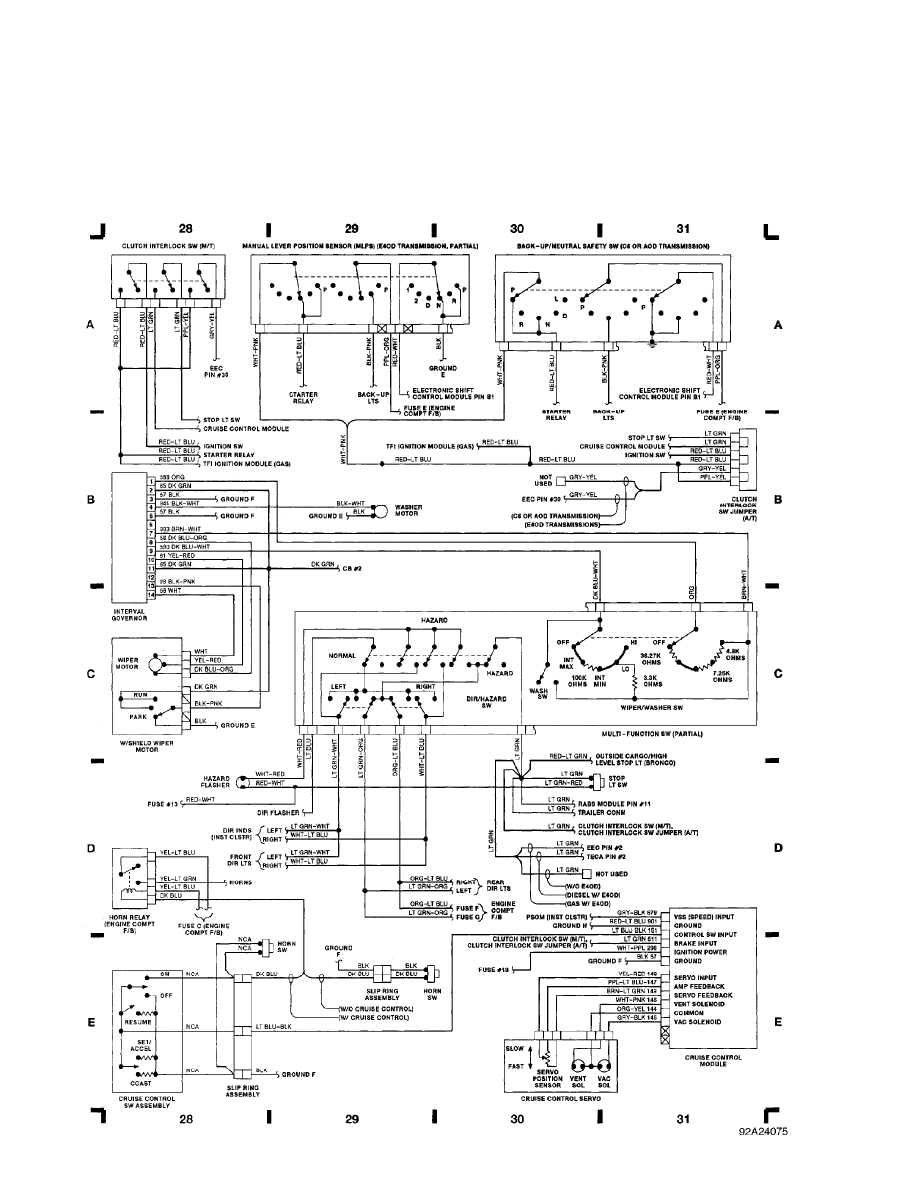

Fig. 8: Clutch Interlock, Cruise Control/Wiper (Grids 28-31) (p. 8)

1992 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 07:05PM

background image

WIRING DIAGRAMS

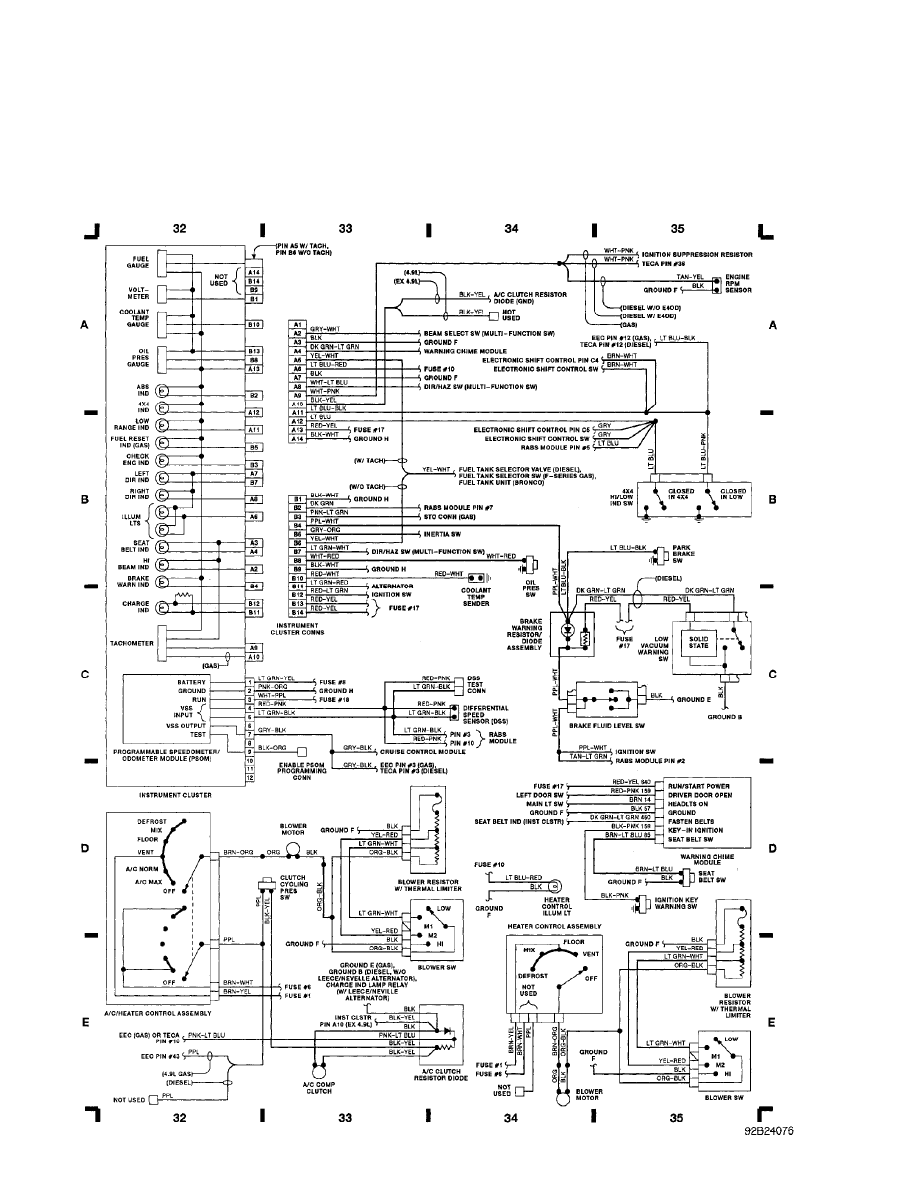

Fig. 9: Instrument Cluster & A/C Heater Function (Grids 32-35) (p. 9)

1992 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 07:05PM

background image

WIRING DIAGRAMS

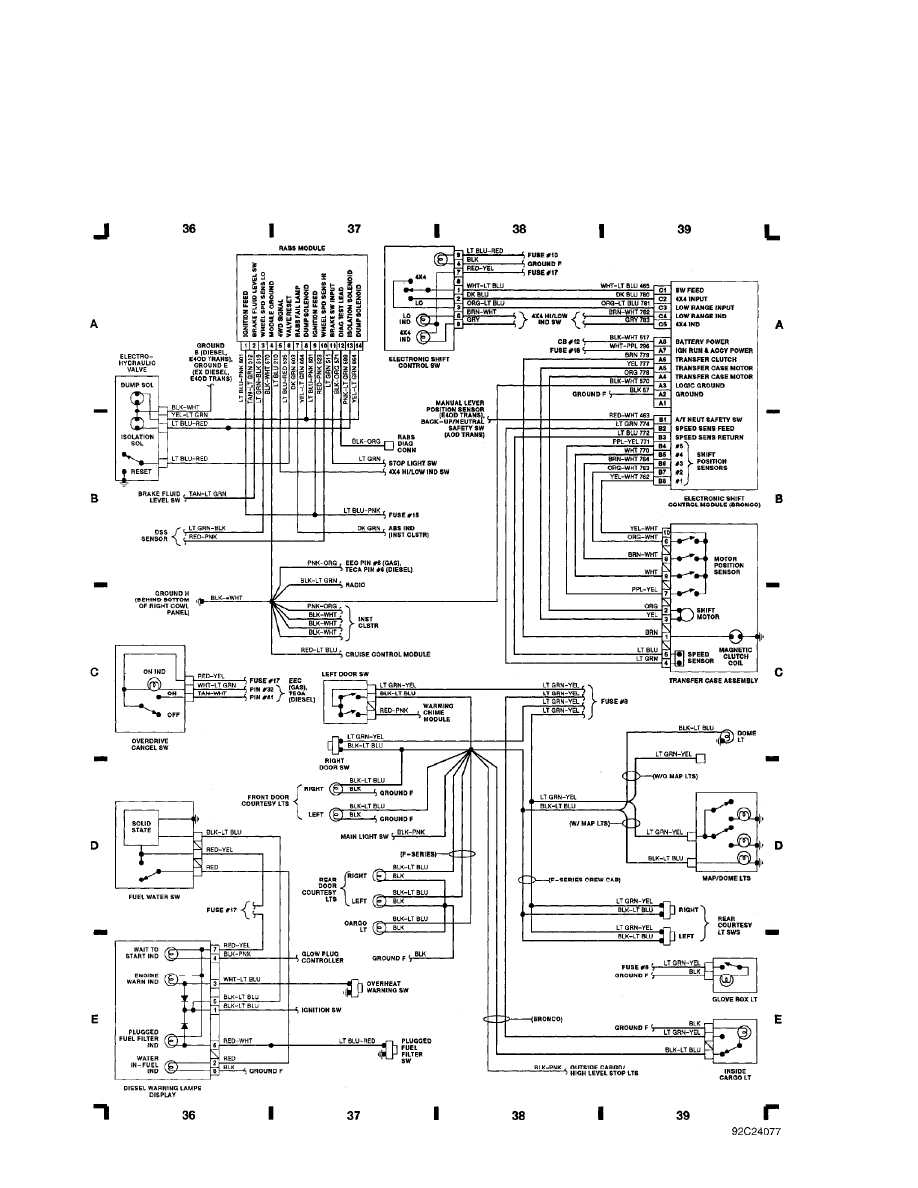

Fig. 10: Electronic Shift Control & Passenger Compt. (Grids 36-39) (p. 10)

1992 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 07:05PM

background image

WIRING DIAGRAMS

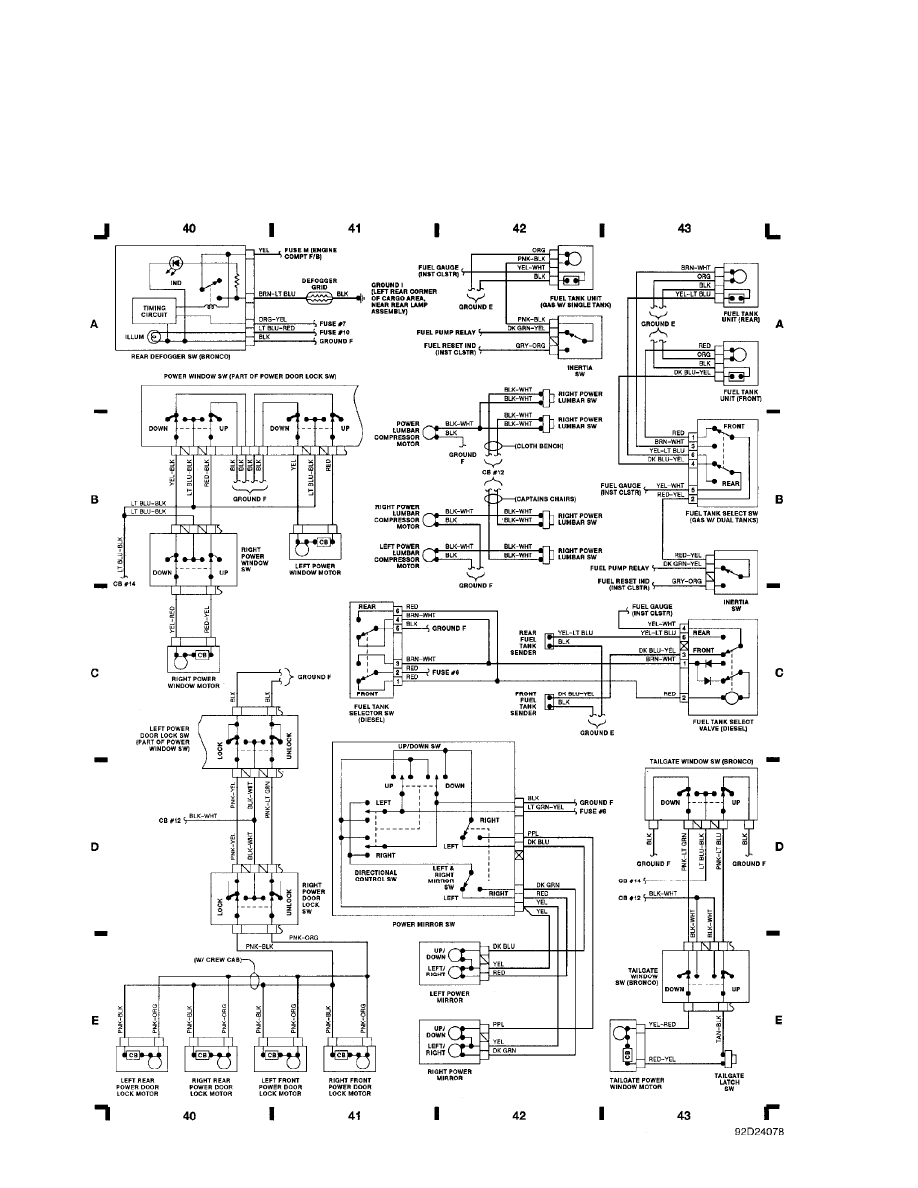

Fig. 11: Power Window/Door/Mirror (Grids 40-43) (p. 11)

1992 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 07:05PM

background image

WIRING DIAGRAMS

Fig. 12: Passenger Compartment & Taillights (Grids 44-47) (p. 12)

1992 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 07:05PM
