FORD F PICKUP 1985

background image

SYSTEM WIRING DIAGRAMS

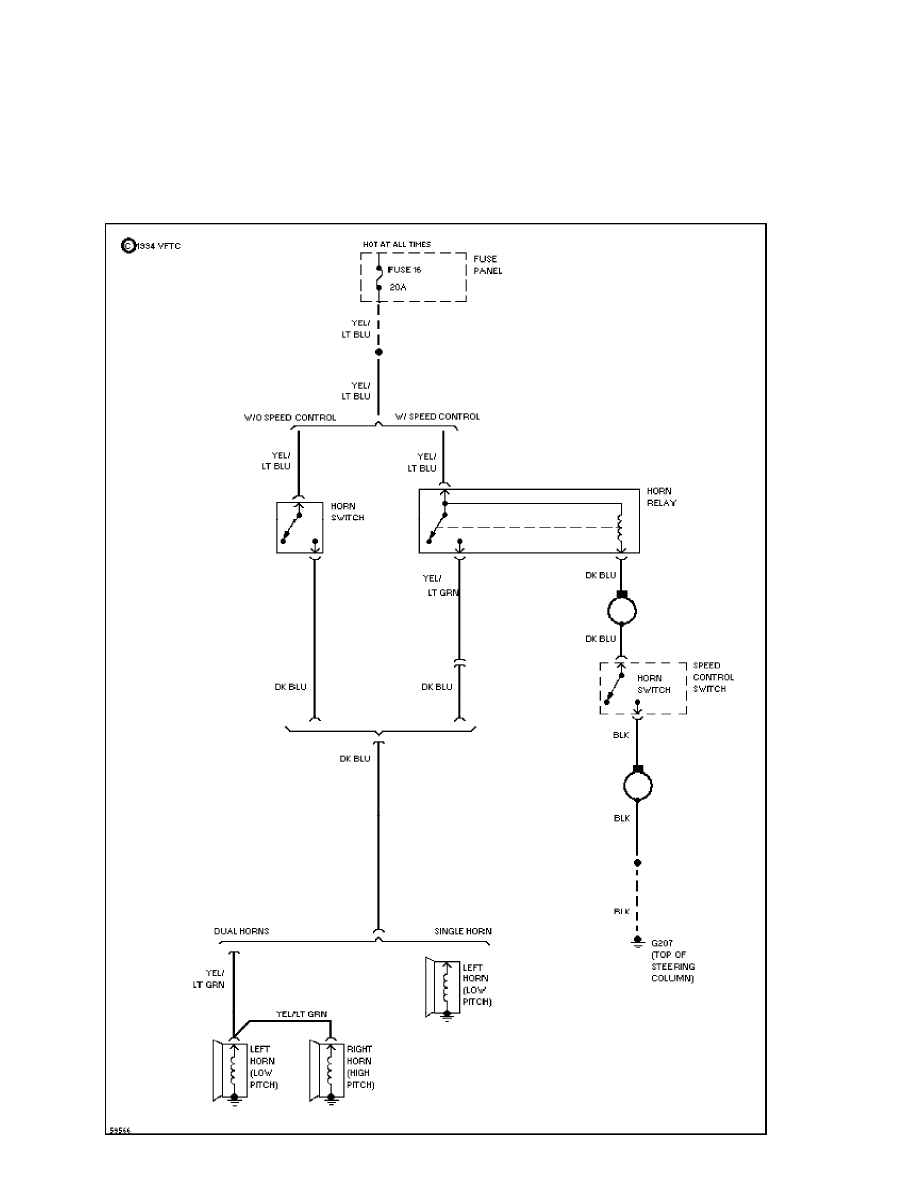

Horn Circuit

1985 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:55PM

background image

SYSTEM WIRING DIAGRAMS

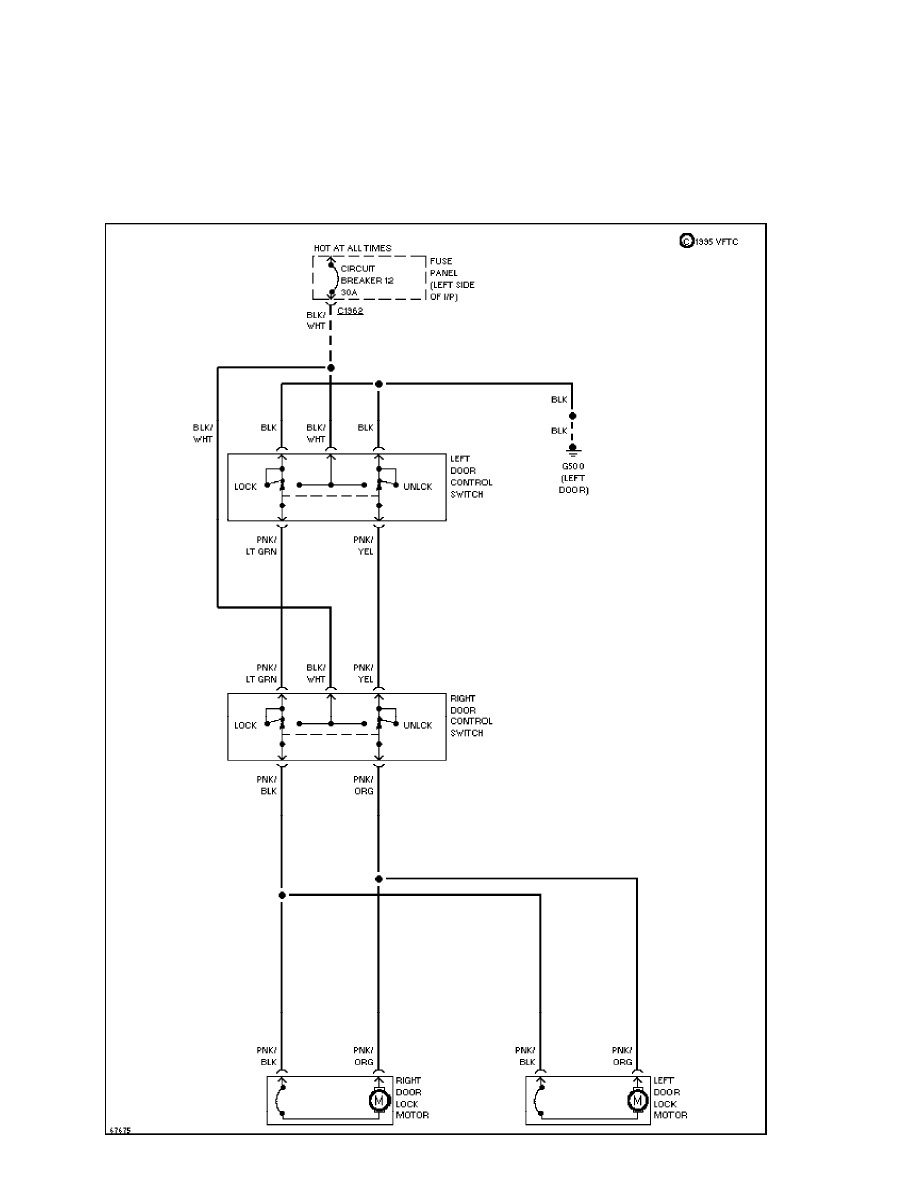

Power Door Lock Circuit (p. 2)

1985 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:55PM

background image

SYSTEM WIRING DIAGRAMS

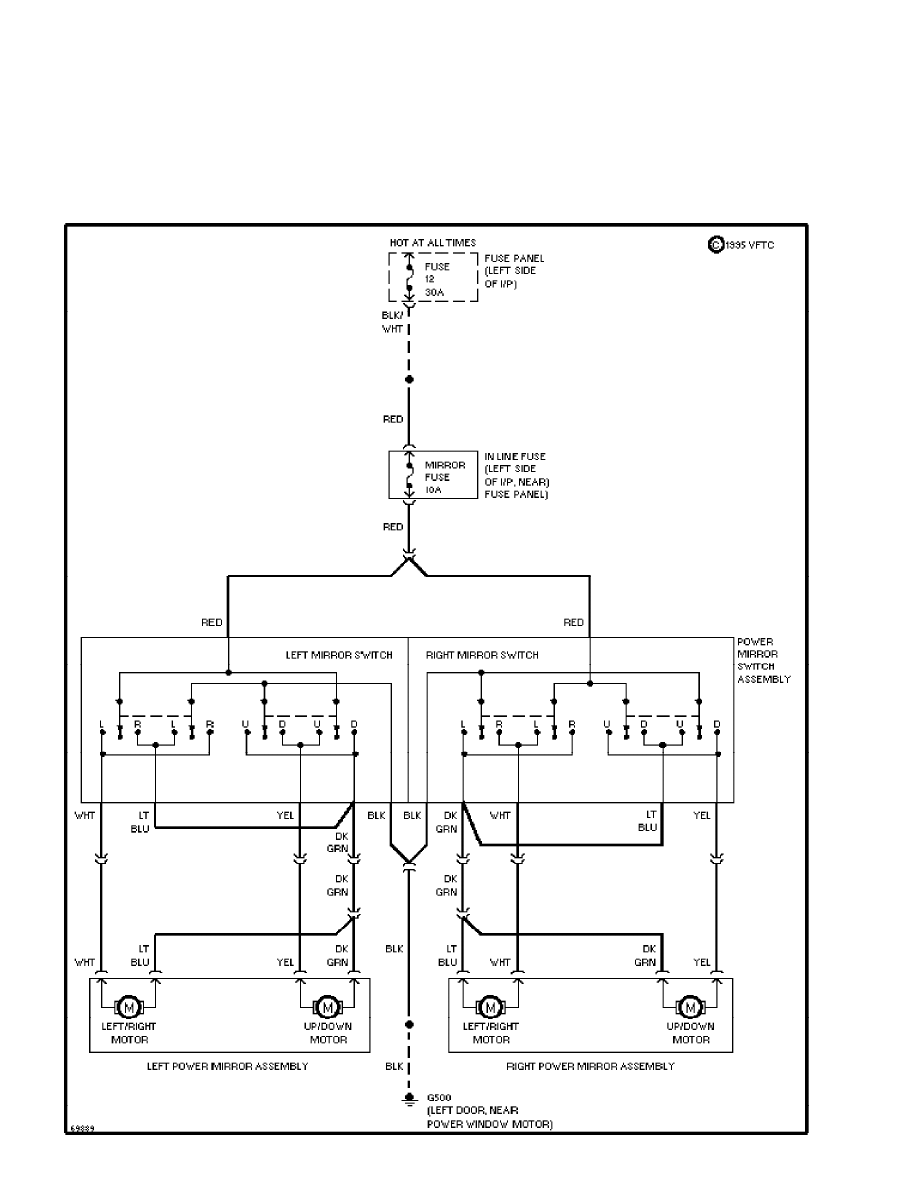

Power Mirror Circuit (p. 3)

1985 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:55PM

background image

SYSTEM WIRING DIAGRAMS

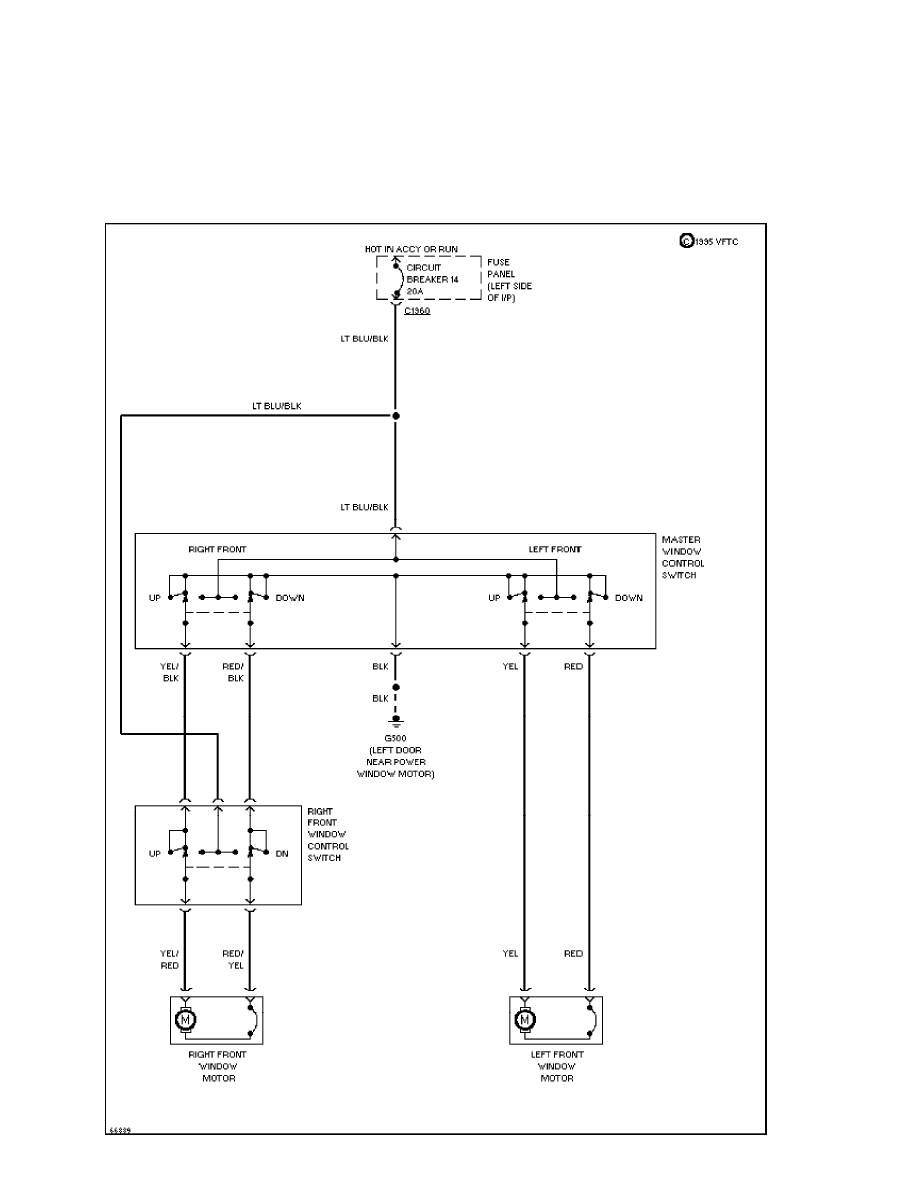

Power Windows Circuit (p. 4)

1985 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:55PM

background image

SYSTEM WIRING DIAGRAMS

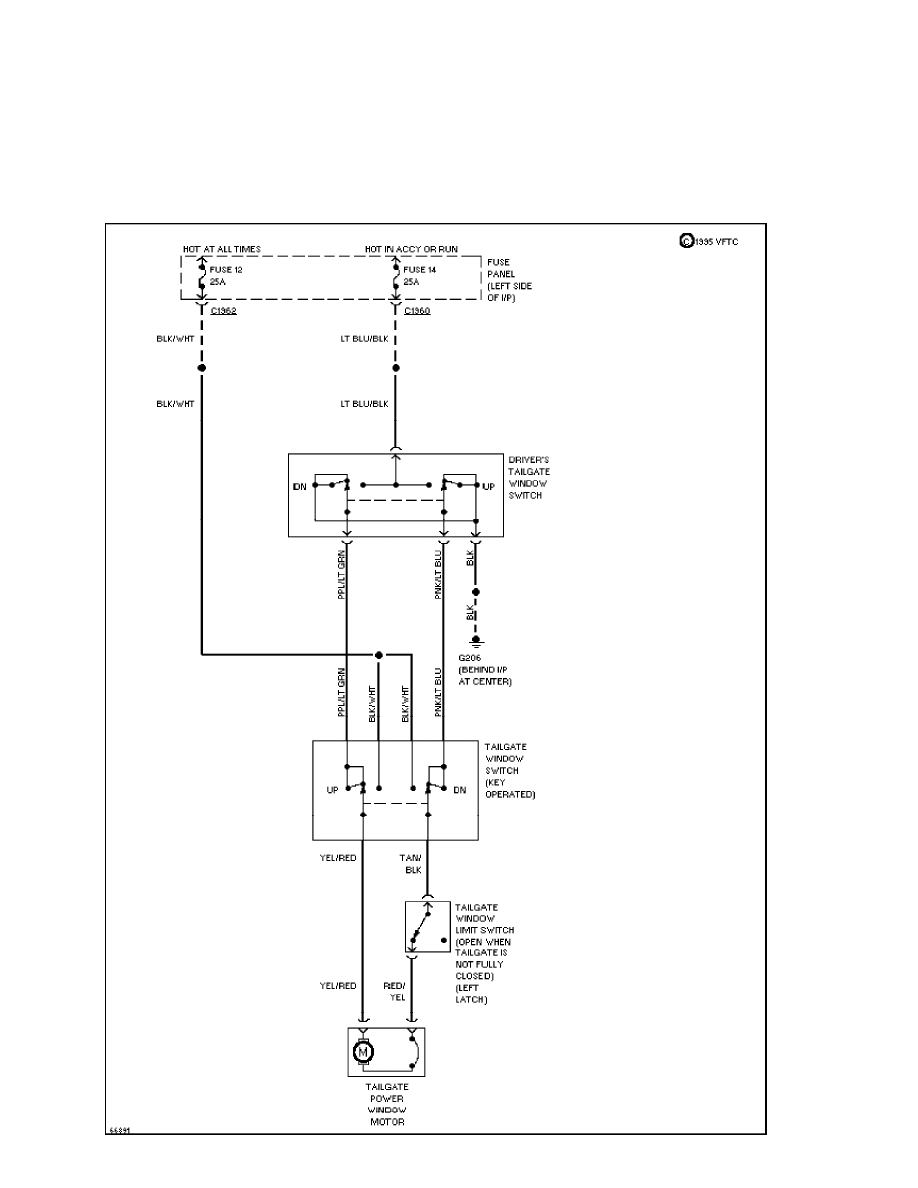

Tailgate Power Window Circuit, Bronco Only (p. 5)

1985 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:55PM

background image

SYSTEM WIRING DIAGRAMS

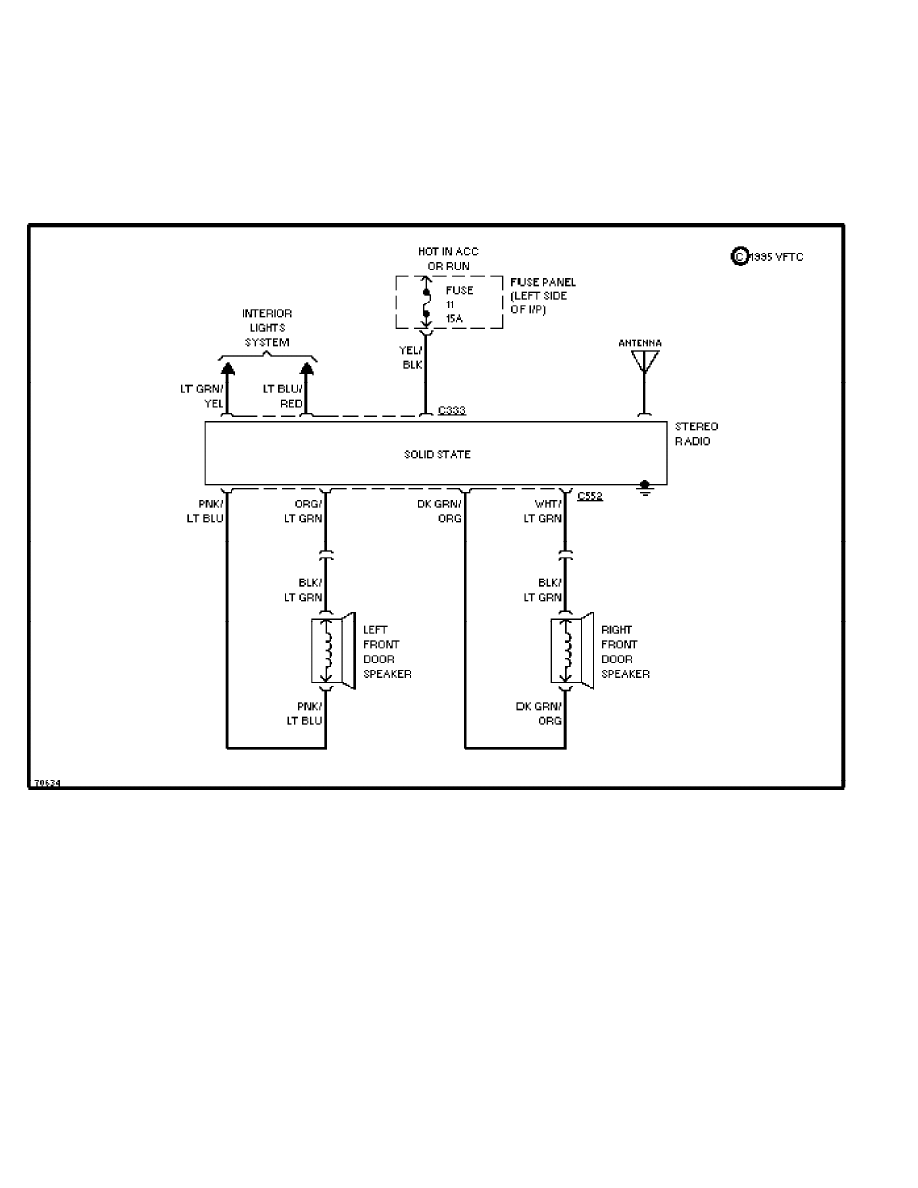

Electronic Radio Circuit, Front Speakers Only (p. 6)

1985 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:55PM

background image

SYSTEM WIRING DIAGRAMS

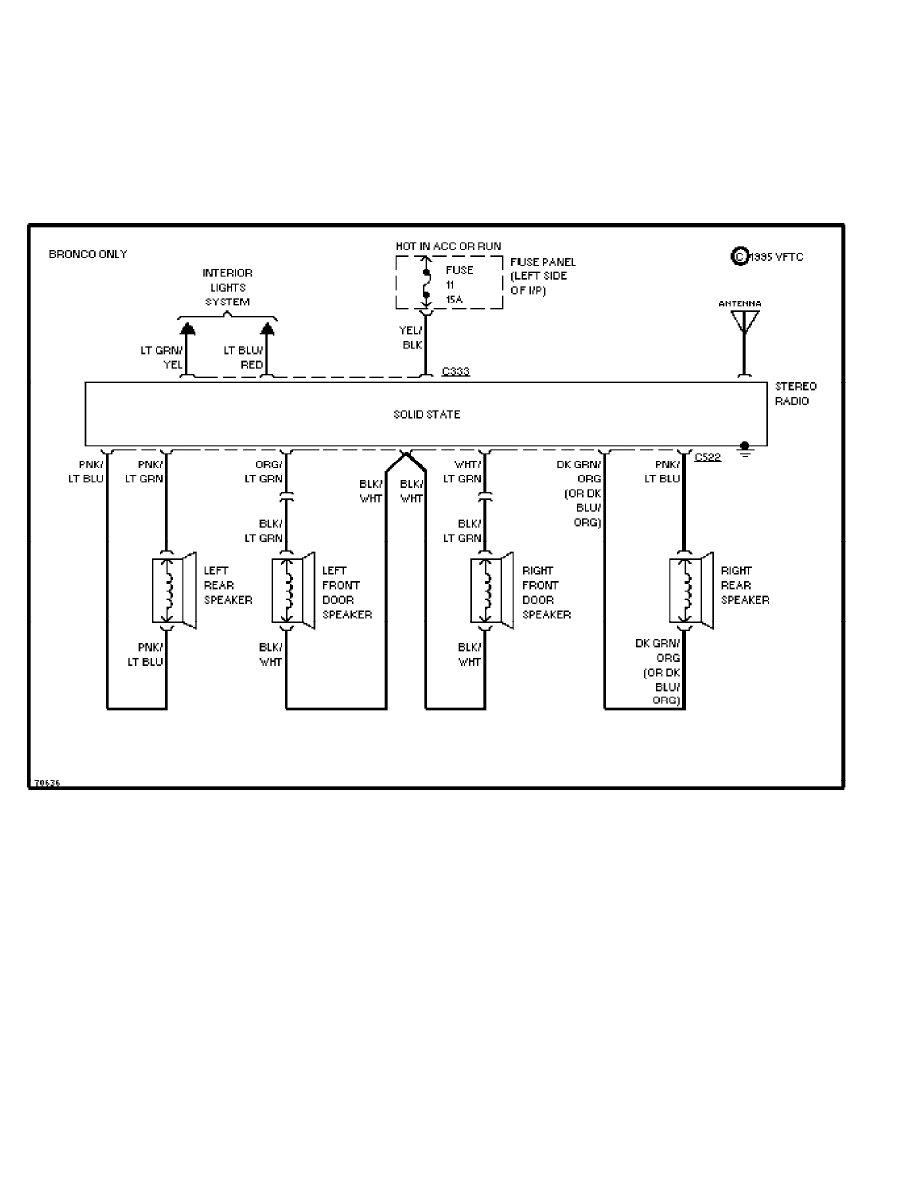

Electronic Radio Circuit, Front and Rear Speakers (p. 7)

1985 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:55PM

background image

SYSTEM WIRING DIAGRAMS

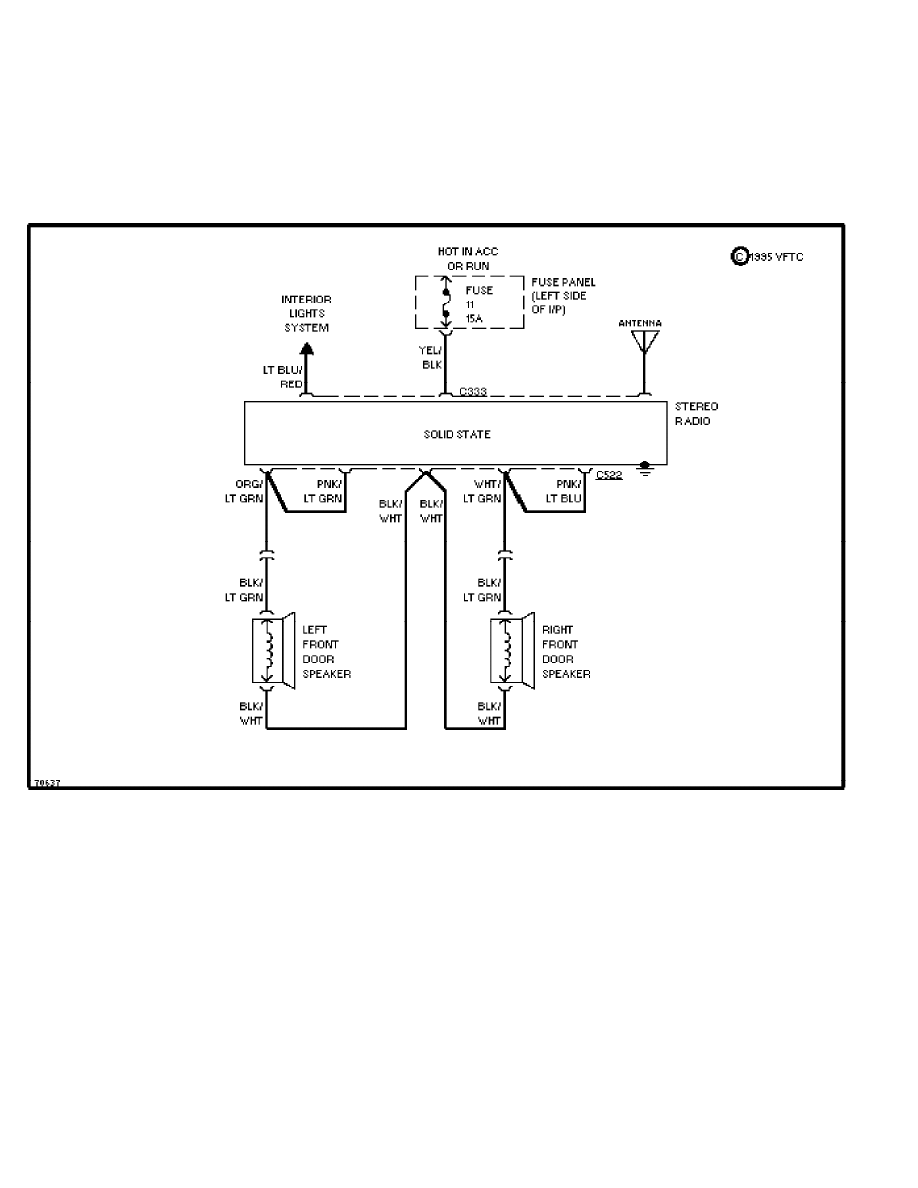

Stereo Radio Circuit, Front Speakers Only (p. 8)

1985 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:55PM

background image

SYSTEM WIRING DIAGRAMS

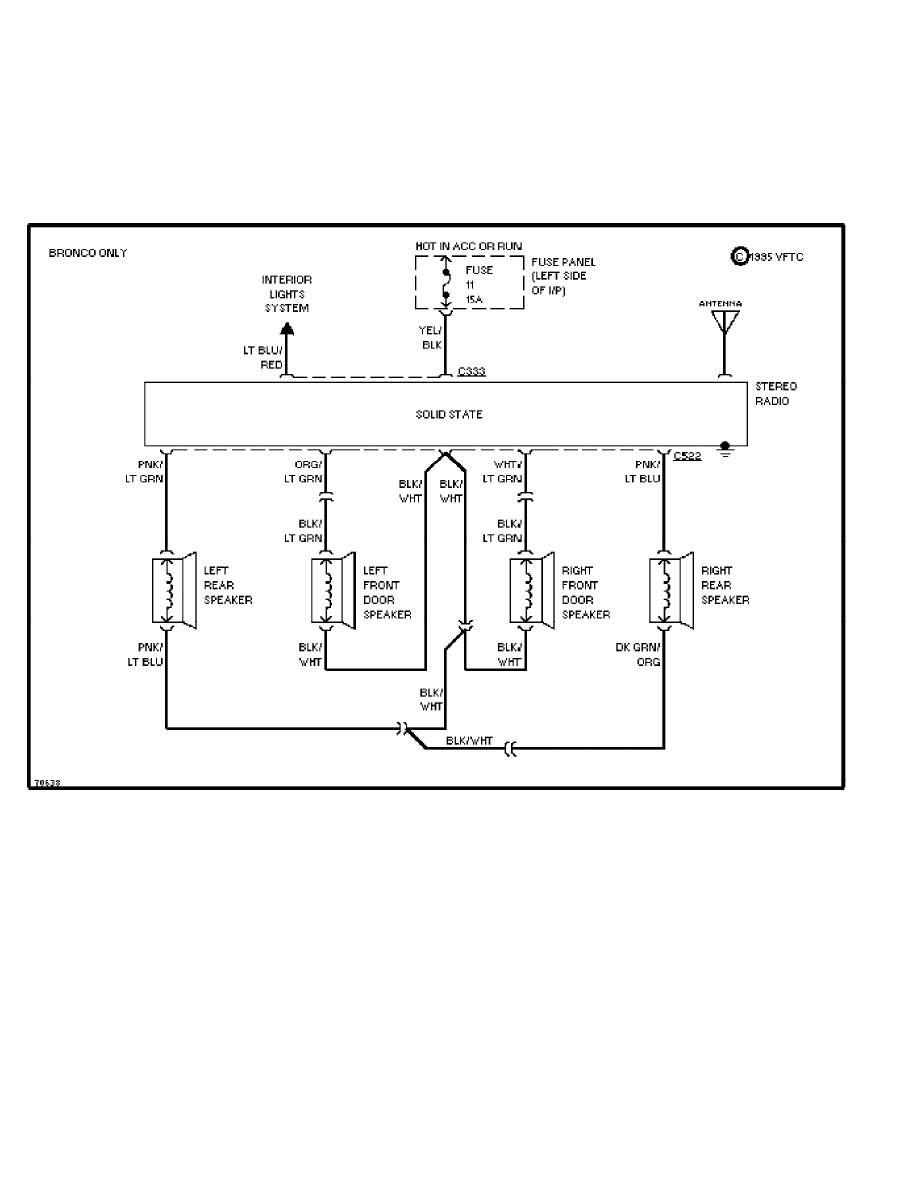

Stereo Radio Circuit, Front and Rear Speakers (p. 9)

1985 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:55PM

background image

SYSTEM WIRING DIAGRAMS

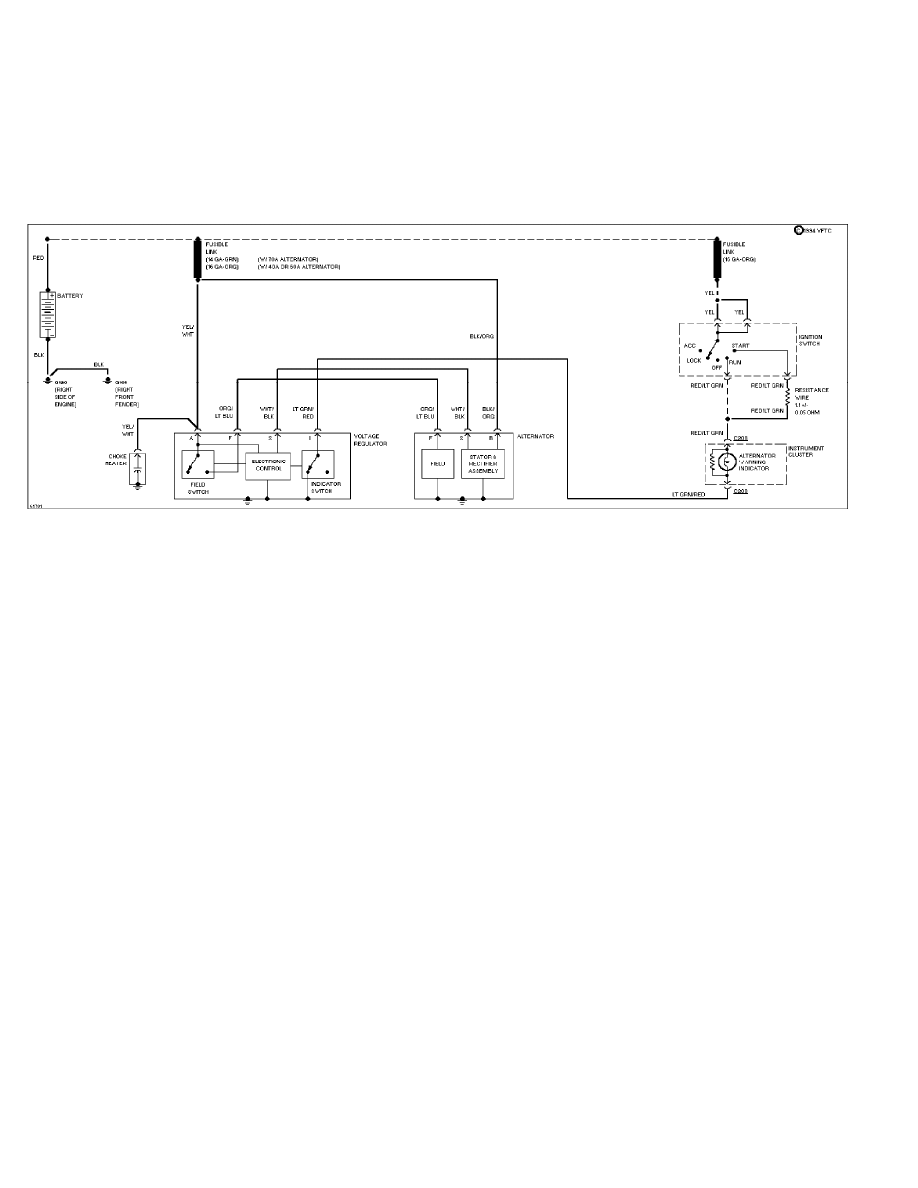

4.9L, Charging Circuit, W/ Alternator Warning Indicator (p. 10)

1985 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:55PM

background image

SYSTEM WIRING DIAGRAMS

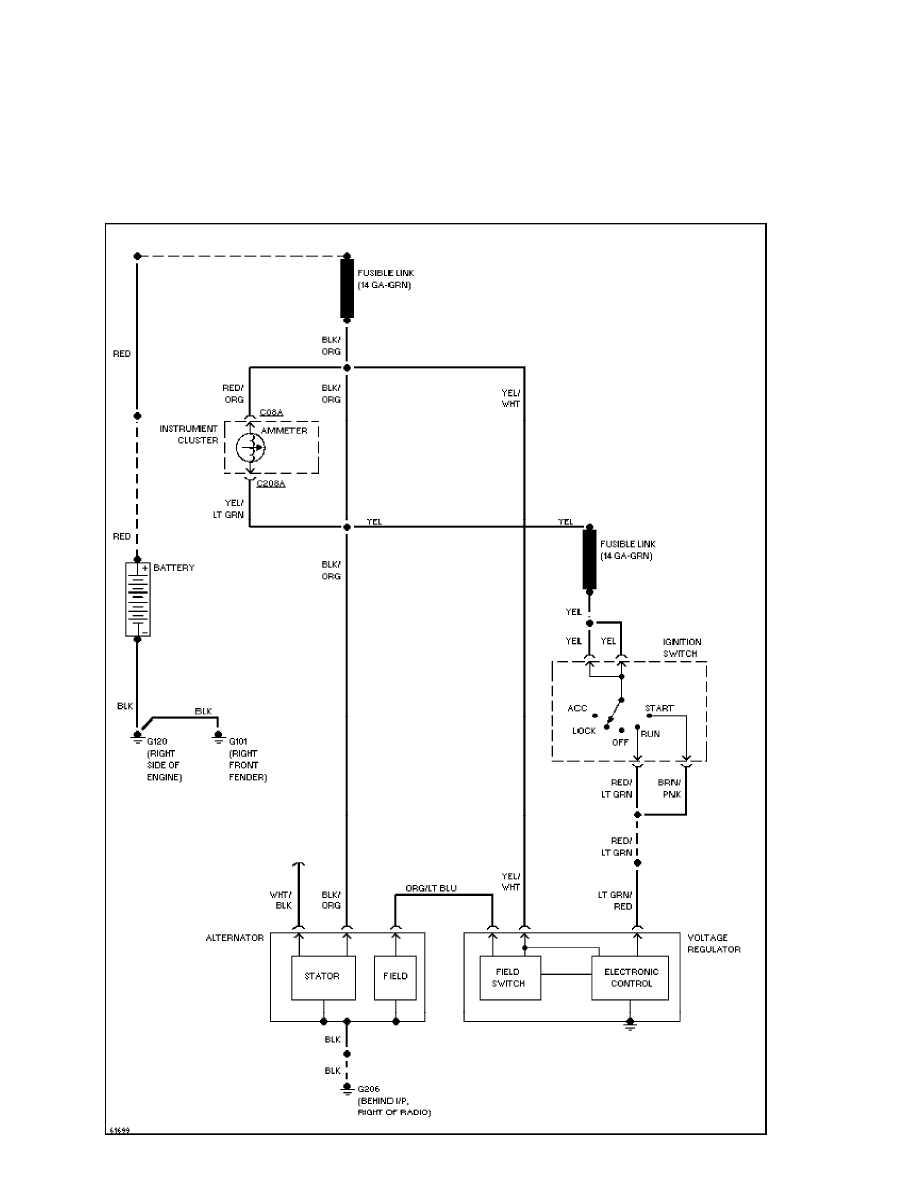

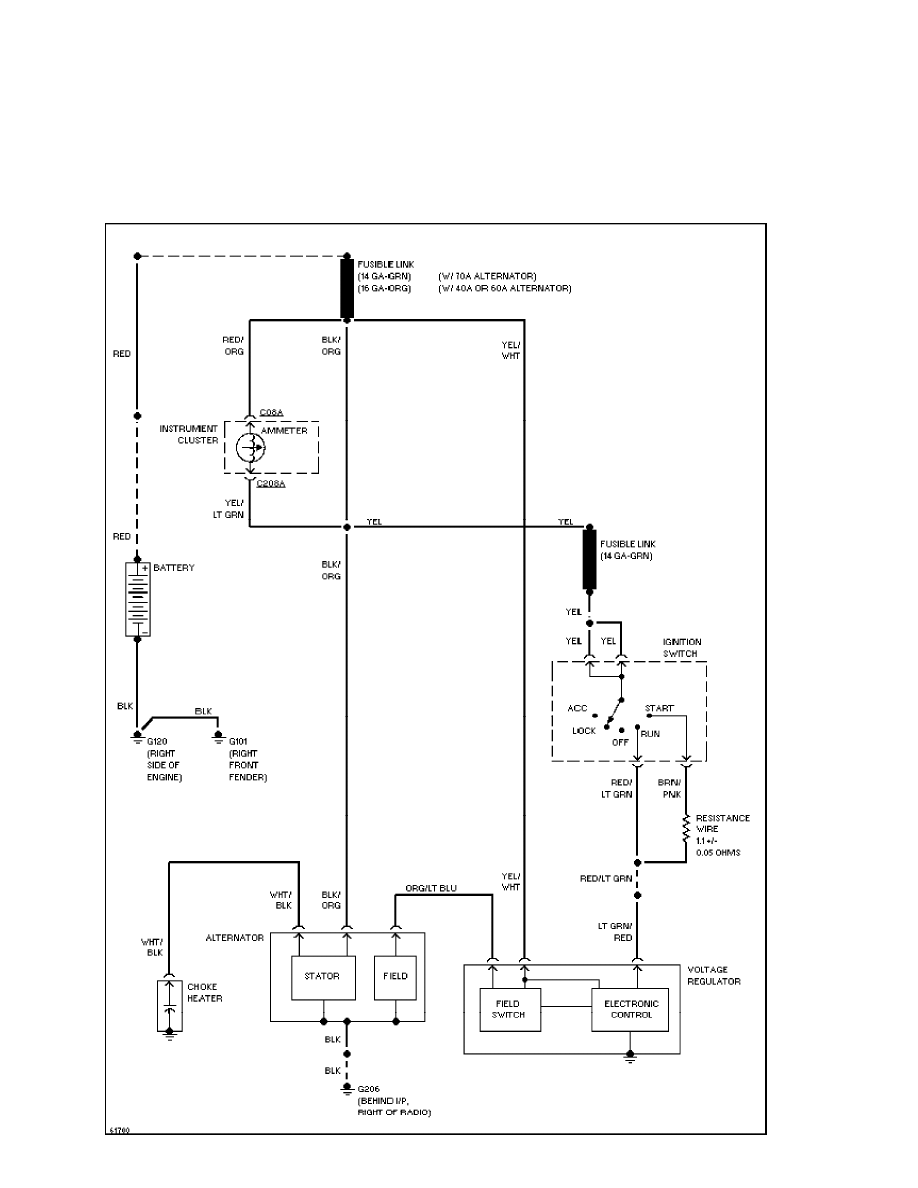

4.9L, Charging Circuit, W/ Ammeter (p. 11)

1985 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:55PM

background image

SYSTEM WIRING DIAGRAMS

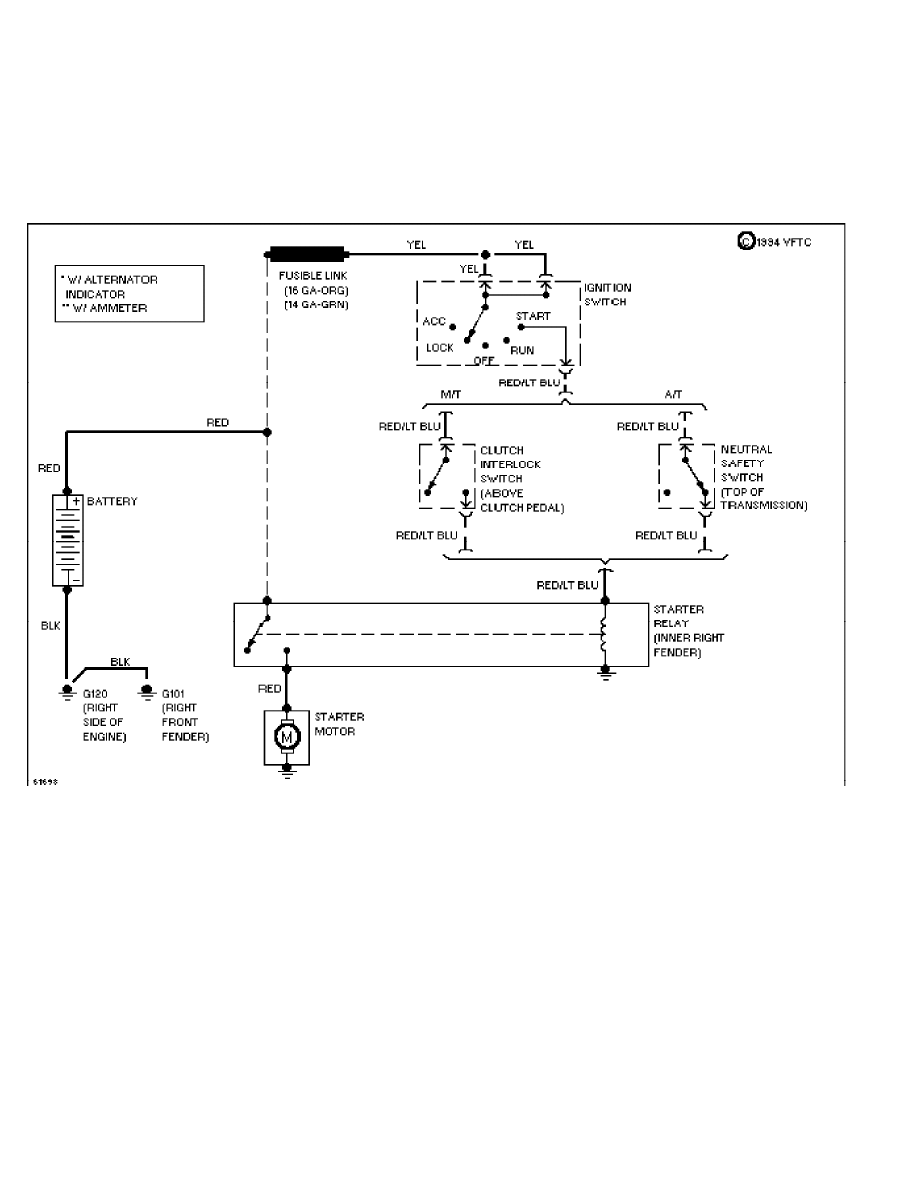

4.9L, Starting Circuit (p. 12)

1985 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:55PM

background image

SYSTEM WIRING DIAGRAMS

5.0L, Charging Circuit, W/ Alternator Warning Indicator (p. 13)

1985 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:55PM

background image

SYSTEM WIRING DIAGRAMS

5.0L, Charging Circuit, W/ Ammeter (p. 14)

1985 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:55PM

background image

SYSTEM WIRING DIAGRAMS

5.0L, Starting Circuit (p. 15)

1985 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:55PM

background image

SYSTEM WIRING DIAGRAMS

7.3L Diesel, Charging Circuit (p. 16)

1985 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:55PM

background image

SYSTEM WIRING DIAGRAMS

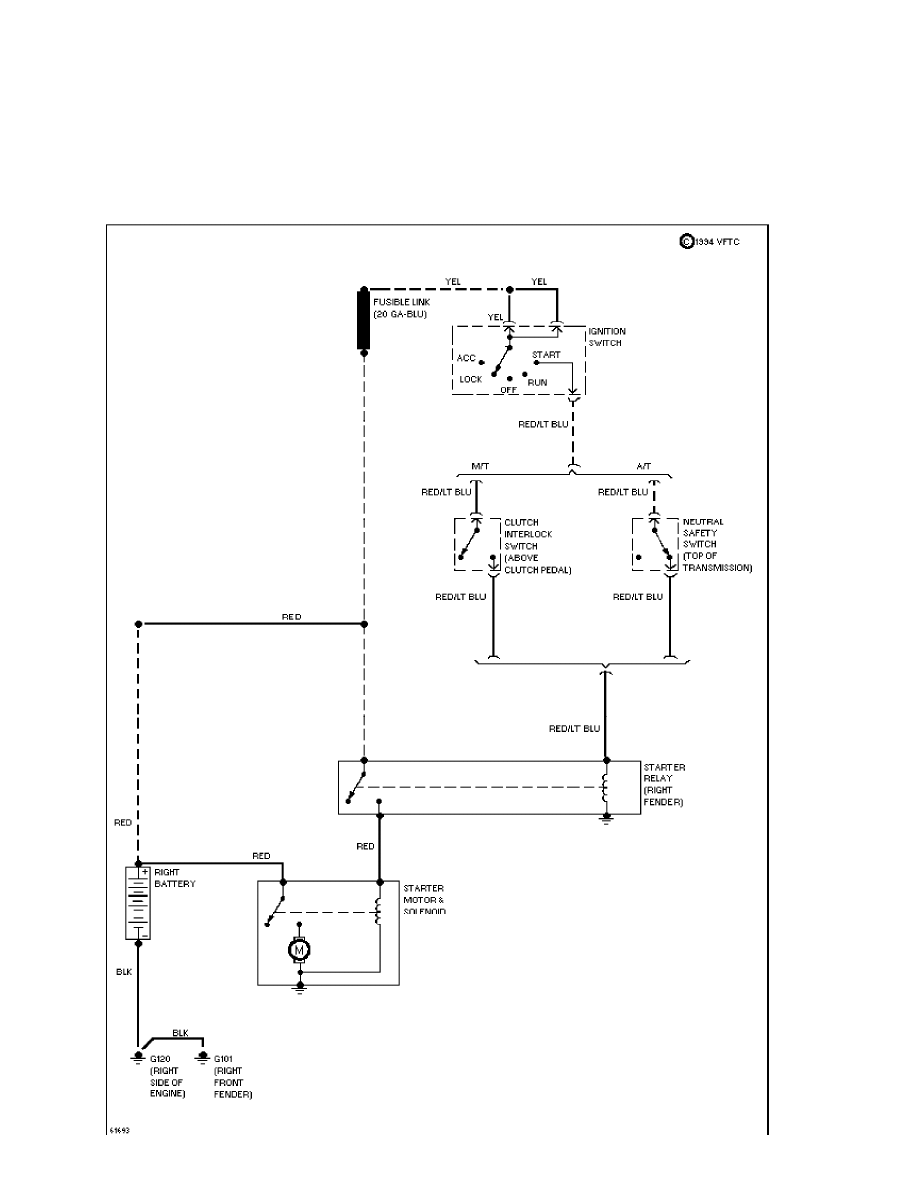

7.3L Diesel, Starting Circuit (p. 17)

1985 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:55PM

background image

SYSTEM WIRING DIAGRAMS

7.5L, Charging Circuit, W/ Alternator Warning Indicator (p. 18)

1985 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:55PM

background image

SYSTEM WIRING DIAGRAMS

7.5L, Charging Circuit, W/ Ammeter (p. 19)

1985 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:55PM

background image

SYSTEM WIRING DIAGRAMS

7.5L, Starting Circuit (p. 20)

1985 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:55PM

background image

SYSTEM WIRING DIAGRAMS

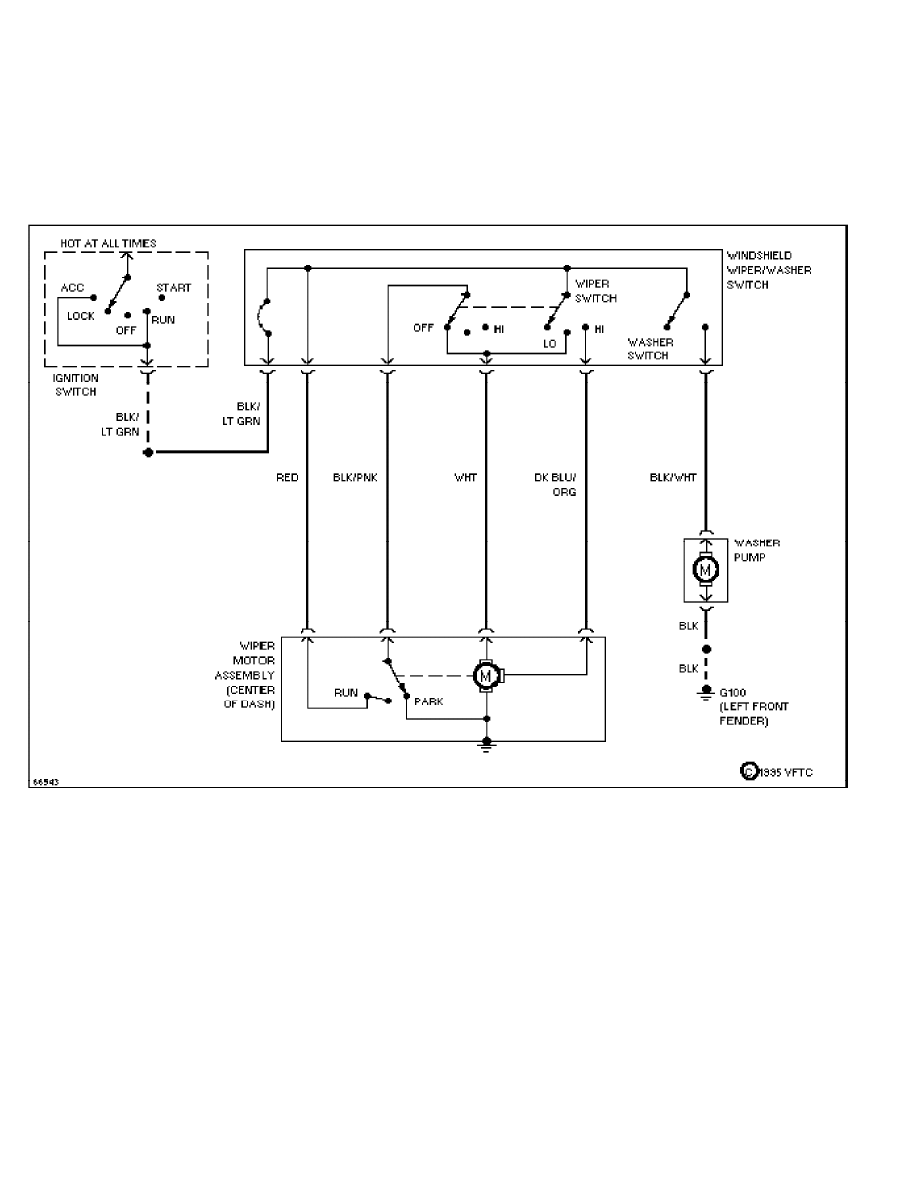

2-Speed Wiper/Washer Circuit (p. 21)

1985 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:55PM

background image

SYSTEM WIRING DIAGRAMS

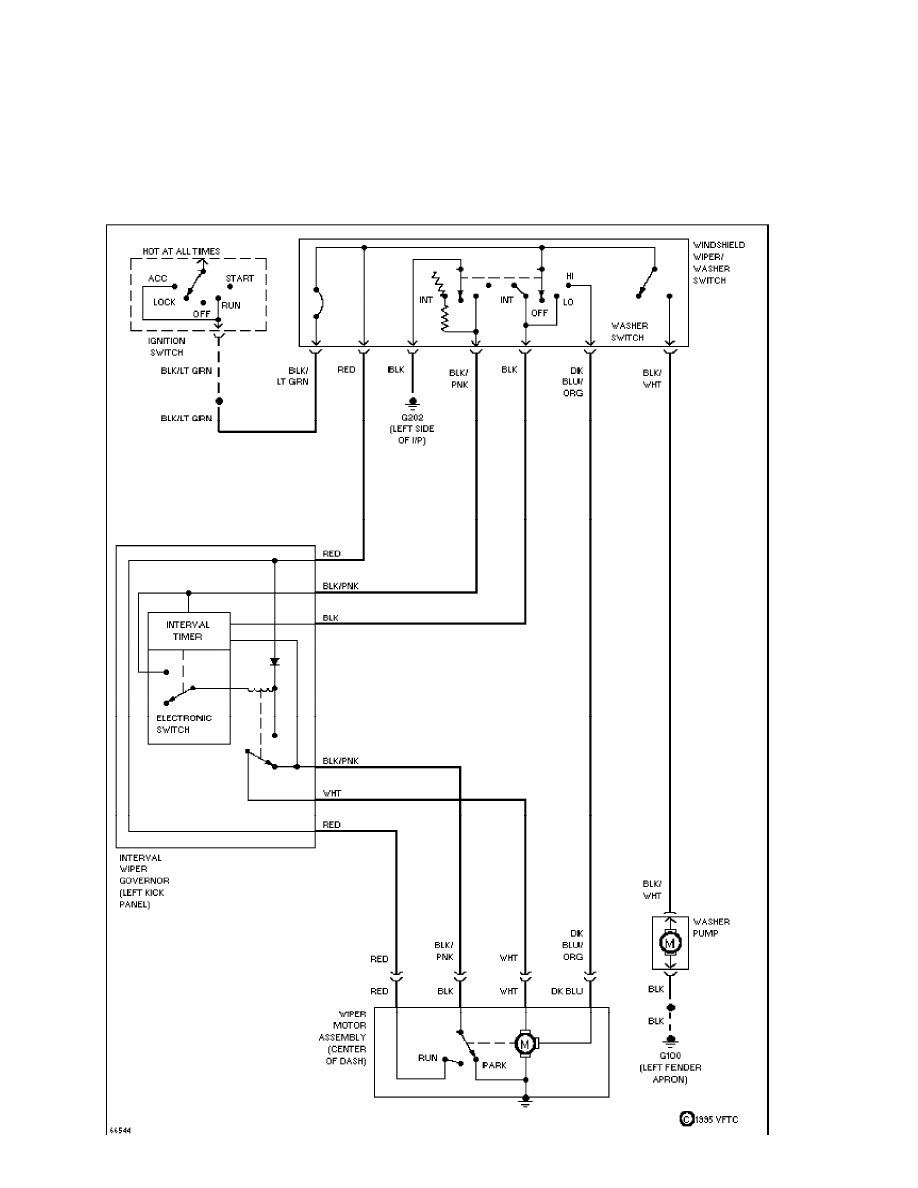

Interval Wiper/Washer Circuit (p. 22)

1985 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:55PM

background image

WIRING DIAGRAMS

Fig. 1: Engine Compartment, Headlights & TFI Module Connections

1985 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:55PM

background image

WIRING DIAGRAMS

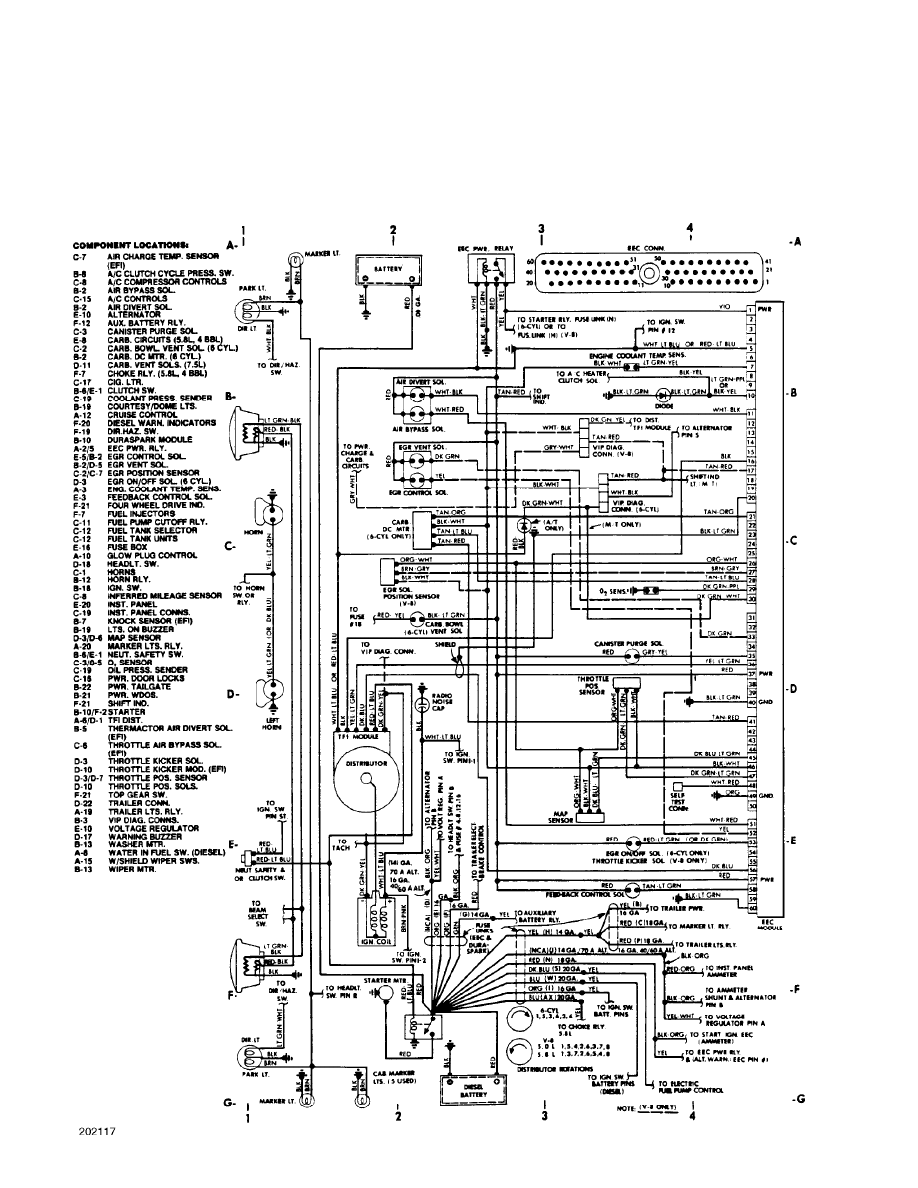

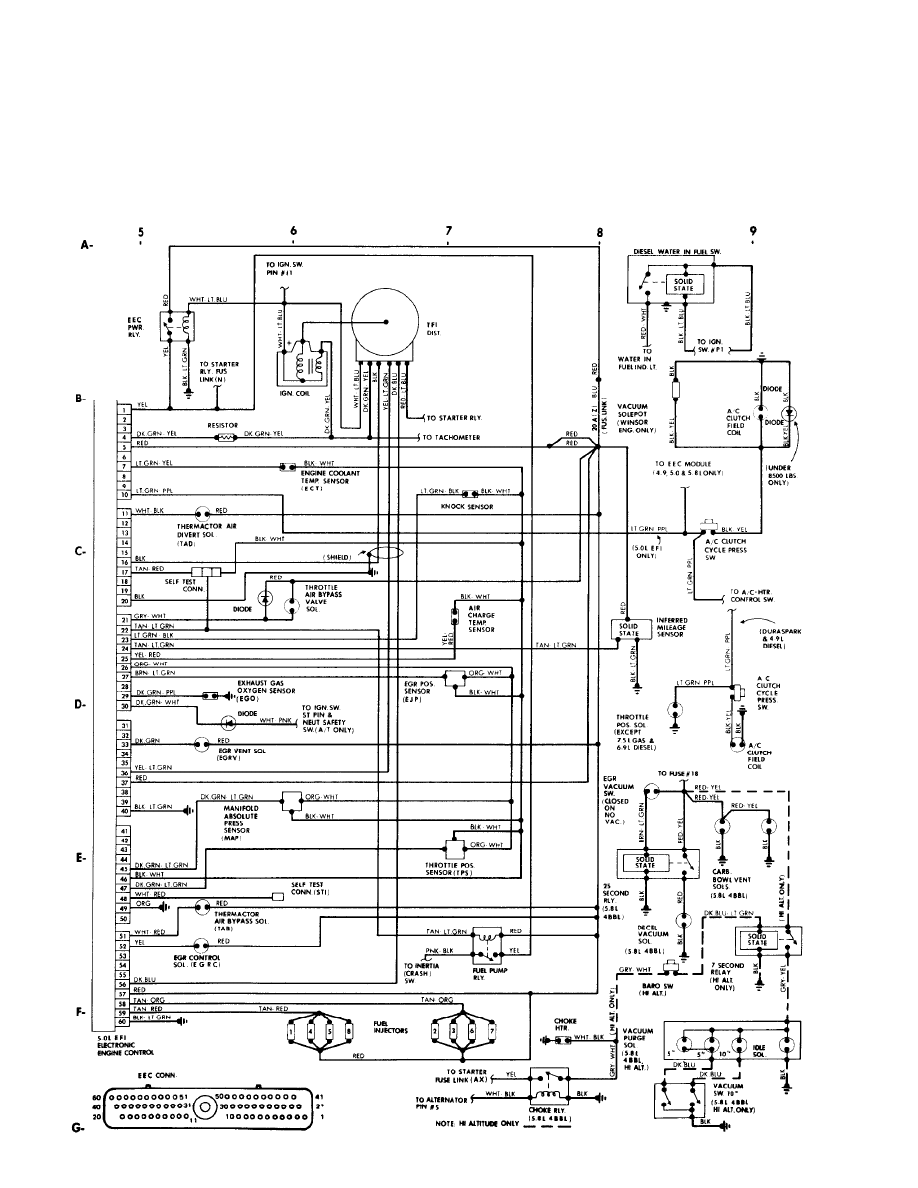

Fig. 2: 5.0L Engine Control (EEC), Distributor & Fuel Injection (p. 2)

1985 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:55PM

background image

WIRING DIAGRAMS

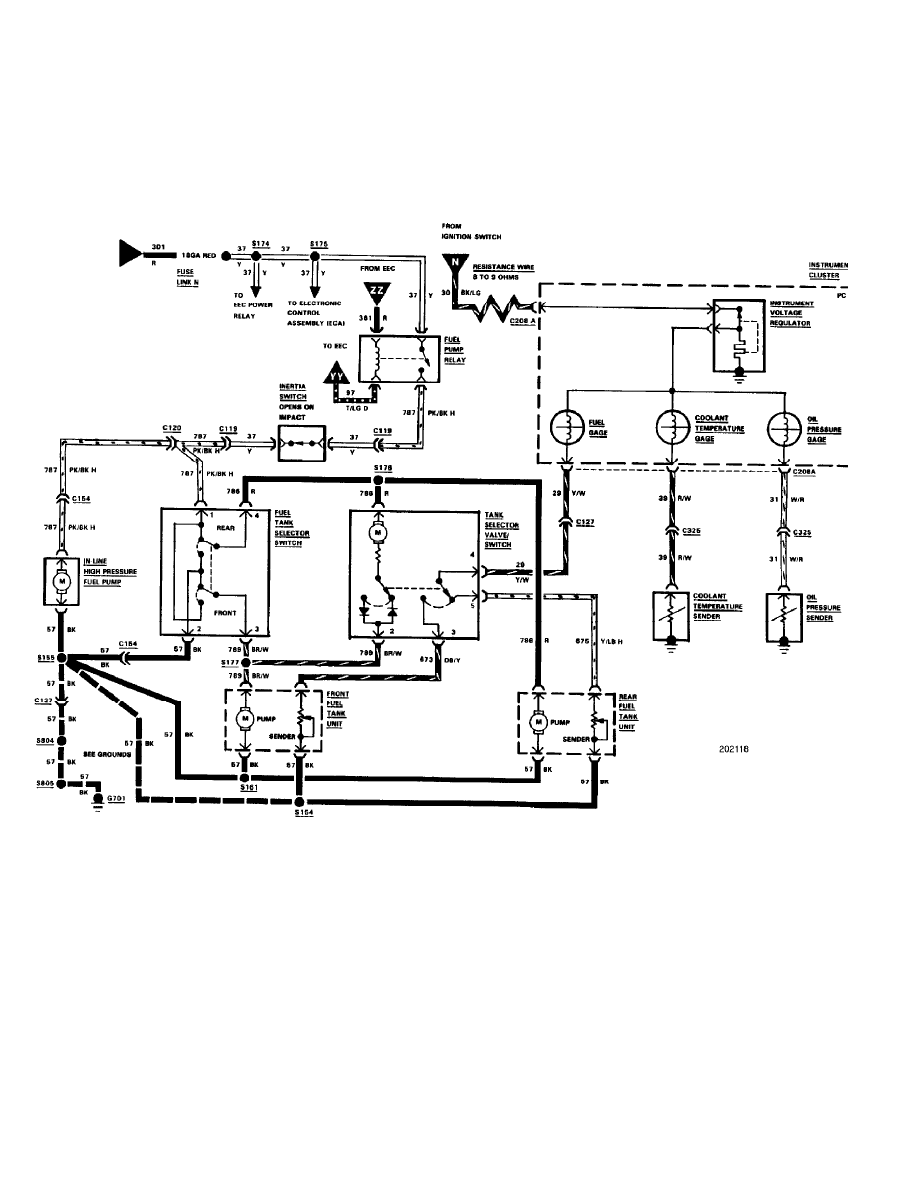

Fig. 3: 5.0L Fuel Tank Selector Circuit (p. 3)

1985 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:55PM

background image

WIRING DIAGRAMS

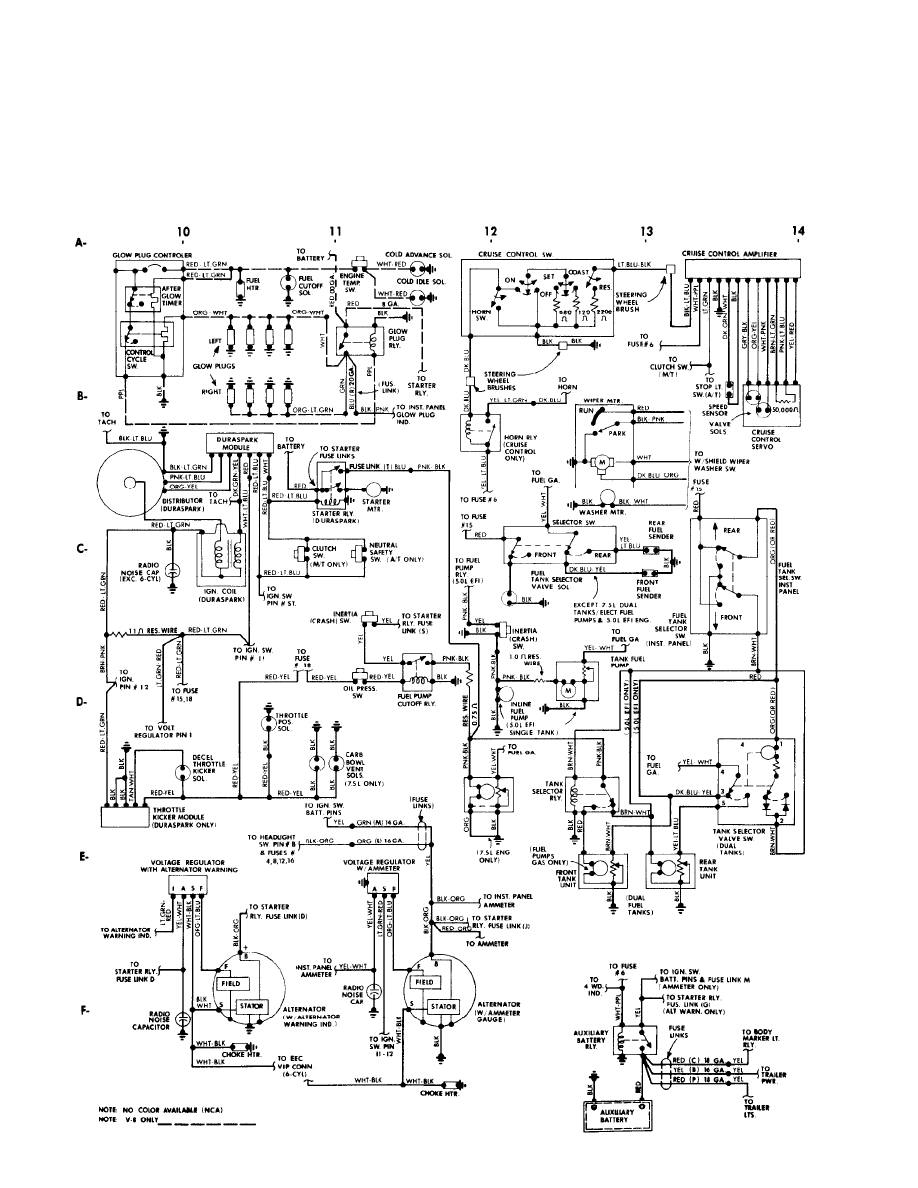

Fig. 4: Alternator, Cruise Control, Duraspark Ign. & Diesel Injection (p. 4)

1985 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:55PM

background image

WIRING DIAGRAMS

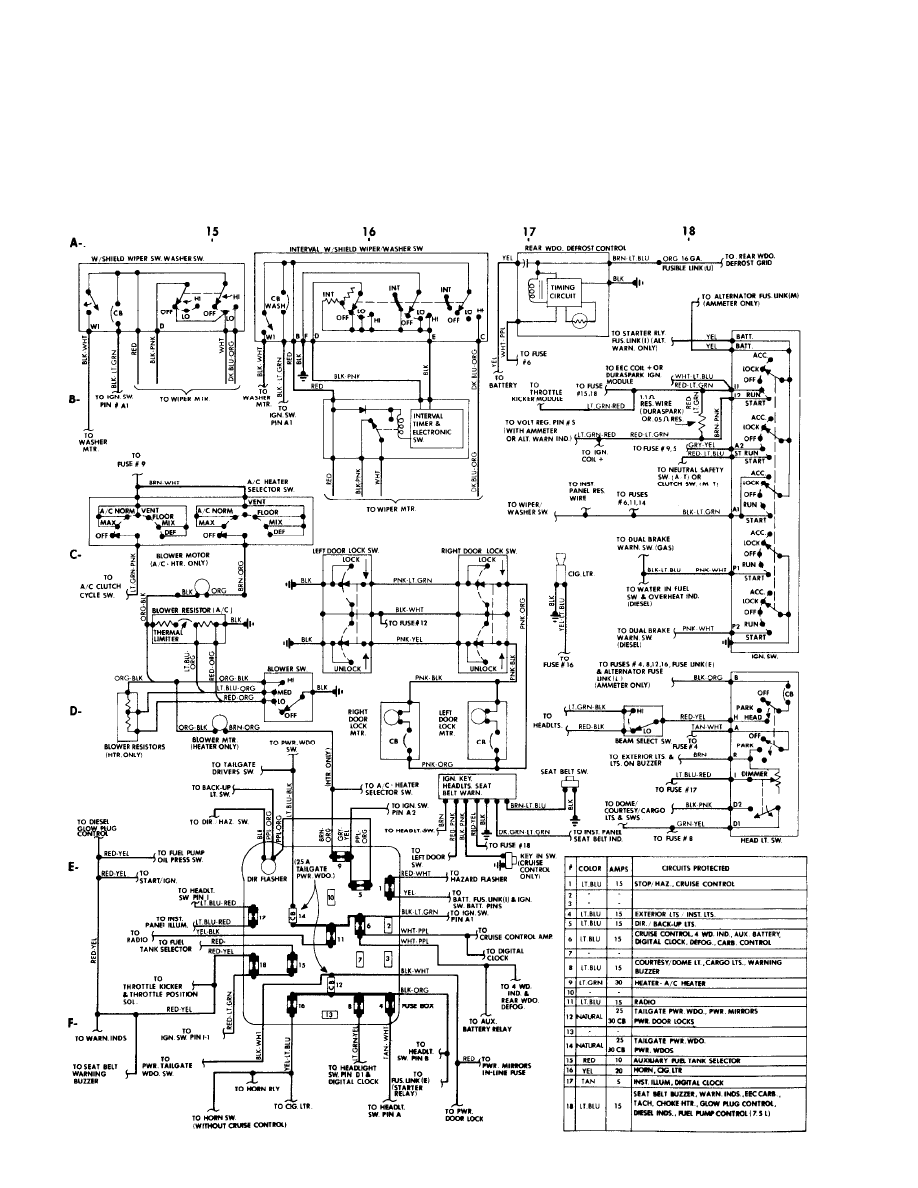

Fig. 5: Fuses, Ign. Switch, Wiper/Washers System & Underdash (p. 5)

1985 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:55PM

background image

WIRING DIAGRAMS

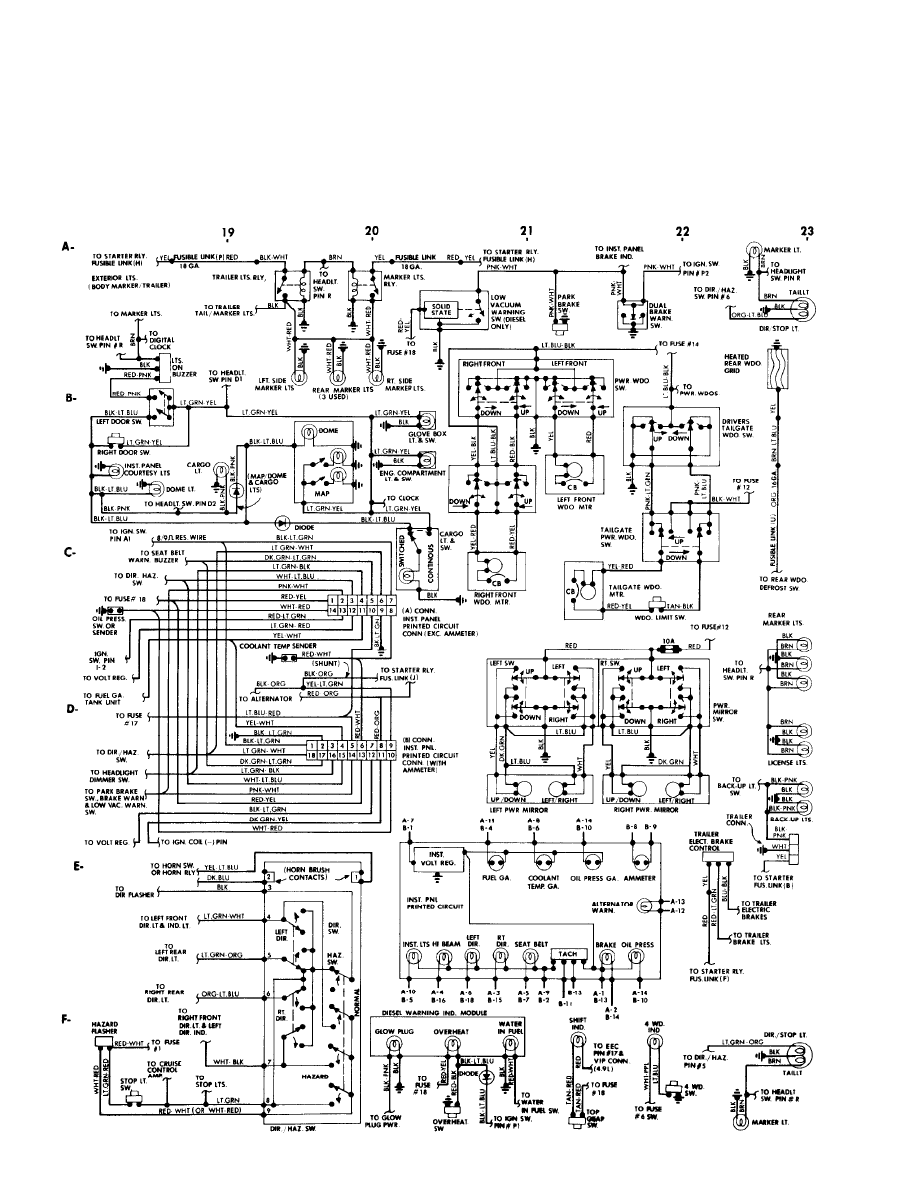

Fig. 6: Instruments, Accessories, Passenger Compartment & Taillights (p. 6)

1985 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:55PM

background image

WIRING DIAGRAMS

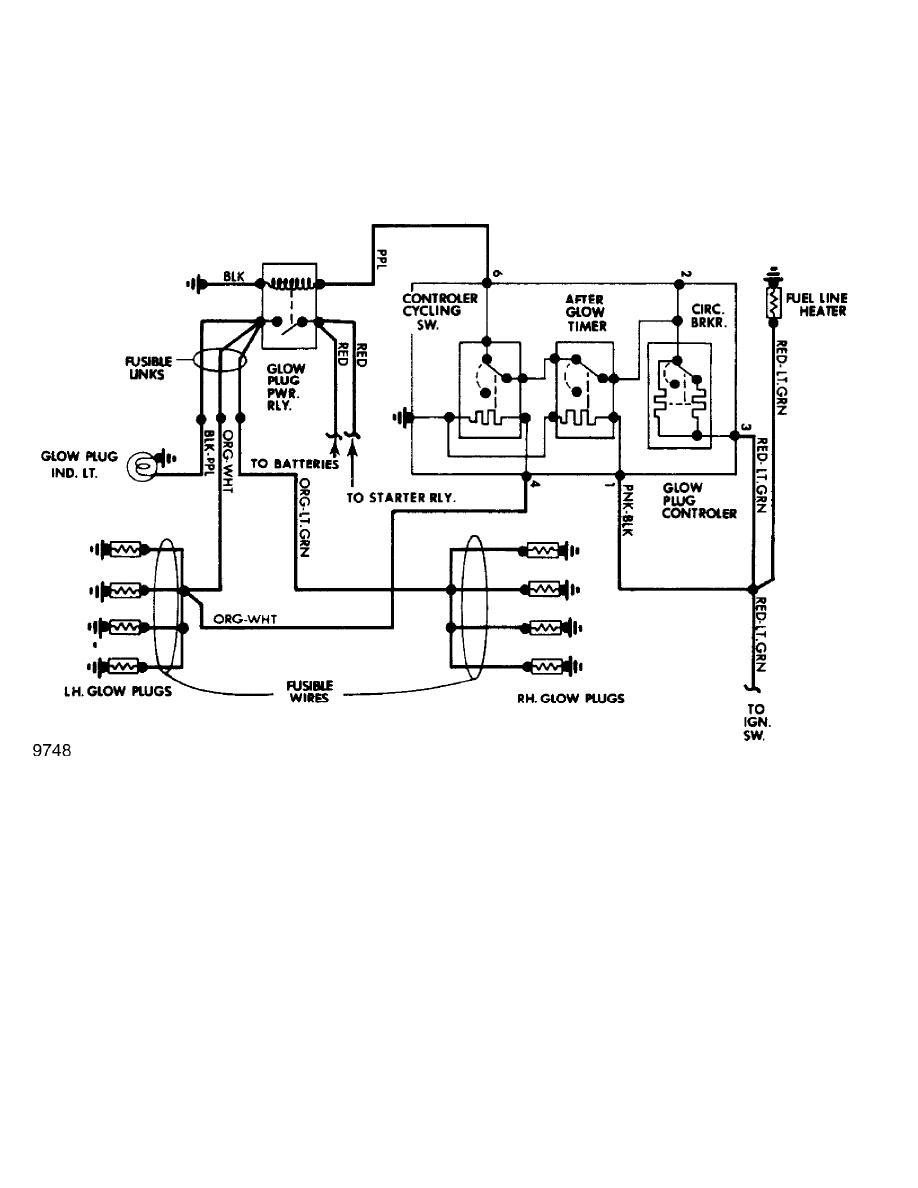

Fig. 7: Fuel Injection System (Diesel) - 6.9L (p. 7)

1985 Ford F Pickup

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 06:55PM
