FORD LTD 1985

background image

SYSTEM WIRING DIAGRAMS

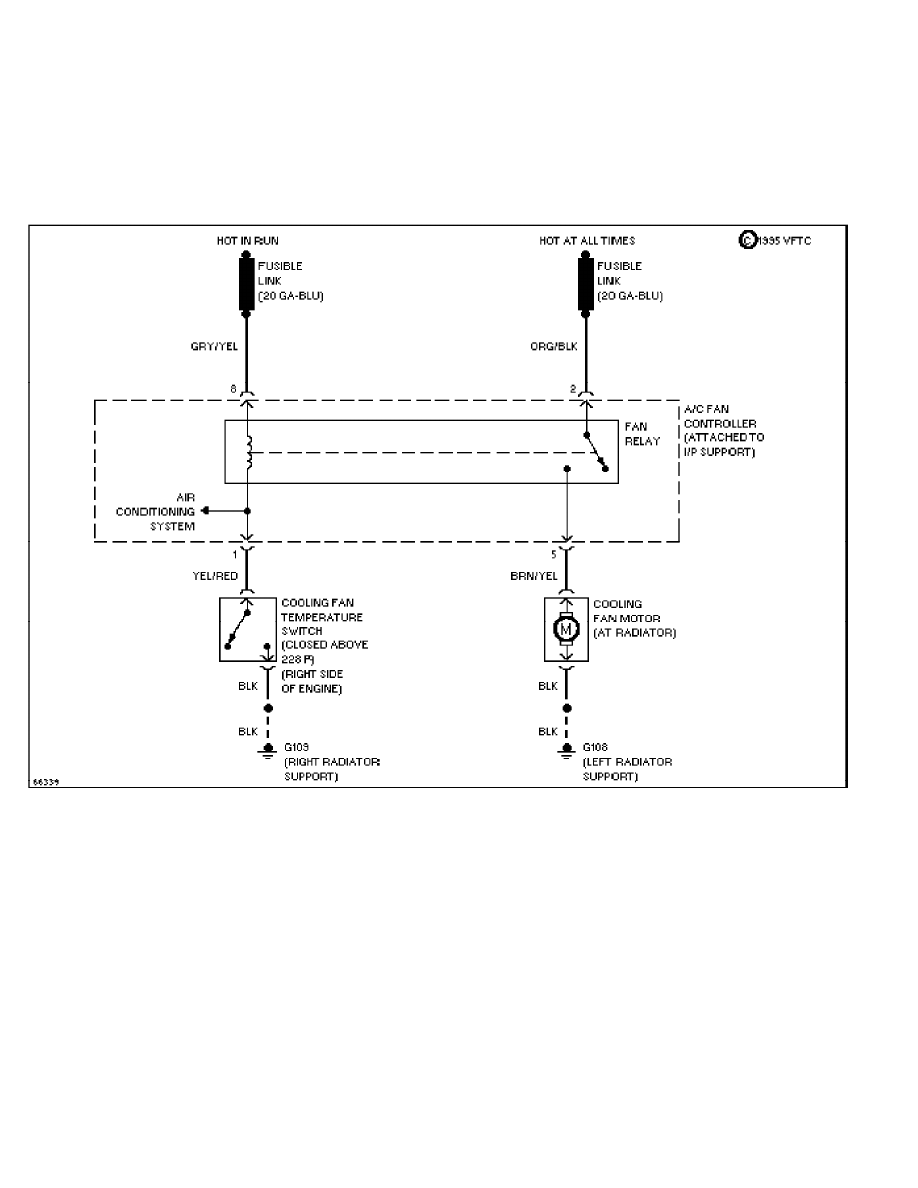

Cooling Fan Circuit

1985 Ford LTD

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 07:22PM

background image

SYSTEM WIRING DIAGRAMS

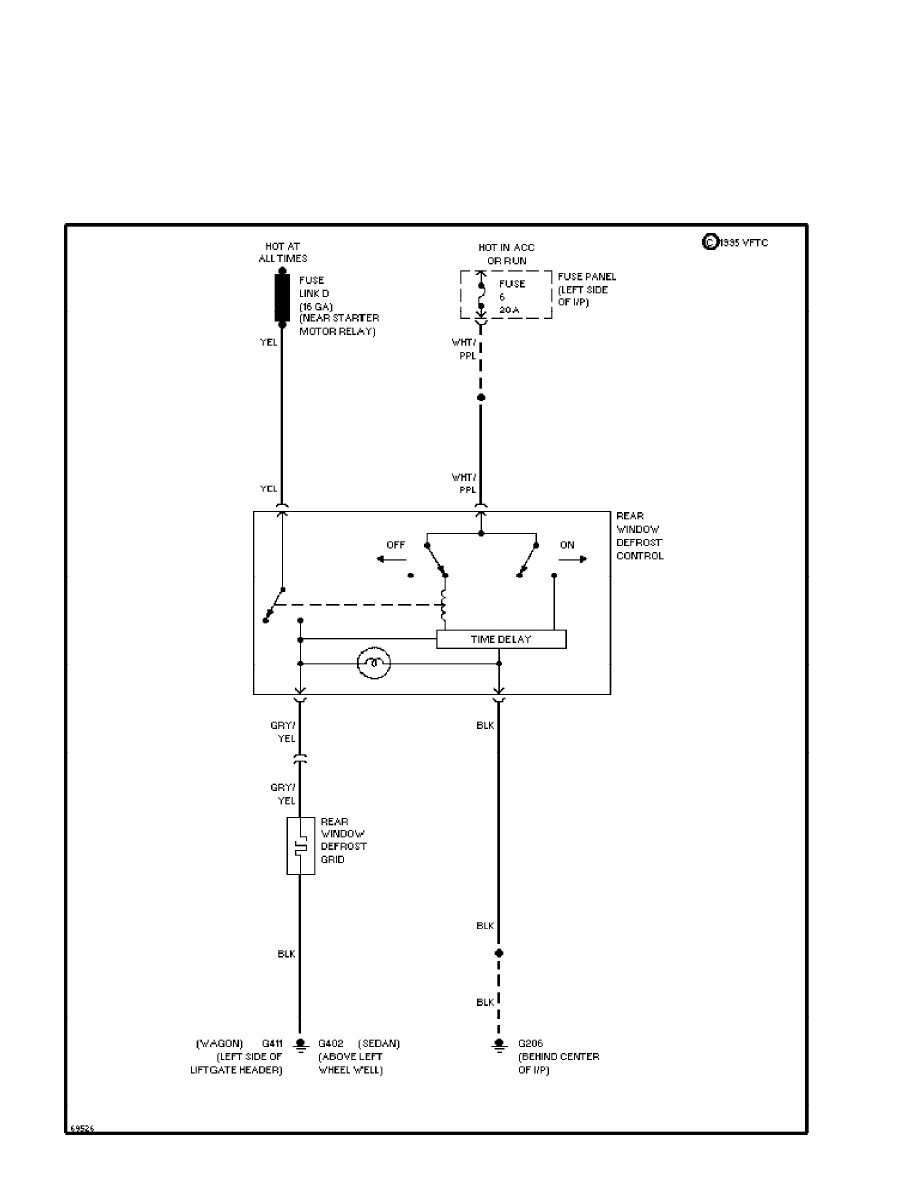

Defogger Circuit (p. 2)

1985 Ford LTD

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 07:22PM

background image

SYSTEM WIRING DIAGRAMS

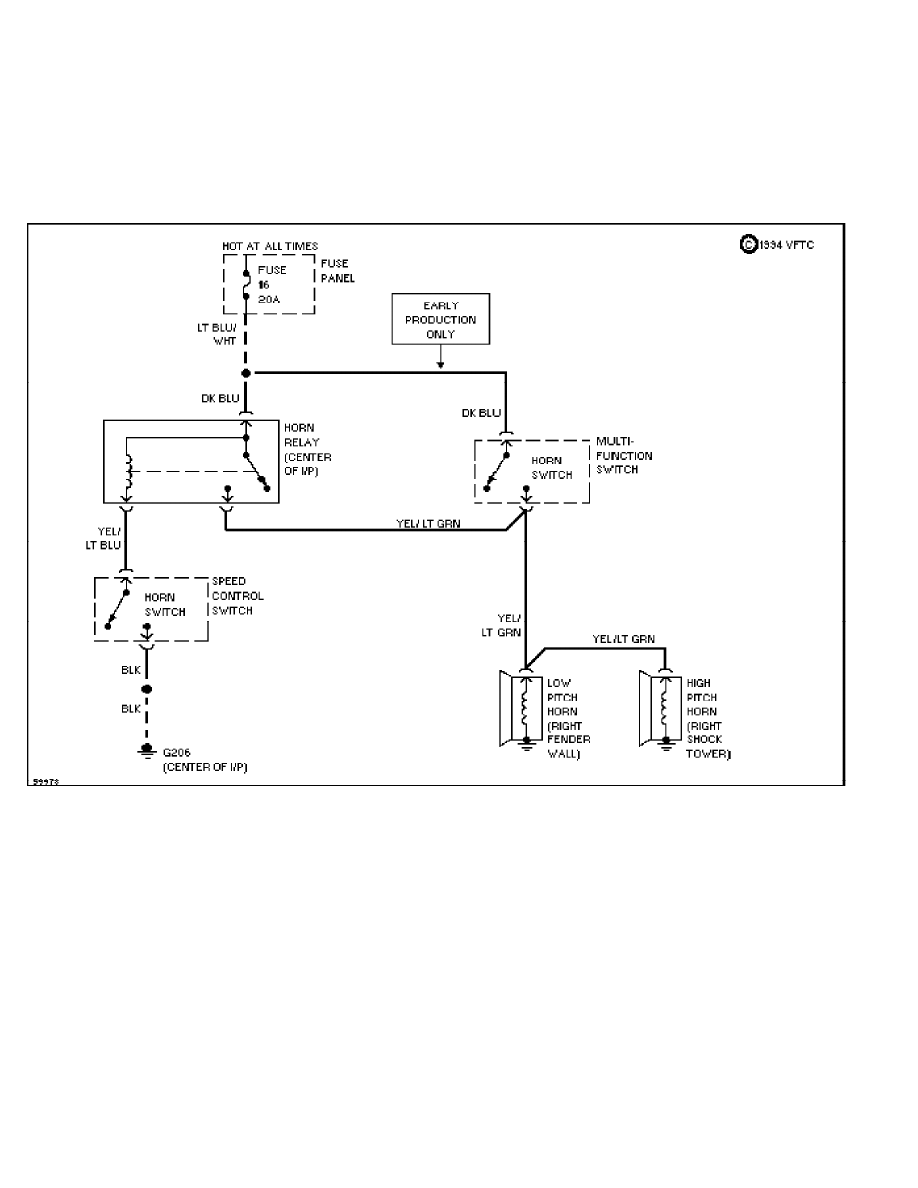

Horn Circuit (p. 3)

1985 Ford LTD

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 07:22PM

background image

SYSTEM WIRING DIAGRAMS

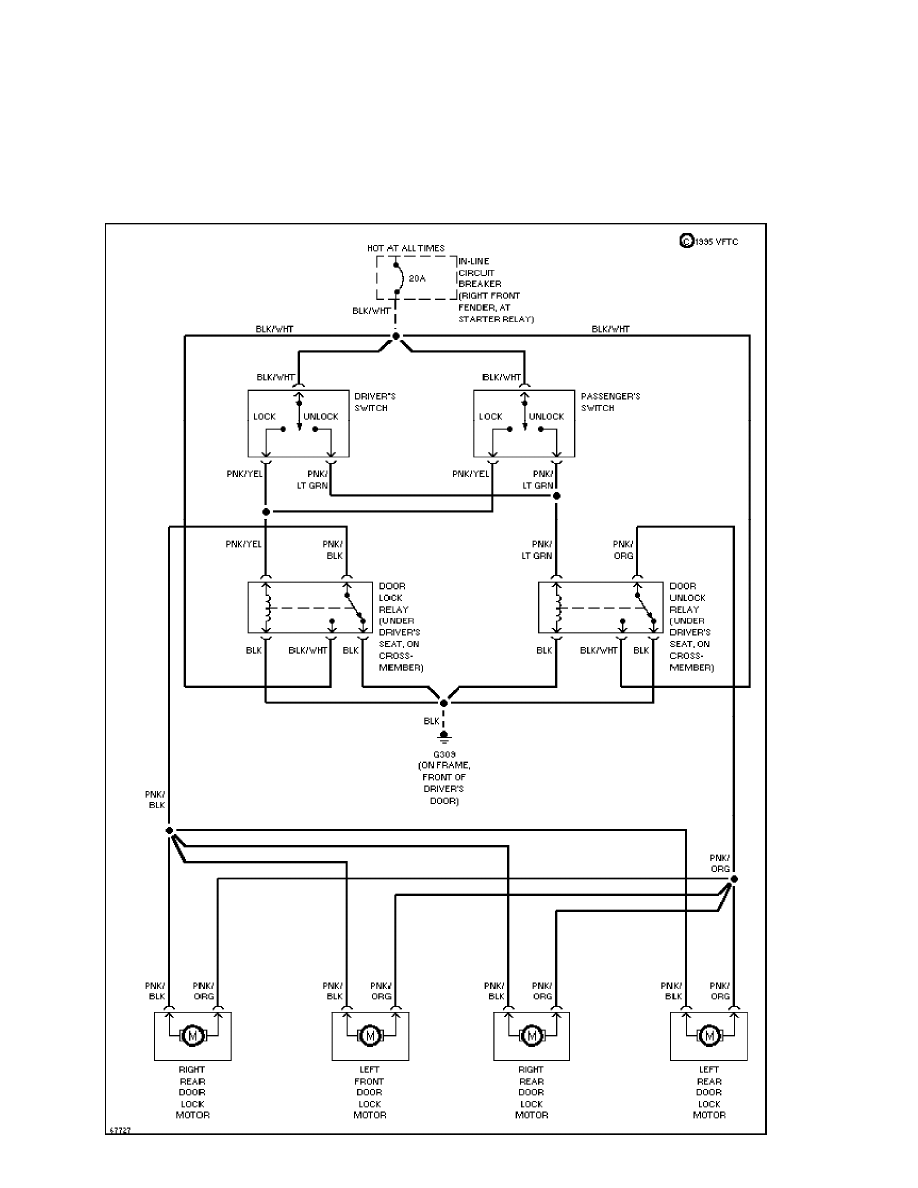

Power Door Lock Circuit (p. 4)

1985 Ford LTD

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 07:22PM

background image

SYSTEM WIRING DIAGRAMS

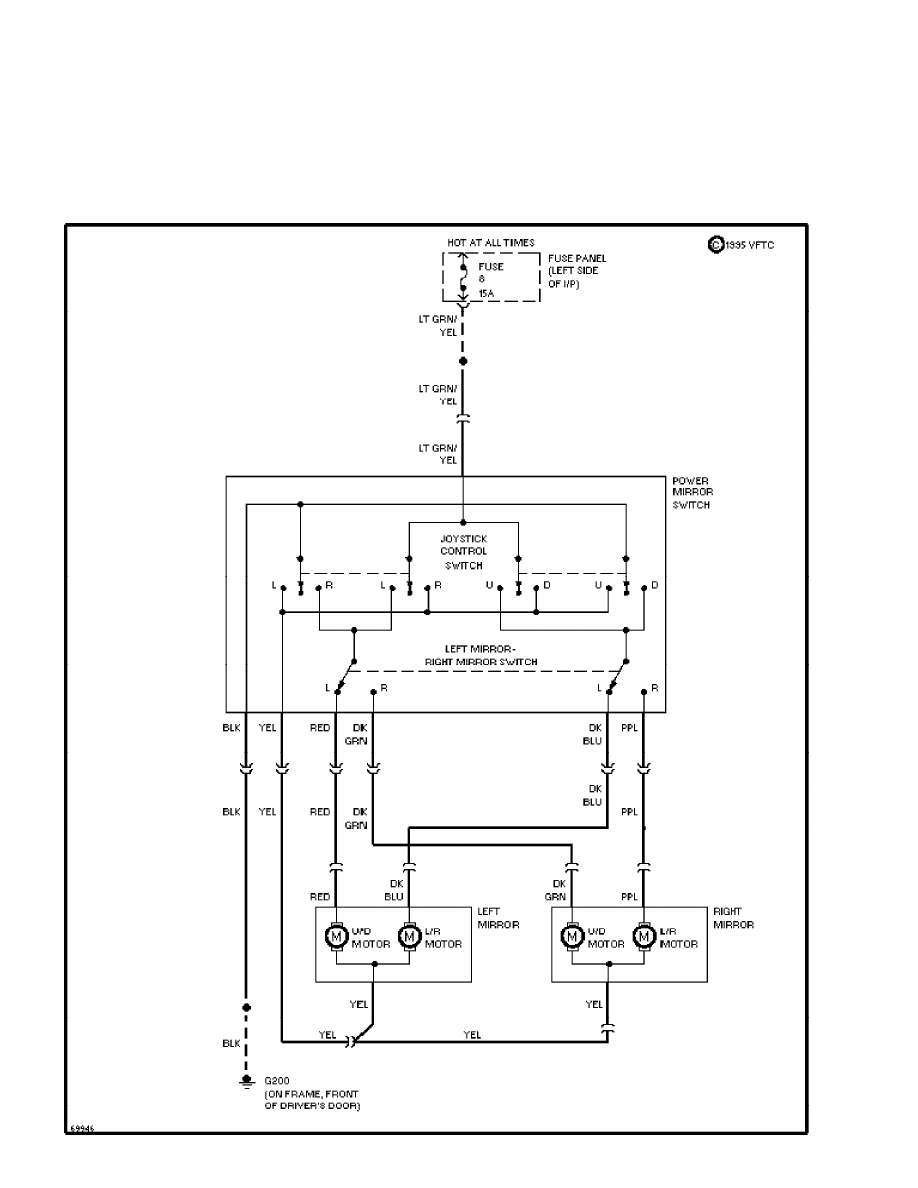

Power Mirror Circuit (p. 5)

1985 Ford LTD

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 07:22PM

background image

SYSTEM WIRING DIAGRAMS

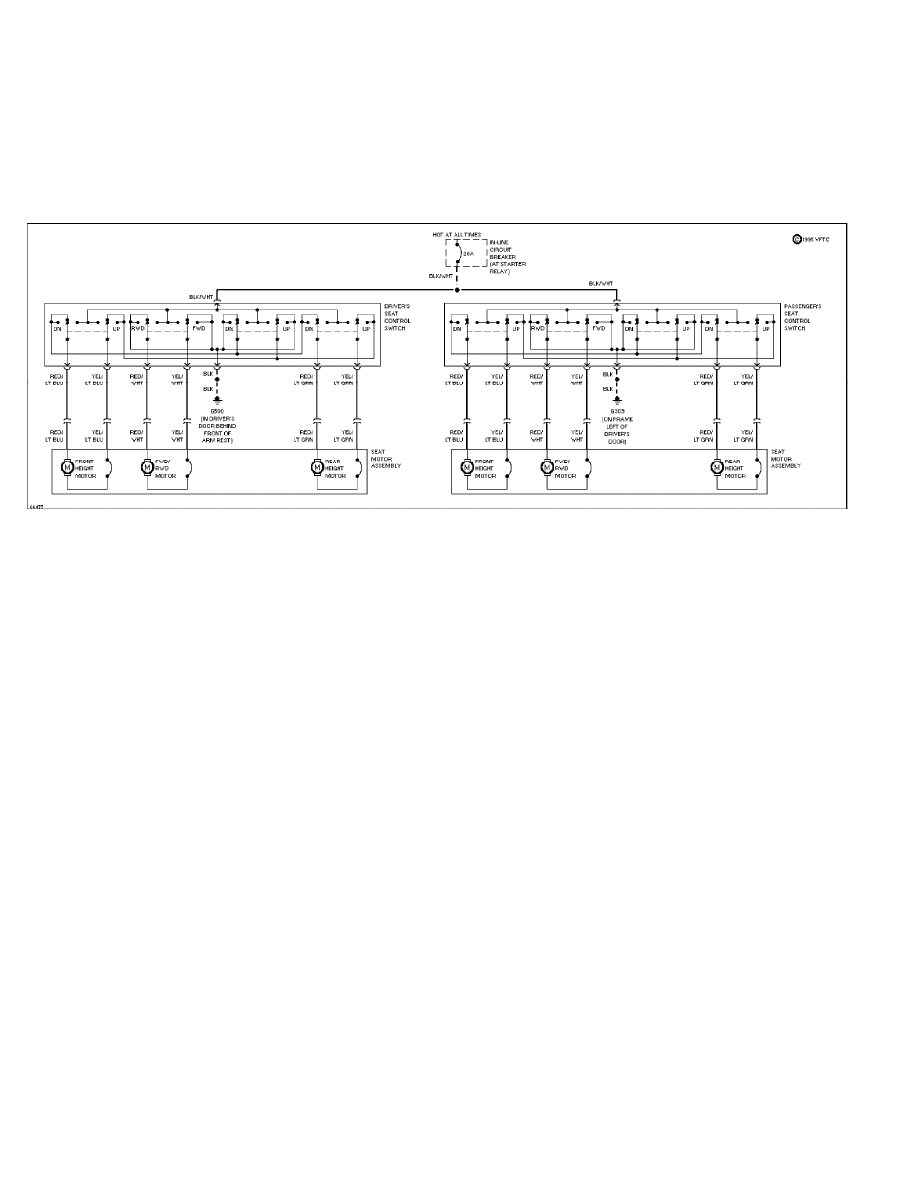

Power Seat Circuits (p. 6)

1985 Ford LTD

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 07:22PM

background image

SYSTEM WIRING DIAGRAMS

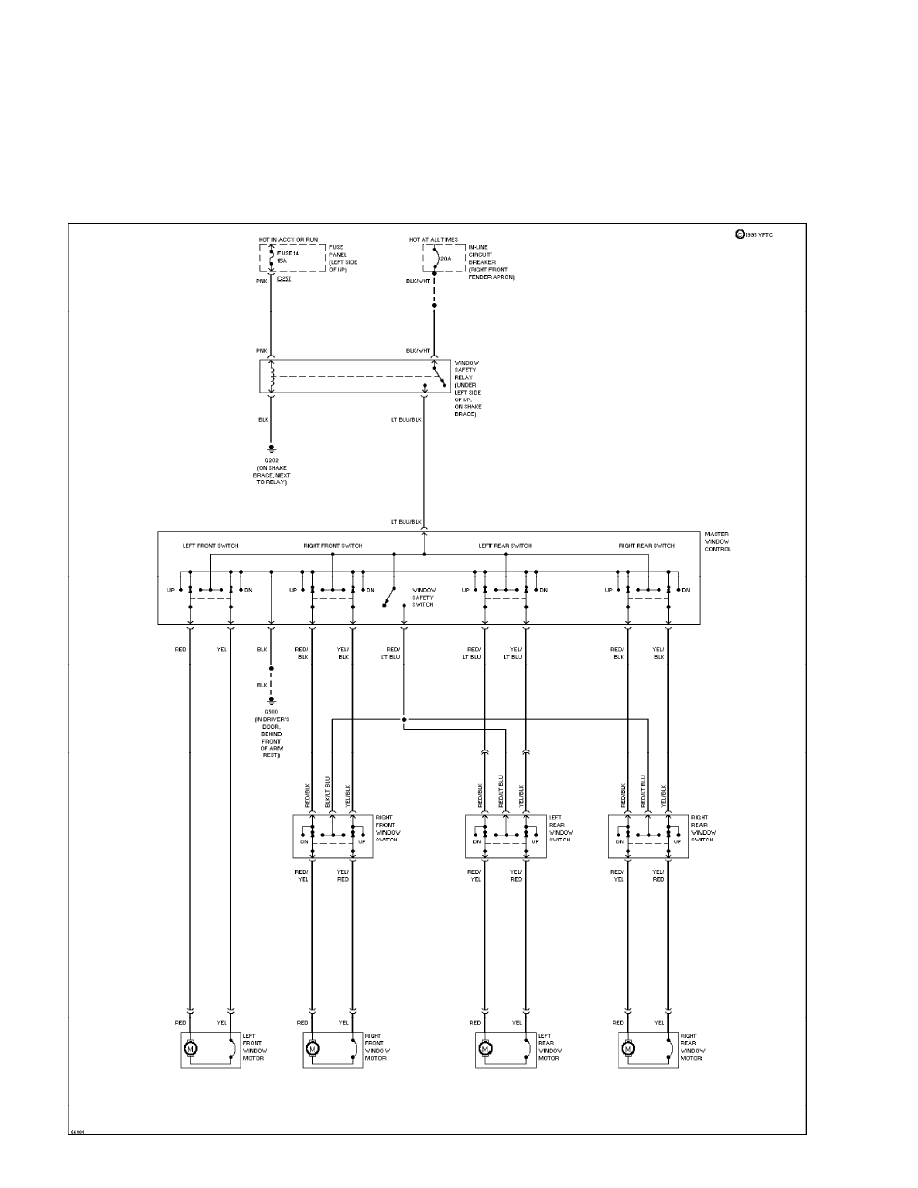

Power Window Circuit (p. 7)

1985 Ford LTD

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 07:22PM

background image

SYSTEM WIRING DIAGRAMS

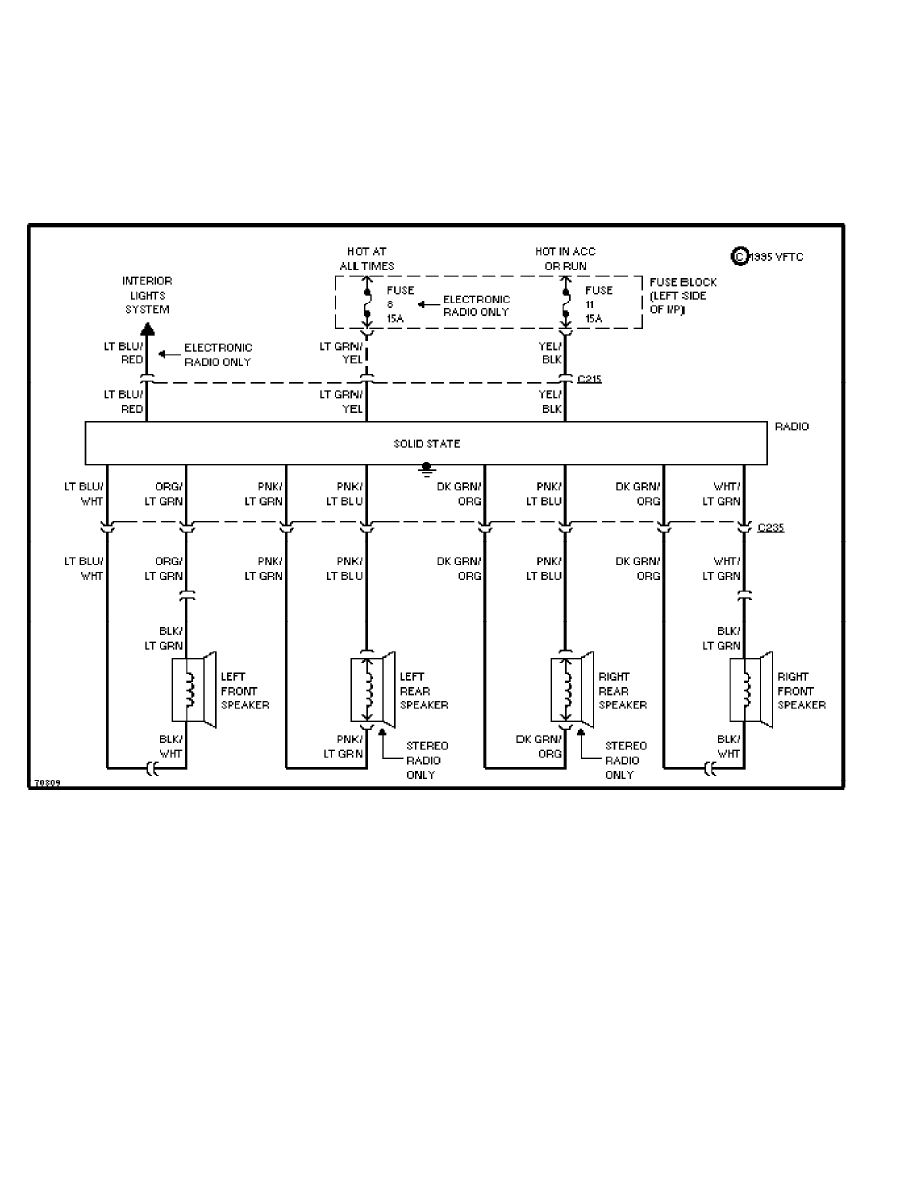

Premium Sound Radio Circuit, Conventional Radio (p. 8)

1985 Ford LTD

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 07:22PM

background image

SYSTEM WIRING DIAGRAMS

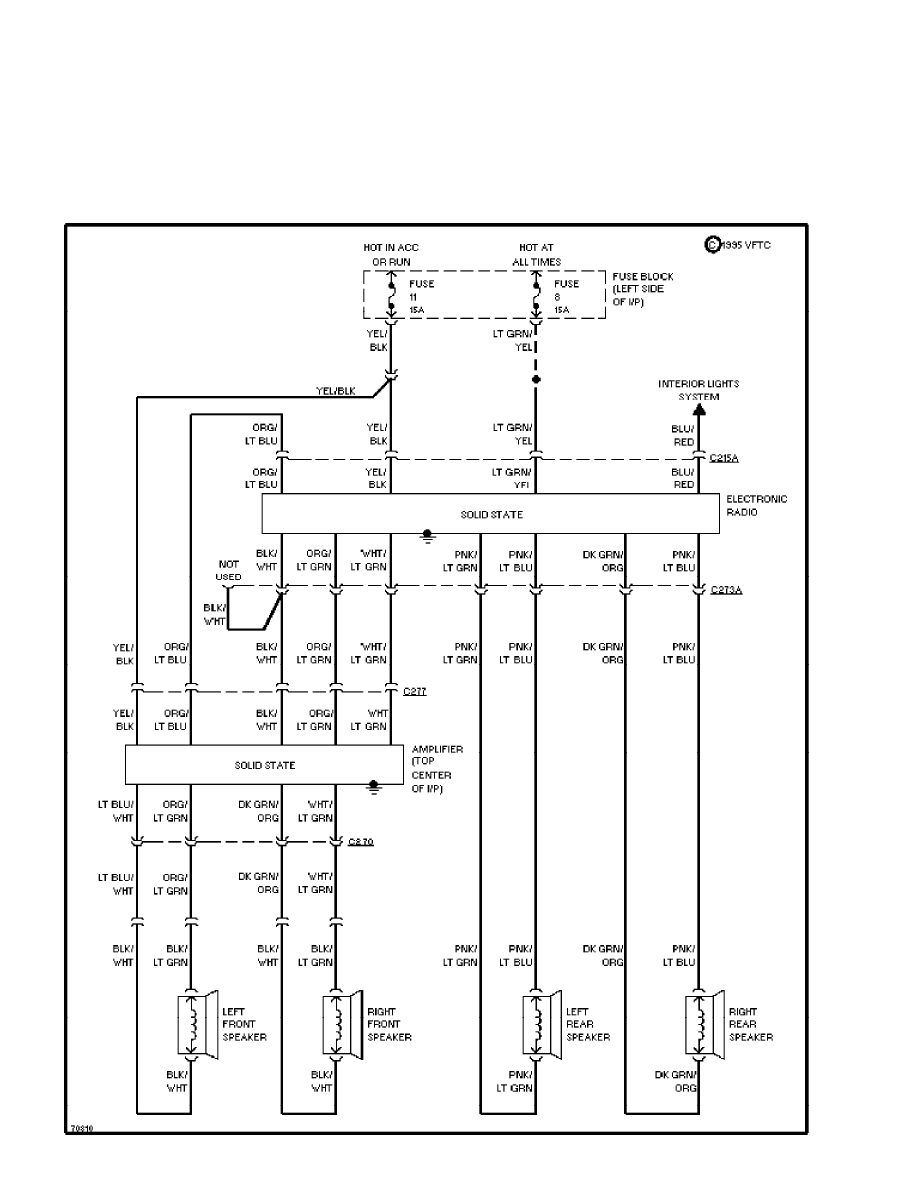

Premium Sound Radio Circuit, Electronic Radio (p. 9)

1985 Ford LTD

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 07:22PM

background image

SYSTEM WIRING DIAGRAMS

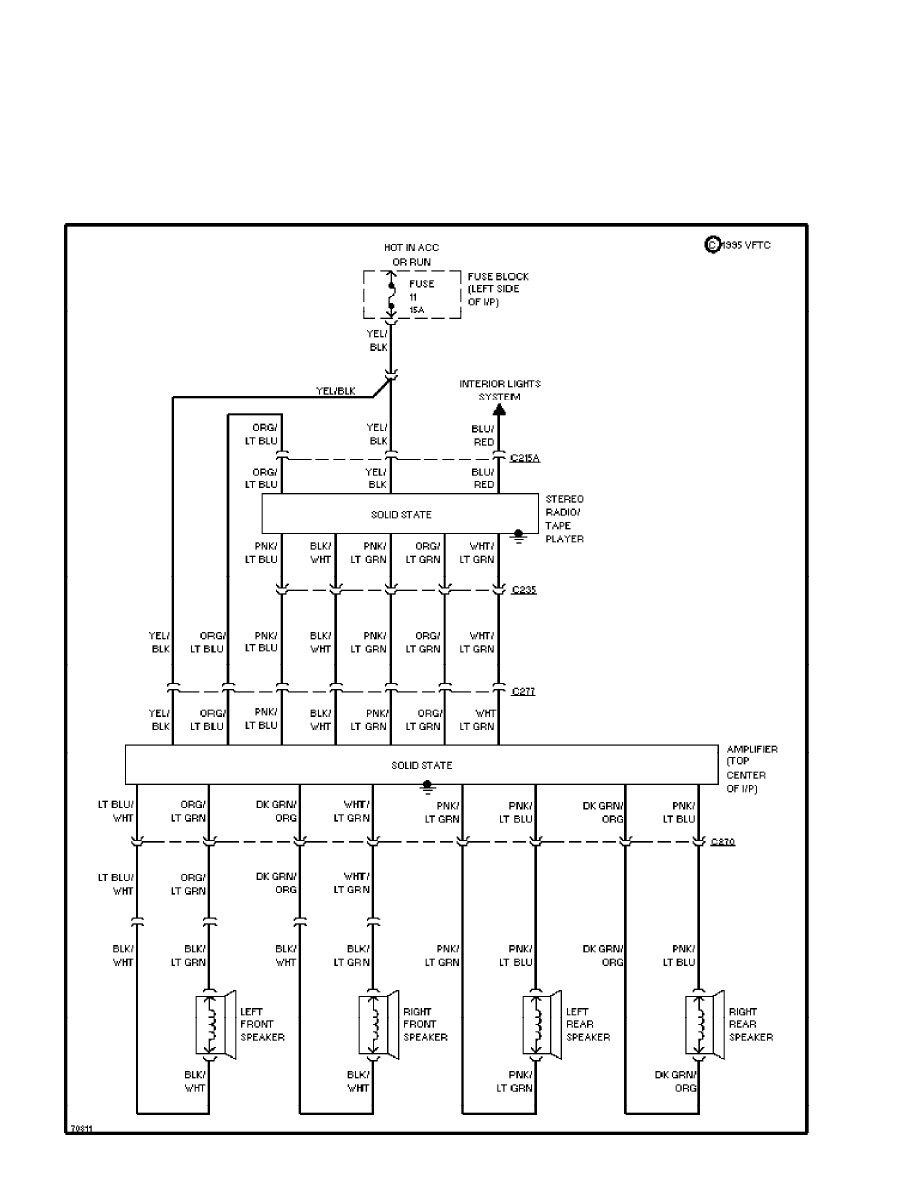

Stereo Radio Circuit (p. 10)

1985 Ford LTD

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 07:22PM

background image

SYSTEM WIRING DIAGRAMS

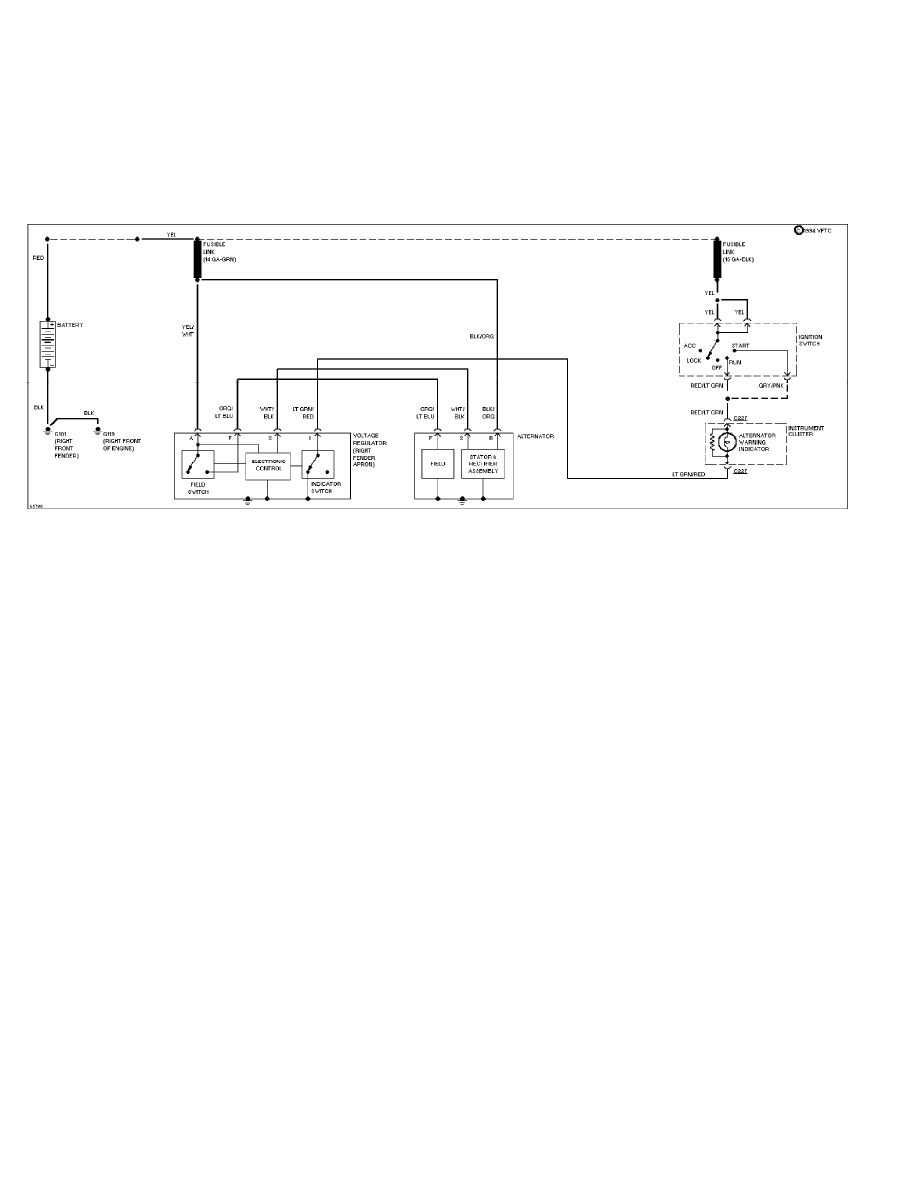

Charging Circuit (p. 11)

1985 Ford LTD

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 07:22PM

background image

SYSTEM WIRING DIAGRAMS

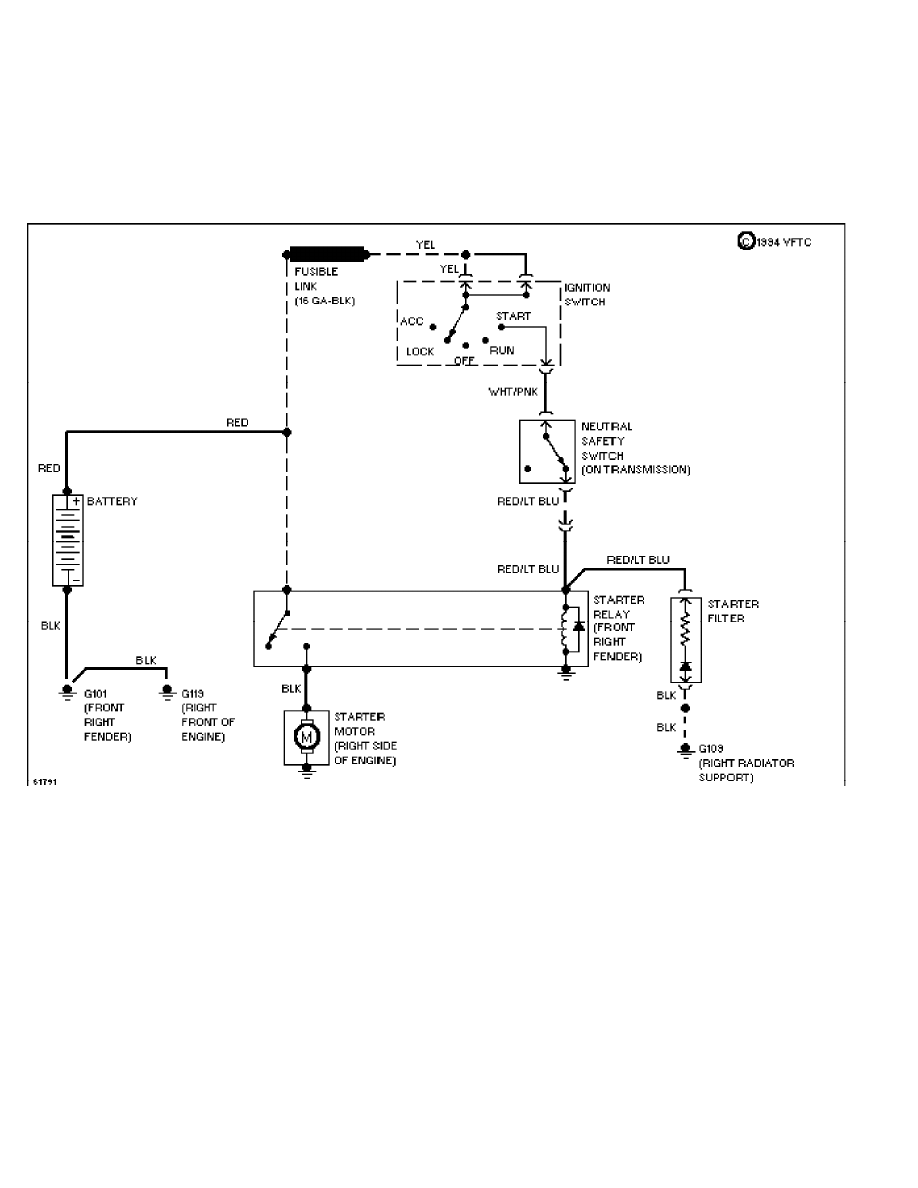

Starting Circuit (p. 12)

1985 Ford LTD

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 07:22PM

background image

SYSTEM WIRING DIAGRAMS

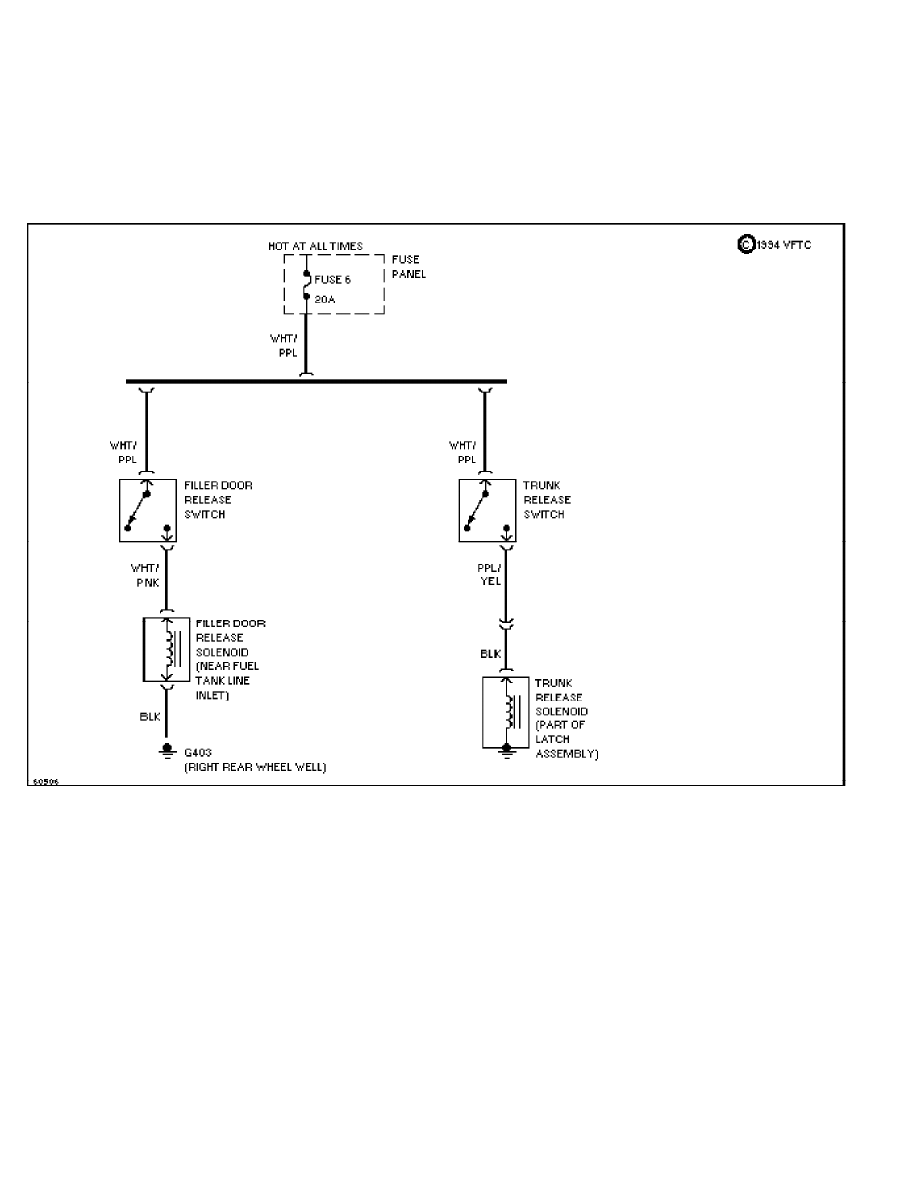

Trunk & Fuel Door Release Circuit (p. 13)

1985 Ford LTD

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 07:22PM

background image

SYSTEM WIRING DIAGRAMS

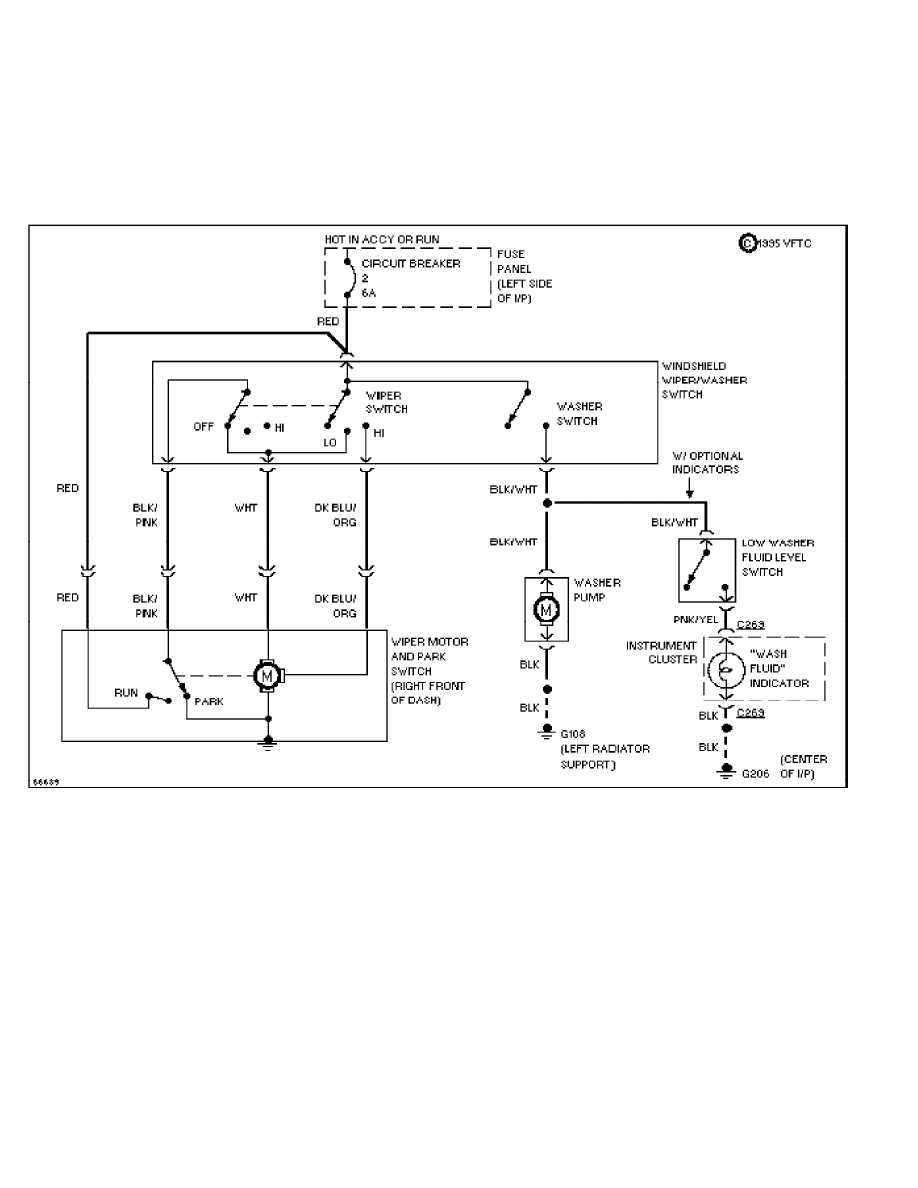

2-Speed Wiper/Washer Circuit (p. 14)

1985 Ford LTD

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 07:22PM

background image

SYSTEM WIRING DIAGRAMS

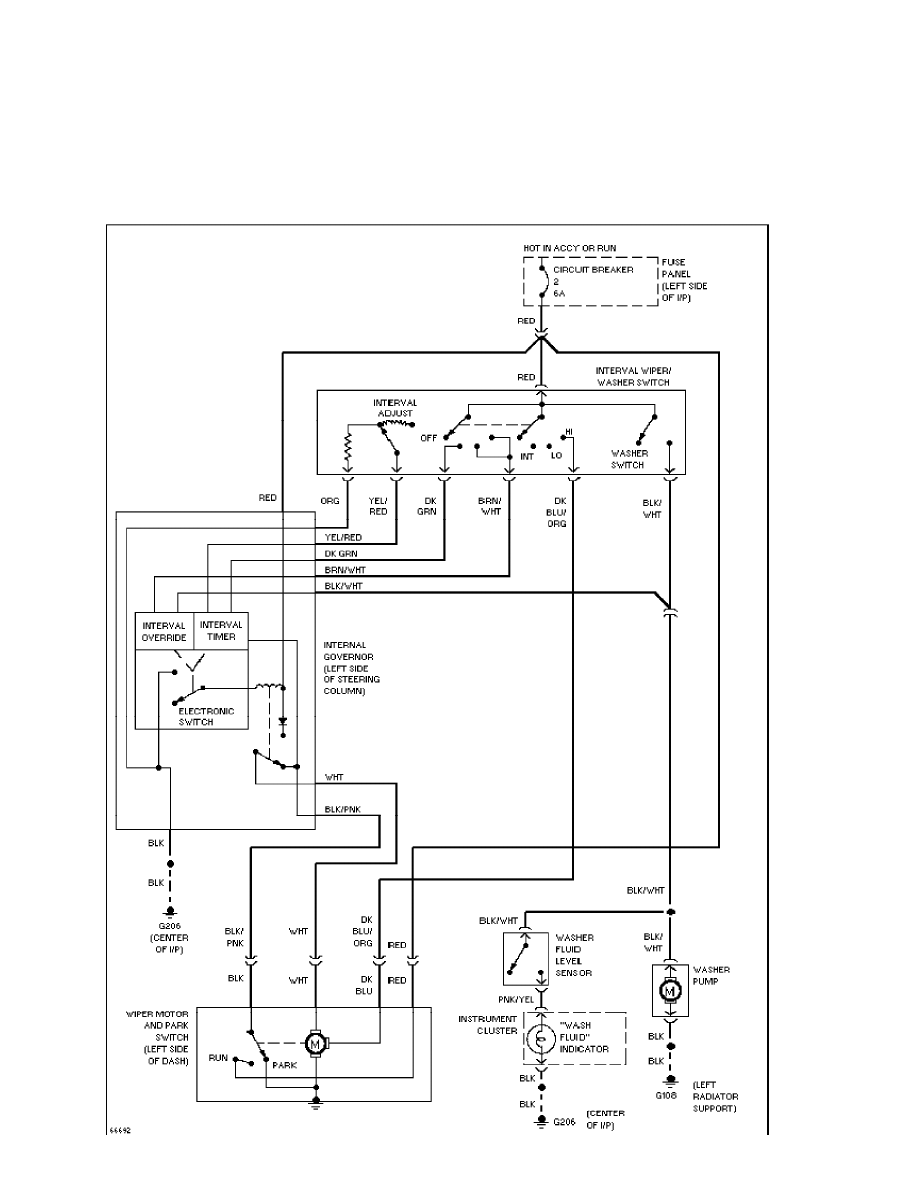

Interval Wiper/Washer Circuit (p. 15)

1985 Ford LTD

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 07:22PM

background image

WIRING DIAGRAMS

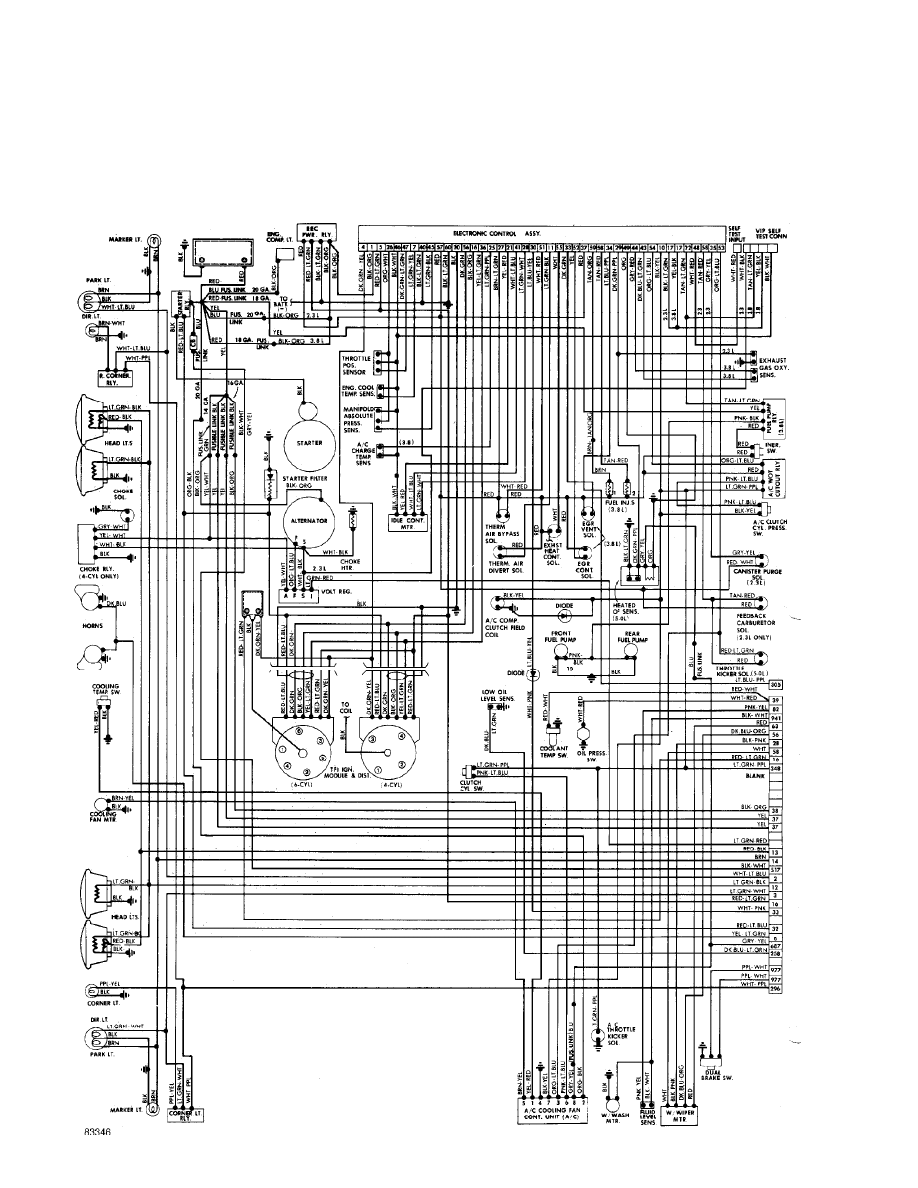

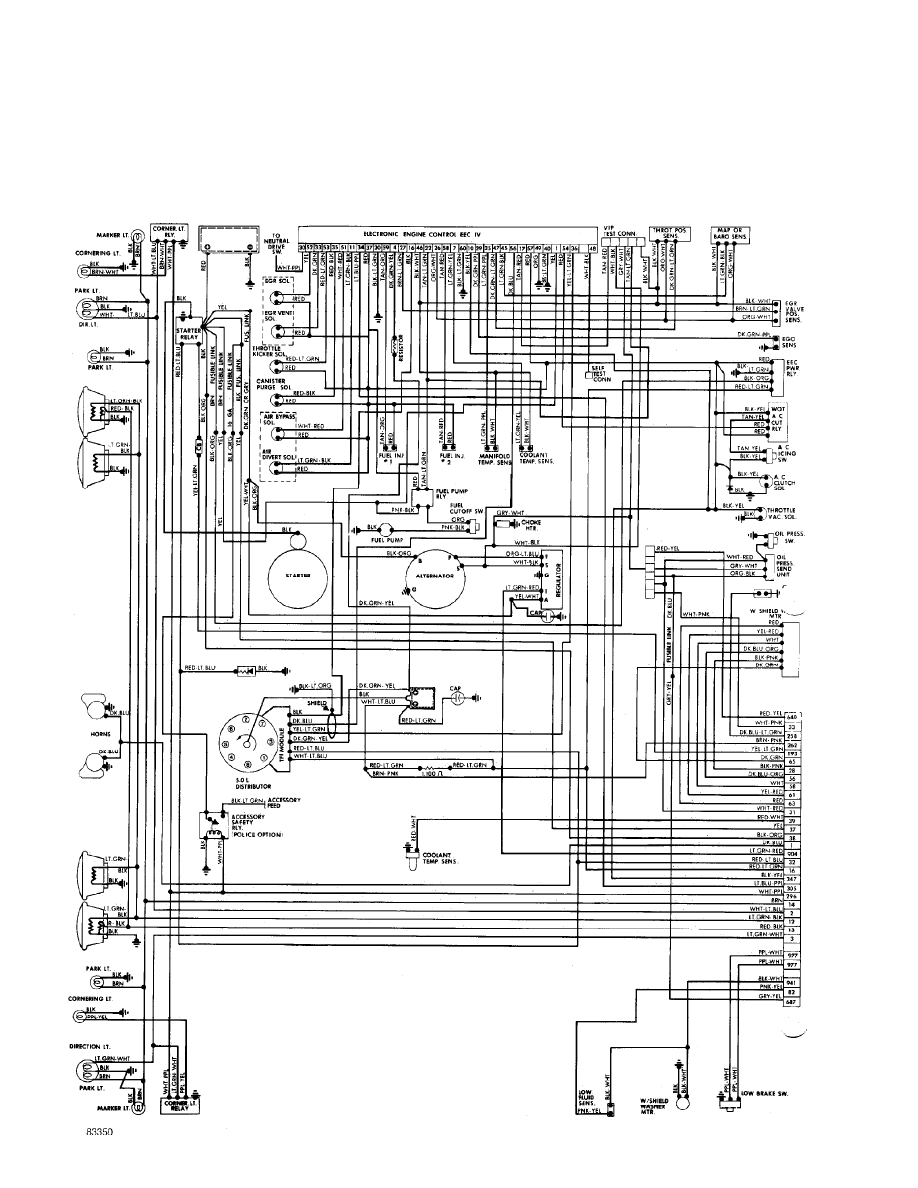

Fig. 1: Engine Compartment (Except 5.0L)

1985 Ford LTD

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 07:23PM

background image

WIRING DIAGRAMS

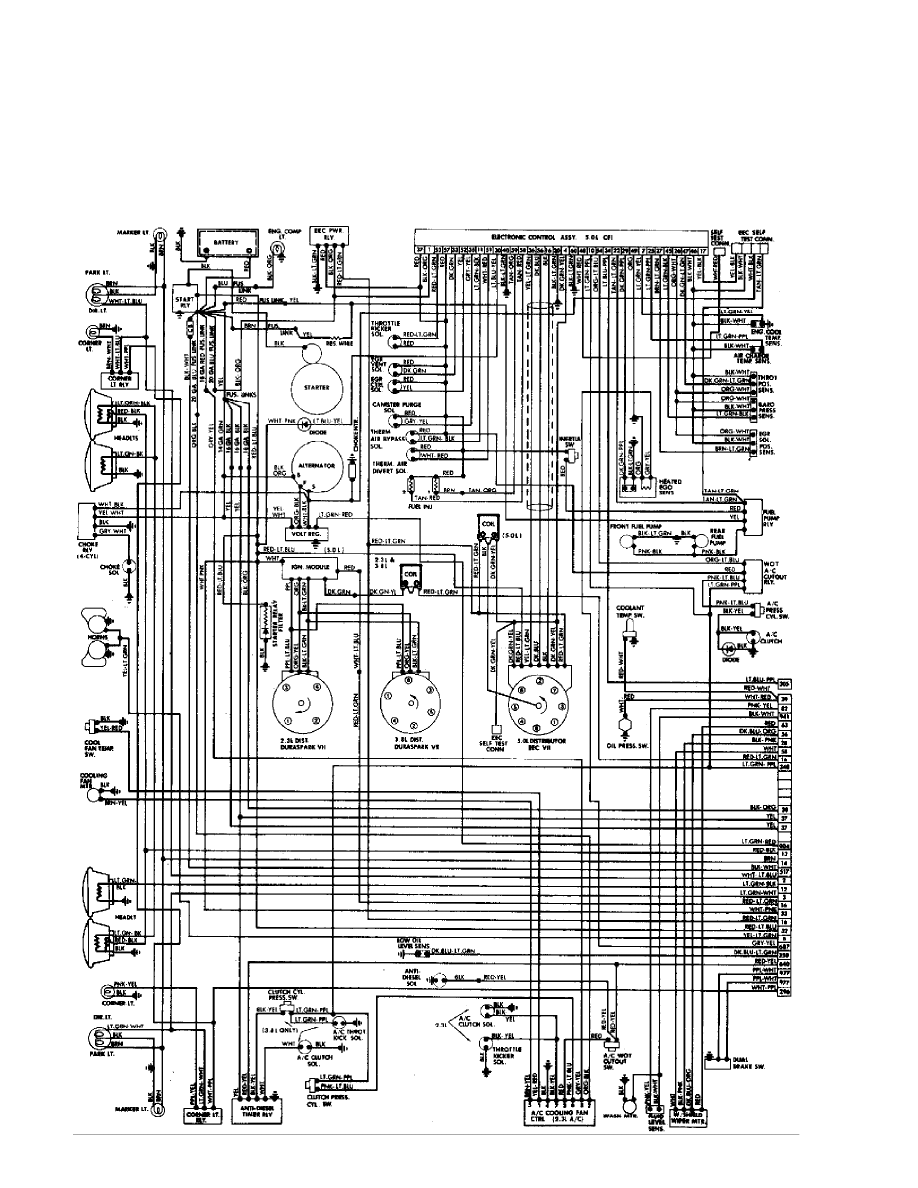

Fig. 2: Engine Compartment (5.0L) (p. 2)

1985 Ford LTD

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 07:23PM

background image

WIRING DIAGRAMS

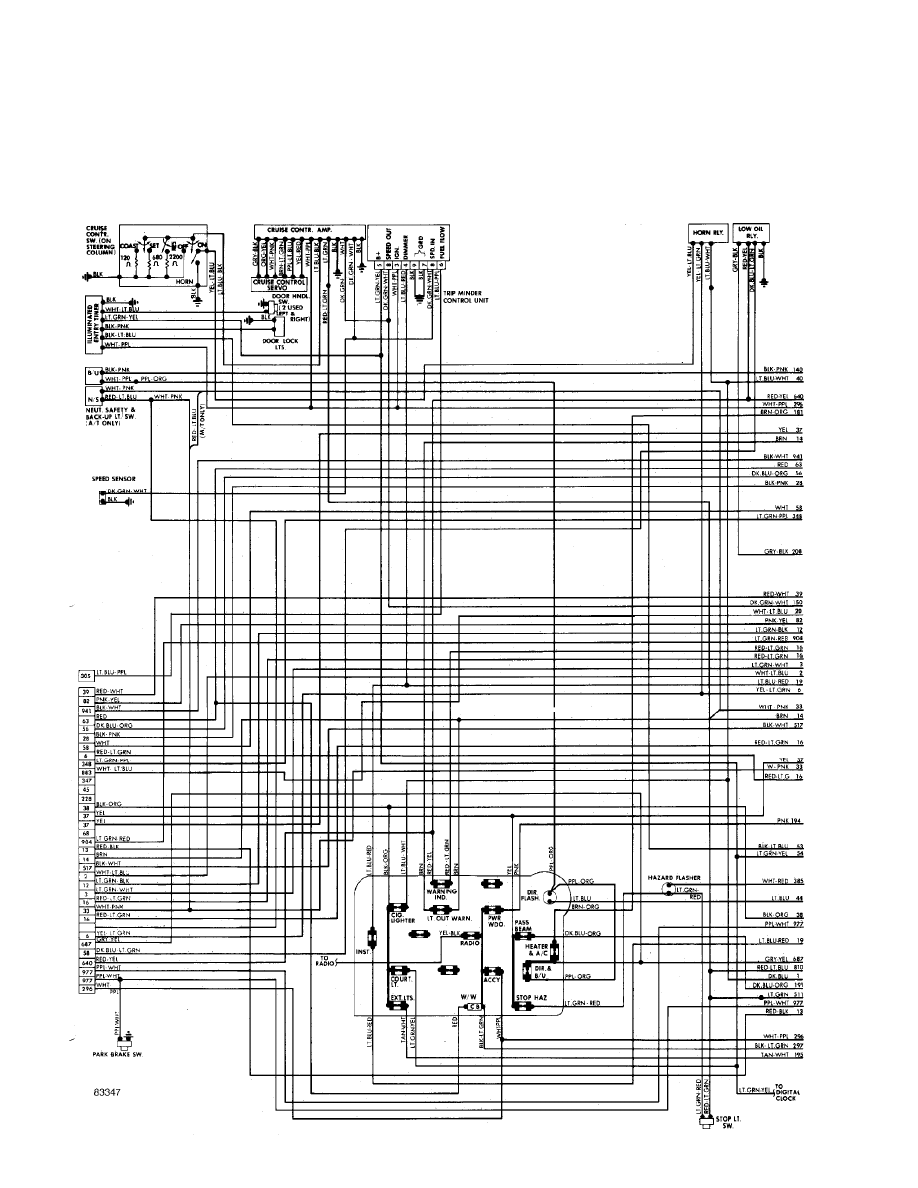

Fig. 3: Fuse Block & Underdash (p. 3)

1985 Ford LTD

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 07:23PM

background image

WIRING DIAGRAMS

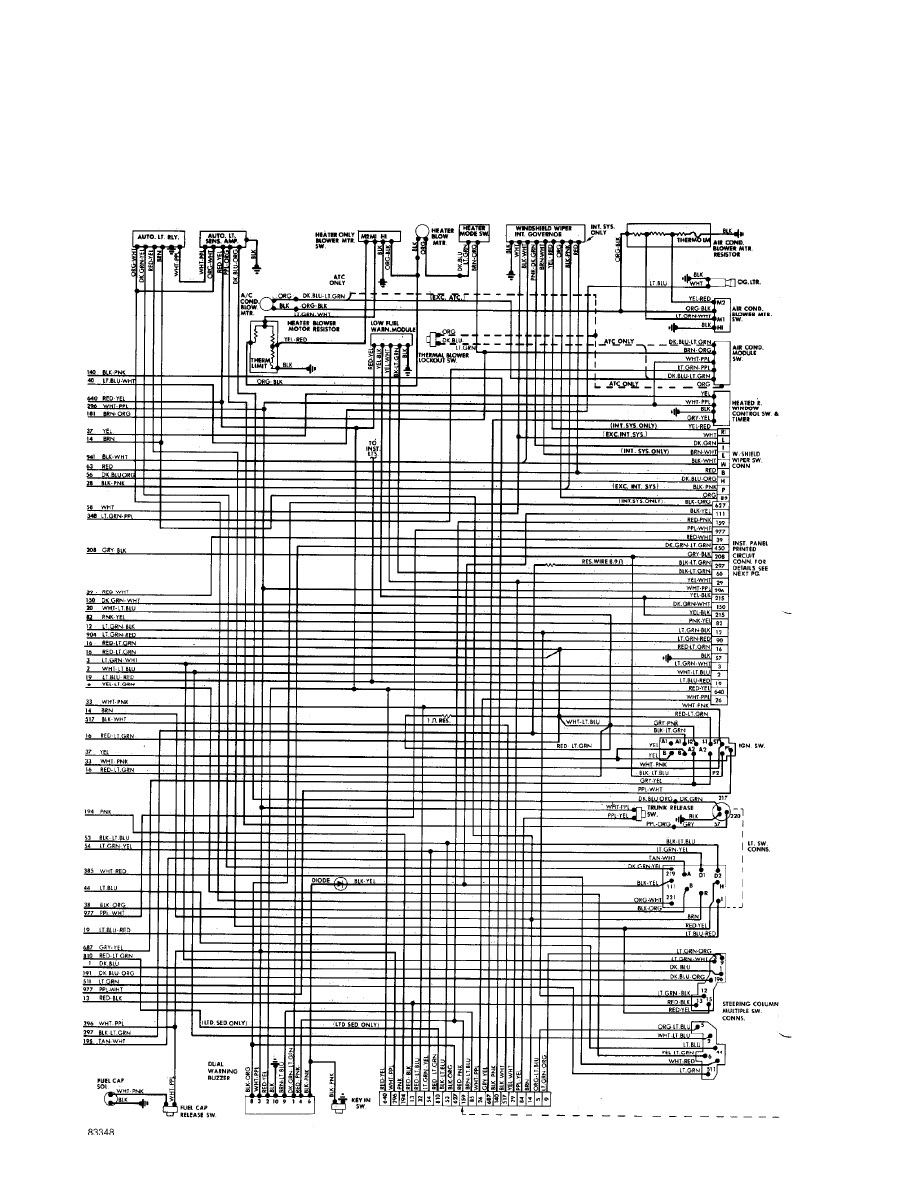

Fig. 4: Underdash (Cont.) & Instrument Panel (p. 4)

1985 Ford LTD

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 07:23PM

background image

WIRING DIAGRAMS

Fig. 5: Rear Compartment & Accessories (p. 5)

1985 Ford LTD

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 07:23PM

background image

WIRING DIAGRAMS

Fig. 6: Engine Compartment & Headlights (p. 6)

1985 Ford LTD

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 07:23PM

background image

WIRING DIAGRAMS

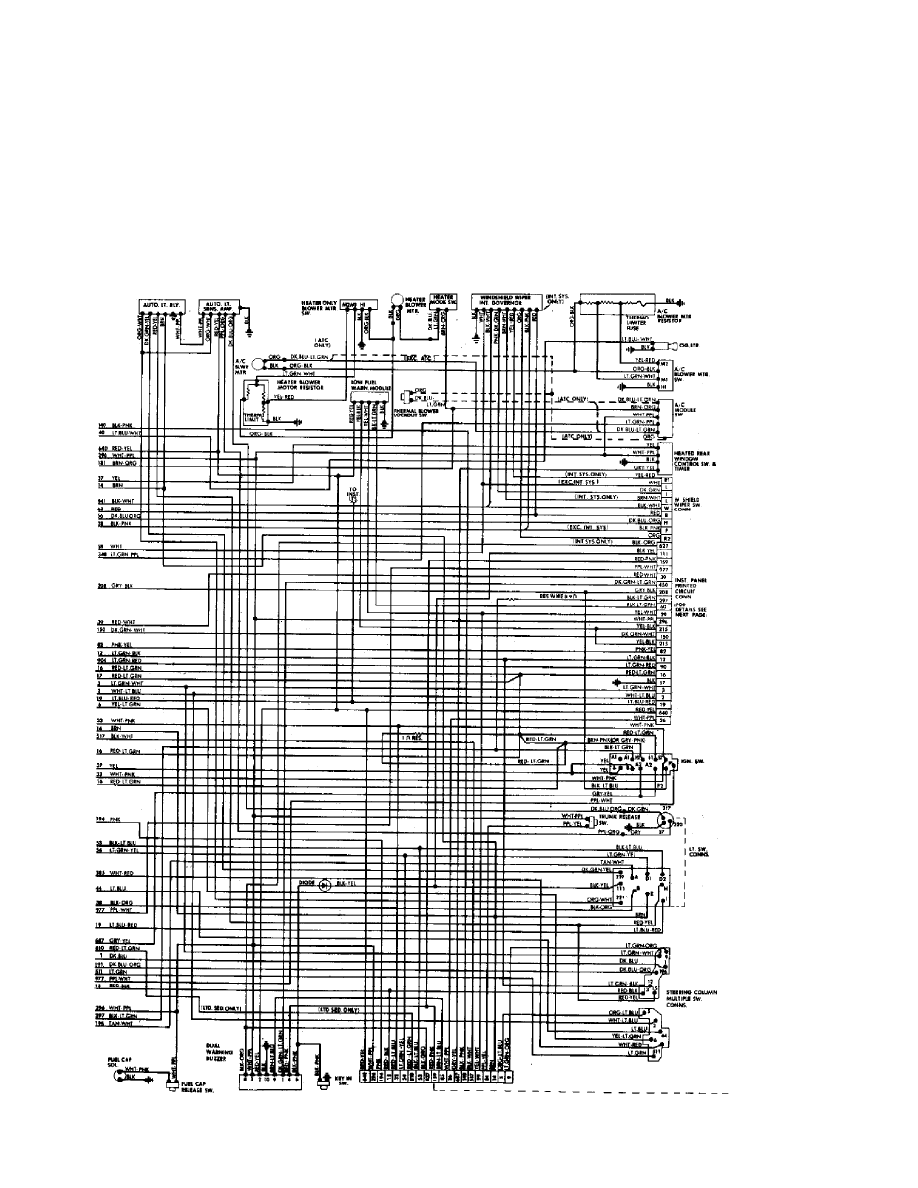

Fig. 7: Fuse Block & Underdash (p. 7)

1985 Ford LTD

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 07:23PM

background image

WIRING DIAGRAMS

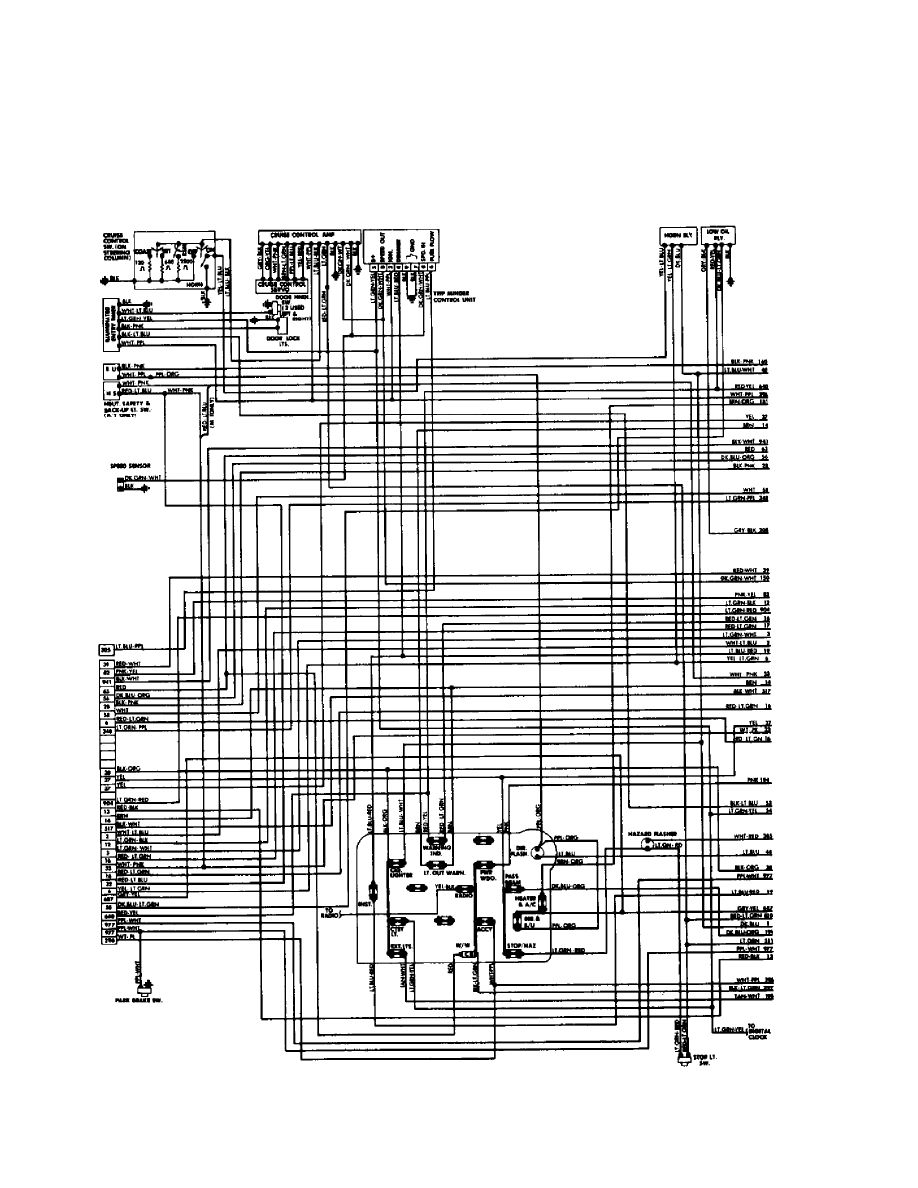

Fig. 8: Instrument Panel & Underdash (Cont.) (p. 8)

1985 Ford LTD

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 07:23PM

background image

WIRING DIAGRAMS

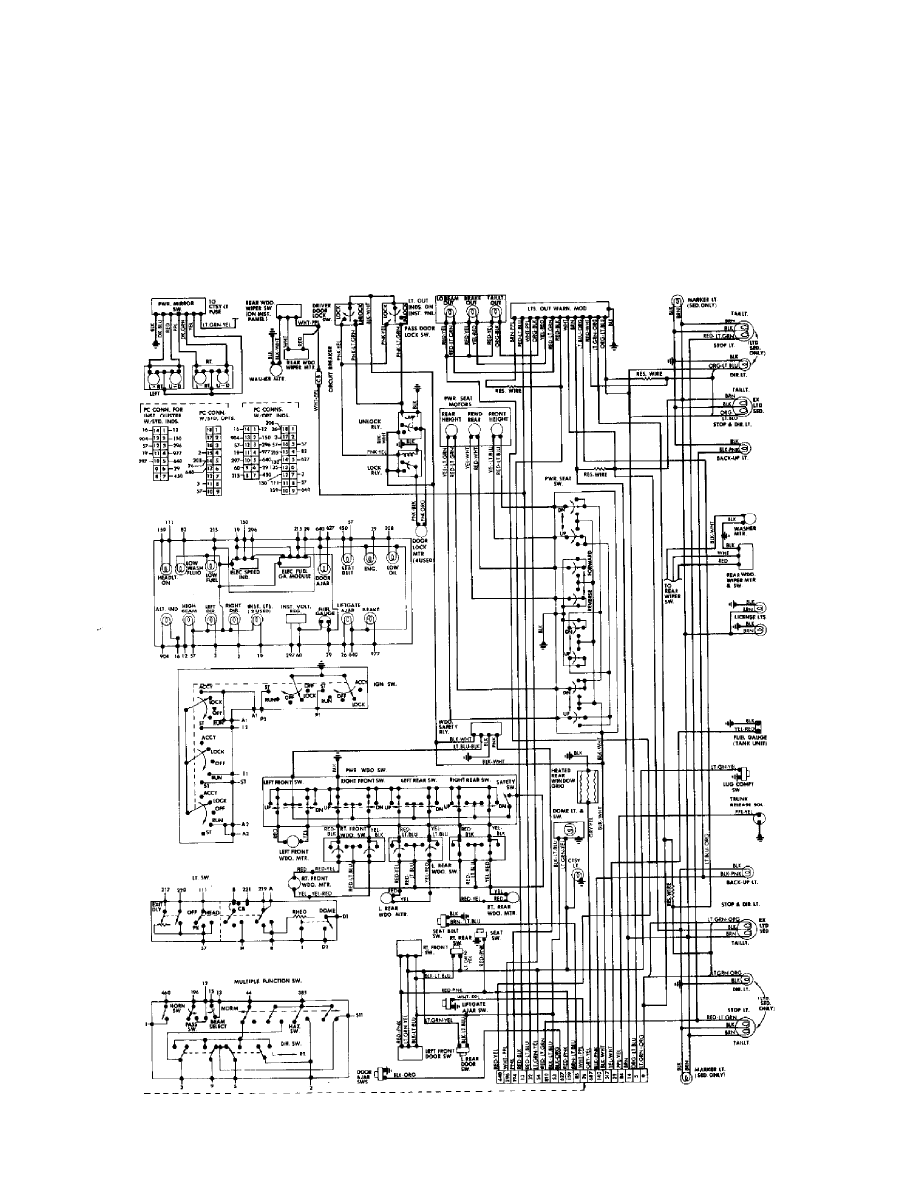

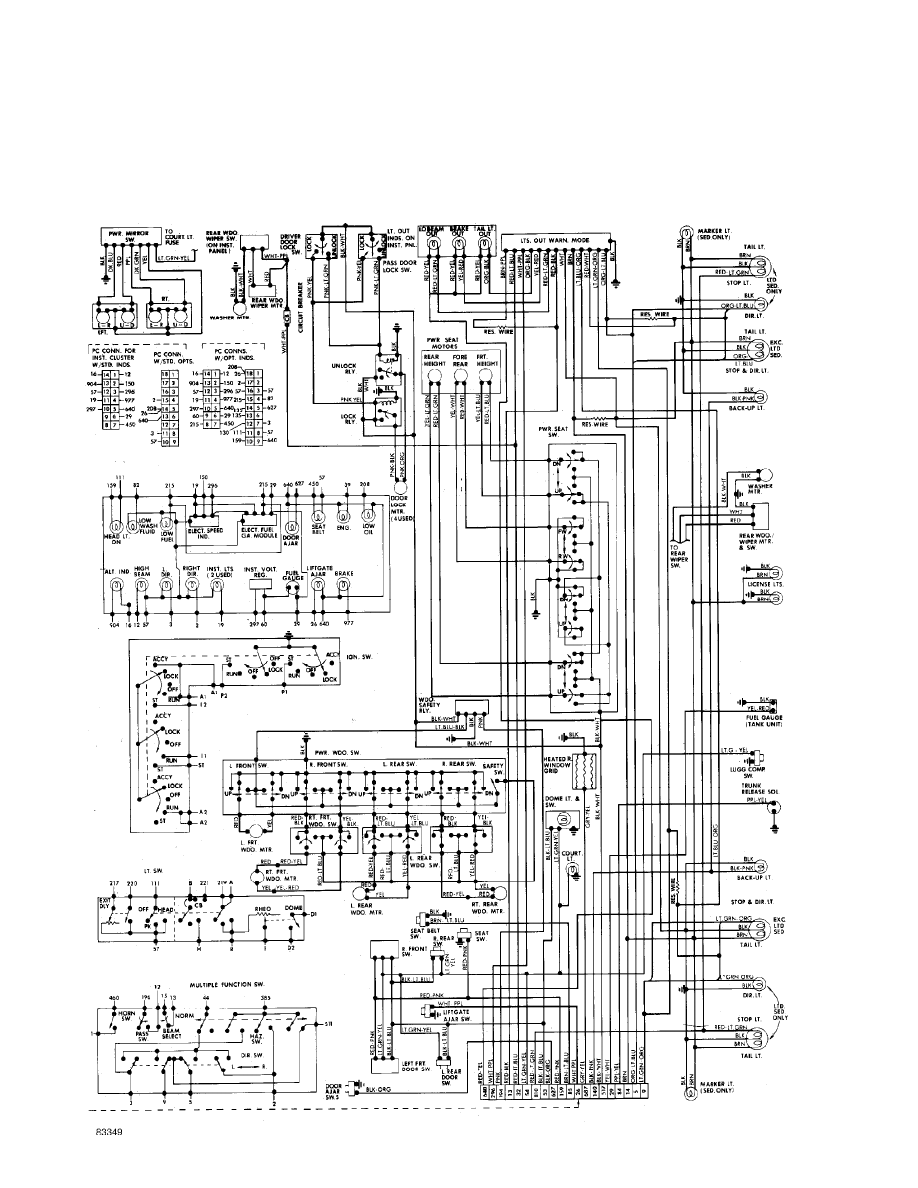

Fig. 9: Rear Compartment, Accessories & Taillights (p. 9)

1985 Ford LTD

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 07:23PM
