FORD LTD 1983

background image

WIRING DIAGRAMS

Fig. 1: Engine Compartment

1983 Ford LTD

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 07:22PM

background image

WIRING DIAGRAMS

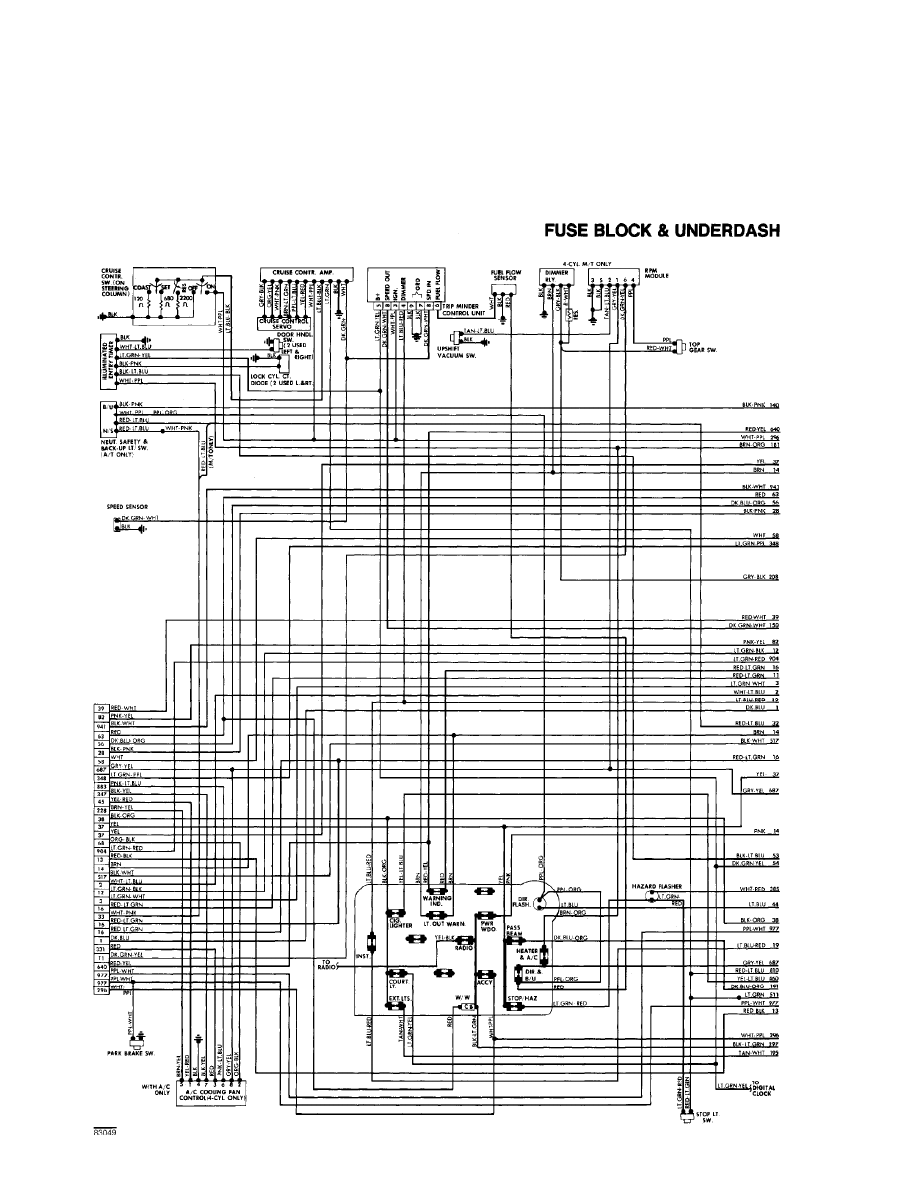

Fig. 2: Fuse Block & Underdash (p. 2)

1983 Ford LTD

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 07:22PM

background image

WIRING DIAGRAMS

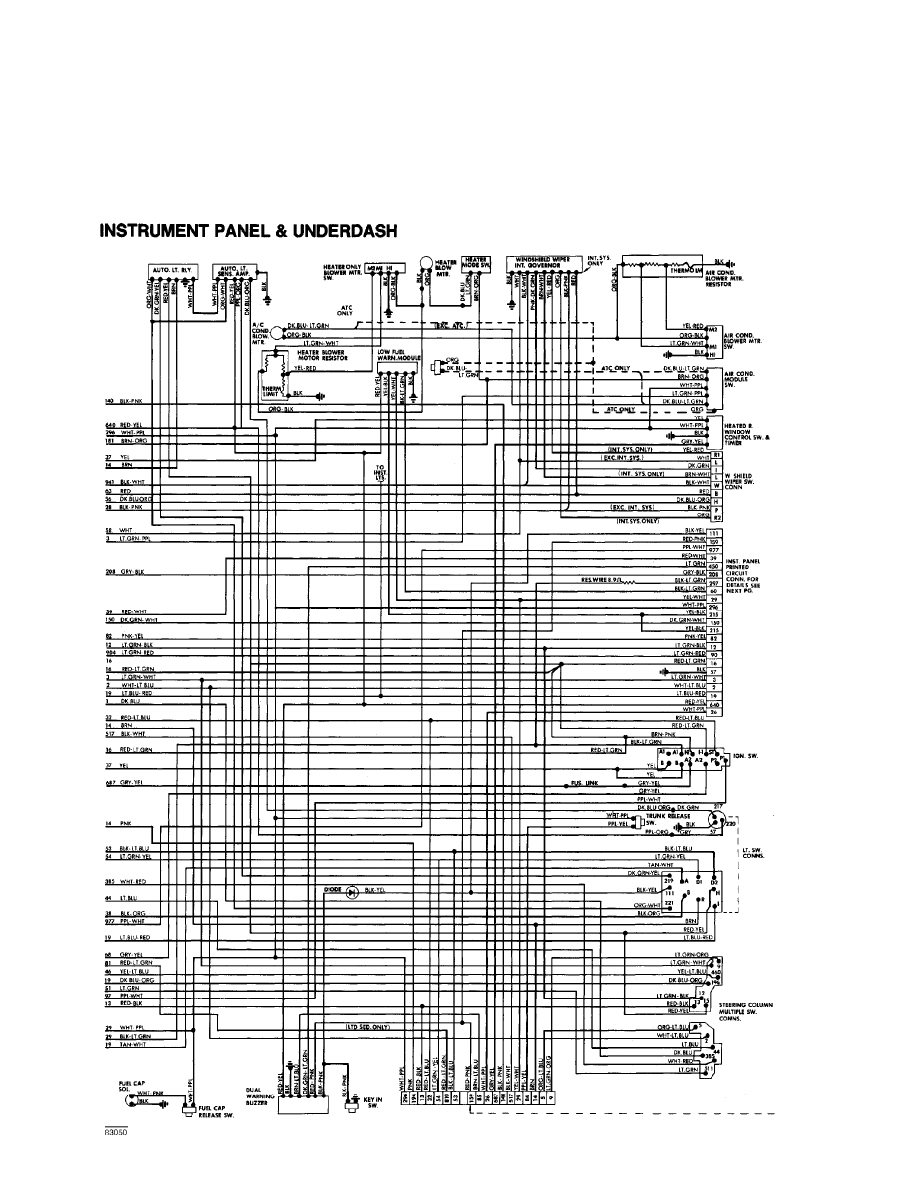

Fig. 3: Underdash (Cont.) & Instrument Panel (p. 3)

1983 Ford LTD

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 07:22PM

background image

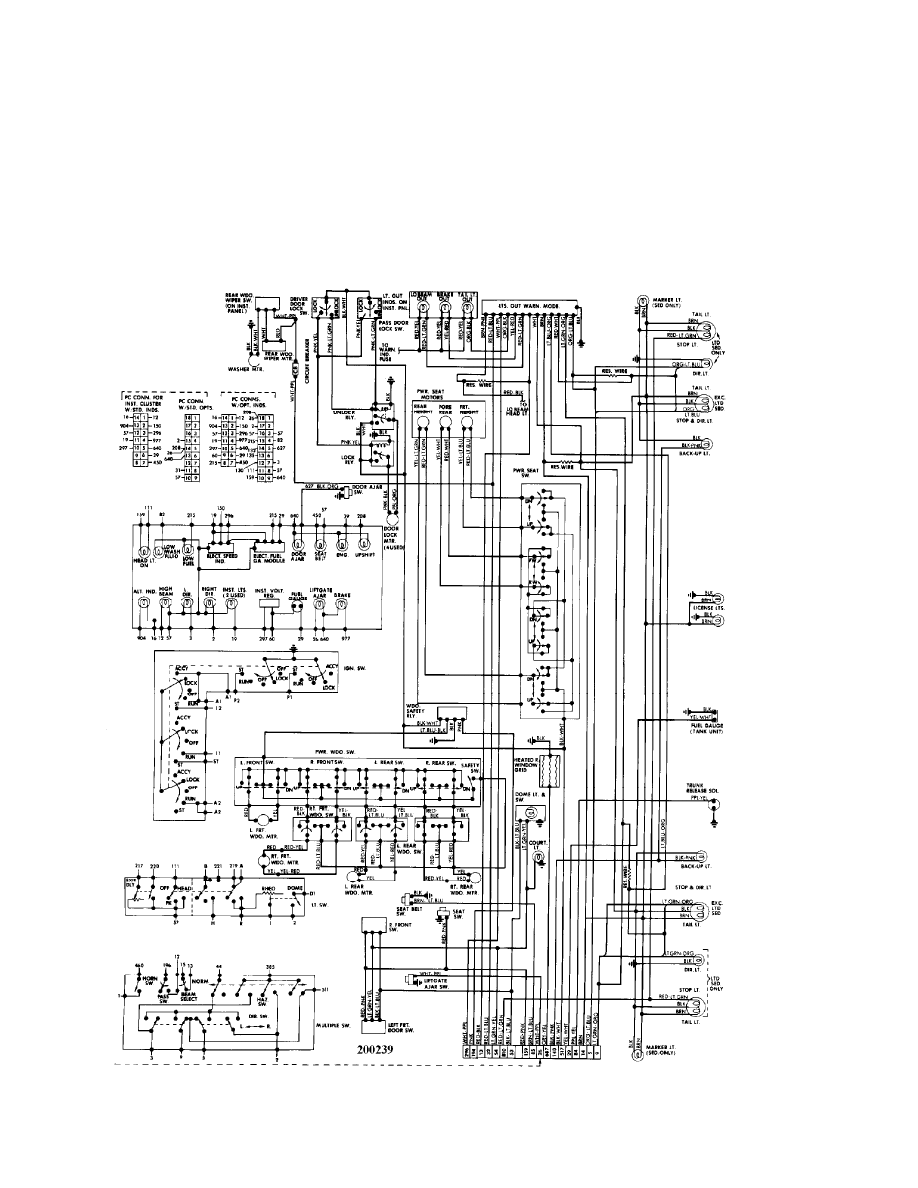

WIRING DIAGRAMS

Fig. 4: Rear Compartment & Accessories (p. 4)

1983 Ford LTD

For cdr101@wp.pl x x x x

Copyright © 1998 Mitchell Repair Information Company, LLC

Tuesday, April 04, 2006 07:22PM
