1.2. Before installation (relocation)

Caution:

• Be extremely careful when transporting the units. Two or more persons are

needed to handle the unit, as it weighs 20 kg or more. Do not grasp the
packaging bands. Wear protective gloves to remove the unit from the pack-
aging and to move it, as you can injure your hands on the fins or other parts.

• Be sure to safely dispose of the packaging materials. Packaging materials, such

as nails and other metal or wooden parts may cause stabs or other injuries.

• The base and attachments of the outdoor unit must be periodically checked

for looseness, cracks or other damage. If such defects are left uncorrected,
the unit may fall down and cause damage or injuries.

Warning:

• The unit must not be installed by the user. Ask a dealer or an authorized

technician to install the unit. If the unit is installed incorrectly, water leakage,
electric shock, or fire may result.

• For installation work, follow the instructions in the Installation Manual and use

tools and pipe components specifically made for use with R410A refrigerant.
The R410A refrigerant in the HFC system is pressurized 1.6 times the pressure
of usual refrigerants. If pipe components not designed for R410A refrigerant
are used and the unit is not installed correctly, the pipes may burst and cause
damage or injuries. In addition, water leakage, electric shock, or fire may result.

• The unit must be installed according to the instructions in order to minimize

the risk of damage from earthquakes, typhoons, or strong winds. An incor-
rectly installed unit may fall down and cause damage or injuries.

• The unit must be securely installed on a structure that can sustain its weight.

If the unit is mounted on an unstable structure, it may fall down and cause
damage or injuries.

• If the air conditioner is installed in a small room, measures must be taken to

prevent the refrigerant concentration in the room from exceeding the safety
limit in the event of refrigerant leakage. Consult a dealer regarding the appro-
priate measures to prevent the allowable concentration from being exceeded.
Should the refrigerant leak and cause the concentration limit to be exceeded,
hazards due to lack of oxygen in the room may result.

• Ventilate the room if refrigerant leaks during operation. If refrigerant comes

into contact with a flame, poisonous gases will be released.

• All electric work must be performed by a qualified technician according to

local regulations and the instructions given in this manual. The units must be
powered by dedicated power lines and the correct voltage and circuit break-
ers must be used. Power lines with insufficient capacity or incorrect electri-
cal work may result in electric shock or fire.

• Use C1220 copper phosphorus, for copper and copper alloy seamless pipes,

to connect the refrigerant pipes. If the pipes are not connected correctly, the
unit will not be properly grounded and electric shock may result.

• Use only specified cables for wiring. The connections must be made securely

without tension on the terminals. If the cables are connected or installed in-
correctly, overheating or fire may result.

• The terminal block cover panel of the outdoor unit must be firmly attached. If

the cover panel is mounted incorrectly and dust and moisture enter the unit,
electric shock or fire may result.

• When installing or moving the air conditioner, use only the specified refriger-

ant (R410A) to charge the refrigerant lines. Do not mix it with any other refrig-
erant and do not allow air to remain in the lines. Air enclosed in the lines can
cause pressure peaks resulting in a rupture and other hazards.

• Use only accessories authorized by Mitsubishi Electric and ask a dealer or

an authorized technician to install them. If accessories are incorrectly in-
stalled, water leakage, electric shock, or fire may result.

• Do not alter the unit. Consult a dealer for repairs. If alterations or repairs are

not performed correctly, water leakage, electric shock, or fire may result.

• The user should never attempt to repair the unit or transfer it to another loca-

tion. If the unit is installed incorrectly, water leakage, electric shock, or fire
may result. If the air conditioner must be repaired or moved, ask a dealer or
an authorized technician.

• After installation has been completed, check for refrigerant leaks. If refriger-

ant leaks into the room and comes into contact with the flame of a heater or
portable cooking range, poisonous gases will be released.

1.1. Before installation

Caution:

• Do not use the unit in an unusual environment. If the air conditioner is in-

stalled in areas exposed to steam, volatile oil (including machine oil), or sulfuric
gas, areas exposed to high salt content such as the seaside, or areas where
the unit will be covered by snow, the performance can be significantly re-
duced and the internal parts can be damaged.

• Do not install the unit where combustible gases may leak, be produced, flow,

or accumulate. If combustible gas accumulates around the unit, fire or explo-
sion may result.

• The outdoor unit produces condensation during the heating operation. Make

sure to provide drainage around the outdoor unit if such condensation is
likely to cause damage.

• When installing the unit in a hospital or communications office, be prepared

for noise and electronic interference. Inverters, home appliances, high-fre-
quency medical equipment, and radio communications equipment can cause
the air conditioner to malfunction or breakdown. The air conditioner may also
affect medical equipment, disturbing medical care, and communications equip-
ment, harming the screen display quality.

• Do not clean the air conditioner unit with water. Electric shock may result.
• Tighten all flare nuts to specification using a torque wrench. If tightened too

much, the flare nut can break after an extended period and refrigerant can
leak out.

Contents

1. Safety precautions ................................................................................... 2
2. Installation location .................................................................................. 3
3. Installing the outdoor unit ......................................................................... 5
4. Installing the refrigerant piping ................................................................. 5

5. Drainage piping work ............................................................................... 8
6. Electrical work .......................................................................................... 8
7. Test run .................................................................................................. 10

1. Safety precautions

s Before installing the unit, make sure you read all the “Safety precau-

tions”.

s Please report to or take consent by the supply authority before connec-

tion to the system.

Warning:

Describes precautions that must be observed to prevent danger of injury or
death to the user.

Caution:

Describes precautions that must be observed to prevent damage to the unit.

After installation work has been completed, explain the “Safety Precautions,” use,
and maintenance of the unit to the customer according to the information in the Op-
eration Manual and perform the test run to ensure normal operation. Both the Instal-
lation Manual and Operation Manual must be given to the user for keeping. These
manuals must be passed on to subsequent users.

: Indicates a part which must be grounded.

Warning:

Carefully read the labels affixed to the main unit.

Confirmation of parts attached

In addition to this manual, the following parts are supplied with the outdoor unit.
They are used for grounding the S terminals of transmission terminal blocks TB3,
TB7. For details refer to “6. Electrical work”.

Grounding lead wire (× 2)

3

1. Safety precautions

1.3. Before electric work

Caution:

• Be sure to install circuit breakers. If not installed, electric shock may result.
• For the power lines, use standard cables of sufficient capacity. Otherwise, a

short circuit, overheating, or fire may result.

• When installing the power lines, do not apply tension to the cables. If the

connections are loosened, the cables can snap or break and overheating or
fire may result.

1.4. Before starting the test run

Caution:

• Turn on the main power switch more than 12 hours before starting operation.

Starting operation just after turning on the power switch can severely dam-
age the internal parts. Keep the main power switch turned on during the op-
eration season.

• Before starting operation, check that all panels, guards and other protective

parts are correctly installed. Rotating, hot, or high voltage parts can cause
injuries.

• Do not touch any switch with wet hands. Electric shock may result.

• Be sure to ground the unit. Do not connect the ground wire to gas or water

pipes, lighting rods, or telephone grounding lines. If the unit is not properly
grounded, electric shock may result.

• Use circuit breakers (ground fault interrupter, isolating switch (+B fuse), and

molded case circuit breaker) with the specified capacity. If the circuit breaker
capacity is larger than the specified capacity, breakdown or fire may result.

• Do not touch the refrigerant pipes with bare hands during operation. The

refrigerant pipes are hot or cold depending on the condition of the flowing
refrigerant. If you touch the pipes, burns or frostbite may result.

• After stopping operation, be sure to wait at least five minutes before turning

off the main power switch. Otherwise, water leakage or breakdown may re-
sult.

1.5. Using R410A refrigerant air conditioners

Caution:

• Use C1220 copper phosphorus, for copper and copper alloy seamless pipes,

to connect the refrigerant pipes. Make sure the insides of the pipes are clean
and do not contain any harmful contaminants such as sulfuric compounds,
oxidants, debris, or dust. Use pipes with the specified thickness. (Refer to
page 5) Note the following if reusing existing pipes that carried R22 refriger-
ant.

- Replace the existing flare nuts and flare the flared sections again.
- Do not use thin pipes. (Refer to page 5)
• Store the pipes to be used during installation indoors and keep both ends of

the pipes sealed until just before brazing. (Leave elbow joints, etc. in their
packaging.) If dust, debris, or moisture enters the refrigerant lines, oil dete-
rioration or compressor breakdown may result.

• Use ester oil, ether oil, alkylbenzene oil (small amount) as the refrigeration oil

applied to the flared sections. If mineral oil is mixed in the refrigeration oil, oil
deterioration may result.

• Do not use refrigerant other than R410A refrigerant. If another refrigerant is

used, the chlorine will cause the oil to deteriorate.

• Use the following tools specifically designed for use with R410A refrigerant.

The following tools are necessary to use R410A refrigerant. Contact your
nearest dealer for any questions.

Tools (for R410A)

Gauge manifold

Flare tool

Charge hose

Size adjustment gauge

Gas leak detector

Vacuum pump adapter

Torque wrench

Electronic refrigerant charging scale

• Be sure to use the correct tools. If dust, debris, or moisture enters the refrig-

erant lines, refrigeration oil deterioration may result.

• Do not use a charging cylinder. If a charging cylinder is used, the composi-

tion of the refrigerant will change and the efficiency will be lowered.

2. Installation location

2.1. Refrigerant pipe

Refer to Fig. 4-1.

2.2. Choosing the outdoor unit installation location

• Avoid locations exposed to direct sunlight or other sources of heat.
• Select a location from which noise emitted by the unit will not inconvenience

neighbors.

• Select a location permitting easy wiring and pipe access to the power source and

indoor unit.

• Avoid locations where combustible gases may leak, be produced, flow, or accumu-

late.

• Note that water may drain from the unit during operation.

• Select a level location that can bear the weight and vibration of the unit.
• Avoid locations where the unit can be covered by snow. In areas where heavy snow

fall is anticipated, special precautions such as raising the installation location or
installing a hood on the air intake must be taken to prevent the snow from blocking
the air intake or blowing directly against it. This can reduce the airflow and a mal-
function may result.

• Avoid locations exposed to oil, steam, or sulfuric gas.
• Use the transportation handles of the outdoor unit to transport the unit. If the unit is

carried from the bottom, hands or fingers may be pinched.

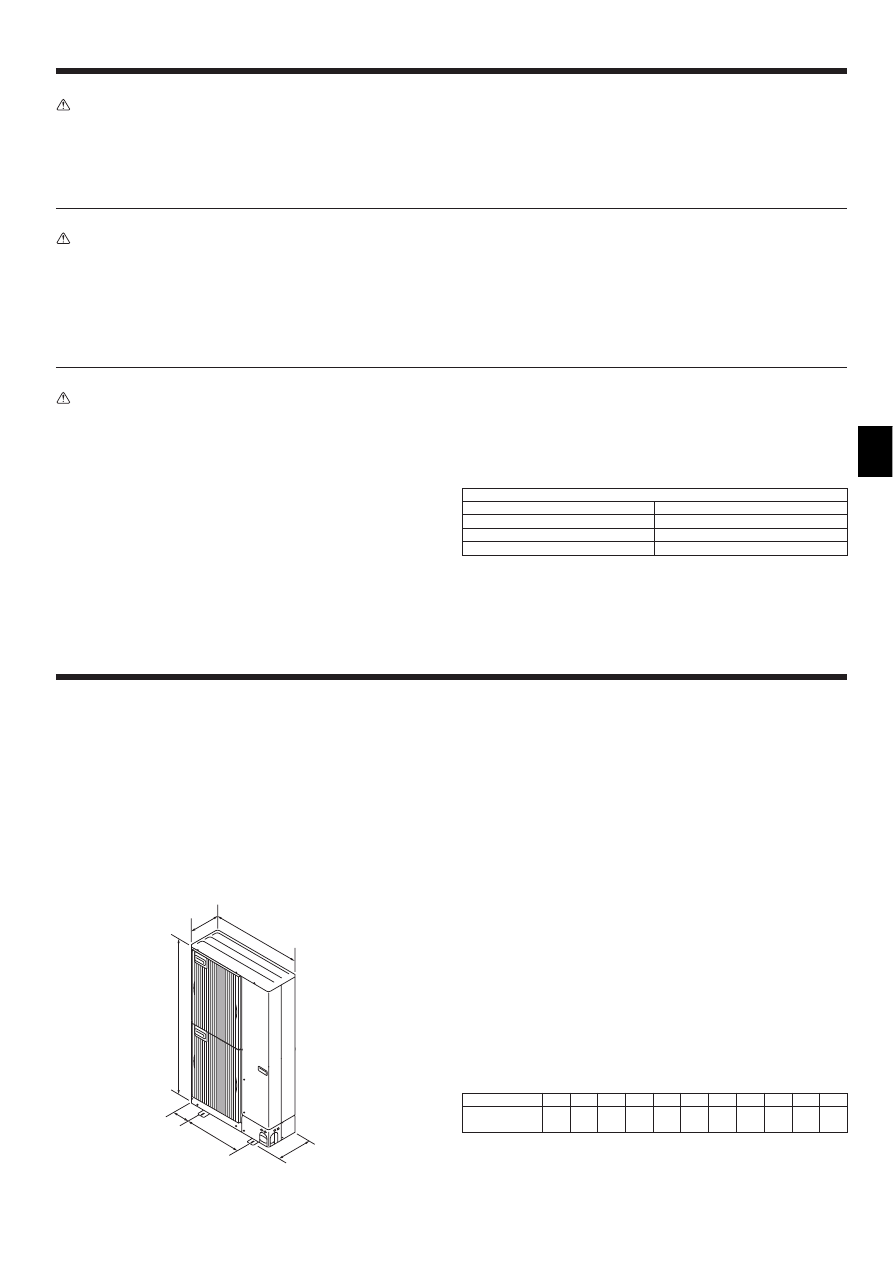

2.3. Outline dimensions (Outdoor unit) (Fig. 2-1)

Constraints on indoor unit installation
You should note that indoor units that can be connected to this outdoor unit are the
following models.
• Indoor units with model numbers 20-140 can be connected. Refer to the table be-

low for possible 1-8 room, indoor unit combinations.

Verification
The rated capacity should be determined by observing the table below. The unit’s
quantities are limited in 1 to 8 units. For the next step, make sure that the total rated
capacity selected will stay in a range of 50% - 130% of the outdoor unit capacity.

• PUMY-P100

5.6 - 14.6 kW

• PUMY-P125

7.1 - 18.2 kW

• PUMY-P140

8.0 - 20.2 kW

Indoor unit type

20

25

32

40

50

63

71

80

100

125

140

Rated capacity

2.2

2.8

3.6

4.5

5.6

7.1

8.0

9.0

11.2 14.0 16.0

(Cooling) (kW)

Combinations in which the total capacity of indoor units exceeds the capacity of the
outdoor unit will reduce the cooling capacity of each indoor unit below their rated
cooling capacity. Thus, combine indoor units with an outdoor unit within the outdoor
unit’s capacity, if possible.

Fig. 2-1

(mm)

950

33

0+

30

1

3

5

0

17

5

600

37

0

4

2. Installation location

Fig. 2-3

Fig. 2-7

Fig. 2-8

Fig. 2-9

Fig. 2-10

Fig. 2-11

Fig. 2-12

Fig. 2-13

Fig. 2-14

Fig. 2-6

Fig. 2-5

Fig. 2-4

Fig. 2-2

150

300

1000

Max.

500

200

300

200

1000

150

1000

250

250

1500

500

Max.

500

300

1500

500

1500

Max.

300

1500

1500

500

1000

600

2000

150

1500

600

3000

500

1500

800

150

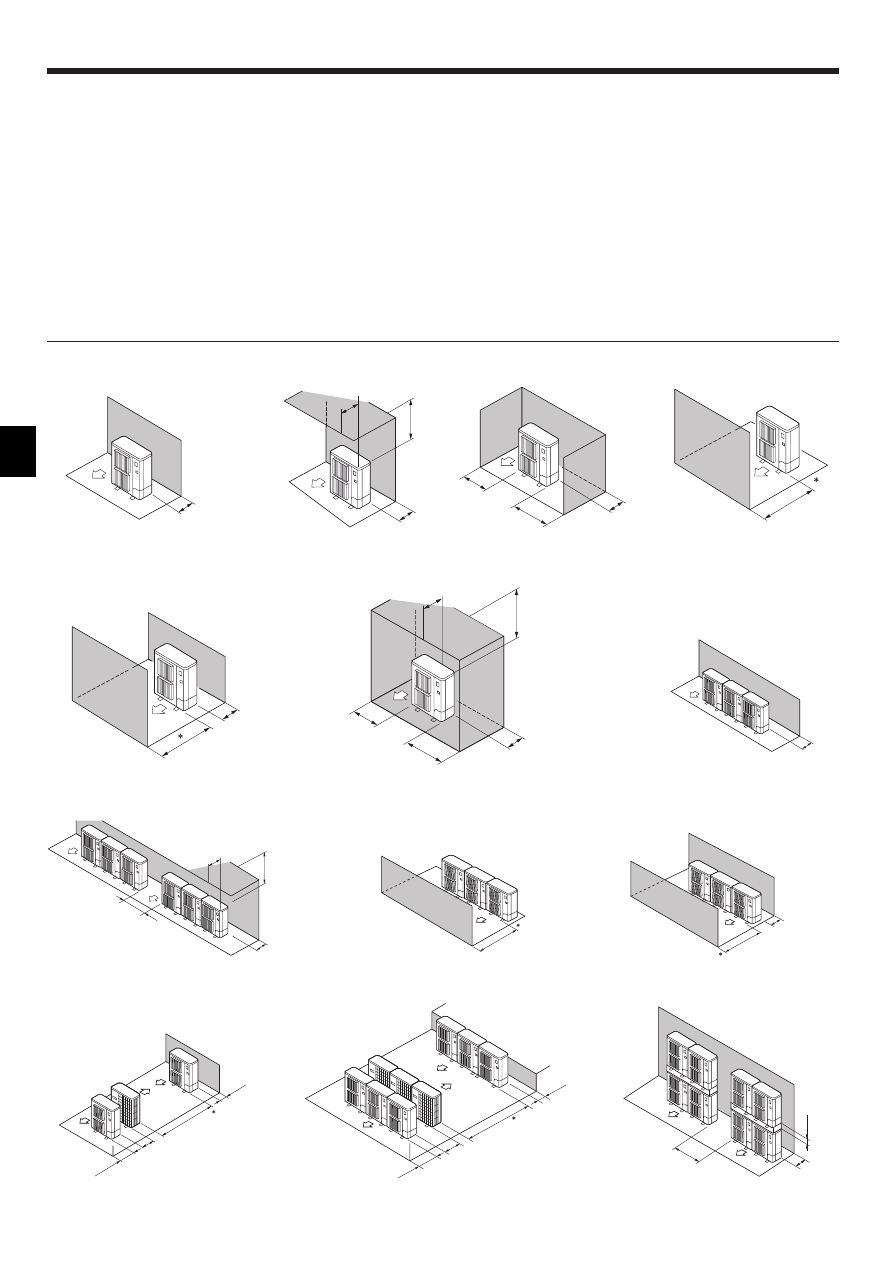

2.4. Ventilation and service space

2.4.1. When installing a single outdoor unit

Minimum dimensions are as follows, except for Max., meaning Maximum dimensions,
indicated.
Refer to the figures for each case.
1 Obstacles at rear only (Fig. 2-2)
2 Obstacles at rear and above only (Fig. 2-3)
3 Obstacles at rear and sides only (Fig. 2-4)
4 Obstacles at front only (Fig. 2-5)

∗ When using an optional air outlet guide, the clearance is 500 mm or more.

5 Obstacles at front and rear only (Fig. 2-6)

∗ When using an optional air outlet guide, the clearance is 500 mm or more.

6 Obstacles at rear, sides, and above only (Fig. 2-7)

•

Do not install the optional air outlet guides for upward airflow.

2.4.2. When installing multiple outdoor units

Leave 10 mm space or more between the units.
1 Obstacles at rear only (Fig. 2-8)
2 Obstacles at rear and above only (Fig. 2-9)

•

No more than three units must be installed side by side. In addition, leave space as shown.

•

Do not install the optional air outlet guides for upward airflow.

3 Obstacles at front only (Fig. 2-10)

∗ When using an optional air outlet guide, the clearance is 1000 mm or more.

4 Obstacles at front and rear only (Fig. 2-11)

∗ When using an optional air outlet guide, the clearance is 1000 mm or more.

5 Single parallel unit arrangement (Fig. 2-12)

∗ When using an optional air outlet guide installed for upward airflow, the clearance is 1000

mm or more.

6 Multiple parallel unit arrangement (Fig. 2-13)

∗ When using an optional air outlet guide installed for upward airflow, the clearance is 1500

mm or more.

7 Stacked unit arrangement (Fig. 2-14)

•

The units can be stacked up to two units high.

•

No more than two stacked units must be installed side by side. In addition, leave space as shown.

5

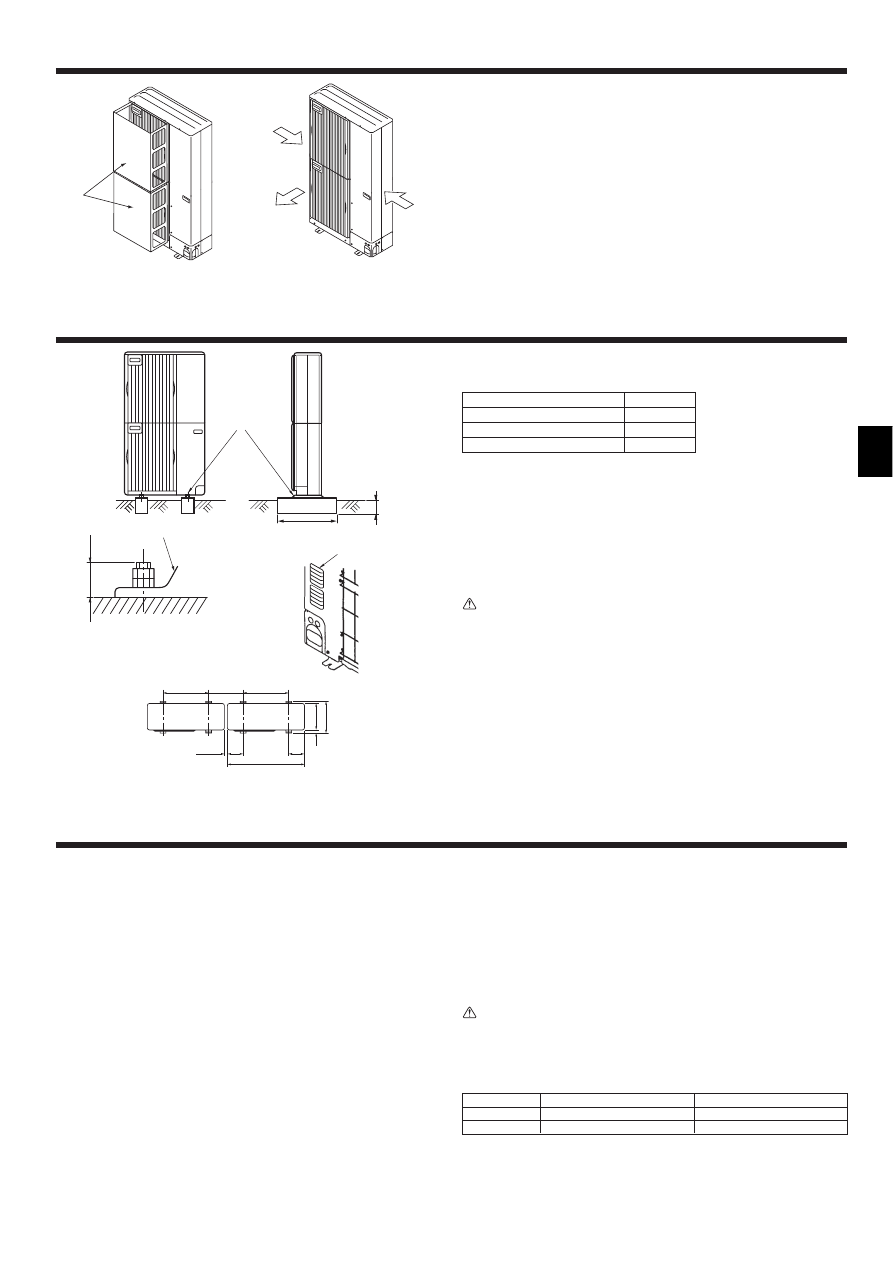

2.4.3. Windy location installation

When installing the outdoor unit on a rooftop or other location unprotected from the
wind, situate the air outlet of the unit so that it is not directly exposed to strong winds.
Strong wind entering the air outlet may impede the normal airflow and a malfunction
may result.
The following shows two examples of precautions against strong winds.
1 Install an optional air guide if the unit is installed in a location where strong winds

from a typhoon, etc. may directly enter the air outlet. (Fig. 2-15)

A Air guide

2 Position the unit so that the air outlet blows perpendicularly to the seasonal wind

direction, if possible. (Fig. 2-16)

B Wind direction

Fig. 2-15

B

Fig. 2-16

2. Installation location

3. Installing the outdoor unit

(mm)

• Be sure to install the unit in a sturdy, level surface to prevent rattling noises during

operation. (Fig. 3-1)

<Foundation specifications>

Foundation bolt

M10 (3/8")

Thickness of concrete

120 mm

Length of bolt

70 mm

Weight-bearing capacity

320 kg

• Make sure that the length of the foundation bolt is within 30 mm of the bottom

surface of the base.

• Secure the base of the unit firmly with four-M10 foundation bolts in sturdy locations.
Installing the outdoor unit
• Do not block the vent. If the vent is blocked, operation will be hindered and break-

down may result.

• In addition to the unit base, use the installation holes on the back of the unit to

attach wires, etc., if necessary to install the unit. Use self-tapping screws (ø5 × 15
mm or more) and install on site.

Warning:

• The unit must be securely installed on a structure that can sustain its weight.

If the unit is mounted on an unstable structure, it may fall down and cause
damage or injuries.

• The unit must be installed according to the instructions in order to minimize

the risk of damage from earthquakes, typhoons, or strong winds. An incor-
rectly installed unit may fall down and cause damage or injuries.

Fig. 3-1

A

M10 (3/8") bolt

B

Base

C

As long as possible.

D

Vent

B

Max.

30

A

C

D

4. Installing the refrigerant piping

4.1. Precautions for devices that use R410A refrigerant

• Refer to page 3 for precautions not included below on using air conditioners

with R410A refrigerant.

• Use ester oil, ether oil, alkylbenzene oil (small amount) as the refrigeration oil

applied to the flared sections.

• Use C1220 copper phosphorus, for copper and copper alloy seamless pipes,

to connect the refrigerant pipes. Use refrigerant pipes with the thicknesses
specified in the table to the below. Make sure the insides of the pipes are
clean and do not contain any harmful contaminants such as sulfuric com-
pounds, oxidants, debris, or dust.

Warning:

When installing or moving the air conditioner, use only the specified refriger-
ant (R410A) to charge the refrigerant lines. Do not mix it with any other refriger-
ant and do not allow air to remain in the lines. Air enclosed in the lines can
cause pressure peaks resulting in a rupture and other hazards.

Indoor unit type

20-50

63-140

Liquid pipe

ø6.35 thickness 0.8 mm

ø9.52 thickness 0.8 mm

Gas pipe

ø12.7 thickness 0.8 mm

ø15.88 thickness 1.0 mm

• Do not use pipes thinner than those specified above.

600

600

Min. 360

175

175

Min. 10

950

25

330

370

A

6

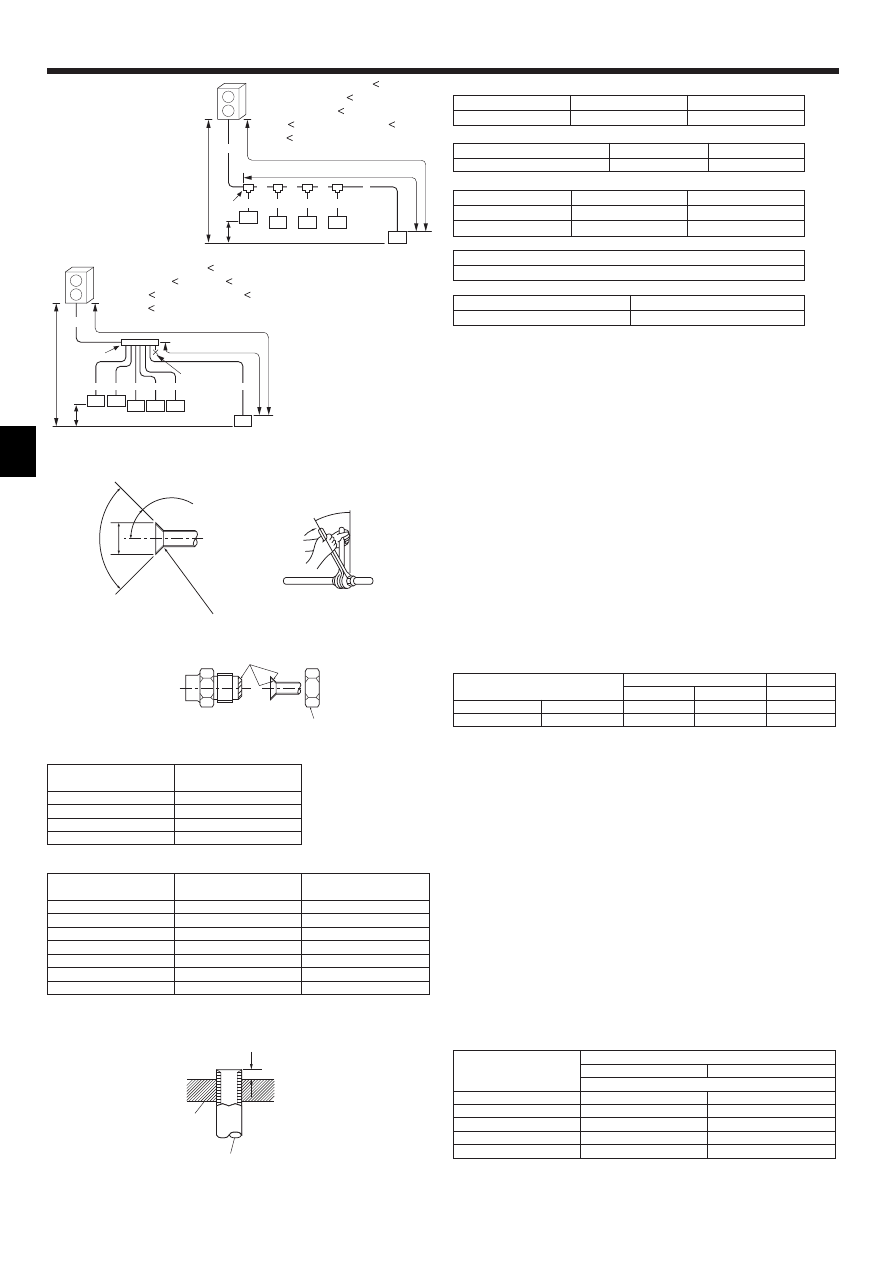

4.2. Connecting pipes (Fig. 4-2)

Fig. 4-1 is a sample of piping system.
• When commercially available copper pipes are used, wrap liquid and gas pipes

with commercially available insulation materials (heat-resistant to 100 °C or more,
thickness of 12 mm or more).

• The indoor parts of the drain pipe should be wrapped with polyethylene foam insu-

lation materials (specific gravity of 0.03, thickness of 9 mm or more).

• Apply thin layer of refrigerant oil to pipe and joint seating surface before tightening

flare nut. A

• Use two wrenches to tighten piping connections. B
• Use leak detector or soapy water to check for gas leaks after connections are com-

pleted.

• Apply refrigerating machine oil over the entire flare seat surface. C
• Use the flare nuts for the following pipe size. D

Indoor unit

Outdoor unit

20-50

63-140

100-140

Gas side

Pipe size (mm)

ø12.7

ø15.88

ø15.88

Liquid side

Pipe size (mm)

ø6.35

ø9.52

ø9.52

• When bending the pipes, be careful not to break them. Bend radius of 100 mm to

150 mm is sufficient.

• Make sure the pipes do not contact the compressor. Abnormal noise or vibration

may result.

1 Pipes must be connected starting from the indoor unit.

Flare nuts must be tightened with a torque wrench.

2 Flare the liquid pipes and gas pipes and apply a thin layer of refrigeration oil

(Applied on site).

• When usual pipe sealing is used, refer to Table 1 for flaring of R410A refrigerant

pipes.
The size adjustment gauge can be used to confirm A measurements.

A

(mm)

Å Liquid pipe

ı Gas pipe

PUMY-P100-140

ø9.52

ø15.88

B, C, D

(mm)

Ç Total capacity of indoor units

Å Liquid pipe

ı Gas pipe

ø9.52

ø15.88

a, b, c, d, e, f

(mm)

Î Model number

Å Liquid pipe

ı Gas pipe

20, 25, 32, 40, 50

ø6.35

ø12.7

63, 80, 100, 125, 140

ø9.52

ø15.88

‰ Branch kit model

CMY-Y62-G-E

Ï 4-Branching header

Ì 8-Branching header

CMY-Y64-G-E

CMY-Y68-G-E

A Flare cutting dimensions
B Flare nut tightening torque

90

°

±

0.5

°

ø

A

R0.4~R0.8

A

45°±2°

B

C

D

A

Die

B

Copper pipe

Fig. 4-2

A

A

B

Fig. 4-3

A (Fig. 4-2)

Copper pipe O.D.

Flare dimensions

(mm)

øA dimensions (mm)

ø6.35

8.7 - 9.1

ø9.52

12.8 - 13.2

ø12.7

16.2 - 16.6

ø15.88

19.3 - 19.7

Copper pipe O.D.

Flare nut O.D.

Tightening torque

(mm)

(mm)

(N·m)

ø6.35

17

14 - 18

ø6.35

22

34 - 42

ø9.52

22

34 - 42

ø12.7

26

49 - 61

ø12.7

29

68 - 82

ø15.88

29

68 - 82

ø15.88

36

100 - 120

B (Fig. 4-2)

Copper pipe O.D.

A (mm)

(mm)

Flare tool for R410A

Flare tool for R22·R407C

Clutch type

ø6.35 (1/4")

0 - 0.5

1.0 - 1.5

ø9.52 (3/8")

0 - 0.5

1.0 - 1.5

ø12.7 (1/2")

0 - 0.5

1.0 - 1.5

ø15.88 (5/8")

0 - 0.5

1.0 - 1.5

ø19.05 (3/4")

0 - 0.5

1.0 - 1.5

Table 1 (Fig. 4-3)

4. Installing the refrigerant piping

B

A

H

B

C

L

r

D

e

a

h

b

c

d

C

C

C

C

C

B

A

a

b

c

d

C

D

C

C

C

C

C

e

f

H

h

L

r

A : Outdoor Unit
B : First Branch
C : Indoor unit
D : Cap

A+B+C+D+a+b+c+d+e

=

120m

L = A+B+C+D+e

=

80m

R= B+C+D+e

=

30m

H

=

30m (Outdoor lower H

=

20m)

h

=

12m

A+a+b+c+d+e+f

=

120m

L = A+f

=

80m, R= f

=

30m

H

=

30m (Outdoor lower H

=

20m)

h

=

12m

Fig. 4-1

7

A

B

H

I

C

D

E
F

G

C

C

B

A

E

D

4. Installing the refrigerant piping

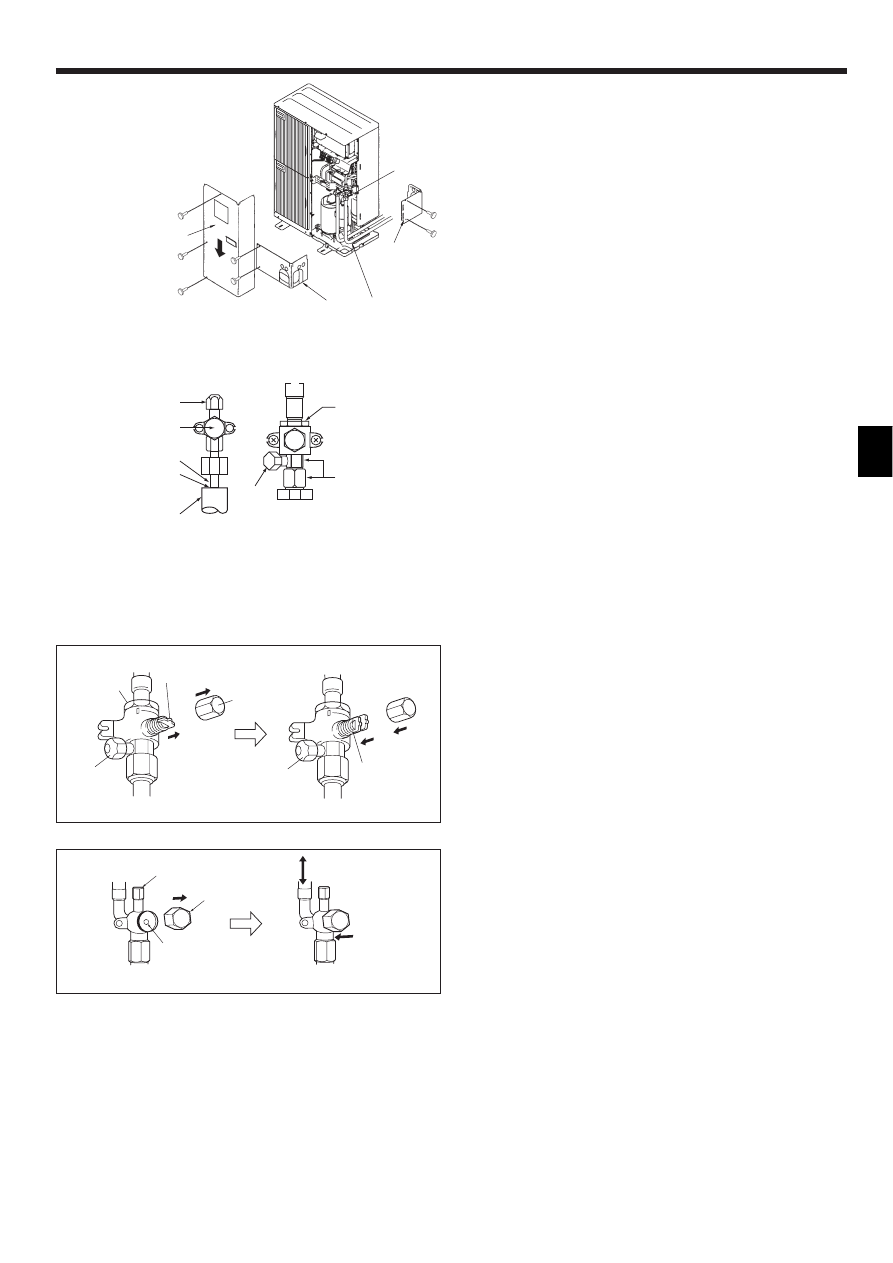

4.3. Refrigerant piping (Fig. 4-4)

Remove the service panel D (three screws) and the front piping cover A (two screws)
and rear piping cover B (two screws).
1 Perform refrigerant piping connections for the indoor/outdoor unit when the out-

door unit’s stop valve is completely closed.

2 Vacuum-purge air from the indoor unit and the connection piping.
3 After connecting the refrigerant pipes, check the connected pipes and the indoor

unit for gas leaks. (Refer to 4.4 Refrigerant pipe airtight testing method)

4 Vacuumize the refrigerant lines through the service port of the liquid and gas stop

valves. And then open the stop valves completely (for both the liquid and gas stop
valves). This will completely connect the refrigerant lines of the indoor and out-
door units.

• If the stop valves are left closed and the unit is operated, the compressor and

control valves will be damaged.

• Use a leak detector or soapy water to check for gas leaks at the pipe connec-

tion sections of the outdoor unit.

• Do not use the refrigerant from the unit to purge air from the refrigerant lines.
• After the valve work is completed, tighten the valve caps to the correct torque:

20 to 25 N·m (200 to 250 kgf·cm).
Failure to replace and tighten the caps may result in refrigerant leakage. In
addition, do not damage the insides of the valve caps as they act as a seal to
prevent refrigerant leakage.

5 Use sealant to seal the ends of the thermal insulation around the pipe connection

sections to prevent water from entering the thermal insulation.

4.4. Refrigerant pipe airtight testing method

(1) Connect the testing tools.

• Make sure the stop valves A B are closed and do not open them.
• Add pressure to the refrigerant lines through the service port C of the liquid

stop valve A and the gas stop valve B.

(2) Do not add pressure to the specified pressure all at once; add pressure little by little.

1 Pressurize to 0.5 MPa (5 kgf/cm

2

G), wait five minutes, and make sure the

pressure does not decrease.

2 Pressurize to 1.5 MPa (15 kgf/cm

2

G), wait five minutes, and make sure the

pressure does not decrease.

3 Pressurize to 4.15 MPa (41.5 kgf/cm

2

G) and measure the surrounding tem-

perature and refrigerant pressure.

(3) If the specified pressure holds for about one day and does not decrease, the pipes

have passed the test and there are no leaks.

• If the surrounding temperature changes by 1 °C, the pressure will change by

about 0.03 MPa (0.3 kgf/cm

2

G). Make the necessary corrections.

(4) If the pressure decreases in steps (2) or (3), there is a gas leak. Look for the

source of the gas leak.

4.5. Stop valve opening method

(1) Gas side (Fig. 4-6)
1 Remove the cap, pull the handle toward you and rotate 1/4 turn in a counterclock-

wise direction to open.

2 Make sure that the stop valve is open completely, push in the handle and rotate

the cap back to its original position.

(2) Liquid side (Fig. 4-7)
1 Remove the cap and turn the valve rod counterclockwise as far as it will go with

the use of a 4 mm hexagonal wrench. Stop turning when it hits the stopper.
(ø6.35: Approximately 4.5 revolutions) (ø9.52: Approximately 10 revolutions)

2 Make sure that the stop valve is open completely, push in the handle and rotate

the cap back to its original position.

A Valve
B Unit side
C Handle
D Cap
E Local pipe side

A Stop valve <Liquid side>
B Stop valve <Gas side>
C Service port
D Open/Close section
E Local pipe

F Open position side
G Service port
H Wrench hole
I Refrigerant flow direction

Refrigerant pipes are protectively wrapped
• The pipes can be protectively wrapped up to a diameter of ø90 before or after

connecting the pipes. Cut out the knockout in the pipe cover following the groove
and wrap the pipes.

Pipe inlet gap
• Use putty or sealant to seal the pipe inlet around the pipes so that no gaps remain.

(If the gaps are not closed, noise may be emitted or water and dust will enter the
unit and breakdown may result.)

Fig. 4-5

Fig. 4-4

A Front piping cover
B Piping cover
C Stop valve
D Service panel
E Bend radius : 100 mm - 150 mm

(1) 1

2

Fig. 4-7

Fig. 4-6

B

G

H

E

D

I

(2) 1

2

F Sealed, same way for gas side
G Pipe cover
H Do not use a wrench here.

Refrigerant leakage may result.

I Use two wrenches here.

E

G

G

A

B

C

D

F

8

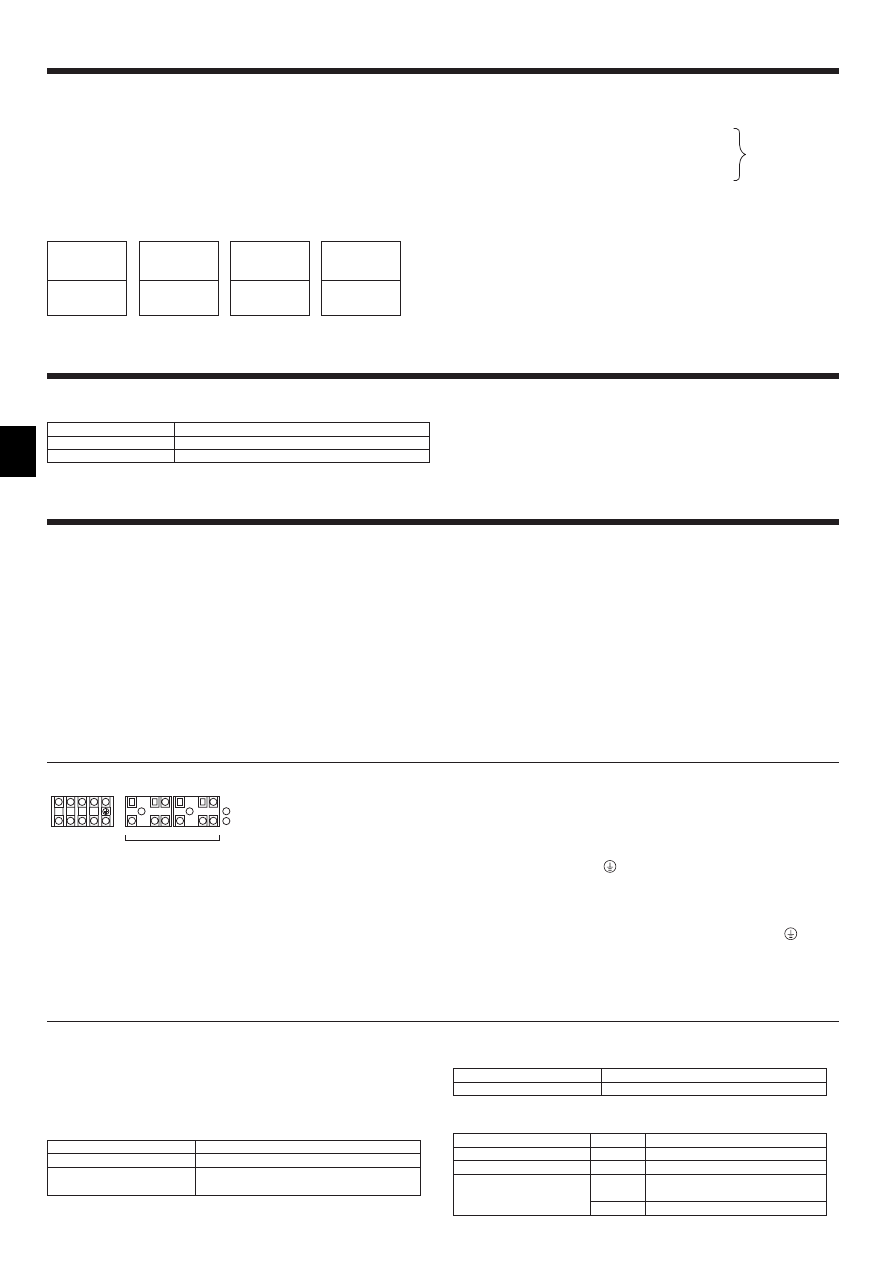

4.6. Additional refrigerant charge

Refrigerant of 3 kg equivalent to 50 m total extended piping length is already included
when the outdoor unit is shipped. Thus, if the total extended piping length is 50 m or
less, there is no need to charge with additional refrigerant.

Calculation of Additional Refrigerant Charge
• If the total extended piping length exceeds 50 m, calculate the required additional

refrigerant charge using the procedure shown below.

• If the calculated additional refrigerant charge is a negative amount, do not charge

with any refrigerant.

<Example>
Outdoor model : 125
Indoor 1 : 63

A : ø9.52

30 m

a : ø9.52

15 m

2 : 40

b : ø6.35

10 m

3 : 25

c : ø6.35

10 m

4 : 20

d : ø6.35

20 m

The total length of each liquid line is as follows
ø9.52 : A + a = 30 + 15 = 45 m
ø6.35 : b + c + d = 10 + 10 + 20 = 40 m
Therefore,
<Calculation example>
Additional
refrigerant charge = 45 × 0.06 + 40 × 0.024 – 3.0 = 0.7 kg (rounded up)

Refrigerant
amount for
outdoor unit

3.0 kg

Liquid pipe size
Total length of
ø6.35 × 0.024

(m) × 0.024 (kg/m)

Additional
refrigerant charge

(kg)

Liquid pipe size
Total length of
ø9.52 × 0.06

(m) × 0.06 (kg/m)

=

+

–

<Additional Charge>

4. Installing the refrigerant piping

5. Drainage piping work

Outdoor unit drainage pipe connection
When drain piping is necessary, use the drain socket or the drain pan (option).

P100-140

Drain socket

PAC-SG61DS-E

Drain pan

PAC-SG64DP-E

6.1. Caution

1 Follow ordinance of your governmental organization for technical standard re-

lated to electrical equipment, wiring regulations and guidance of each electric
power company.

2 Wiring for control (hereinafter referred to as transmission line) shall be (5 cm or

more) apart from power source wiring so that it is not influenced by electric noise
from power source wiring. (Do not insert transmission line and power source wire
in the same conduit.)

3 Be sure to provide designated grounding work to outdoor unit.
4 Give some allowance to wiring for electrical part box of indoor and outdoor units,

because the box is sometimes removed at the time of service work.

5 Never connect the main power source to terminal block of transmission line. If

connected, electrical parts will be burnt out.

6 Use 2-core shield cable for transmission line. If transmission lines of different

systems are wired with the same multiplecore cable, the resultant poor transmit-
ting and receiving will cause erroneous operations.

6. Electrical work

7 Only the transmission line specified should be connected to the terminal block for

outdoor unit transmission.
(Transmission line to be connected with indoor unit : Terminal block TB3 for trans-
mission line, Other : Terminal block TB7 for centralized control)
Erroneous connection does not allow the system to operate.

8 In case to connect with the upper class controller or to conduct group operation in

different refrigerant systems, the control line for transmission is required between
the outdoor units each other.
Connect this control line between the terminal blocks for centralized control. (2-
wire line with no polarity)
When conducting group operation in different refrigerant systems without con-
necting to the upper class controller, replace the insertion of the short circuit
connector from CN41 of one outdoor unit to CN40.

9 Group is set by operating the remote controller.

2 Wiring examples
• Controller name, symbol and allowable number of controllers.

2. M-NET Remote control cables

Kind of remote control cable

Cable diameter

Remarks

Shielding wire MVVS
0.5 to 1.25 mm

2

When 10 m is exceeded, use cable with the
same specifications as transmission line wiring

A : Power source
B : Transmission line

Name

Outdoor unit controller
Indoor unit controller

Remote controller

Symbol

OC

IC

RC

(M-NET)

MA

Allowable number of controllers

One to eight controllers for one OC
Maximum of 16 controllers for one
OC
Maximum of two per group

6.2. Control box and connecting position of wiring

(Fig. 6-1)

1. Connect the indoor unit transmission line to transmission terminal block (TB3), or

connect the wiring between outdoor units or the wiring with the centralized con-
trol system to the centralized control terminal block (TB7).
When using shielded wiring, connect shield ground of the indoor unit transmis-
sion line to the earth screw (

) and connect shield ground of the line between

outdoor units and the central control system transmission line to the shield (S)
terminal of the centralized control terminal block (TB7) shield (S) terminal. In
addition, in the case of outdoor units whose power supply connector CN41 has
been replaced by CN40, the shield terminal (S) of terminal block (TB7) of the
centralized control system should also be connected to the ground (

).

2. Conduit mounting plates (ø27) are being provided. Pass the power supply and

transmission wires through the appropriate knock-out holes, then remove the
knock-out piece from the bottom of the terminal box and connect the wires.

3. Fix power source wiring to terminal box by using buffer bushing for tensile force

(PG connection or the like).

6.3. Wiring transmission cables

1 Types of control cables
1. Wiring transmission cables
• Types of transmission cables: Shielding wire CVVS or CPEVS
• Cable diameter: More than 1.25 mm

2

• Maximum wiring length: Within 200 m

Fig. 6-1

At the conditions
below:

M1

S

M2

A

B

M1

S

M2

L1 L2 L3 N

TB3

TB7

3. MA Remote control cables

Kind of remote control cable

Cable diameter

2-core cable (unshielded)
0.3 to 1.25 mm

2

9

Example of a group operation system with multiple outdoor units (Shielding wires and address setting are
necessary.)

<Examples of Transmission Cable Wiring>

■ M-NET Remote Controller (Fig. 6-2)

■ MA Remote Controller (Fig. 6-3)

<Wiring Method and Address Settings>
a. Always use shielded wire when making connections between the outdoor unit (OC) and the indoor unit (IC), as well for all OC-OC, and IC-IC wiring intervals.
b. Use feed wiring to connect terminals M1 and M2 and the ground terminal on the transmission cable terminal block (TB3) of each outdoor unit (OC) to terminals M1, M2

and terminal S on the transmission cable block of the indoor unit (IC).

c. Connect terminals 1 (M1) and 2 (M2) on the transmission cable terminal block of the indoor unit (IC) that has the most recent address within the same group to the

terminal block on the remote controller (RC).

d. Connect together terminals M1, M2 and terminal S on the terminal block for central control (TB7) for the outdoor unit (OC).
e. The jumper connector CN41 on the control panel does not change.
f.

Connect the terminal S on the terminal block for central control for the power supply unit to the ground terminal

in the electrical component box.

g. Set the address setting switch as follows.

Unit

Range

Setting Method

IC (Main)

01 to 50

Use the most recent address within the same group of indoor units

IC (Sub)

01 to 50

Use an address, other than that of the IC (Main) from among the units within the same group of indoor units. This must be
in sequence with the IC (Main)

Outdoor Unit

51 to 100

Use the most recent address of all the indoor units plus 50
* The address automatically becomes “100” if it is set as “01 - 50”.

M-NET R/C (Main)

101 to 150

Set at an IC (Main) address within the same group plus 100

M-NET R/C (Sub)

151 to 200

Set at an IC (Main) address within the same group plus 150

MA R/C

–

Unnecessary address setting (Necessary main/sub setting)

h. The group setting operations among the multiple indoor units is done by the remote controller (RC) after the electrical power has been turned on.

<Permissible Lengths>
1 M-NET Remote controller
•

Max length via outdoor units: L

1

+L

2

+L

3

+L

4

and L

1

+L

2

+L

3

+L

5

and L

1

+L

2

+L

6

+L

7

=

500 m (1.25 mm

2

or more)

•

Max transmission cable length: L

1

and L

3

+L

4

and L

3

+L

5

and L

6

and L

2

+L

6

and L

7

=

200 m (1.25 mm

2

or more)

•

Remote controller cable length: r

1

, r

2

, r

2

+r

3

, r

4

=

10 m (0.5 to 1.25 mm

2

)

If the length exceeds 10 m, use a 1.25 mm

2

shielded wire. The length of this section (L

8

) should be included in the calculation of the

maximum length and overall length.

2 MA Remote controller
•

Max length via outdoor unit (M-NET cable): L

1

+L

2

+L

3

+L

4

and L

1

+L

2

+L

6

+L

7

=

500 m (1.25 mm

2

or more)

•

Max transmission cable length (M-NET cable): L

1

and L

3

+L

4

and L

6

and L

2

+L

6

and L

7

=

200 m (1.25 mm

2

or more)

•

Remote controller cable length:c

1

and c

1

+c

2

+c

3

and c

1

+c

2

+c

3

+c

4

=

200 m (0.3 to 1.25 mm

2

)

6. Electrical work

■ MA Remote Controller

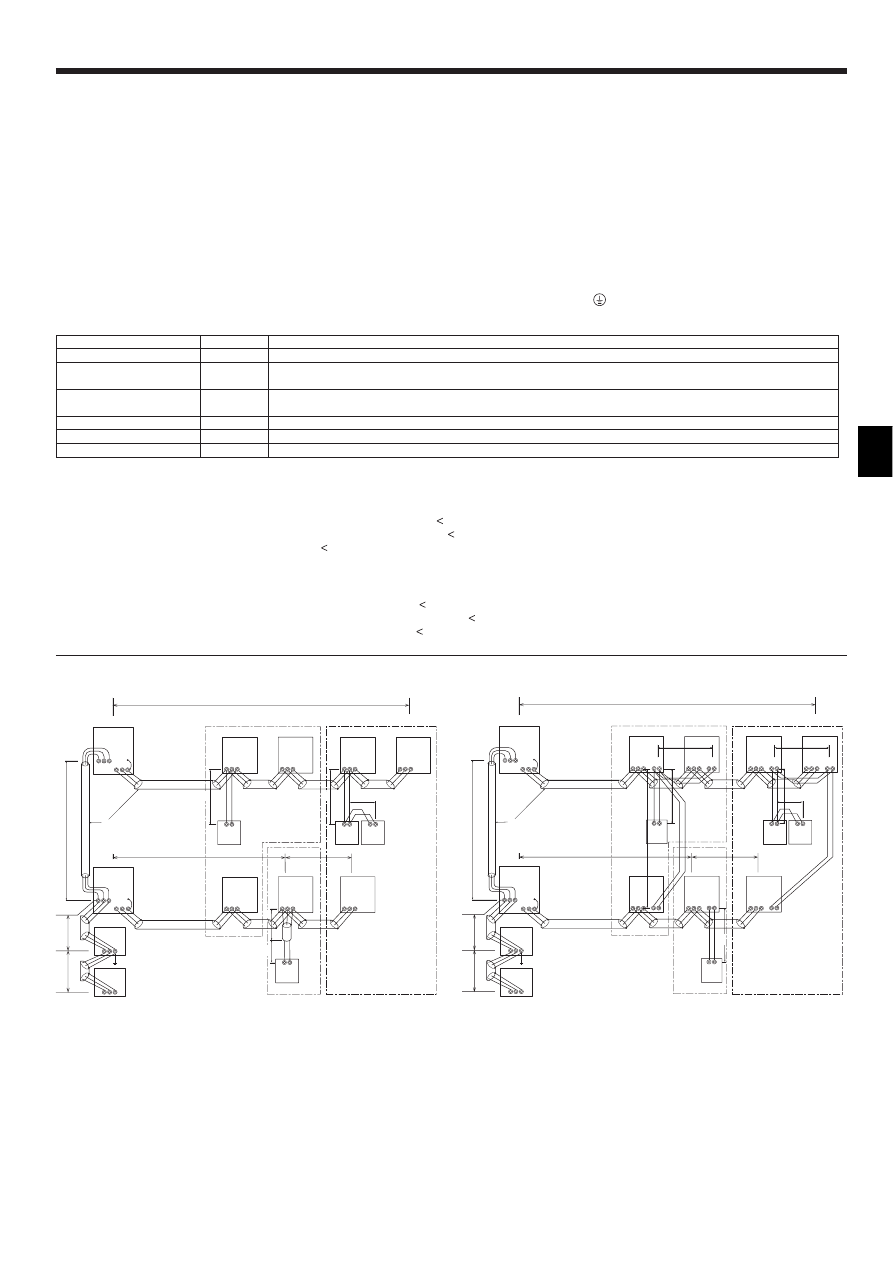

Fig. 6-2

Fig. 6-3

A : Group 1
B : Group 3
C : Group 5
D : Shielded Wire
E : Sub Remote Controller

( ): Address

■ M-NET Remote Controller

A

B

C

E

D

M1M2 S

M1

M2 S

TB7

TB3

IC

(51)

M1

M2 S

TB5

RC

(01)

IC

M1

M2 S

TB5

(03)

IC

M1

M2 S

TB5

(02)

IC

M1

M2 S

TB5

(04)

IC

M1

M2 S

TB5

(05)

IC

M1

M2 S

TB5

(07)

IC

M1

M2 S

TB5

(06)

L

2

L

1

(101)

RC

(105)

RC

(104)

RC

(155)

OC

M1

M2 S

TB7

(53)

OC

r

3

M1M2S

Power Supply

Unit

M1M2 S

G-50A

L

3

L

6

L

7

L

4

L

5

r

2

r

4

r

1

A B

A B

A B

A B

M1M2 S

TB3

A

B

C

E

D

M1

M2 S

TB7

IC

(51)

M1

M2

1 2

S

TB5

TB15

1 2

TB15

1 2

TB15

1 2

TB15

1 2

TB15

1 2

TB15

1 2

TB15

MA

(01)

IC

M1

M2 S

TB5

(03)

IC

M1

M2 S

TB5

(02)

IC

M1

M2 S

TB5

(04)

IC

M1

M2 S

TB5

(05)

IC

M1

M2 S

TB5

(07)

IC

M1

M2 S

TB5

(06)

L

2

L

1

MA

MA

MA

OC

M1

M2 S

TB7

(53)

OC

c

1

c

4

c

3

S

Power Supply

Unit

S

G-50A

L

3

L

6

L

7

L

4

c

3

A B

A B

A B

M1M2

M1M2

c

1

c

1

c

2

c

2

A B

M1M2 S

TB3

M1M2 S

TB3

10

D

D

C

A

D

D

A

B

3N~ 400 V

~/N 220 - 240 V

*1. A breaker with at least 3.0 mm contact separation in each poles shall be provided. Use non-fuse breaker (NF) or earth leakage breaker (NV).

1. Use a separate power supply for the outdoor unit and indoor unit.
2. Bear in mind ambient conditions (ambient temperature,direct sunlight, rain water,etc.) when proceeding with the wiring and connections.
3. The wire size is the minimum value for metal conduit wiring. The power cord size should be 1 rank thicker consideration of voltage drops.

Make sure the power-supply voltage does not drop more than 10 %.

4. Specific wiring requirements should adhere to the wiring regulations of the region.
5. Power supply cords of parts of appliances for outdoor use shall not be lighter than polychloroprene sheathed flexible cord (design 245 IEC57). For example,

use wiring such as YZW.

6. Install an earth longer than other cables.

Warning:

•

Be sure to use specified wires to connect so that no external force is imparted to terminal connections. If connections are not fixed firmly, it may cause
heating or fire.

•

Be sure to use the appropriate type of overcurrent protection switch. Note that generated overcurrent may include some amount of direct current.

Caution:

•

Some installation site may require attachment of an earth leakage breaker. If no earth leakage breaker is installed, it may cause an electric shock.

•

Do not use anything other than breaker and fuse with correct capacity. Using fuse and wire or copper wire with too large capacity may cause a malfunction
of unit or fire.

IMPORTANT
Make sure that the current leakage breaker is one compatible with higher harmonics.
Always use a current leakage breaker that is compatible with higher harmonics as this unit is equipped with an inverter.
The use of an inadequate breaker can cause the incorrect operation of inverter.

16 A 30 mA 0.1 sec. or less

15 A 30 mA 0.1 sec. or less

16 A
15 A

1.5
1.5

1.5
1.5

Indoor Unit

Main Cable

Minimum Wire Thickness (mm

2

)

Branch

Breaker for Current Leakage

Model

Outdoor Unit

P100-140

–

1.5

Breaker for

Wiring*1

Ground

6. Electrical work

Thickness of Wire for Main Power Supply and On/Off Capacities

6.4. Wiring of main power supply and equipment capacity

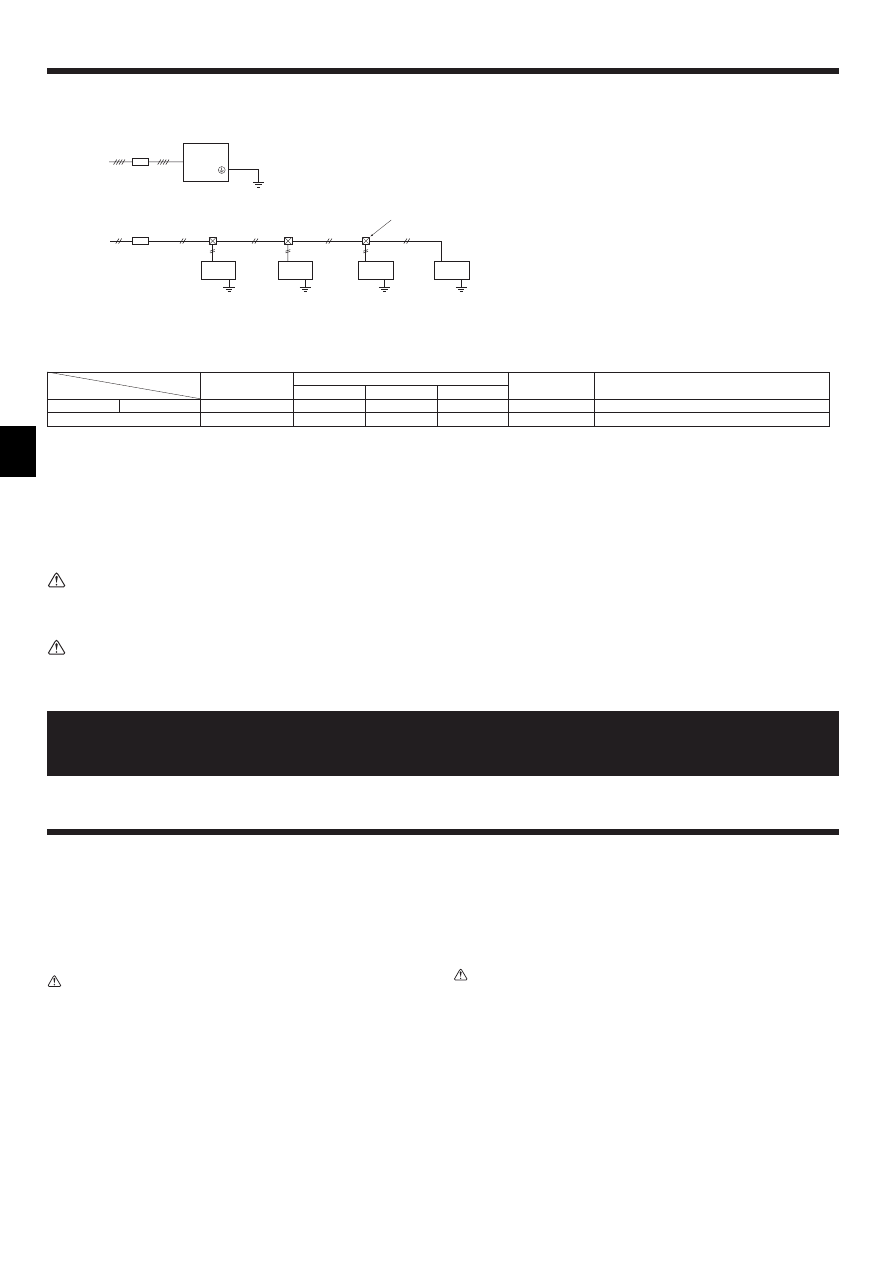

Schematic Drawing of Wiring (Example) (Fig. 6-4)

A : Switch (Breakers for Wiring and Current Leakage)
B : Outdoor Unit
C : Pull Box
D : Indoor Unit

Fig. 6-4

3N~ 400V, 50Hz

~/N 230V, 50Hz

Power Supply

7. Test run

7.1. Before test run

s After completing installation and the wiring and piping of the indoor and

outdoor units, check for refrigerant leakage, looseness in the power supply
or control wiring, wrong polarity, and no disconnection of one phase in the
supply.

s Use a 500-volt M-ohm tester to check that the resistance between the power

supply terminals and ground is at least 1 MΩ

Ω

Ω

Ω

Ω.

s Do not carry out this test on the control wiring (low voltage circuit) termi-

nals.
Warning:

Do not use the air conditioner if the insulation resistance is less than 1 MΩ

Ω

Ω

Ω

Ω.

Insulation resistance
After installation or after the power source to the unit has been cut for an extended
period, the insulation resistance will drop below 1 MΩ due to refrigerant accumulat-
ing in the compressor. This is not a malfunction. Perform the following procedures.
1. Remove the wires from the compressor and measure the insulation resistance of

the compressor.

2. If the insulation resistance is below 1 MΩ, the compressor is faulty or the resist-

ance dropped due the accumulation of refrigerant in the compressor.

3. After connecting the wires to the compressor, once operating, measure the insu-

lation resistance again.
• The insulation resistance drops due to accumulation of refrigerant in the com-

pressor. The refrigerant collected in the compressor is discharged by operating
at once.

4. If the insulation resistance rises above 1 MΩ, the compressor is not faulty.

Caution:

• The compressor will not operate unless the power supply phase connection

is correct.

s The followings must be checked as well.
• The outdoor unit is not faulty. LED on the control board of the outdoor unit flash

when the outdoor unit is faulty.

• Both the gas and liquid stop valves are completely open.

11

7.2. Test run

7.2.1. Using remote controller

Refer to the indoor unit installation manual.

• Be sure to perform the test run for each indoor unit. Make sure each indoor

unit operates properly following the installation manual attached to the unit.

• If you perform the test run for all indoor units at once, you cannot detect any

erroneous connection, if any, of the refrigerant pipes and the connecting wires.

* The compressor operation is not available for 3 minutes at least after the

power is supplied.

• The compressor can emit noise just after turn on the power supply or in case

of low outside air temperature.

About the restart protective mechanism
Once the compressor stops, the restart preventive device operates so the compres-
sor will not operate for 3 minutes to protect the air conditioner.

7.2.2. Using SW3 in outdoor unit

Note:
In case of the test run from outdoor unit, all indoor units operate. Therefore,
you can not detect any erroneous connection of refrigerant pipes and the con-
necting wires. If it aims at detection of any erroneous connection, be sure to
carry out the test run from remote controller with reference to “7.2.1 Using
remote controller.”

SW3-1

ON

Cooling operation

SW3-2

OFF

SW3-1

ON

Heating operation

SW3-2

ON

* After performing the test run, set SW3-1 to OFF.
• A few seconds after the compressor starts, a clanging noise may be heard from the

inside of the outdoor unit. The noise is coming from the check valve due to the small
difference in pressure in the pipes. The unit is not faulty.

The test run operation mode cannot be changed by DIP switch SW3-2 during
the test run. (To change the test run operation mode during the test run, stop
the test run by DIP switch SW3-1. After changing the test run operation mode,
resume the test run by switch SW3-1.)

7. Test run

7.3. Refrigerant collecting (Pump down)

Before removing air conditioners for transfer to another location, always close the
stop valve (for both liquid and gas pipes) located at the outdoor unit, then remove the
indoor and outdoor units. At this time, the refrigerant in the indoor unit will be dis-
charged. To minimize the refrigerant discharged, a pump down operation is required.
This operation collects the refrigerant present inside the air conditioner and sends it
into the heat exchanger located in the outdoor unit.

Pump down procedure
1 Operate all indoor units in cooling mode and check that the operation mode has

changed to “COOL”. (Set the units so that cooling operation mode is activated
during the pump down operation (when the TEST RUN button is pressed).)

2 Connect a gauge manifold valve (with pressure gauge) to the stop valve of the

gas pipe, to enable measurement of refrigerant pressure.

3 After setting the outdoor service switch SW3-2 to OFF, set the switch SW3-1 to

ON. (The unit will start in cooling mode.)

4 After the cooling operation has been carried out for approximately five minutes,

set the outdoor service switch SW2-4 (pump down switch) from OFF to ON.

5 Close the stop valve on the liquid pipe, with the cooling operation still ON. (Pump

down operation will start.)

6 When the reading of the pressure gauge reaches 0 to 0.1 MPa (0 to 1 kg/cm

2

G)

or when approximately 5 minutes have elapsed following the start of the pump
down operation, fully close the stop valve on the gas pipe and stop the air condi-
tioner by setting the switch SW3-1 to OFF immediately.

7 Set the outdoor service switch SW2-4 from ON to OFF.
8 Remove the gauge manifold valve and put the cap back onto each stop valve.

Note:
1 Never carry out pump down operation if the amount of refrigerant inside

the indoor unit is larger than the amount of charge-less refrigerant.
Carrying out a pump down operation when the amount of refrigerant ex-
ceeds the amount of charge-less refrigerant will cause an extreme pres-
sure rise and may result in an accident.

2 Do not continue to operate for a long time with the switch SW2-4 set to ON.

Make sure to switch it to OFF after pump down is completed.

3 Test run can be carried out when the test run switch SW3-1 is ON. Switch

SW3-2 is used to operating mode selection. (On: Heating, OFF: Cooling)

4 Time required for a pump down operation is three to five minutes after the

stop valve on the liquid pipe has been closed. (It depends on the ambient
temperature and amount of refrigerant inside the indoor unit.)

5 Ensure that the reading of the pressure gauge does not drop below 0 MPa

(0 kg/cm

2

G). If it drops 0 MPa (0 kg/cm

2

G) (i.e. vacuum is created), air will be

drawn into the unit if there are any loose connections.

6 Even if the reading of the pressure gauge does not drop below 0 MPa (0 kg/

cm

2

G), always stop the pump down operation within approximately five min-

utes after the stop valve on the liquid pipe has been fully closed.
