DODGE CARAVAN 1992

background image

SYSTEM WIRING DIAGRAMS

Cooling Fan Circuit

1992 Dodge Caravan

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, February 14, 2005 12:02PM

background image

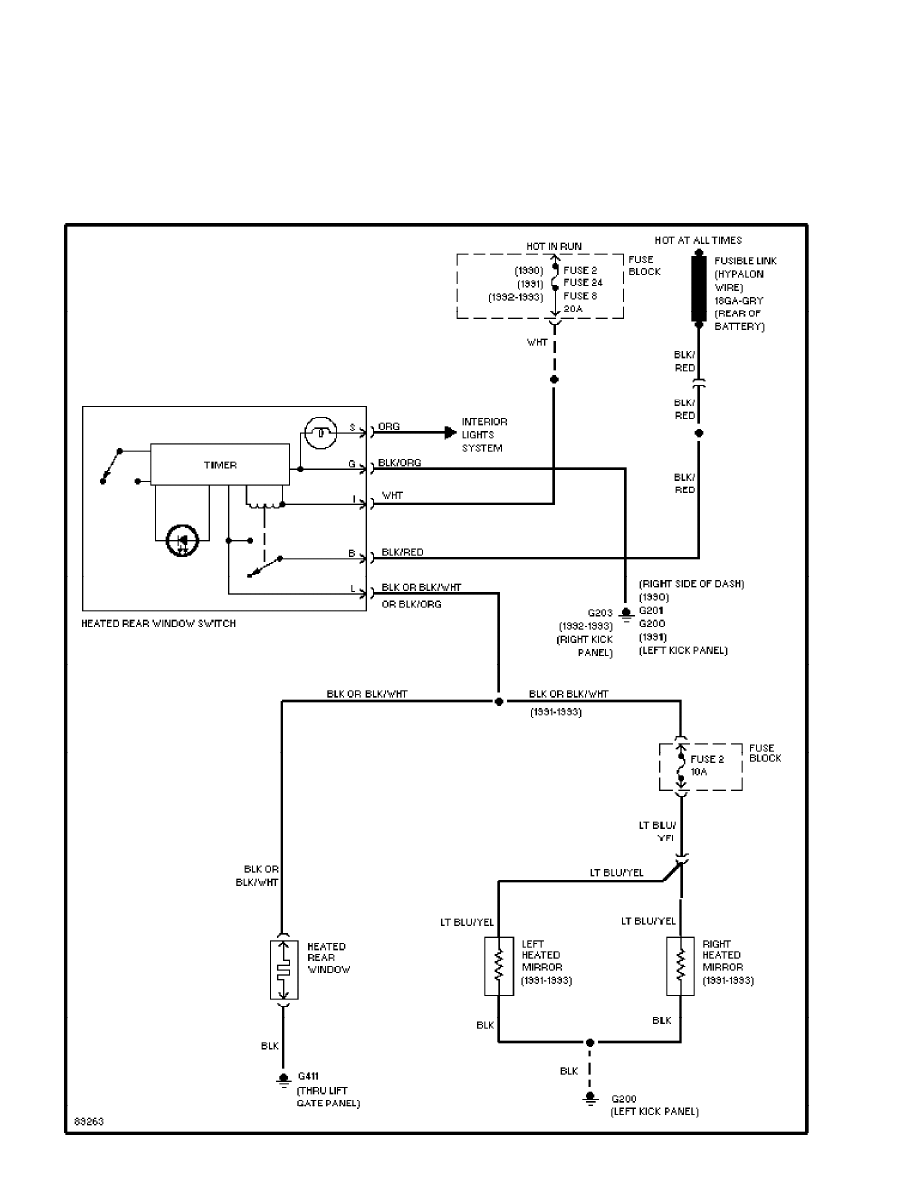

SYSTEM WIRING DIAGRAMS

Defogger Circuit (p. 2)

1992 Dodge Caravan

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, February 14, 2005 12:02PM

background image

SYSTEM WIRING DIAGRAMS

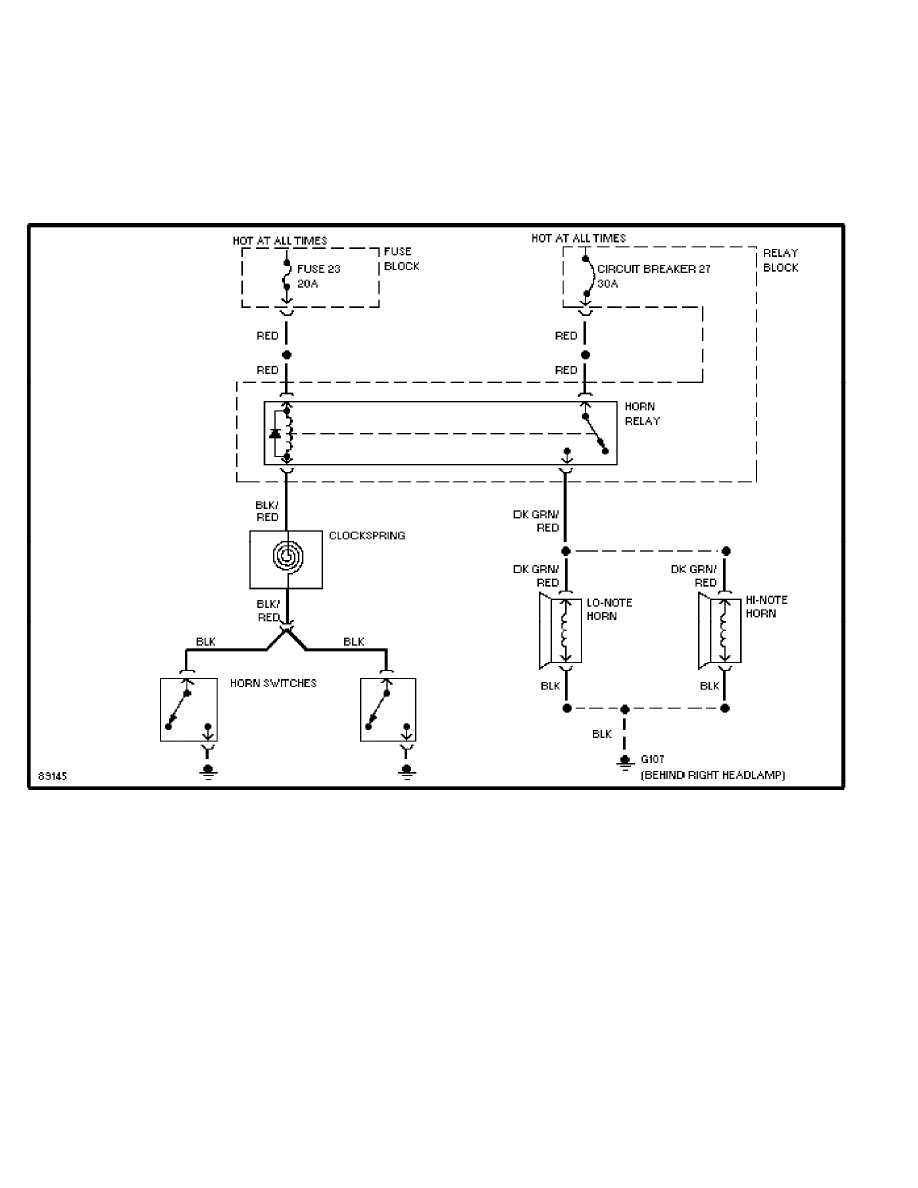

Horn Circuit (p. 3)

1992 Dodge Caravan

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, February 14, 2005 12:02PM

background image

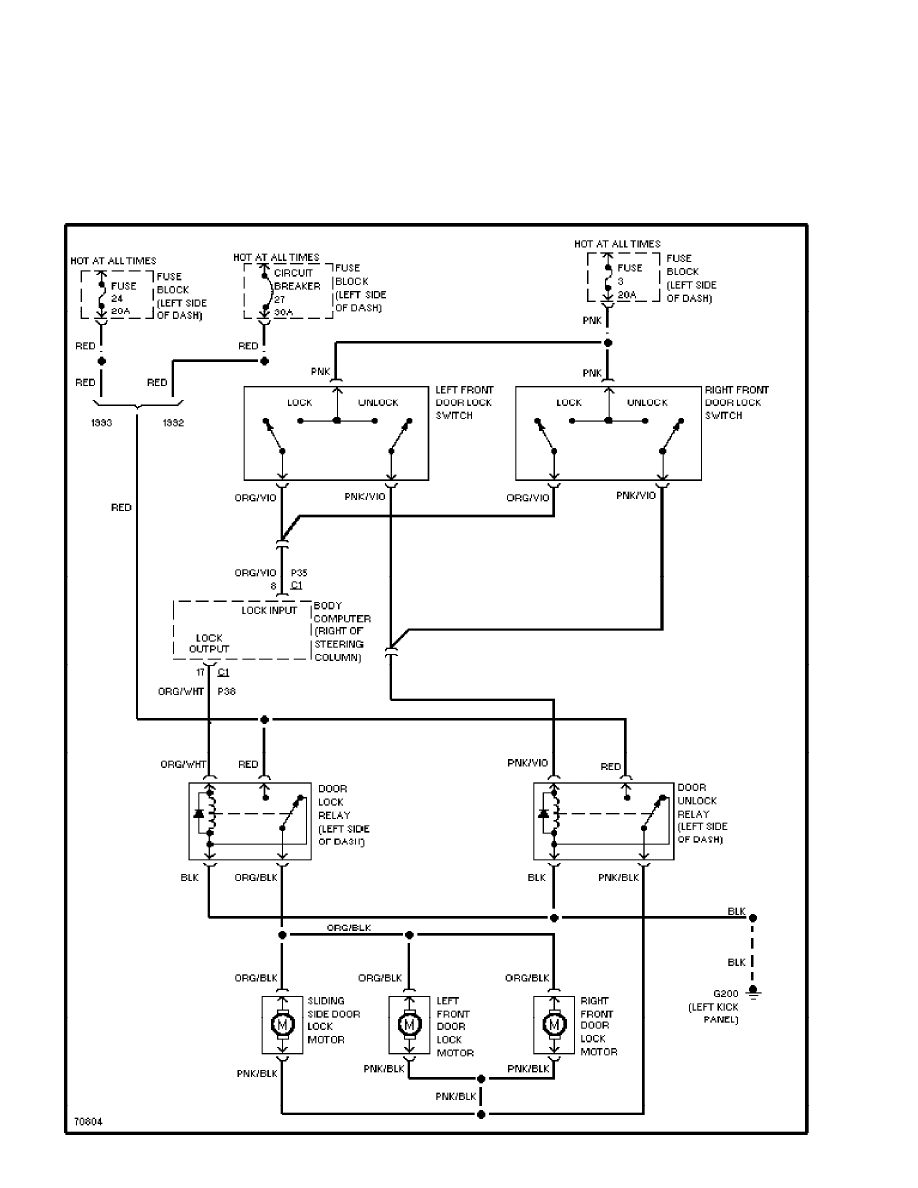

SYSTEM WIRING DIAGRAMS

Power Door Lock Circuit (p. 4)

1992 Dodge Caravan

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, February 14, 2005 12:02PM

background image

SYSTEM WIRING DIAGRAMS

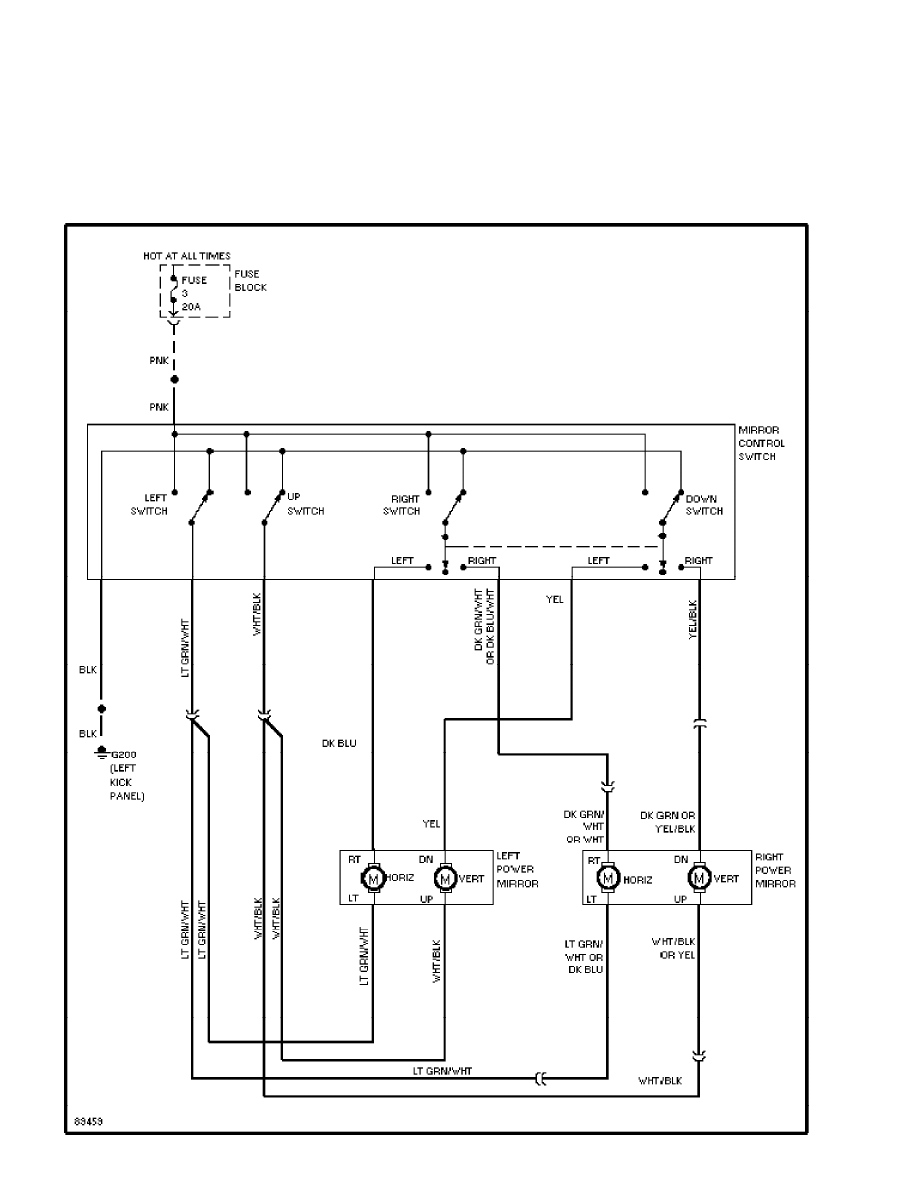

Power Mirror Circuit (p. 5)

1992 Dodge Caravan

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, February 14, 2005 12:02PM

background image

SYSTEM WIRING DIAGRAMS

Power Seat Circuit (p. 6)

1992 Dodge Caravan

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, February 14, 2005 12:02PM

background image

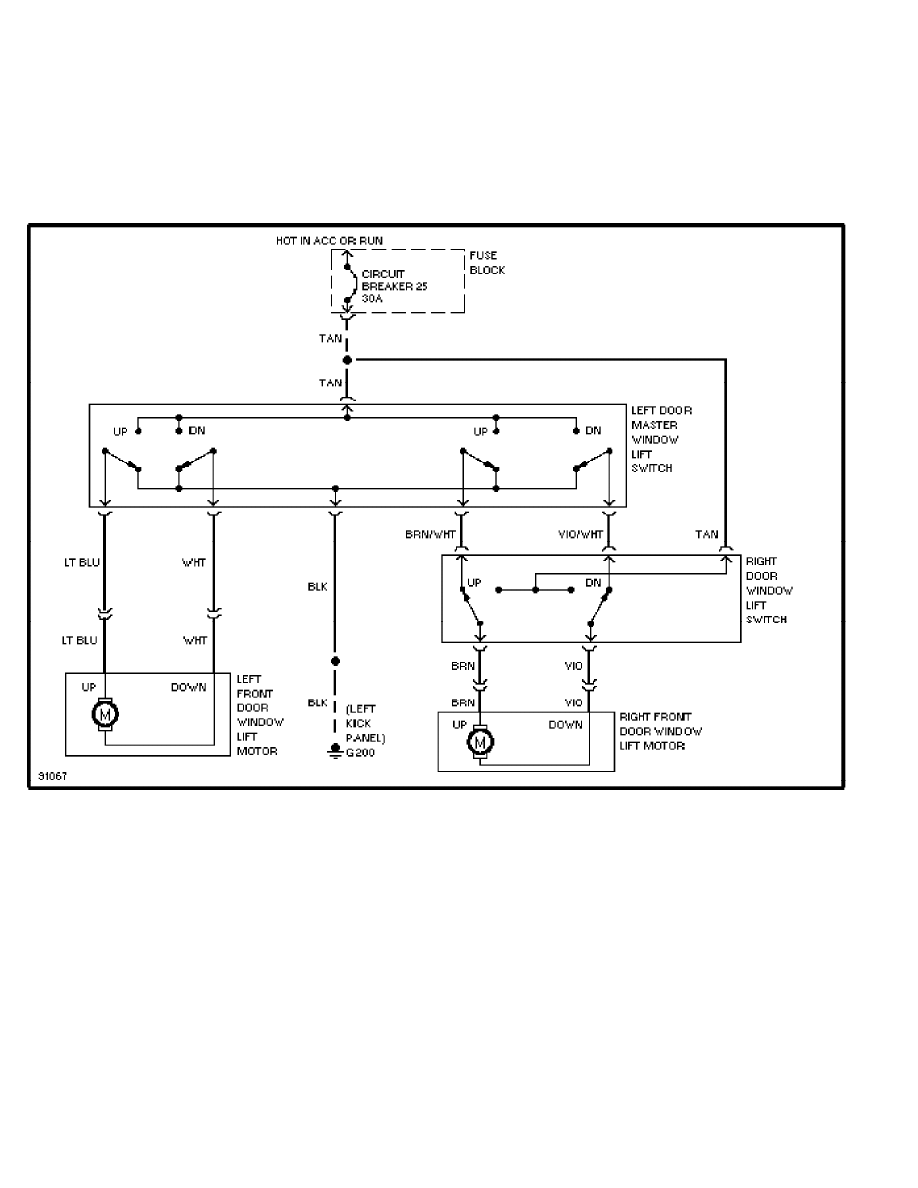

SYSTEM WIRING DIAGRAMS
Power Windows Circuit (p. 7)

1992 Dodge Caravan

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, February 14, 2005 12:02PM

background image

SYSTEM WIRING DIAGRAMS

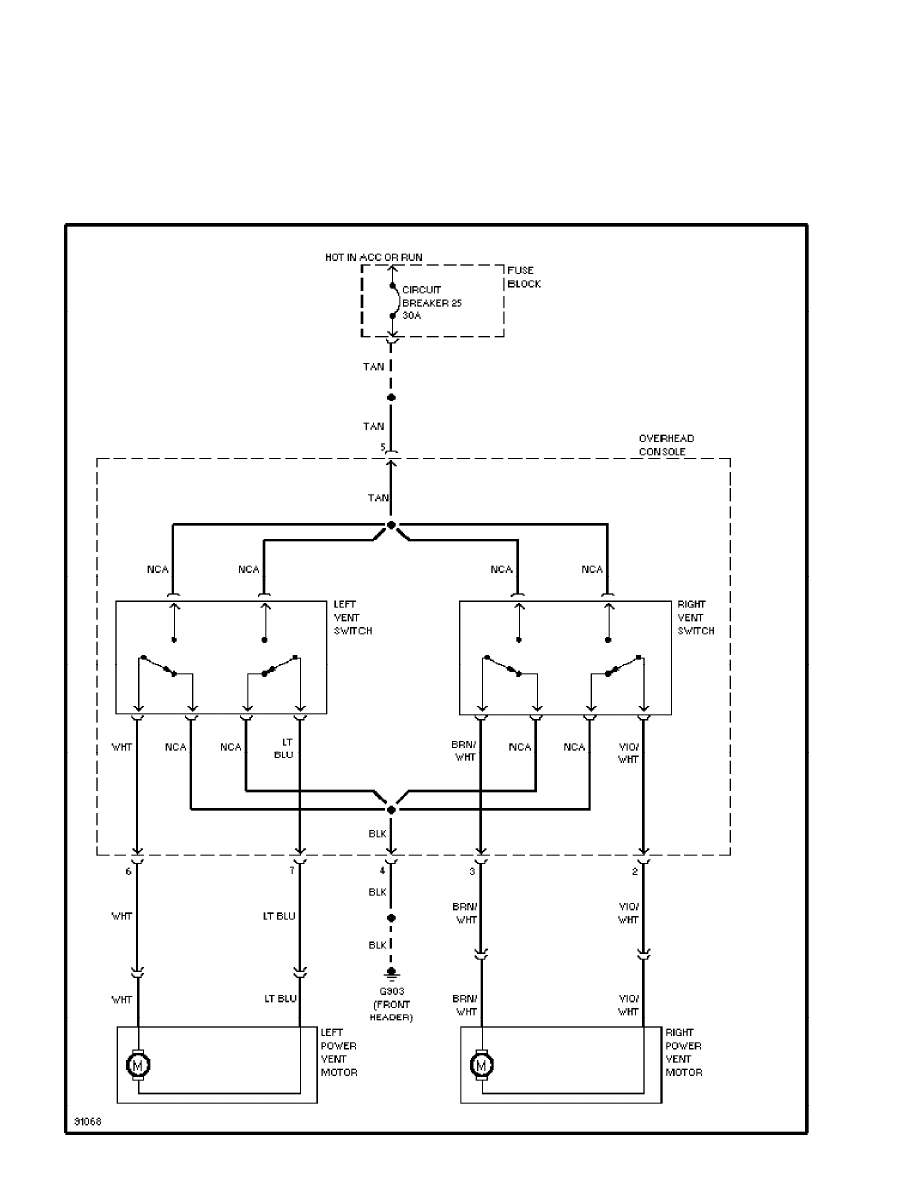

Rear Quarter Windows Circuit (p. 8)

1992 Dodge Caravan

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, February 14, 2005 12:02PM

background image

SYSTEM WIRING DIAGRAMS

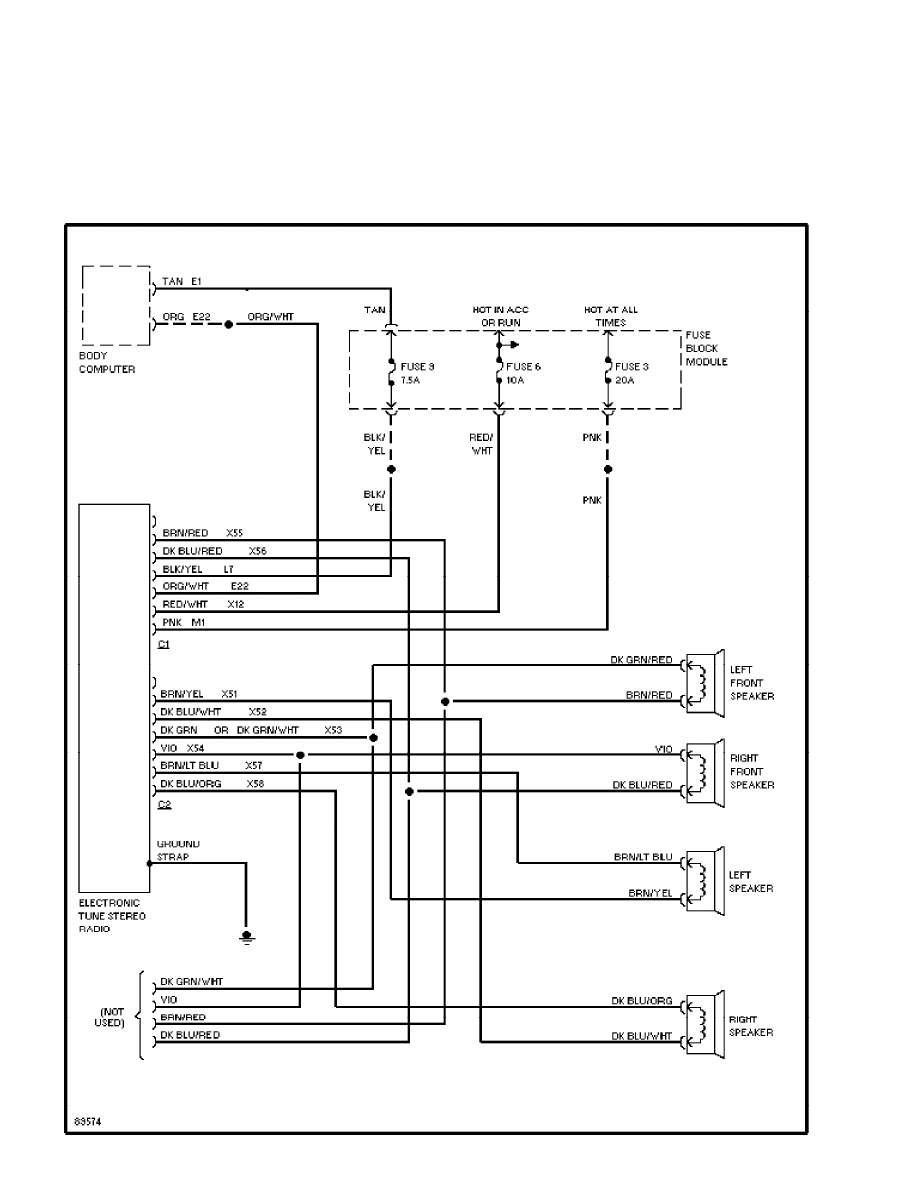

Radio Circuits, 4 Speaker System (p. 9)

1992 Dodge Caravan

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, February 14, 2005 12:02PM

background image

SYSTEM WIRING DIAGRAMS

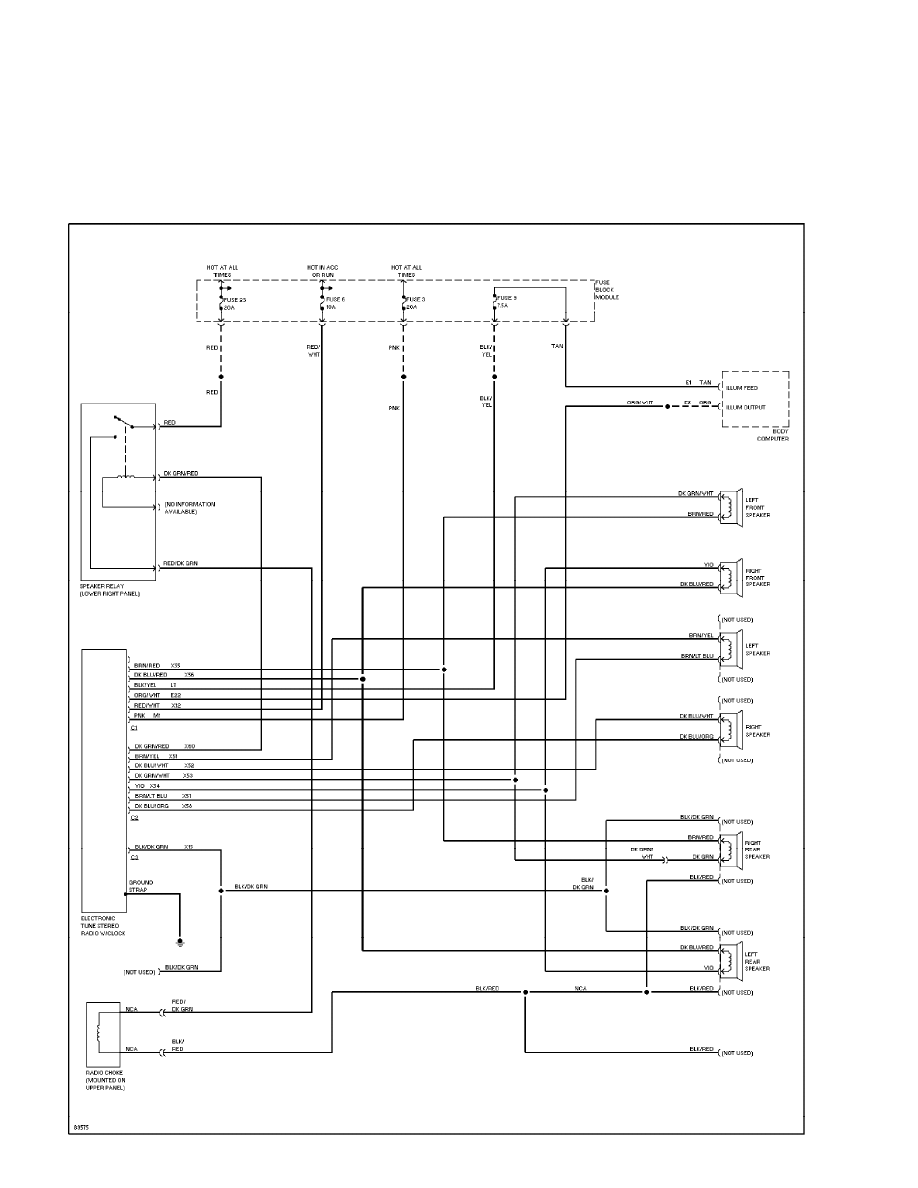

Radio Circuits, 6 Speaker System (p. 10)

1992 Dodge Caravan

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, February 14, 2005 12:02PM

background image

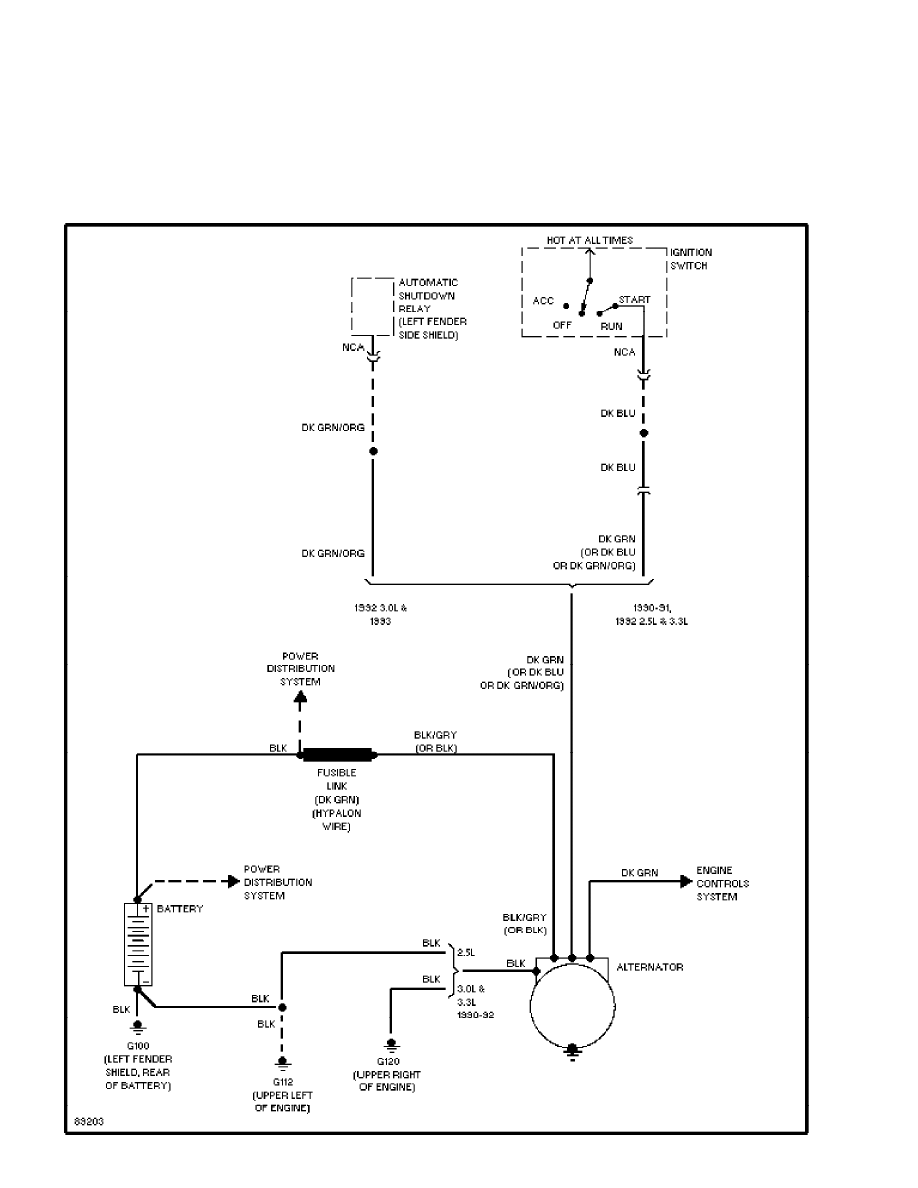

SYSTEM WIRING DIAGRAMS

Charging Circuit (p. 11)

1992 Dodge Caravan

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, February 14, 2005 12:02PM

background image

SYSTEM WIRING DIAGRAMS

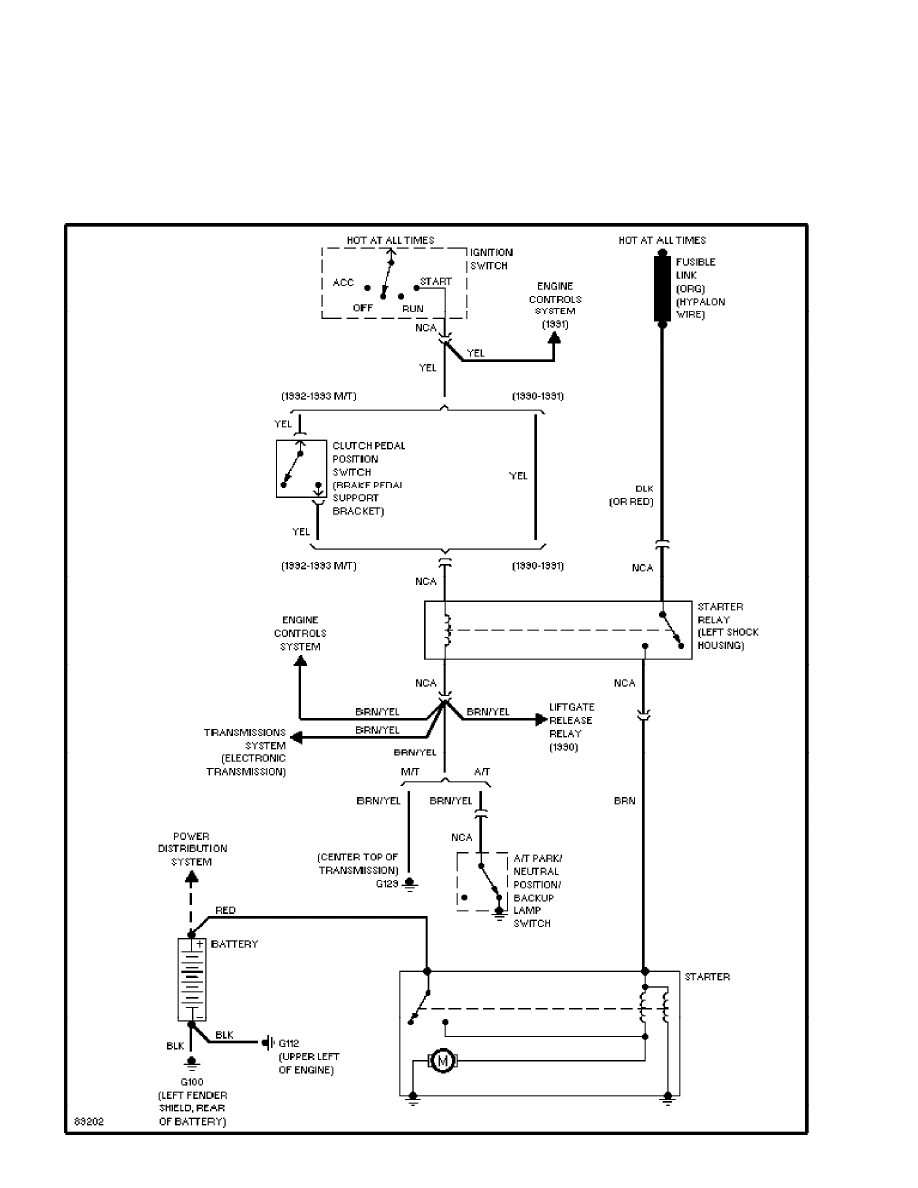

Starting Circuit (p. 12)

1992 Dodge Caravan

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, February 14, 2005 12:02PM

background image

SYSTEM WIRING DIAGRAMS

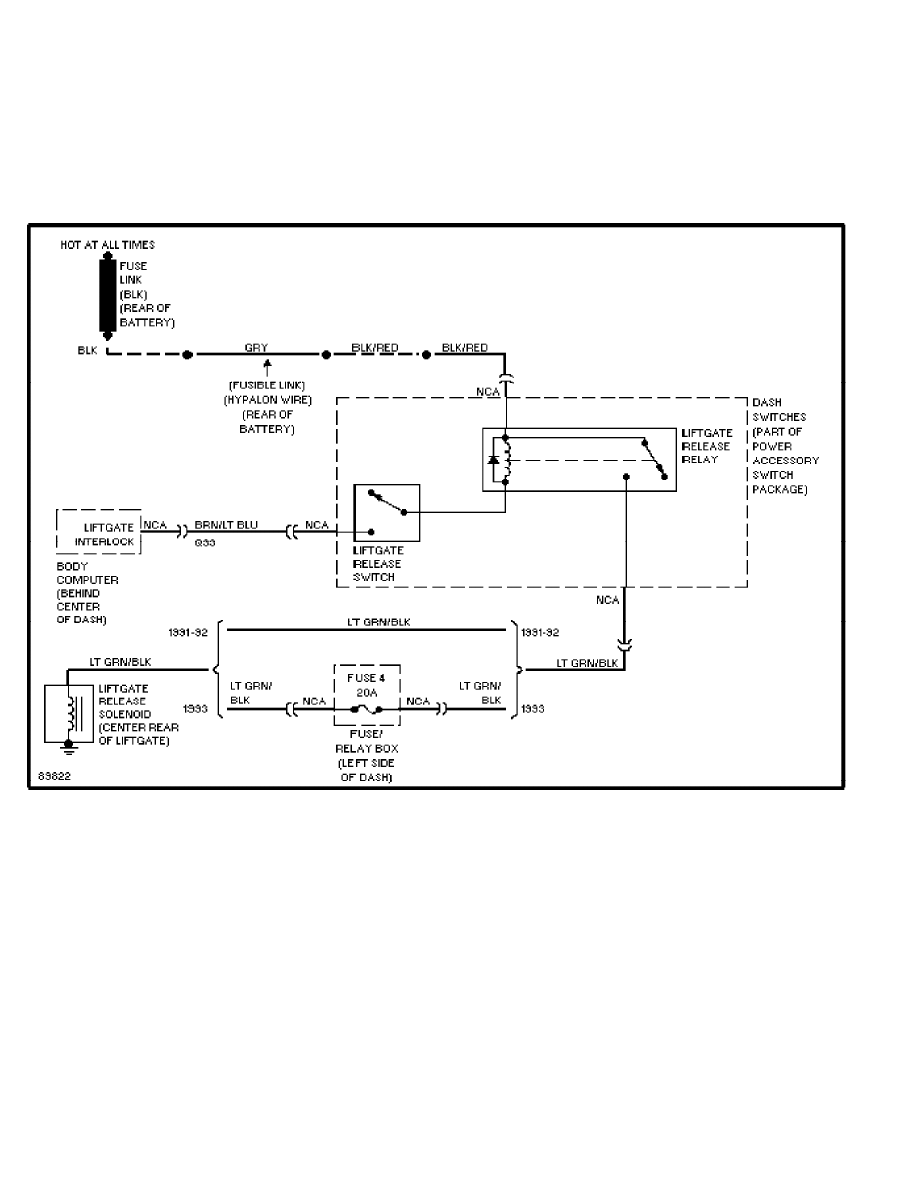

Tailgate Release Circuit (p. 13)

1992 Dodge Caravan

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, February 14, 2005 12:02PM

background image

SYSTEM WIRING DIAGRAMS

Interval Wiper/Washer Circuit (p. 14)

1992 Dodge Caravan

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, February 14, 2005 12:02PM

background image

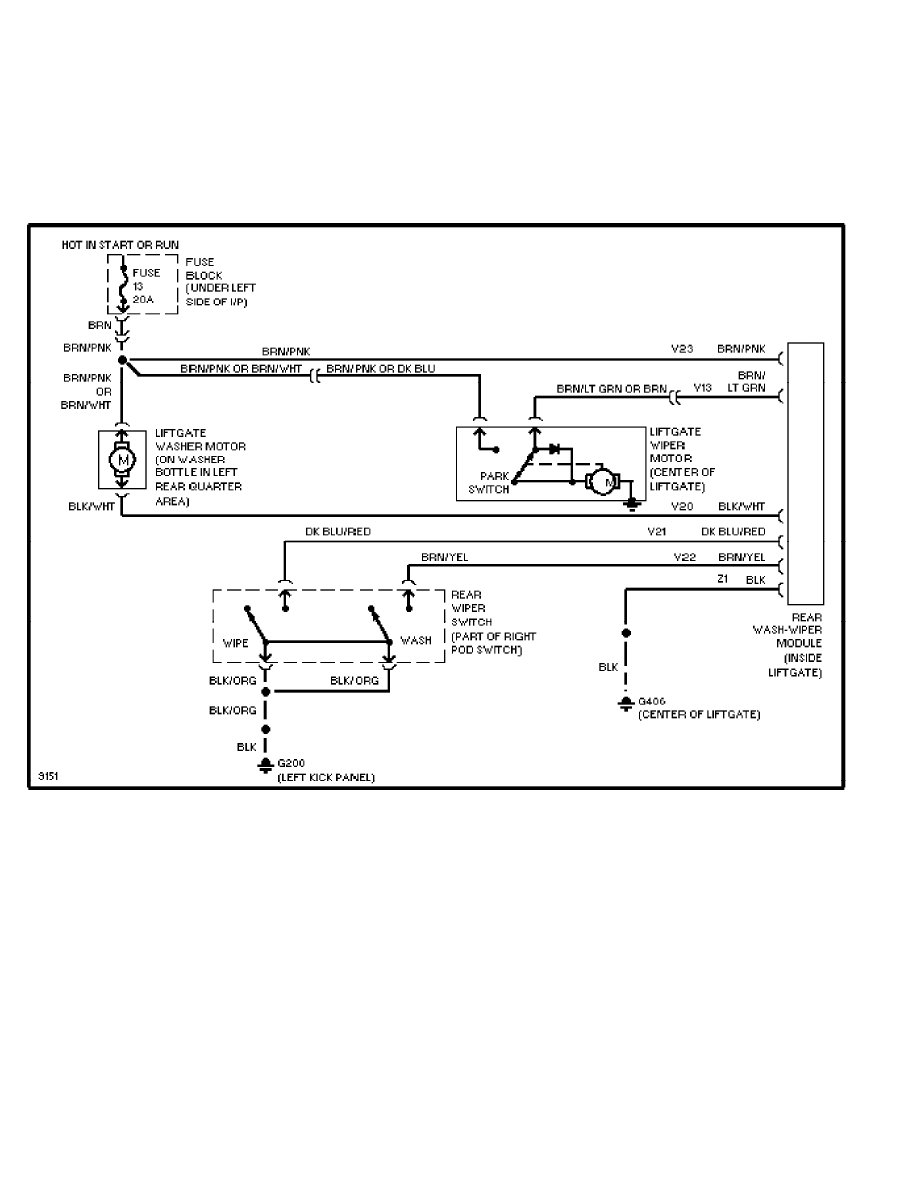

SYSTEM WIRING DIAGRAMS

Rear Wiper/Washer Circuit (p. 15)

1992 Dodge Caravan

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, February 14, 2005 12:02PM

background image

WIRING DIAGRAMS

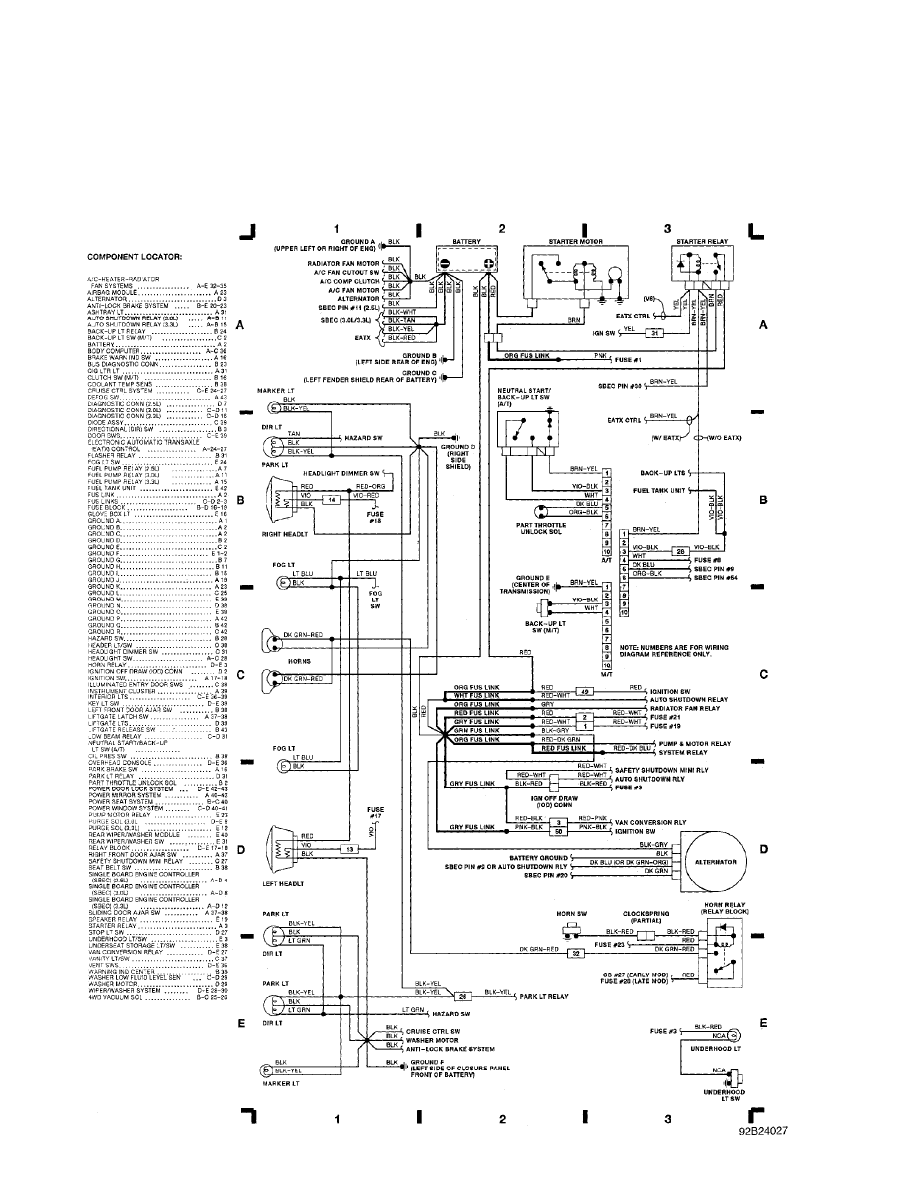

Fig. 1: Engine Compartment & Headlights (Grids 1-3)

1992 Dodge Caravan

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, February 14, 2005 12:02PM

background image

WIRING DIAGRAMS

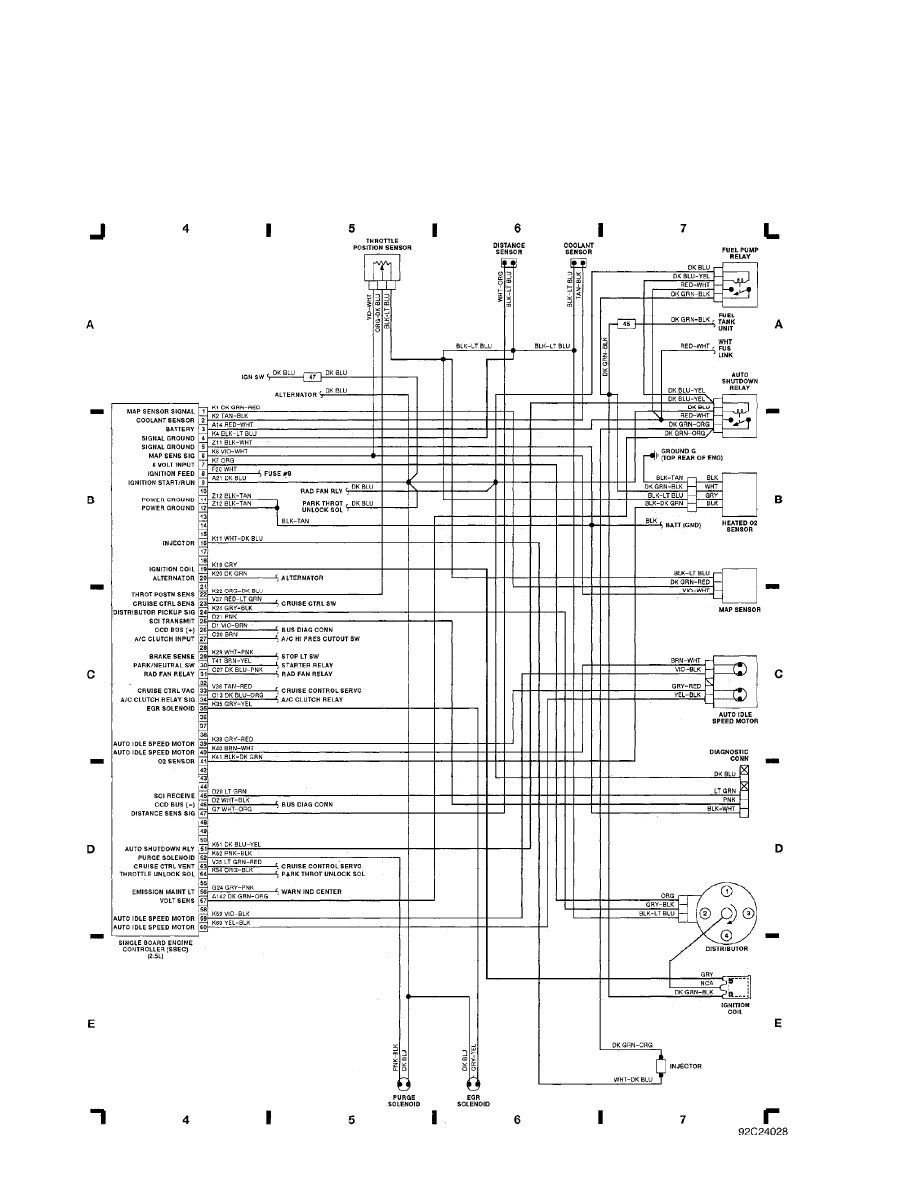

Fig. 2: Electronic Control Module (2.5L) (Grids 4-7) (p. 2)

1992 Dodge Caravan

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, February 14, 2005 12:02PM

background image

WIRING DIAGRAMS

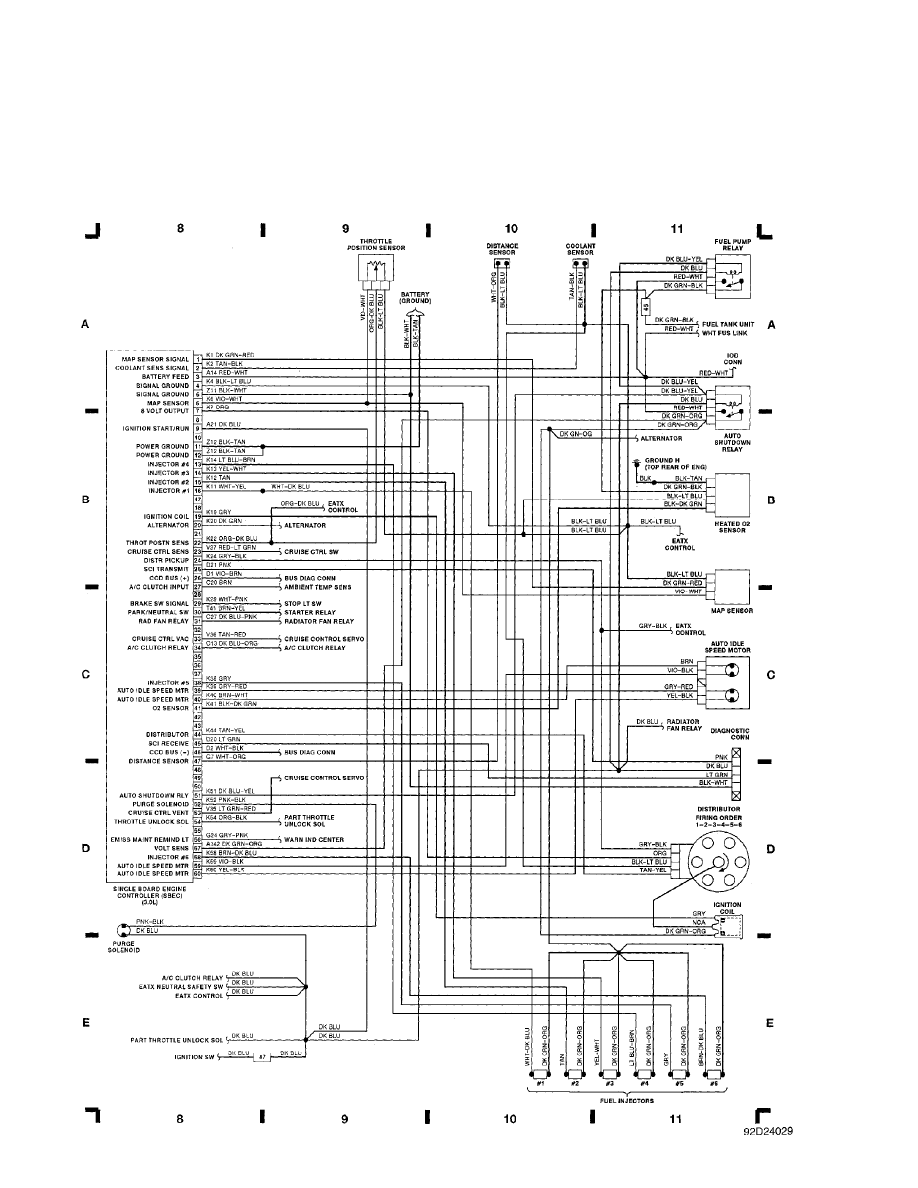

Fig. 3: Electronic Control Module (3.0L) (Grids 8-11) (p. 3)

1992 Dodge Caravan

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, February 14, 2005 12:02PM

background image

WIRING DIAGRAMS

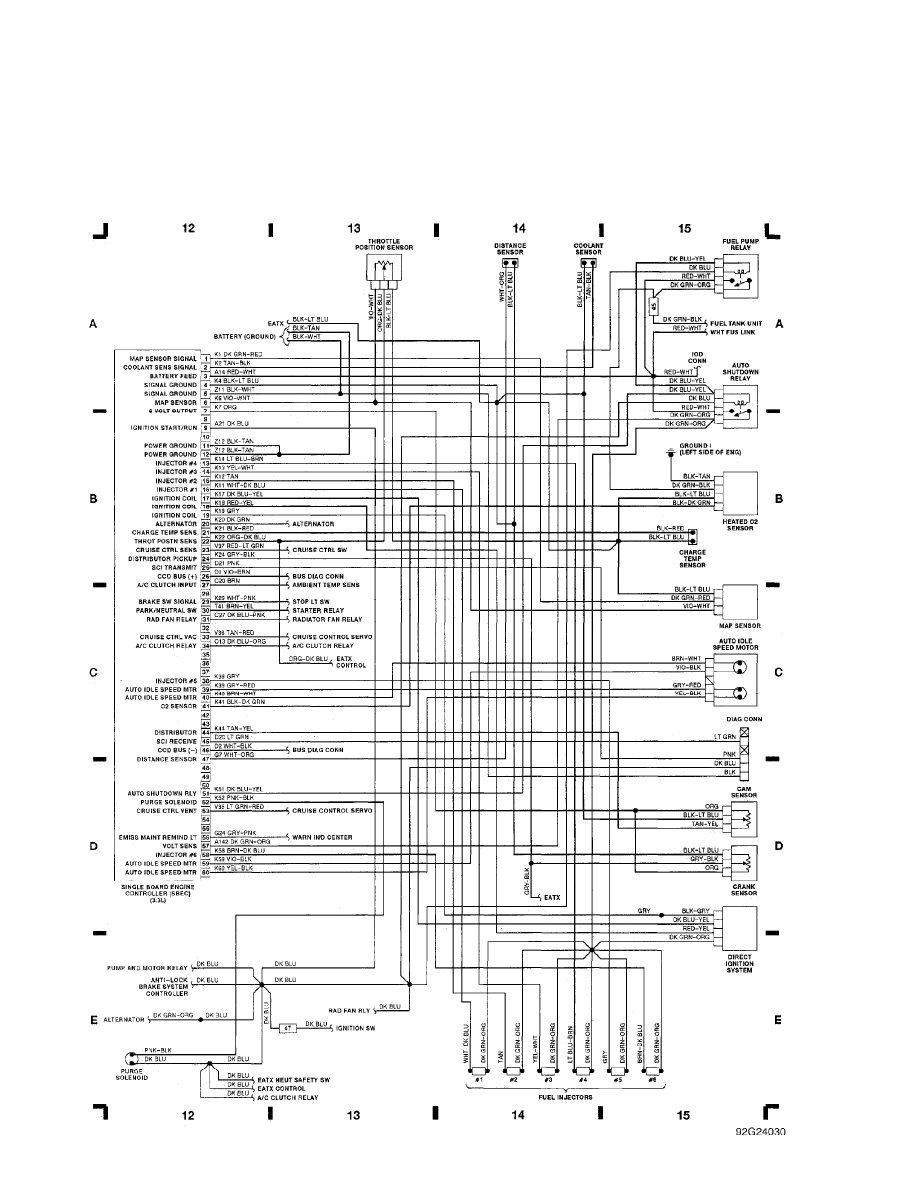

Fig. 4: Electronic Control Module (3.3L) (Grids 12-15) (p. 4)

1992 Dodge Caravan

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, February 14, 2005 12:02PM

background image

WIRING DIAGRAMS

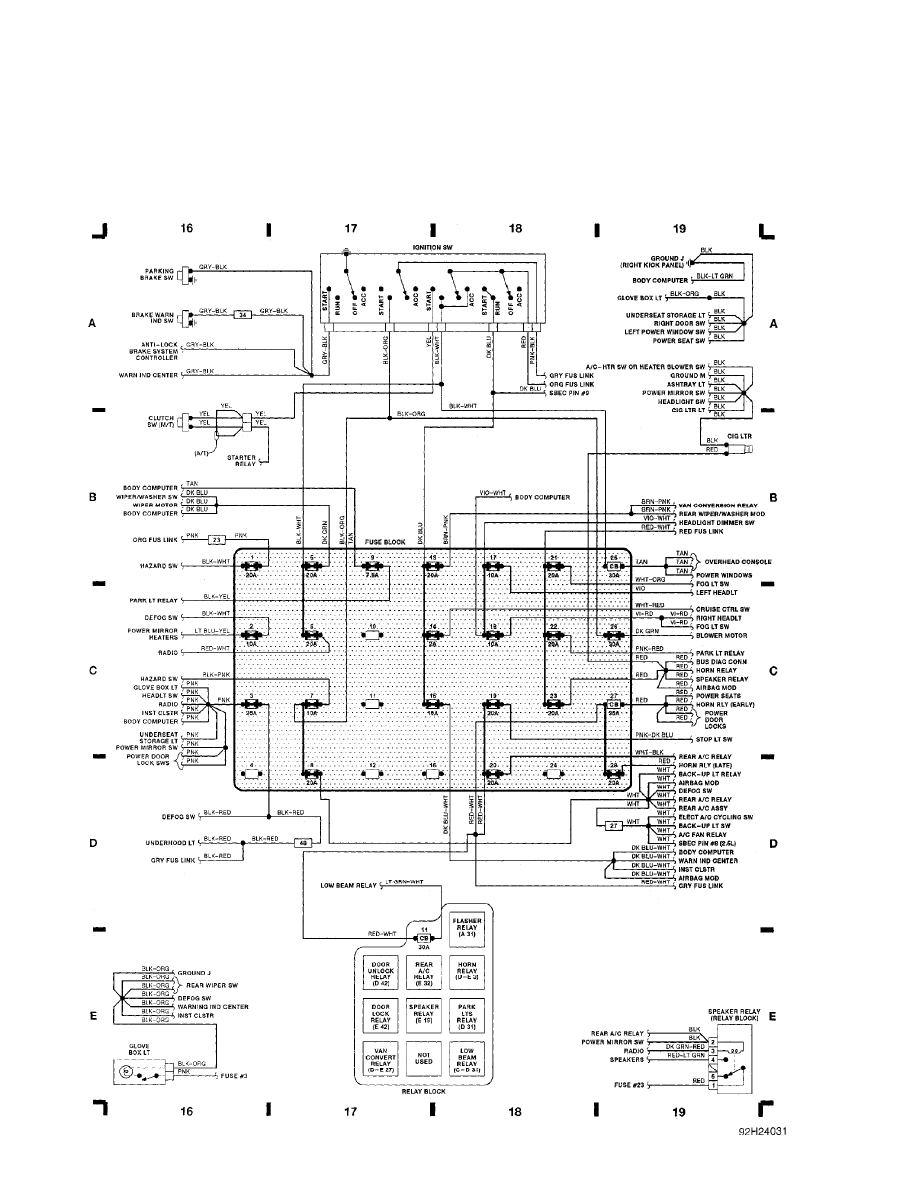

Fig. 5: Fuse Block (Grids 16-19) (p. 5)

1992 Dodge Caravan

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, February 14, 2005 12:02PM

background image

WIRING DIAGRAMS

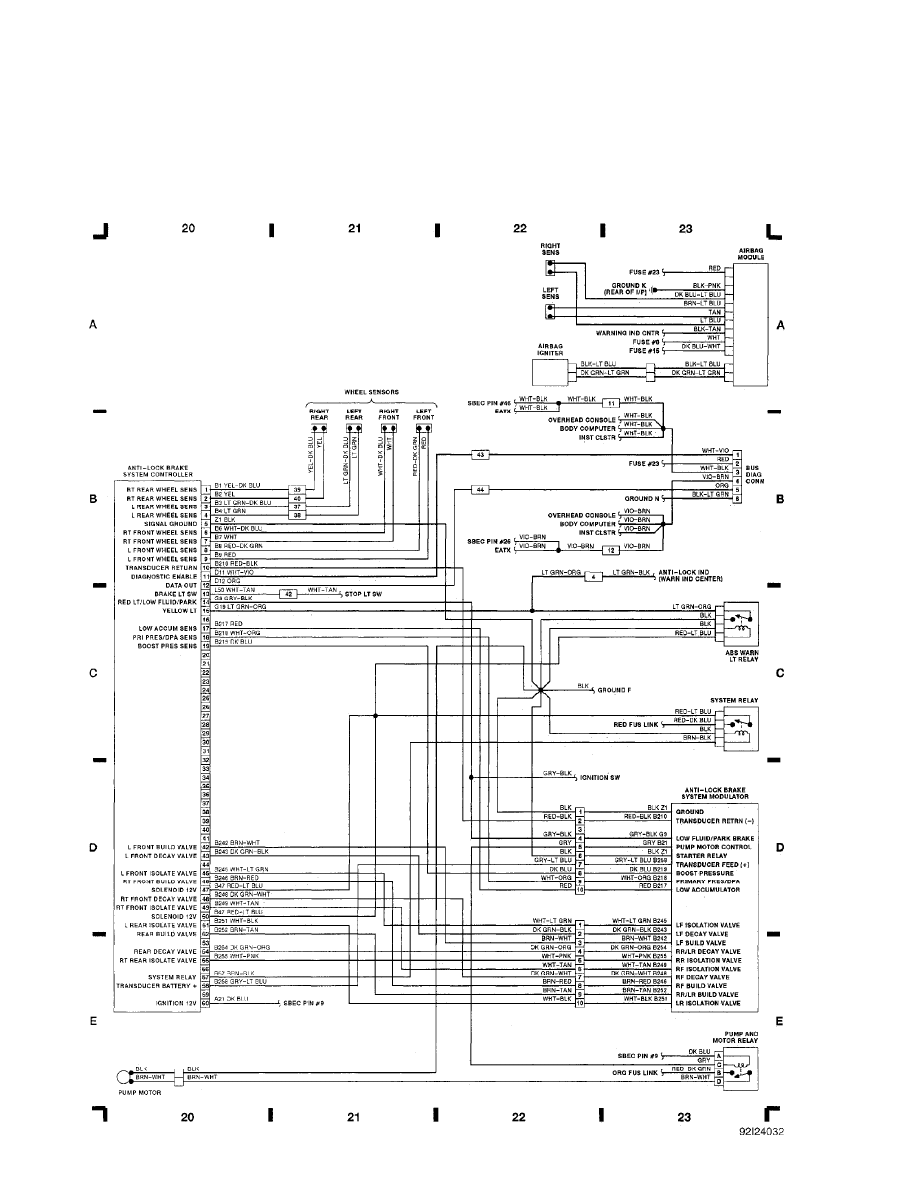

Fig. 6: Anti-Lock Brake System (Grids 20-23) (p. 6)

1992 Dodge Caravan

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, February 14, 2005 12:02PM

background image

WIRING DIAGRAMS

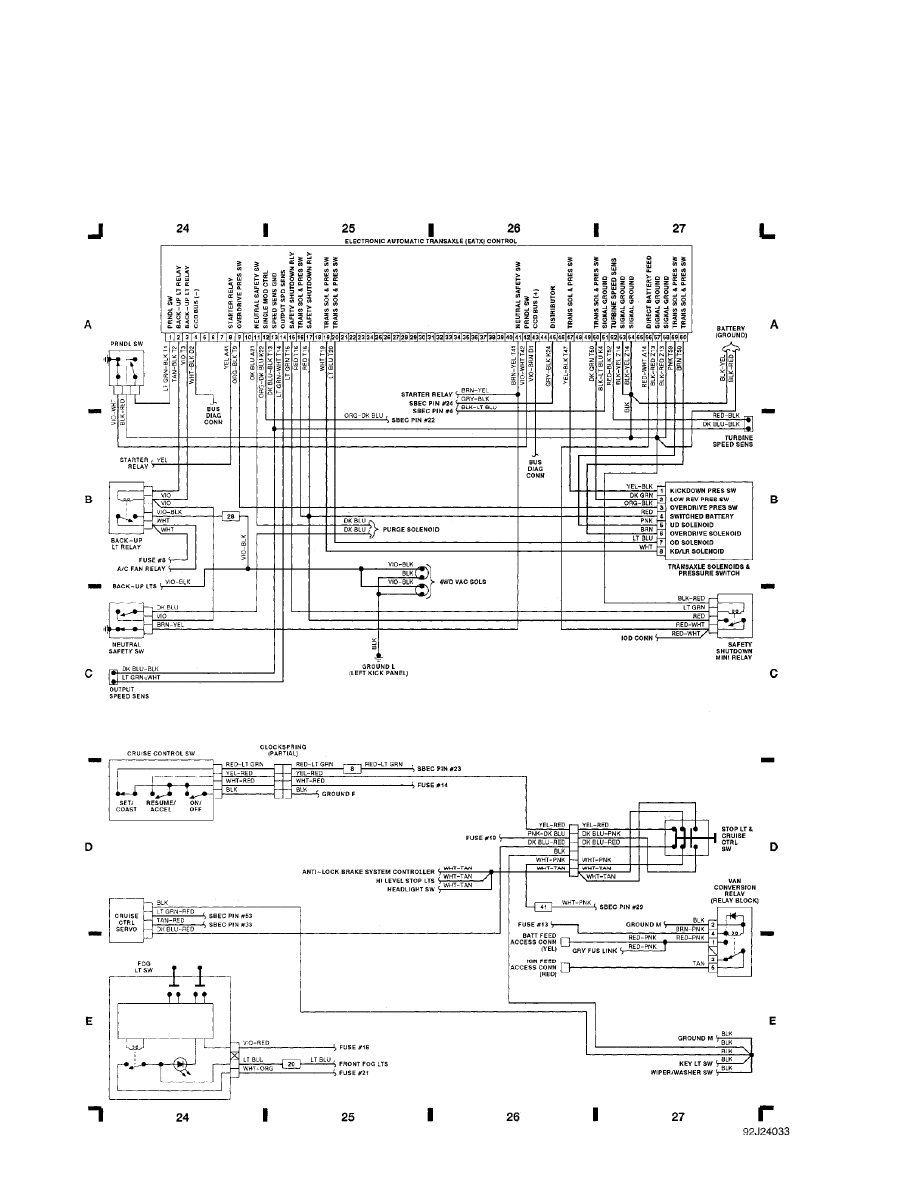

Fig. 7: EATX Control System & Cruise Control (Grids 24-27) (p. 7)

1992 Dodge Caravan

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, February 14, 2005 12:02PM

background image

WIRING DIAGRAMS

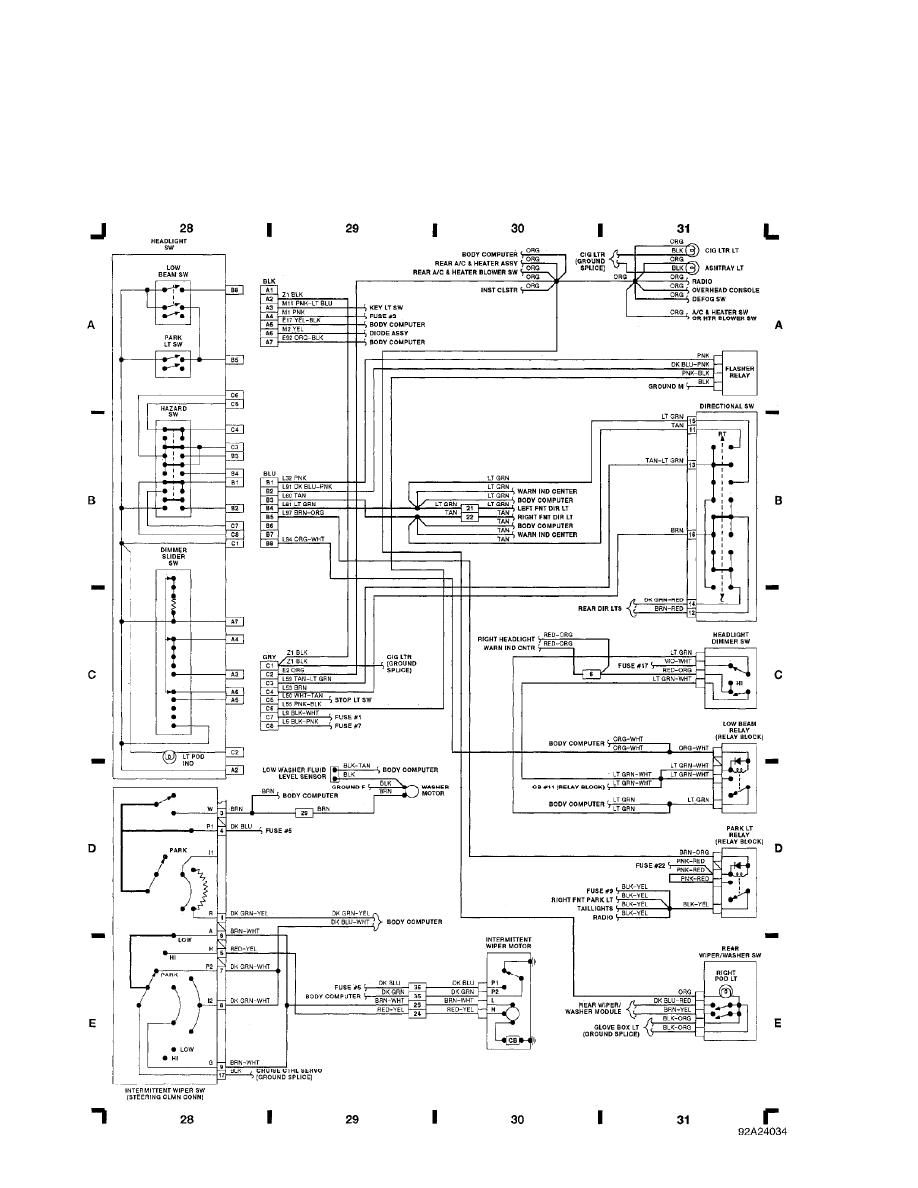

Fig. 8: Headlight Switch, Intermittent Wiper (Grids 28-31) (p. 8)

1992 Dodge Caravan

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, February 14, 2005 12:02PM

background image

WIRING DIAGRAMS

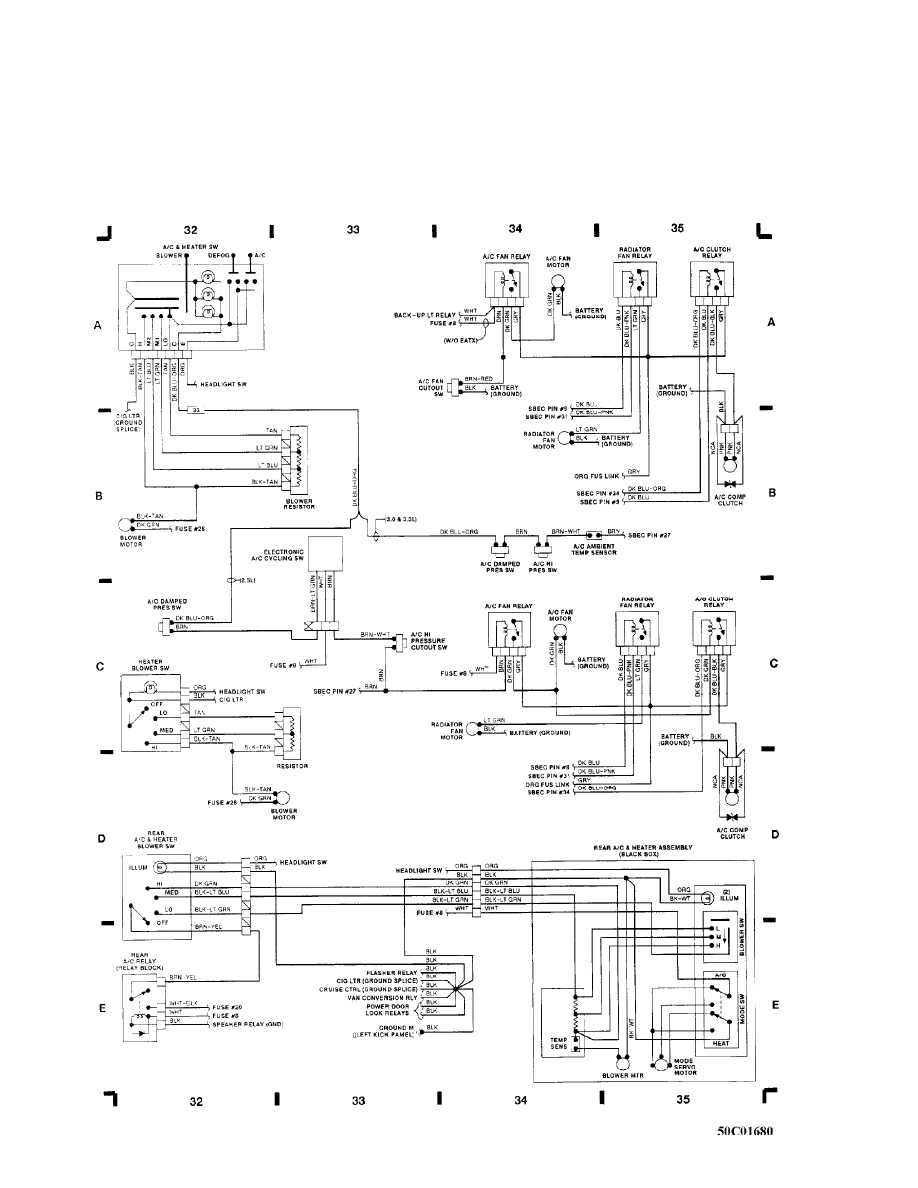

Fig. 9: Air Conditioning & Heater Switch (Grids 32-35) (p. 9)

1992 Dodge Caravan

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, February 14, 2005 12:02PM

background image

WIRING DIAGRAMS

Fig. 10: Body Computer/Overhead Console/Inst. Clstr. (Grids 36-39) (p. 10)

1992 Dodge Caravan

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, February 14, 2005 12:02PM

background image

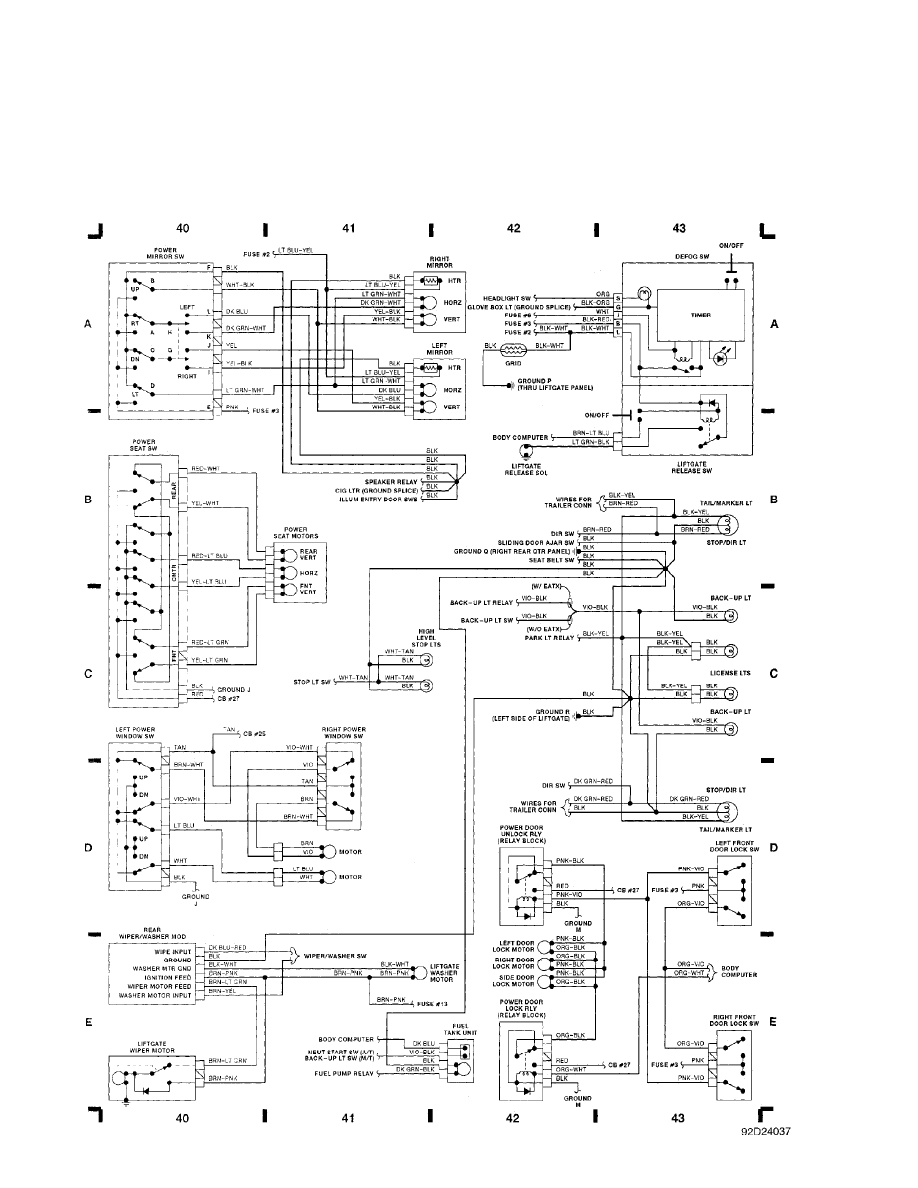

WIRING DIAGRAMS

Fig. 11: Power Mirror, Window Switches & Taillights (Grids 40-43) (p. 11)

1992 Dodge Caravan

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, February 14, 2005 12:02PM
