TOYOTA CELICA 1986

SYSTEM WIRING DIAGRAMS

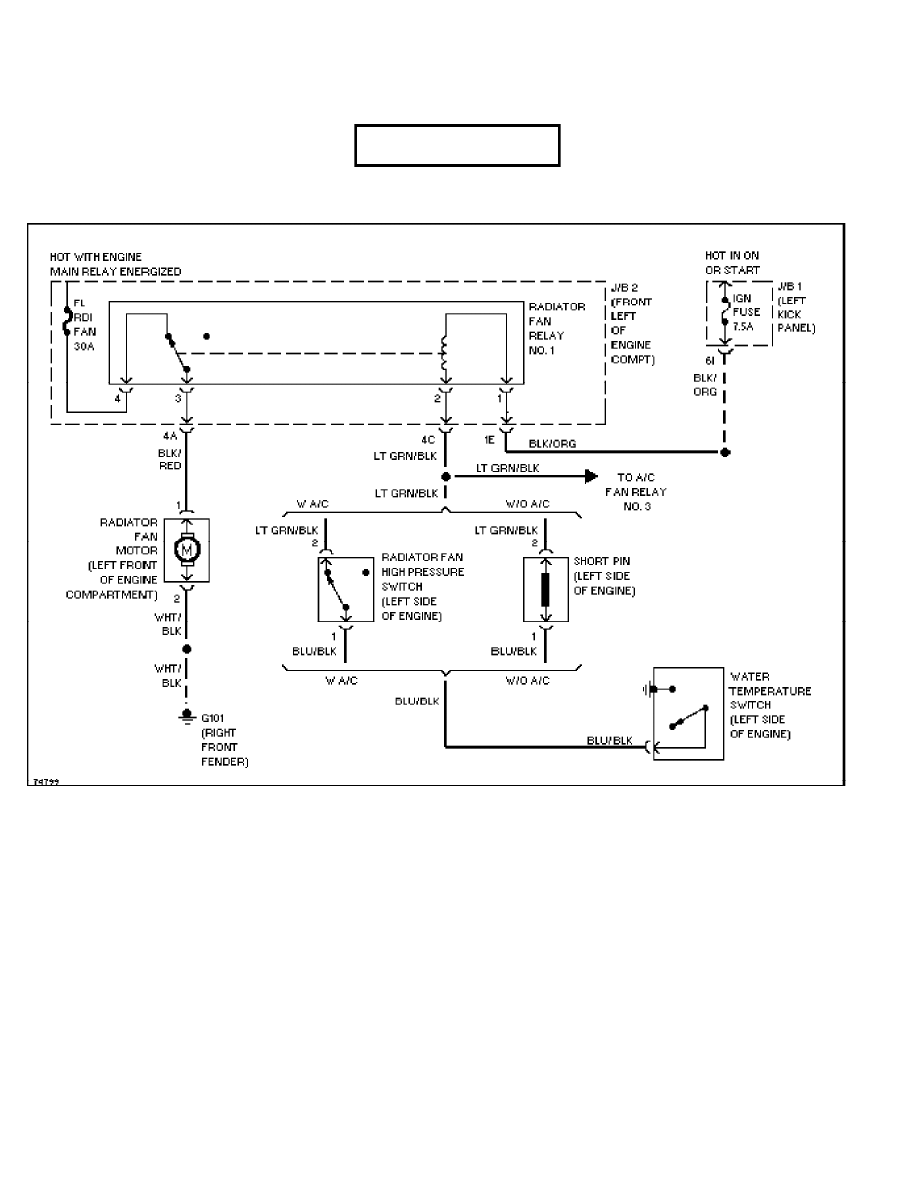

Cooling Fan Circuit

1986 Toyota Celica

For x

Friday, July 30, 2004 10:42AM

CDR@WP.PL

SYSTEM WIRING DIAGRAMS

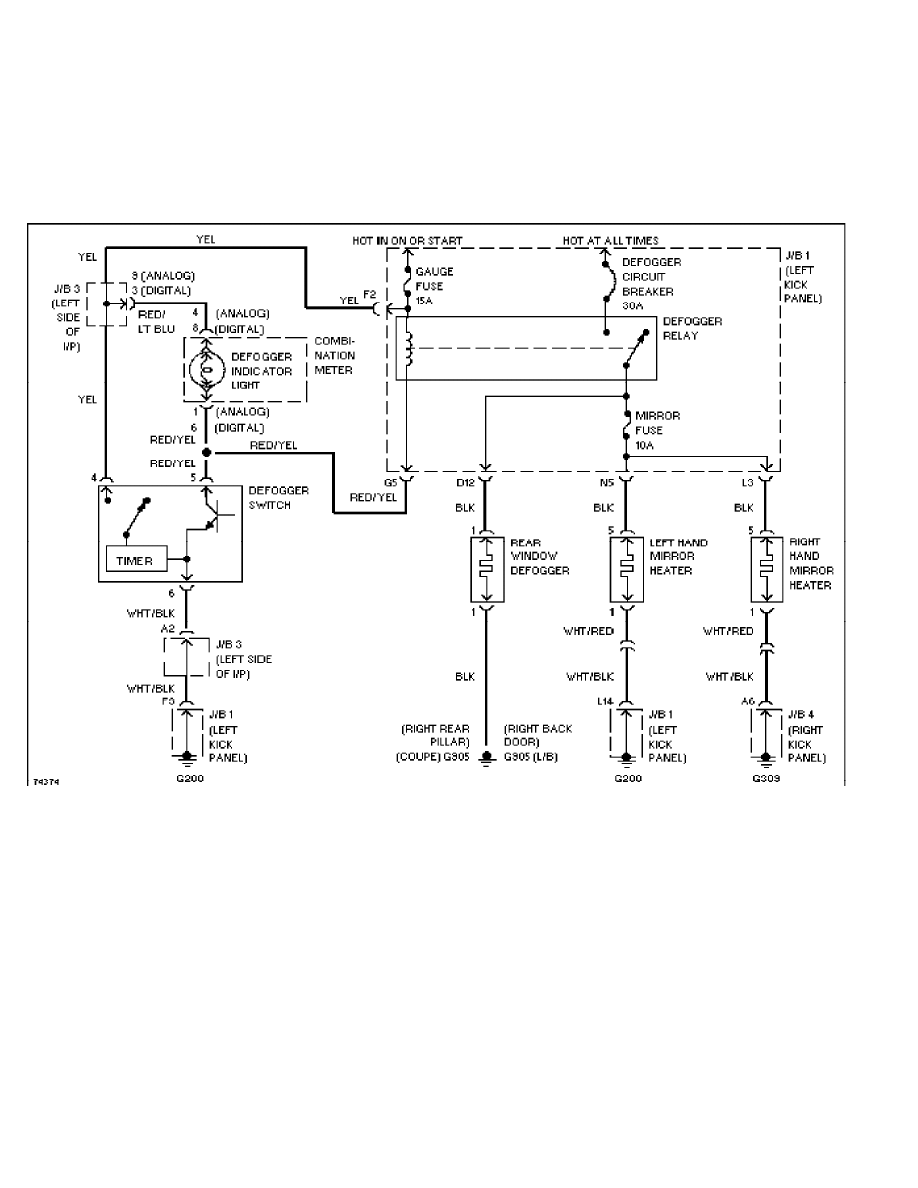

Rear Defogger & Heated Mirrors Circuit, W/ Timer Circuit (p. 2)

1986 Toyota Celica

For x

Friday, July 30, 2004 10:42AM

SYSTEM WIRING DIAGRAMS

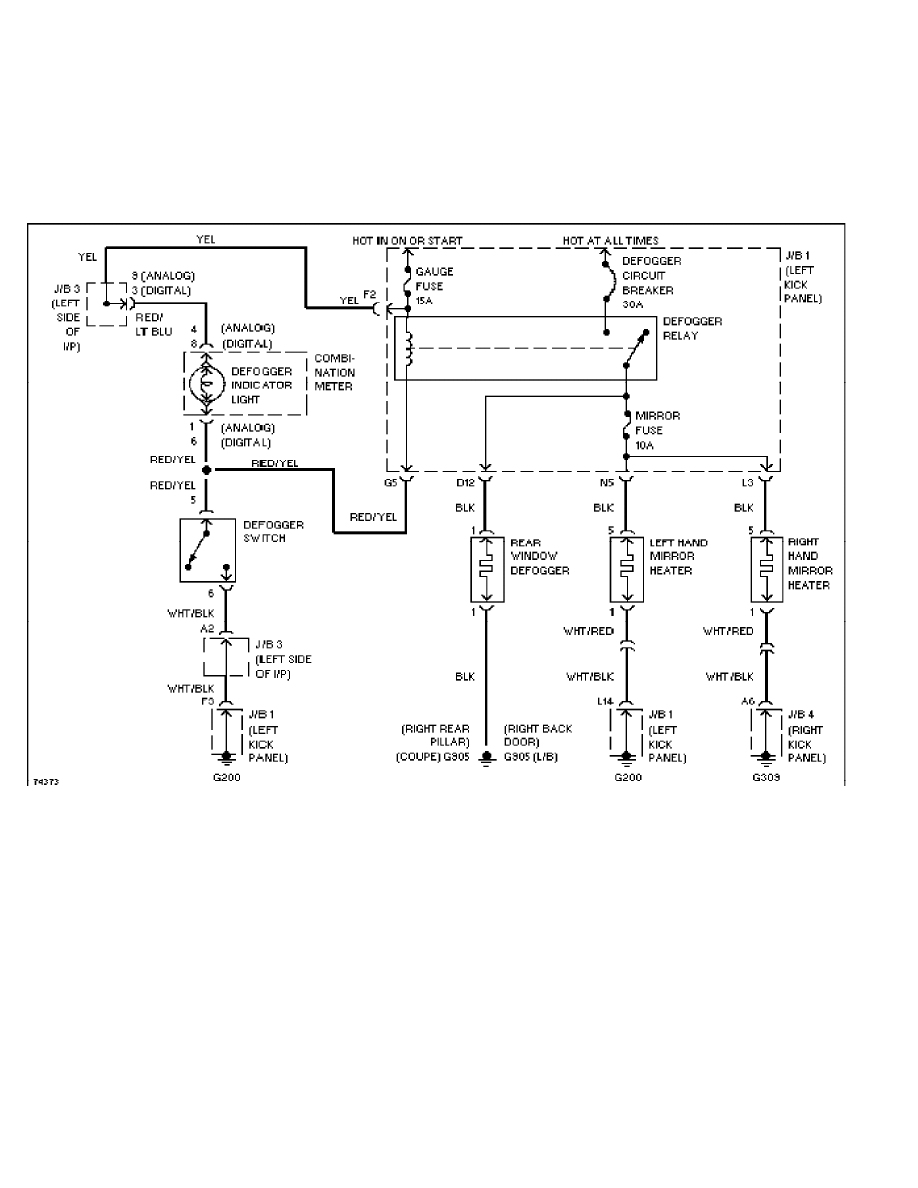

Rear Defogger & Heated Mirrors Circuit, W/O Timer Circuit (p. 3)

1986 Toyota Celica

For x

Friday, July 30, 2004 10:42AM

SYSTEM WIRING DIAGRAMS

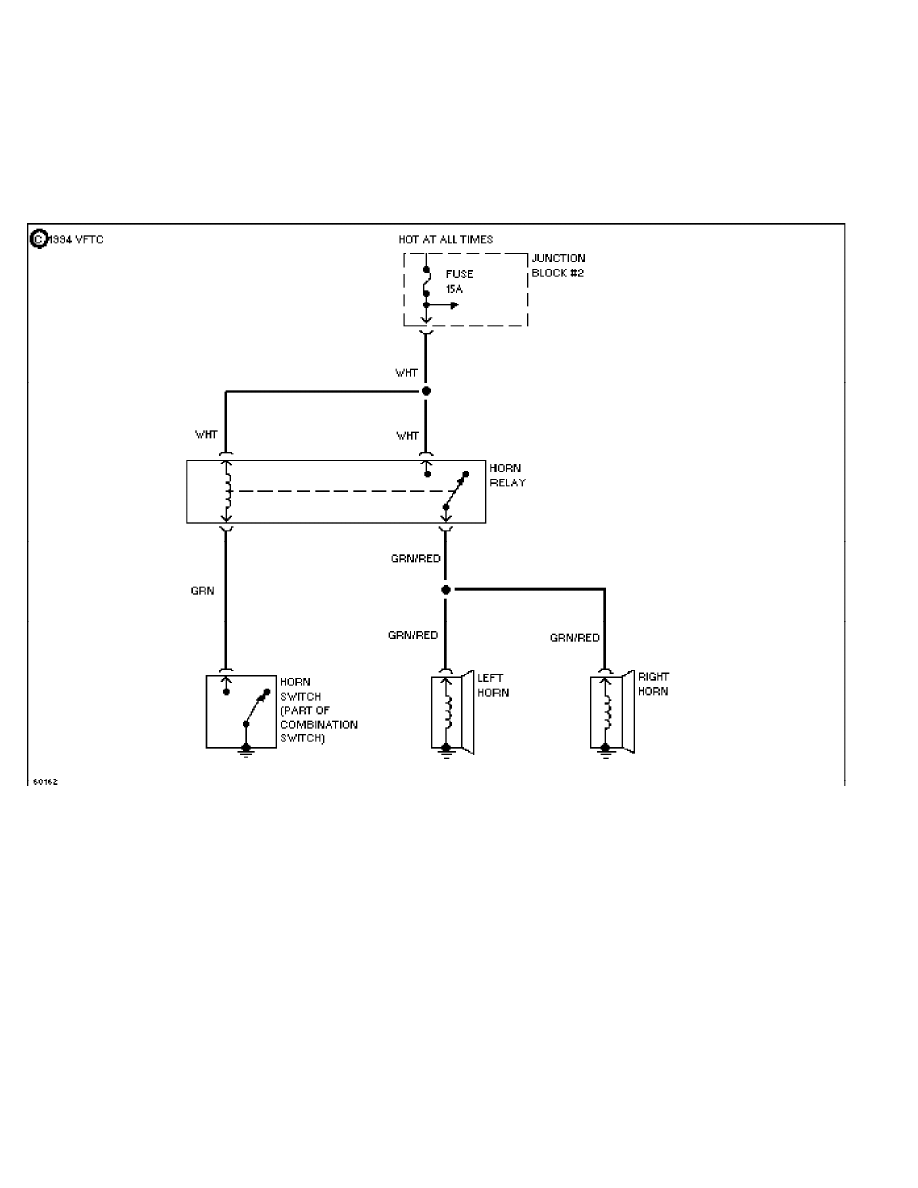

Horn Circuit (p. 4)

1986 Toyota Celica

For x

Friday, July 30, 2004 10:42AM

SYSTEM WIRING DIAGRAMS

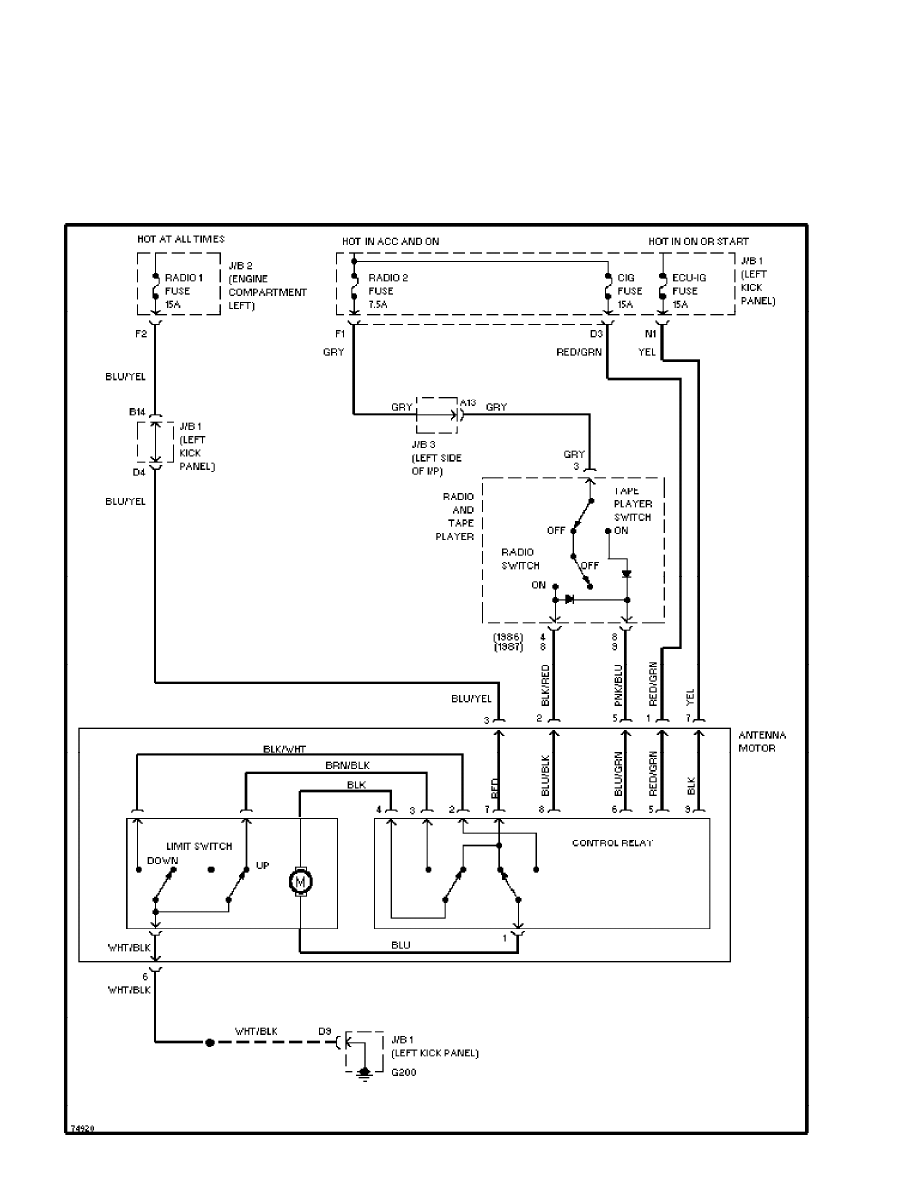

Power Antenna Circuit (p. 5)

1986 Toyota Celica

For x

Friday, July 30, 2004 10:42AM

SYSTEM WIRING DIAGRAMS

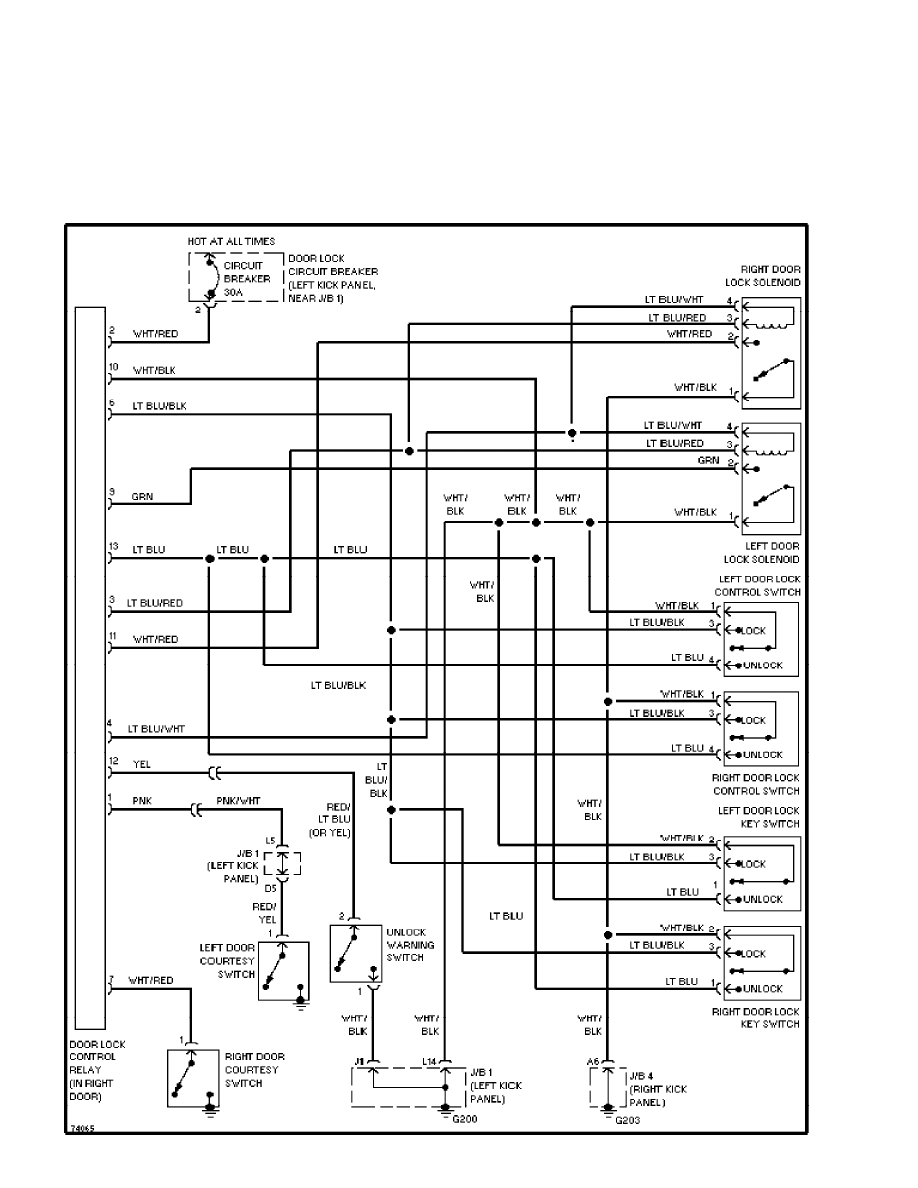

Power Door Lock Circuit (p. 6)

1986 Toyota Celica

For x

Friday, July 30, 2004 10:42AM

SYSTEM WIRING DIAGRAMS

Power Mirror Circuit (p. 7)

1986 Toyota Celica

For x

Friday, July 30, 2004 10:42AM

SYSTEM WIRING DIAGRAMS

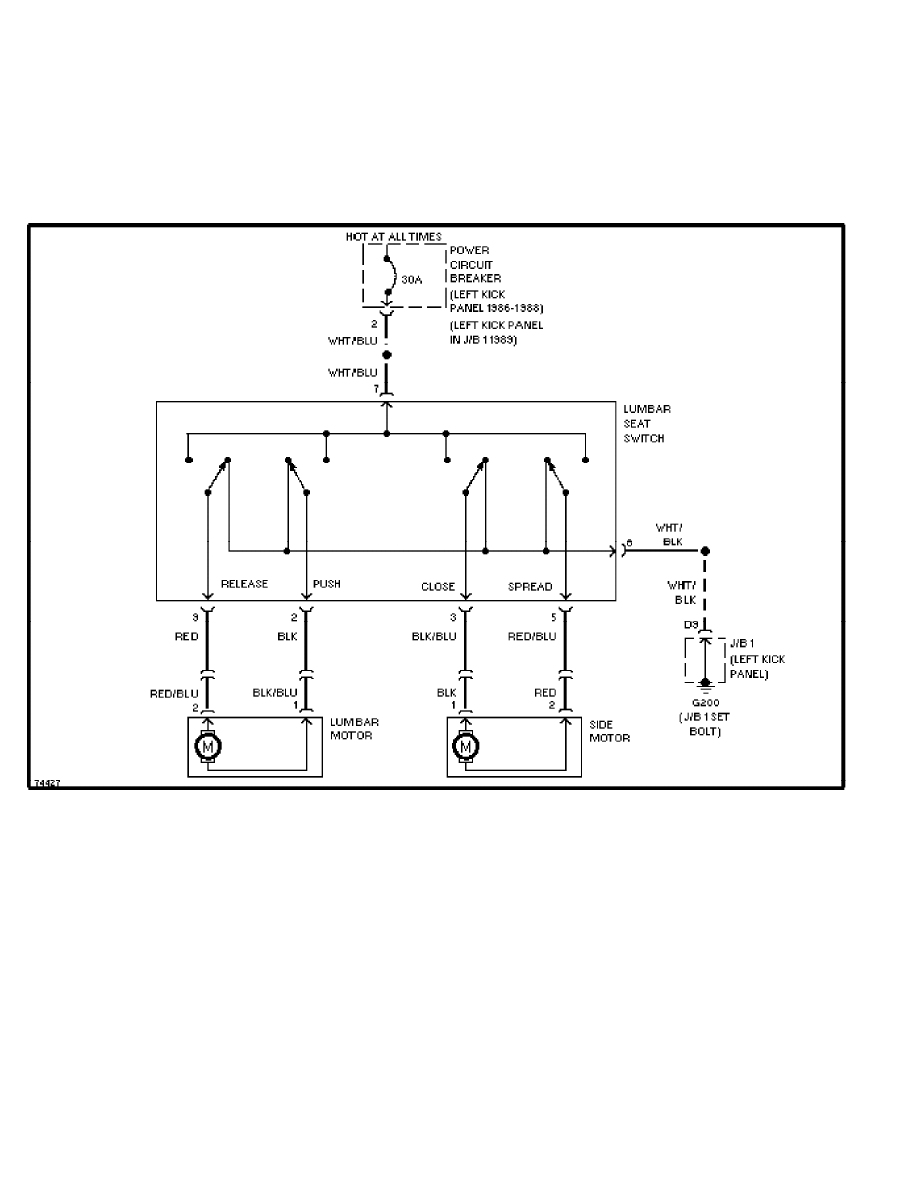

Lumbar Circuit (p. 8)

1986 Toyota Celica

For x

Friday, July 30, 2004 10:42AM

SYSTEM WIRING DIAGRAMS

Power Window Circuit (p. 9)

1986 Toyota Celica

For x

Friday, July 30, 2004 10:42AM

SYSTEM WIRING DIAGRAMS

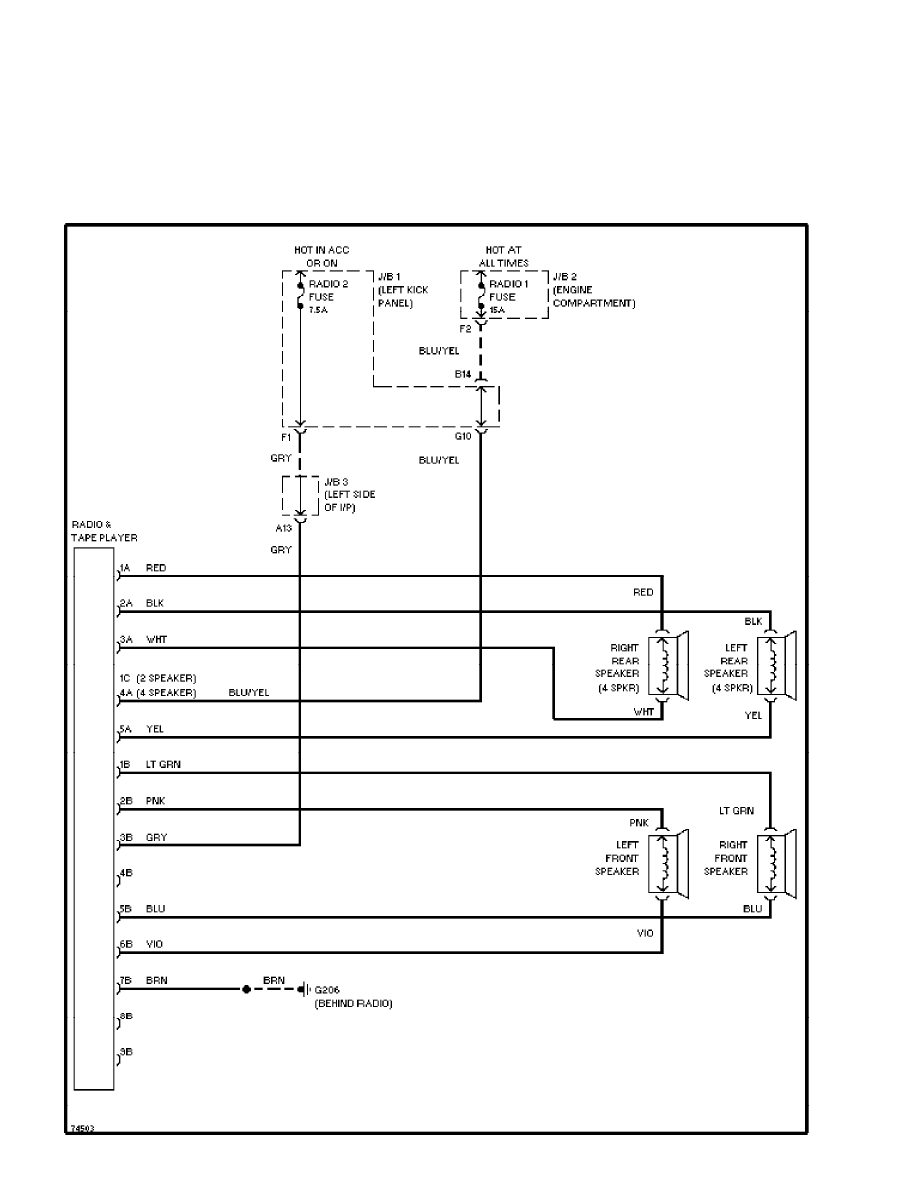

Radio Circuits (p. 10)

1986 Toyota Celica

For x

Friday, July 30, 2004 10:42AM

SYSTEM WIRING DIAGRAMS

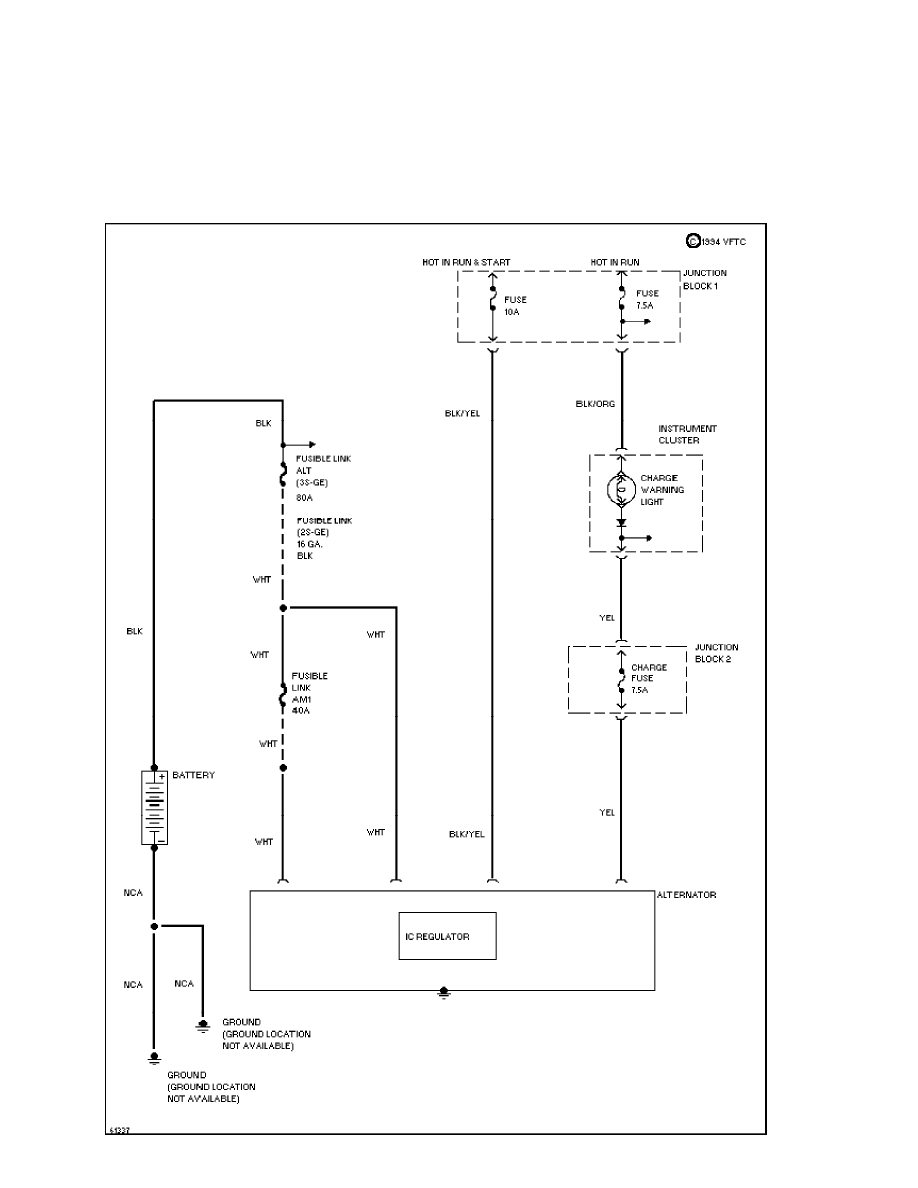

2.4L, Charging Circuit (p. 11)

1986 Toyota Celica

For x

Friday, July 30, 2004 10:42AM

SYSTEM WIRING DIAGRAMS

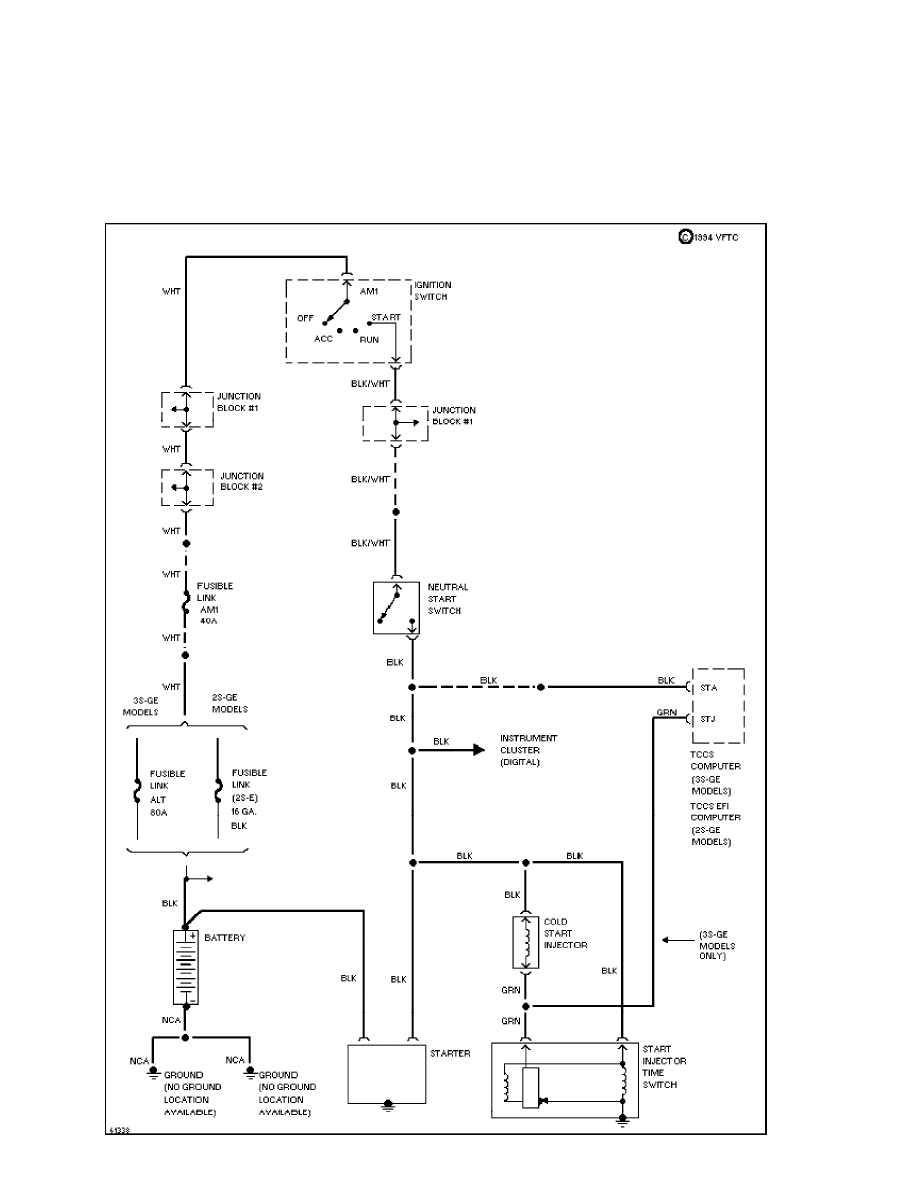

2.4L, Starting Circuit, Automatic (p. 12)

1986 Toyota Celica

For x

Friday, July 30, 2004 10:42AM

SYSTEM WIRING DIAGRAMS

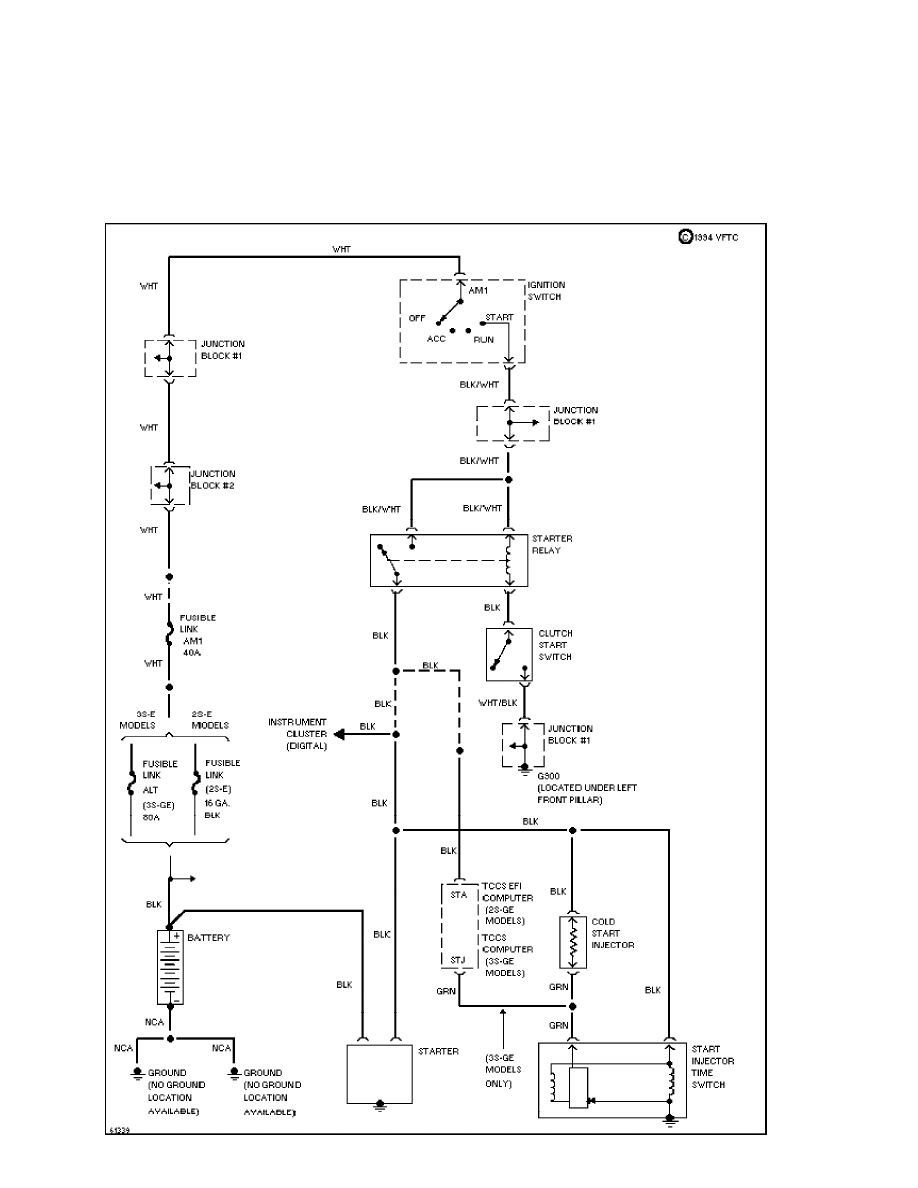

2.4L, Starting Circuit, Manual (p. 13)

1986 Toyota Celica

For x

Friday, July 30, 2004 10:42AM

SYSTEM WIRING DIAGRAMS

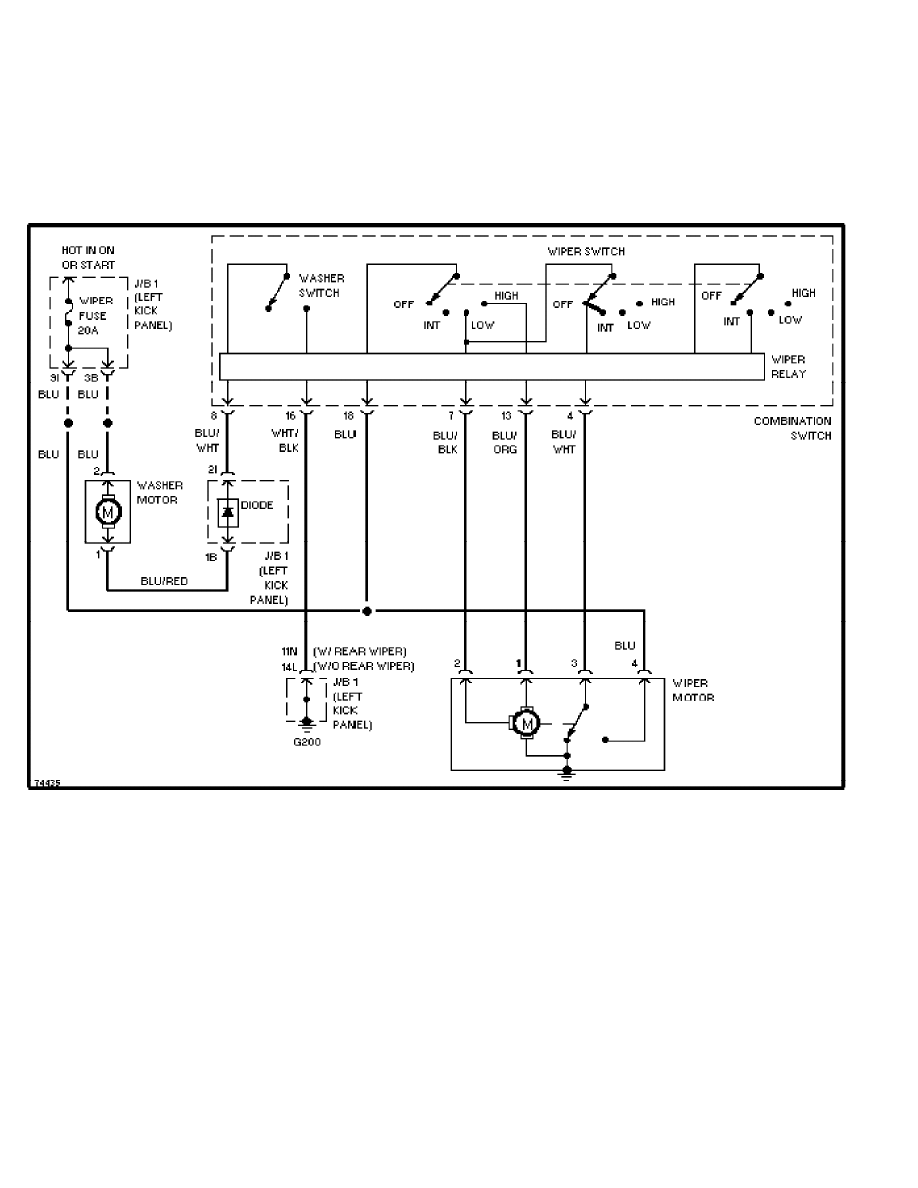

Front Wiper/Washer Circuit (p. 14)

1986 Toyota Celica

For x

Friday, July 30, 2004 10:42AM

SYSTEM WIRING DIAGRAMS

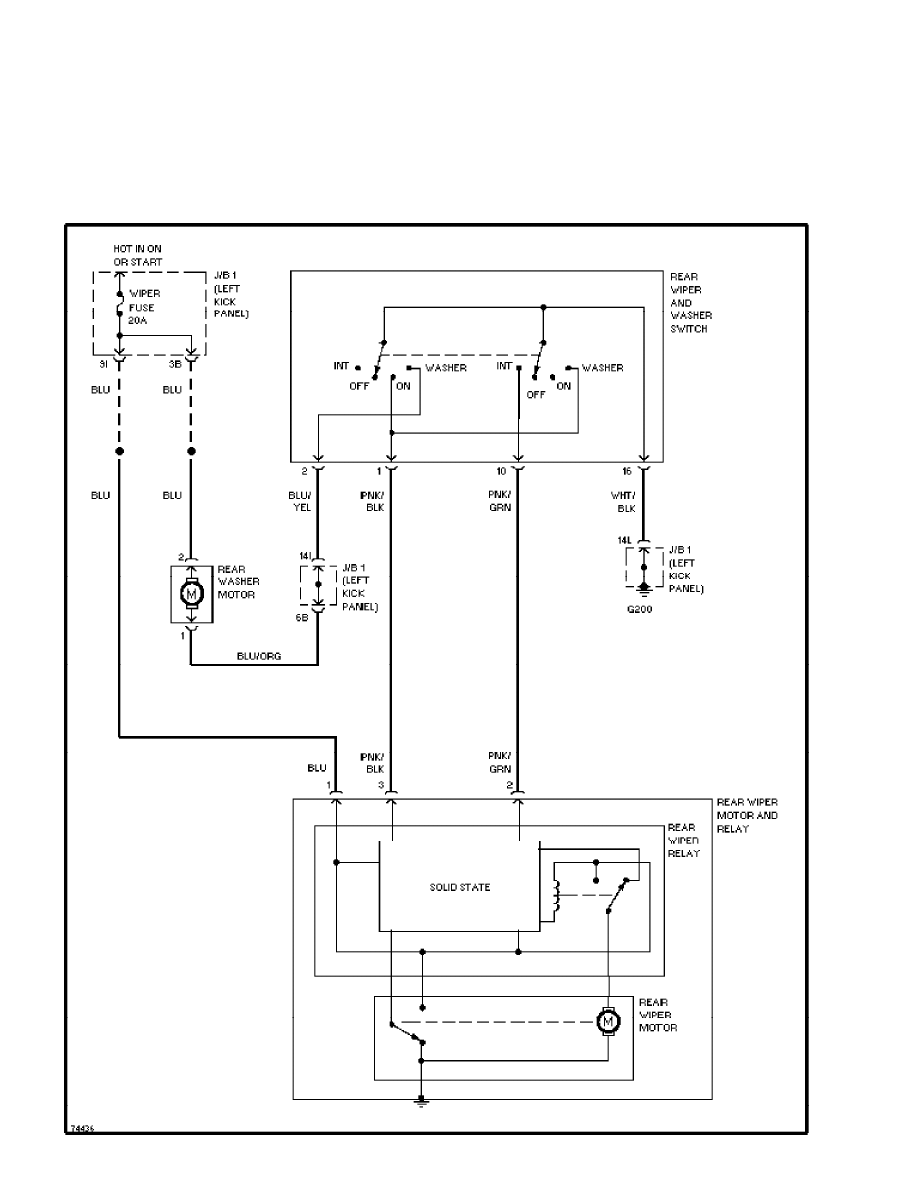

Rear Wiper/Washer Circuit (p. 15)

1986 Toyota Celica

For x

Friday, July 30, 2004 10:42AM

WIRING DIAGRAMS

Fig. 1: Engine Compartment (Grids 1-4)

1986 Toyota Celica

For x

Friday, July 30, 2004 10:42AM

WIRING DIAGRAMS

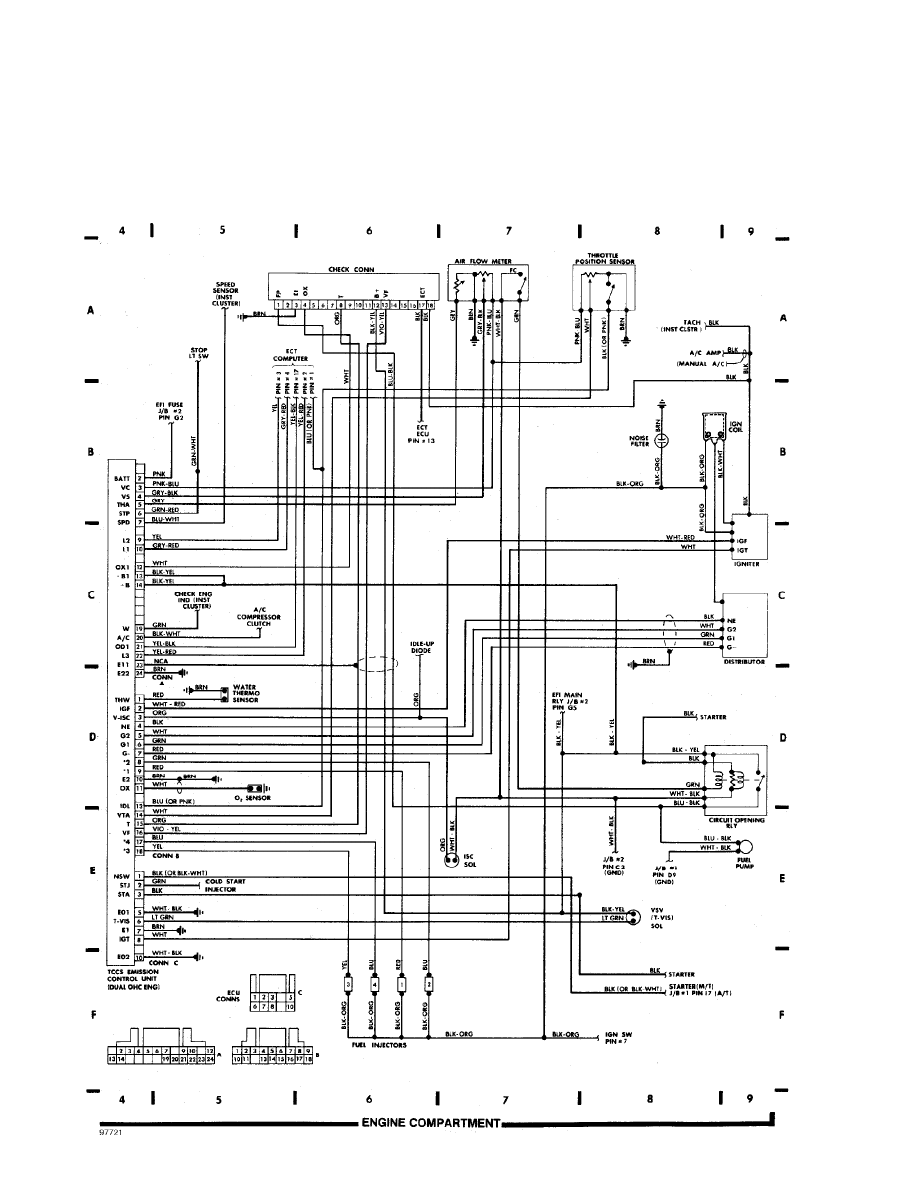

Fig. 2: Engine Compartment (Cont.) (Grids 4-9) (p. 2)

1986 Toyota Celica

For x

Friday, July 30, 2004 10:42AM

WIRING DIAGRAMS

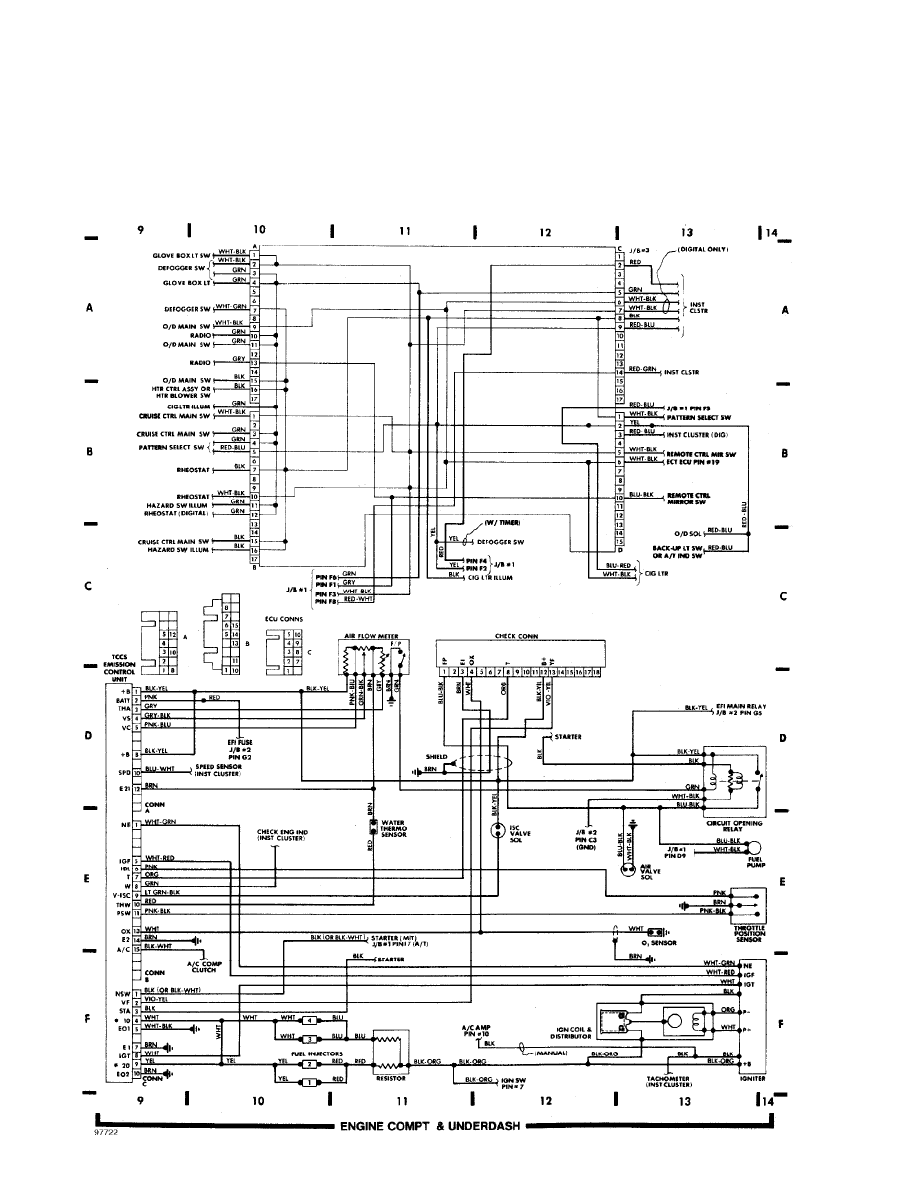

Fig. 3: Engine Compartment (Cont.) & Underdash (Grids 9-14) (p. 3)

1986 Toyota Celica

For x

Friday, July 30, 2004 10:42AM

WIRING DIAGRAMS

Fig. 4: Underdash (Cont.) (Grids 14-18) (p. 4)

1986 Toyota Celica

For x

Friday, July 30, 2004 10:42AM

WIRING DIAGRAMS

Fig. 5: Underdash (Cont.) (Grids 18-23) (p. 5)

1986 Toyota Celica

For x

Friday, July 30, 2004 10:42AM

WIRING DIAGRAMS

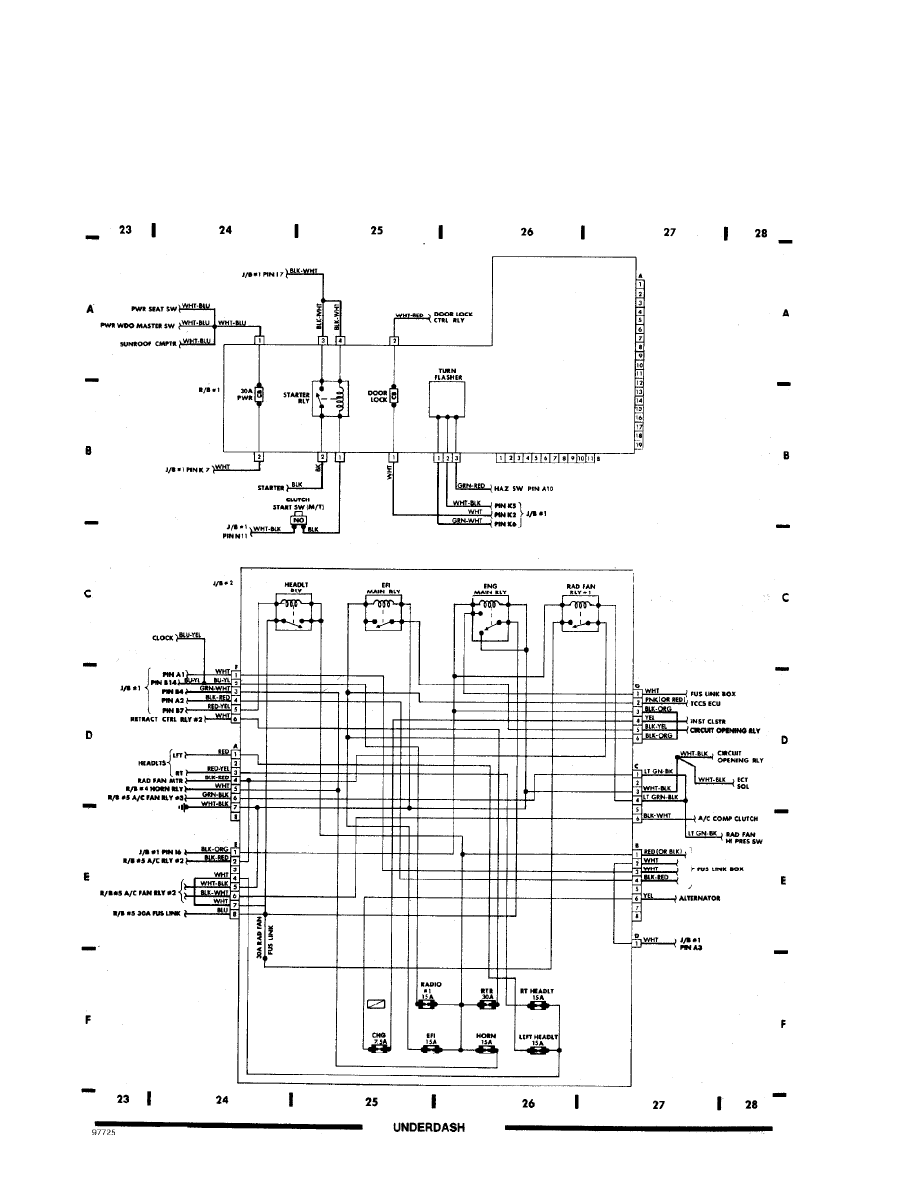

Fig. 6: Underdash (Cont.) (Grids 23-28) (p. 6)

1986 Toyota Celica

For x

Friday, July 30, 2004 10:42AM

WIRING DIAGRAMS

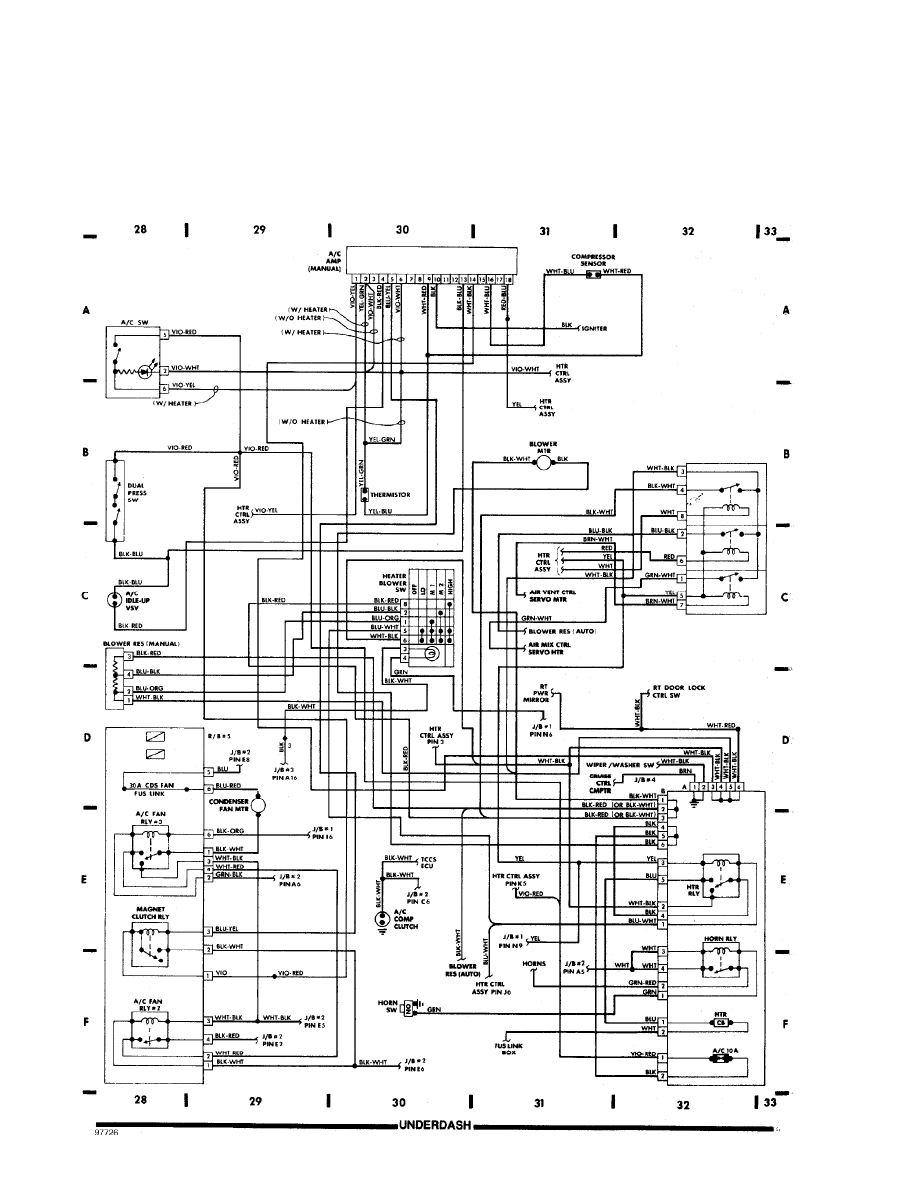

Fig. 7: Underdash (Cont.) (Grids 28-33) (p. 7)

1986 Toyota Celica

For x

Friday, July 30, 2004 10:42AM

WIRING DIAGRAMS

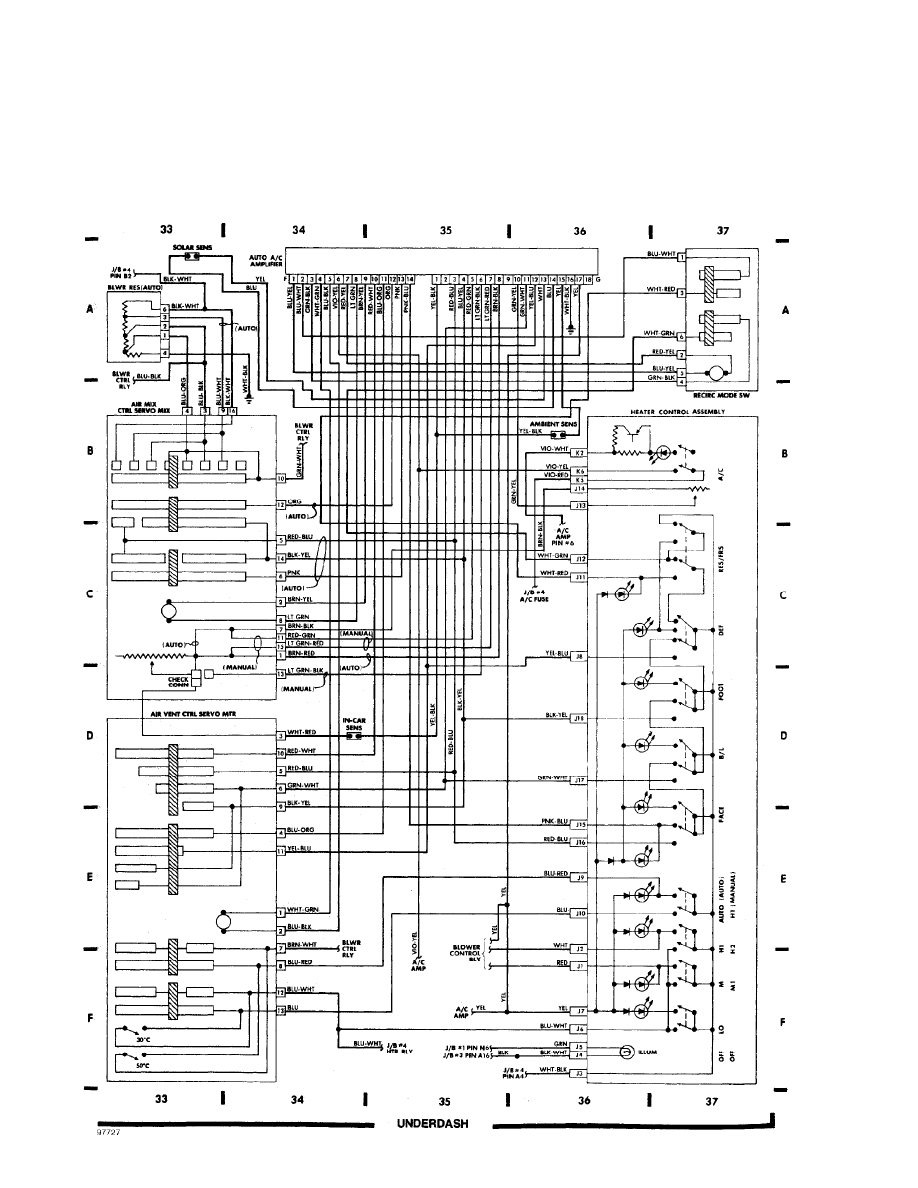

Fig. 8: Underdash (Cont.) (Grids 33-37) (p. 8)

1986 Toyota Celica

For x

Friday, July 30, 2004 10:42AM

WIRING DIAGRAMS

Fig. 9: Underdash (Cont.) & Instrument Panel (Grids 37-42) (p. 9)

1986 Toyota Celica

For x

Friday, July 30, 2004 10:42AM

WIRING DIAGRAMS

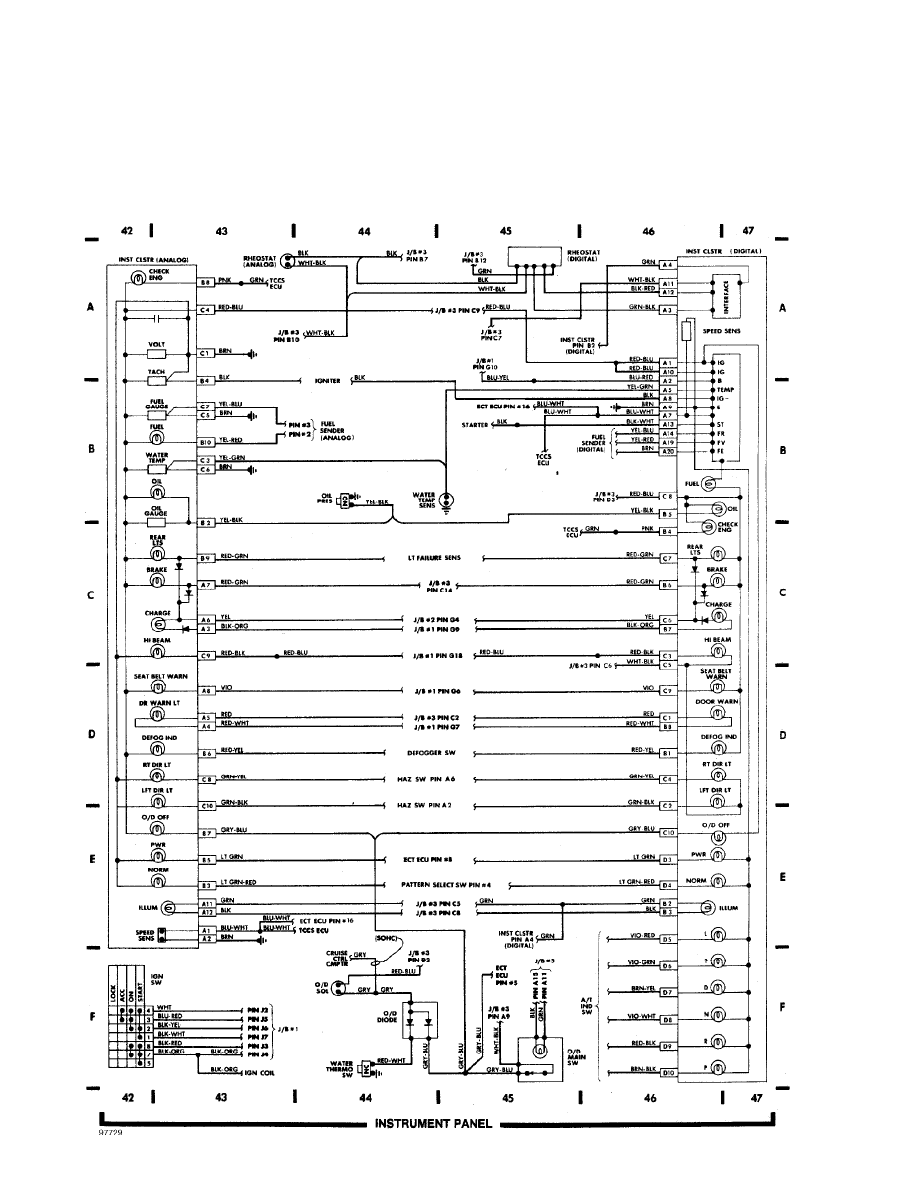

Fig. 10: Instrument Panel (Cont.) (Grids 42-47) (p. 10)

1986 Toyota Celica

For x

Friday, July 30, 2004 10:42AM

WIRING DIAGRAMS

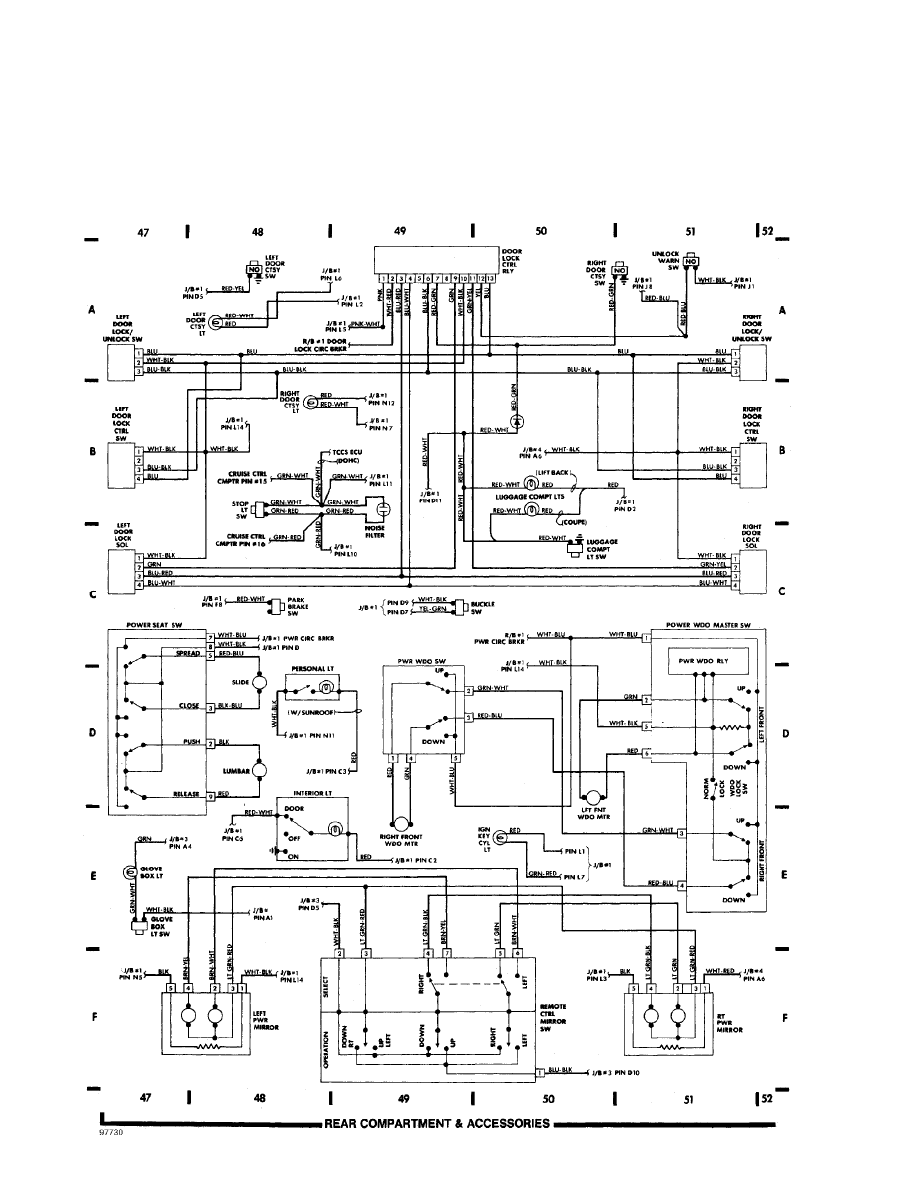

Fig. 11: Rear Compartment & Accessories (Grids 47-52) (p. 11)

1986 Toyota Celica

For x

Friday, July 30, 2004 10:42AM

WIRING DIAGRAMS

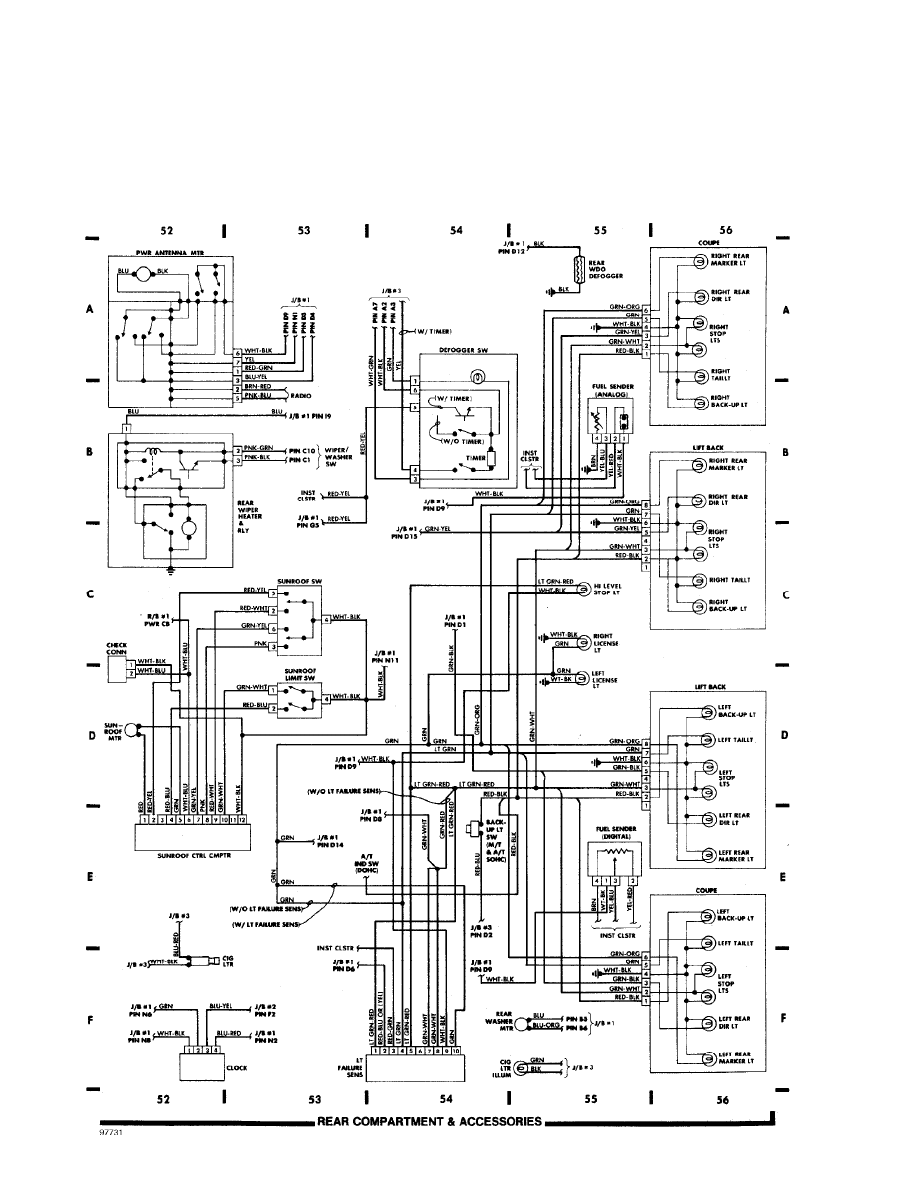

Fig. 12: Rear Compartment & Accessories (Cont.) (Grids 52-56) (p. 12)

1986 Toyota Celica

For x

Friday, July 30, 2004 10:42AM
