JAGUAR XJ6 1984

background image

WIRING DIAGRAMS

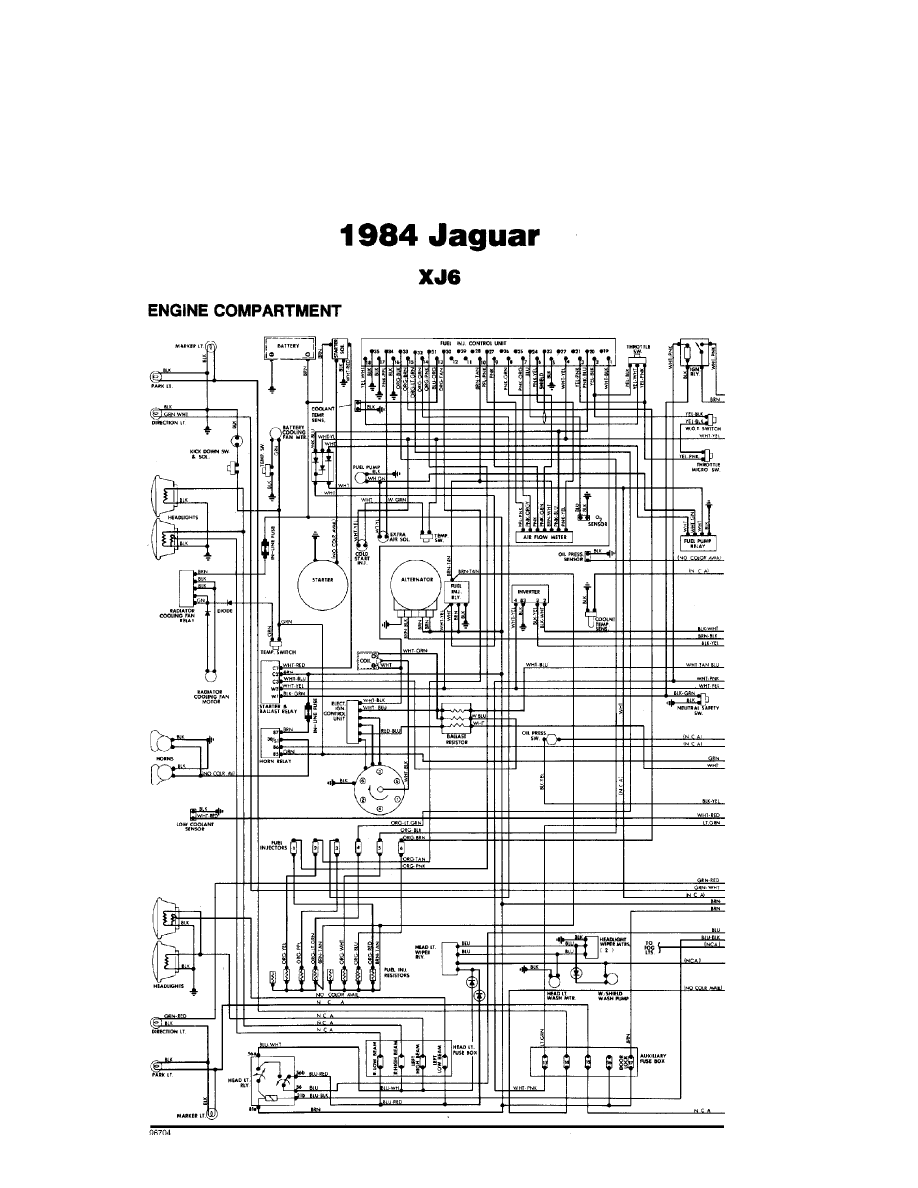

Fig. 1: Engine Compartment

1984 Jaguar XJ6

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, September 10, 2004 12:18PM

background image

WIRING DIAGRAMS

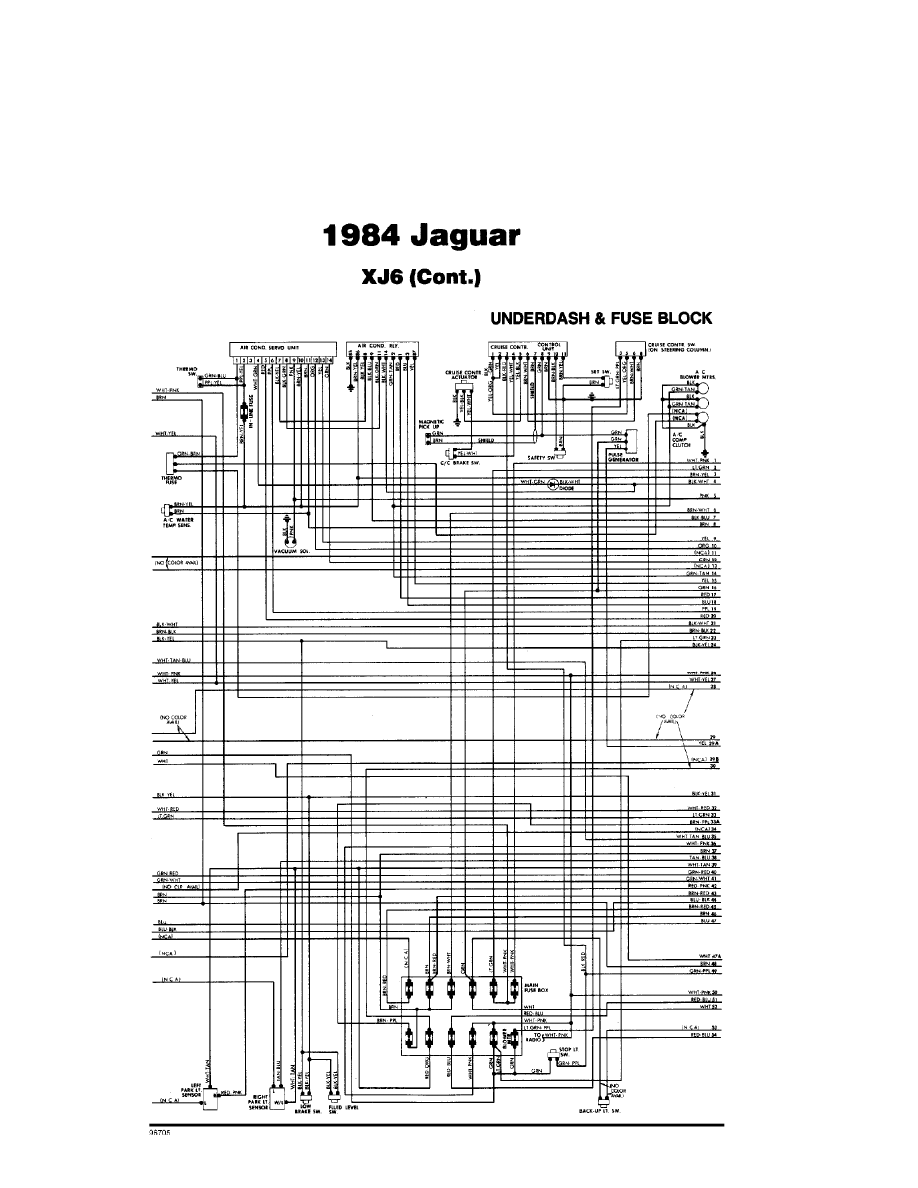

Fig. 2: Underdash & Fuse Block (p. 2)

1984 Jaguar XJ6

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, September 10, 2004 12:18PM

background image

WIRING DIAGRAMS

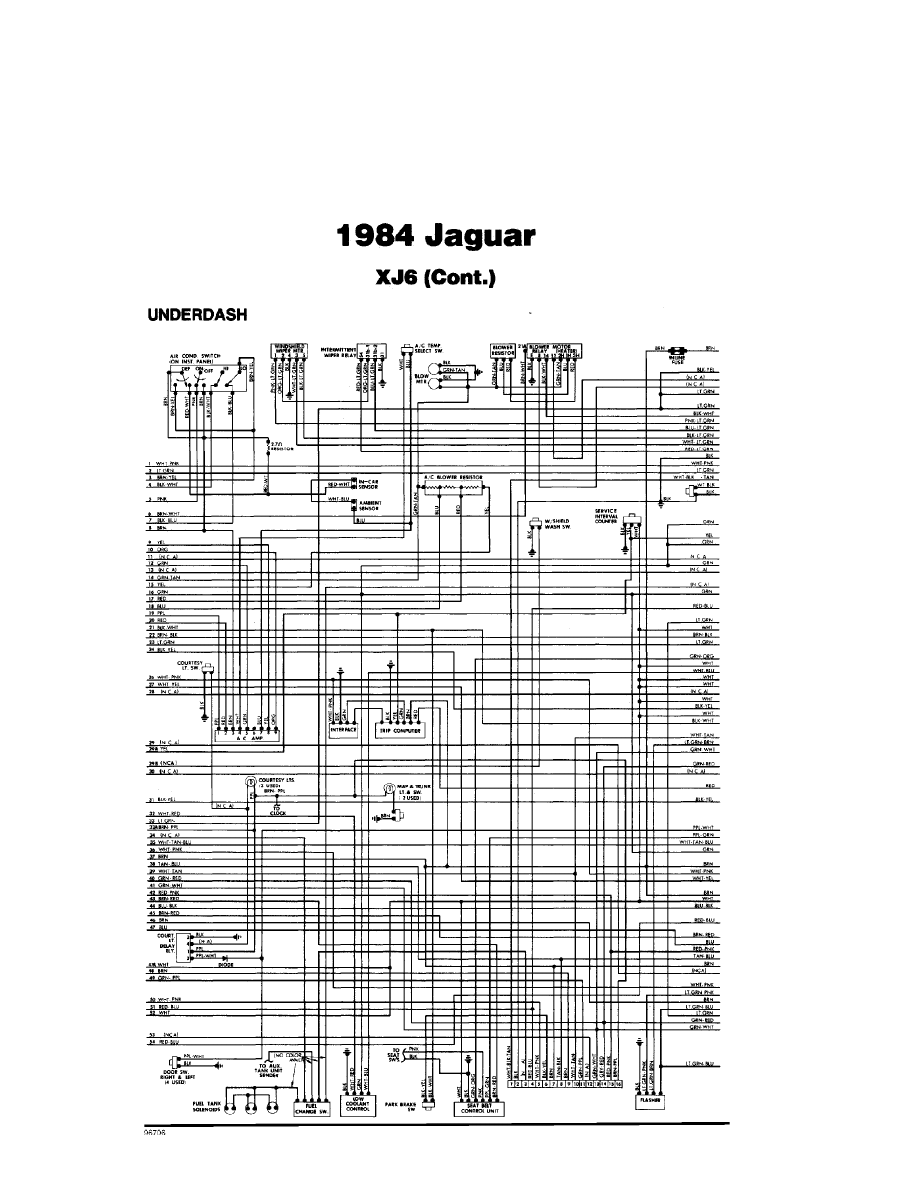

Fig. 3: Underdash (Cont.) (p. 3)

1984 Jaguar XJ6

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, September 10, 2004 12:18PM

background image

WIRING DIAGRAMS

Fig. 4: Instrument Panel, Rear Compartment & Accessories (p. 4)

1984 Jaguar XJ6

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, September 10, 2004 12:18PM
