SYSTEM WIRING DIAGRAMS

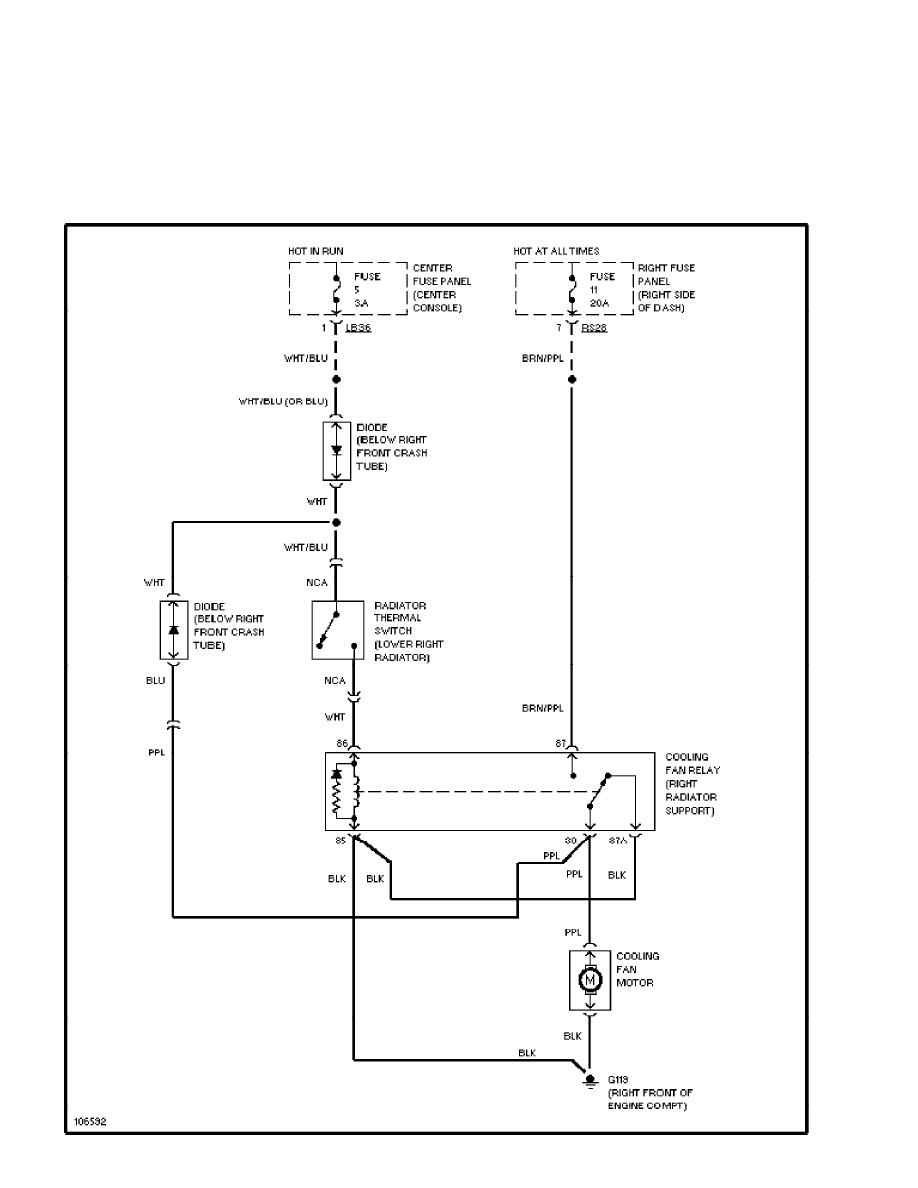

Cooling Fan Circuit
1990 Jaguar XJ6
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, September 11, 2004 10:26AM
SYSTEM WIRING DIAGRAMS
Defogger Circuit (p. 2)
1990 Jaguar XJ6
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, September 11, 2004 10:26AM
SYSTEM WIRING DIAGRAMS

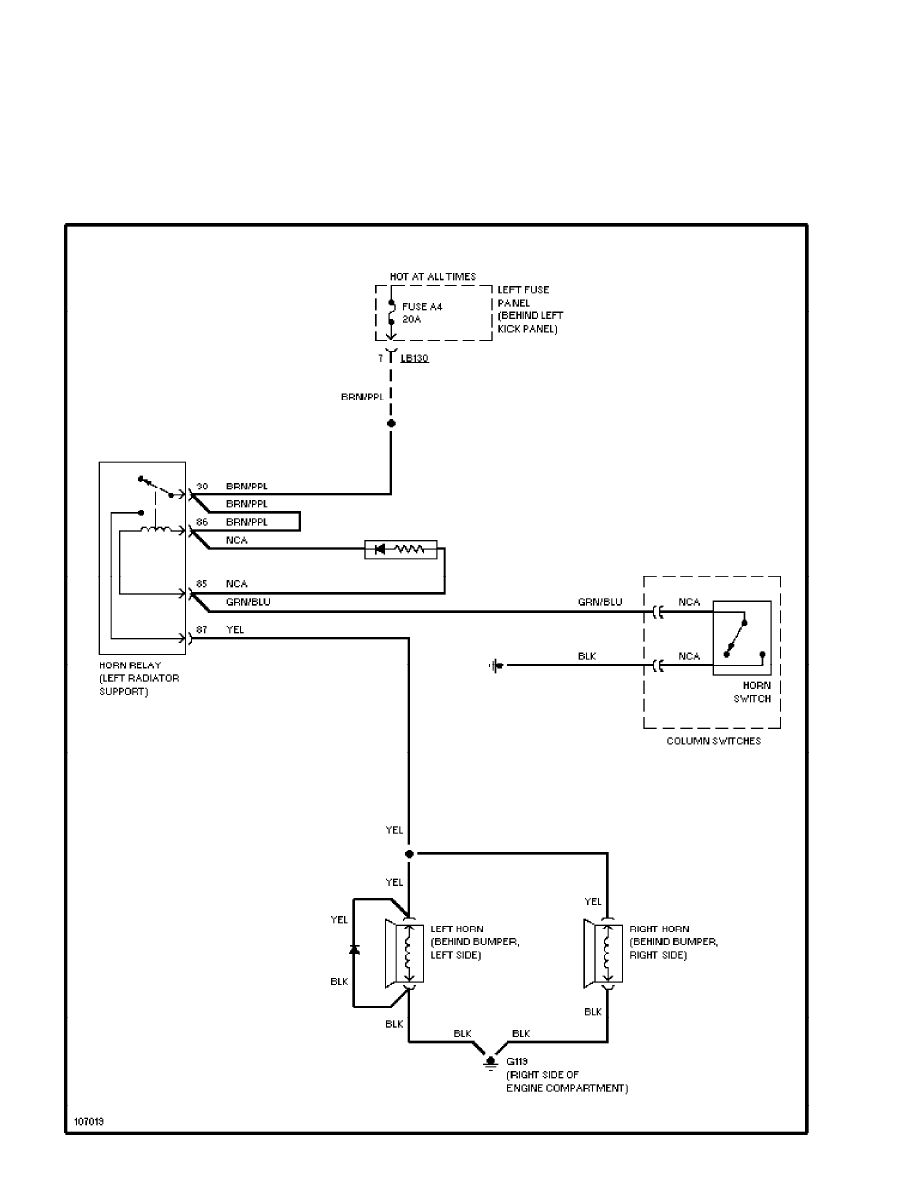

Horn Circuit (p. 3)
1990 Jaguar XJ6
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, September 11, 2004 10:26AM
SYSTEM WIRING DIAGRAMS

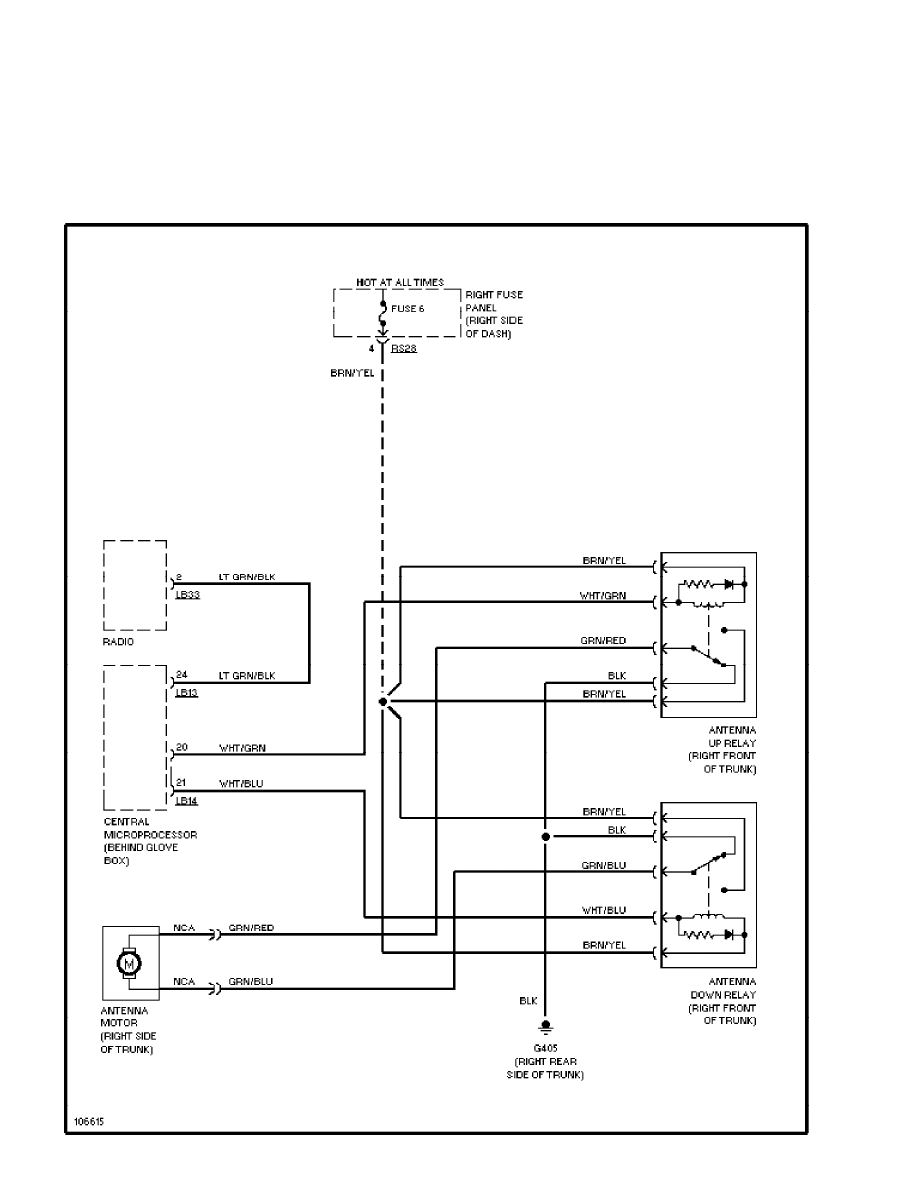

Power Antenna Circuit (p. 4)
1990 Jaguar XJ6
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, September 11, 2004 10:26AM
SYSTEM WIRING DIAGRAMS

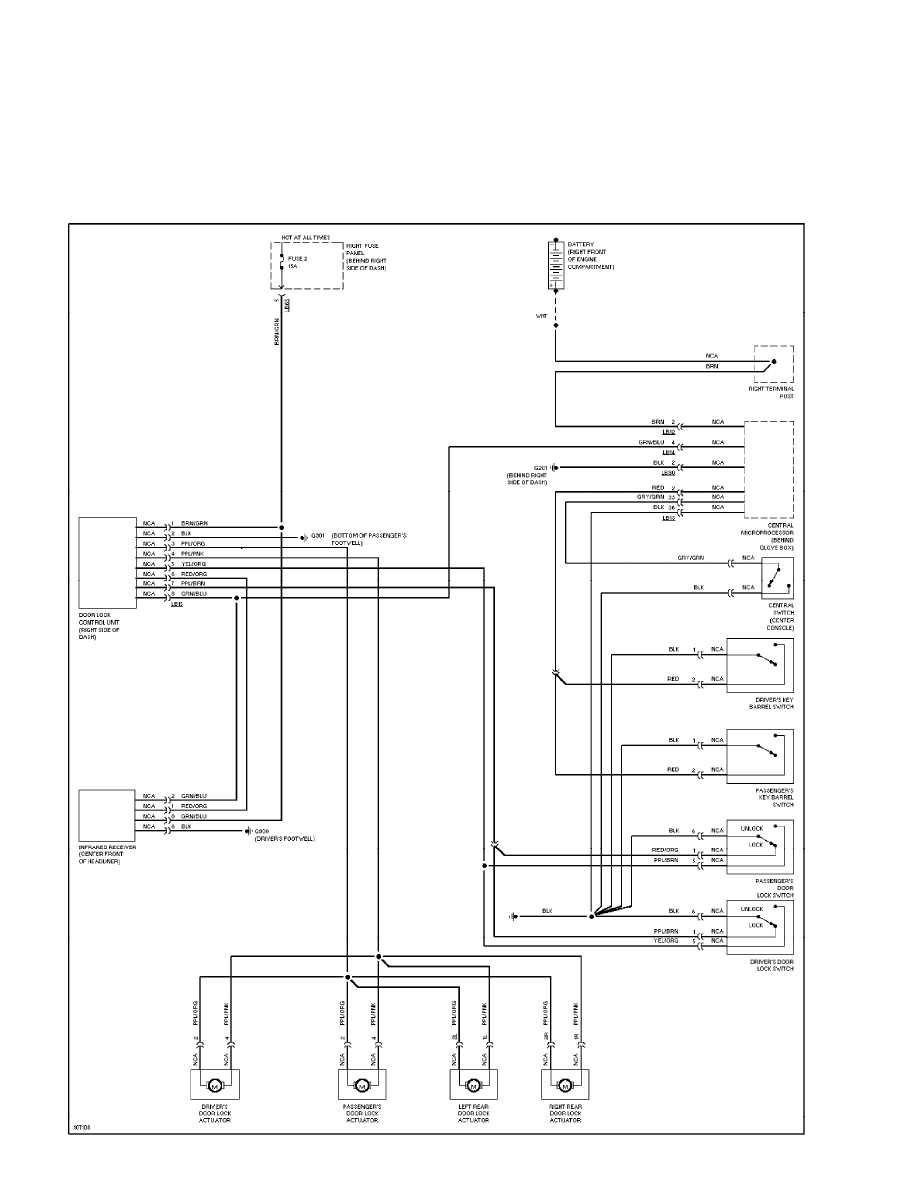

Power Door Lock Circuit (p. 5)
1990 Jaguar XJ6
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, September 11, 2004 10:26AM
SYSTEM WIRING DIAGRAMS

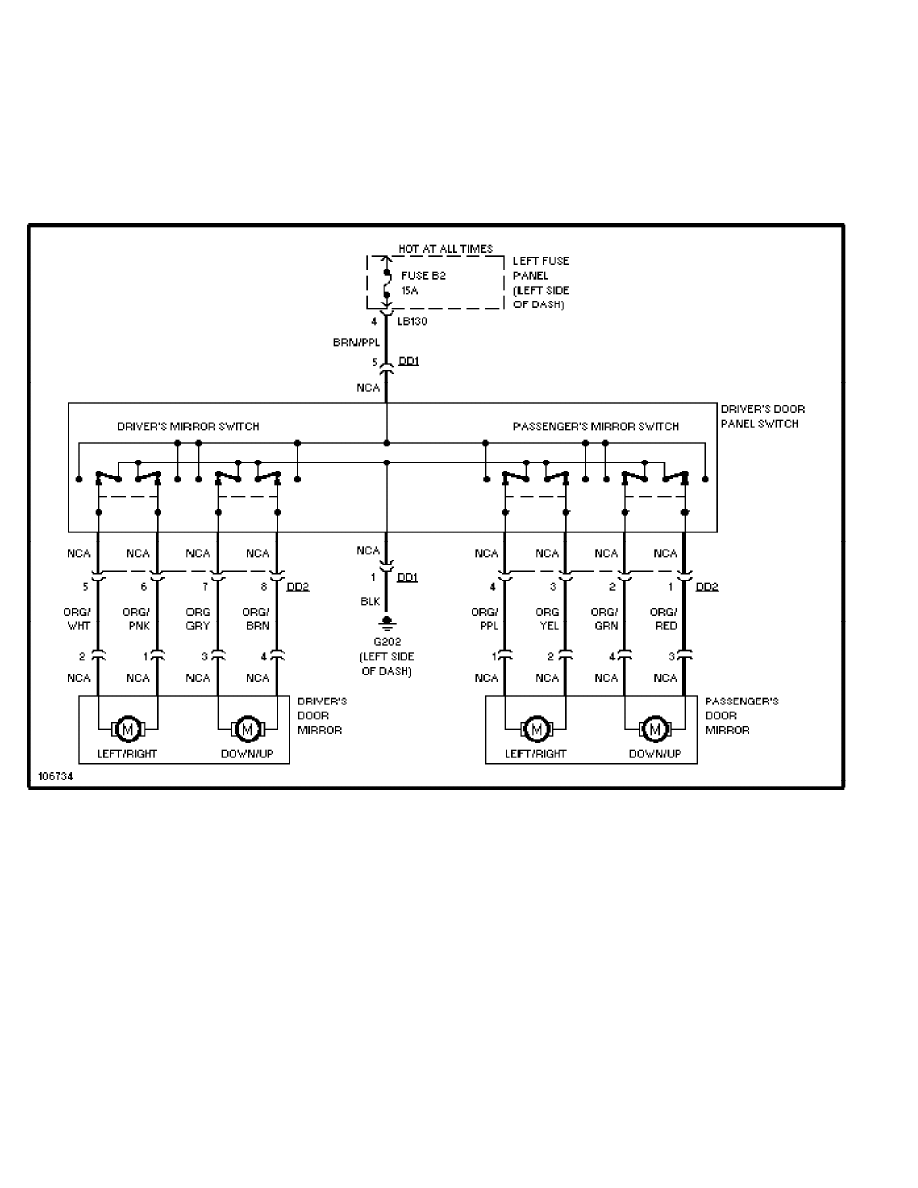

Power Mirror Circuit (p. 6)
1990 Jaguar XJ6
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, September 11, 2004 10:26AM
SYSTEM WIRING DIAGRAMS

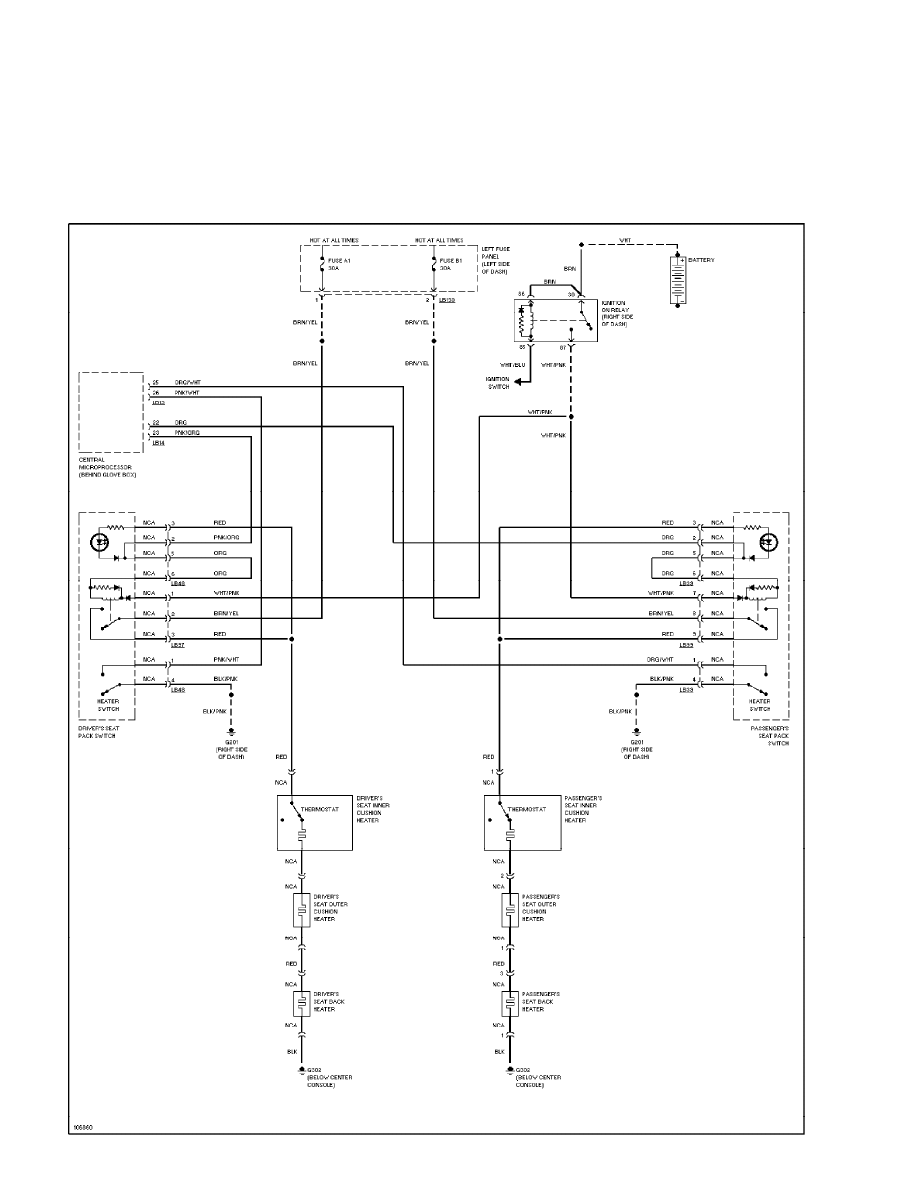

Heated Seats Circuit (p. 7)
1990 Jaguar XJ6
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, September 11, 2004 10:26AM
SYSTEM WIRING DIAGRAMS

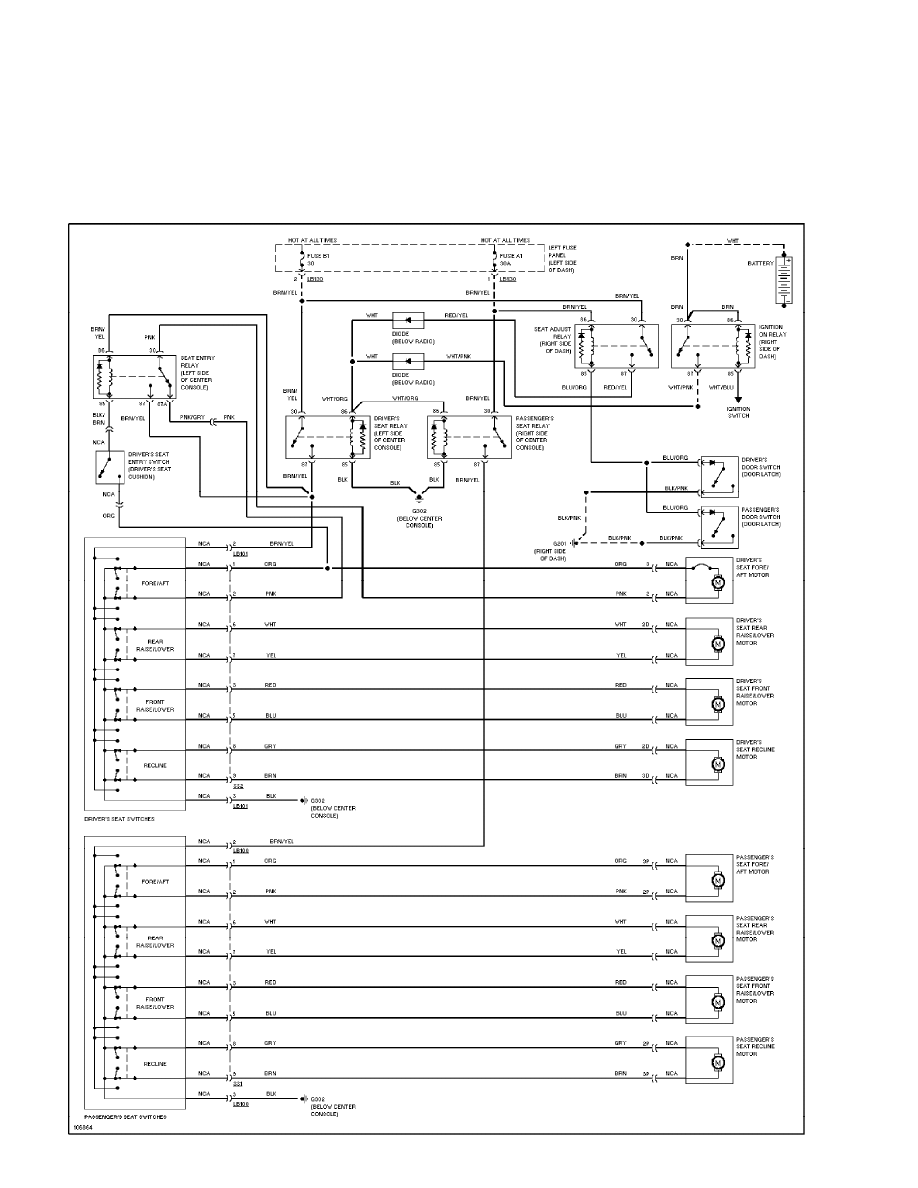

Power Seats Circuit (p. 8)
1990 Jaguar XJ6
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, September 11, 2004 10:26AM
SYSTEM WIRING DIAGRAMS
Power Window Circuit (1 of 2) (p. 9)
1990 Jaguar XJ6
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, September 11, 2004 10:26AM
SYSTEM WIRING DIAGRAMS

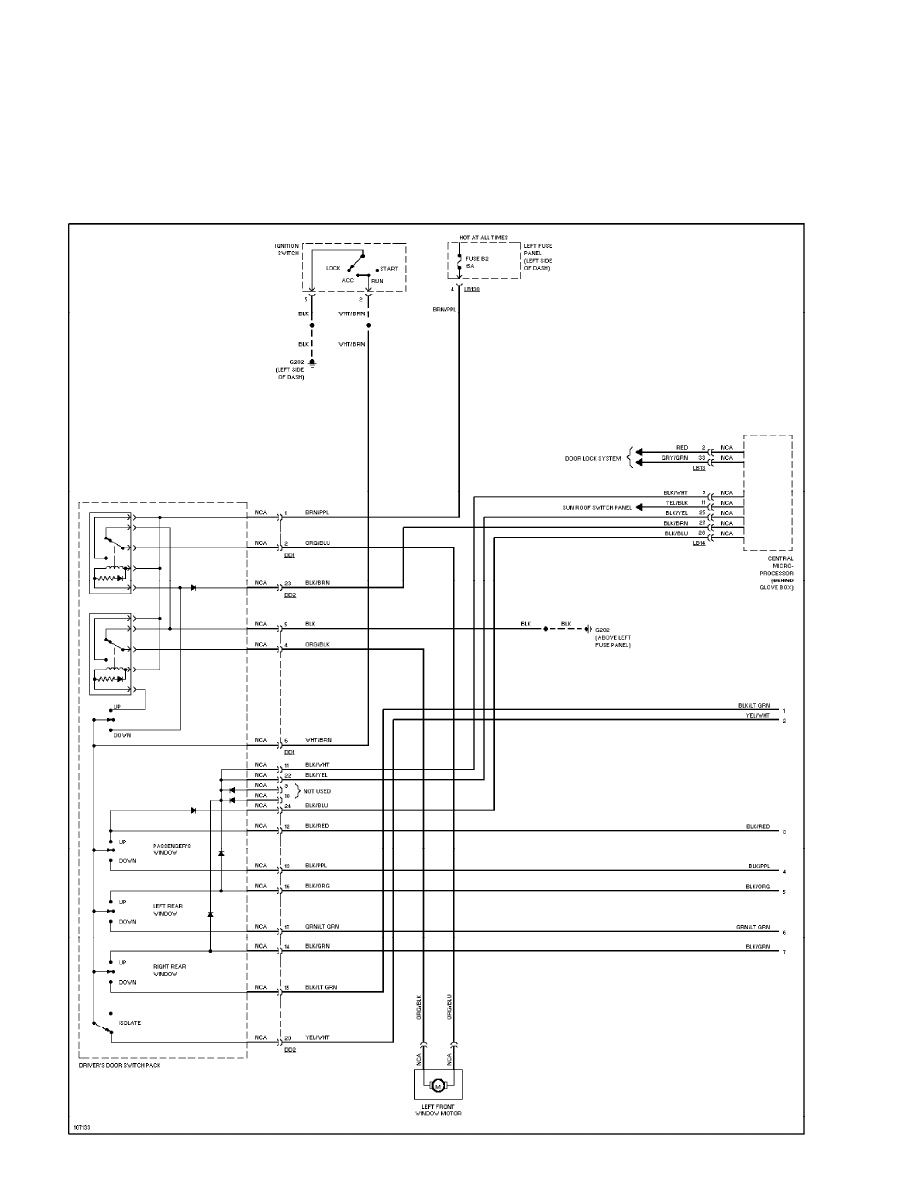

Power Window Circuit (2 of 2) (p. 10)
1990 Jaguar XJ6
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, September 11, 2004 10:26AM
SYSTEM WIRING DIAGRAMS

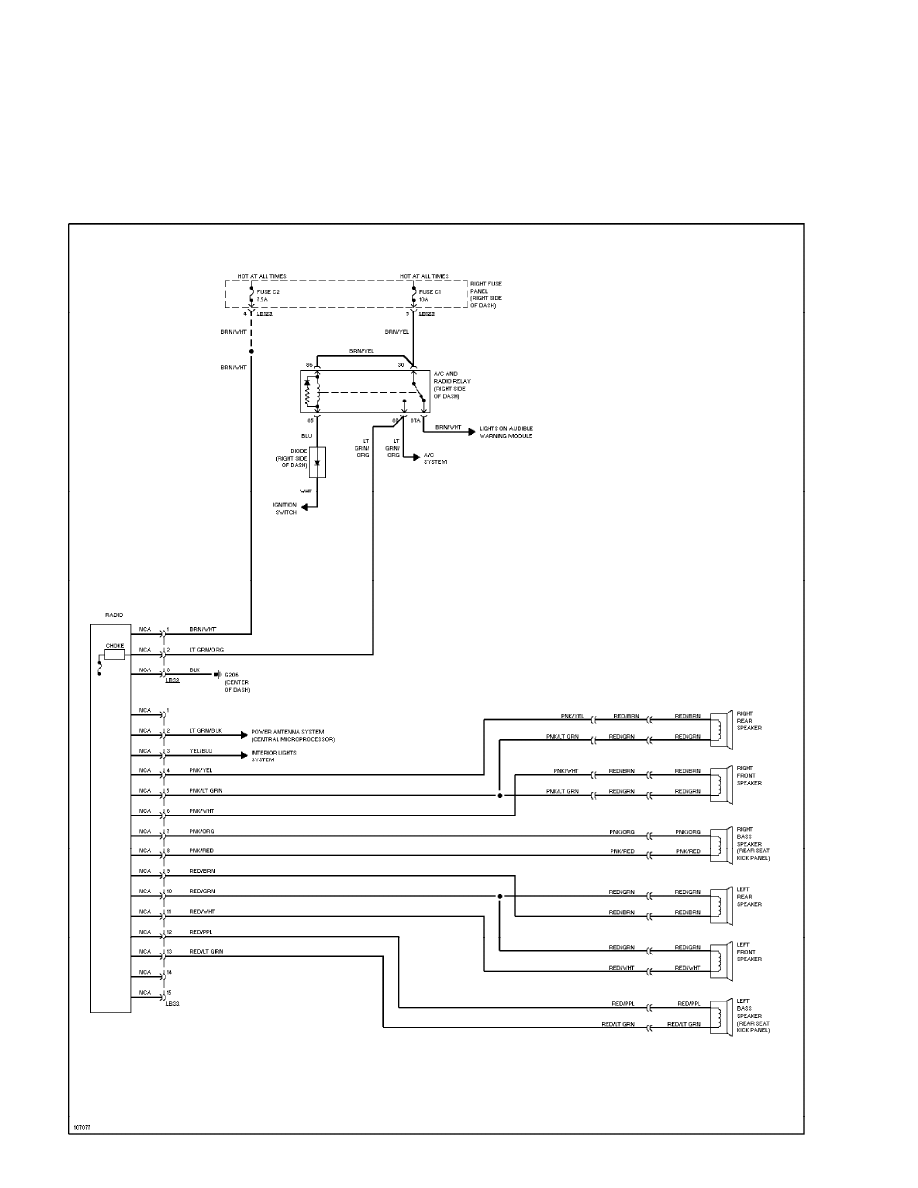

Radio Circuits (p. 11)
1990 Jaguar XJ6
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, September 11, 2004 10:26AM
SYSTEM WIRING DIAGRAMS

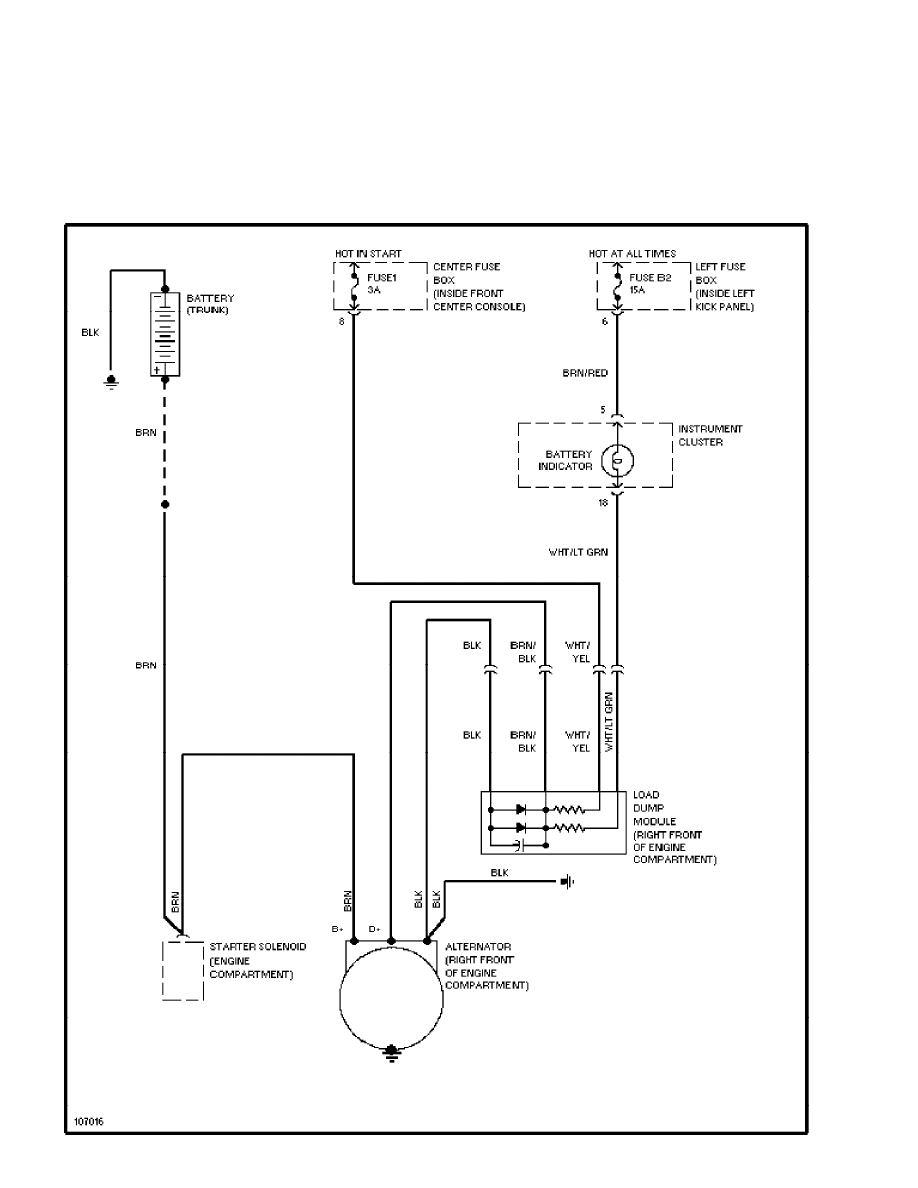

Charging Circuit (p. 12)
1990 Jaguar XJ6
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, September 11, 2004 10:26AM
SYSTEM WIRING DIAGRAMS

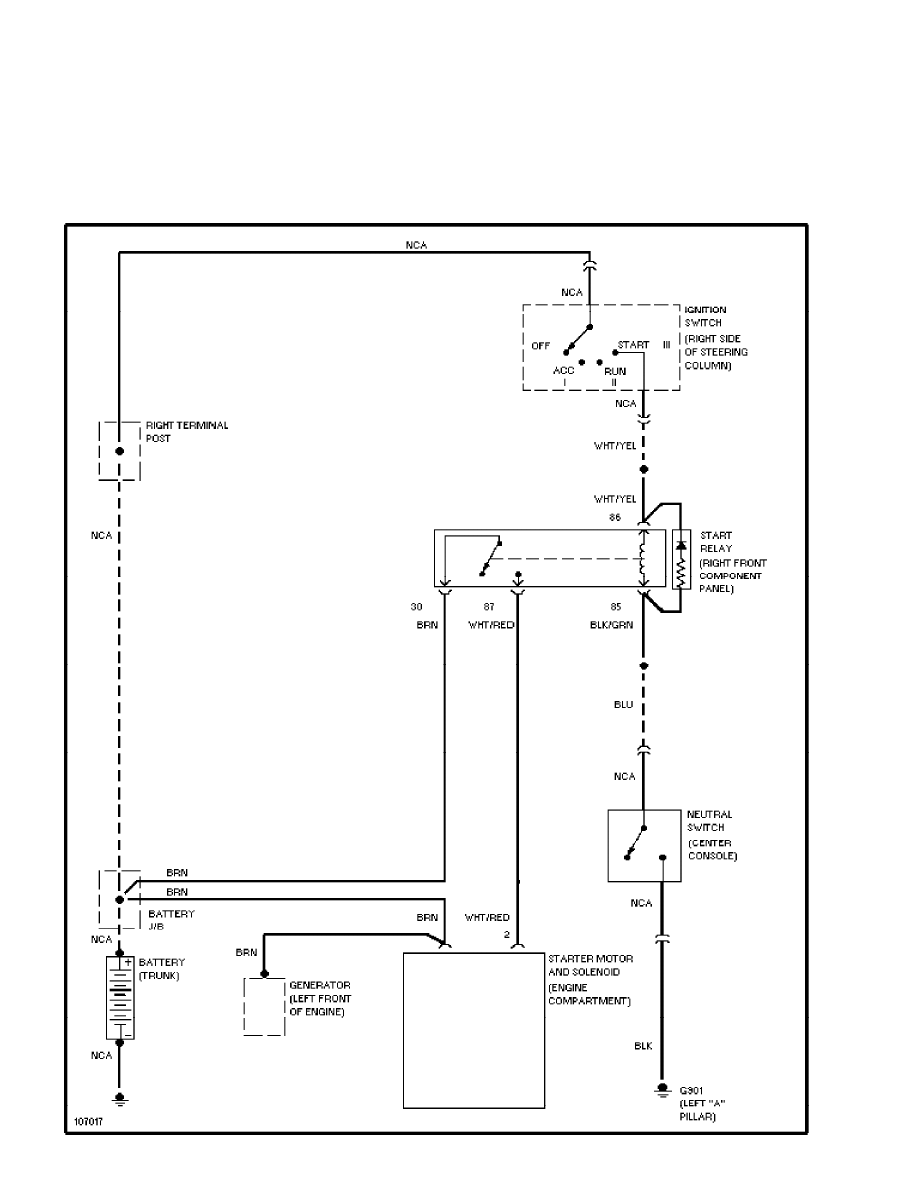

Starting Circuit (p. 13)
1990 Jaguar XJ6
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, September 11, 2004 10:26AM
SYSTEM WIRING DIAGRAMS
Trunk Release Circuit (p. 14)
1990 Jaguar XJ6
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, September 11, 2004 10:26AM
SYSTEM WIRING DIAGRAMS

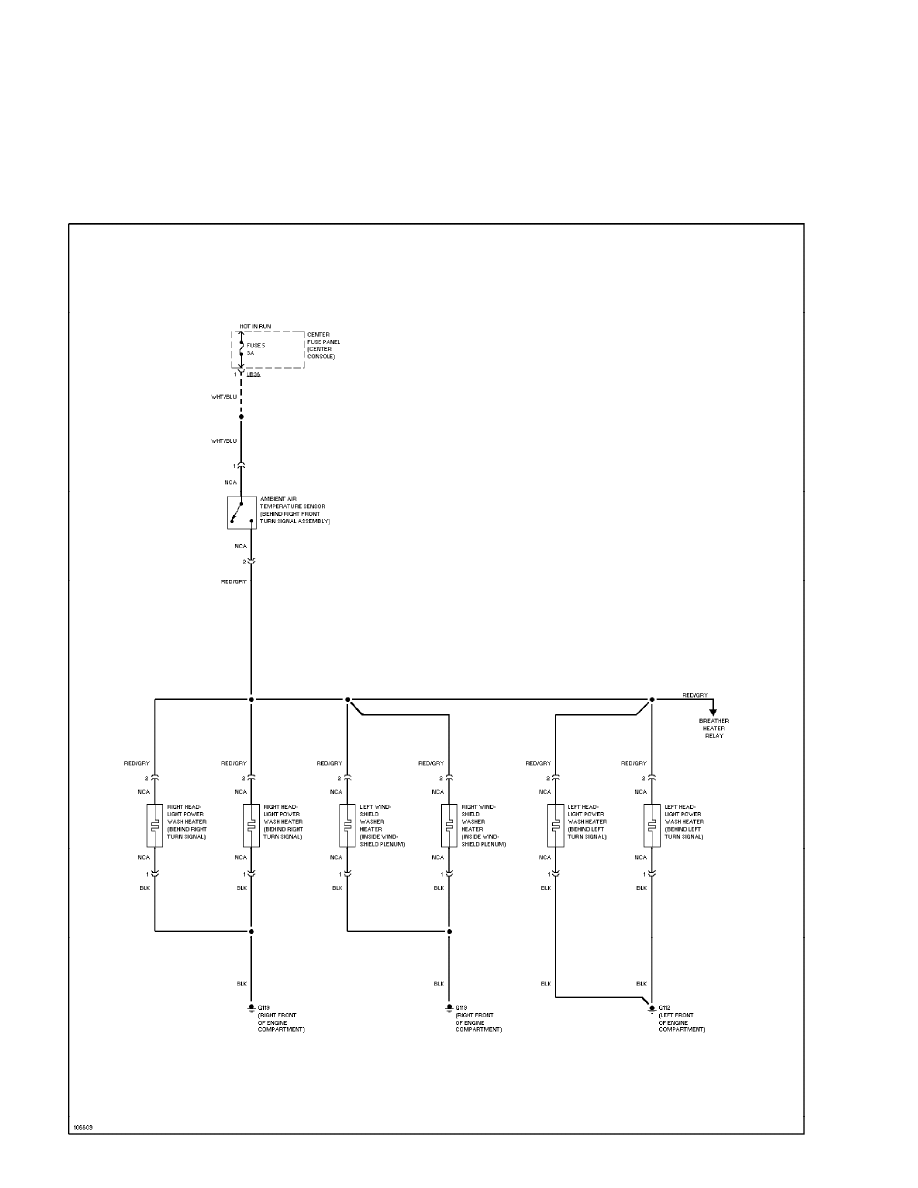

Jet Heater Circuit (p. 15)
1990 Jaguar XJ6
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, September 11, 2004 10:26AM
SYSTEM WIRING DIAGRAMS

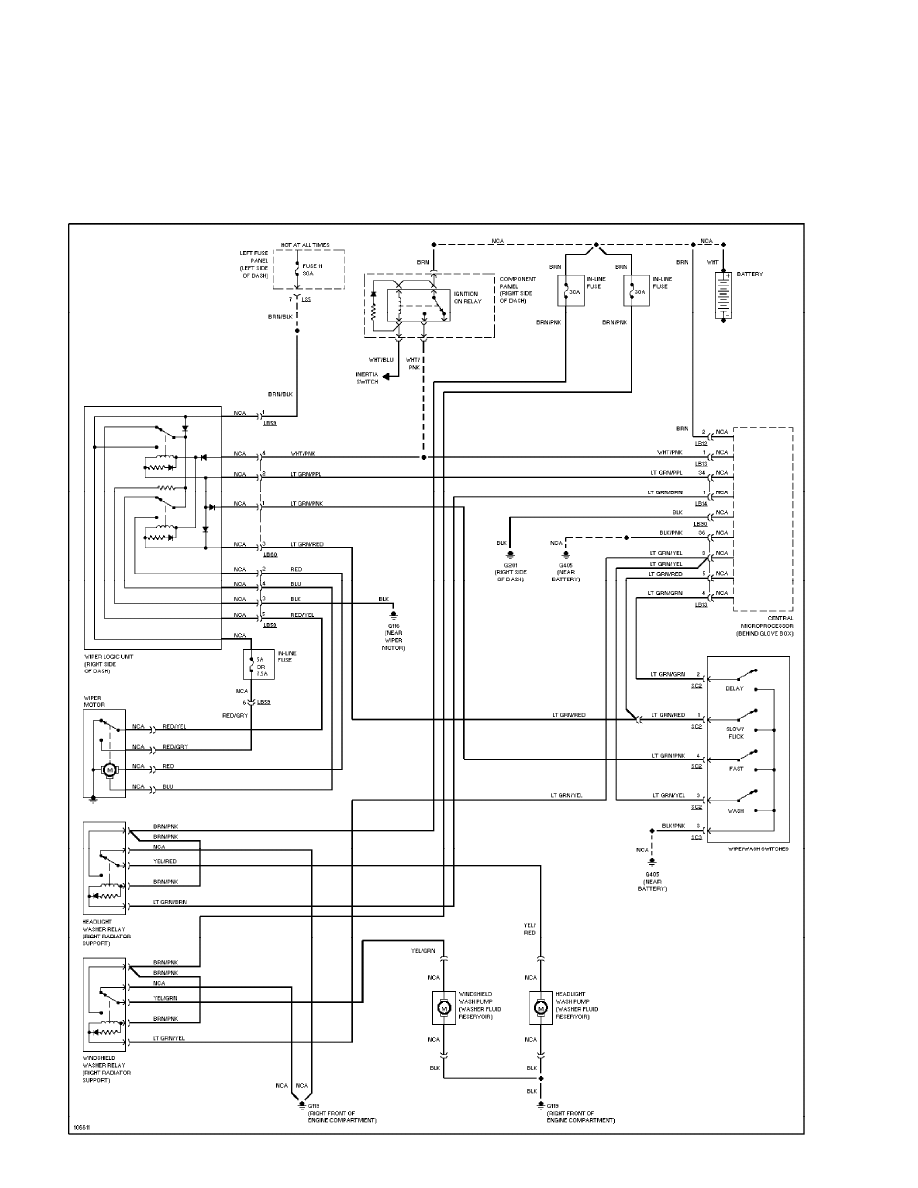

Wiper/Washer Circuit (p. 16)
1990 Jaguar XJ6
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, September 11, 2004 10:26AM
WIRING DIAGRAMS

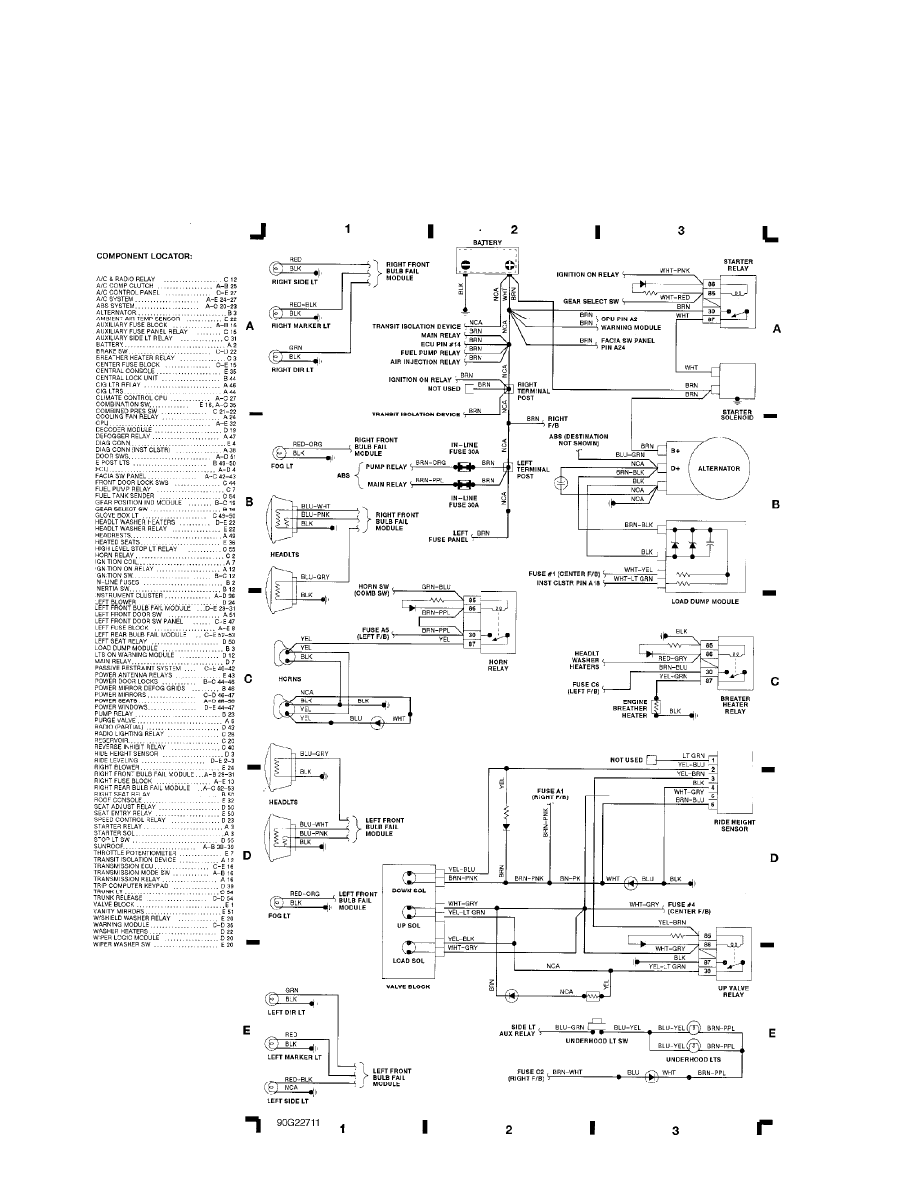

Fig. 1: Engine Compartment & Headlights (Grid 1-3)
1990 Jaguar XJ6
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, September 11, 2004 10:27AM
WIRING DIAGRAMS

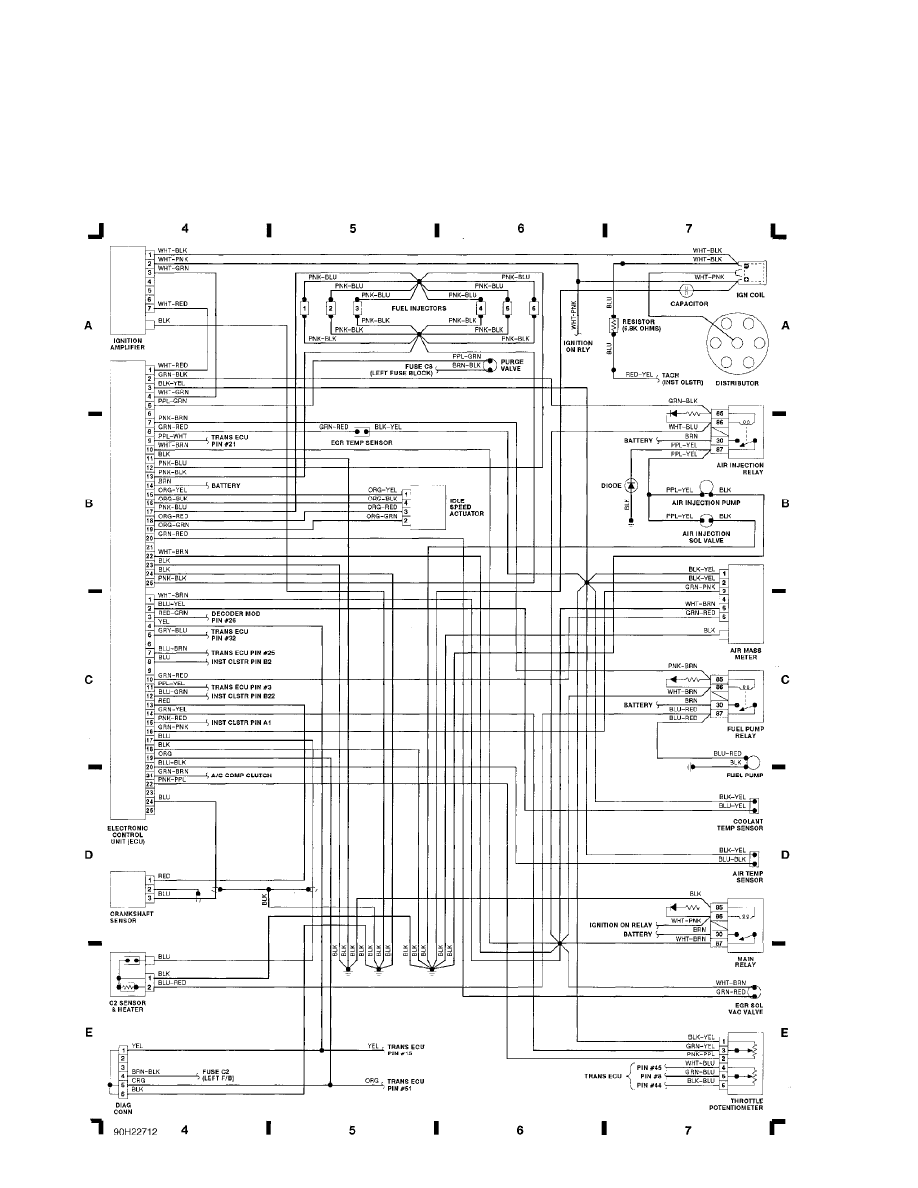

Fig. 2: Computer Engine Control (Grid 4-7) (p. 2)
1990 Jaguar XJ6
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, September 11, 2004 10:27AM
WIRING DIAGRAMS

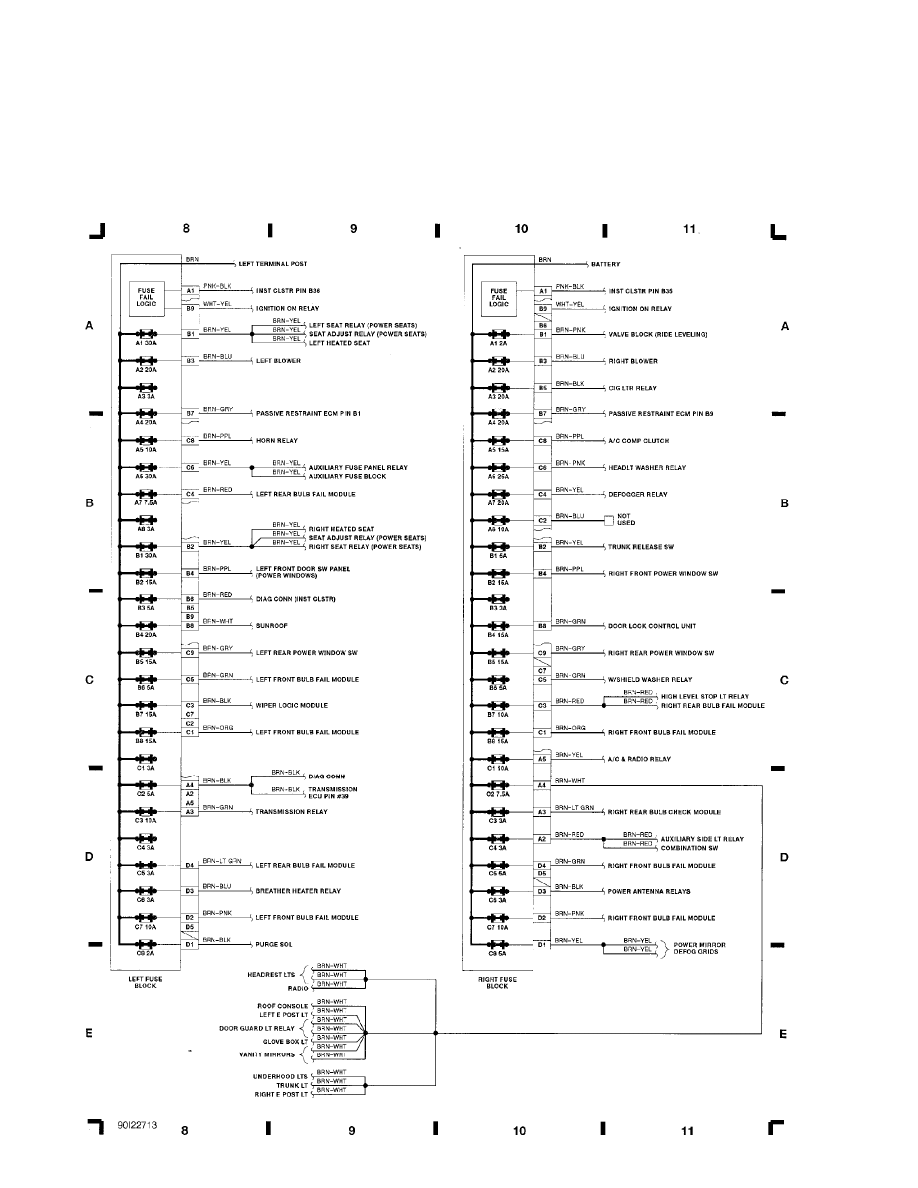

Fig. 3: Left & Right Fuse Blocks (Grid 8-11) (p. 3)
1990 Jaguar XJ6
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, September 11, 2004 10:27AM
WIRING DIAGRAMS

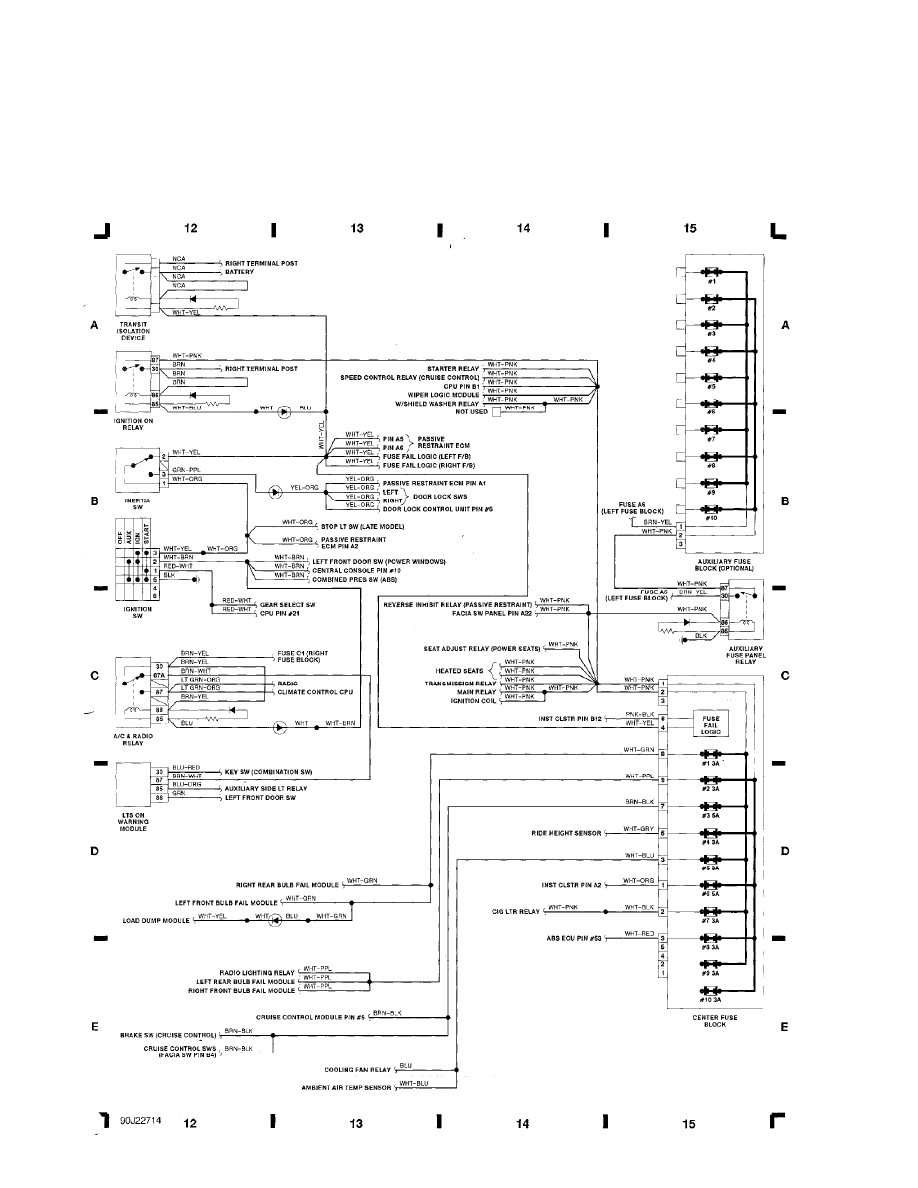

Fig. 4: Center Fuse Block, Aux Fuse Block (Partial) (Grid 12-15) (p. 4)
1990 Jaguar XJ6
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, September 11, 2004 10:27AM
WIRING DIAGRAMS

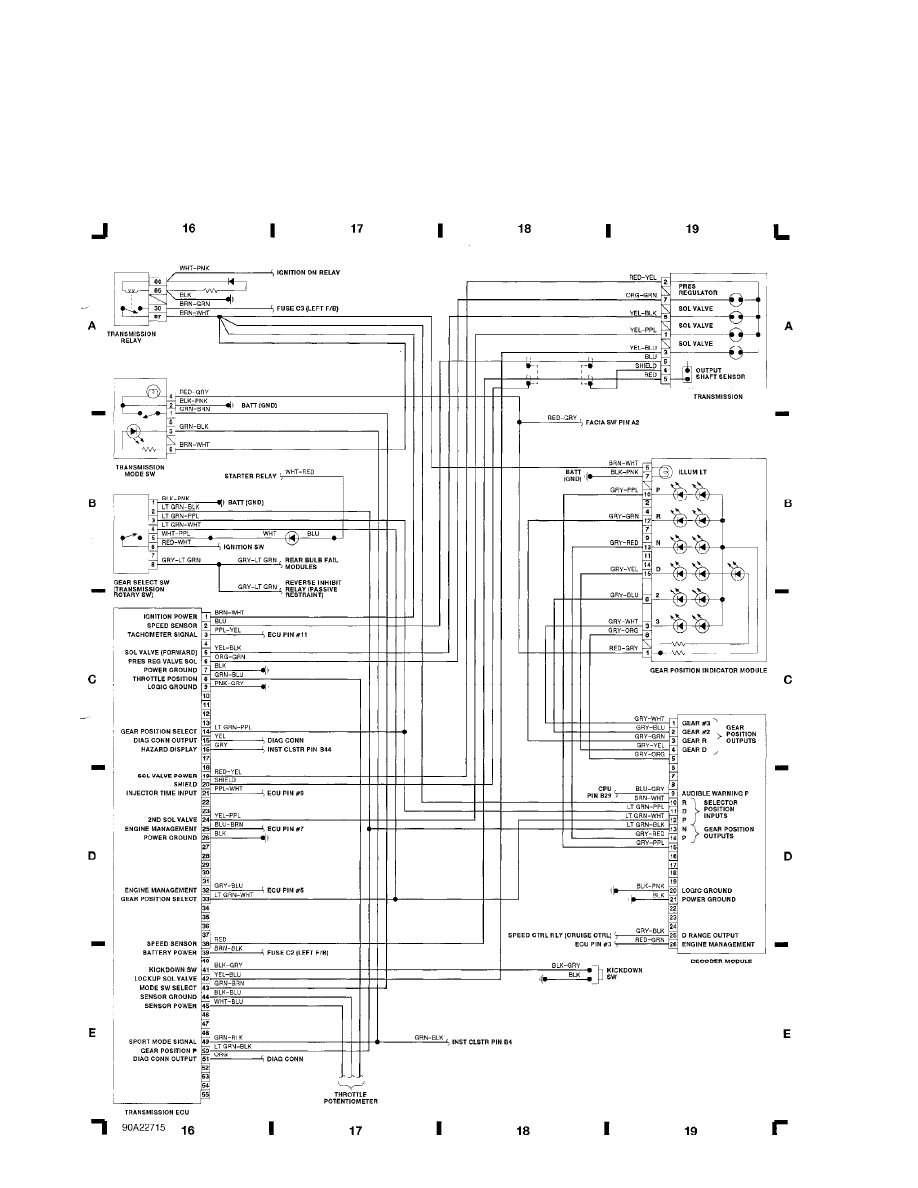

Fig. 5: Elect A/T (Grid 16-19) (p. 5)
1990 Jaguar XJ6
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, September 11, 2004 10:27AM
WIRING DIAGRAMS

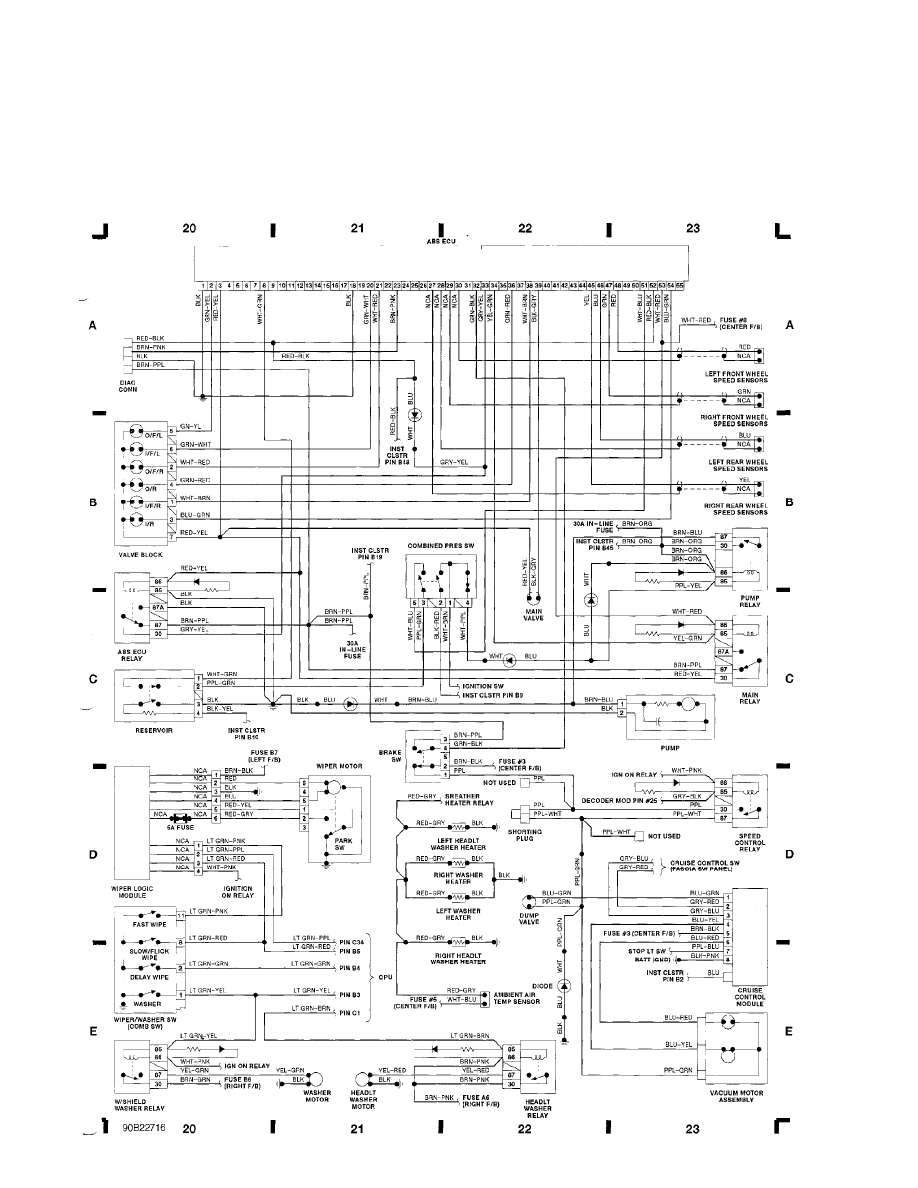

Fig. 6: ABS, Cruise Control, Wiper/Washer (Grid 20-23) (p. 6)
1990 Jaguar XJ6
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, September 11, 2004 10:27AM
WIRING DIAGRAMS

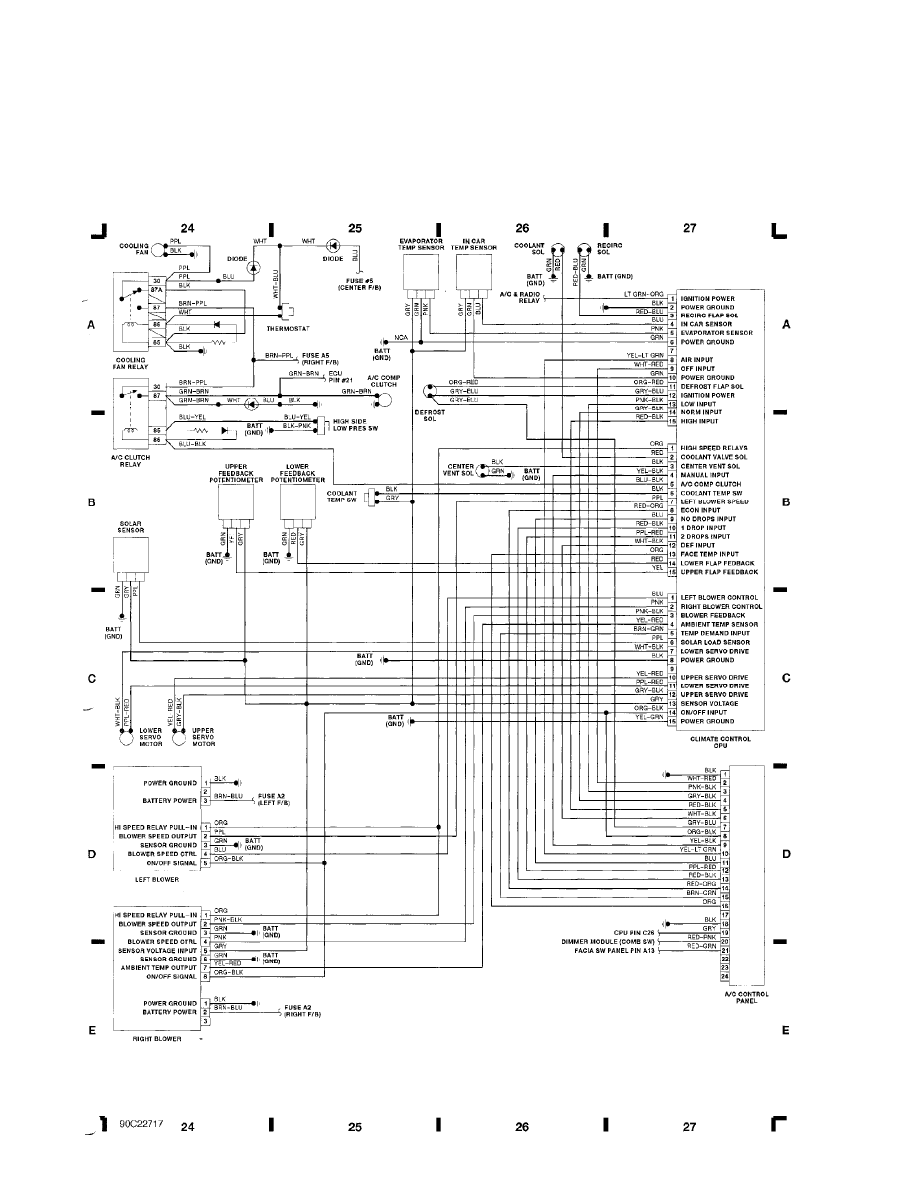

Fig. 7: A/C & Heater System (Grid 24-27) (p. 7)
1990 Jaguar XJ6
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, September 11, 2004 10:27AM
WIRING DIAGRAMS

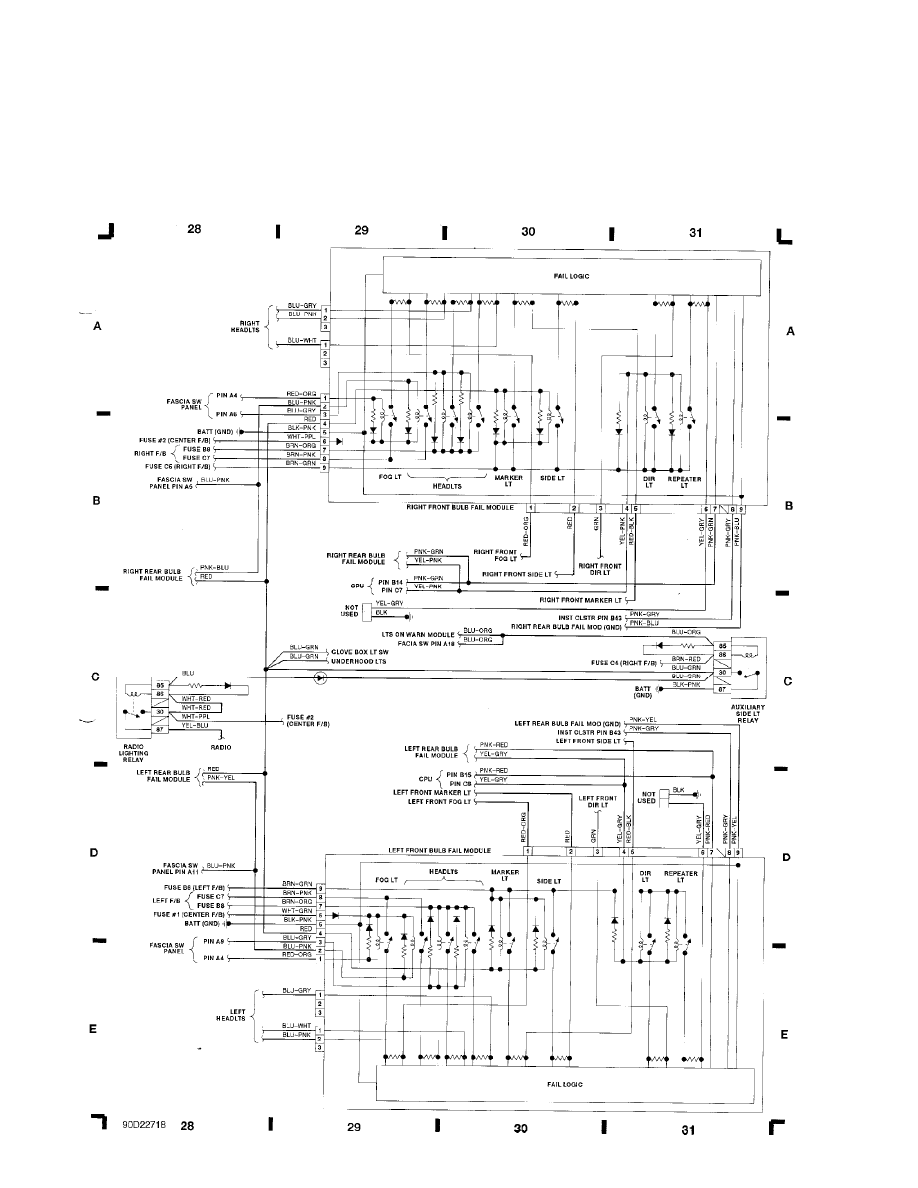

Fig. 8: Ft Fail Logic Modules (Grid 28-31) (p. 8)
1990 Jaguar XJ6
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, September 11, 2004 10:27AM
WIRING DIAGRAMS

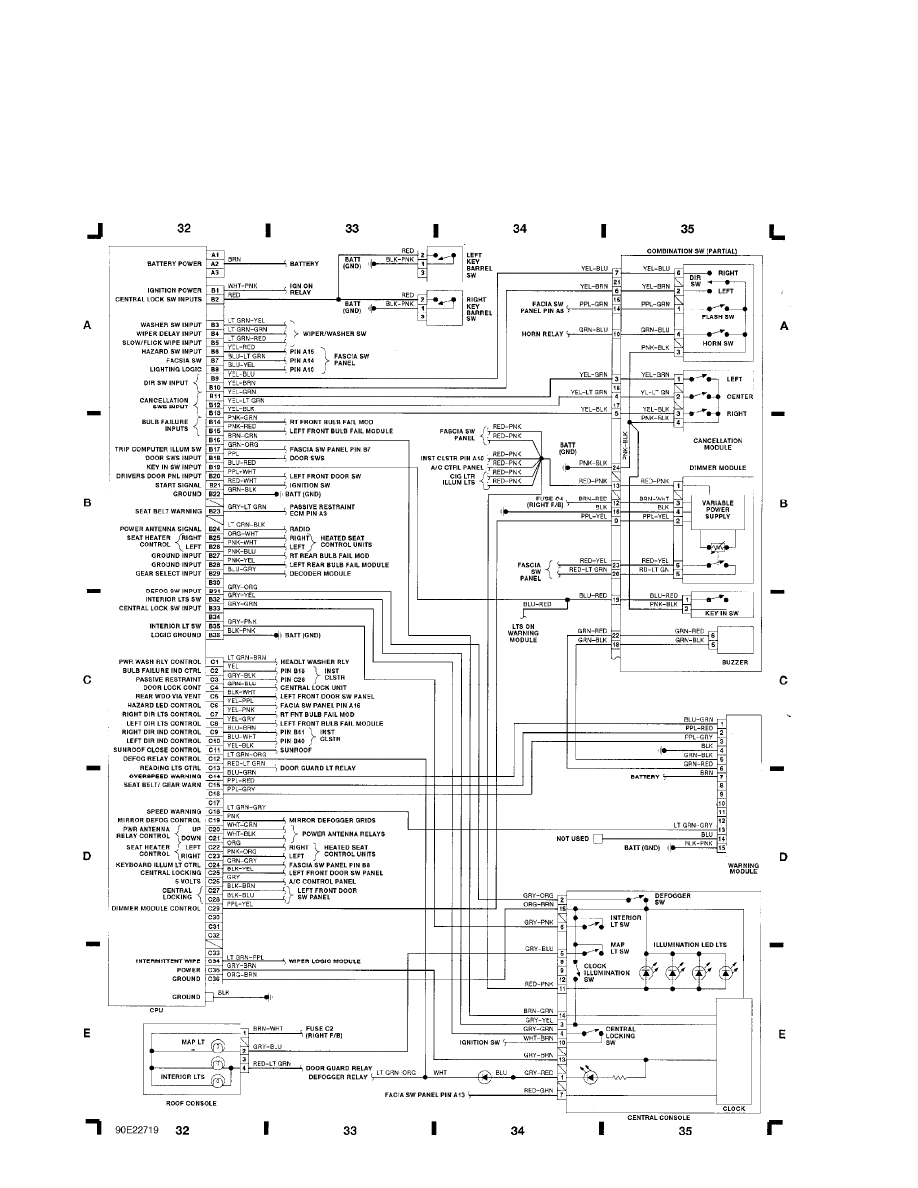

Fig. 9: CPU, Roof Console, Comb Switch (Partial) (Grid 32-35) (p. 9)
1990 Jaguar XJ6
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, September 11, 2004 10:27AM
WIRING DIAGRAMS

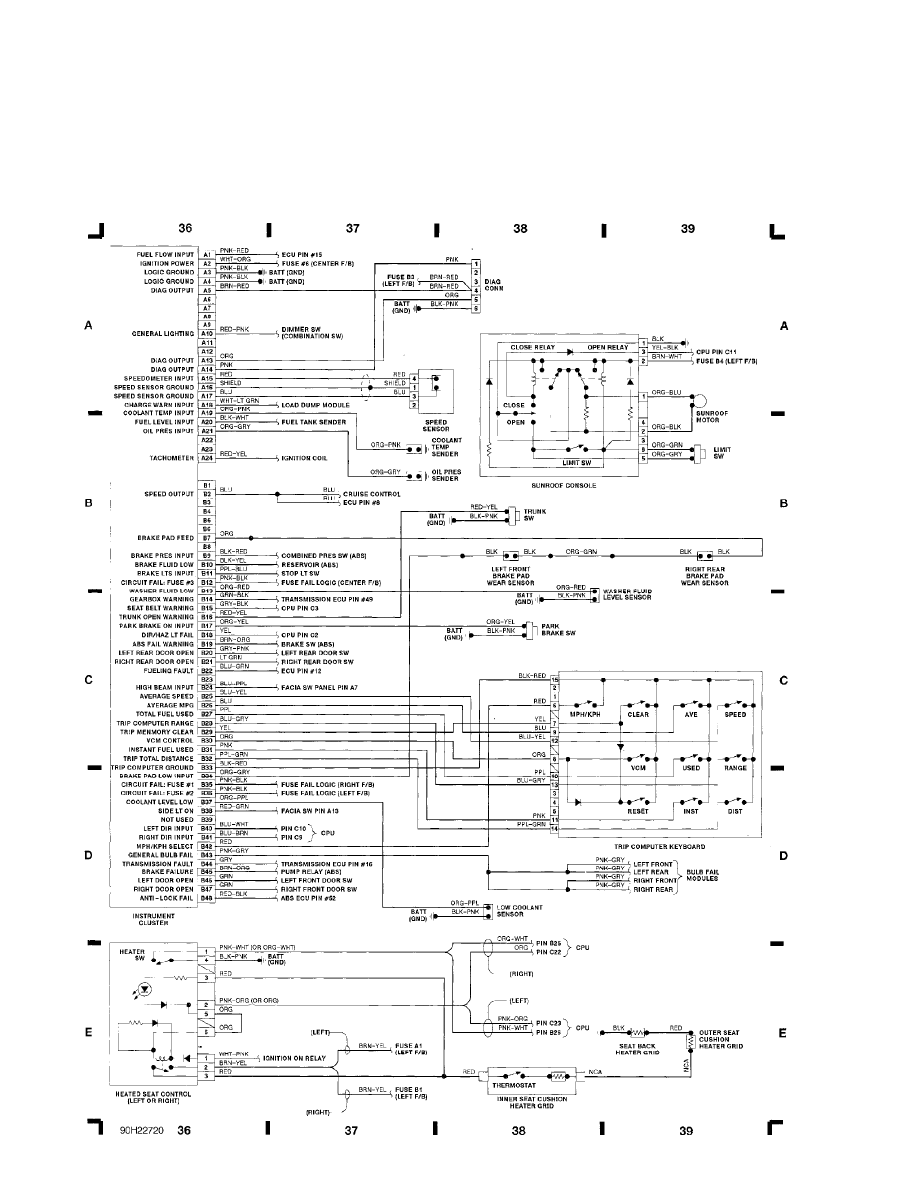

10: Instrument Panel, Trip Computer Keyboard, Sunroof Console, Heated Seat Control (Grid 36-39) (
1990 Jaguar XJ6
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, September 11, 2004 10:27AM
WIRING DIAGRAMS

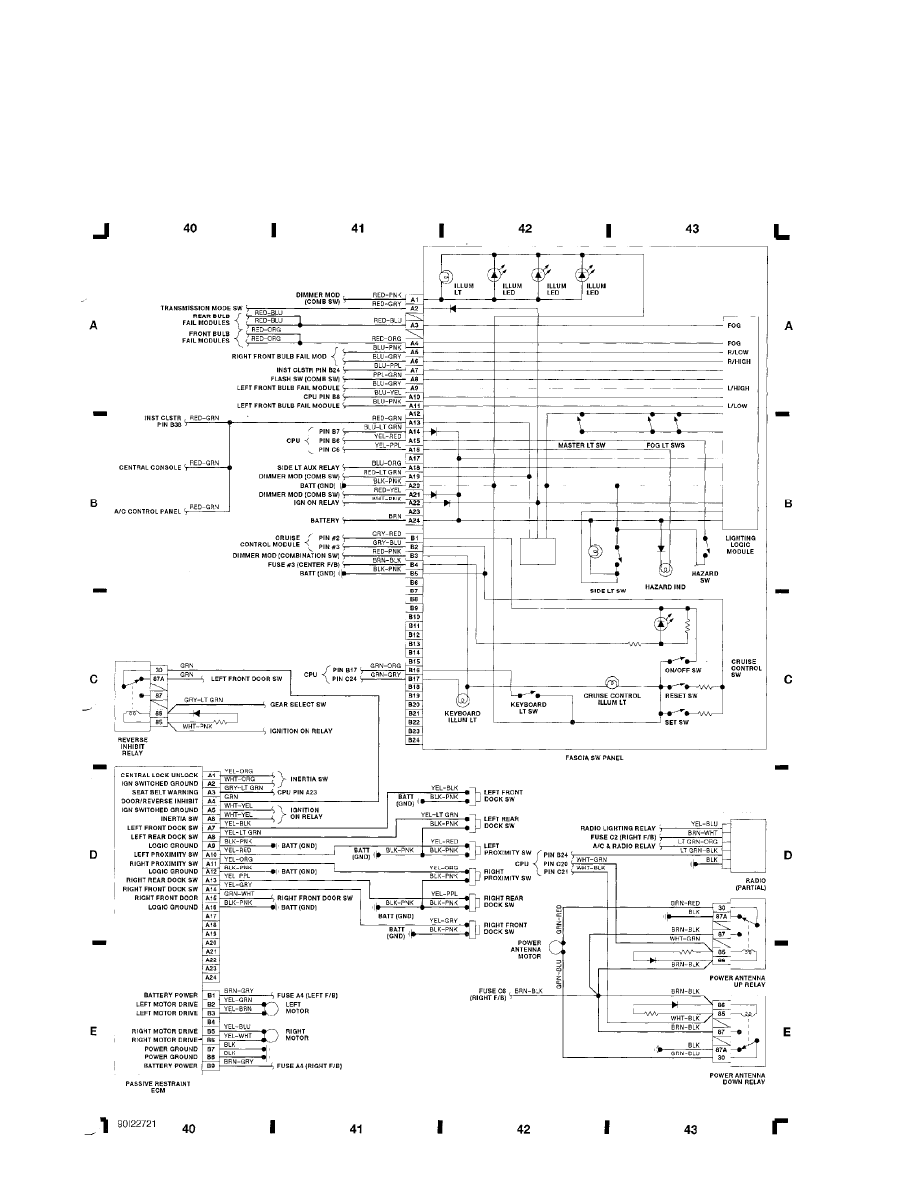

Fig. 11: Passive Restraint, Fascia Switch Panel (Grid 40-43) (p. 11)
1990 Jaguar XJ6
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, September 11, 2004 10:27AM
WIRING DIAGRAMS

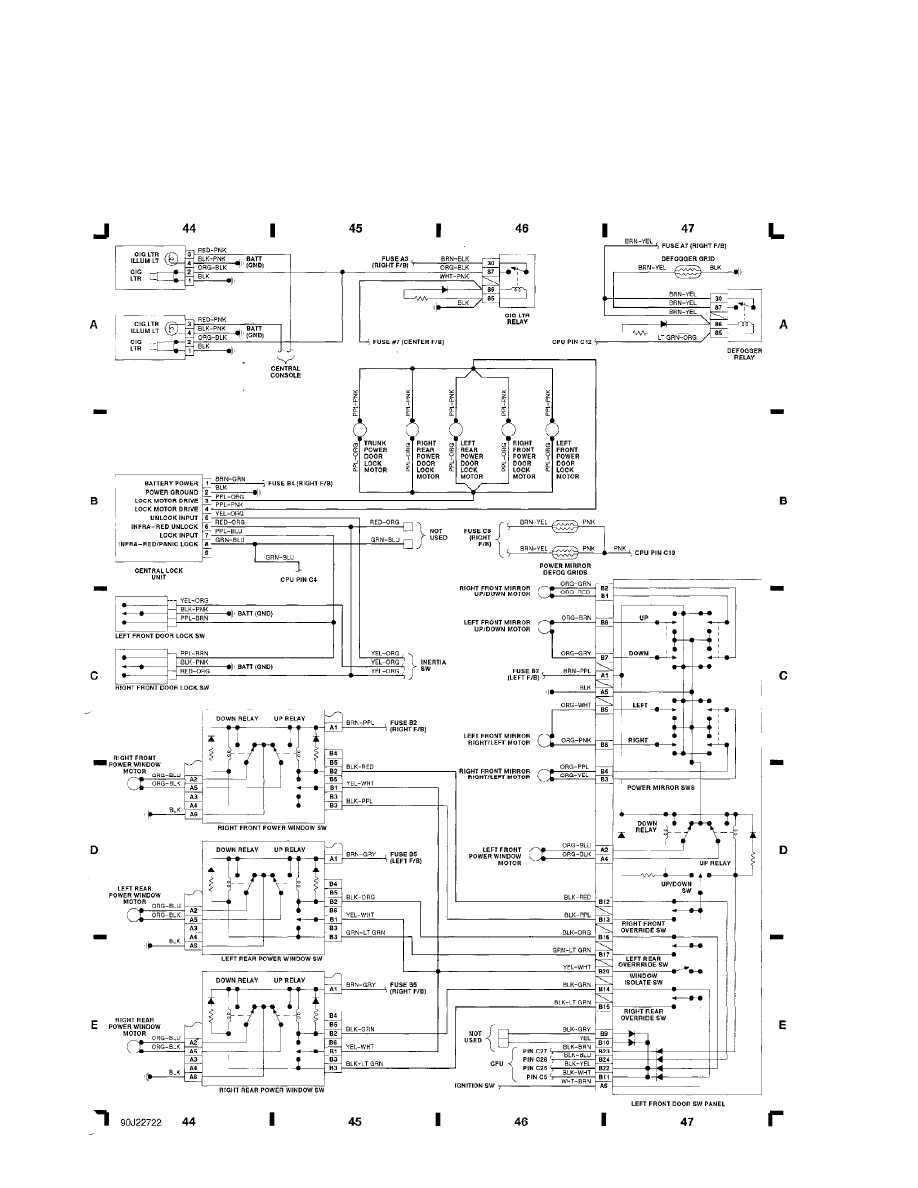

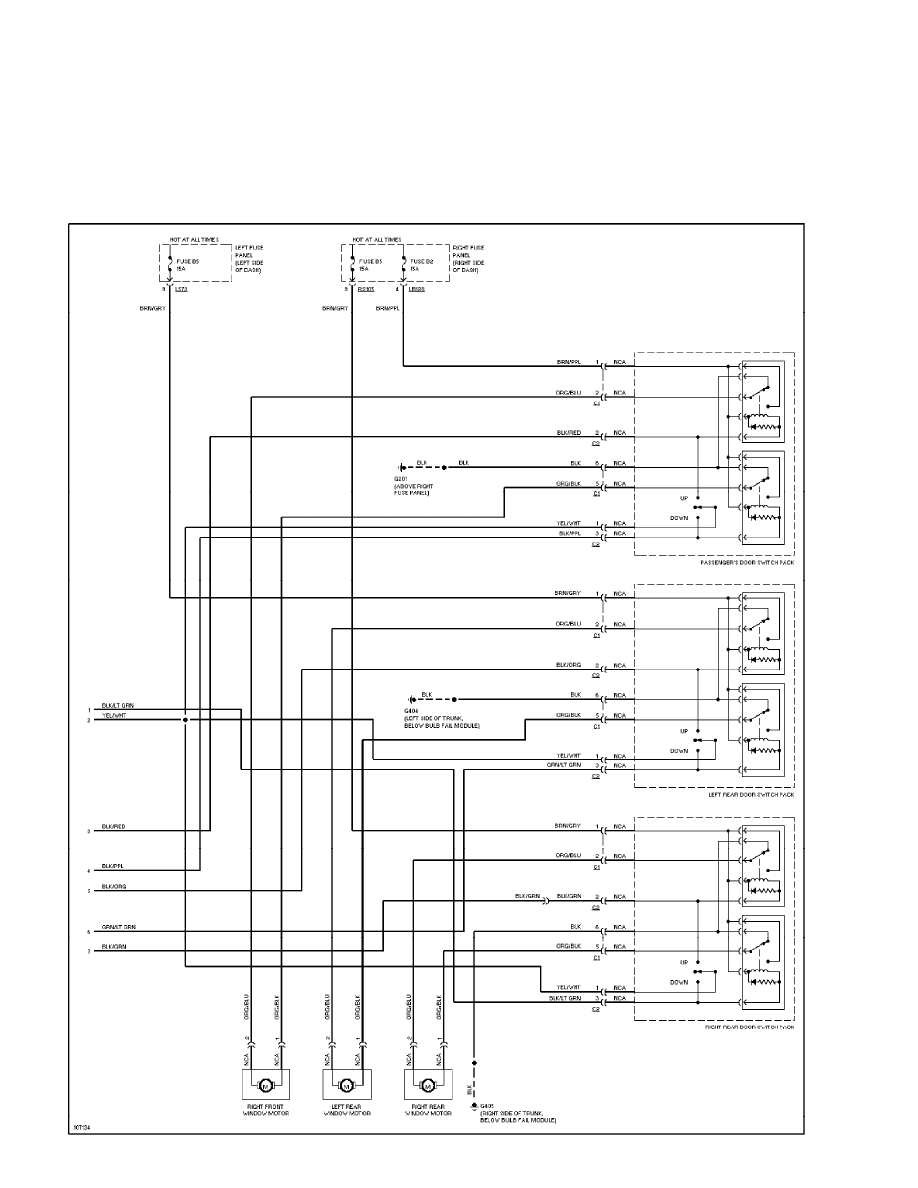

Fig. 12: Power Window, Left Ft Door Switch Panel (Grid 44-47) (p. 12)
1990 Jaguar XJ6
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, September 11, 2004 10:27AM
WIRING DIAGRAMS

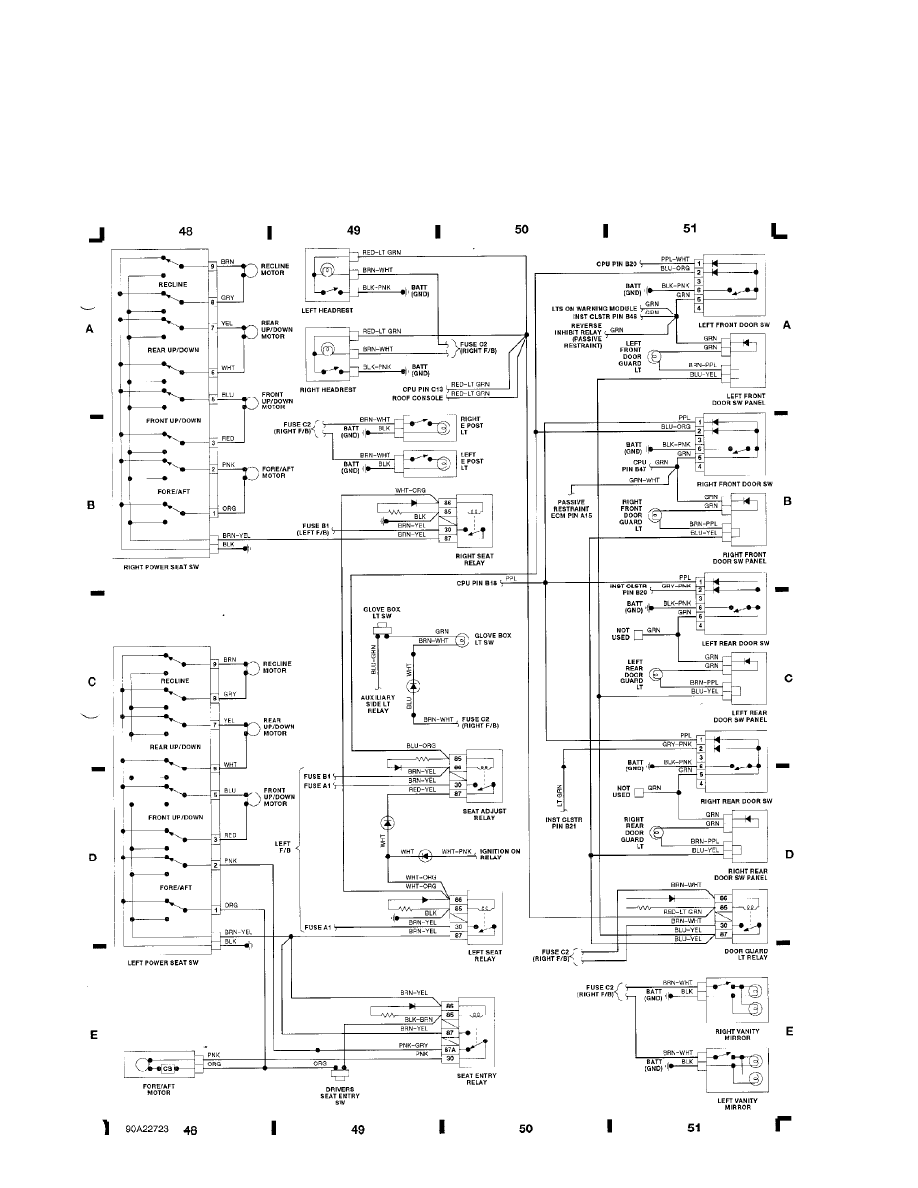

Fig. 13: Power Seat, Door Switches (Grid 48-51) (p. 13)
1990 Jaguar XJ6
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, September 11, 2004 10:27AM
WIRING DIAGRAMS

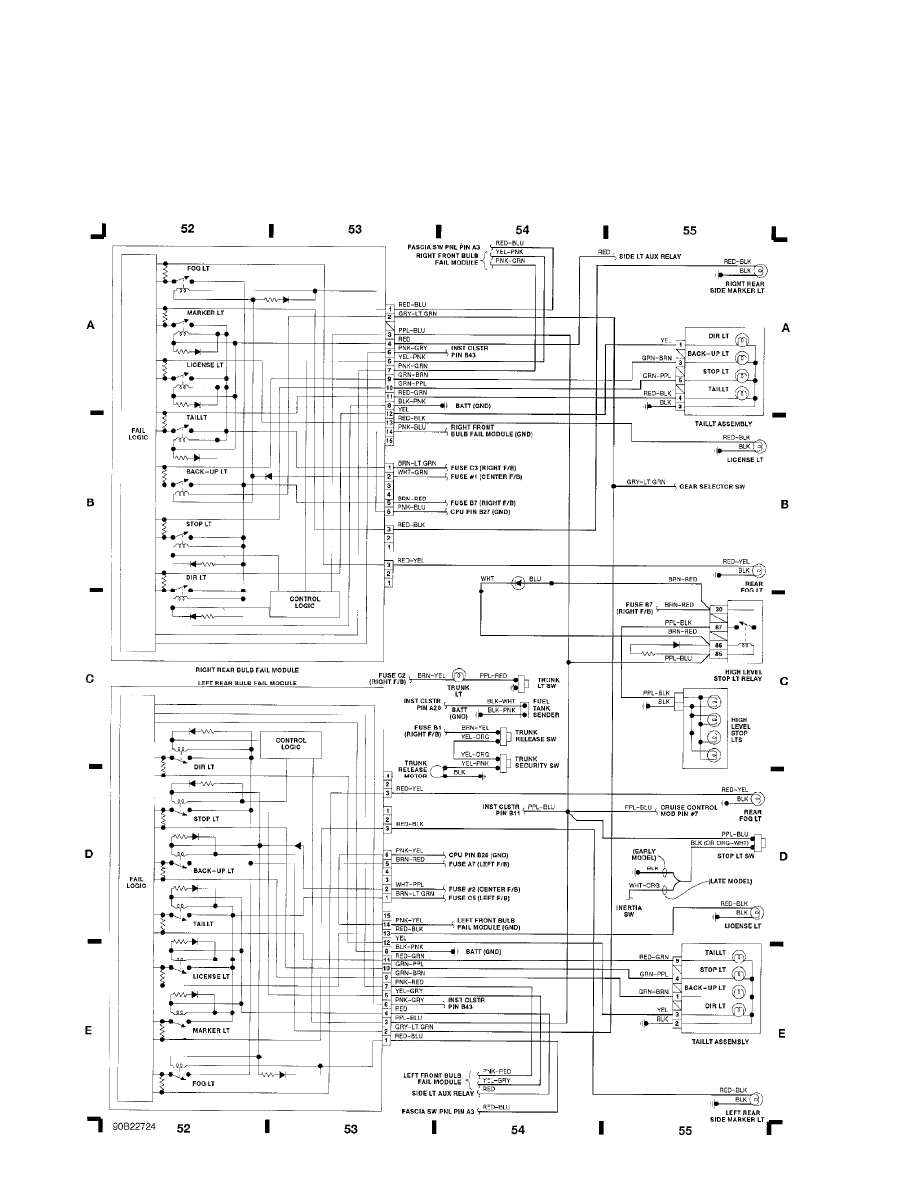

Fig. 14: Rear Fail Logic Modules, Taillights (Grid 52-55) (p. 14)
1990 Jaguar XJ6
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Saturday, September 11, 2004 10:27AM
