JAGUAR XJS 1990

SYSTEM WIRING DIAGRAMS

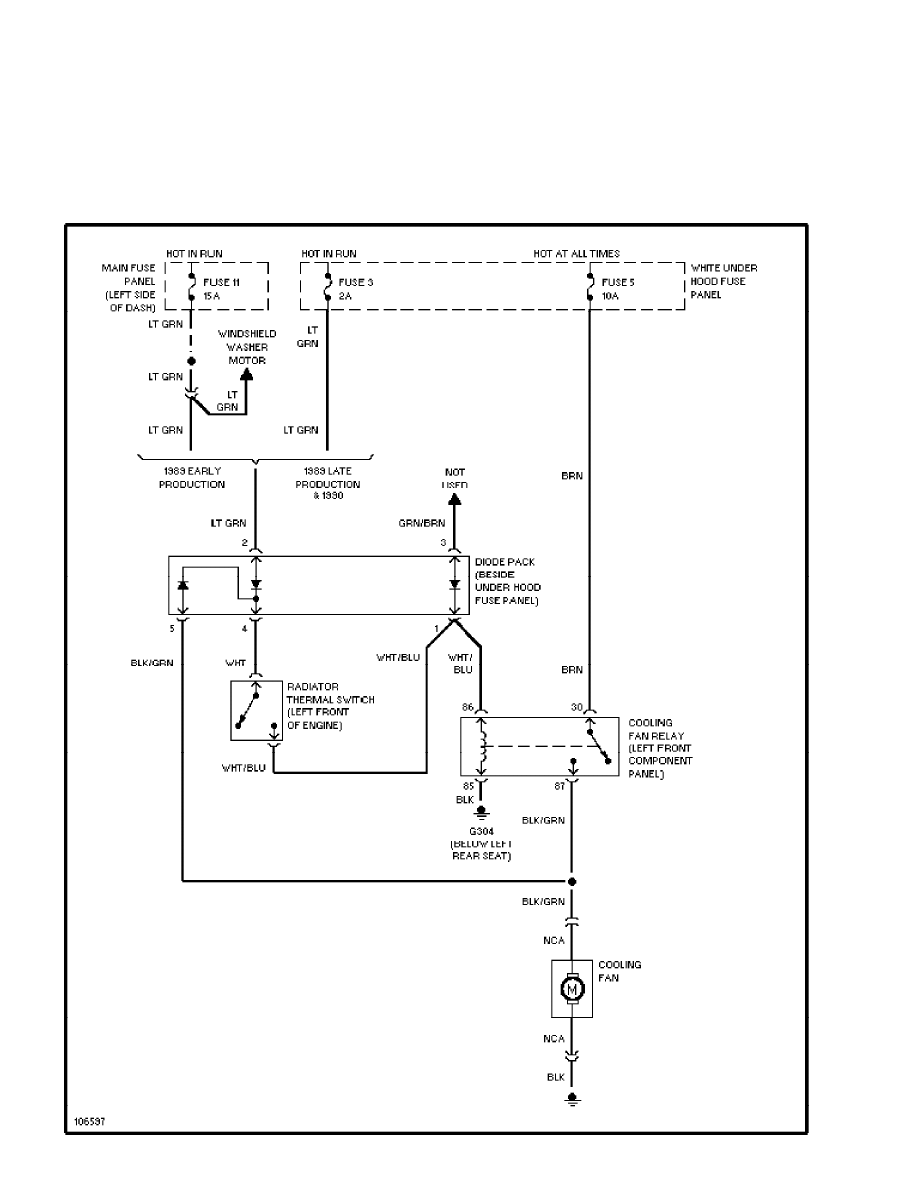

Cooling Fan Circuit

1990 Jaguar XJS

For x

Saturday, September 11, 2004 10:28AM

SYSTEM WIRING DIAGRAMS

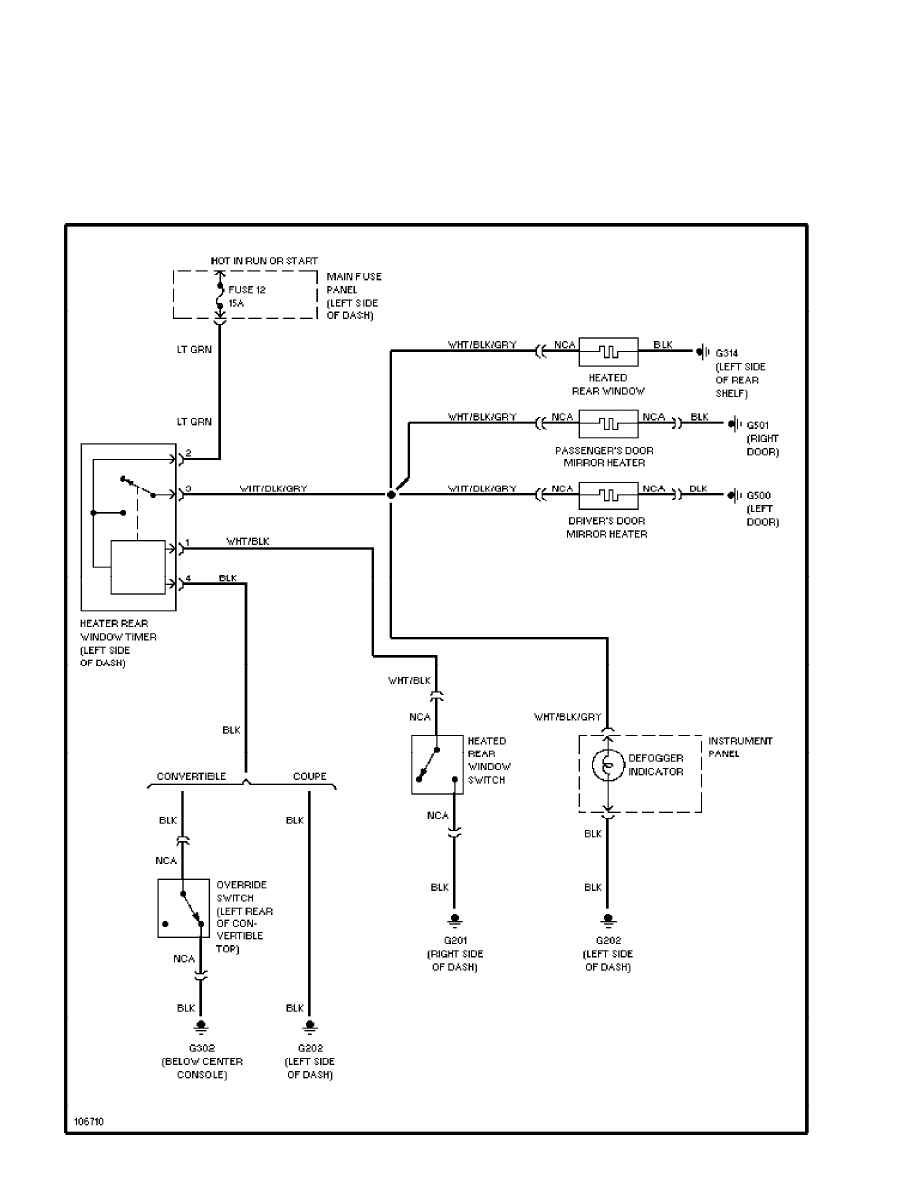

Defogger Circuit (p. 2)

1990 Jaguar XJS

For x

Saturday, September 11, 2004 10:28AM

SYSTEM WIRING DIAGRAMS

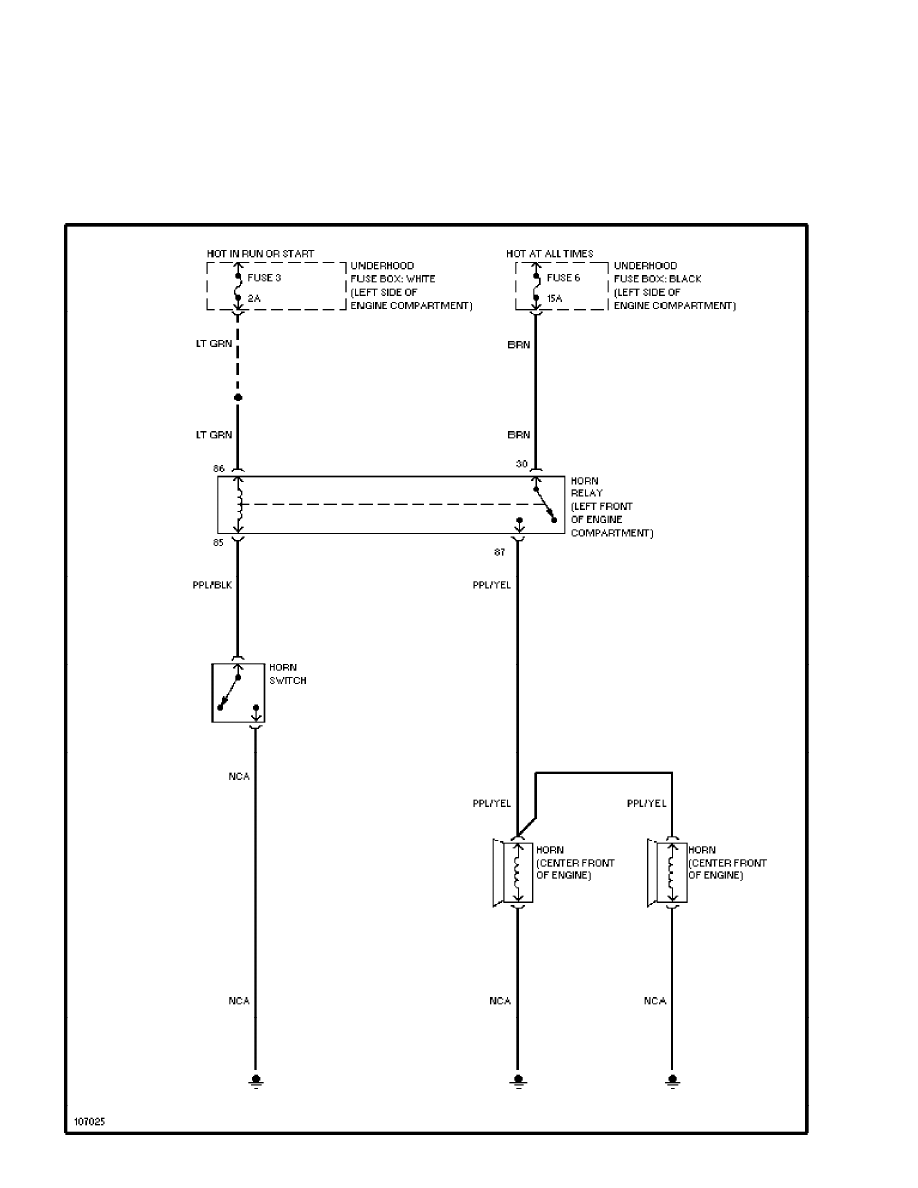

Horn Circuit (p. 3)

1990 Jaguar XJS

For x

Saturday, September 11, 2004 10:28AM

SYSTEM WIRING DIAGRAMS

Power Antenna Circuit (p. 4)

1990 Jaguar XJS

For x

Saturday, September 11, 2004 10:28AM

SYSTEM WIRING DIAGRAMS

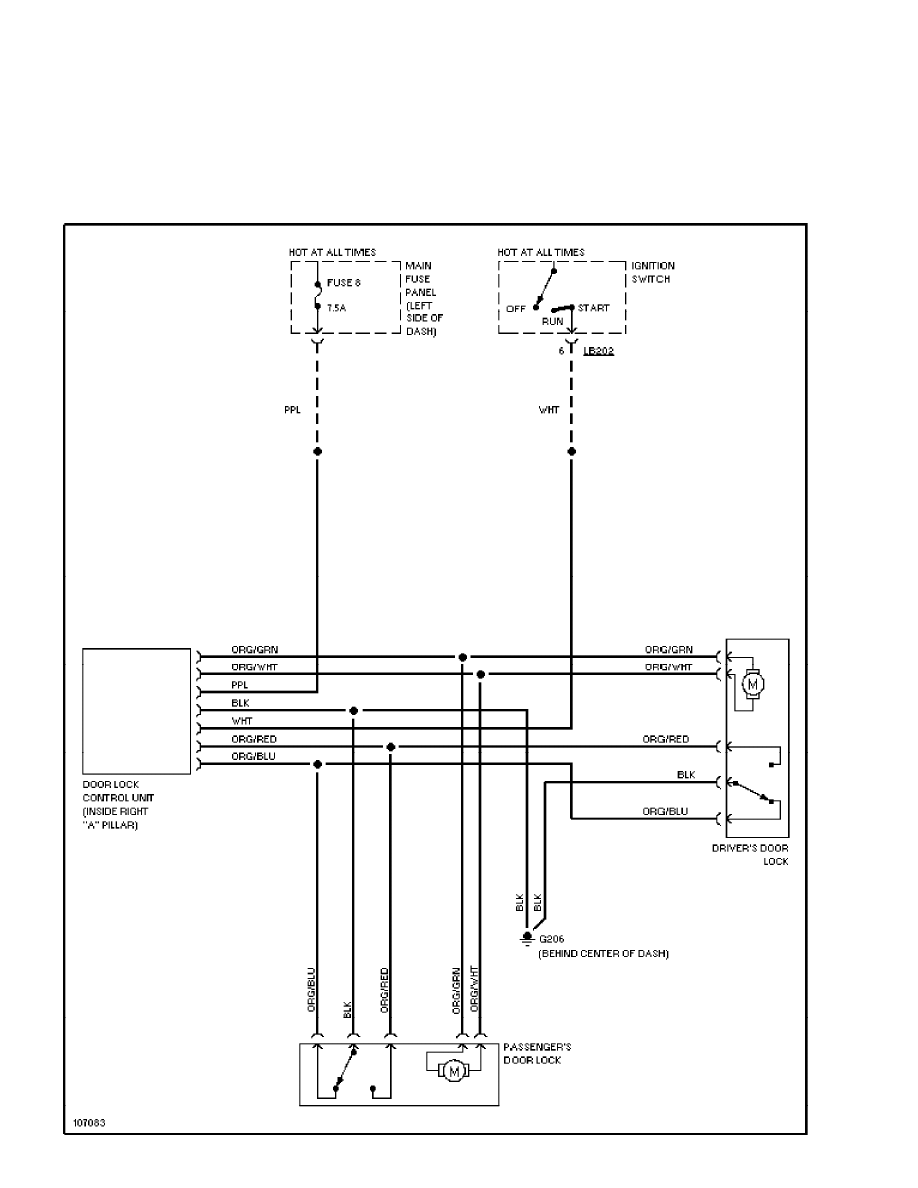

Power Door Lock Circuit (p. 5)

1990 Jaguar XJS

For x

Saturday, September 11, 2004 10:28AM

SYSTEM WIRING DIAGRAMS

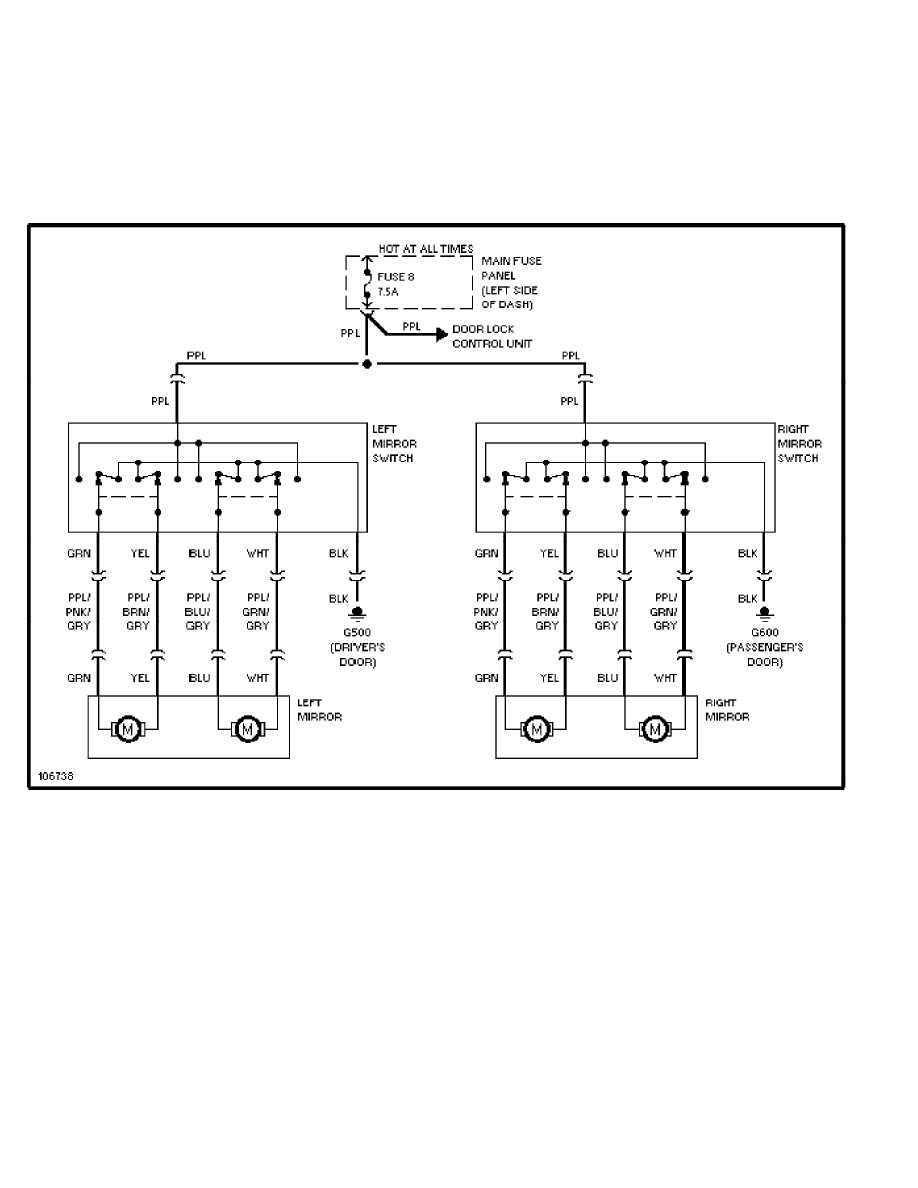

Power Mirror Circuit (p. 6)

1990 Jaguar XJS

For x

Saturday, September 11, 2004 10:28AM

SYSTEM WIRING DIAGRAMS

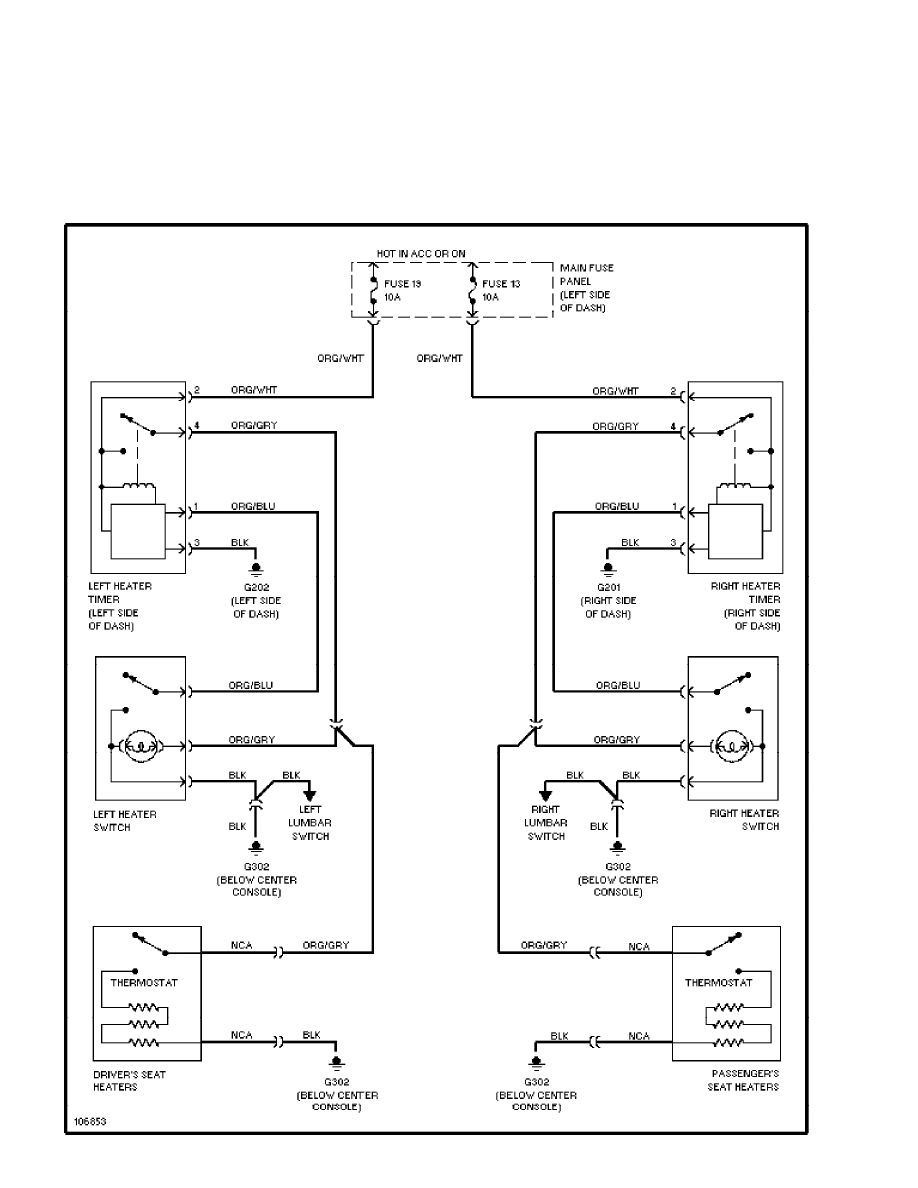

Heated Seats Circuit (p. 7)

1990 Jaguar XJS

For x

Saturday, September 11, 2004 10:28AM

SYSTEM WIRING DIAGRAMS

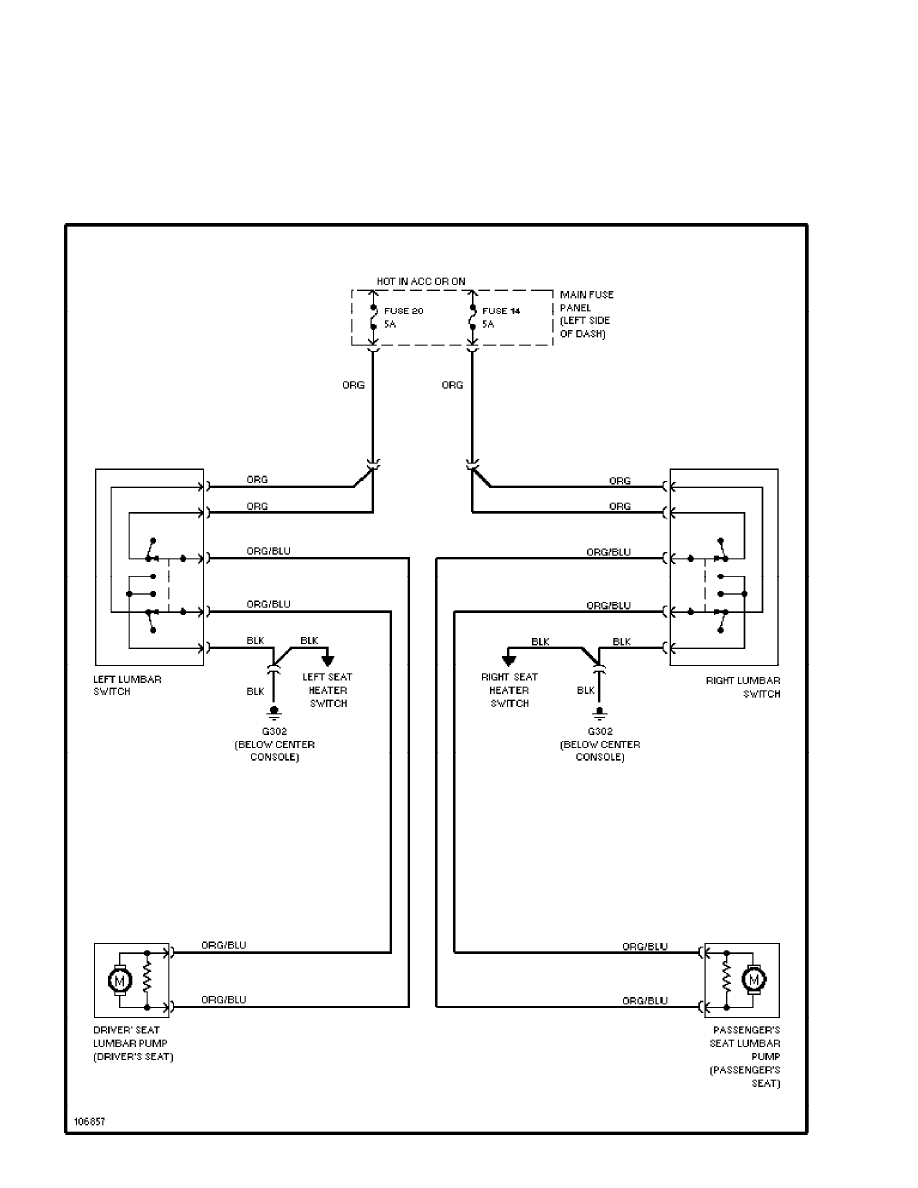

Lumbar Circuit (p. 8)

1990 Jaguar XJS

For x

Saturday, September 11, 2004 10:28AM

SYSTEM WIRING DIAGRAMS

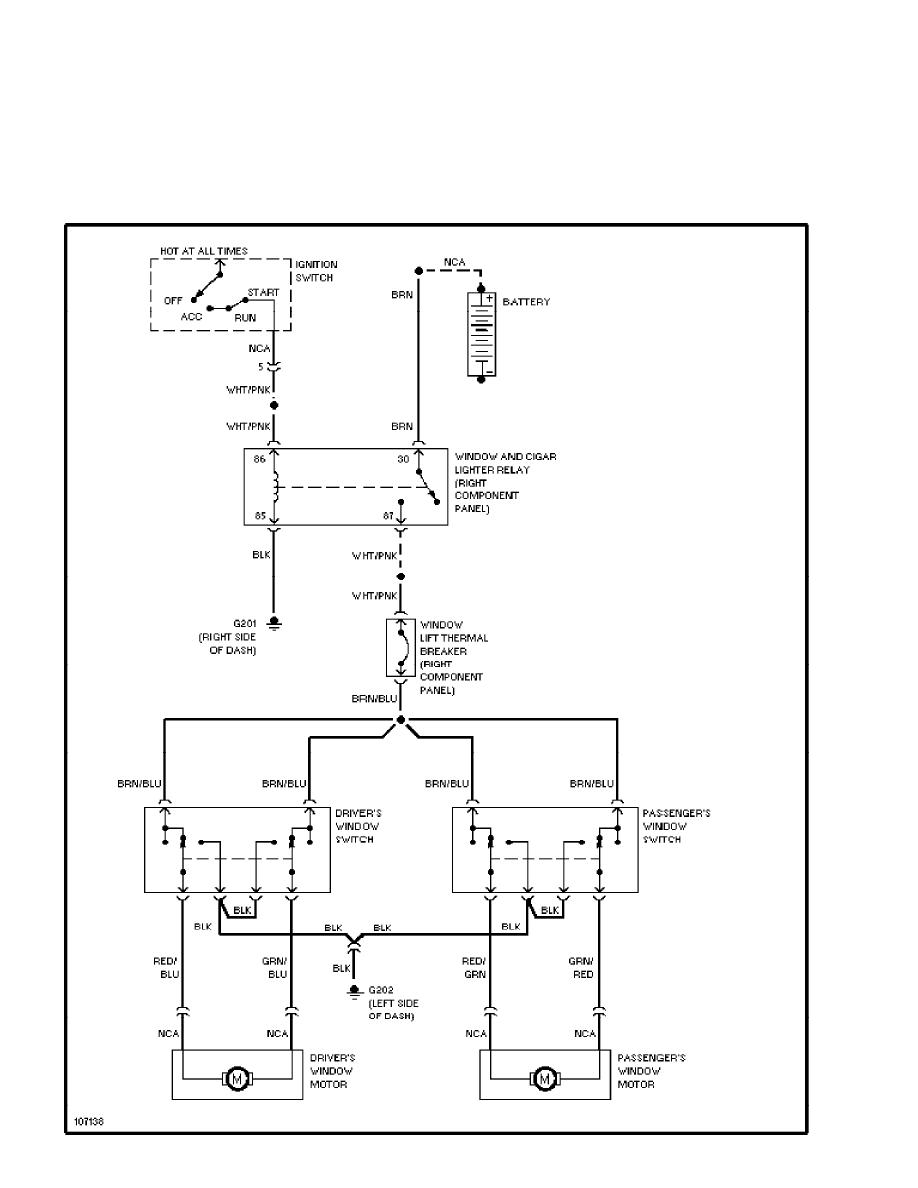

Power Window Circuit (p. 9)

1990 Jaguar XJS

For x

Saturday, September 11, 2004 10:28AM

SYSTEM WIRING DIAGRAMS

Radio Circuits (p. 10)

1990 Jaguar XJS

For x

Saturday, September 11, 2004 10:28AM

SYSTEM WIRING DIAGRAMS

Charging Circuit (p. 11)

1990 Jaguar XJS

For x

Saturday, September 11, 2004 10:28AM

SYSTEM WIRING DIAGRAMS

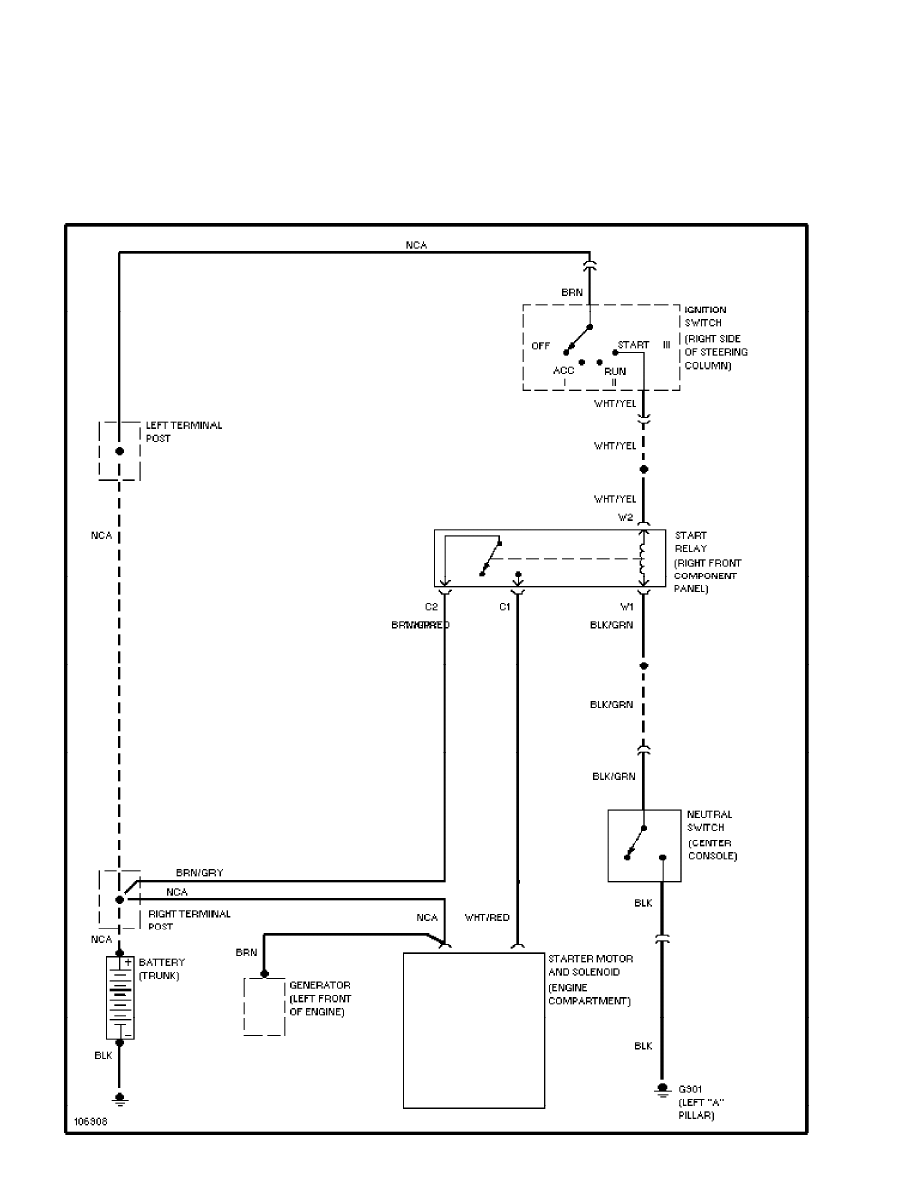

Starting Circuit (p. 12)

1990 Jaguar XJS

For x

Saturday, September 11, 2004 10:28AM

SYSTEM WIRING DIAGRAMS

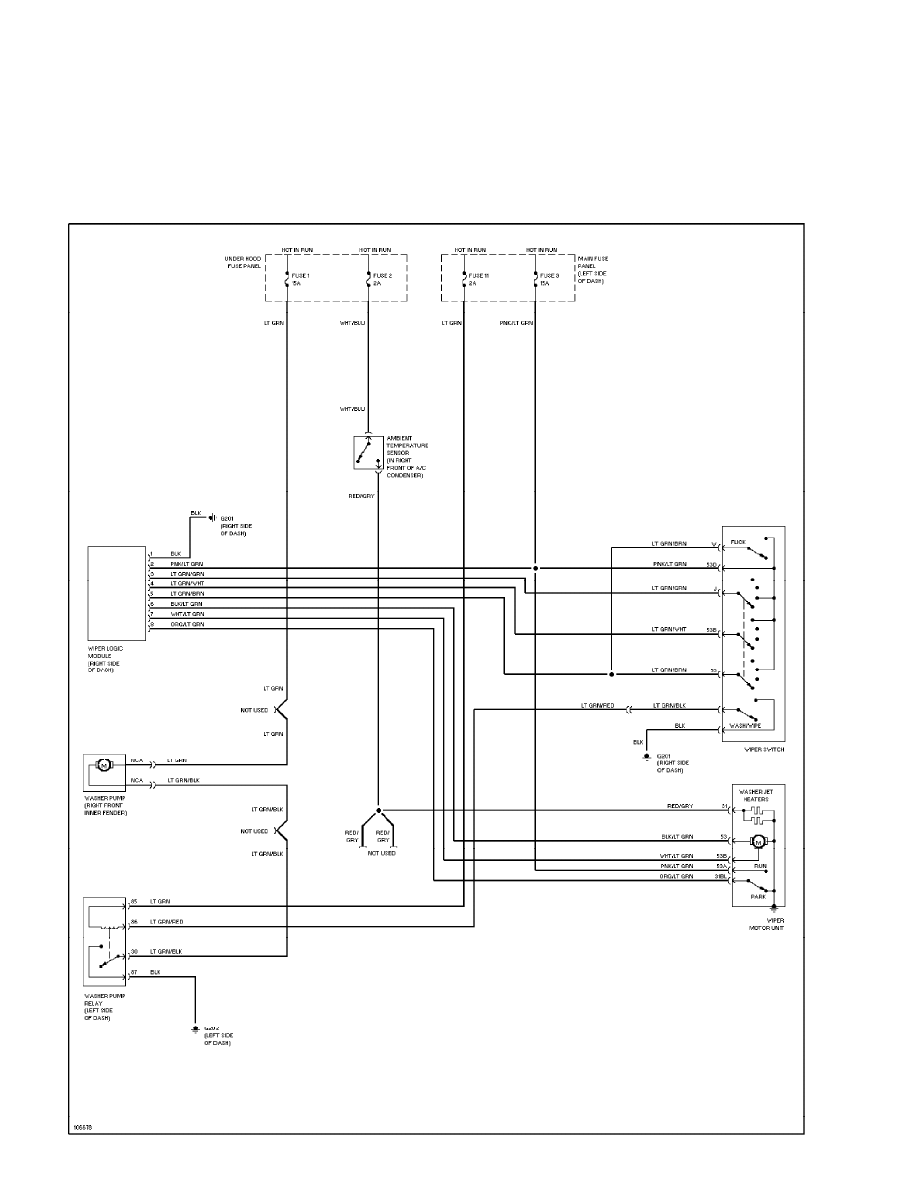

Wiper/Washer Circuit (p. 13)

1990 Jaguar XJS

For x

Saturday, September 11, 2004 10:28AM

WIRING DIAGRAMS

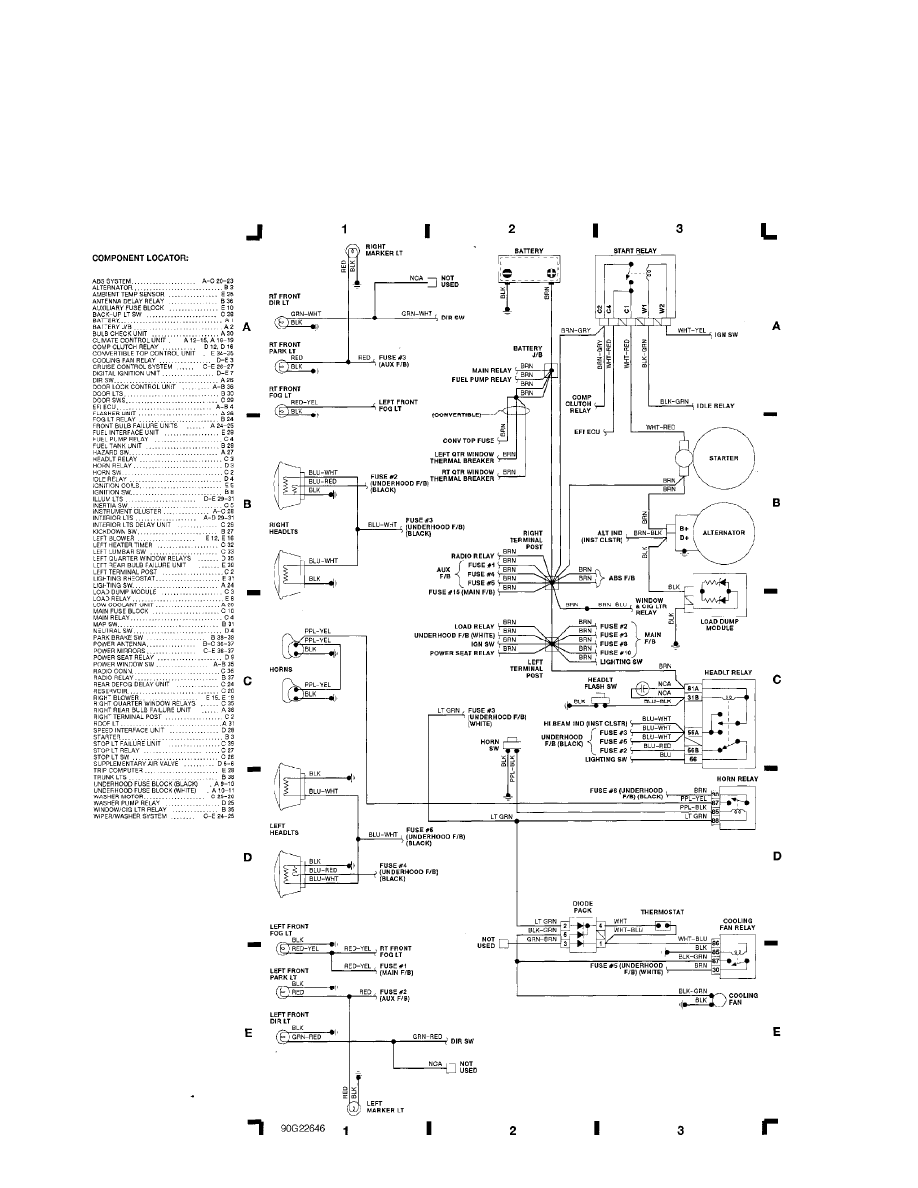

Fig. 1: Engine Compartment & Headlights (Grids 1-3)

1990 Jaguar XJS

For x

Saturday, September 11, 2004 10:28AM

WIRING DIAGRAMS

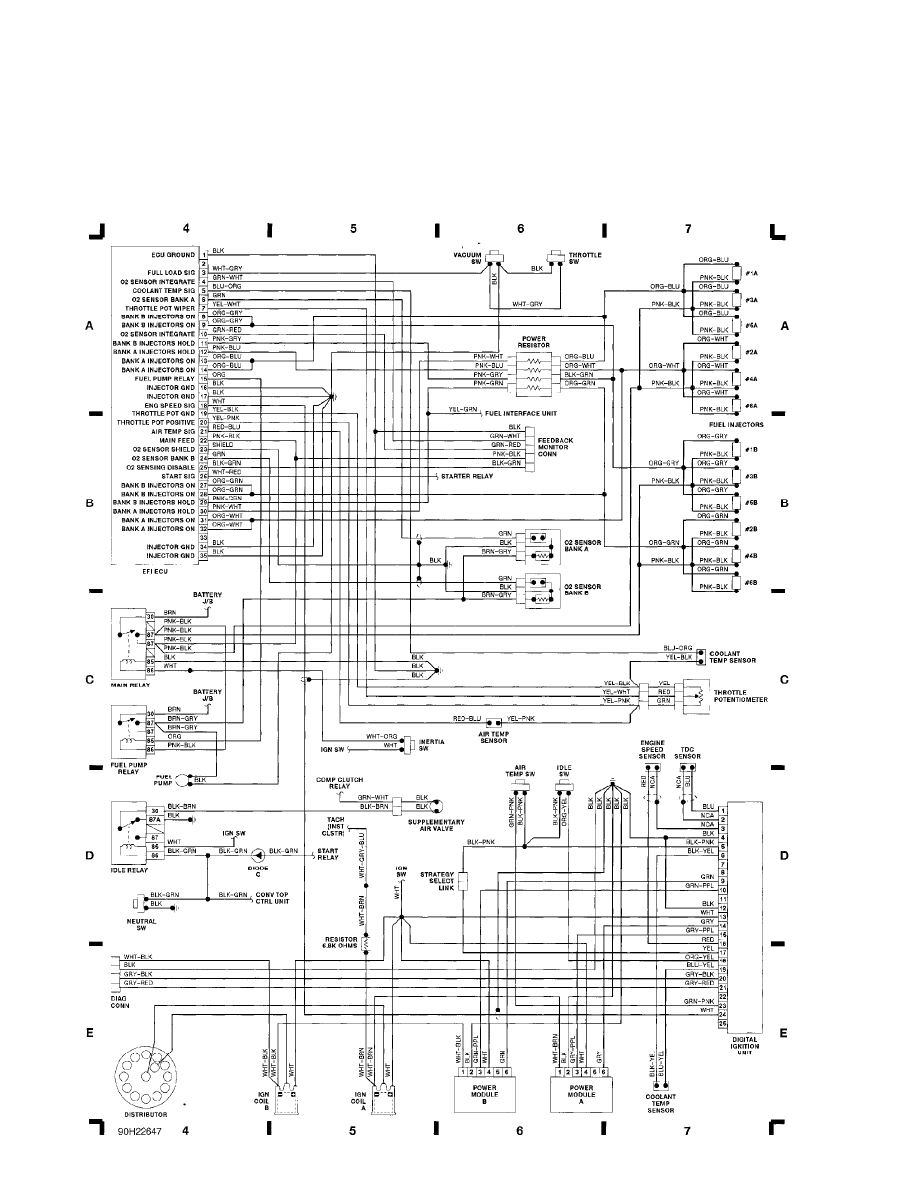

Fig. 2: Computer Engine Control (Grids 4-7) (p. 2)

1990 Jaguar XJS

For x

Saturday, September 11, 2004 10:28AM

WIRING DIAGRAMS

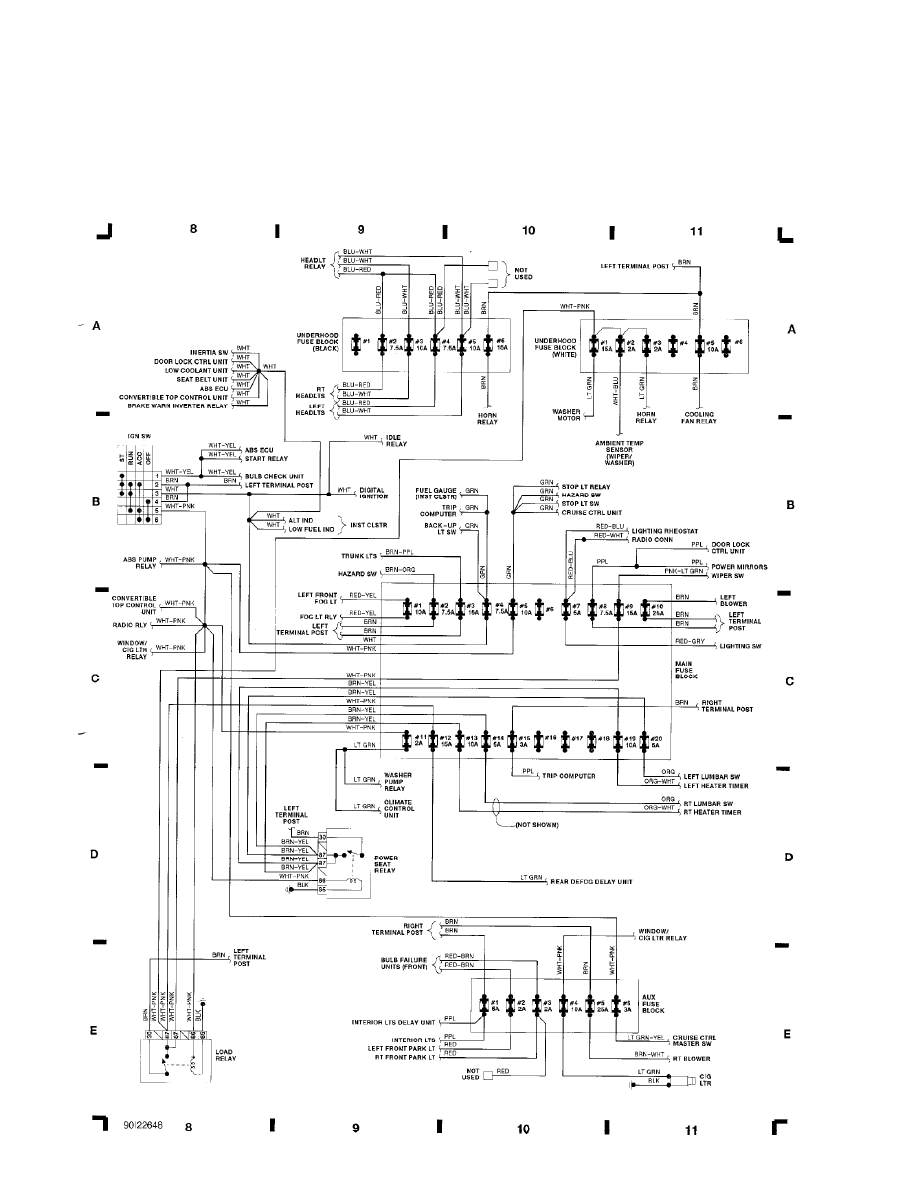

Fig. 3: Underhood & Interior Fuse Blocks (Grids 8-11) (p. 3)

1990 Jaguar XJS

For x

Saturday, September 11, 2004 10:28AM

WIRING DIAGRAMS

Fig. 4: A/C & Heater (Coupe) (Grids 12-15) (p. 4)

1990 Jaguar XJS

For x

Saturday, September 11, 2004 10:28AM

WIRING DIAGRAMS

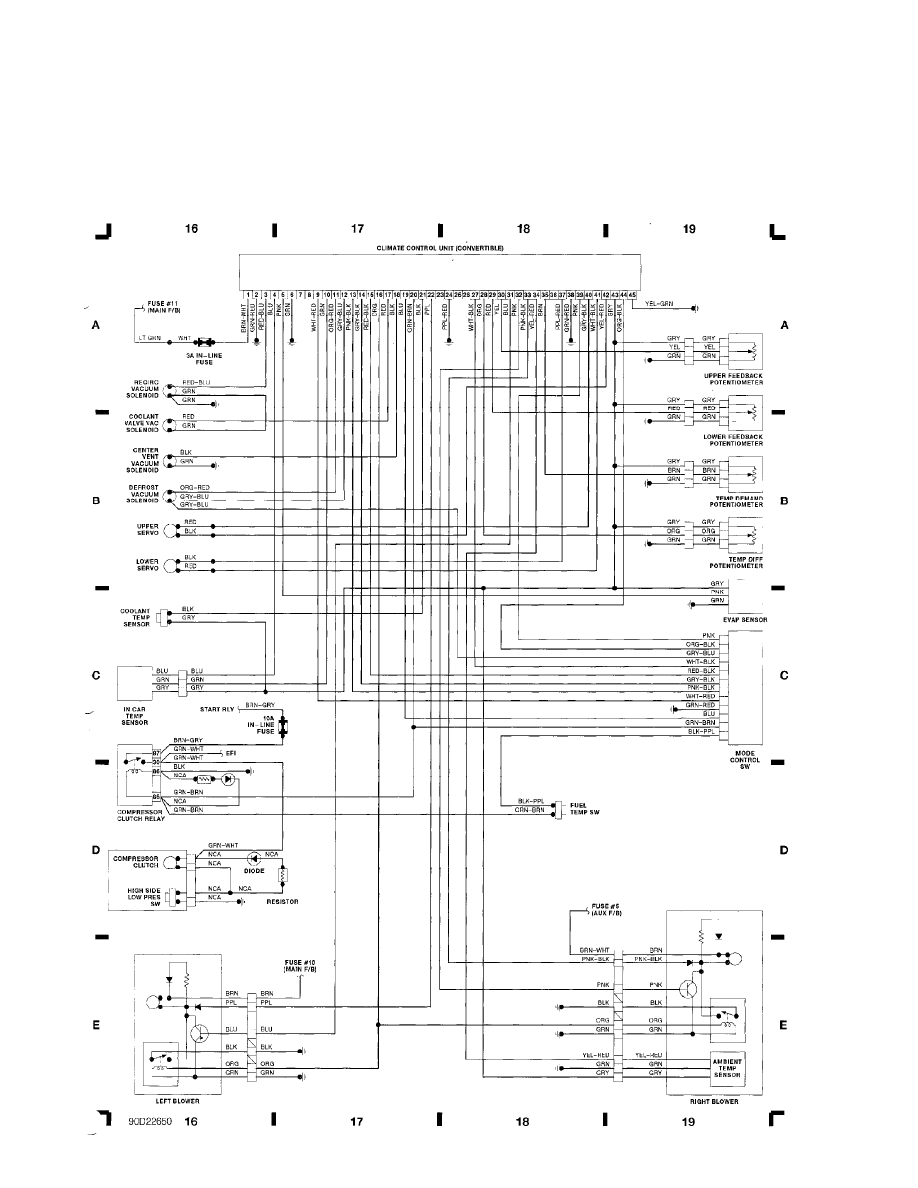

Fig. 5: A/C & Heater (Convertible) (Grids 16-19) (p. 5)

1990 Jaguar XJS

For x

Saturday, September 11, 2004 10:28AM

WIRING DIAGRAMS

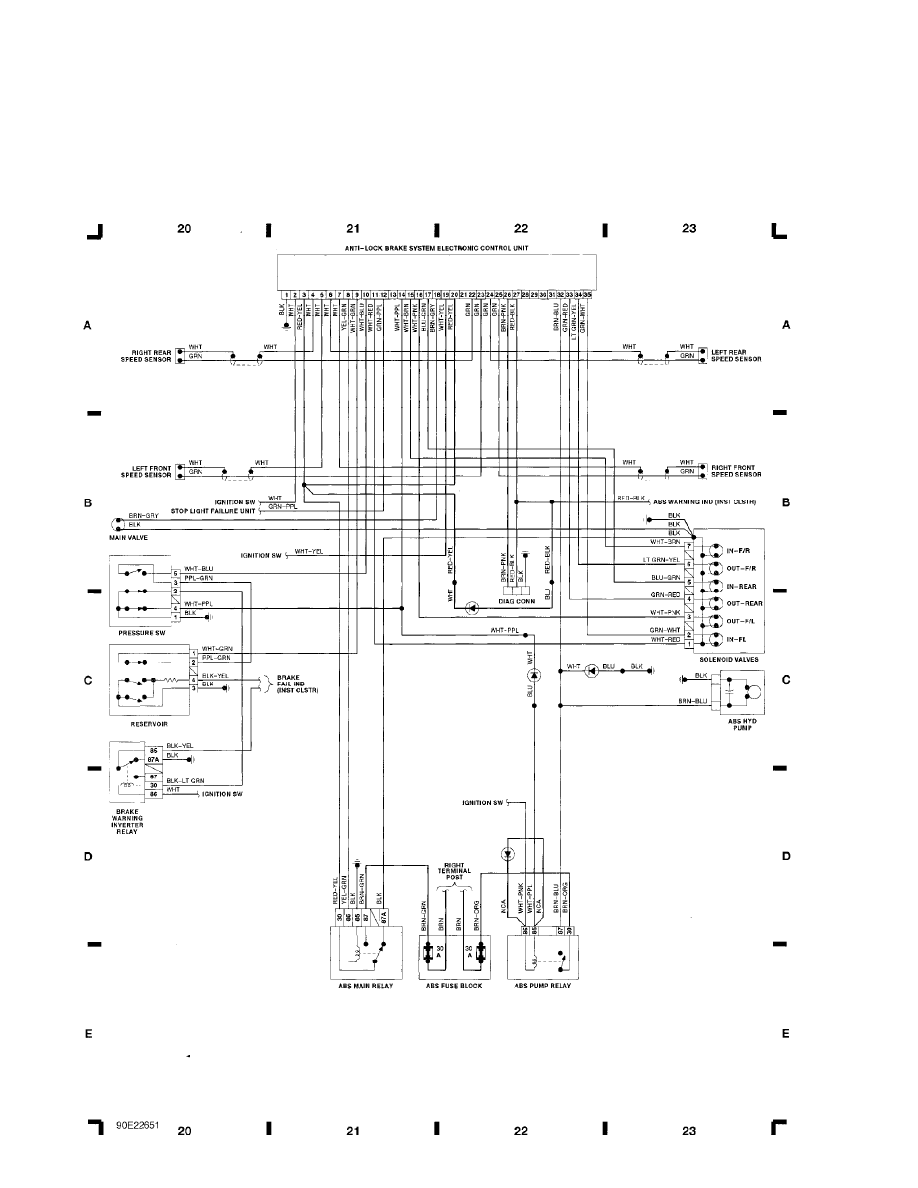

Fig. 6: ABS (Grids 20-23) (p. 6)

1990 Jaguar XJS

For x

Saturday, September 11, 2004 10:28AM

WIRING DIAGRAMS

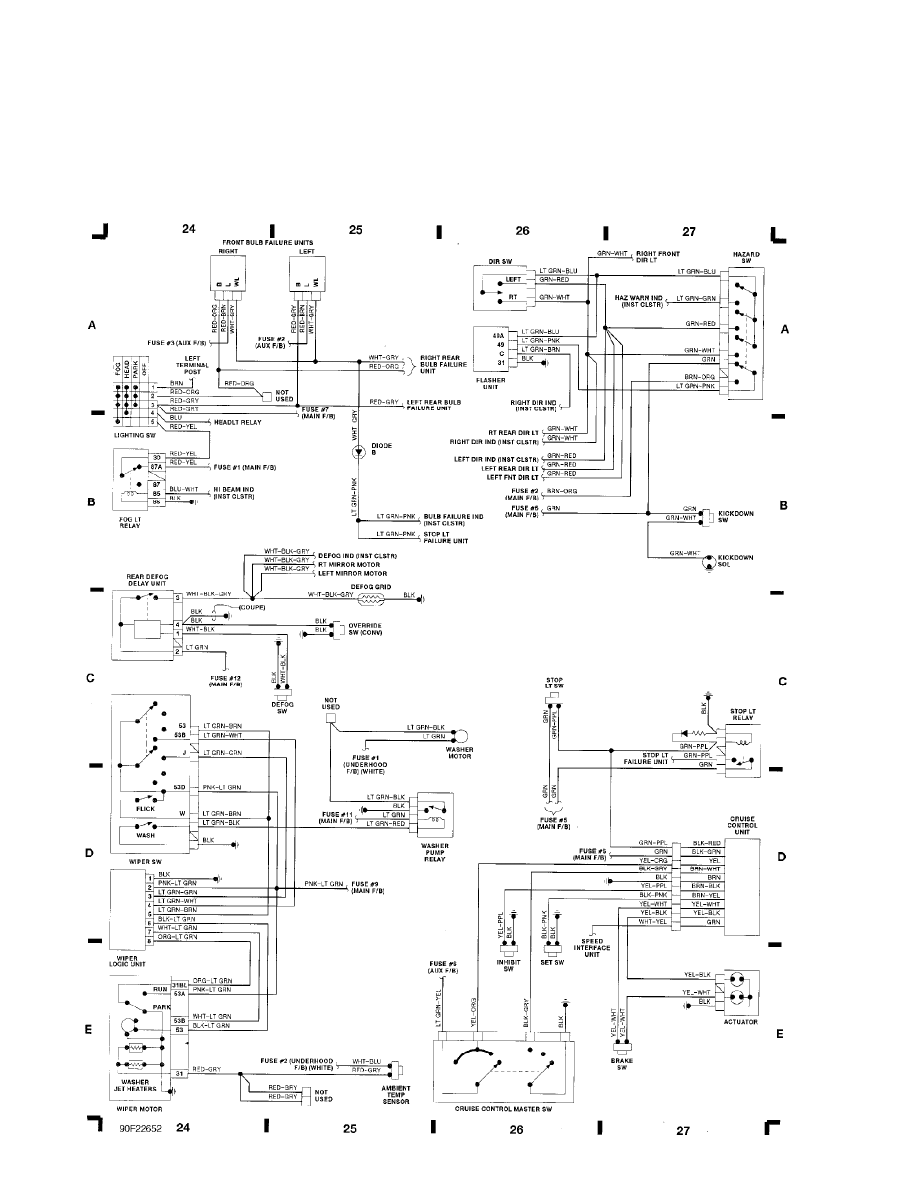

Fig. 7: Steering Column, Wiper/Washer, Cruise Control (Grids 24-27) (p. 7)

1990 Jaguar XJS

For x

Saturday, September 11, 2004 10:28AM

WIRING DIAGRAMS

Fig. 8: Instrument Panel (Grids 28-31) (p. 8)

1990 Jaguar XJS

For x

Saturday, September 11, 2004 10:28AM

WIRING DIAGRAMS

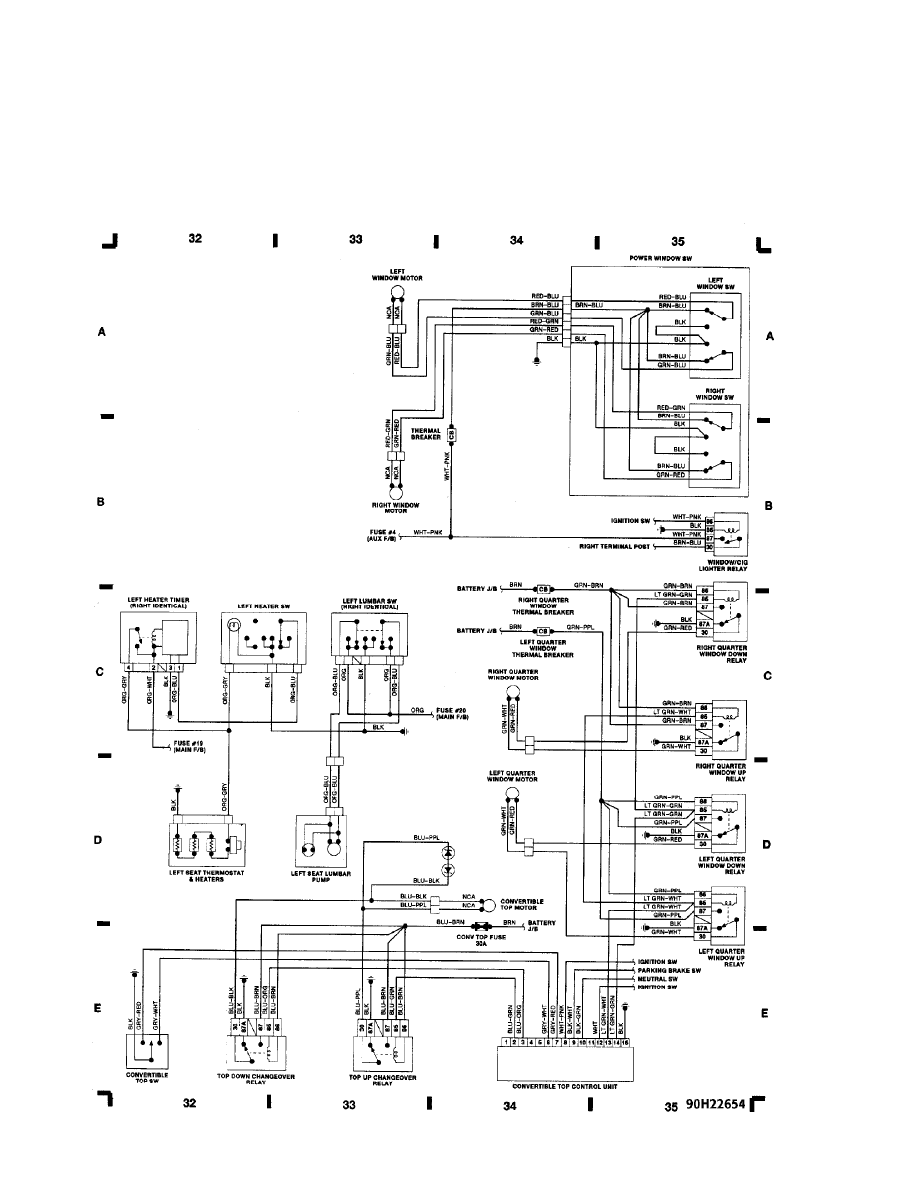

Fig. 9: Powr Window/Seat/Convertible (Grids 32-35) (p. 9)

1990 Jaguar XJS

For x

Saturday, September 11, 2004 10:28AM

WIRING DIAGRAMS

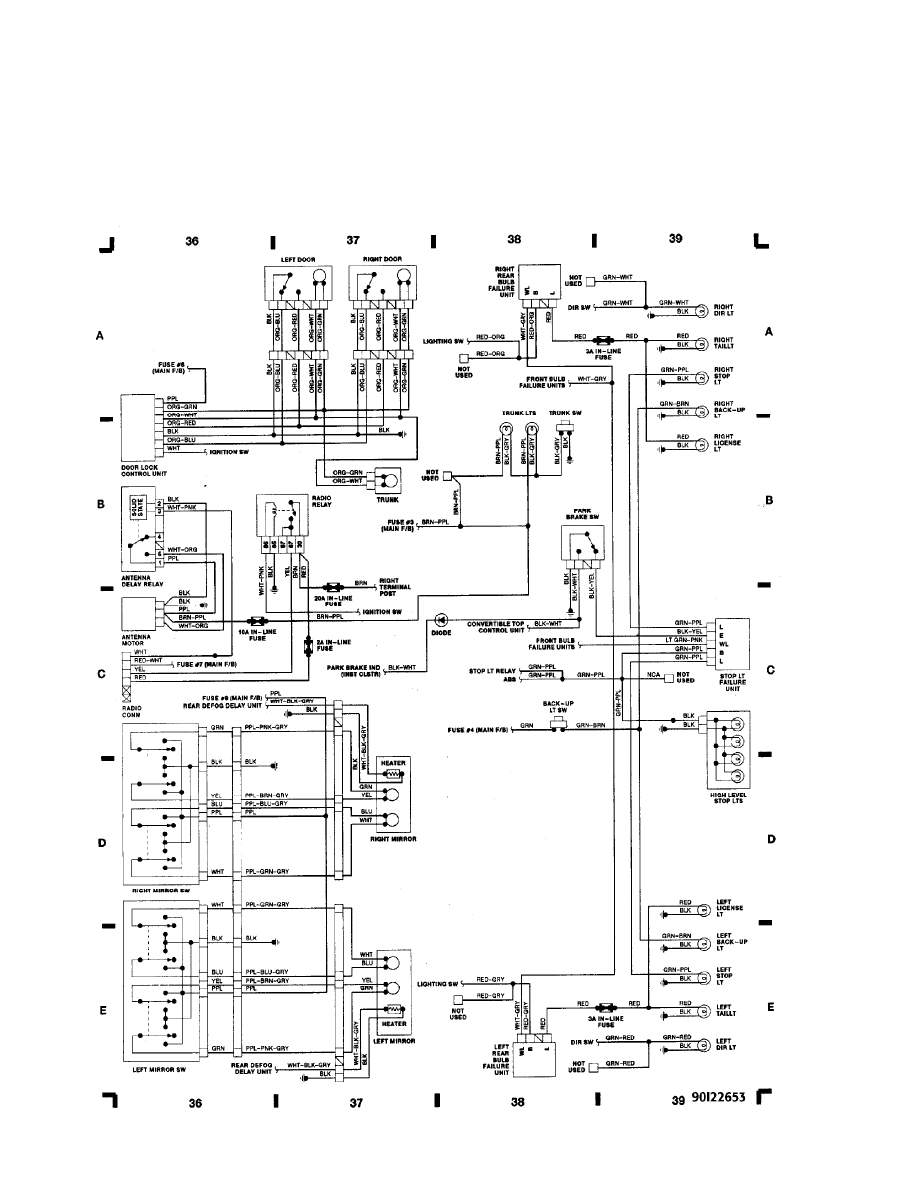

Fig. 10: Power Door Lock/Mirror, Taillights (Grids 36-39) (p. 10)

1990 Jaguar XJS

For x

Saturday, September 11, 2004 10:28AM
