JAGUAR XJS 1986

background image

SYSTEM WIRING DIAGRAMS

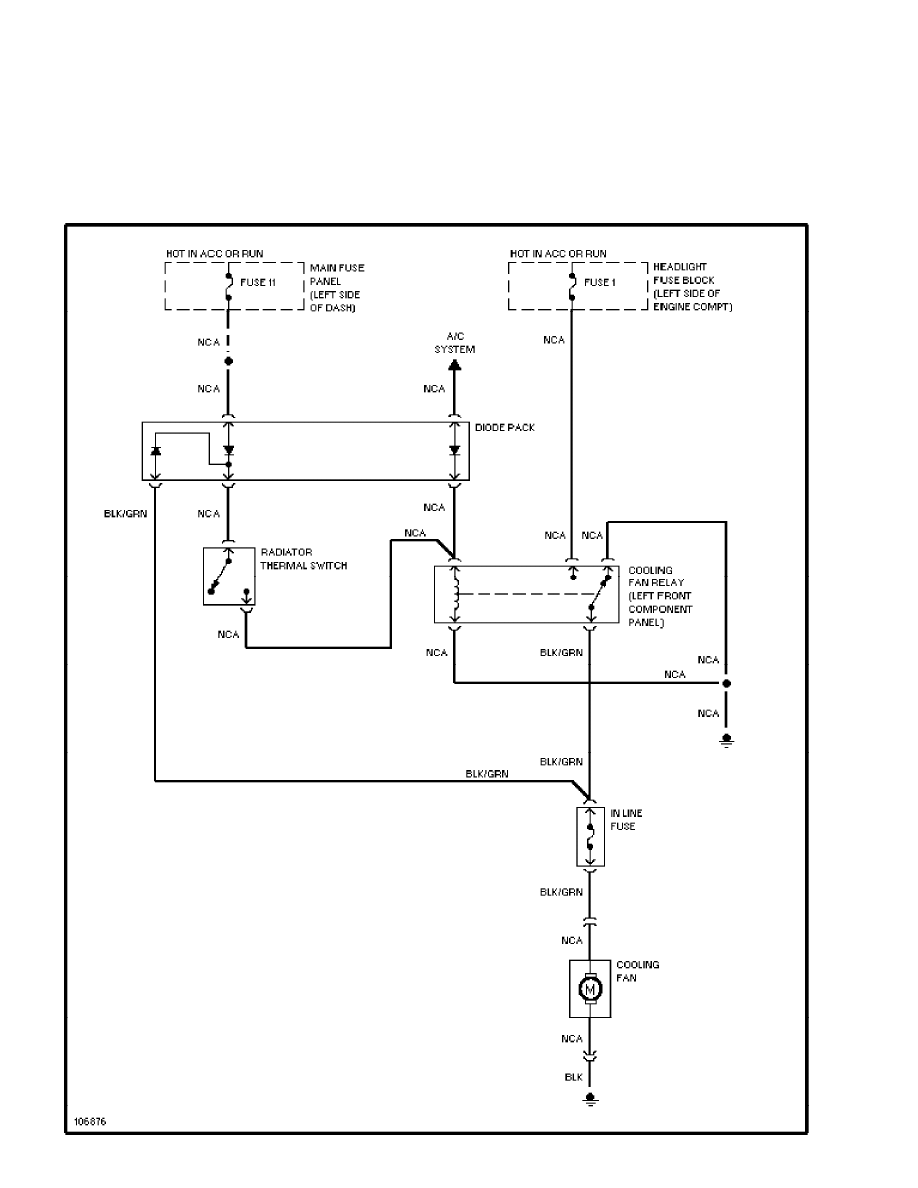

Cooling Fan Circuit

1986 Jaguar XJS

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, September 10, 2004 12:40PM

background image

SYSTEM WIRING DIAGRAMS

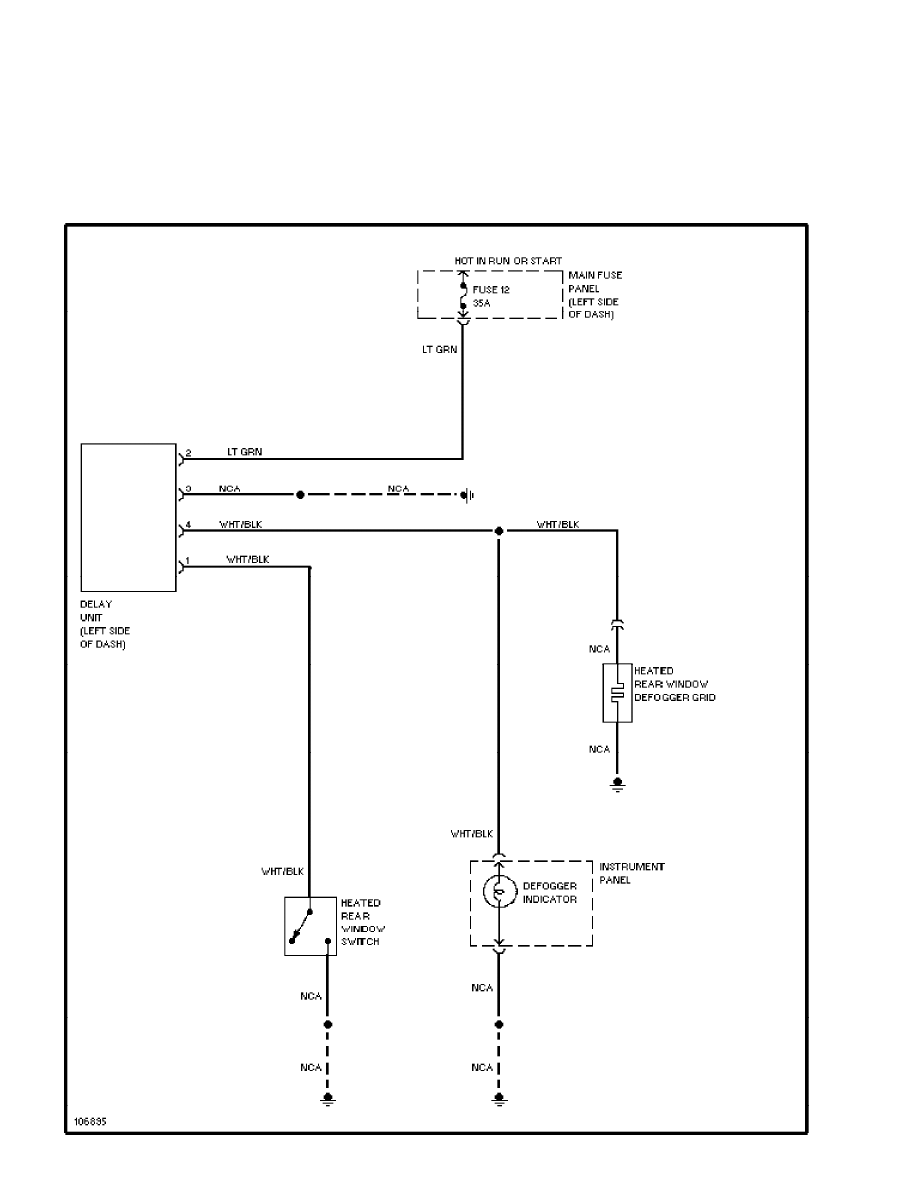

Defogger Circuit (p. 2)

1986 Jaguar XJS

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, September 10, 2004 12:40PM

background image

SYSTEM WIRING DIAGRAMS

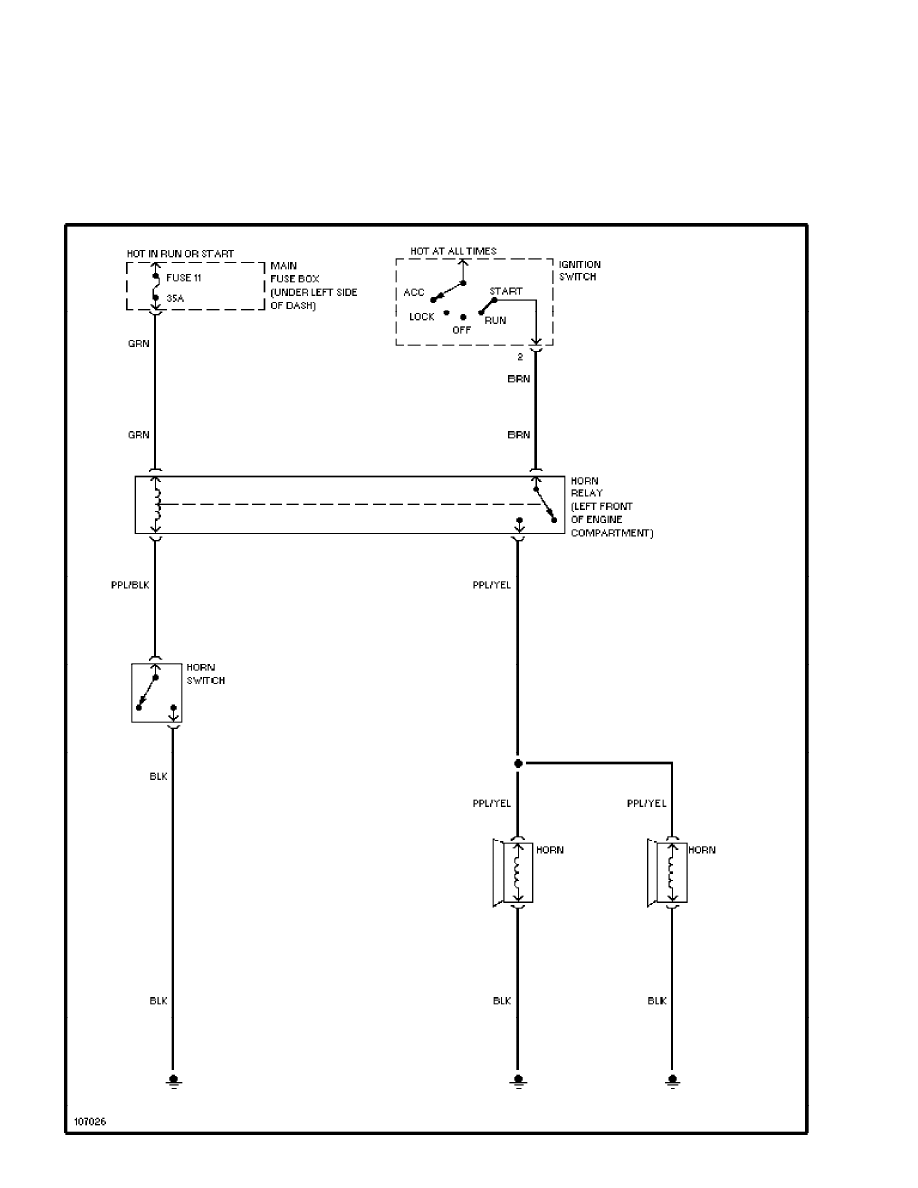

Horn Circuit (p. 3)

1986 Jaguar XJS

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, September 10, 2004 12:40PM

background image

SYSTEM WIRING DIAGRAMS

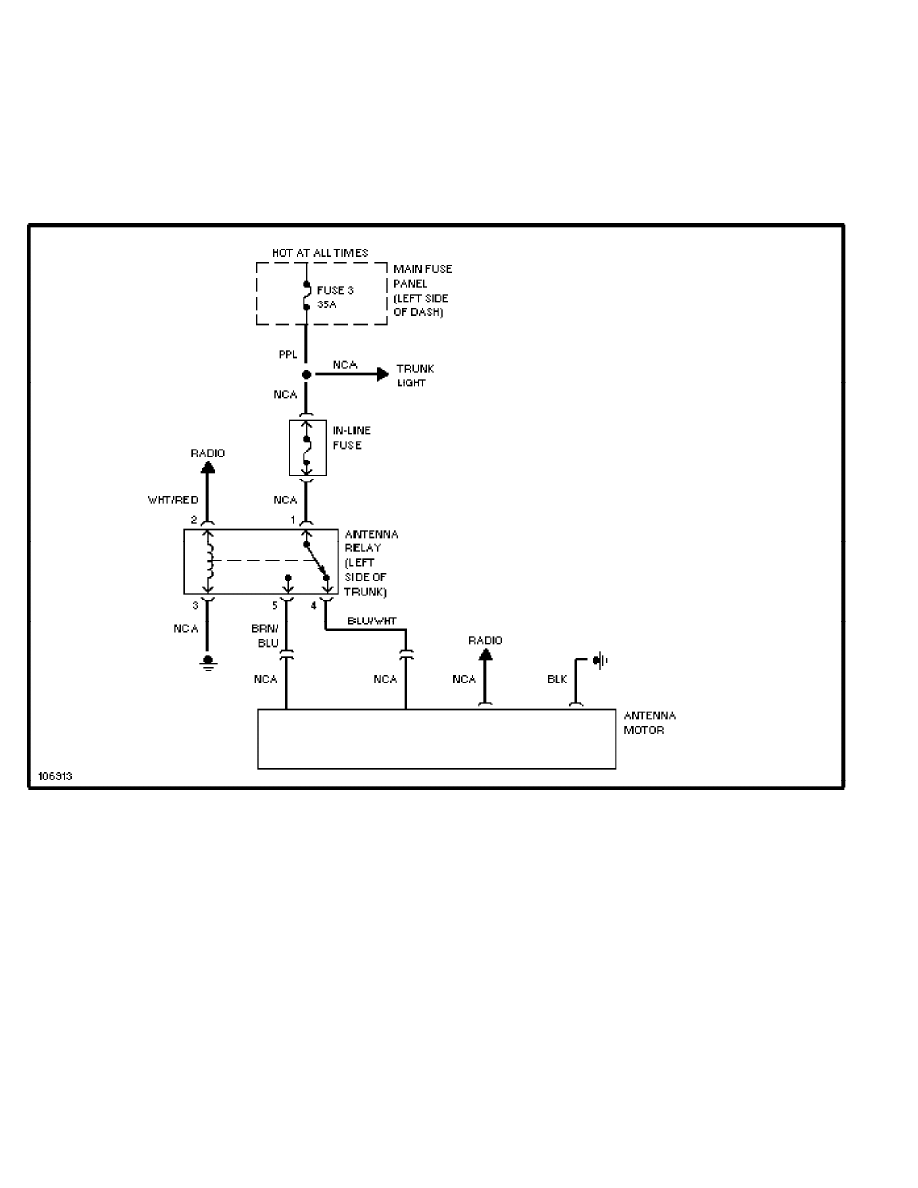

Power Antenna Circuit (p. 4)

1986 Jaguar XJS

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, September 10, 2004 12:40PM

background image

SYSTEM WIRING DIAGRAMS

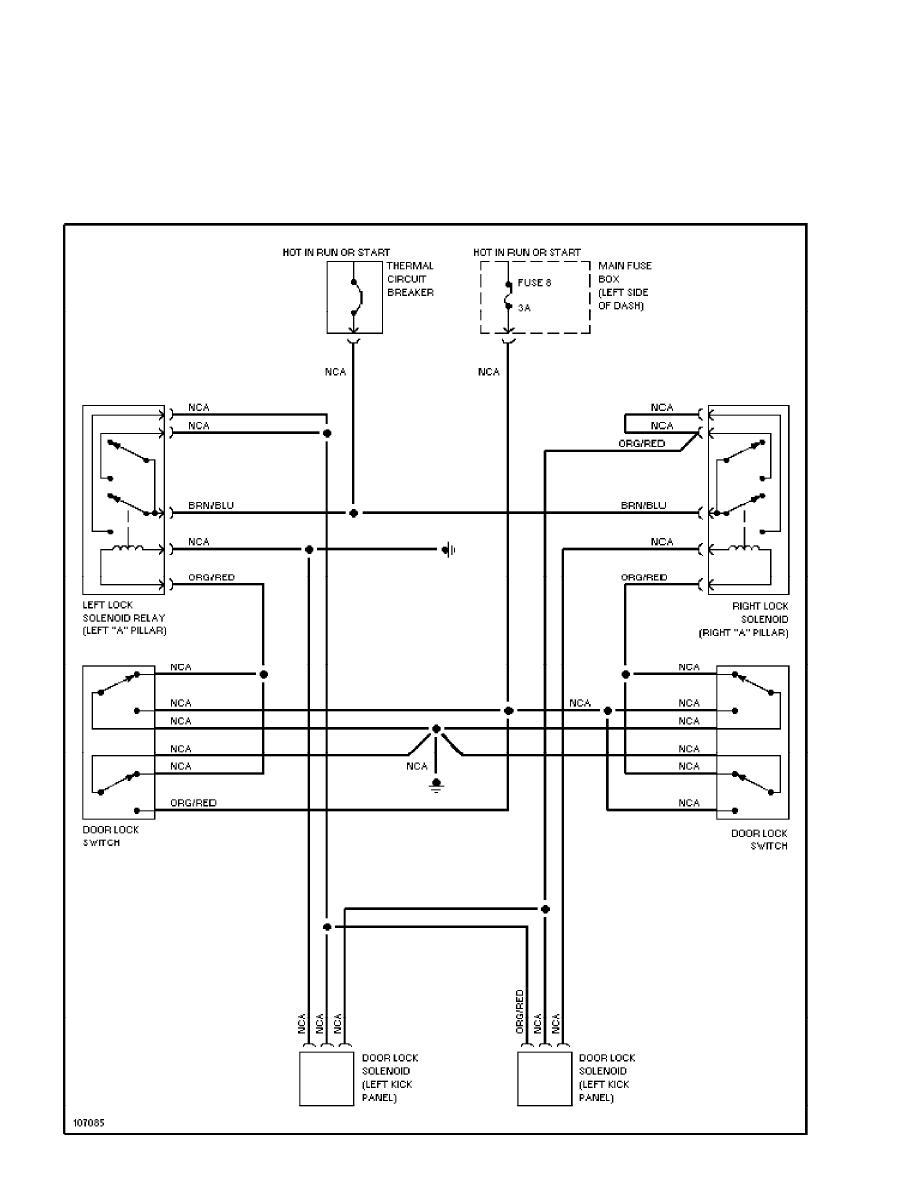

Power Door Lock Circuit (p. 5)

1986 Jaguar XJS

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, September 10, 2004 12:40PM

background image

SYSTEM WIRING DIAGRAMS

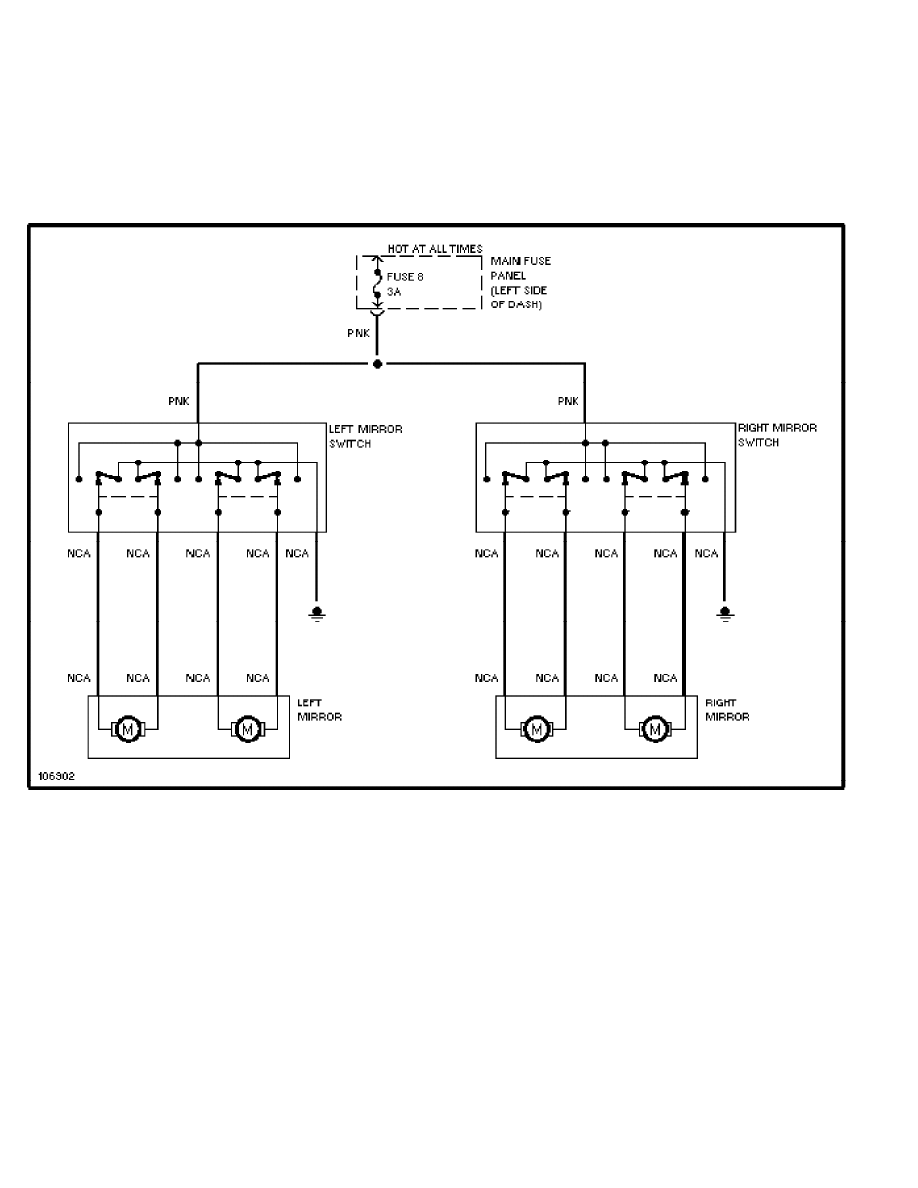

Power Mirror Circuit (p. 6)

1986 Jaguar XJS

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, September 10, 2004 12:40PM

background image

SYSTEM WIRING DIAGRAMS

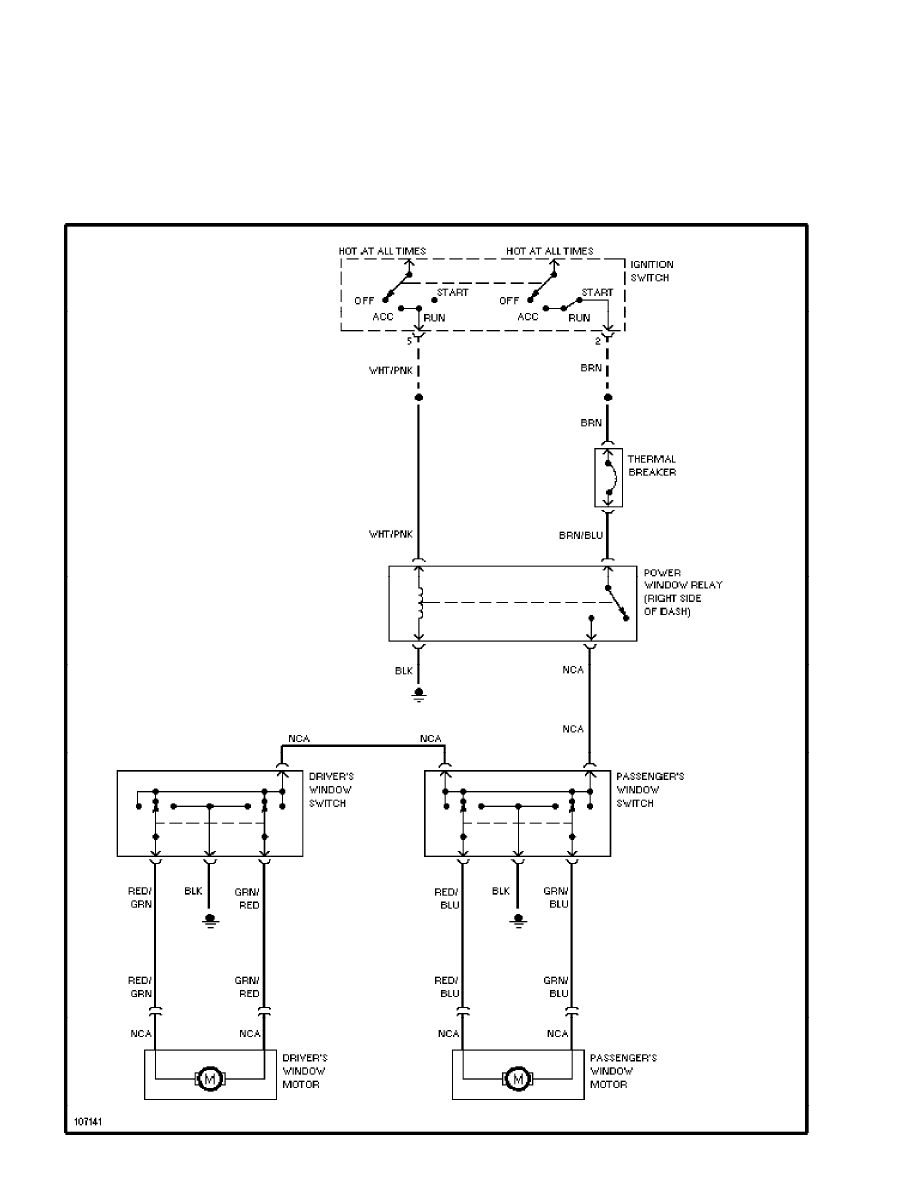

Power Window Circuit (p. 7)

1986 Jaguar XJS

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, September 10, 2004 12:40PM

background image

SYSTEM WIRING DIAGRAMS

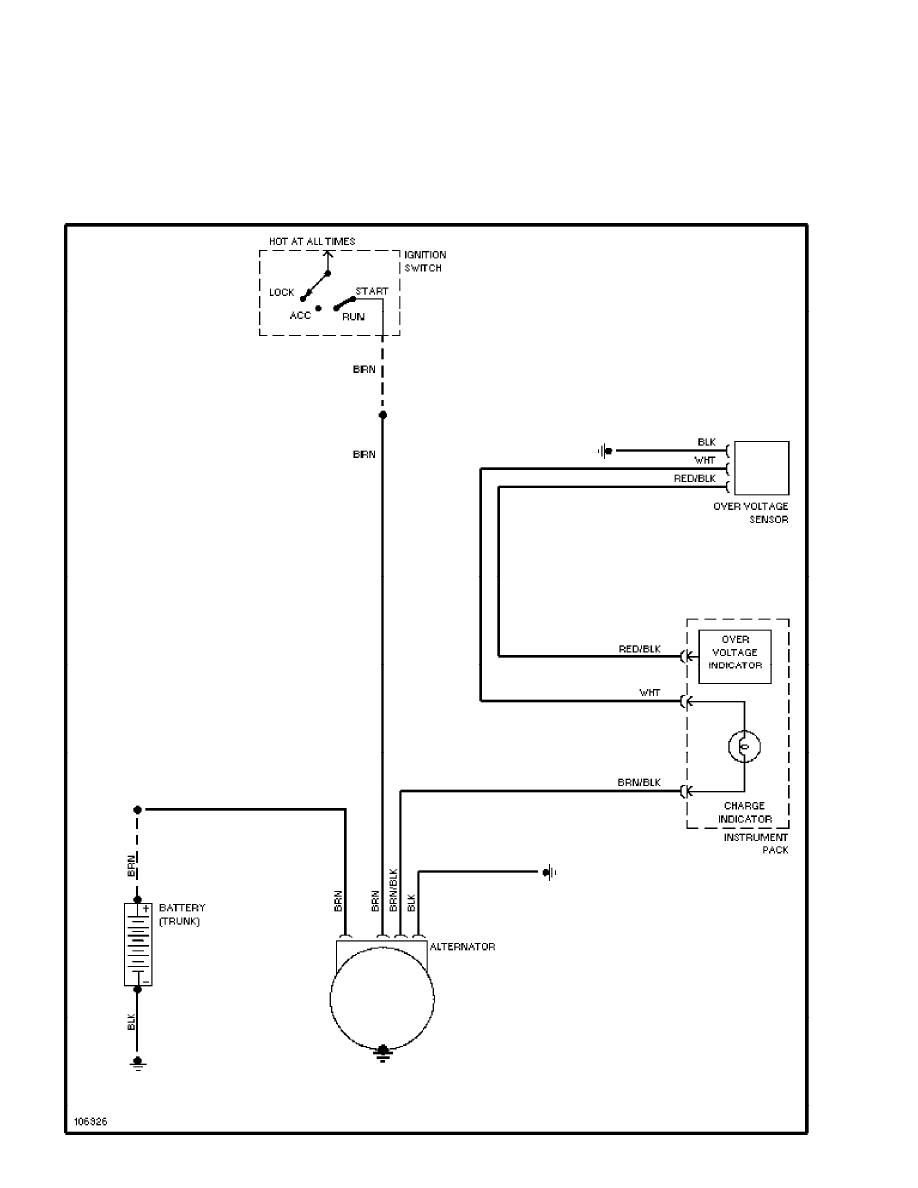

Charging Circuit (p. 8)

1986 Jaguar XJS

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, September 10, 2004 12:40PM

background image

SYSTEM WIRING DIAGRAMS

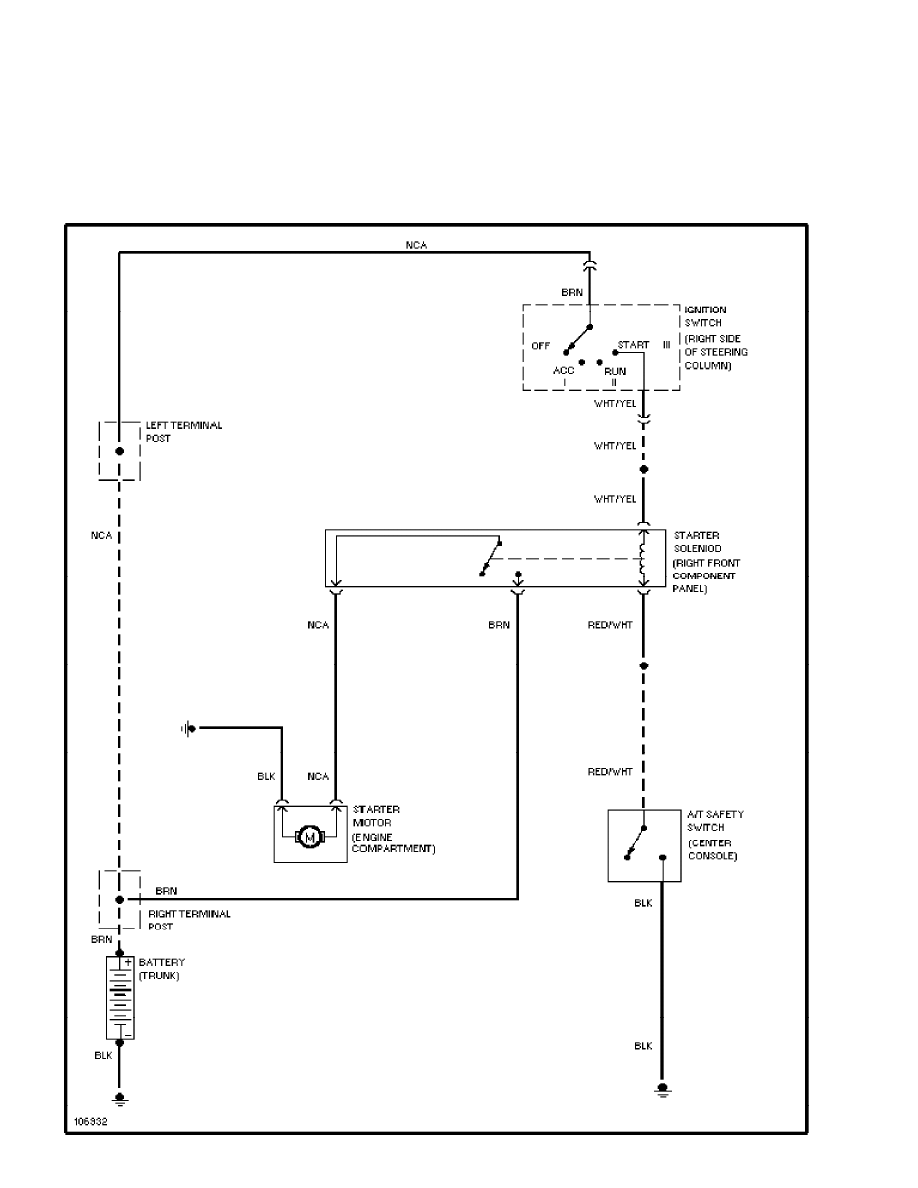

Starting Circuit (p. 9)

1986 Jaguar XJS

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, September 10, 2004 12:40PM

background image

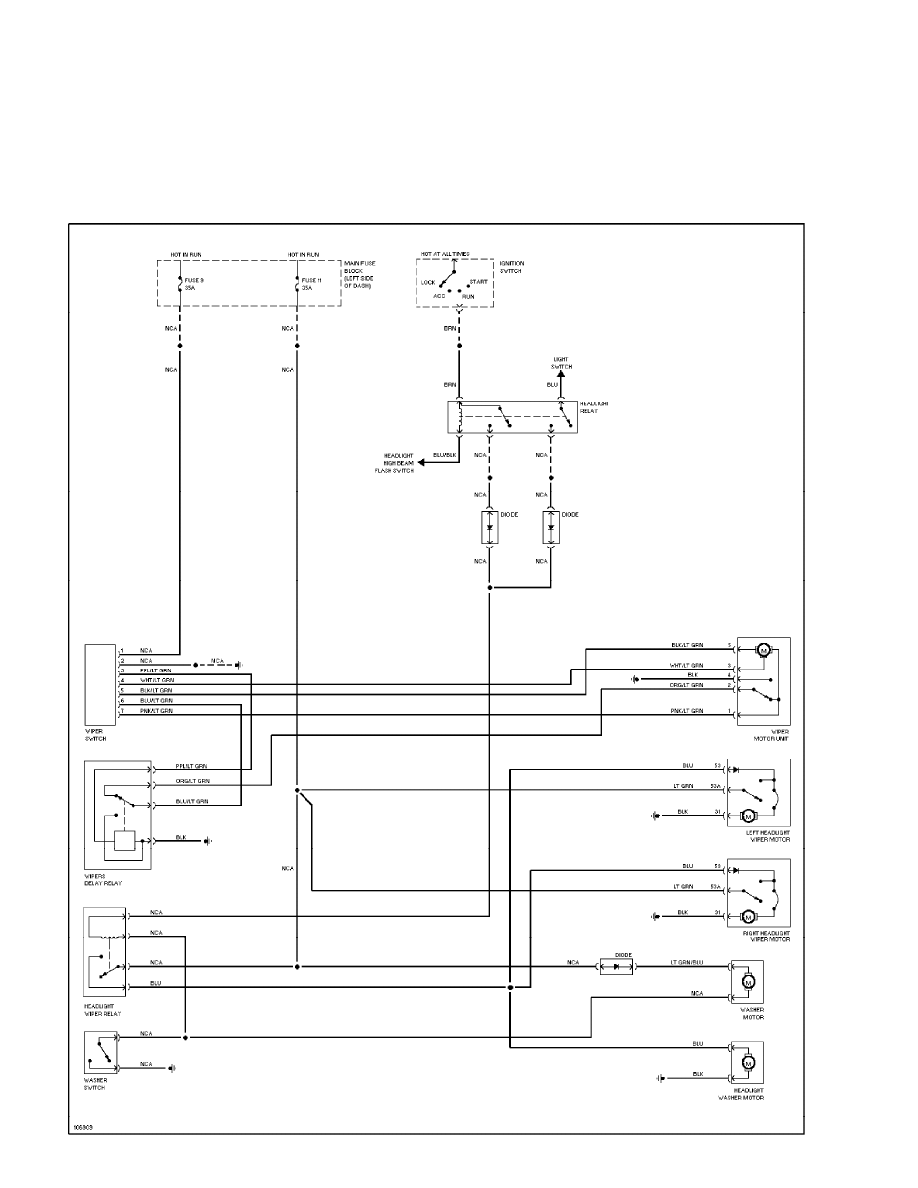

SYSTEM WIRING DIAGRAMS

Wiper/Washer Circuit (p. 10)

1986 Jaguar XJS

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, September 10, 2004 12:40PM

background image

WIRING DIAGRAMS

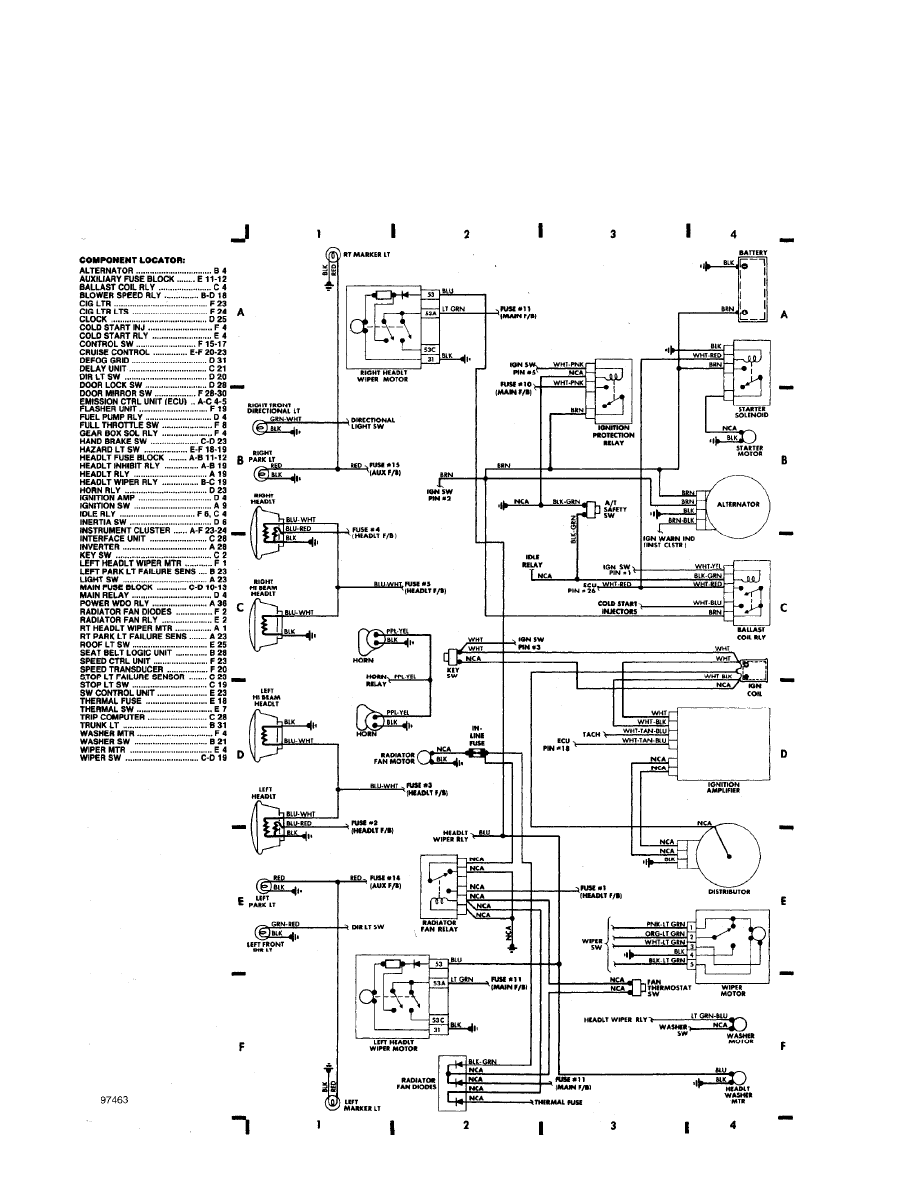

Fig. 1: Engine Compartment (Grid 1-4)

1986 Jaguar XJS

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, September 10, 2004 12:40PM

background image

WIRING DIAGRAMS

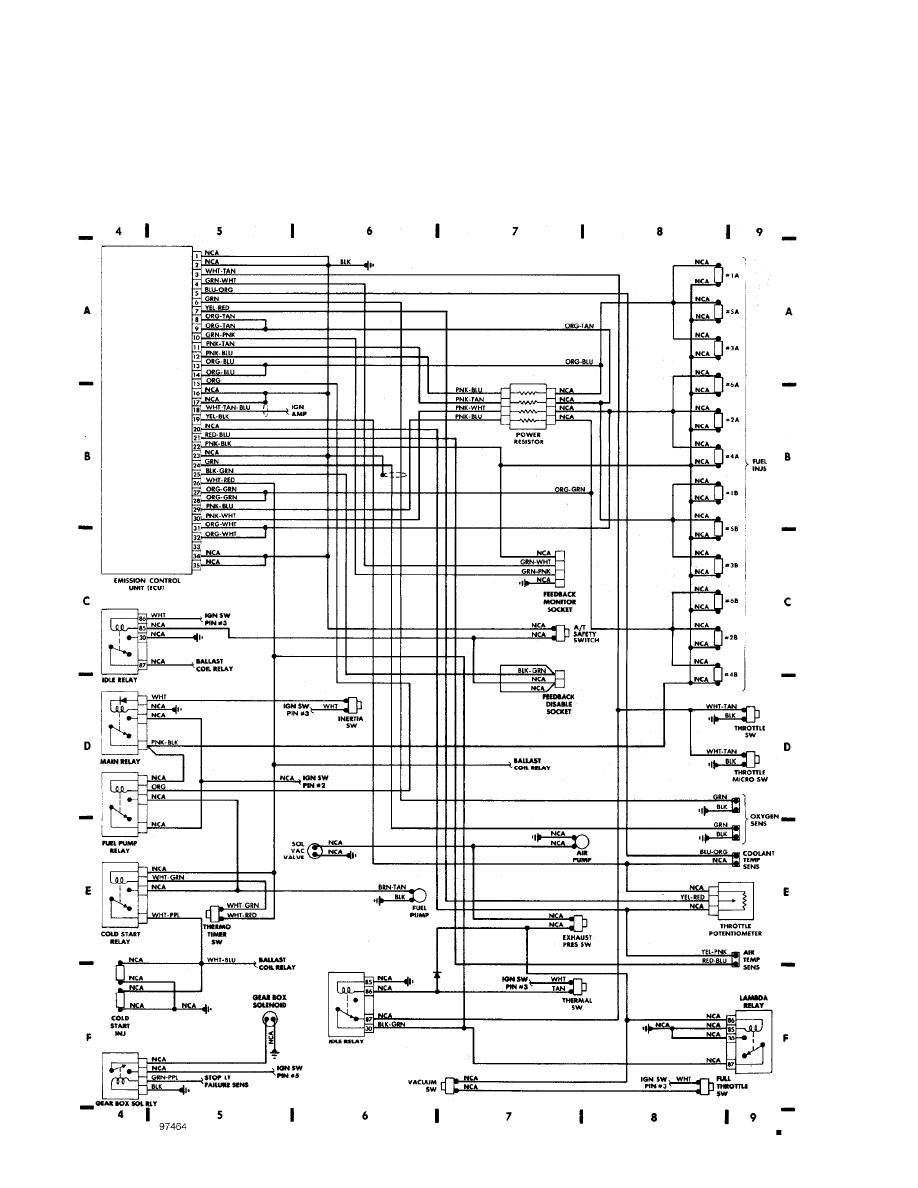

Fig. 2: Engine Compartment (Cont.) (Grid 4-9) (p. 2)

1986 Jaguar XJS

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, September 10, 2004 12:40PM

background image

WIRING DIAGRAMS

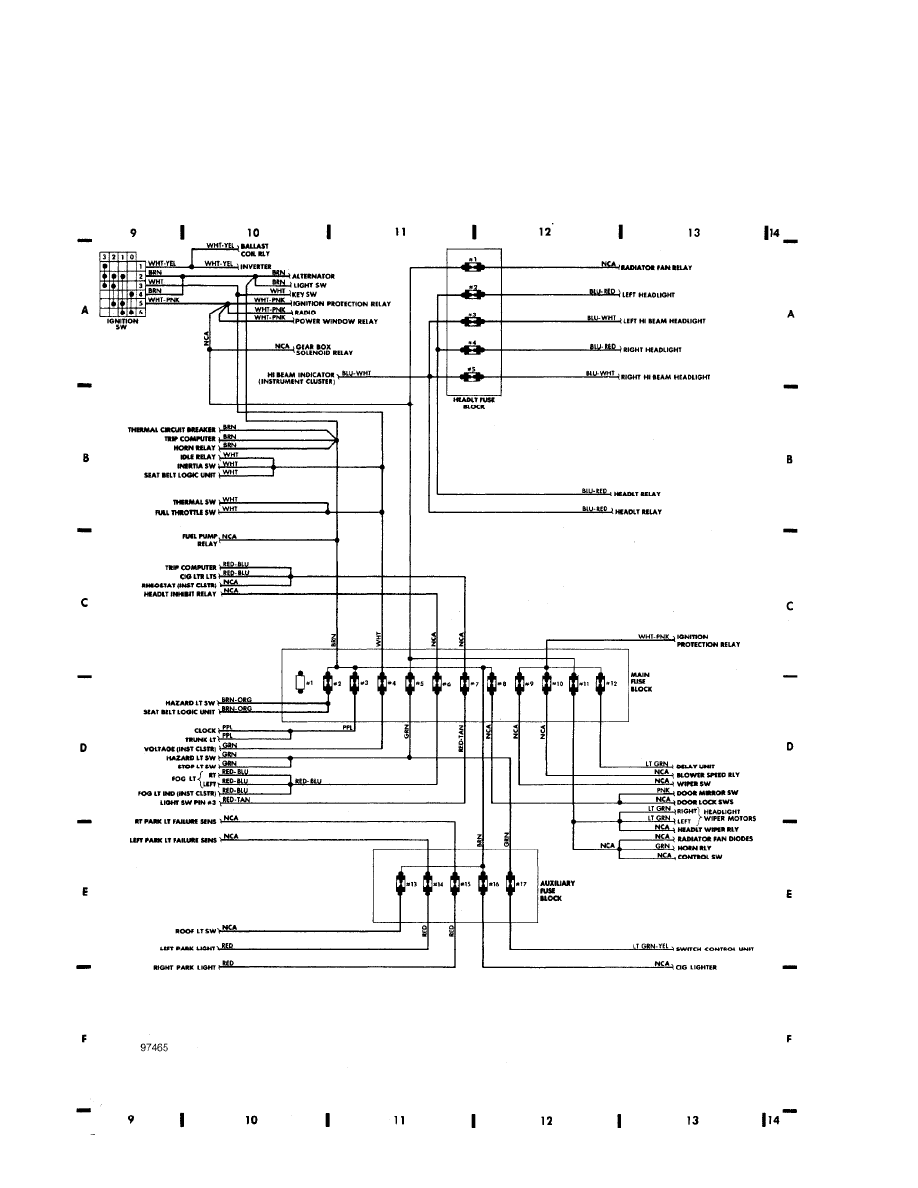

Fig. 3: Fuse Block (Grid 9-14) (p. 3)

1986 Jaguar XJS

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, September 10, 2004 12:40PM

background image

WIRING DIAGRAMS

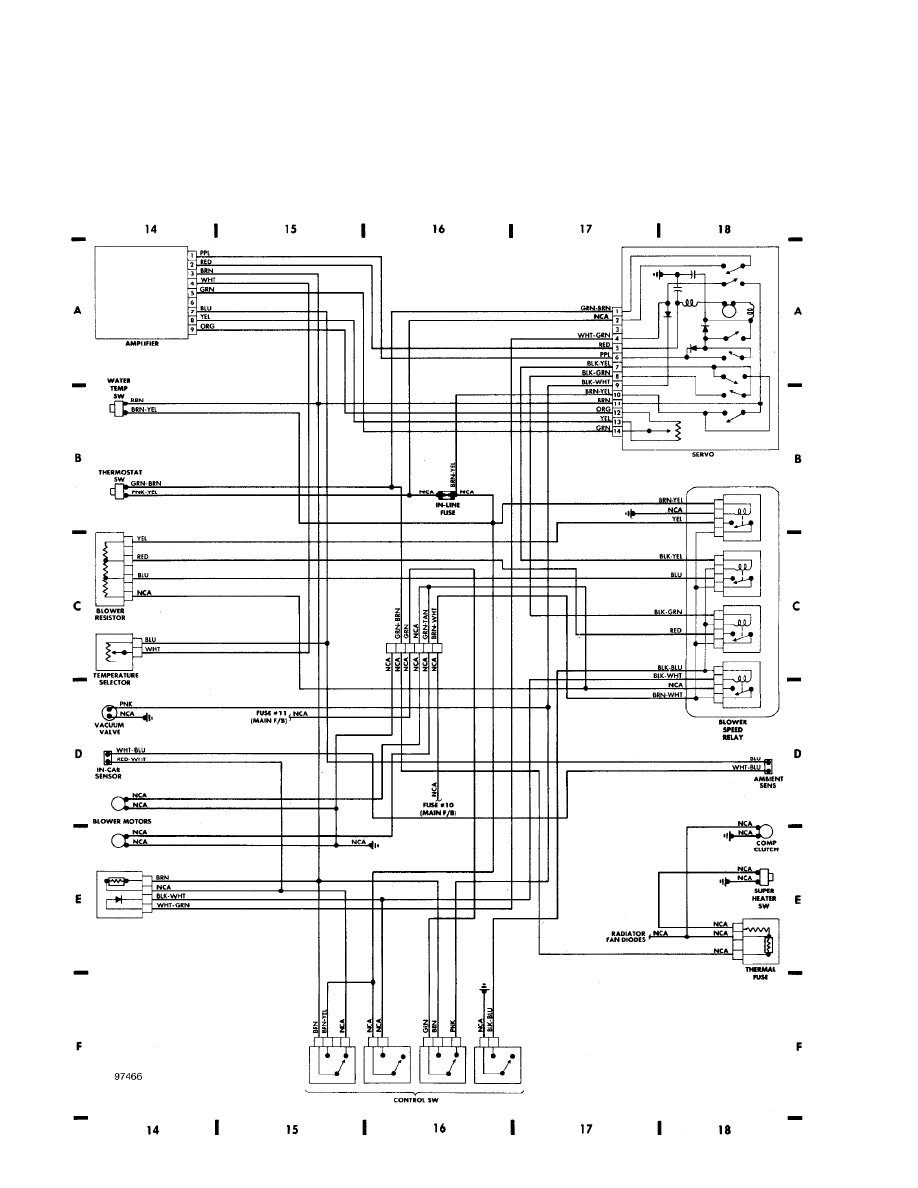

Fig. 4: Underdash (Grid 14-18) (p. 4)

1986 Jaguar XJS

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, September 10, 2004 12:40PM

background image

WIRING DIAGRAMS

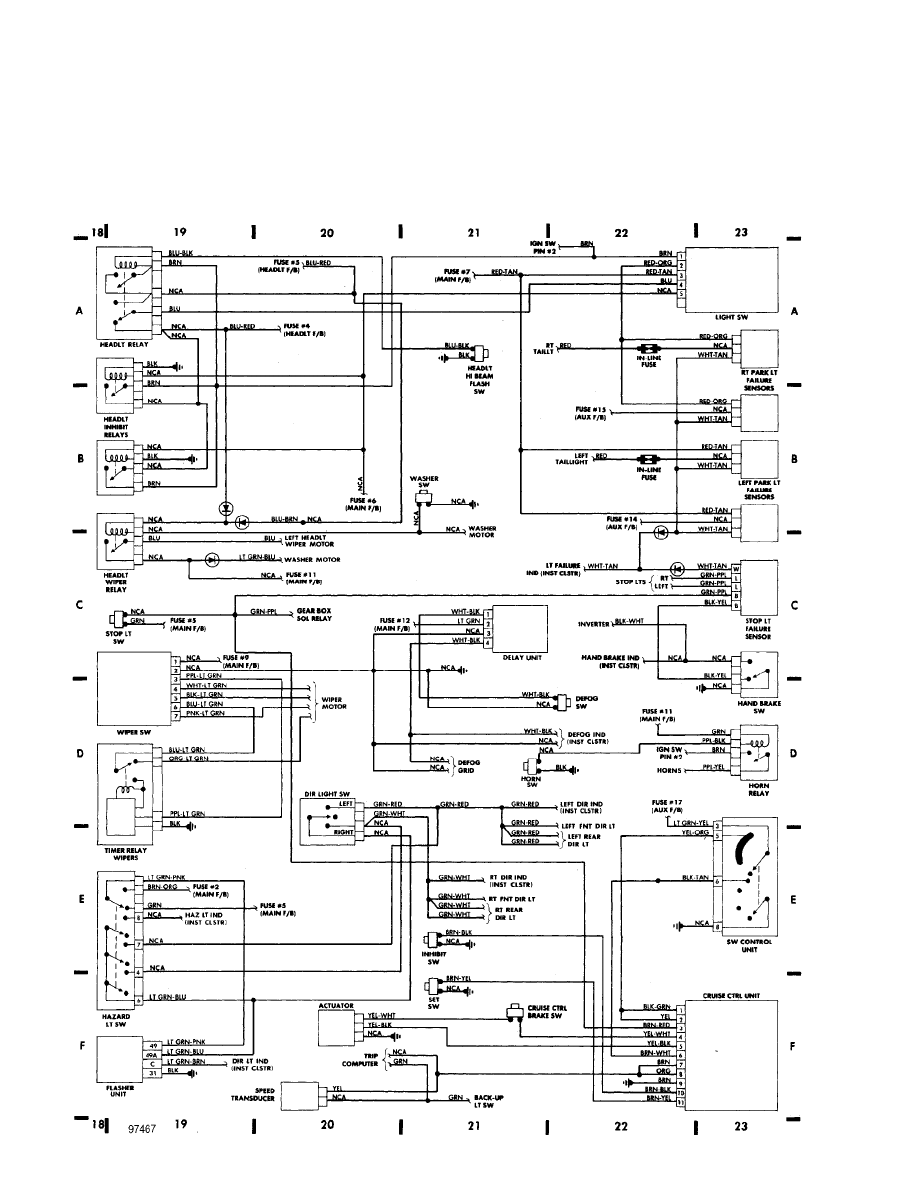

Fig. 5: Underdash (Cont.) (Grid 18-23) (p. 5)

1986 Jaguar XJS

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, September 10, 2004 12:40PM

background image

WIRING DIAGRAMS

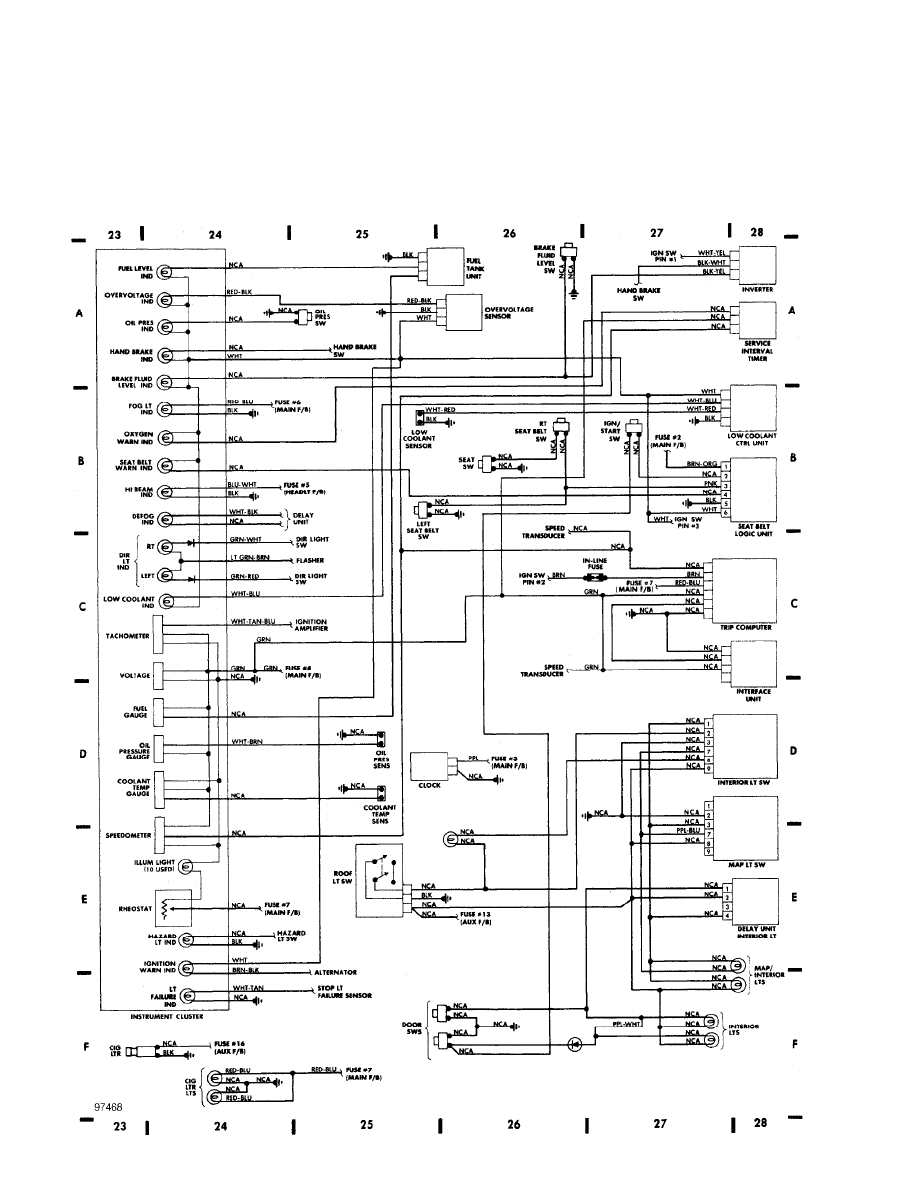

Fig. 6: Instrument Panel (Grid 23-28) (p. 6)

1986 Jaguar XJS

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, September 10, 2004 12:40PM

background image

WIRING DIAGRAMS

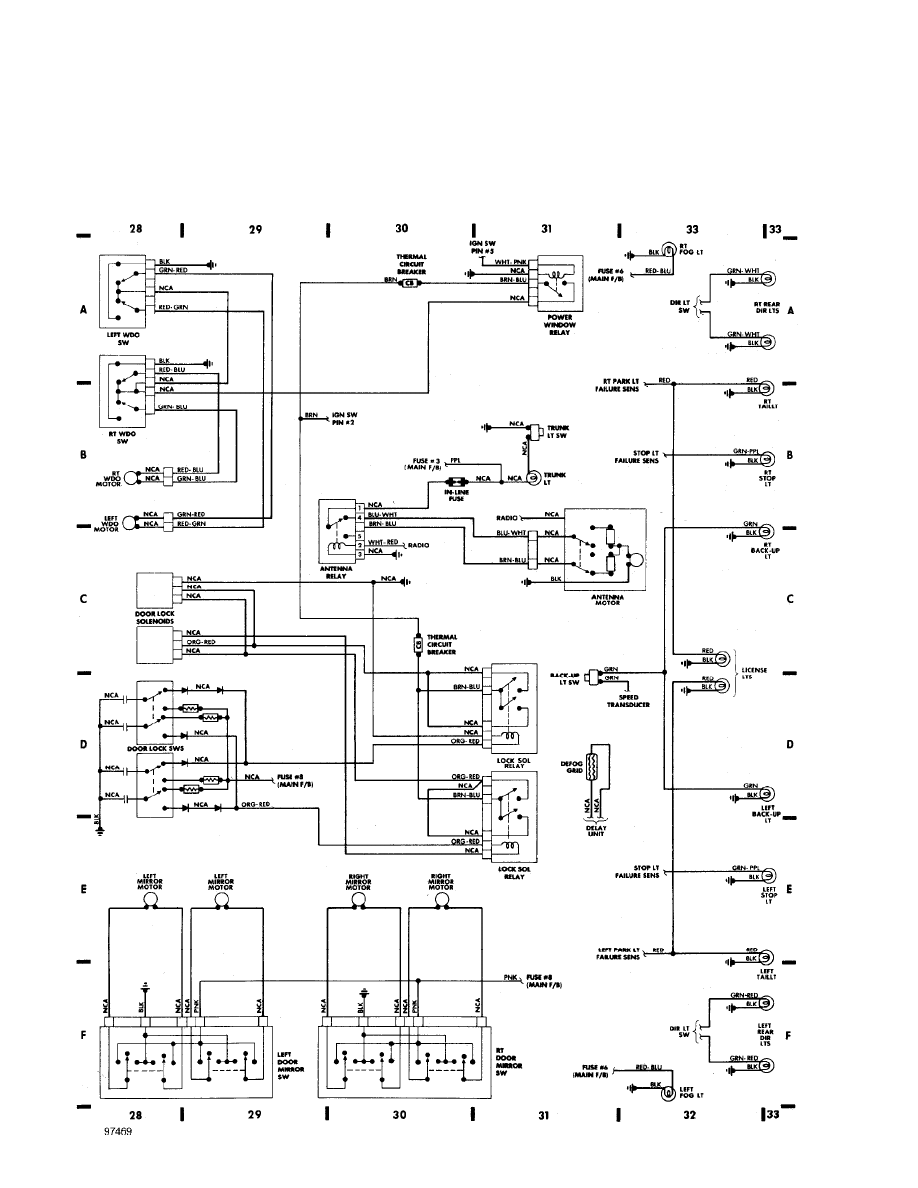

Fig. 7: Rear Compartment & Accessories (Grid 28-33) (p. 7)

1986 Jaguar XJS

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, September 10, 2004 12:40PM
