JAGUAR XJS 1989

SYSTEM WIRING DIAGRAMS

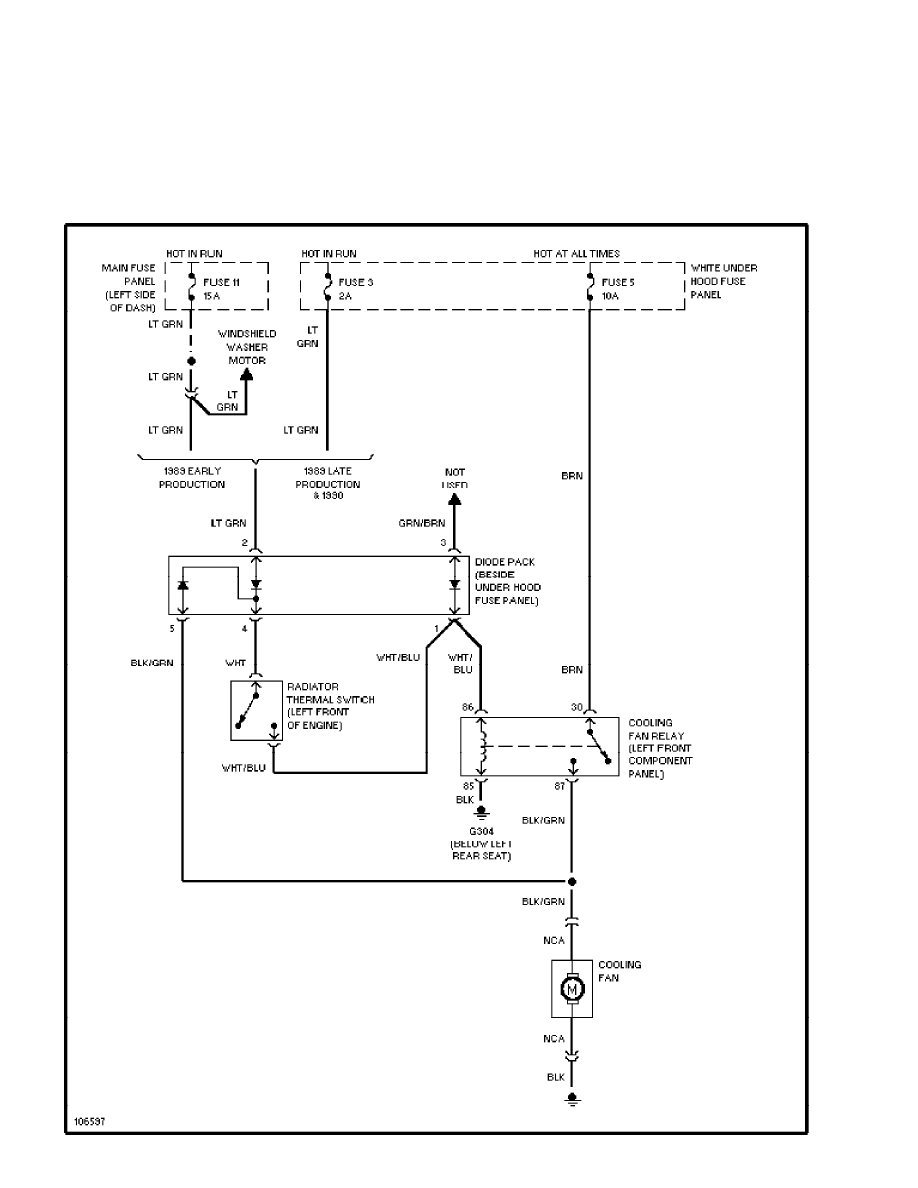

Cooling Fan Circuit

1989 Jaguar XJS

For x

Friday, September 10, 2004 12:50PM

SYSTEM WIRING DIAGRAMS

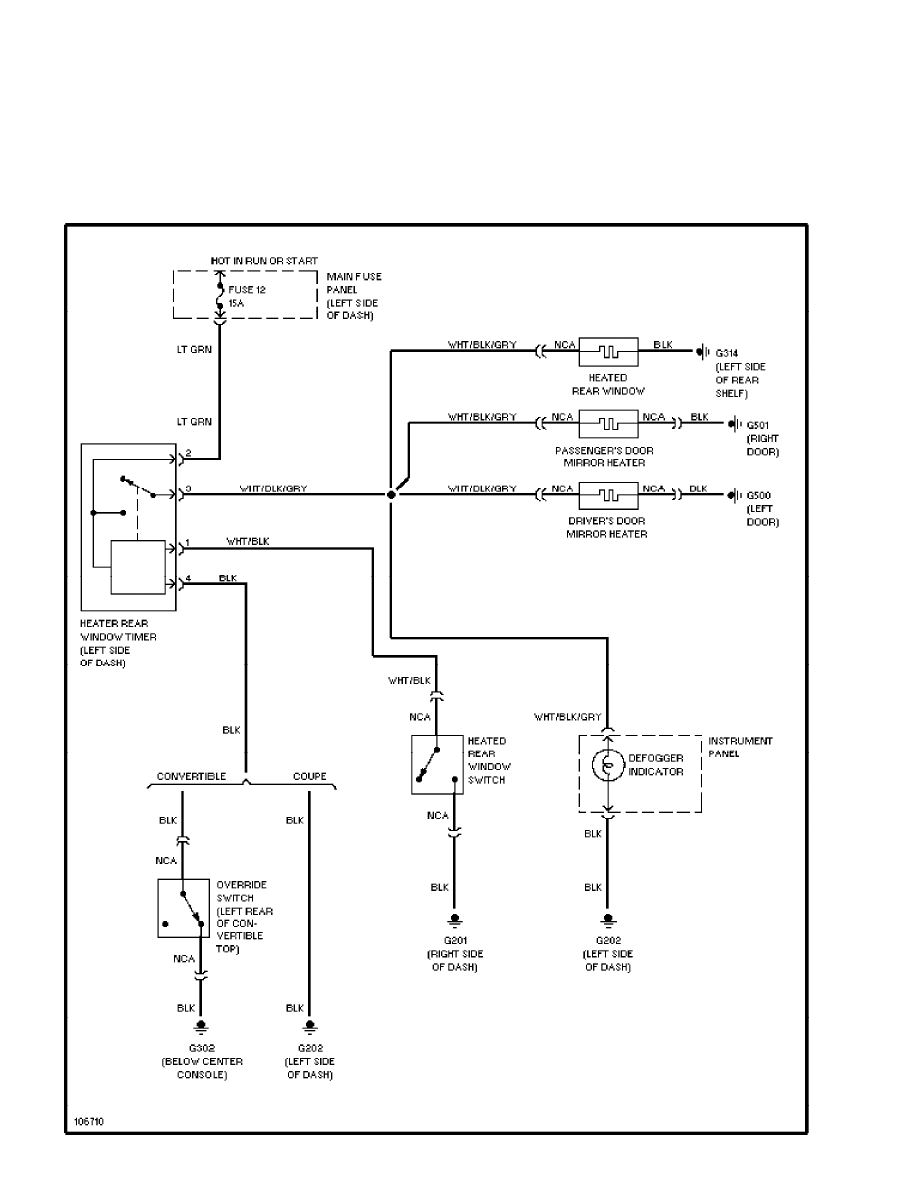

Defogger Circuit (p. 2)

1989 Jaguar XJS

For x

Friday, September 10, 2004 12:50PM

SYSTEM WIRING DIAGRAMS

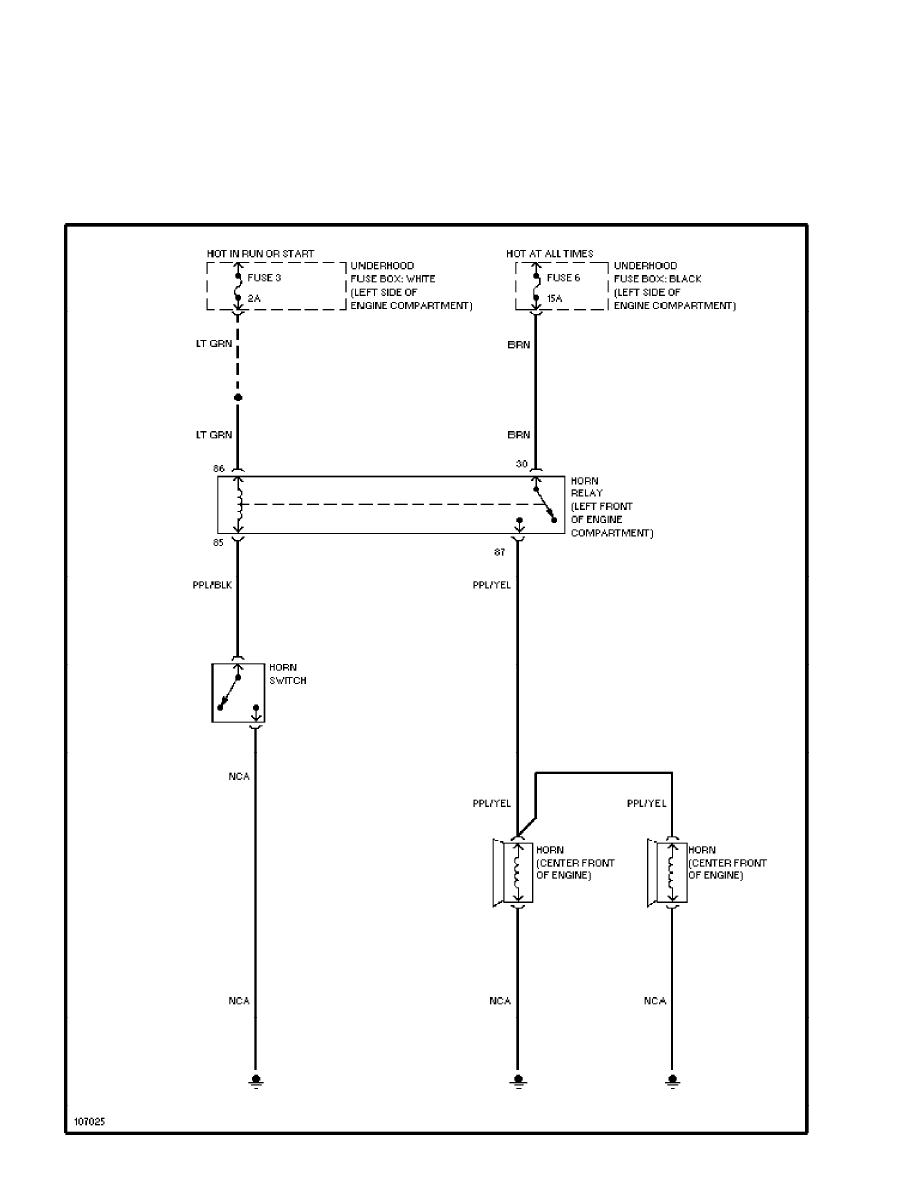

Horn Circuit (p. 3)

1989 Jaguar XJS

For x

Friday, September 10, 2004 12:50PM

SYSTEM WIRING DIAGRAMS

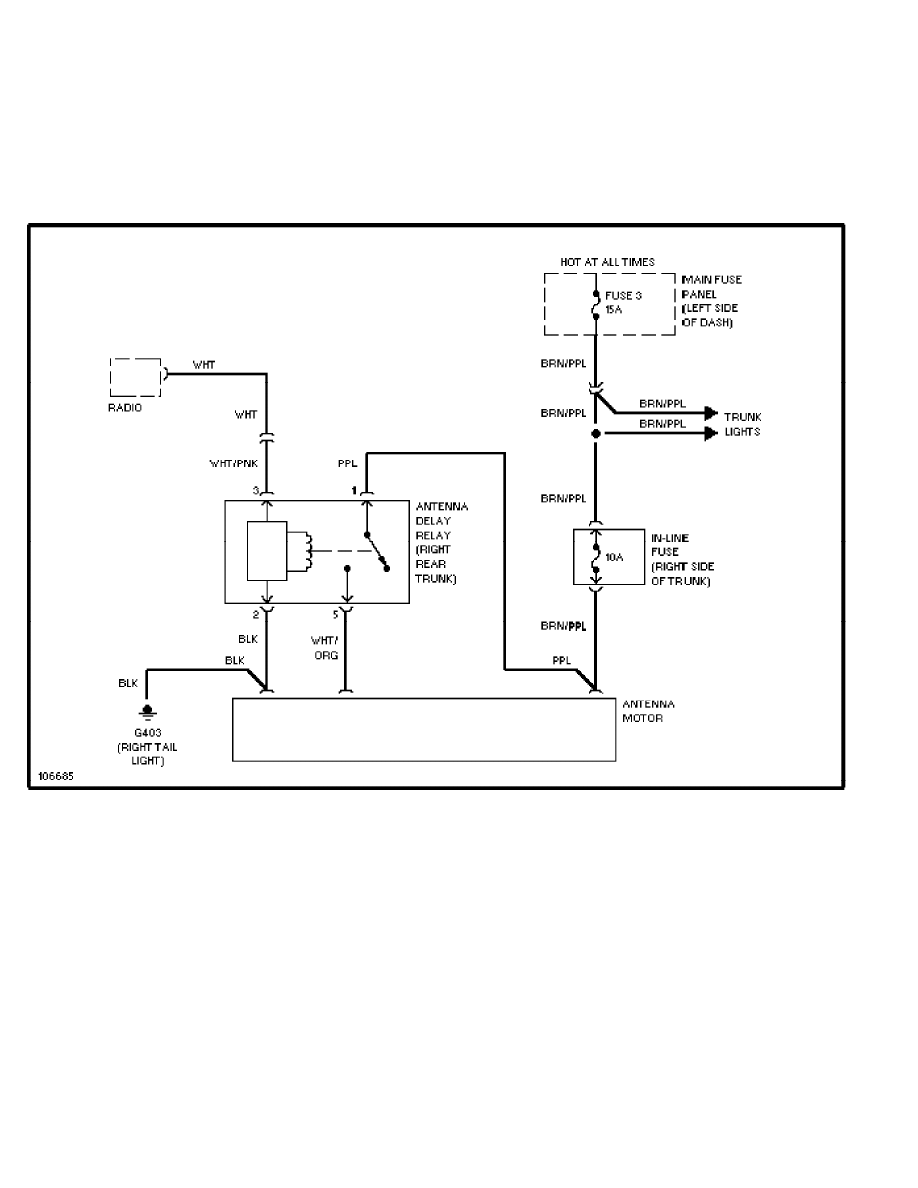

Power Antenna Circuit (p. 4)

1989 Jaguar XJS

For x

Friday, September 10, 2004 12:50PM

SYSTEM WIRING DIAGRAMS

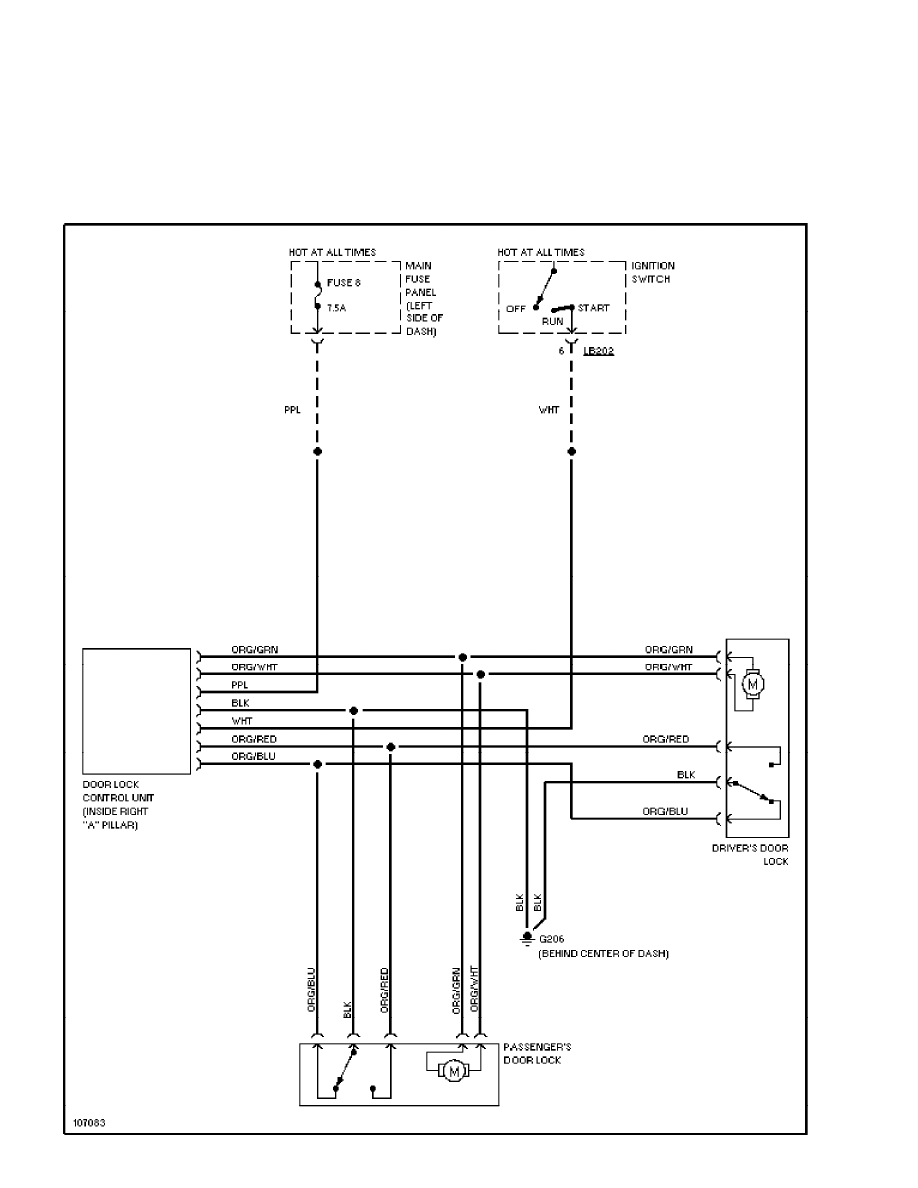

Power Door Lock Circuit (p. 5)

1989 Jaguar XJS

For x

Friday, September 10, 2004 12:50PM

SYSTEM WIRING DIAGRAMS

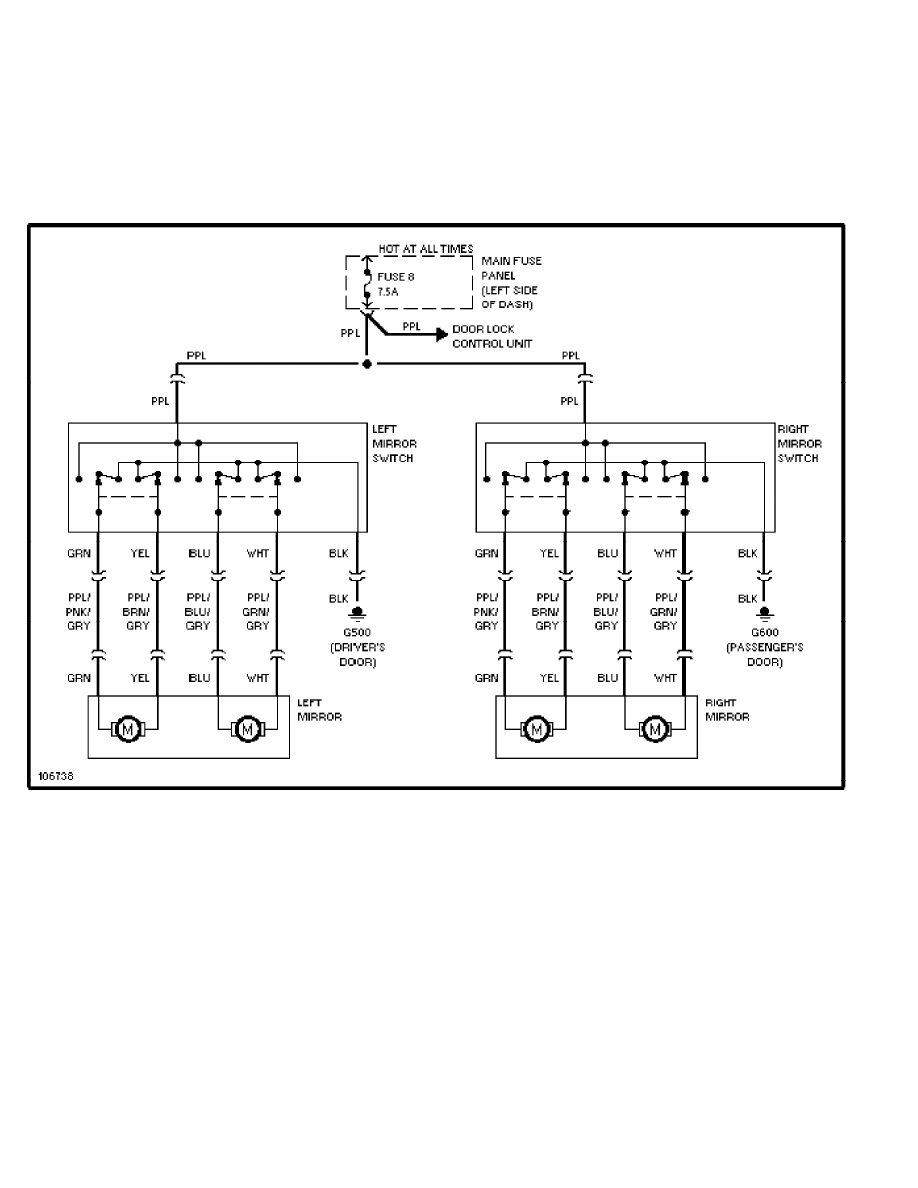

Power Mirror Circuit (p. 6)

1989 Jaguar XJS

For x

Friday, September 10, 2004 12:50PM

SYSTEM WIRING DIAGRAMS

Heated Seats Circuit (p. 7)

1989 Jaguar XJS

For x

Friday, September 10, 2004 12:50PM

SYSTEM WIRING DIAGRAMS

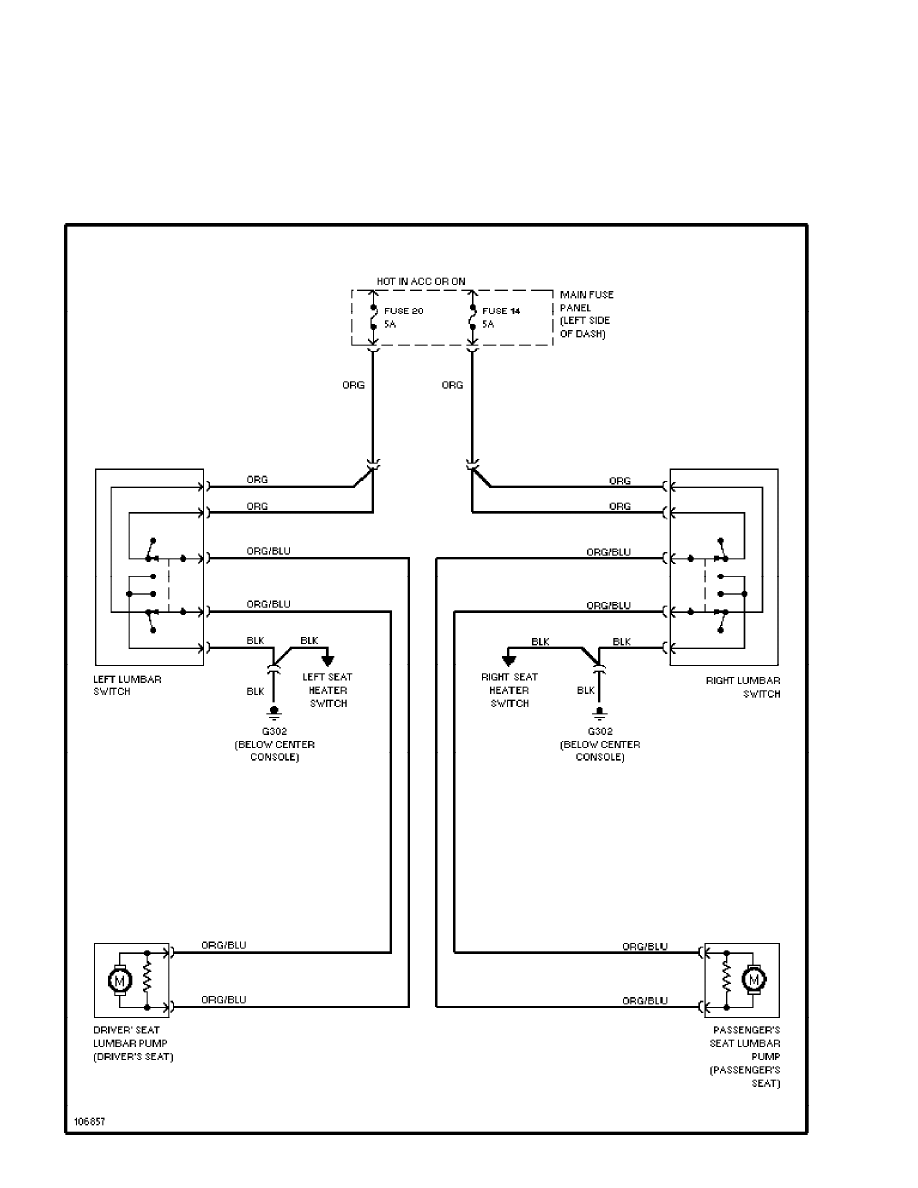

Lumbar Circuit (p. 8)

1989 Jaguar XJS

For x

Friday, September 10, 2004 12:50PM

SYSTEM WIRING DIAGRAMS

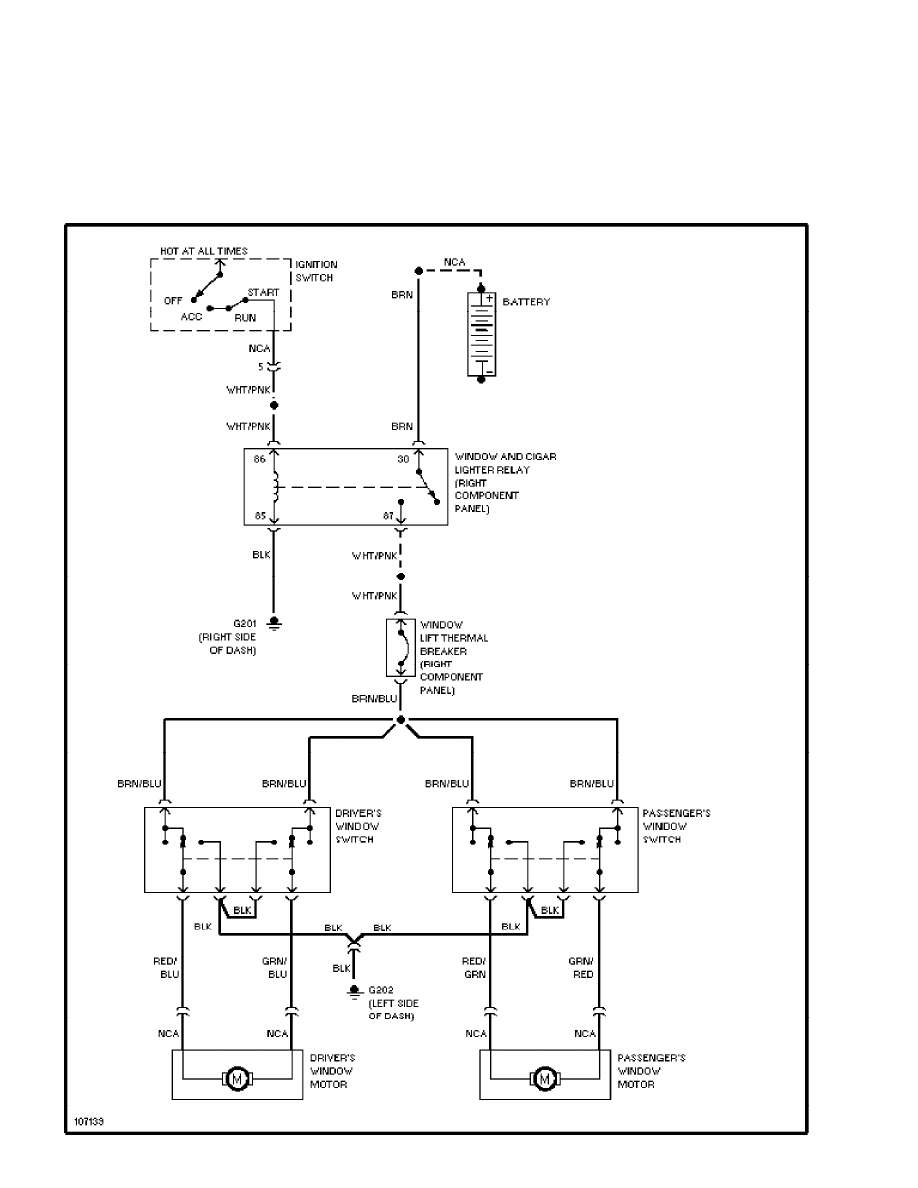

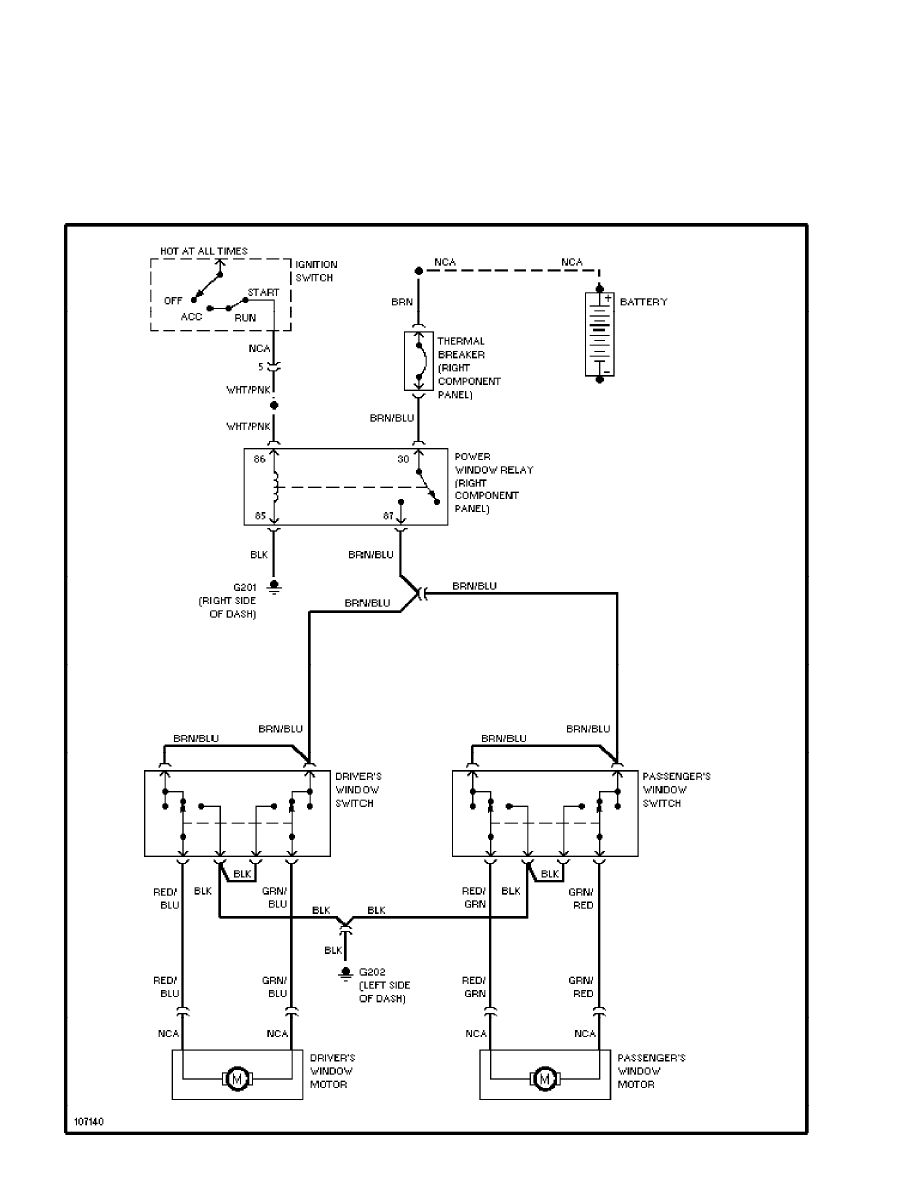

Power Window Circuit, Early Production (p. 9)

1989 Jaguar XJS

For x

Friday, September 10, 2004 12:50PM

SYSTEM WIRING DIAGRAMS

Power Window Circuit, Late Production (p. 10)

1989 Jaguar XJS

For x

Friday, September 10, 2004 12:50PM

SYSTEM WIRING DIAGRAMS

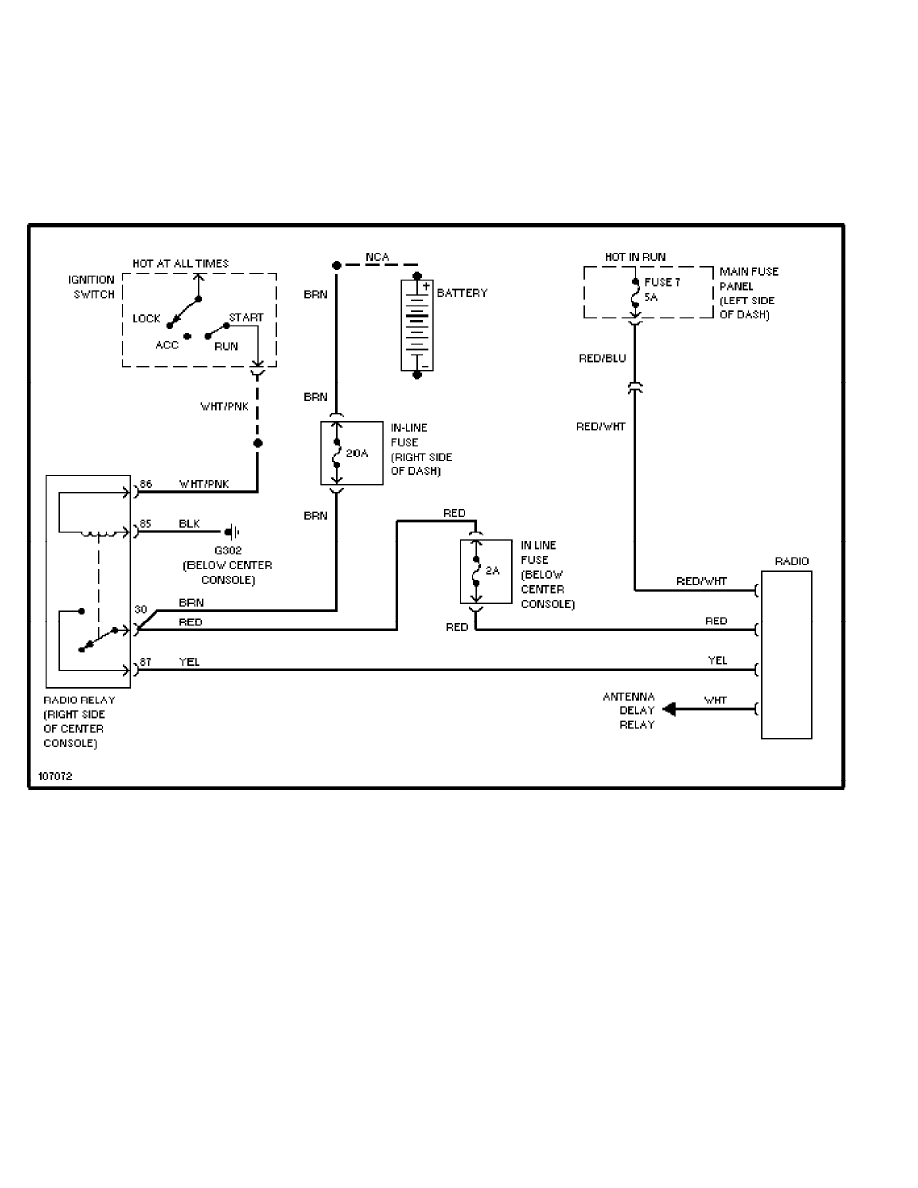

Radio Circuits (p. 11)

1989 Jaguar XJS

For x

Friday, September 10, 2004 12:50PM

SYSTEM WIRING DIAGRAMS

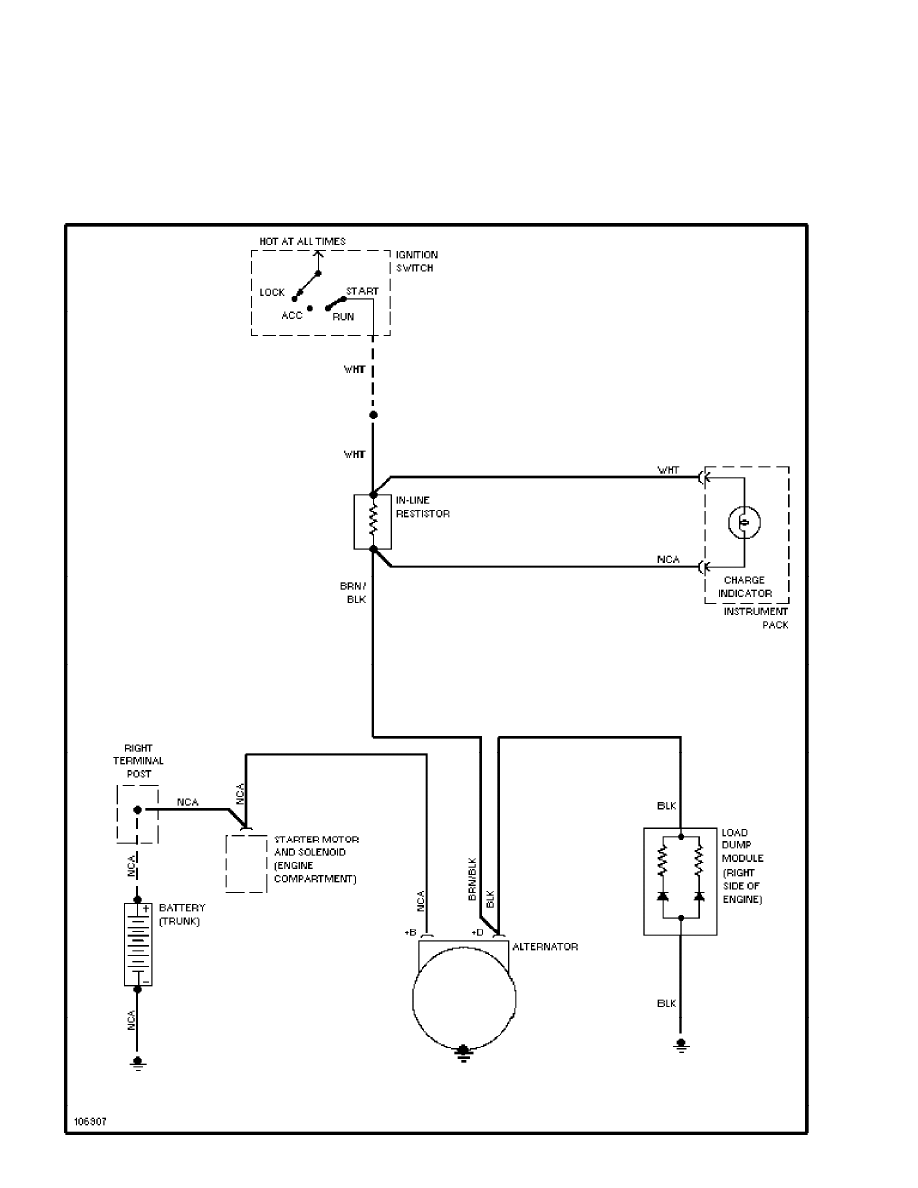

Charging Circuit (p. 12)

1989 Jaguar XJS

For x

Friday, September 10, 2004 12:50PM

SYSTEM WIRING DIAGRAMS

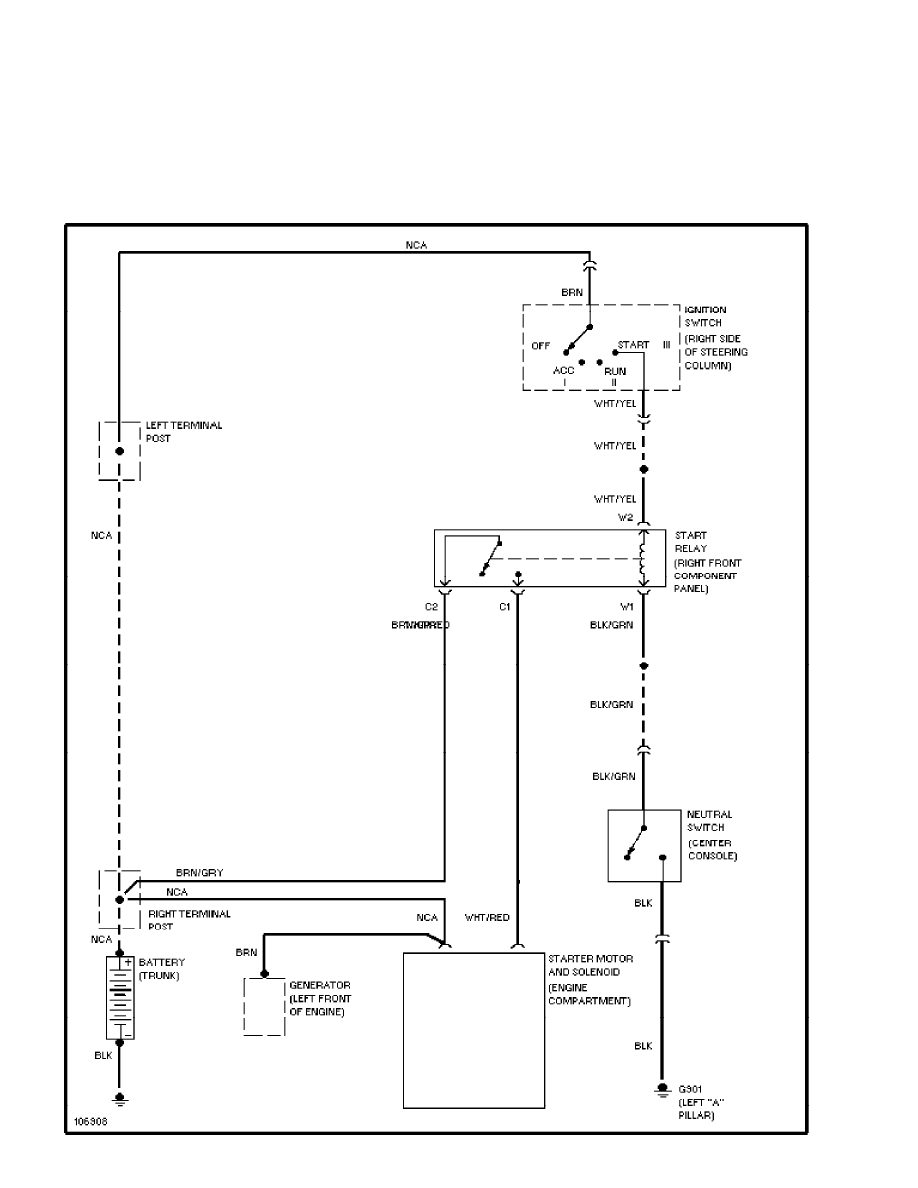

Starting Circuit (p. 13)

1989 Jaguar XJS

For x

Friday, September 10, 2004 12:50PM

SYSTEM WIRING DIAGRAMS

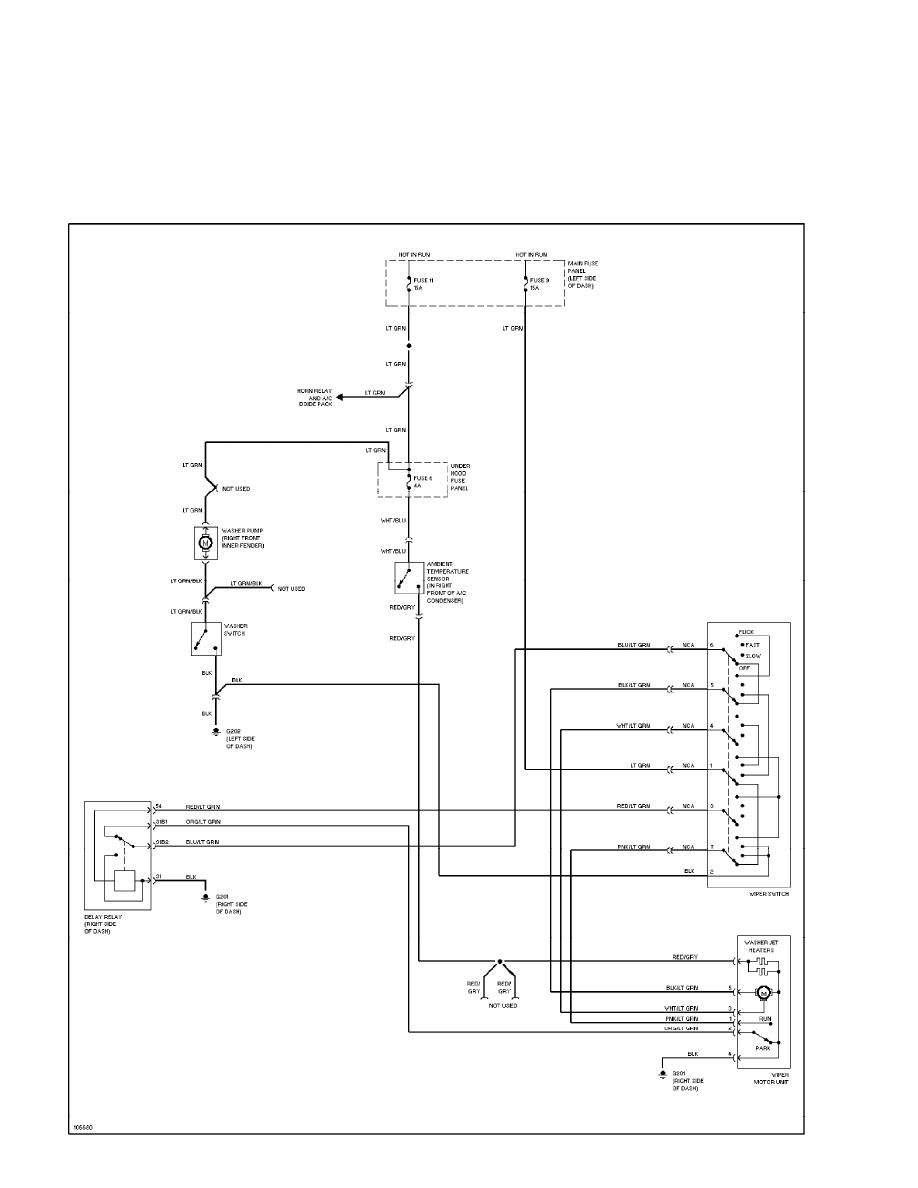

Wiper/Washer Circuit, Early Production (p. 14)

1989 Jaguar XJS

For x

Friday, September 10, 2004 12:50PM

SYSTEM WIRING DIAGRAMS

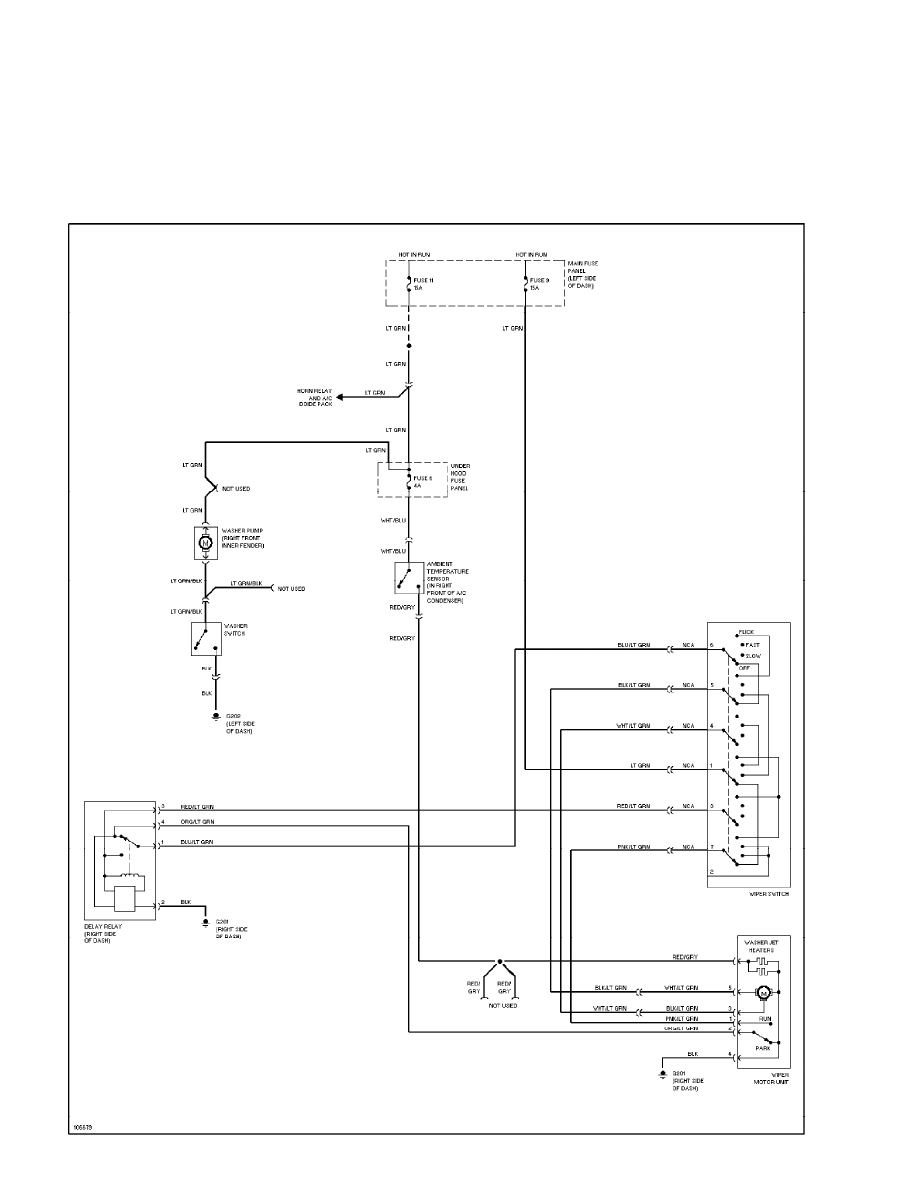

Wiper/Washer Circuit, Late Production (p. 15)

1989 Jaguar XJS

For x

Friday, September 10, 2004 12:50PM

WIRING DIAGRAMS

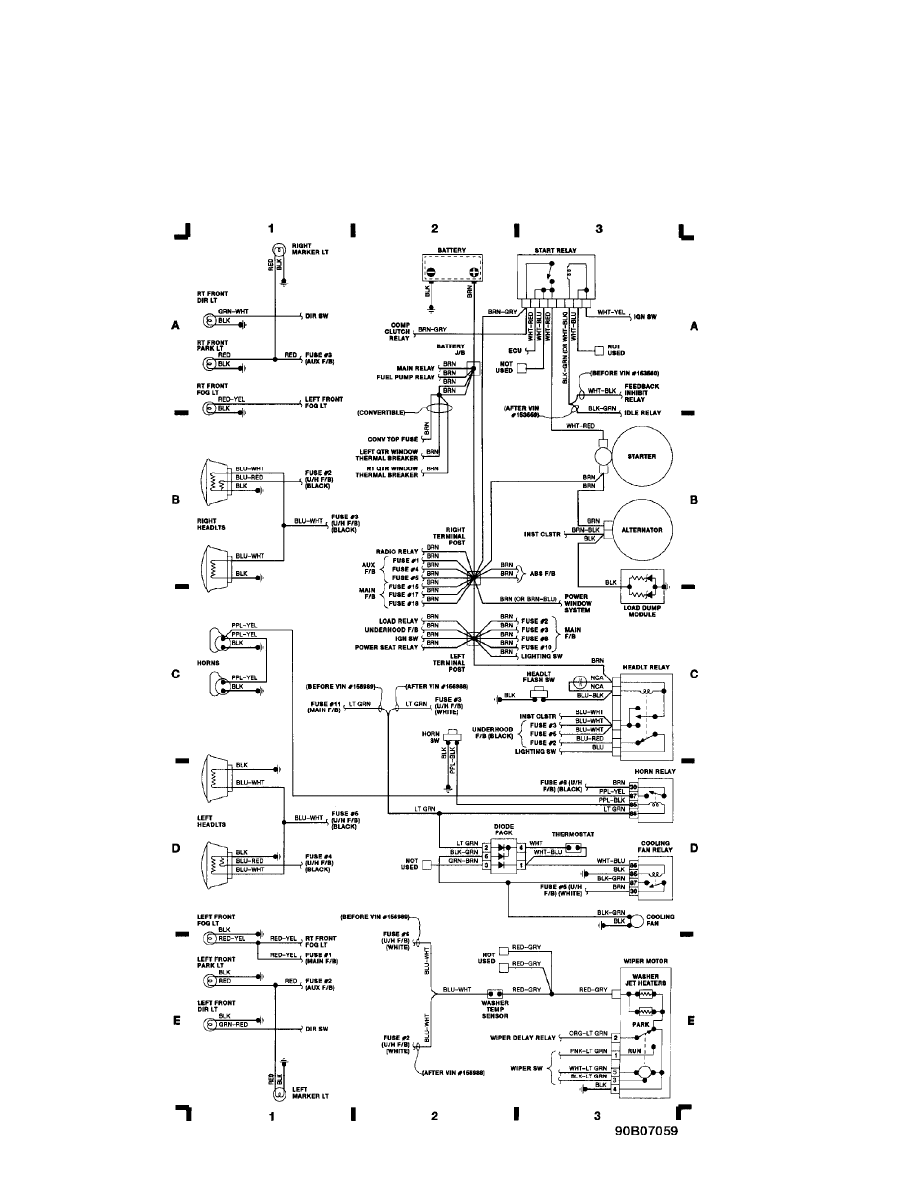

Fig. 1: Engine Compartment & Headlights

1989 Jaguar XJS

For x

Friday, September 10, 2004 12:50PM

WIRING DIAGRAMS

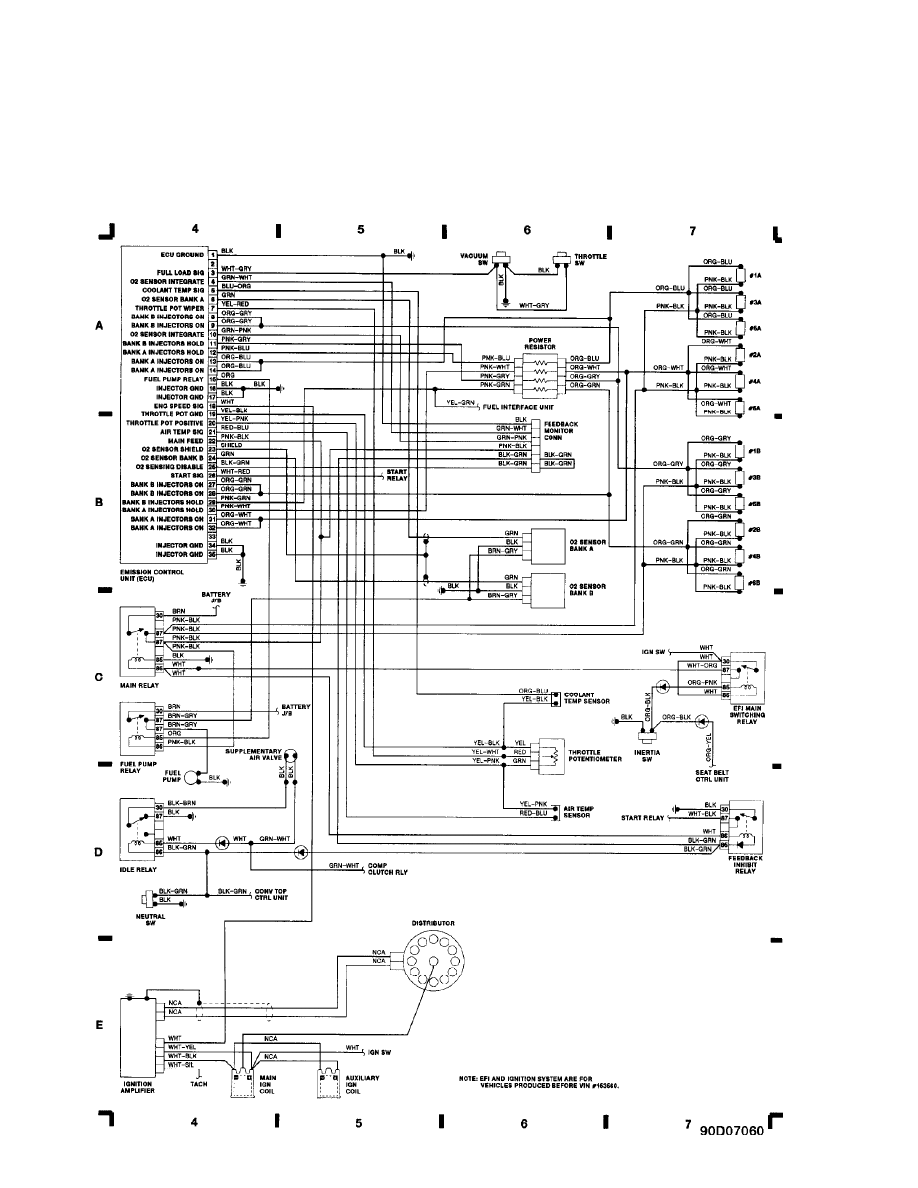

Fig. 2: Computer Engine Control (Before VIN 153560) (p. 2)

1989 Jaguar XJS

For x

Friday, September 10, 2004 12:50PM

WIRING DIAGRAMS

Fig. 3: Computer Engine Control (After VIN 153569) (p. 3)

1989 Jaguar XJS

For x

Friday, September 10, 2004 12:50PM

WIRING DIAGRAMS

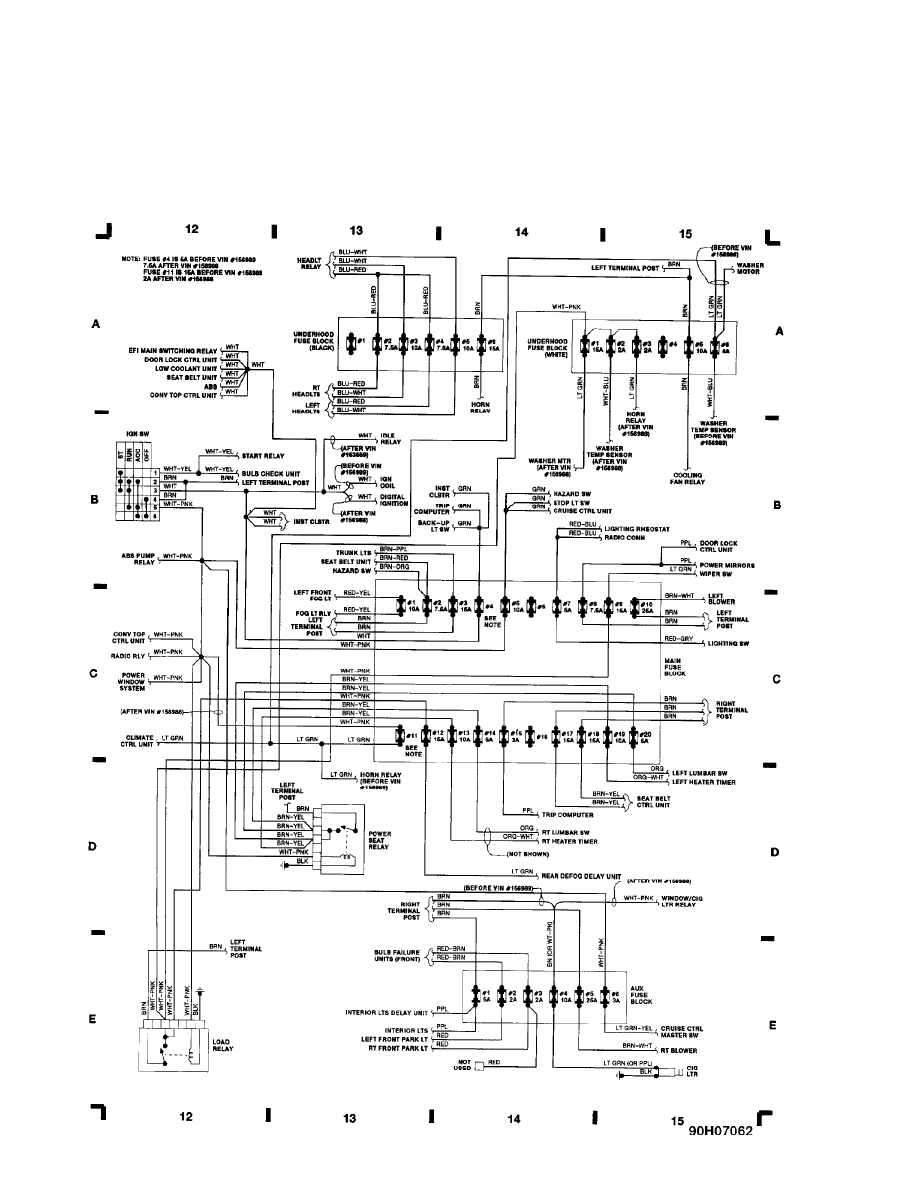

Fig. 4: Fuse Block (p. 4)

1989 Jaguar XJS

For x

Friday, September 10, 2004 12:50PM

WIRING DIAGRAMS

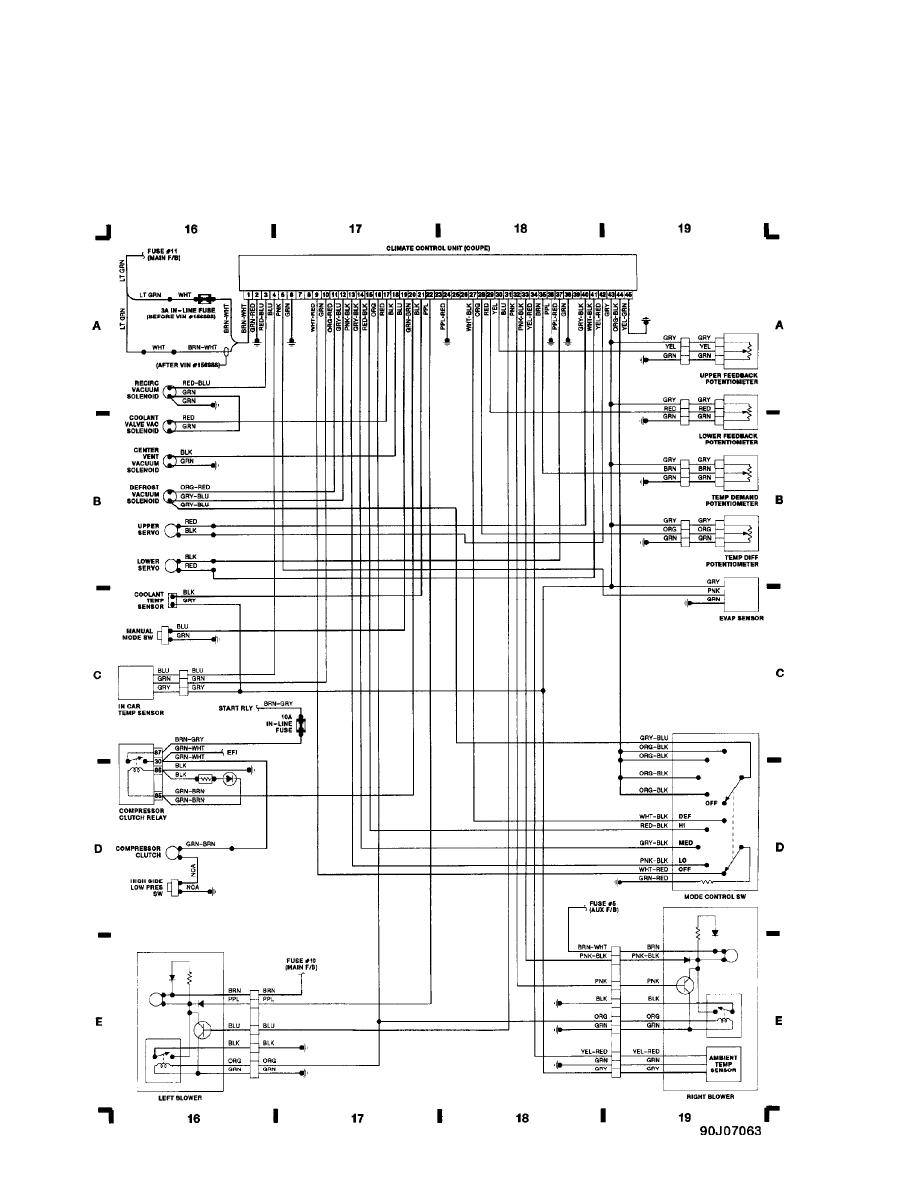

Fig. 5: Auto A/C & Heating (Coupe) (p. 5)

1989 Jaguar XJS

For x

Friday, September 10, 2004 12:50PM

WIRING DIAGRAMS

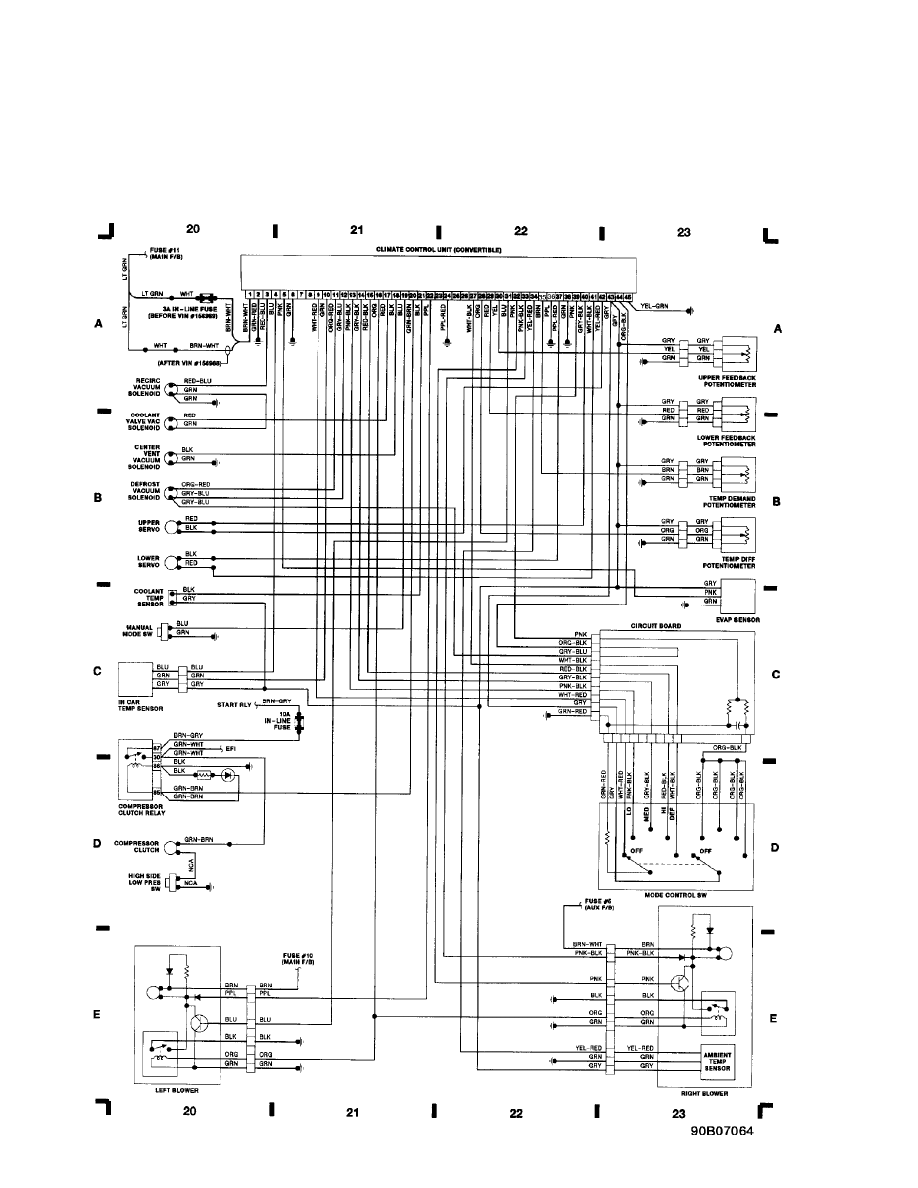

Fig. 6: Auto A/C & Heating (Convertible) (p. 6)

1989 Jaguar XJS

For x

Friday, September 10, 2004 12:50PM

WIRING DIAGRAMS

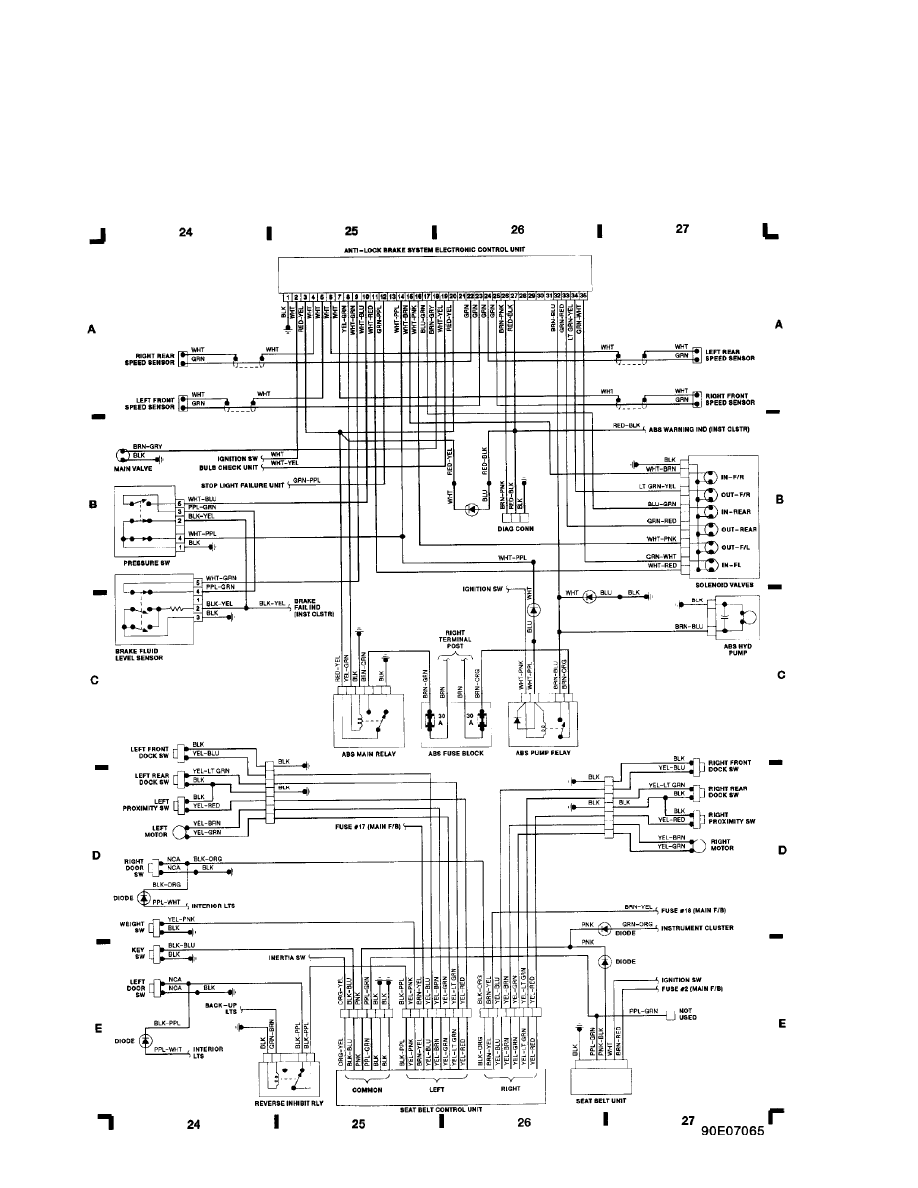

Fig. 7: Anti-Lock Brake System and Passive Restraint (p. 7)

1989 Jaguar XJS

For x

Friday, September 10, 2004 12:50PM

WIRING DIAGRAMS

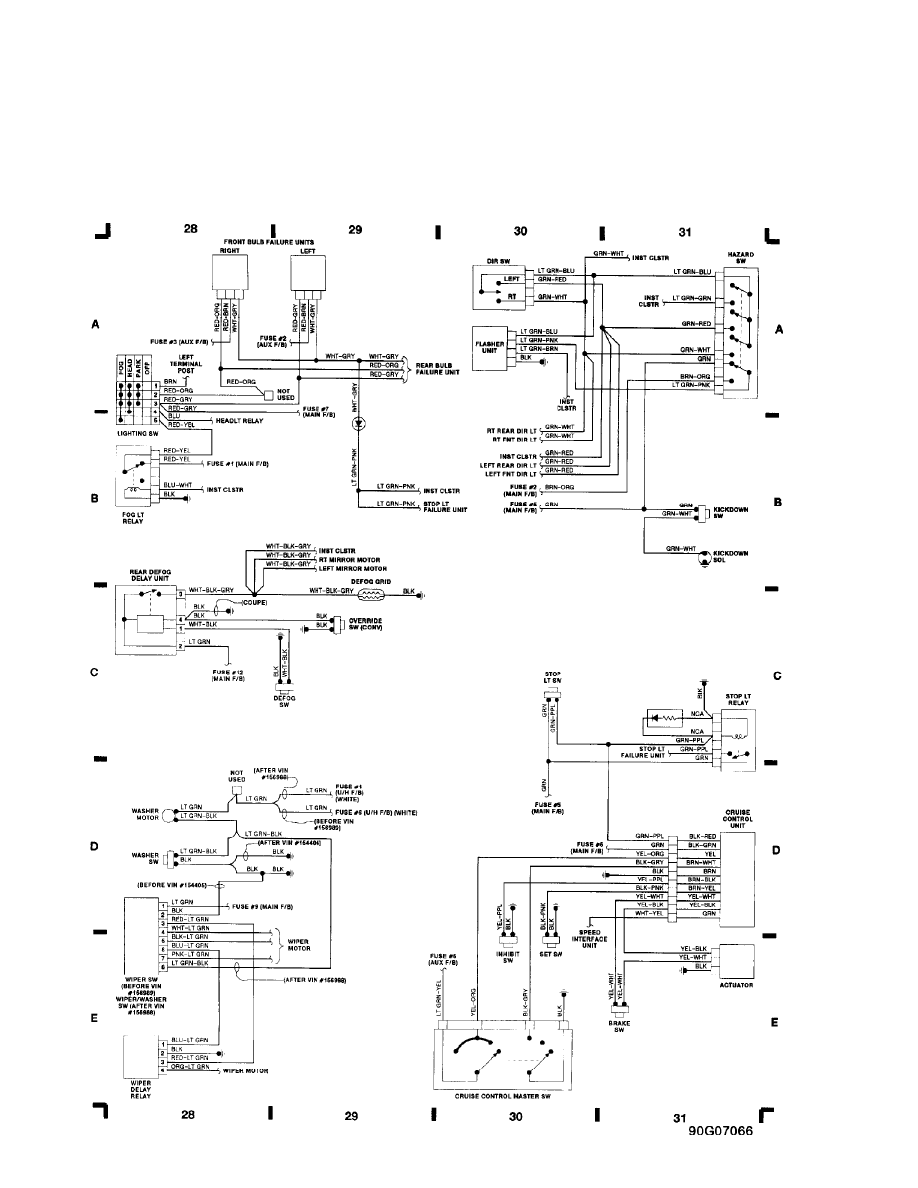

Fig. 8: Cruise Control, Washer/Wiper System and Lamp Monitor System (p. 8)

1989 Jaguar XJS

For x

Friday, September 10, 2004 12:50PM

WIRING DIAGRAMS

Fig. 9: Instrument Panel (p. 9)

1989 Jaguar XJS

For x

Friday, September 10, 2004 12:50PM

WIRING DIAGRAMS

Fig. 10: Accessories (p. 10)

1989 Jaguar XJS

For x

Friday, September 10, 2004 12:50PM

WIRING DIAGRAMS

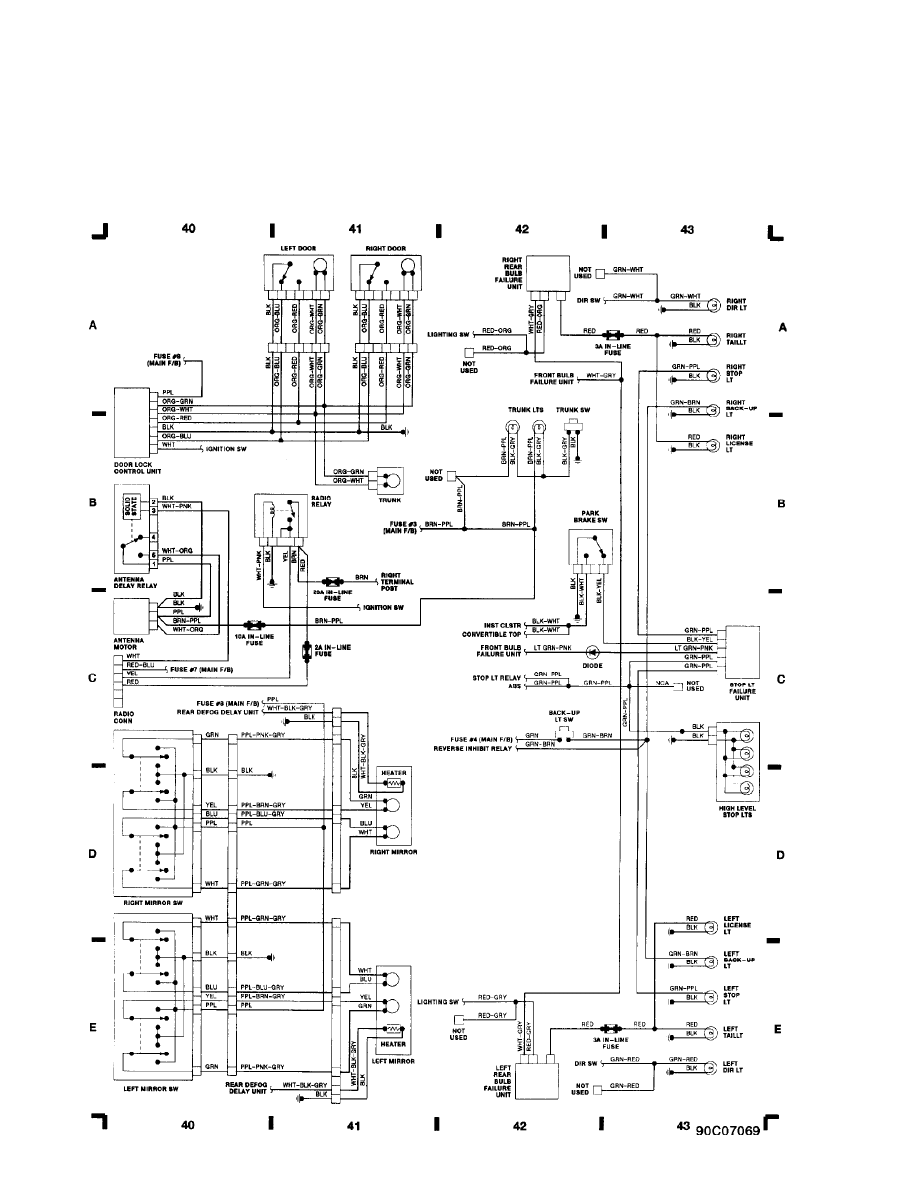

Fig. 11: Accessories (cont.) (p. 11)

1989 Jaguar XJS

For x

Friday, September 10, 2004 12:50PM
