JAGUAR XJS 1992

SYSTEM WIRING DIAGRAMS

Cooling Fan Circuit

1992 Jaguar XJS

For x

Saturday, September 11, 2004 10:31AM

SYSTEM WIRING DIAGRAMS

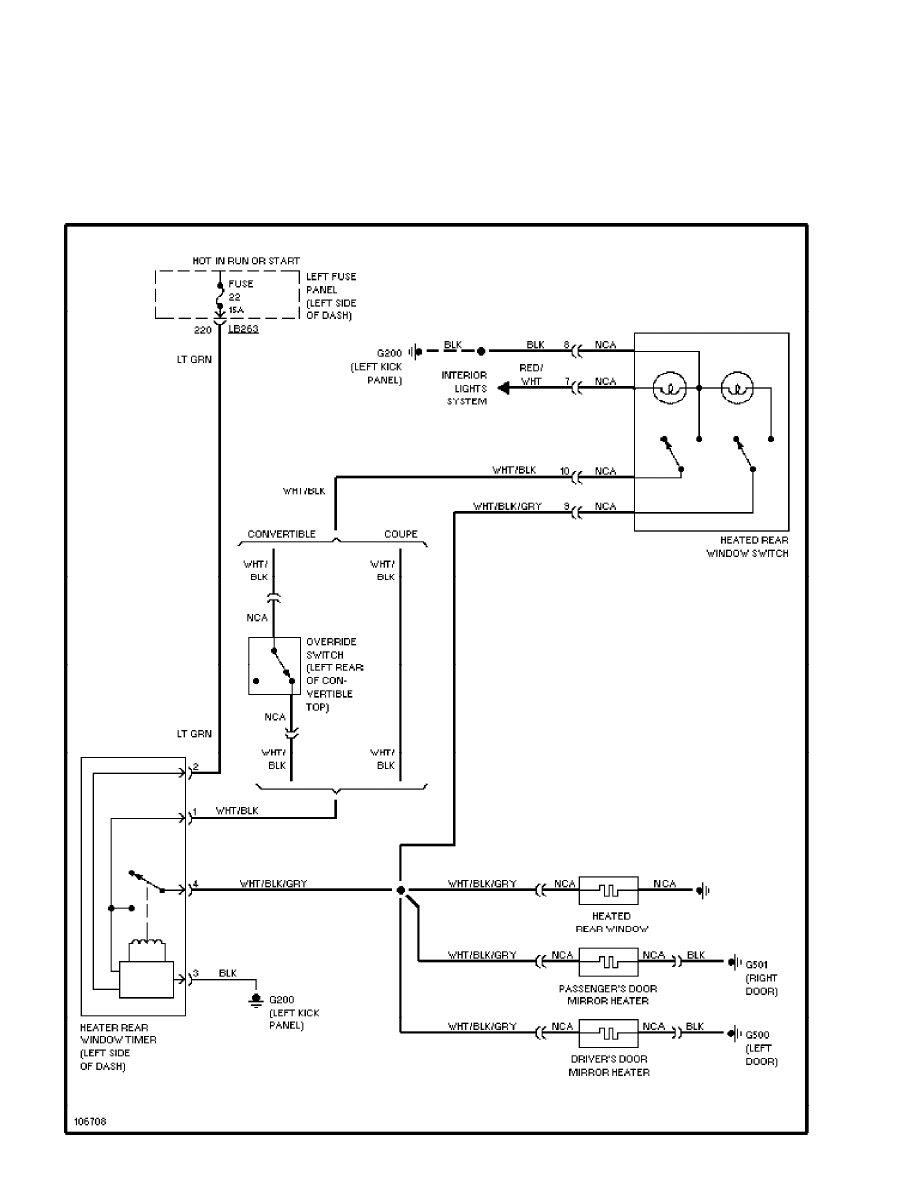

Defogger Circuit (p. 2)

1992 Jaguar XJS

For x

Saturday, September 11, 2004 10:31AM

SYSTEM WIRING DIAGRAMS

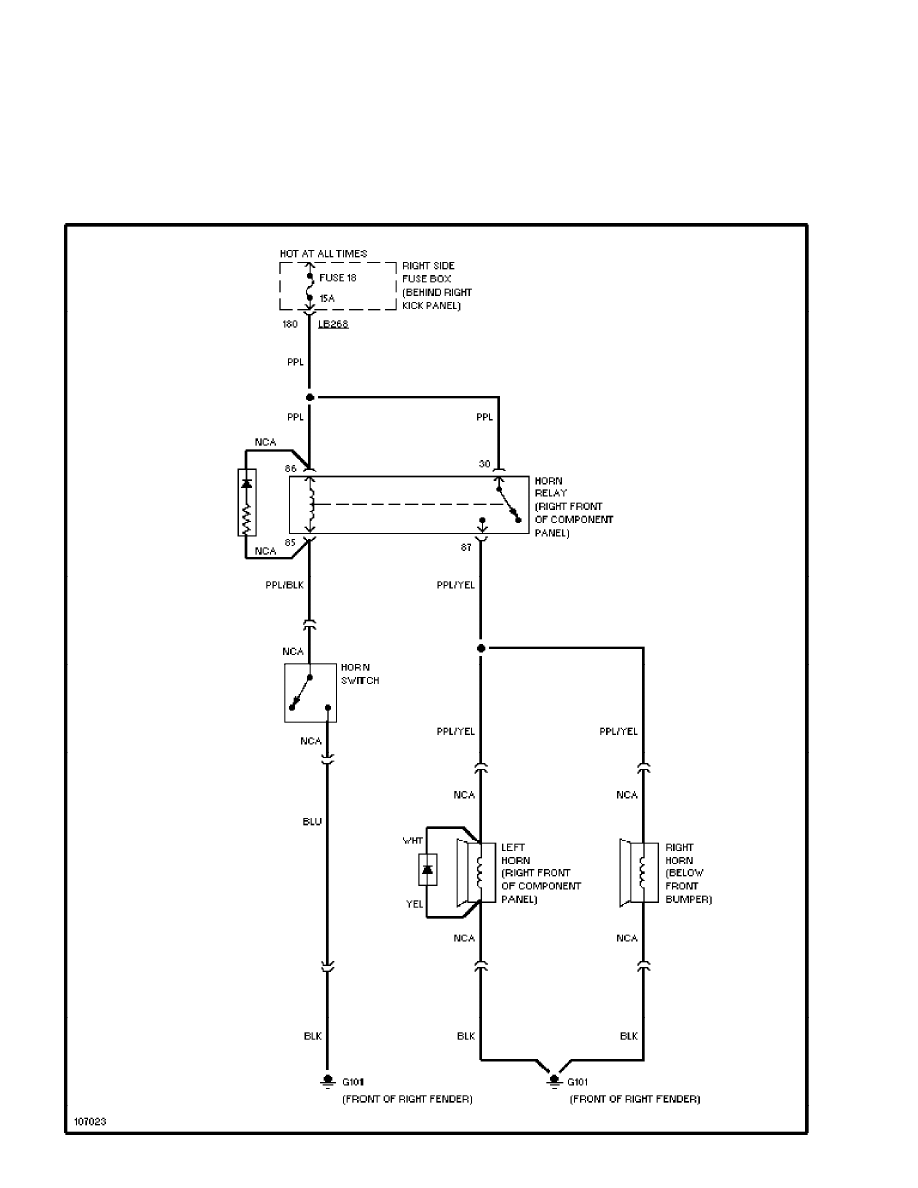

Horn Circuit (p. 3)

1992 Jaguar XJS

For x

Saturday, September 11, 2004 10:31AM

SYSTEM WIRING DIAGRAMS

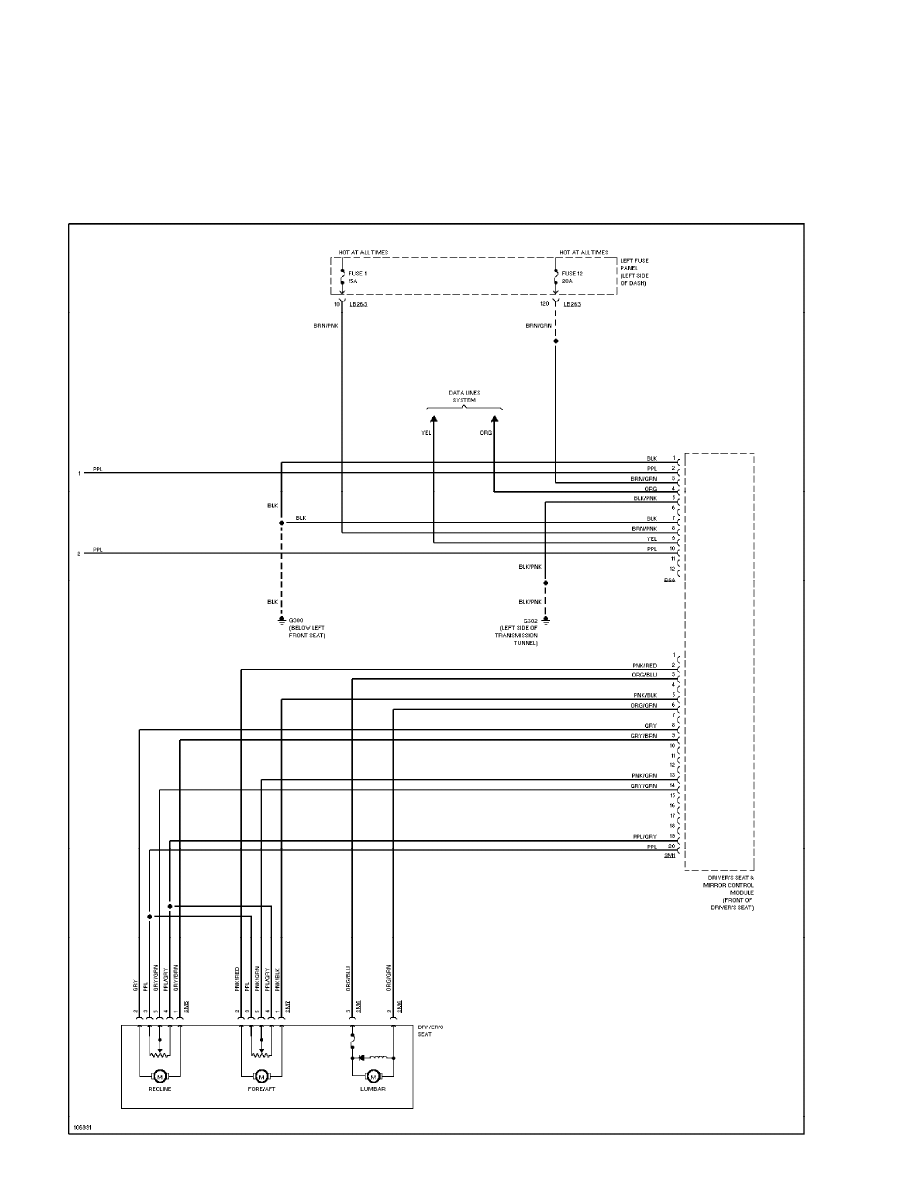

Memory Seat/Mirrors Circuit (1 of 2) (p. 4)

1992 Jaguar XJS

For x

Saturday, September 11, 2004 10:31AM

SYSTEM WIRING DIAGRAMS

Memory Seat/Mirrors Circuit (2 of 2) (p. 5)

1992 Jaguar XJS

For x

Saturday, September 11, 2004 10:31AM

SYSTEM WIRING DIAGRAMS

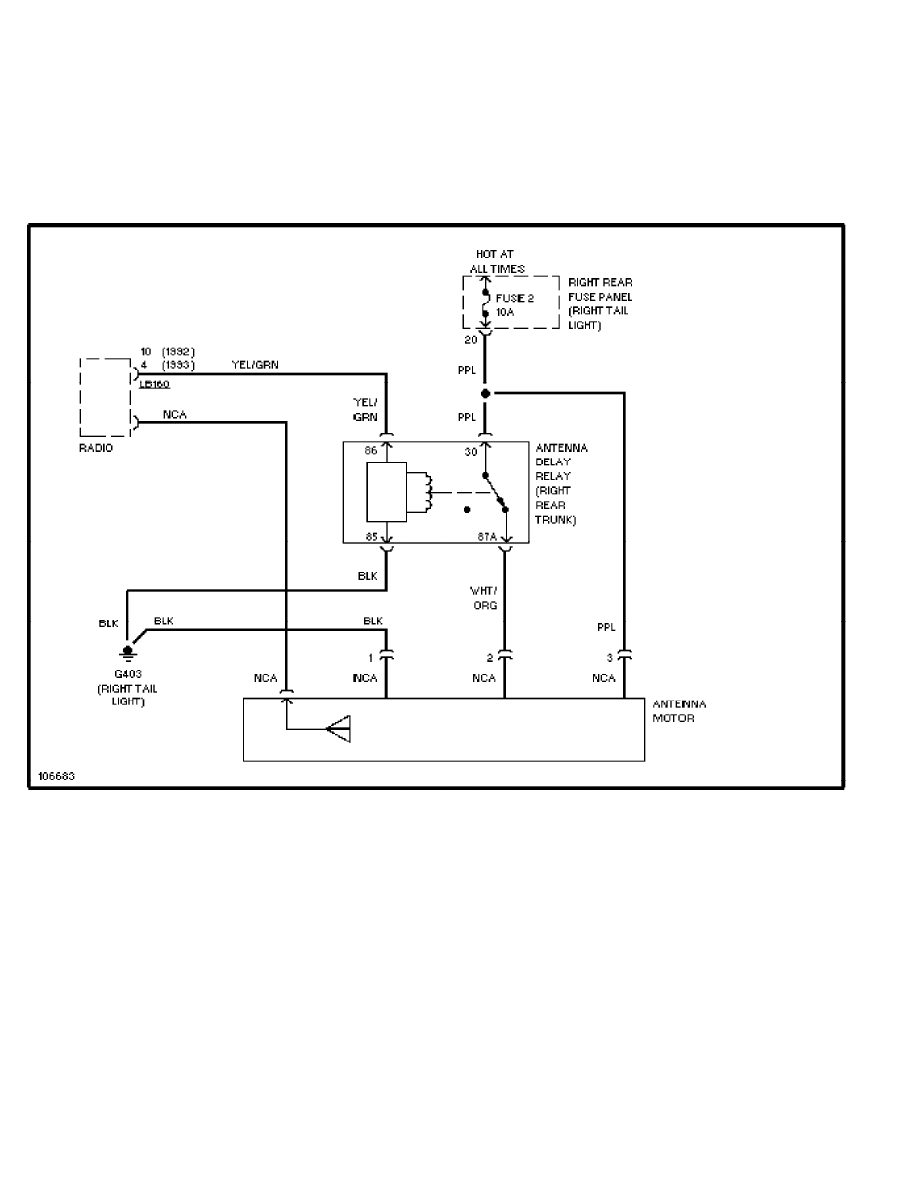

Power Antenna Circuit (p. 6)

1992 Jaguar XJS

For x

Saturday, September 11, 2004 10:31AM

SYSTEM WIRING DIAGRAMS

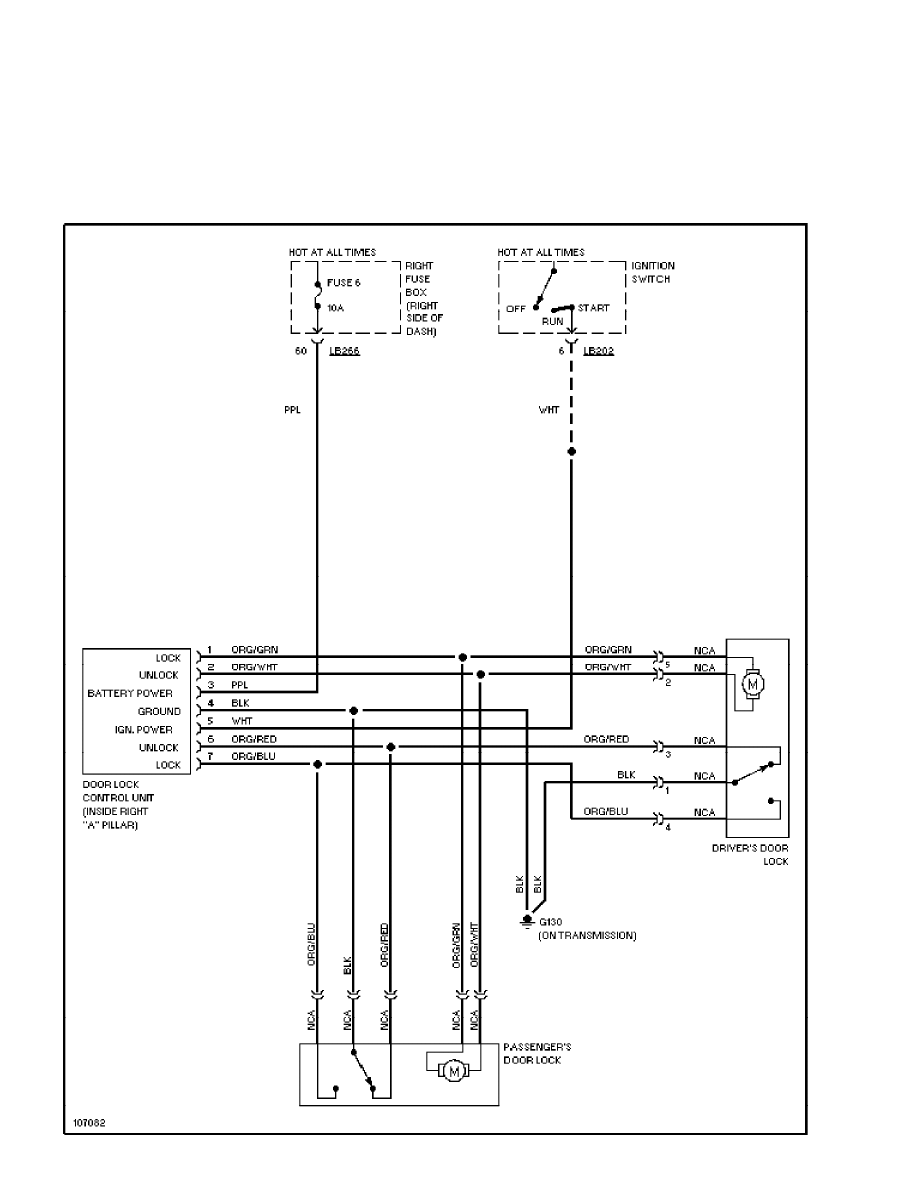

Power Door Lock Circuit (p. 7)

1992 Jaguar XJS

For x

Saturday, September 11, 2004 10:31AM

SYSTEM WIRING DIAGRAMS

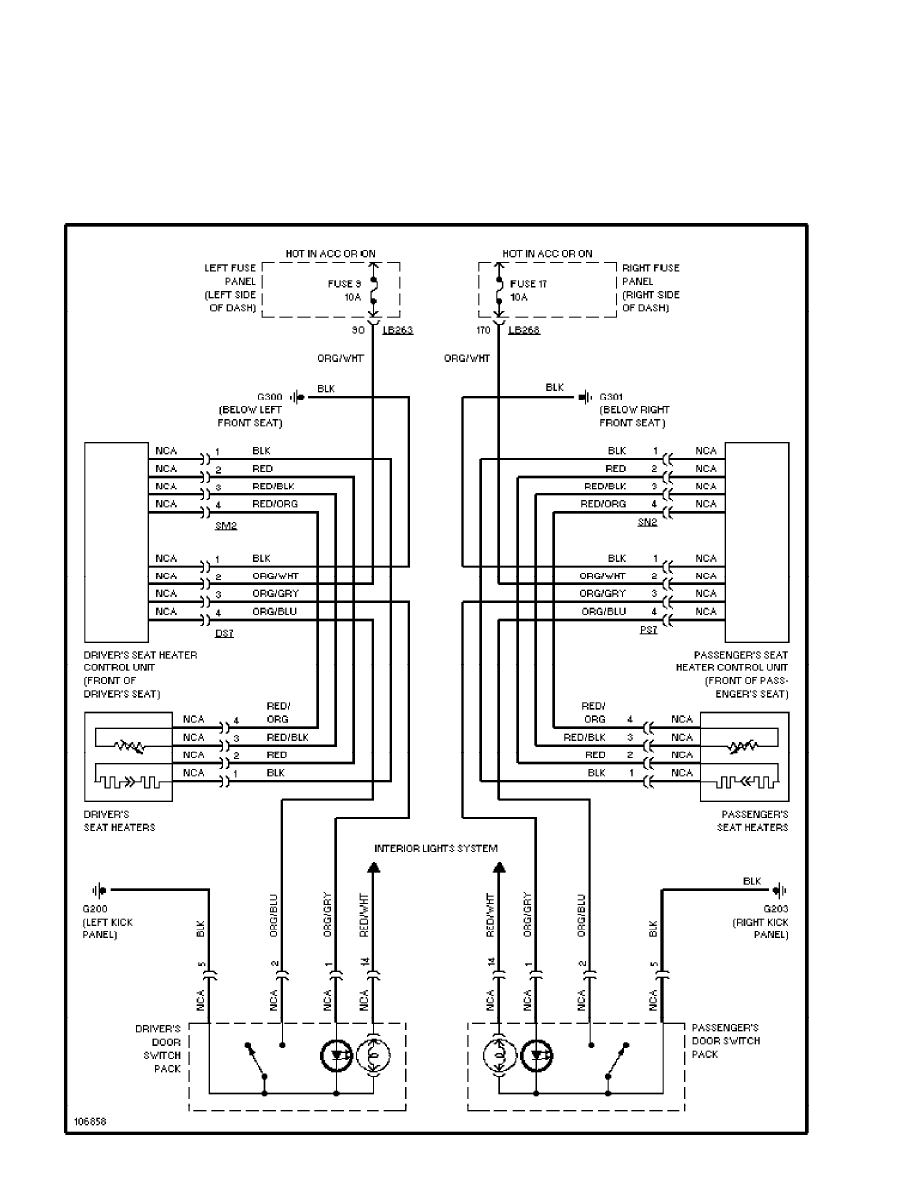

Heated Seats Circuit (p. 8)

1992 Jaguar XJS

For x

Saturday, September 11, 2004 10:31AM

SYSTEM WIRING DIAGRAMS

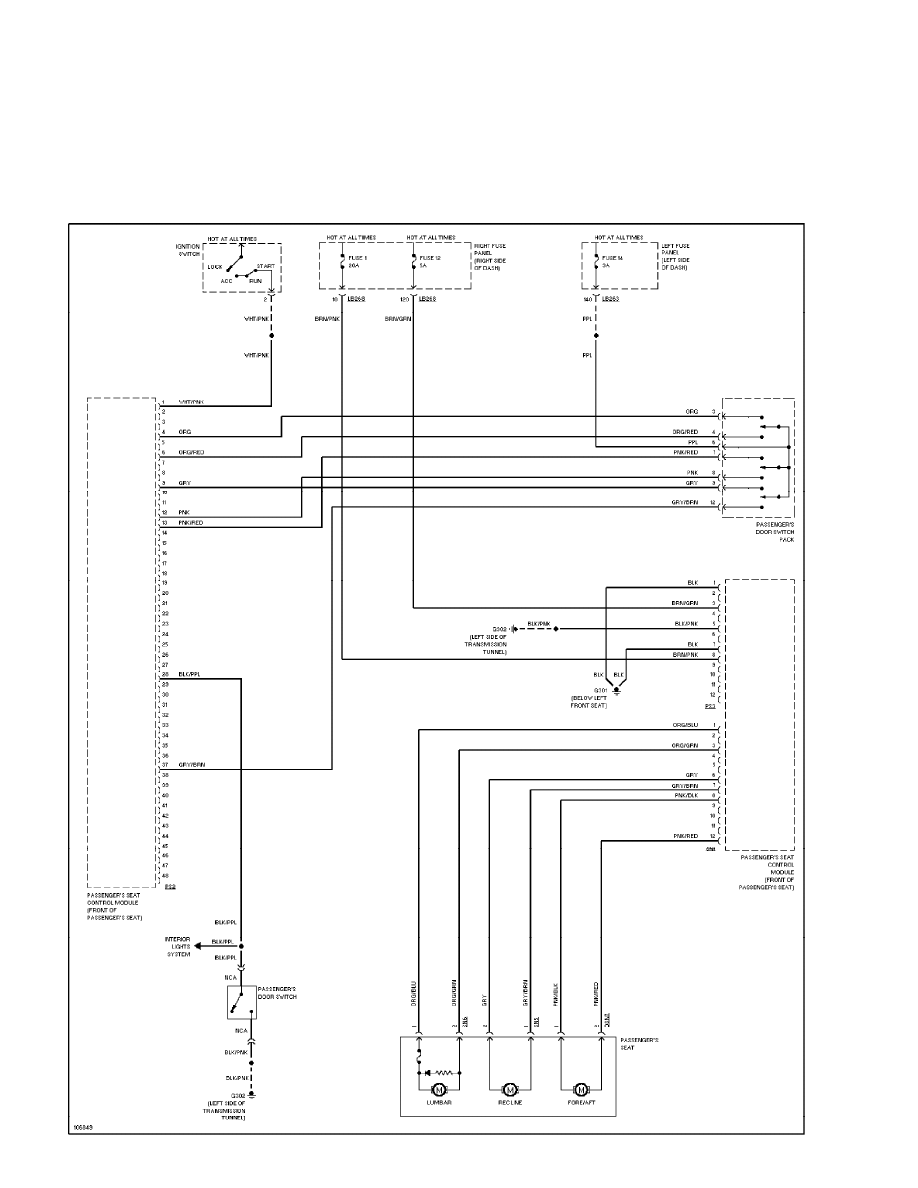

Passenger Seat Circuit (p. 9)

1992 Jaguar XJS

For x

Saturday, September 11, 2004 10:31AM

SYSTEM WIRING DIAGRAMS

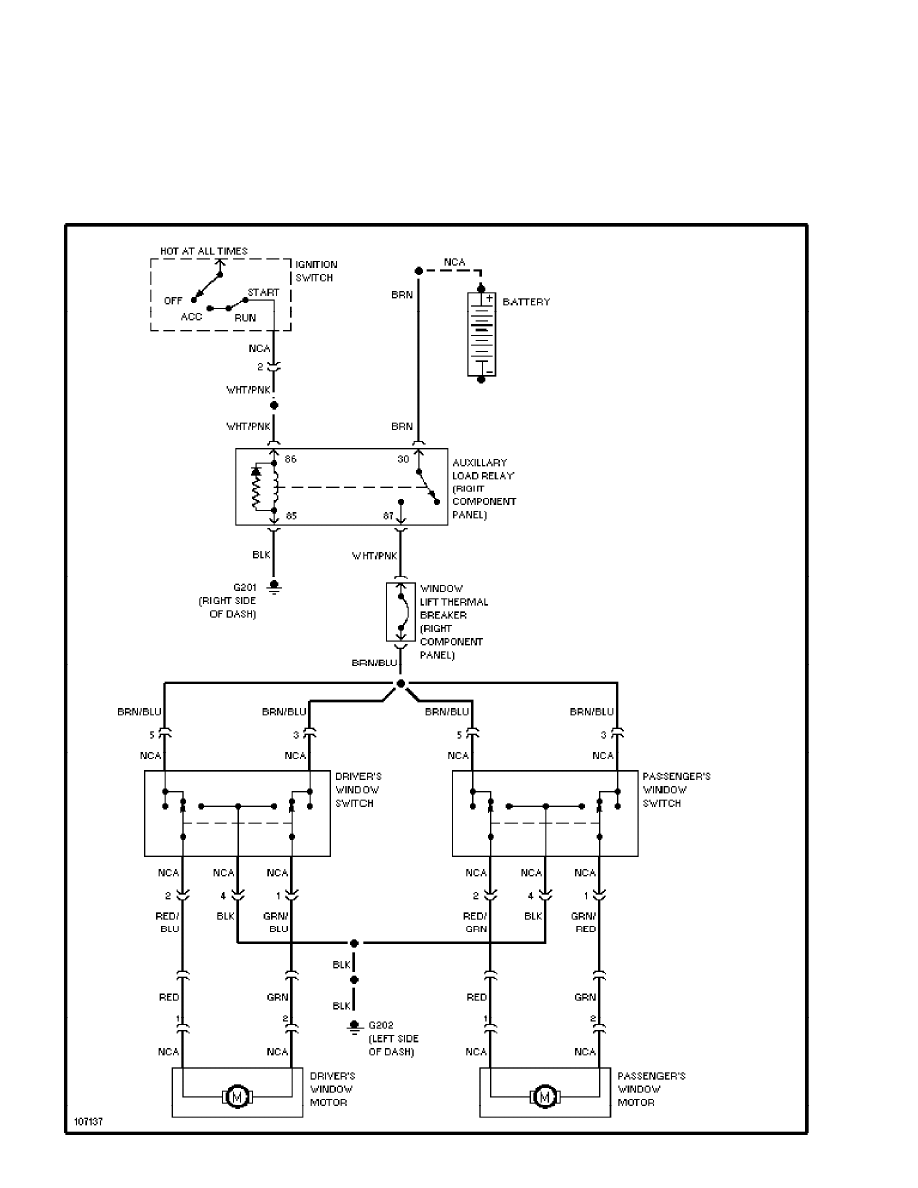

Power Window Circuit (p. 10)

1992 Jaguar XJS

For x

Saturday, September 11, 2004 10:31AM

SYSTEM WIRING DIAGRAMS

Radio Circuits (p. 11)

1992 Jaguar XJS

For x

Saturday, September 11, 2004 10:31AM

SYSTEM WIRING DIAGRAMS

Charging Circuit (p. 12)

1992 Jaguar XJS

For x

Saturday, September 11, 2004 10:31AM

SYSTEM WIRING DIAGRAMS

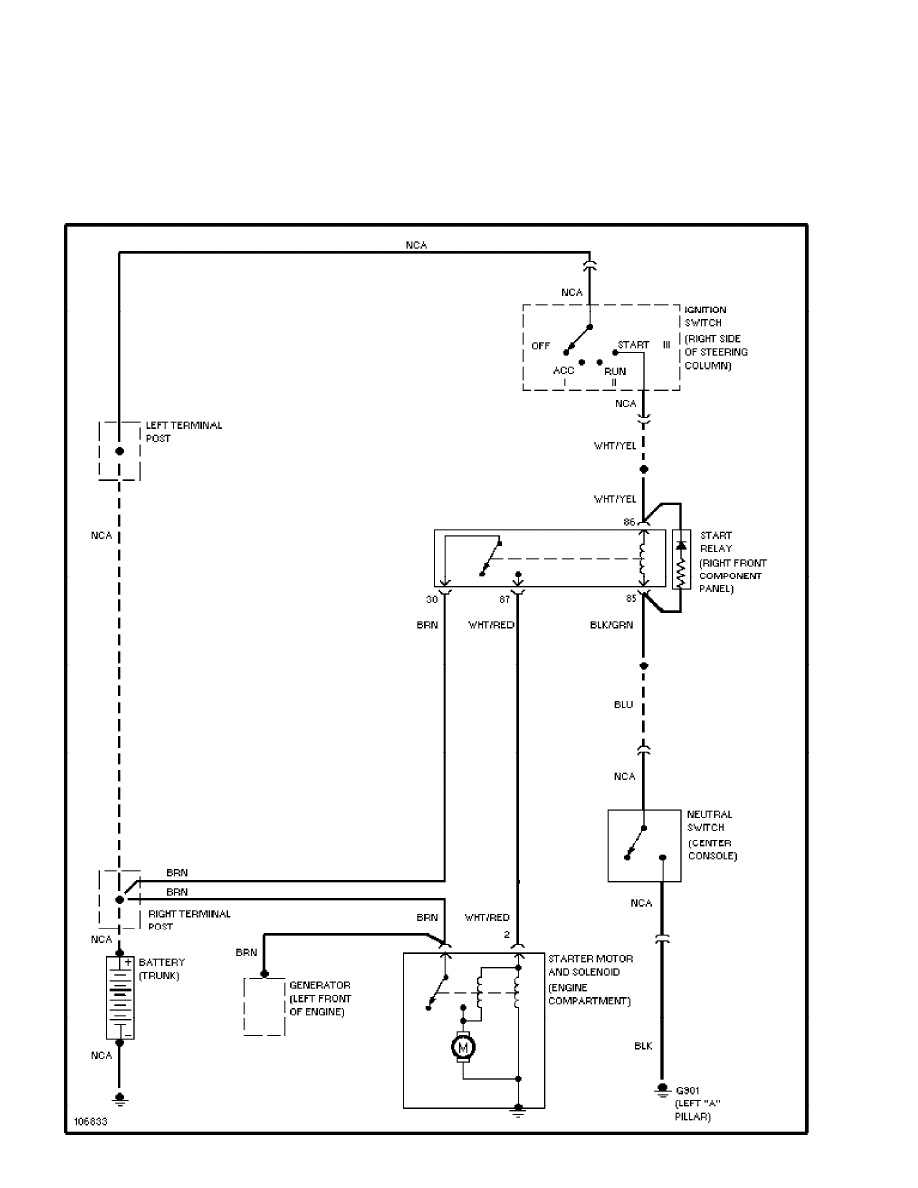

Starting Circuit (p. 13)

1992 Jaguar XJS

For x

Saturday, September 11, 2004 10:31AM

SYSTEM WIRING DIAGRAMS

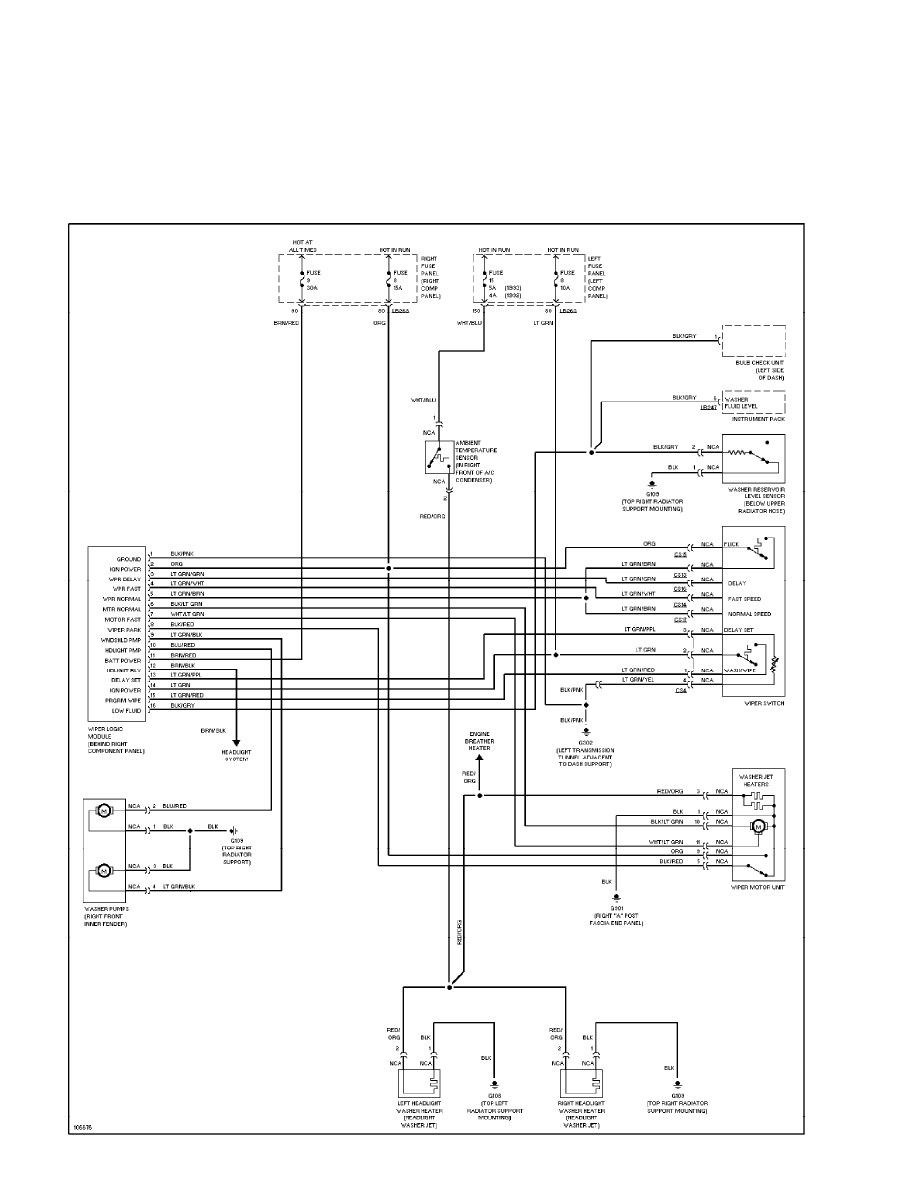

Wiper/Washer Circuit (p. 14)

1992 Jaguar XJS

For x

Saturday, September 11, 2004 10:31AM

WIRING DIAGRAMS

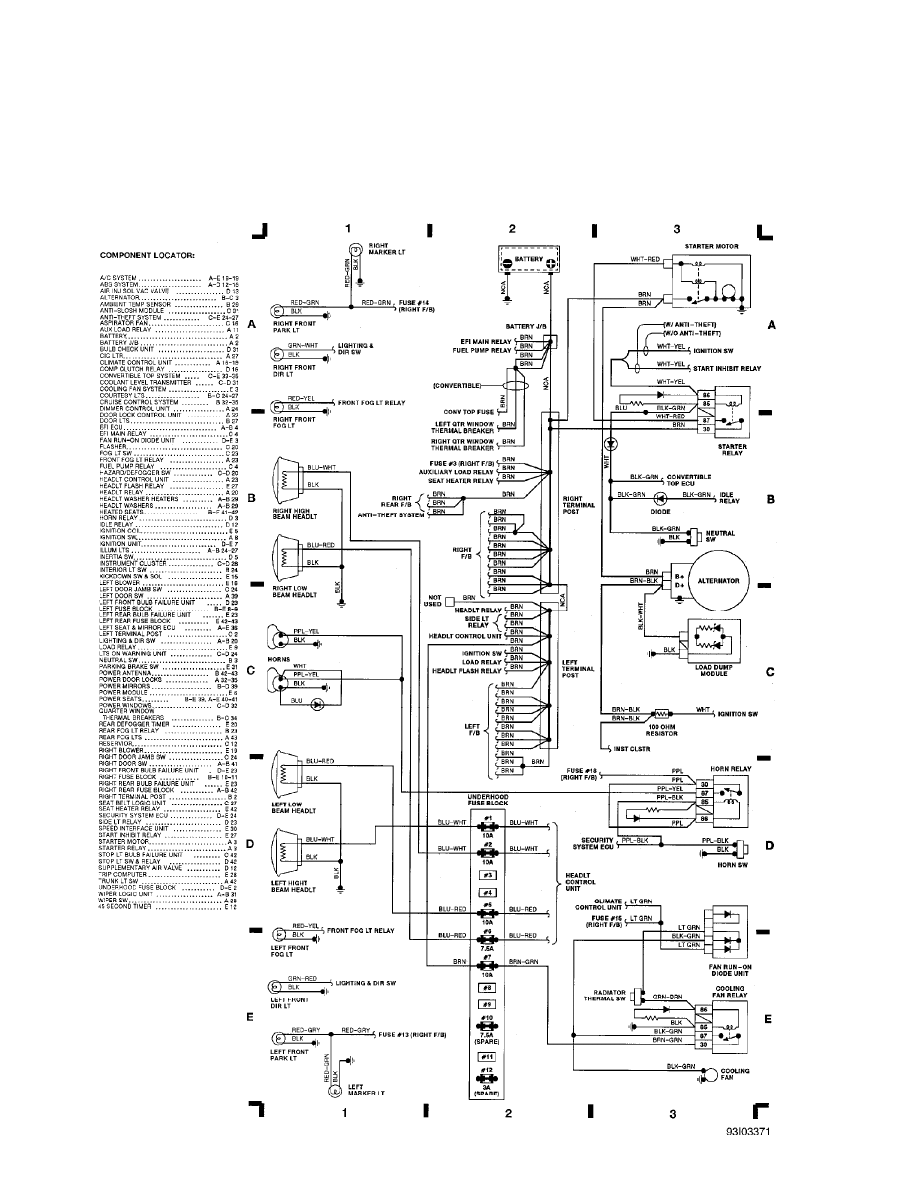

Fig. 1: Engine Compartment, Headlights, Battery (Grid 1-3)

1992 Jaguar XJS

For x

Saturday, September 11, 2004 10:31AM

WIRING DIAGRAMS

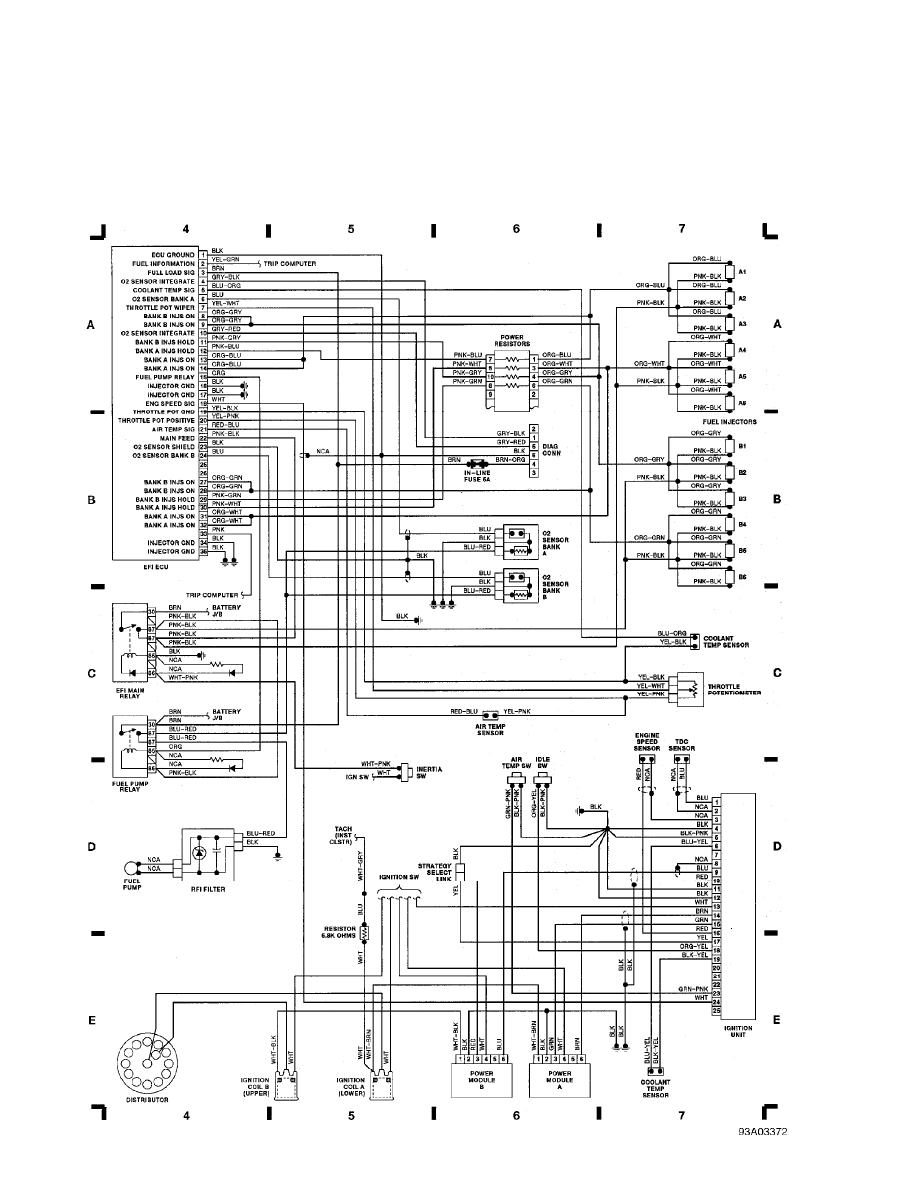

Fig. 2: Fuel Pump Relay, Inertia Sw, Ignition (Grid 4-7) (p. 2)

1992 Jaguar XJS

For x

Saturday, September 11, 2004 10:31AM

WIRING DIAGRAMS

Fig. 3: Ignition, Idle Relay, Right Fuse Block (Grid 8-11) (p. 3)

1992 Jaguar XJS

For x

Saturday, September 11, 2004 10:31AM

WIRING DIAGRAMS

Fig. 4: Anti-Lock Brakes, Idle Relay (Grid 12-15) (p. 4)

1992 Jaguar XJS

For x

Saturday, September 11, 2004 10:31AM

WIRING DIAGRAMS

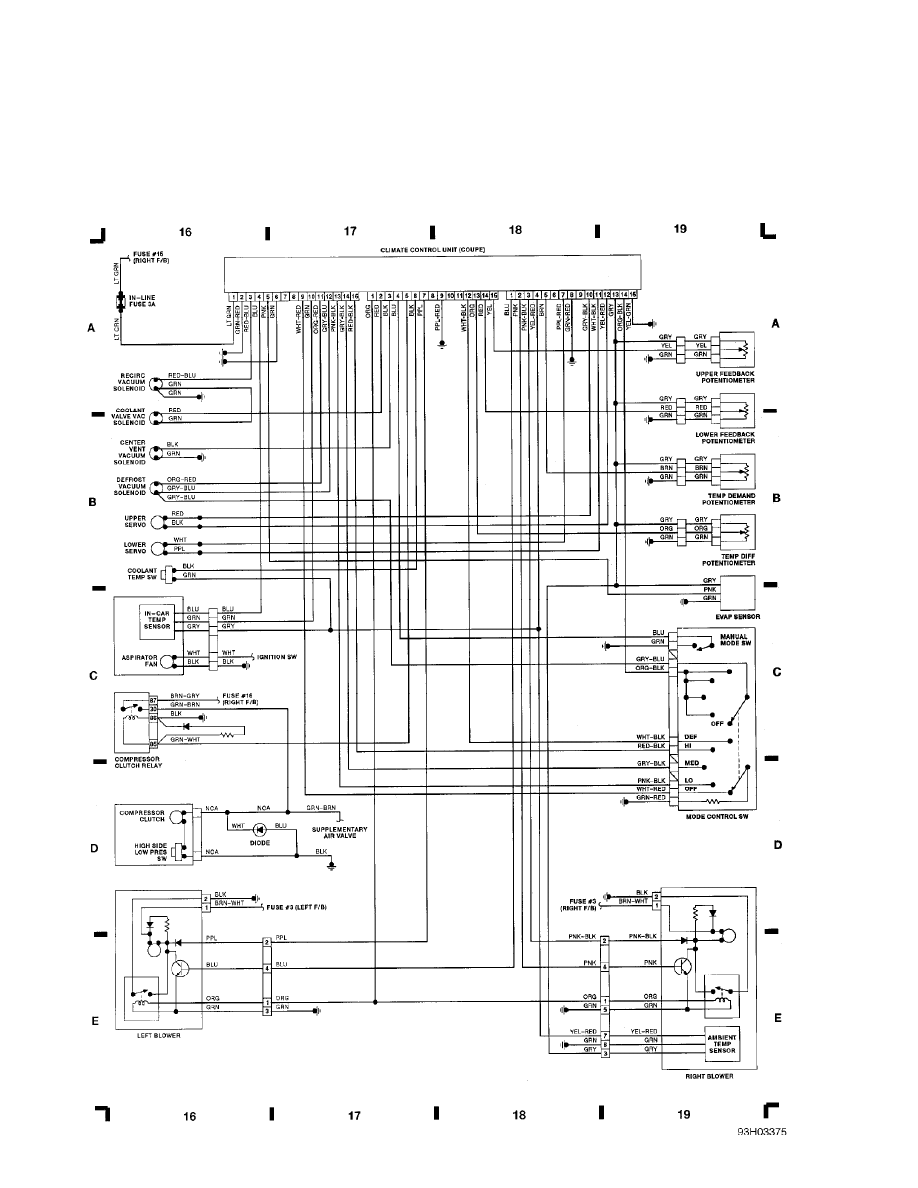

Fig. 5: Climate Ctrl Unit, Blower, Mode Ctrl (Grid 16-19) (p. 5)

1992 Jaguar XJS

For x

Saturday, September 11, 2004 10:31AM

WIRING DIAGRAMS

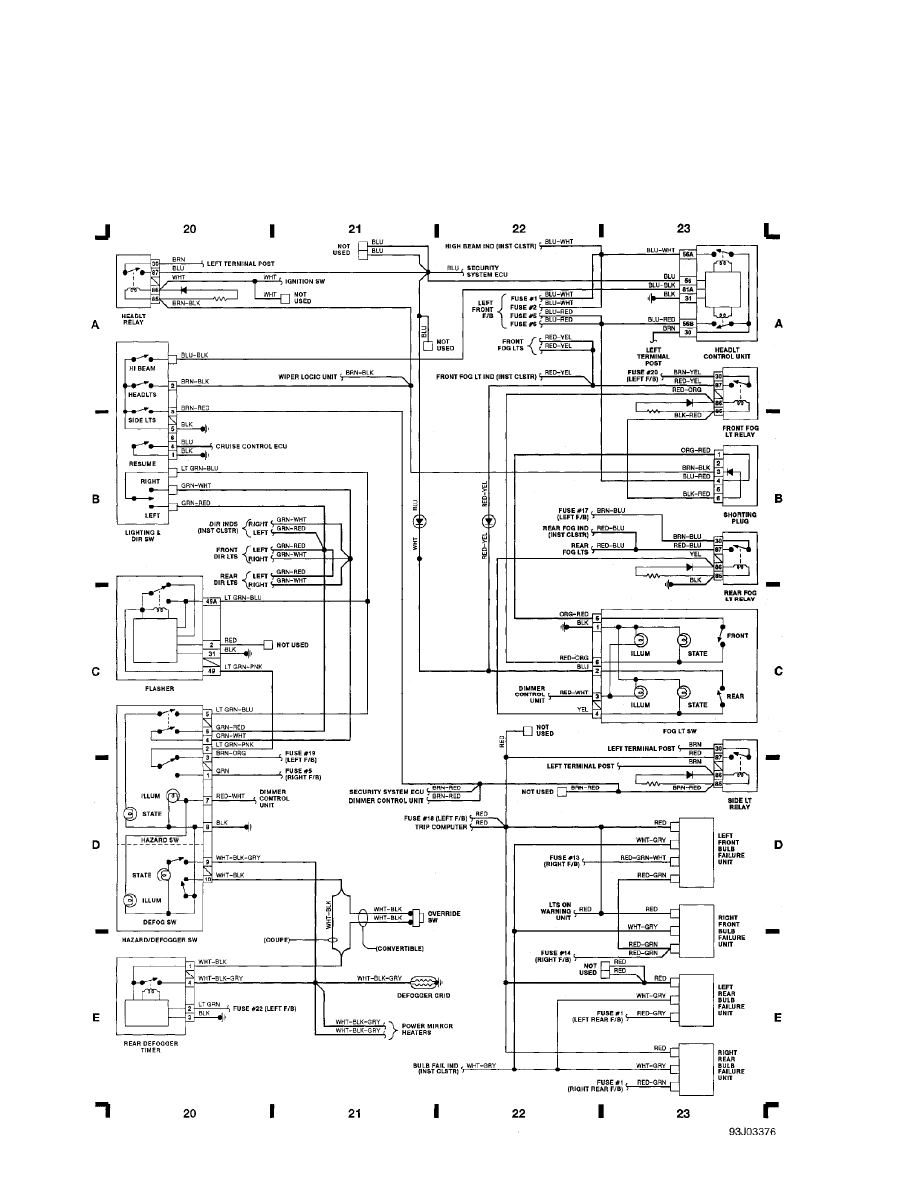

Fig. 6: Flasher, Fog Light Sw, Fog Lights (Grid 20-23) (p. 6)

1992 Jaguar XJS

For x

Saturday, September 11, 2004 10:31AM

WIRING DIAGRAMS

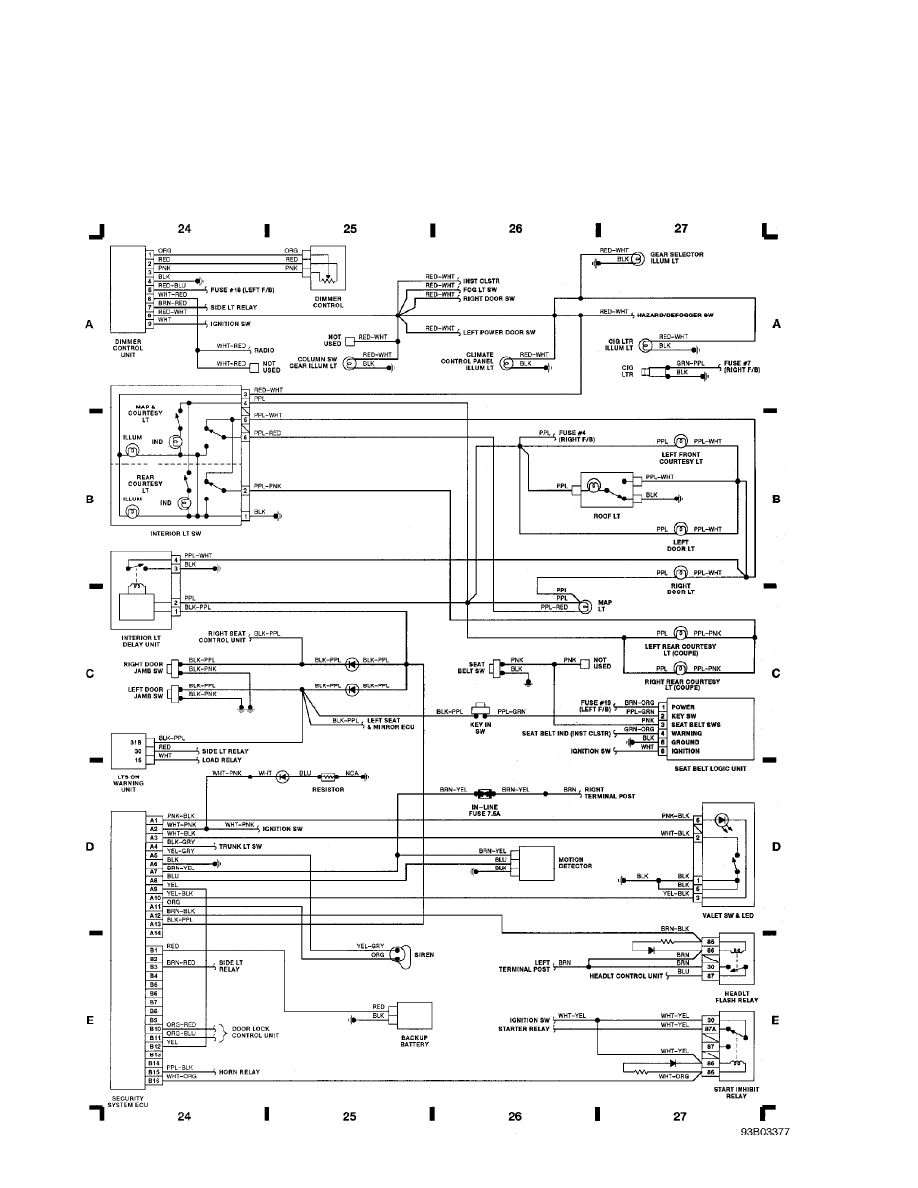

Fig. 7: Security System ECU, Dimmer Ctrl Unit (Grid 24-27) (p. 7)

1992 Jaguar XJS

For x

Saturday, September 11, 2004 10:31AM

WIRING DIAGRAMS

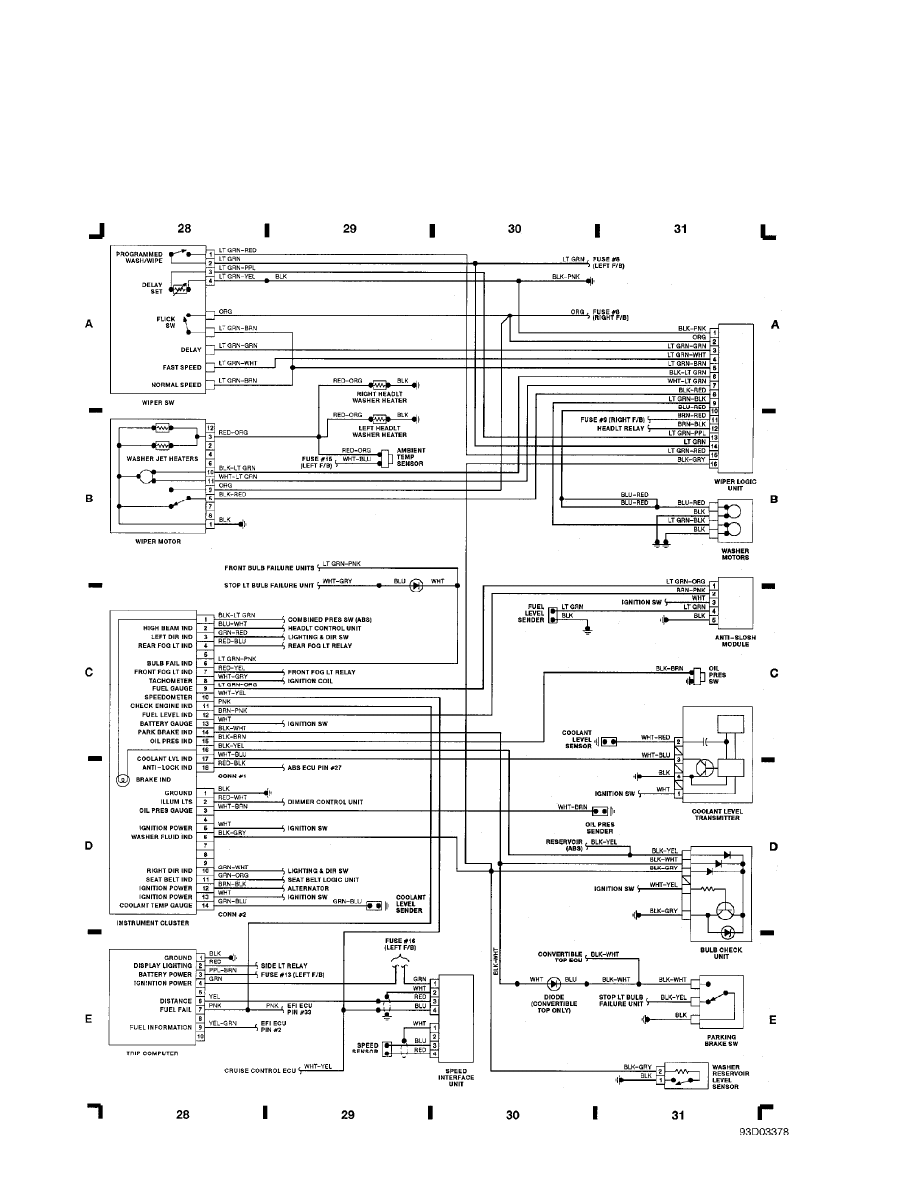

Fig. 8: Instrument Clstr, Wipers. Trip Computer (Grid 28-31) (p. 8)

1992 Jaguar XJS

For x

Saturday, September 11, 2004 10:31AM

WIRING DIAGRAMS

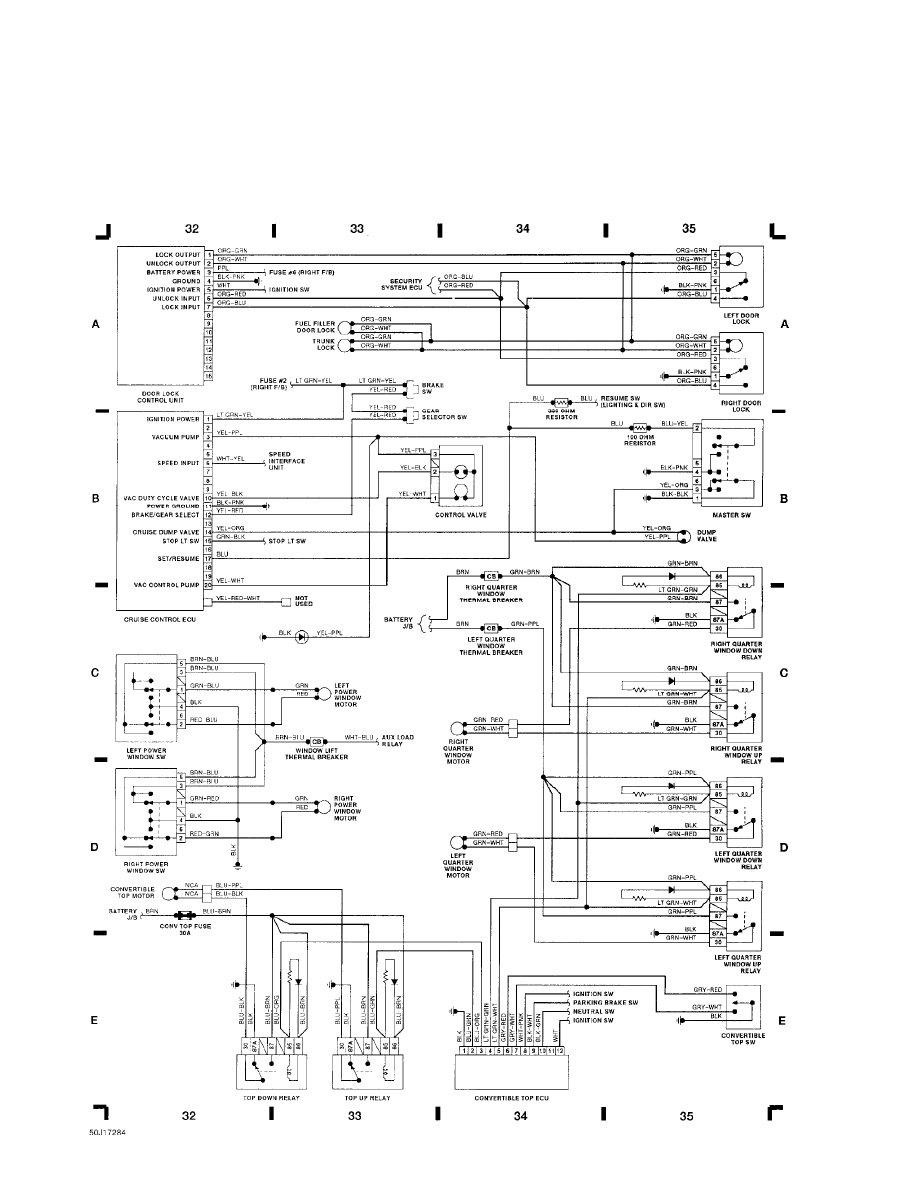

Fig. 9: Power Windows, Cruise Ctrl, Door Locks (Grid 32-35) (p. 9)

1992 Jaguar XJS

For x

Saturday, September 11, 2004 10:31AM

WIRING DIAGRAMS

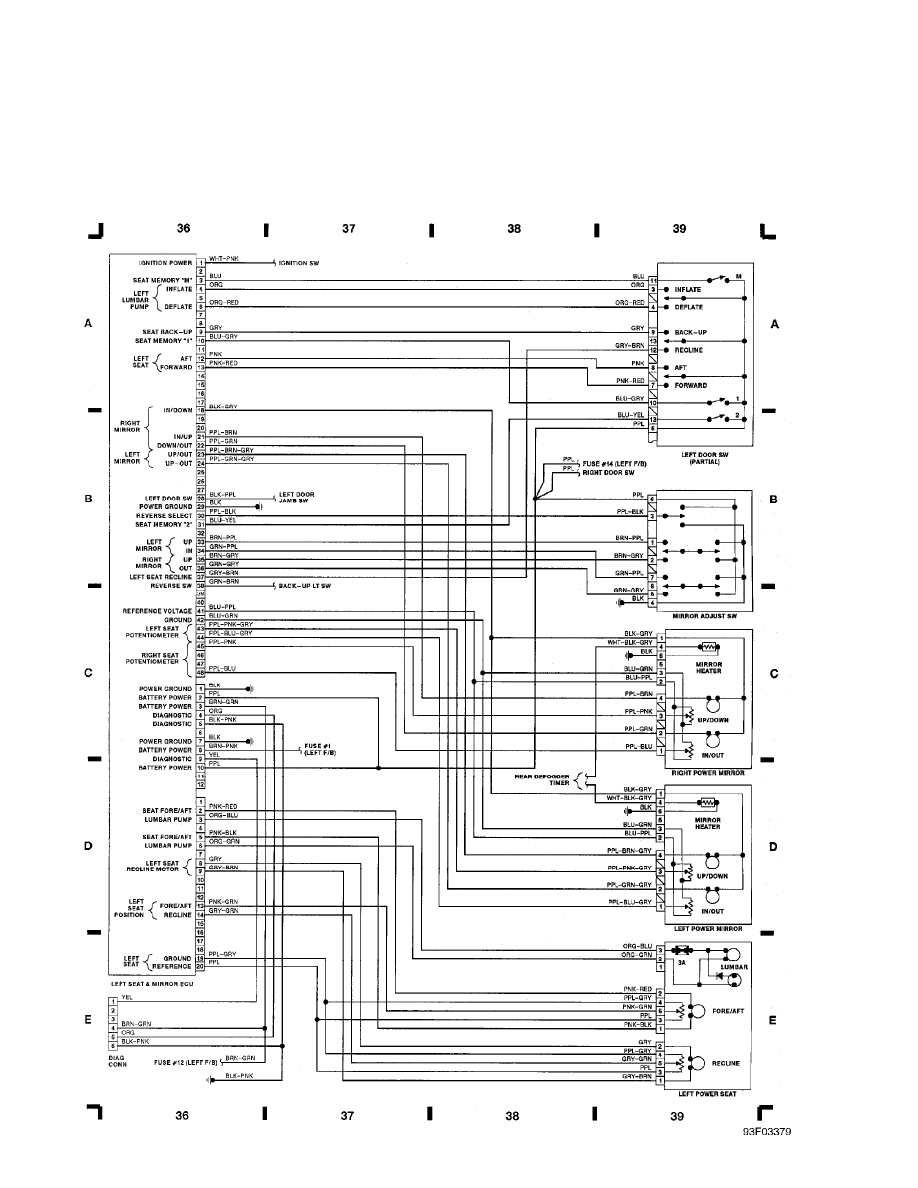

Fig. 10: Power Mirrors/Seat (Left) ECU, Left Doors (Grid 36-39) (p. 10)

1992 Jaguar XJS

For x

Saturday, September 11, 2004 10:31AM

WIRING DIAGRAMS

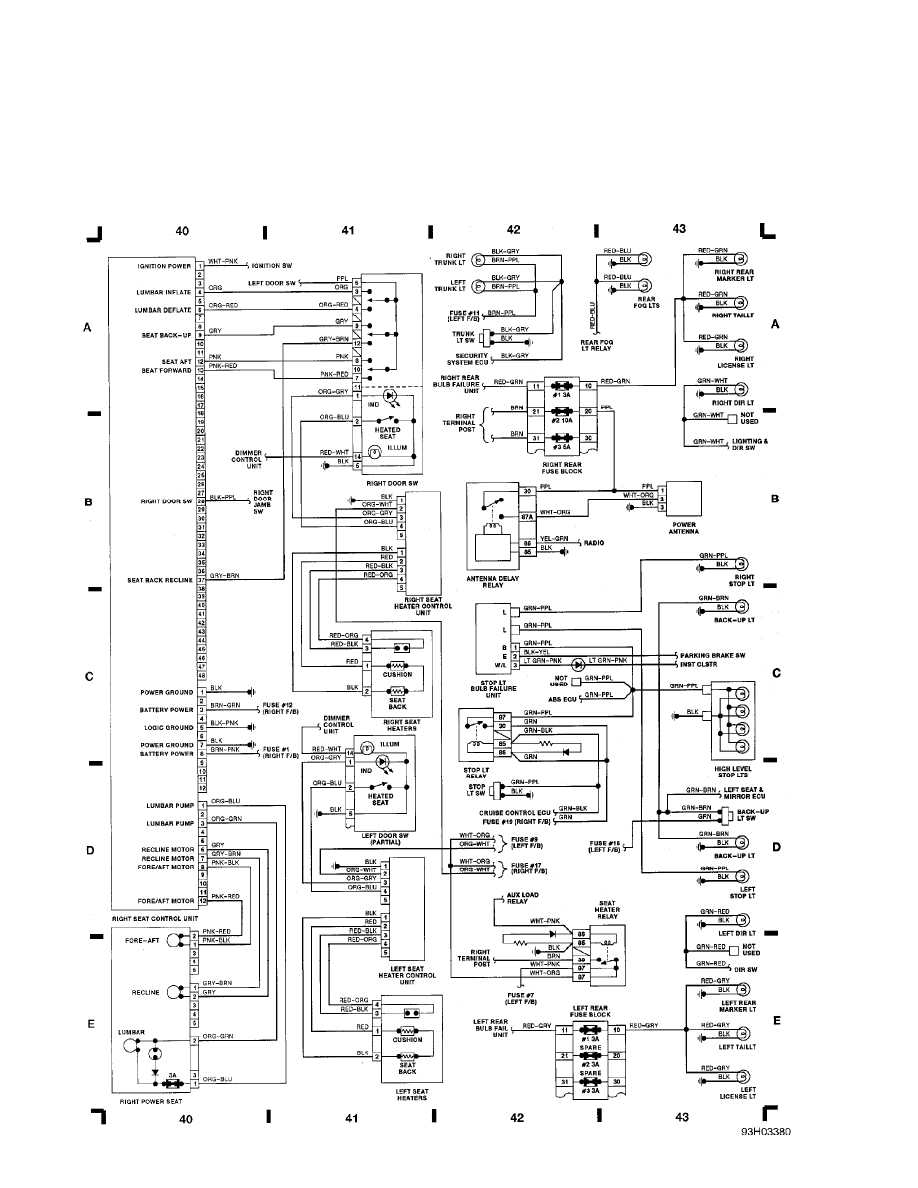

Fig. 11: Power Seats, Taillights (Grid 40-43) (p. 11)

1992 Jaguar XJS

For x

Saturday, September 11, 2004 10:31AM
