JAGUAR XJS 1988

background image

SYSTEM WIRING DIAGRAMS

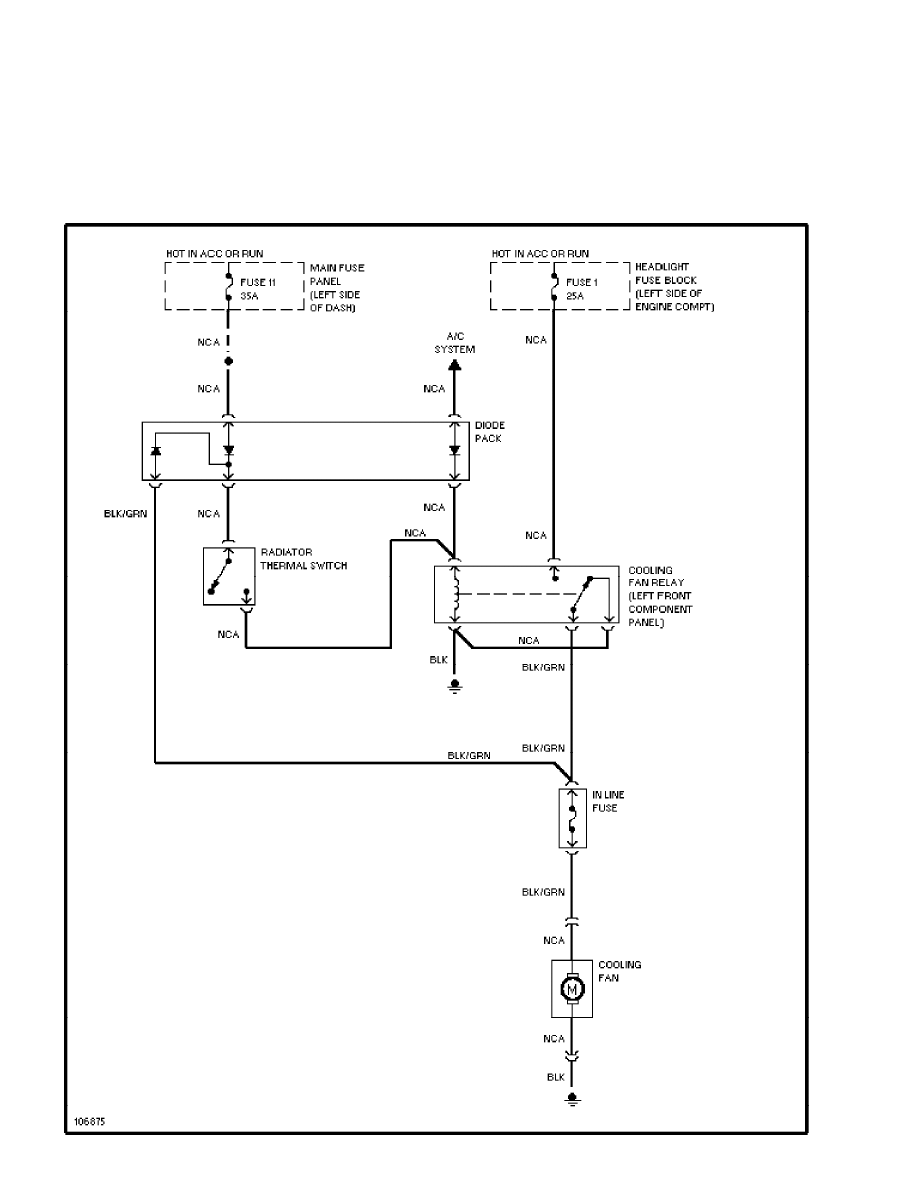

Cooling Fan Circuit

1988 Jaguar XJS

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, September 10, 2004 12:46PM

background image

SYSTEM WIRING DIAGRAMS

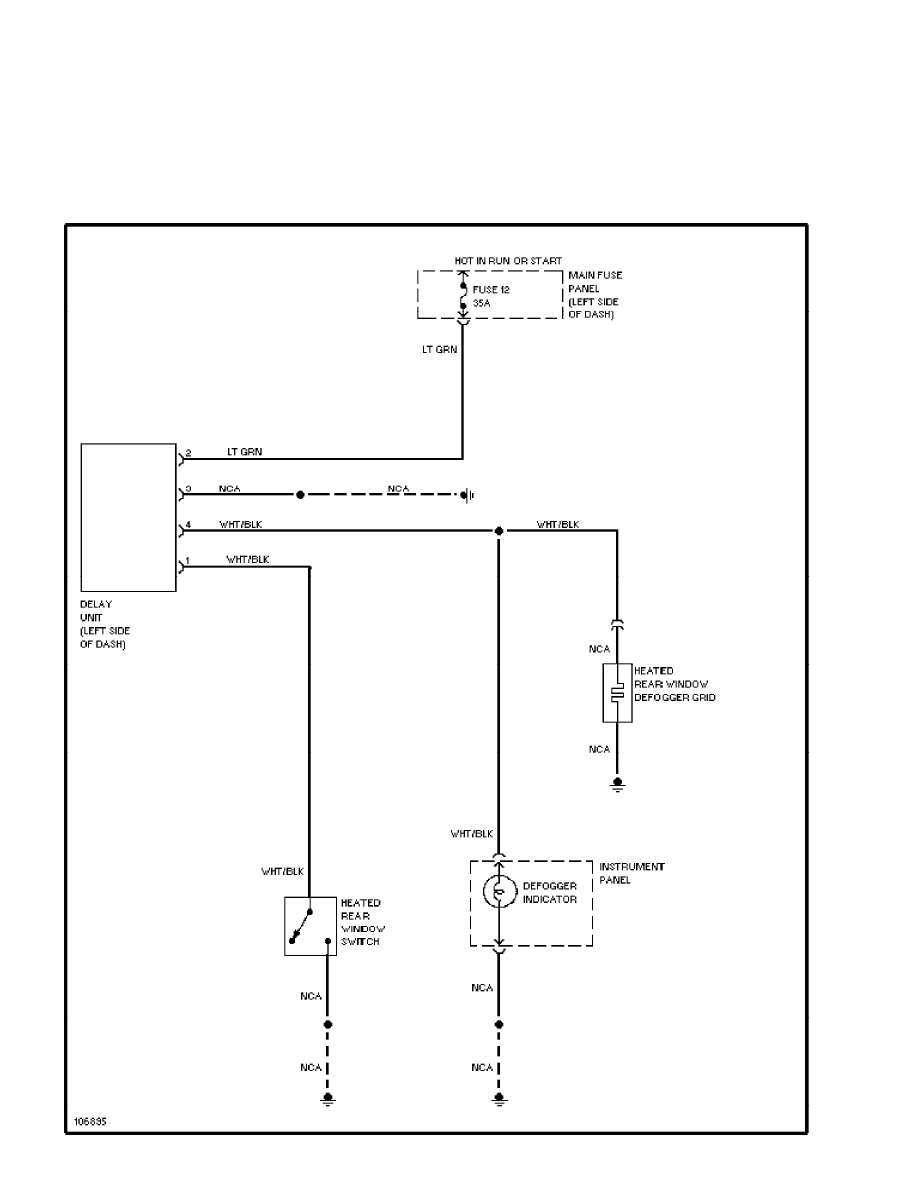

Defogger Circuit (p. 2)

1988 Jaguar XJS

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, September 10, 2004 12:46PM

background image

SYSTEM WIRING DIAGRAMS

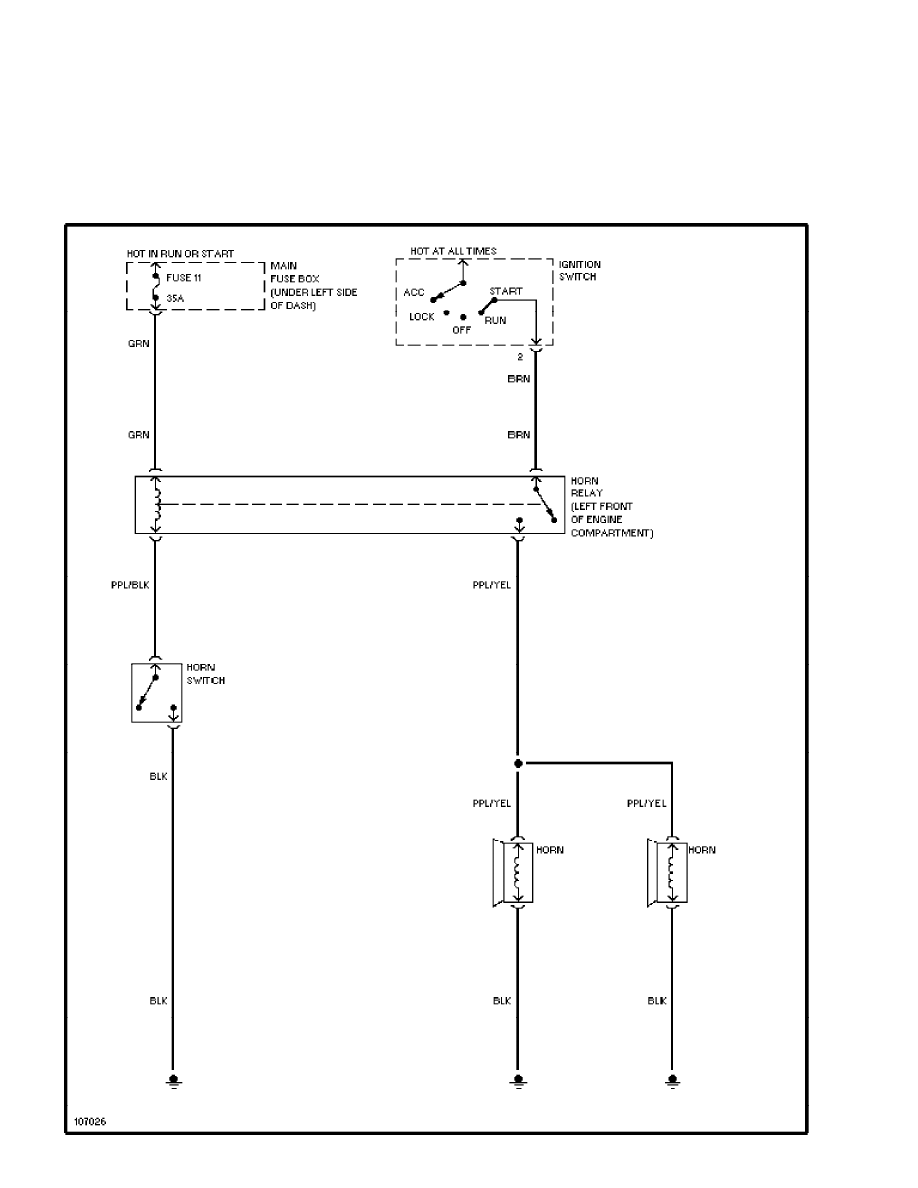

Horn Circuit (p. 3)

1988 Jaguar XJS

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, September 10, 2004 12:46PM

background image

SYSTEM WIRING DIAGRAMS

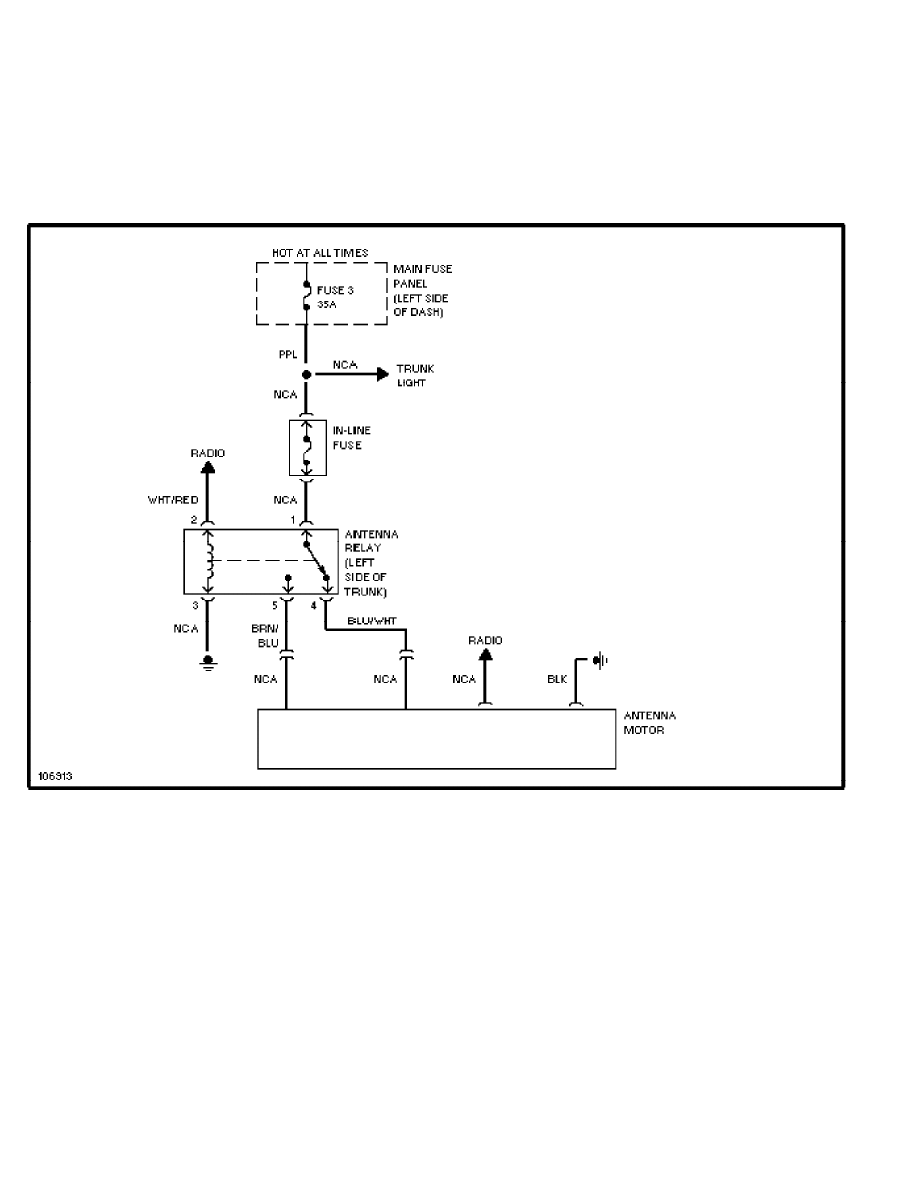

Power Antenna Circuit (p. 4)

1988 Jaguar XJS

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, September 10, 2004 12:46PM

background image

SYSTEM WIRING DIAGRAMS

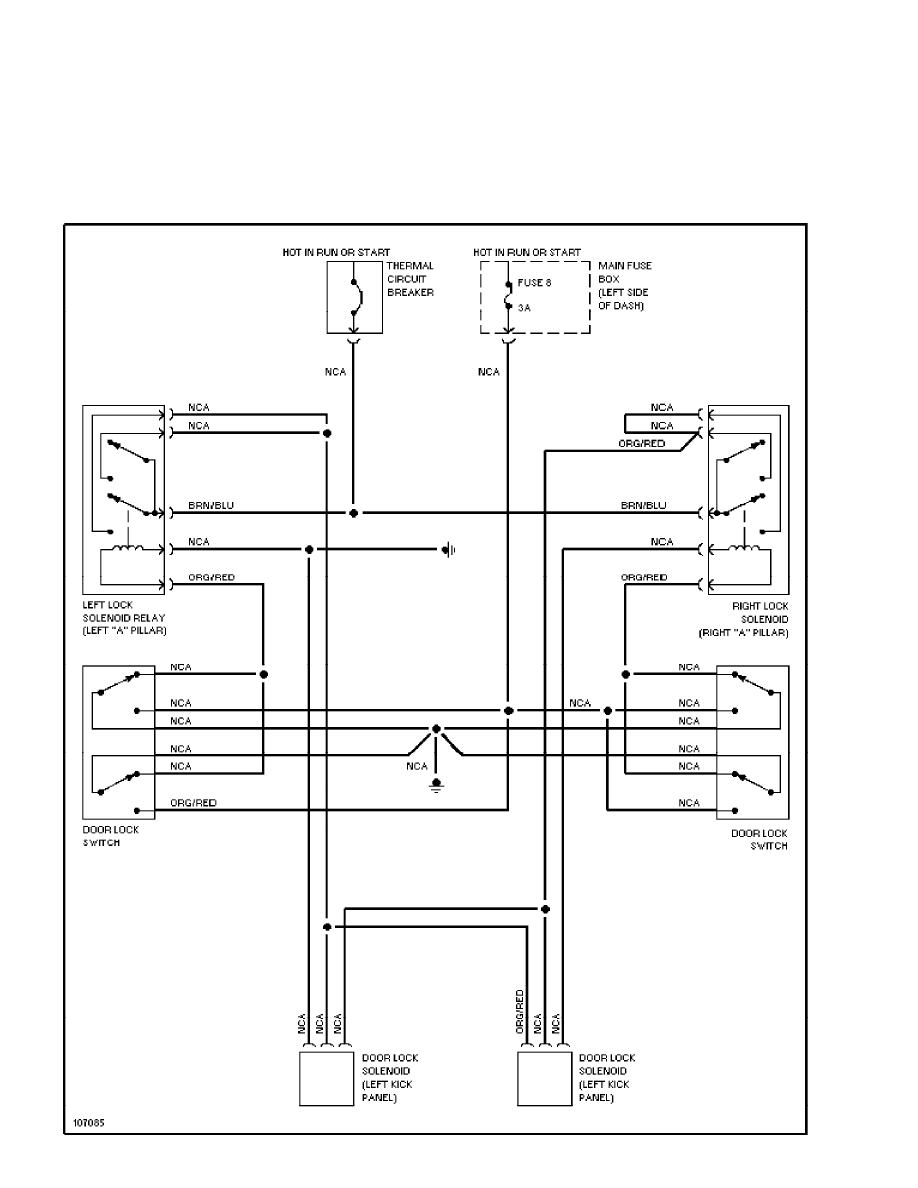

Power Door Lock Circuit (p. 5)

1988 Jaguar XJS

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, September 10, 2004 12:46PM

background image

SYSTEM WIRING DIAGRAMS

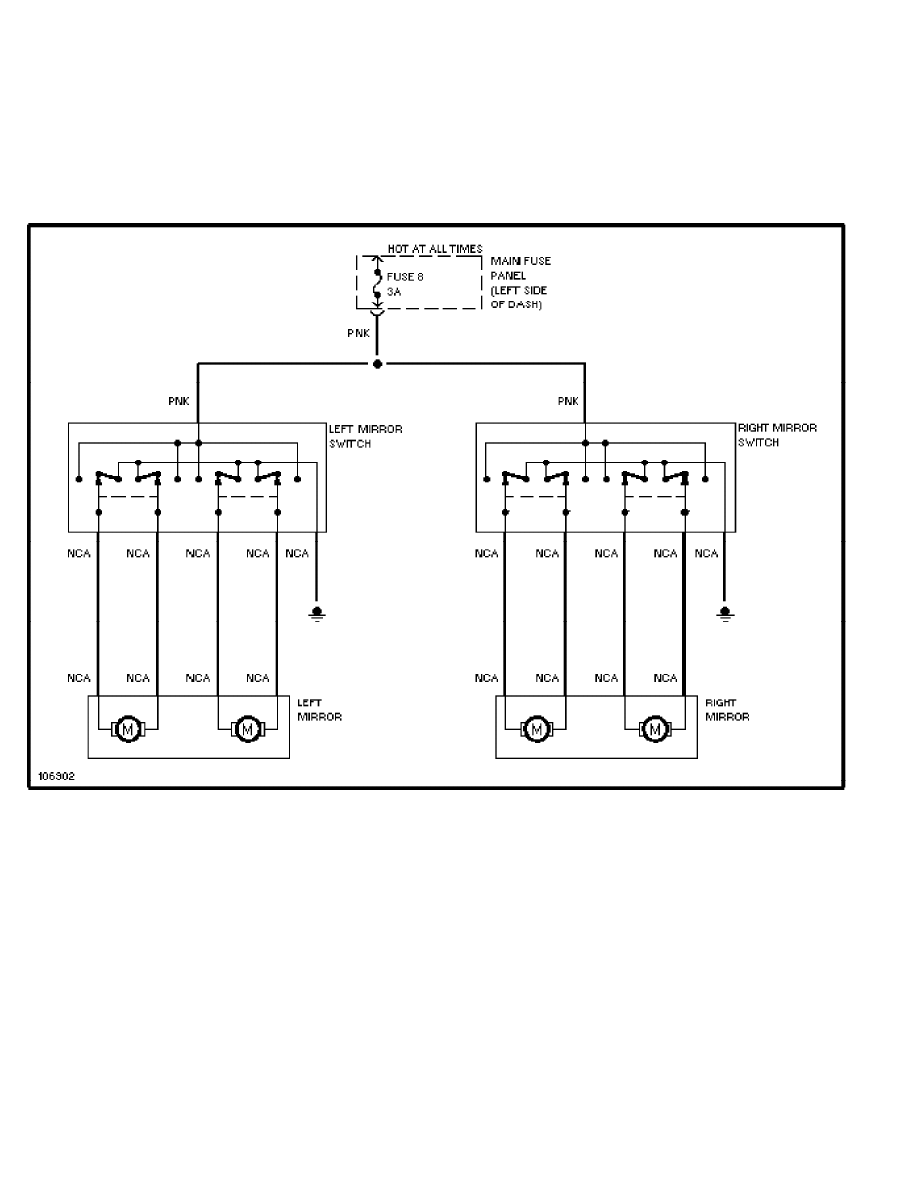

Power Mirror Circuit (p. 6)

1988 Jaguar XJS

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, September 10, 2004 12:46PM

background image

SYSTEM WIRING DIAGRAMS

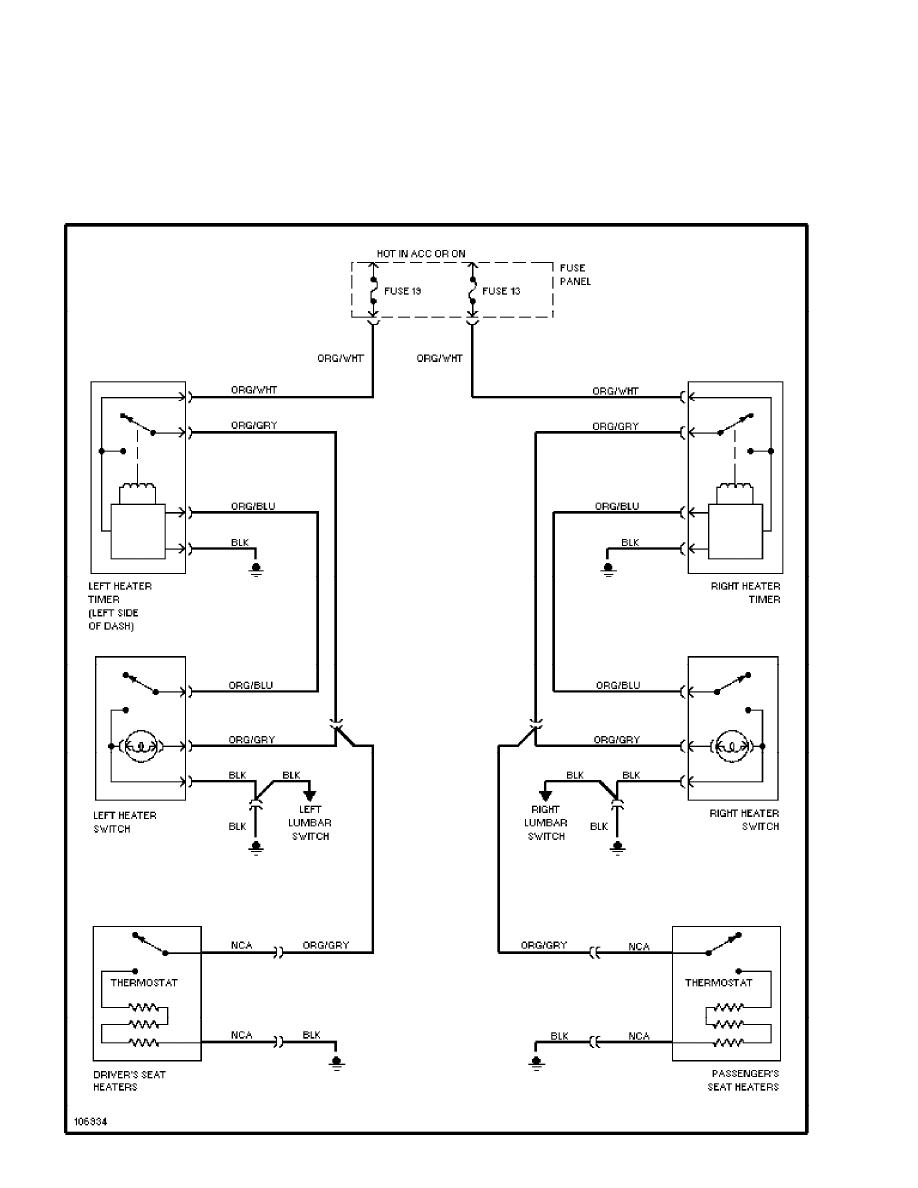

Heated Seats Circuit (p. 7)

1988 Jaguar XJS

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, September 10, 2004 12:46PM

background image

SYSTEM WIRING DIAGRAMS

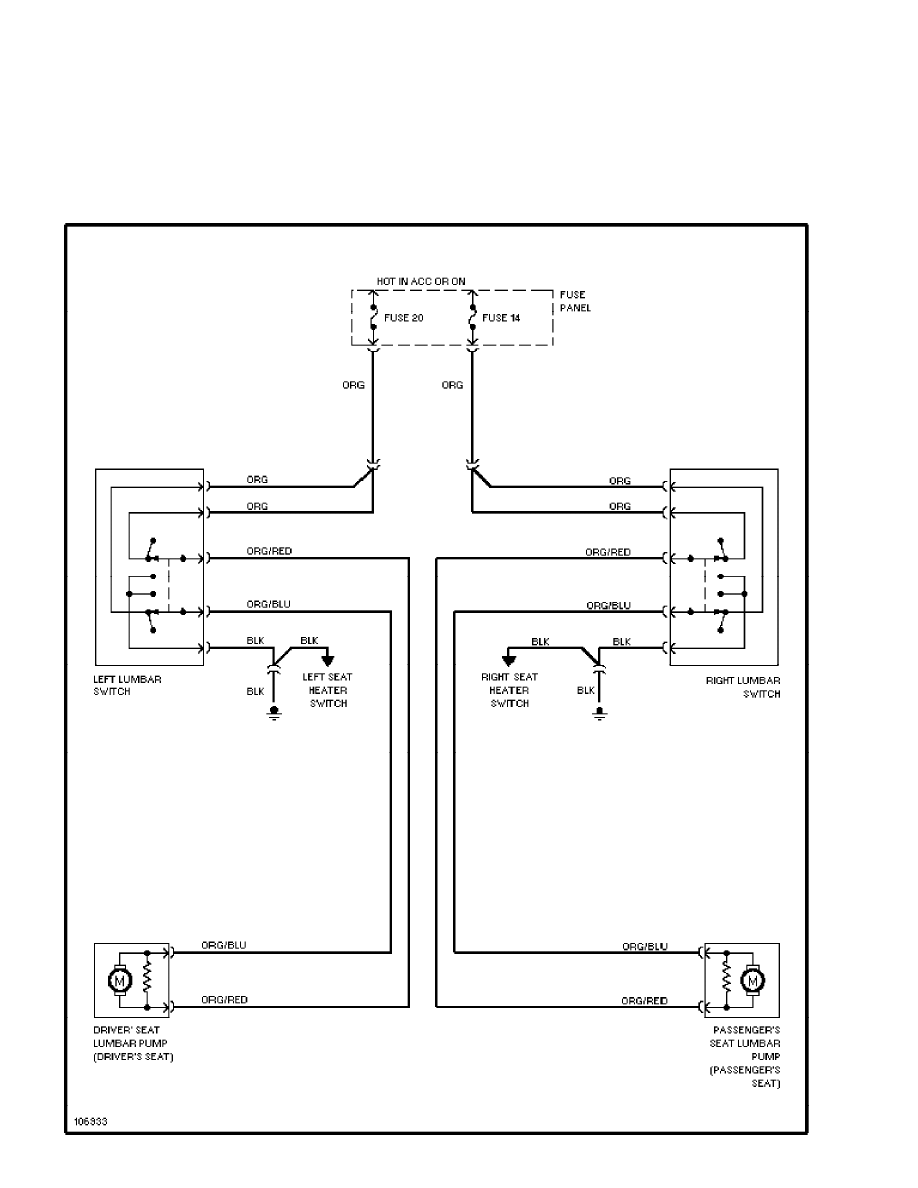

Lumbar Circuit (p. 8)

1988 Jaguar XJS

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, September 10, 2004 12:46PM

background image

SYSTEM WIRING DIAGRAMS

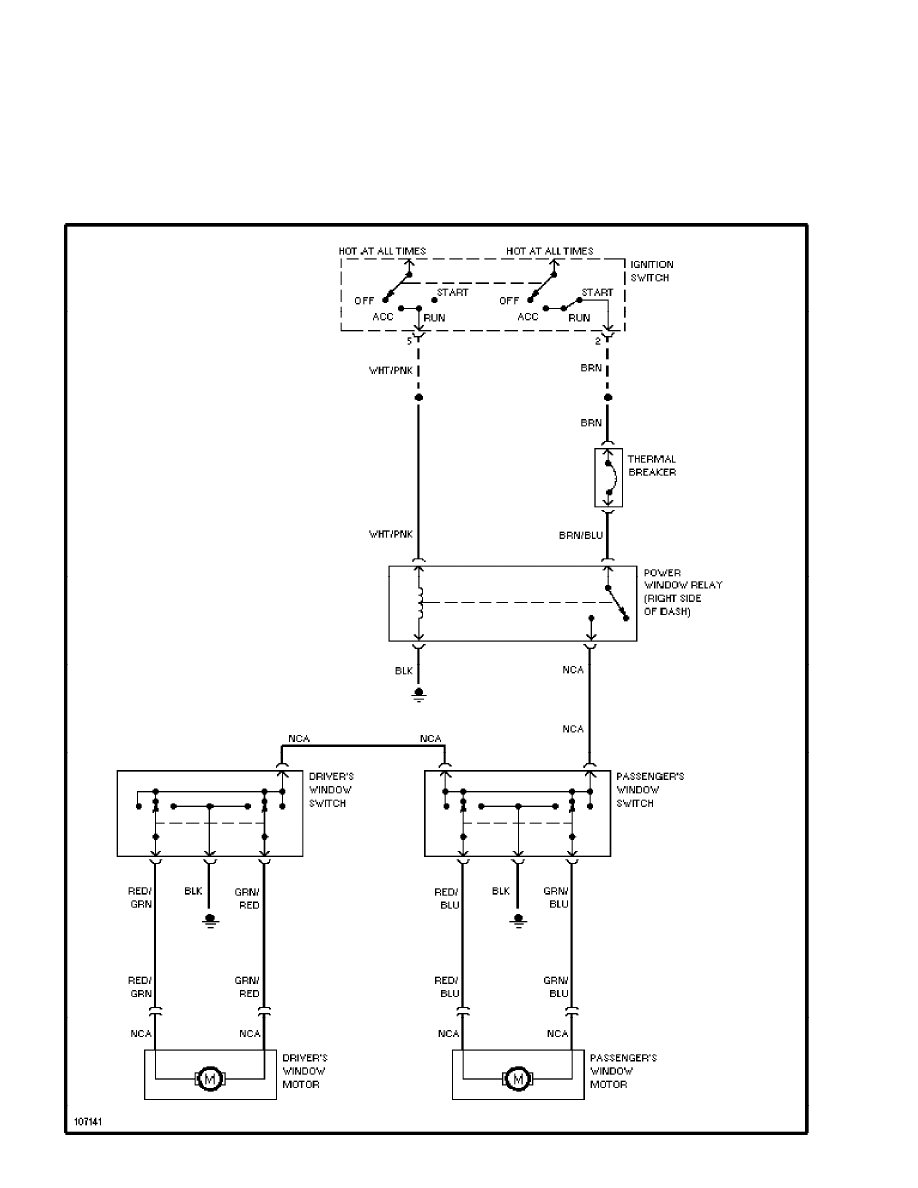

Power Window Circuit (p. 9)

1988 Jaguar XJS

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, September 10, 2004 12:46PM

background image

SYSTEM WIRING DIAGRAMS

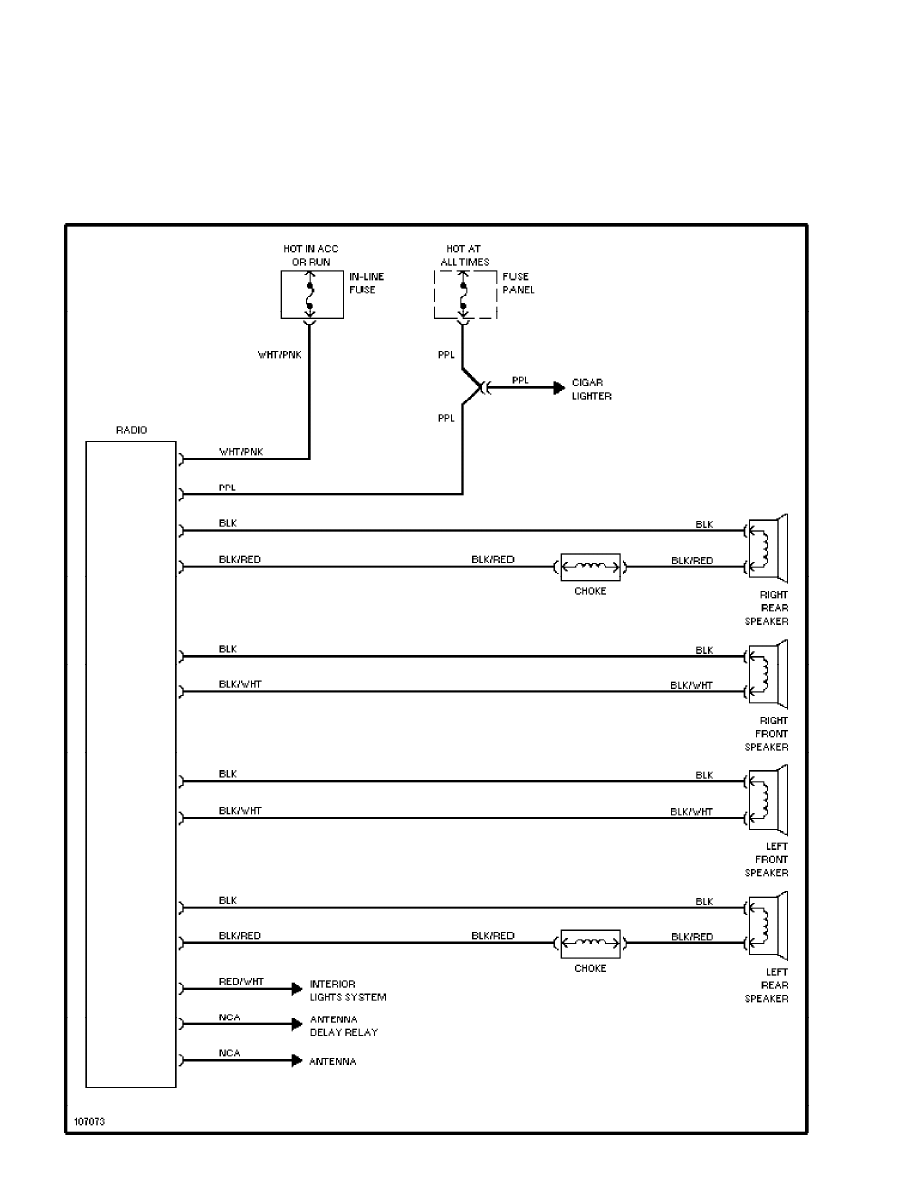

Radio Circuits (p. 10)

1988 Jaguar XJS

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, September 10, 2004 12:46PM

background image

SYSTEM WIRING DIAGRAMS

Charging Circuit (p. 11)

1988 Jaguar XJS

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, September 10, 2004 12:46PM

background image

SYSTEM WIRING DIAGRAMS

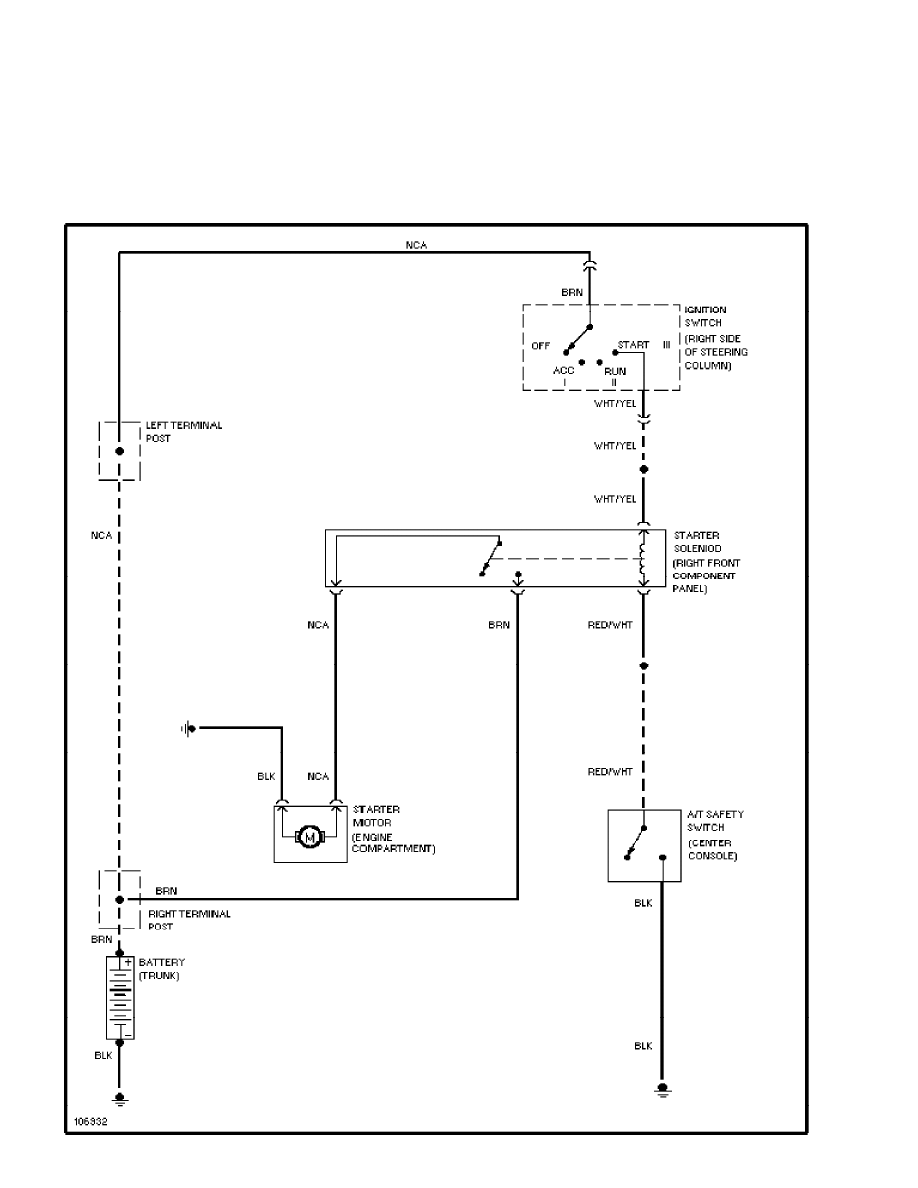

Starting Circuit (p. 12)

1988 Jaguar XJS

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, September 10, 2004 12:46PM

background image

SYSTEM WIRING DIAGRAMS

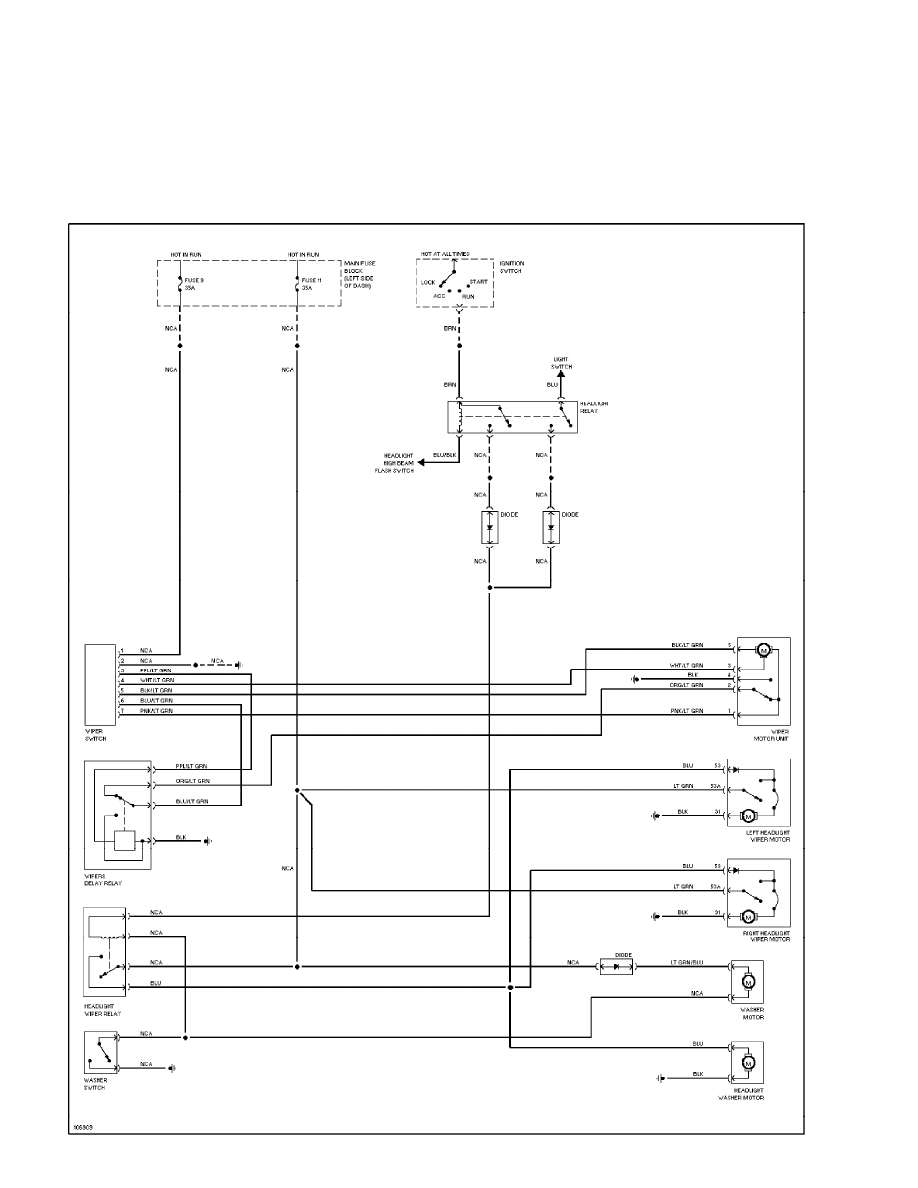

Wiper/Washer Circuit (p. 13)

1988 Jaguar XJS

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, September 10, 2004 12:46PM

background image

WIRING DIAGRAMS

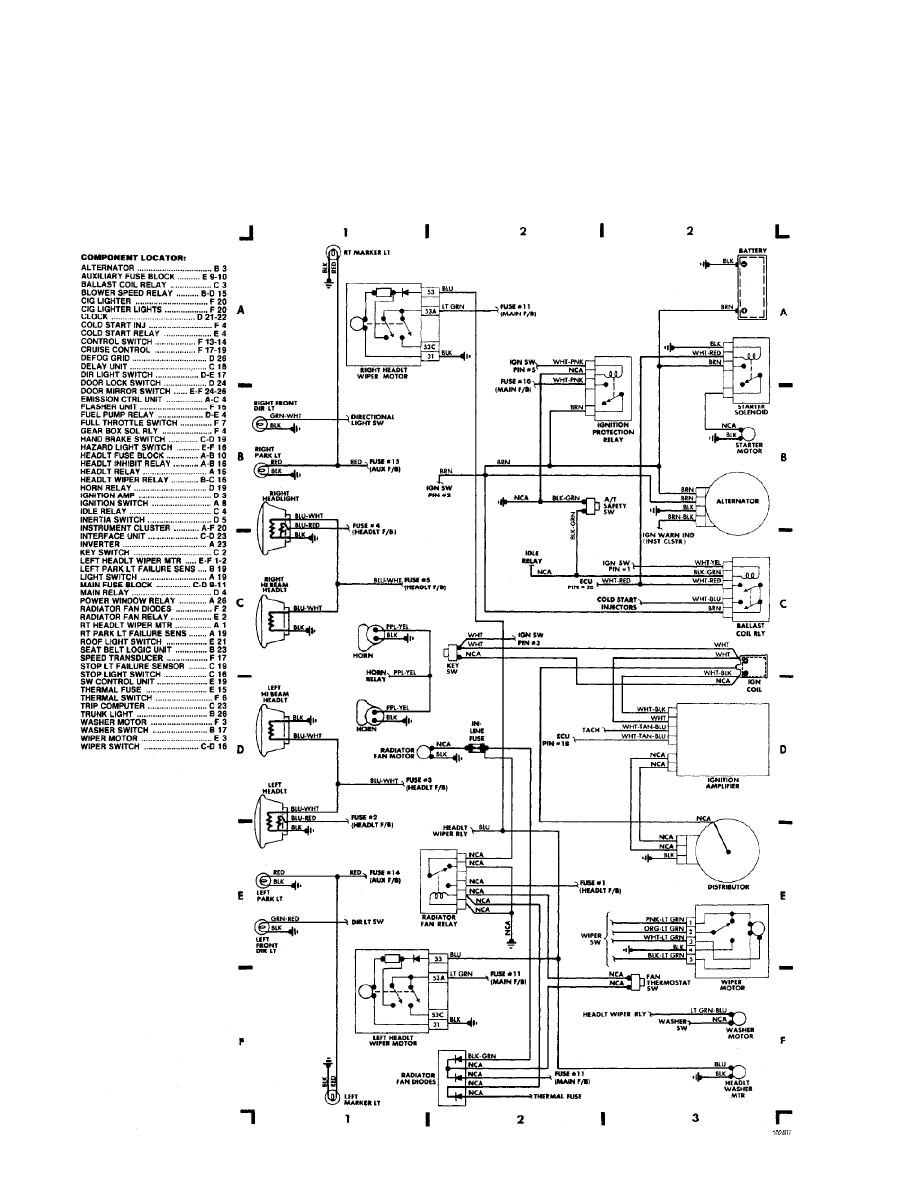

Fig. 1: Engine Compartment & Headlights

1988 Jaguar XJS

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, September 10, 2004 12:46PM

background image

WIRING DIAGRAMS

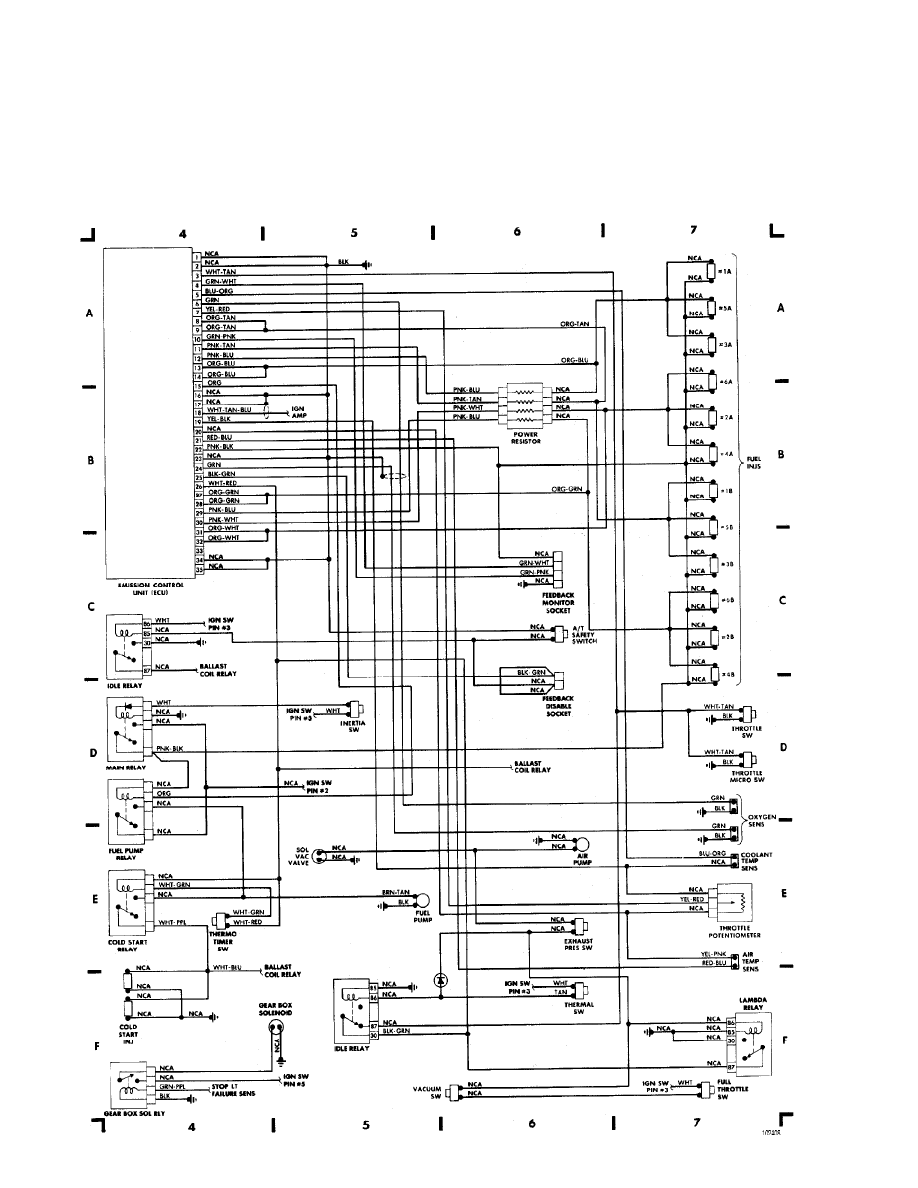

Fig. 2: Computer Engine Control & Fuse Block (Engine Compartment) (p. 2)

1988 Jaguar XJS

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, September 10, 2004 12:46PM

background image

WIRING DIAGRAMS

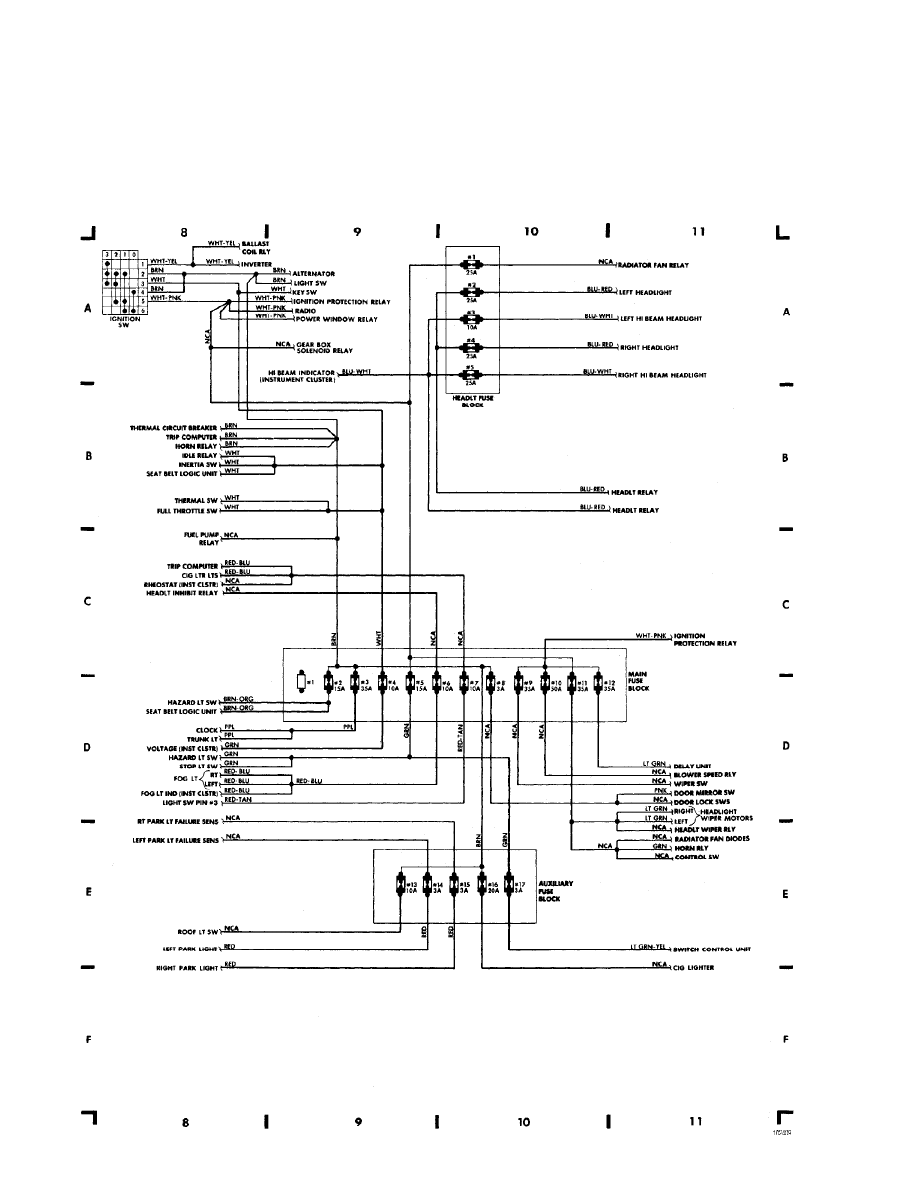

Fig. 3: Fuse Block (Underdash) (p. 3)

1988 Jaguar XJS

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, September 10, 2004 12:46PM

background image

WIRING DIAGRAMS

Fig. 4: Underdash (p. 4)

1988 Jaguar XJS

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, September 10, 2004 12:46PM

background image

WIRING DIAGRAMS

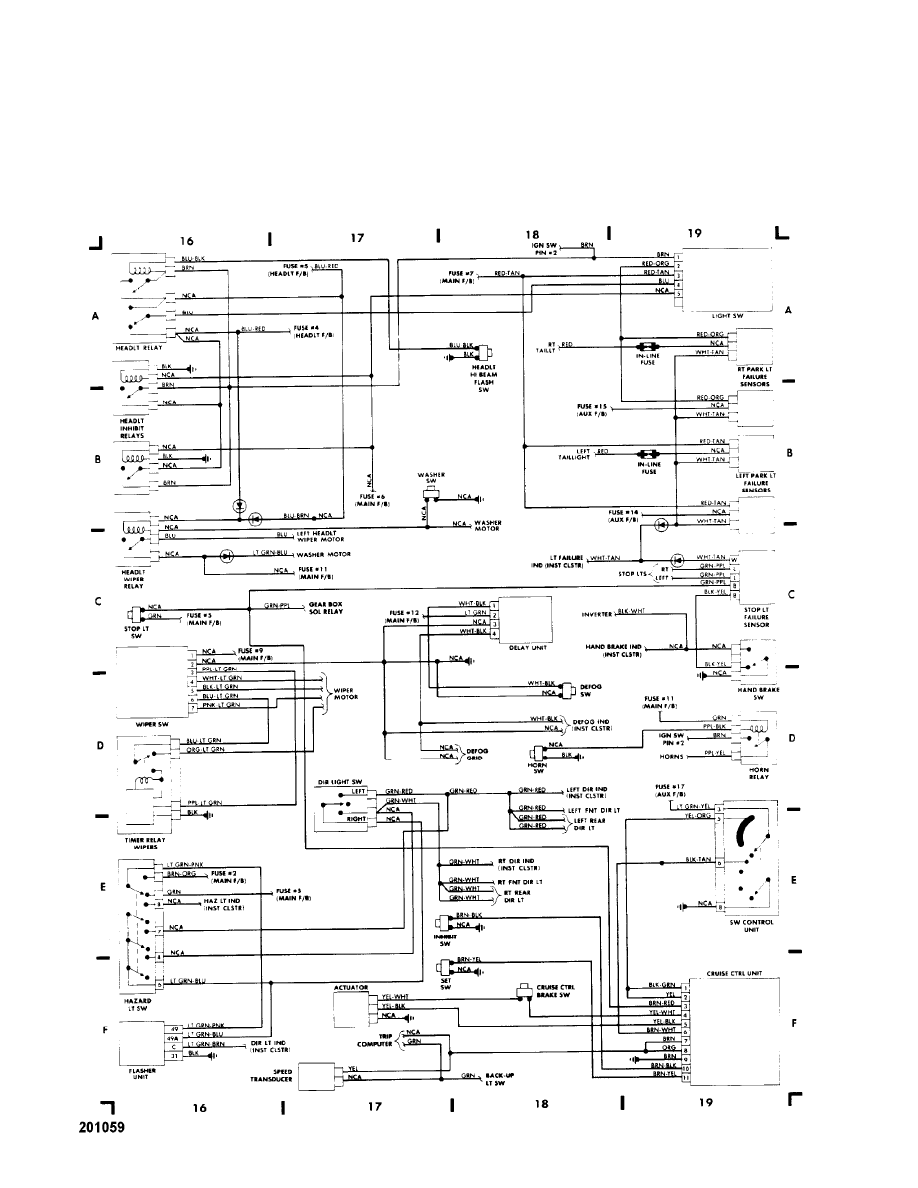

Fig. 5: Cruise Ctrl., Headlight/Taillight Monitors & Wiper/Washer Ctrl. (p. 5)

1988 Jaguar XJS

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, September 10, 2004 12:46PM

background image

WIRING DIAGRAMS

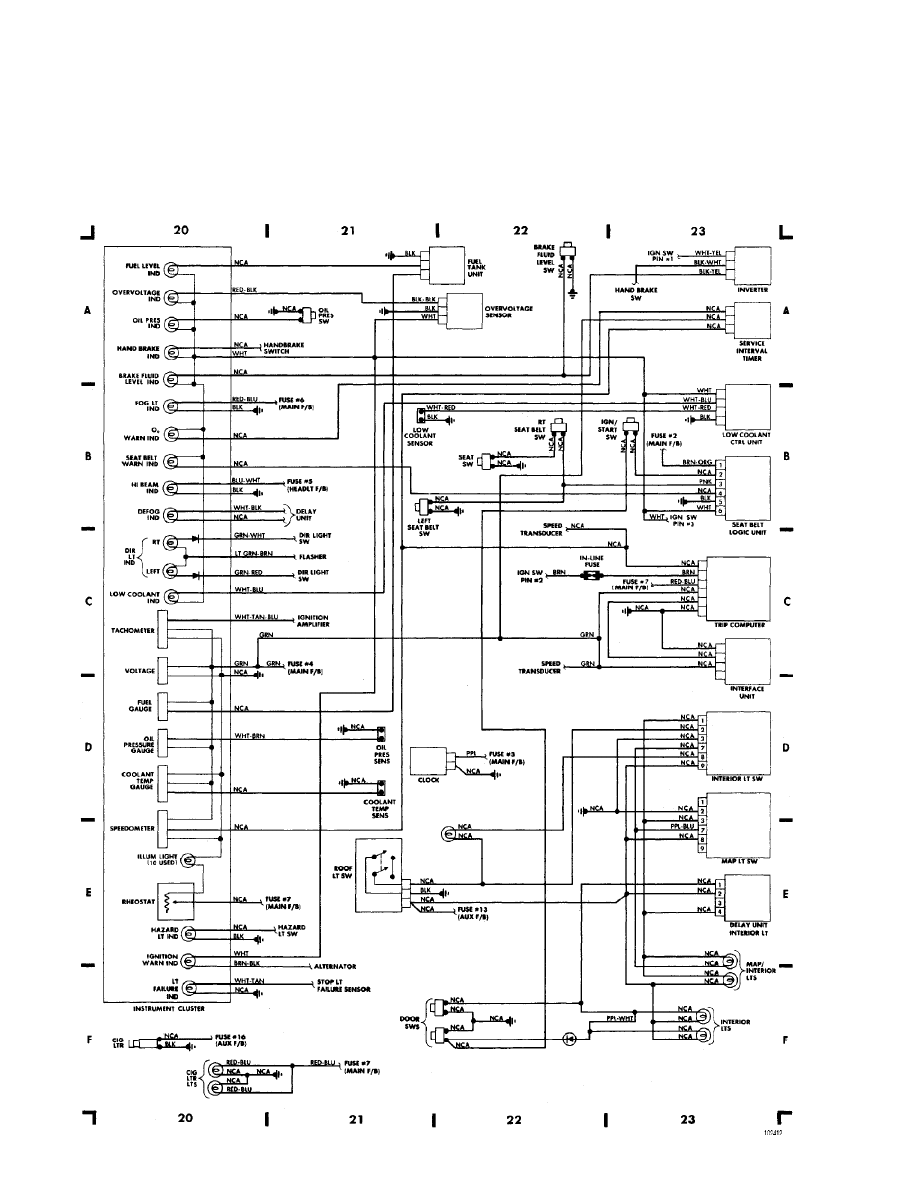

Fig. 6: Instrument Panel (p. 6)

1988 Jaguar XJS

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, September 10, 2004 12:46PM

background image

WIRING DIAGRAMS

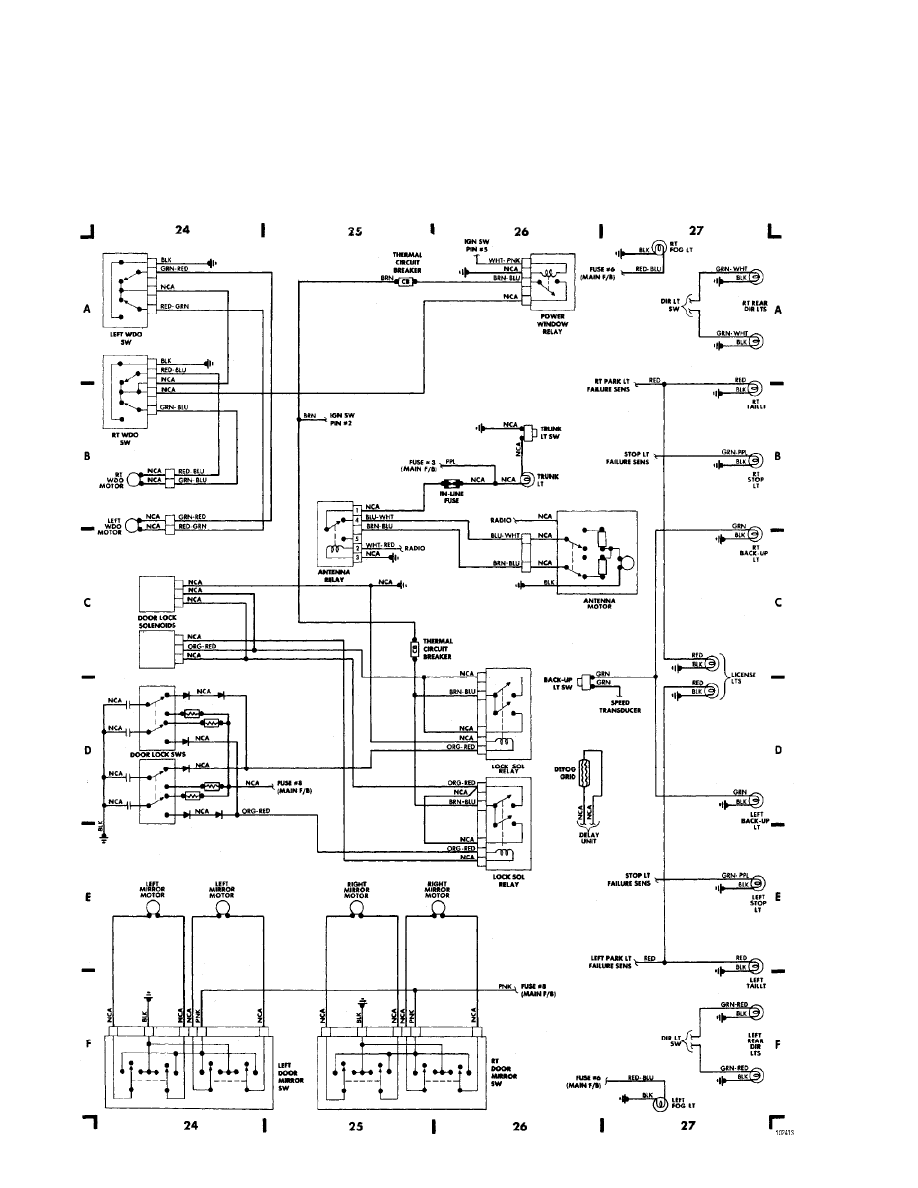

Fig. 7: Passenger Compartment & Taillights (p. 7)

1988 Jaguar XJS

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, September 10, 2004 12:46PM
