JAGUAR XJS 1985

background image

SYSTEM WIRING DIAGRAMS

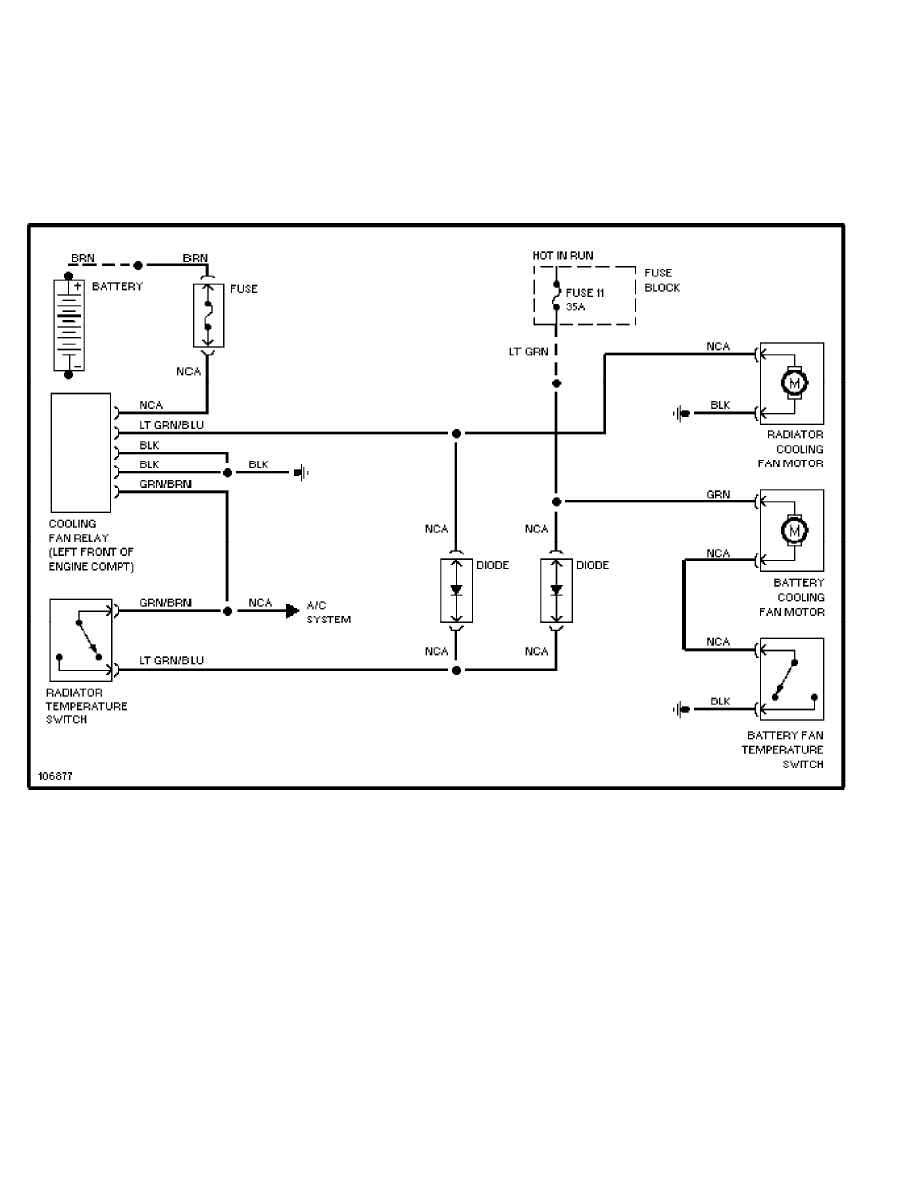

Cooling Fan Circuit

1985 Jaguar XJS

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, September 10, 2004 12:37PM

background image

SYSTEM WIRING DIAGRAMS

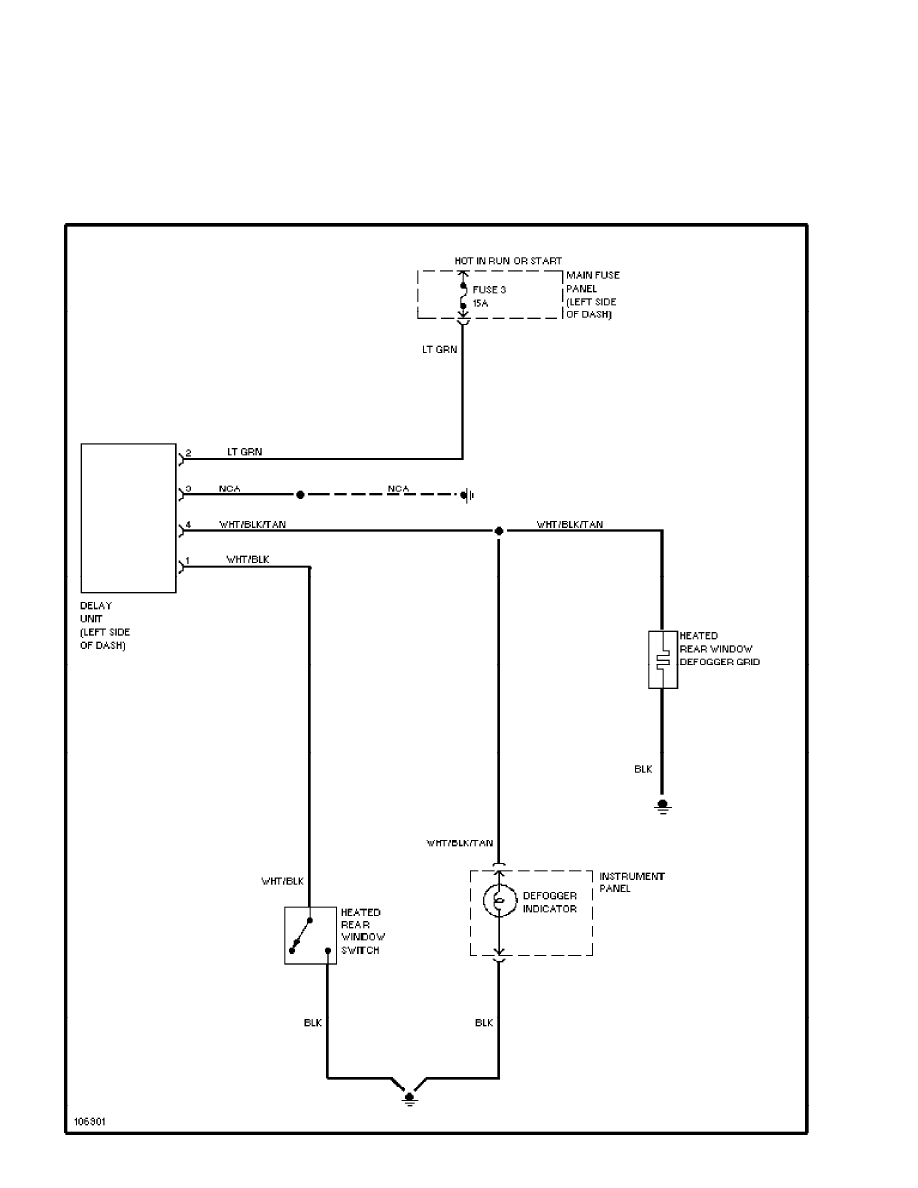

Defogger Circuit (p. 2)

1985 Jaguar XJS

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, September 10, 2004 12:37PM

background image

SYSTEM WIRING DIAGRAMS

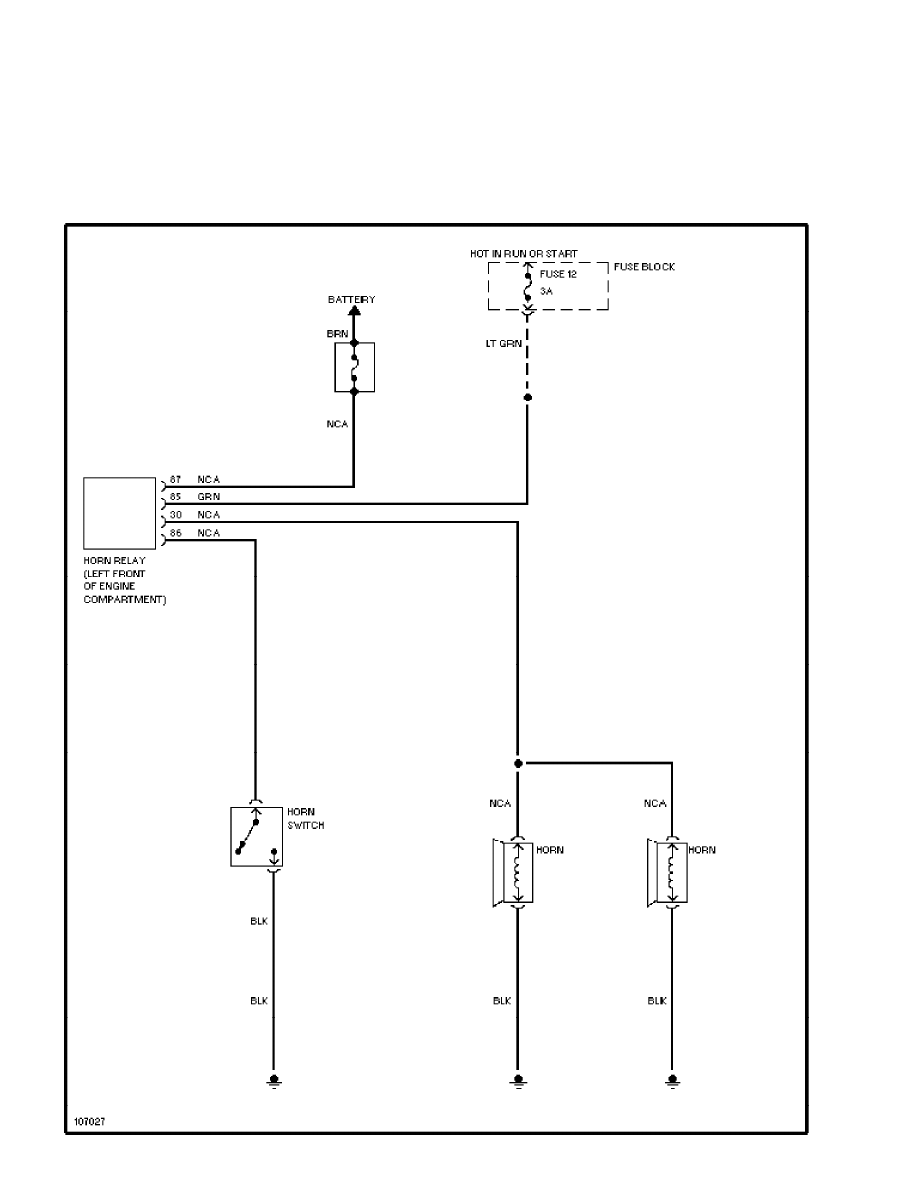

Horn Circuit (p. 3)

1985 Jaguar XJS

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, September 10, 2004 12:37PM

background image

SYSTEM WIRING DIAGRAMS

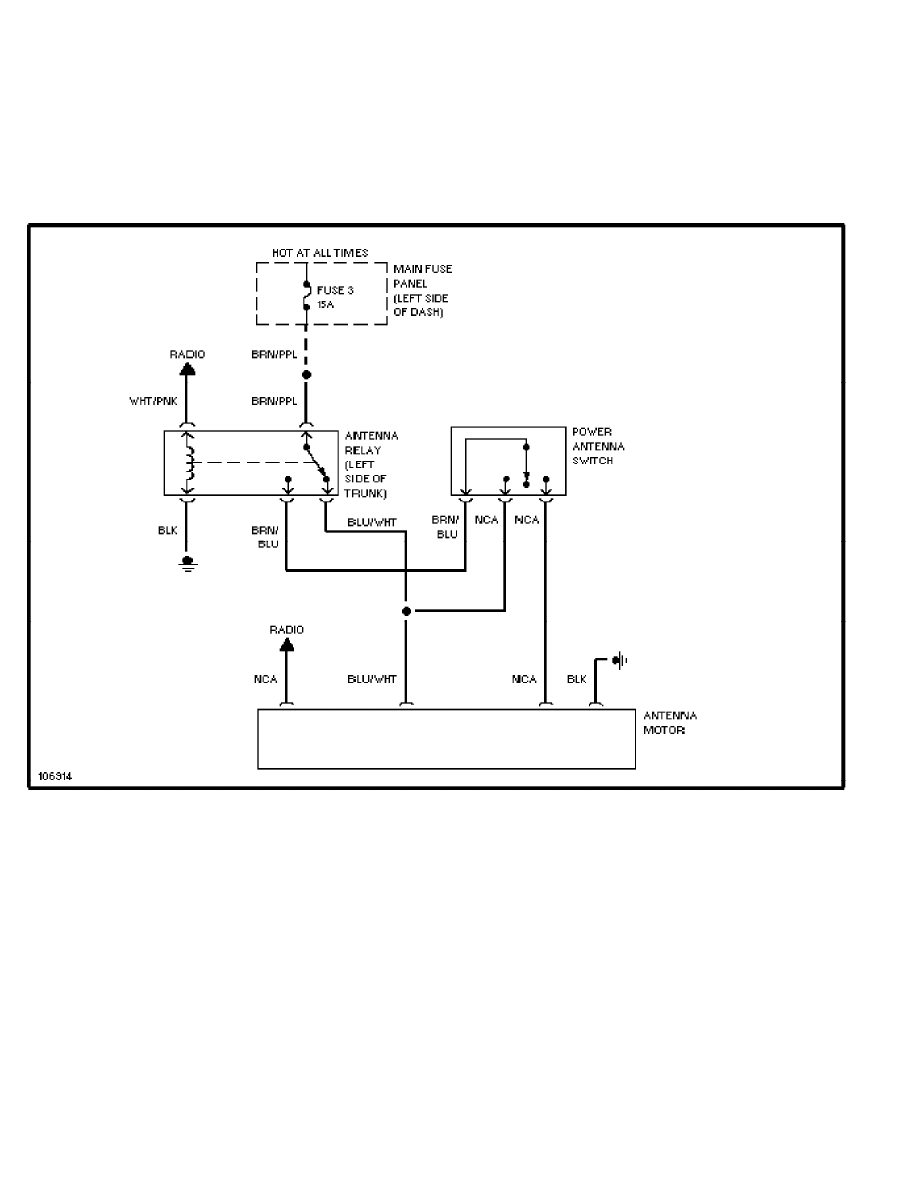

Power Antenna Circuit (p. 4)

1985 Jaguar XJS

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, September 10, 2004 12:37PM

background image

SYSTEM WIRING DIAGRAMS

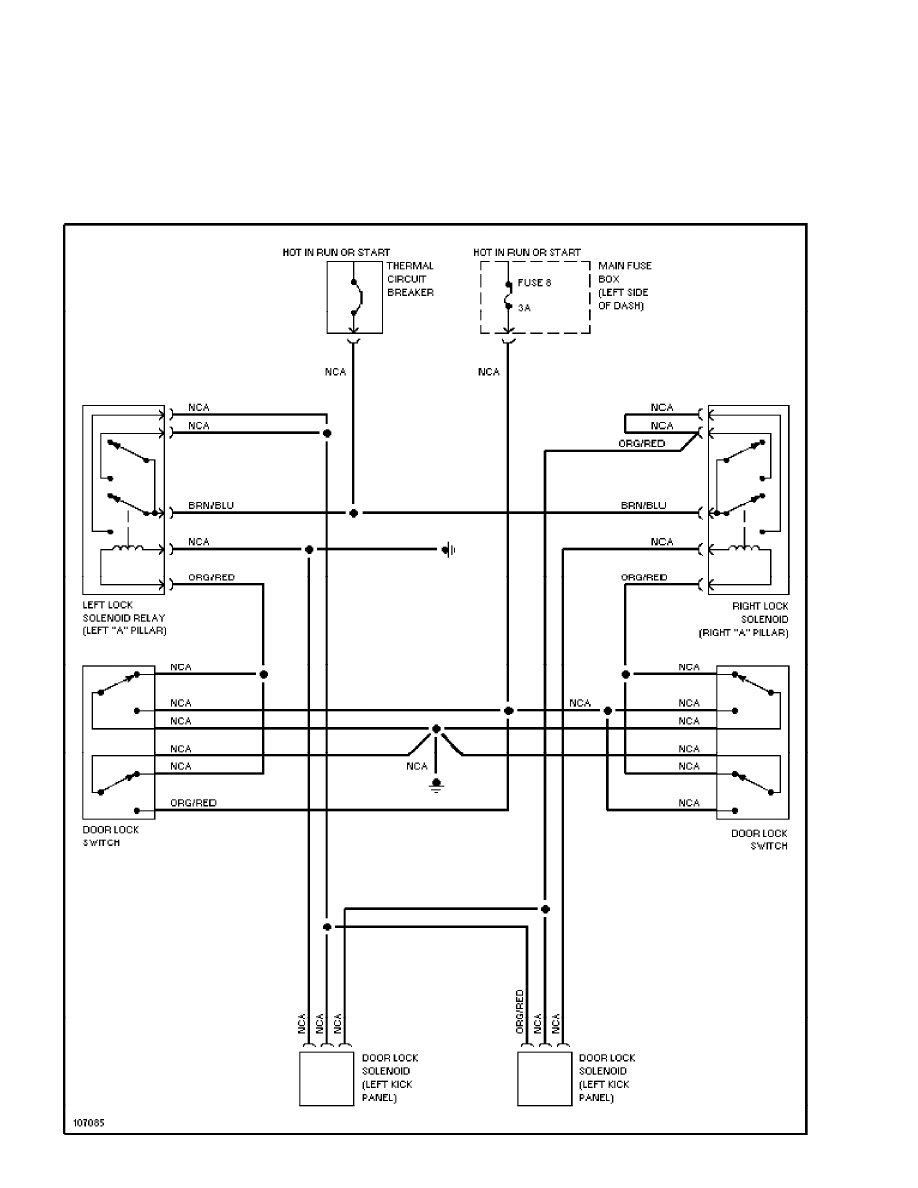

Power Door Lock Circuit (p. 5)

1985 Jaguar XJS

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, September 10, 2004 12:37PM

background image

SYSTEM WIRING DIAGRAMS

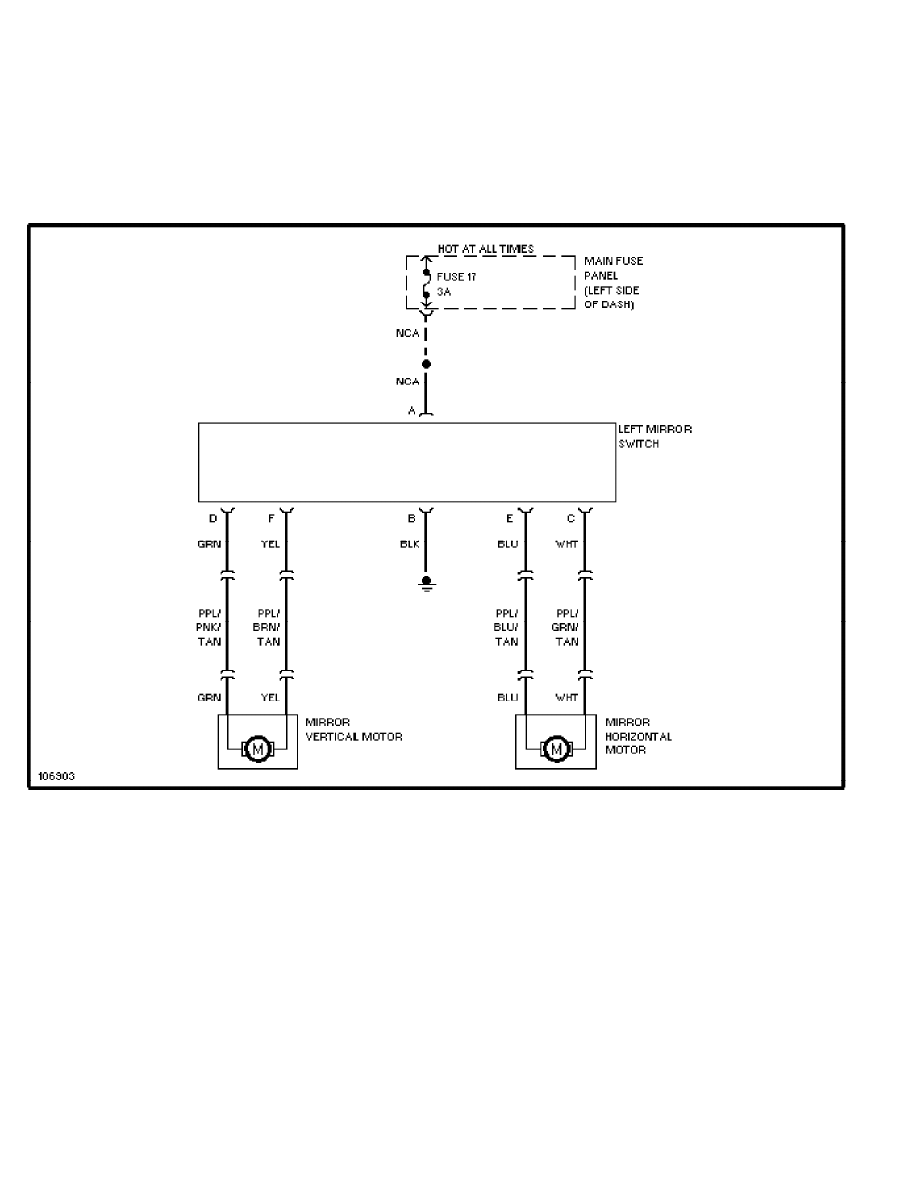

Power Mirror Circuit (p. 6)

1985 Jaguar XJS

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, September 10, 2004 12:37PM

background image

SYSTEM WIRING DIAGRAMS

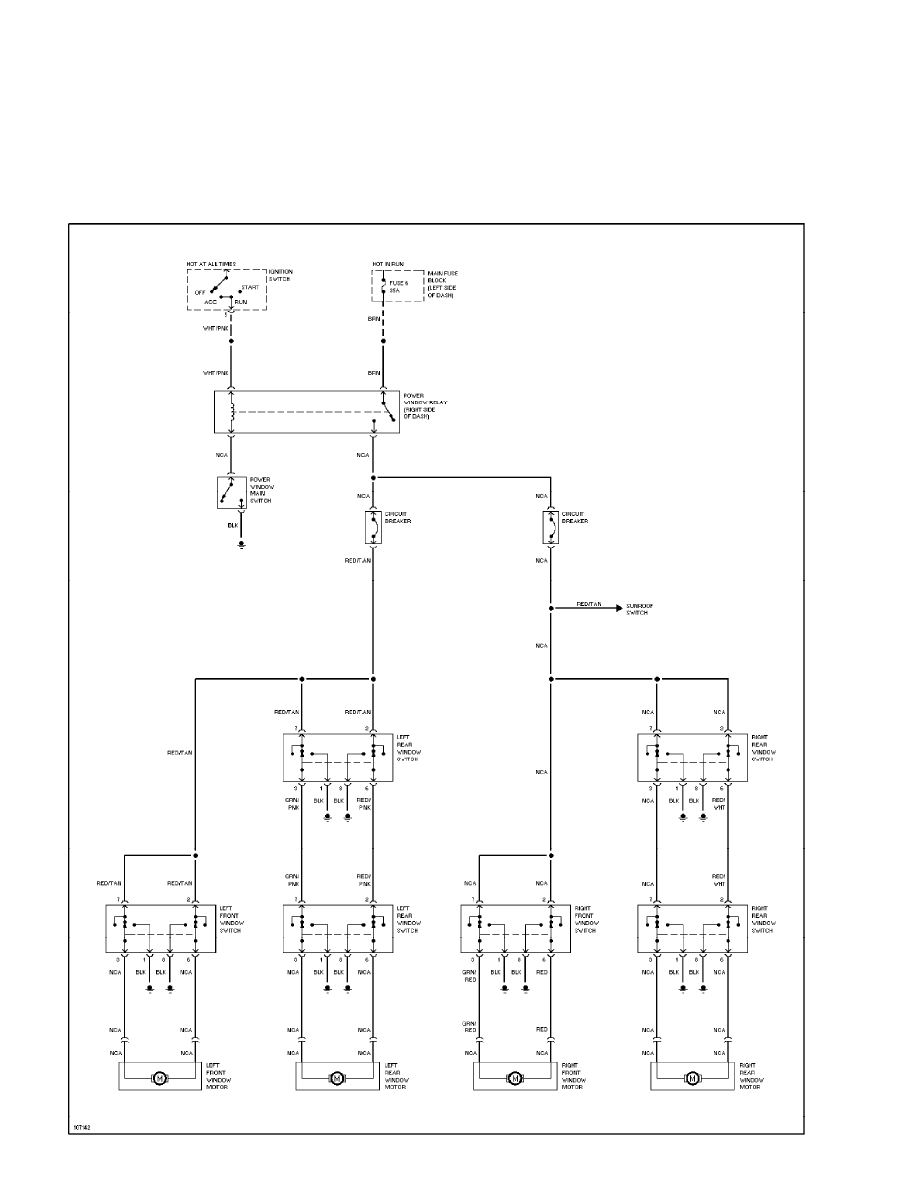

Power Window Circuit (p. 7)

1985 Jaguar XJS

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, September 10, 2004 12:37PM

background image

SYSTEM WIRING DIAGRAMS

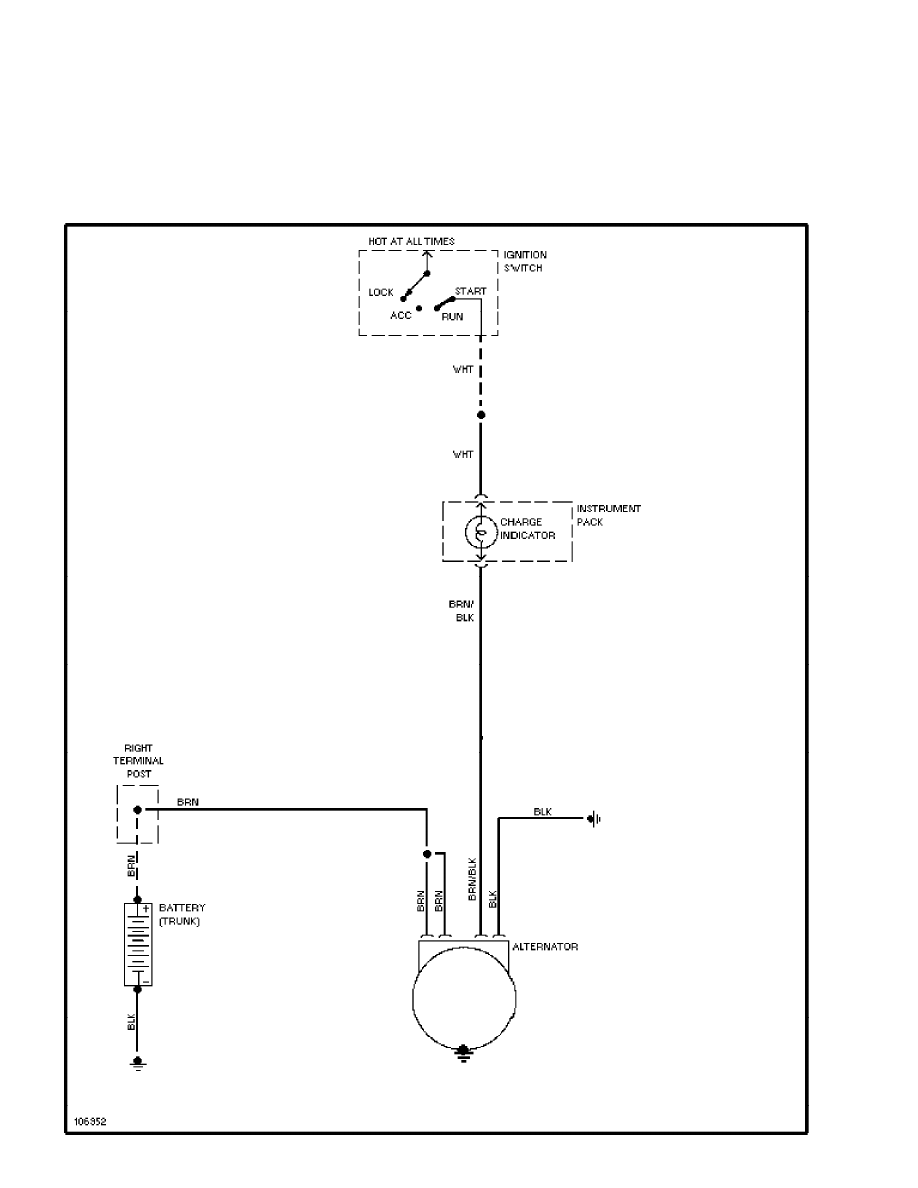

Charging Circuit (p. 8)

1985 Jaguar XJS

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, September 10, 2004 12:37PM

background image

SYSTEM WIRING DIAGRAMS

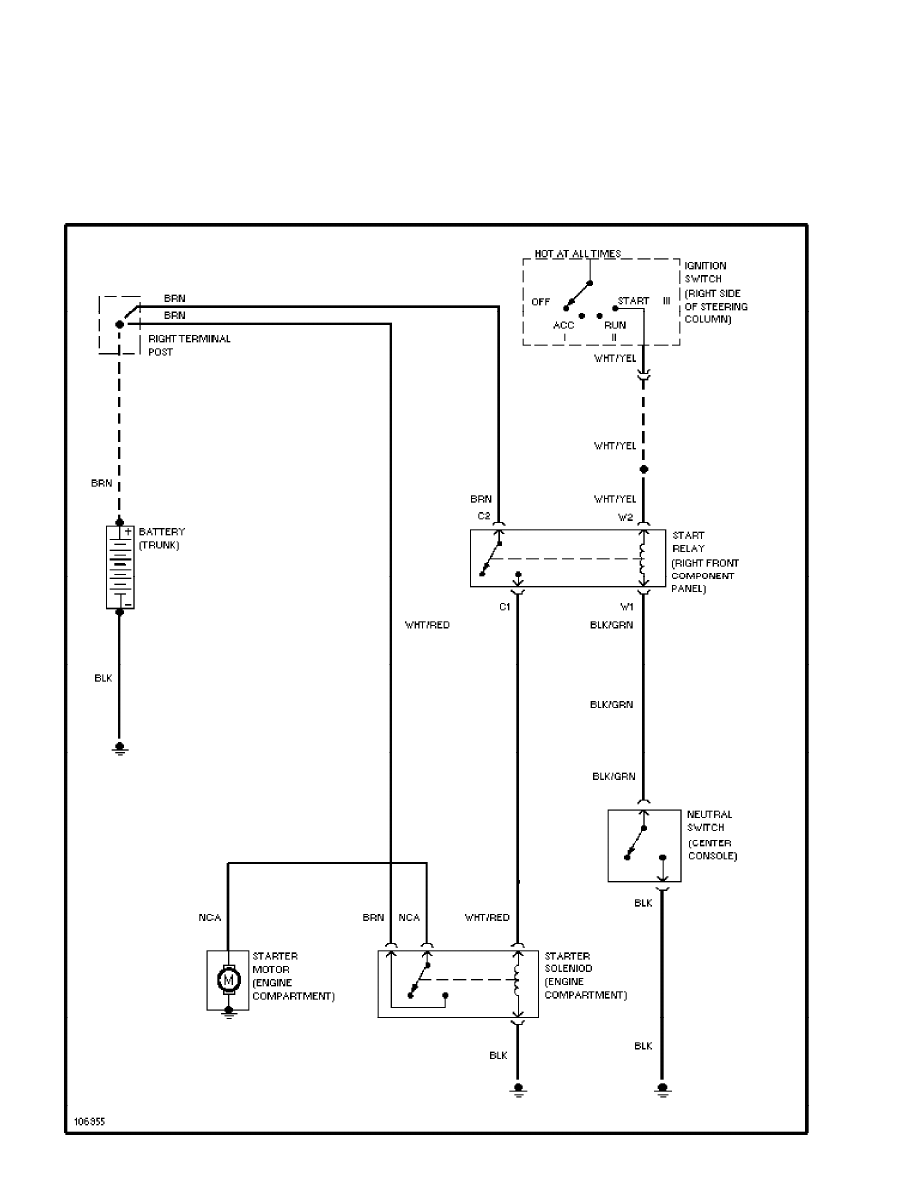

Starting Circuit (p. 9)

1985 Jaguar XJS

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, September 10, 2004 12:37PM

background image

SYSTEM WIRING DIAGRAMS

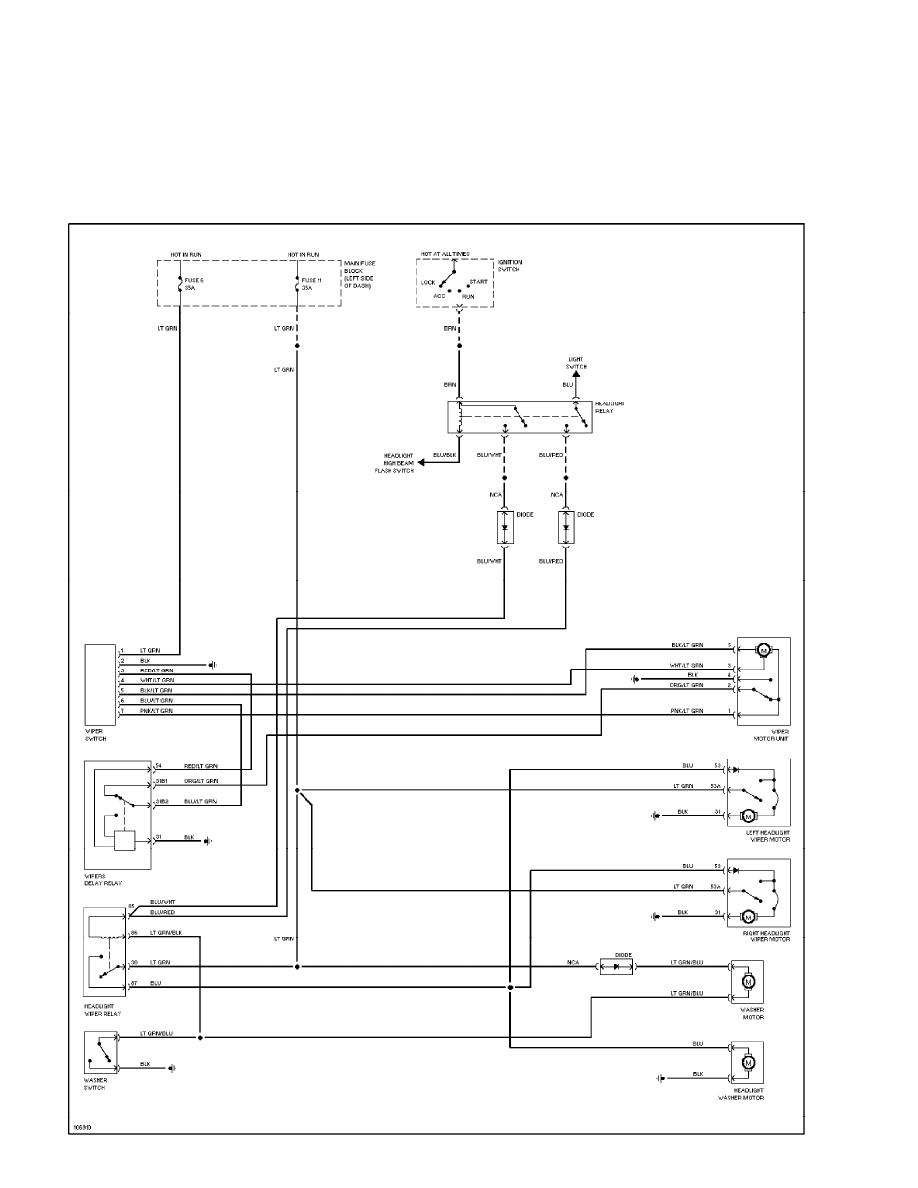

Wiper/Washer Circuit (p. 10)

1985 Jaguar XJS

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, September 10, 2004 12:37PM

background image

WIRING DIAGRAMS

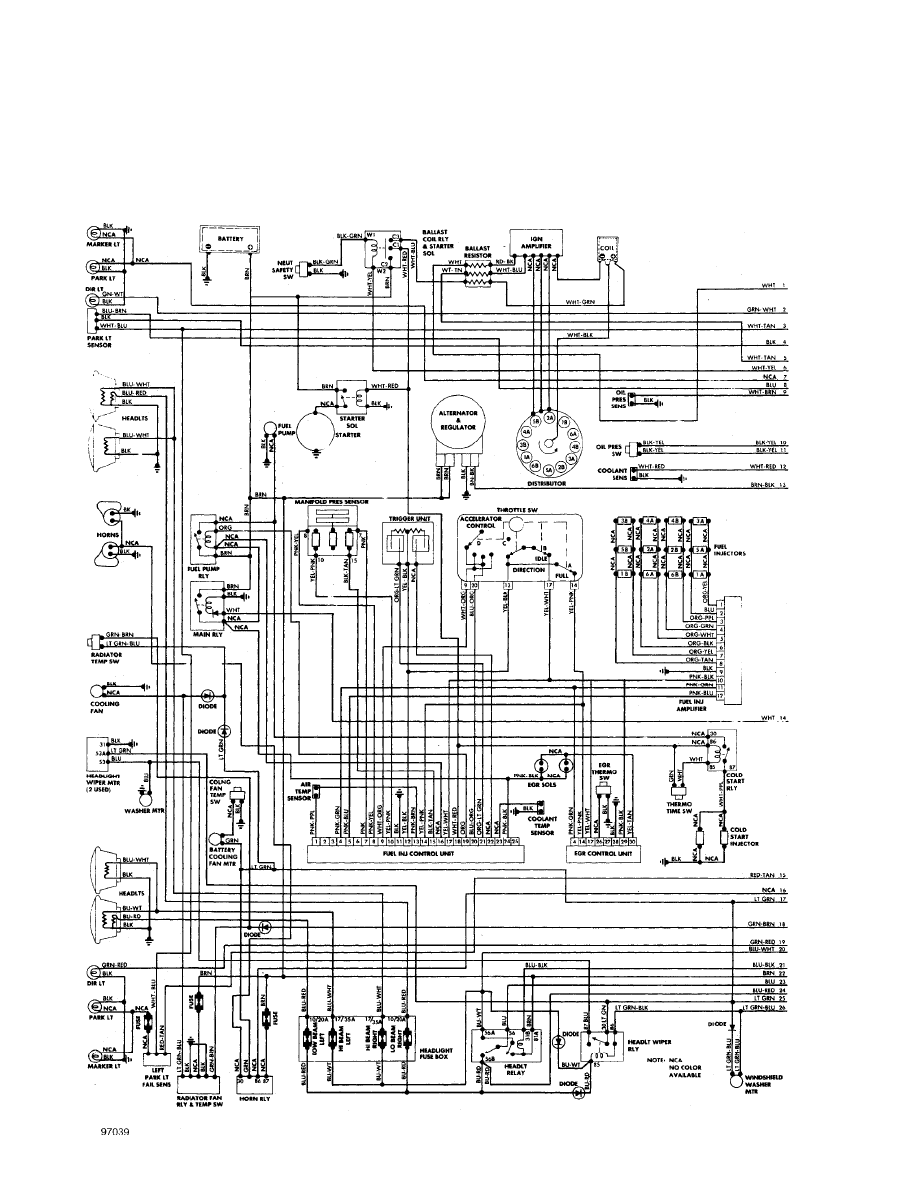

Fig. 1: Engine Compartment

1985 Jaguar XJS

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, September 10, 2004 12:38PM

background image

WIRING DIAGRAMS

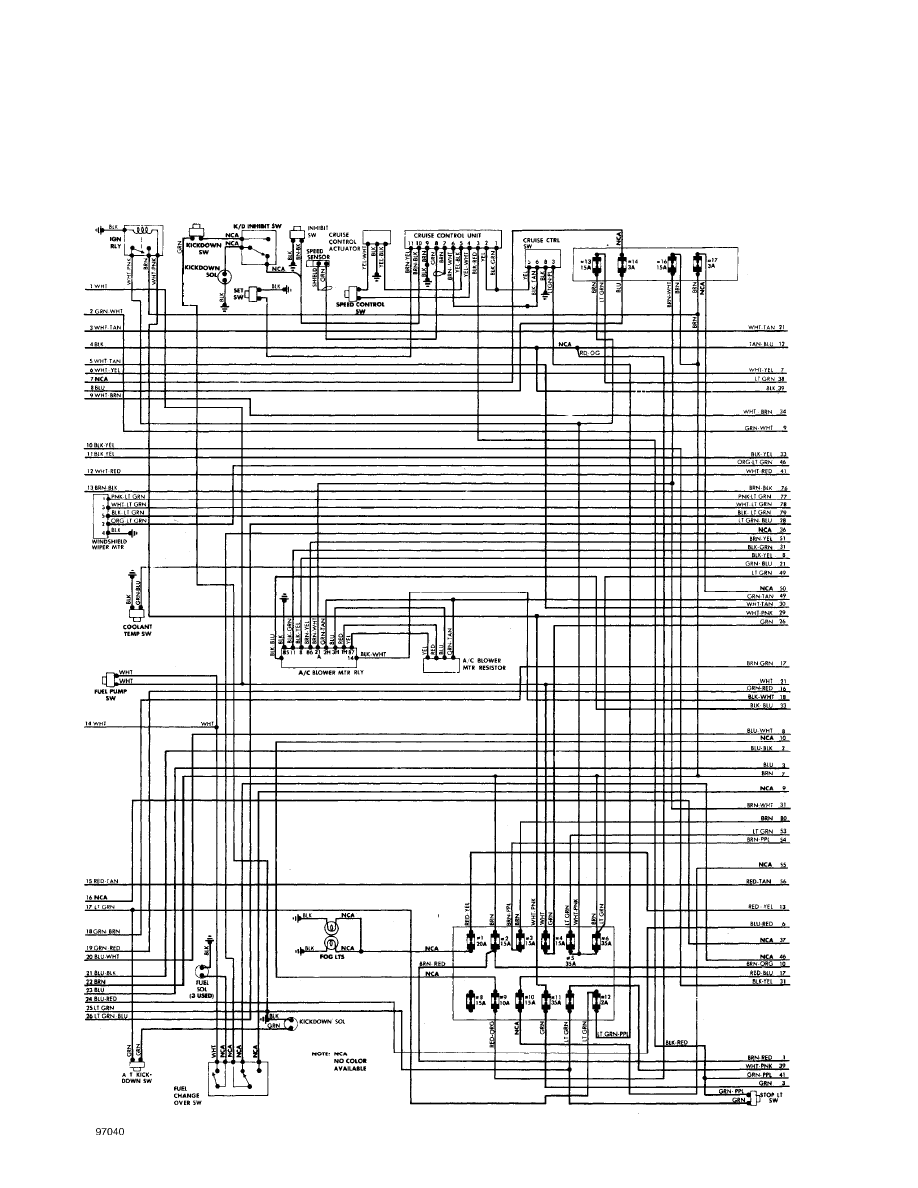

Fig. 2: Fuse Block & Underdash (p. 2)

1985 Jaguar XJS

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, September 10, 2004 12:38PM

background image

WIRING DIAGRAMS

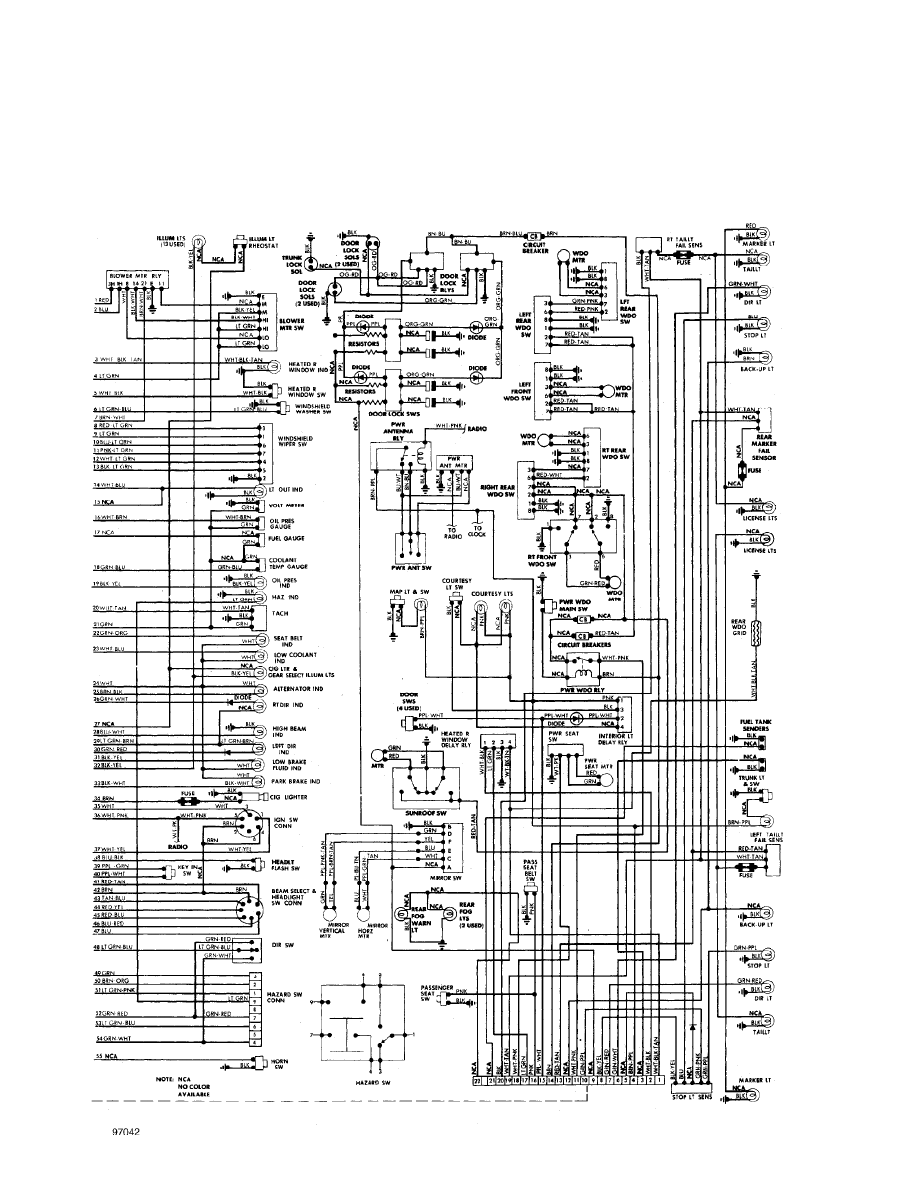

Fig. 3: Underdash & Instrument Panel (p. 3)

1985 Jaguar XJS

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Friday, September 10, 2004 12:38PM

background image

WIRING DIAGRAMS

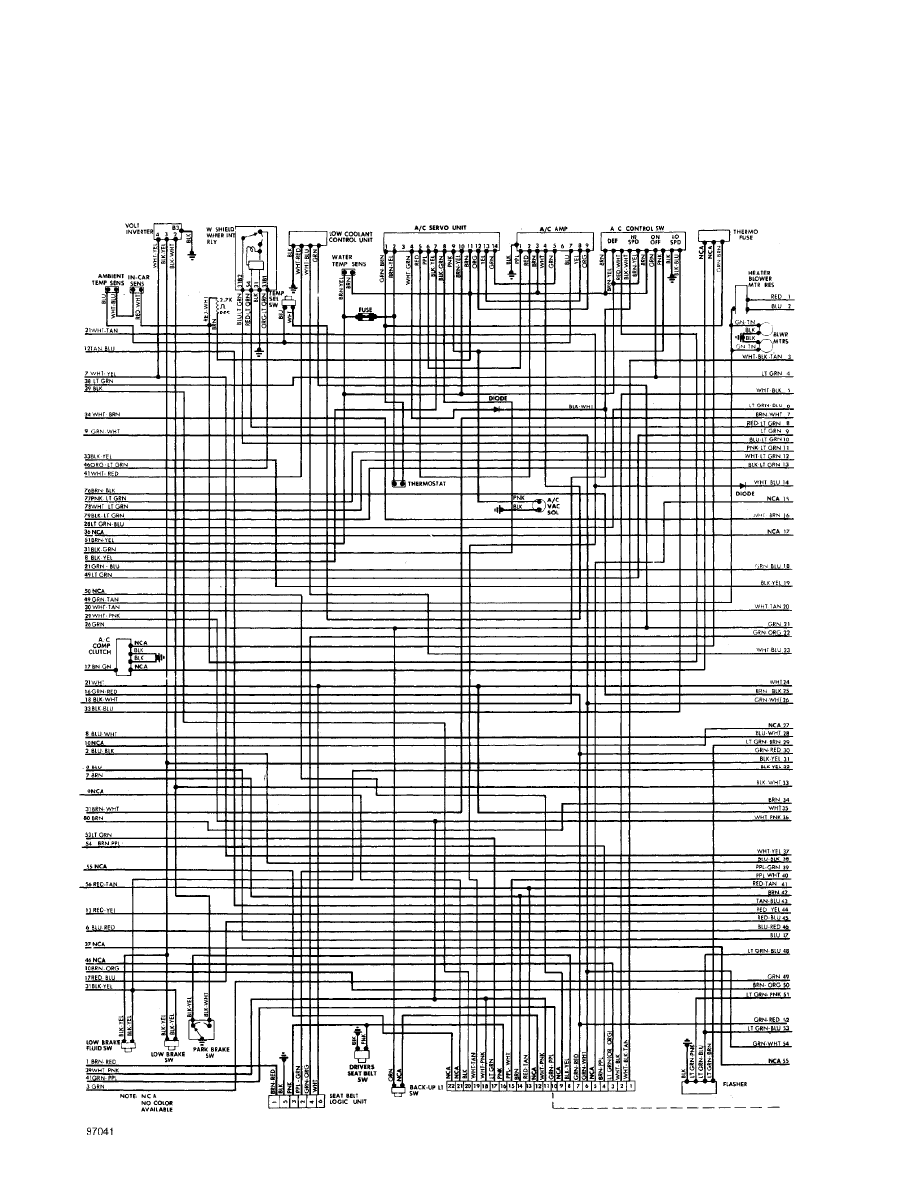

Fig. 4: Instrument Panel (Cont.) & Rear Compartment (p. 4)

1985 Jaguar XJS

For x

Copyright © 1998 Mitchell Repair Information Company, LLC
