Cooling fans, Without air conditioning

background image

Page 1/2

SKODA Felicia (6U) 1.9 D (AEF) 1995 until 2000

Cooling fans, Without air conditioning

©HaynesPro B.V.

Powered by ATRis_Technik

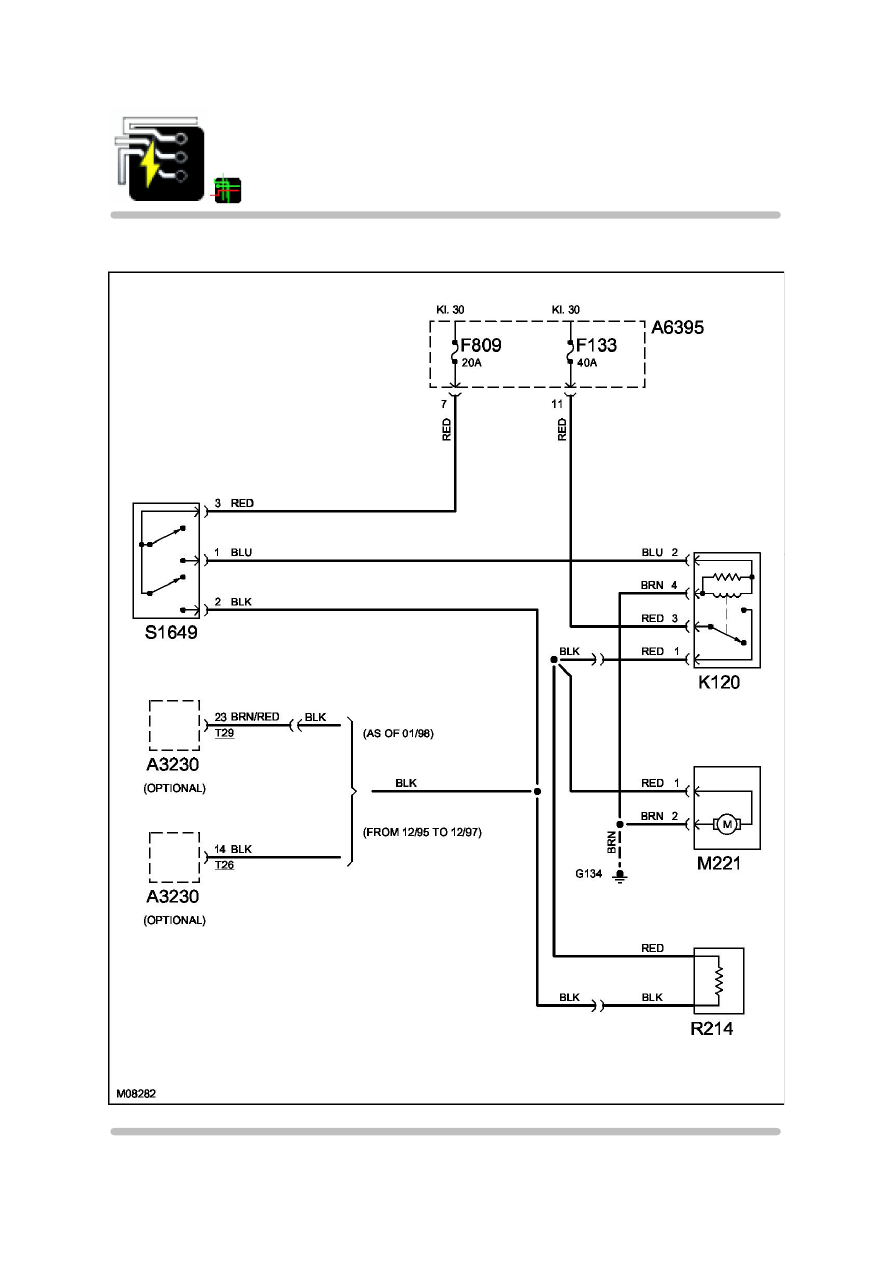

Wiring diagram 1

background image

Page 2/2

SKODA Felicia (6U) 1.9 D (AEF) 1995 until 2000

Cooling fans, Without air conditioning

©HaynesPro B.V.

Powered by ATRis_Technik

Legend (1)

M221

Cooling fan motor

F809

Fuse 108

F133

Fuse 107

K120

Second speed coolant FC (fan control) relay

R214

Cooling fan dropping resistor

S1649

Fan coolant temperature switch

A6395

Auxiliary relay box

A3230

Anti-theft alarm control module
