AUDI CABRIOLET 1998

background image

SYSTEM WIRING DIAGRAMS

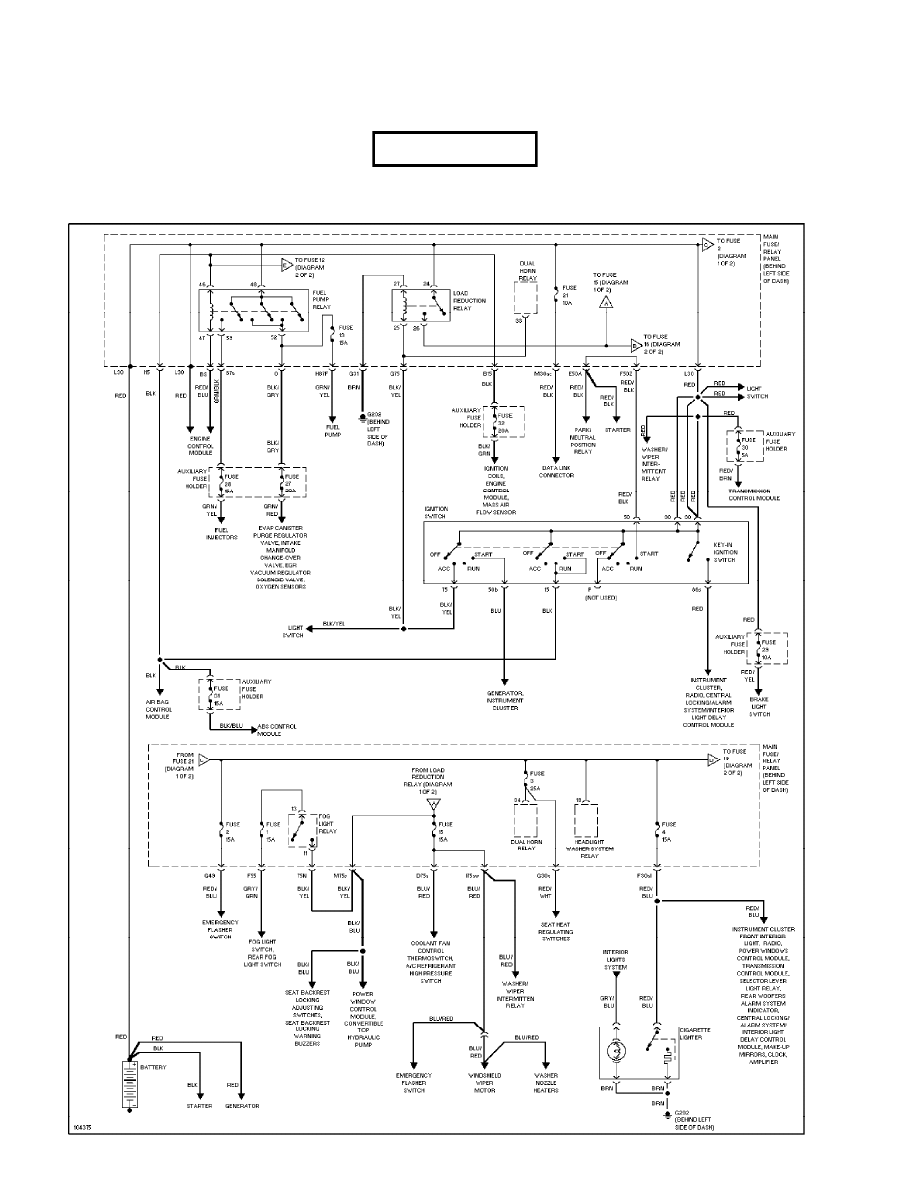

Power Distribution Circuit (1 of 2)

1998 Audi Cabriolet

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 06:52PM

cdr@wp.pl

background image

SYSTEM WIRING DIAGRAMS

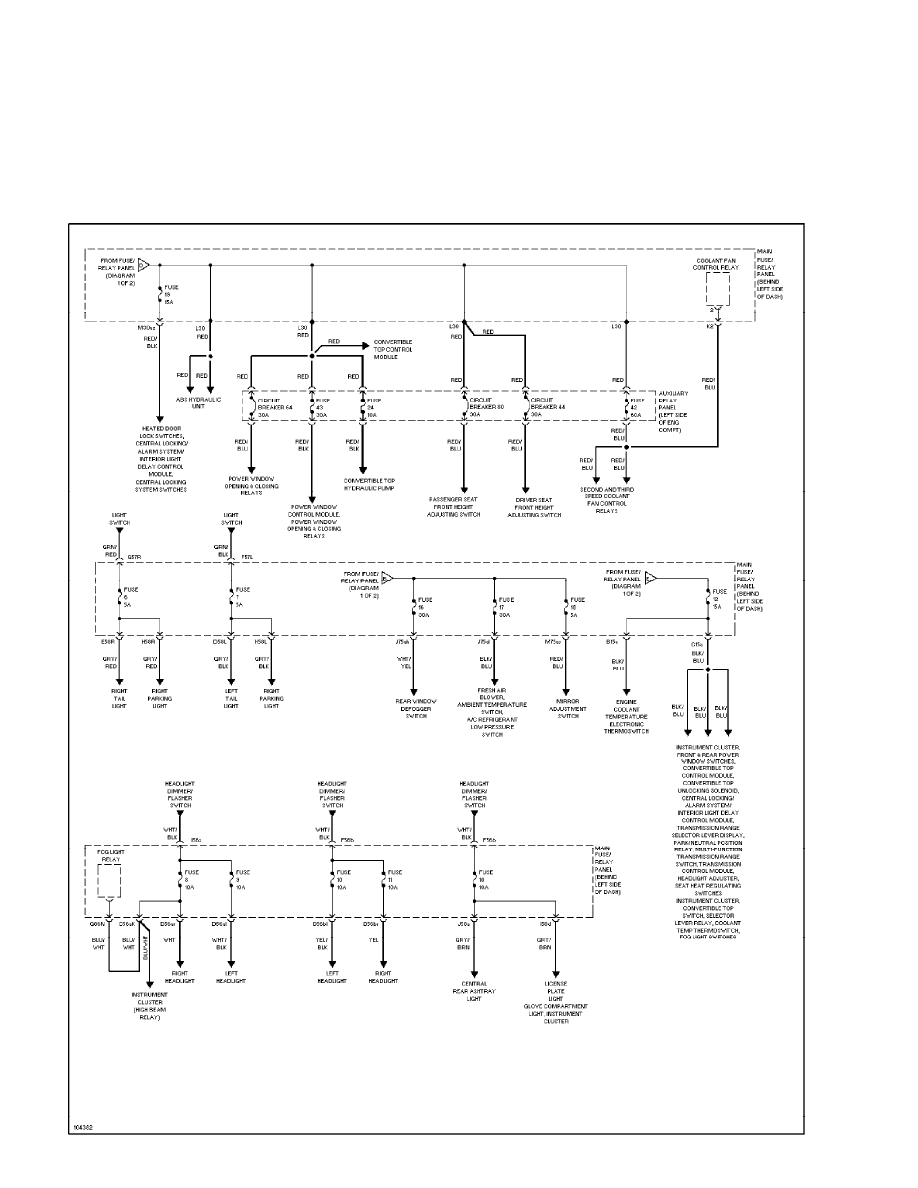

Power Distribution Circuit (2 of 2)

1998 Audi Cabriolet

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 06:52PM

background image

SYSTEM WIRING DIAGRAMS

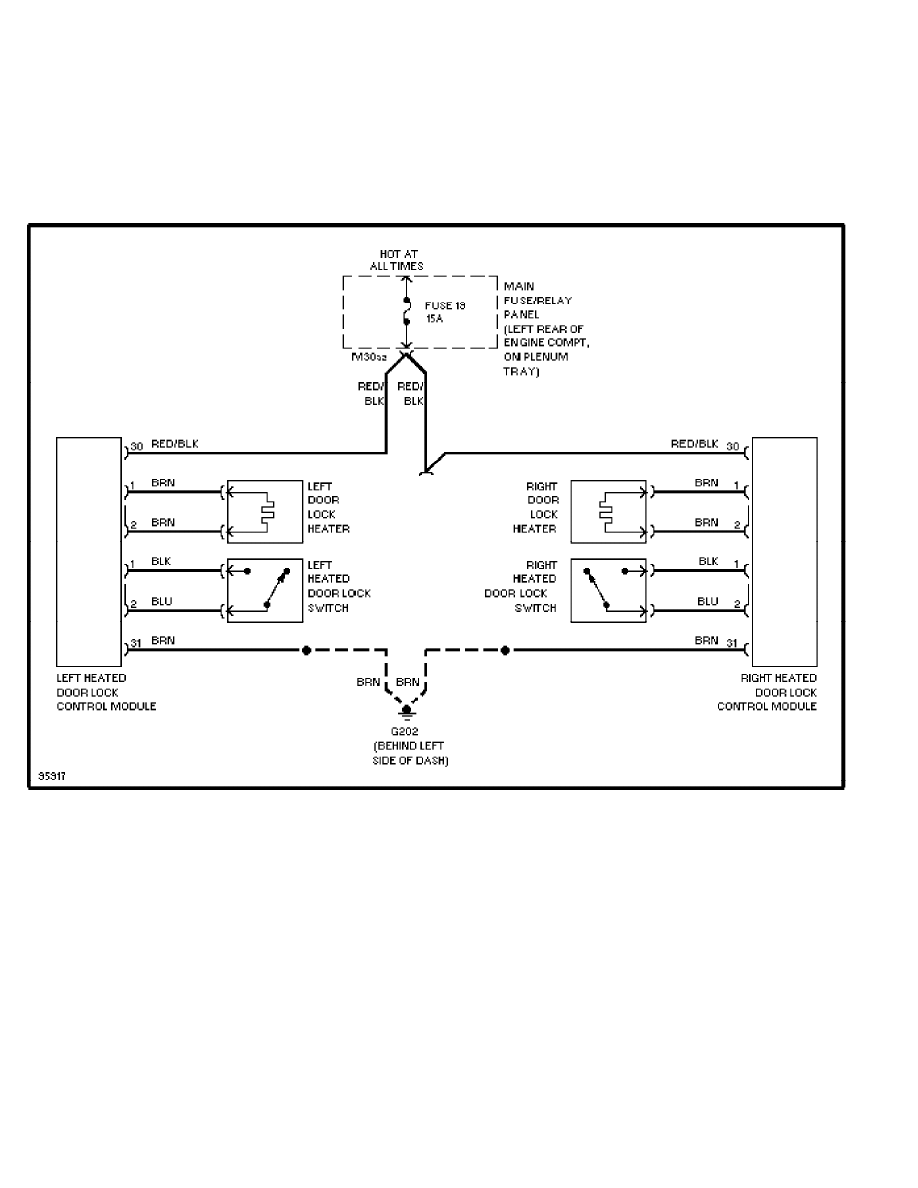

Heated Door Locks Circuit

1998 Audi Cabriolet

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 06:52PM

background image

SYSTEM WIRING DIAGRAMS

Anti-lock Brake Circuits

1998 Audi Cabriolet

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 06:49PM

background image

SYSTEM WIRING DIAGRAMS

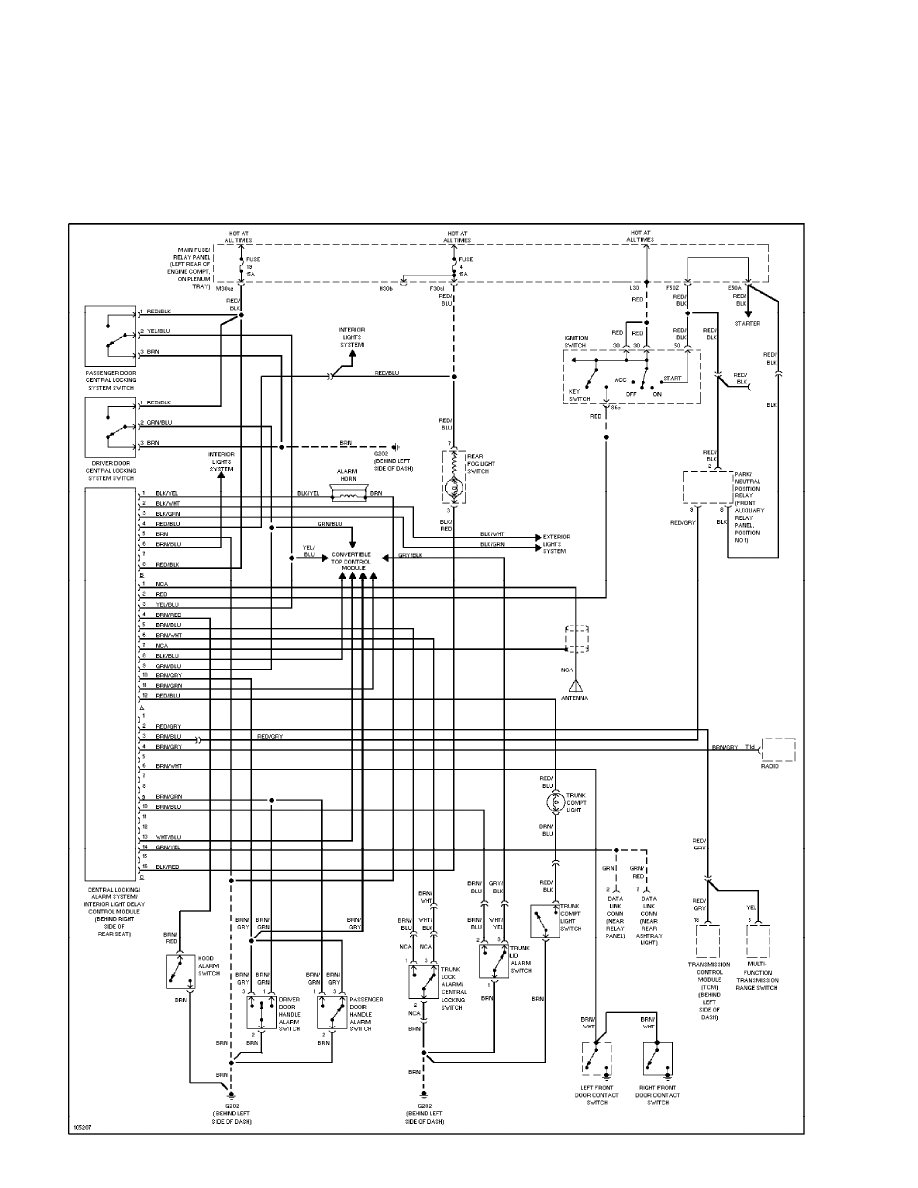

Anti-theft Circuit

1998 Audi Cabriolet

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 06:50PM

background image

SYSTEM WIRING DIAGRAMS

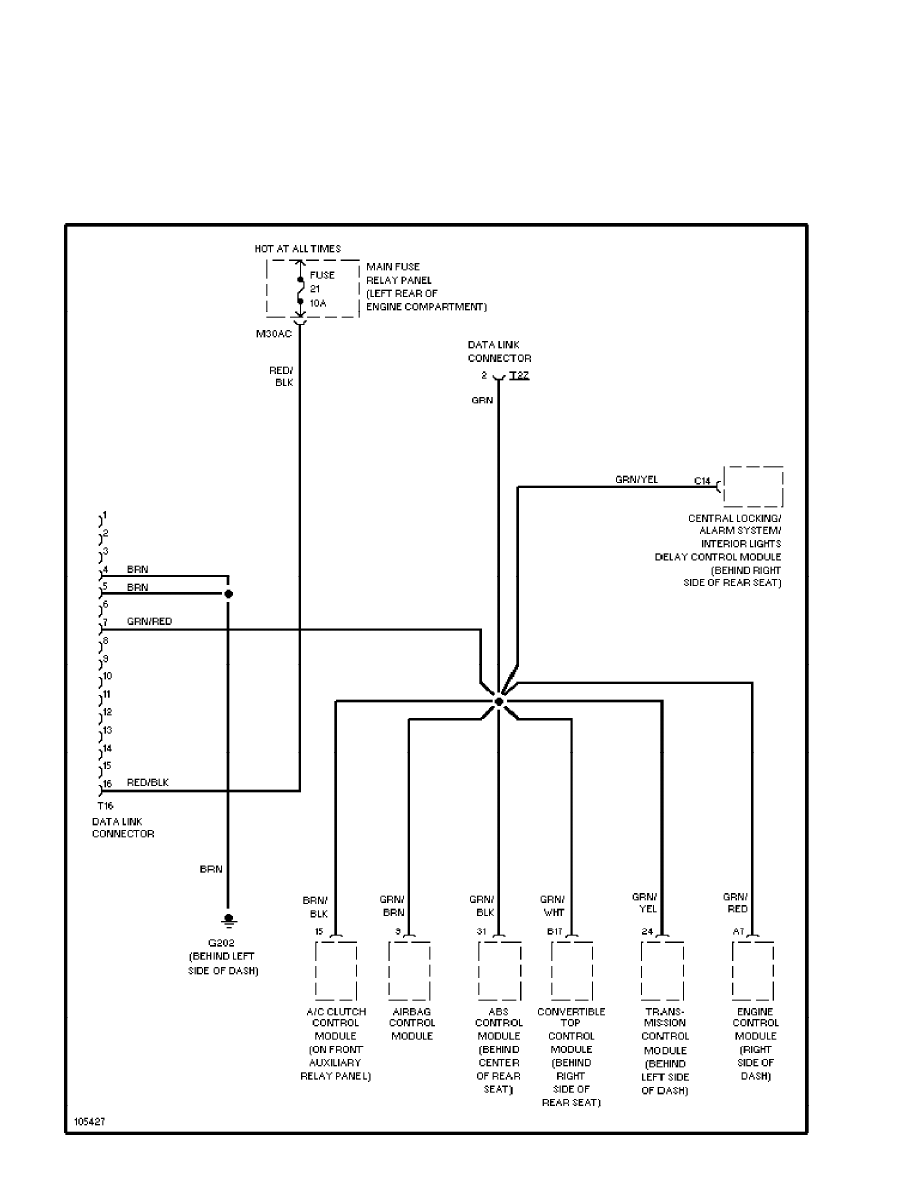

Computer Data Lines

1998 Audi Cabriolet

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 06:50PM

background image

SYSTEM WIRING DIAGRAMS

Cooling Fan Circuit

1998 Audi Cabriolet

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 06:50PM

background image

SYSTEM WIRING DIAGRAMS

Cruise Control Circuit

1998 Audi Cabriolet

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 06:50PM

background image

SYSTEM WIRING DIAGRAMS

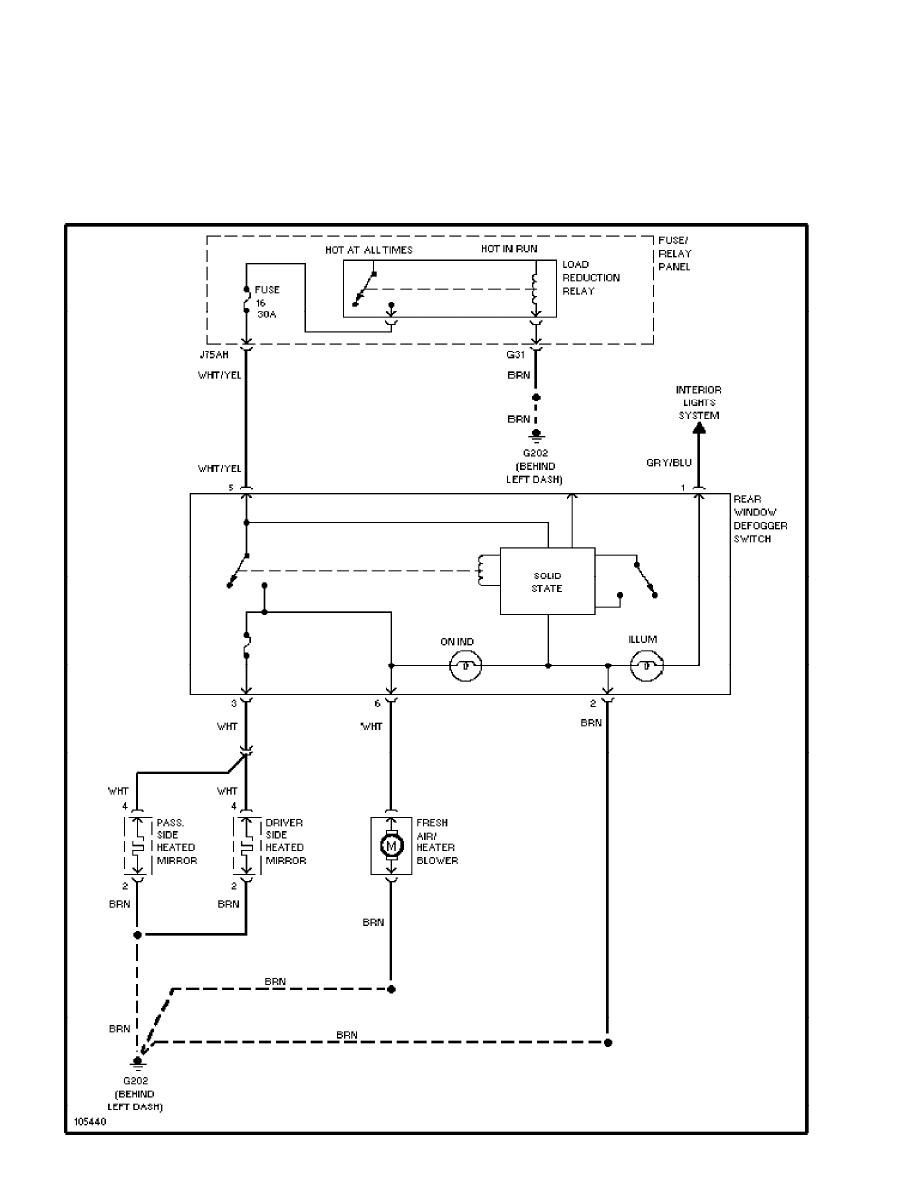

Defogger Circuit

1998 Audi Cabriolet

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 06:50PM

background image

SYSTEM WIRING DIAGRAMS

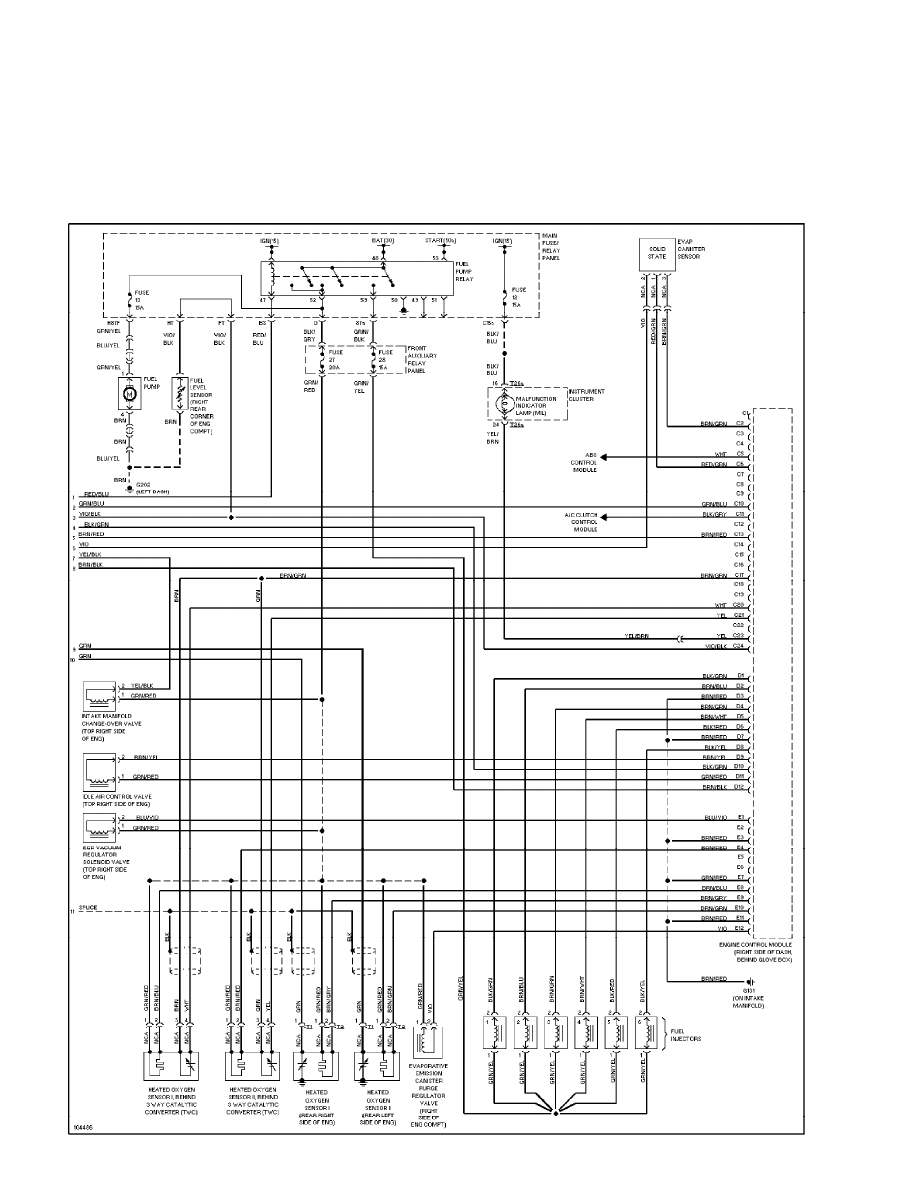

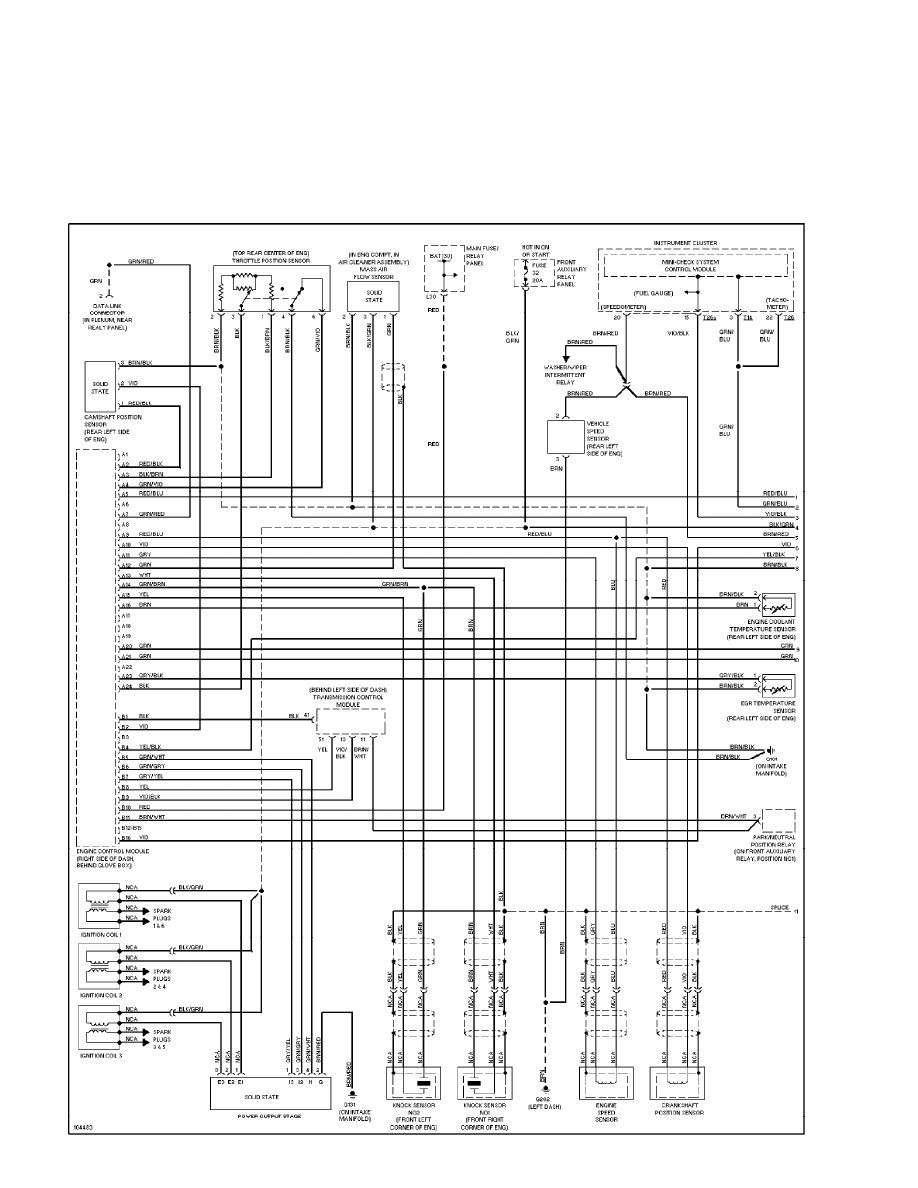

2.8L, Engine Performance Circuits (1 of 2)

1998 Audi Cabriolet

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 06:50PM

background image

SYSTEM WIRING DIAGRAMS

2.8L, Engine Performance Circuits (2 of 2)

1998 Audi Cabriolet

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 06:50PM

background image

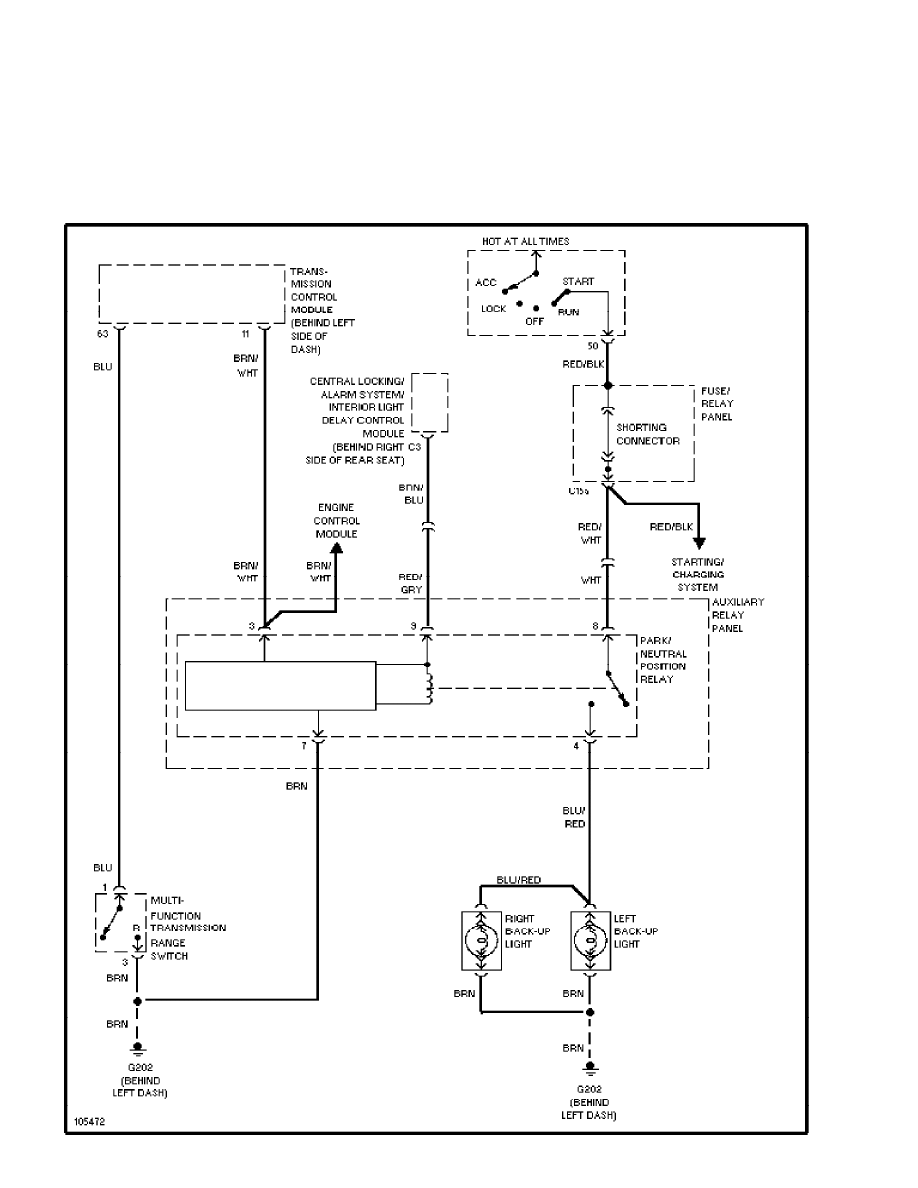

SYSTEM WIRING DIAGRAMS

Back-up Lamps Circuit

1998 Audi Cabriolet

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 06:50PM

background image

SYSTEM WIRING DIAGRAMS

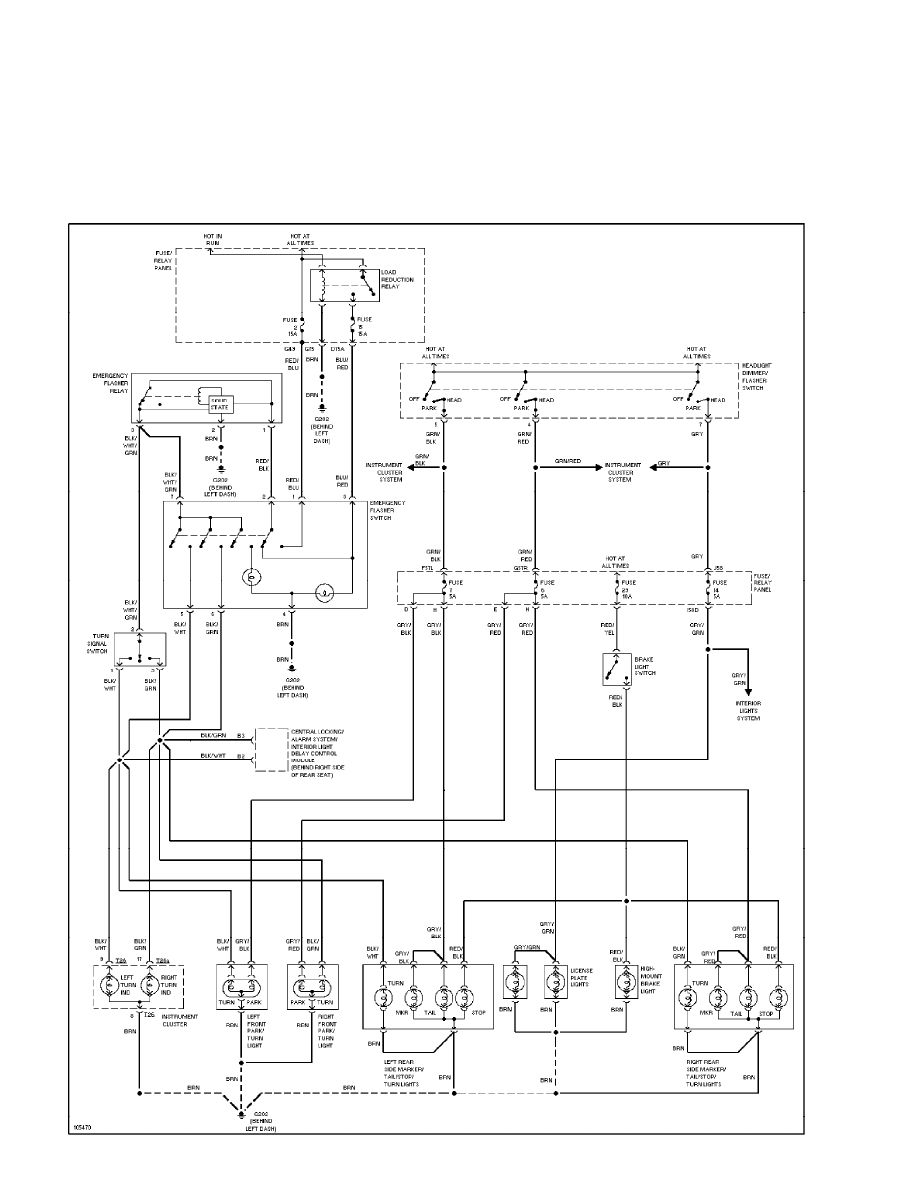

Exterior Lamps Circuit

1998 Audi Cabriolet

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 06:50PM

background image

SYSTEM WIRING DIAGRAMS

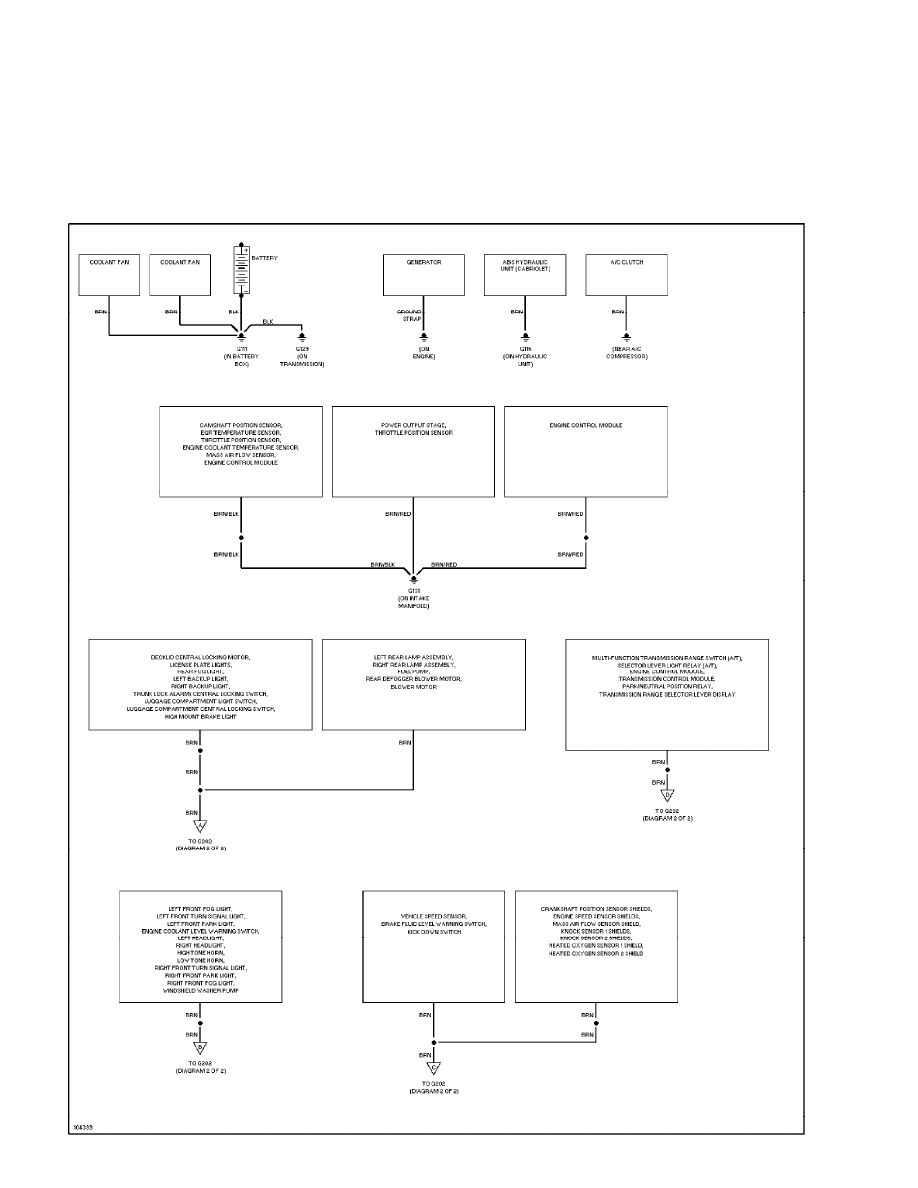

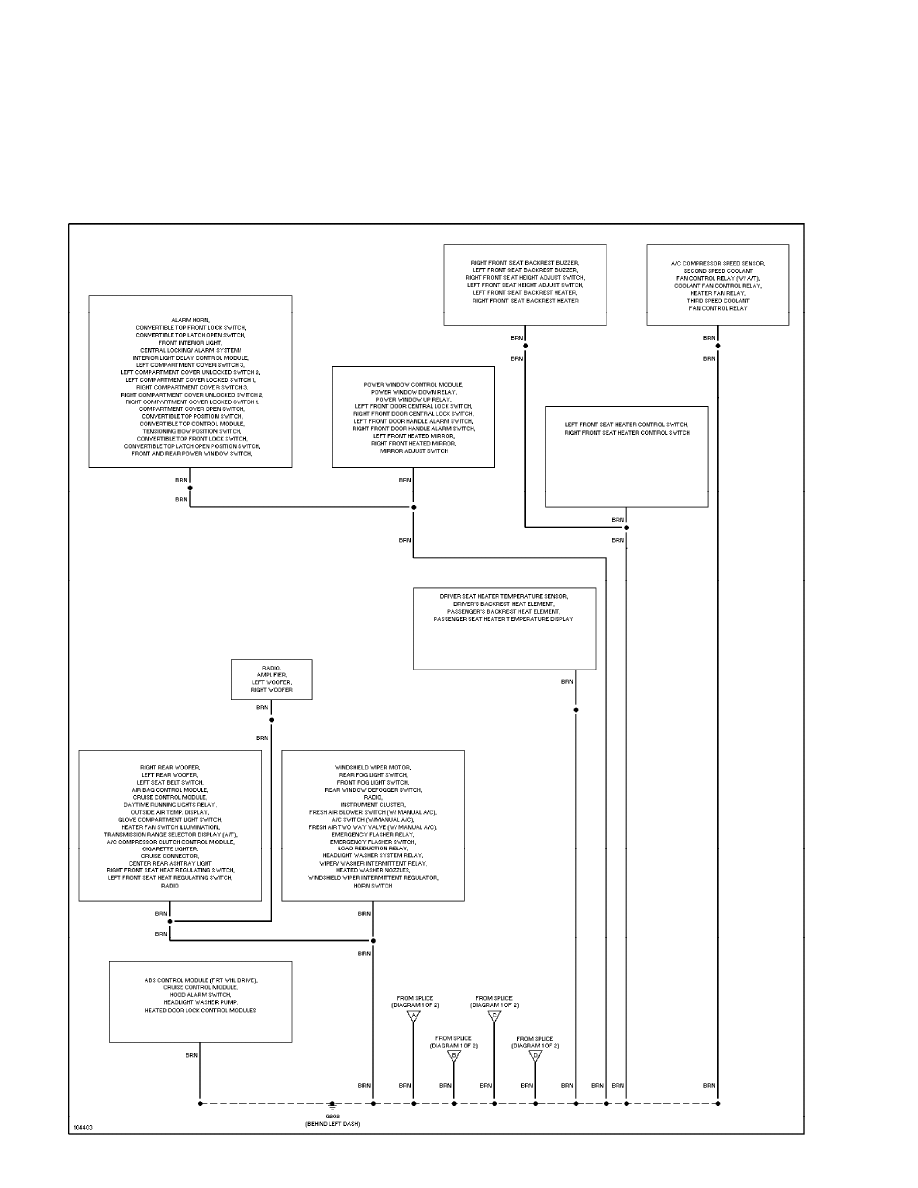

Ground Distribution Circuit (1 of 2)

1998 Audi Cabriolet

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 06:50PM

background image

SYSTEM WIRING DIAGRAMS

Ground Distribution Circuit (2 of 2)

1998 Audi Cabriolet

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 06:51PM

background image

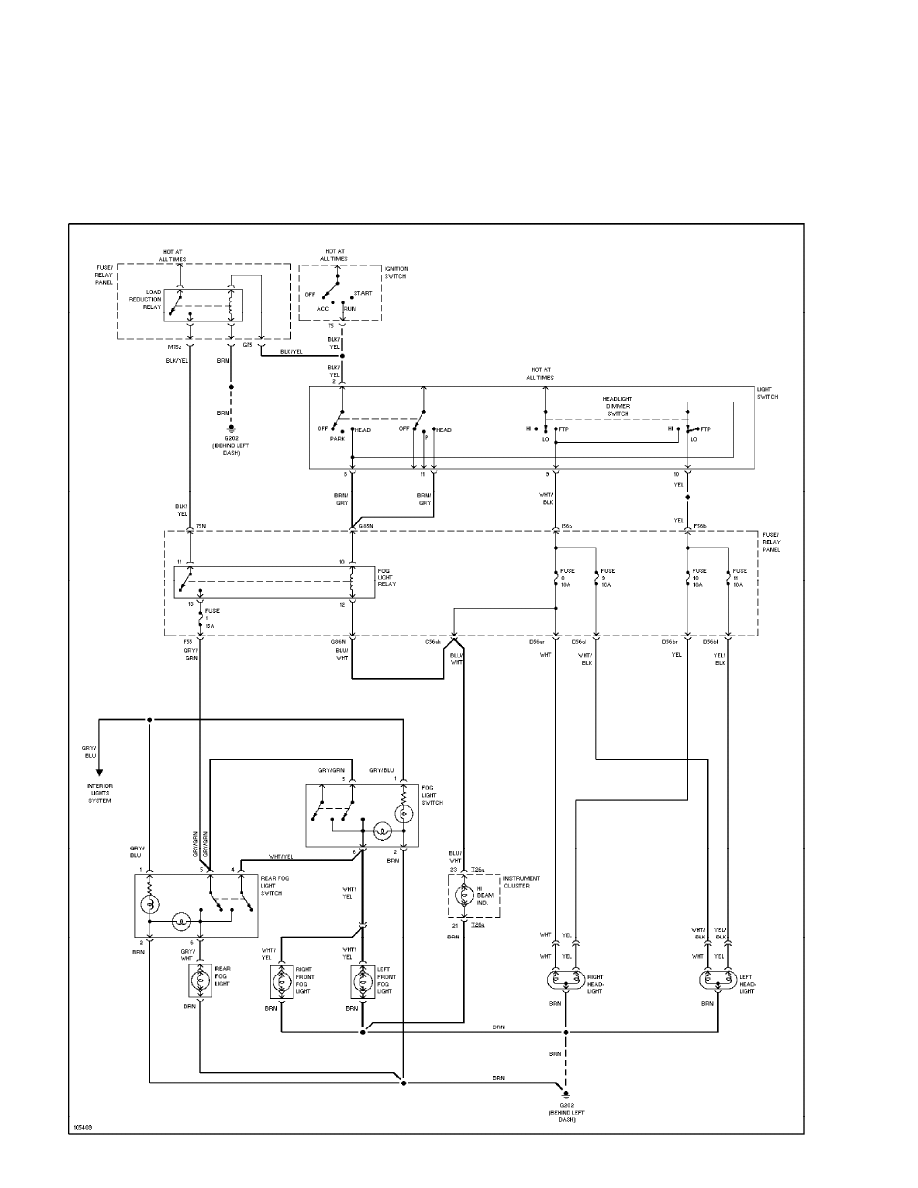

SYSTEM WIRING DIAGRAMS

Headlamps/Fog Lamps Circuit

1998 Audi Cabriolet

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 06:51PM

background image

SYSTEM WIRING DIAGRAMS

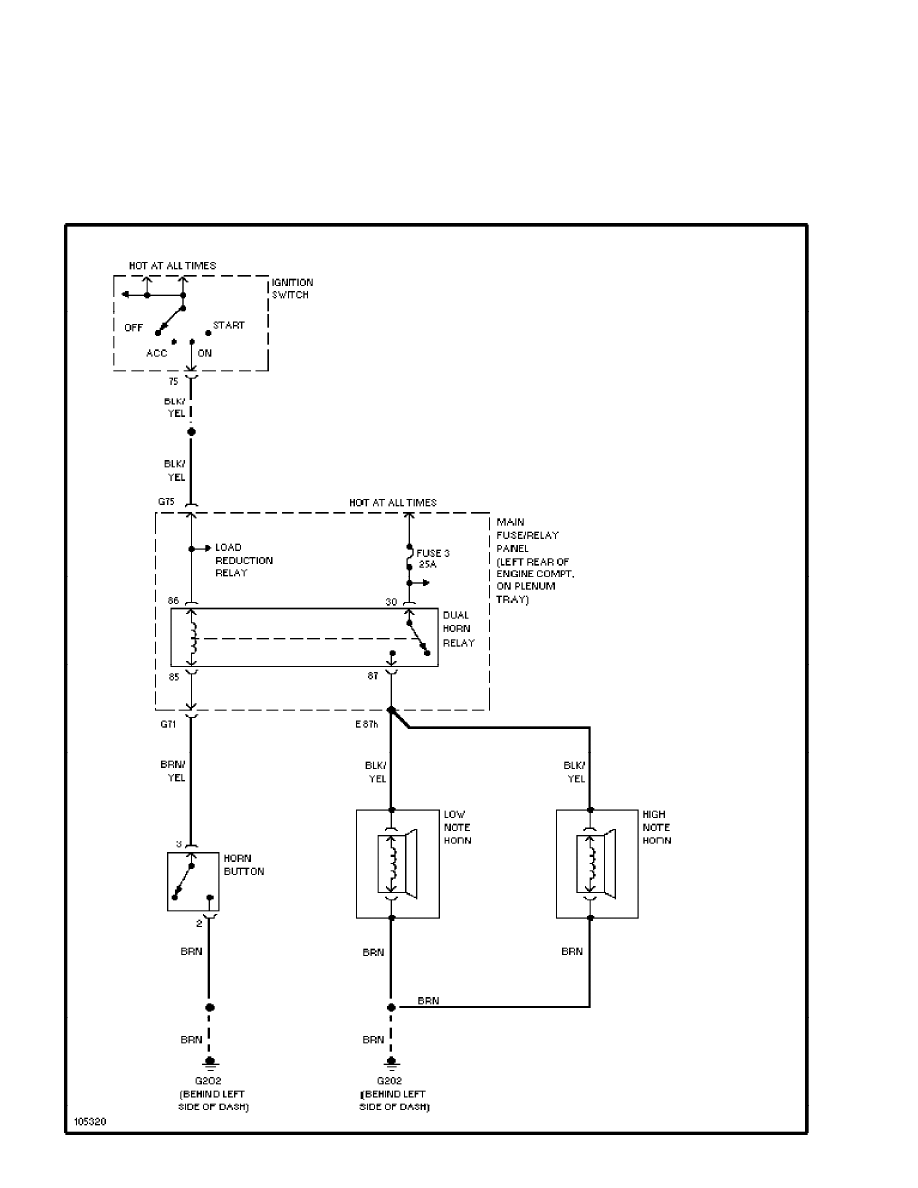

Horn Circuit

1998 Audi Cabriolet

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 06:51PM

background image

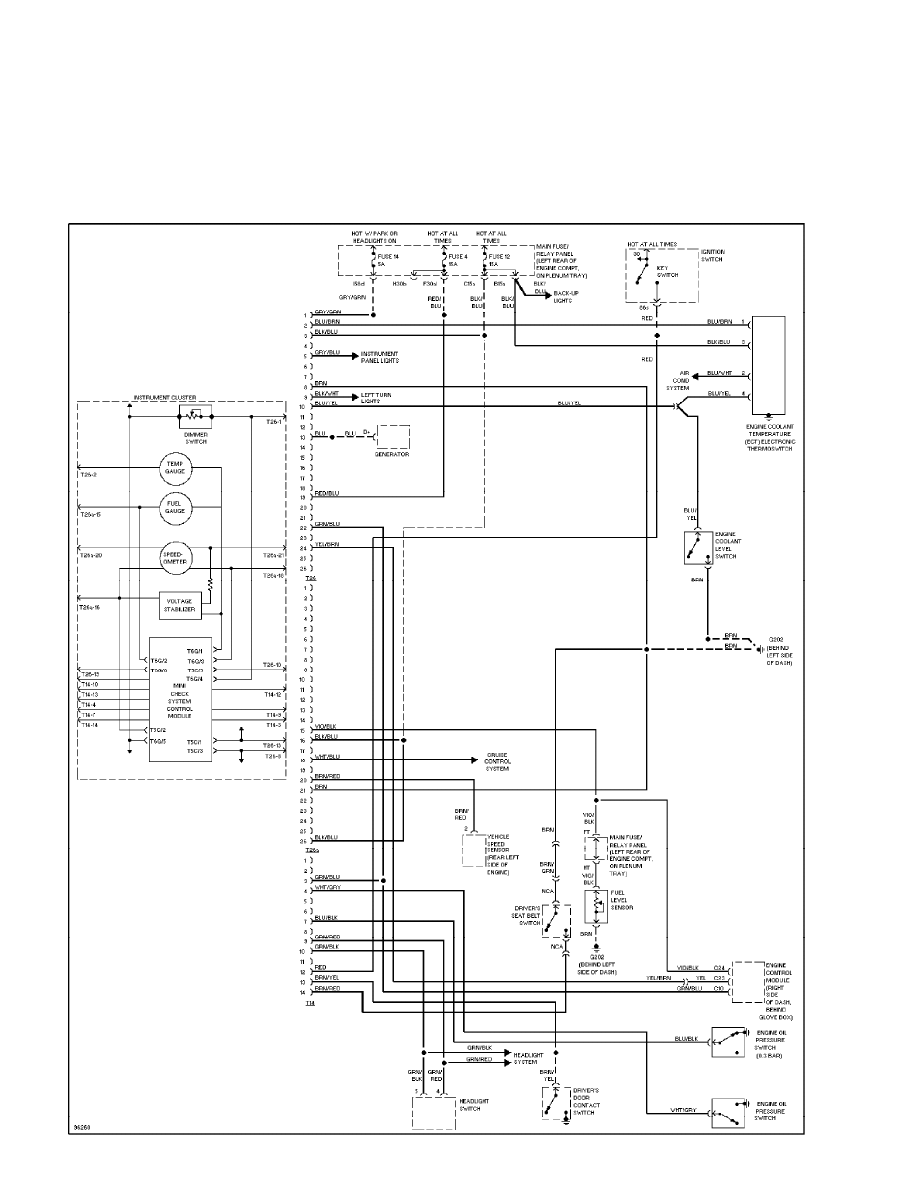

SYSTEM WIRING DIAGRAMS

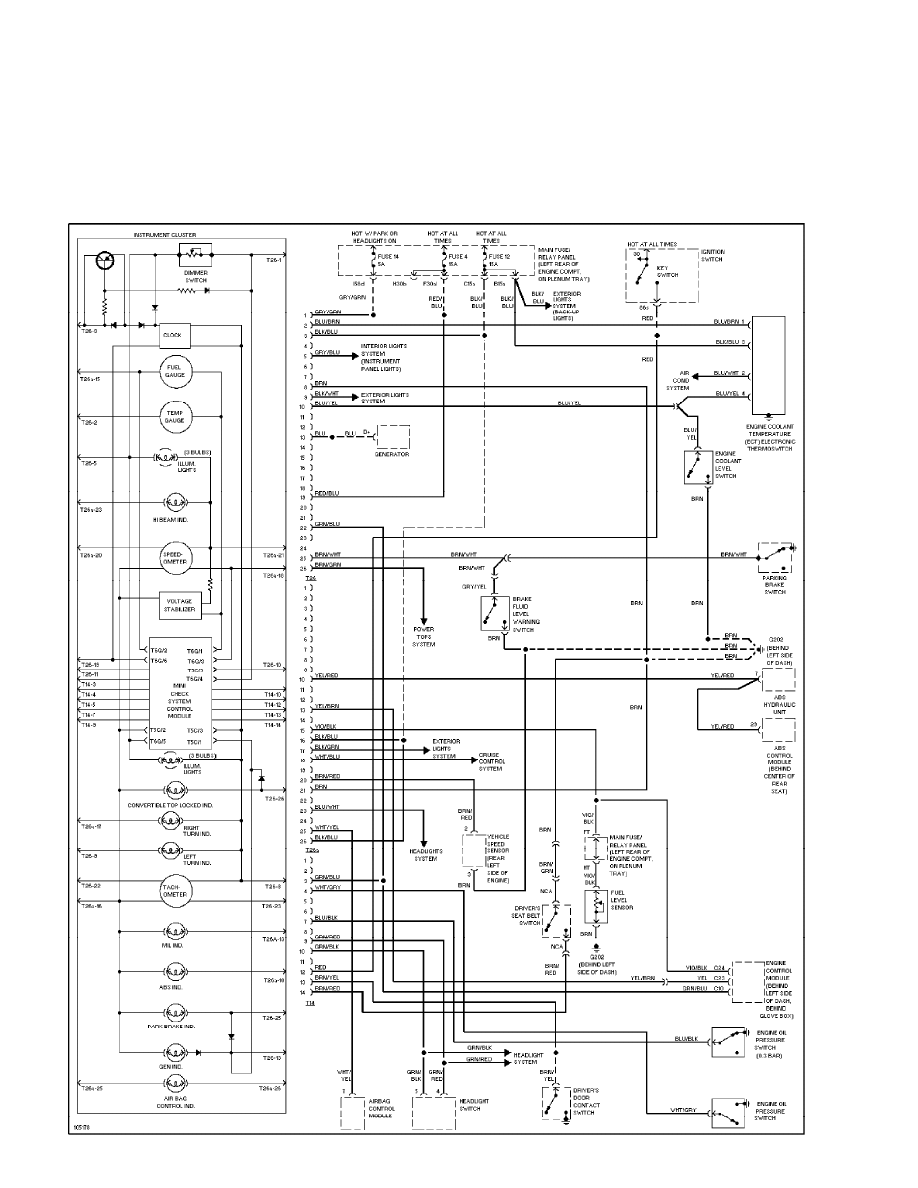

Instrument Cluster Circuit

1998 Audi Cabriolet

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 06:51PM

background image

SYSTEM WIRING DIAGRAMS

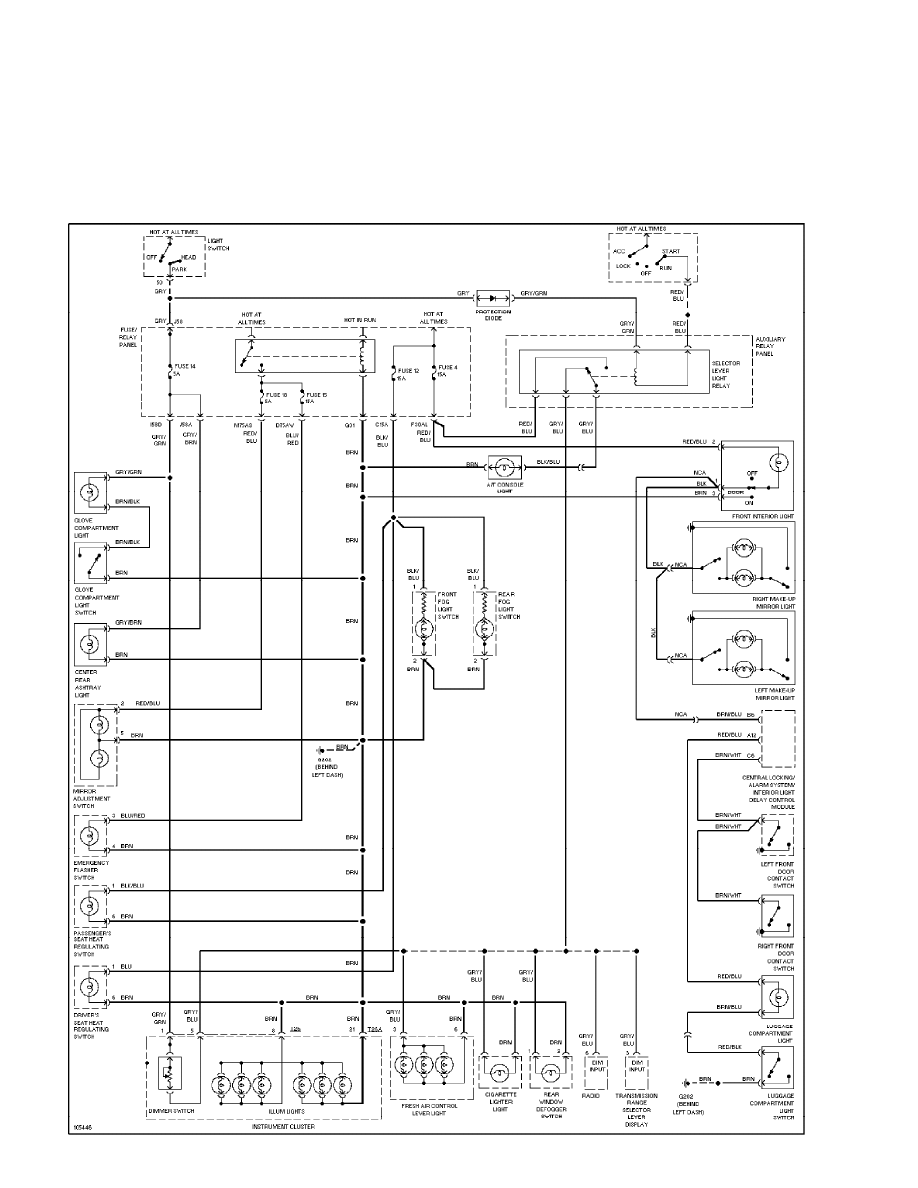

Interior Light Circuit

1998 Audi Cabriolet

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 06:51PM

background image

SYSTEM WIRING DIAGRAMS

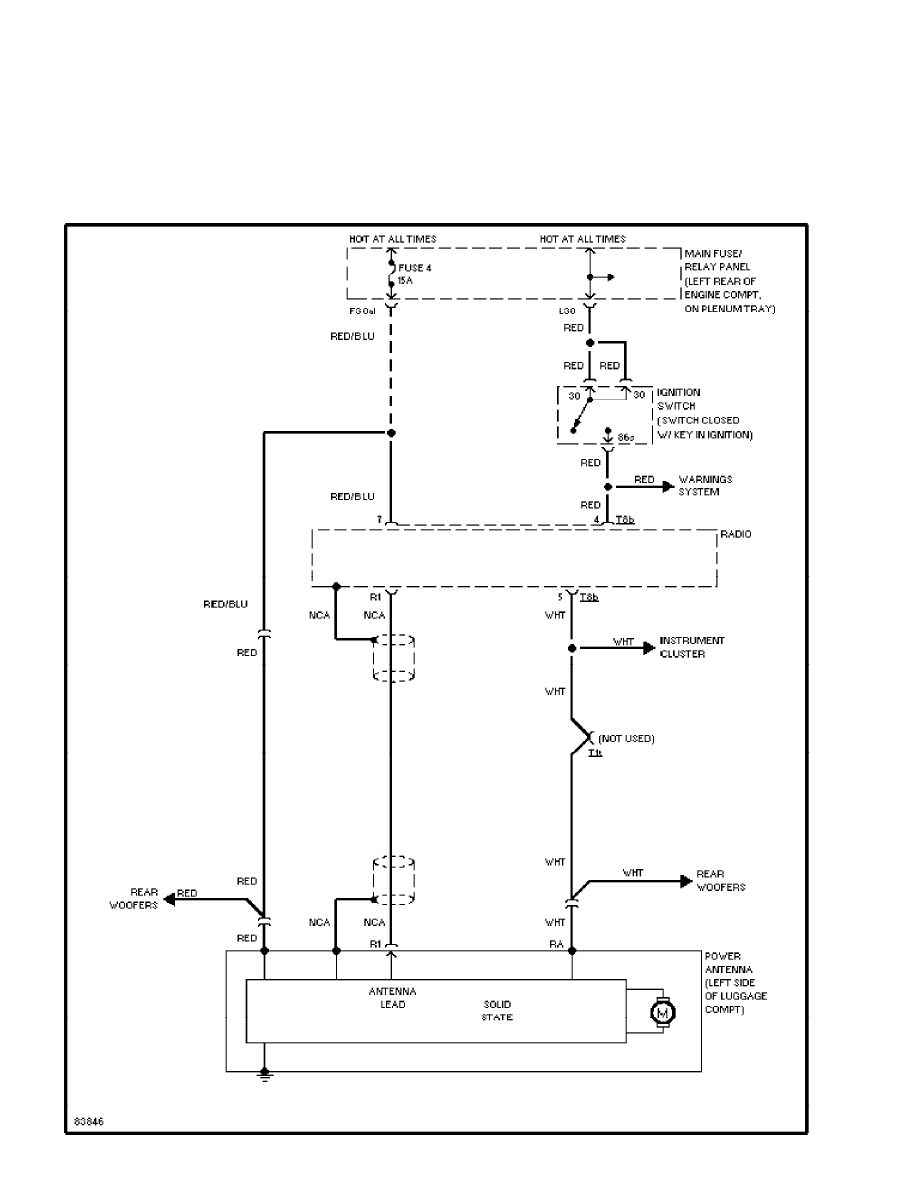

Power Antenna Circuit

1998 Audi Cabriolet

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 06:52PM

background image

SYSTEM WIRING DIAGRAMS

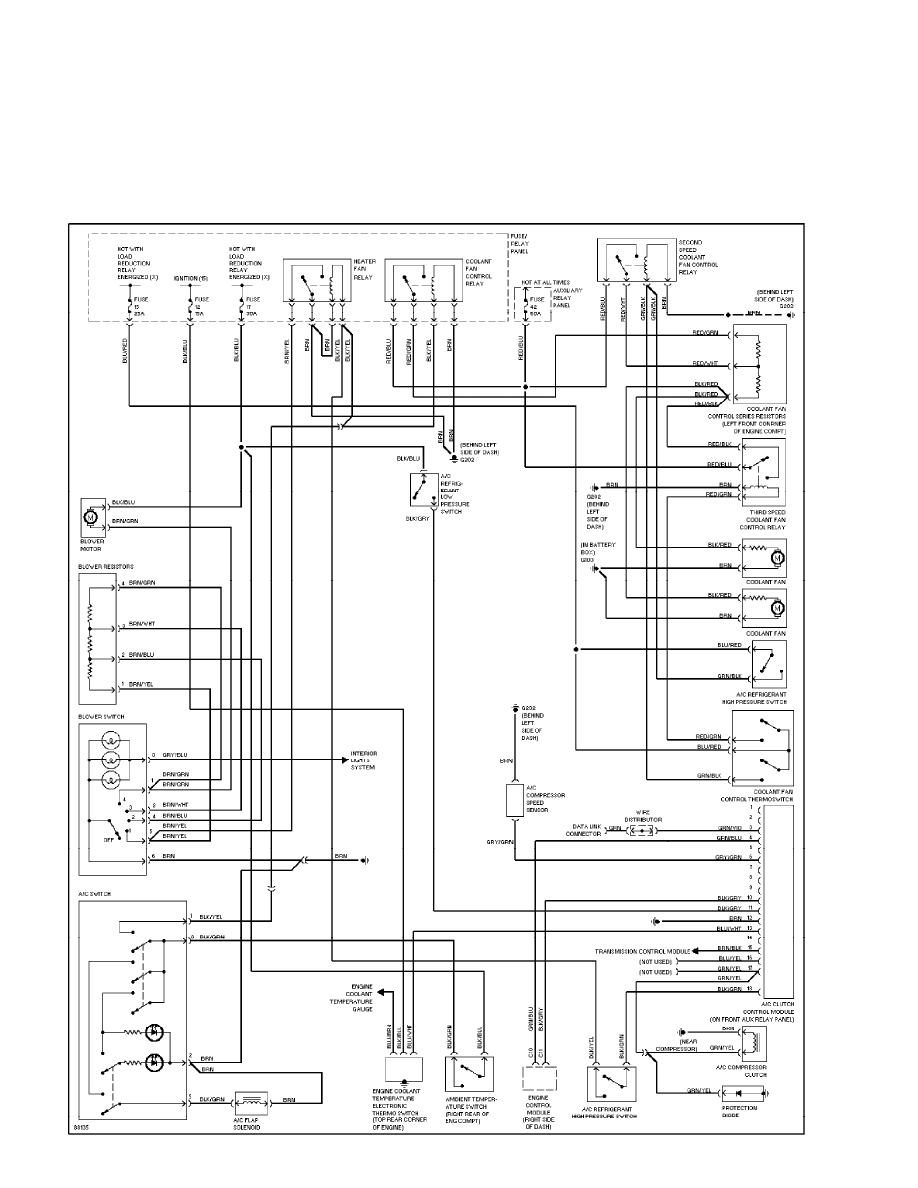

Air Conditioning Circuits

1998 Audi Cabriolet

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 06:49PM

background image

SYSTEM WIRING DIAGRAMS

Warning System Circuits

1998 Audi Cabriolet

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 06:55PM

background image

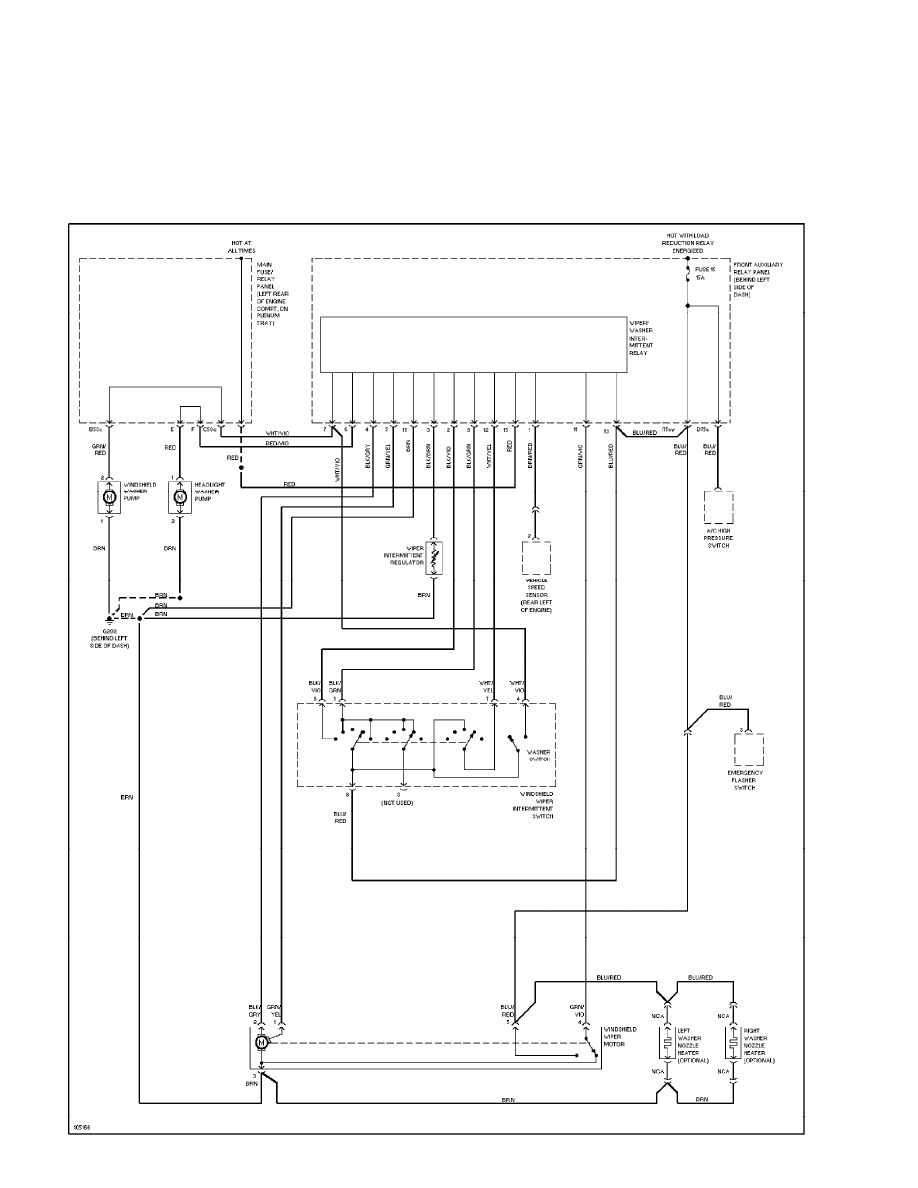

SYSTEM WIRING DIAGRAMS

Wiper/Washer Circuit

1998 Audi Cabriolet

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 06:55PM

background image

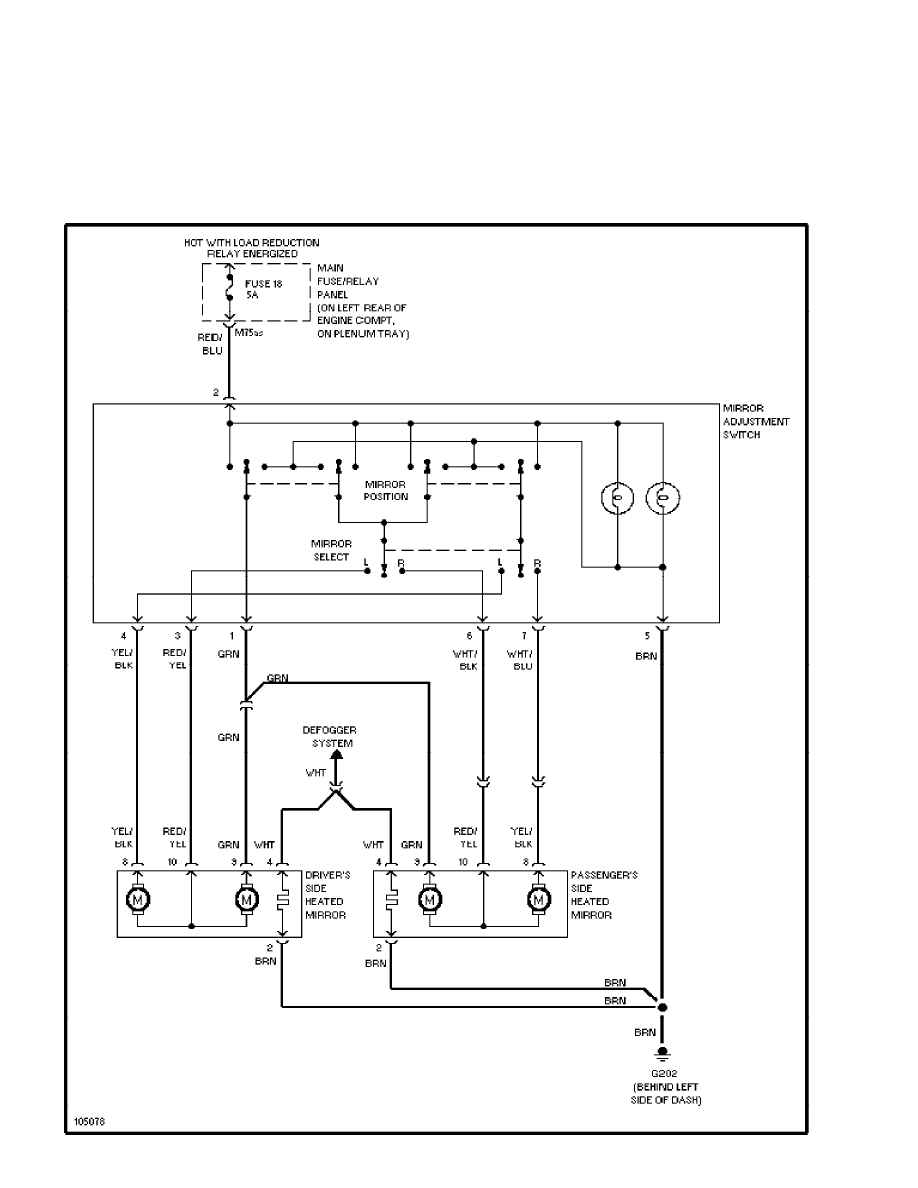

SYSTEM WIRING DIAGRAMS

Power Mirror Circuit

1998 Audi Cabriolet

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 06:54PM

background image

SYSTEM WIRING DIAGRAMS

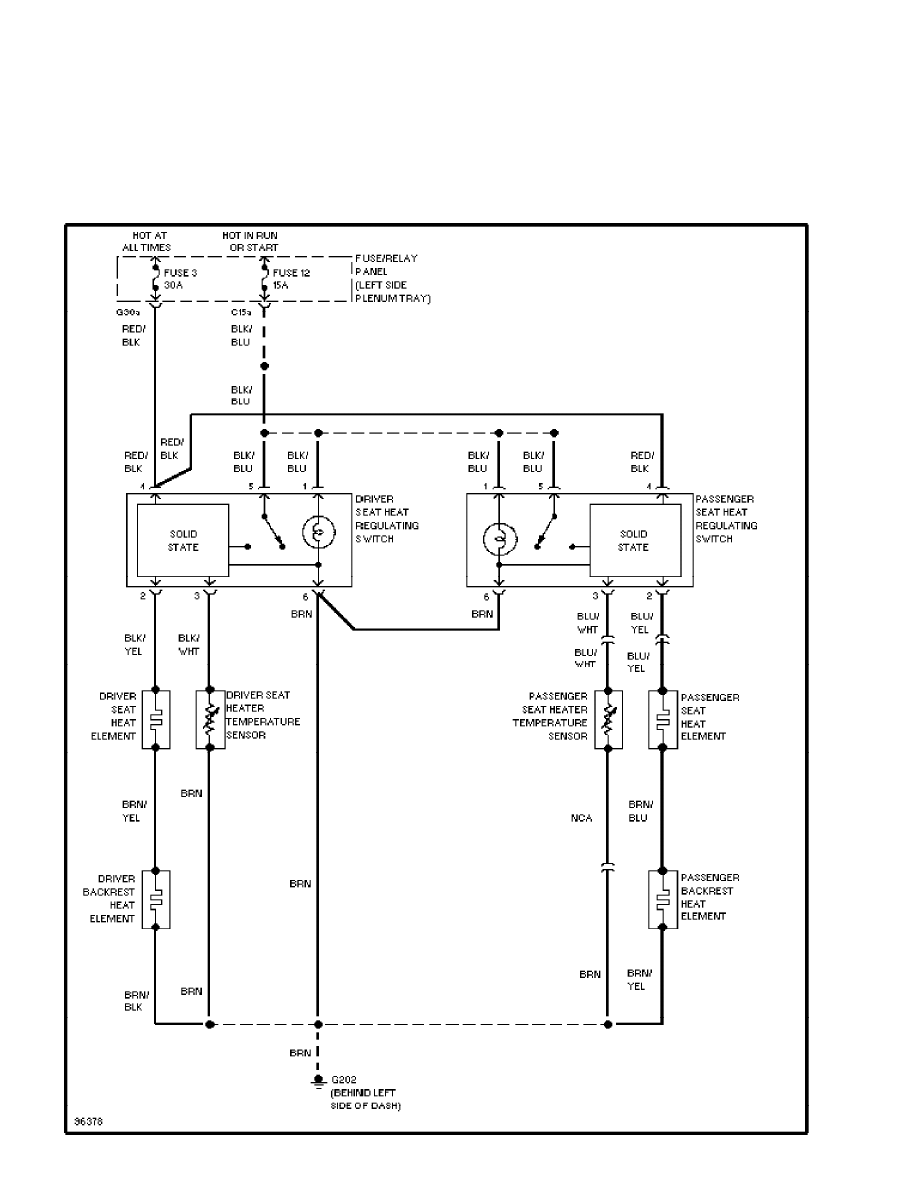

Heated Seats Circuit

1998 Audi Cabriolet

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 06:54PM

background image

SYSTEM WIRING DIAGRAMS

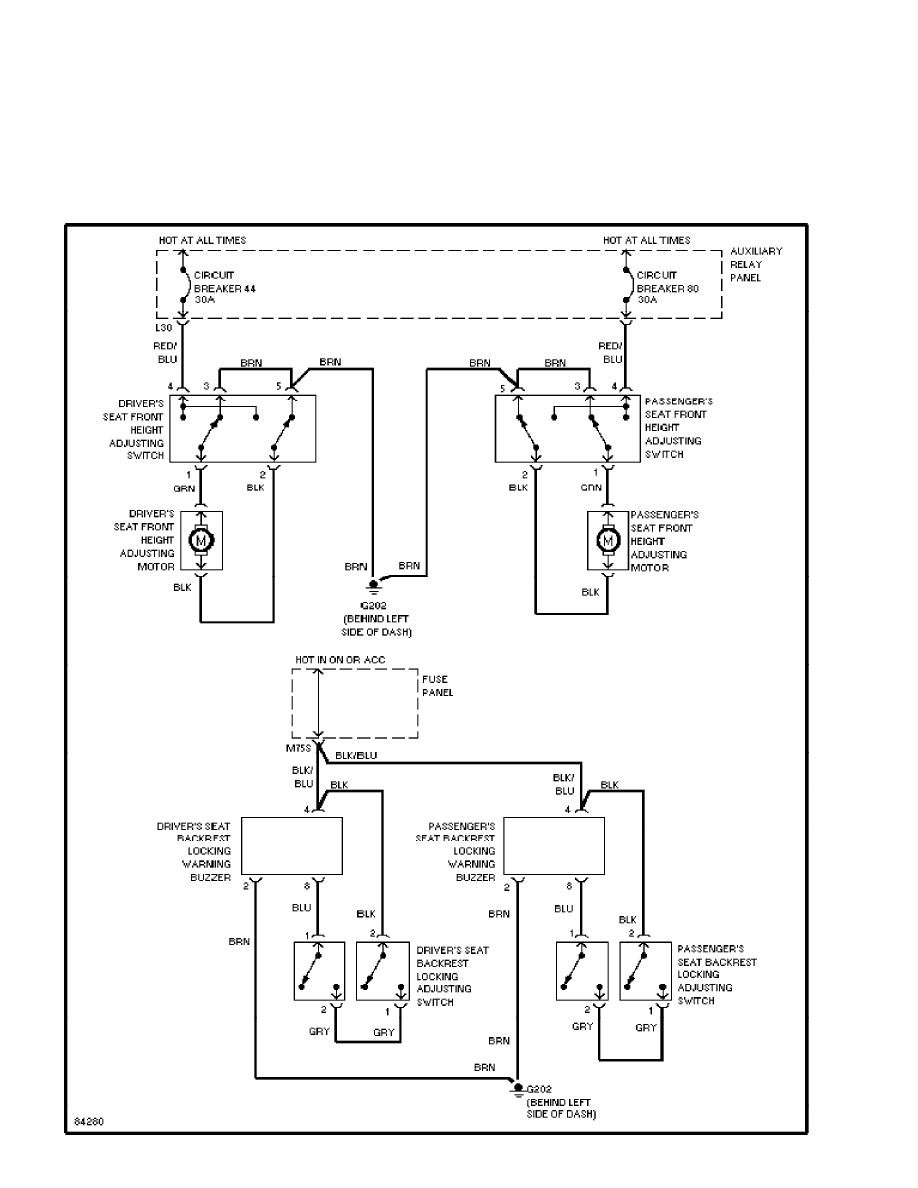

Power Seats Circuit

1998 Audi Cabriolet

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 06:54PM

background image

SYSTEM WIRING DIAGRAMS

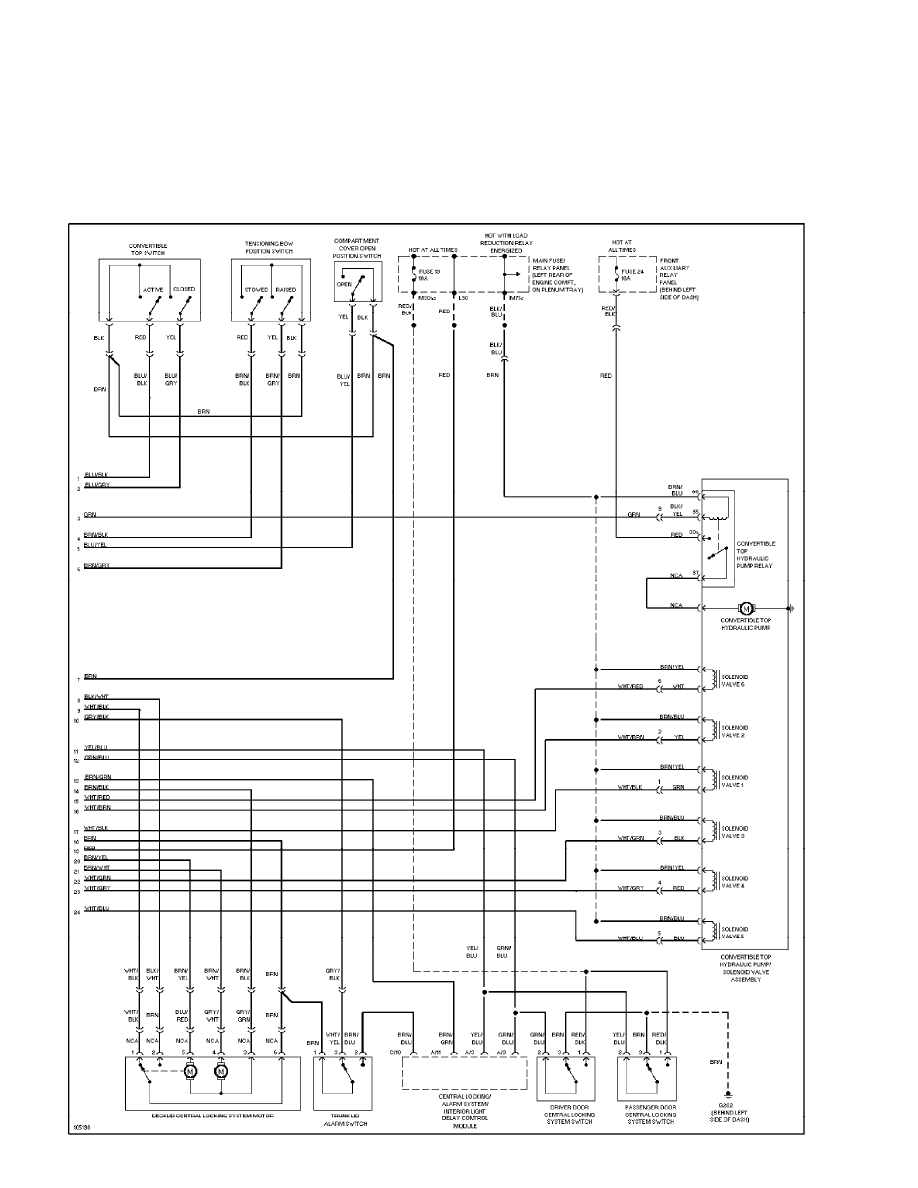

Power Top/Sunroof Circuits (1 of 2)

1998 Audi Cabriolet

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 06:54PM

background image

SYSTEM WIRING DIAGRAMS

Power Top/Sunroof Circuits (2 of 2)

1998 Audi Cabriolet

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 06:54PM

background image

SYSTEM WIRING DIAGRAMS

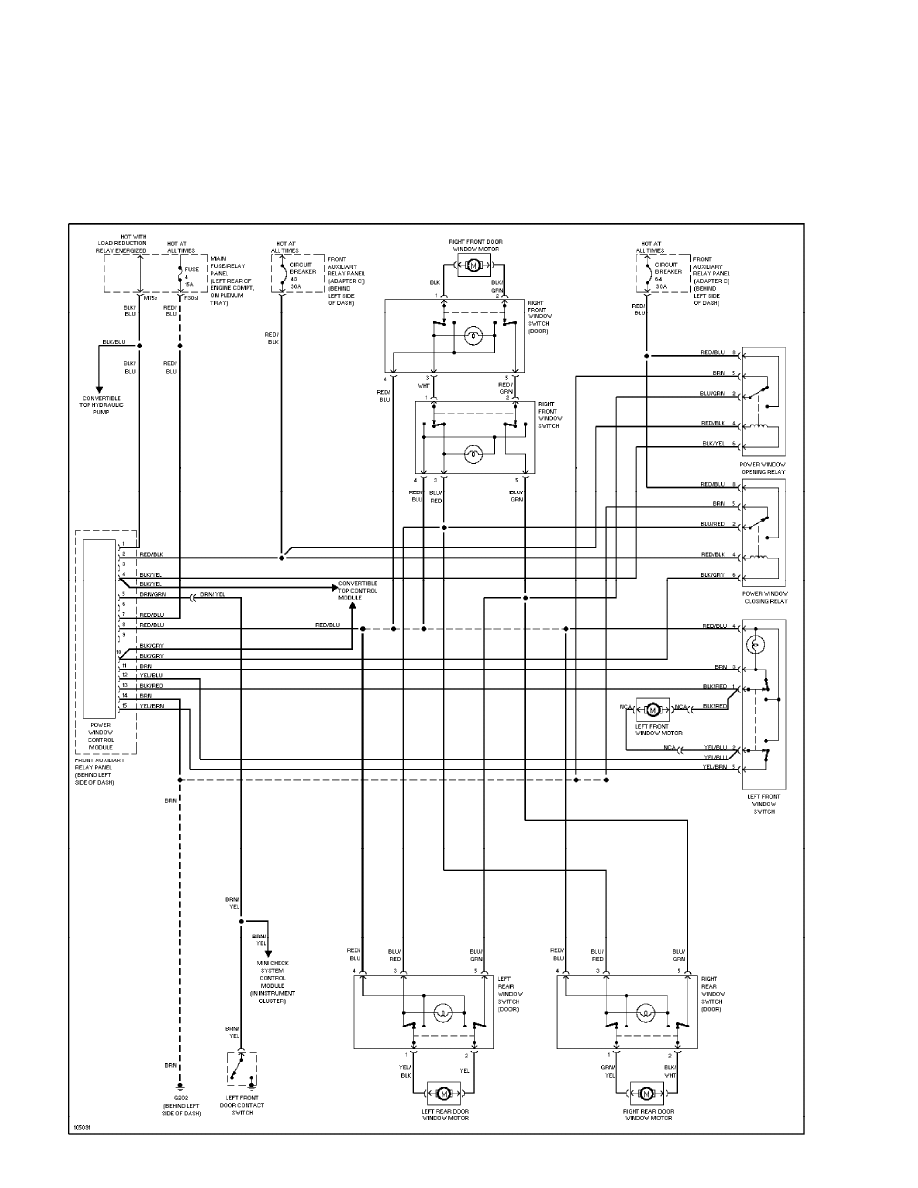

Power Window Circuit

1998 Audi Cabriolet

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 06:54PM

background image

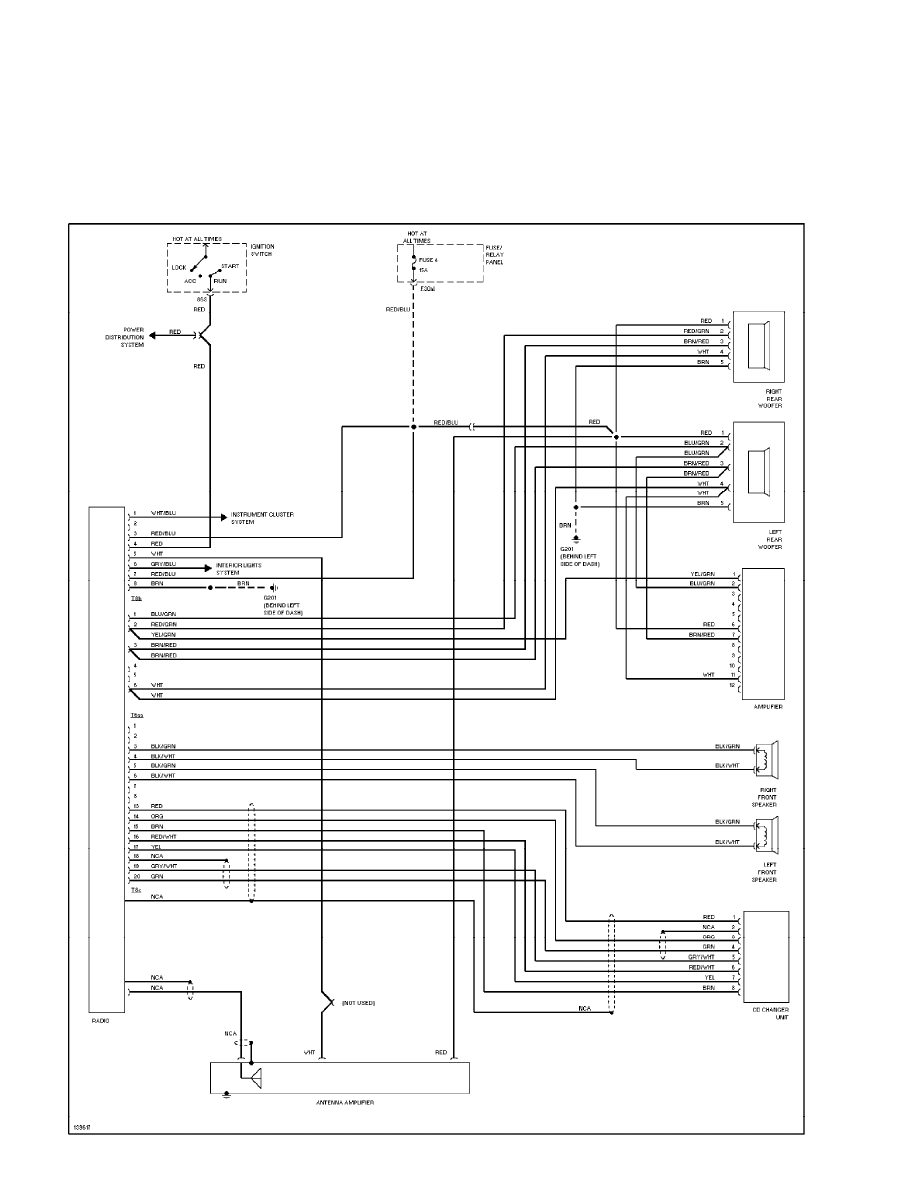

SYSTEM WIRING DIAGRAMS

Radio Circuits

1998 Audi Cabriolet

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 06:54PM

background image

SYSTEM WIRING DIAGRAMS

Shift Interlock Circuit

1998 Audi Cabriolet

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 06:54PM

background image

SYSTEM WIRING DIAGRAMS

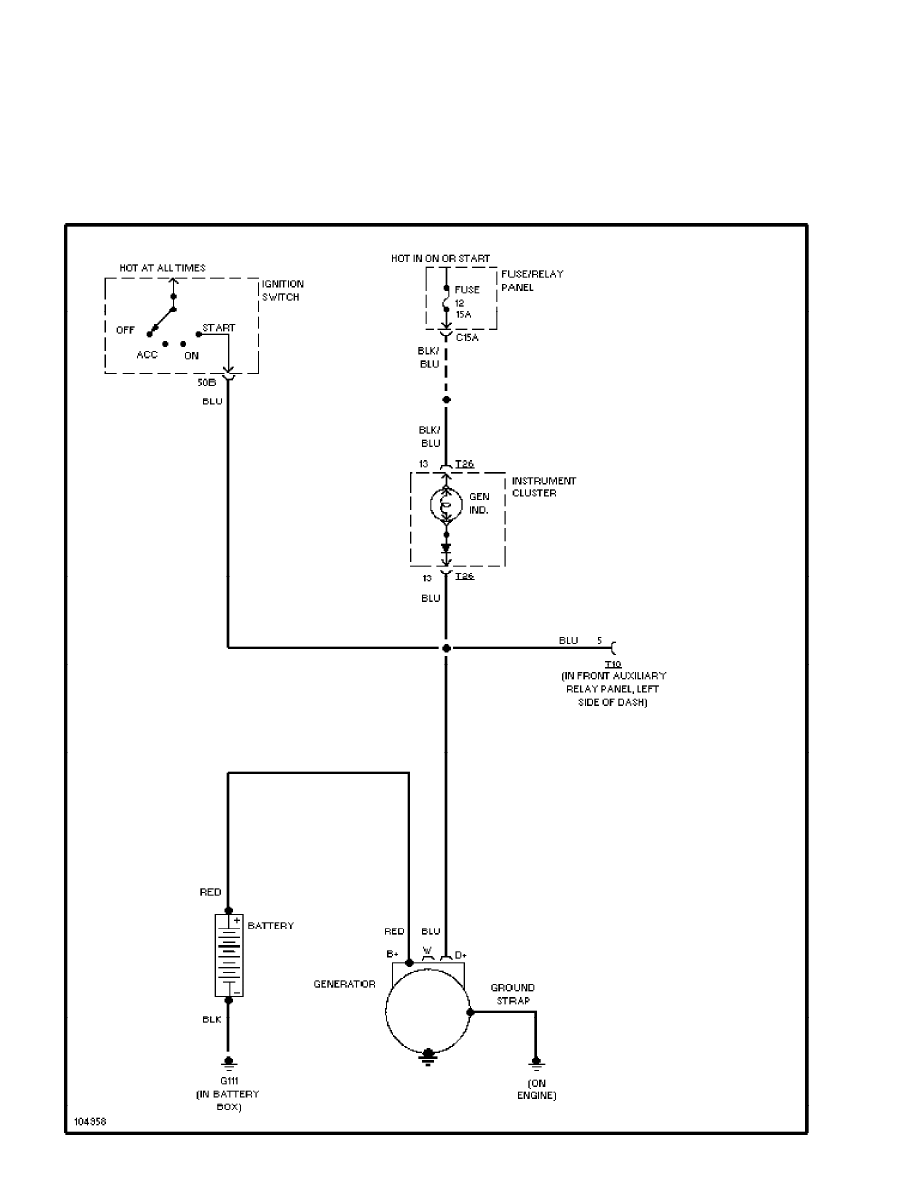

Charging Circuit

1998 Audi Cabriolet

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 06:55PM

background image

SYSTEM WIRING DIAGRAMS

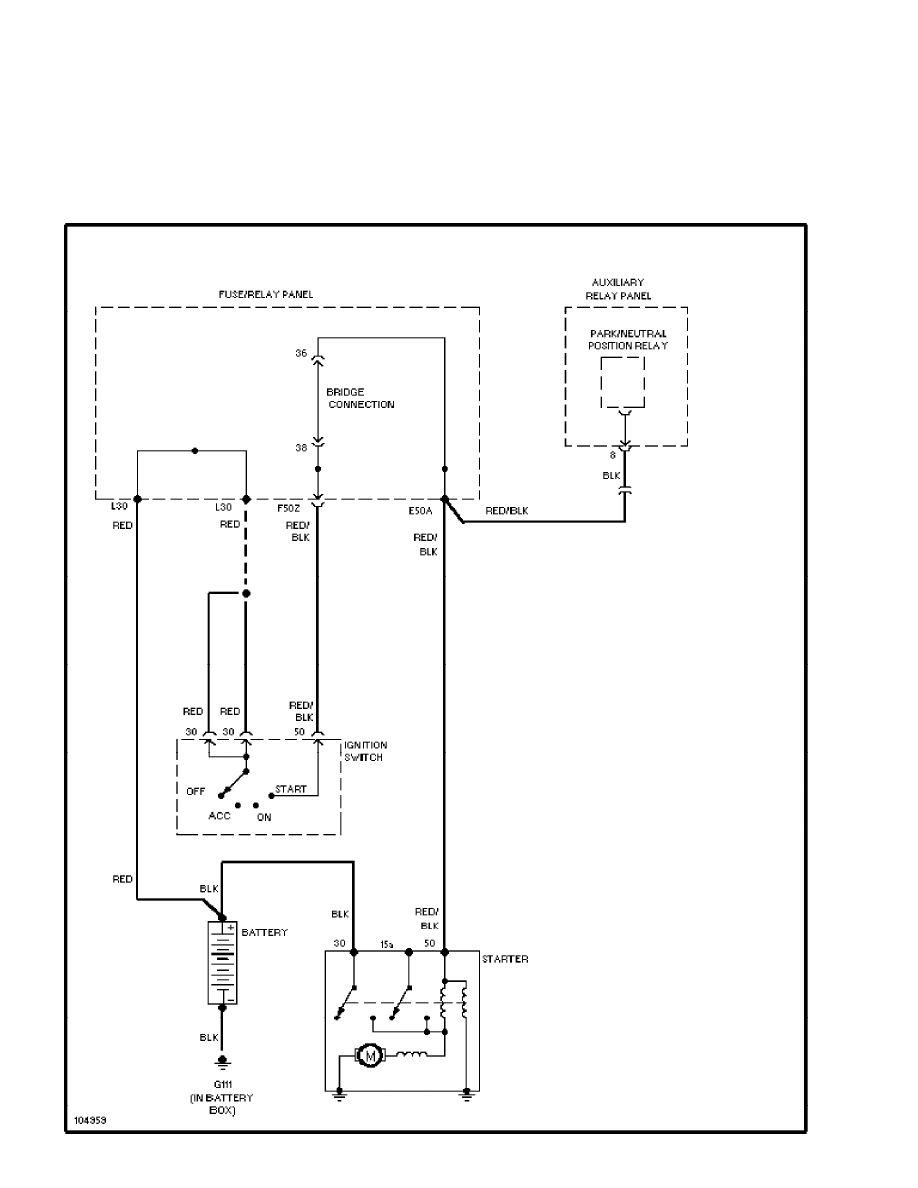

Starting Circuit

1998 Audi Cabriolet

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 06:55PM

background image

SYSTEM WIRING DIAGRAMS

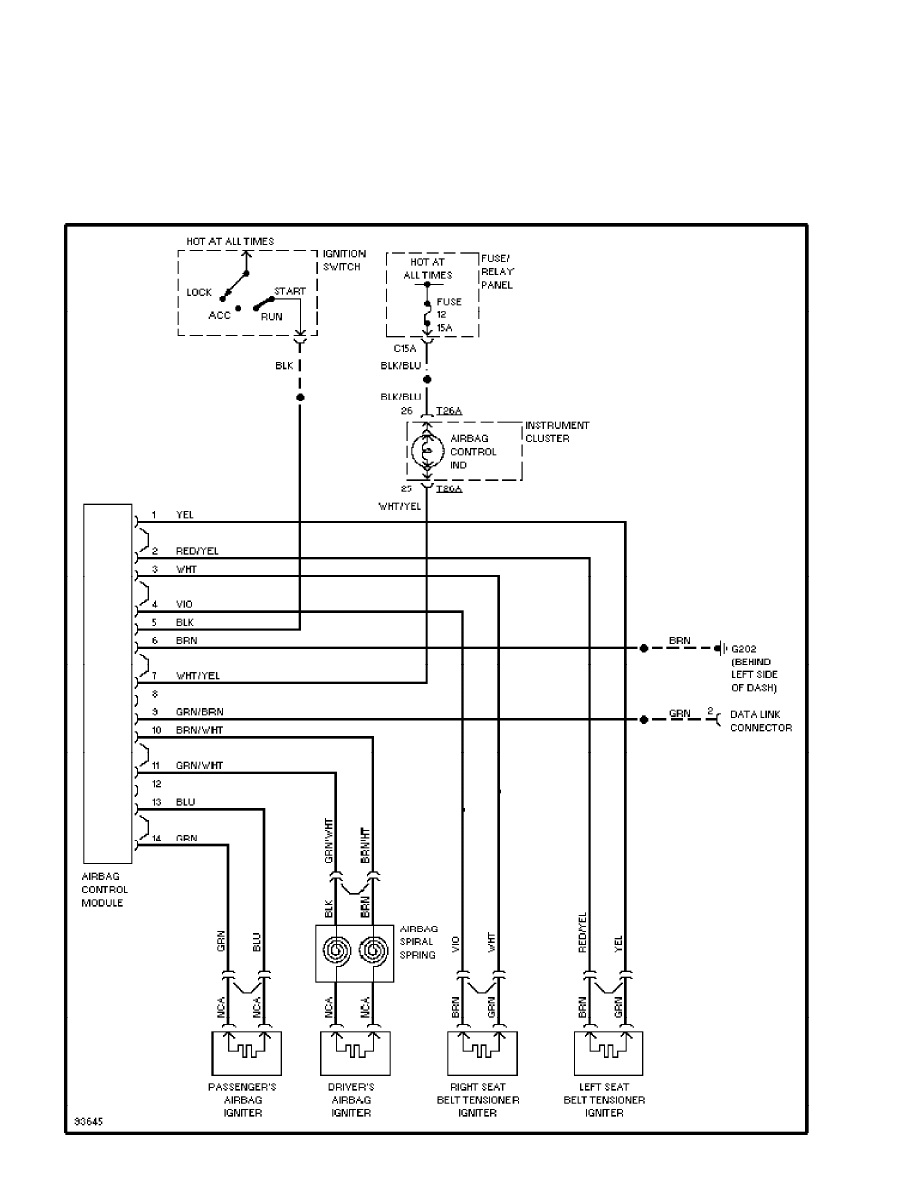

Supplemental Restraint Circuit

1998 Audi Cabriolet

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 06:55PM

background image

SYSTEM WIRING DIAGRAMS

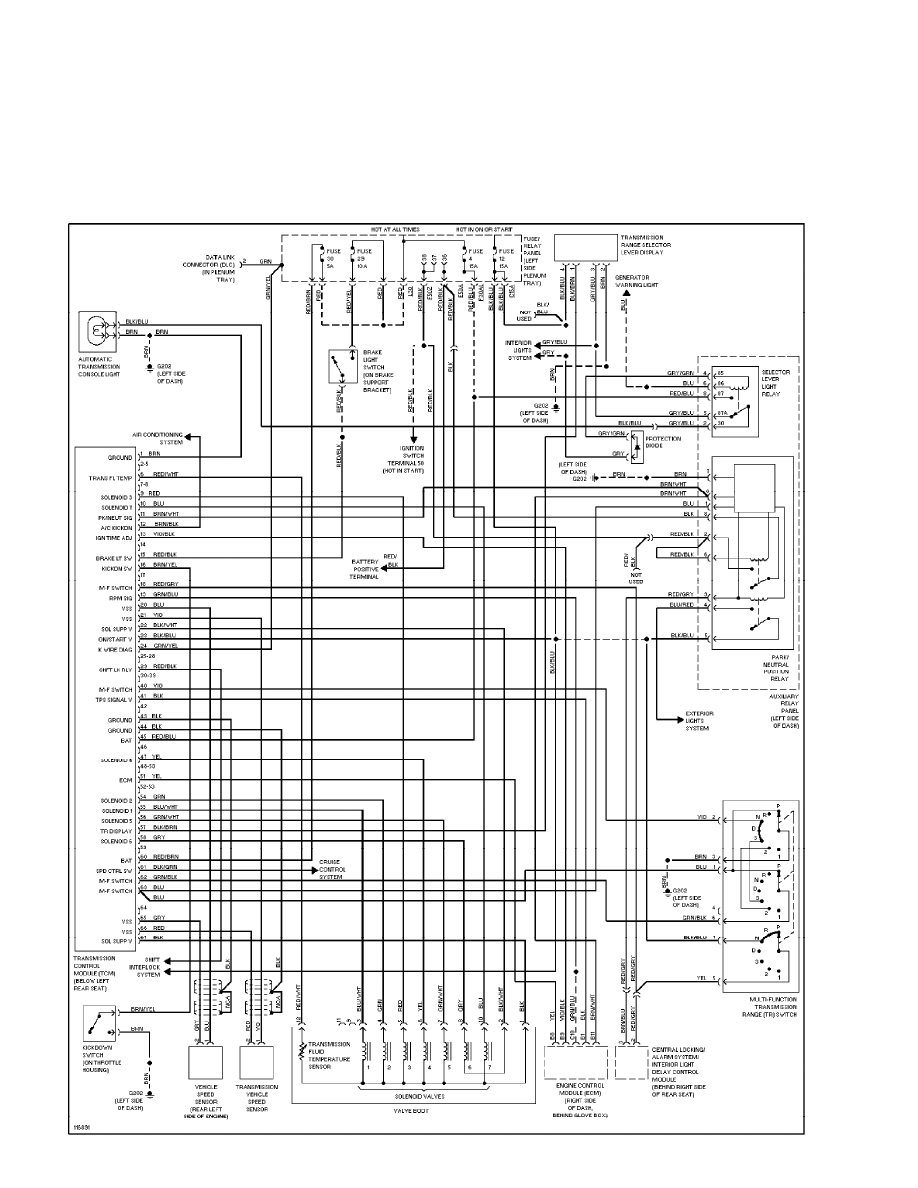

A/T Circuit

1998 Audi Cabriolet

For x

Copyright © 1998 Mitchell Repair Information Company, LLC

Monday, July 19, 2004 06:55PM
