CATALOGUE CARD

K4-15-141

MINING INDUCTION MOTORS

Issue 1

Dąbrowa Górnicza

2SP3H 200S-4 with electromagnetic brake

Page

1

/ 6

File No: 30 kW, 2SP3H 200S-4.doc/2005
Translated by: PTU -DAMAR- Sosnowiec

APPLICATION

The motors of type 2SP3H 200S-4 with electromagnetic brake are intended for driving mining machines and
equipment requiring self-locking property of drive.
The motors can be used in underground parts of mines and surface installations of the mines, where there
are possible explosion conditions for methane and/ or coal dust.
There is also possible to operate the motors in the surroundings where the explosion-proof equipment is not
required.

CHARACTERISTIC FEATURES OF MOTORS

•

Induction 3-phase motors with squirrel-cage rotor aluminium cast

•

Built in alternating current brake, disk, electro magnetically released, braking under the pressure of
springs,

•

Explosion-proof construction with flame-proof casing of motor „d” - mark

I M2 EExd I, equipment

ranked as group I of category M2 according to Directive 94/9/EC,

•

The degree of protection IP 55 acc. to PN-EN 60034-5:2000U,

•

Motors are surface air-cooled – own fan – marking the method of cooling - IC 411,

•

Form of execution – flanged execution – IM 3001 (B5),

•

Voltage executions:

- single voltage :(Y): 380, 500, 660, 1000, 1100, 1140V – 50Hz,
- two voltage, switchable in the terminal box (∆ / Y): 660/1140V – 50Hz,

After settlement it is possible to execute the motors for other voltage in the range 380 ÷ 1140V
and frequency of 60Hz.

•

Class of insulation: class F – primary execution, class H – execution against order,

•

Thermal protection of motors: bimetal sensors (NC) or posistor PTC sensors -in winding of stator and
brake, in bearing nodes and brake disk – two identical circuits: basic and stand-by,

•

The terminal box one -inlet, equipped with cable inlet with rubber gasket,

•

The motors are equipped with the final link of protection conductor continuity control circuit, mounted in
the terminal box – primary execution: the final link CK-OA, produced by DAMEL

After settlement the assembly of final unit CK of other type is possible (e.g. diode + resistor, reverse

polarity, etc.) produced by DAMEL catalogue card K4-15-121.

•

Feeding and start-up: the motors are intended for feeding from power network – start-up by direct
switching on the voltage.

•

The motors adapted for work in temperate climate; after settlement the adaptation for work in tropical
climate TA or TH is possible.

COMPATIBILITY WITH REQUIREMENTS OF STANDARDS

The motors meet requirements of Directive 94/9/EC (ATEX), European harmonized standards and
domestic norms:
- norms for electrical equipment in areas of explosion hazard:

- EN 50014:1997+A1:1999+A2:1999 – Polish equivalent PN-EN 50014:2002U,
- EN 50018:2000+A1:2002 – Polish equivalent PN-EN 50018:2002U + A1:2003U,
- EN 50019:2000 – Polish equivalent PN-EN 50019:2002U,

- norms for rotational electric machines:

- EN 60034-1:1998+A1:1998+A2:1999+AC:2000 – Polish equivalent PN-EN 60034-1:2001

- domestic norms for induction motors for mining machines:

- PN G-38010:1997 .

CATALOGUE CARD

K4-15-141

MINING INDUCTION MOTORS

Issue 1

Dąbrowa Górnicza

2SP3H 200S-4 with electromagnetic brake

Page

2

/ 6

File No: 30 kW, 2SP3H 200S-4.doc/2005
Translated by: PTU -DAMAR- Sosnowiec

CERTIFICATES

The motors have the certificate EC (ATEX ) issued by notified Testing Station GIG KD „Barbara,
valid on the area of European Union.

TECHNICAL DATA

Table 1

PARAMETERS VALUES

Rated power P

N

[kW]

30

I

N500V

[A]

44

Rated supply current at rated
voltage I

N

1)

I

N1140V

[A]

19,5

I

s500V

[A]

43

Rated current of motor at rated
voltage I

s

1)

I

s1140V

[A]

19

Power factor cos

ϕ

N

0,88

Efficiency

η

N

[%]

91,0

Rotational speed n [min

-1

] 1460

Rated moment M

N

[Nm]

196

Multiplicity of start-up current I

K

/I

N

6,0

Multiplicity of start-up moment M

K

/M

N

2,5

Multiplicity of critical moment M

Kr

/M

N

2,2

Mode of operation

S1; S4-60%, 40c/h, J

ext

/J

M

=1 (FI.2

3)

)

Rotor moment of inertia

J

M

2)

[kgm

2

] 0,4

Braking static torque M

H

[Nm] 300

I

h500V

[A]

2

Rated current of brake I

h

1)

I

h1140V

[A]

0,9

Starting time at FI.2

3)

t

r

[s] 0,1÷0,5

Braking time at FI.2

3)

t

H

[s] 0,8÷1,0

Mass of motor [kg]

540

1. Rated supply current I

N

is vector sum of motor current I

S

and brake current I

h

:

h

S

N

I

I

I

r

r

r

+

=

2. J

M

- moment of inertia of rotor with rotating elements placed on the shaft (bearings, fan, brake

friction disk)

J

ext

– inertia moment of motor load referred to the shaft of motor

3. Factor of inertia:

M

ext

M

J

J

J

FI

+

=

CATALOGUE CARD

K4-15-141

MINING INDUCTION MOTORS

Issue 1

Dąbrowa Górnicza

2SP3H 200S-4 with electromagnetic brake

Page

3

/ 6

File No: 30 kW, 2SP3H 200S-4.doc/2005
Translated by: PTU -DAMAR- Sosnowiec

DRAWINGS

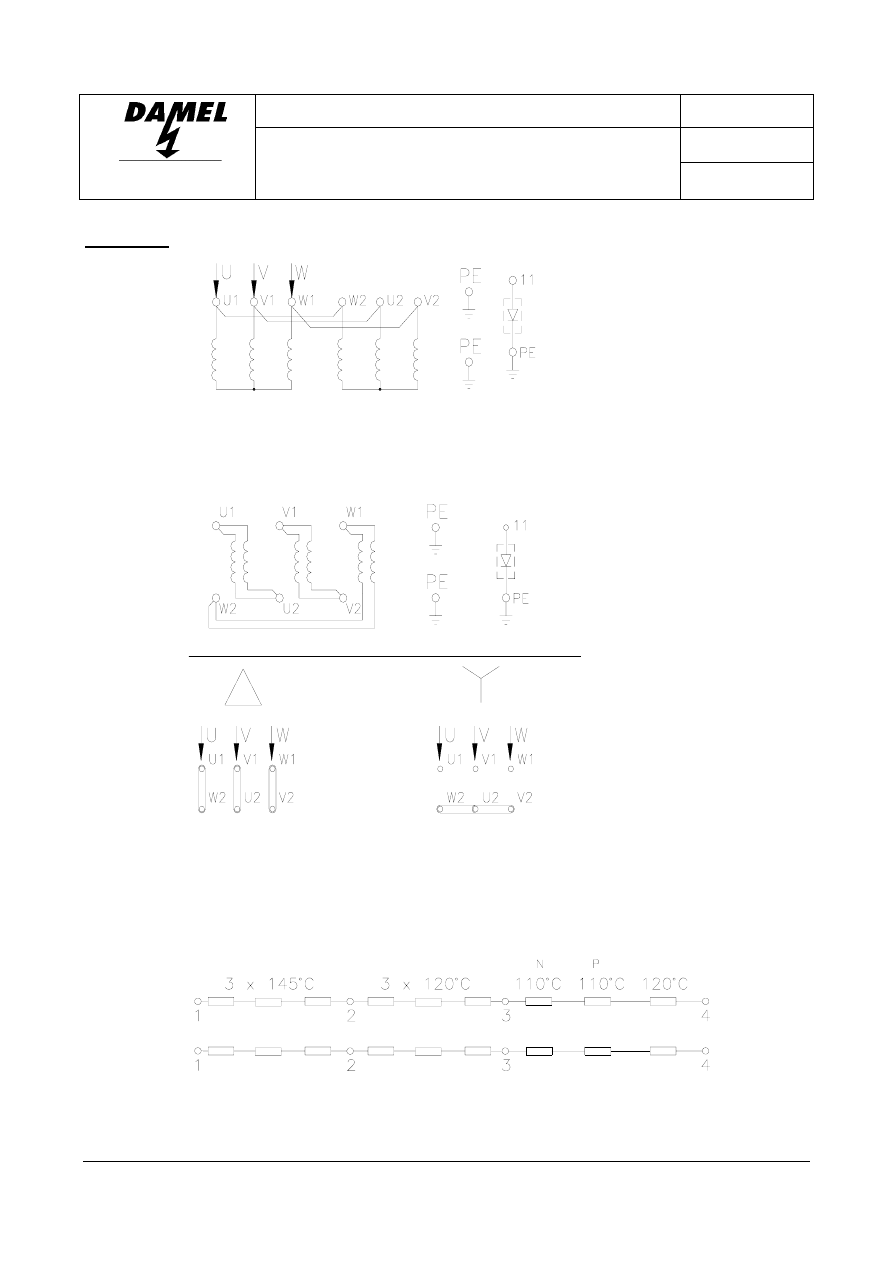

Fig. 1.1.1 Diagram of connections of one voltage motor and protective terminals - winding in Y-

connection.

Fig. 1.1.2

Diagram of connections of two voltage changeable motor ∆ / Y and protective

terminals.

Fig. 1.2

Diagram of connections of temperature sensors.

Winding of motor

stator

Brake winding

Bearing

Armature of

brake

CATALOGUE CARD

K4-15-141

MINING INDUCTION MOTORS

Issue 1

Dąbrowa Górnicza

2SP3H 200S-4 with electromagnetic brake

Page

4

/ 6

File No: 30 kW, 2SP3H 200S-4.doc/2005
Translated by: PTU -DAMAR- Sosnowiec

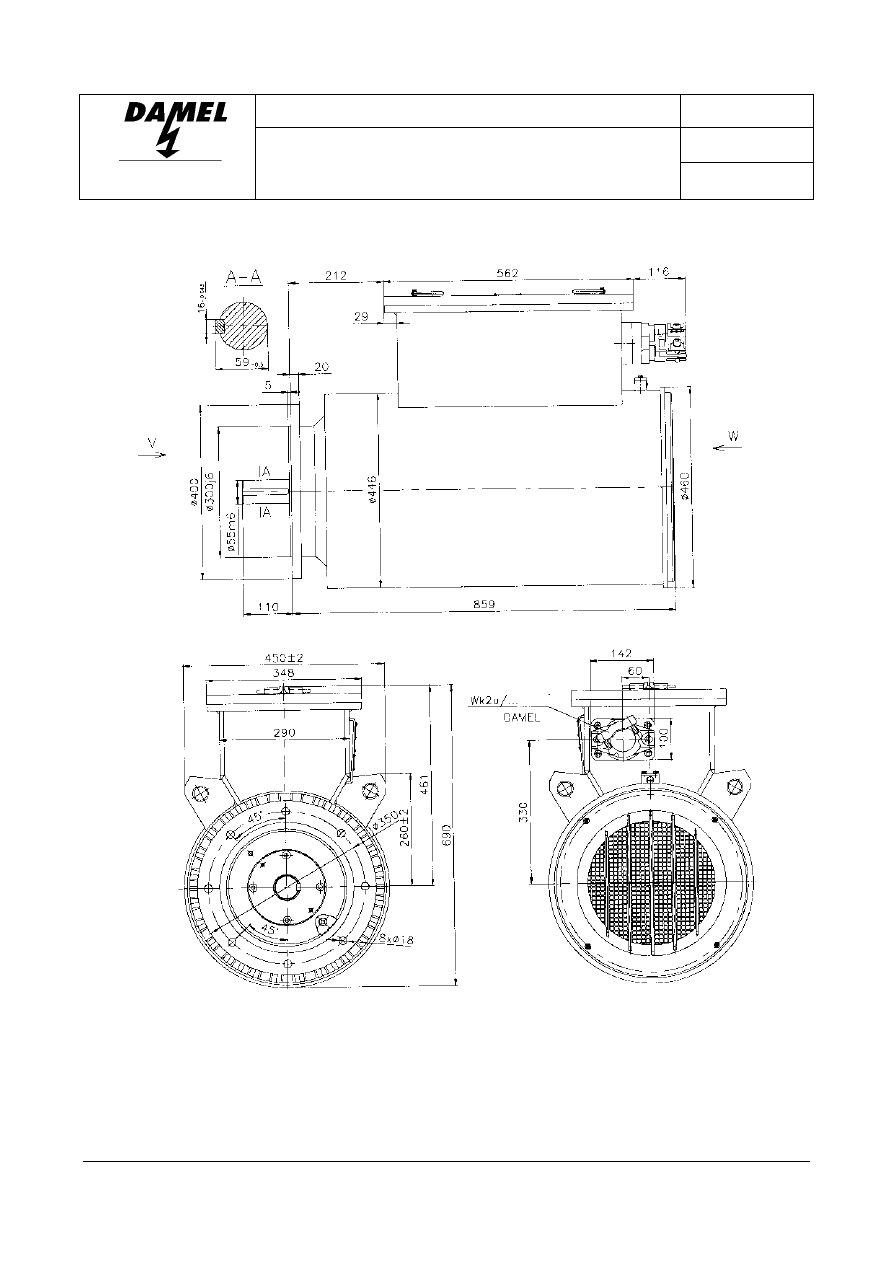

Fig. 2 Overall and assembly dimensions

View V

View W

Cable inlet

Cat.

CATALOGUE CARD

K4-15-141

MINING INDUCTION MOTORS

Issue 1

Dąbrowa Górnicza

2SP3H 200S-4 with electromagnetic brake

Page

5

/ 6

File No: 30 kW, 2SP3H 200S-4.doc/2005
Translated by: PTU -DAMAR- Sosnowiec

CONDITIONS OF OPERATION AND APPLICATION

• Ambient temperature

-20÷40

o

C

• Relative humidity at temperature of 35

o

C

97÷100%

• Height above the sea level

≤ 1000m

• Degree of corrosive aggressiveness C acc. to PN-71/H-04651
• Admissible inclination of the shaft axis to level

<30

0

• Supply voltage

(0,95÷1,05)U

N

• Electrical terminal

Power supply connection – mining armor conductor with rubber armor and insulation, multicore,

screened with section area of cores selected to operating conditions.

Connection of circuits of temperature sensors – auxiliary conductors of feeder cable with section area of

up to 4mm

2

.

• Leading the armor conductors to terminal box through cable inlets selected according to the outer

diameter of conductors acc. to table 2.

Table 2

Type of inlet

Range of conductor diameters

Wk2u/d47...

19 ÷ 21mm

20 ÷ 24mm

22 ÷ 26mm

Wk2u/d55...

24 ÷ 28mm

28 ÷ 32mm

30 ÷ 34mm

Wk2u/d80...

34 ÷ 38mm

36 ÷ 40mm

40 ÷ 44mm

41 ÷ 46mm

OFFER FOR DELIVERIES OF MOTORS

The producer offers motors in primary execution and in options executed against the order from customer
(additional, diversified equipment).

Table 3

1

Constructional characteristic of

motor

2

Basic execution

3

Execution against order

Rated voltage

380, 500; 660; 1000; 1100; 1140V

- other voltage from thew range

380÷1140V

- in one voltage version or

changeable ∆ / Y

Frequency 50Hz

60Hz

Form of execution

flanged IM 3001 (B5)

-

Class of insulation

F H

Thermal protection – type of sensors

Bimetal (NC)

Posistor PTC

Cable inlets

wpust kablowy Wk2u/... – patrz tab. 2

- inlet Wk2u/...acc. to table 2

The final link of protective conductor
continuity control circuit

CK-0A

CK … appointed by Orderer

(acc. to catalogue card K4-15-121)

Climatic execution

for temperate climate

for tropical climate TH or TA

Constructional characteristic other
than above mentioned

–

acc. to settlements, it can require

acceptance of the unit certifying the

product

The following items are included to the delivered motor by producer:

- running-technical documentation ( RTD - Service Manual of the motor).
- declaration of conformity EC.

CATALOGUE CARD

K4-15-141

MINING INDUCTION MOTORS

Issue 1

Dąbrowa Górnicza

2SP3H 200S-4 with electromagnetic brake

Page

6

/ 6

File No: 30 kW, 2SP3H 200S-4.doc/2005
Translated by: PTU -DAMAR- Sosnowiec

ORDERING PROCEDURE

The following data should be stated in the order directed to the address of manufacturer given below:

- type of motor, power
- rated voltage and frequency
- motor execution: preliminary – see table 3 column 2 or execution against order, for which required

equipment and constructional characteristic should be determined acc. to table 3 column 3.

When ordering we recommend to fill up the questionnaire „Statement of technical data of the motor...” –
accessible at internet (web) sites and in Marketing Department of DFME DAMEL.

The producer offers additionally:

- guarantee and after guarantee service,
- delivery of spare parts,
- training of employees in the range of correct maintenance and operating the motor.

Producer reserves the right to implement to the motor changes resulting from technical progress.

Dąbrowska Fabryka Maszyn Elektrycznych DAMEL S. A.

Aleja Józefa Piłsudskiego 2, 41-300 Dąbrowa Górnicza, POLSKA, tel: [phone] do 39

Faks (32) 264-34-26, 264-10-12, http: www.damel.com.pl, email: [e-mail]

Elaboration: „DAMEL” – TK/PS/11/2004

Date of translation : August 25, 2005
