Cruise Control

background image

2009 Chevrolet Aveo

|

Aveo, Wave, G3, Barina (VIN S/T) Service Manual

|

Engine

|

Cruise Control

|

Repair Instructions

|

Document ID: 1655540

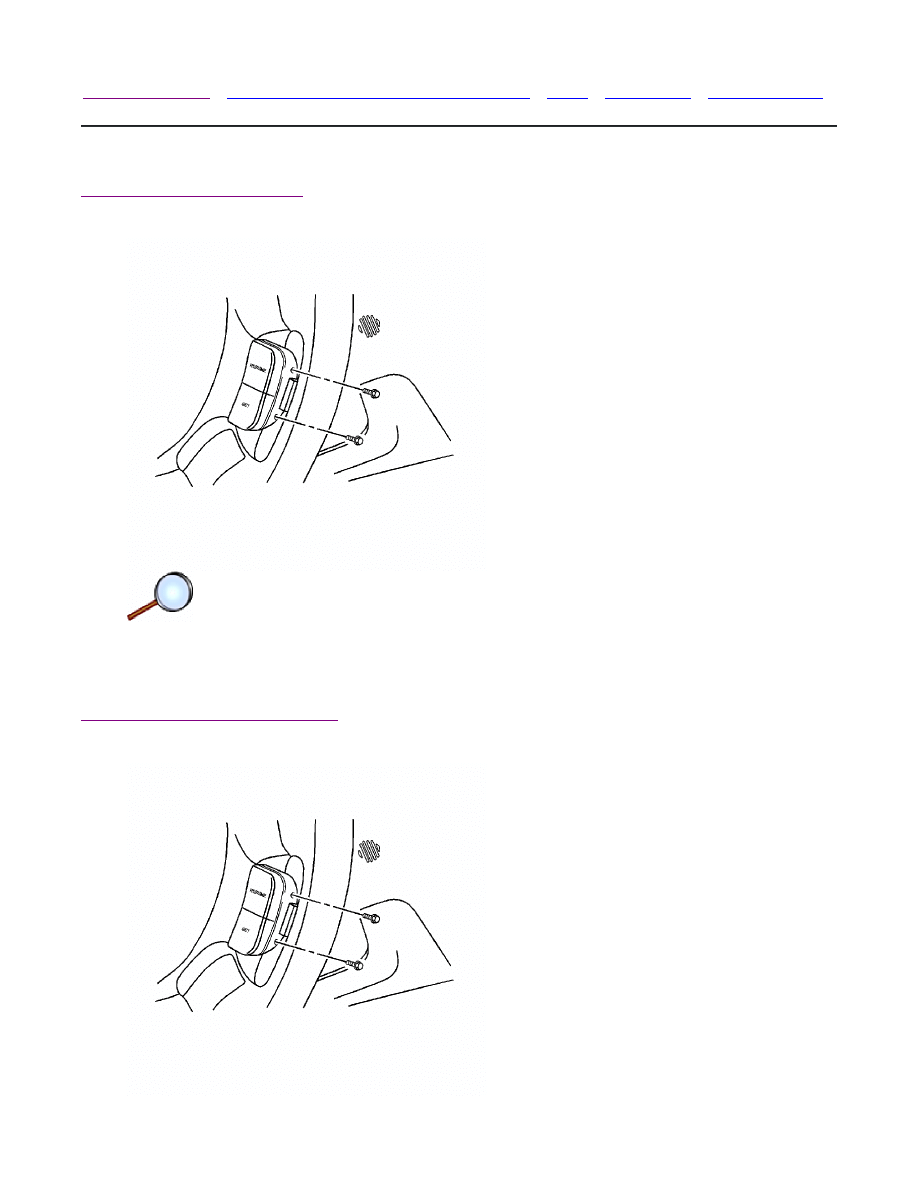

Cruise Control Switch Replacement

Removal Procedure

1. Disconnect the negative battery cable.
2. Remove the screws and the cruise control switch.
3. Disconnect the cruise control switch connector.

Installation Procedure

© 2010 General Motors Corporation. All rights reserved.

Page 1 of 2

Document ID: 1655540

7/5/2010

http://localhost:9001/si/showDoc.do?docSyskey=1655540&pubCellSyskey=10815&pubObj...

background image

1. Connect the cruise control switch connector.
2. Install the cruise control switch and the screws.
3. Connect the negative battery cable.

Page 2 of 2

Document ID: 1655540

7/5/2010

http://localhost:9001/si/showDoc.do?docSyskey=1655540&pubCellSyskey=10815&pubObj...

background image

2009 Chevrolet Aveo

|

Aveo, Wave, G3, Barina (VIN S/T) Service Manual

|

Engine

|

Cruise Control

|

Repair Instructions

|

Document ID: 1377592

Clutch Pedal Cruise Control Release Switch Adjustment

Cruise Control Clutch Switch Adjustment

1. Push the switch assembly through the pedal support and turn 90 degrees.
2. Hold the clutch pedal to the rest position.
3. Connect the cruise control clutch pedal switch electrical connector.
4. Verify the operation of the clutch switch by operating the cruise control and checking the

clutch switch stops operation of the cruise control when the clutch pedal is pressed.

© 2010 General Motors Corporation. All rights reserved.

Page 1 of 1

Document ID: 1377592

7/5/2010

http://localhost:9001/si/showDoc.do?docSyskey=1377592&pubCellSyskey=10700&pubObj...

background image

2009 Chevrolet Aveo

|

Aveo, Wave, G3, Barina (VIN S/T) Service Manual

|

Engine

|

Cruise Control

|

Repair Instructions

|

Document ID: 1675719

Clutch Pedal Cruise Control Release Switch
Replacement

Removal Procedure

1. Disconnect the cruise control clutch pedal switch electrical connector.
2. Turn the switch 90 degrees counterclockwise and remove.

Installation Procedure

1. Position the cruise control clutch switch in the pedal support, then turn the switch 90 degrees

clockwise.

2. Connect the cruise control clutch pedal switch electrical connector.
3. Adjust the cruise control clutch pedal switch. Refer to

Clutch Pedal Cruise Control Release

Switch Adjustment

.

© 2010 General Motors Corporation. All rights reserved.

Page 1 of 1

Document ID: 1675719

7/5/2010

http://localhost:9001/si/showDoc.do?docSyskey=1675719&pubCellSyskey=10879&pubObj...
