© 2008 Matsushita Electric Industrial Co., Ltd. All
rights reserved. Unauthorized copying and distribu-
tion is a violation of law.

ORDER NO. ACED080111C1

C7

AUTOMOTIVE AFTERMARKET

Model No.

CQ-VX100U

In-dash 7"Widescreen Color LCD Moni-
tor/DVD Receiver

TABLE OF CONTENTS

PAGE

PAGE

1 Service Navigation

2

-----------------------------------------------

2 Specifications

3

-----------------------------------------------------

3 Features

4

-------------------------------------------------------------

4 Technical Descriptions

5

-----------------------------------------

5 Disassembly and Assembly Instructions

11

---------------

6 Block Diagram

13

----------------------------------------------------

7 Wiring Connection Diagram

16

---------------------------------

8 Schematic Diagram

17

---------------------------------------------

9 Printed Circuit Board

22

-------------------------------------------

10 Exploded View and Replacement Parts List

27

-----------

11 Schematic Diagram for Printing with Letter Size

39

-----

Panasonic Car Dvd Cq-Vx100u

http://www.scribd.com/doc/36259817/Panasonic-Car-Dvd-Cq-Vx100u

2 z 48

02/02/2011 00:56

1

/ 49

Search within document...

2

1 Service Navigation

1.1.

About Lead Free Solder (PbF)

Distinction of PbF PCB :

• PCBs (manufactured) using lead free solder will have a PbF

stamp on the PCB.

Caution :

• Pb free solder has a higher melting point than standard sol-

der; Typically the melting point is 50 - 70 F (30 - 40 C)

°

°

higher. Please use a soldering iron with temperature control
and adjust it to 700 ± 20 F (370 ± 10 C). In case of using

°

°

high temperature soldering iron, please be careful not to
heat too long.

• Pb free solder will tend to splash when heated too high

(about 1100 F/600 C)

°

°

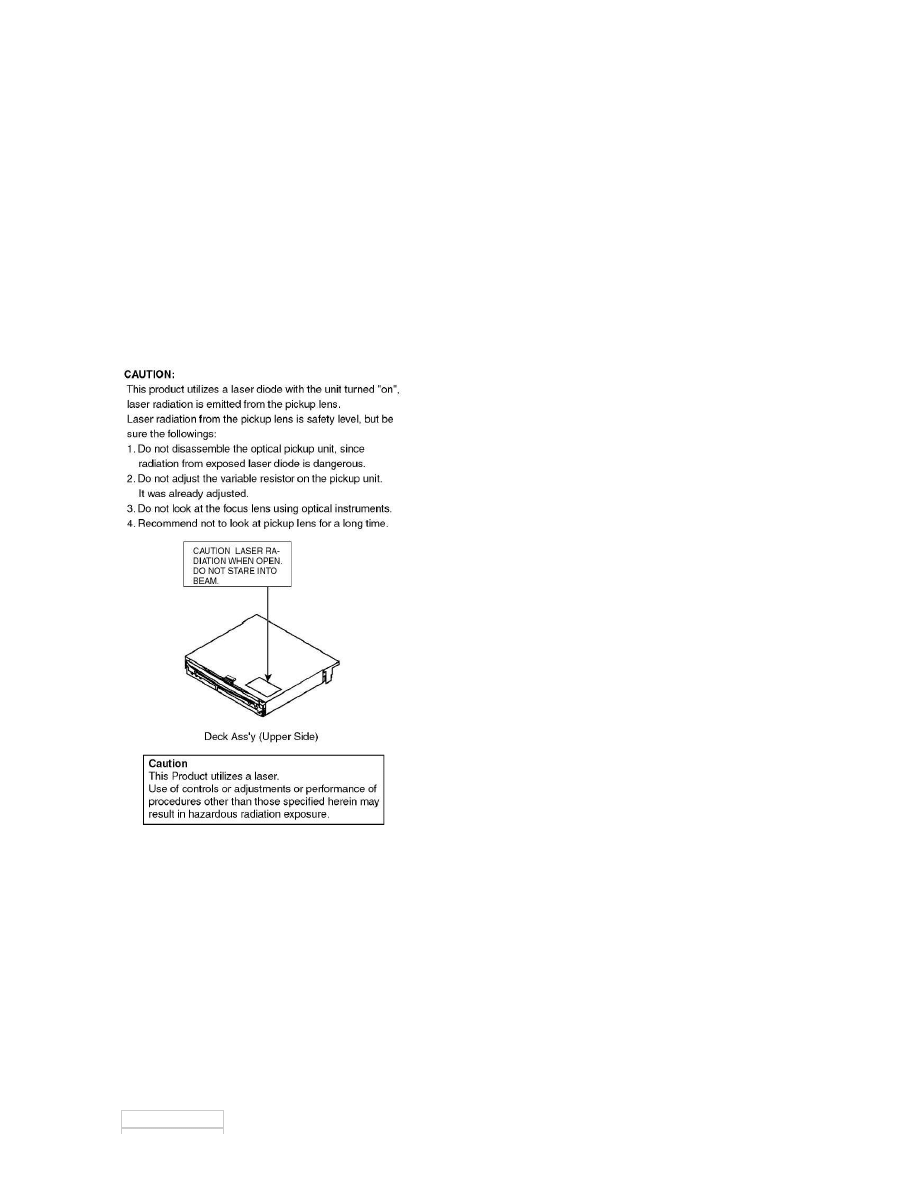

1.2. Laser Products

1.3.

Replacing the Fuse

Use fuses of the same specified rating 15 amps. Using different
substitutes or fuses with higher ratings, or connecting the unit
directly without a fuse, could cause fire or damage to the stereo unit.

1.4.

Maintenance

Your product is designed and manufactured to ensure a mini-
mum of maintenance. Use a dry, a soft cloth for routine exterior

cleaning. Never use benzine, thinner or other solvents.

1.5.

Notes

[RADIO BLOCK]

Do not align the AM/FM package block. When the package
block is necessary, it will be supplied already aligned at the fac- tory.

[DVD DECK BLOCK]
This model has no servo alignment points because microcom-

puter controls the servo circuit.

Panasonic Car Dvd Cq-Vx100u

http://www.scribd.com/doc/36259817/Panasonic-Car-Dvd-Cq-Vx100u

3 z 48

02/02/2011 00:56

1

/ 49

Search within document...

3

2 Specifications

2.1.

Specifications*

2.2.

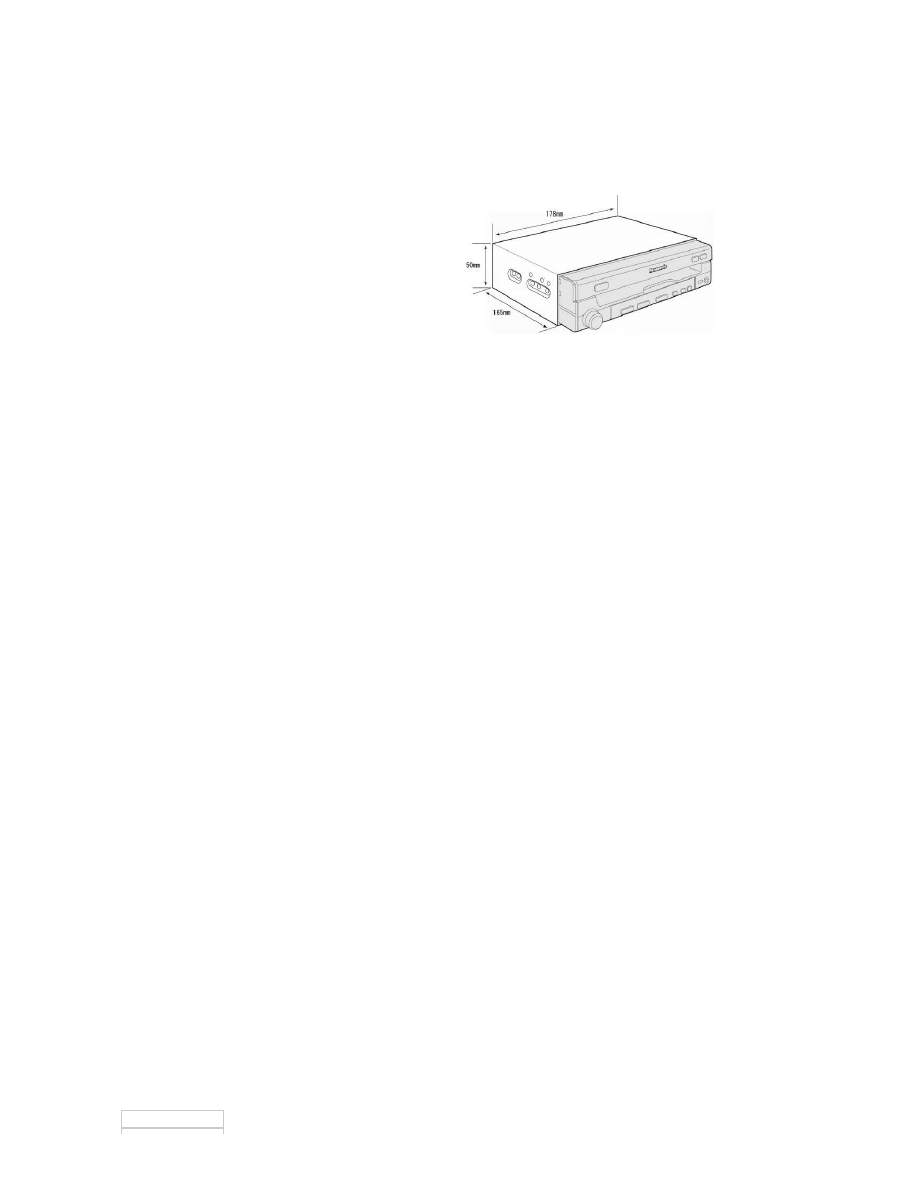

Dimensions

General
Power Supply

DC 12V (11V - 16V)
Test Voltage 14.4V
Negative Ground

Current Consumption

Less than 10A (during disc playback)

Maximum Power Output

50 W x 4ch

Power Output

20 W x 4ch

Compatible Speaker Imped-
ance

4

Ω

Video Input Signal

Composite video signal, 1.0 Vp-p (75

Ω

)

Audio Input Sensitivity

2 Vrms

Video Output Signal

Composite video signal, 1.0 Vp-p (75

Ω

)

Pre-Amp Output Voltage

2 Vrms

Pre-amp Output Impedance

Less than 600

Ω

Dimensions (W H D)**

× ×

178 50 165mm

×

×

(7” 1-15/16” 6-1/2” )

×

×

Weight**

2.4 kg (5 Ibs. 5 OZ.)

Front AV input (AV1 IN)
Input Impedance

47 k

Ω

Allowable External Input

2.0 V

Connector

3.5 mm Stereo mini pin (Equipped
with video input terminal)

Audio Input Sensitivity

2 Vrms

Video Input Signal

Composite video signal, 1.0 Vp-p (75

Ω

)

FM stereo radio

Frequency Range

87.9 MHz - 107.9 MHz

Usable Sensitivity

12.2dBf

Stereo Separation

30 dB (1 kHz)

S/N ratio

62 dB

AM Radio

Frequency Range

530 kHz - 1710 kHz

Usable Sensitivity

28 dB/ V

µ

Image Rejection Ratio

50 dB

Audio section
Output Voltage/Impedance

2 Vrms/600

Ω

Frequency Characteristics

20 Hz-20 kHz (±1 dB)

Dynamic Range

96 dB (during CD playback)

S/N ratio

95 dB (during CD playback)

Monitor

Liquid Crystal Panel

7-inch wide

Screen
Dimensions (W H D)**

× ×

154 87 177 mm

×

×

(6-1/16” 3-7/16” 6-15/16” )

×

×

Number of Pixels

336 960 pixels (234 vertical 480 hor-

×

izontal 3)

×

Valid Pixel Ratio

Over 99.99%

Display Method

Transparent color filter format

Drive Method

TFT (Thin Film Transistor) active
matrix format

* Specifications and the design are subject to possible modification
without notice due to improvements.
** Dimensions and Weight shown are approximate.
*** Above specifications comply with EIA standards.
