MITSUBISHI ECLIPSE 1990

SYSTEM WIRING DIAGRAMS

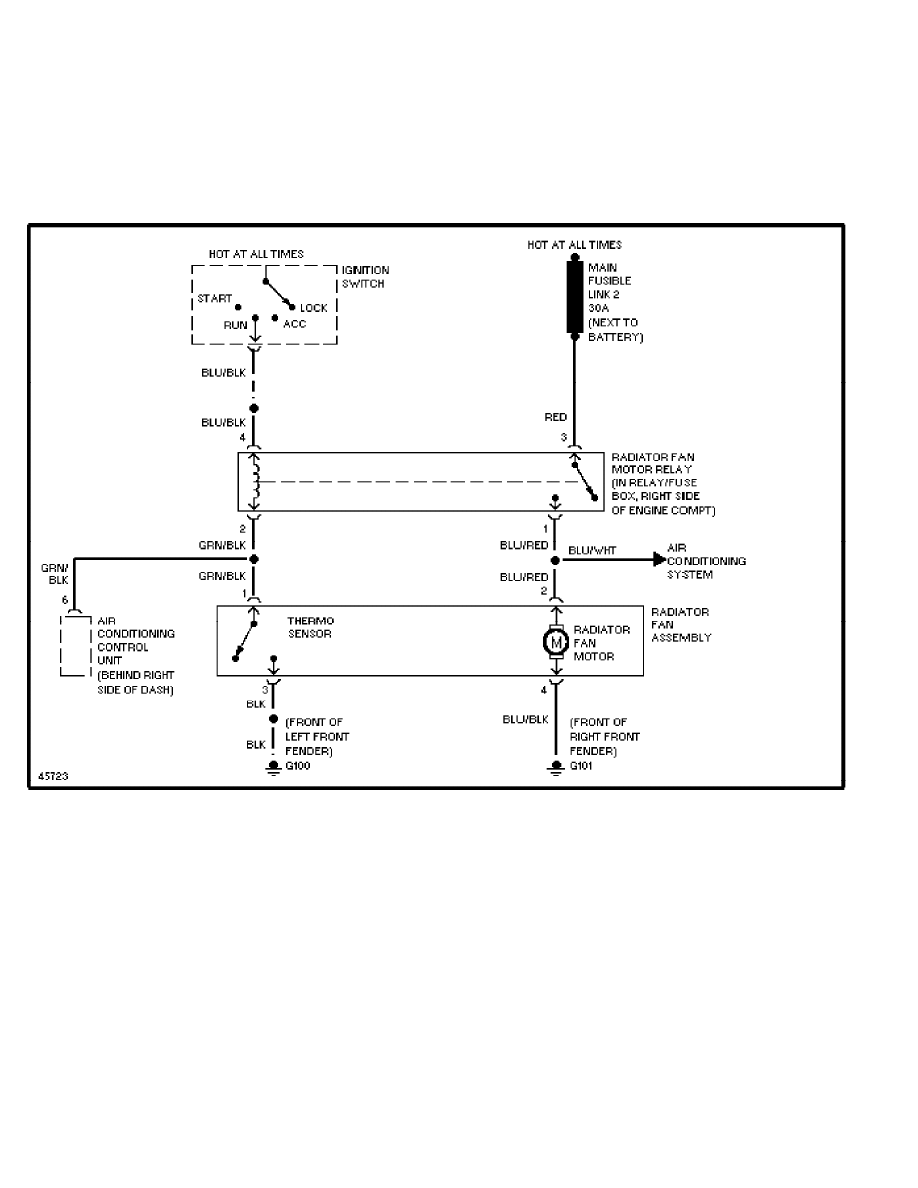

Cooling Fan Circuit

1990 Mitsubishi Eclipse

For x

Thursday, March 17, 2005 11:51AM

SYSTEM WIRING DIAGRAMS

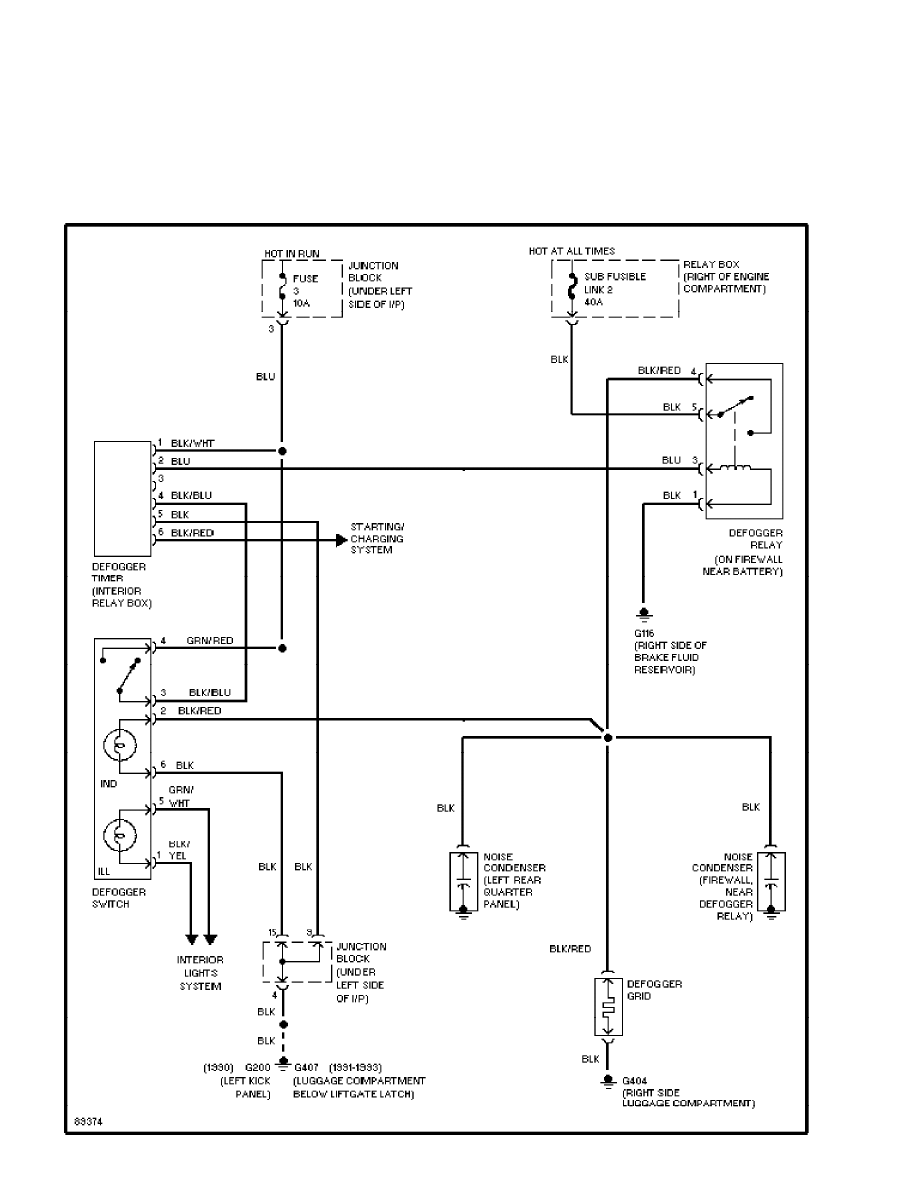

Defogger Circuit (p. 2)

1990 Mitsubishi Eclipse

For x

Thursday, March 17, 2005 11:51AM

SYSTEM WIRING DIAGRAMS

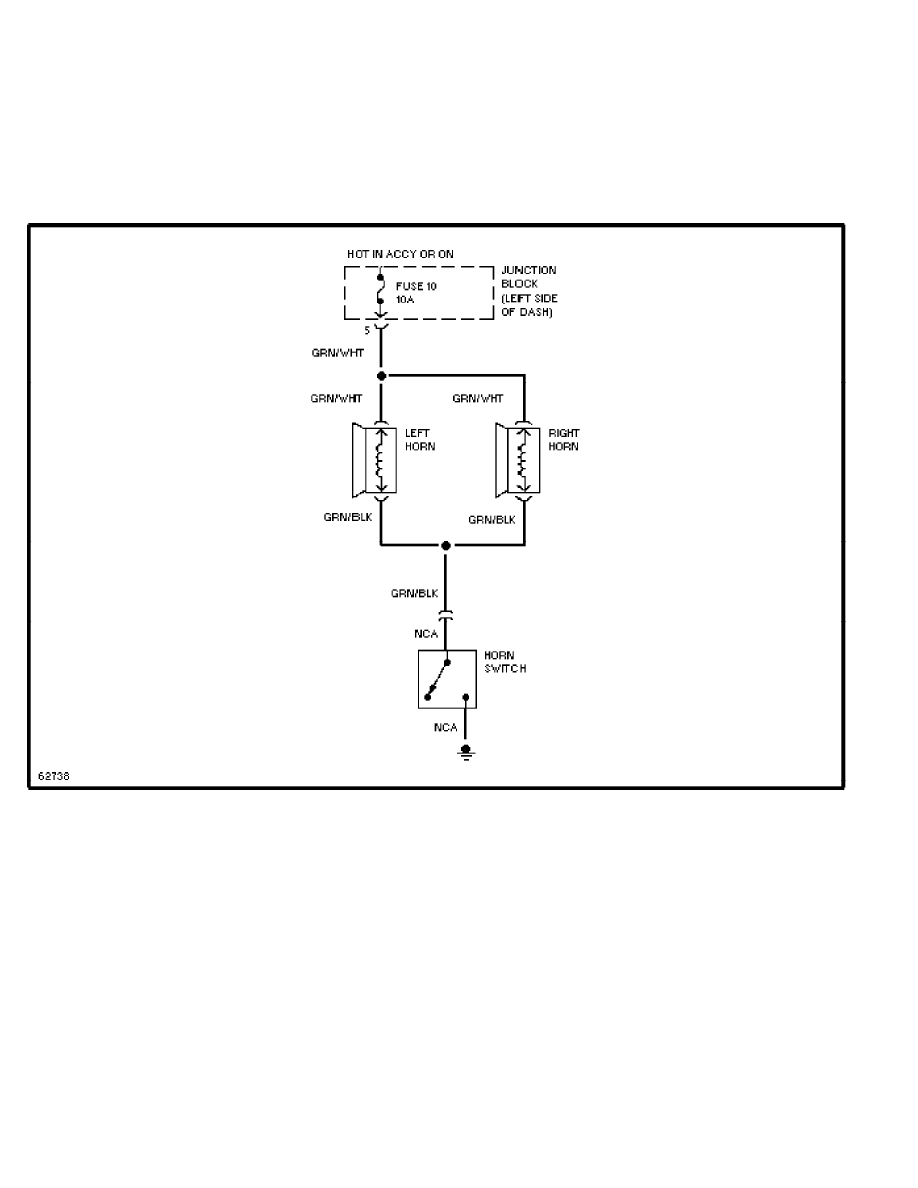

Horn Circuit (p. 3)

1990 Mitsubishi Eclipse

For x

Thursday, March 17, 2005 11:51AM

SYSTEM WIRING DIAGRAMS

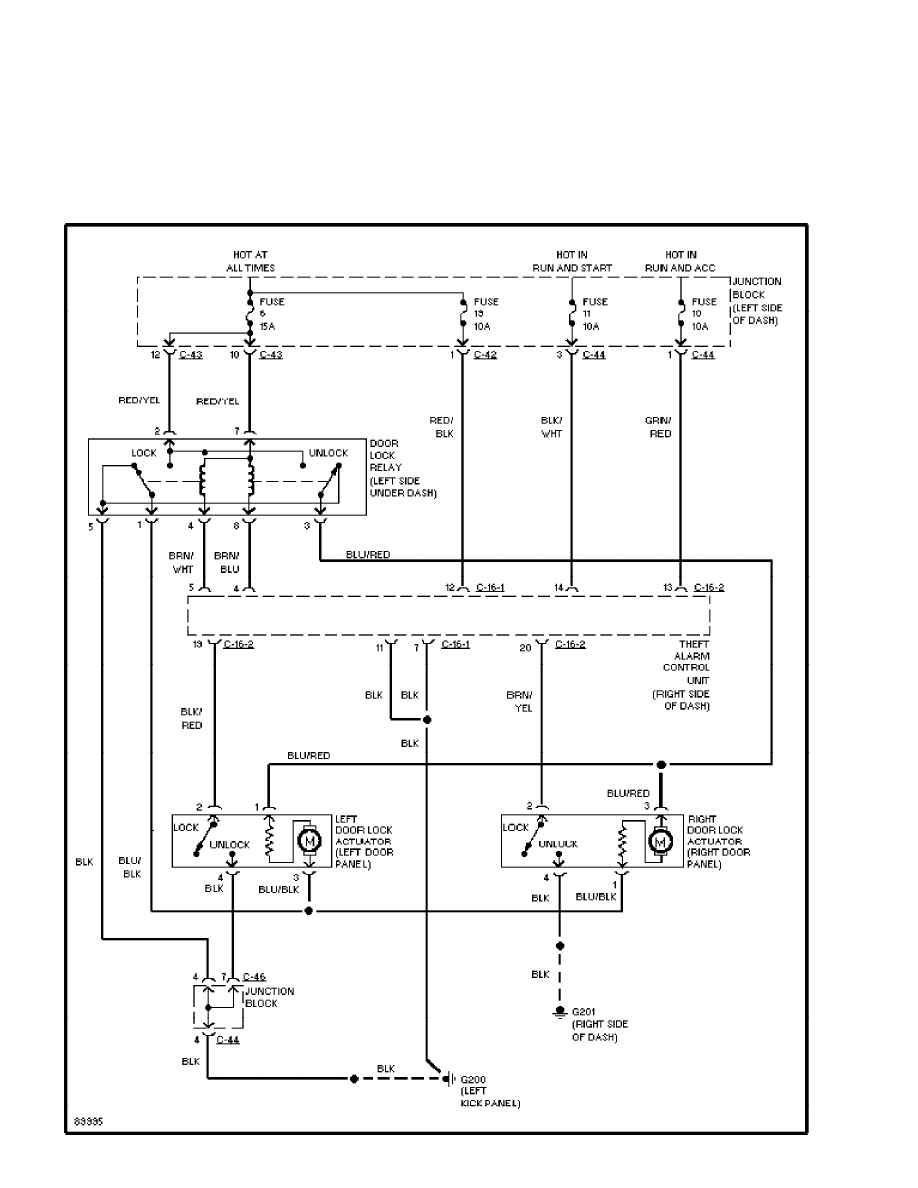

Power Door Lock Circuit, W/ Keyless Entry (p. 4)

1990 Mitsubishi Eclipse

For x

Thursday, March 17, 2005 11:51AM

SYSTEM WIRING DIAGRAMS

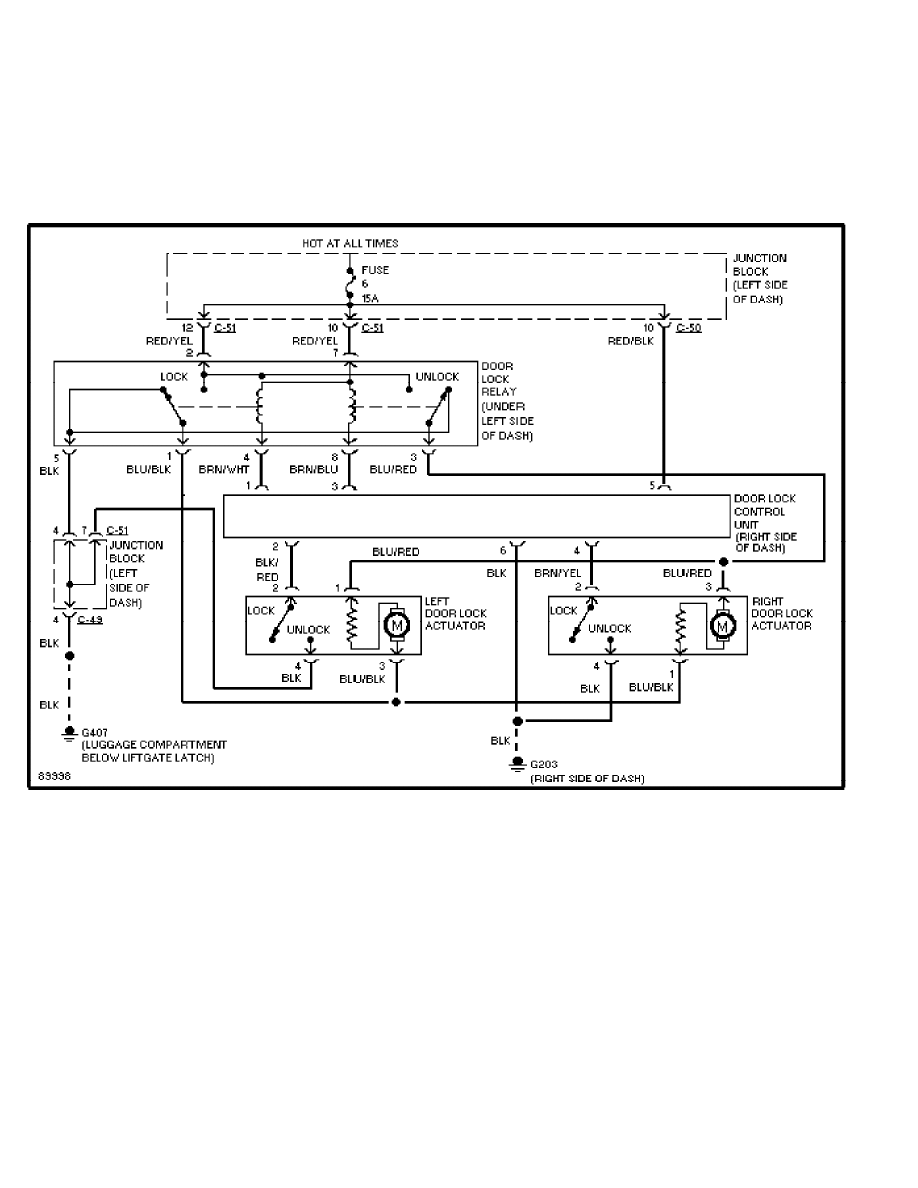

Power Door Lock Circuit, W/O Keyless Entry (p. 5)

1990 Mitsubishi Eclipse

For x

Thursday, March 17, 2005 11:51AM

SYSTEM WIRING DIAGRAMS

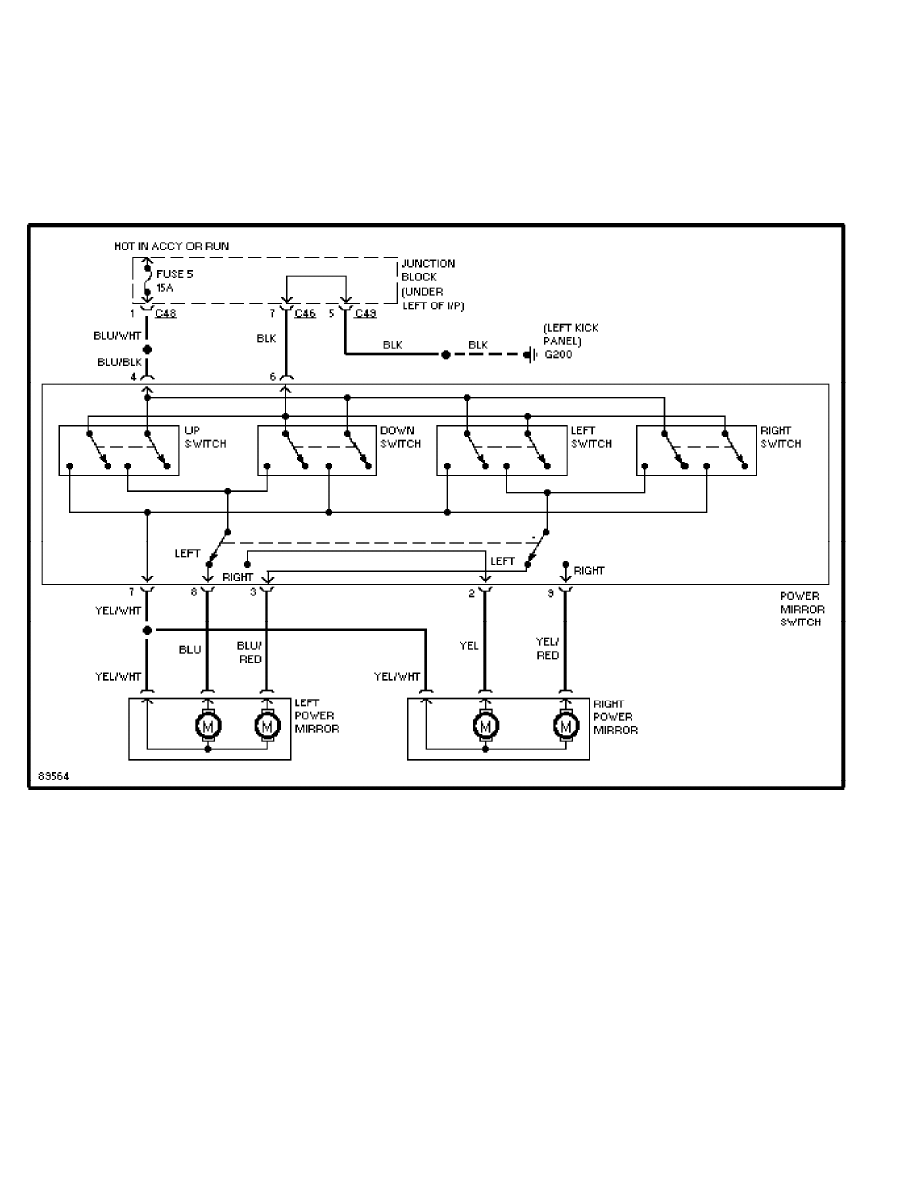

Power Mirror Circuit (p. 6)

1990 Mitsubishi Eclipse

For x

Thursday, March 17, 2005 11:51AM

SYSTEM WIRING DIAGRAMS

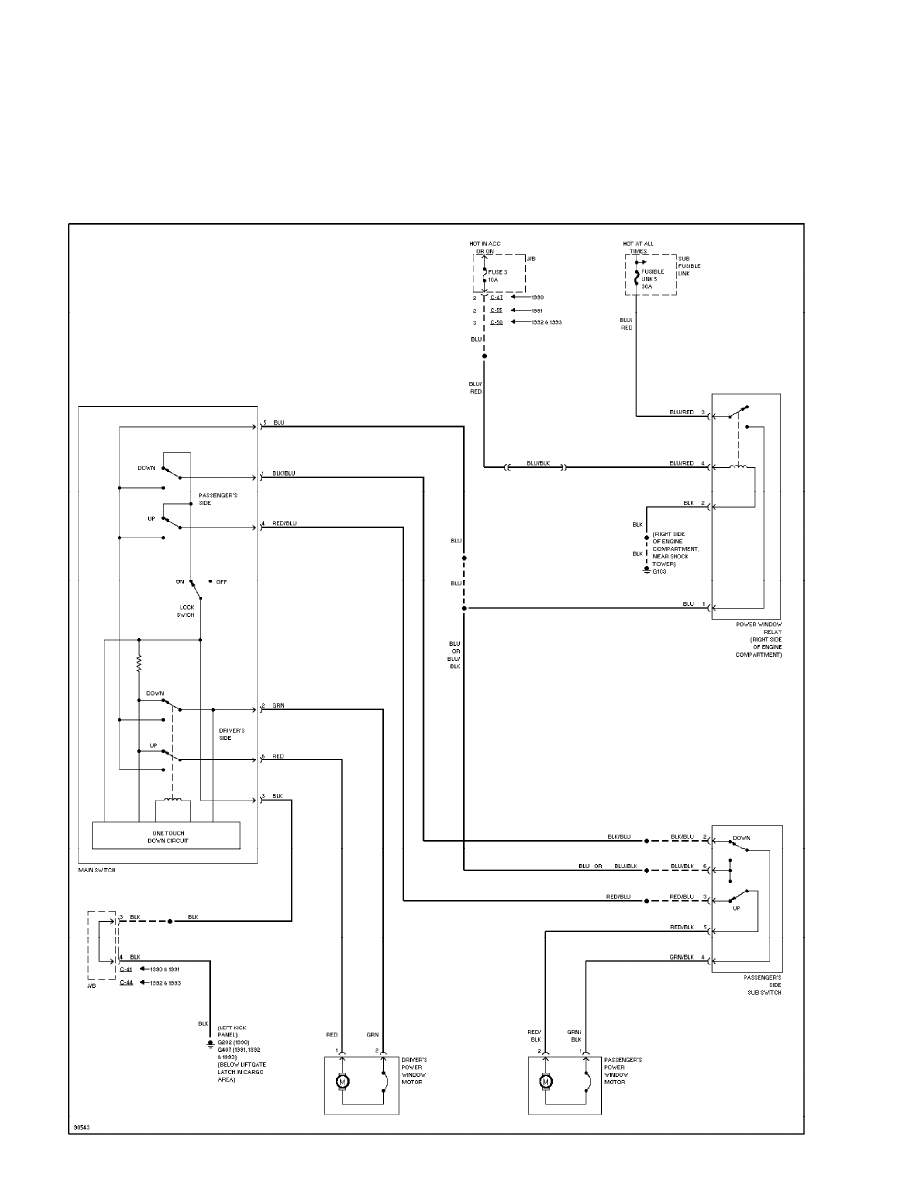

Power Window Circuit (p. 7)

1990 Mitsubishi Eclipse

For x

Thursday, March 17, 2005 11:51AM

SYSTEM WIRING DIAGRAMS

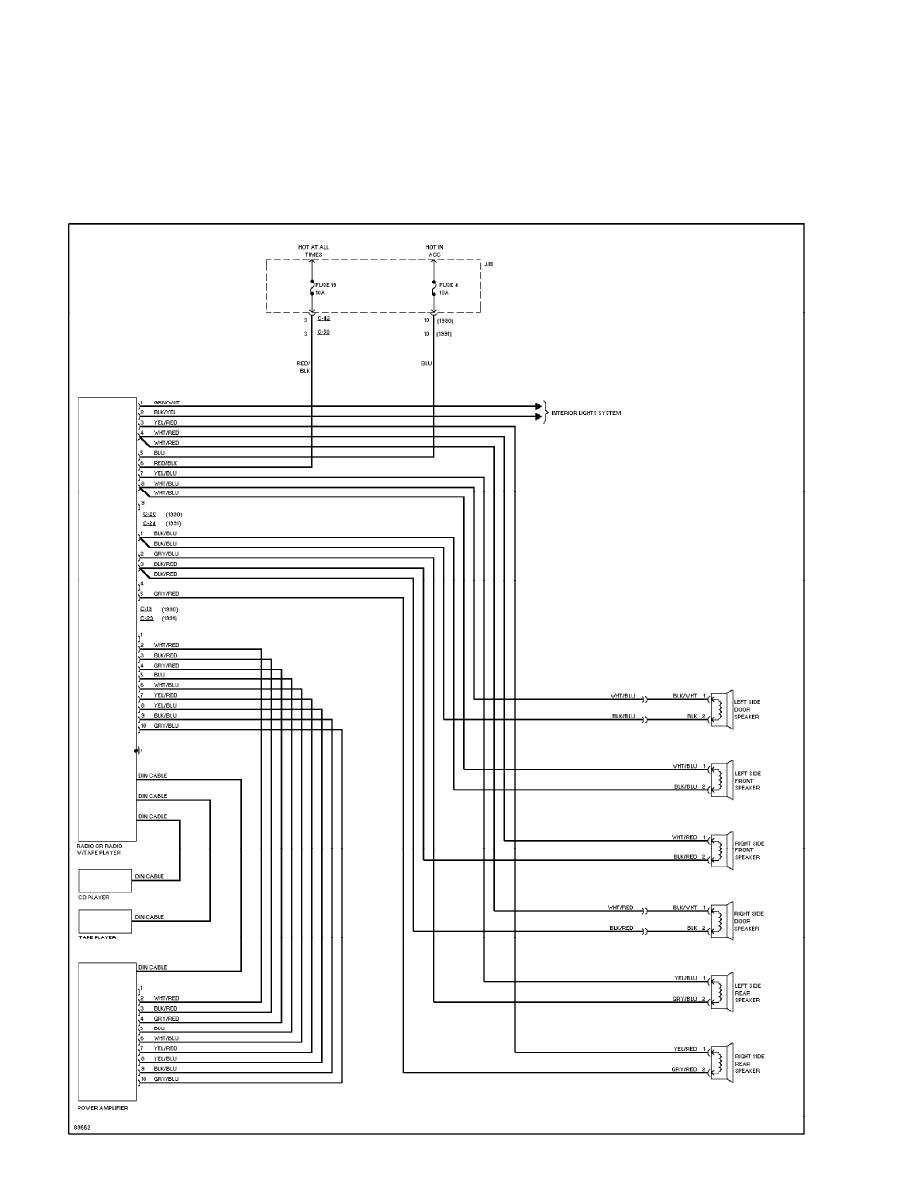

Radio Circuits (p. 8)

1990 Mitsubishi Eclipse

For x

Thursday, March 17, 2005 11:51AM

SYSTEM WIRING DIAGRAMS

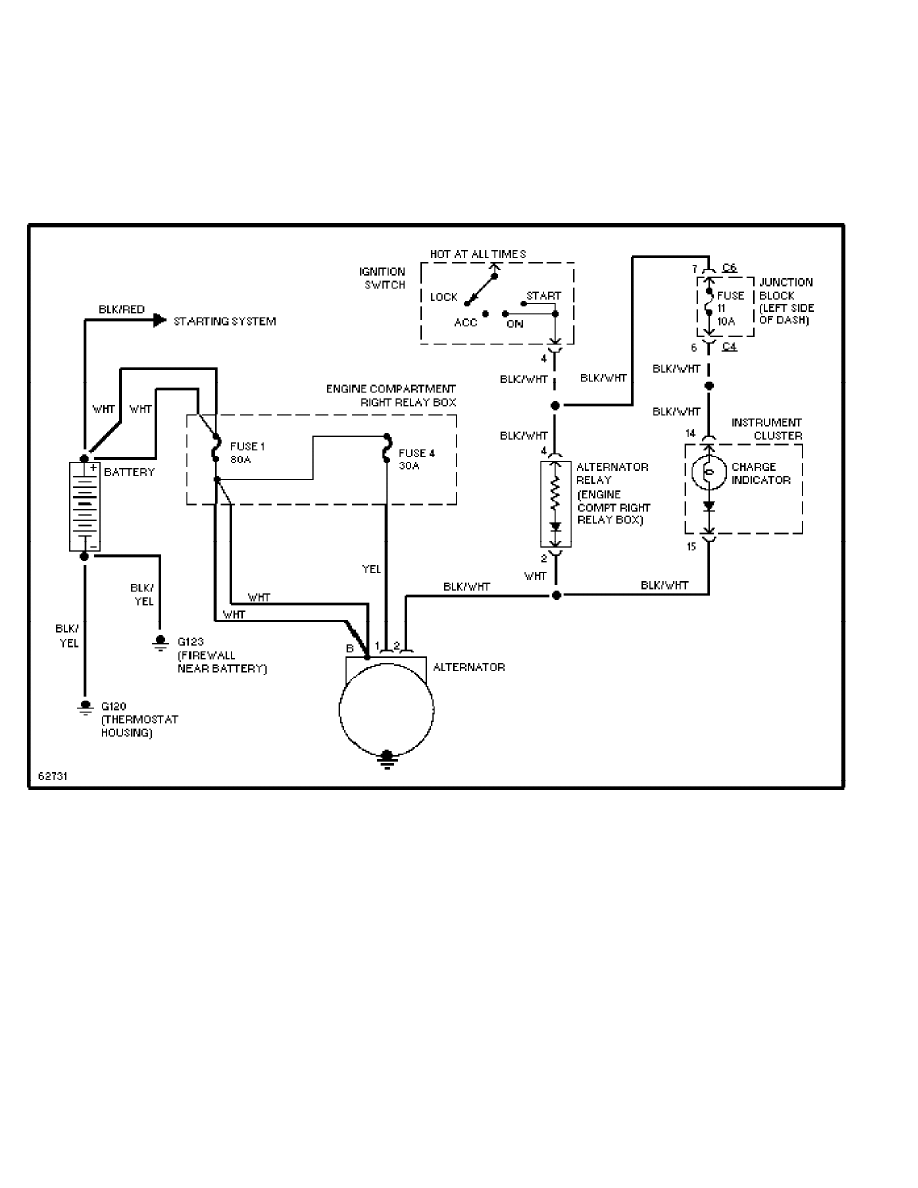

Charging Circuit (p. 9)

1990 Mitsubishi Eclipse

For x

Thursday, March 17, 2005 11:51AM

SYSTEM WIRING DIAGRAMS

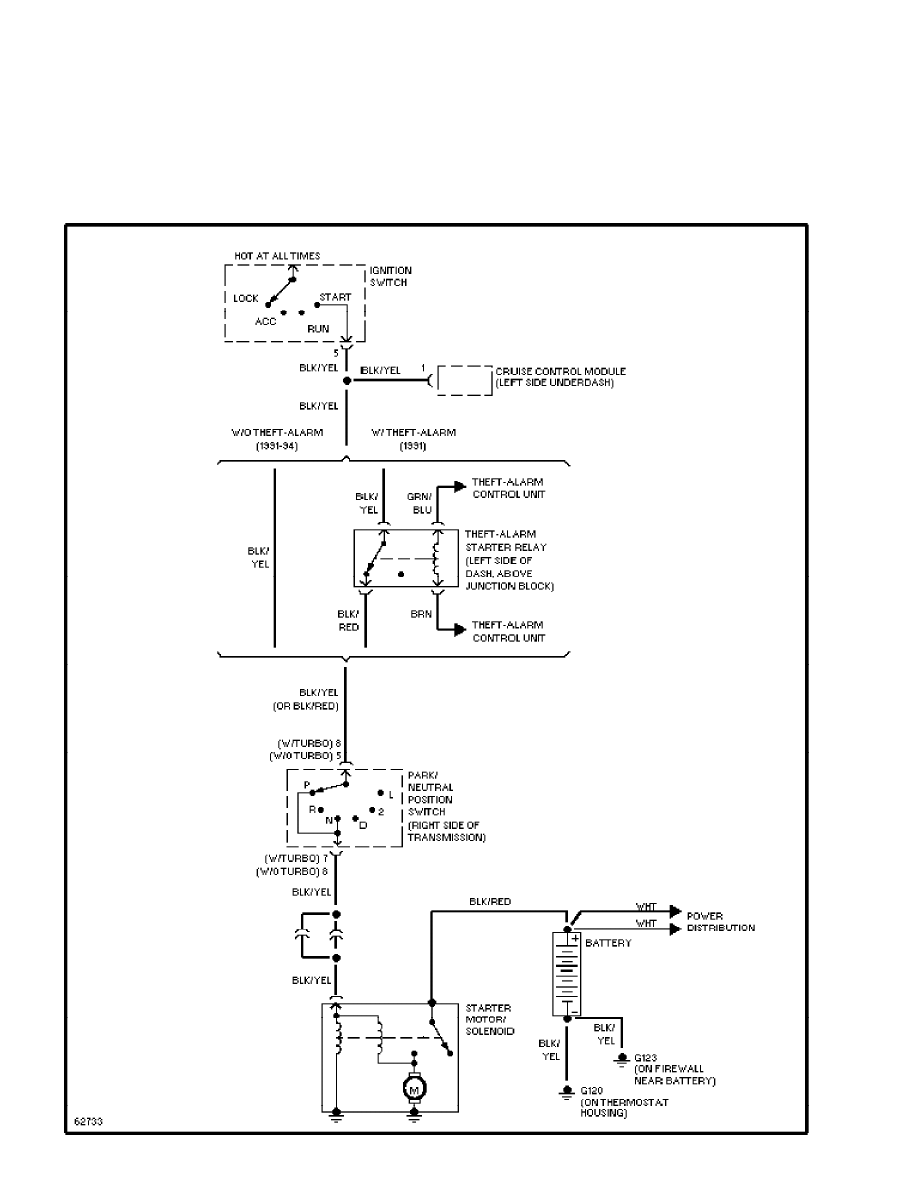

Starting Circuit, A/T (p. 10)

1990 Mitsubishi Eclipse

For x

Thursday, March 17, 2005 11:51AM

SYSTEM WIRING DIAGRAMS

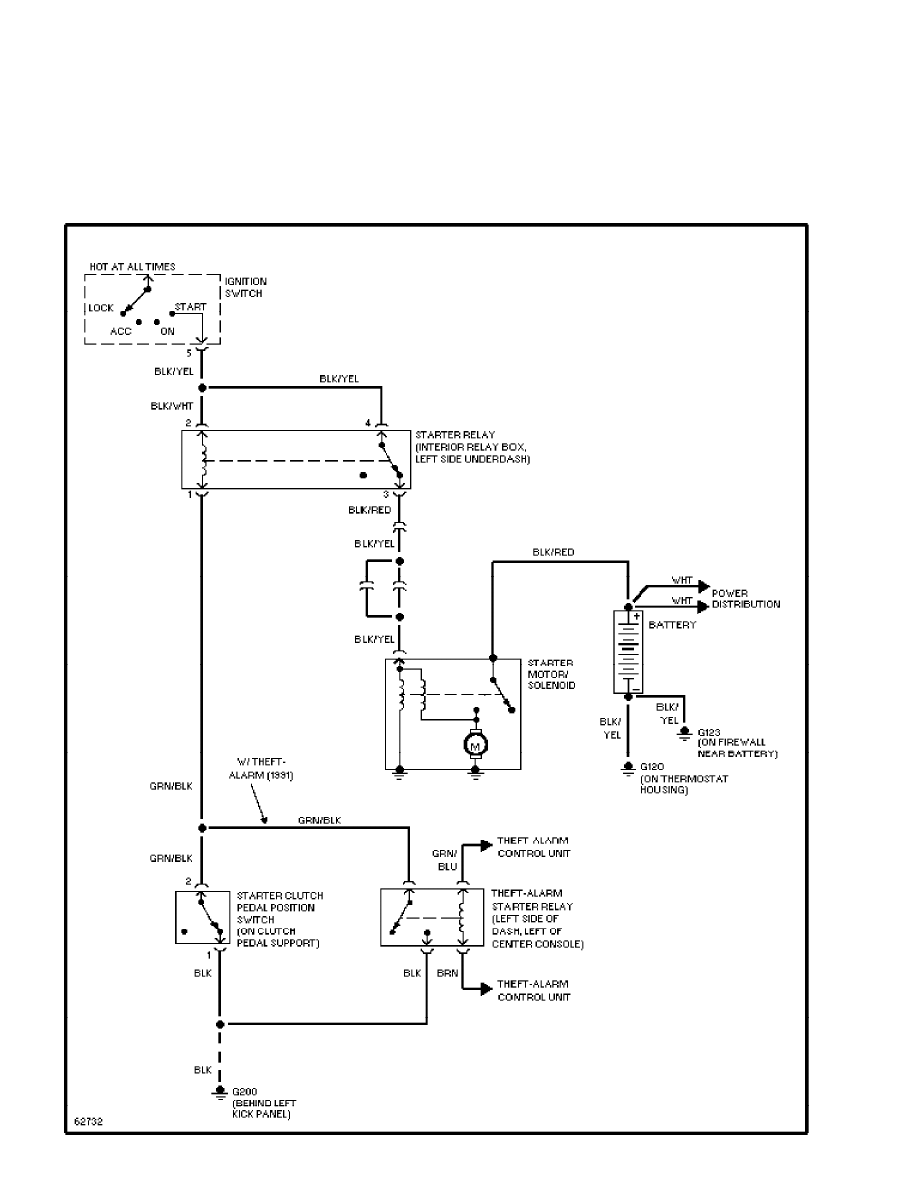

Starting Circuit, M/T (p. 11)

1990 Mitsubishi Eclipse

For x

Thursday, March 17, 2005 11:51AM

SYSTEM WIRING DIAGRAMS

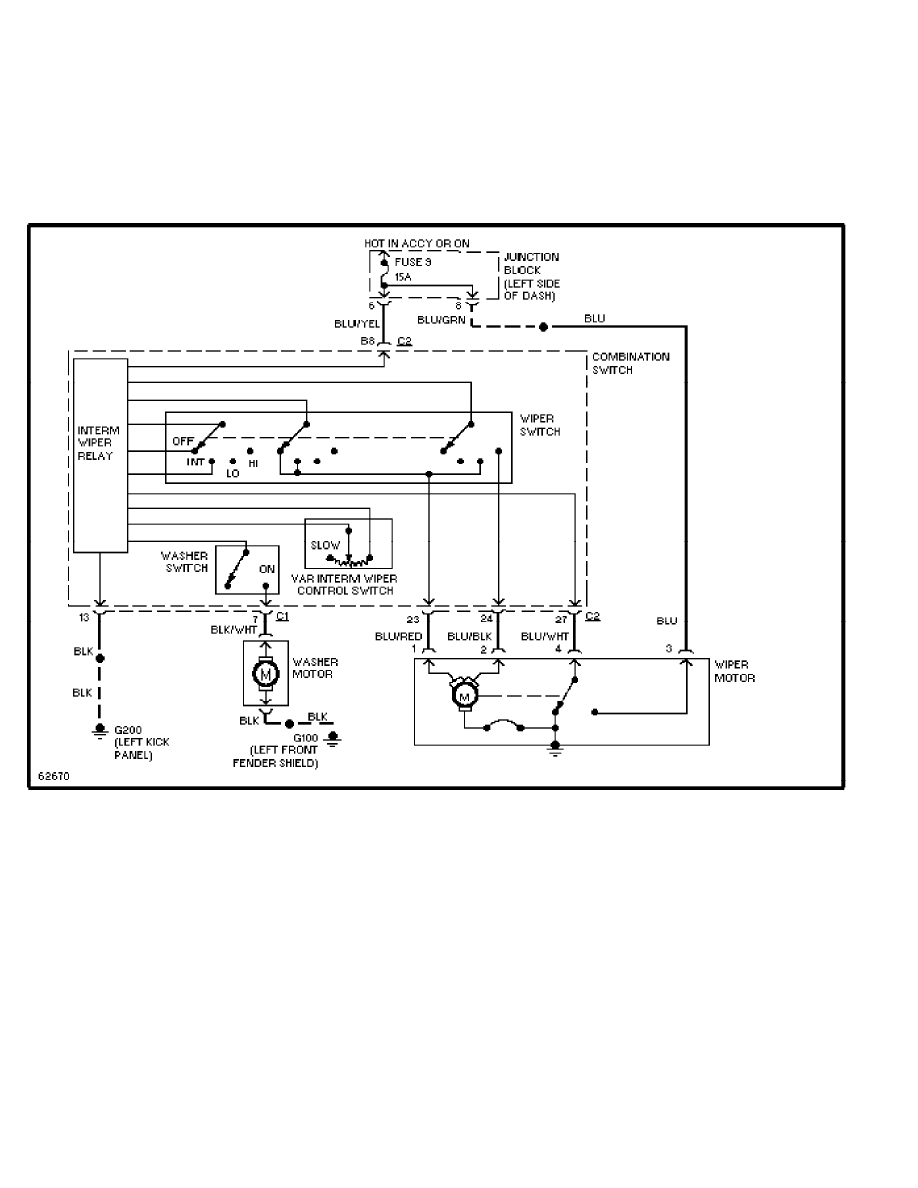

Front Wiper/Washer Circuit (p. 12)

1990 Mitsubishi Eclipse

For x

Thursday, March 17, 2005 11:51AM

SYSTEM WIRING DIAGRAMS

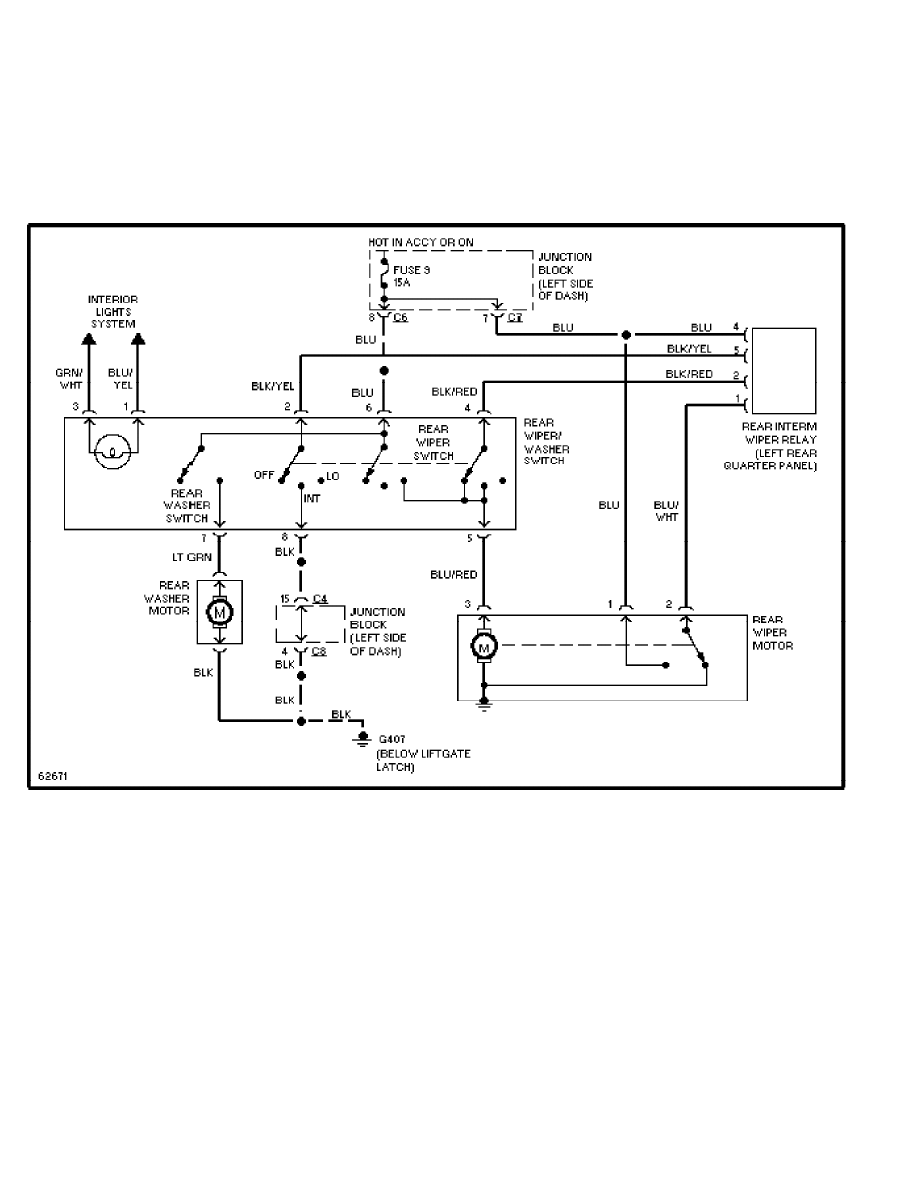

Rear Wiper/Washer Circuit (p. 13)

1990 Mitsubishi Eclipse

For x

Thursday, March 17, 2005 11:51AM

WIRING DIAGRAMS

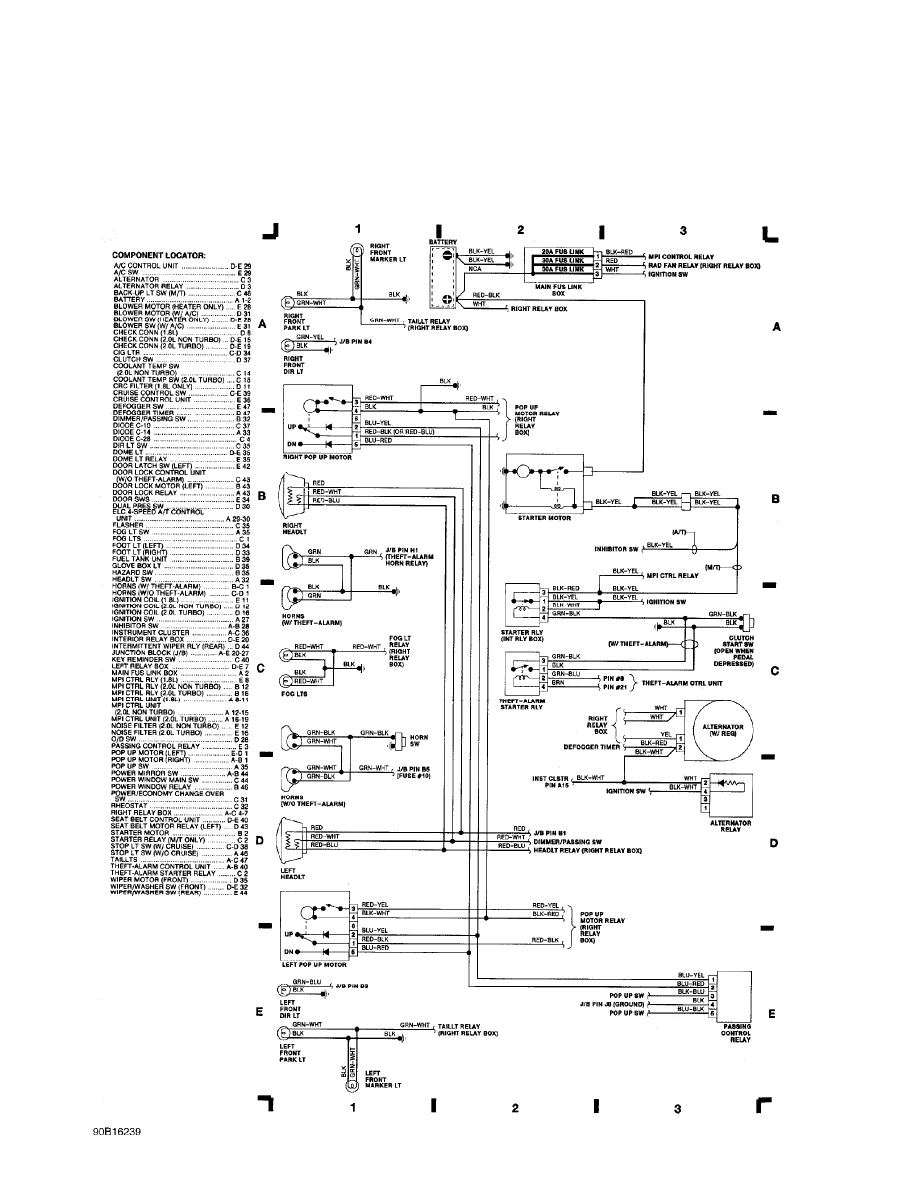

Fig. 1: Engine Compartment & Headlights (Grid 1-3)

1990 Mitsubishi Eclipse

For x

Thursday, March 17, 2005 11:51AM

WIRING DIAGRAMS

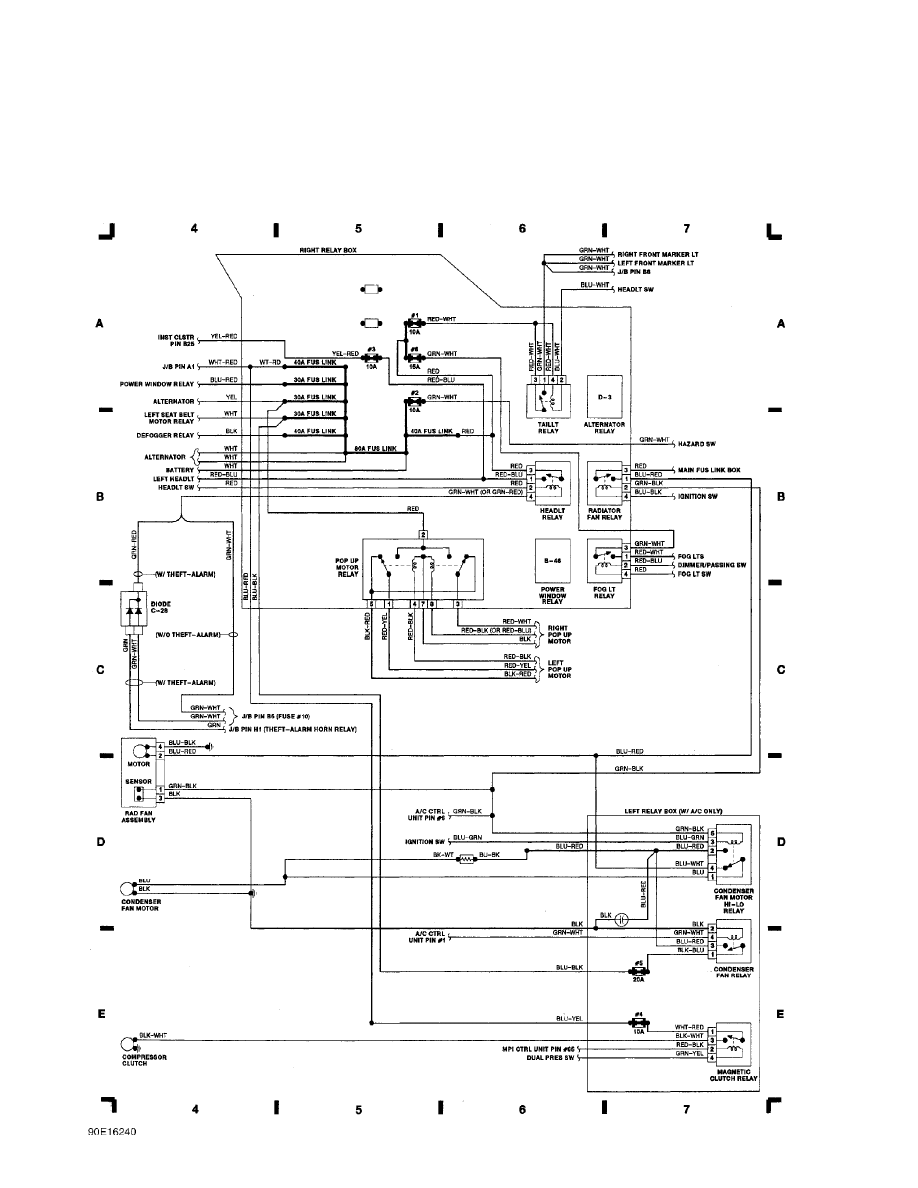

Fig. 2: Engine Compartment (Continued) (Grid 4-7) (p. 2)

1990 Mitsubishi Eclipse

For x

Thursday, March 17, 2005 11:51AM

WIRING DIAGRAMS

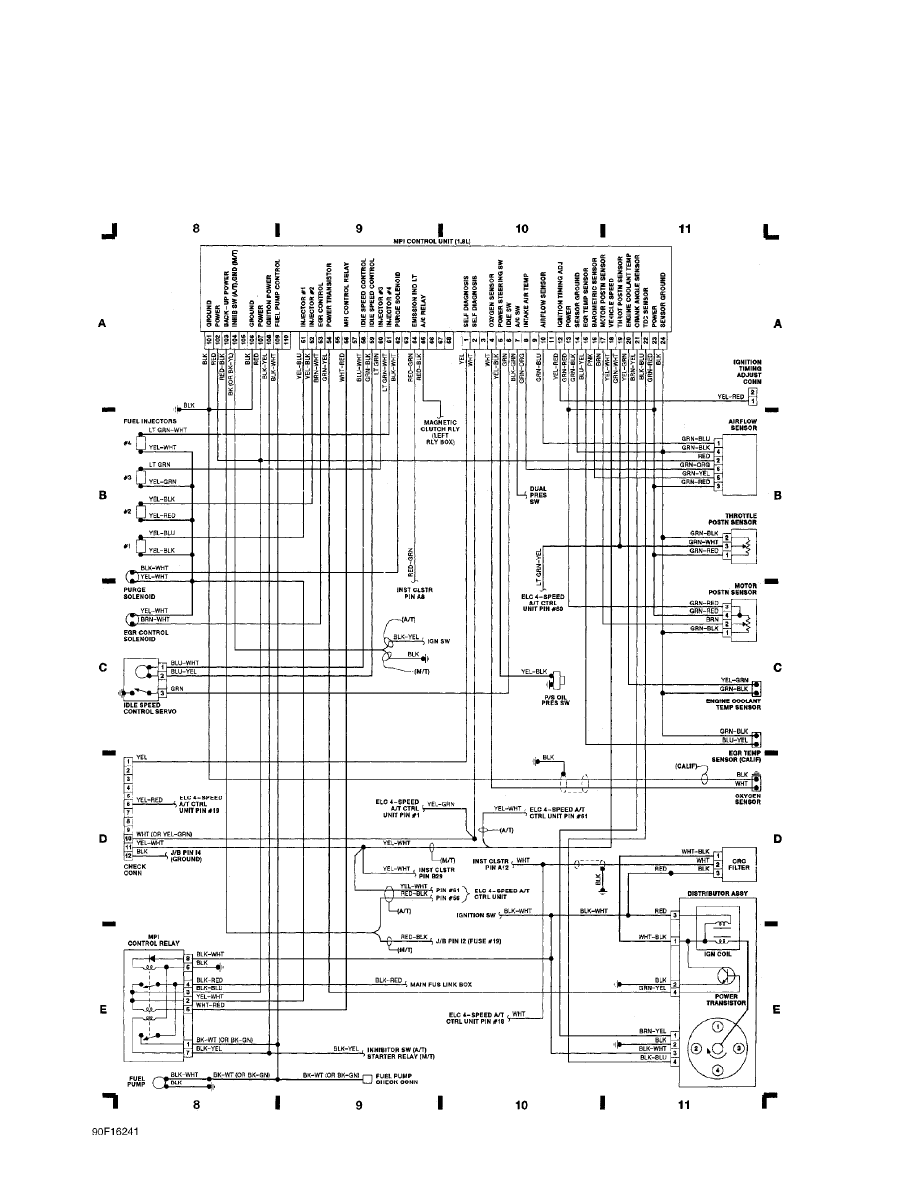

Fig. 3: MPI Control Unit (1.8L) (Grid 8-11) (p. 3)

1990 Mitsubishi Eclipse

For x

Thursday, March 17, 2005 11:51AM

WIRING DIAGRAMS

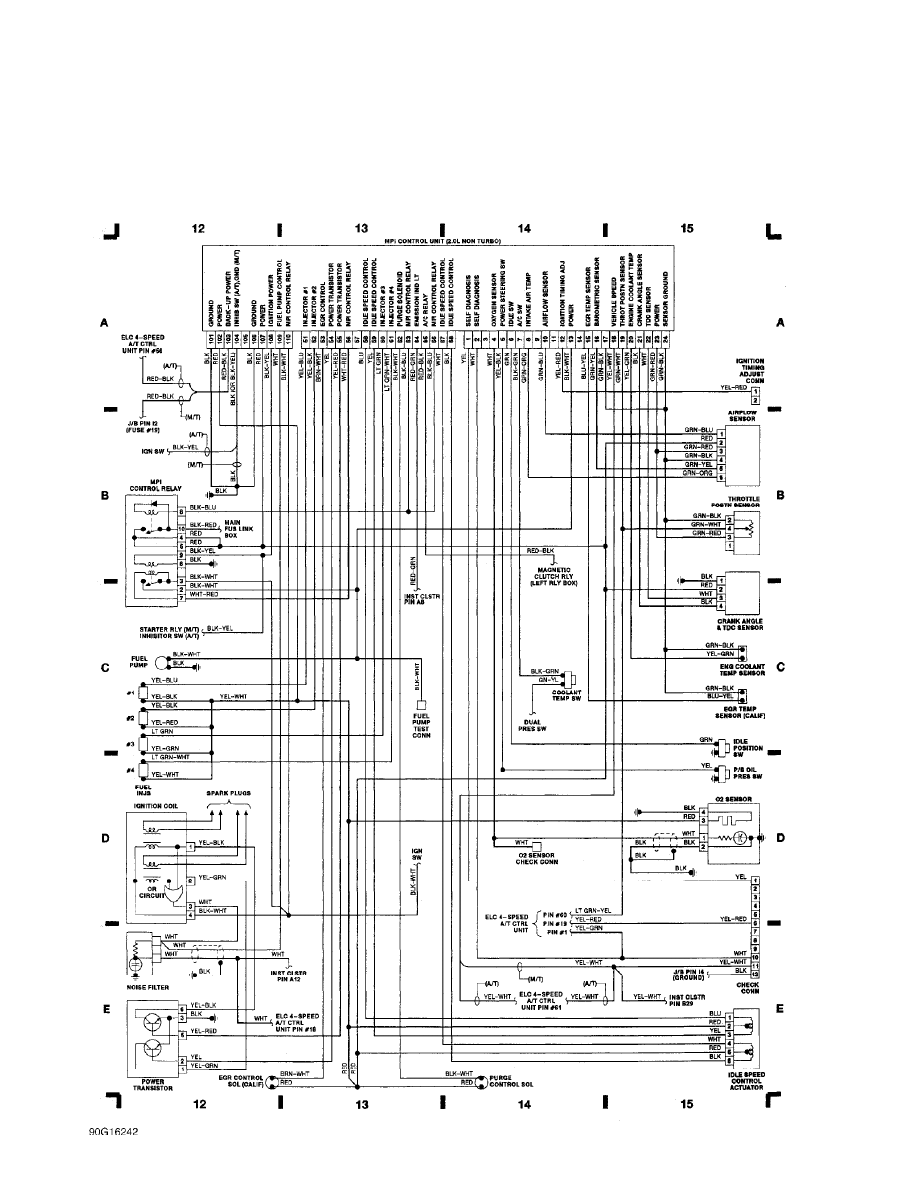

Fig. 4: MPI Control Unit (2.0L Non-Turbo) (Grid 12-15) (p. 4)

1990 Mitsubishi Eclipse

For x

Thursday, March 17, 2005 11:51AM

WIRING DIAGRAMS

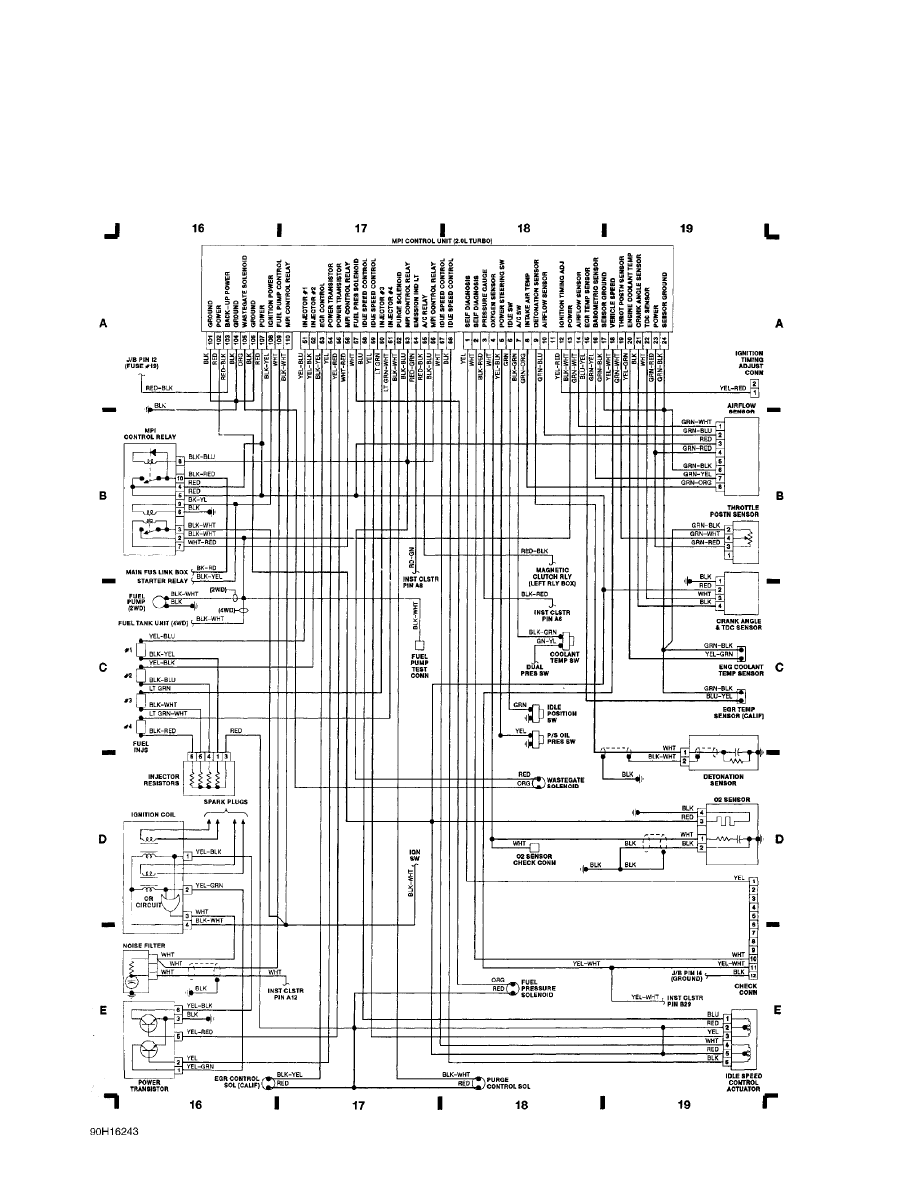

Fig. 5: MPI Control Unit (2.0L Turbo) (Grid 16-19) (p. 5)

1990 Mitsubishi Eclipse

For x

Thursday, March 17, 2005 11:51AM

WIRING DIAGRAMS

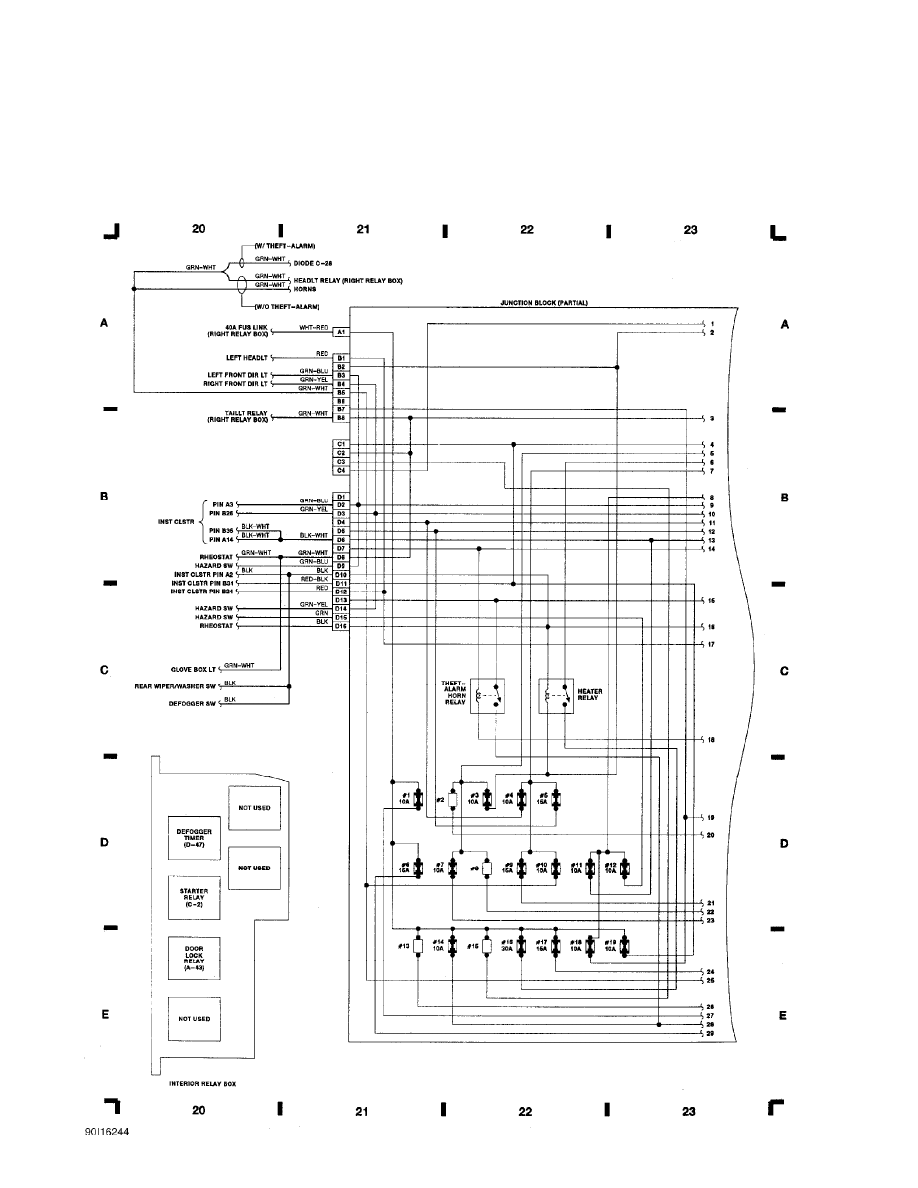

Fig. 6: Junction Block (Partial) (Grid 20-23) (p. 6)

1990 Mitsubishi Eclipse

For x

Thursday, March 17, 2005 11:51AM

WIRING DIAGRAMS

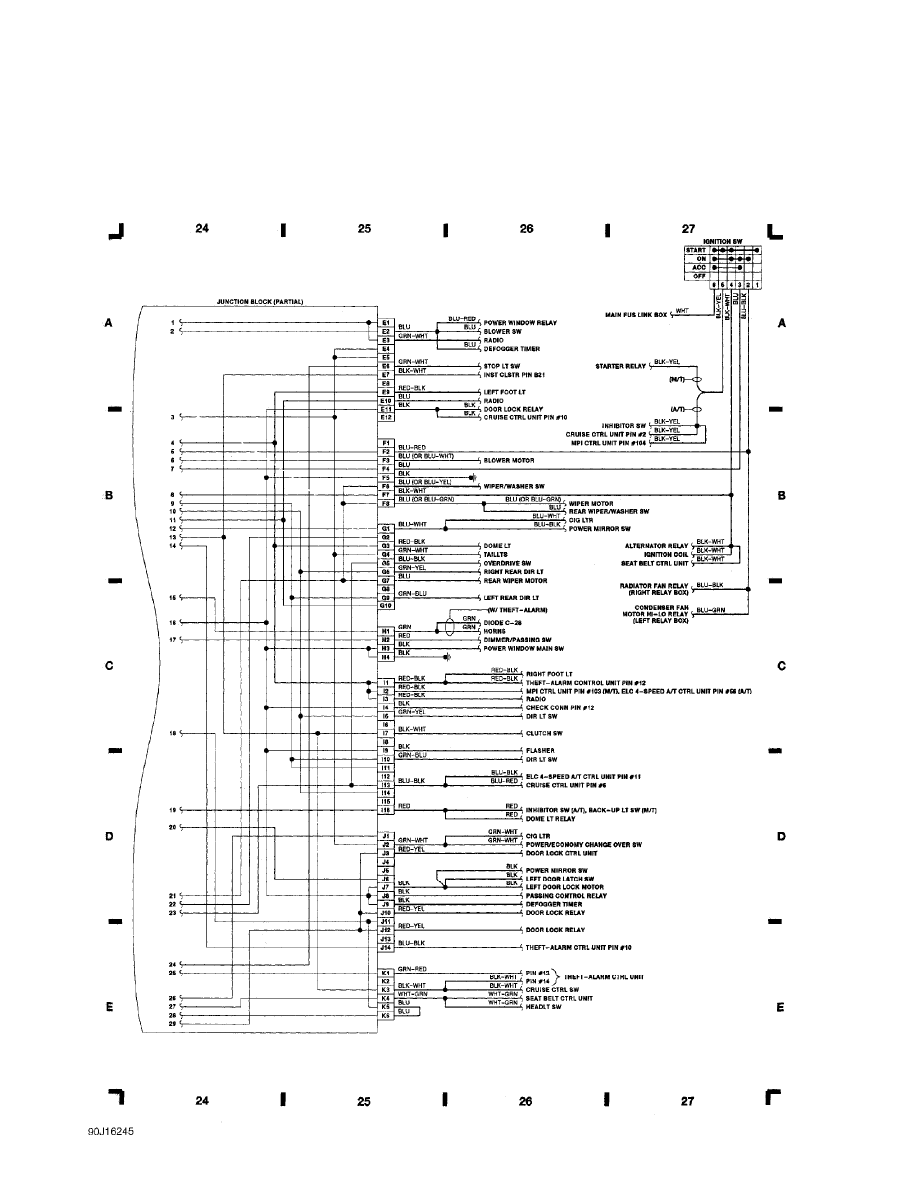

Fig. 7: Junction Block (Partial) (Continued) (Grid 24-27) (p. 7)

1990 Mitsubishi Eclipse

For x

Thursday, March 17, 2005 11:51AM

WIRING DIAGRAMS

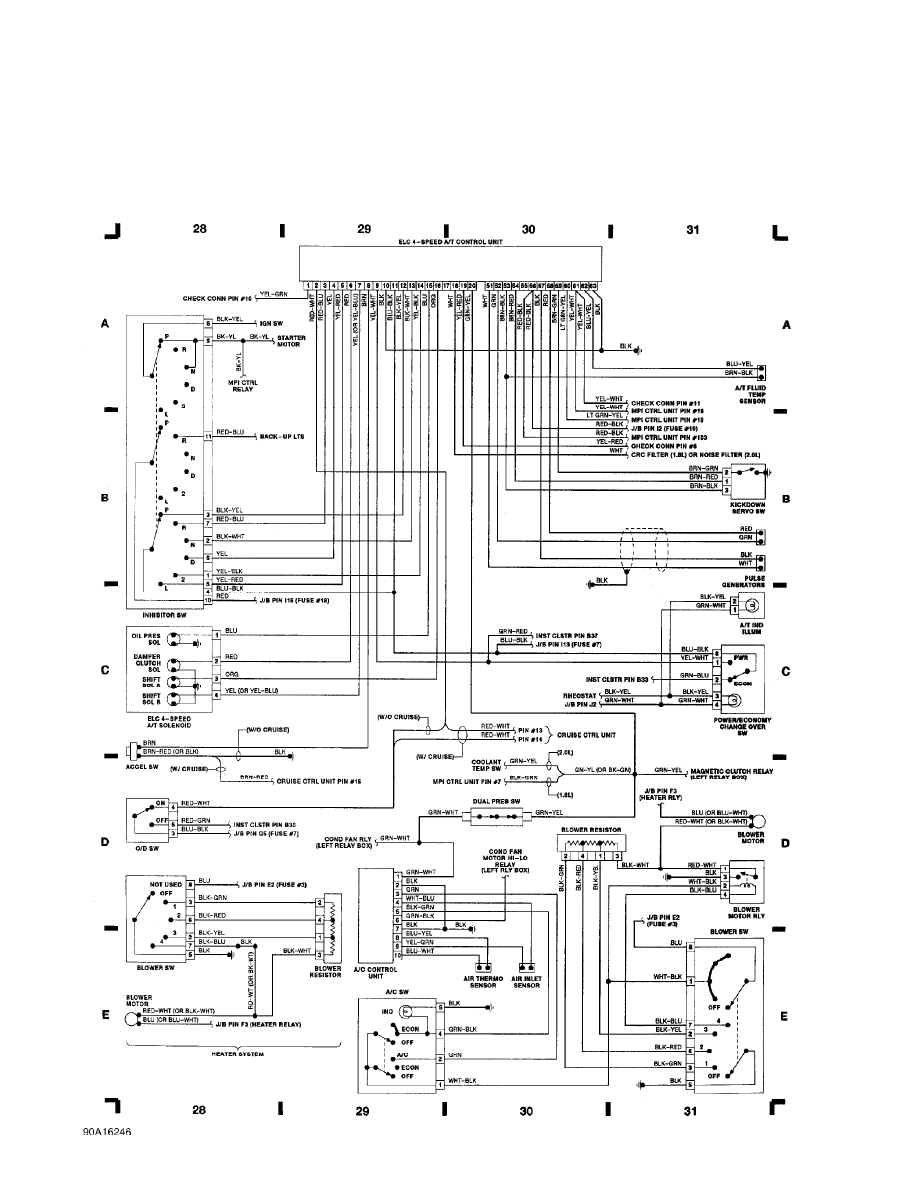

Fig. 8: ELC 4-Speed A/T Control Unit (Grid 28-31) (p. 8)

1990 Mitsubishi Eclipse

For x

Thursday, March 17, 2005 11:51AM

WIRING DIAGRAMS

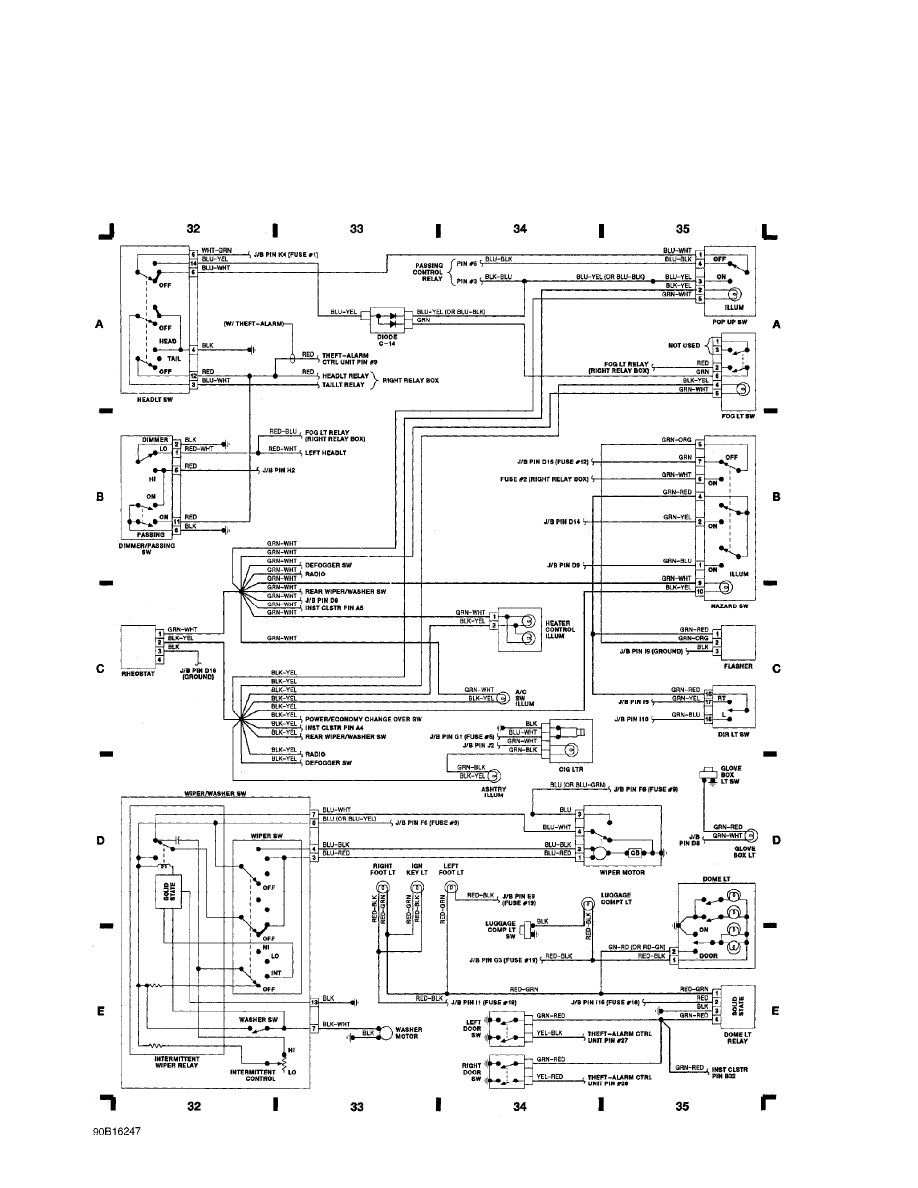

Fig. 9: Wiper/Washer & Passenger Compartment (Grid 32-35) (p. 9)

1990 Mitsubishi Eclipse

For x

Thursday, March 17, 2005 11:51AM

WIRING DIAGRAMS

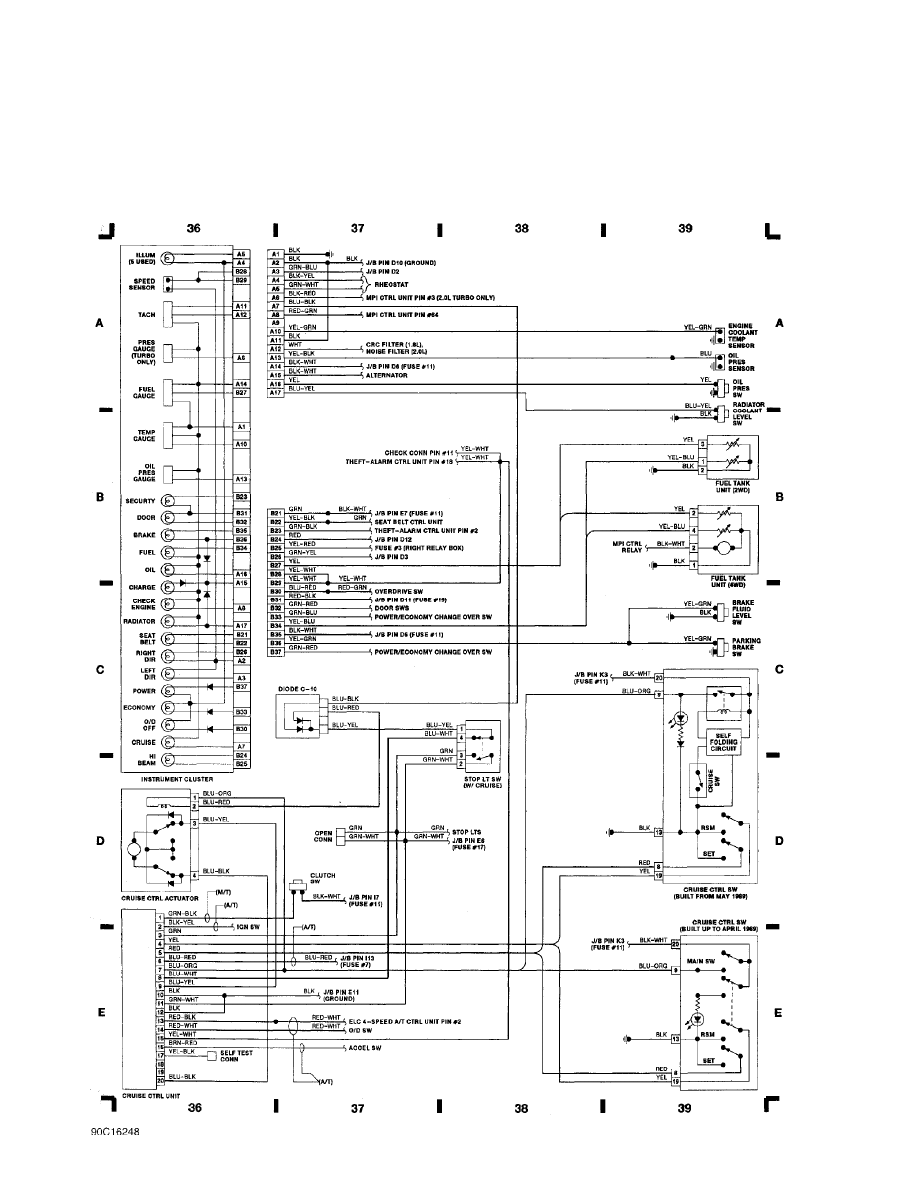

Fig. 10: Instrument Panel & Cruise Control (Grid 36-39) (p. 10)

1990 Mitsubishi Eclipse

For x

Thursday, March 17, 2005 11:51AM

WIRING DIAGRAMS

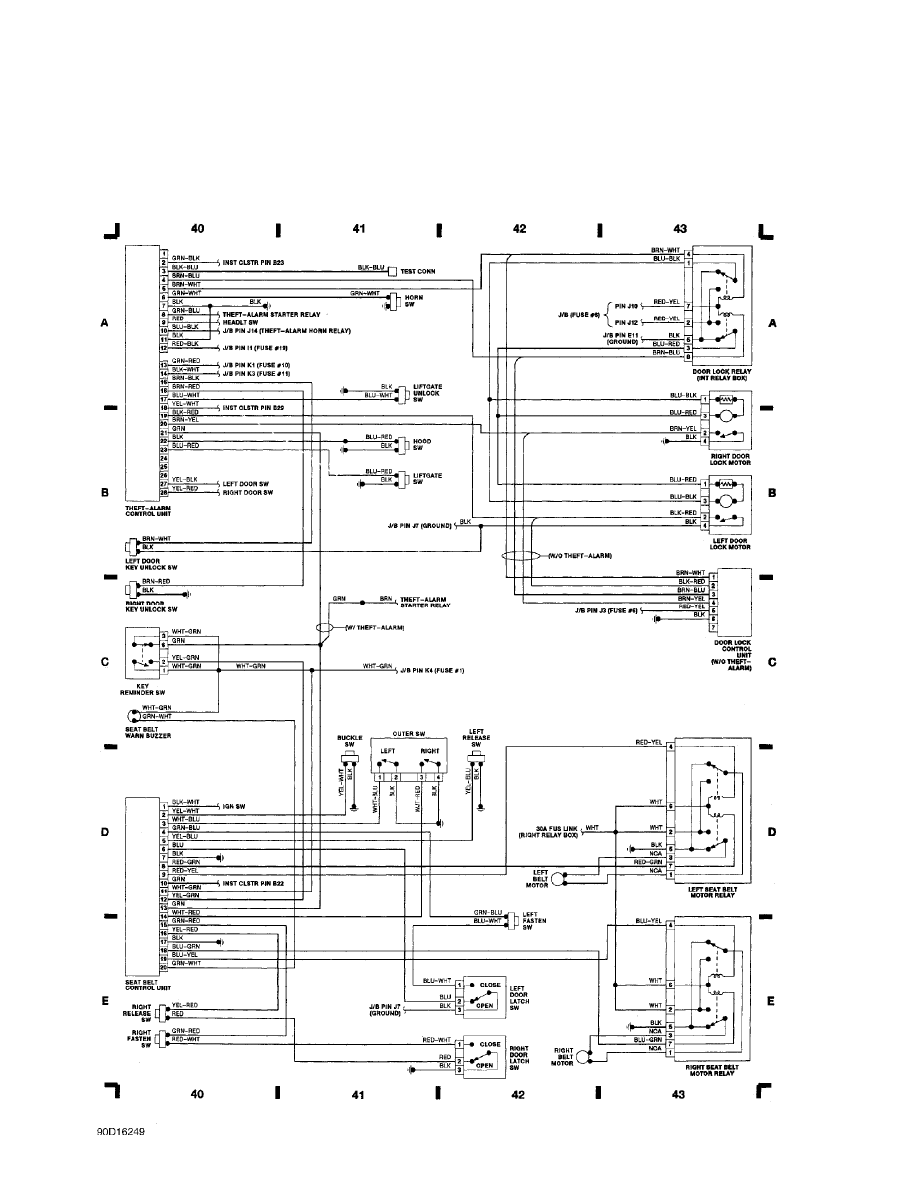

Fig. 11: Passenger Compartment & Theft Alarm (Grid 40-43) (p. 11)

1990 Mitsubishi Eclipse

For x

Thursday, March 17, 2005 11:51AM

WIRING DIAGRAMS

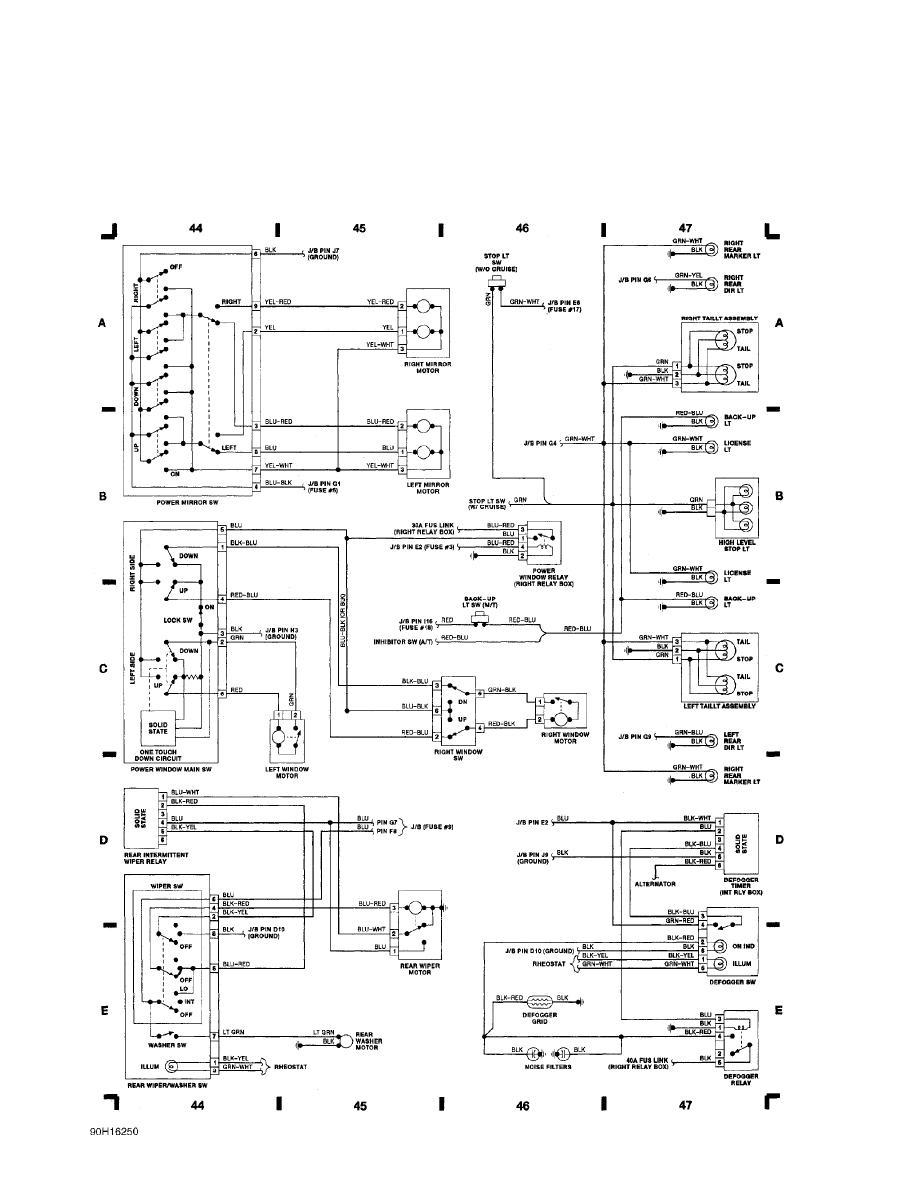

Fig. 12: Passenger Compartment (Continued) & Taillts (Grid 44-47) (p. 12)

1990 Mitsubishi Eclipse

For x

Thursday, March 17, 2005 11:51AM
