MAZDA MPV 1997

SYSTEM WIRING DIAGRAMS

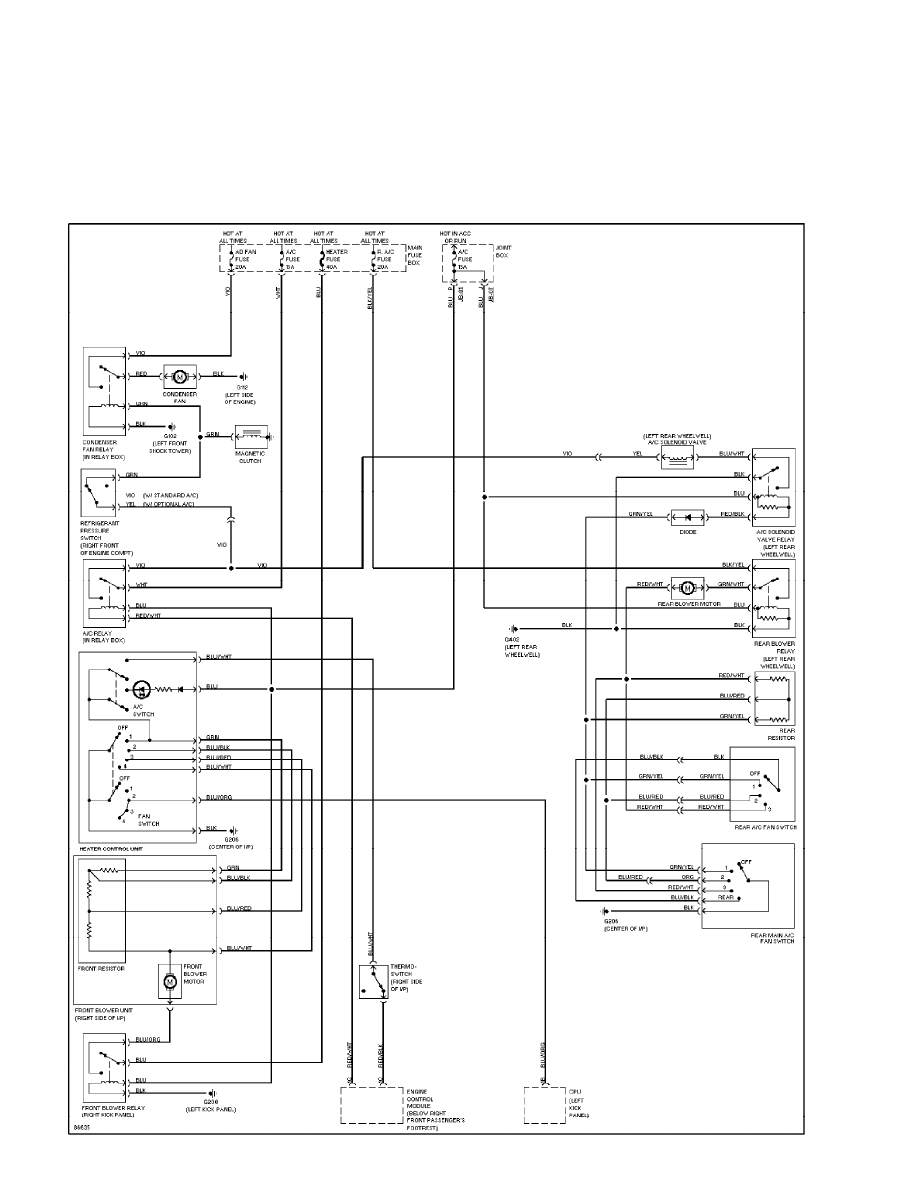

A/C Circuit

1997 Mazda MPV

For cdr101@wp.pl

Sunday, March 20, 2005 10:15PM

SYSTEM WIRING DIAGRAMS

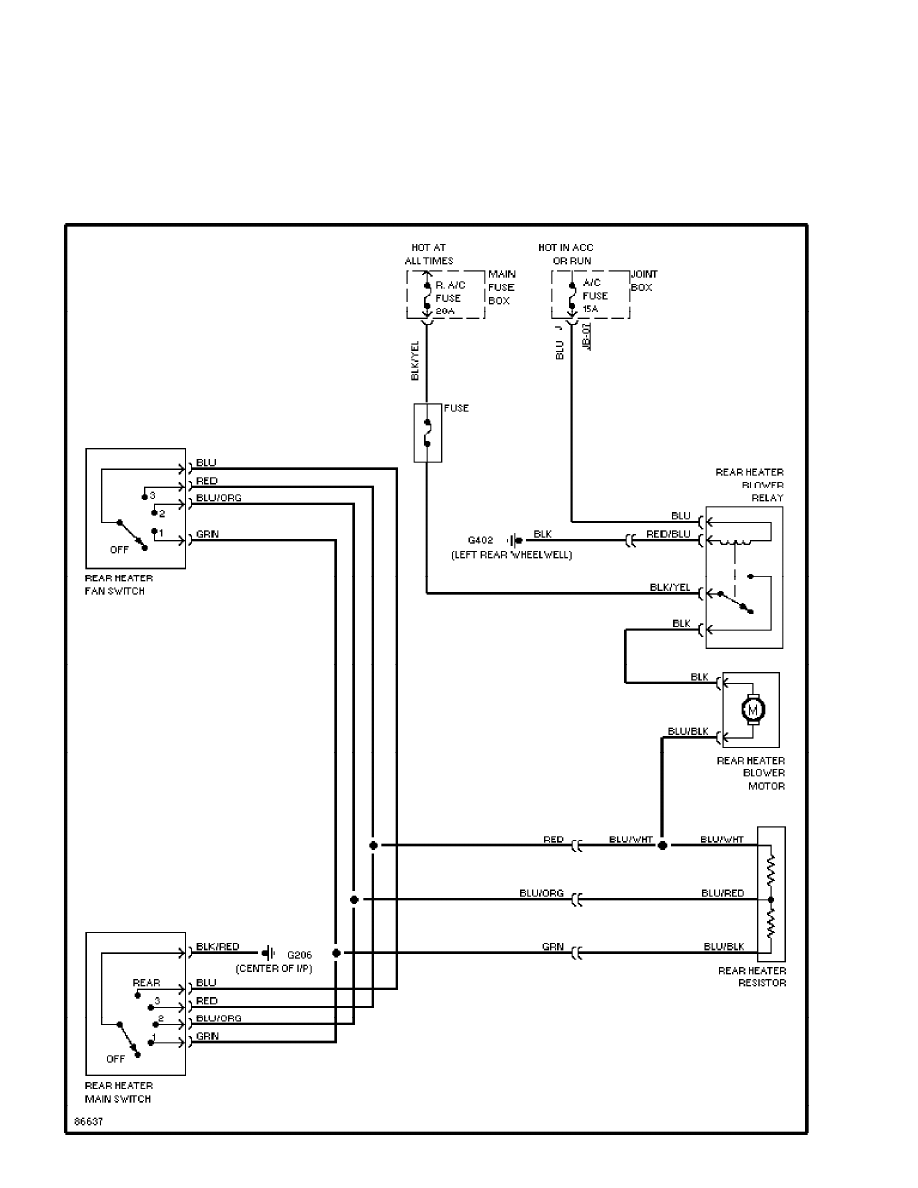

Rear Heater Circuit (p. 2)

1997 Mazda MPV

For cdr101@wp.pl

Sunday, March 20, 2005 10:15PM

SYSTEM WIRING DIAGRAMS

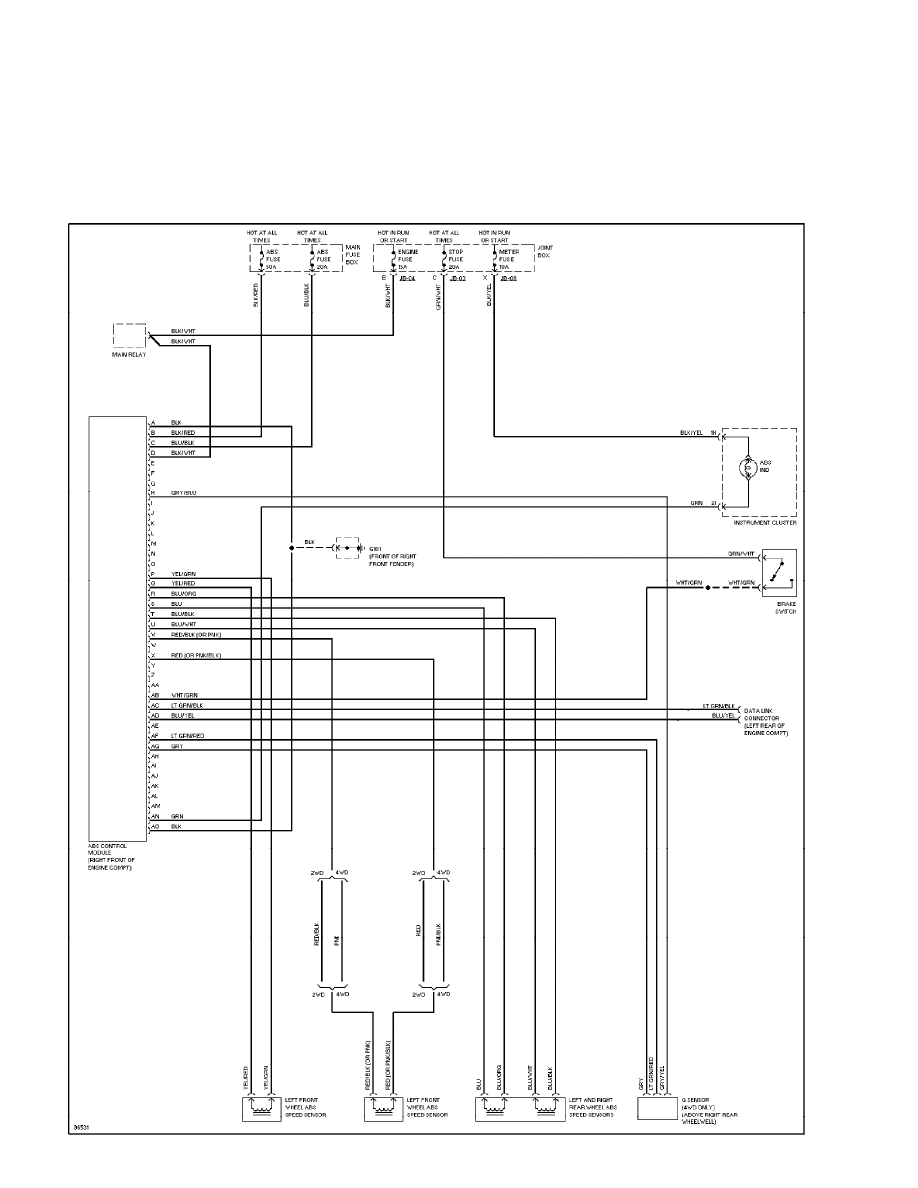

Anti-lock Brake Circuits (p. 3)

1997 Mazda MPV

For cdr101@wp.pl

Sunday, March 20, 2005 10:15PM

SYSTEM WIRING DIAGRAMS

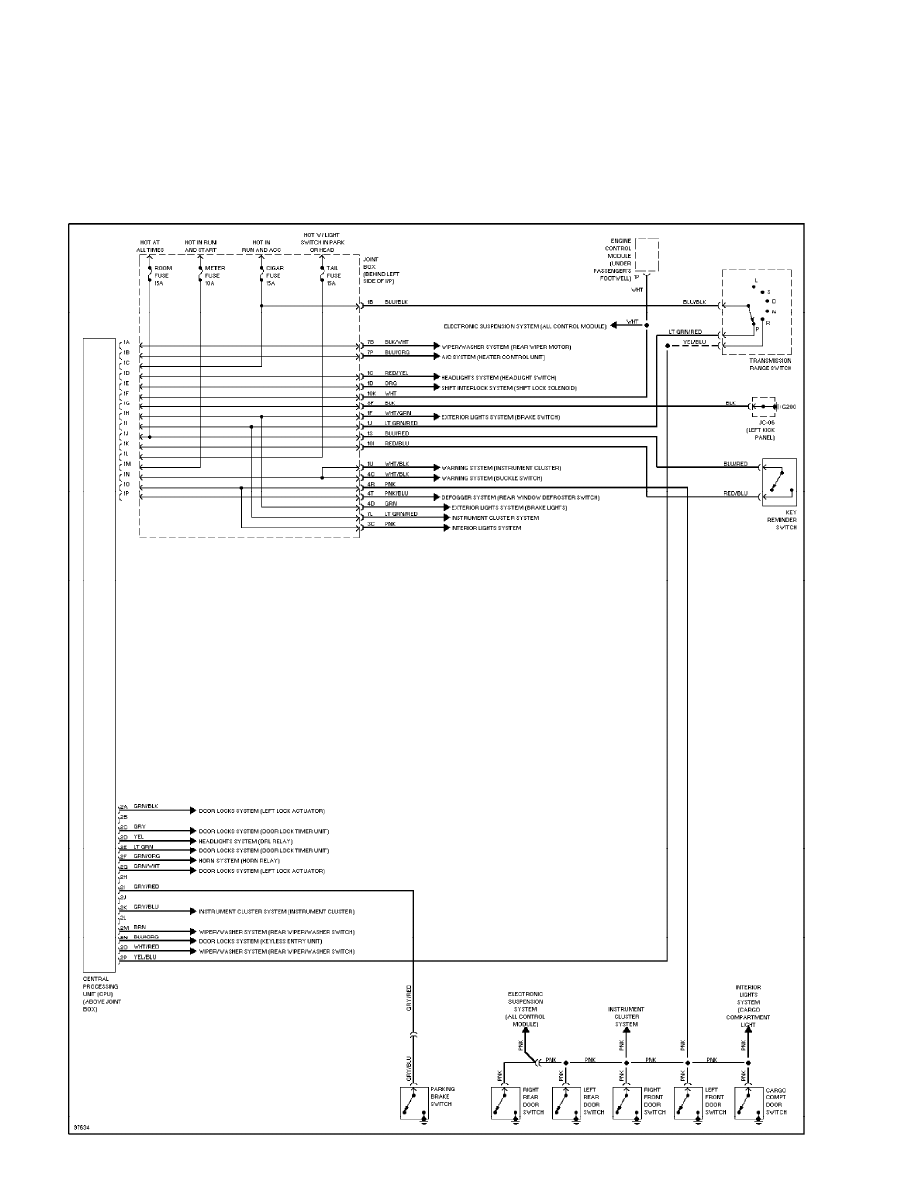

Body Computer Circuits (p. 4)

1997 Mazda MPV

For cdr101@wp.pl

Sunday, March 20, 2005 10:15PM

SYSTEM WIRING DIAGRAMS

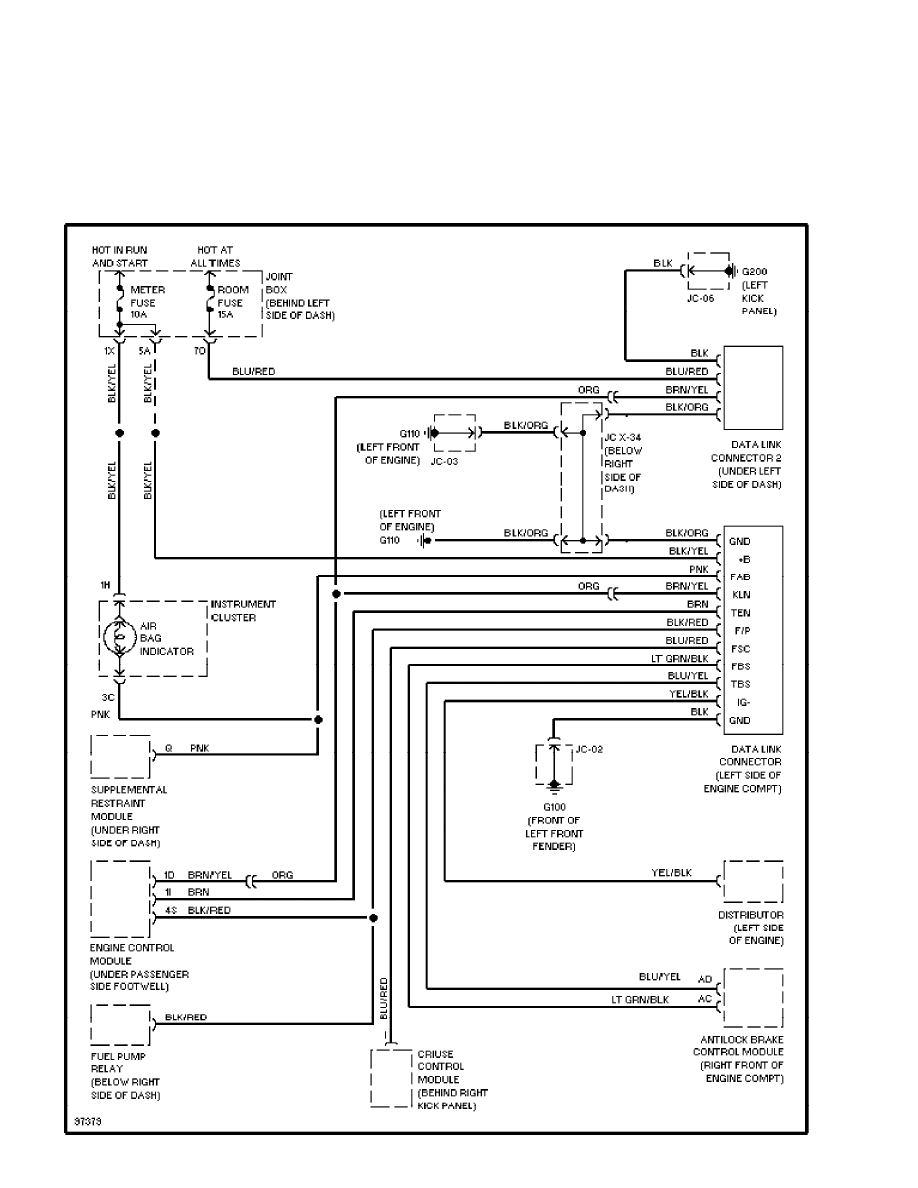

Computer Data Lines (p. 5)

1997 Mazda MPV

For cdr101@wp.pl

Sunday, March 20, 2005 10:15PM

SYSTEM WIRING DIAGRAMS

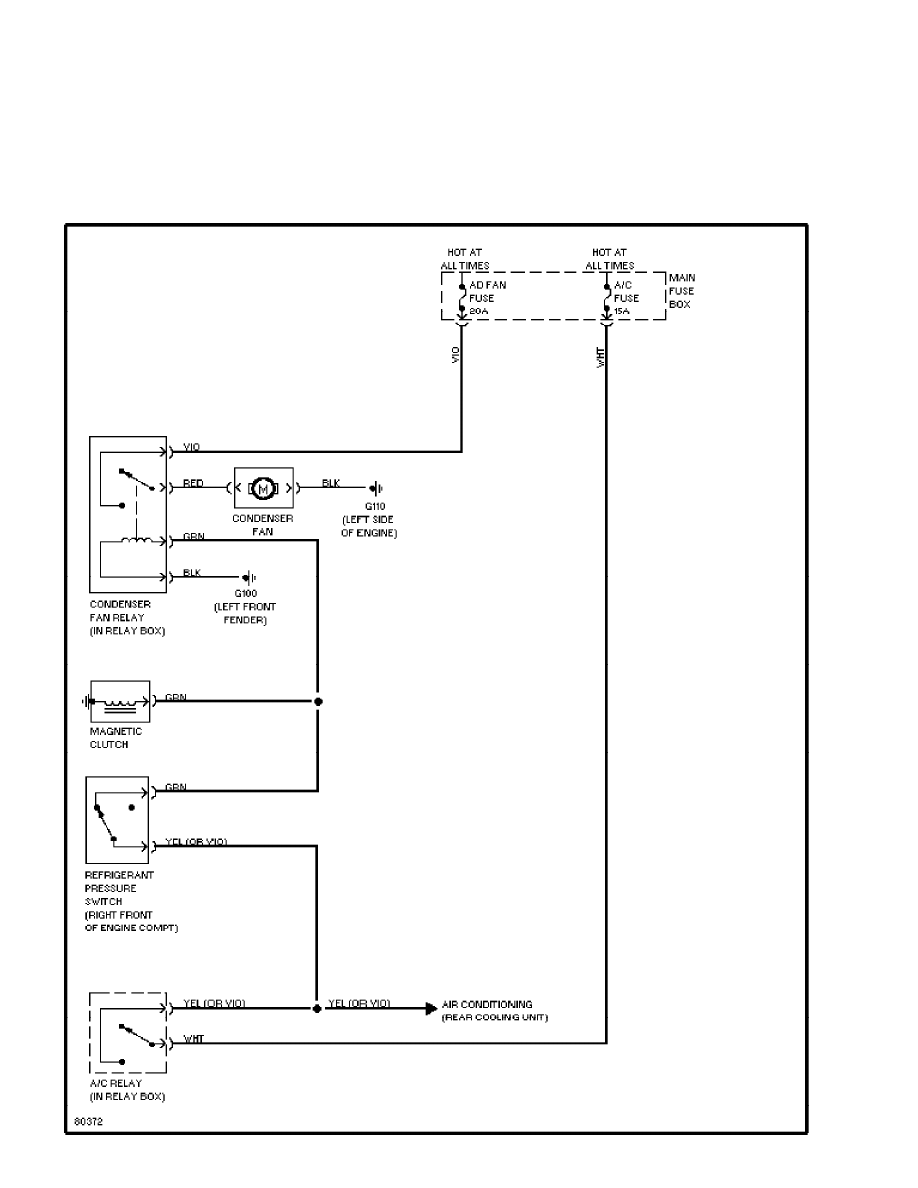

Cooling Fan Circuit (p. 6)

1997 Mazda MPV

For cdr101@wp.pl

Sunday, March 20, 2005 10:15PM

SYSTEM WIRING DIAGRAMS

Cruise Control Circuit (p. 7)

1997 Mazda MPV

For cdr101@wp.pl

Sunday, March 20, 2005 10:15PM

SYSTEM WIRING DIAGRAMS

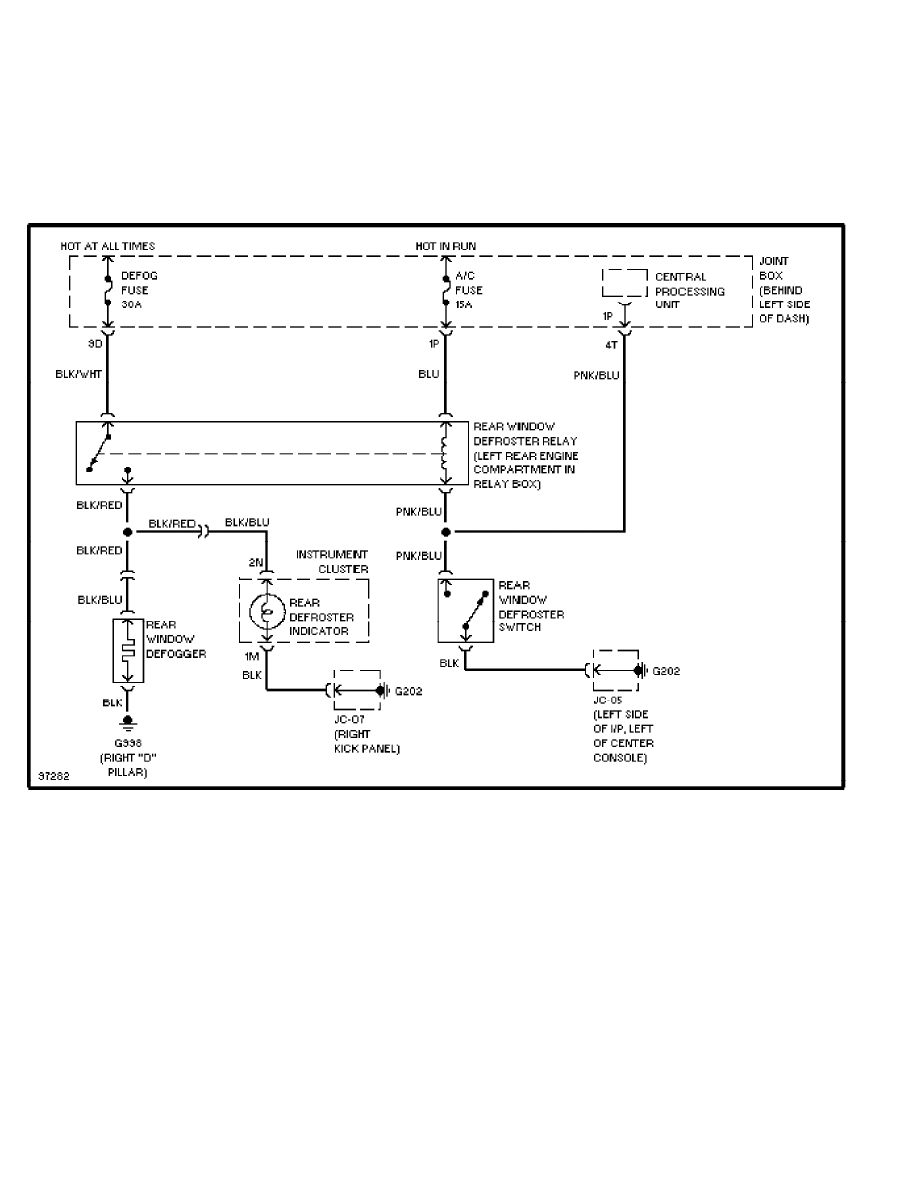

Defogger Circuit (p. 8)

1997 Mazda MPV

For cdr101@wp.pl

Sunday, March 20, 2005 10:15PM

SYSTEM WIRING DIAGRAMS

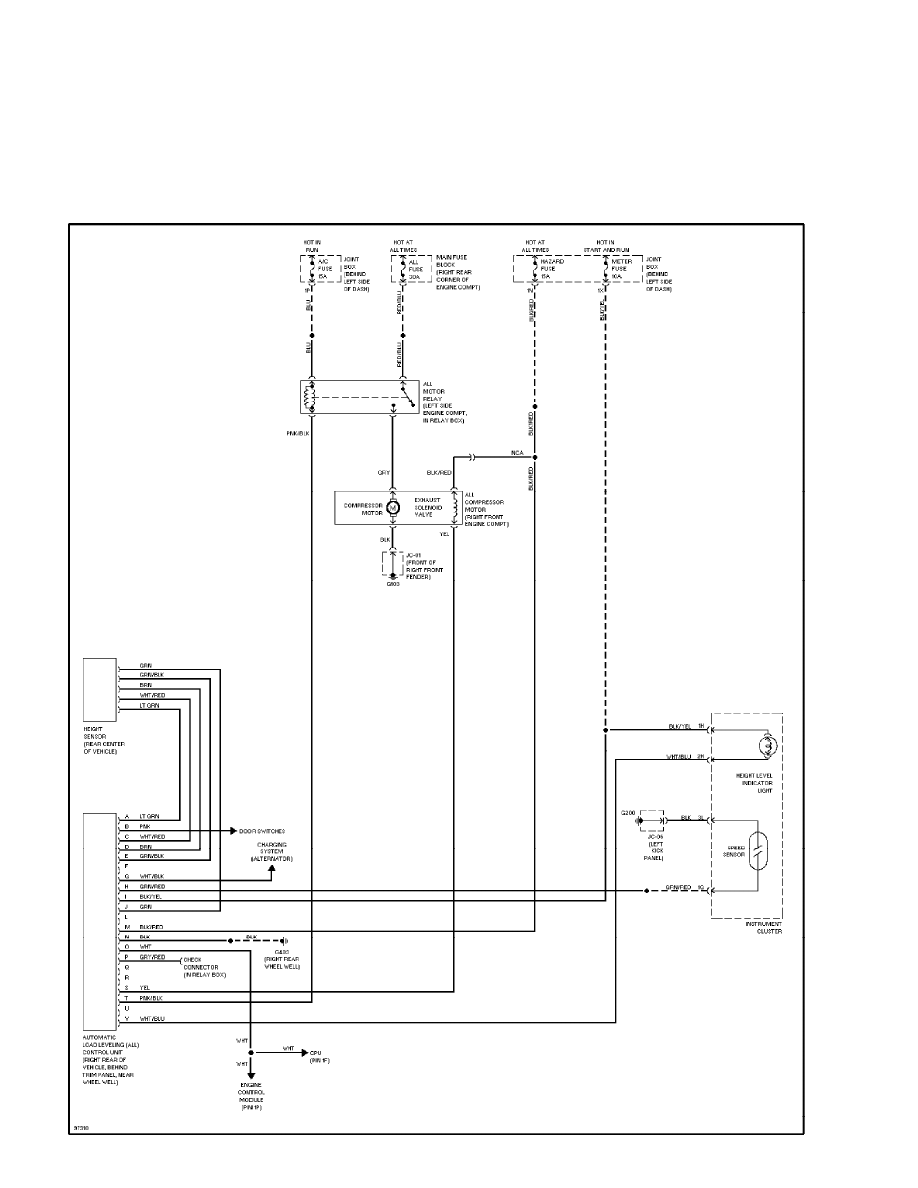

Electronic Suspension Circuit (p. 9)

1997 Mazda MPV

For cdr101@wp.pl

Sunday, March 20, 2005 10:15PM

SYSTEM WIRING DIAGRAMS

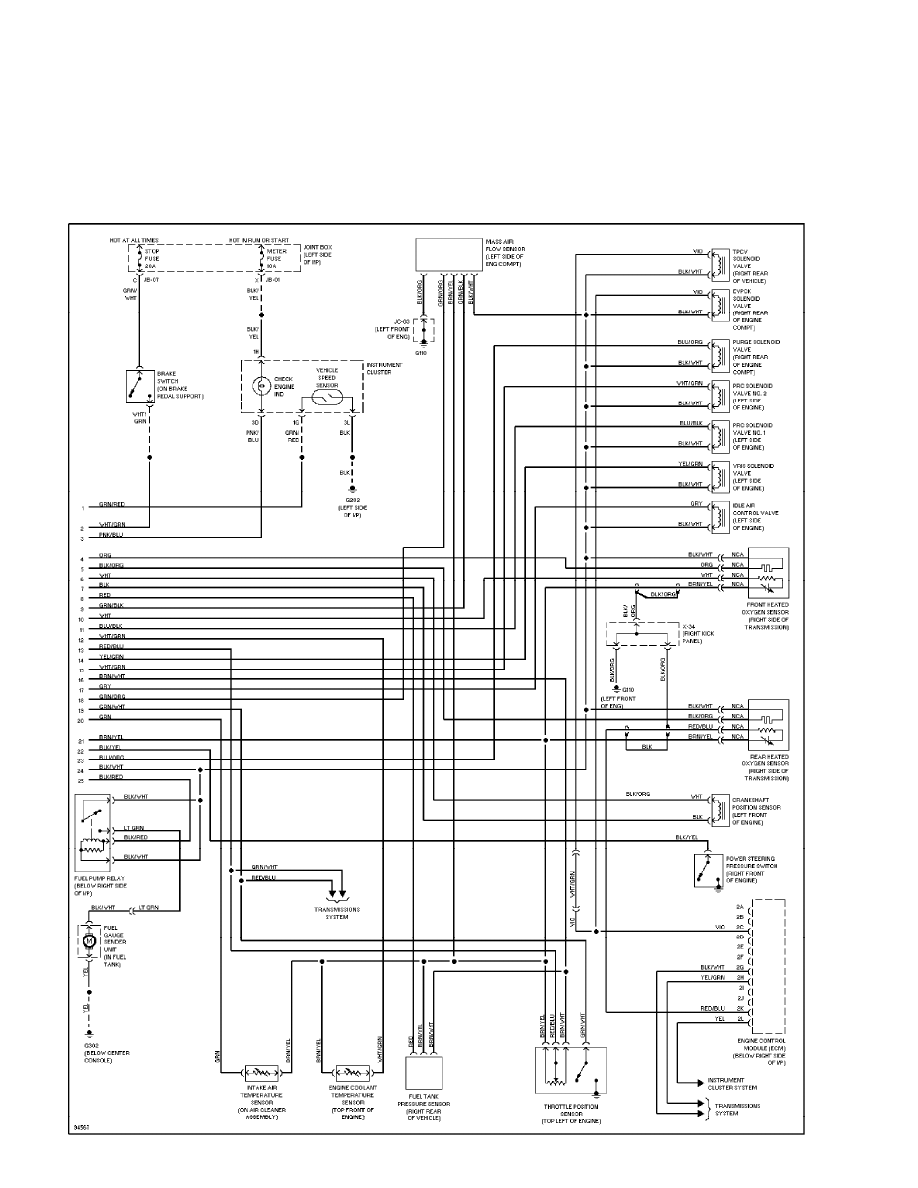

3.0L, Engine Performance Circuits (1 of 2) (p. 10)

1997 Mazda MPV

For cdr101@wp.pl

Sunday, March 20, 2005 10:15PM

SYSTEM WIRING DIAGRAMS

3.0L, Engine Performance Circuits (2 of 2) (p. 11)

1997 Mazda MPV

For cdr101@wp.pl

Sunday, March 20, 2005 10:15PM

SYSTEM WIRING DIAGRAMS

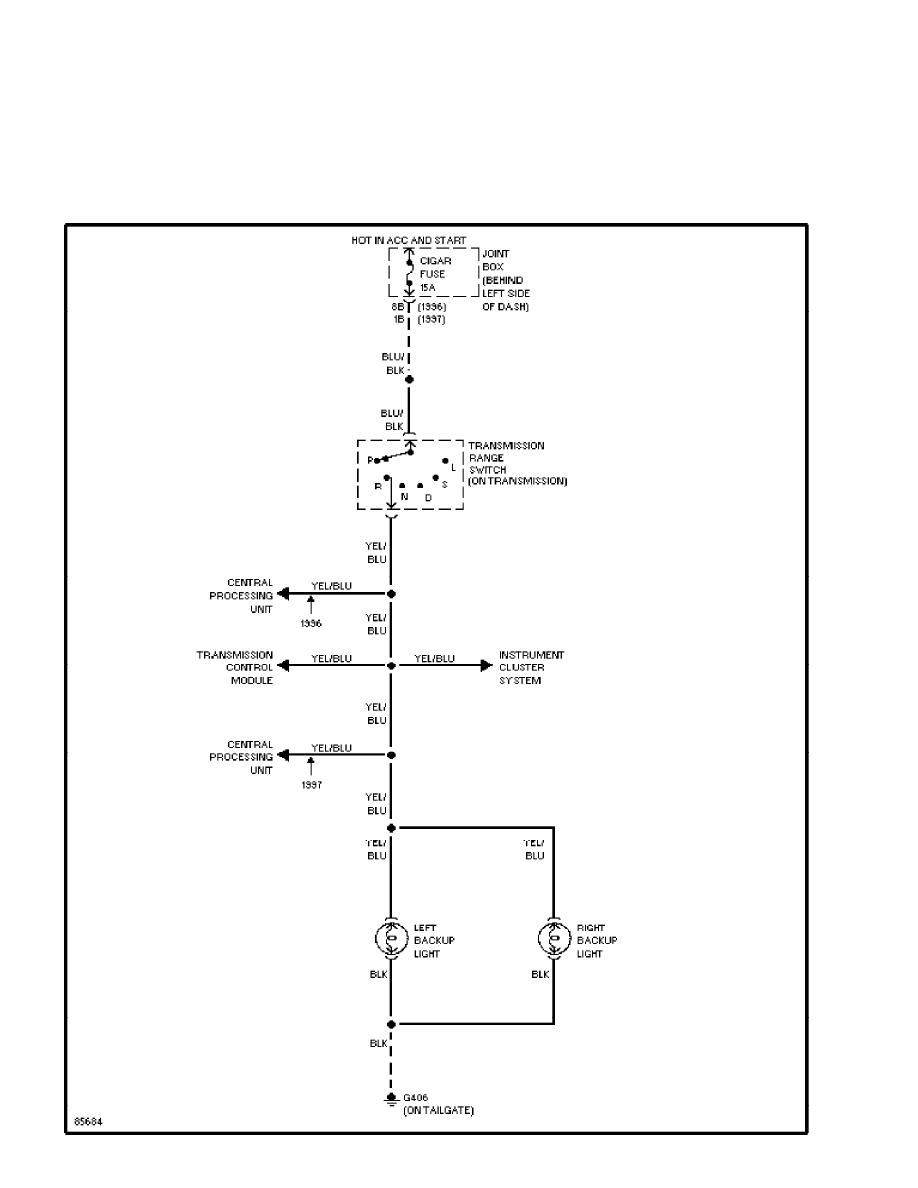

Back-up Lamps Circuit (p. 12)

1997 Mazda MPV

For cdr101@wp.pl

Sunday, March 20, 2005 10:15PM

SYSTEM WIRING DIAGRAMS

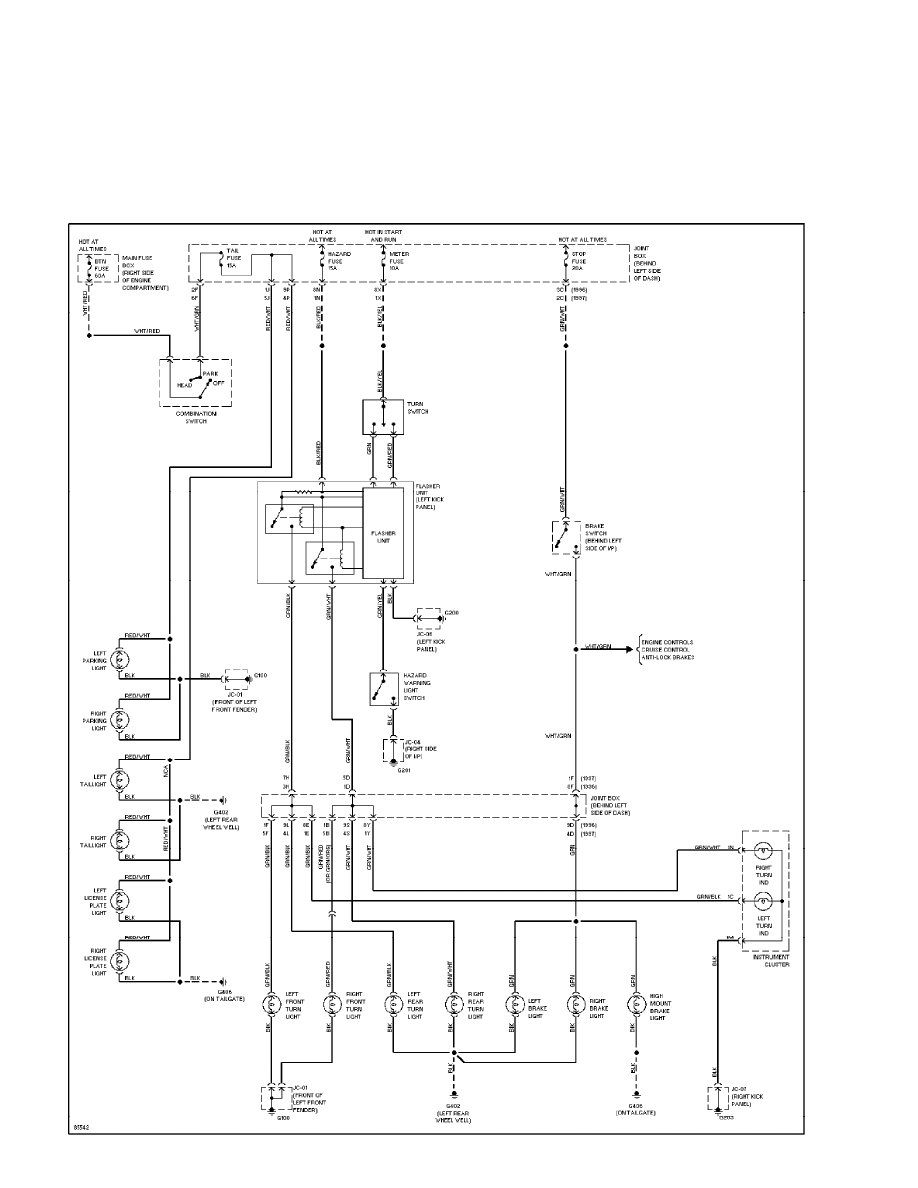

Exterior Lamps Circuit (p. 13)

1997 Mazda MPV

For cdr101@wp.pl

Sunday, March 20, 2005 10:15PM

SYSTEM WIRING DIAGRAMS

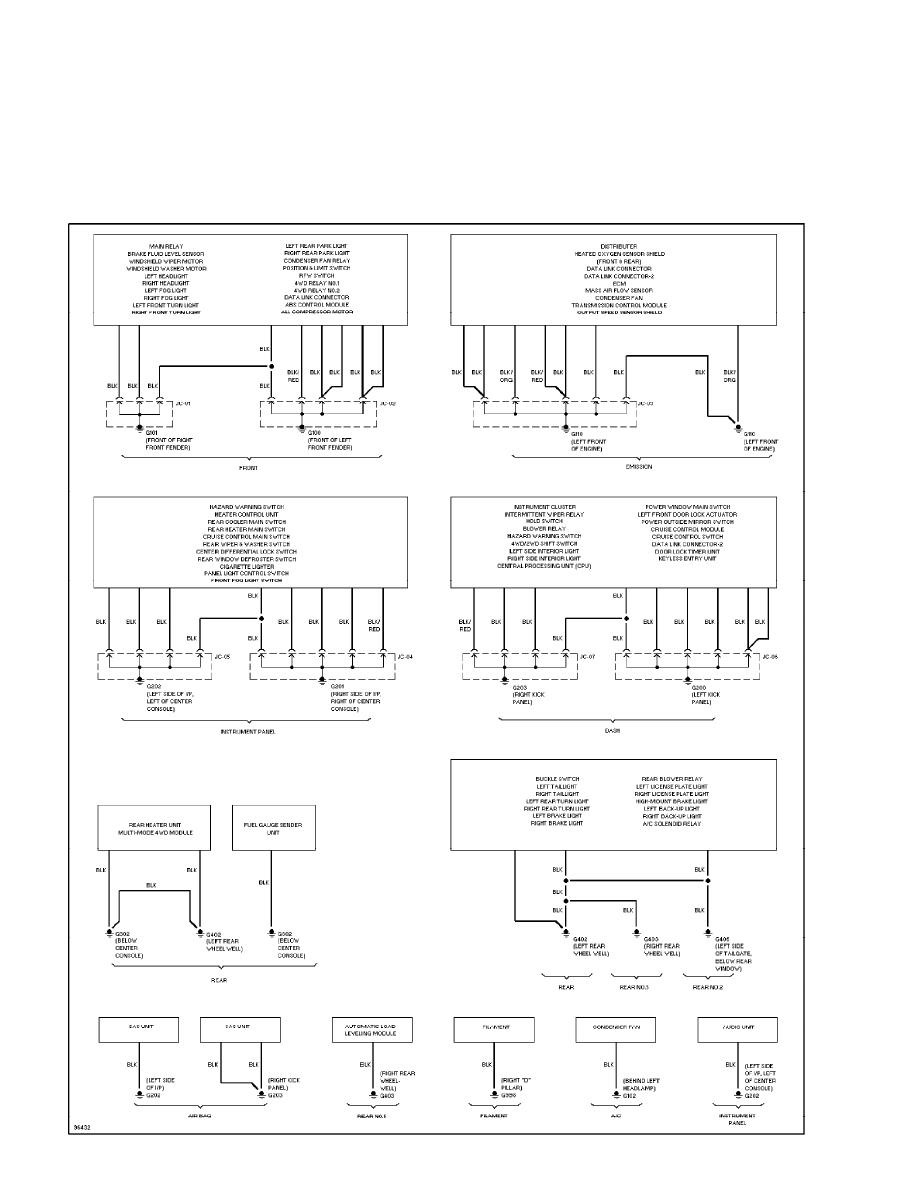

Ground Distribution Circuit (p. 14)

1997 Mazda MPV

For cdr101@wp.pl

Sunday, March 20, 2005 10:15PM

SYSTEM WIRING DIAGRAMS

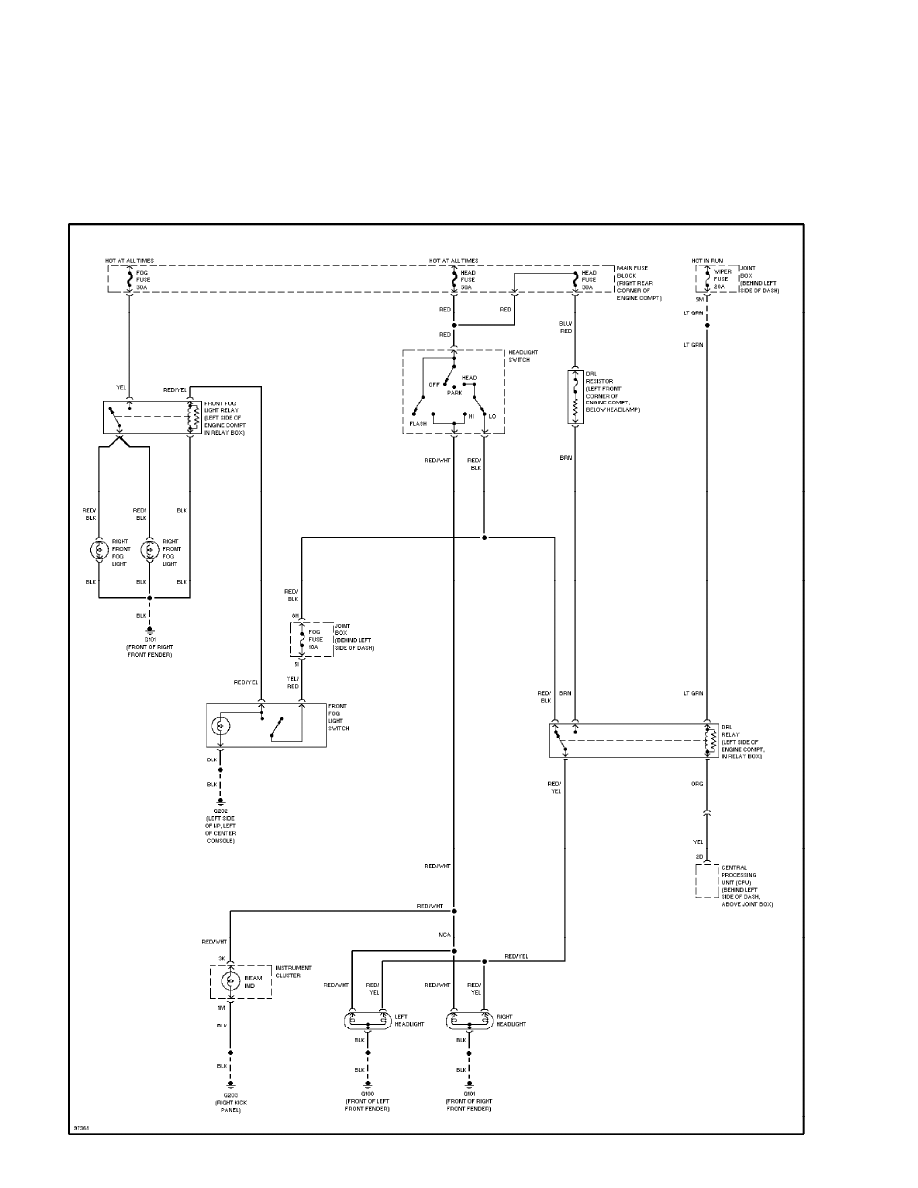

Headlight Circuit, W/ DRL (p. 15)

1997 Mazda MPV

For cdr101@wp.pl

Sunday, March 20, 2005 10:15PM

SYSTEM WIRING DIAGRAMS

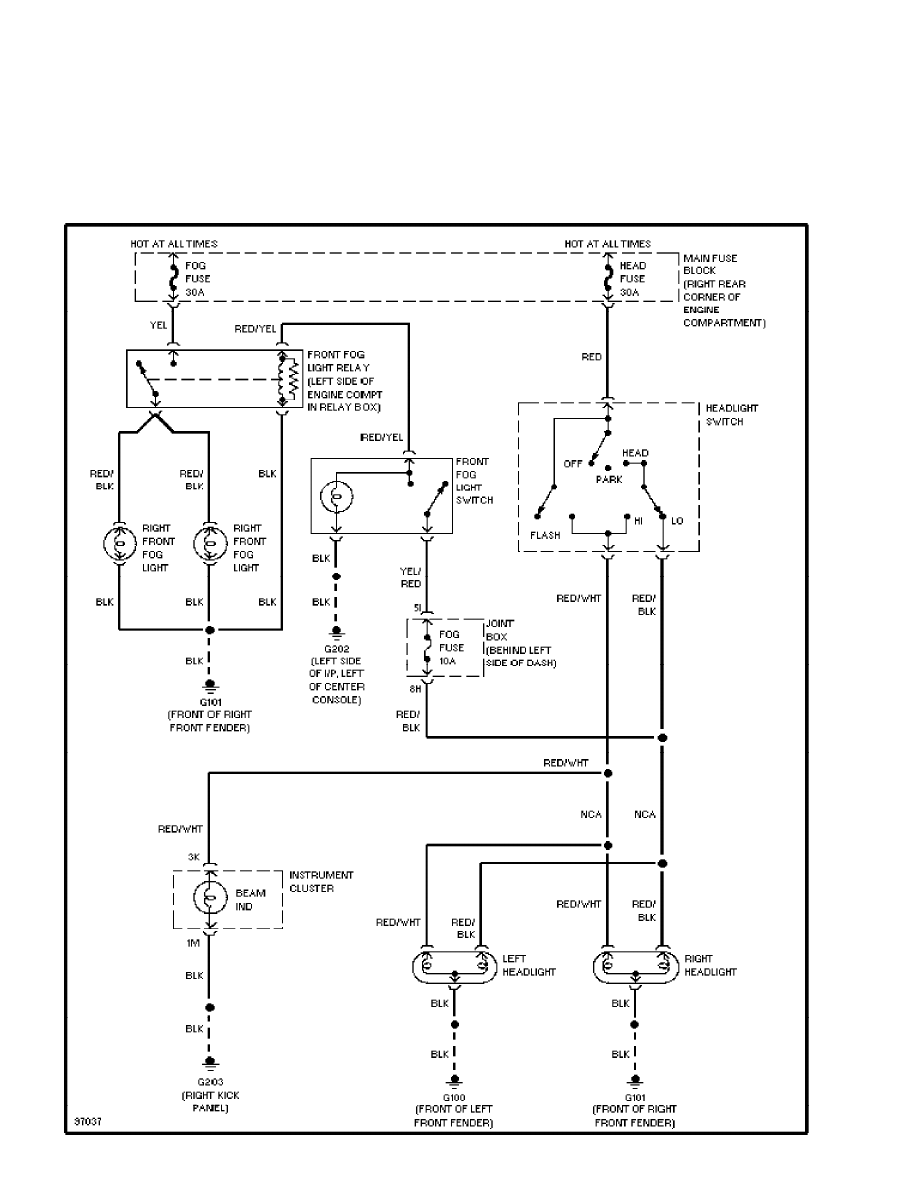

Headlight Circuit, W/O DRL (p. 16)

1997 Mazda MPV

For cdr101@wp.pl

Sunday, March 20, 2005 10:15PM

SYSTEM WIRING DIAGRAMS

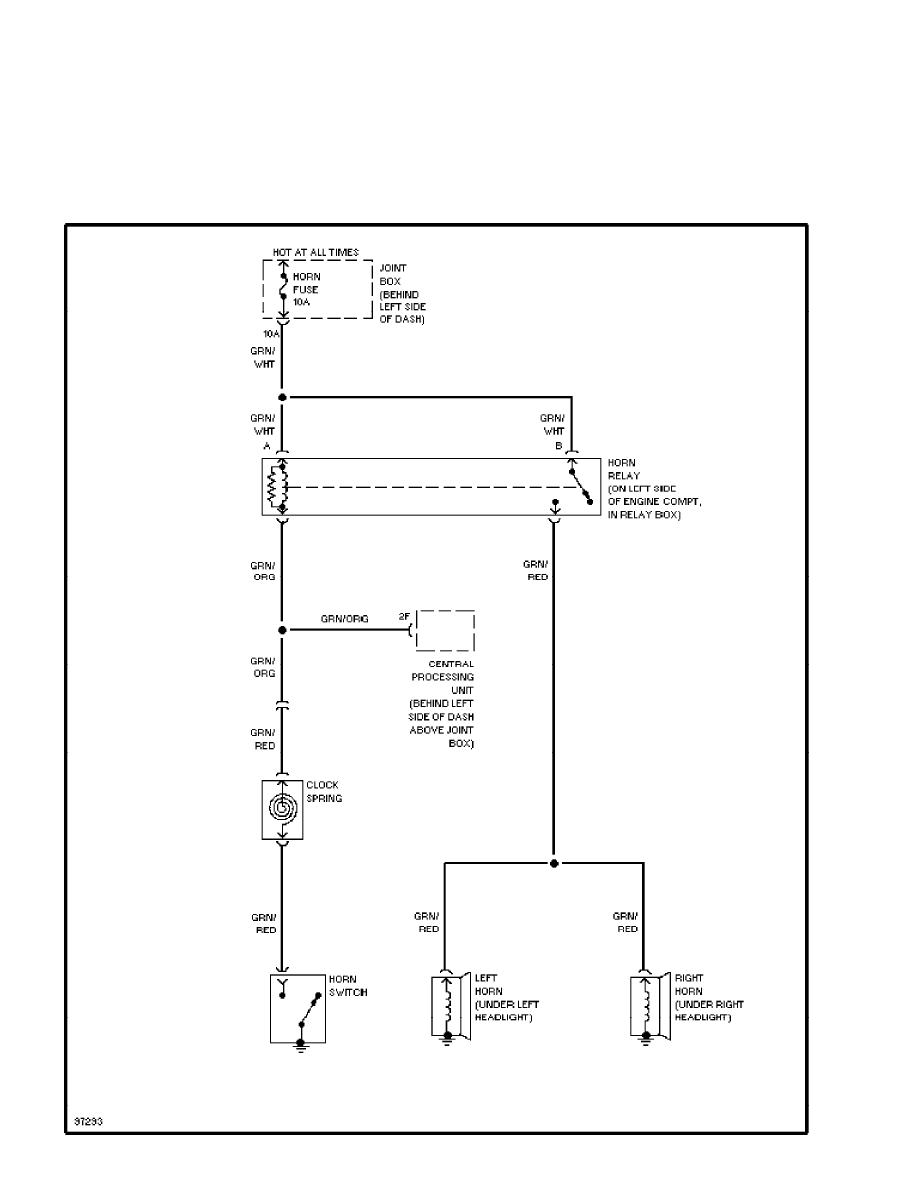

Horn Circuit (p. 17)

1997 Mazda MPV

For cdr101@wp.pl

Sunday, March 20, 2005 10:15PM

SYSTEM WIRING DIAGRAMS

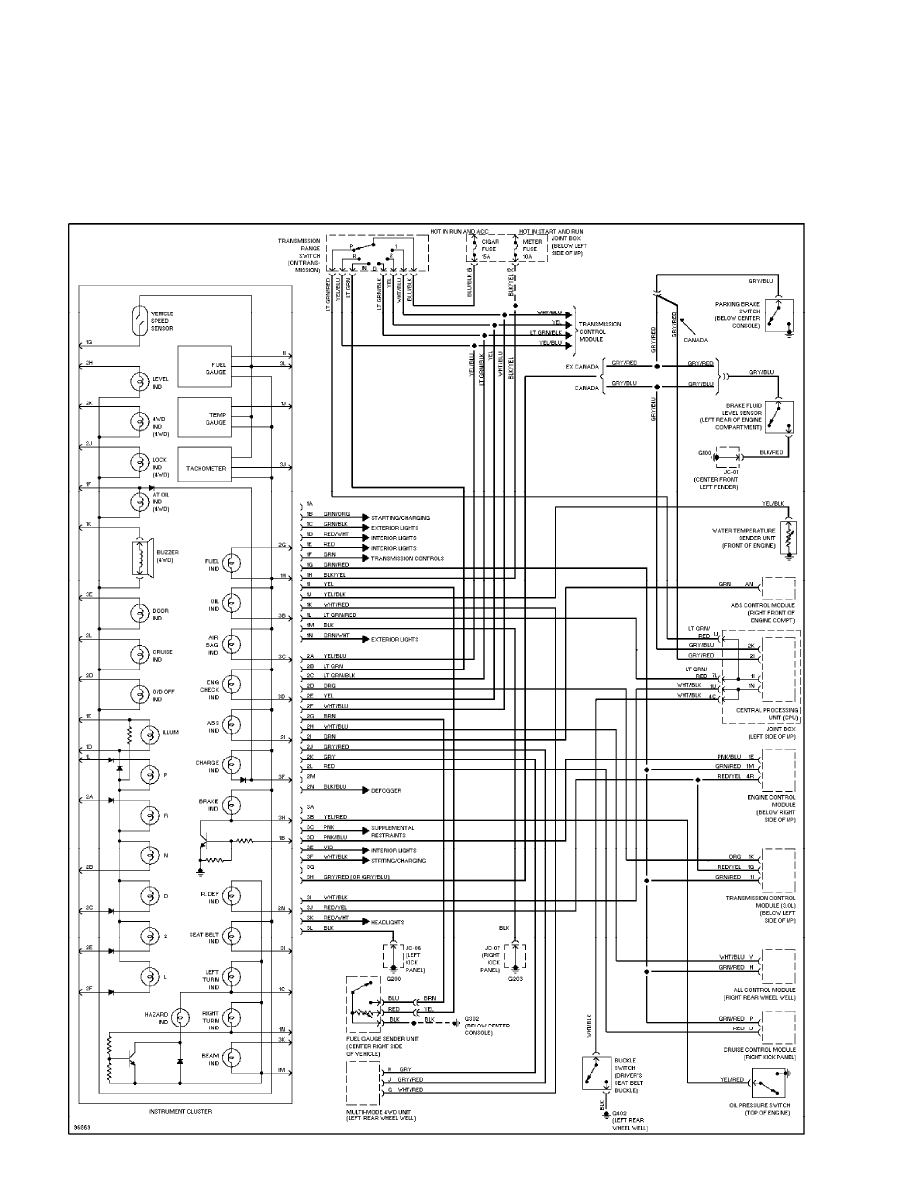

Instrument Cluster Circuit (p. 18)

1997 Mazda MPV

For cdr101@wp.pl

Sunday, March 20, 2005 10:15PM

SYSTEM WIRING DIAGRAMS

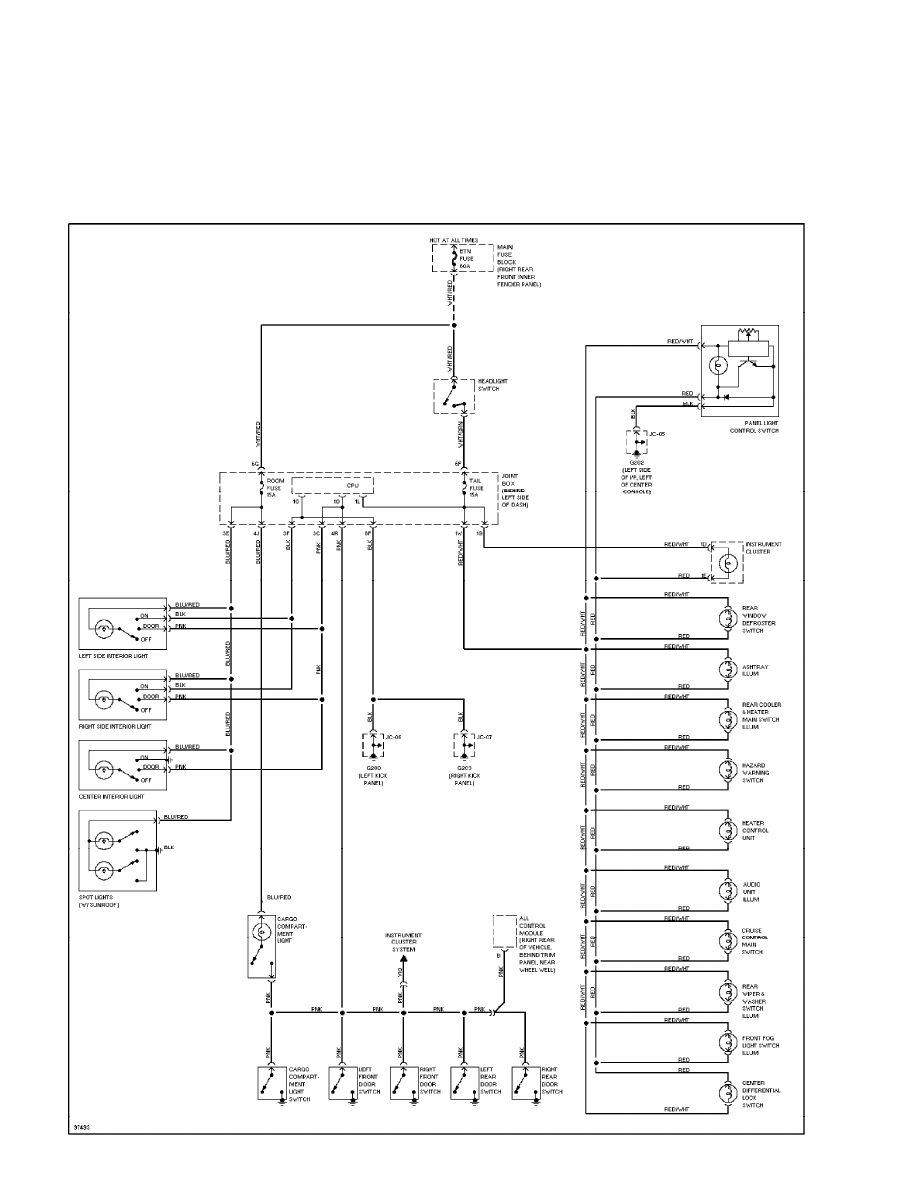

Interior Light Circuit (p. 19)

1997 Mazda MPV

For cdr101@wp.pl

Sunday, March 20, 2005 10:15PM

SYSTEM WIRING DIAGRAMS

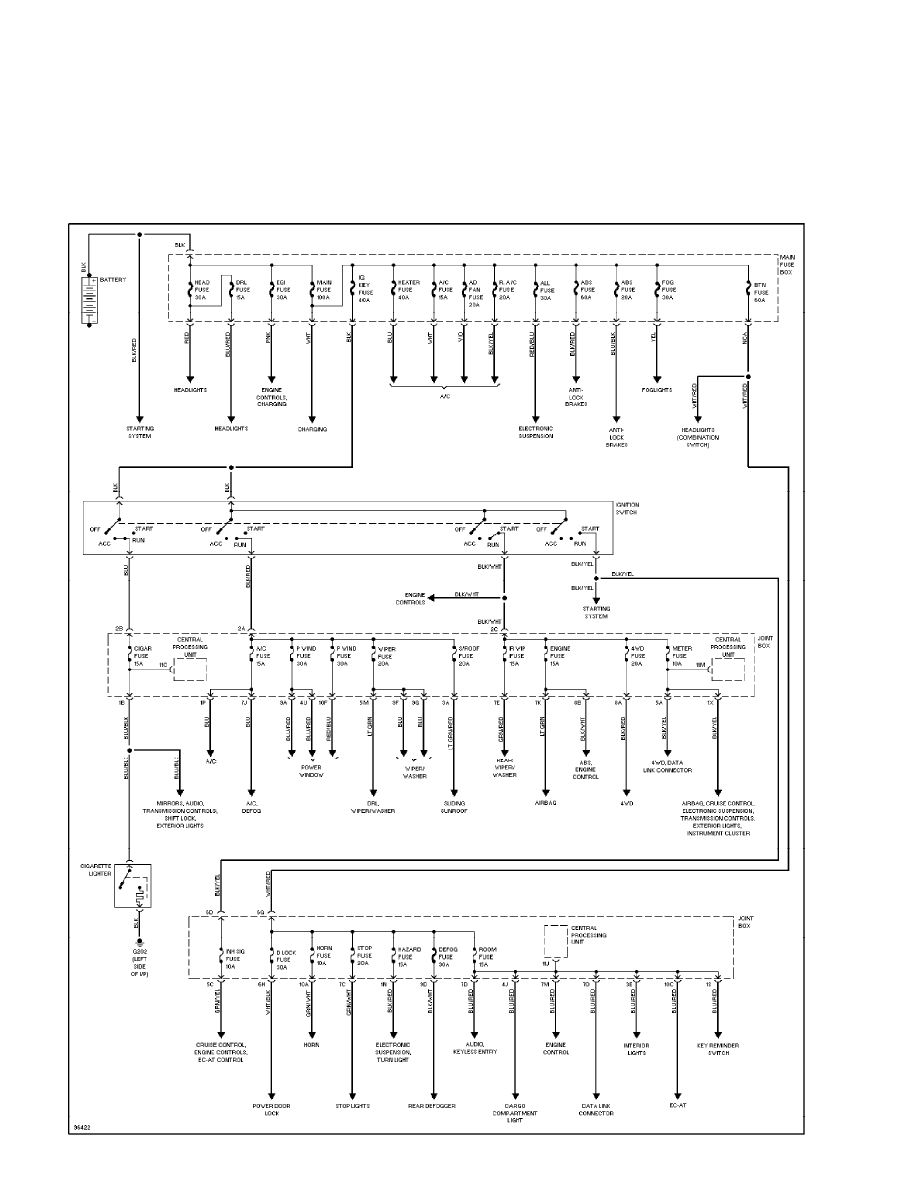

Power Distribution Circuit (p. 20)

1997 Mazda MPV

For cdr101@wp.pl

Sunday, March 20, 2005 10:15PM

SYSTEM WIRING DIAGRAMS

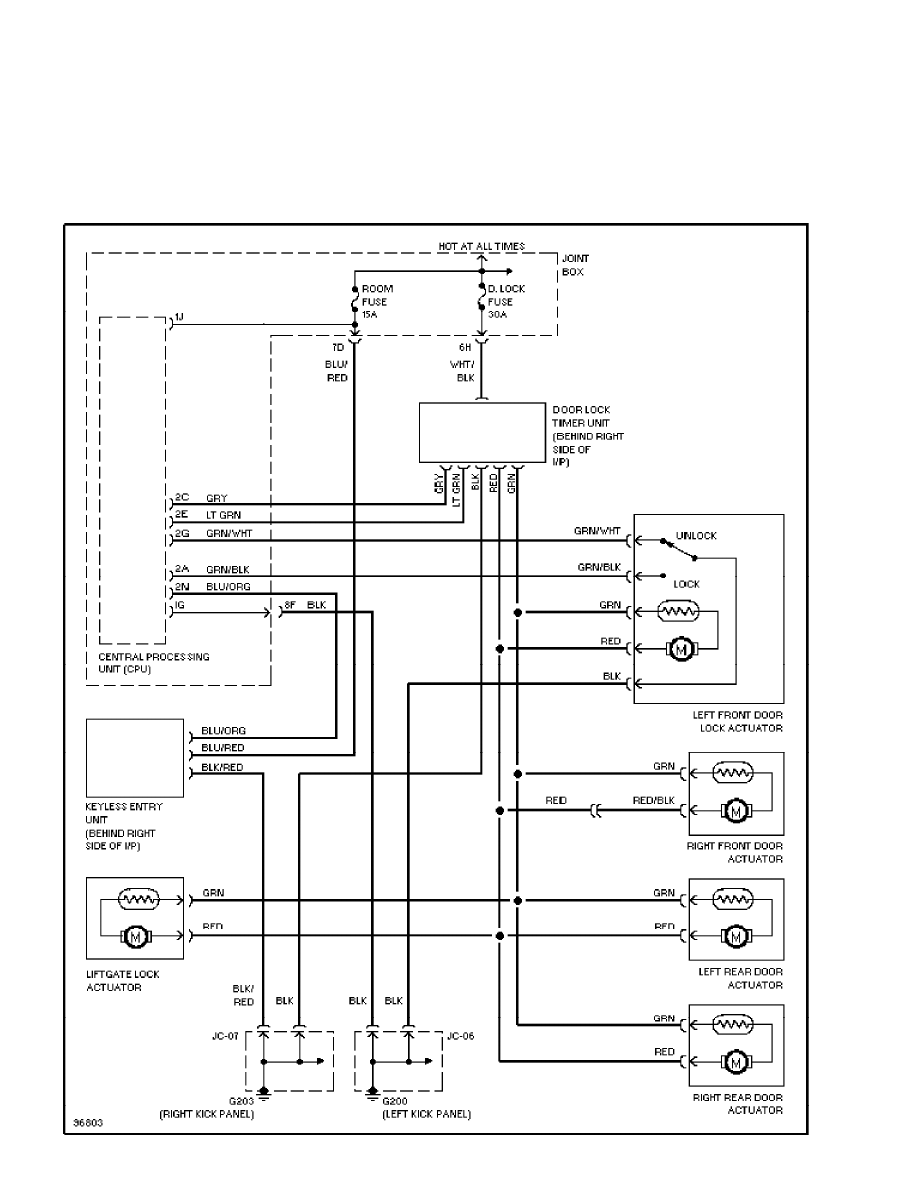

Power Door Lock Circuit (p. 21)

1997 Mazda MPV

For cdr101@wp.pl

Sunday, March 20, 2005 10:15PM

SYSTEM WIRING DIAGRAMS

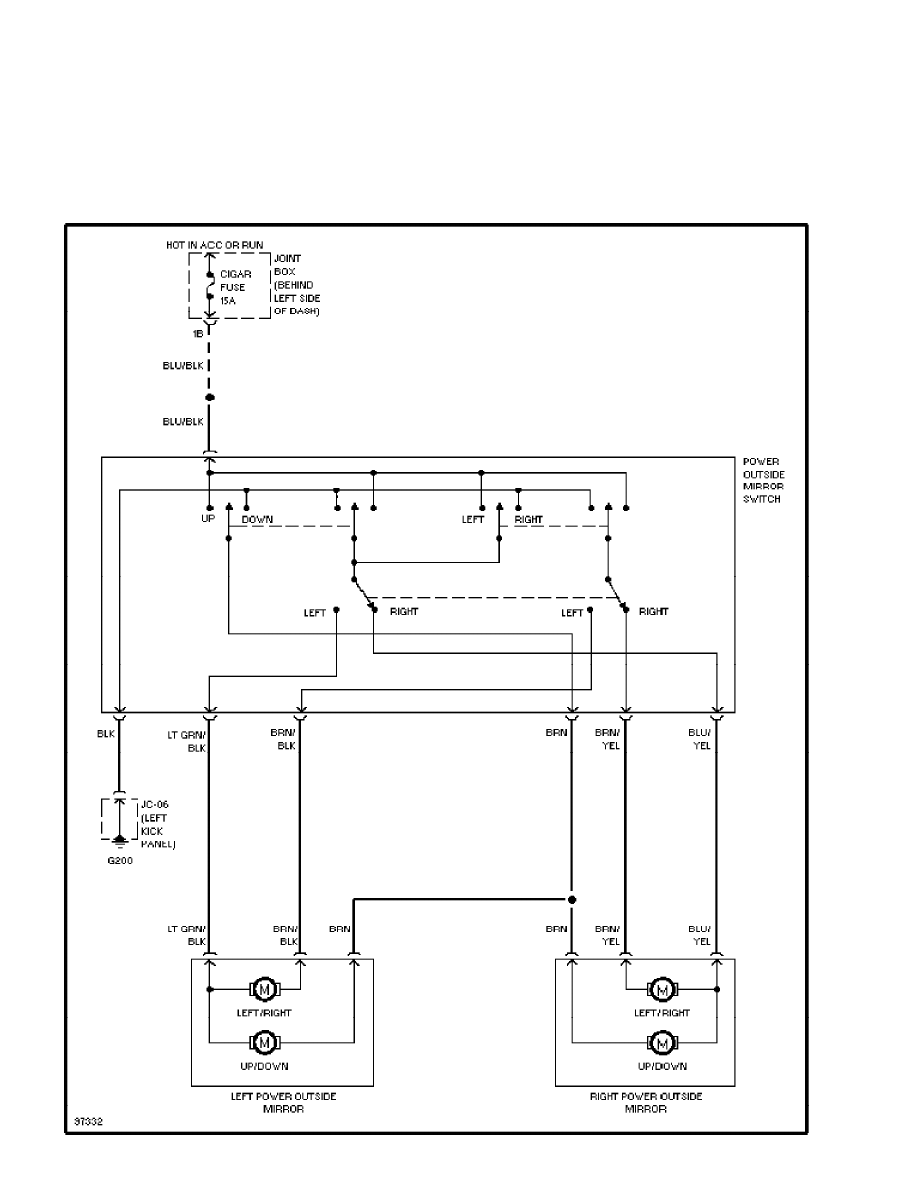

Power Mirror Circuit (p. 22)

1997 Mazda MPV

For cdr101@wp.pl

Sunday, March 20, 2005 10:15PM

SYSTEM WIRING DIAGRAMS

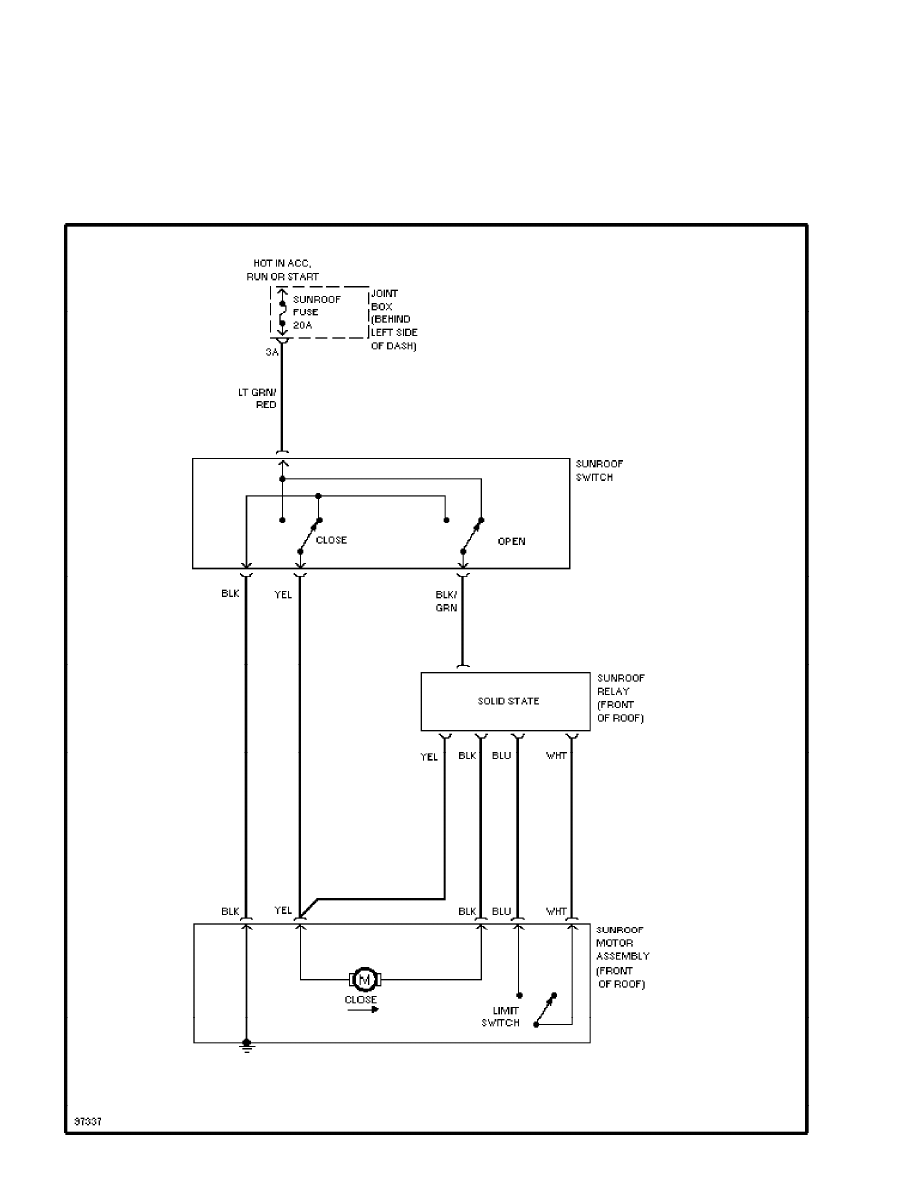

Power Top/Sunroof Circuits (p. 23)

1997 Mazda MPV

For cdr101@wp.pl

Sunday, March 20, 2005 10:15PM

SYSTEM WIRING DIAGRAMS
Power Window Circuit (p. 24)

1997 Mazda MPV

For cdr101@wp.pl

Sunday, March 20, 2005 10:15PM

SYSTEM WIRING DIAGRAMS

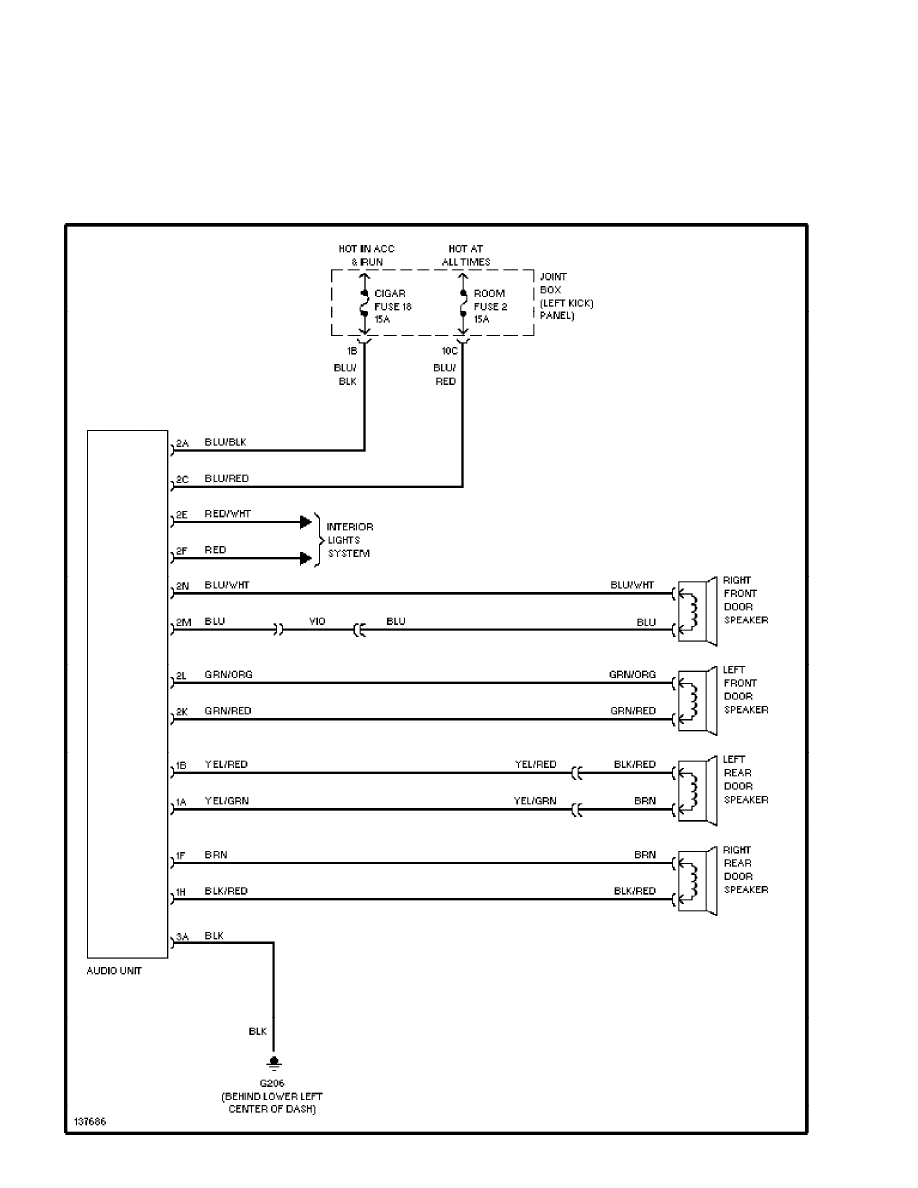

Radio Circuits (p. 25)

1997 Mazda MPV

For cdr101@wp.pl

Sunday, March 20, 2005 10:15PM

SYSTEM WIRING DIAGRAMS

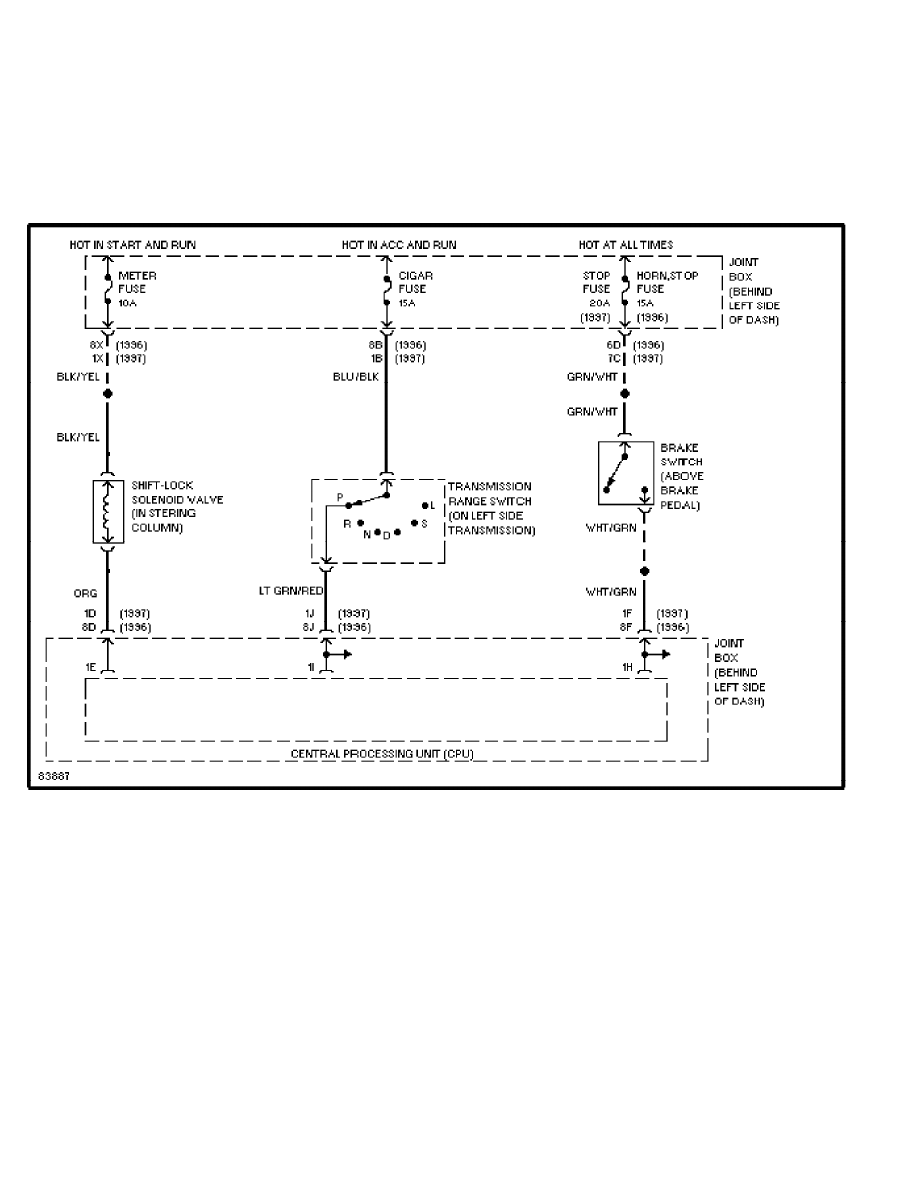

Shift Interlock Circuit (p. 26)

1997 Mazda MPV

For cdr101@wp.pl

Sunday, March 20, 2005 10:15PM

SYSTEM WIRING DIAGRAMS

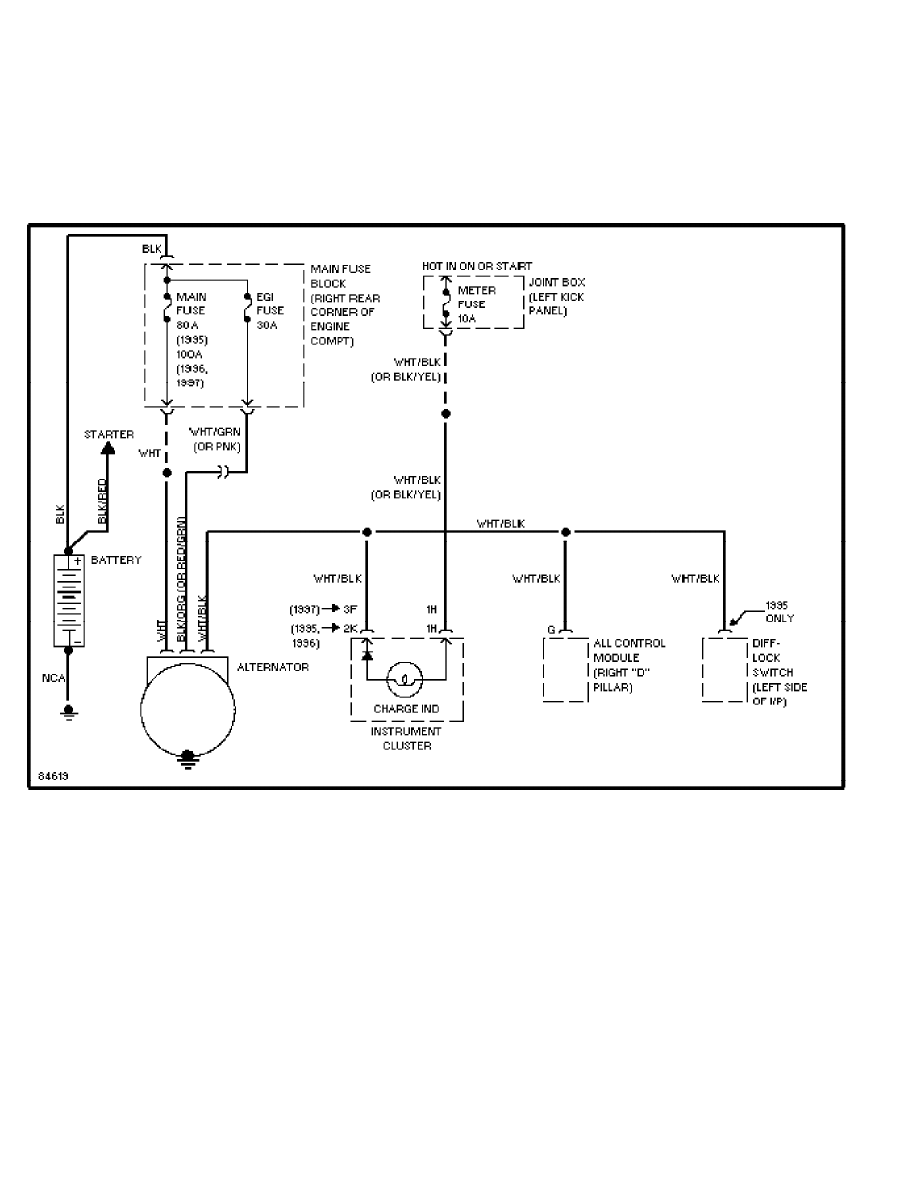

Charging Circuit (p. 27)

1997 Mazda MPV

For cdr101@wp.pl

Sunday, March 20, 2005 10:15PM

SYSTEM WIRING DIAGRAMS

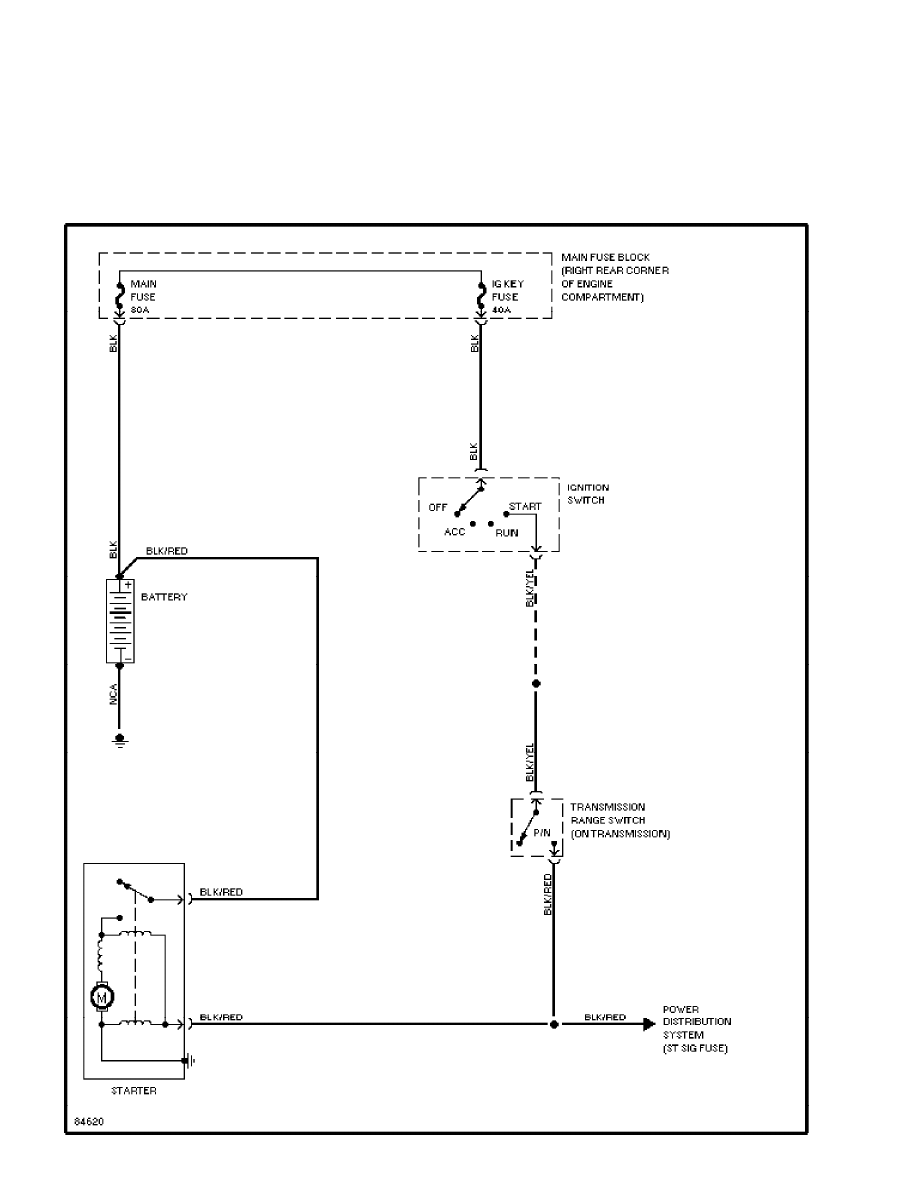

Starting Circuit (p. 28)

1997 Mazda MPV

For cdr101@wp.pl

Sunday, March 20, 2005 10:15PM

SYSTEM WIRING DIAGRAMS

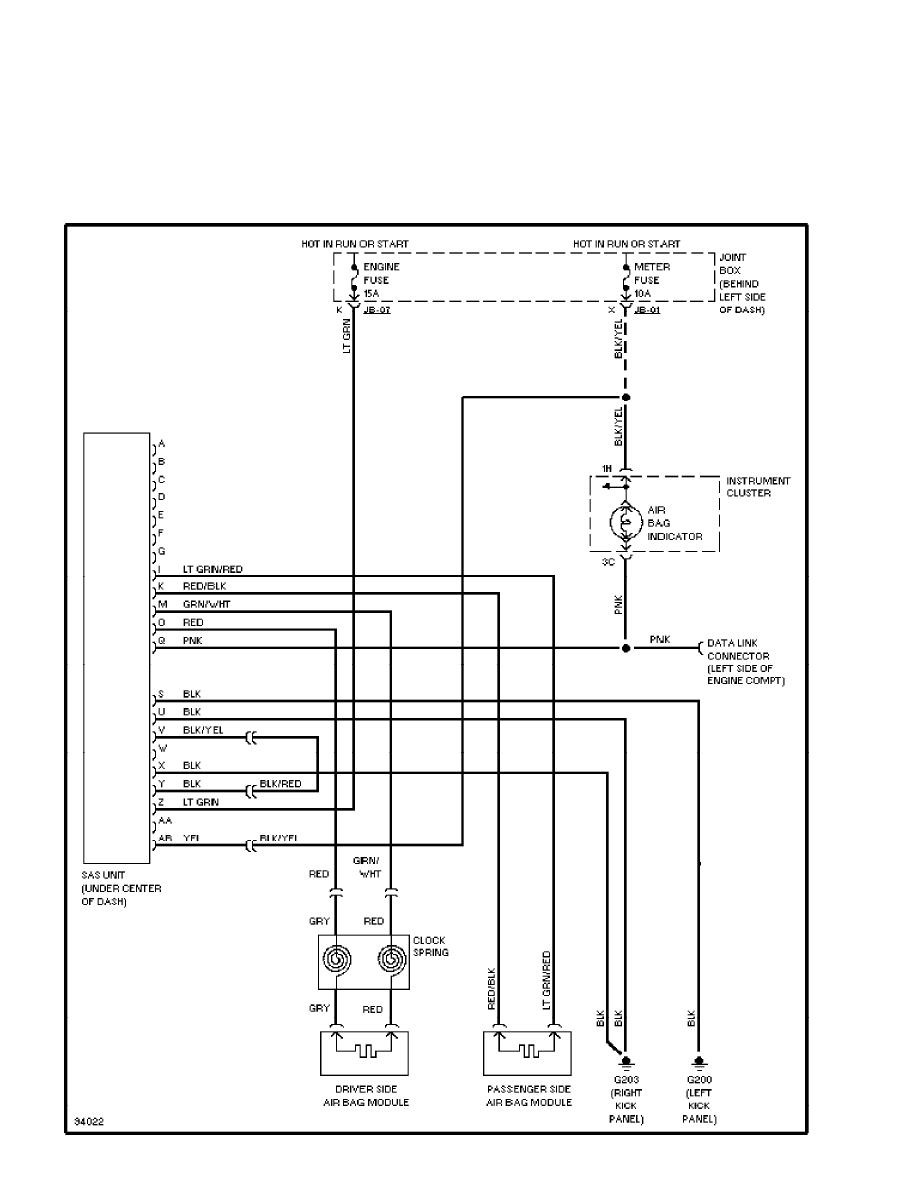

Supplemental Restraint Circuit (p. 29)

1997 Mazda MPV

For cdr101@wp.pl

Sunday, March 20, 2005 10:15PM

SYSTEM WIRING DIAGRAMS

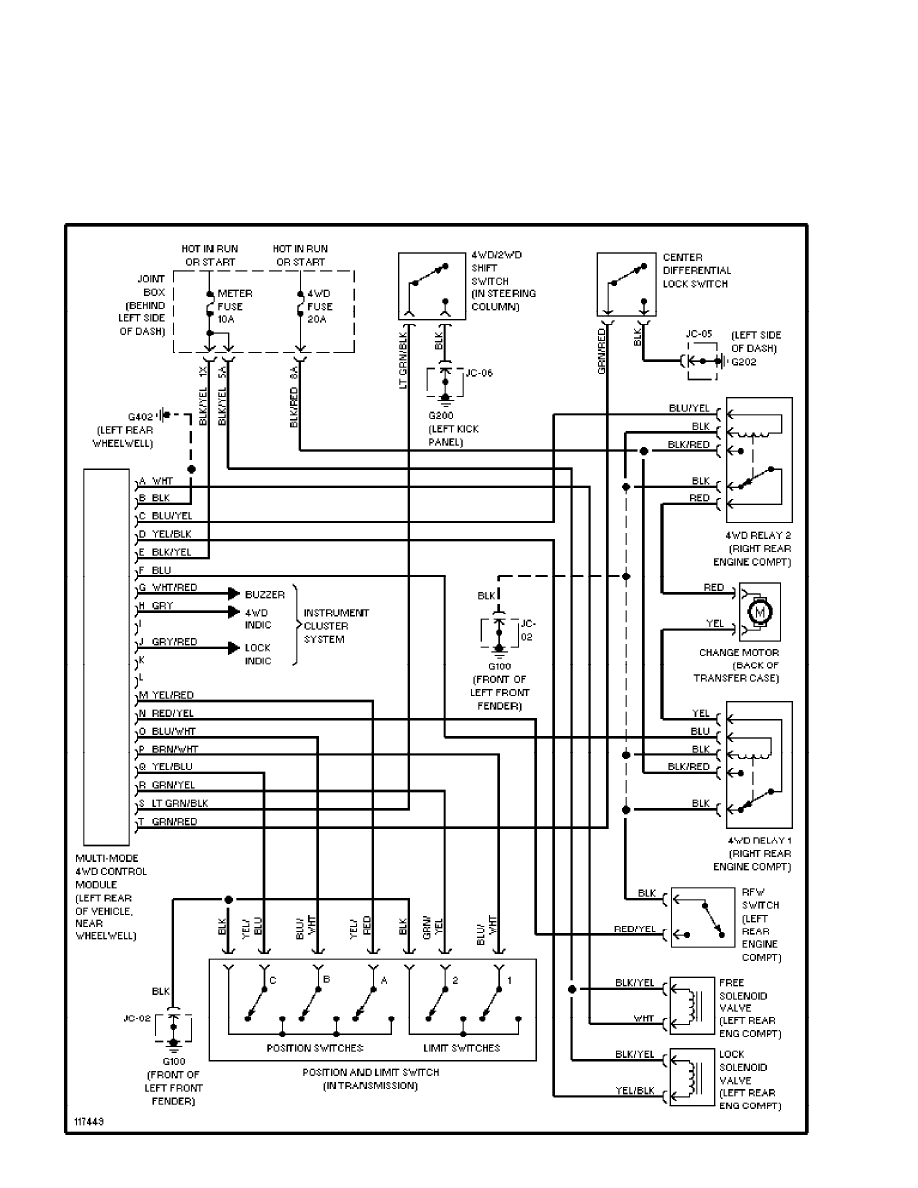

4WD Circuit (p. 30)

1997 Mazda MPV

For cdr101@wp.pl

Sunday, March 20, 2005 10:15PM

SYSTEM WIRING DIAGRAMS

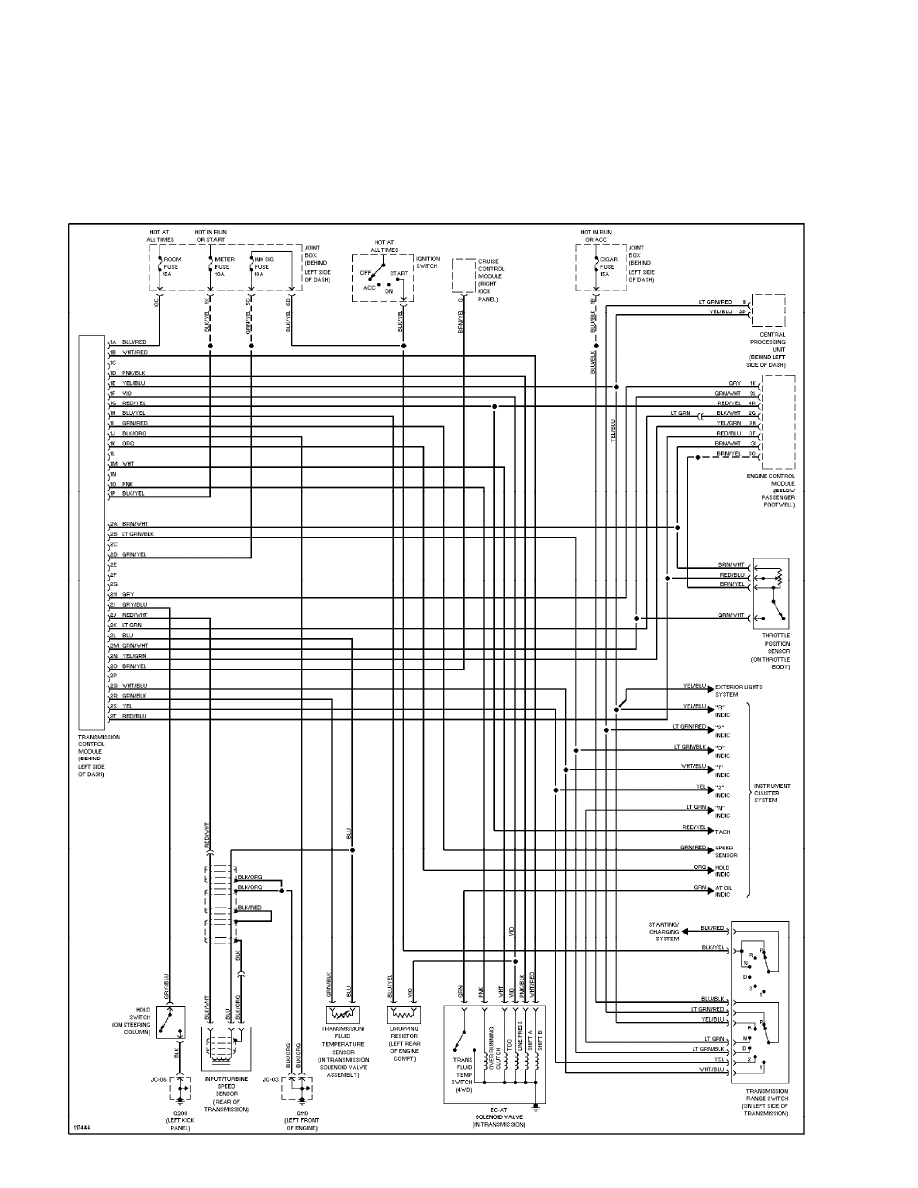

A/T Circuit (p. 31)

1997 Mazda MPV

For cdr101@wp.pl

Sunday, March 20, 2005 10:15PM

SYSTEM WIRING DIAGRAMS

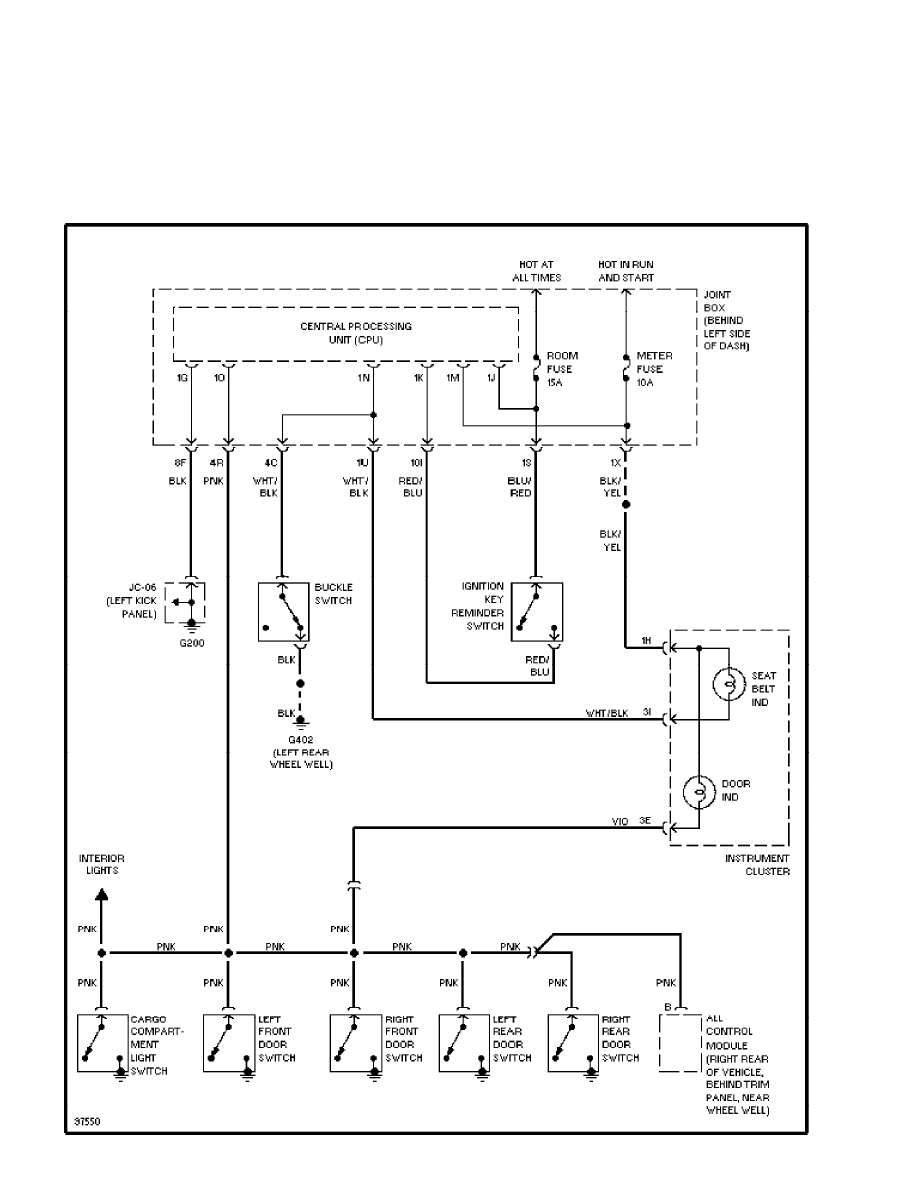

Warning System Circuits (p. 32)

1997 Mazda MPV

For cdr101@wp.pl

Sunday, March 20, 2005 10:15PM

SYSTEM WIRING DIAGRAMS

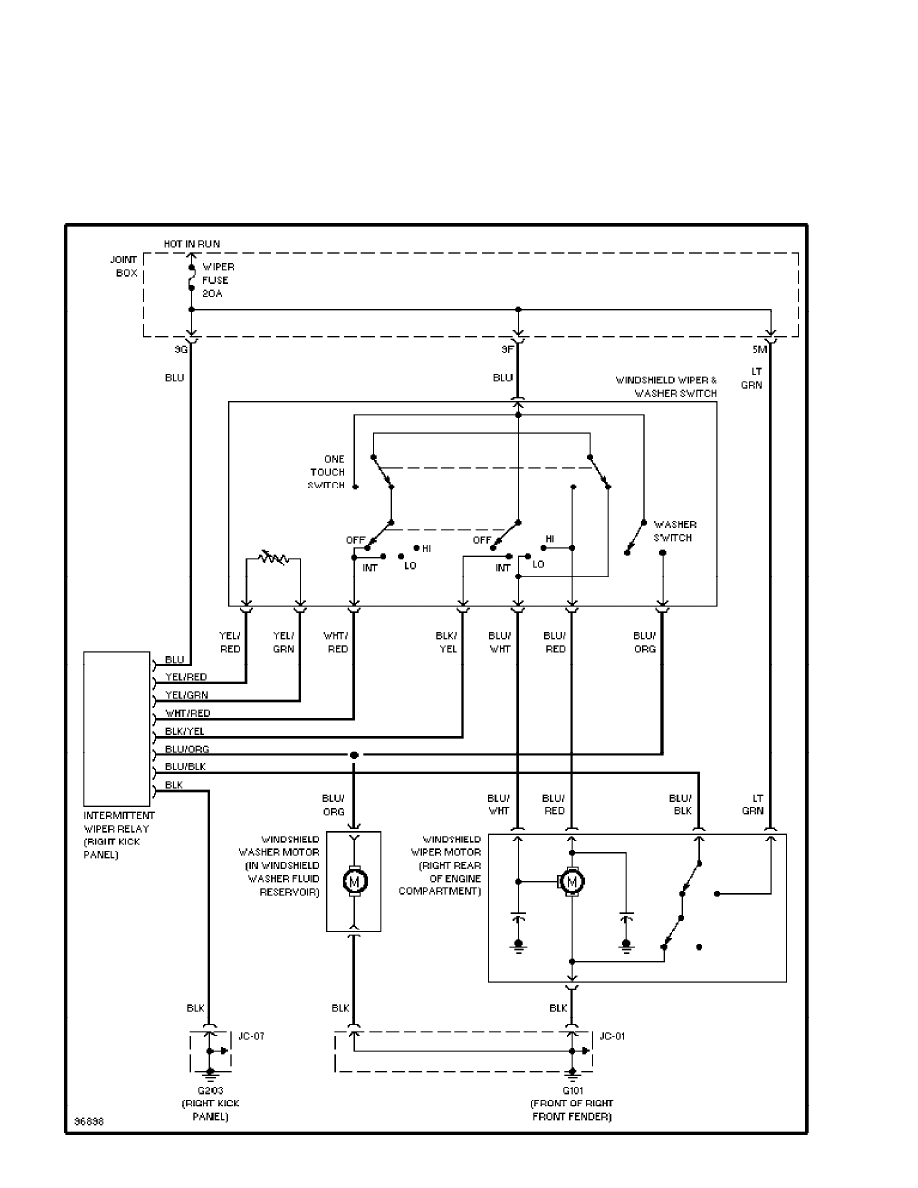

Front Washer/Wiper Circuit (p. 33)

1997 Mazda MPV

For cdr101@wp.pl

Sunday, March 20, 2005 10:15PM

SYSTEM WIRING DIAGRAMS

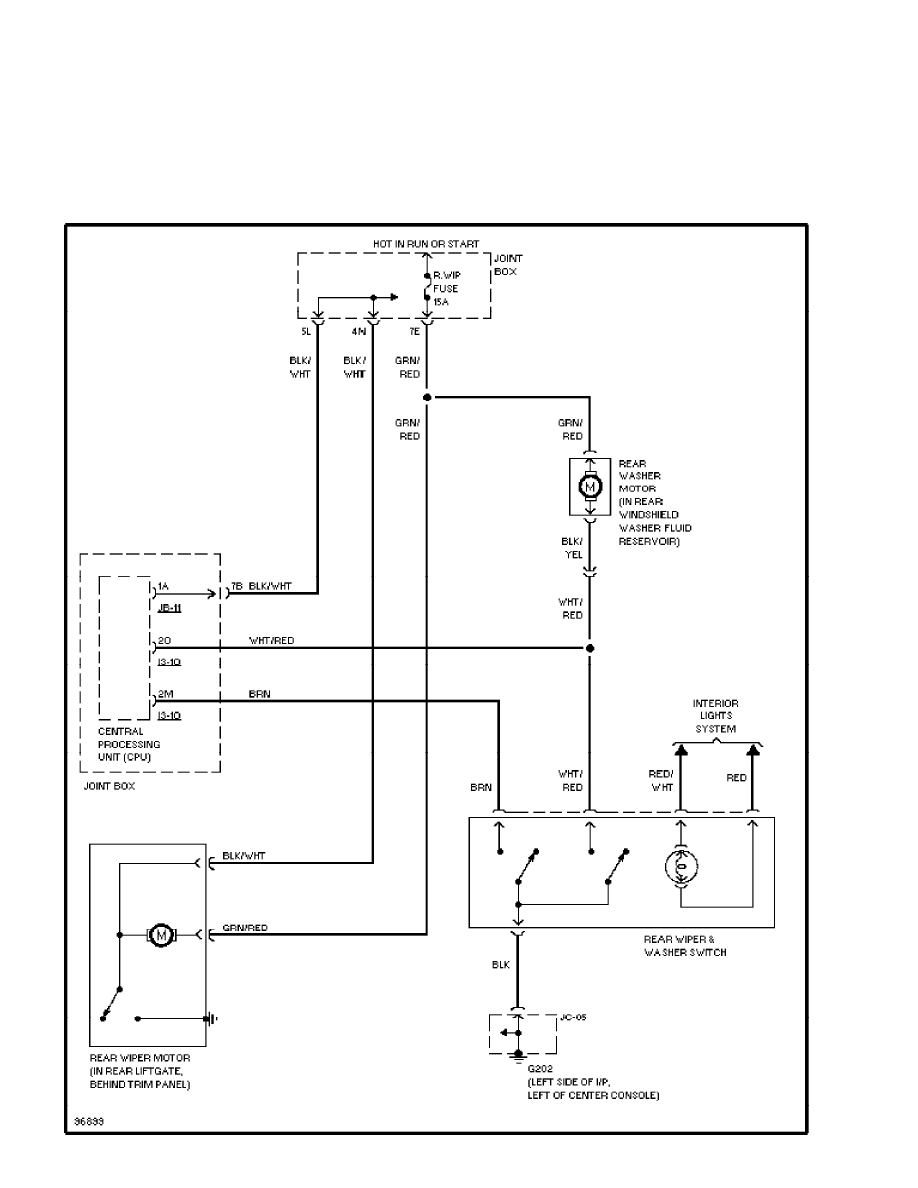

Rear Washer/Wiper Circuit (p. 34)

1997 Mazda MPV

For cdr101@wp.pl

Sunday, March 20, 2005 10:15PM
