BMW 750iL 1995

SYSTEM WIRING DIAGRAMS

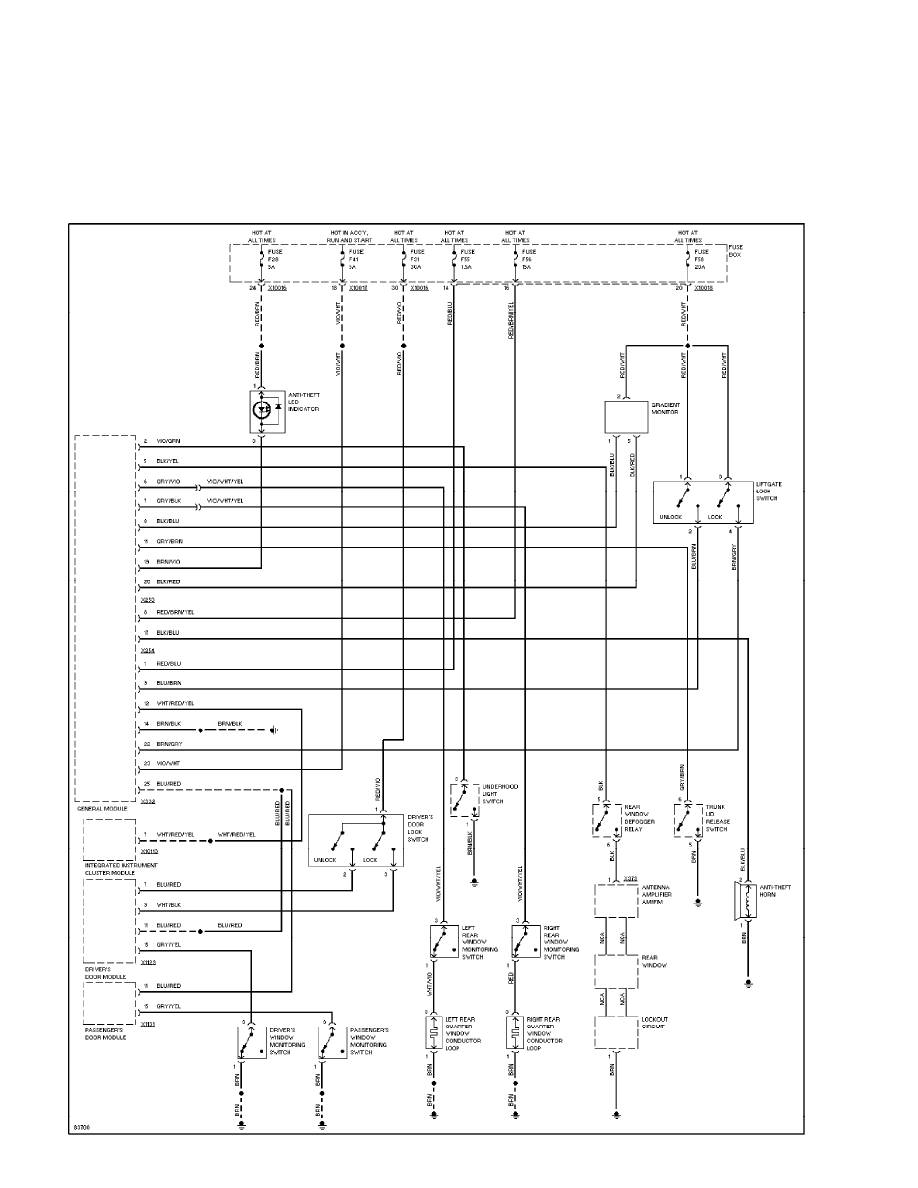

Anti-theft Circuit

1995 BMW 750iL

For x

Monday, November 08, 2004 11:05PM

SYSTEM WIRING DIAGRAMS

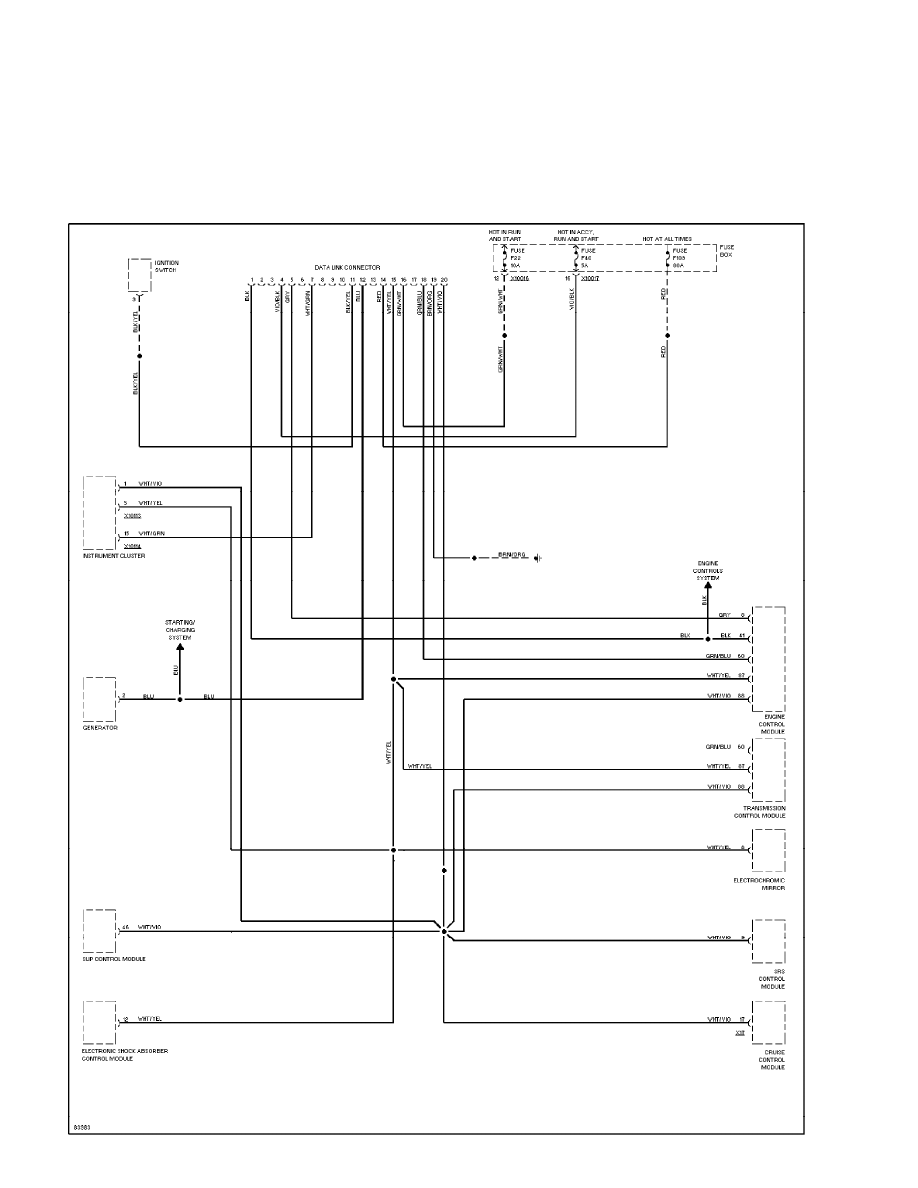

Computer Data Lines (p. 2)

1995 BMW 750iL

For x

Monday, November 08, 2004 11:05PM

SYSTEM WIRING DIAGRAMS

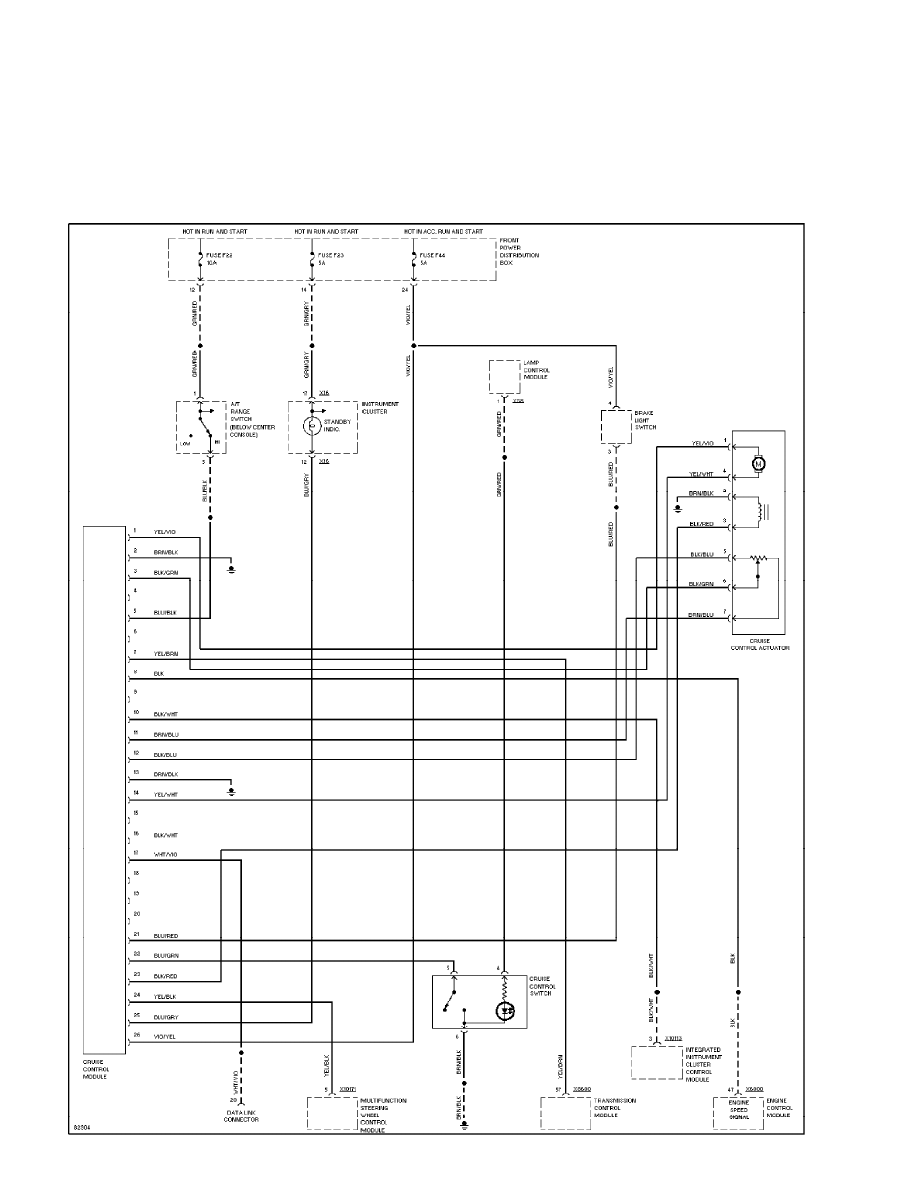

Cruise Control Circuit (p. 3)

1995 BMW 750iL

For x

Monday, November 08, 2004 11:05PM

SYSTEM WIRING DIAGRAMS

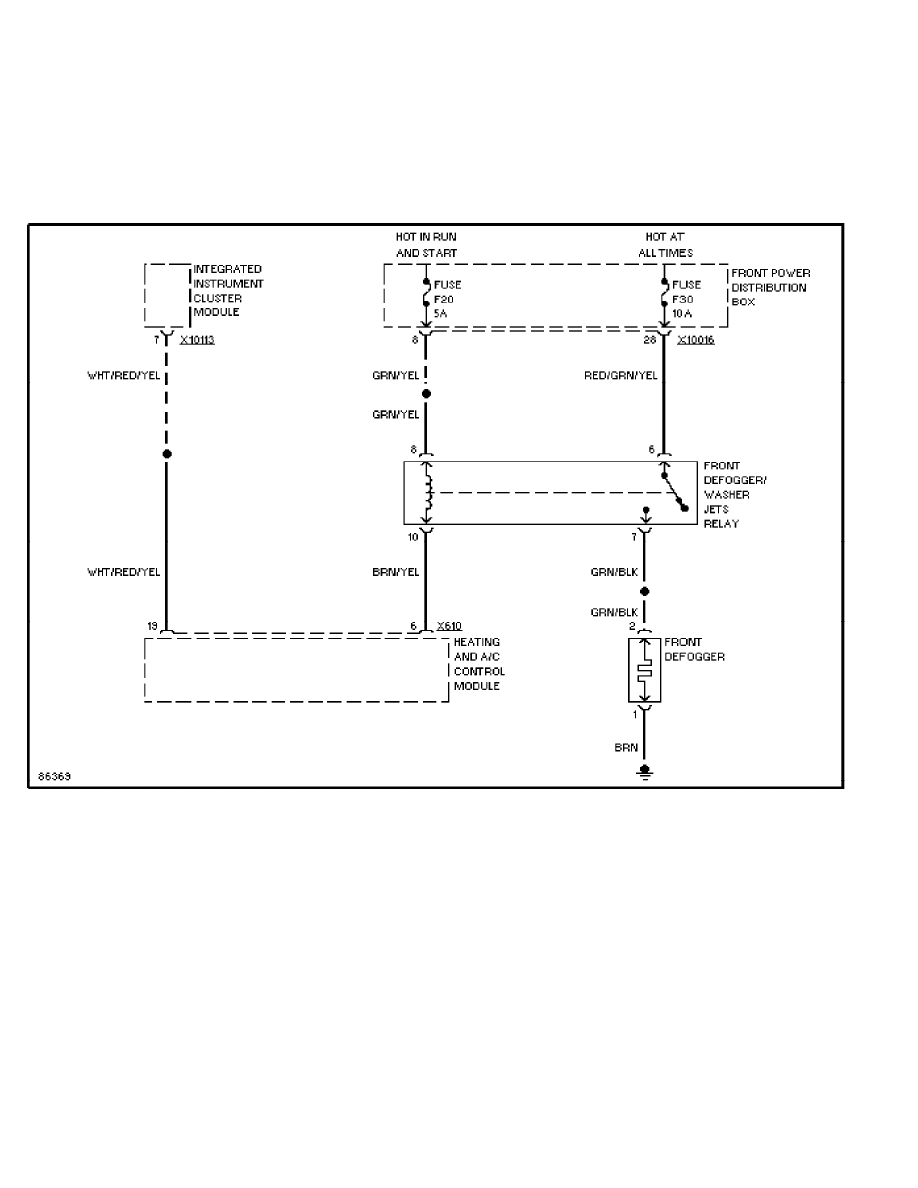

Defogger Circuit (p. 4)

1995 BMW 750iL

For x

Monday, November 08, 2004 11:05PM

SYSTEM WIRING DIAGRAMS

Front Defogger Circuit (p. 5)

1995 BMW 750iL

For x

Monday, November 08, 2004 11:05PM

SYSTEM WIRING DIAGRAMS

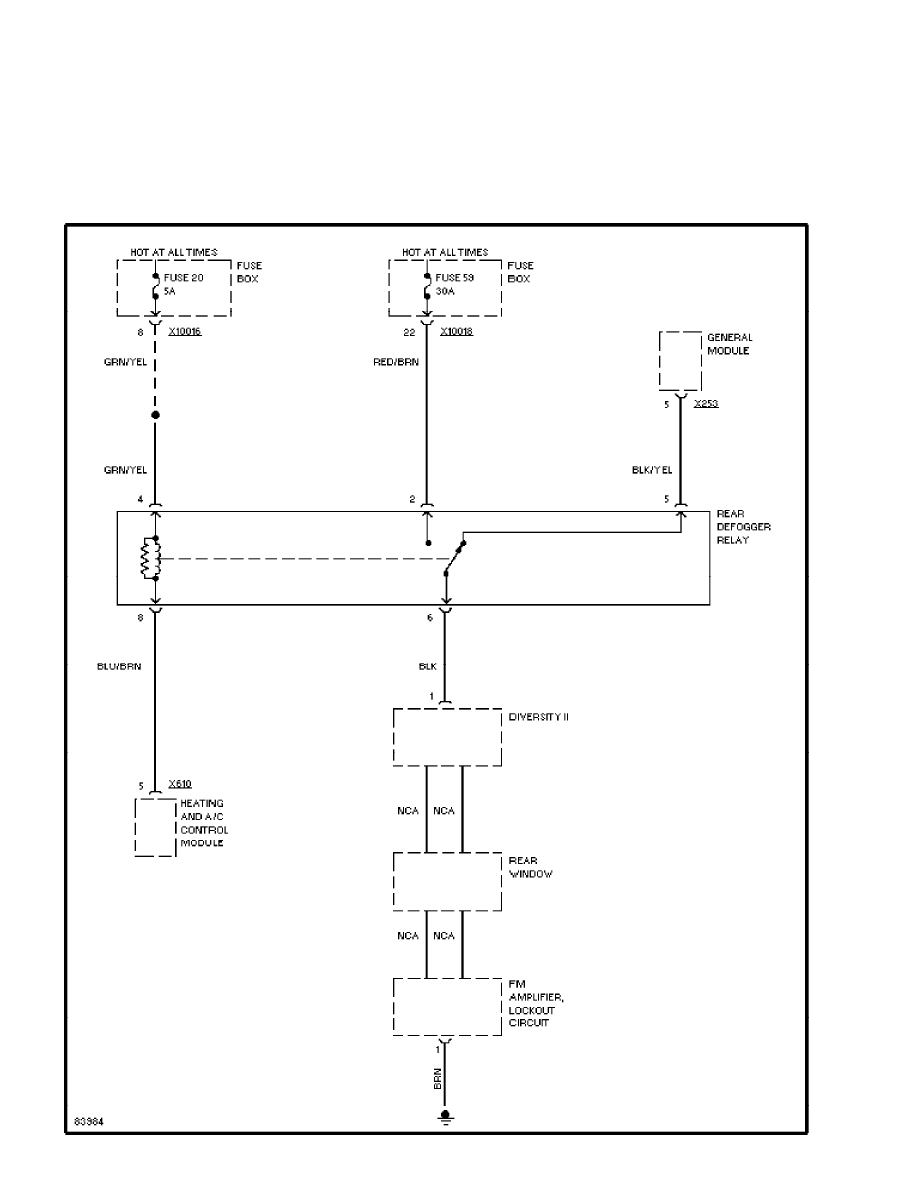

Rear Defogger Circuit (p. 6)

1995 BMW 750iL

For x

Monday, November 08, 2004 11:05PM

SYSTEM WIRING DIAGRAMS

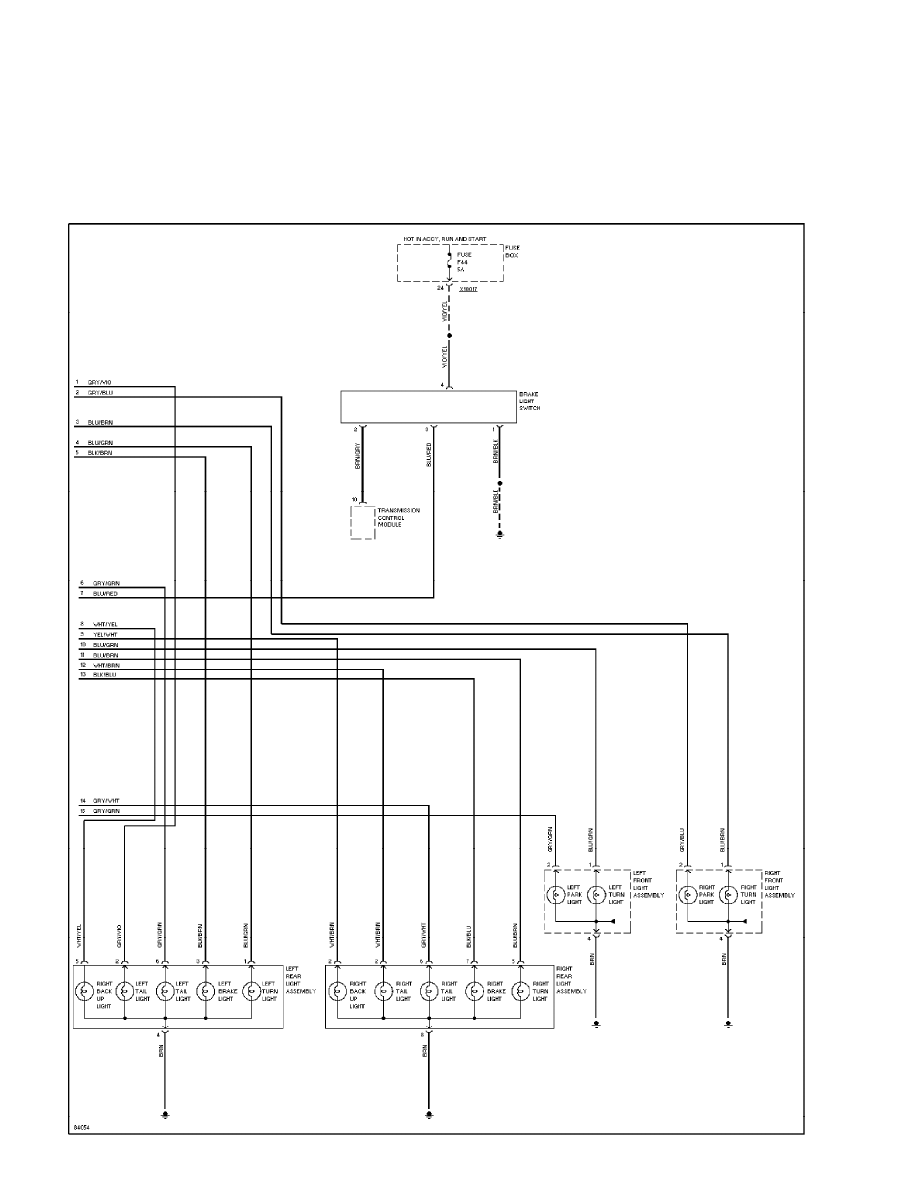

Exterior Light Circuit (1 of 2) (p. 7)

1995 BMW 750iL

For x

Monday, November 08, 2004 11:05PM

SYSTEM WIRING DIAGRAMS

Exterior Light Circuit (2 of 2) (p. 8)

1995 BMW 750iL

For x

Monday, November 08, 2004 11:05PM

SYSTEM WIRING DIAGRAMS

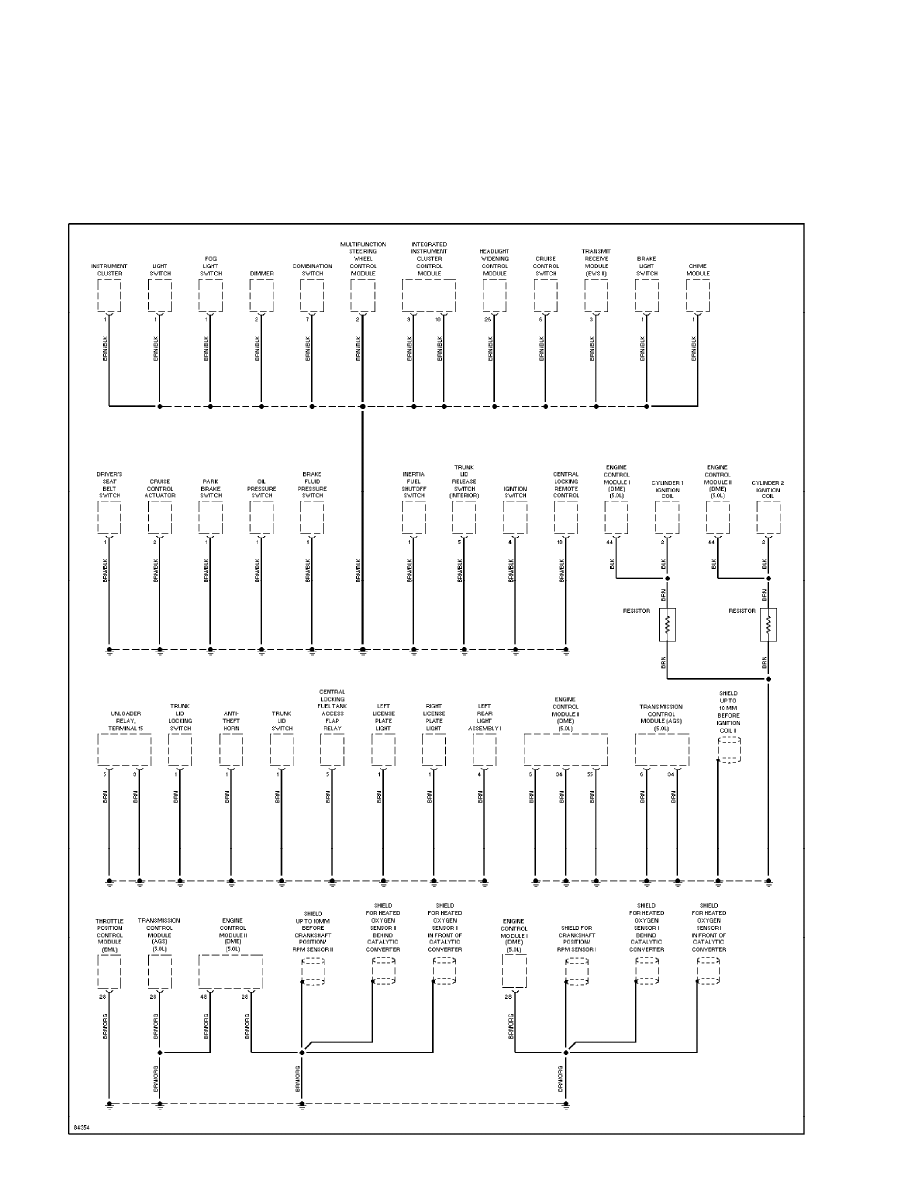

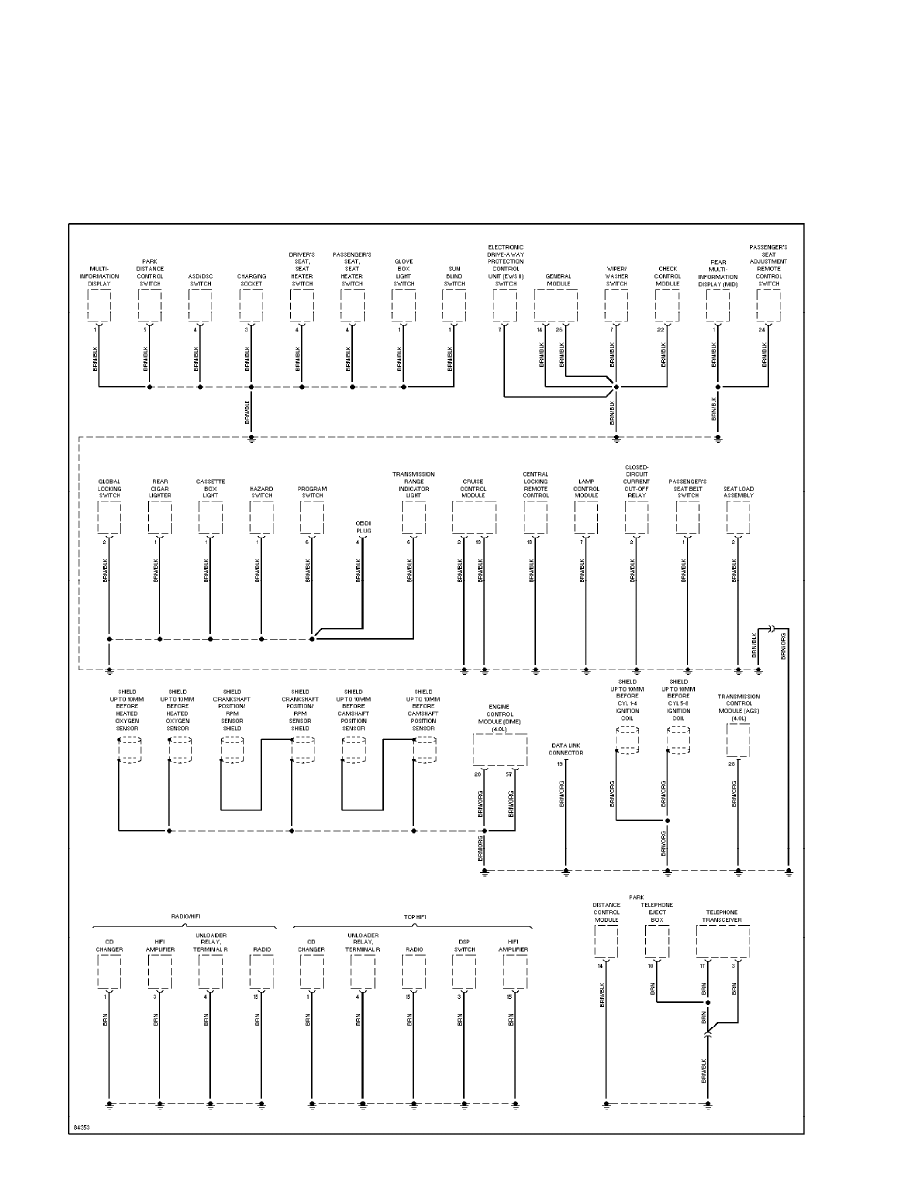

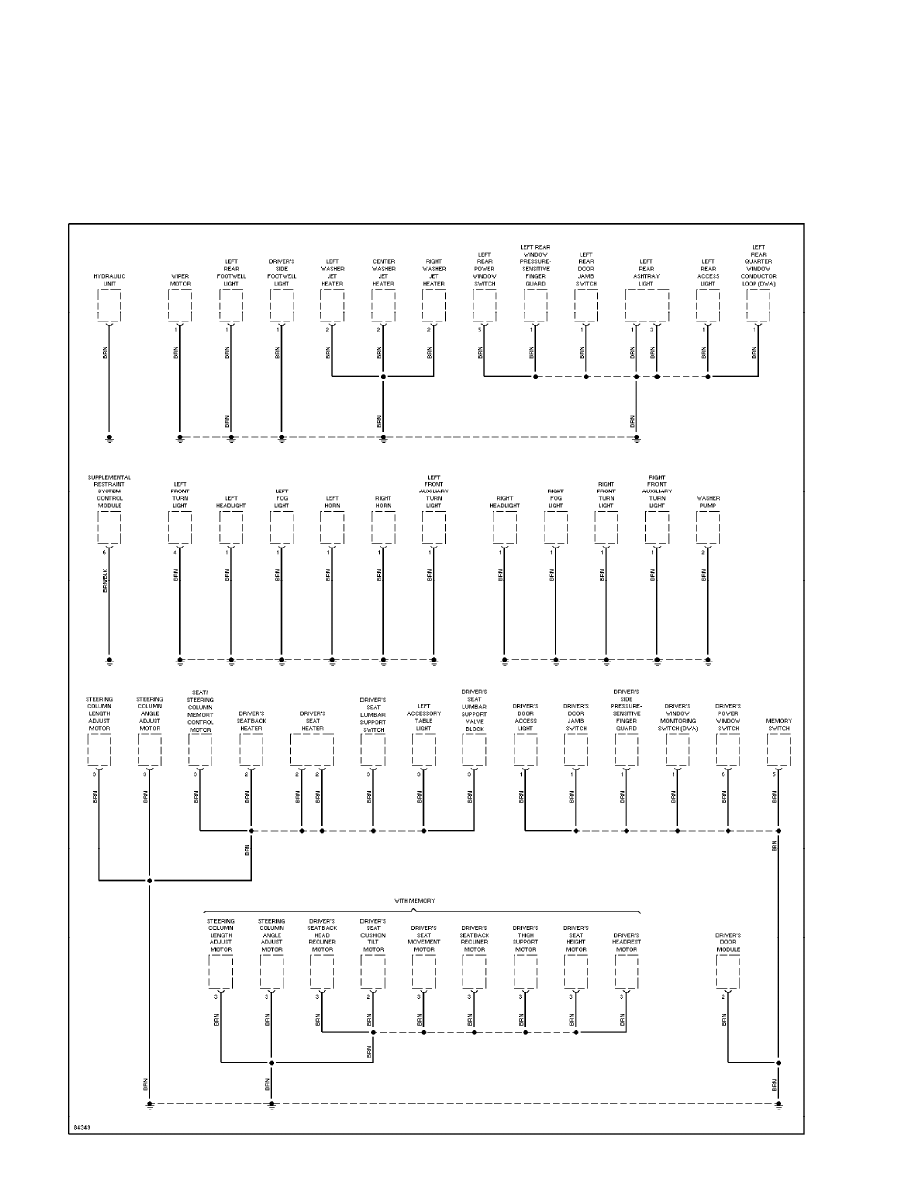

Ground Distribution Circuit (1 of 5) (p. 9)

1995 BMW 750iL

For x

Monday, November 08, 2004 11:05PM

SYSTEM WIRING DIAGRAMS

Ground Distribution Circuit (2 of 5) (p. 10)

1995 BMW 750iL

For x

Monday, November 08, 2004 11:05PM

SYSTEM WIRING DIAGRAMS

Ground Distribution Circuit (3 of 5) (p. 11)

1995 BMW 750iL

For x

Monday, November 08, 2004 11:05PM

SYSTEM WIRING DIAGRAMS

Ground Distribution Circuit (4 of 5) (p. 12)

1995 BMW 750iL

For x

Monday, November 08, 2004 11:05PM

SYSTEM WIRING DIAGRAMS

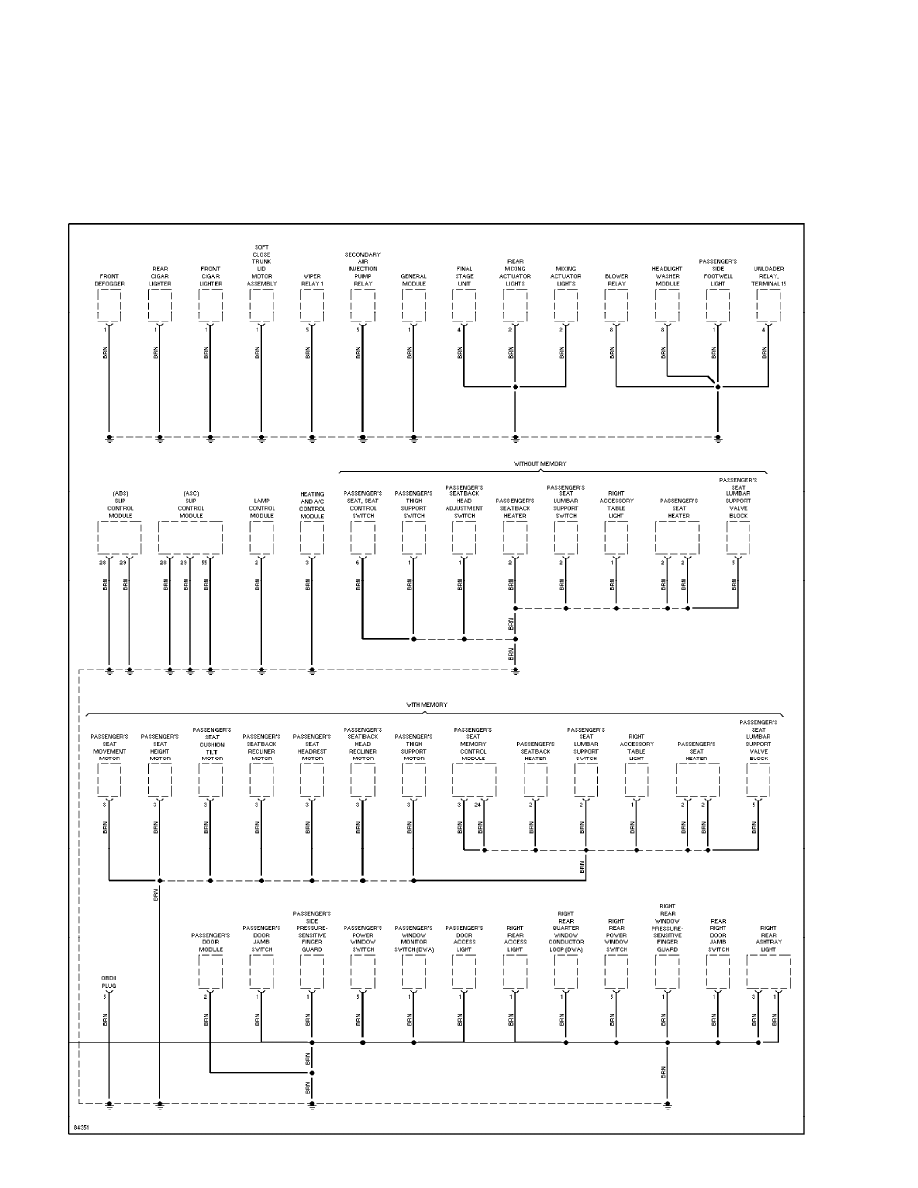

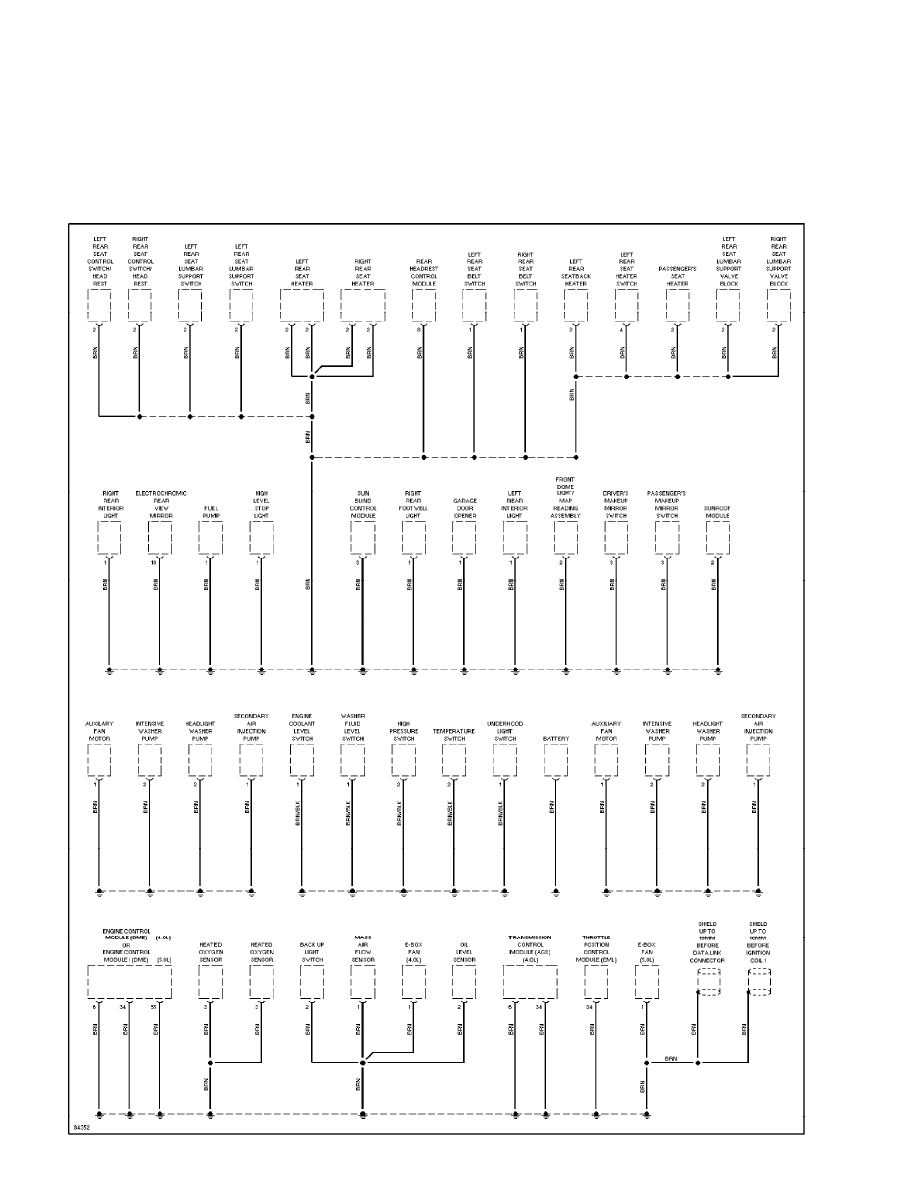

Ground Distribution Circuit (5 of 5) (p. 13)

1995 BMW 750iL

For x

Monday, November 08, 2004 11:05PM

SYSTEM WIRING DIAGRAMS

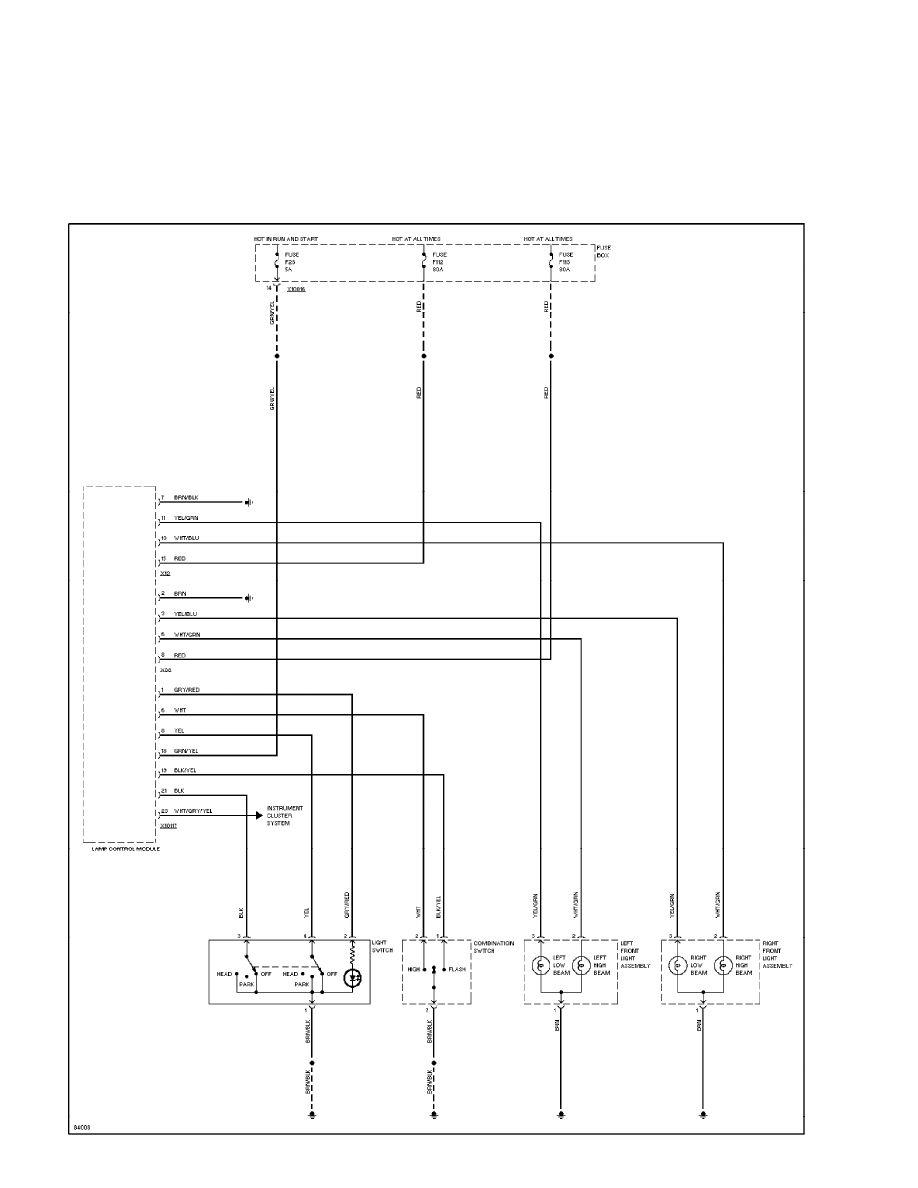

Headlight Circuit (p. 14)

1995 BMW 750iL

For x

Monday, November 08, 2004 11:05PM

SYSTEM WIRING DIAGRAMS

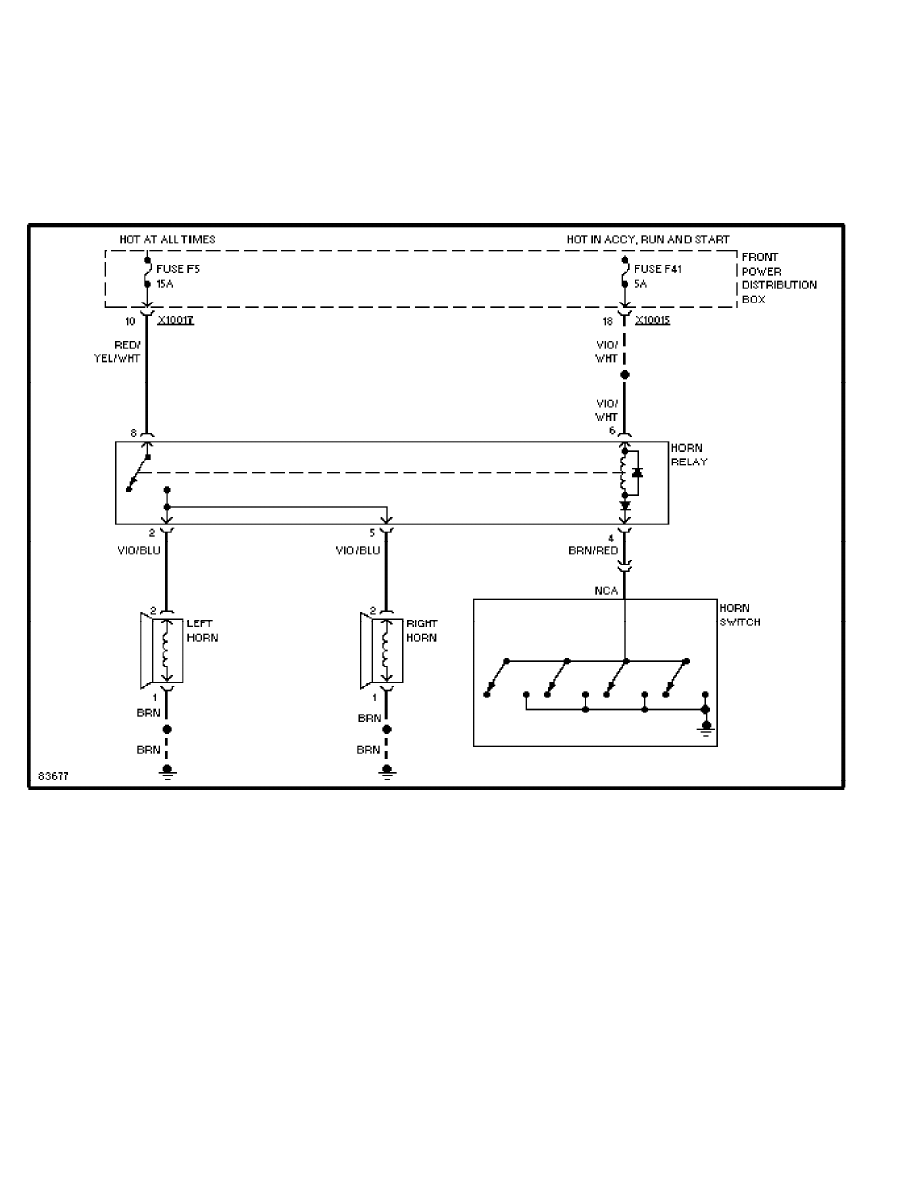

Horn Circuit (p. 15)

1995 BMW 750iL

For x

Monday, November 08, 2004 11:05PM

SYSTEM WIRING DIAGRAMS

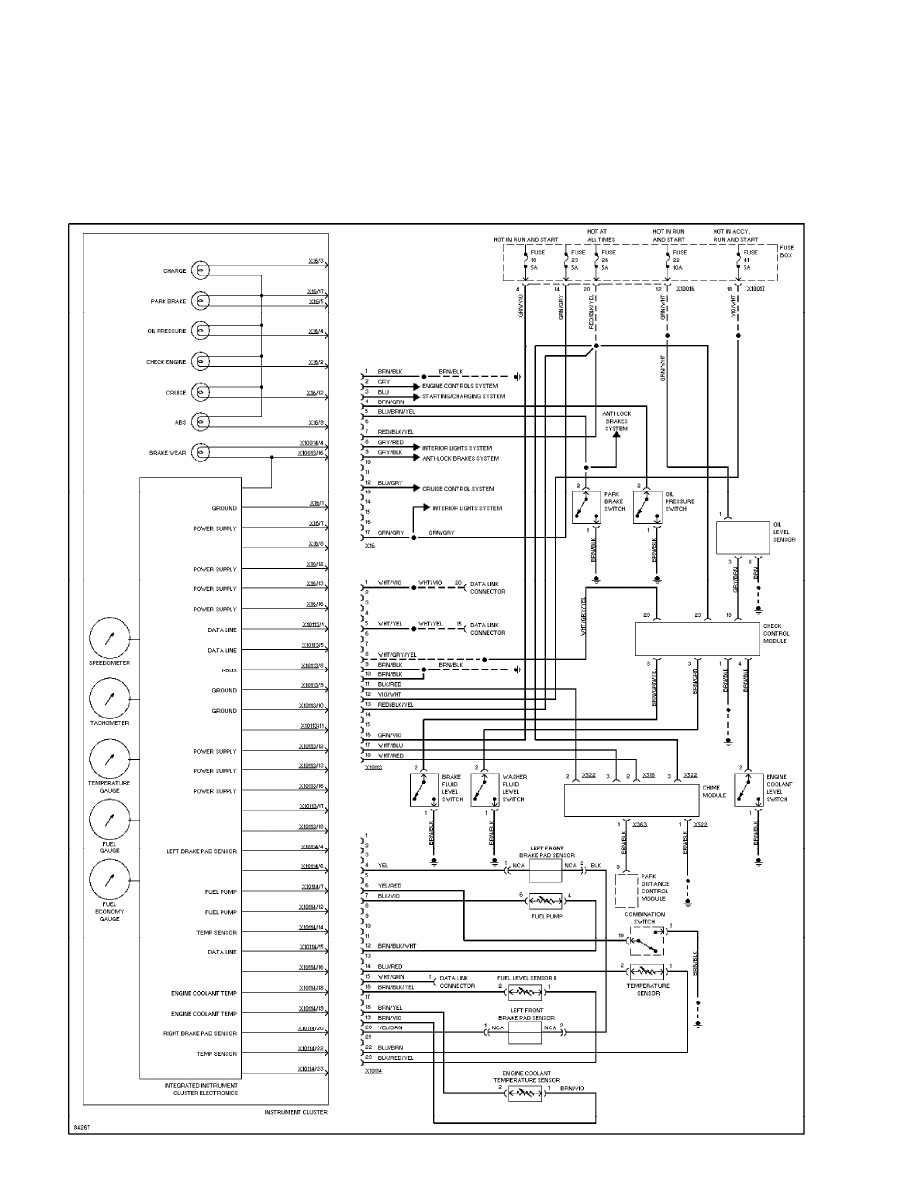

Instrument Cluster Circuit (p. 16)

1995 BMW 750iL

For x

Monday, November 08, 2004 11:05PM

SYSTEM WIRING DIAGRAMS

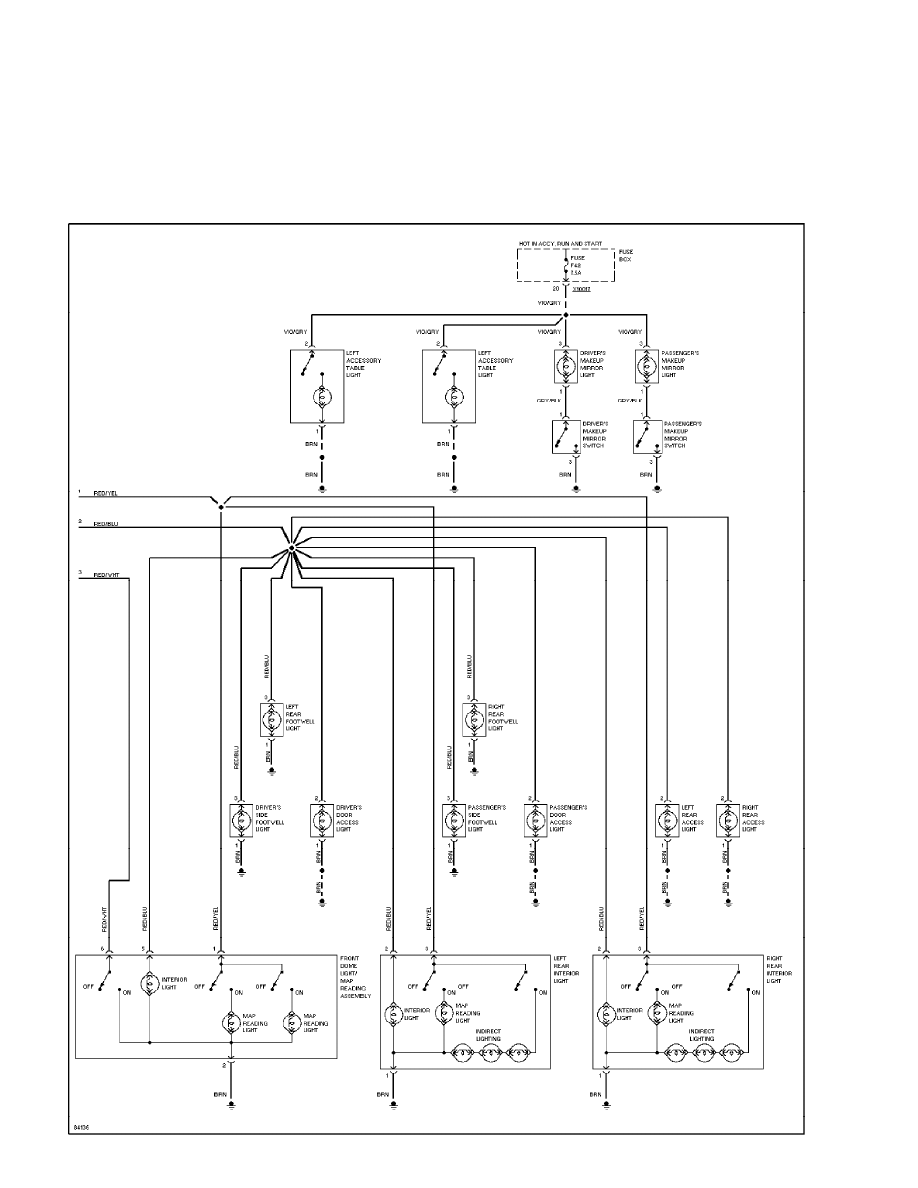

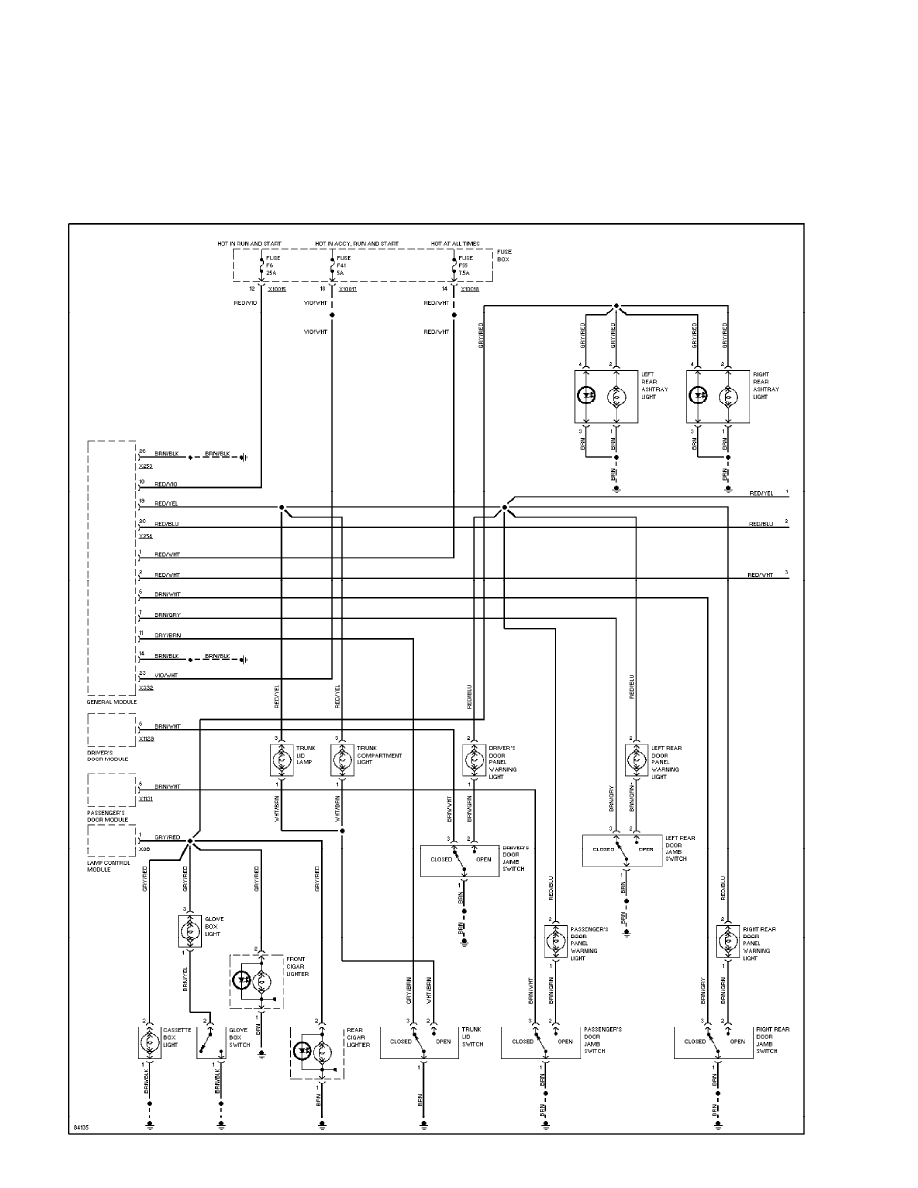

Interior Light Circuit (1 of 2) (p. 17)

1995 BMW 750iL

For x

Monday, November 08, 2004 11:05PM

SYSTEM WIRING DIAGRAMS

Interior Light Circuit (2 of 2) (p. 18)

1995 BMW 750iL

For x

Monday, November 08, 2004 11:05PM

SYSTEM WIRING DIAGRAMS

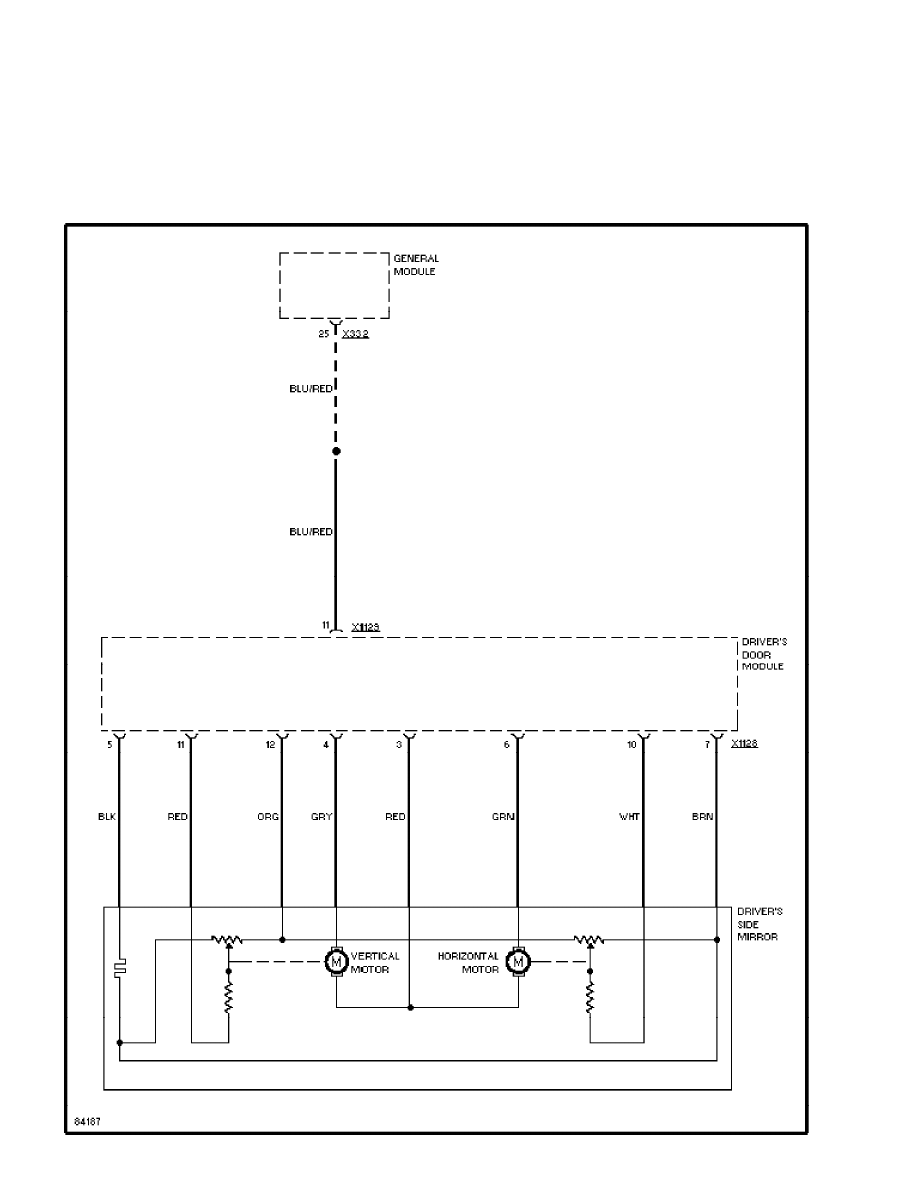

Driver's Mirror Circuit (p. 19)

1995 BMW 750iL

For x

Monday, November 08, 2004 11:05PM

SYSTEM WIRING DIAGRAMS

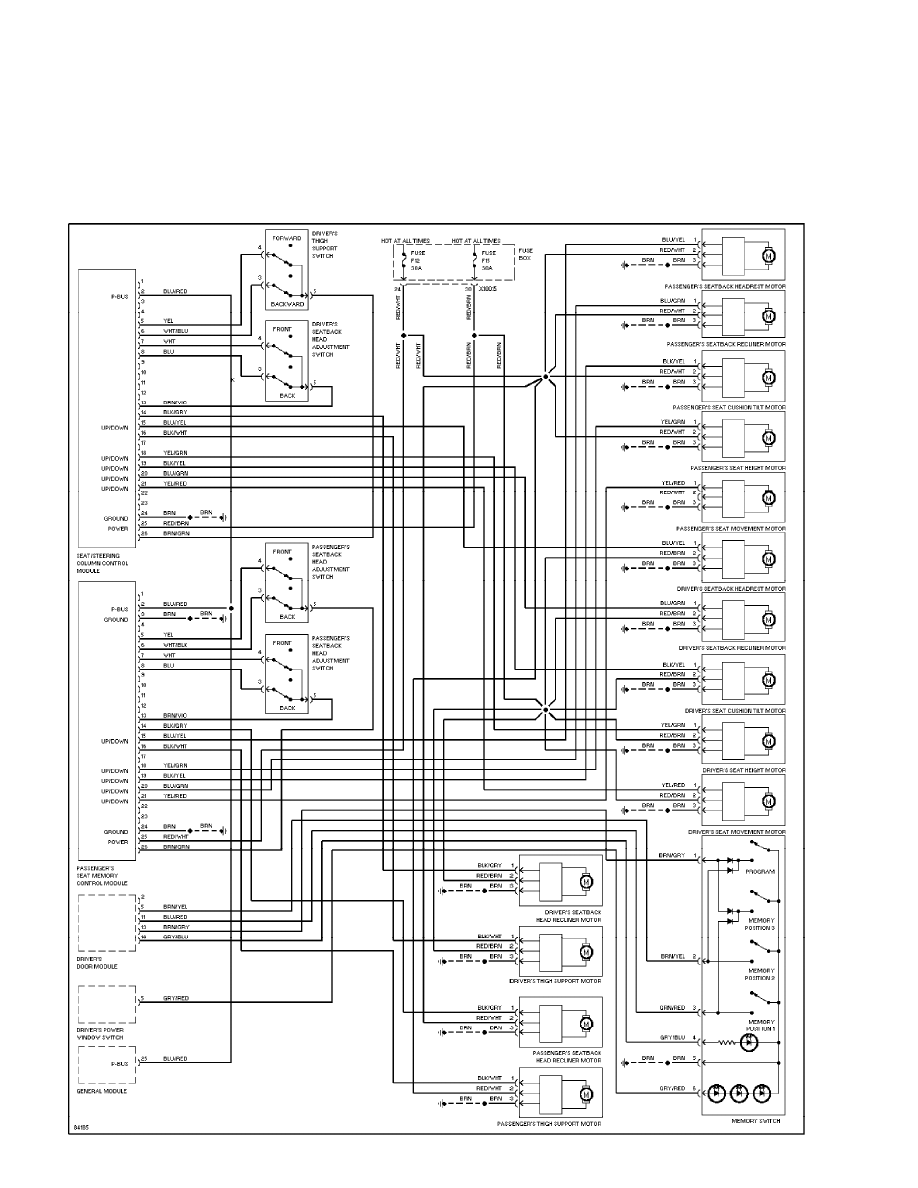

Memory Seats Circuit (p. 20)

1995 BMW 750iL

For x

Monday, November 08, 2004 11:05PM

SYSTEM WIRING DIAGRAMS

Passenger's Mirror Circuit (p. 21)

1995 BMW 750iL

For x

Monday, November 08, 2004 11:05PM

SYSTEM WIRING DIAGRAMS

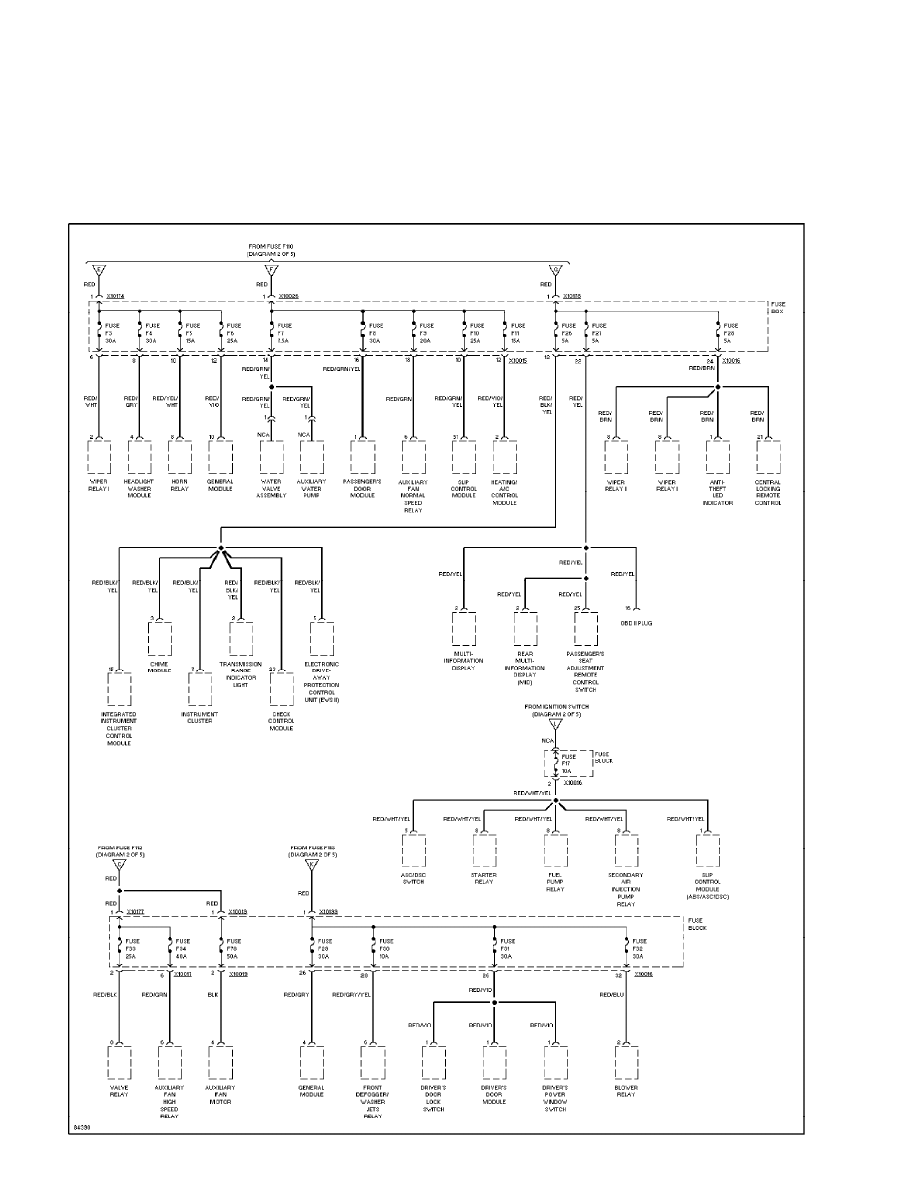

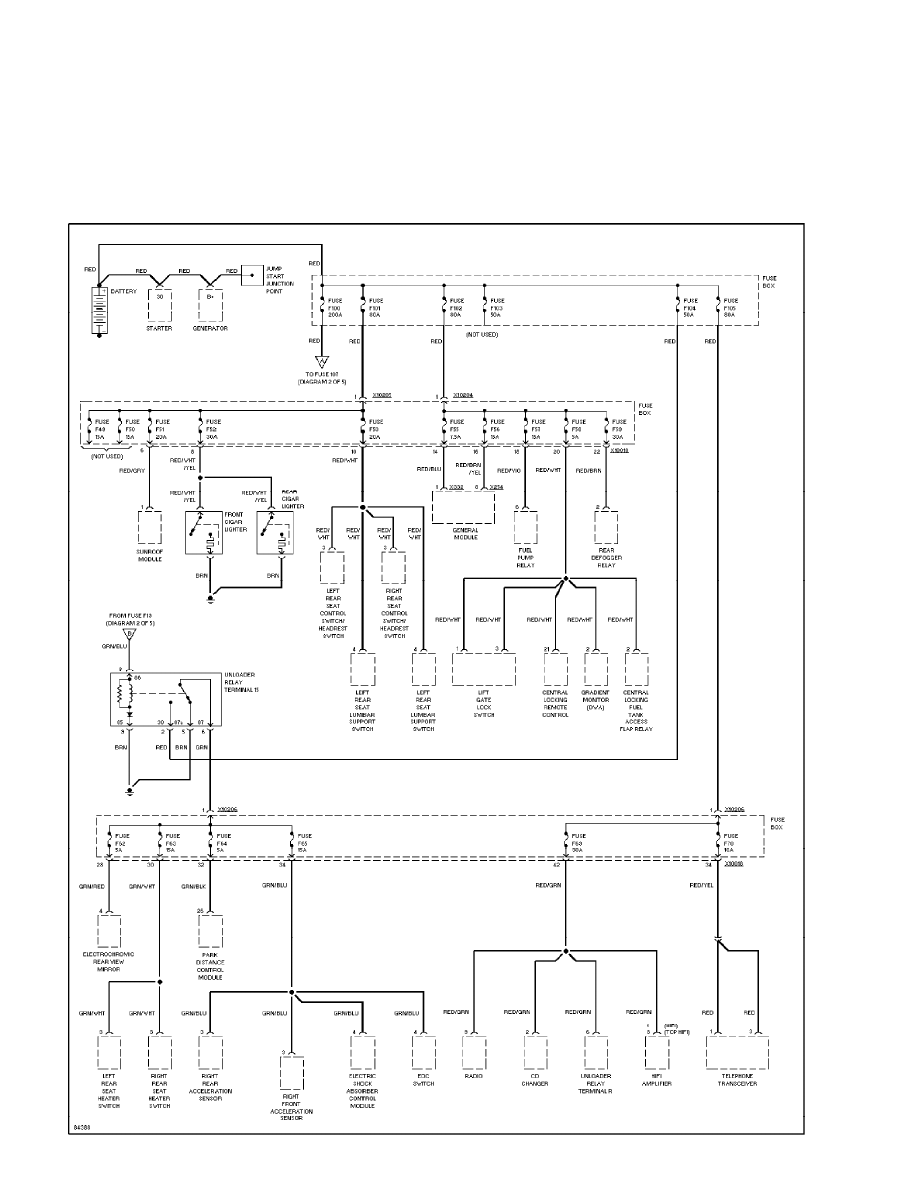

Power Distribution Circuit (1 of 5) (p. 22)

1995 BMW 750iL

For x

Monday, November 08, 2004 11:05PM

SYSTEM WIRING DIAGRAMS

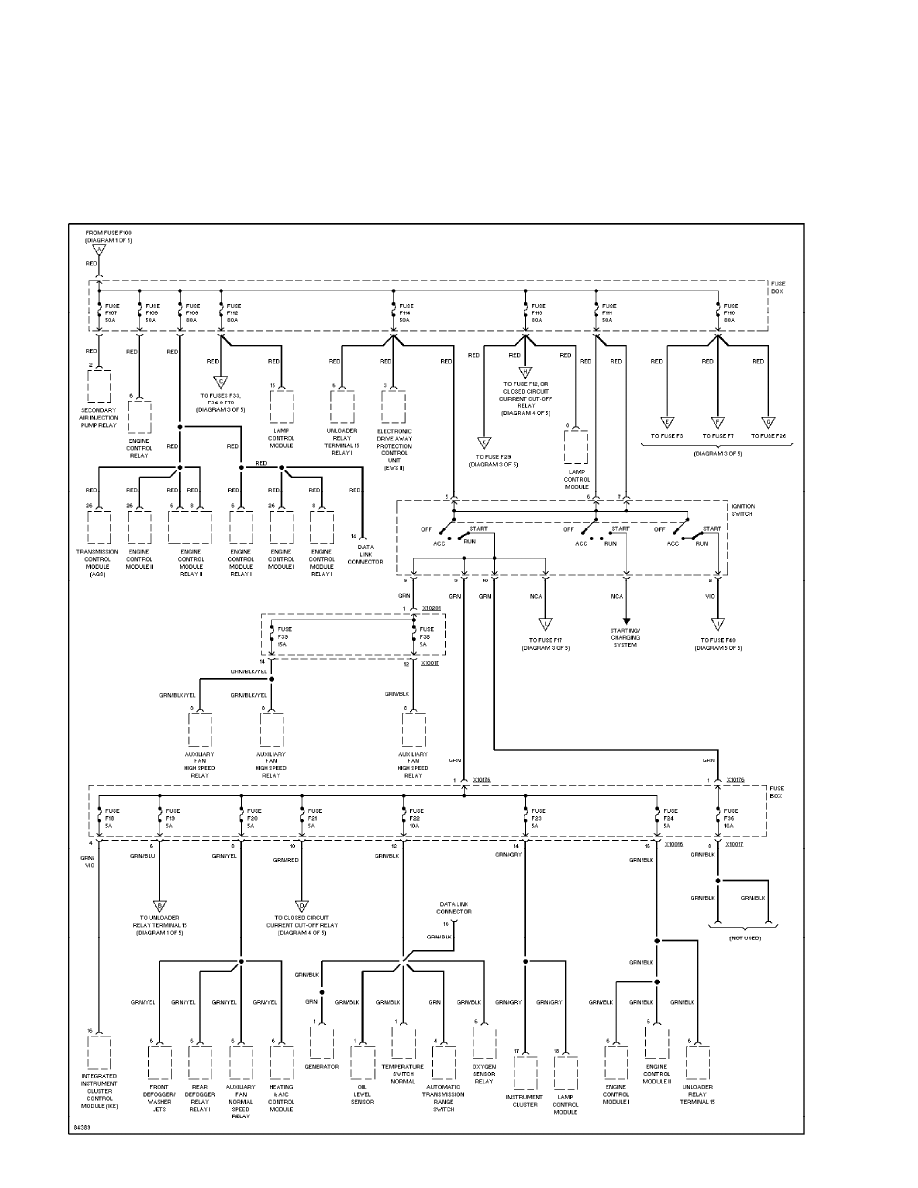

Power Distribution Circuit (2 of 5) (p. 23)

1995 BMW 750iL

For x

Monday, November 08, 2004 11:05PM

SYSTEM WIRING DIAGRAMS

Power Distribution Circuit (3 of 5) (p. 24)

1995 BMW 750iL

For x

Monday, November 08, 2004 11:05PM

SYSTEM WIRING DIAGRAMS

Power Distribution Circuit (4 of 5) (p. 25)

1995 BMW 750iL

For x

Monday, November 08, 2004 11:05PM

SYSTEM WIRING DIAGRAMS

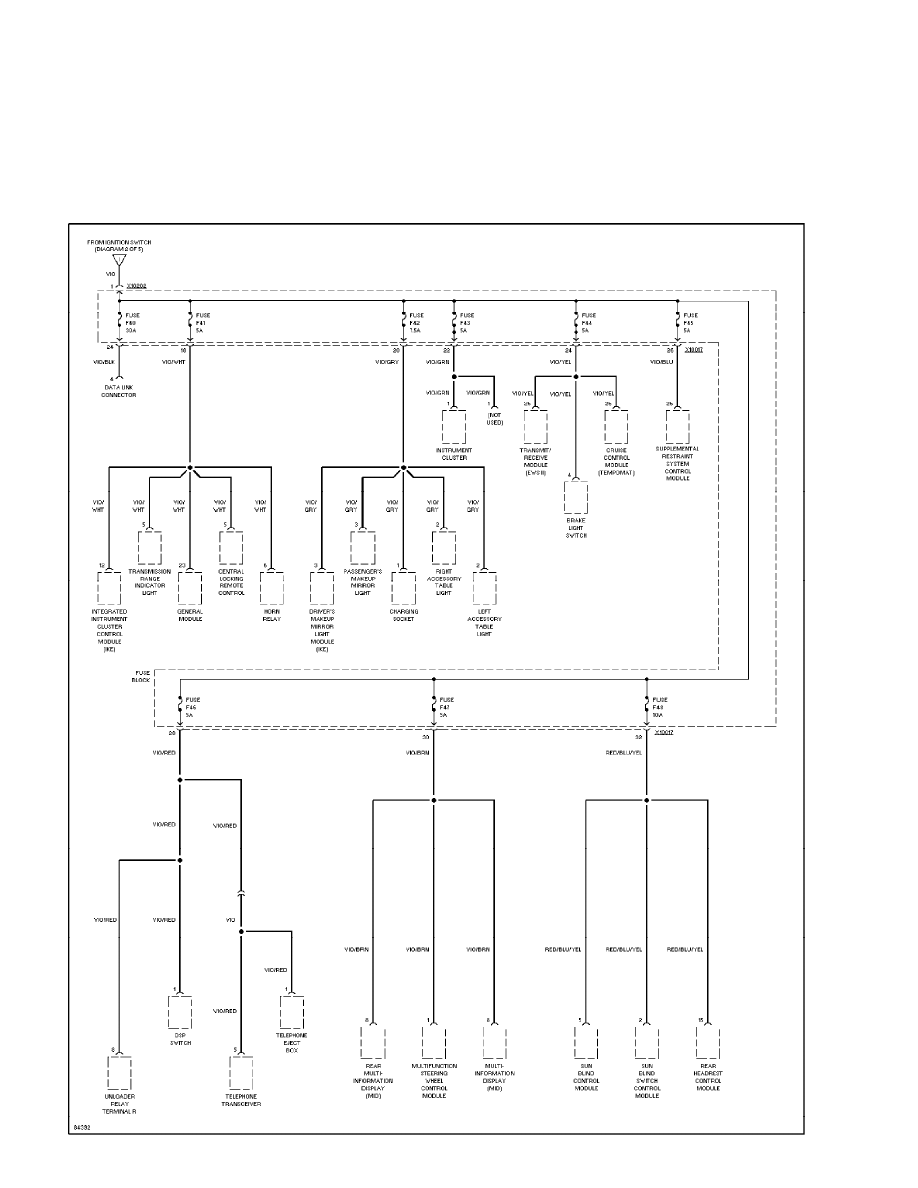

Power Distribution Circuit (5 of 5) (p. 26)

1995 BMW 750iL

For x

Monday, November 08, 2004 11:05PM

SYSTEM WIRING DIAGRAMS

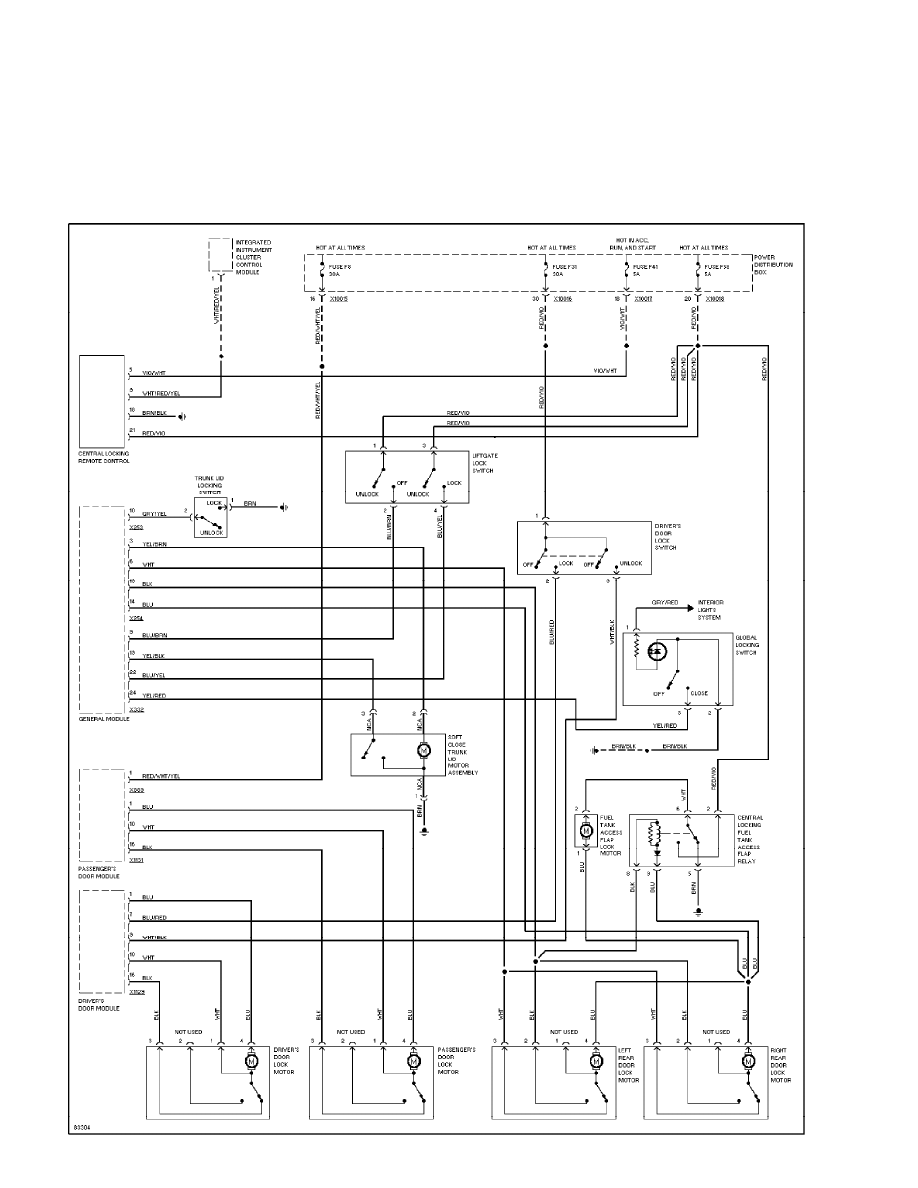

Power Door Lock Circuit (p. 27)

1995 BMW 750iL

For x

Monday, November 08, 2004 11:05PM

SYSTEM WIRING DIAGRAMS

Electrochromic Mirror Circuit (p. 28)

1995 BMW 750iL

For x

Monday, November 08, 2004 11:05PM

SYSTEM WIRING DIAGRAMS

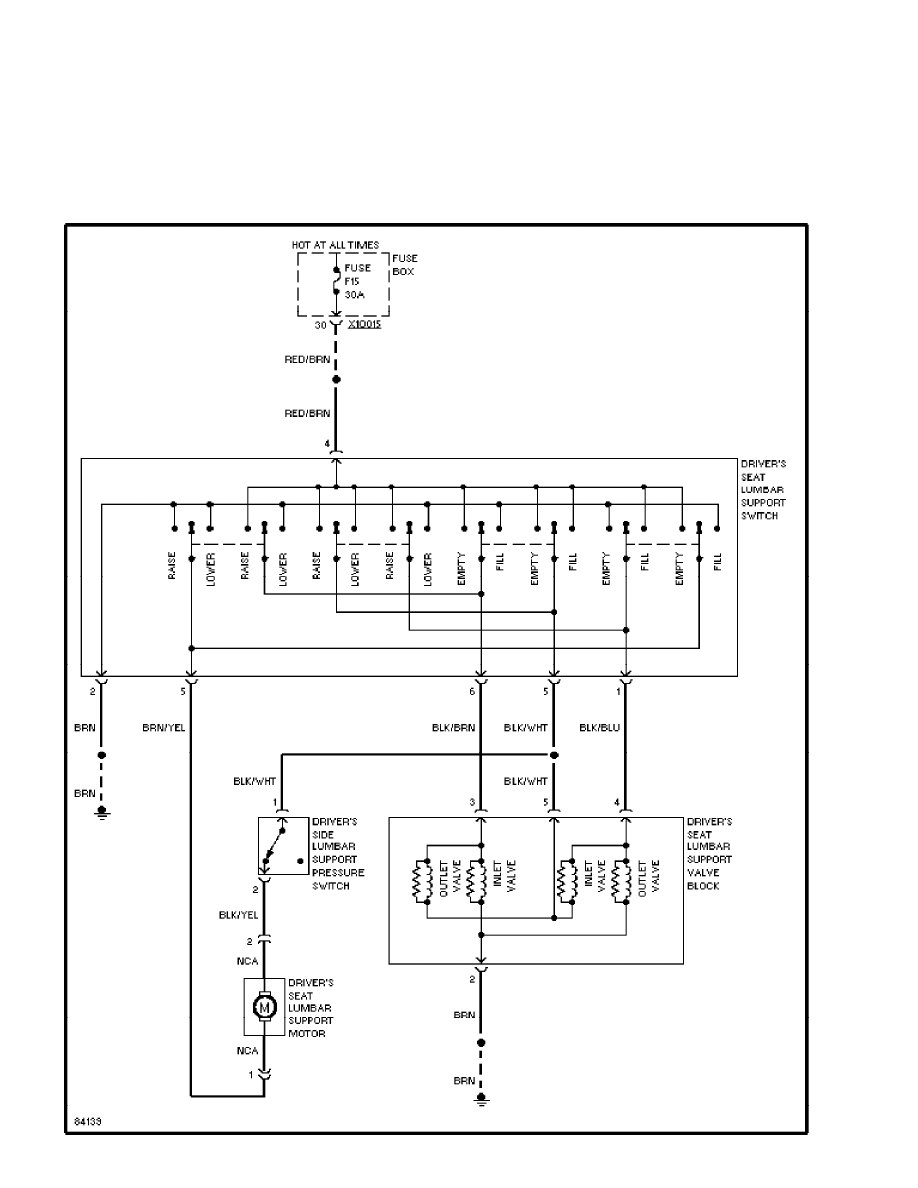

Driver's Lumbar Circuit (p. 29)

1995 BMW 750iL

For x

Monday, November 08, 2004 11:05PM

SYSTEM WIRING DIAGRAMS

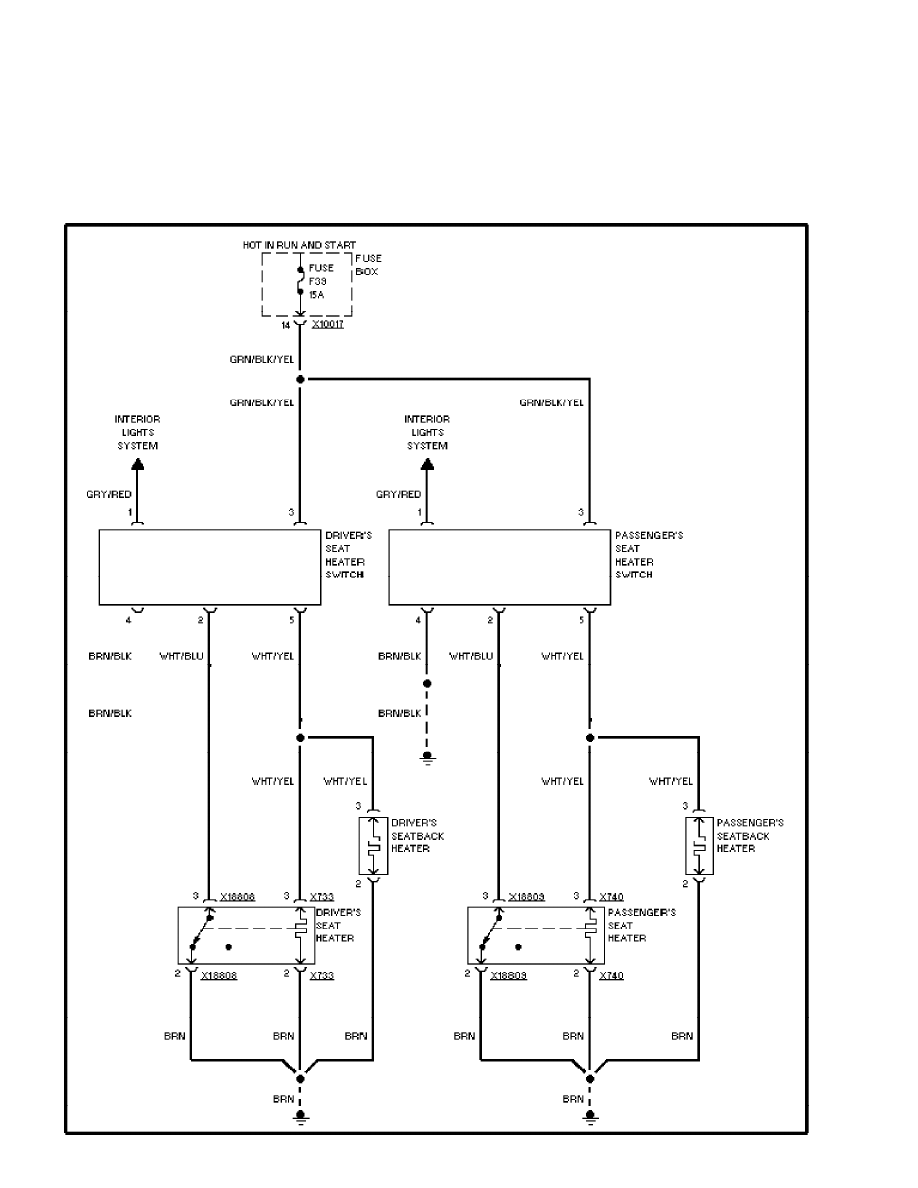

Front Seat Heater Circuit (p. 30)

1995 BMW 750iL

For x

Monday, November 08, 2004 11:05PM

SYSTEM WIRING DIAGRAMS

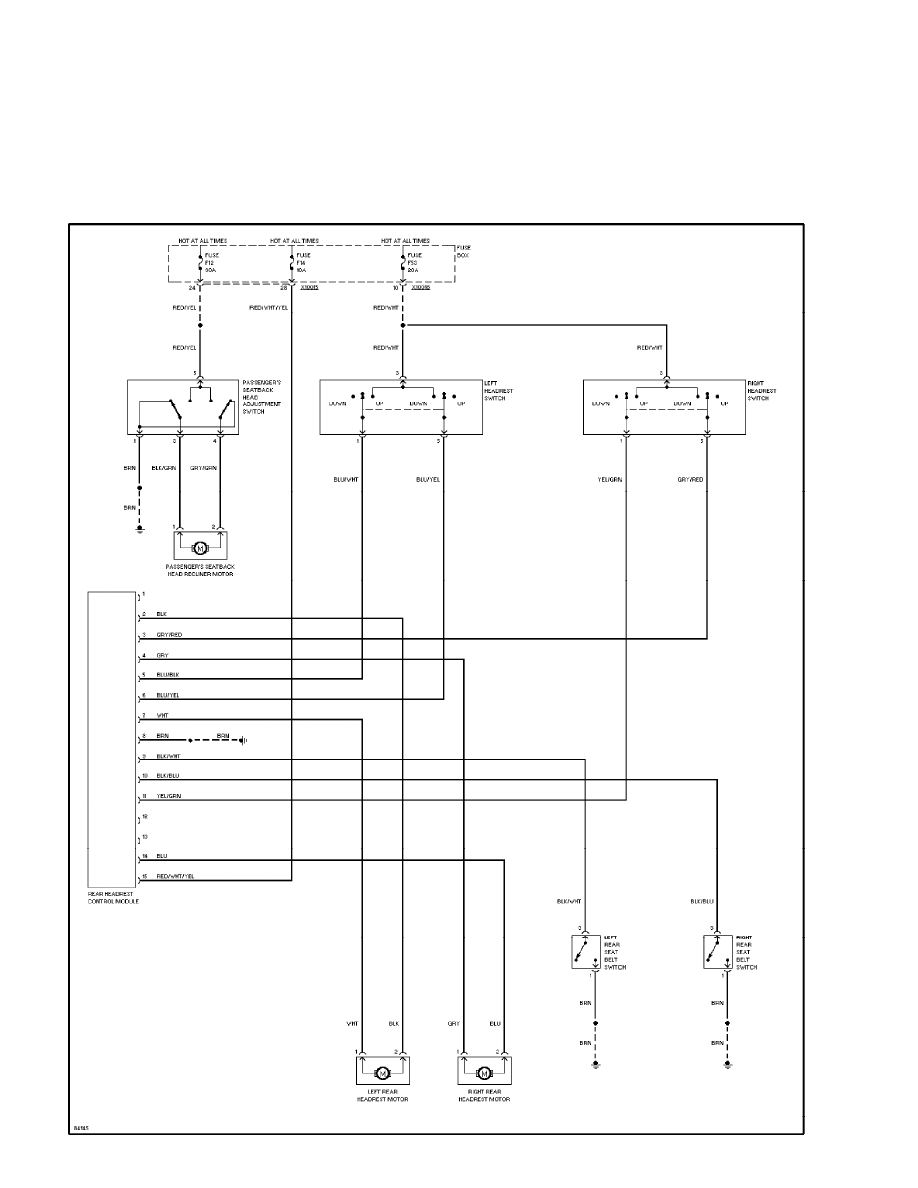

Headrest Circuit (p. 31)

1995 BMW 750iL

For x

Monday, November 08, 2004 11:05PM

SYSTEM WIRING DIAGRAMS

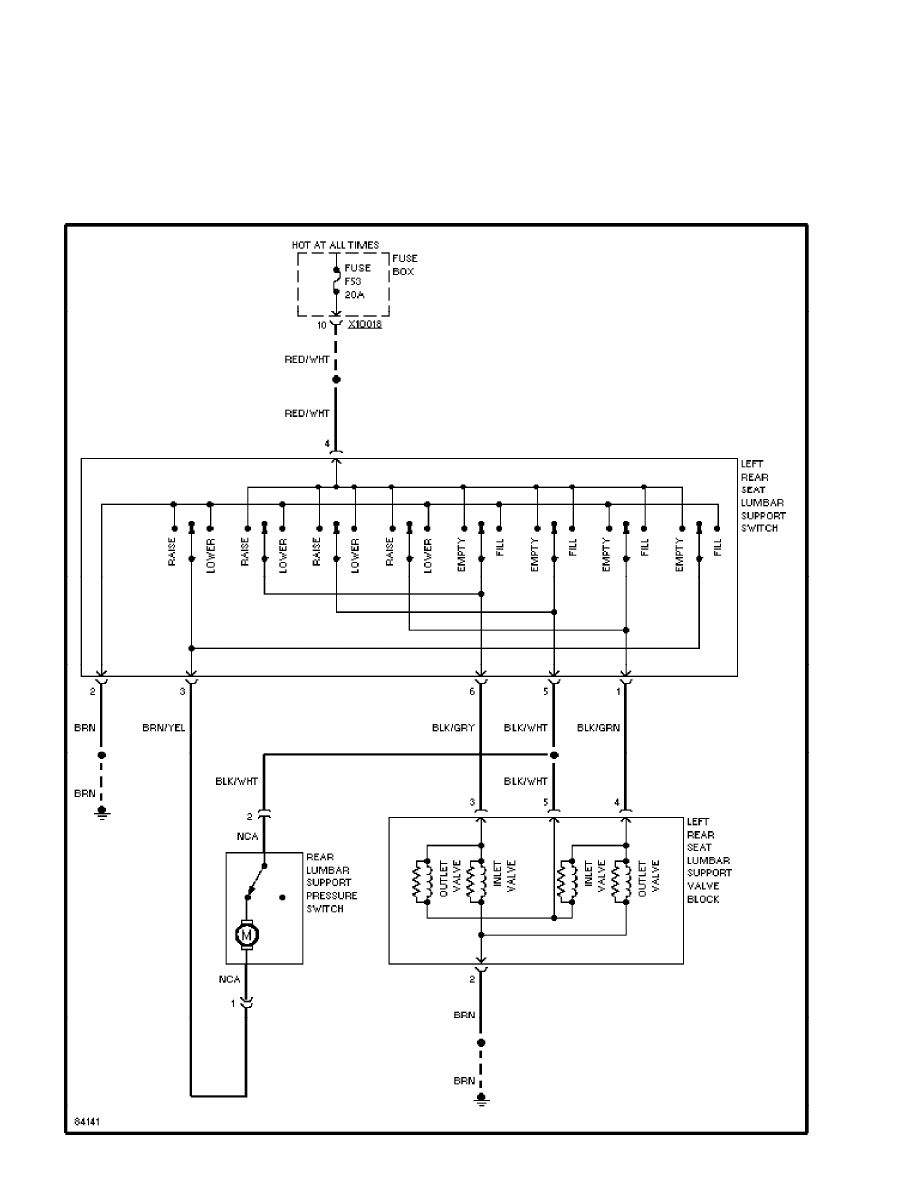

Left Rear Lumbar Circuit (p. 32)

1995 BMW 750iL

For x

Monday, November 08, 2004 11:05PM

SYSTEM WIRING DIAGRAMS

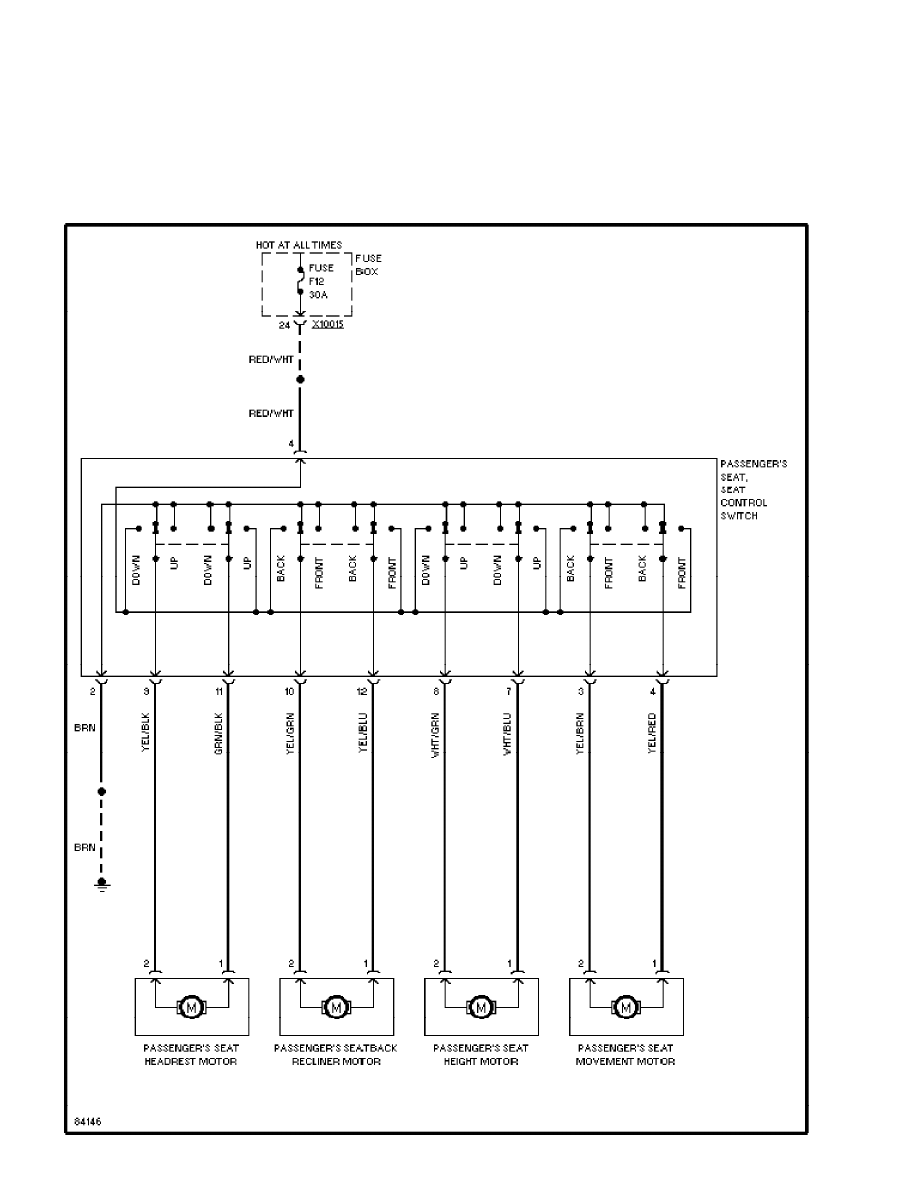

Passenger Seat Circuit (1 of 2) (p. 33)

1995 BMW 750iL

For x

Monday, November 08, 2004 11:05PM

SYSTEM WIRING DIAGRAMS

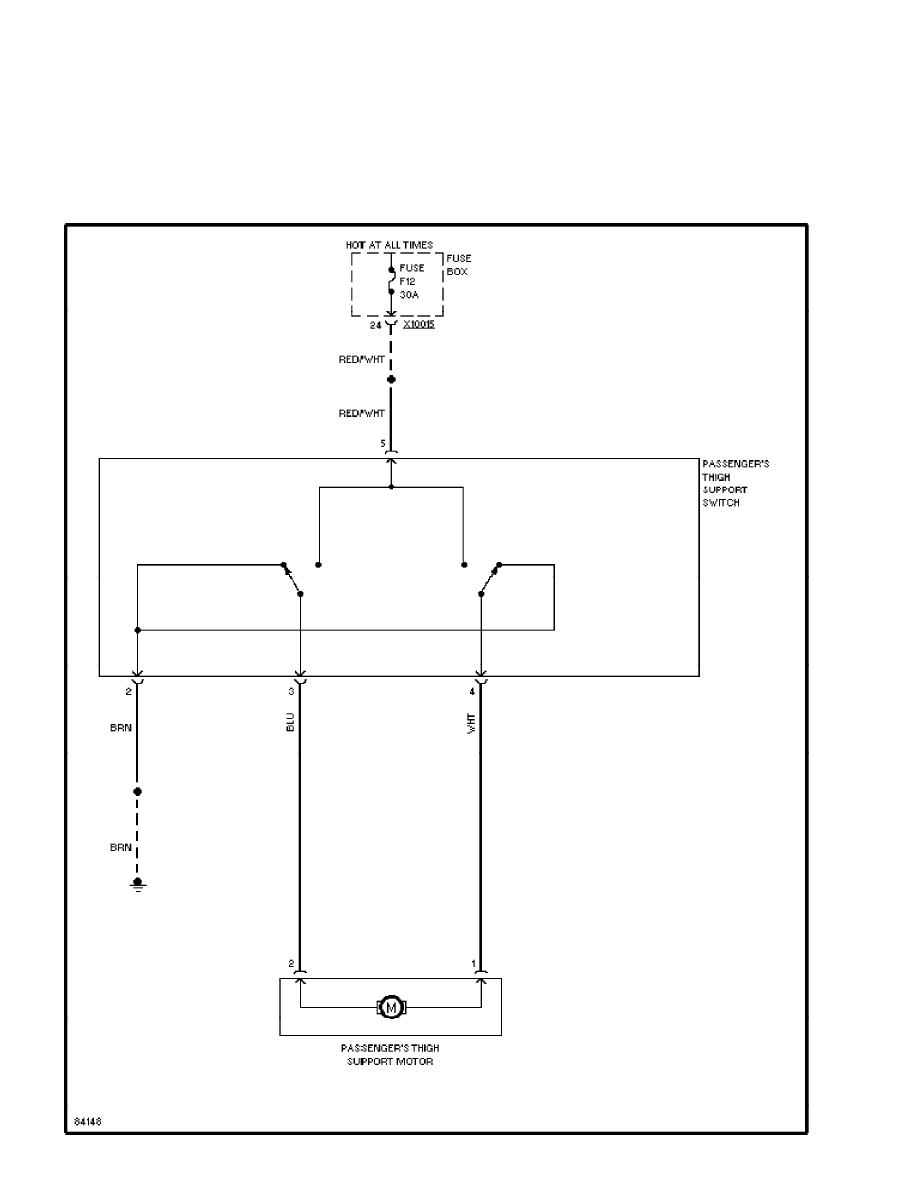

Passenger Seat Circuit (2 of 2) (p. 34)

1995 BMW 750iL

For x

Monday, November 08, 2004 11:05PM

SYSTEM WIRING DIAGRAMS

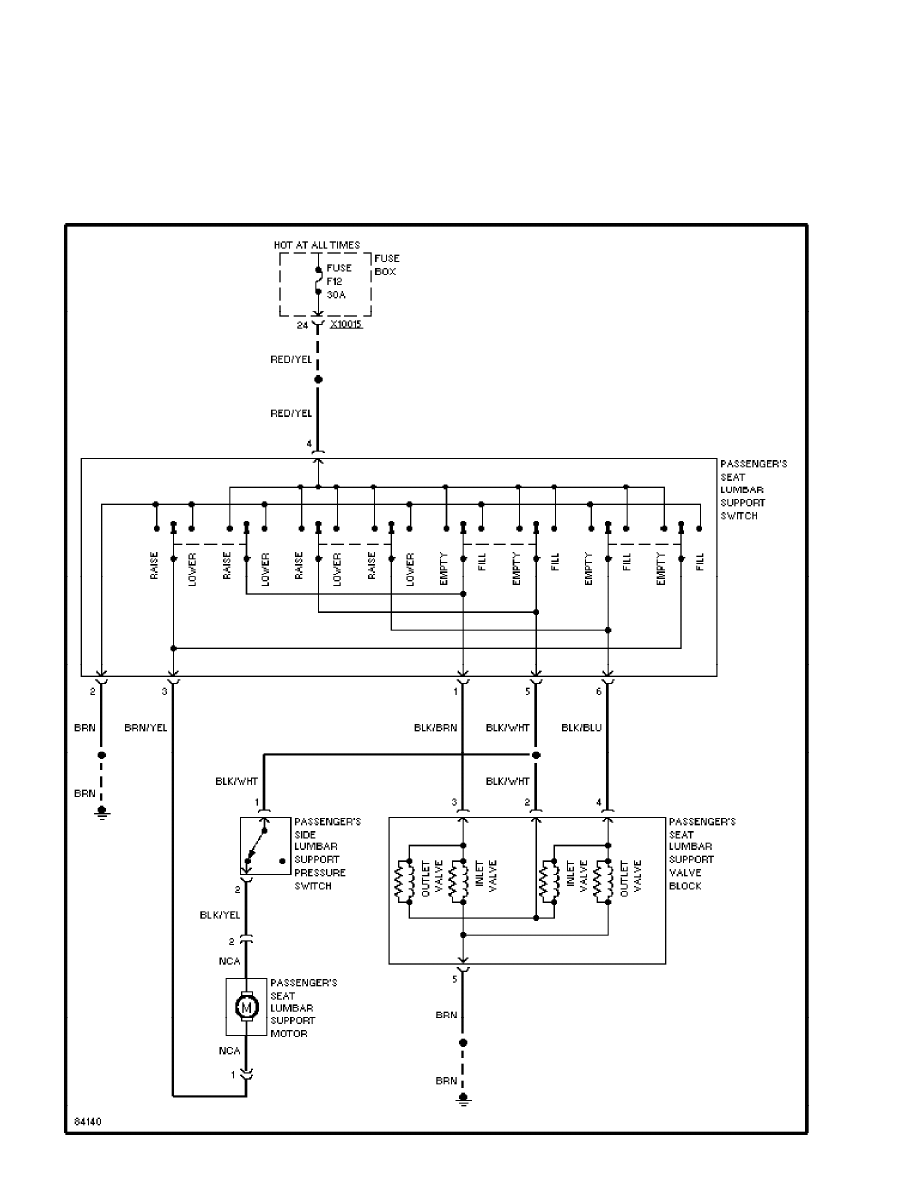

Passenger's Lumbar Circuit (p. 35)

1995 BMW 750iL

For x

Monday, November 08, 2004 11:05PM

SYSTEM WIRING DIAGRAMS

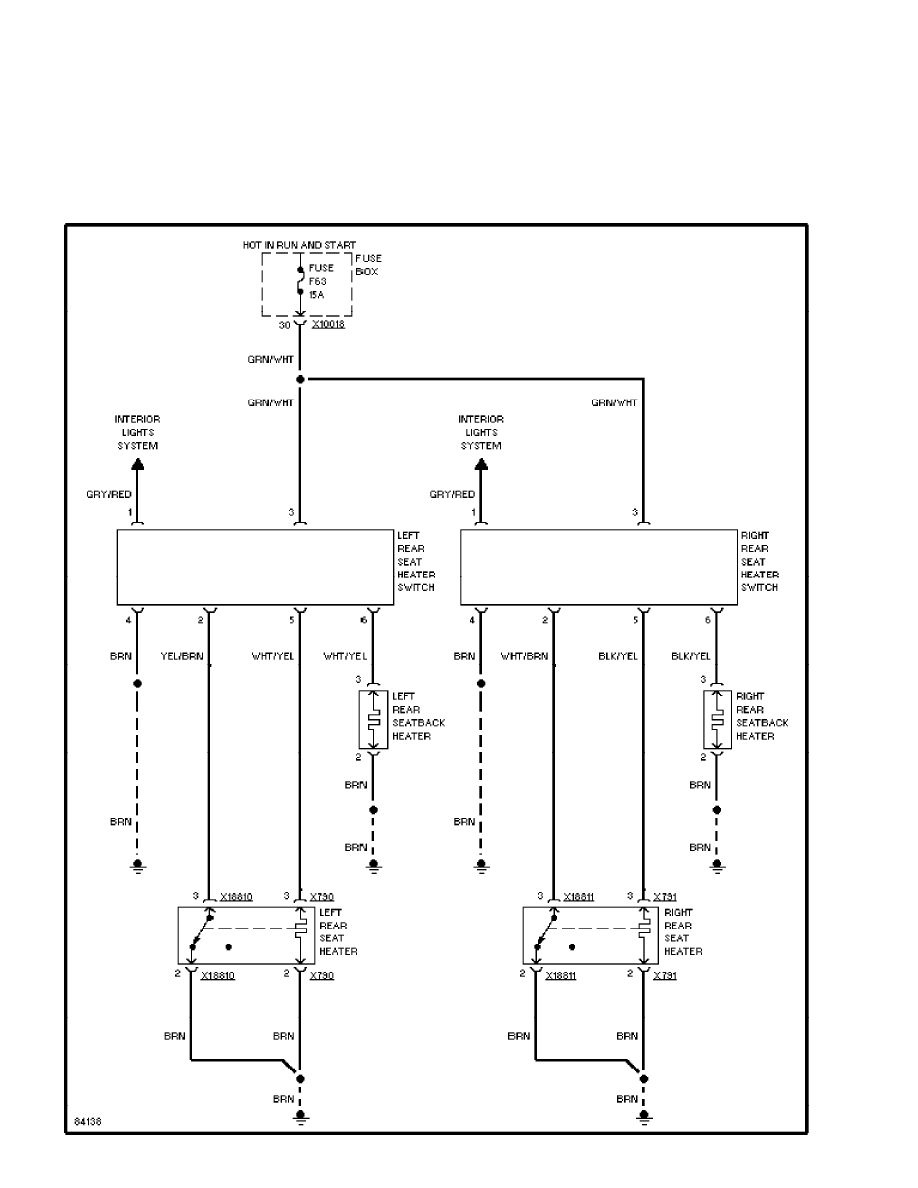

Rear Seat Heater Circuit (p. 36)

1995 BMW 750iL

For x

Monday, November 08, 2004 11:05PM

SYSTEM WIRING DIAGRAMS

Right Rear Lumbar Circuit (p. 37)

1995 BMW 750iL

For x

Monday, November 08, 2004 11:05PM

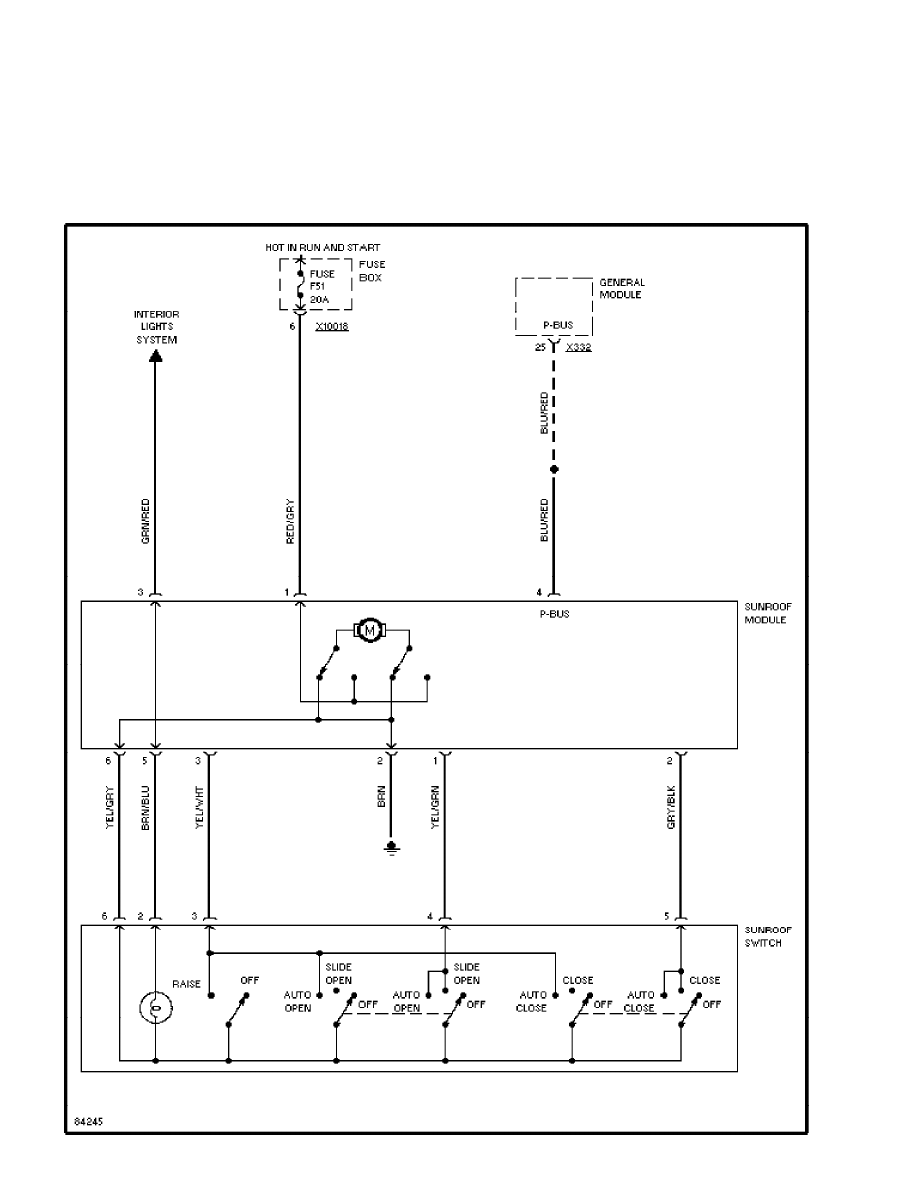

SYSTEM WIRING DIAGRAMS

Sunroof Circuit (p. 38)

1995 BMW 750iL

For x

Monday, November 08, 2004 11:05PM

SYSTEM WIRING DIAGRAMS

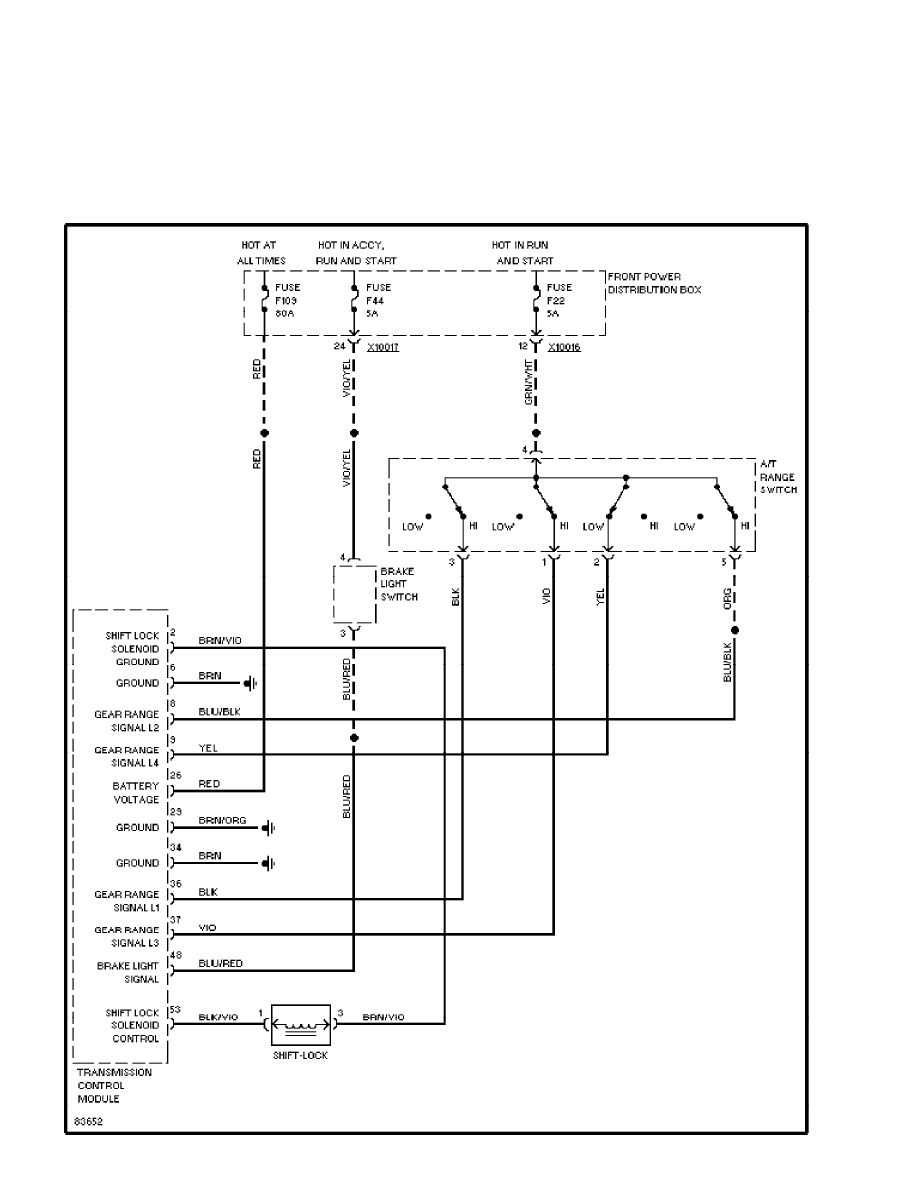

Shift Interlock Circuit (p. 39)

1995 BMW 750iL

For x

Monday, November 08, 2004 11:05PM

SYSTEM WIRING DIAGRAMS

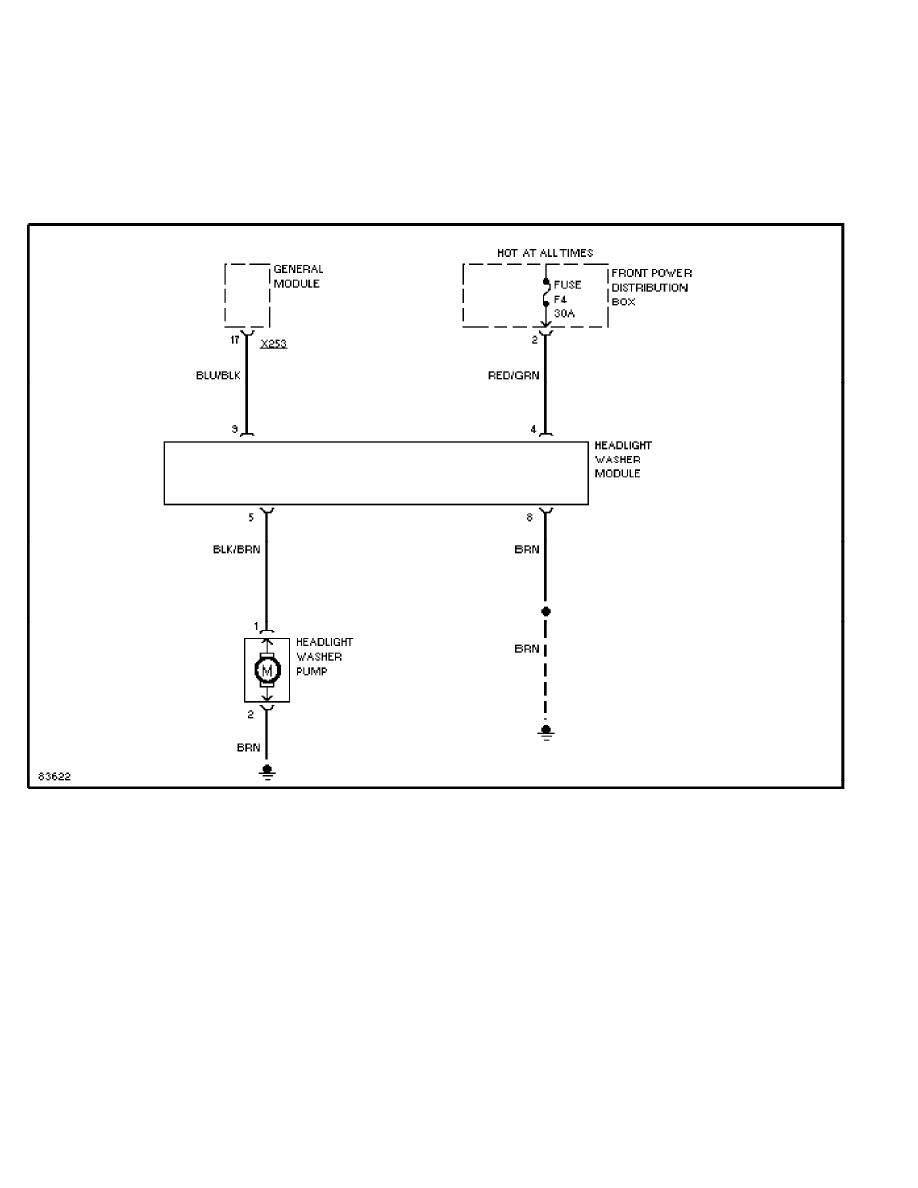

Headlamp Washer Circuit (p. 40)

1995 BMW 750iL

For x

Monday, November 08, 2004 11:05PM

SYSTEM WIRING DIAGRAMS

Heated Windshield Washer Circuit (p. 41)

1995 BMW 750iL

For x

Monday, November 08, 2004 11:05PM

SYSTEM WIRING DIAGRAMS

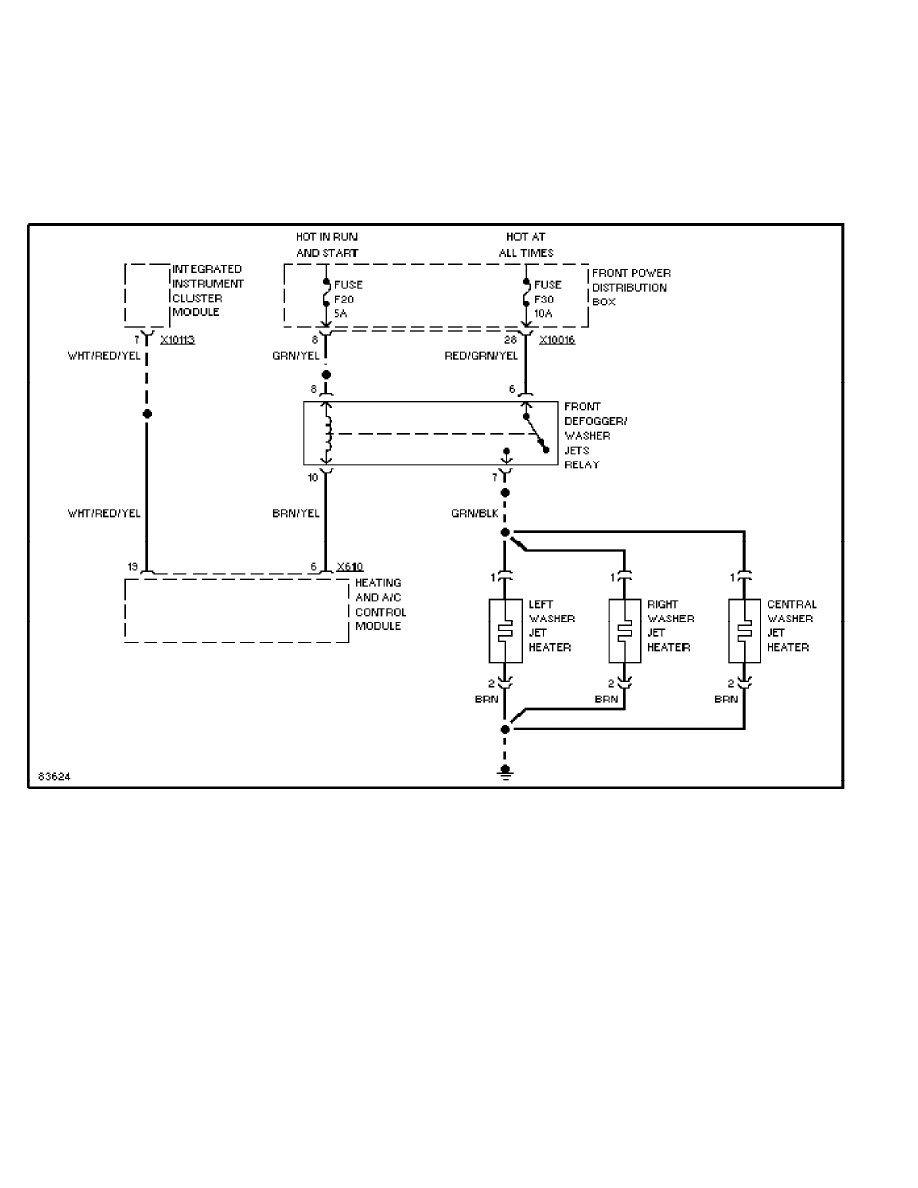

Jet Heater Circuit (p. 42)

1995 BMW 750iL

For x

Monday, November 08, 2004 11:05PM

SYSTEM WIRING DIAGRAMS

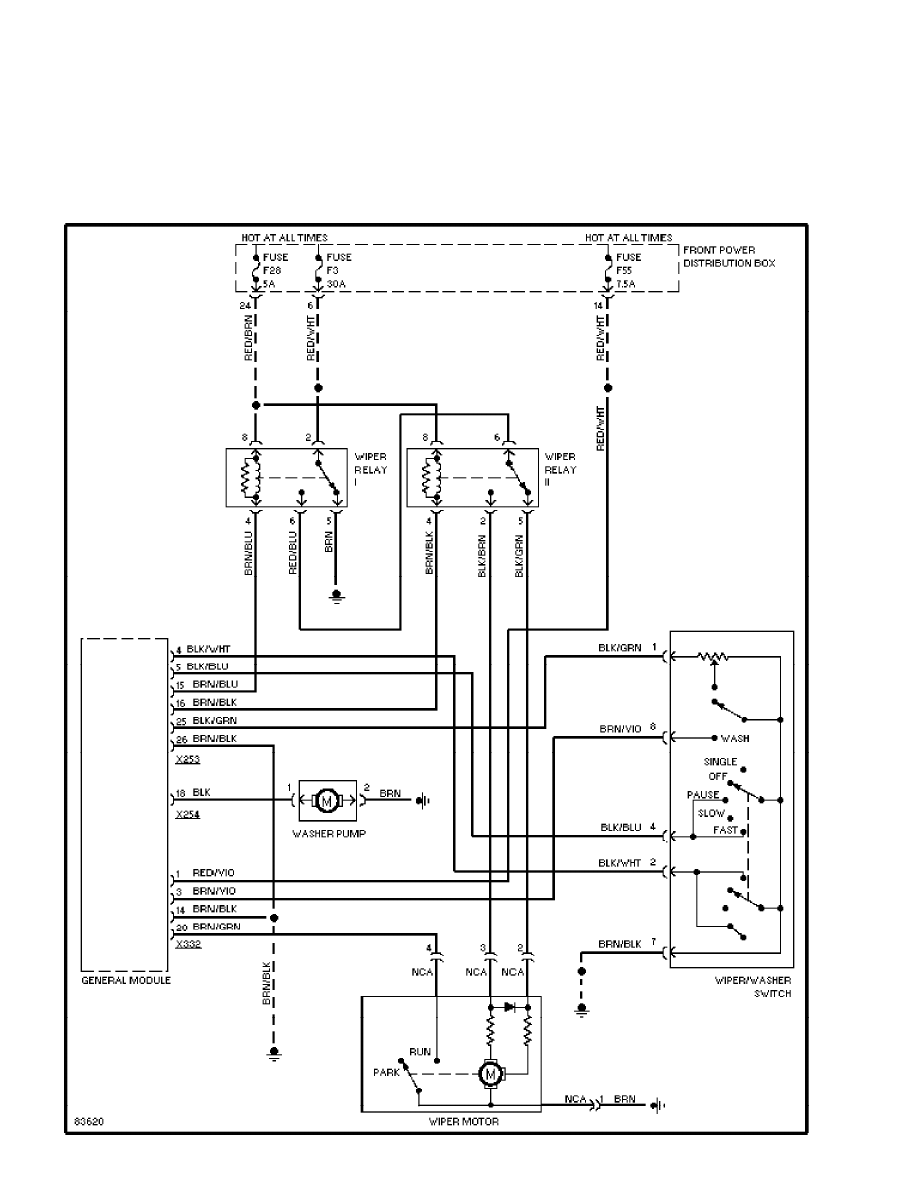

Wiper/Washer Circuit (p. 43)

1995 BMW 750iL

For x

Monday, November 08, 2004 11:05PM
