DUAL BAND Mobile
Cellular Phone

SGH-T500

Manual

DUAL BAND MOBILE CELLULAR PHONE

CONTENTS

1. Exploded Views and Parts List

2. PCB Diagrams

3. Electrical Parts List

4. Block Diagrams

5. Flow Chart of Troubleshooting and

Circuit Diagrams

background image

1. Exploded Views and Parts List

1-1

Main

1-2

Main Parts List

1-3

Travel Adapter

1-4

Travel Adapter Parts List

1-5

Ciger Light Adapter

1-6

Ciger Light Adapter Parts List

1-7

Test Jig

1-8 EAR Microphone
1-9

Data Kit

1-10

Battery Charger

2. PCB Diagrams

2-1

Main Top

2-2

Main Bottom

3. Electrical Parts List

3-1

Main Parts List Top

3-2

Main Parts List Bottom

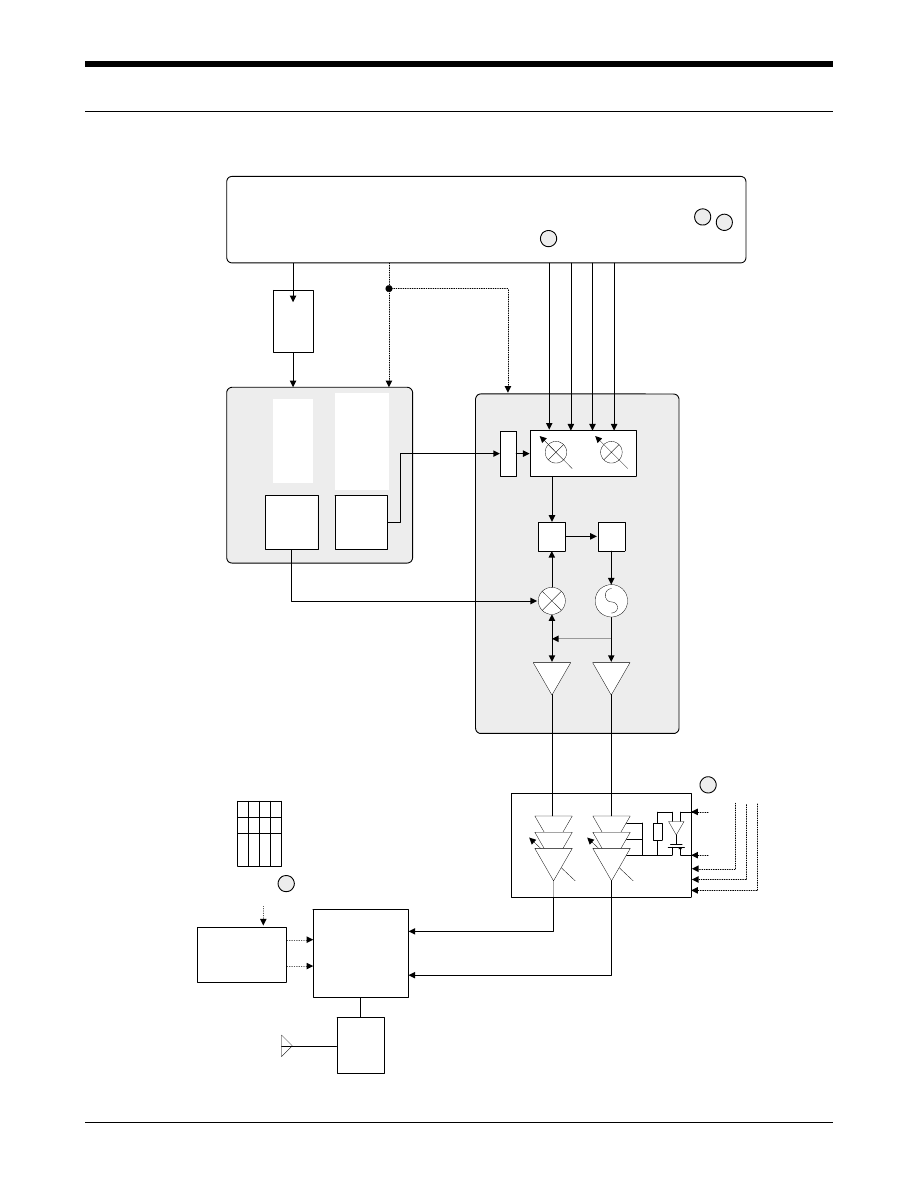

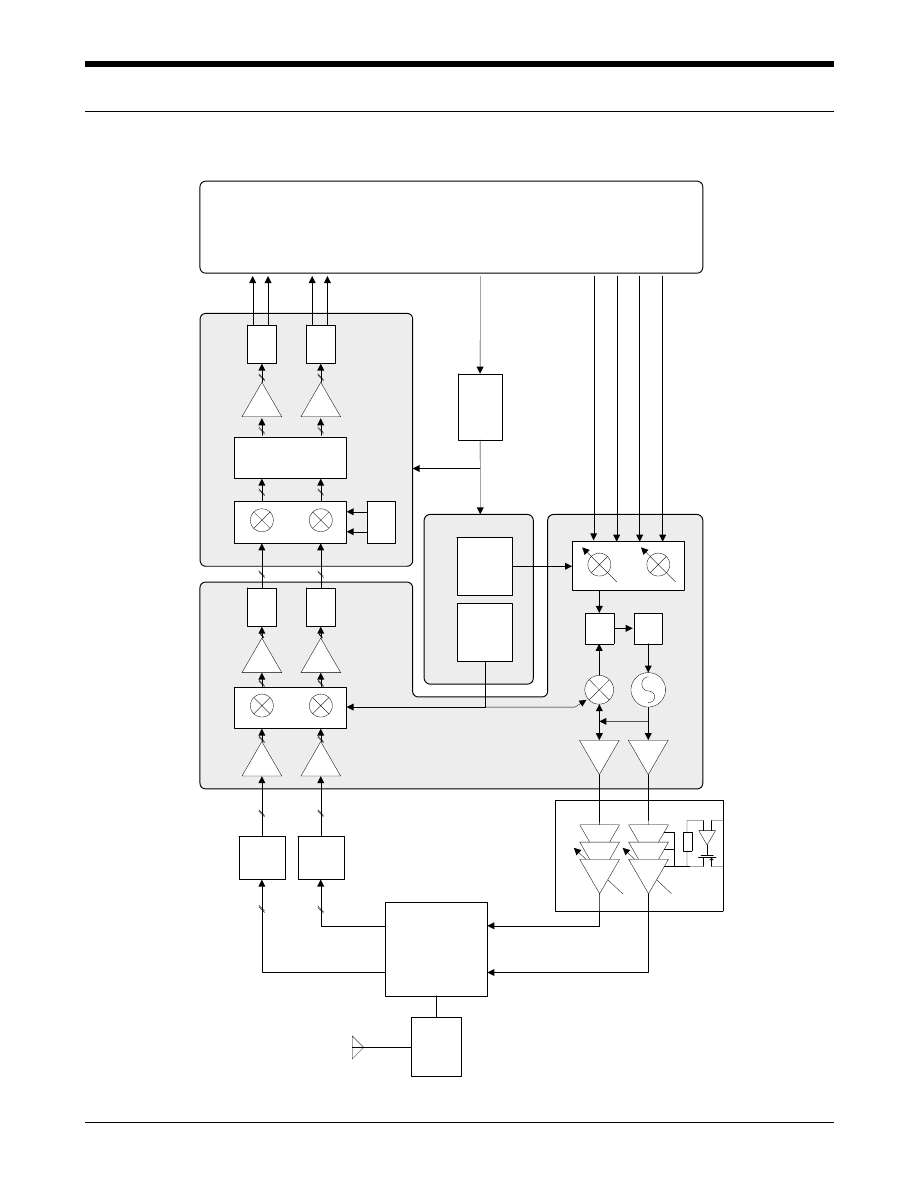

4. Block Diagrams

4-1

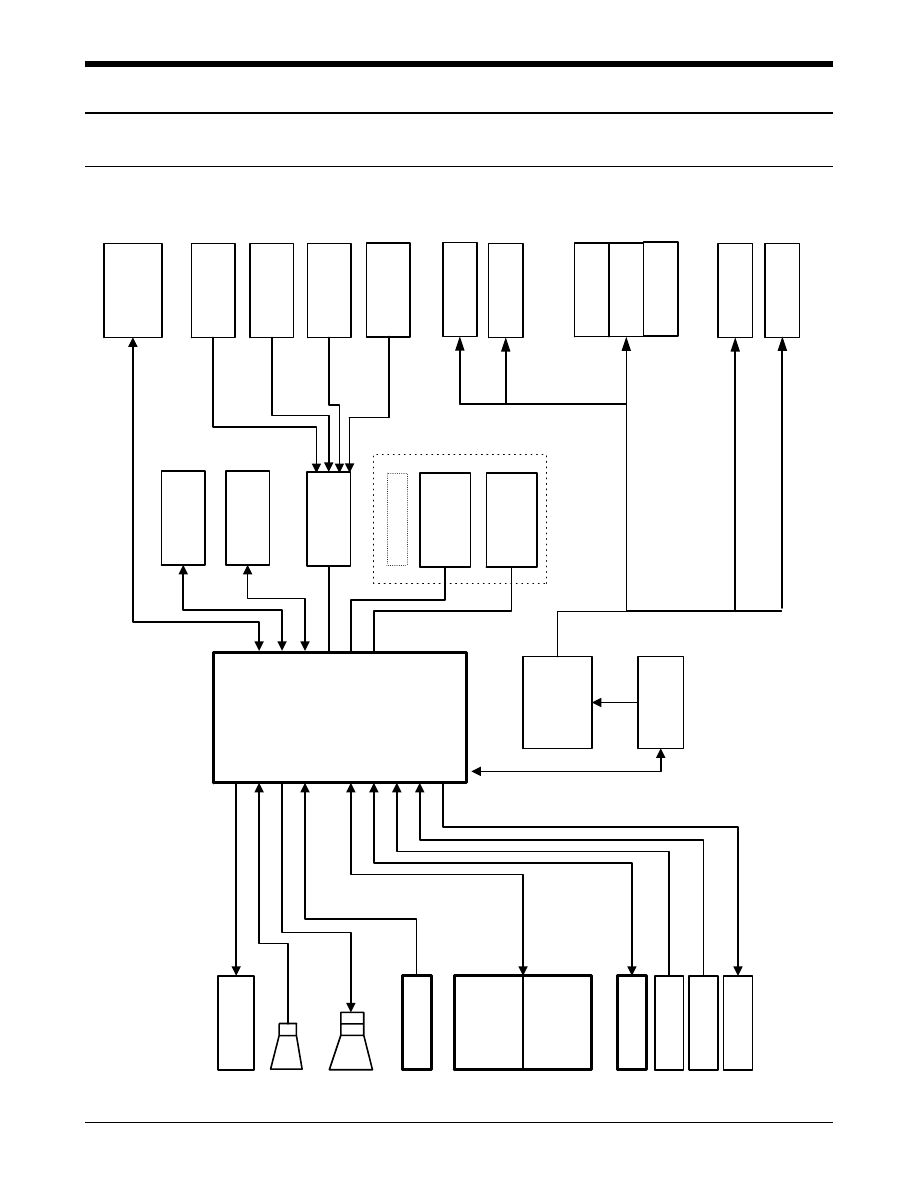

Main Baseband

4-2

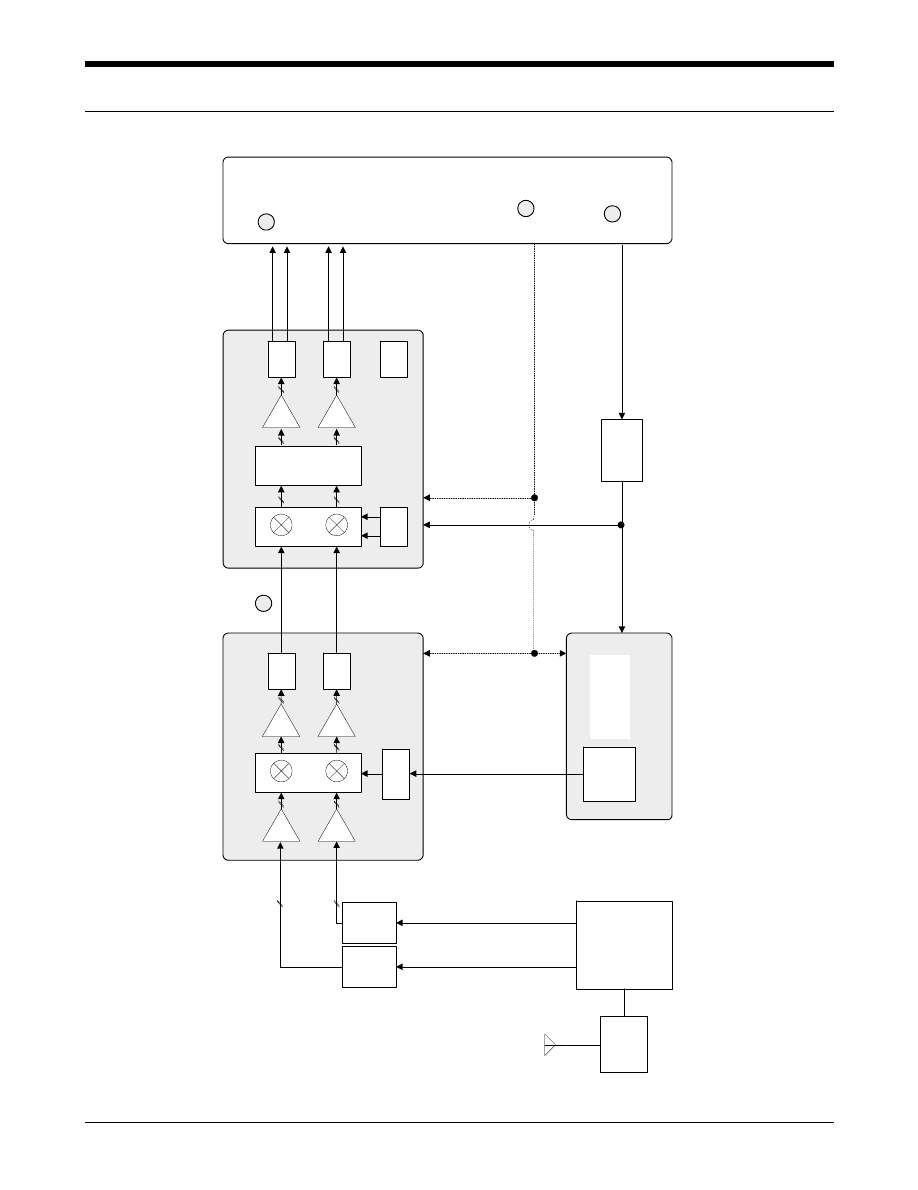

Main RF
4-2-1

RF Transmit Part

4-2-2

RF Receive Part

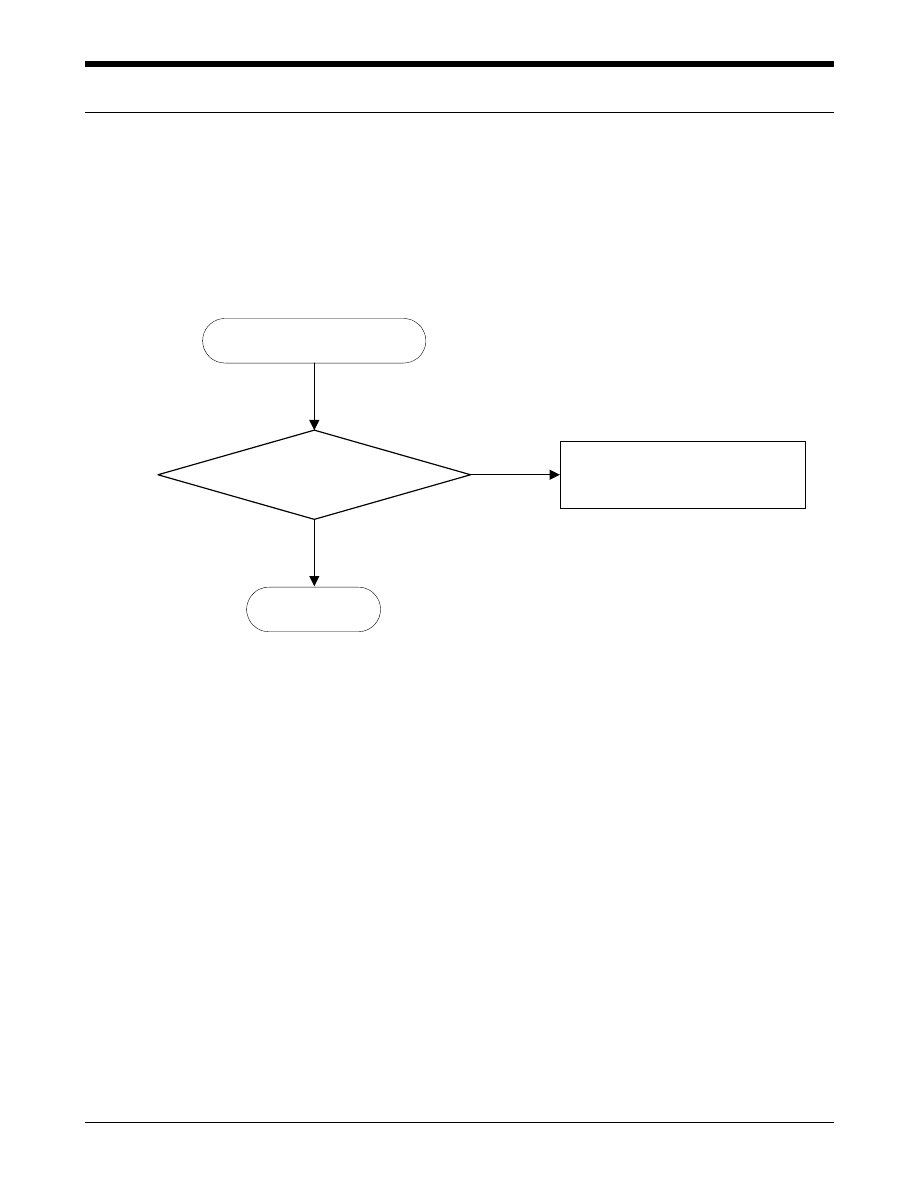

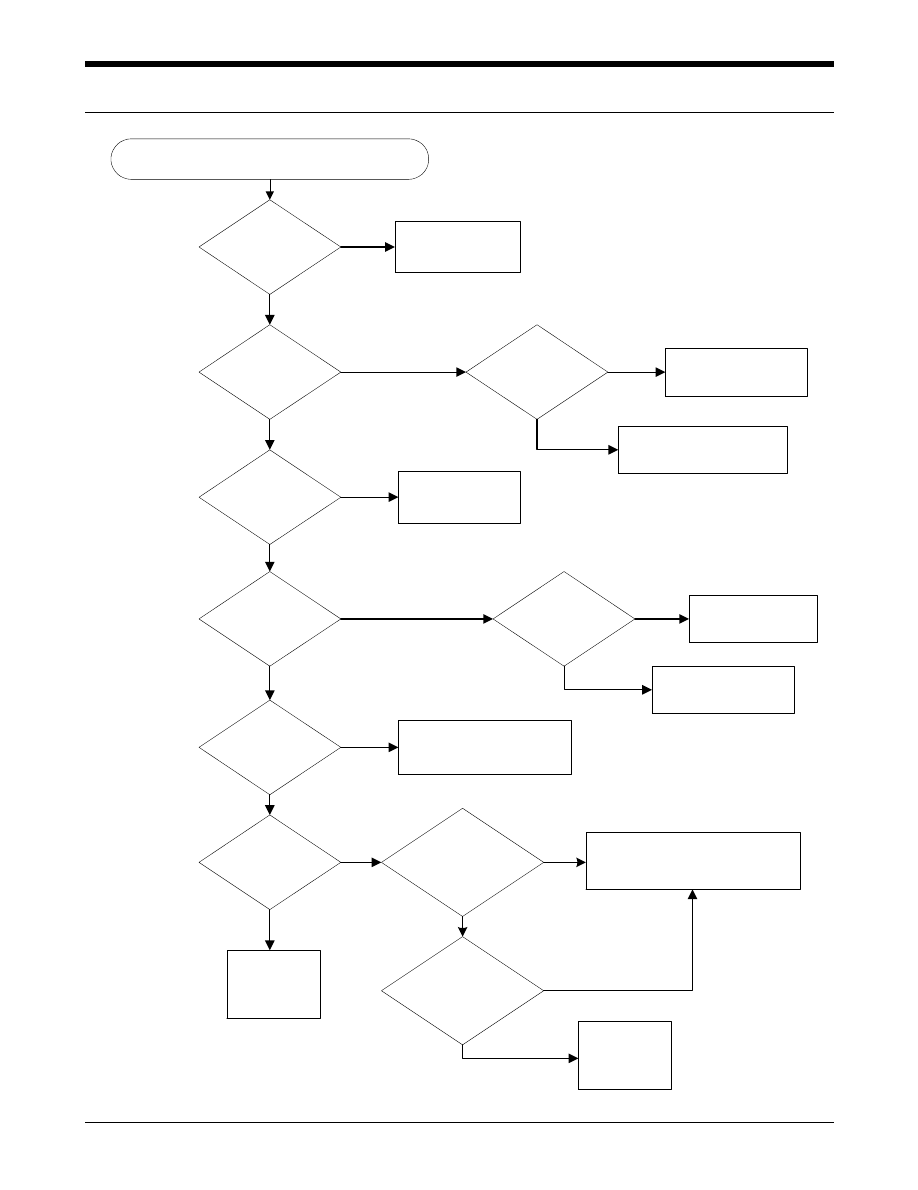

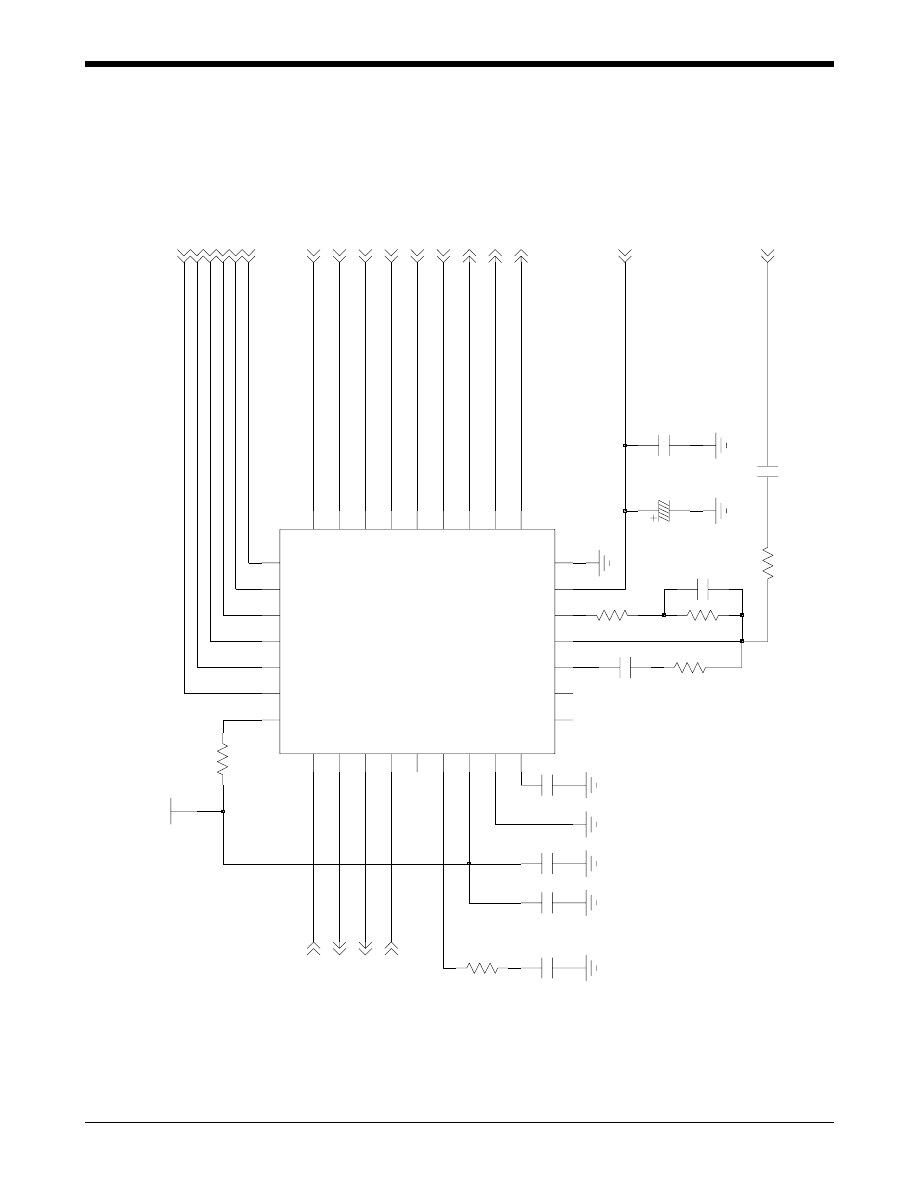

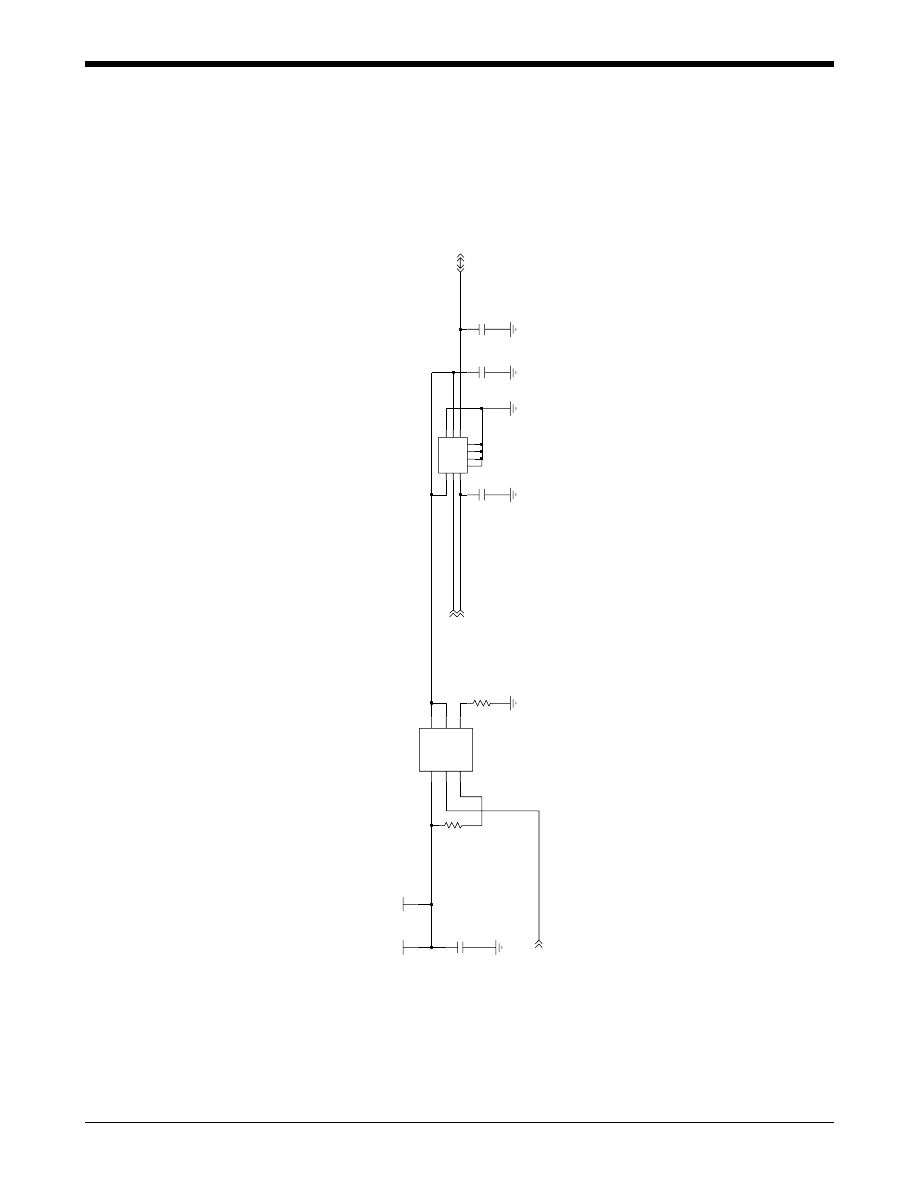

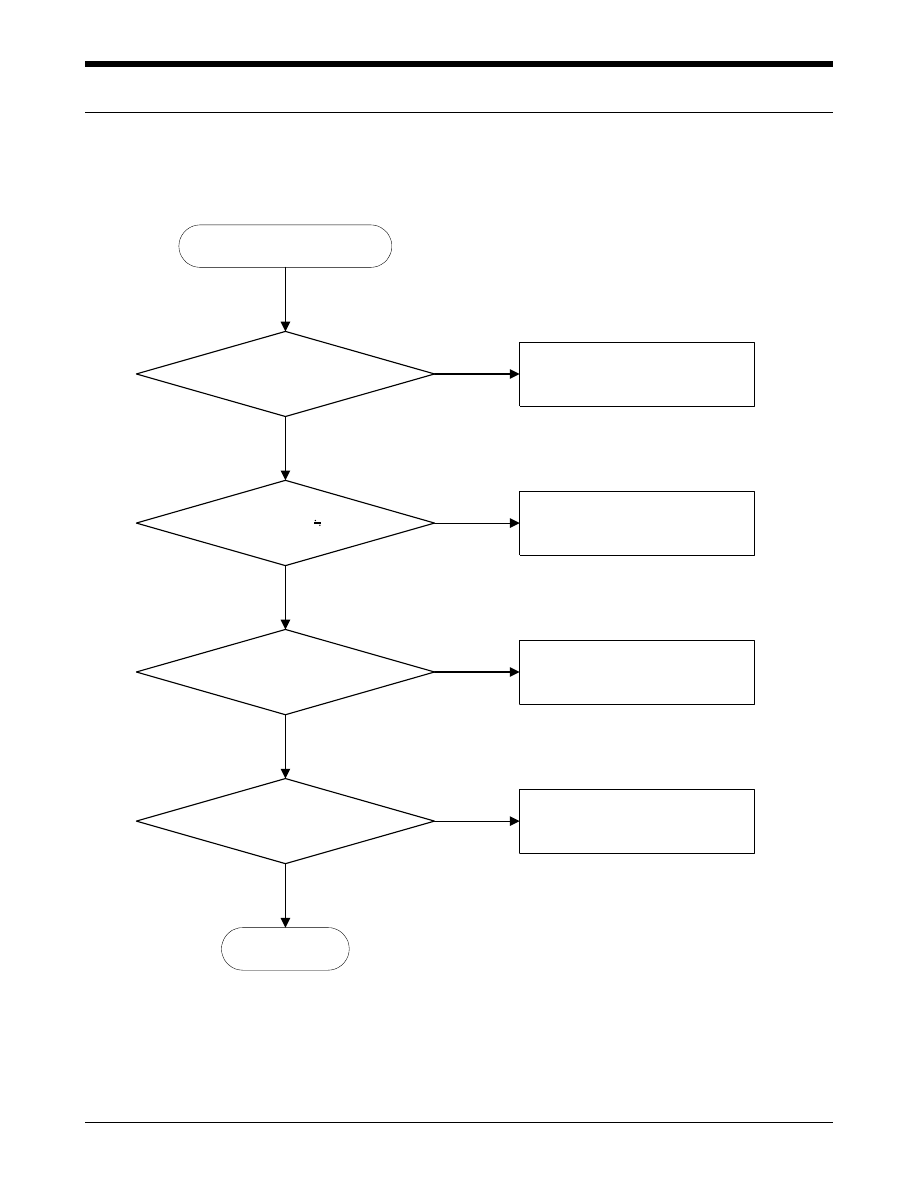

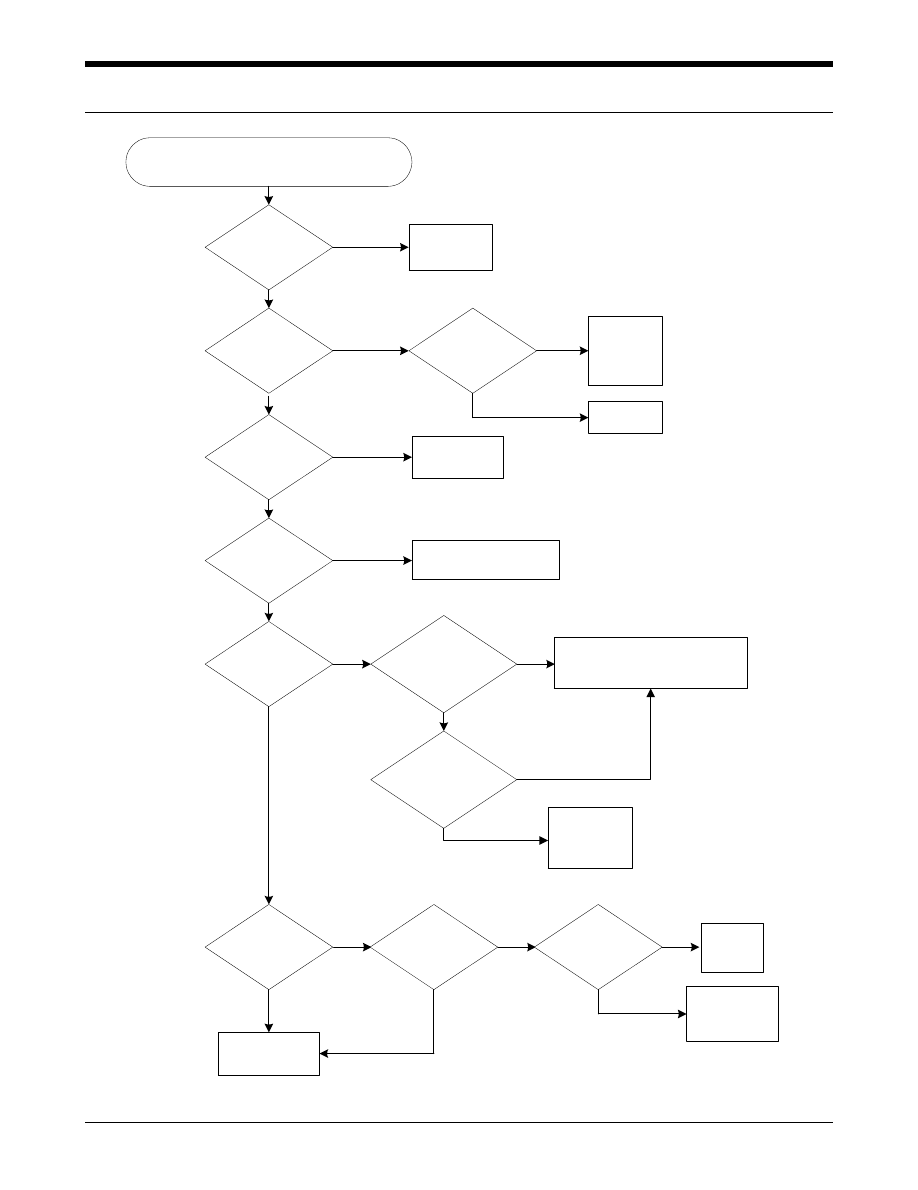

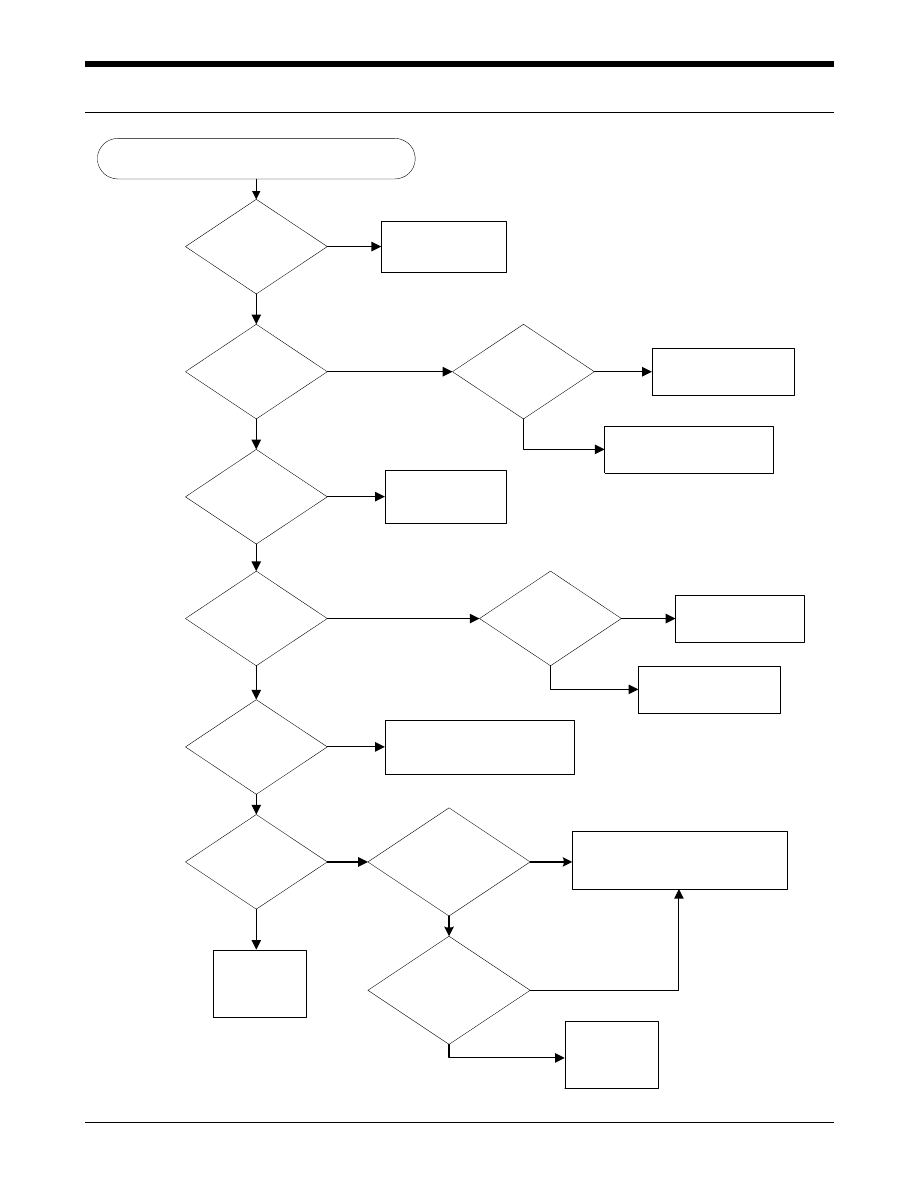

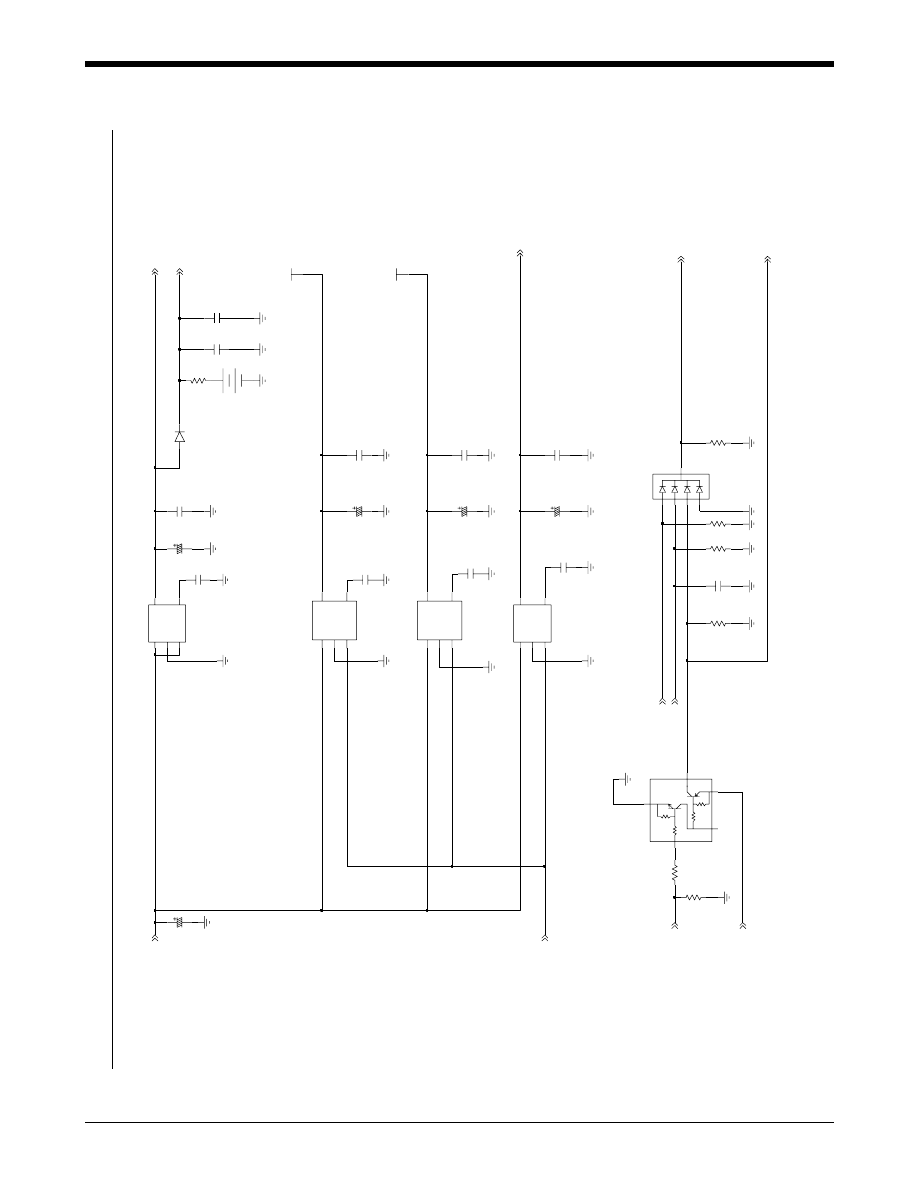

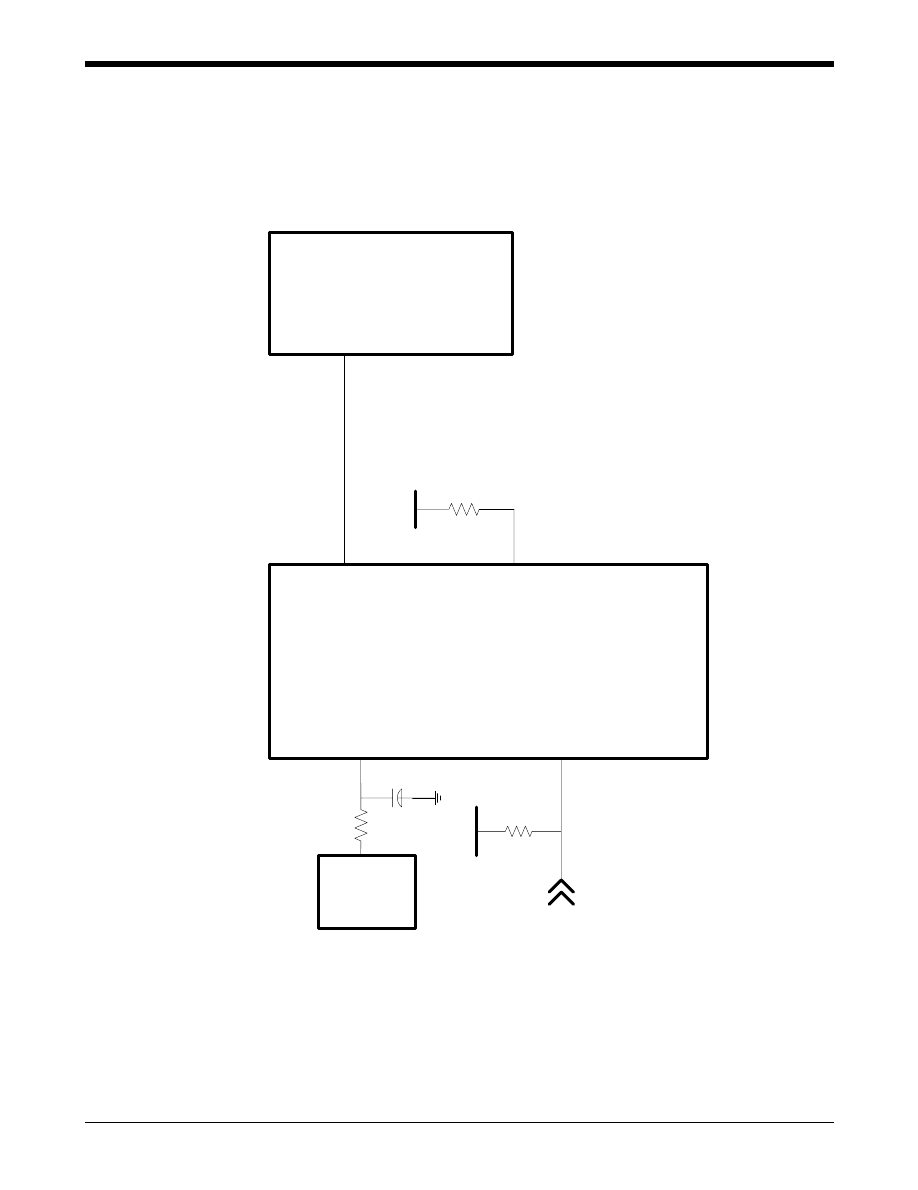

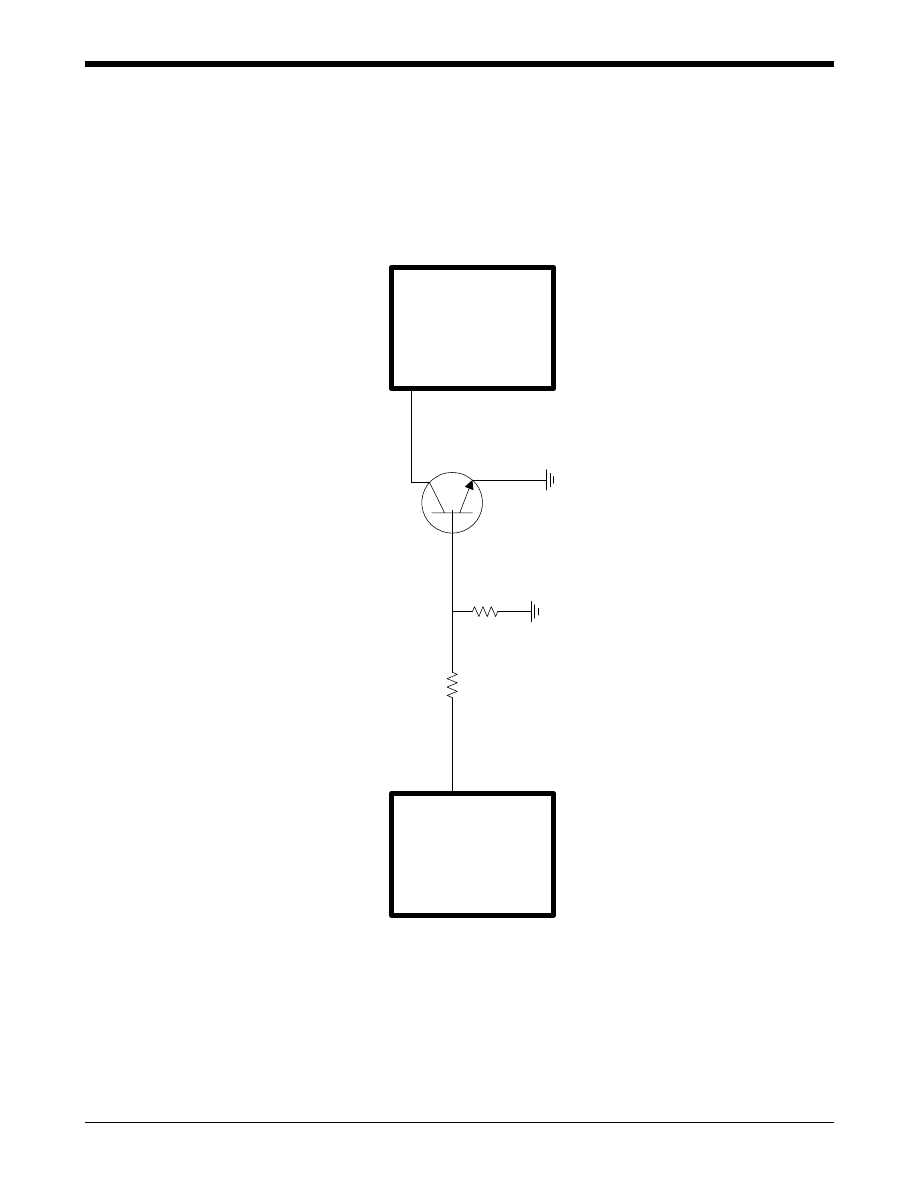

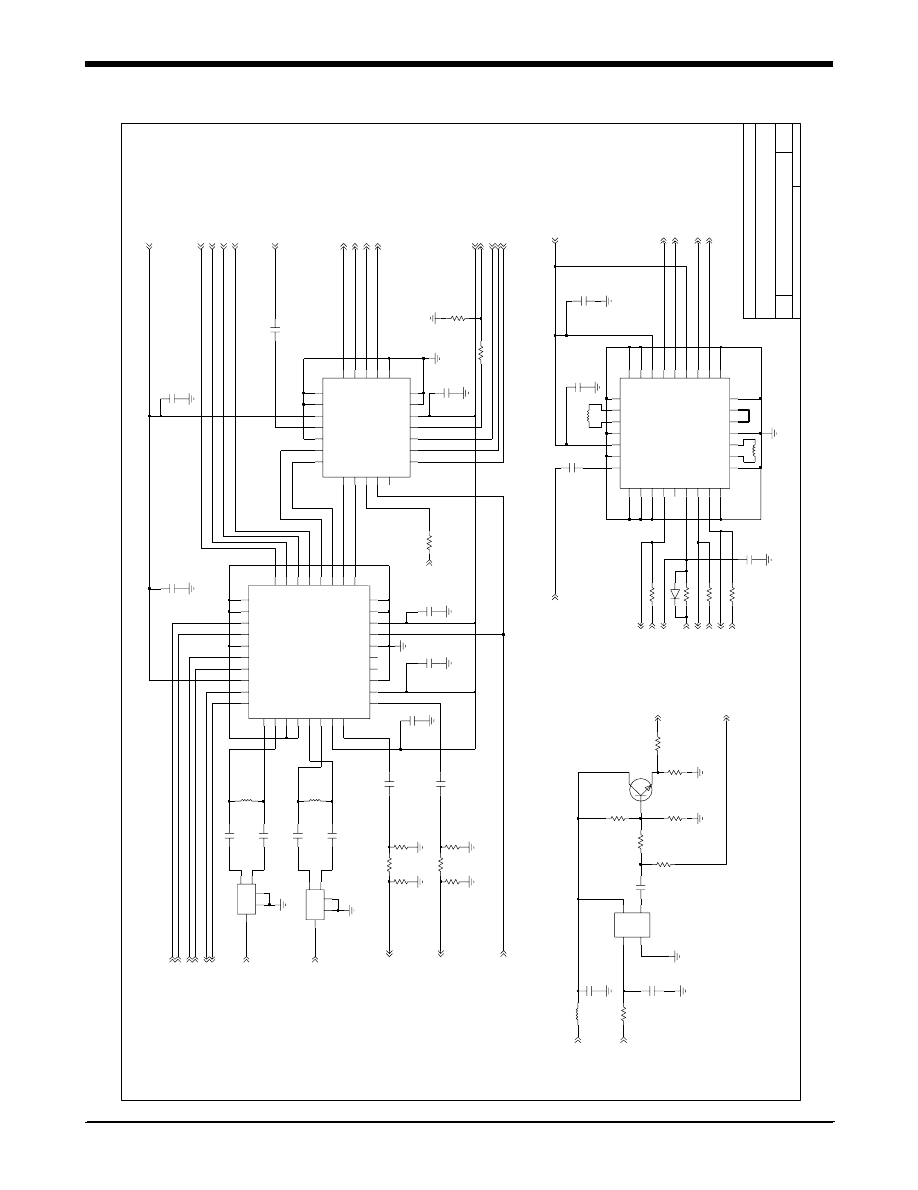

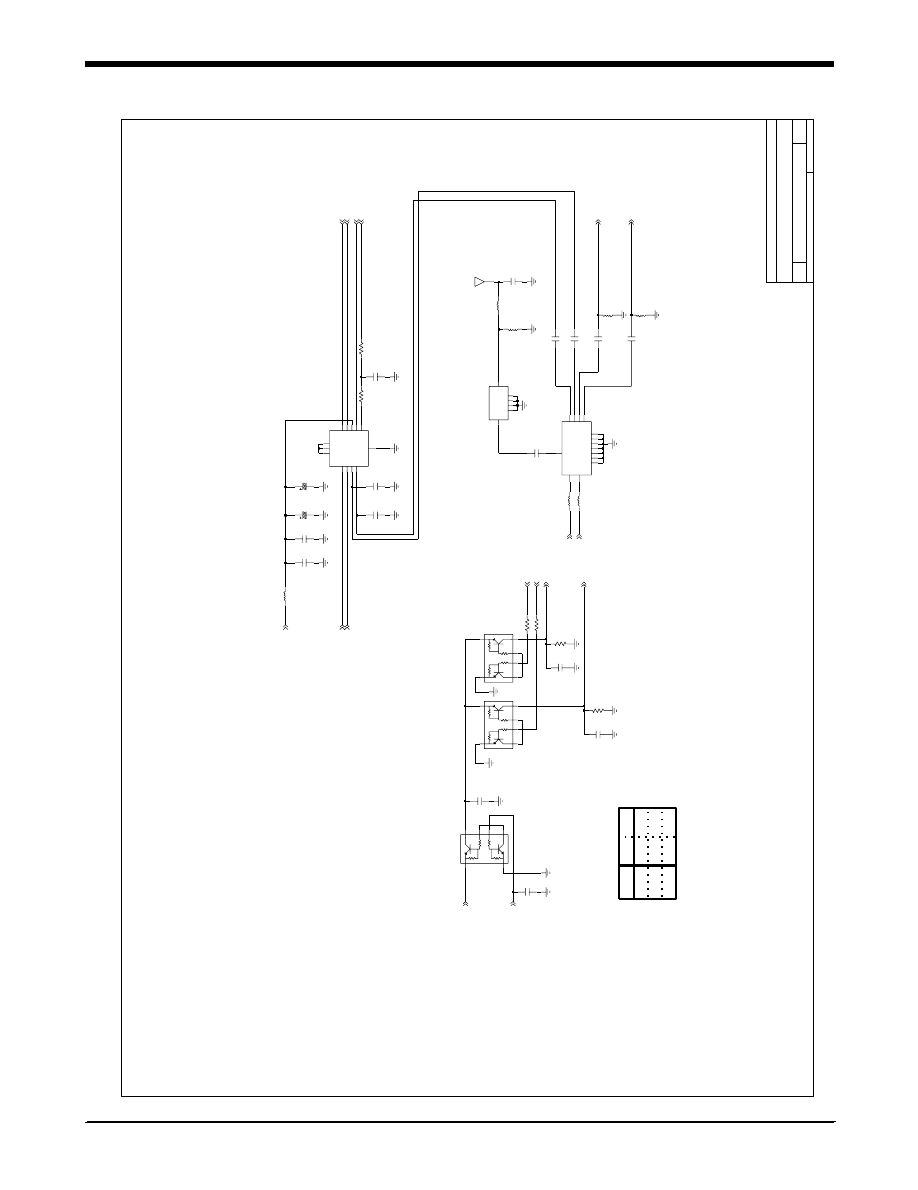

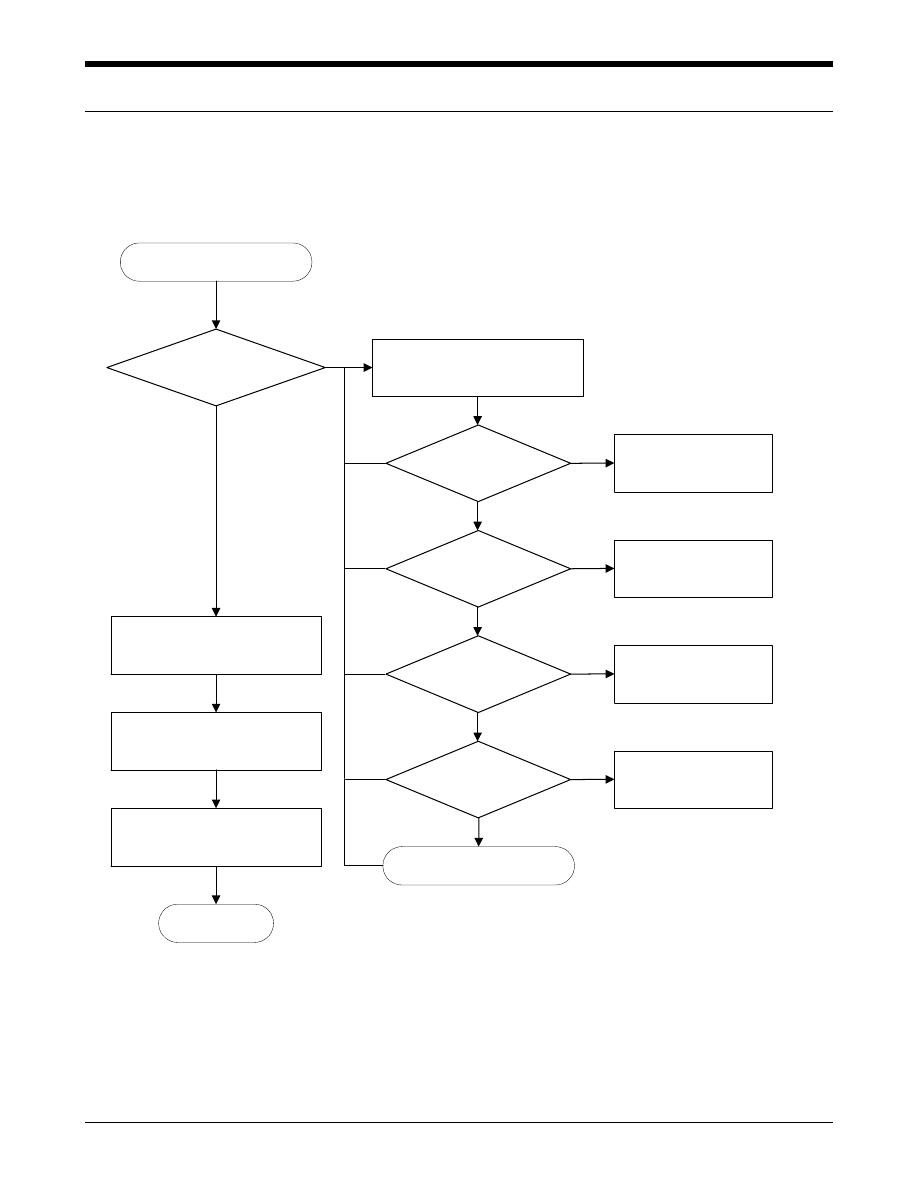

5. Flow Chart of Troubleshooting and Circuit Diagrams

5-1 Power ON
5-2

Initial

5-3

Charging Part

5-4

Sim Part

5-5

Microphone Part

5-6

Speaker Part

5-7

Key Data Input

5-8

Alert Tone

5-9

Ring Indicator

5-10

Melody Part

5-11

GSM Receiver

5-12

GSM Transmitter

5-13

DCS Receiver

5-14

DCS Transmitter

background image

Exploded Views and Parts List

1-1

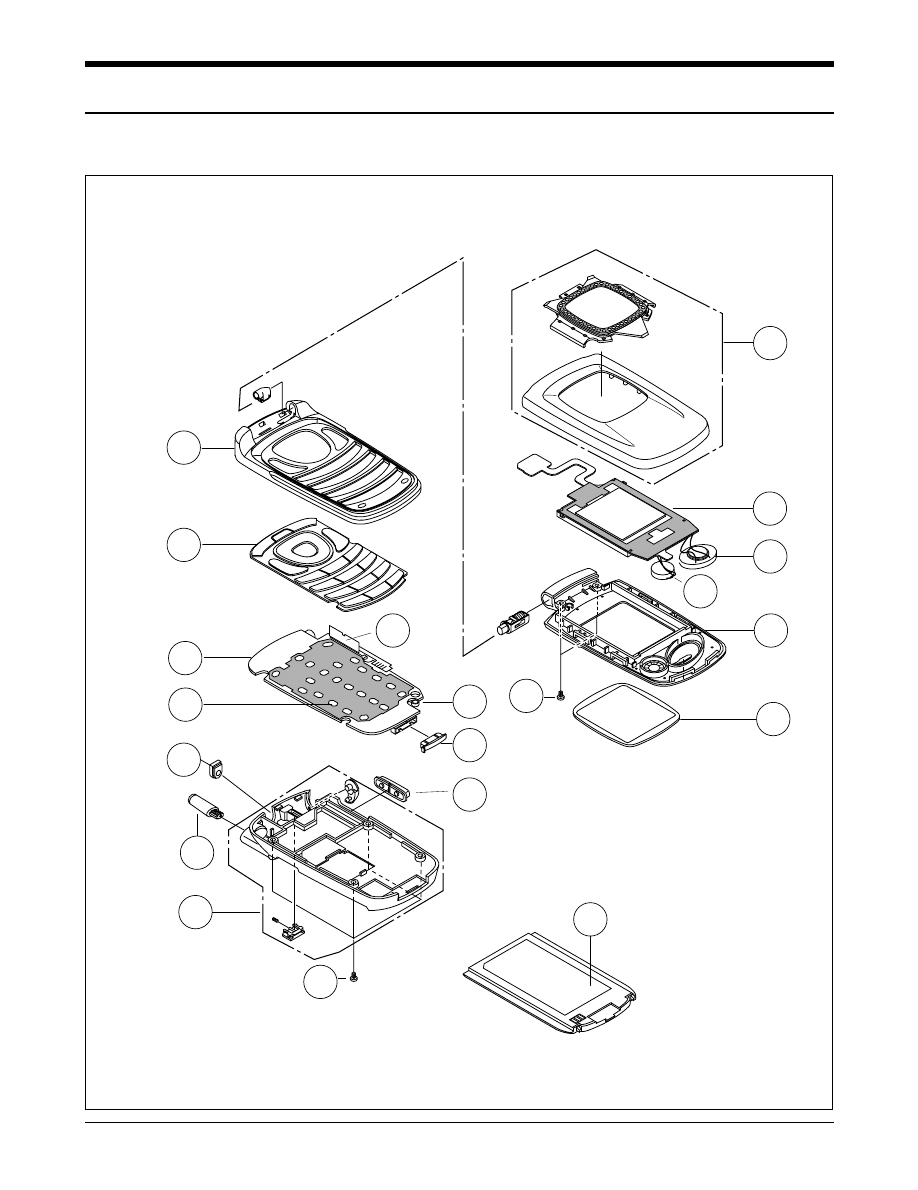

1. SGH-T500 Exploded Views and Parts List

1-1 Main

14

1

8

16

12

19

2

3

4

6

7

5

9

10

18

11

13

15

17

20

background image

1-2 Main Parts List

1-2

Exploded Views and Parts List

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

FOLDER UPPER

LCD

SPEAKER

MOTOR

FOLDER LOWER

WINDOW LCD

SCREW

FRONT COVER

KEYPAD

MAIN PBA

VOLKEY FPCB

DOME SHEET

MIC

CONNECTOR COVER

RF COVER

ANTENNA

REAR COVER

VOLUME KEY

SCREW

BATTERY

Description

SEC CODE

Location

No.

GH75-02664A

GH07-00278A

3001-001345

GH31-00048A

GH75-02193A

GH72-05017A

6001-001478

GH75-02194A

GH75-02196A

GH92-01337A

GH59-00572A

GH59-00571A

GH59-00610A

GH73-01338A

GH73-01337A

GH42-00242A

GH75-02192A

GH75-02195A

6001-001478

GH43-00720A

Remark

background image

Exploded Views and Parts List

1-3

1-4 Travel Adapter Parts List

TYPE

SEC CODE

REMARK

A

GH44-00171A

CHINA

B

GH44-00184A

EUROPE

C

GH44-00171C

UNITED KINGDOM

D

Gh44-00171E

TAIWAN

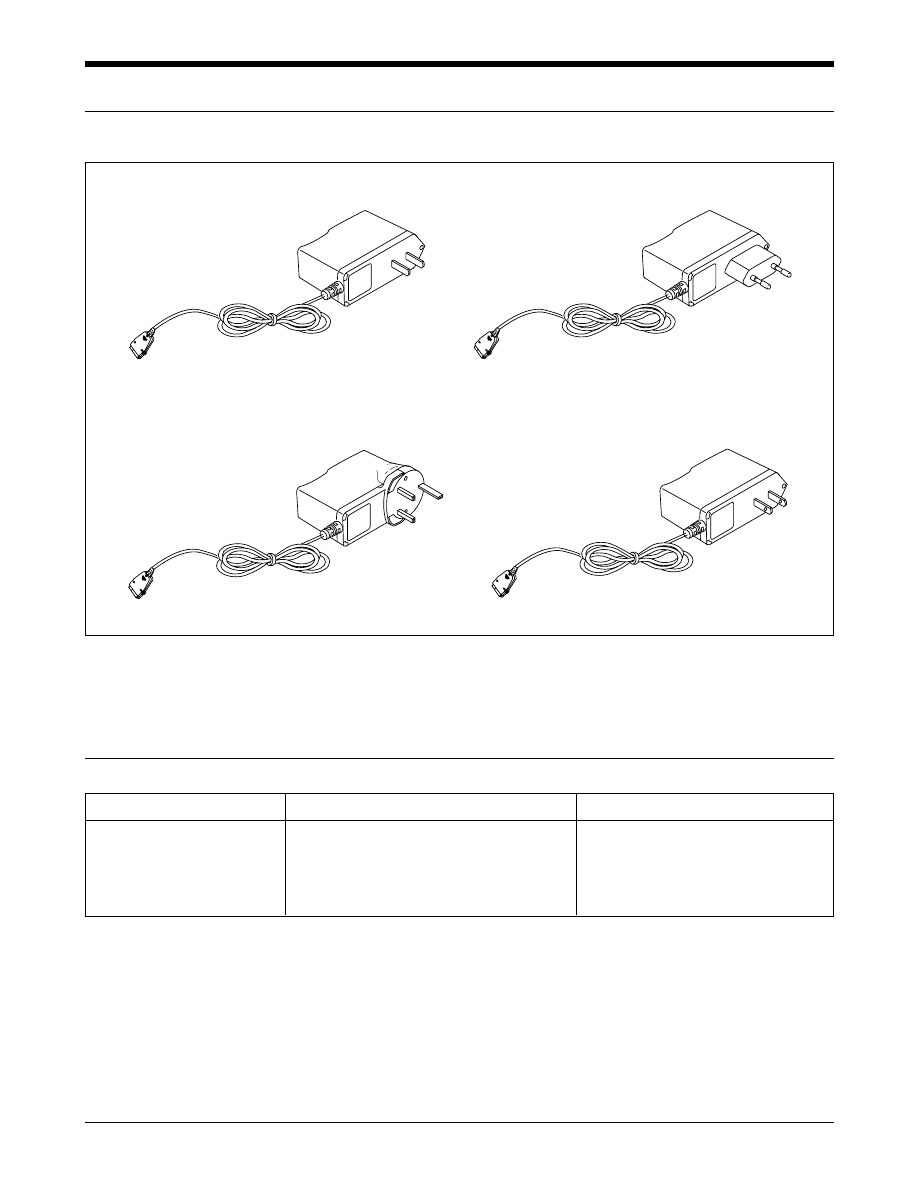

1-3 Travel Adapter

A

B

C

D

background image

1-4

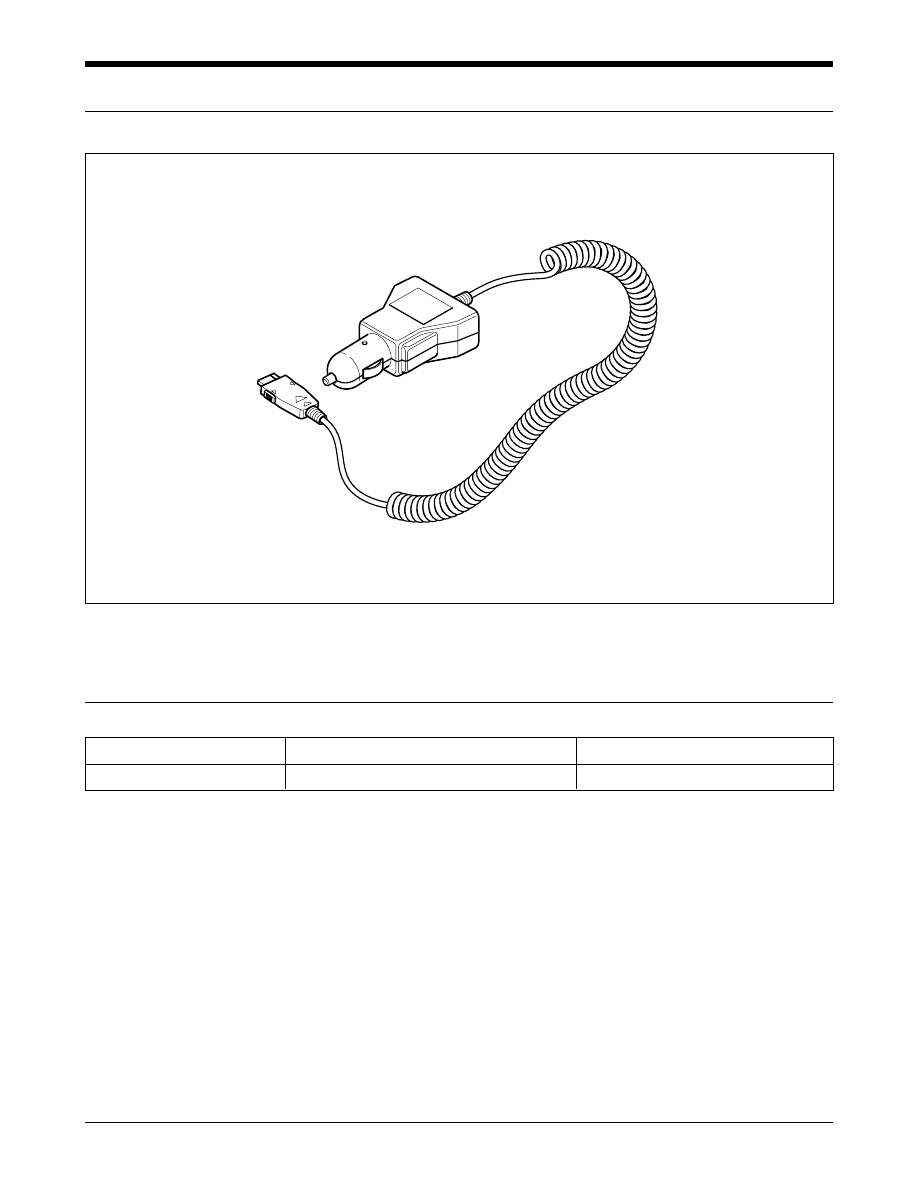

1-5 Ciger Light Adapter

Exploded Views and Parts List

1-6 Ciger Light Adapter Parts List

DESCRIPTION

SEC CODE

REMARK

Ciger Light Adapter Code

GH44-00170A

BLACK

background image

1-5

Exploded Views and Parts List

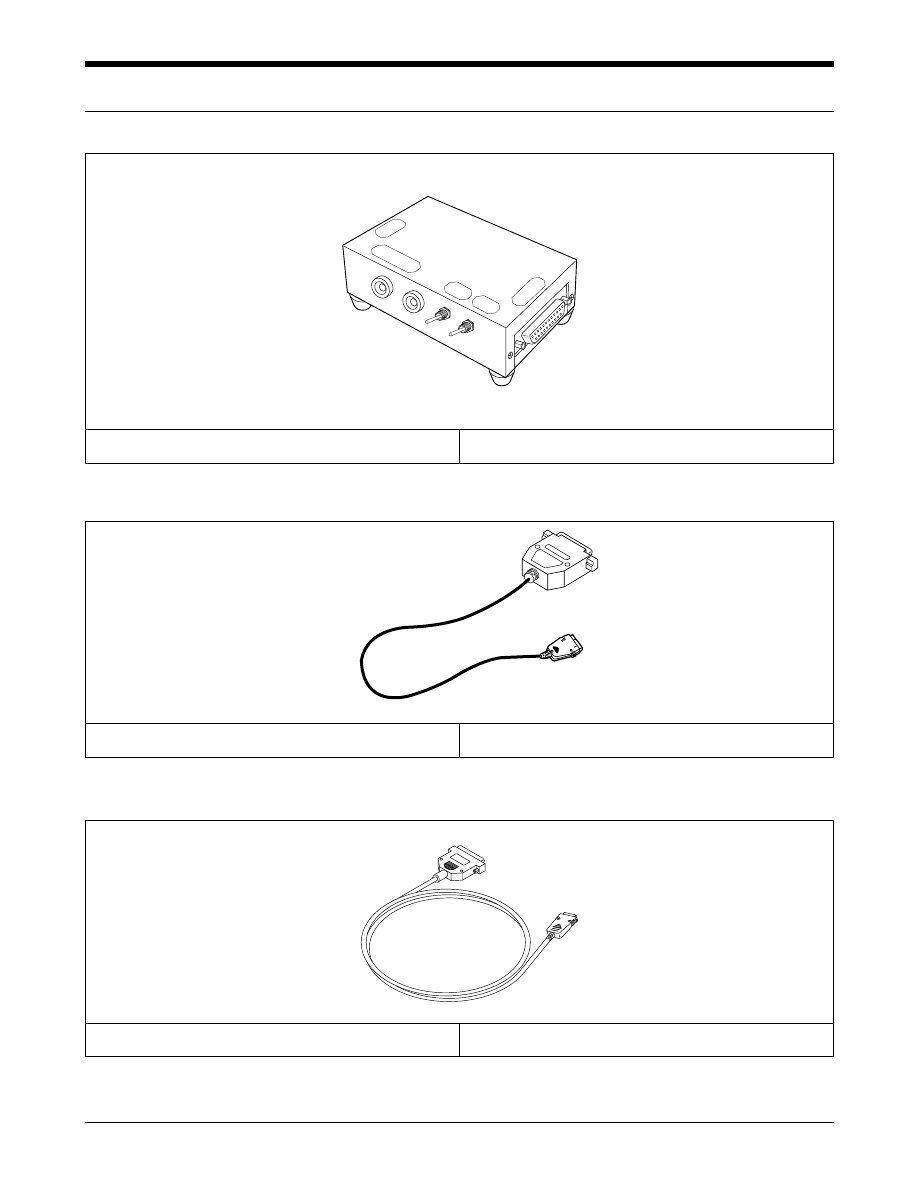

1-7 Test Jig

TEST JIG

GH80-10508A

TEST JIG CABLE

GH39-00079A

RF CABLE

GH39-00184A

background image

1-6

Exploded Views and Parts List

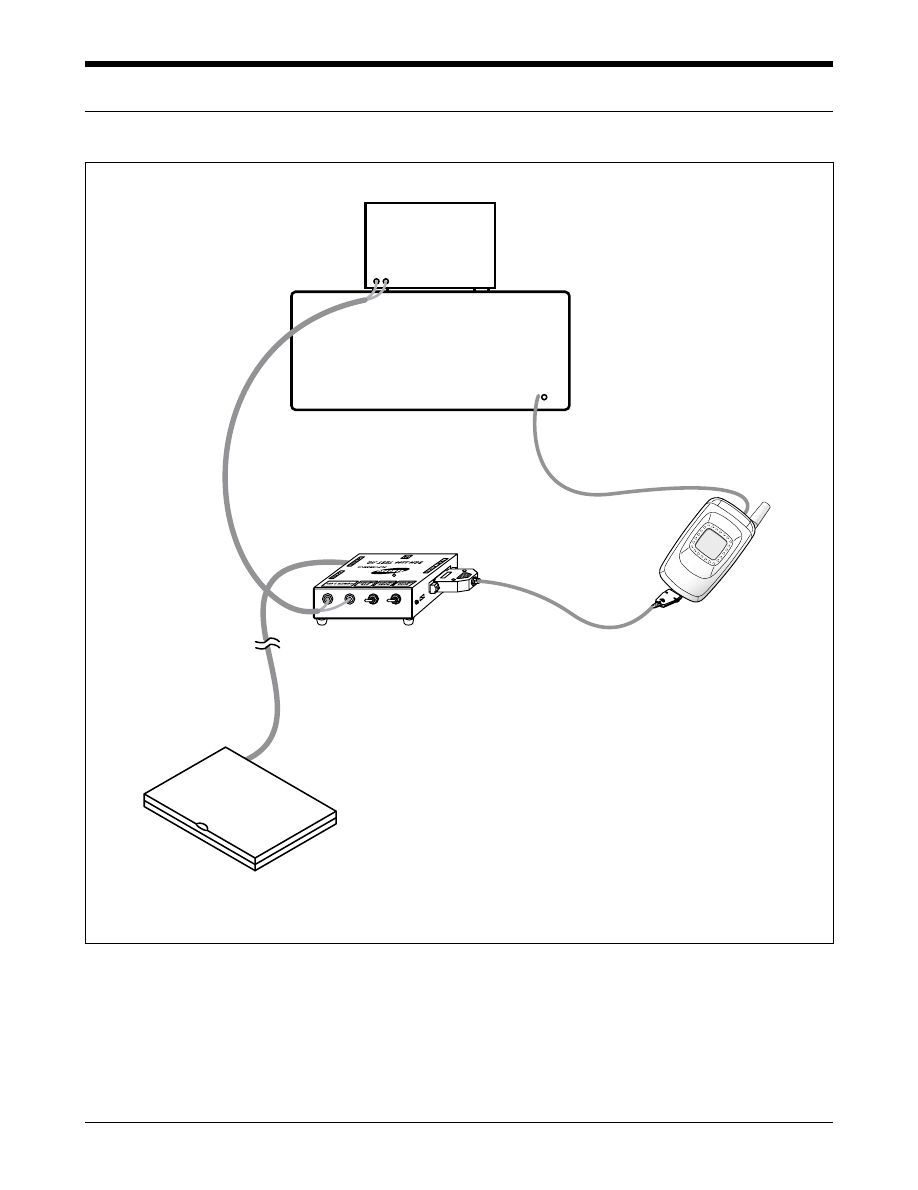

1-7-1 Test Jig

DC

POWER

SUPPLY

232 CABLE

TEST JIG CABLE

RF CABLE

8922 or 8960

WIRELESS COMMUNICATIONS

TEST SET

Note PC

background image

Exploded Views and Parts List

1-7

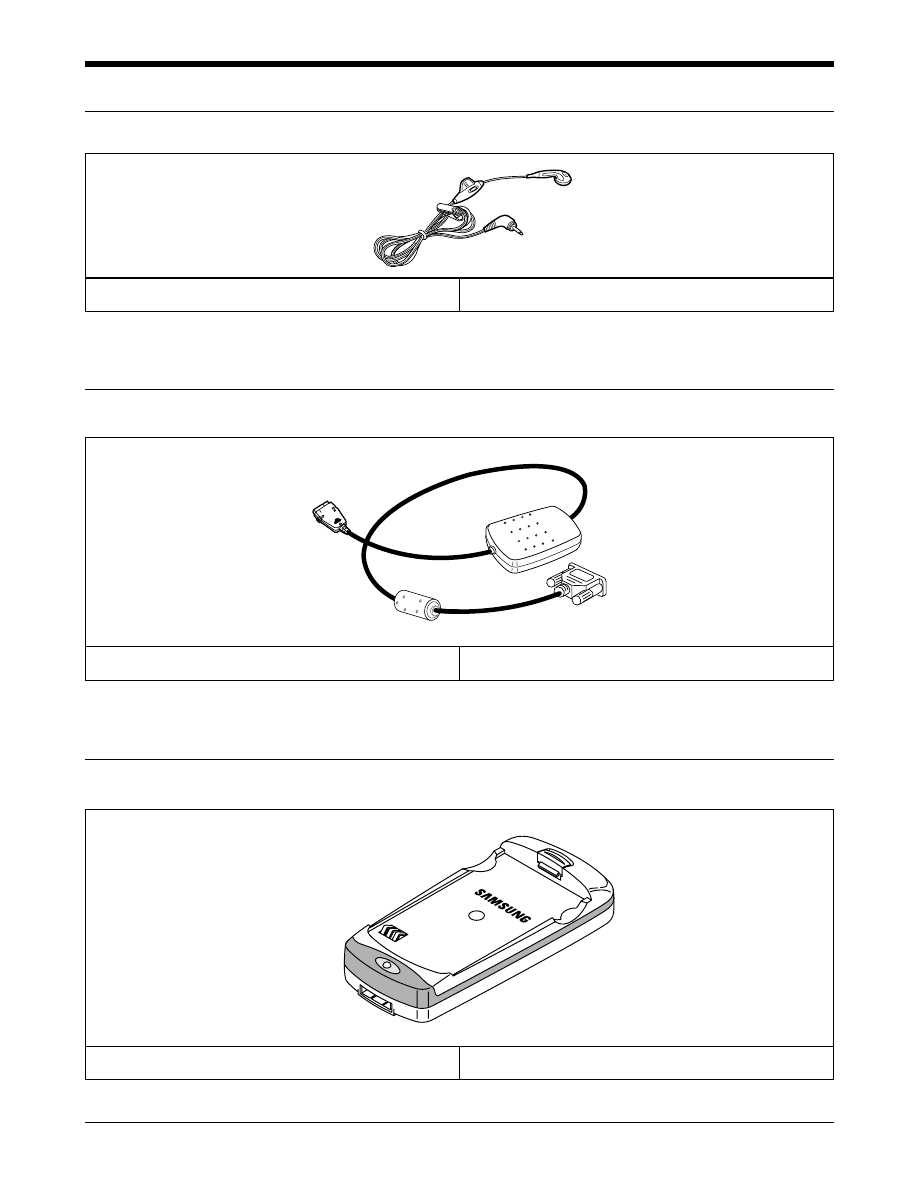

1-8 Wearable EAR Microphone

Wearable EAR MICROPHONE

GH59-00322A

1-9 Data Kit

DATA KIT

GH39-00078A

1-10 Battery Charger

BATTERY CHAGER

GH44-00234A

background image

PCB Diagrams

2-1

2. PCB Diagrams

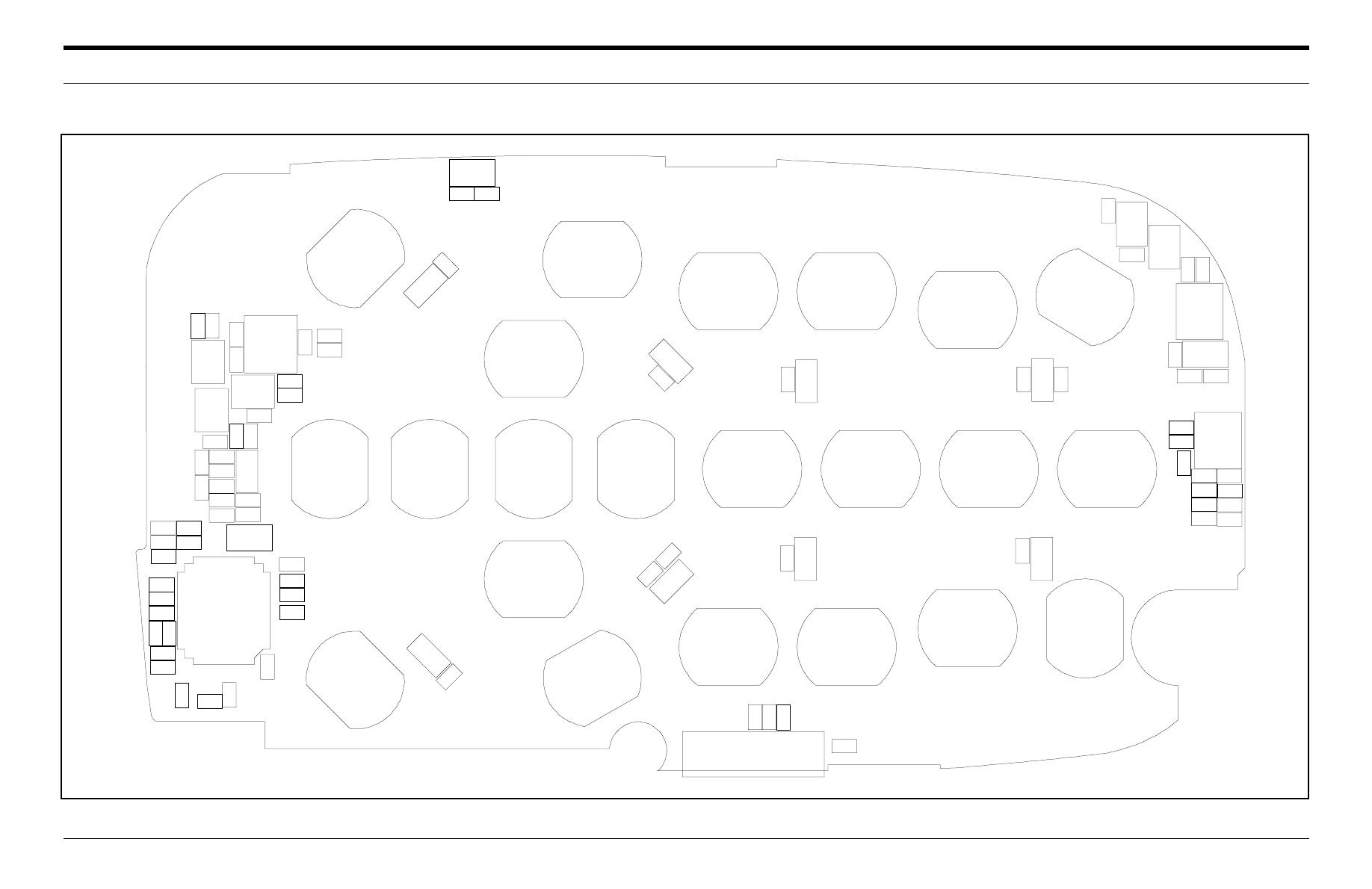

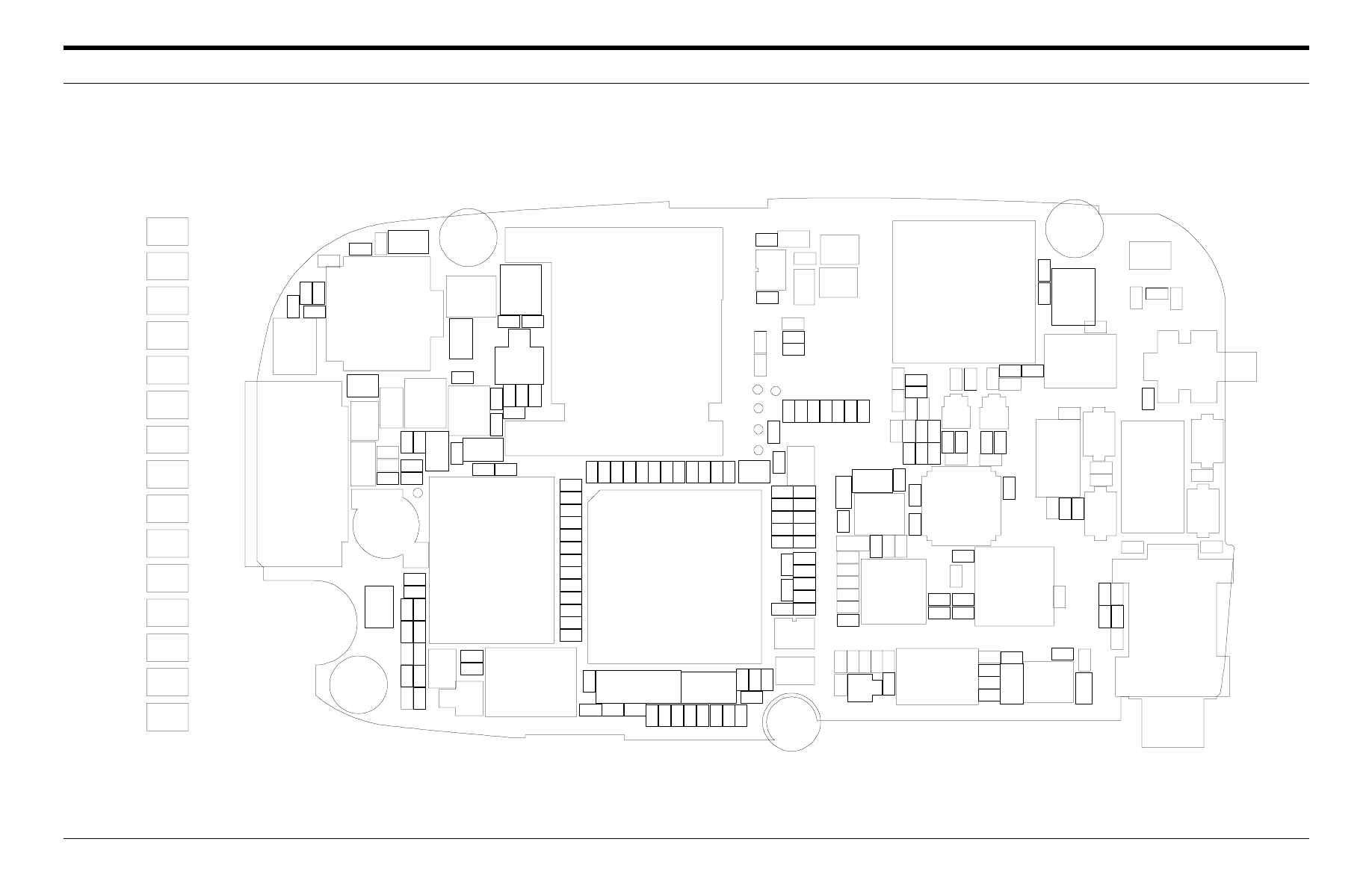

2-1 Main Top

C102

C103

C120

C122

C123 C128

C202

C203

C209

C210

C211

C213

C214

C218

C219

C303

C304

C305

C307

C309

C310

C311

C312

C313
C314

C390

C418

C419

C421

C422

C424
C425

C601

C602

C603

C608
C611

C613

C615

CLR

CN201

D110

DIGIT1

DIGIT10

DIGIT2

DIGIT3

DIGIT4

DIGIT5

DIGIT6

DIGIT7

DIGIT8

DIGIT9

DOWN

END

INT

L201

L300

L410

L604

L605

LED200

LED201

LED202

LED203

LED204

LED205

LED206

LED207

LED208

LEFT

R107

R108

R109

R206

R211

R212

R213

R214

R215

R216

R240

R241

R242

R243

R244

R309

R312

R314

R316
R317

R318

R419

R607

R608

R691

RIGHT

SEND

SOFT1

SOFT2

SYMBOL#

SYMBOL*

U100

U106

U108

U204

U301

U601

U602

U603

UP

V202

V203

V204

V302

V303

V304

V305

V308

V400

V404

background image

PCB Diagrams

2-2

2-2 Main Bottom

A500

BAT100

C100

C101

C104
C105

C106

C107

C108

C109

C111

C112

C113

C114

C115

C116

C117

C118

C119

C121

C124

C125

C126

C127

C150

C151

C160

C201

C212

C217

C300

C301

C302

C315

C316

C317

C400

C401

C402

C403

C404

C405

C406

C407

C408

C409

C410

C411

C412

C413

C414

C415

C416

C417

C420

C423

C426

C427

C428

C429

C430

C431

C432

C433

C434

C435

C436

C437

C438

C439

C440

C441

C442

C443

C444

C445

C446

C500

C501

C502

C503

C504

C505

C506

C507

C508

C509

C

510

C511

C512

C513

C514

C515

C516

C517

C518

C519

C600

C604

C605

C607

C612

C614

C616

C617

C630

C690

C691

CN100

CN205

CN300

CN301

CN600

D100

D111

EAR400

F200

F201

F202

F203

H100

H101

H102

H103

JT1

JT10

JT11

JT12

JT13

JT14

JT15

JT2

JT3

JT4

JT5

JT6

JT7

JT8

JT9

L200

L500

L501

L502

L503

L504

L601

L602

L603

L606

L607

MIC1

OSC400

Q100

Q201

Q500

R100

R101

R103

R104

R105

R106

R110

R111

R112

R205

R208 R209

R217

R218

R236

R237

R302

R304

R307
R310

R311

R319

R400
R401
R402
R403

R404

R406

R407

R408

R409

R410

R411

R412

R413

R414

R415

R416

R417

R418

R421

R422

R423

R424

R425

R426

R427

R429

R430

R431

R432

R433

R434

R435

R436

R437

R438 R439

R440

R441

R502

R503

R504

R505

R507

R509

R510

R511

R513

R514

R515

R516

R517

R518

R519

R520

R521
R522
R523
R530

R603R604

R690

R692

TH200

TP400

T

P401

TP402

TP403

TP404

TP405

U101

U102

U103

U104

U105

U107

U200

U202

U203

U205

U300

U302

U400

U401

U402

U403

U404

U500

U501

U502

U503

U504

U505

U600

U605

V210

V220

V290

V300

V301

V401

V402

V403

V405

V406

V407

ZD300

background image

3-1

Electrical Parts List

3. Electrical Parts List

3-1 Main Parts List Top

4

D110

0407-001007

DIODE;UMN1

UMN1

8

U601

0504-001042

TR-SMALL SIGNAL;BCR10PN

BCR10PN

9

U602

0504-001042

TR-SMALL SIGNAL;BCR10PN

BCR10PN

10

U603

0504-001042

TR-SMALL SIGNAL;BCR10PN

BCR10PN

15

U106

0506-001004

TR-SMALL SIGNAL;UMC5NTL

UMC5NTL

16

LED200

0601-001611

LED;SLS-NNWH102TS

SLS-NNWH102TS

17

LED201

0601-001611

LED;SLS-NNWH102TS

SLS-NNWH102TS

18

LED202

0601-001611

LED;SLS-NNWH102TS

SLS-NNWH102TS

19

LED203

0601-001611

LED;SLS-NNWH102TS

SLS-NNWH102TS

20

LED204 0601-001611

LED;SLS-NNWH102TS

SLS-NNWH102TS

21

LED205

0601-001611

LED;SLS-NNWH102TS

SLS-NNWH102TS

22

LED206

0601-001611

LED;SLS-NNWH102TS

SLS-NNWH102TS

23

LED207

0601-001611

LED;SLS-NNWH102TS

SLS-NNWH102TS

24

LED208

0601-001611

LED;SLS-NNWH102TS

SLS-NNWH102TS

29

U204

1009-001010

IC-HALL EFFECT S/W;A3212ELH-SAMSUNG

A3212ELH-SAMSUNG

34

U100

1203-002077

IC-VOLTAGE REGULATOR;LP2985AIM5-3.3

LP2985AIM5-3.3

37

U108

1203-002156

IC-VOLTAGE REGULATOR;LP3985IM5X-2.5

LP3985IM5X-2.5

40

U301

1204-001960

IC-MELODY;YMU762 MA-3

YMU762 MA-3

47

V305

1405-001082

VARISTOR;VC040205X150R

VC040205X150R

48

V400

1405-001082

VARISTOR;VC040205X150R

VC040205X150R

52

V404

1405-001082

VARISTOR;VC040205X150R

VC040205X150R

57

V302

1405-001093

VARISTOR;VC040214X300

VC040214X300

58

V303

1405-001093

VARISTOR;VC040214X300

VC040214X300

59

V304

1405-001093

VARISTOR;VC040214X300

VC040214X300

60

V308

1405-001093

VARISTOR;VC040214X300

VC040214X300

61

V202

1405-001121

VARISTOR;AVLC 5S 02 050

AVLC 5S 02 050

62

V203

1405-001121

VARISTOR;AVLC 5S 02 050

AVLC 5S 02 050

63

V204

1405-001121

VARISTOR;AVLC 5S 02 050

AVLC 5S 02 050

67

R244

2007-000138

“R-CHIP;100,5%”

RC1005J101CS

80

R309

2007-000148

“R-CHIP;10K,5%”

RC1005J103CS

91

R216

2007-000157

“R-CHIP;47K,5%”

RC1005J473CS

97

R107

2007-000162

“R-CHIP;100K,5%”

RC1005J104CS

98

R108

2007-000162

“R-CHIP;100K,5%”

RC1005J104CS

99

R109

2007-000162

“R-CHIP;100K,5%”

RC1005J104CS

112

R419

2007-000162

“R-CHIP;100K,5%”

RC1005J104CS

128

R314

2007-001325

“R-CHIP;3.3K,5%”

MCR01MZSJ511

133

R211

2007-007009

“R-CHIP;75ohm,5%”

RC1005J750CS

134

R212

2007-007009

“R-CHIP;75ohm,5%”

RC1005J750CS

135

R241

2007-001290

“R-CHIP;24ohm,5%”

RC1005J240CS

NO

Refer

SEC

Part Description

Vendor Part No.

ence

CODE

background image

NO

Refer

SEC

Part Description

Vendor Part No.

ence

CODE

3-2

Electrical Parts List

136

R241

2007-001290

“R-CHIP;24ohm,5%”

RC1005J240CS

137

R215

2007-007009

“R-CHIP;75ohm,5%”

RC1005J750CS

138

R240

2007-007009

“R-CHIP;75ohm,5%”

RC1005J750CS

139

R241

2007-001290

“R-CHIP;24ohm,5%”

RC1005J240CS

140

R242

2007-007009

“R-CHIP;75ohm,5%”

RC1005J750CS

141

R243

2007-007009

“R-CHIP;75ohm,5%”

RC1005J750CS

145

R607

2007-007107

“R-CHIP;100K,1%”

RC1005F1003CS

146

R608

2007-007107

“R-CHIP;100K,1%”

RC1005F1003CS

147

R317

2007-007137

“R-CHIP;1.2K,1%”

MCR01MZSF1202

151

R691

2007-007309

“R-CHIP;12K,1%”

MCR01MZSF1202

152

R318

2007-007313

“R-CHIP;6.8K,1%”

MCR01MZSF2201

163

R206

2007-007771

“R-CHIP;0,5%”

RC1005J000CS

164

R312

2007-007771

“R-CHIP;0,5%”

RC1005J000CS

165

R316

2007-007771

“R-CHIP;0,5%”

RC1005J000CS

172

C314

2203-002687

“C-CERAMIC,CHIP;1.2nF,10%,50V,X7R,”

CL05B122KBNC

180

C602

2203-000233

“C-CERAMIC,CHIP;C101J,100PF,50V”

CL05C101JBNC

182

C103

2203-000254

“C-CERAMIC,CHIP;C103K,10NF,16V”

CL05B103KONC

185

C120

2203-000254

“C-CERAMIC,CHIP;C103K,10NF,16V”

CL05B103KONC

200

C307

2203-000438

“C-CERAMIC,CHIP;C102K,1NF,50V”

CL05B102KBNC

201

C608

2203-000438

“C-CERAMIC,CHIP;C102K,1NF,50V”

CL05B102KBNC

209

C209

2203-000679

“C-CERAMIC,CHIP;C270J,27PF,50V”

CL05C270JBNC

210

C210

2203-000679

“C-CERAMIC,CHIP;C270J,27PF,50V”

CL05C270JBNC

211

C211

2203-000679

“C-CERAMIC,CHIP;C270J,27PF,50V”

CL05C270JBNC

213

C213

2203-000679

“C-CERAMIC,CHIP;C270J,27PF,50V”

CL05C270JBNC

214

C214

2203-000679

“C-CERAMIC,CHIP;C270J,27PF,50V”

CL05C270JBNC

215

C218

2203-000679

“C-CERAMIC,CHIP;C270J,27PF,50V”

CL05C270JBNC

216

C219

2203-000679

“C-CERAMIC,CHIP;C270J,27PF,50V”

CL05C270JBNC

217

C303

2203-000679

“C-CERAMIC,CHIP;C270J,27PF,50V”

CL05C270JBNC

218

C304

2203-000679

“C-CERAMIC,CHIP;C270J,27PF,50V”

CL05C270JBNC

223

C611

2203-000679

“C-CERAMIC,CHIP;C270J,27PF,50V”

CL05C270JBNC

224

C613

2203-000679

“C-CERAMIC,CHIP;C270J,27PF,50V”

CL05C270JBNC

225

C615

2203-000679

“C-CERAMIC,CHIP;C270J,27PF,50V”

CL05C270JBNC

240

C601

2203-000812

“C-CERAMIC,CHIP;C330J,33PF,50V”

CM05CG330J50AT

245

C421

2203-000854

“C-CERAMIC,CHIP;C390J,39PF,50V”

CL05C390JBNC

246

C424

2203-000854

“C-CERAMIC,CHIP;C390J,39PF,50V”

CL05C390JBNC

250

C422

2203-001017

“C-CERAMIC,CHIP;C040C,4PF,50V”

GRP1555C1H4R0C

251

C425

2203-001017 “C-CERAMIC,CHIP;C040C,4PF,50V”

GRP1555C1H4R0C

263

C203

2203-002443

“C-CERAMIC,CHIP;C331K,330PF,50V”

CL05B331KBNC

268

C102

2203-005061

“C-CERAMIC,CHIP;C104Z,100NF,16V”

CL05F104ZONC

272

C123

2203-005061

“C-CERAMIC,CHIP;C104Z,100NF,16V”

CL05F104ZONC

274

C128

2203-005061

“C-CERAMIC,CHIP;C104Z,100NF,16V”

CL05F104ZONC

276

C202

2203-005061

“C-CERAMIC,CHIP;C104Z,100NF,16V”

CL05F104ZONC

279

C305

2203-005061

“C-CERAMIC,CHIP;C104Z,100NF,16V”

CL05F104ZONC

background image

NO

Refer

SEC

Part Description

Vendor Part No.

ence

CODE

Electrical Parts List

280

C309

2203-005061

“C-CERAMIC,CHIP;C104Z,100NF,16V”

CL05F104ZONC

281

C310

2203-005061

“C-CERAMIC,CHIP;C104Z,100NF,16V”

CL05F104ZONC

282

C313

2203-005061

“C-CERAMIC,CHIP;C104Z,100NF,16V”

CL05F104ZONC

292

C311

2203-005483

“C-CERAMIC,CHIP;C683K,68NF,10V”

GRP155R61A683KA01E

298

C312

2404-001086

“C-TA,CHIP;4.7UF/6.3V”

TESVSPOJ475M8RTJ

305

C122

2404-001105

“C-TA,CHIP;10UF/6.3V”

TCSCS0J106MPAR

307

C603

2404-001105

“C-TA,CHIP;10UF/6.3V”

TCSCS0J106MPAR

315

L604

2007-007771

“R-CHIP;0OHM,5%,1/16W,DA,TP,1005 “

RC1005J000CS

316

L605

2007-007771

“R-CHIP;0OHM,5%,1/16W,DA,TP,1005 “

RC1005J000CS

332

L201

3301-001362

CORE-FERRITE BEAD;BLM10A102SGPT

BLM10A102SGPT

3-3

background image

Electrieal Parts List

3-4

3-2 Main Parts List Bottom

NO

Refer

SEC

Part Description

Vendor Part No.

ence

CODE

1

D100

0401-001033

DIODE;MCL4154

MCL4154

2

D111

0404-001172

DIODE;RB520S-30

RB520S-30

3

ZD300

0406-001104

DIODE;ESDA6V1-5W6

ESDA6V1-5W6

4

D110

0407-001007

DIODE;UMN1

UMN1

5

Q500

0501-000225

TR-SMALL SIGNAL;2SC4617

2SC4617

6

Q201

0501-002011

TR-SMALL SIGNAL;2SD2114KT146V

2SD2114KT146V

7

Q100

0502-001201

TR-SMALL SIGNAL;ZXT13P20DE6

ZXT13P20DE6

8

U601

0504-001042

TR-SMALL SIGNAL;BCR10PN

BCR10PN

9

U602

0504-001042

TR-SMALL SIGNAL;BCR10PN

BCR10PN

10

U603

0504-001042

TR-SMALL SIGNAL;BCR10PN

BCR10PN

11

U202

0504-001060

TR-SMALL SIGNAL;BCR08PN

BCR08PN

12

U203

0504-001060

TR-SMALL SIGNAL;BCR08PN

BCR08PN

13

U404

0505-001332

TR-SMALL SIGNAL;FDG6301N

FDG6301N

14

U101

0505-001423

TR-SMALL SIGNAL;FDG6323L

FDG6323L

15

U106

0506-001004

TR-SMALL SIGNAL;UMC5NTL

UMC5NTL

16

LED200

0601-001611

LED;SLS-NNWH102TS

SLS-NNWH102TS

17

LED201

0601-001611

LED;SLS-NNWH102TS

SLS-NNWH102TS

18

LED202

0601-001611

LED;SLS-NNWH102TS

SLS-NNWH102TS

19

LED203

0601-001611

LED;SLS-NNWH102TS

SLS-NNWH102TS

20

LED204 0601-001611

LED;SLS-NNWH102TS

SLS-NNWH102TS

21

LED205

0601-001611

LED;SLS-NNWH102TS

SLS-NNWH102TS

22

LED206

0601-001611

LED;SLS-NNWH102TS

SLS-NNWH102TS

23

LED207

0601-001611

LED;SLS-NNWH102TS

SLS-NNWH102TS

24

LED208

0601-001611

LED;SLS-NNWH102TS

SLS-NNWH102TS

25

U200

0801-002540

IC-CMOS LOGIC;NC7SZ19P6X

NC7SZ19P6X

26

U302

0801-002540

IC-CMOS LOGIC;NC7SZ19P6X

NC7SZ19P6X

27

U403

1001-001145

IC-ANALOG SWITCH;MAX4599EXT-T

MAX4599EXT-T

28

U205

1001-001183

IC-ANALOG SWITCH;MAX4684EUB

MAX4684EUB

29

U204

1009-001010

IC-HALL EFFECT S/W;A3212ELH-SAMSUNG

A3212ELH-SAMSUNG

30

U402

1103-001288

“IC;24C512,512KX8BIT,DFN,8P,6X5MM”

24LC512

31

U600

1201-001954

IC-POWER AMP;RF3140

RF3140

32

U105

1203-001454

IC-VOLTAGE REGULATOR;LP2981AIM5X-3.0

LP2981AIM5X-3.0

33

U104

1203-002076

IC-VOLTAGE REGULATOR;LP2985AIM5-3.0

LP2985AIM5-3.0

34

U100

1203-002077

IC-VOLTAGE REGULATOR;LP2985AIM5-3.3

LP2985AIM5-3.3

35

U103

1203-002127

IC-BATTERY;LTC1734ES6-4.2#TR

LTC1734ES6-4.2#TR

36

U102

1203-002156

IC-VOLTAGE REGULATOR;LP3985IM5X-2.5

LP3985IM5X-2.5

37

U108

1203-002156

IC-VOLTAGE REGULATOR;LP3985IM5X-2.5

LP3985IM5X-2.5

38

U400

1203-002187

IC-RESET;MAX6326XR26-T

MAX6326XR26-T

39

U107

1203-002598

IC-VOLTAGE REGULATOR;LP2981AIM5X-2.8

LP2981AIM5X-2.8

40

U301

1204-001960

IC-MELODY;YMU762 MA-3

YMU762 MA-3

41

U401

1205-002035

“IC-COMM. CONTROLLER;VP40581B,FBGA”

VP40581B

background image

NO

Refer

SEC

Part Description

Vendor Part No.

ence

CODE

Electrieal Parts List

42

U503

1205-002185

IC-INTERFACE;SI4201-BM

SI4201-BM

43

U502

1205-002248

IC-TRANSCEIVER;SI4200DB-BM

SI4200DB-BM

44

U505

1209-001434

IC-PLL/SYNTHESISER;SI4133T-BM

SI4133T-BM

45

TH200

1404-001221

“THERMISTOR-NTC;47Kohm,-,4050K,1mW”

NCP15WB473J04RC

46

V301

1405-001082

VARISTOR;VC040205X150R

VC040205X150R

47

V305

1405-001082

VARISTOR;VC040205X150R

VC040205X150R

48

V400

1405-001082

VARISTOR;VC040205X150R

VC040205X150R

49

V401

1405-001082

VARISTOR;VC040205X150R

VC040205X150R

50

V402

1405-001082

VARISTOR;VC040205X150R

VC040205X150R

51

V403

1405-001082

VARISTOR;VC040205X150R

VC040205X150R

52

V404

1405-001082

VARISTOR;VC040205X150R

VC040205X150R

53

V405

1405-001082

VARISTOR;VC040205X150R

VC040205X150R

54

V406

1405-001082

VARISTOR;VC040205X150R

VC040205X150R

55

V407

1405-001082

VARISTOR;VC040205X150R

VC040205X150R

56

V300

1405-001093

VARISTOR;VC040214X300

VC040214X300

57

V302

1405-001093

VARISTOR;VC040214X300

VC040214X300

58

V303

1405-001093

VARISTOR;VC040214X300

VC040214X300

59

V304

1405-001093

VARISTOR;VC040214X300

VC040214X300

60

V308

1405-001093

VARISTOR;VC040214X300

VC040214X300

61

V202

1405-001121

VARISTOR;AVLC 5S 02 050

AVLC 5S 02 050

62

V203

1405-001121

VARISTOR;AVLC 5S 02 050

AVLC 5S 02 050

63

V204

1405-001121

VARISTOR;AVLC 5S 02 050

AVLC 5S 02 050

64

V210

1405-001121

VARISTOR;AVLC 5S 02 050

AVLC 5S 02 050

65

V220

1405-001121

VARISTOR;AVLC 5S 02 050

AVLC 5S 02 050

66

V290

1405-001121

VARISTOR;AVLC 5S 02 050

AVLC 5S 02 050

67

R244

2007-000138

“R-CHIP;100,5%”

RC1005J101CS

68

R302

2007-000138

“R-CHIP;100,5%”

RC1005J101CS

69

R304

2007-000138

“R-CHIP;100,5%”

RC1005J101CS

70

R518

2007-000138

“R-CHIP;100,5%”

RC1005J101CS

71

R422

2007-000139

“R-CHIP;220,5%”

RC1005J221CS

72

R429

2007-000139

“R-CHIP;220,5%”

RC1005J221CS

73

R100

2007-000140

“R-CHIP;1K,5%”

RC1005J102CS

74

R519

2007-000140

“R-CHIP;1K,5%”

RC1005J102CS

75

R430

2007-000141

“R-CHIP;2.2K,5%”

RC1005J222CS

76

R431

2007-000141

“R-CHIP;2.2K,5%”

RC1005J222CS

77

R515

2007-000141

“R-CHIP;2.2K,5%”

RC1005J222CS

78

R111

2007-000143

“R-CHIP;4.7K,5%”

RC1005J472CS

79

R217

2007-000148

“R-CHIP;10K,5%”

RC1005J103CS

80

R309

2007-000148

“R-CHIP;10K,5%”

RC1005J103CS

81

R413

2007-000148

“R-CHIP;10K,5%”

RC1005J103CS

82

R414

2007-000148

“R-CHIP;10K,5%”

RC1005J103CS

83

R416

2007-000148

“R-CHIP;10K,5%”

RC1005J103CS

84

R505

2007-000148

“R-CHIP;10K,5%”

RC1005J103CS

3-5

background image

Electrieal Parts List

3-6

NO

Refer

SEC

Part Description

Vendor Part No.

ence

CODE

85

R514

2007-000148

“R-CHIP;10K,5%”

RC1005J103CS

86

R408

2007-000151

“R-CHIP;15K,5%”

RC1005J203CS

87

R421

2007-000152

“R-CHIP;20K,5%”

RC1005J203CS

88

R521

2007-000152

“R-CHIP;20K,5%”

RC1005J203CS

89

R520

2007-000155

“R-CHIP;27K,5%”

RC1005J473CS

90

R101

2007-000157

“R-CHIP;47K,5%”

RC1005J473CS

91

R216

2007-000157

“R-CHIP;47K,5%”

RC1005J473CS

92

R424

2007-000157

“R-CHIP;47K,5%”

RC1005J473CS

93

R692

2007-000157

“R-CHIP;47K,5%”

RC1005J473CS

94

R205

2007-007538

“R-CHIP;56K,1%”

MCR01MZSF5602

95

R105

2007-000162

“R-CHIP;100K,5%”

RC1005J104CS

96

R106

2007-000162

“R-CHIP;100K,5%”

RC1005J104CS

97

R107

2007-000162

“R-CHIP;100K,5%”

RC1005J104CS

98

R108

2007-000162

“R-CHIP;100K,5%”

RC1005J104CS

99

R109

2007-000162

“R-CHIP;100K,5%”

RC1005J104CS

100

R110

2007-000162

“R-CHIP;100K,5%”

RC1005J104CS

101

R208

2007-000162

“R-CHIP;100K,5%”

RC1005J104CS

102

R209

2007-000162

“R-CHIP;100K,5%”

RC1005J104CS

103

R218

2007-000162

“R-CHIP;100K,5%”

RC1005J104CS

104

R307

2007-000162

“R-CHIP;100K,5%”

RC1005J104CS

105

R310

2007-000162

“R-CHIP;100K,5%”

RC1005J104CS

106

R409

2007-000162

“R-CHIP;100K,5%”

RC1005J104CS

107

R411

2007-000162

“R-CHIP;100K,5%”

RC1005J104CS

108

R412

2007-000162

“R-CHIP;100K,5%”

RC1005J104CS

109

R415

2007-000162

“R-CHIP;100K,5%”

RC1005J104CS

110

R417

2007-000162

“R-CHIP;100K,5%”

RC1005J104CS

111

R418

2007-000162

“R-CHIP;100K,5%”

RC1005J104CS

112

R419

2007-000162

“R-CHIP;100K,5%”

RC1005J104CS

113

R426

2007-000162

“R-CHIP;100K,5%”

RC1005J104CS

114

R432

2007-000162

“R-CHIP;100K,5%”

RC1005J104CS

115

R434

2007-000162

“R-CHIP;100K,5%”

RC1005J104CS

116

R436

2007-000162

“R-CHIP;100K,5%”

RC1005J104CS

117

R438

2007-000162

“R-CHIP;100K,5%”

RC1005J104CS

118

R439

2007-000162

“R-CHIP;100K,5%”

RC1005J104CS

119

R425

2007-000168

“R-CHIP;470K,5%”

RC1005J100CS

120

R502

2007-000172

“R-CHIP;10,5%”

RC1005J104CS

121

R513

2007-001244

“R-CHIP;91K,5%”

RC1005J100CS

122

R236

2007-001288

“R-CHIP;18,5%”

RC1005J913CS

123

R237

2007-001288

“R-CHIP;18,5%”

RC1005J913CS

124

R507

2007-001288

“R-CHIP;18,5%”

RC1005J913CS

125

R517

2007-001298

“R-CHIP;51,5%”

RC1005J510CS

126

R522

2007-001298

“R-CHIP;51,5%”

RC1005J510CS

127

R523

2007-001298

“R-CHIP;51,5%”

RC1005J510CS

background image

3-7

Electrieal Parts List

NO

Refer

SEC

Part Description

Vendor Part No.

ence

CODE

128

R314

2007-001325

“R-CHIP;3.3K,5%”

MCR01MZSJ511

129

R423

2007-002796

“R-CHIP;510,5%”

MCR01MZSJ511

130

R427

2007-002796

“R-CHIP;510,5%”

MCR01MZSJ511

131

R509

2007-007008

“R-CHIP;300,5%”

RC1005J301CS

132

R510

2007-007008

“R-CHIP;300,5%”

RC1005J301CS

133

R211

2007-007009

“R-CHIP;75ohm,5%”

RC1005J750CS

134

R212

2007-007009

“R-CHIP;75ohm,5%”

RC1005J750CS

135

R213

2007-001290

“R-CHIP;24ohm,5%”

RC1005J240CS

136

R214

2007-001290

“R-CHIP;24ohm,5%”

RC1005J240CS

137

R215

2007-007009

“R-CHIP;75ohm,5%”

RC1005J750CS

138

R240

2007-007009

“R-CHIP;75ohm,5%”

RC1005J750CS

139

R241

2007-001290

“R-CHIP;24ohm,5%”

RC1005J240CS

140

R242

2007-007009

“R-CHIP;75ohm,5%”

RC1005J750CS

141

R243

2007-007009

“R-CHIP;75ohm,5%”

RC1005J750CS

142

R503

2007-007095

“R-CHIP;390,5%”

RC1005J391CS

143

R504

2007-007095

“R-CHIP;390,5%”

RC1005J391CS

144

R104

2007-007107

“R-CHIP;100K,1%”

RC1005F1003CS

145

R607

2007-007107

“R-CHIP;100K,1%”

RC1005F1003CS

146

R608

2007-007107

“R-CHIP;100K,1%”

RC1005F1003CS

147

R317

2007-007137

“R-CHIP;1.2K,1%”

MCR01MZSF1202

148

R319

2007-007137

“R-CHIP;1.2K,1%”

MCR01MZSF1202

149

R604

2007-007142

“R-CHIP;10K,1%”

MCR01MZSF1202

150

R690

2007-007309

“R-CHIP;12K,1%”

MCR01MZSF1202

151

R691

2007-007309

“R-CHIP;12K,1%”

MCR01MZSF1202

152

R318

2007-007313

“R-CHIP;6.8K,1%”

MCR01MZSF2201

153

R400

2007-007317

“R-CHIP;2.2K,1%”

MCR01MZSF2201

154

R401

2007-007317

“R-CHIP;2.2K,1%”

MCR01MZSF2201

155

R402

2007-007317

“R-CHIP;2.2K,1%”

MCR01MZSF2201

156

R403

2007-007317

“R-CHIP;2.2K,1%”

MCR01MZSF2201

157

R404

2007-007318

“R-CHIP;1K,1%”

RK73H1ETP1001F

158

R406

2007-007318

“R-CHIP;1K,1%”

RK73H1ETP1001F

159

R407

2007-007318

“R-CHIP;1K,1%”

RK73H1ETP1001F

160

R410

2007-007318

“R-CHIP;1K,1%”

RK73H1ETP1001F

161

R516

2007-007318

“R-CHIP;1K,1%”

RK73H1ETP1001F

162

R112

2007-007590

“R-CHIP;82K,1%”

RC1005J000CS

163

R206

2007-007771

“R-CHIP;0,5%”

RC1005J000CS

164

R312

2007-007771

“R-CHIP;0,5%”

RC1005J000CS

165

R316

2007-007771

“R-CHIP;0,5%”

RC1005J000CS

166

R440

2007-007771

“R-CHIP;0,5%”

RC1005J000CS

167

R511

2007-007771

“R-CHIP;0,5%”

RC1005J000CS

168

R603

2007-007771

“R-CHIP;0,5%”

RC1005J000CS

169

R103

2007-008117

“R-CHIP;2.7K,1%”

RK73H1ETP2701F

170

R311

2011-001344

R-CHIP;EXB28V101JX

EXB28V101JX

background image

NO

Refer

SEC

Part Description

Vendor Part No.

ence

CODE

171

R441

2011-001345

R-CHIP;EXB28V103JX

EXB28V103JX

172

C314

2203-002687

“C-CERAMIC,CHIP;1.2nF,10%,50V,X7R,”

CL05B122KBNC

173

C402

2203-000233

“C-CERAMIC,CHIP;C101J,100PF,50V”

CL05C101JBNC

174

C403

2203-000233

“C-CERAMIC,CHIP;C101J,100PF,50V”

CL05C101JBNC

175

C404

2203-000233

“C-CERAMIC,CHIP;C101J,100PF,50V”

CL05C101JBNC

176

C405

2203-000233

“C-CERAMIC,CHIP;C101J,100PF,50V”

CL05C101JBNC

177

C504

2203-000233

“C-CERAMIC,CHIP;C101J,100PF,50V”

CL05C101JBNC

178

C513

2203-000233

“C-CERAMIC,CHIP;C101J,100PF,50V”

CL05C101JBNC

179

C519

2203-000233

“C-CERAMIC,CHIP;C101J,100PF,50V”

CL05C101JBNC

180

C602

2203-000233

“C-CERAMIC,CHIP;C101J,100PF,50V”

CL05C101JBNC

181

C607

2203-000233

“C-CERAMIC,CHIP;C101J,100PF,50V”

CL05C101JBNC

182

C103

2203-000254

“C-CERAMIC,CHIP;C103K,10NF,16V”

CL05B103KONC

183

C104

2203-000254

“C-CERAMIC,CHIP;C103K,10NF,16V”

CL05B103KONC

184

C111

2203-000254

“C-CERAMIC,CHIP;C103K,10NF,16V”

CL05B103KONC

185

C120

2203-000254

“C-CERAMIC,CHIP;C103K,10NF,16V”

CL05B103KONC

186

C150

2203-000254

“C-CERAMIC,CHIP;C103K,10NF,16V”

CL05B103KONC

187

C151

2203-000254

“C-CERAMIC,CHIP;C103K,10NF,16V”

CL05B103KONC

188

C301

2203-000254

“C-CERAMIC,CHIP;C103K,10NF,16V”

CL05B103KONC

189

C408

2203-000254

“C-CERAMIC,CHIP;C103K,10NF,16V”

CL05B103KONC

190

C432

2203-000254

“C-CERAMIC,CHIP;C103K,10NF,16V”

CL05B103KONC

191

C433

2203-000254

“C-CERAMIC,CHIP;C103K,10NF,16V”

CL05B103KONC

192

C435

2203-000254

“C-CERAMIC,CHIP;C103K,10NF,16V”

CL05B103KONC

193

C436

2203-000254

“C-CERAMIC,CHIP;C103K,10NF,16V”

CL05B103KONC

194

C437

2203-000254

“C-CERAMIC,CHIP;C103K,10NF,16V”

CL05B103KONC

195

C441

2203-000254

“C-CERAMIC,CHIP;C103K,10NF,16V”

CL05B103KONC

196

C445

2203-000254

“C-CERAMIC,CHIP;C103K,10NF,16V”

CL05B103KONC

197

C516

2203-000254

“C-CERAMIC,CHIP;C103K,10NF,16V”

CL05B103KONC

198

C517

2203-000254

“C-CERAMIC,CHIP;C103K,10NF,16V”

CL05B103KONC

199

C518

2203-000254

“C-CERAMIC,CHIP;C103K,10NF,16V”

CL05B103KONC

200

C307

2203-000438

“C-CERAMIC,CHIP;C102K,1NF,50V”

CL05B102KBNC

201

C608

2203-000438

“C-CERAMIC,CHIP;C102K,1NF,50V”

CL05B102KBNC

202

C616

2203-000628

“C-CERAMIC,CHIP;C220J,22PF,50V”

GRP1555C1H220JZ01E

203

C617

2203-000628

“C-CERAMIC,CHIP;C220J,22PF,50V”

GRP1555C1H220JZ01E

204

C107

2203-000679

“C-CERAMIC,CHIP;C270J,27PF,50V”

CL05C270JBNC

205

C108

2203-000679

“C-CERAMIC,CHIP;C270J,27PF,50V”

CL05C270JBNC

206

C109

2203-000679

“C-CERAMIC,CHIP;C270J,27PF,50V”

CL05C270JBNC

207

C117

2203-000679

“C-CERAMIC,CHIP;C270J,27PF,50V”

CL05C270JBNC

208

C127

2203-000679

“C-CERAMIC,CHIP;C270J,27PF,50V”

CL05C270JBNC

209

C209

2203-000679

“C-CERAMIC,CHIP;C270J,27PF,50V”

CL05C270JBNC

210

C210

2203-000679

“C-CERAMIC,CHIP;C270J,27PF,50V”

CL05C270JBNC

211

C211

2203-000679

“C-CERAMIC,CHIP;C270J,27PF,50V”

CL05C270JBNC

212

C212

2203-000679

“C-CERAMIC,CHIP;C270J,27PF,50V”

CL05C270JBNC

213

C213

2203-000679

“C-CERAMIC,CHIP;C270J,27PF,50V”

CL05C270JBNC

Electrical Parts List

3-8

background image

3-9

Electrieal Parts List

NO

Refer

SEC

Part Description

Vendor Part No.

ence

CODE

214

C214

2203-000679

“C-CERAMIC,CHIP;C270J,27PF,50V”

CL05C270JBNC

215

C218

2203-000679

“C-CERAMIC,CHIP;C270J,27PF,50V”

CL05C270JBNC

216

C219

2203-000679

“C-CERAMIC,CHIP;C270J,27PF,50V”

CL05C270JBNC

217

C303

2203-000679

“C-CERAMIC,CHIP;C270J,27PF,50V”

CL05C270JBNC

218

C304

2203-000679

“C-CERAMIC,CHIP;C270J,27PF,50V”

CL05C270JBNC

219

C401

2203-000679

“C-CERAMIC,CHIP;C270J,27PF,50V”

CL05C270JBNC

220

C414

2203-000679

“C-CERAMIC,CHIP;C270J,27PF,50V”

CL05C270JBNC

221

C423

2203-000679

“C-CERAMIC,CHIP;C270J,27PF,50V”

CL05C270JBNC

222

C426

2203-000679

“C-CERAMIC,CHIP;C270J,27PF,50V”

CL05C270JBNC

223

C611

2203-000679

“C-CERAMIC,CHIP;C270J,27PF,50V”

CL05C270JBNC

224

C613

2203-000679

“C-CERAMIC,CHIP;C270J,27PF,50V”

CL05C270JBNC

225

C615

2203-000679

“C-CERAMIC,CHIP;C270J,27PF,50V”

CL05C270JBNC

226

C411

2203-000679

“C-CERAMIC,CHIP;C270J,27PF,50V”

CL05C270JBNC

227

C412

2203-000679

“C-CERAMIC,CHIP;C270J,27PF,50V”

CL05C270JBNC

228

C413

2203-000679

“C-CERAMIC,CHIP;C270J,27PF,50V”

CL05C270JBNC

229

C409

2203-000812

“C-CERAMIC,CHIP;C330J,33PF,50V”

CM05CG330J50AT

230

C430

2203-000812

“C-CERAMIC,CHIP;C330J,33PF,50V”

CM05CG330J50AT

231

C431

2203-000812

“C-CERAMIC,CHIP;C330J,33PF,50V”

CM05CG330J50AT

232

C434

2203-000812

“C-CERAMIC,CHIP;C330J,33PF,50V”

CM05CG330J50AT

233

C438

2203-000812

“C-CERAMIC,CHIP;C330J,33PF,50V”

CM05CG330J50AT

234

C439

2203-000812

“C-CERAMIC,CHIP;C330J,33PF,50V”

CM05CG330J50AT

235

C440

2203-000812

“C-CERAMIC,CHIP;C330J,33PF,50V”

CM05CG330J50AT

236

C443

2203-000812

“C-CERAMIC,CHIP;C330J,33PF,50V”

CM05CG330J50AT

237

C444

2203-000812

“C-CERAMIC,CHIP;C330J,33PF,50V”

CM05CG330J50AT

238

C507

2203-000812

“C-CERAMIC,CHIP;C330J,33PF,50V”

CM05CG330J50AT

239

C511

2203-000812

“C-CERAMIC,CHIP;C330J,33PF,50V”

CM05CG330J50AT

240

C601

2203-000812

“C-CERAMIC,CHIP;C330J,33PF,50V”

CM05CG330J50AT

241

C612

2203-000812

“C-CERAMIC,CHIP;C330J,33PF,50V”

CM05CG330J50AT

242

C614

2203-000812

“C-CERAMIC,CHIP;C330J,33PF,50V”

CM05CG330J50AT

243

C630

2203-000812

“C-CERAMIC,CHIP;C330J,33PF,50V”

CM05CG330J50AT

244

C410

2203-000854

“C-CERAMIC,CHIP;C390J,39PF,50V”

CL05C390JBNC

245

C421

2203-000854

“C-CERAMIC,CHIP;C390J,39PF,50V”

CL05C390JBNC

246

C424

2203-000854

“C-CERAMIC,CHIP;C390J,39PF,50V”

CL05C390JBNC

247

C428

2203-000854

“C-CERAMIC,CHIP;C390J,39PF,50V”

CL05C390JBNC

248

C429

2203-000854

“C-CERAMIC,CHIP;C390J,39PF,50V”

CL05C390JBNC

249

C416

2203-000995

“C-CERAMIC,CHIP;C470J,47PF,50V”

GRP1555C1H470JZ01E

250

C422

2203-001017

“C-CERAMIC,CHIP;C040C,4PF,50V”

GRP1555C1H4R0C

251

C425

2203-001017 “C-CERAMIC,CHIP;C040C,4PF,50V”

GRP1555C1H4R0C

252

C302

2203-001153

“C-CERAMIC,CHIP;C680J,68PF,50V”

CL05C680JBNC

253

C316

2203-001153

“C-CERAMIC,CHIP;C680J,68PF,50V”

CL05C680JBNC

254

C317

2203-001153

“C-CERAMIC,CHIP;C680J,68PF,50V”

CL05C680JBNC

255

C500

2203-001405

“C-CERAMIC,CHIP;C223Z,22NF,25V”

CL05F223ZANC

256

C501

2203-001405

“C-CERAMIC,CHIP;C223Z,22NF,25V”

CL05F223ZANC

background image

Electrical Parts List

3-10

NO

Refer

SEC

Part Description

Vendor Part No.

ence

CODE

257

C508

2203-001405

“C-CERAMIC,CHIP;C223Z,22NF,25V”

CL05F223ZANC

258

C509

2203-001405

“C-CERAMIC,CHIP;C223Z,22NF,25V”

CL05F223ZANC

259

C510

2203-001405

“C-CERAMIC,CHIP;C223Z,22NF,25V”

CL05F223ZANC

260

C512

2203-001405

“C-CERAMIC,CHIP;C223Z,22NF,25V”

CL05F223ZANC

261

C514

2203-001405

“C-CERAMIC,CHIP;C223Z,22NF,25V”

CL05F223ZANC

262

C515

2203-001405

“C-CERAMIC,CHIP;C223Z,22NF,25V”

CL05F223ZANC

263

C203

2203-002443

“C-CERAMIC,CHIP;C331K,330PF,50V”

CL05B331KBNC

264

C400

2203-003054

“C-CERAMIC,CHIP;C090C,9PF,50V”

CL05C090CBNC

265

C442

2203-003054

“C-CERAMIC,CHIP;C090C,9PF,50V”

CL05C090CBNC

266

C505

2203-005050

“C-CERAMIC,CHIP;C1R8C,1.8PF,50V”

CL05C1R8CBNC

267

C506

2203-005050

“C-CERAMIC,CHIP;C1R8C,1.8PF,50V”

CL05C1R8CBNC

268

C102

2203-005061

“C-CERAMIC,CHIP;C104Z,100NF,16V”

CL05F104ZONC

269

C112

2203-005061

“C-CERAMIC,CHIP;C104Z,100NF,16V”

CL05F104ZONC

270

C116

2203-005061

“C-CERAMIC,CHIP;C104Z,100NF,16V”

CL05F104ZONC

271

C118

2203-005061

“C-CERAMIC,CHIP;C104Z,100NF,16V”

CL05F104ZONC

272

C123

2203-005061

“C-CERAMIC,CHIP;C104Z,100NF,16V”

CL05F104ZONC

273

C124

2203-005061

“C-CERAMIC,CHIP;C104Z,100NF,16V”

CL05F104ZONC

274

C128

2203-005061

“C-CERAMIC,CHIP;C104Z,100NF,16V”

CL05F104ZONC

275

C201

2203-005061

“C-CERAMIC,CHIP;C104Z,100NF,16V”

CL05F104ZONC

276

C202

2203-005061

“C-CERAMIC,CHIP;C104Z,100NF,16V”

CL05F104ZONC

277

C217

2203-005061

“C-CERAMIC,CHIP;C104Z,100NF,16V”

CL05F104ZONC

278

C300

2203-005061

“C-CERAMIC,CHIP;C104Z,100NF,16V”

CL05F104ZONC

279

C305

2203-005061

“C-CERAMIC,CHIP;C104Z,100NF,16V”

CL05F104ZONC

280

C309

2203-005061

“C-CERAMIC,CHIP;C104Z,100NF,16V”

CL05F104ZONC

281

C310

2203-005061

“C-CERAMIC,CHIP;C104Z,100NF,16V”

CL05F104ZONC

282

C313

2203-005061

“C-CERAMIC,CHIP;C104Z,100NF,16V”

CL05F104ZONC

283

C106

2203-005065

“C-CERAMIC,CHIP;C105Z,1UF,10V”

CL10F105ZPNC

284

C115

2203-005065

“C-CERAMIC,CHIP;C105Z,1UF,10V”

CL10F105ZPNC

285

C125

2203-005065

“C-CERAMIC,CHIP;C105Z,1UF,10V”

CL10F105ZPNC

286

C502

2203-005234

“C-CERAMIC,CHIP;C1R2C,1.2PF,50V”

CL05C1R2CBNC

287

C503

2203-005234

“C-CERAMIC,CHIP;C1R2C,1.2PF,50V”

CL05C1R2CBNC

288

C427

2203-005444

“C-CERAMIC,CHIP;C030B,3PF,50V”

GRP1555C1H3R0BZ01E

289

C415

2203-005480

“C-CERAMIC,CHIP;C333K,33NF,10V”

GRP155R71A333KA01E

290

C420

2203-005480

“C-CERAMIC,CHIP;C333K,33NF,10V”

GRP155R71A333KA01E

291

C446

2203-005481

“C-CERAMIC,CHIP;C473K,47NF,10V”

GRP155R71A473KA01E

292

C311

2203-005483

“C-CERAMIC,CHIP;C683K,68NF,10V”

GRP155R61A683KA01E

293

C315

2203-005496

“C-CERAMIC,CHIP;C224Z,220NF,10V”

GRP155F51A224ZD02E

294

C406

2203-005503

“C-CERAMIC,CHIP;C1801J,180PF,25V”

CL05C181JANC

295

C407

2203-005503

“C-CERAMIC,CHIP;C1801J,180PF,25V”

CL05C181JANC

296

C105

2203-006093

“C-CERAMIC,CHIP;C105Z,1000NF,6.3V”

1000 NF : GRP155F50J105Z

297

C691

2203-006093

“C-CERAMIC,CHIP;C105Z,1000NF,6.3V”

1000 NF : GRP155F50J105Z

298

C312

2404-001086

“C-TA,CHIP;4.7UF/6.3V”

TESVSPOJ475M8RTJ

299

C119

2404-001101

“C-TA,CHIP;1UF/16V”

TCSCS1C105PAS

background image

3-11

Electrieal Parts List

NO

Refer

SEC

Part Description

Vendor Part No.

ence

CODE

300

C160

2404-001101

“C-TA,CHIP;1UF/16V”

TCSCS1C105PAS

301

C101

2404-001105

“C-TA,CHIP;10UF/6.3V”

TCSCS0J106MPAR

302

C113

2404-001105

“C-TA,CHIP;10UF/6.3V”

TCSCS0J106MPAR

303

C114

2404-001105

“C-TA,CHIP;10UF/6.3V”

TCSCS0J106MPAR

304

C121

2404-001105

“C-TA,CHIP;10UF/6.3V”

TCSCS0J106MPAR

305

C122

2404-001105

“C-TA,CHIP;10UF/6.3V”

TCSCS0J106MPAR

306

C126

2404-001105

“C-TA,CHIP;10UF/6.3V”

TCSCS0J106MPAR

307

C603

2404-001105

“C-TA,CHIP;10UF/6.3V”

TCSCS0J106MPAR

308

C417

2404-001162

“C-TA,CHIP;F950G476MAAJZTQ2”

F950G476MAAJZTQ2

309

C100

2404-001239

“C-TA,CHIP;100UF/6.3V”

F950J107MBAAQ2

310

C600

2404-001239

“C-TA,CHIP;100UF/6.3V”

F950J107MBAAQ2

311

L504

2703-001749

INDUCTOR-SMD;LL1005-FH1N0S

LL1005-FH1N0S

312

L300

2703-001752

INDUCTOR-SMD;LL1005-FH39NJ

LL1005-FH39NJ

313

L410

2703-001938

INDUCTOR-SMD;LL1005-FH56NJ

LL1005-FH56NJ

314

L502

2703-001943

INDUCTOR-SMD;HK1005-10NJ-T

HK1005-10NJ-T

315

L604

2007-007771

“R-CHIP;0OHM,5%,1/16W,DA,TP,1005 “

RC1005J000CS

316

L605

2007-007771

“R-CHIP;0OHM,5%,1/16W,DA,TP,1005 “

RC1005J000CS

317

L503

2703-002205

INDUCTOR-SMD;CIH05T3N9KNC

CIH05T3N9KNC

318

L607

2703-002176

INDUCTOR-SMD;CIH05T2N7SNC CIH05T2N7SNC

319

L606

2703-002199

INDUCTOR-SMD;CIH05T12NKNC

CIH05T12NKNC

320

L500

2703-002484

INDUCTOR-SMD;0402CS-7N5XJBW

0402CS-7N5XJBW

321

L501

2703-002485

INDUCTOR-SMD;0402CS-27NXJBW

0402CS-27NXJBW

322

OSC400

2801-004025

CRYSTAL-SMD;FC-255

FC-255

323

U504

2809-001260

“OSCILLATOR-VCTCXO;13MHZ,3PPM,10K”

TCO-9141B(13MHz)

324

F200

2901-001234

FILTER;NFA31GD4704704D

NFA31GD4704704D

325

F201

2901-001234

FILTER;NFA31GD4704704D

NFA31GD4704704D

326

F202

2901-001234

FILTER;NFA31GD4704704D

NFA31GD4704704D

327

F203

2901-001234

FILTER;NFA31GD4704704D

NFA31GD4704704D

328

U605

2009-001197

FILTER;LMG002S-5047A

LMG002S-5047A

329

U501

2904-001417

FILTER;B7820

B7820

330

U500

2904-001419

FILTER;B7821

B7821

331

L200

3301-001362

CORE-FERRITE BEAD;BLM10A102SGPT

BLM10A102SGPT

332

L201

3301-001362

CORE-FERRITE BEAD;BLM10A102SGPT

BLM10A102SGPT

333

CN600

3705-001239

CONNECTOR-COAXIAL;MHC-P195

MHC-P195

334

CN100

3709-001229

CONNECTOR;PC-D6-A3-H2.7-S

PC-D6-A3-H2.7-S

335

CN301

3710-001611

CONNECTOR;1005-0018-301

1005-0018-301

336

CN205

3711-005078

CONNECTOR-HEADER;10-5602-034-001-829

14-5602-034-001-829

337

CN300

3711-005197

CONNECTOR-HEADER;BAT-CON3

I/O-3A3-2.5P-H2.6-N

338

EAR400

3722-001715

JACK-PHONE;02-828P0-53BKA

02-828P0-53BKA

339

BAT100

4302-001130

BATTERY-LI;RB414_IV02N

RB414_IV02N

340

U300

1109-001259 “IC-ETC.

MEMORY;LRS1815A,4MX”

LRS1815A

341

L601

3301-001630

FERRITE;HF30ACC201209-T

HF30ACC201209-T

background image

4. Block Diagrams

4-1 Main Baseband

4-1

Block Diagrams

Battery

T

ype

Battery

V

oltage

Battery

T

emperature

XVCC

R

TC_VCC

Serial Data

Interface

I/O

Interface

A/D

Interface

AFC

PLL

Charging

Circuit

Li-Ion Battery

(Standard)

ONE C

VIBRA

T

O

R

SYSTEM CLOCK

(13MHz)

SRAM

FLASH

EEPROM

R

TC_CLOCK

(32.768KHz)

KEYP

AD

SIM CARD

SPEAKER

MIC

LCD

BB INTERF

ACE

RF INTERF

ACE

DVCC2.5

A

VCC2.5

VDD3.0

3VRF

Charging

Current

LED_3V3

background image

Block Diagrams

4-2

4-2 Main RF

EGSM RX

925~960 MHz

(CH62 : 947.4 MHz)

DCS RX

1805~1880 MHz

(CH698 : 1842.4 MHz)

SA

W

Filter

U501

SA

W

Filter

U500

LNA

LNA

PGA

PGA

ADC

ADC

VCTCXO

(U504)

EGSM TX

880 ~ 915 MHz

(CH62 : 902.4 MHz)

DCS TX

1710 ~ 1785 MHz

(CH698 : 1747.4 MHz)

Dual P

A

M

(U600)

Antenna

S/W

(U605)

RF

Conector

(CN600)

Si4200 (U502)

RF

PLL

IF

PLL

Si4133T

(U505)

PD

LPF

Mixer

Channel

Filter

PGA

PGA

DAC

DAC

100

kHz

Si4201 (U503)

VP40578

(U401)

Bryce Park

I

Q

I

Q

S

D

ATA

SCLK

SENB

PDNB

background image

4-3

Block Diagrams

4-2-1 RF Transmit Part

VCTCXO

(U504)

EGSM TX

880 ~ 915 MHz

(CH62 : 902.4 MHz)

DCS TX

1710 ~ 1785 MHz

(CH698 : 1747.4 MHz)

Antenna

S/W

(U605)

RF

Conector

(CN600)

VP40578

(U401)

Bryce Park

S

D

ATA

SCLK

SENB

PDNB

PD

LPF

Si4200 (U502)

I

Q

Dual P

A

M

(U600)

RF

PLL

Si4133-T

(U505)

AFC

+VBA

TT

Txpower

from U401

3VRF

8

TXEN

from U401

VC1

VC2

Ant. S/W

Control

Circuit

BAND Selection

VREG

<EGSM>

1279 ~ 1314 MHz

<DCS>

1327 ~ 1402 MHz

-6dBm

@ 1301.4 MHz (G)

-9dBm

@ 1364.4 MHz (D)

21

1

53

9

11

7

1

24

25

5

6

7

8

31

4

2

7

26,27

23,24

12,13

9,10

IF

PLL

9

/2

<EGSM>

880~895 MHz : 798 MHz

895~900 MHz : 790 MHz

900~915 MHz : 798 MHz

<DCS>

766 MHz

-6dBm

@ 798 MHz

-9dBm

@ 766 MHz

1

2

3

VC2

VC1

Tx(GSM)

Tx(DCS)

Rx

L

L

H

H

LL

TXEN

Txpower

2

1

3VRI

BANDSEL

_BANDSEL

background image

Block Diagrams

4-4

4-2-2 RF Receive Part

VP40578

(U401)

Bryce Park

EGSM RX

925~960 MHz

(CH62 : 947.4 MHz)

DCS RX

1805~1880 MHz

(CH698 : 1842.4 MHz)

SA

W

Filter

(U501)

SA

W

Filter

(U500)

LNA

LNA

PGA

PGA

ADC

ADC

VCTCXO

(U504)

Antenna

S/W

(U605)

RF

Conector

(CN600)

Si4200 (U502)

RF

PLL

Si4133-T

(U505)

Mixer

Channel

Filter

PGA

PGA

DAC

DAC

100

kHz

I/O

Si4201 (U503)

I

Q

<EGSM>

1849.8 ~ 1919.8 MHz

<DCS>

1804.9 ~ 1879.9 MHz

GSM : /2

2

3

8

10

1

1

1

3,4

3,4

17,18

21,22

1,2

1,2

1

1,12

1

1,12

5

4

3

2

S

D

ATA

SCLK

SENB

AFC

4

2

7

7

23,24

12,13

PDNB

31

9

14

- 50dBm

@ 947.067 MHz

- 50dBm

@ 1842.467 MHz

-51dBm

-52dBm

-6dBm

@ 1895.6 MHz (G)

-9dBm

@ 1842.3 MHz (D)

-52dBm

-52dBm

-50dBm (G)

-54dBm (D)

@ 67 kHz

1

2

3

4

background image

5. Flow Chart of Troubleshooting and Circuit Diagrams

5-1 Power ON

5-1

Flow Chart of Troubleshooting and Circuit Diagrams

’POWER ON’does not work

Charge the Battery

Check the Battery Voltage

is more than 3.2V

No

Yes

Yes

Check the Dome sheet

When the "END" key is

pressed, the voltage of "D110 pin1"

3.6V?

No

Yes

END

pin 5 2.5 V ?

Check the circuit related to U102, U108

No

Check the initial operation

Check U100, U104 and related circuit

No

Yes

Check for the clock signal at R516

Check the clock generation circuit

(related to U504 and Q500)

No

Yes

Yes

U104 pin 5 3.0 V ?

U102
U108

U100 pin 5 3.3 V ?

background image

Flow Chart of Troubleshooting and Circuit Diagrams

5-2

+VB

A

T

T

PO

WER

C151

10NF

1K

R100

D100

MCL4154

U106

UMC5NTL

1

2

3

4

5

100NF

C112

R108

VDD3.0

100K

R106

1

2

3

4

5

10NF

C120

C103

10NF

LED_3V3

DCV

OL

T

PO

WER

DCIN

ON_OFF

BB_PWR

LED_3V3

R

TC_VCC

C101

10UF

6.3V

ON/OFF

VIN

15

V

OUT

C100

6.3V

100UF

UMN1

D110

VIN

1

V

OUT

5

C114

6.3V

10UF

3

GND

LP2985AIM5-3.3

U100

BYP

ASS

4

2

R110

100K

C123

100NF

D

VCC2.5

6.3V

B

A

T100

RB414_IV02N

C102

100NF

R107

100K

U108

LP3985IM5X-2.5

4

BYP

ASS

GND

2

3

ON/OFF

1

VIN

V

OUT

5

100K

R105

C113

10UF

6.3V

10NF

C150

C111

10NF

U104

LP2985AIM5-3.0

BYP

ASS

4

GND

2

ON/OFF
3

100K

1UF

C105

100NF

C128

10NF

C104

A

VCC2.5

100K

R109

2

GND

3

ON/OFF

1

V

IN

V

OUT

5

U102

LP3985IM5X-2.5

BYP

ASS

4

10UF

C122

background image

Flow Chart of Troubleshooting and Circuit Diagrams

5-3

5-2 Initial

Initial Failure

After power on,

check and repair the important

signals of U400 as follows

END

No

Downloading SW is OK ?

(Is CSROM signal OK ?)

The node

between R408 and C408

= "H" (RST)

No

Check the circuit

related to reset

R412 = "H" (BOOT)

No

Resolder R412

Yes

R425 = "H" (MSIZE)

No

Resolder R425

Yes

R426 = "L" (EXTPROC)

No

Resolder R426

Yes

Replace PBA

Check all the other connection

by Test S/W

Check the circuit around LCD

Check the circuit

around U402(EEPROM)

and data stored in it

Yes

background image

Flow Chart of Troubleshooting and Circuit Diagrams

5-4

U401

U400

U300

VCC

VCC

R408

C408

R412

R425

BOOT

SYSRST

GPIO3

MSIZE

CSROM

_CE

background image

Flow Chart of Troubleshooting and Circuit Diagrams

5-5

5-3 Charging Part

Abnormal charging part

Replace TA

Check the CN301 pin 17,18 > 4.9 V ?

No

Yes

Yes

Check the U103 pin 3 > 4.9 V ?

Resolder U103, U915

Yes

No

R103(CHG_ON side) = "L" ?

Resolder R103

Yes

No

Resolder components around

U103

Check the U106 pin 5 4.2V ?

END

Yes

No

background image

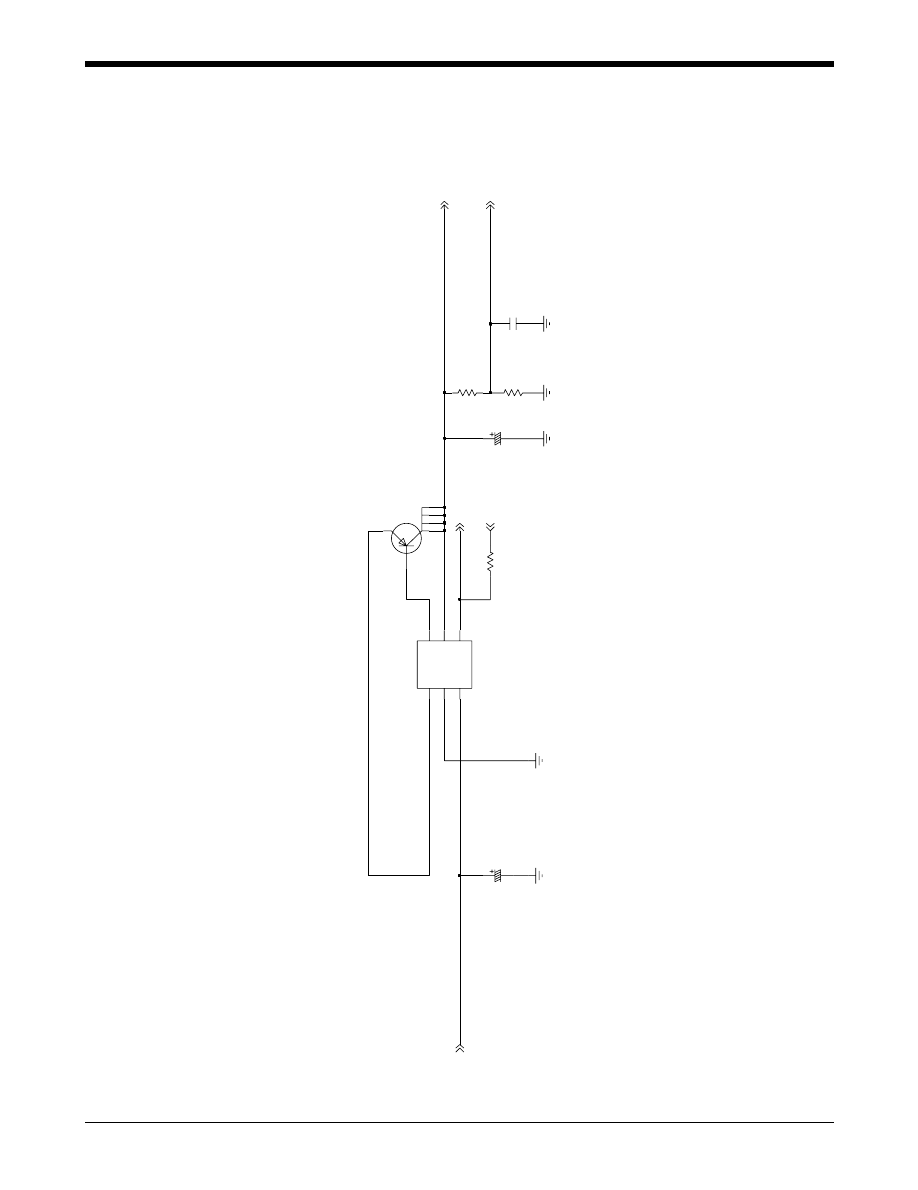

Flow Chart of Troubleshooting and Circuit Diagrams

5-6

ICHA

G

DCV

OL

T

+VB

A

T

T

CHG_ON

B

A

T_V

OL

T

L

TC1734ES6-4.2#TR

U103

C118

100NF

R104

100K,1%

R112

82K,1%

16V

1UF

C119

R103

2.7K

3

1

2

5

6

4

Q100

ZXT13P20DE6

U915

1UF

16V

6

DRIVE

2

GND

ISENSE

1

4

PR

OG

VCC

3

VSENSE

5

background image

Flow Chart of Troubleshooting and Circuit Diagrams

5-7

5-4 Sim Part

U101 pin5 = "H" ?

Replace U101 or

Replace PBA

END

Yes

No

Check the circuit around U402

(Serial EEPROM) and data stored in it

Yes

Phone can’t access SIM card

Yes

U101 pin 2, 3 = 3.0 V ?

Replace U101

Yes

No

After Power ON,

Check SIMCLK Signal on CN100 pin 3

in a few second

After SIM card insert,

CN100 pin 2 = "H(SIMRST) ?

Resoldering C109 or

Replace PBA

Replace PBA

Yes

No

No

U101 pin4 = 3.0 V ?

Yes

No

Check the circuit around U104

background image

Flow Chart of Troubleshooting and Circuit Diagrams

5-8

9

G
G

10

1

1

2

2

3

34

4

5

5

6

6

7

G
G

8

R111

PC-D6-A3-H2.7-S

CN100

C107

4.7K

27PF

27PF

C108

R101

27PF

C109

47K

4

VDD3.0

C106

1UF

FDG6323L

U101

ON/OFF

5

6

R1,C1

1

R2

V

.C1-1

2

V

.C1-2

3

VIN,R1

SIMRST

SIMD

A

T

A

SIMCLK

SIMPWREN

SIMVCC

background image

Flow Chart of Troubleshooting and Circuit Diagrams

5-9

5-5 Microphone Part

Microphone does not work

Resolder EAR400

EAR400 pin 4, 5 = short?

U102 pin 5 (AVCC) 2.5V?

Check the circuit

RC Filter to MIC1

Check the circuit related to U102

END

Resolder the

R422,R423,R423,R429,

C415,C417,C416,C420

Yes

No

Yes

Yes

Yes

No

No

Check the tension of MIC Module

Replace the Mic or Mic Holder

No

Yes

background image

Flow Chart of Troubleshooting and Circuit Diagrams

5-10

EAR400

MIC1

U401

PWI1P

PWI1N

MIC+

MIC-

1

54

MIC+

MIC-

RC

FIL

TER

background image

Flow Chart of Troubleshooting and Circuit Diagrams

5-11

5-6 Receiver Part

Speaker does not work

Yes

EAR400 pin 2, 3 = short

Resolder EAR400

EAR400 pin 2, 3, 6 = 1.25 V ?

No

No

Replace the PBA

Yes

Yes

U205 pin 7, 8

Resolder U205, R237, R236

END

Yes

No

L ?

background image

Flow Chart of Troubleshooting and Circuit Diagrams

EAR400

U205

U401

PWO1P

PWO1N

Rec+

Rec-

6

23

SPK+

SPK-

U301

Spout1

Spout2

COM1

COM2

+

-

SW

SW

SPEAKER

5-12

background image

5-7 Key Data Input

Check Initial operation

Check the Dome sheet

When

one of the keys is pushed,

is it displayed on LCD

Keypad is OK ?

END

Replace the PBA

Yes

No

Yes

Yes

No

Flow Chart of Troubleshooting and Circuit Diagrams

5-13

background image

Flow Chart of Troubleshooting and Circuit Diagrams

5-8 Ring Indicator

Ring Indicator LED does not

work

Replace LCD Module

Resolder 3 LEDs of LCD Module

END

No

Yes

5-14

background image

5-15

Flow Chart of Troubleshooting and Circuit Diagrams

5-9 Back Light

Backlight does not work

Select backlight "ON" mode

Backlight "ON" mode

in the menu?

R217 = "H" ?

GPIO5 by test S/W

No

Yes

Yes

No

Replace LCD

KEY PCB LED

Resolder R217,R218

or Resolder Q201

Q201 pin 3 = "L" ?

No

Yes

Yes

END

Key PCB LED on ?

Resolder

R206,R211,R212,R213,R214,
R215,R240,R241, R242, R243
or Replace PBA

No

background image

5-16

Flow Chart of Troubleshooting and Circuit Diagrams

Q201

U401

R217

R218

KeyP

AD LED

GPIO5

background image

5-17

Flow Chart of Troubleshooting and Circuit Diagrams

5-10 Melody Part

Melody is not working

Check the circuit containing U104

U301 Pin 7

is H ?

Yes

Yes

Check the R511

Check

U301 Pin 1

Working?

Yes

END

Check the C311, C315, C314
R316, R317, R318

spk + / spk -
working

Change the U301

Yes

Yes

Pin 14 is working
Well

U301

?

Yes

Change the speaker

background image

Flow Chart of Troubleshooting and Circuit Diagrams

5-18

NC

C390

R312

0

R316

0

VDD3.0

C315

220N

F

1.2K,1%

R319

C309

100NF

4.7U

F

C312

C313

100N

F

R318

6.3V

6.8K,1%

C310

100N

F

R317

R314

1.2K,1%

100PF

3.3K

68N

F

C311

C314

28

/WR

1N

F

C307

7

VDD

9

VRE

F

VS

S

8

29

/CS

3

/IR

Q

31

/RD

/RST

4

2

LED

MT

R

19

NC

5

PLLC

6

17

SPOUT

1

SPOUT

2

18

15

SPVD D

SPVSS

16

21

D6

D7

20

EQ 1

12

13

EQ 2

EQ 3

14

HPOUT-L/MONO

10

11

HPOUT-R

32

IOVD D

U301

YMU762 MA-

3

A0

30

1

CLKI

D0

27

26

D1

25

D2

D3

24

23

D4

D5

22

M_IR

Q

M_RESET

WR

LINE_OUT

M_LED

MEL13M

D(0)

D(1)

D(2)

D(3)

D(4)

D(5)

D(6)

D(7)

+VBAT

T

VIBRATOR

RD

M_CS

SPK+

SPK-

A(1)

background image

5-19

Flow Chart of Troubleshooting and Circuit Diagrams

5-11 GSM Receiver

Rx On

RF input : CH center freq. + 67.7 kHz

Amp. : -50 dBm

U605

Pin 8

-50 dBm

U605

Pin 10

-53 dBm

U501

Pin 1

-53 dBm

U502

Pin 21, 22

-58 dBm

U502

Pin 1, 2

50 mV

U503

Pin 2, 3, 4, 5

> 100 mV

Resolder

U604

Check

VC1 : L
VC2 : L

Check

Ant. s/w

control

circuit

Resolder

C616

Resolder

U501, C505, C506, L501

Resolder

U401

No

No

No

No

Yes

Yes

Yes

Yes

Yes

Yes

Yes

No

No

Yes

Check

U502

Pin 12, 13

[(Freq-100KHz)*2]

-6 dBm

OK?

No

Resolder

U605

Check

U502

Pin 14, 23, 26, 31, 32

> 2.7 V

OK?

Resolder

U503

No

Yes

Yes

No

Check

U503

Pin 14, 16, 17, 18

OK?

Check

U503

Pin 7, 20

OK?

No

Check

Radio PSU,

RF13MHz part

Yes

No

Check & Resolder

I/O signal, RF13MHz, RF PSU Part

Resolder

U502

background image

Flow Chart of Troubleshooting and Circuit Diagrams

5-20

5-12 GSM Transmitter

Tx On (level : 5)

U605

Pin 8

‡ 30 dBm

U605

Pin 5

‡ 30 dBm

U600

Pin 9

‡ 30 dBm

U600

Pin 7

‡ 0 dBm

U502

Pin 25

‡ 0 dBm

U502

Pin 5, 6, 7, 8

40 ‡ mV

Resolder

U604

Check

VC1 : L

VC2 : H

Change or Resolder

U605

Resolder

C612

Resolder

R509, R507,

No

No

No

No

No

No

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Check

Ant. S/W Control Circuit

Check

U600 : +VBATT,

Pin 2, 5, 6

OK?

Resolder or

Change U600

Yes

Check +VBATT

or PAM Control signal

No

No

Yes

Check

U502

Pin 9, 10, 12, 13

‡ -6 dBm

OK?

Resolder

U600

Check

U502

Pin 14, 23, 26, 31, 32

> 2.7 V

OK?

Yes

No

Check & Resolder

I/O signal, RF13MHz, RF PSU Part

Resolder

U502

R510, C511

background image

5-21

Flow Chart of Troubleshooting and Circuit Diagrams

5-13 DCS Receiver

Rx On

RF input : CH center freq. + 67.7 kHz

Amp. : -50 dBm

U605

Pin 8

-50 dBm

U605

Pin 1

-53 dBm

U500

Pin 1

-53 dBm

U502

Pin 17, 18

-58 dBm

U502

Pin 1, 2

50 mV

U503

Pin 2, 3, 4, 5

> 100 mV

Resolder

U604

Check

VC1 : L
VC2 : L

Check

Ant. s/w

control

circuit

Resolder

C617, L603

Resolder

U500, C502, C503, L500

Resolder

U401

No

No

No

No

Yes

Yes

Yes

Yes

Yes

Yes

Yes

No

No

Yes

Check

U502

Pin 12, 13

(Freq-100KHz)

-6 dBm

OK?

No

Resolder

U605

Check

U502

Pin 14, 23, 26, 31, 32

> 2.7 V

OK?

Resolder

U503

No

Yes

Yes

No

Check

U503

Pin 14, 16, 17, 18

OK?

Check

U503

Pin 7, 20

OK?

No

Check

Radio PSU,

RF13MHz part

Yes

No

Check & Resolder

I/O signal, RF13MHz, RF PSU Part

Resolder

U502

background image

Flow Chart of Troubleshooting and Circuit Diagrams

5-22

5-14 DCS Transmitter

Tx On (level : 0)

U605

Pin 8

25 dBm

U605

Pin 3

25 dBm

U600

Pin 11

25 dBm

U600

Pin 1

0 dBm

U502

Pin 24

0 dBm

U502

Pin 5, 6, 7, 8

40

mV

Resolder

U604

Check

VC1 : H

VC2 : L

Change or Resolder

U605

Resolder

C614, C605

Resolder

R504, R502,

No

No

No

No

No

No

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Check

Ant. S/W Control Circuit

Check

U600 : +VBATT,

Pin 2, 5, 6

OK?

Resolder or

Change U600

Yes

Check +VBATT

or PAM Control signal

No

No

Yes

Check

U502

Pin 9, 10, 12, 13

-6 dBm

OK?

Resolder

U600

Check

U502

Pin 14, 23, 26, 31, 32

> 2.7 V

OK?

Yes

No

Check & Resolder

I/O signal, RF13MHz, RF PSU Part

Resolder

U623

R503, C507

background image

5-23

Flow Chart of Troubleshooting and Circuit Diagrams

SGH-T508_REV2.0

Title

Size

Date:

Model & VER.

Sheet

5

of 6

RF Part1

A3

300

R510

27K

R520

33PF

C511

R515

2.2K

20K

R504

R521

2

GND

OUT

3

4

VCC

1

VT

390

10K

R505

RF-TCO9141

U504

D111

RB520S-30

18

R507

R502

10

C510

22NF

C505

1.8PF

L502

10nH

C503

1.2PF

C506

5

G

1

IN

3

OUT

4

OUT

1.8PF

B7821

U500

2

G

22NF

C512

C513

100PF

B7820

U501

2

G

G

5

1

IN

3

OUT

OUT

4

R511

22NF

C509

0

10NF

C518

C515

22NF

10K

R514

10NF

C517

100PF

C504

L501

27NH

300

R509

C514

C516

10NF

22NF

C519

100PF

SCLK

SDI

18

15

SDO

SENB

16

VDDA

20

6

VDDC

7

XIN

19

XOUT

ION

12

11

IOP

PDNB

14

5

RXIN

4

RXIP

3

RXQN

RXQP

2

17

CKN

CKP

9

1

GND

8

GND

13

GND

21

GND

GND

22

GND

23

GND

24

SI4201-BM

U503

10

28

25

VDDR

XIN

7

R519

1K

16

23

RFLON

RFLOP

24

SCLK

12

SDI

13

SDO

10

11

SENB

5

VDDD

VDDI

26

27

IFLOP

NC

8

NC

14

PDNB

9

20

RFLA

RFLB

19

RFLC

17

RFLD

GND

18

GND

21

GND

GND

22

GND

29

GND

30

3

IFLA

IFLB

2

IFLON

SI4133T-BM

U505

1

GND

GND

31

GND

32

GND

4

GND

6

15

2SC4617

2

3

1

C508

22NF

Q500

L504

1.0nH

C501

22NF

R516

1K,1%

TXIP

TXQN

8

7

TXQP

23

VDD1

VDD2

14

VDD3

32

VDD4

26

RFIGP

RFIPN

18

17

RFIPP

RFLON

13

RFLOP

12

RFOD

24

25

RFOG

6

TXIN

5

2

IOP

29

L1

L2

28

31

PDNB

RFIDN

20

19

RFIDP

RFIGN

22

21

GND

GND

30

33

GND

GND

34

GND

35

GND

36

10

IFLON

IFLOP

9

ION

1

U502

SI4200-BM

CKN

3

CKP

4

DIAG1

16

15

DIAG2

11

GND

27

100

R518

R517

5

1

51

R522

C507

33PF

1.2PF

C502

22NF

C500

R503 390

R513

91K

NC

R530

7.5NH

L500

R523

51

SYNEN1

SENB

3.9nH

L503

GSMRX

XIN

MC_PDN

_BANDSEL

MEL13M

DCSRX

3VRF

3VRF

IRXN

IRXP

QRXN

QRXP

SCLK_O

SDATA_O

SENB

XIN

DCSTX

GSMTX

SDATA

SCLK

BANDSEL

IFLON

IFLOP

PDNB_O

RFLON

RFLOP

ITXN

ITXP

QTXN

QTXP

XVCC

AFC

CLK13M

XIN

PDNB

RFLON

RFLOP

IFLON

SDATA_O

SCLK_O

PDNB_O

IFLOP

3VRF

background image

Flow Chart of Troubleshooting and Circuit Diagrams

5-24

VC1

TX (GSM)

TX (DCS)

RX

H

H

L

L

L

Antenna S/W Control Circuit

VC1 : GSM TX

VC2 : DCS TX

SGH-T508_REV2.0

Title

Size

Date:

Model & VER.

VC2

Sheet

6 of 6

RF Part2

L

A4

NC

C604

C617

22PF

100PF

NC

L602

C607

NC

C690

12nH

L606

C605

NC

25

63

14

R608

100K,1%

BCR10PN

U603

100K,1%

R607

R603

R691

12K,1%

C613

27PF

0

C601

2

5

6

3

1

4

33PF

BCR10PN

U601

VRAMP

5

VREG

12K,1%

R690

GSMIN

GSMOUT

9

11

PCSOUT

3

TXEN

VBATT

4

10

VCC

VCC2

8

12

VCC2

6

U600

RF3110

BAND

2

DCSIN

1

13

GND

7

33nH

L605

IN

1

OUT

2

NC

L603

CN600

MHC-175

GND1

34

GND2

GND3

56

GND4

C608

1NF

C616

22PF

C602

100PF

2.7nH

L607

R604

10K,1%

33PF

C614

L604

33nH

33PF

C630

C611

27PF

10UF/6.3V

C603

7

G

9

12

GG

13

14

G

VC1

2

11

VC2

LMG002S-5047A

8

ANT

1

DCS_RX

3

DCS_TX

EGSM_RX

10

EGSM_TX

5

4

GG

6

G

25

63

14

U605

L601

HF201209

U602

BCR10PN

C600

*

C612

33PF

6.3V

100UF

A500

_BANDSEL

BANDSEL

C615

27PF

DCSTX

TXPOWER

GSMTX

+VBATT

VC1

TXEN

3VRF

DCSRX

GSMRX

VC1

VC2

VC2

VC1

3VRF

TXEN


Wyszukiwarka

Podobne podstrony:
GH68 10734A rinfo 3
SGH X105NBATMB SM ST GH68 04199A TSHOO 9
20061127143400093 GH68 10798A Preca 2
GH68 10734A TSHOO 9
GH68 10734A aaaaj 7
GH68 10734A EPLIS 12
Manual E810 20SVC(GH68 05709A) 1026
20061127143400093 GH68 10798A Suppl 17
20061127143400093 GH68 10798A rinfo 3
20061127143400093 GH68 10798A COVER 1
SGH X105NBATMB SM ST GH68 04199A COVER 1
GH68 10734A PDIAG 14
20061127143400093 GH68 10798A EPLIS 12
GH68 10734A PSPEC 4
SGH X105NBATMB SM ST GH68 04199A BDIAG 13
SGH X105NBATMB GS ST GH68 04199A PSPEC 4
20061127143400093 GH68 10798A TSHOO 9

więcej podobnych podstron
