ARTICLE BEGINNING

1992 ENGINE PERFORMANCE
Toyota Vacuum Diagrams

Camry, Celica, Corolla, Cressida,
Land Cruiser, MR2, Paseo, Pickup,
Previa, Supra, Tercel, 4Runner

INTRODUCTION

This article contains underhood views or schematics of vacuum
hose routing. Use these vacuum diagrams during the visual inspection
in F - BASIC TESTING article in the ENGINE PERFORMANCE Section. This
will assist in identifying improperly routed vacuum hoses which cause
driveability and/or computer-indicated malfunctions.

CAMRY VACUUM DIAGRAMS

Fig. 1: Vacuum Diagram (Camry - 2.2L 5S-FE) (All States Canada &
Europe)
Courtesy of Toyota Motor Sales, U.S.A., Inc.

Fig. 2: Vacuum Diagram (Camry - 3.0L 3VZ-FE) (All States, Canada
& Europe)
Courtesy of Toyota Motor Sales, U.S.A., Inc.

M - VACUUM DIAGRAMSArticle Text (p. 2)

1992 Toyota MR2

CELICA VACUUM DIAGRAMS

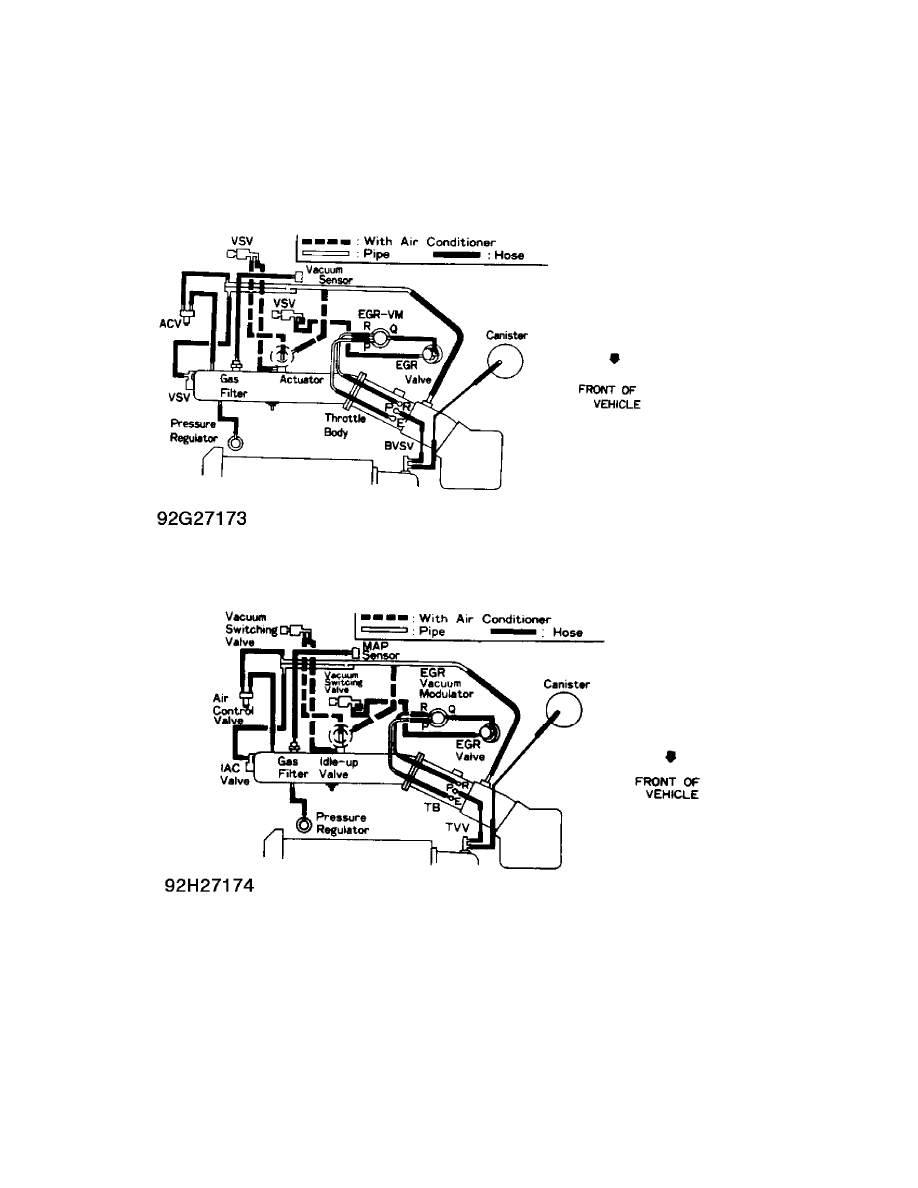

Fig. 3: Vacuum Diagram (Celica - 1.6L 4A-FE) (All States & Canada
- Early 1992)
Courtesy of Toyota Motor Sales, U.S.A., Inc.

Fig. 4: Vacuum Diagram (Celica - 1.6L 4A-FE) (All States & Canada
- Late 1992)
Courtesy of Toyota Motor Sales, U.S.A., Inc.

M - VACUUM DIAGRAMSArticle Text (p. 3)

1992 Toyota MR2For Ace Mechanics 123 Main Street San Diego Ca 92126

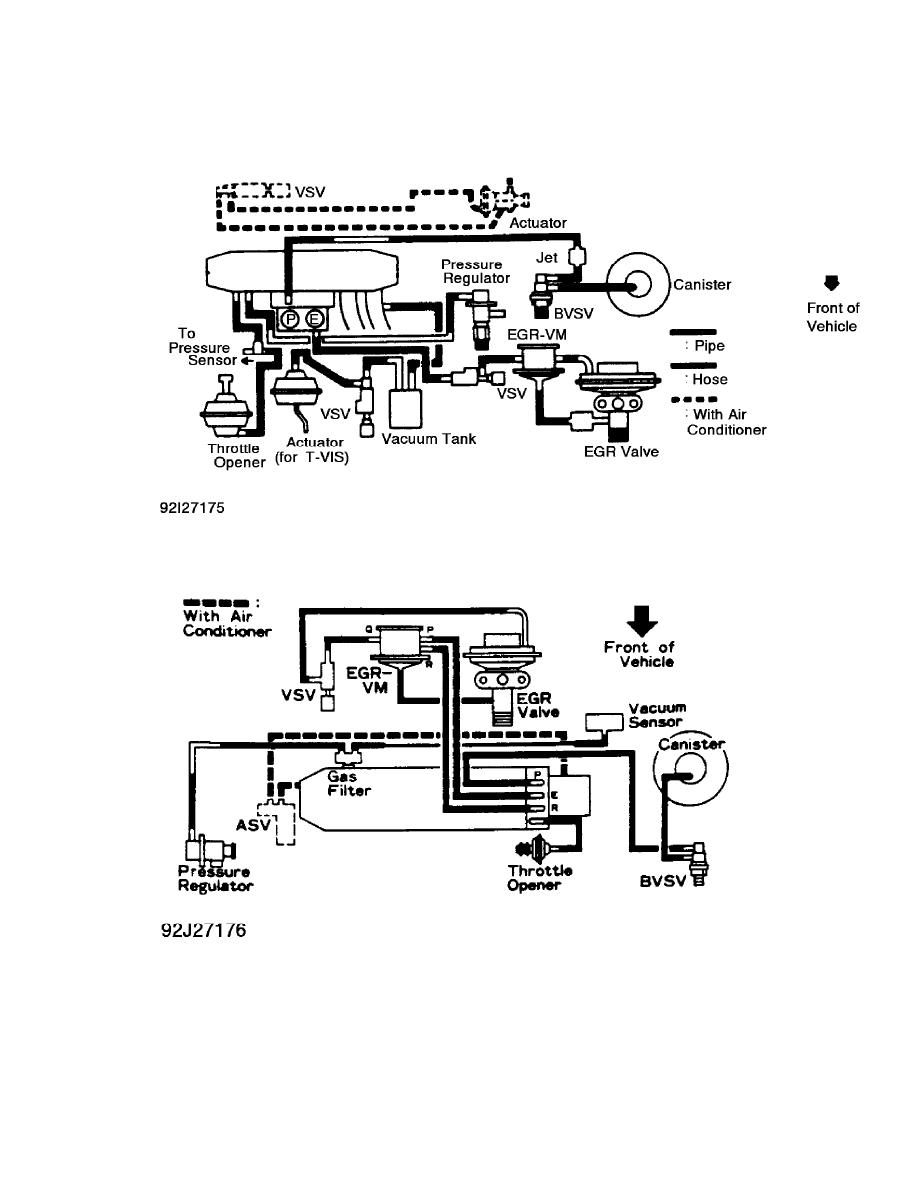

Fig. 5: Vacuum Diagram (Celica - 2.0L 3S-GTE Turbo) (All States &
Canada)
Courtesy of Toyota Motor Sales, U.S.A., Inc.

Fig. 6: Vacuum Diagram (Celica - 2.2L 5S-FE) (All States, Canada
& Australia)
Courtesy of Toyota Motor Sales, U.S.A., Inc.

COROLLA VACUUM DIAGRAMS

M - VACUUM DIAGRAMSArticle Text (p. 4)

1992 Toyota MR2For Ace Mechanics 123 Main Street San Diego Ca 92126

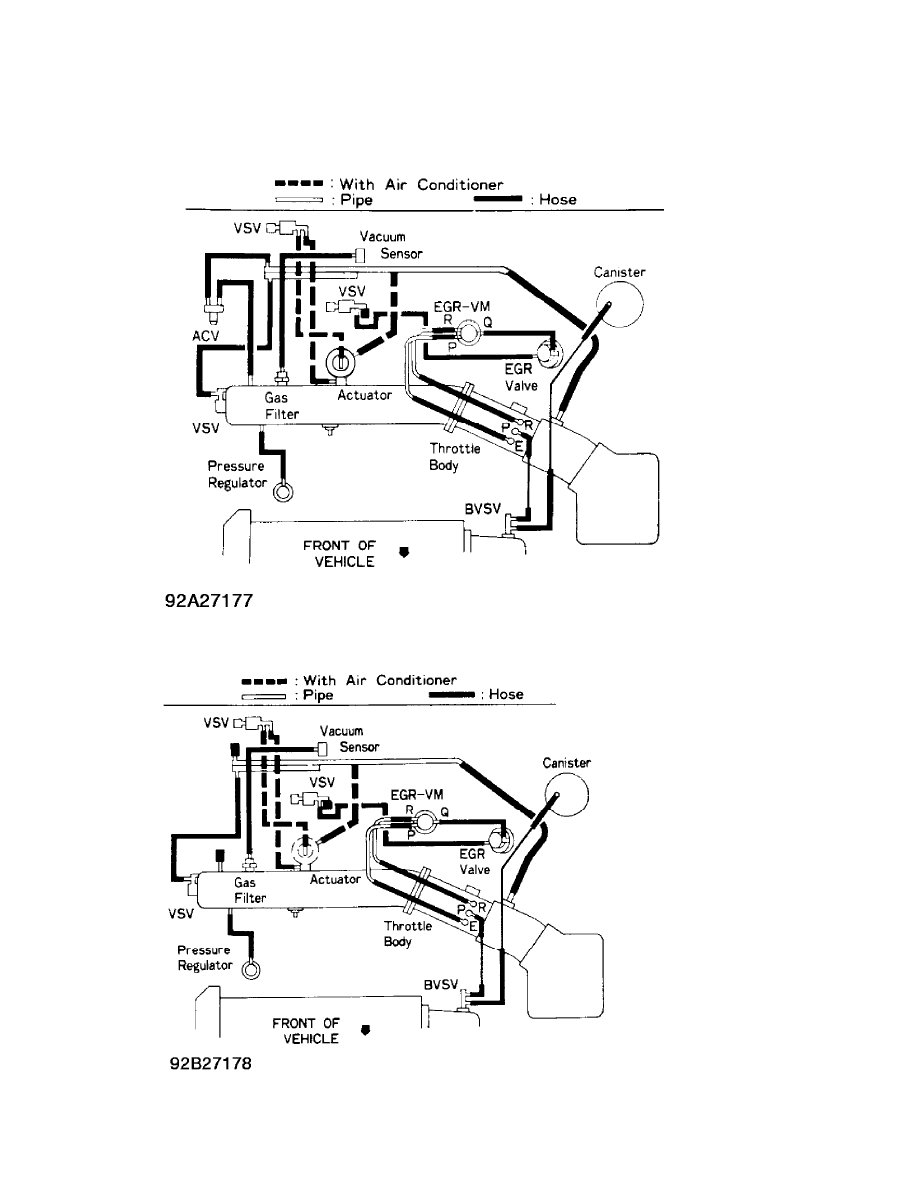

Fig. 7: Vacuum Diagram (Corolla - 1.6L 4A-FE, Calif. A/T, With P/S)
Courtesy of Toyota Motor Sales, U.S.A., Inc.

Fig. 8: Vacuum Diagram (Corolla - 1.6L 4A-FE, Calif. M/T)
Courtesy of Toyota Motor Sales, U.S.A., Inc.

M - VACUUM DIAGRAMSArticle Text (p. 5)

1992 Toyota MR2For Ace Mechanics 123 Main Street San Diego Ca 92126

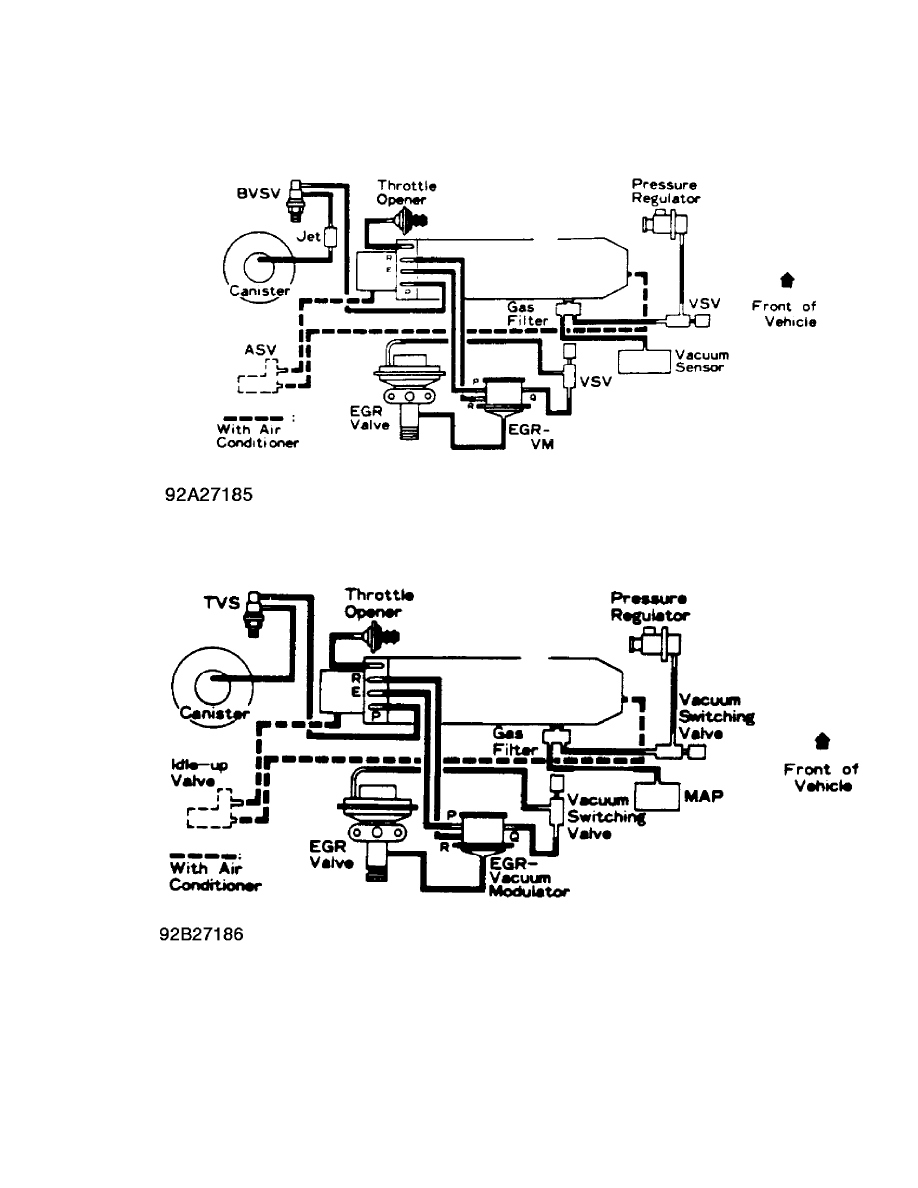

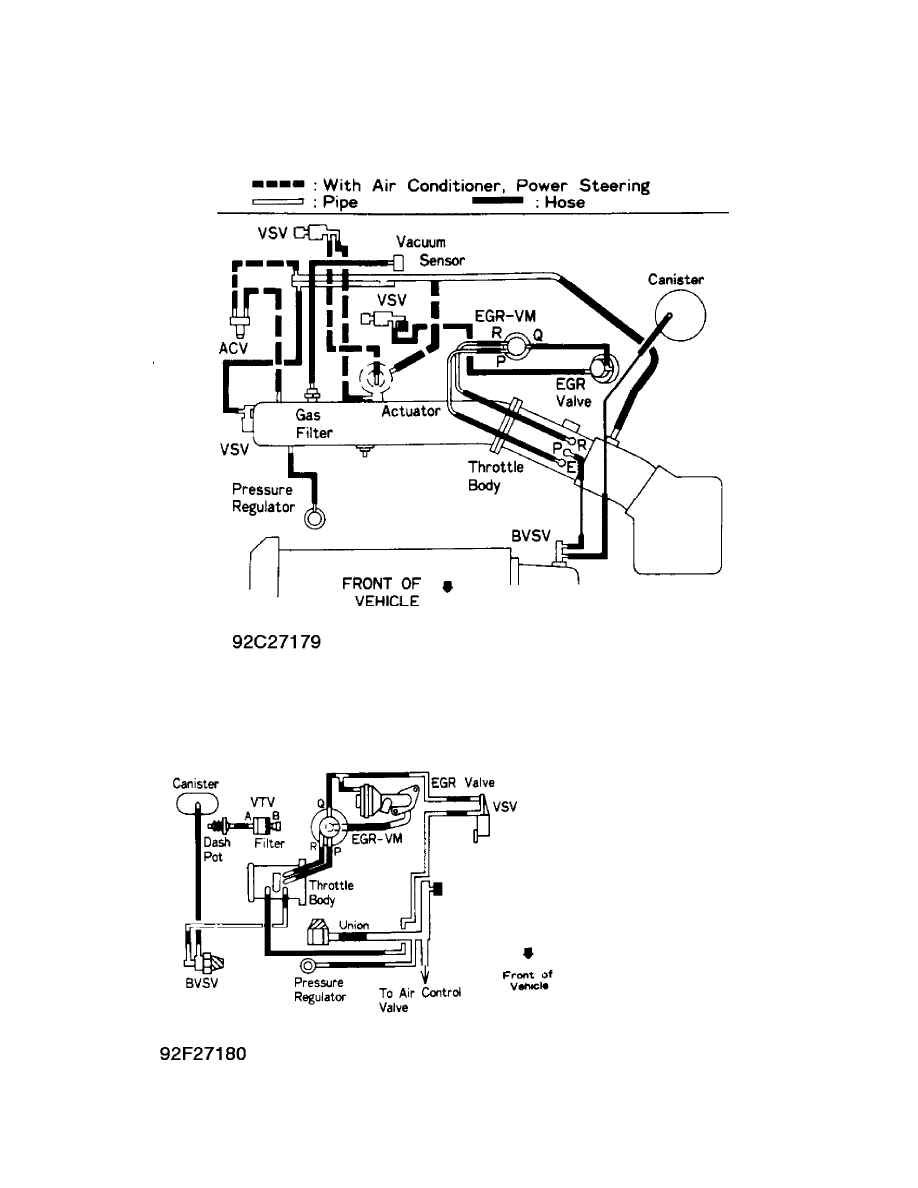

Fig. 9: Vacuum Diagram (Corolla - 1.6L 4A-FE) (Federal & Canada -
Early 1992)
Courtesy of Toyota Motor Sales, U.S.A., Inc.

CRESSIDA VACUUM DIAGRAMS

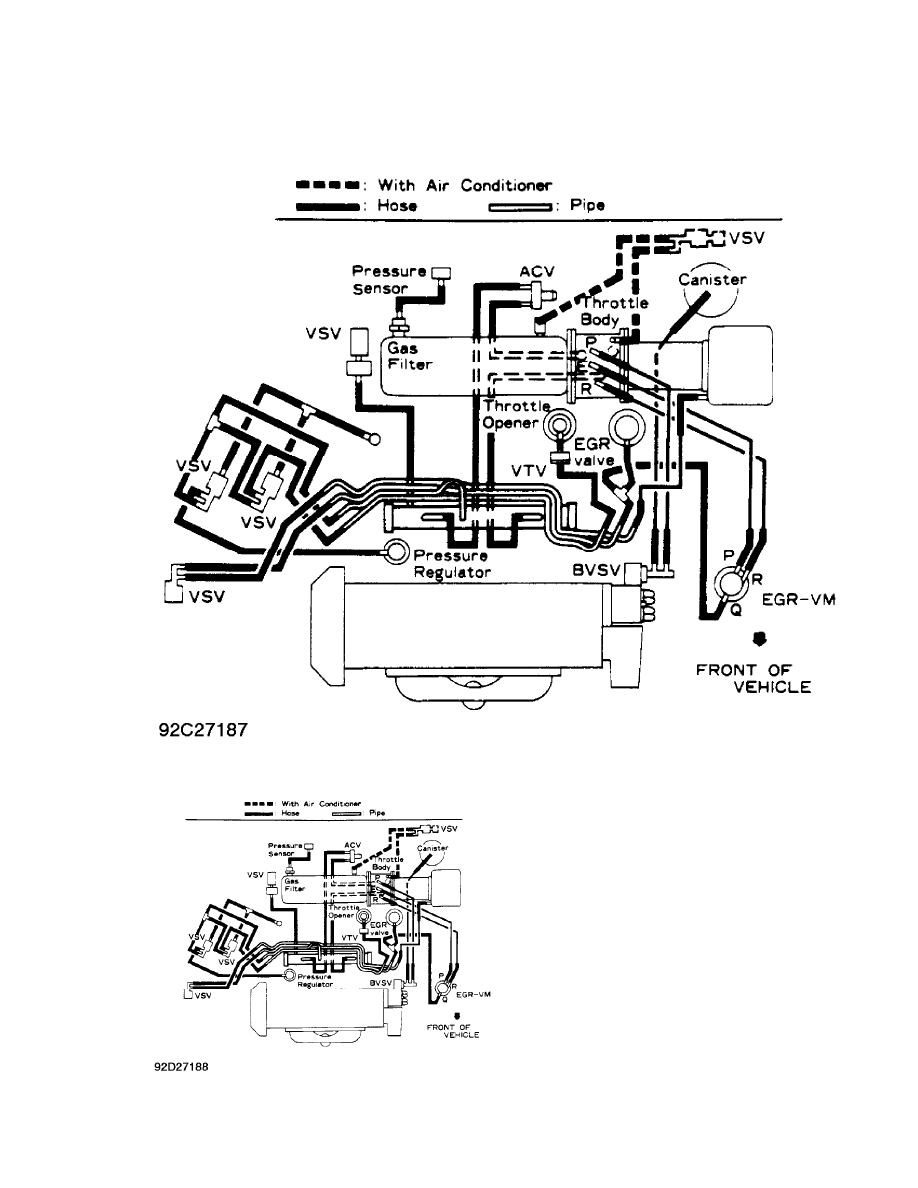

Fig. 10: Vacuum Diagram (Cressida - 3.0L 7M-GE)
Courtesy of Toyota Motor Sales, U.S.A., Inc.

M - VACUUM DIAGRAMSArticle Text (p. 6)

1992 Toyota MR2For Ace Mechanics 123 Main Street San Diego Ca 92126

LAND CRUISER VACUUM DIAGRAMS

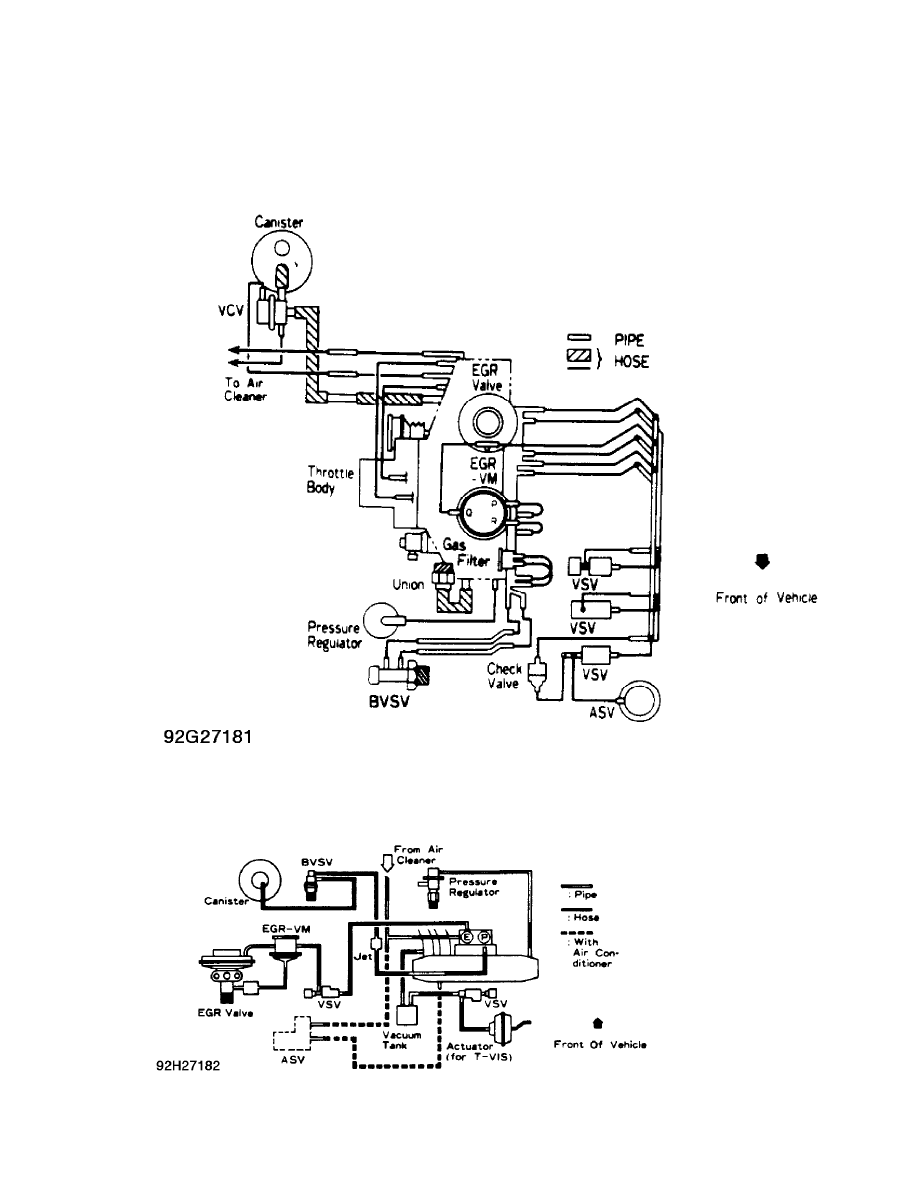

Fig. 11: Vacuum Diagram (Land Cruiser - 4.0L 3F-E)
Courtesy of Toyota Motor Sales, U.S.A., Inc.

MR2 VACUUM DIAGRAMS

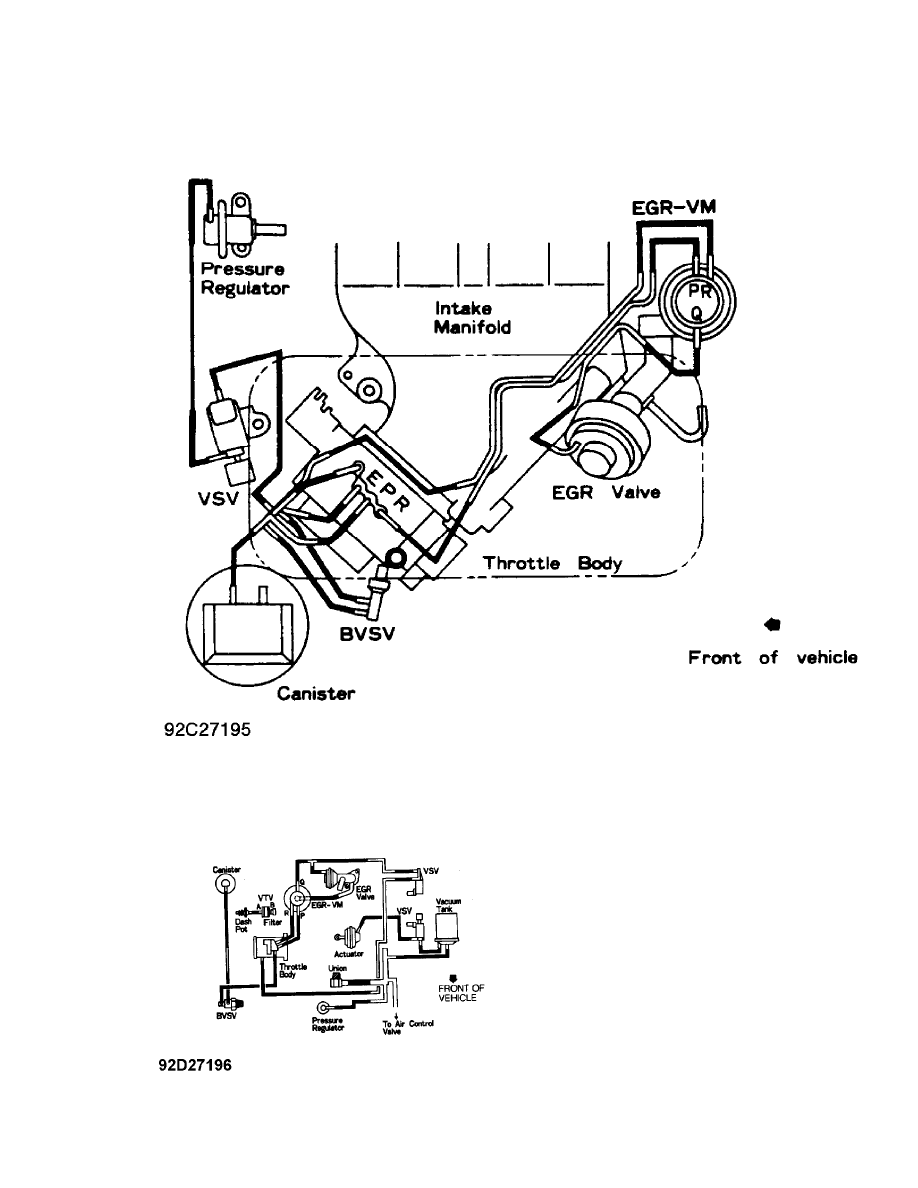

Fig. 12: Vacuum Diagram (MR2 - 2.0L Turbo 3S-GTE) (All States &
Canada - Early 1992)
Courtesy of Toyota Motor Sales, U.S.A., Inc.

M - VACUUM DIAGRAMSArticle Text (p. 7)

1992 Toyota MR2

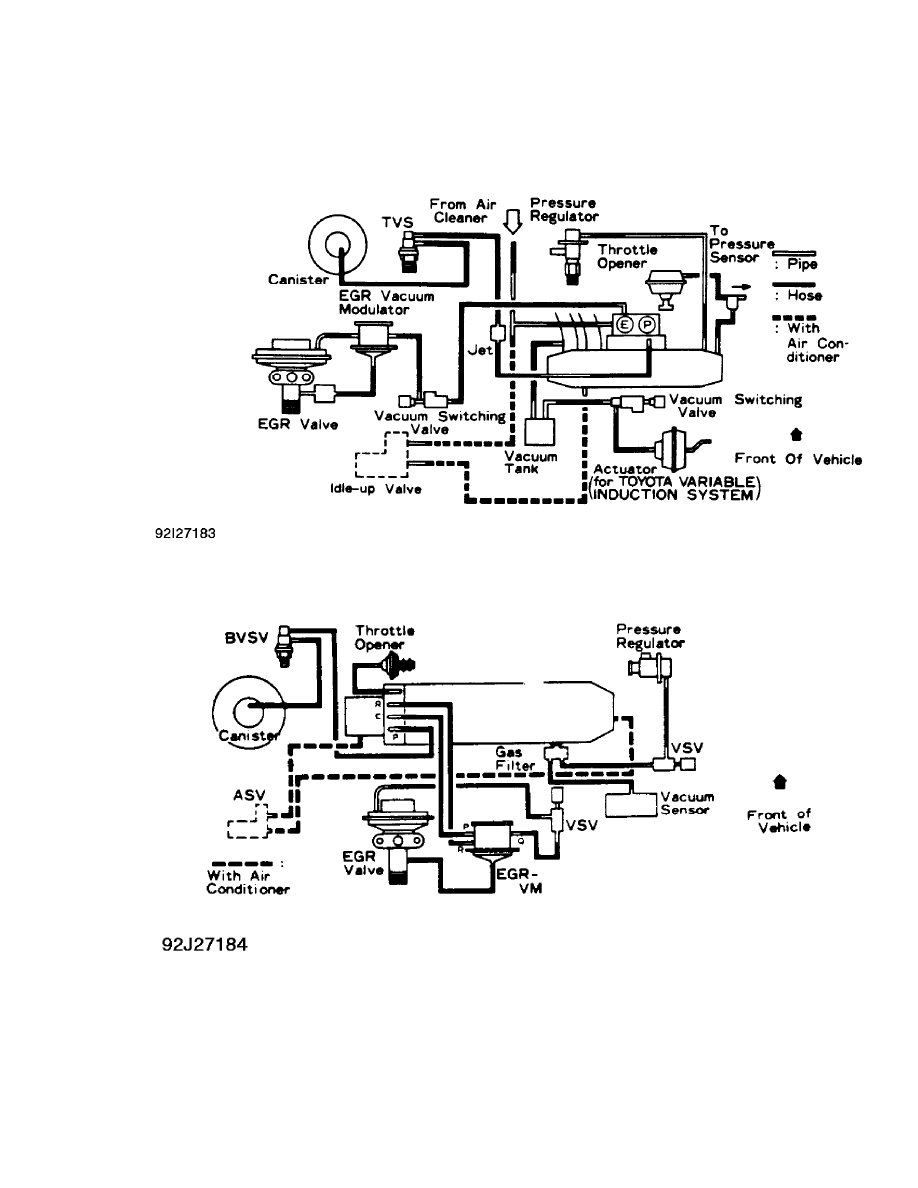

Fig. 13: Vacuum Diagram (MR2 - 2.0L Turbo 3S-GTE) (All States &
Canada - Late 1992)
Courtesy of Toyota Motor Sales, U.S.A., Inc.

Fig. 14: Vacuum Diagram (MR2 - 2.2L 5S-FE, With A/T) (All States
& Canada - Early 1992)
Courtesy of Toyota Motor Sales, U.S.A., Inc.

M - VACUUM DIAGRAMSArticle Text (p. 8)

1992 Toyota MR2For Ace Mechanics 123 Main Street San Diego Ca 92126

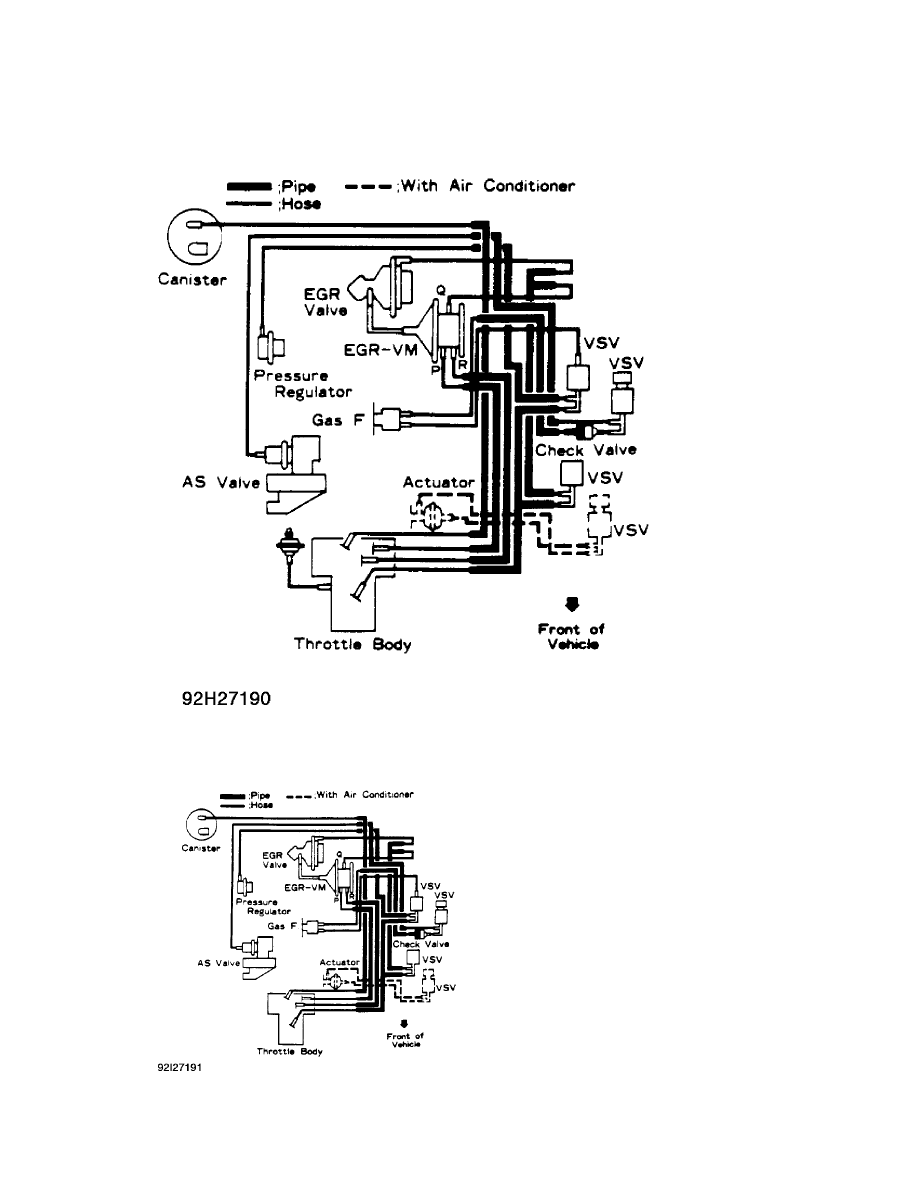

Fig. 15: Vacuum Diagram (MR2 - 2.2L 5S-FE, With M/T) (All States
& Canada - Early 1992)
Courtesy of Toyota Motor Sales, U.S.A., Inc.

Fig. 16: Vacuum Diagram (MR2 - 2.2L 5S-FE, With M/T) (All States
& Canada - Late 1992)
Courtesy of Toyota Motor Sales, U.S.A., Inc.

PASEO VACUUM DIAGRAMS

M - VACUUM DIAGRAMSArticle Text (p. 9)

1992 Toyota MR2For Ace Mechanics 123 Main Street San Diego Ca 92126

Fig. 17: Vacuum Diagram (Paseo - 1.5L 5E-FE, Calif.)
Courtesy of Toyota Motor Sales, U.S.A., Inc.

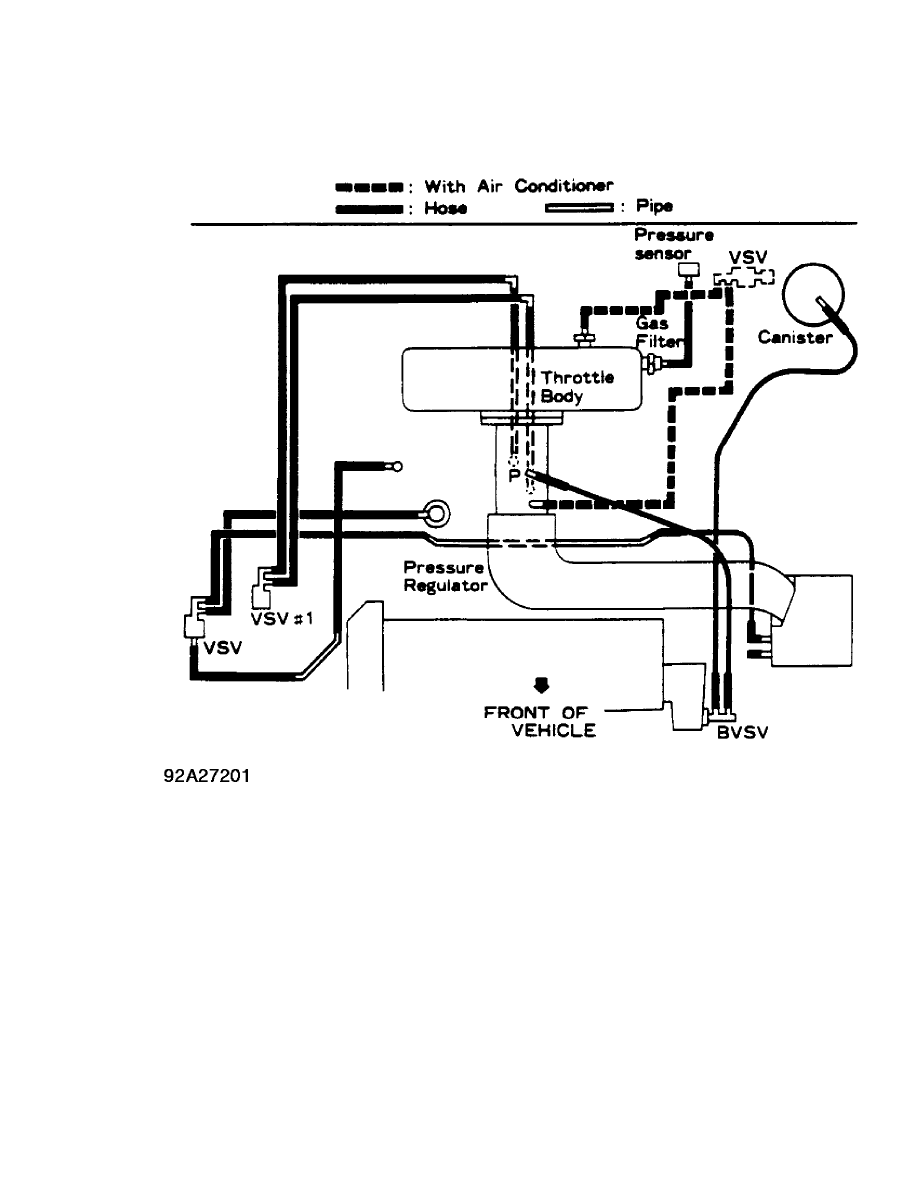

Fig. 18: Vacuum Diagram (Paseo - 1.5L 5E-FE, With A/T) (Federal &
Canada)
Courtesy of Toyota Motor Sales, U.S.A., Inc.

M - VACUUM DIAGRAMSArticle Text (p. 10)

1992 Toyota MR2

Fig. 19: Vacuum Diagram (Paseo - 1.5L 5E-FE, With M/T) (Federal &
Canada)
Courtesy of Toyota Motor Sales, U.S.A., Inc.

PICKUP AND 4RUNNER VACUUM DIAGRAMS

M - VACUUM DIAGRAMSArticle Text (p. 11)

1992 Toyota MR2For Ace Mechanics 123 Main Street San Diego Ca 92126

Fig. 20: Vacuum Diagram (Pickup & 4Runner - 2.4L 22R-E) (With
A/T, Calif.)
Courtesy of Toyota Motor Sales, U.S.A., Inc.

Fig. 21: Vacuum Diagram (Pickup & 4Runner - 2.4L 22R-E) (With
M/T, Calif.)
Courtesy of Toyota Motor Sales, U.S.A., Inc.

M - VACUUM DIAGRAMSArticle Text (p. 12)

1992 Toyota MR2

Fig. 22: Vacuum Diagram (Pickup & 4Runner - 2.4L 22R-E) (With
A/T, Federal & Canada)
Courtesy of Toyota Motor Sales, U.S.A., Inc.

Fig. 23: Vacuum Diagram (Pickup & 4Runner - 2.4L 22R-E) (With
M/T, Federal & Canada)
Courtesy of Toyota Motor Sales, U.S.A., Inc.

M - VACUUM DIAGRAMSArticle Text (p. 13)

1992 Toyota MR2

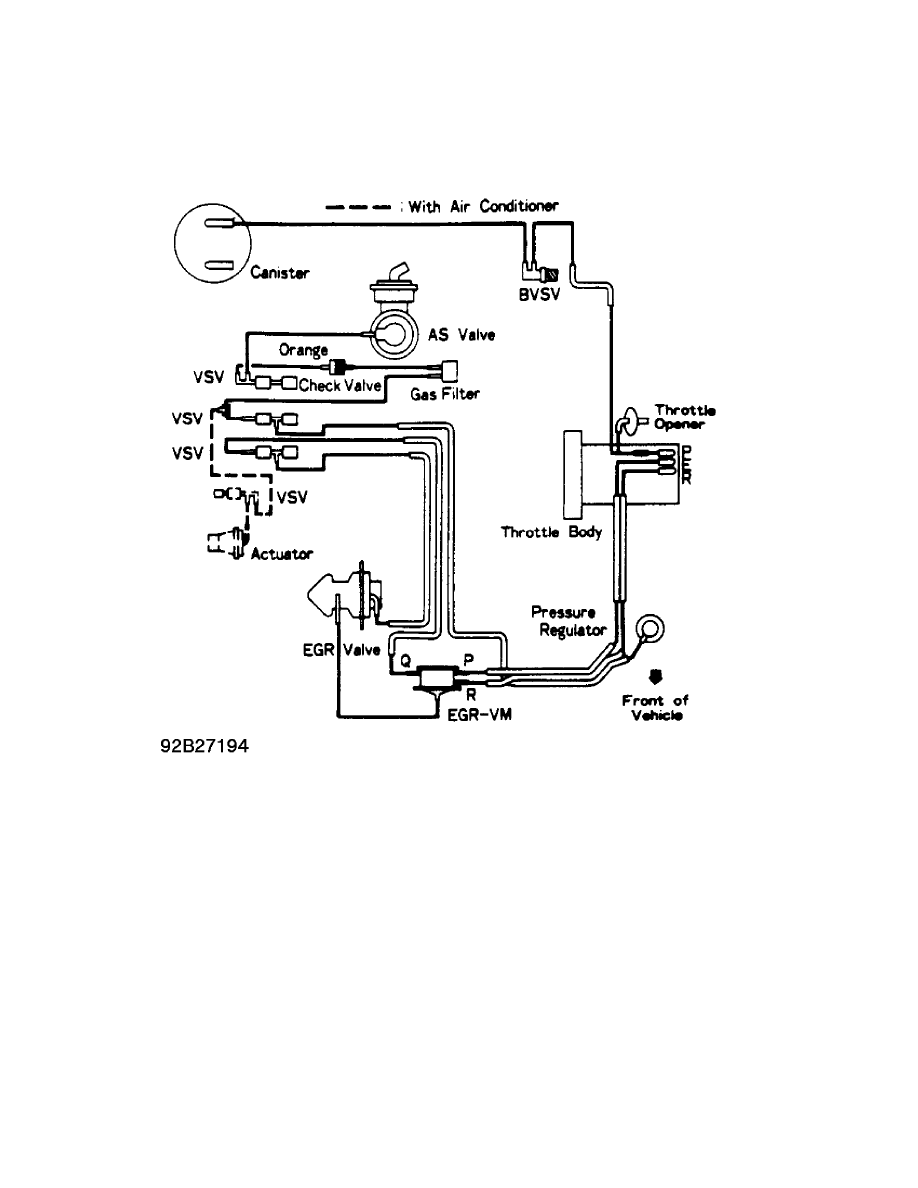

Fig. 24: Vacuum Diagram (Pickup & 4Runner - 3.0L 3VZ-E) (All
States & Canada)
Courtesy of Toyota Motor Sales, U.S.A., Inc.

PREVIA VACUUM DIAGRAMS

M - VACUUM DIAGRAMSArticle Text (p. 14)

1992 Toyota MR2For Ace Mechanics 123 Main Street San Diego Ca 92126

Fig. 25: Vacuum Diagram (Previa - 2.4L 2TZ-FE, A/T & M/T) (All
States & Canada)
Courtesy of Toyota Motor Sales, U.S.A., Inc.

SUPRA VACUUM DIAGRAMS

Fig. 26: Vacuum Diagram (Supra - 3.0L 7M-GE Non-Turbo) (All
States & Canada)
Courtesy of Toyota Motor Sales, U.S.A., Inc.

M - VACUUM DIAGRAMSArticle Text (p. 15)

1992 Toyota MR2

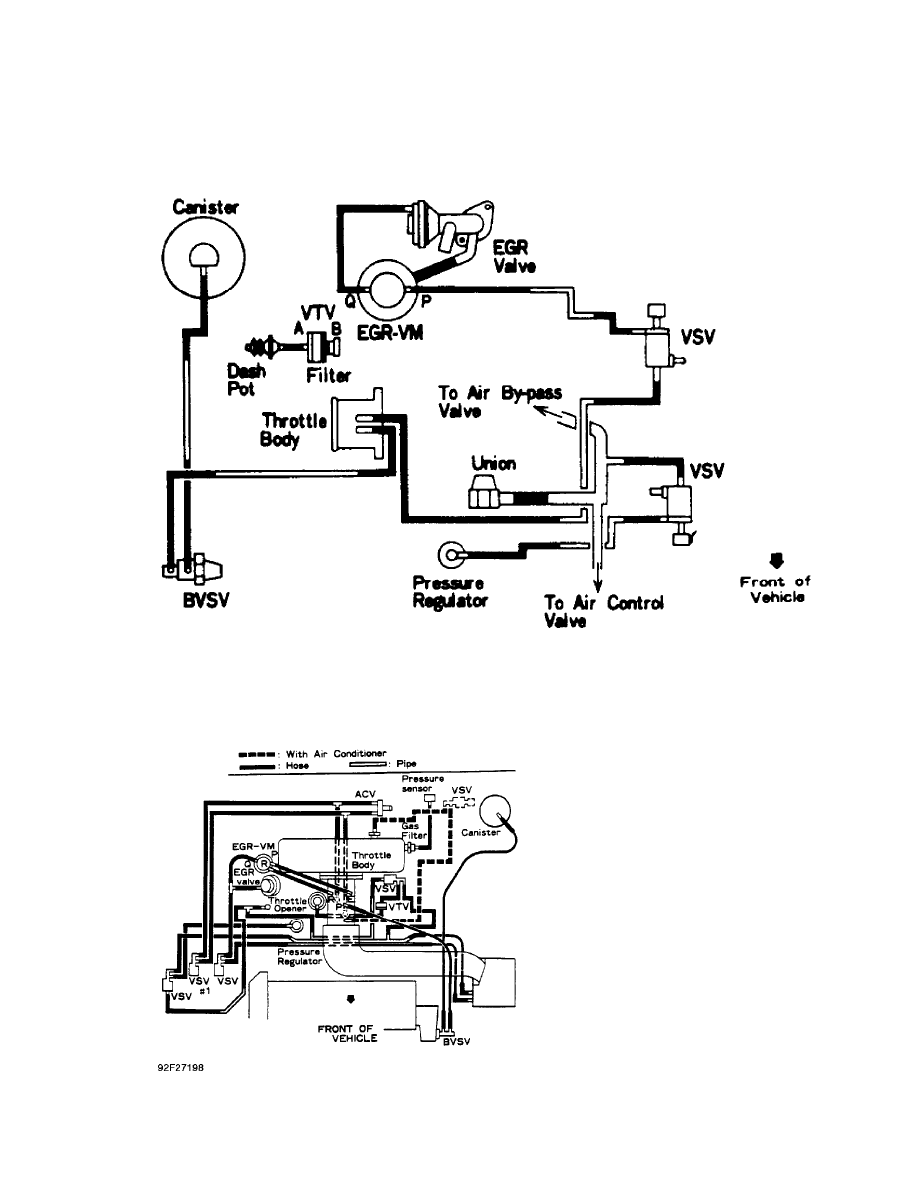

Fig. 27: Vacuum Diagram (Supra - 3.0L 7M-GTE Turbo) (All States &
Canada)
Courtesy of Toyota Motor Sales, U.S.A., Inc.

TERCEL VACUUM DIAGRAMS

Fig. 28: Vacuum Diagram (Tercel - 1.5L 3E-E, With P/S, Calif.)
Courtesy of Toyota Motor Sales, U.S.A., Inc.

M - VACUUM DIAGRAMSArticle Text (p. 16)

1992 Toyota MR2For Ace Mechanics 123 Main Street San Diego Ca 92126

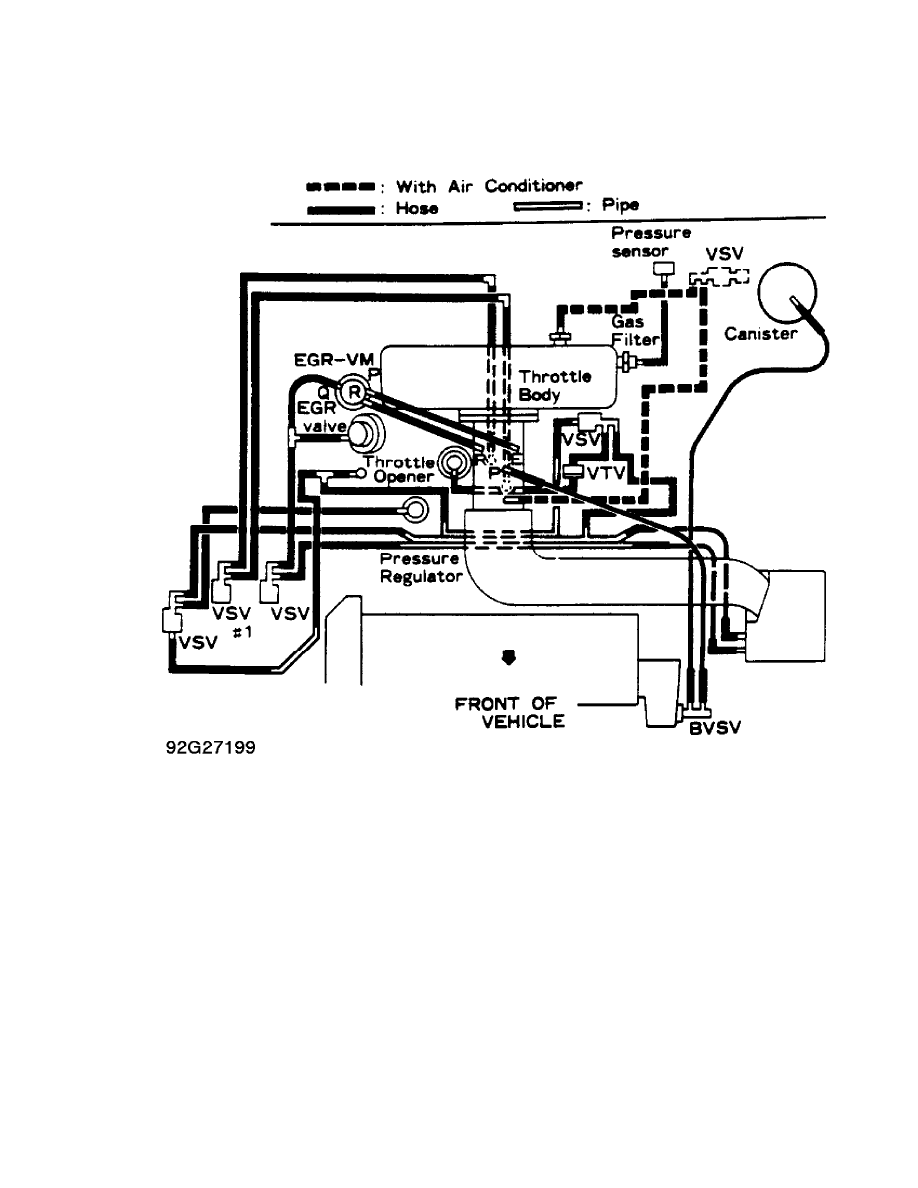

Fig. 29: Vacuum Diagram (Tercel - 1.5L 3E-E, Without P/S, Calif.)
Courtesy of Toyota Motor Sales, U.S.A., Inc.

M - VACUUM DIAGRAMSArticle Text (p. 17)

1992 Toyota MR2For Ace Mechanics 123 Main Street San Diego Ca 92126

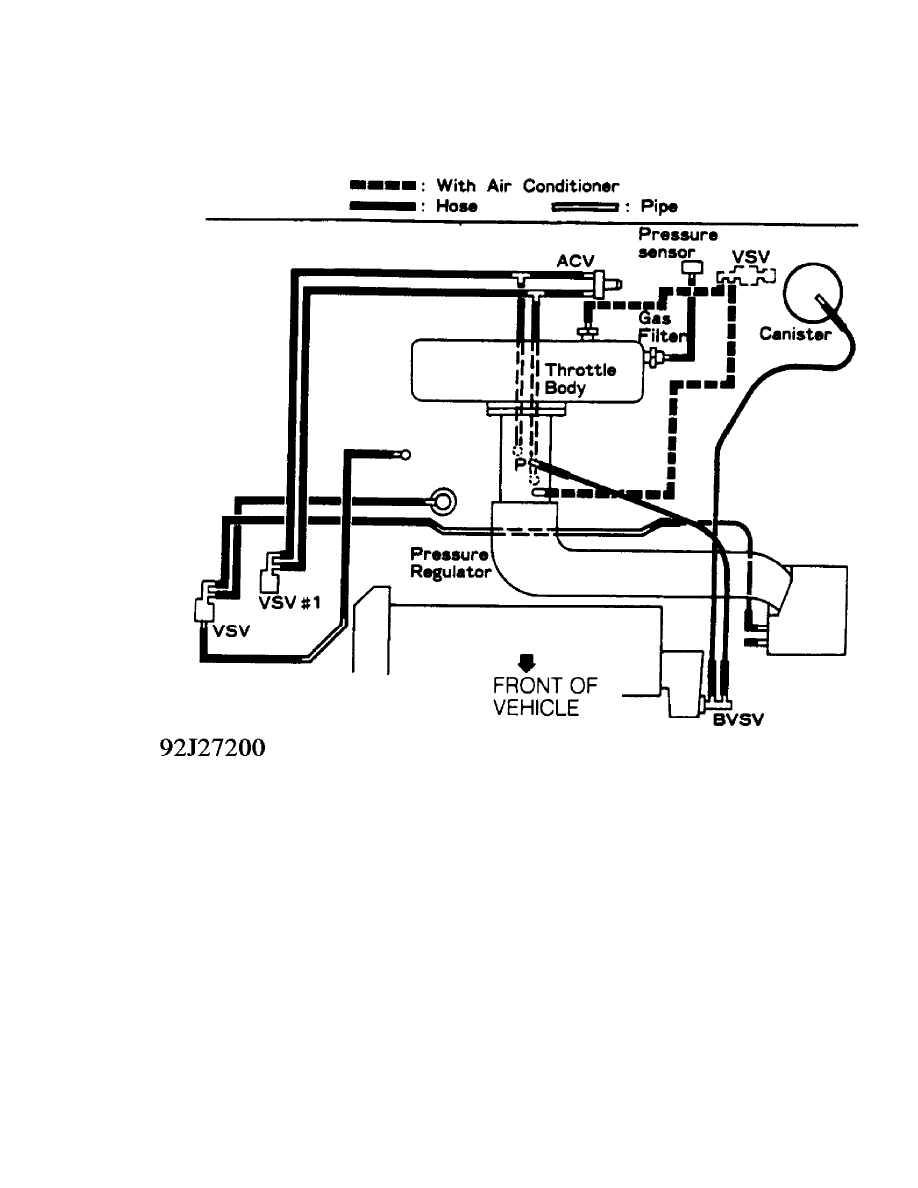

Fig. 30: Vacuum Diagram (Tercel - 1.5L 3E-E, With P/S) (Federal &
Canada)
Courtesy of Toyota Motor Sales, U.S.A., Inc.

M - VACUUM DIAGRAMSArticle Text (p. 18)

1992 Toyota MR2For Ace Mechanics 123 Main Street San Diego Ca 92126

Fig. 31: Vacuum Diagram (Tercel - 1.5L 3E-E, Without P/S)
(Federal & Canada)
Courtesy of Toyota Motor Sales, U.S.A., Inc.

END OF ARTICLE
