Audi€ 2 0 (140koni) automatyczny napinacz

Audi 80 (91-96) 2,0 1992-96 Engine codÄ™: ACE

Impoitant notÄ™

Replacement lnteival Guide

Check For Engine Damage

Repaii Times - his

Special Tools

Special Piecautions

Removal

Instailation

Instailation

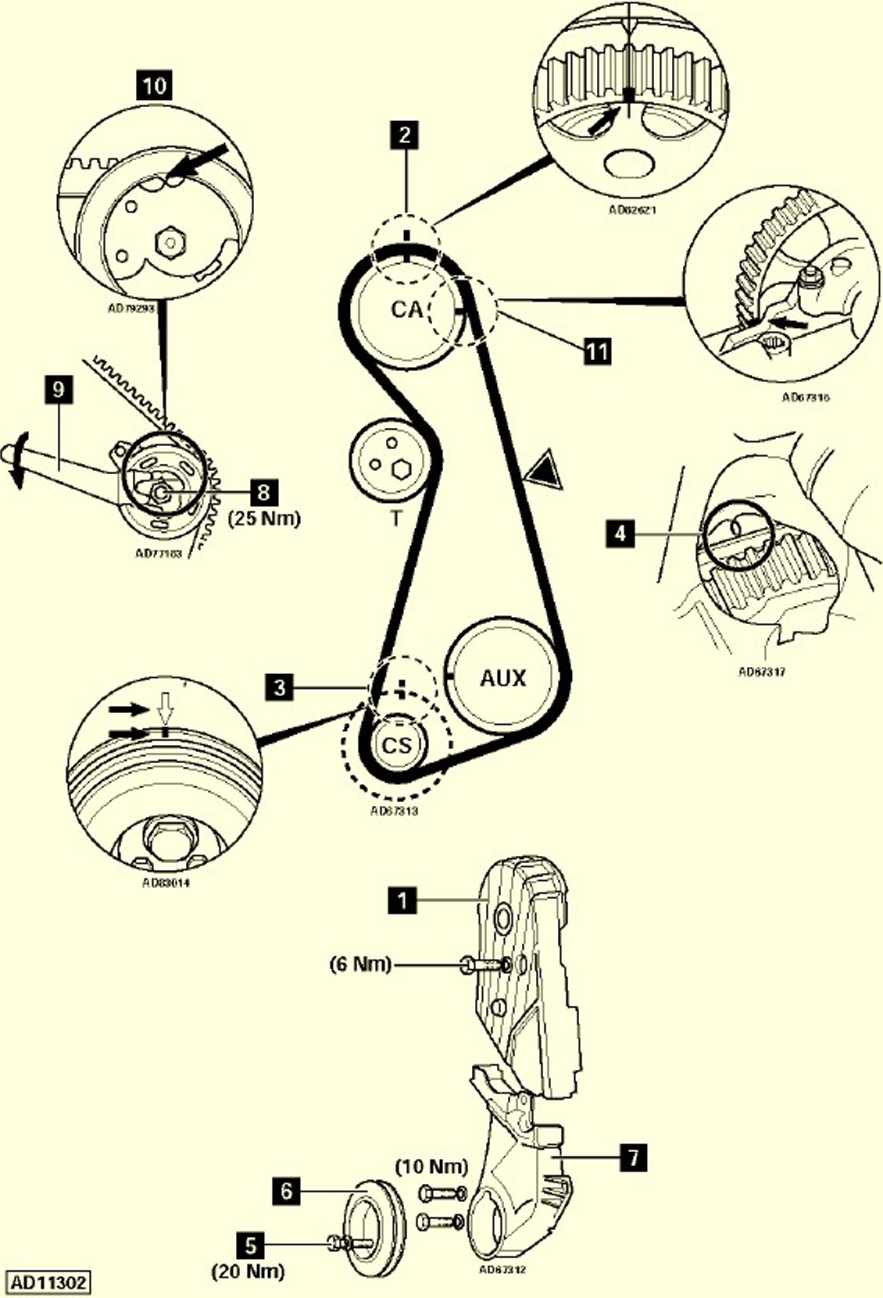

1.    Ensure timing marks aligned (2) & (4).

2.    If cylinder head cover removed: Ensure camshaft sprocket rear timing mark aligned (11 ]. NOTĘ: Notch aligned with upper cylinder head face.

3.    Fit timing belt in anti-clockwise direction, starting at crankshaft sprocket.

4.    Tum tensioner anti-clockwise until it touches stop. Use wrench Matra V.159 (9).

5.    Release tension until marks align exactly (10).

NOTĘ: Engine must be cold.

6.    Tighten tensioner nut. Tightening torque: 25 Nm (8).

7.    Tum crankshaft two turns clockwise. Ensure timing marks aligned (2) & (4).

8.    Check tensioner marks aligned (10).

9.    If not: Repeat tensioning procedurÄ™.

10.    Apply firm thumb pressure to belt at^. Tensioner marks must move apart (10).

11.    Release thumb pressure from belt at^.

12.    Tum crankshaft two turns clockwise. Ensure timing marks aligned (2) & (4).

13.    Tensioner marks should realign (10).

14.    Install components in reverse order of removal.

15.    Tighten crankshaft pulley bolts. Tightening torque: 20 Nm (5).

NOTĘ: Crankshaft pulley bolt holes are offset.

11302

J
