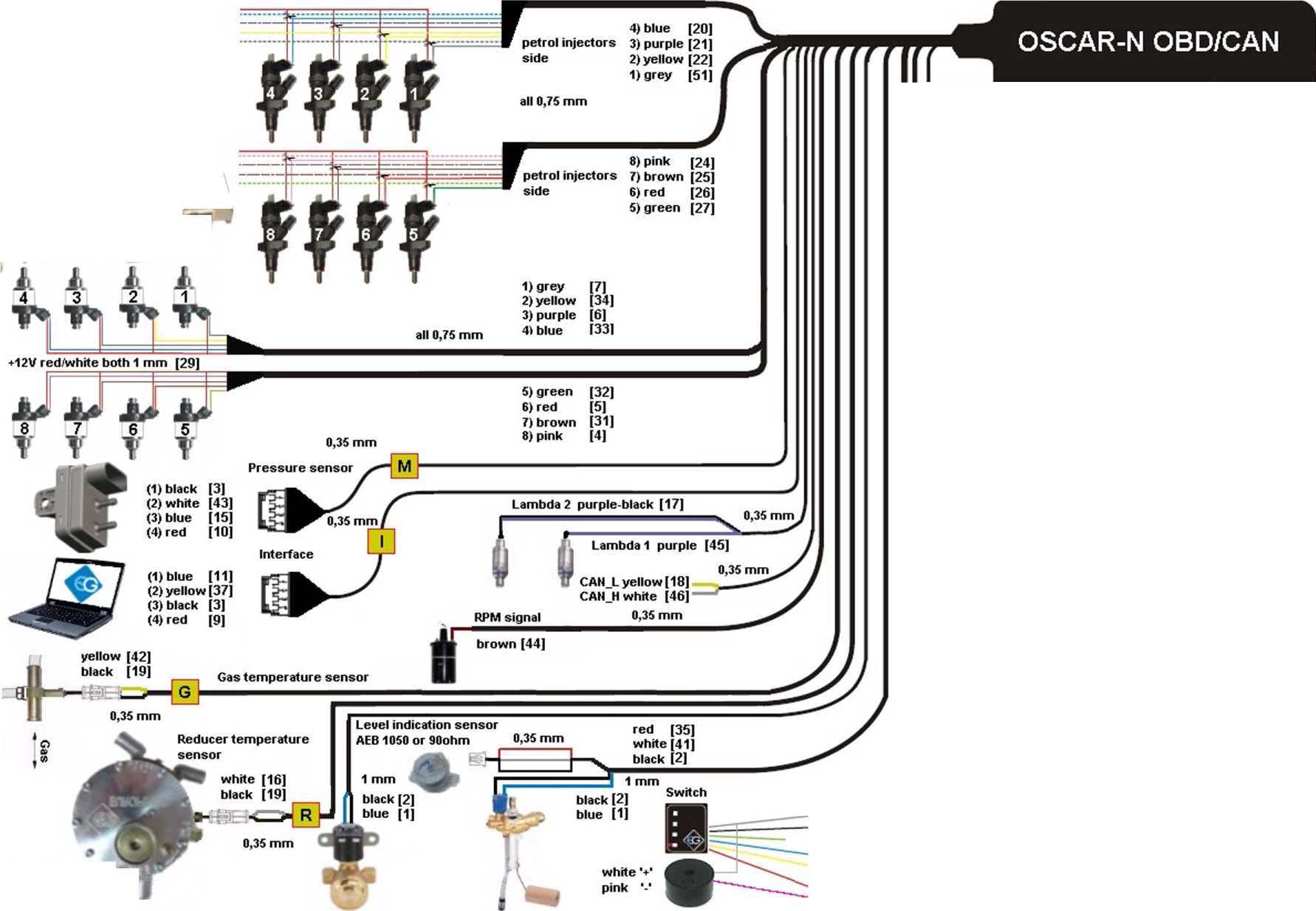

oscar n obd 4 6 8 cyl eng

\j*=o

<£- •

Buzzer

1	+12V solenoid valves	28	+12V Battery
2	GND solenoid valve. GND multivalve, GND level indication sensor	29	+12V LPG Injectors
3	GND interface, GND mapsensor	30	GND battery
4	Injector LPG 8	31	Injector LPG 7
5	Injector LPG 6	32	Injector LPG 5
6	Injector LPG 3	33	Injector LPG 4
7	Injector LPG 1	34	Injector LPG 2
8		35	+12V level indication sensor & +12V ignition key signal
9	+12V interface	36	+12V switch
10	+12V mapsensor	37	Interface diag.Rx
11	Interface Tx	38	switch -BUZZER
12	Switch - button 3ignal	39	switch -LED 4
13	Switch - LED 3	40	Switch LED 2
14	Swhch - LED 1	41	Level indication sensor signal
15	MAP signal	42	Gas temperatura sensor signal
16	Reducer temperatura signal	43	Gas pressure signal
17	Lambda 2 signal	44	RPM signal
18	CAN BUS linę L	45	Lambda 1 signal
19	GND gas temp. sensor. GND reducer temp. sensor	46	CAN bus linę H
20	Patrol Injector 4 (injector side)	47
21	Patrol Injector 3 (injector side)	48	Petrol Injector 4 (Petrol ECU side)
22	Patrol Injector 2 (injector side)	49	Petrol Injector 3 (Petrol ECU side)
23	Patrol Injector 1 (Patrol ECU side)	50	Petrol Injector 2 (Petrol ECU side)
24	Patrol Injector 8 (injector side)	51	Petrol Injector 1 (injector side)
25	Petrol Injector 7 (injector side)	52	Petrol Injector 8 (Petrol ECU side)
26	Petrol Injector 6 (injector side)	53	Petrol Injector 7 (Petrol ECU side)
27	Petrol Injector 5 (injector side)	54	Petrol Injector 6 (Petrol ECU side)
I i i 0,5 mm red-white [35]		55	Petrol Injector 5 (Petrol ECU side)

all 0,35 mm

[36] white

[12]    black [14] green [40] blue >

[13]    yellow [39] red [38] pink

+12V To the key
