A3 1 9 TDI PD (100 koni) 03

A3 1 9 TDI PD (100 koni) 03



Audi A3 (97-03) 1.9DTDI PD 2001-03 Engine codę: ATD

linpoitant notę

Replacement Interwal Guide

Check Foi Engine Damage

Repaii Times - his

Special Tools

Special Piecautions

Removal

Installation

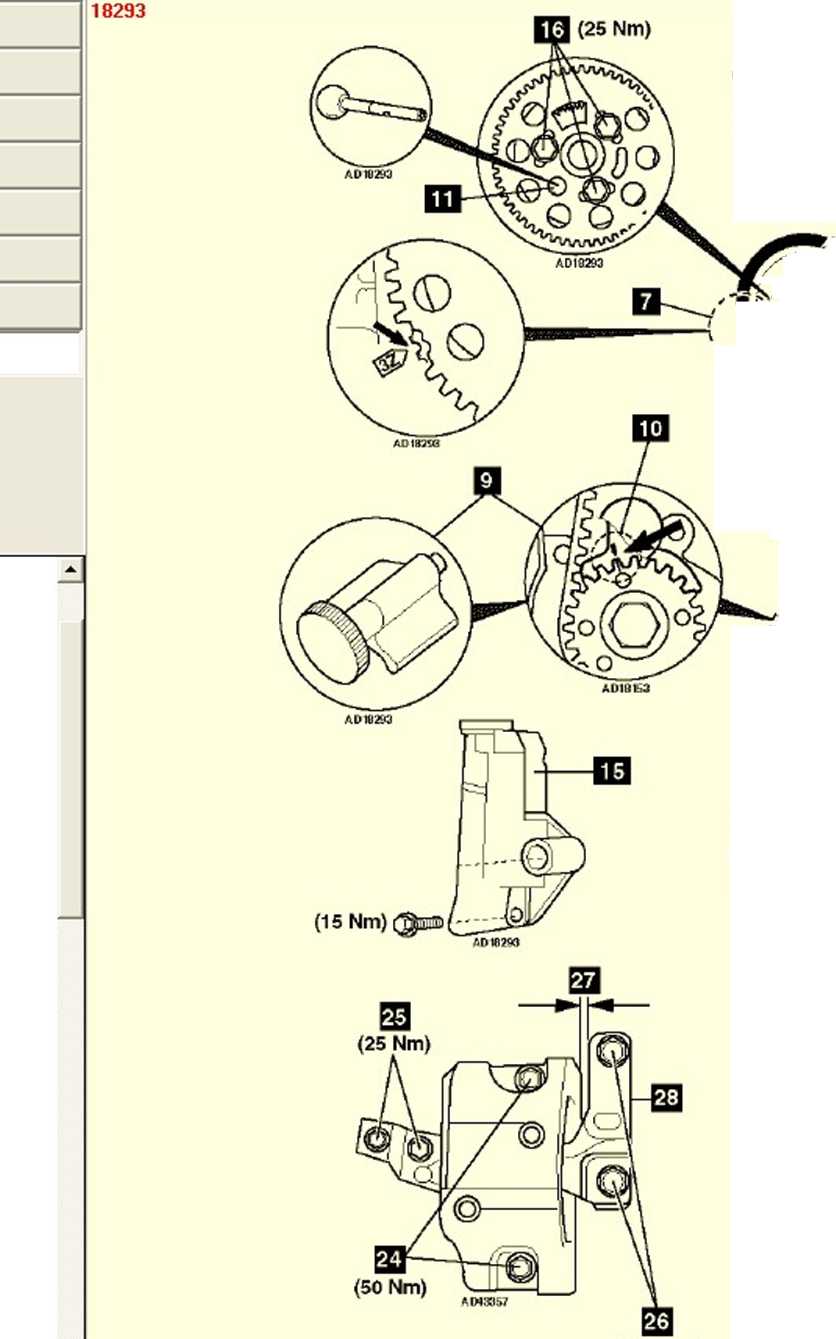

1.    tnsure camsnan lockea WiTR tooi 111 j. i ooi N0353!

2.    Ensure crankshaft sprocket locking tool located correctly (9). Tool No.T10050.

3.    Ensure timing marks aligned (10).

4.    Ensure automatic tensioner unit locked with tool (13). Tool No.T10003.

5.    Slacken camshaft sprocket bolts (16).

6. Tum camshaft sprocket fully clockwise in slotted holes. Tighten bolts fingertight (16).

7. Tum tensioner pulley slowly clockwise (17) until lug [18] just reaches stop (19). Use tool No.3387 [20].

8.    Fit timing belt in following order:

o Camshaft sprocket. o Tensioner pulley. o Crankshaft sprocket. o Water pump sprocket.

9.    Install automatic tensioner unit (15).

NOTĘ: Ensure belt is taut between sprockets on non-tensioned side.

10.    Tum tensioner pulley slowly anti-clockwise (21 ] (lug [18] moves towards stop [22]). Use tool No.3387 [20].

11.    Remove locking tool without force [13].

NOTĘ: Ensure two-pin wrench remains in position.

12.    Allow tensioner pulley to tum back slowly [17] (lug [18] moves towards stop [19]) until dimension [23] as specified:

o AMF/ASZ/ATD - 4±1 mm. Use drill bit. o ANY - 7±1 mm. Use drill bit.

NOTĘ: Engine must be COLD.

13.    Tighten tensioner nut [14]. Tightening torque: 20 Nm + 45°

14.    Tighten camshaft sprocket bolts [16]. Tightening torque: 25 Nm.

15.    Remove:

o Camshaft locking tool [11]. o Crankshaft sprocket locking tool [9]. o Drill bit.

16.    Tum crankshaft slowly two turns clockwise to TDC on No.1 cylinder.

17.    Ensure dimension [23] as specified:

o AMF/ASZ7ATD - 4±1 mm. Use drill bit.

_a ANY - 7+1 rnrn I Kp drill hit_____

AD182931

(100 Nm)
