parametry głośników speaka

' Technical Specification H	H!lCPA15-1000B				H| CPA15-300 I
Nominał Power =	1000	Watt	400	Watt	300	Watt
Maximum Power =	Watt		Watt		Watt
Freq. Response =	20-2,500 Hz		22 - 3,500 Hz		22 - 3,500 Hz
S.P.L (1W/1M)	98	dB	98	dB	98	dB
Impedance =	8 Ohm		8	Ohm	8	Ohm
Voice Coil =	4> 100 mm		* 75 mm		*75 mm
Cone/Surround =	Paper/Cloth		Paper/Cloth		Paper/Cloth
Magnet =	220x110x25 126 oz		190x90x20 77.7 oz		220x110x20 100.5 oz

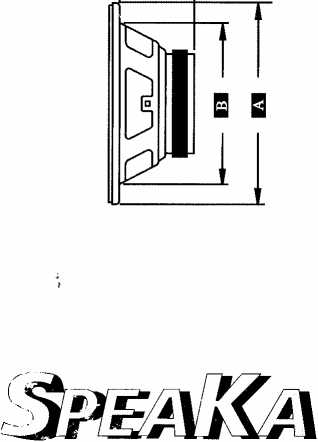

Outer Diameter W.M =	(|)40l mm		i|> 3.S5 mm		<|) 401 mm
Mounting Hole |fi|| =	* 357 mm		®352		*357 mm
Mounting Depth fil =	160	mm	154	mm	155	mm

Thiele/Śmafl-Parameter

Revc (DC VC Res)	=	5.6 ohm	5.5 ohm	5.5 ohm
Fo (Res Freq )	=	31.3276 Hz	34.2831 Hz	33.2682 Hz
Qts (Total Q)	=	0.1928	0.1864	0.1964
Qrs (Mech Q)	=	8.3144	7.4451	7 3340
Qes (Elec Q)	=	0.1974	0.1912	0.2018
Vas (Acous Vol)	=	221.7425 Liter	223.0437 Liter	196.6284 Liter
Sd (Piston Area)	=	0.0835 sqM	0.0835 sqM	0.0835 sqM
BL (Flux*Length)	=	25.3583 TM	24.3400 TM	25.6123 TM
Cms (Compliance)	=	224.1308 uM/N	225.4459 uM/N	198.7461 uM/N
Mms (Total Mass)	=	115.1552 g	£5.595/ g	1151552 g
Mmd (Diaphm Mass)		101.2891 g	81.7296 g	101.2891 g
Technical Specification		P.^l CPA8-100 B		■ PA 15
Nominał Power	-	100 Watt	75 Watt	200 Watt
Maximum Power	-	Watt	Watt	400 Watt
Freq. Response	=	70-5,000 , ,z	40-5,000 Hz	22 -3,000 Hz
S.P.L (1W/1M)	=	96 dB	91 dB	96 dB
Impedance	=	8 Ohm	8 Ohm	8 Ohm
Voice Coil	=	* 50 mm	* 35 mm	* 65 mm
Cone/Surround	=	Paper/Cloth	Laminated/Foam	Paper/Cloth
Magnet	=	135x60x19 38.5 oz	135x60x15 30.5 oz	156x80x20 50 oz
Outer Diameter IM	=	* 20S mm	* 165.5 mm	* 385 mm
Mounting Hole KU	=	* 179 mm	* 145 mm	* 352 mm
Mounting Depth Kij		93 mm	72.5 mm	154 mm
Thiele/Small-Parameter
Revc (DC VC Res)
	-	7.3 ohm	7.1 ohm	5.7 ohm
Fo (Res Freq )	=	96.6785 Hz	54.6218 Hz	34.8021 Hz
Qts (Total Q)	=	0.3657	0.2312	0.3561
Qms (Mech Q ) Qes (Elec Q )		3.5706	2.6268	3.0115
	^_	0.4074	0.2535	0.4039
Vas (Acous Vol)	=	9.5258 Liter	9.6214 Liter	216.4407 Liter
Sd (Piston Area)	=	0.0216 sqM	0.0125 sqM	0.0835 sqM
BL (Flux*Length)	=	14.3515 TM	13.6854 TM	17.1765 TM
Cms (Compliance)	=	143.2165 uM/N	435.7986 uM/N	218.7719 uM/N
Mms (Total Mass)	=	18.9229 g	19.4815 g	95.5958 g
Mmd (Diaphm Mass)	=	17.0922 g	18.6809 g	81.7297 g

CPA12-200

EZ3E3EU

200 Watt    150 Watt

Watt    Watt

35-4,000 Hz    35-3,000 Hz

98 dB    96 dB

8 Ohm		8	Ohm
ij) 65 mm		<j> 65	mm
Paper/Cloth		Paper/Cloth
190x95x19 71.4 oz		156x80x20 50 oz
<|.3I()	mm	(|> 306	mm
<|> 282 mm			mtn
118.5	mm	123	mm

|CPA12-100FR»I	fjl CPA10-100
100 Watt	100 Watt
Watt	Watt
35 - 6.000 Hz	40-6,000 Hz
95 dB	96 dB
8 Ohm	8 Ohm
ij> 50 mm	<t> 50 mm
Paper/Cloth	Paper/Cloth
135x60x19 38.5 oz	135x60x19 38.5 oz
<|i 307 mm	i|> 256.5 mm
<|> 274 mm	<t> 226.5 mm
119 mm	105.5 mm

6.3 ohm	6.2 ohm
54.6218 Hz	49.9130 Hz
0.1897	0.2865
5.4561	5.1500
0.1966	0.3034
60.5274 Liter	66.5006 Liter
0.0511 sqM	0.0507 sqM
23.9037 TM	18.9002 TM
163.4245 uM/N	182.3953 uM/N
51.9507 g	55.7441 g
45.3145 g	49.1857 g

7.1 ohm	7 1 ohm
41.6782 Hz	56.2881 Hz
0.4286	0.4371
3.6313	3.0115
0.4860	0.5114
109.5160 Liter	39.3860 Liter
0.0507 sqM	0.0333 sqM
13.6286 TM	12.5389 TM
300.3763 uM/N	249.6875 uM/N
48.5463 g	32.0192 g
41.9878 g	28.5205 g

PA 12 ■	■ PA 10
150 Watt	150 Watt
300 Watt	300 Watt
35-5,000 Hz	40-5,000 Hz
95 dB	92 dB
8 Ohm	8 Ohm
4> 50 mm	<|i 50 mm
Laminated/Cloth	Laminated/Cloth
140x75x20 43 oz	120x60x20 30 oz
(j> 307 mm	i|j 255 mm
$ 279 mm	c|> 235 mm
115.5 mm	101 mm

7.1 ohm	7.0 ohm
42.9497 Hz	50.6686 Hz
0.4618	0.5460
3.0115	3.4649
0.5454	0.6481
129.1623 Liter	41.5183 Liter
0.0567 sqM	0.0340 sqM
13.0588 TM	11,5^745 TM
282.8552 uM/N	253.2267 uM/N
48.5463 g	38.9630 g
40.7816 g	35.3615 g

S p e a ii e r & Kabel
