(1) FLOAT CHAMBER

FLOAT CHAMBER, FLOAT AND JETS

Remove the four screws and float chamber.

(2) SCREWS

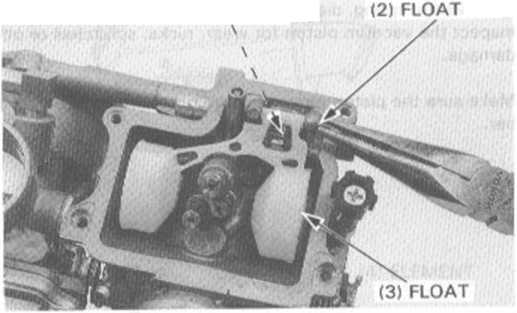

Remove the float pin, float and float valve.

Chock the float valve and valve seat for scratches, clogging or damage.

Inspect the operation of the float valve.

(1) FLOAT VALVE

PIN

I1ł FLOAT VALVE

I (2) VALVE SEAT

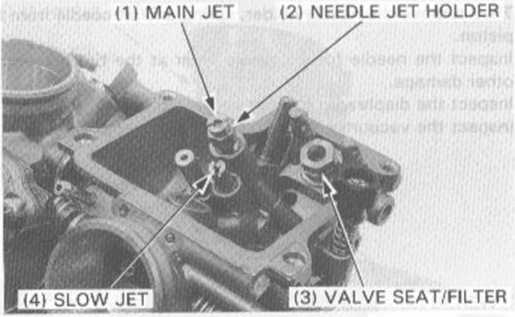

Remove the main jet, needle jet holder, slow jet, valve seat and filter.

Check each part for wear or damage.

Blow all jets open with compressed air.

Clean all jets with non-flammable or high flash point solvent.
