89 TransAlp Manual Fuel System 4 6
FUELSYSTEM

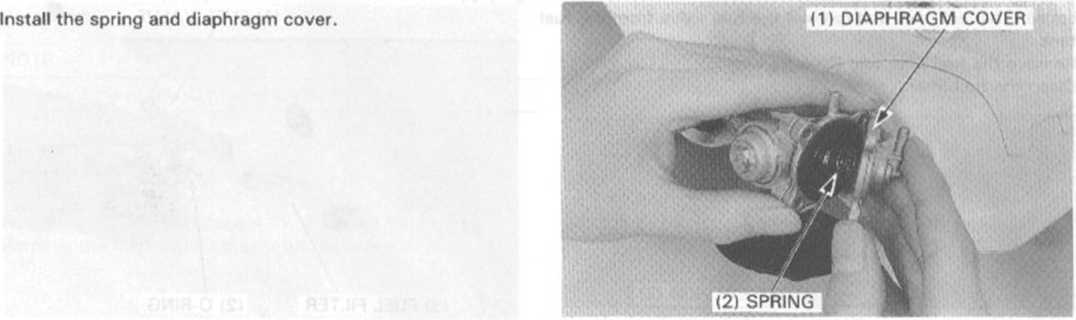

Tighten the four screws of the diaphragm cover securely.
Install the fuel tank (page 4-31.
Make surę there are no fuel leaks.
4-6
