89 TransAlp Manual Fuel System 4

FUELSYSTEM

<8) THRUST SPRING 13) HOLDER

m VACUUM CHAMBER COVER

<10) DIAPHRAGM ¹¹³¹ g^_w

<19) FLOAT CHAMBER

COVER

<14) NEEDLE JET HOLDER

<12) AIR CUT-

/ \ jćb OFF VALVE

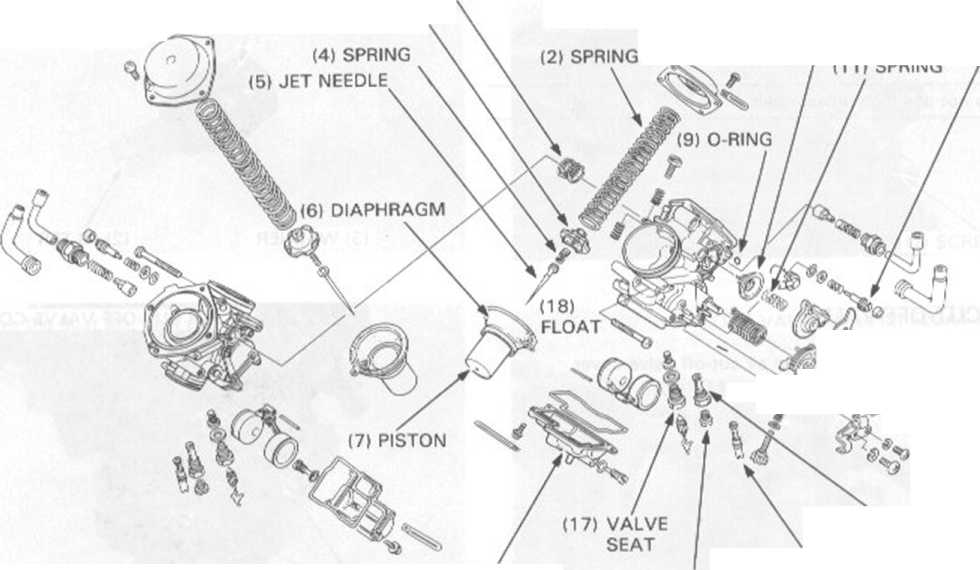

CARBURETOR ASSEMBLY

V

<16) SLOW JET (15) MAIN JET

AIR CUT-OFF VALVE

Install the diaphragm, spring, O-ring and air cut-off valve cover to the carburetor body.

NOTĘ

• Install the O-ring with its fiat side toward the carburetor body.

<1) DIAPHRAGM

(2) SPRING

Tighten the screws securely.

<4) O-RING

(3) AIR CUT-OFF VALVE COVER

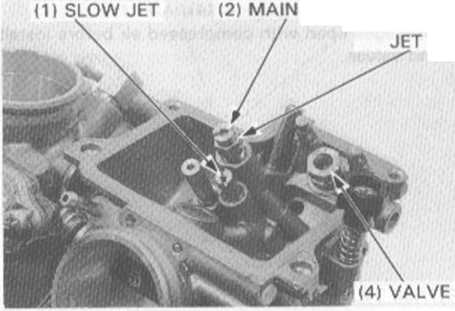

FLOAT CHAMBER, FLOAT AND JETS

Install the valve seat, slow jet, needle jet holder and main jet.

JET

(3) NEEDLE

SEAT

HOLDER

4-12
