Overview

n=f(Mu)
Praca przy obciążeniu
Stan zwarcia
Stan jałowy
Dane
cosfi

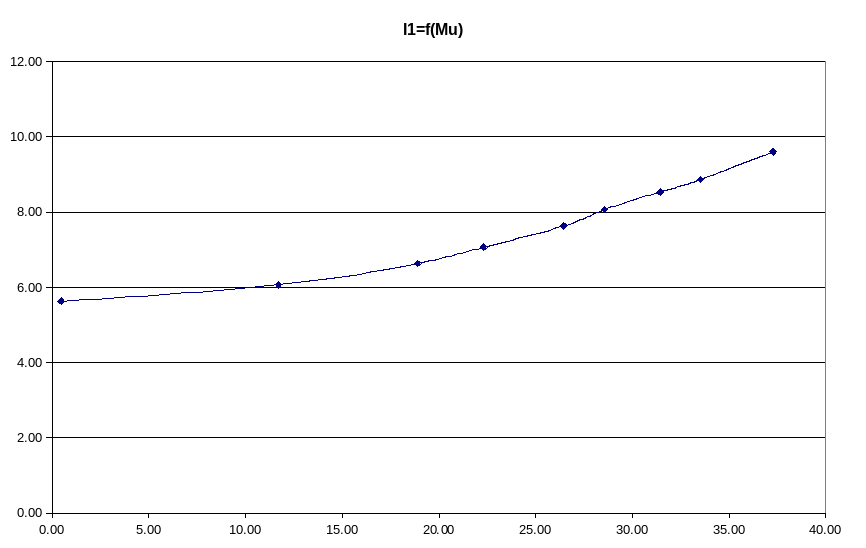

i1 of mnu
Char. mech. a)

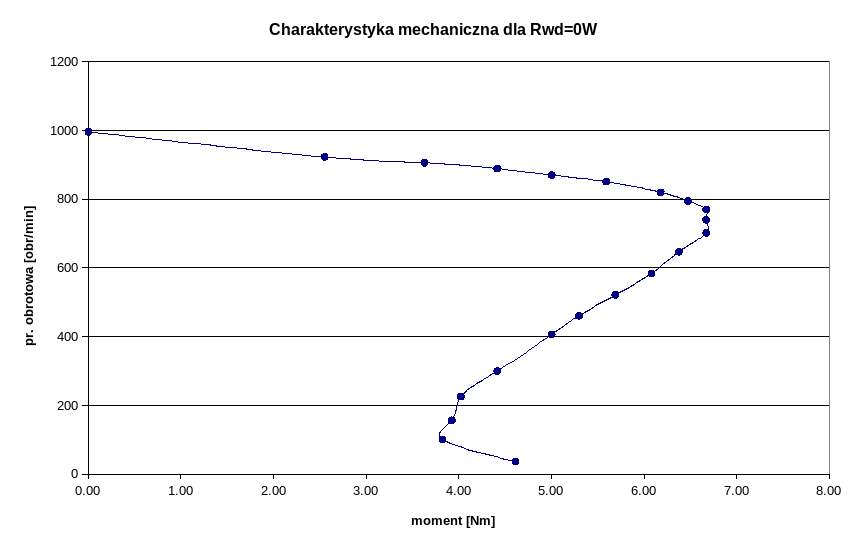

Char. mech. b)

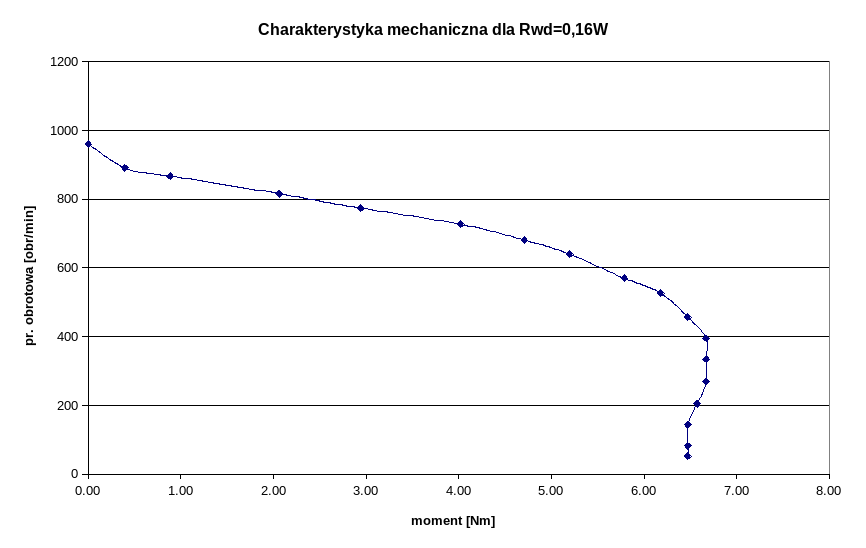

Char. mech. c)

---

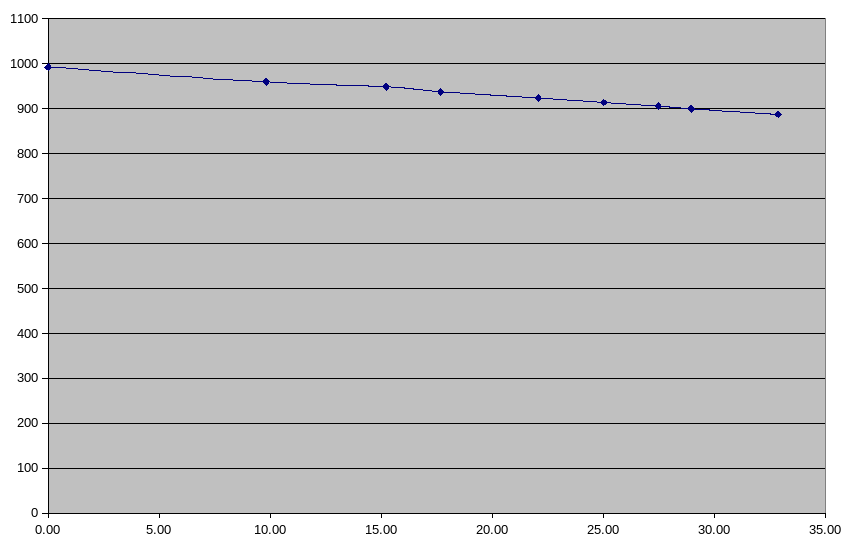

Sheet 1: n=f(Mu)

---

Sheet 2: Praca przy obciążeniu

Uzas	Ir	Is	It	Palfa		Pbeta		M		n		P1	I1	I2	R1	R2
V	A	A	A	DZ	W	DZ	W	KgM	Nm	obr/min		W	A	A
380	5.5	5.6	5.8	-22	-880	34	1360	0	0.00	993		480	5.63	1.94	2.92272091158018	1.9671352066057
380	6	6	6.2	-9	-360	45	1800	1	9.81	960		1440	6.07	2.37
380	6.5	6.6	6.8	-2	-80	53	2120	1.55	15.21	949		2040	6.63	2.94
380	7	7	7.2	1	40	58	2320	1.8	17.66	938		2360	7.07	3.37	If1	If2
380	7.5	7.6	7.8	6	240	63	2520	2.25	22.07	924		2760	7.63	3.94	3.29089653438087	0.40420568755521
380	8	8	8.2	8	320	66	2640	2.55	25.02	914		2960	8.07	4.37		0.1744
380	8.4	8.5	8.7	11	440	70	2800	2.8	27.47	906		3240	8.53	4.84	Io
380	8.7	8.9	9	13	520	73	2920	2.95	28.94	900		3440	8.87	5.17	3.69510222193608
380	9.4	9.6	9.8	17	680	78	3120	3.35	32.86	887		3800	9.60	5.90
cos fi	s	omega	Q1	delta PCu1	delta PCu2	suma P	sprawn	P2	Mu	Mu	sin fi		delta Pfe	185.04079758276
-	%	1/s	var	W	W	W	%	W	Nm	kGm	-		Delta Pm	130
0.13	0.70	103.93	3676.54	92.75	7.39	431.68	10.07	48.32	0.46	0.05	0.99		delta Pd	16.5
0.36	4.00	100.48	3724.26	107.57	11.06	265.13	81.59	1174.87	11.69	1.19	0.93
0.47	5.10	99.33	3860.01	128.60	16.98	162.09	92.05	1877.91	18.91	1.93	0.88
0.51	6.20	98.18	4007.92	145.95	22.36	168.32	92.87	2191.68	22.32	2.28	0.86
0.55	7.60	96.71	4198.09	170.30	30.51	200.81	92.72	2559.19	26.46	2.70	0.84
0.56	8.60	95.67	4407.63	190.18	37.59	227.78	92.30	2732.22	28.56	2.91	0.83
0.58	9.40	94.83	4587.71	212.83	46.05	258.87	92.01	2981.13	31.44	3.20	0.82
0.59	10.00	94.20	4714.19	229.78	52.61	282.39	91.79	3157.61	33.52	3.42	0.81
0.60	11.30	92.84	5048.14	269.36	68.59	337.95	91.11	3462.05	37.29	3.80	0.80

---

Sheet 3: Stan zwarcia

Uzas	Ir=Is=It	Palfa	Pbeta	M
V	A	W	W	Nm
166	9.5	-280	1100	6.13
zzf	30.2653088480456
Pz	820		cos fi	0.300207495710522		sin fi	0.953873922234599
Rz	9.08587257617729
Xz	28.8692888585268
R1	2.92272091158018		R2	6.1631516645971
Xr1=Xr2	14.4346444292634			1.9671352066057

---

Sheet 4: Stan jałowy

Uzas	Ir	Is	It	Palfa	Pbeta	M	n
V	A	A	A	W	W	Nm	obr/min
380	5.7	5.6	5.8	-960	1240	0.69	1000
P1	280
If1	3.29089653438087
R1	2.92272091158018
Xr1	14.4346444292634
cos fi	0.12927054478301		sin fi	0.991609361720382
E	354.861265986042
delta Pfe1	185.04079758276		Rfe	819.94263536548		Ife	0.432787917935096		Imi	3.26231430400098		Io	3.69510222193608
delta U1	83.7406965598119
If2	0.40420568755521
Xmi	108.743611170771
deltaPcu	94.9592024172402
deltaPfe	185.04079758276
deltaPm	130

---

Sheet 5: Dane

Uzas	Ir	Is	It	Palfa		Pbeta		M		n
V	A	A	A	DZ	W	DZ	W	KgM	Nm	obr/min
380	5.5	5.6	5.8	-22	-880	34	1360	0	0.00	993
380	6	6	6.2	-9	-360	45	1800	1	9.81	960
380	6.5	6.6	6.8	-2	-80	53	2120	1.55	15.21	949
380	7	7	7.2	1	40	58	2320	1.8	17.66	938
380	7.5	7.6	7.8	6	240	63	2520	2.25	22.07	924
380	8	8	8.2	8	320	66	2640	2.55	25.02	914
380	8.4	8.5	8.7	11	440	70	2800	2.8	27.47	906
380	8.7	8.9	9	13	520	73	2920	2.95	28.94	900
380	9.4	9.6	9.8	17	680	78	3120	3.35	32.86	887
a			b			c
M	M	n	M	M	pn	M	M	wt
kgm	Nm	obr/min	kgm	Nm	obr/min	kgm	Nm	obr/min
0.00	0.00	996	0.00	0.00	960	0.02	0.20	997
0.26	2.55	923	0.04	0.39	891	0.06	0.59	911
0.37	3.63	906	0.09	0.88	867	0.14	1.37	867
0.45	4.41	889	0.21	2.06	816	0.25	2.45	813
0.51	5.00	870	0.30	2.94	774	0.37	3.63	749
0.57	5.59	851	0.41	4.02	727	0.44	4.32	696
0.63	6.18	820	0.48	4.71	681	0.50	4.91	639
0.66	6.47	795	0.53	5.20	640	0.56	5.49	573
0.68	6.67	770	0.59	5.79	570	0.61	5.98	495
0.68	6.67	740	0.63	6.18	527	0.65	6.38	415
0.68	6.67	702	0.66	6.47	457	0.67	6.57	346
0.65	6.38	647	0.68	6.67	395	0.68	6.67	274
0.62	6.08	584	0.68	6.67	335	0.69	6.77	193
0.58	5.69	522	0.68	6.67	270	0.70	6.87	125
0.54	5.30	461	0.67	6.57	205	0.70	6.87	85
0.51	5.00	407	0.66	6.47	144	0.69	6.77	52
0.45	4.41	300	0.66	6.47	83		0.00
0.41	4.02	226	0.66	6.47	53		0.00
0.40	3.92	157		0.00			0.00
0.39	3.83	101		0.00			0.00
0.47	4.61	37		0.00			0.00
Wyznaczanie impedancji:
	Uzas	Ir	Is	It	Palfa		Pbeta		M		n	I	Z
SKŁADOWA	V	A	A	A	dz	W	dz	W	kGM	Nm	obr/min	A	ohm
zgodna	380	9.40	9.60	9.80	17	680	78	3120	3.35	32.86	887	9.60	39.58
przeciwna	164	9.80	9.80	10.00	-9	-360	28	1120	0.55	5.40	451	9.87	16.62

---

Sheet 6: cosfi

---

Sheet 7: i1 of mnu

---

Sheet 8: Char. mech. a)

---

Sheet 9: Char. mech. b)

---

Sheet 10: Char. mech. c)
