WIRING DIAGRAMS

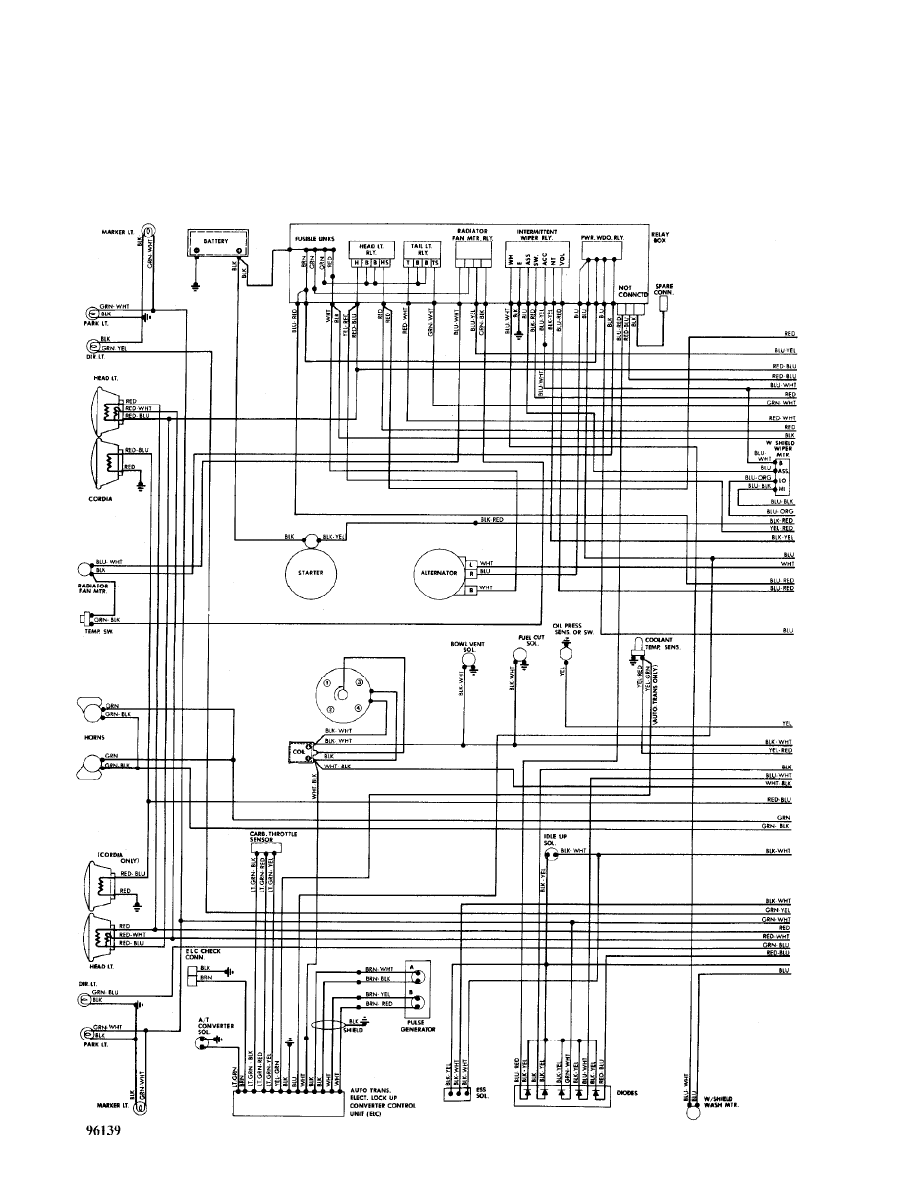

Fig. 1: Engine Compartment
1983 Mitsubishi Cordia
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:45PM
WIRING DIAGRAMS

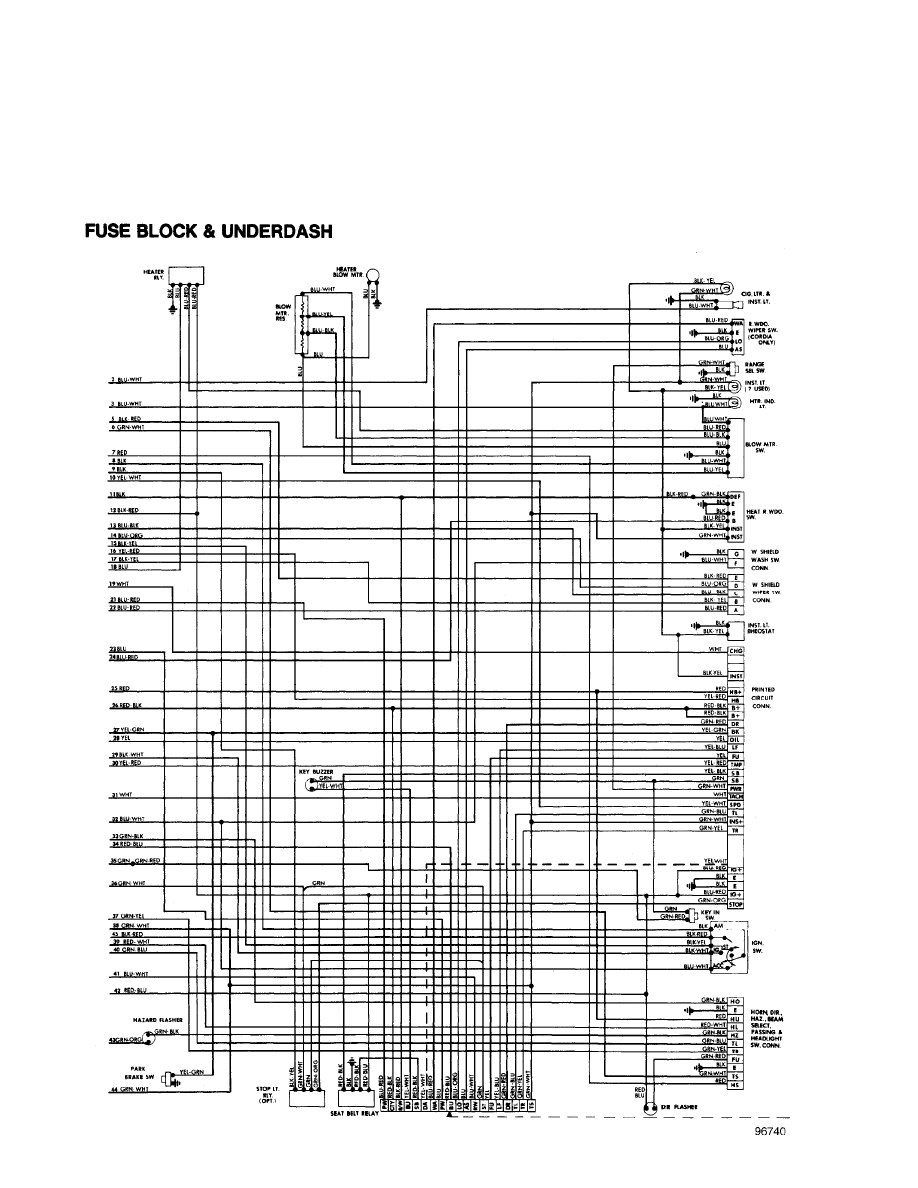

Fig. 2: Fuse Block & Underdash (p. 2)
1983 Mitsubishi Cordia
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:45PM
WIRING DIAGRAMS

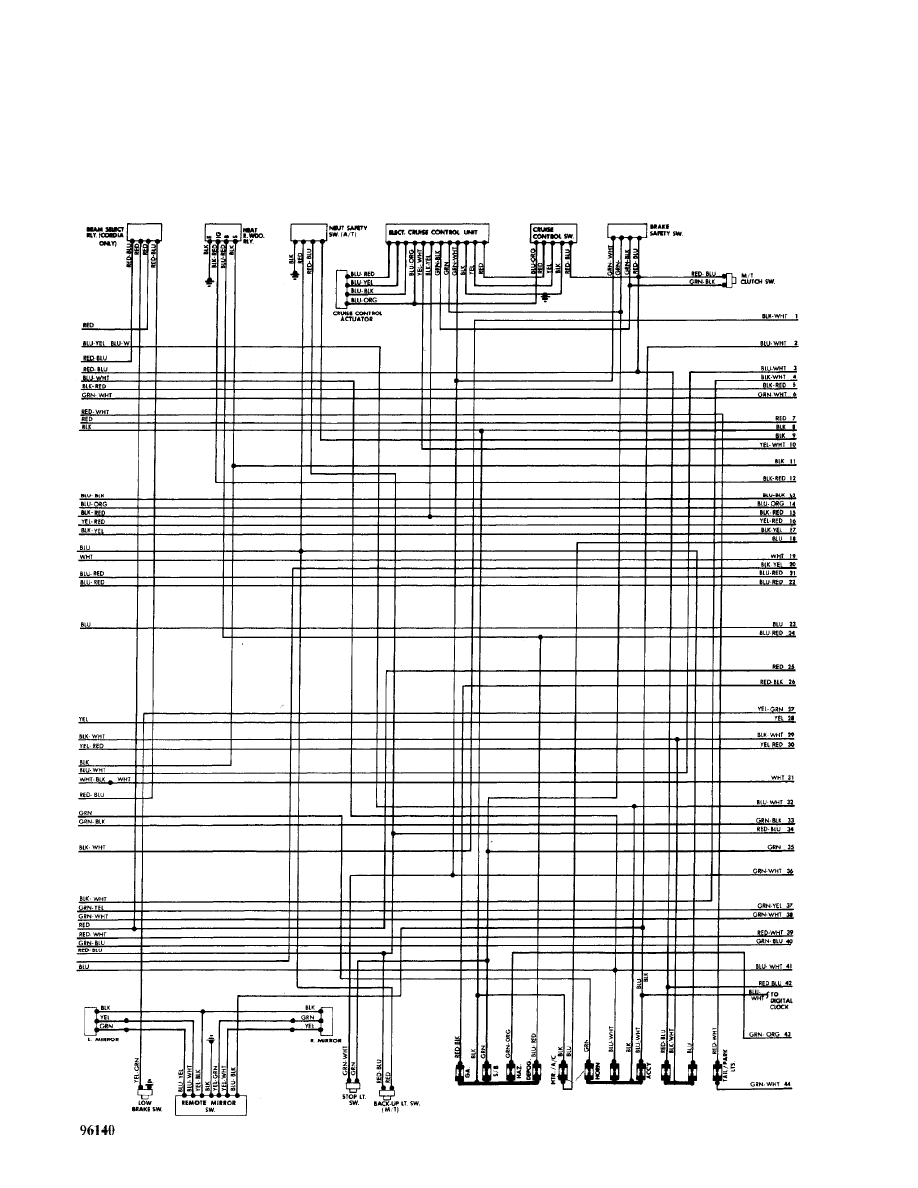

Fig. 3: Underdash (Cont.) & Instrument Panel (p. 3)
1983 Mitsubishi Cordia
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:45PM
WIRING DIAGRAMS

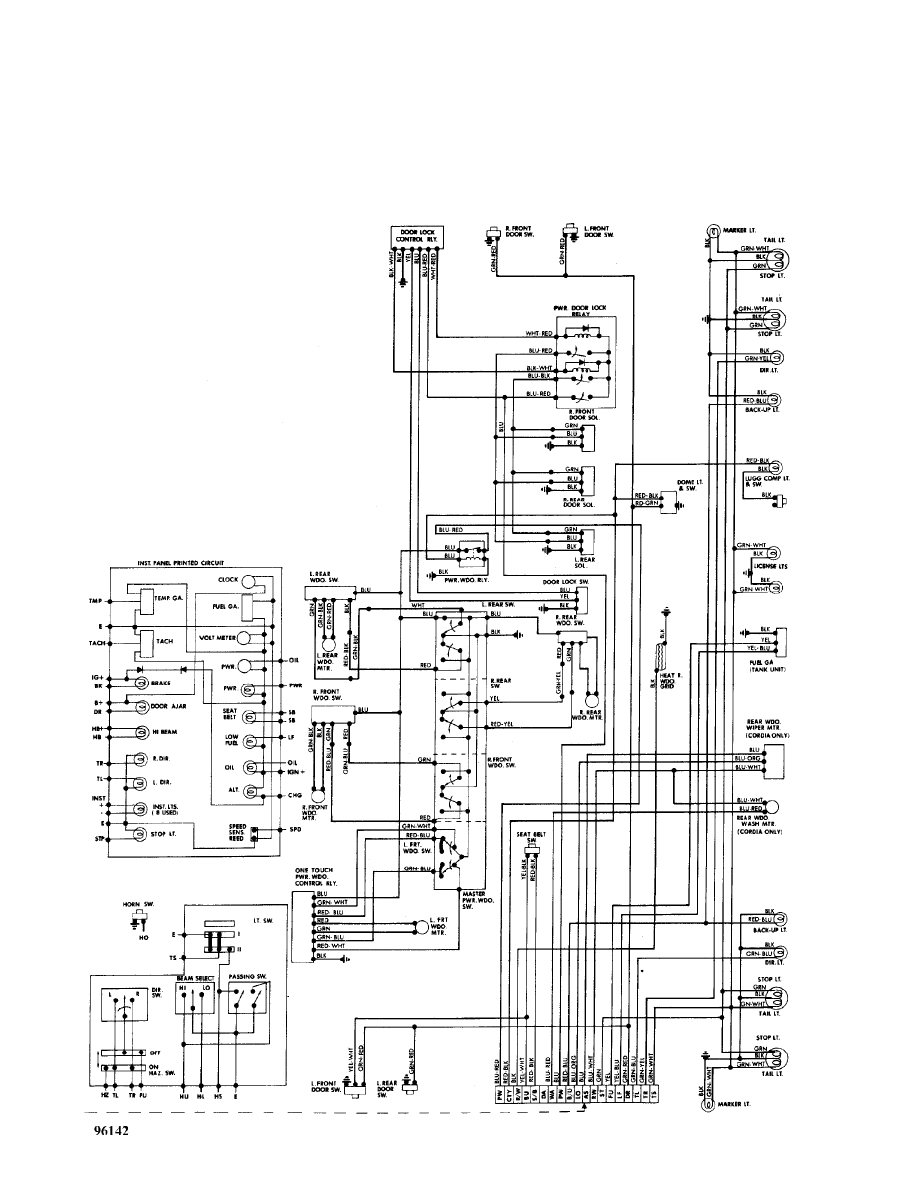

Fig. 4: Rear Compartment & Accessories (p. 4)
1983 Mitsubishi Cordia
For x
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, March 17, 2005 12:45PM
