SUBARU IMPREZA 1997(1)

SYSTEM WIRING DIAGRAMS

A/C Circuit

1997 Subaru Impreza

For cdr101@wp.pl

Thursday, March 31, 2005 07:26PM

SYSTEM WIRING DIAGRAMS

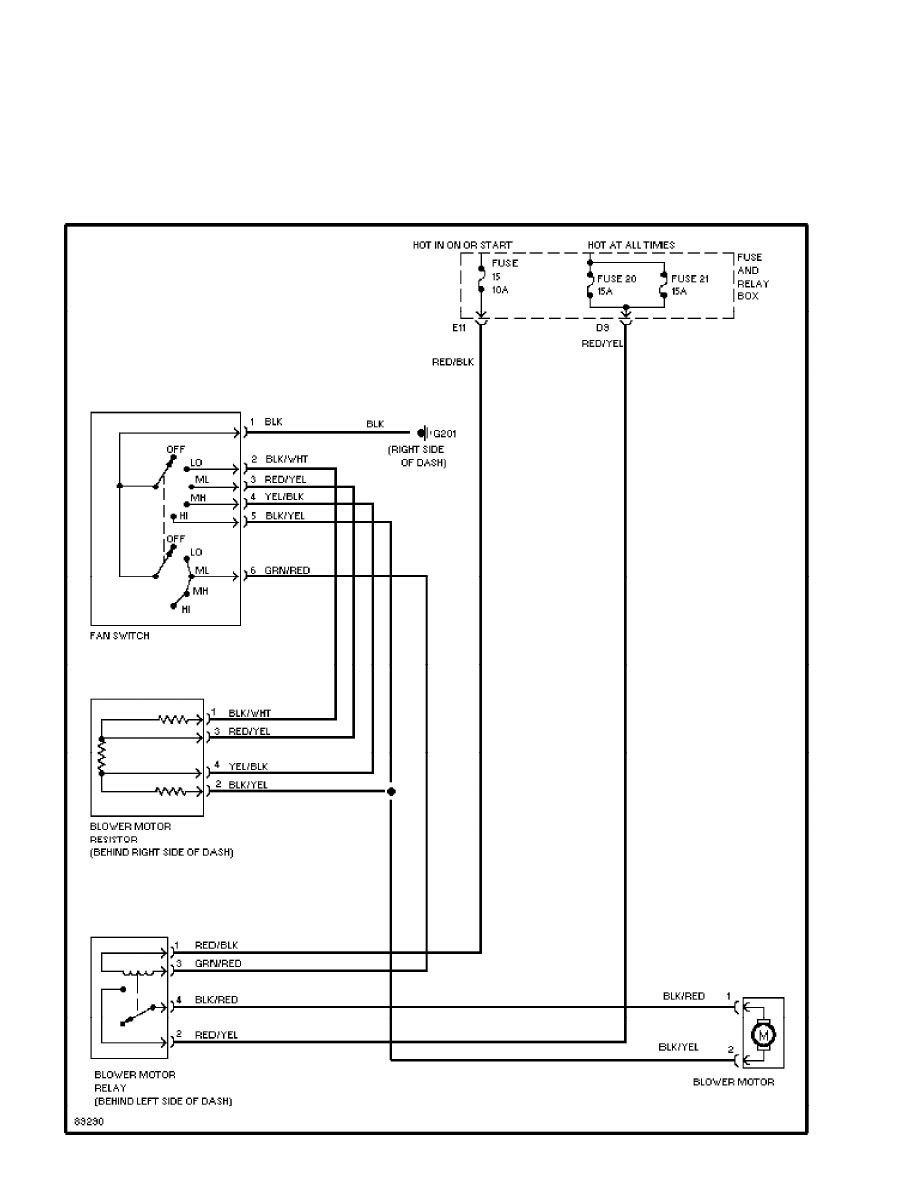

Heater Circuit (p. 2)

1997 Subaru Impreza

For cdr101@wp.pl

Thursday, March 31, 2005 07:26PM

SYSTEM WIRING DIAGRAMS

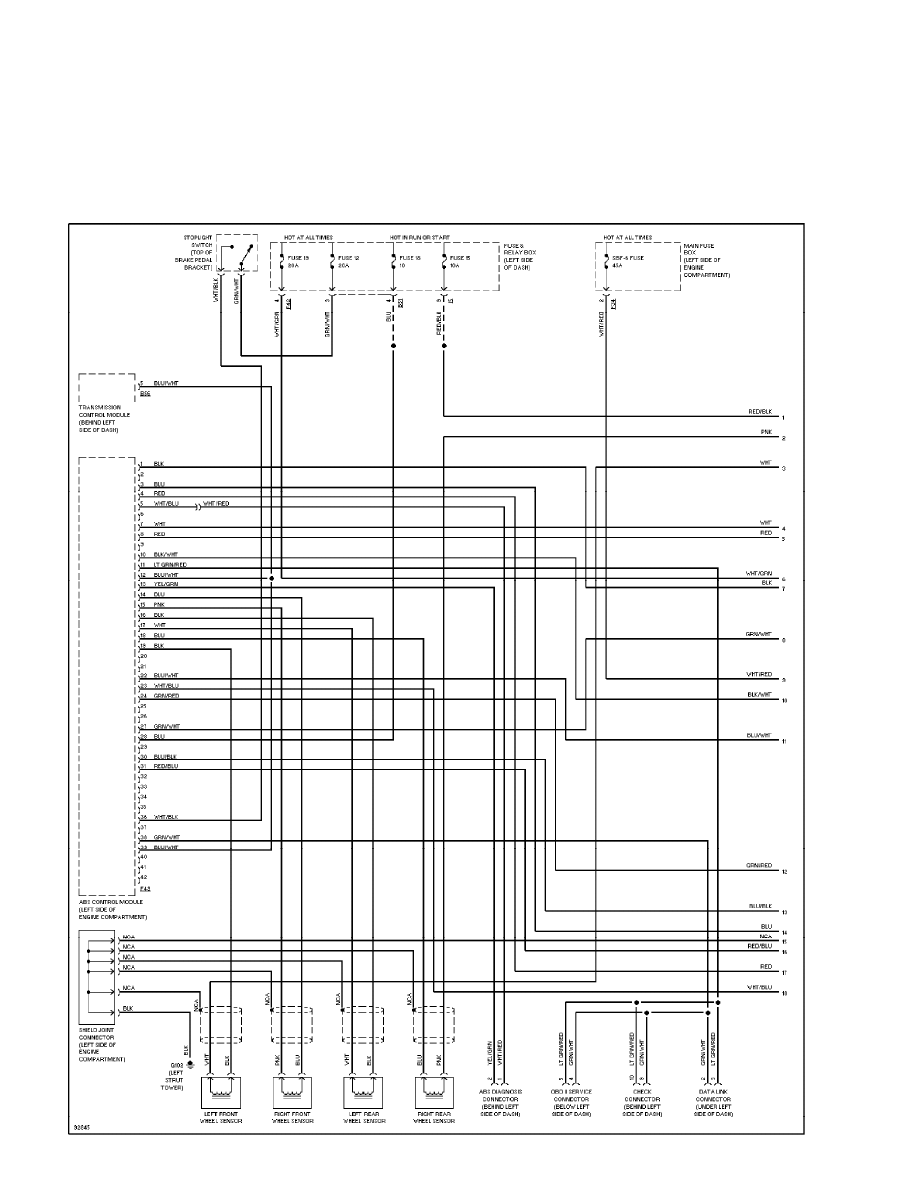

Anti-lock Brake Circuits (1 of 2) (p. 3)

1997 Subaru Impreza

For cdr101@wp.pl

Thursday, March 31, 2005 07:26PM

SYSTEM WIRING DIAGRAMS

Anti-lock Brake Circuits (2 of 2) (p. 4)

1997 Subaru Impreza

For cdr101@wp.pl

Thursday, March 31, 2005 07:26PM

SYSTEM WIRING DIAGRAMS

Computer Data Lines (p. 5)

1997 Subaru Impreza

For cdr101@wp.pl

Thursday, March 31, 2005 07:26PM

SYSTEM WIRING DIAGRAMS

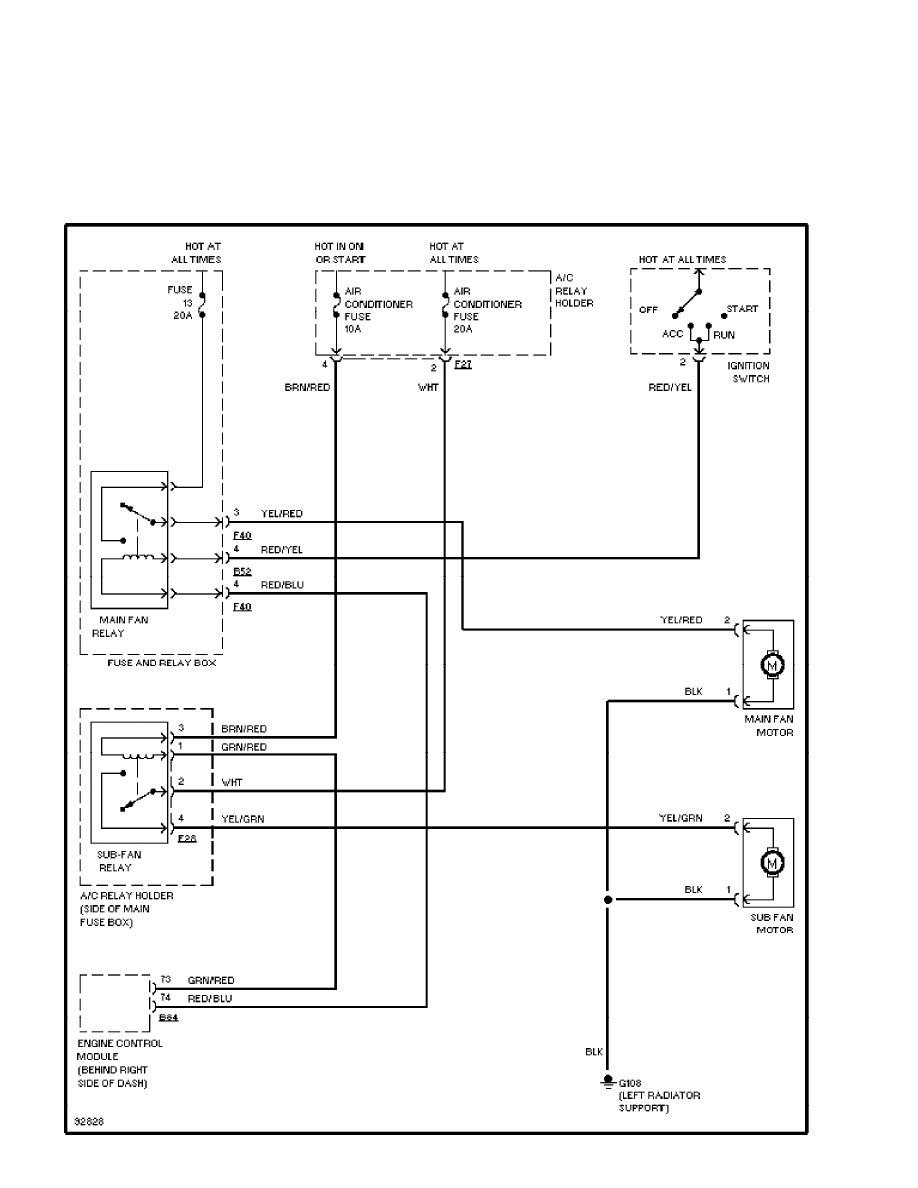

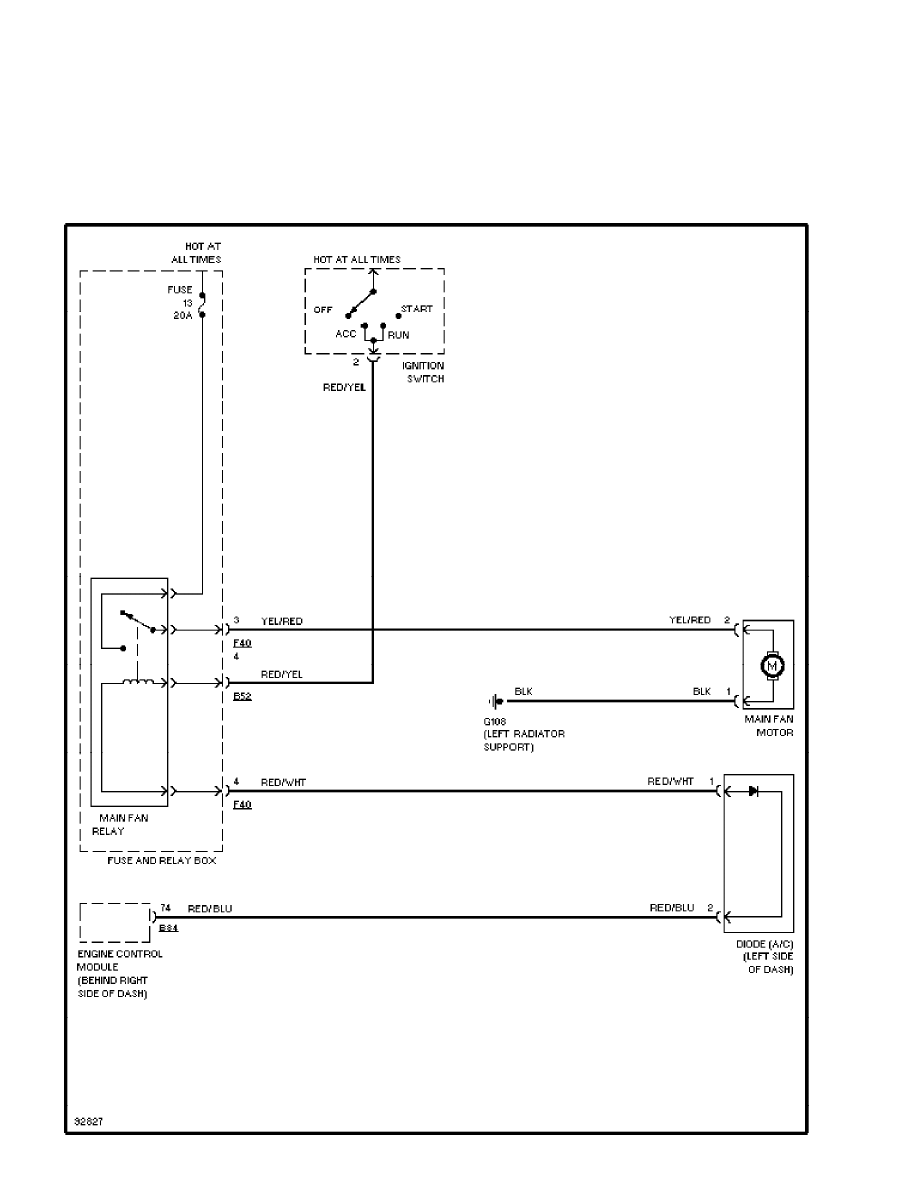

Cooling Fan Circuit, W/ A/C (p. 6)

1997 Subaru Impreza

For cdr101@wp.pl

Thursday, March 31, 2005 07:26PM

SYSTEM WIRING DIAGRAMS

Cooling Fan Circuit, W/O A/C (p. 7)

1997 Subaru Impreza

For cdr101@wp.pl

Thursday, March 31, 2005 07:26PM

SYSTEM WIRING DIAGRAMS

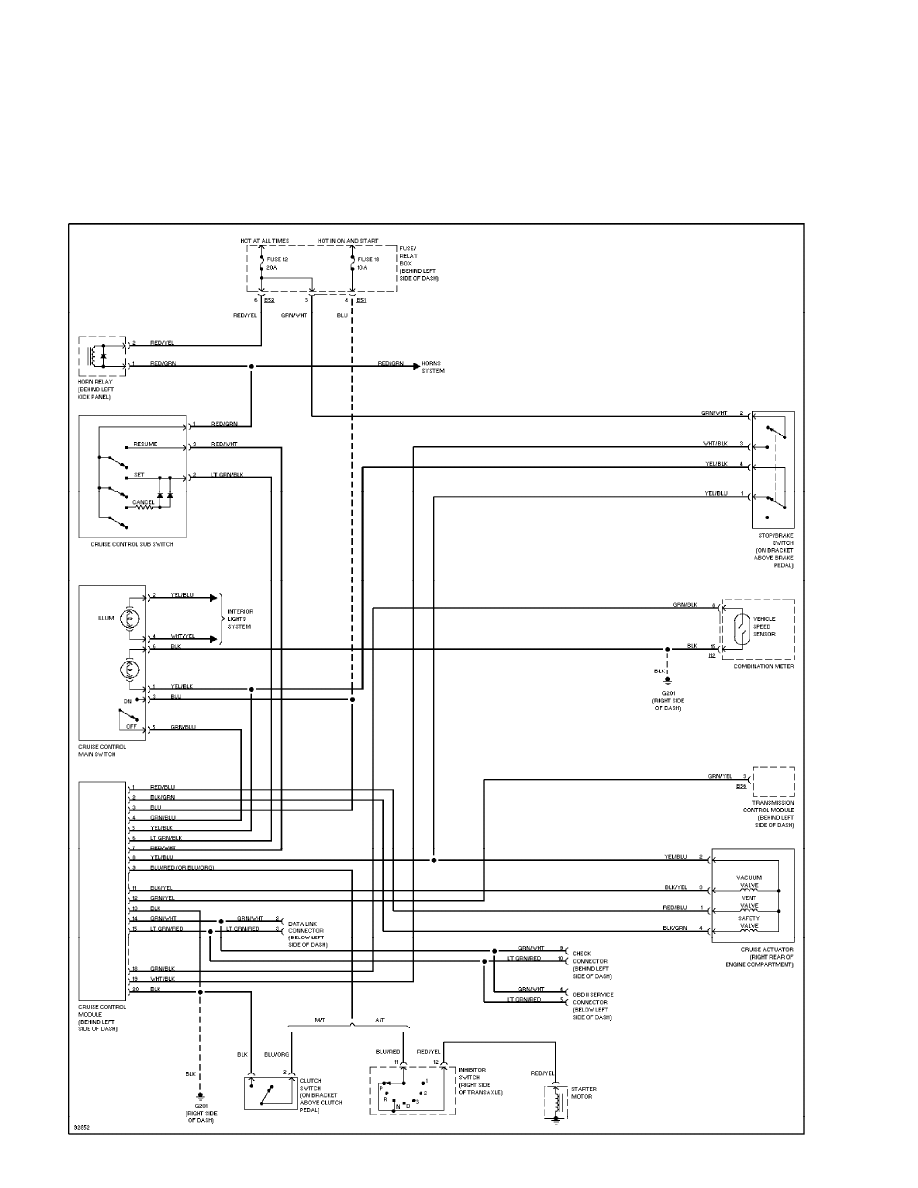

Cruise Control Circuit (p. 8)

1997 Subaru Impreza

For cdr101@wp.pl

Thursday, March 31, 2005 07:26PM

SYSTEM WIRING DIAGRAMS

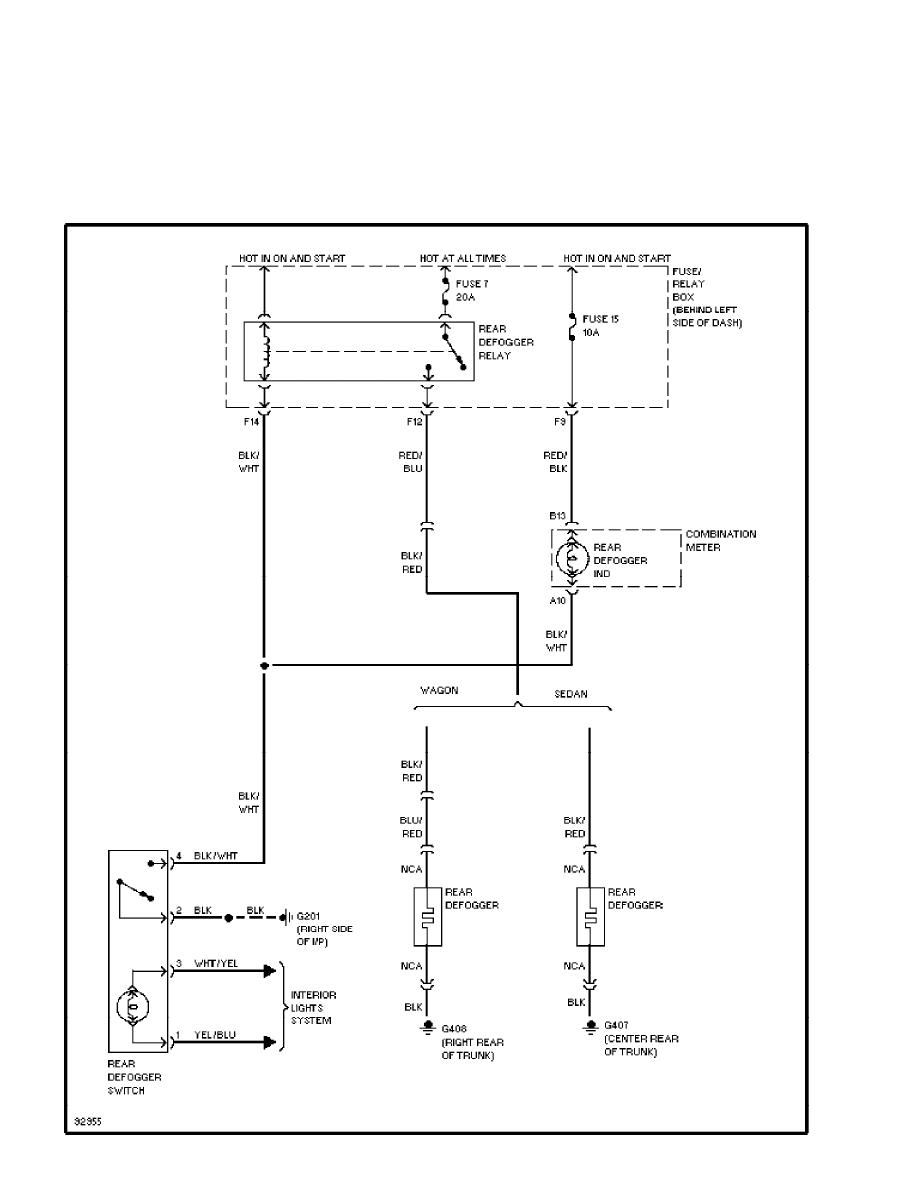

Defogger Circuit (p. 9)

1997 Subaru Impreza

For cdr101@wp.pl

Thursday, March 31, 2005 07:26PM

SYSTEM WIRING DIAGRAMS

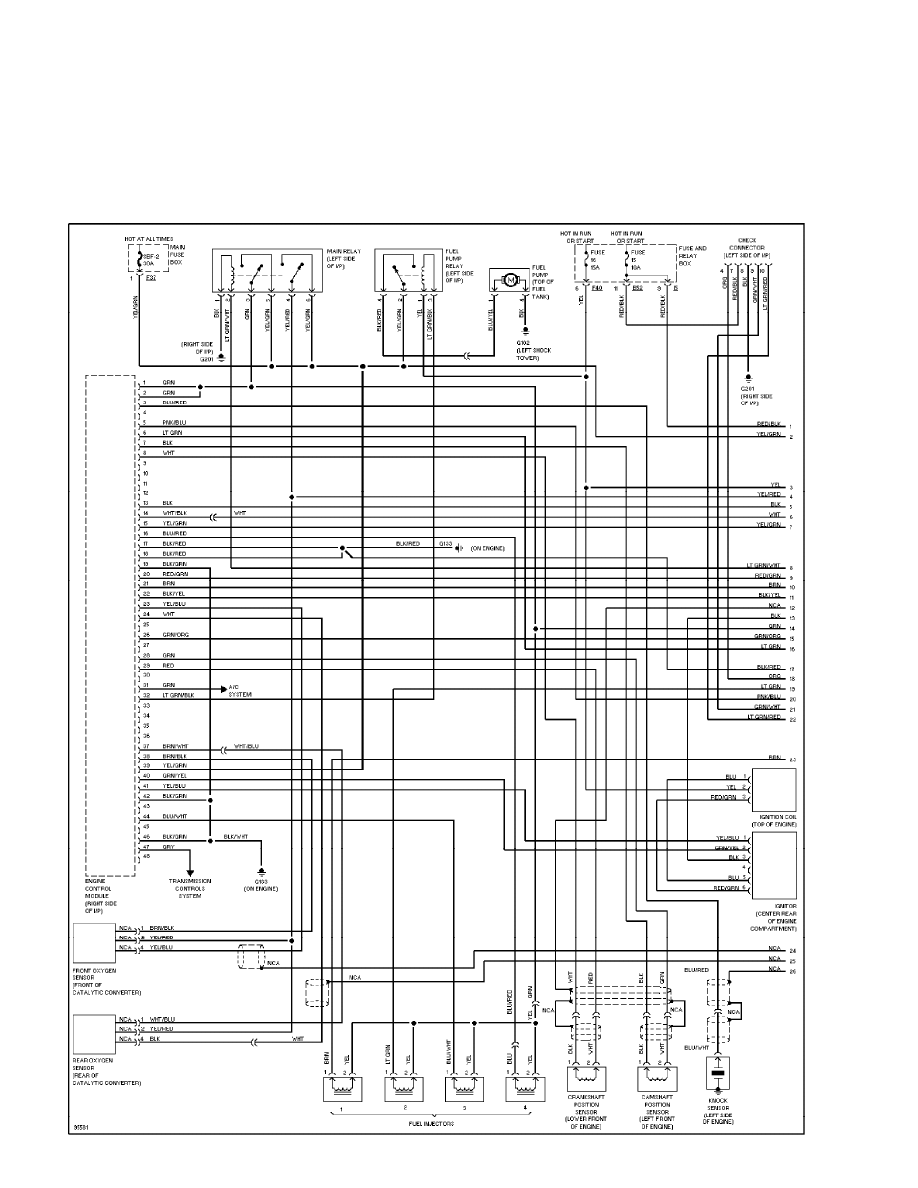

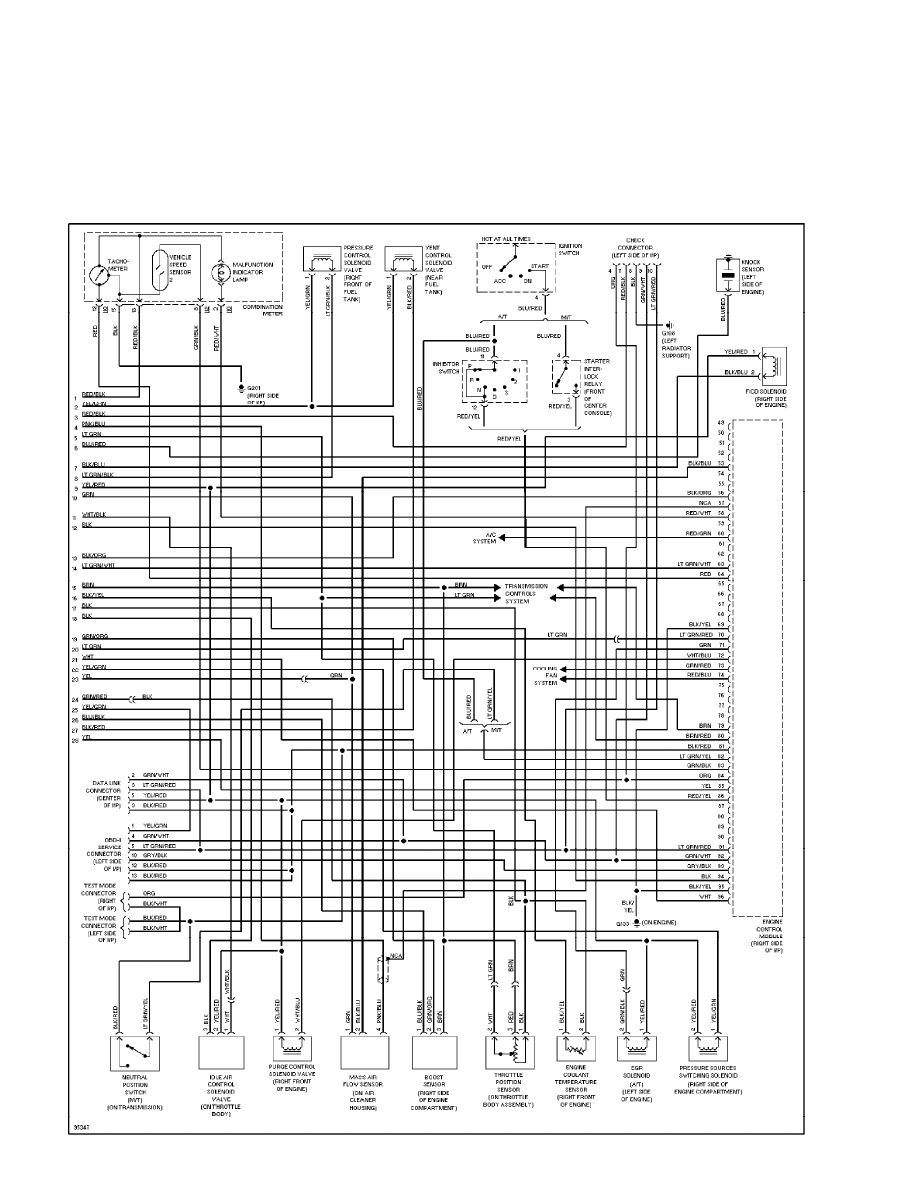

1.8L, Engine Performance Circuits (1 of 2) (p. 10)

1997 Subaru Impreza

For cdr101@wp.pl

Thursday, March 31, 2005 07:26PM

SYSTEM WIRING DIAGRAMS

1.8L, Engine Performance Circuits (2 of 2) (p. 11)

1997 Subaru Impreza

For cdr101@wp.pl

Thursday, March 31, 2005 07:26PM

SYSTEM WIRING DIAGRAMS

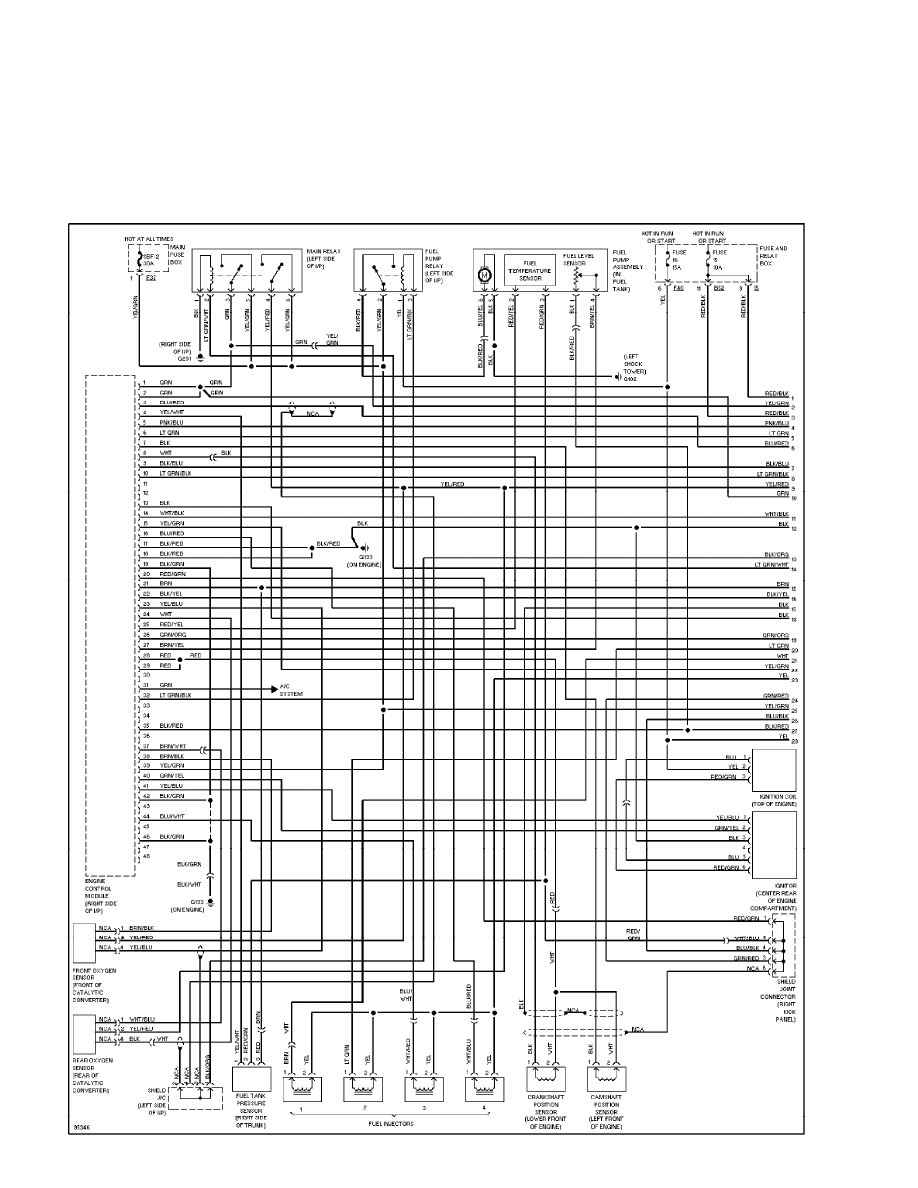

2.2L, Engine Performance Circuits (1 of 2) (p. 12)

1997 Subaru Impreza

For cdr101@wp.pl

Thursday, March 31, 2005 07:26PM

SYSTEM WIRING DIAGRAMS

2.2L, Engine Performance Circuits (2 of 2) (p. 13)

1997 Subaru Impreza

For cdr101@wp.pl

Thursday, March 31, 2005 07:26PM

SYSTEM WIRING DIAGRAMS

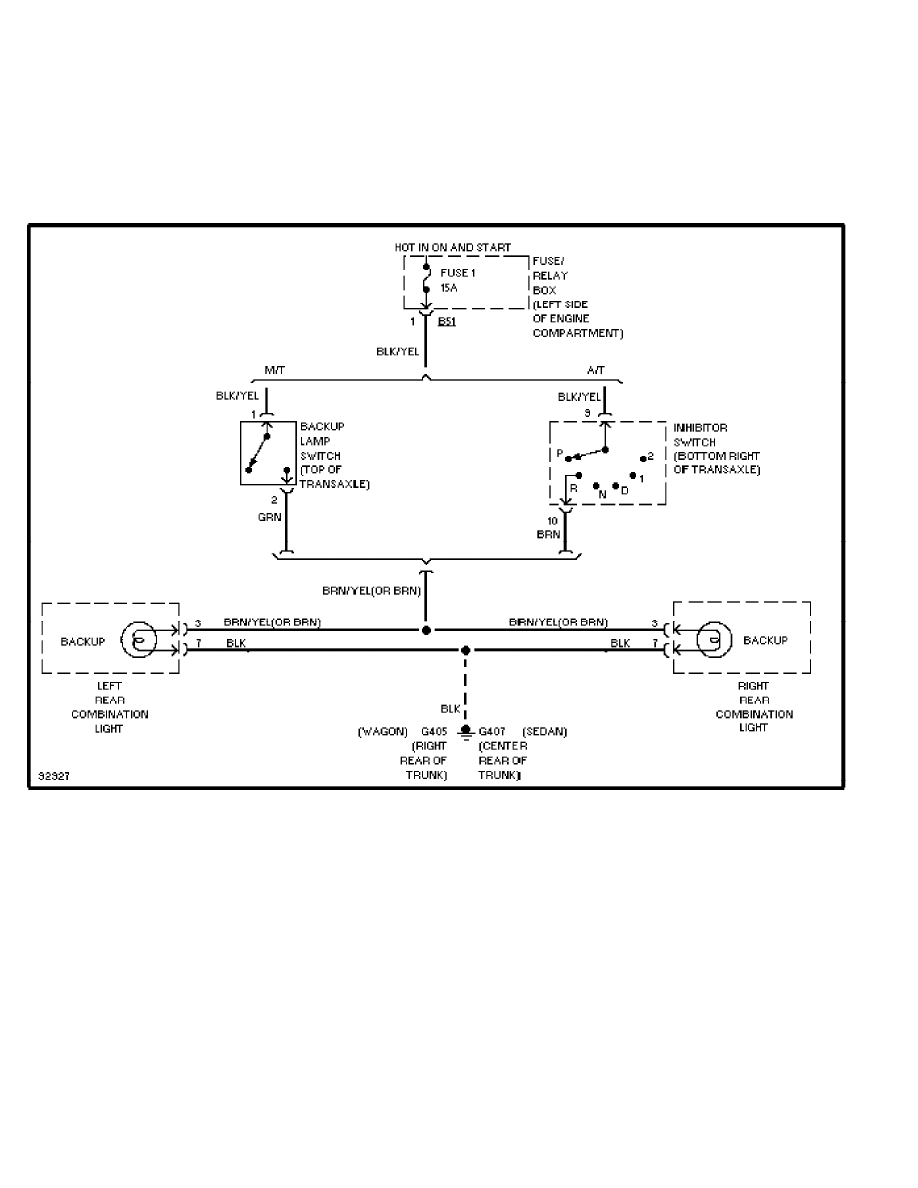

Back-up Lamps Circuit (p. 14)

1997 Subaru Impreza

For cdr101@wp.pl

Thursday, March 31, 2005 07:26PM

SYSTEM WIRING DIAGRAMS

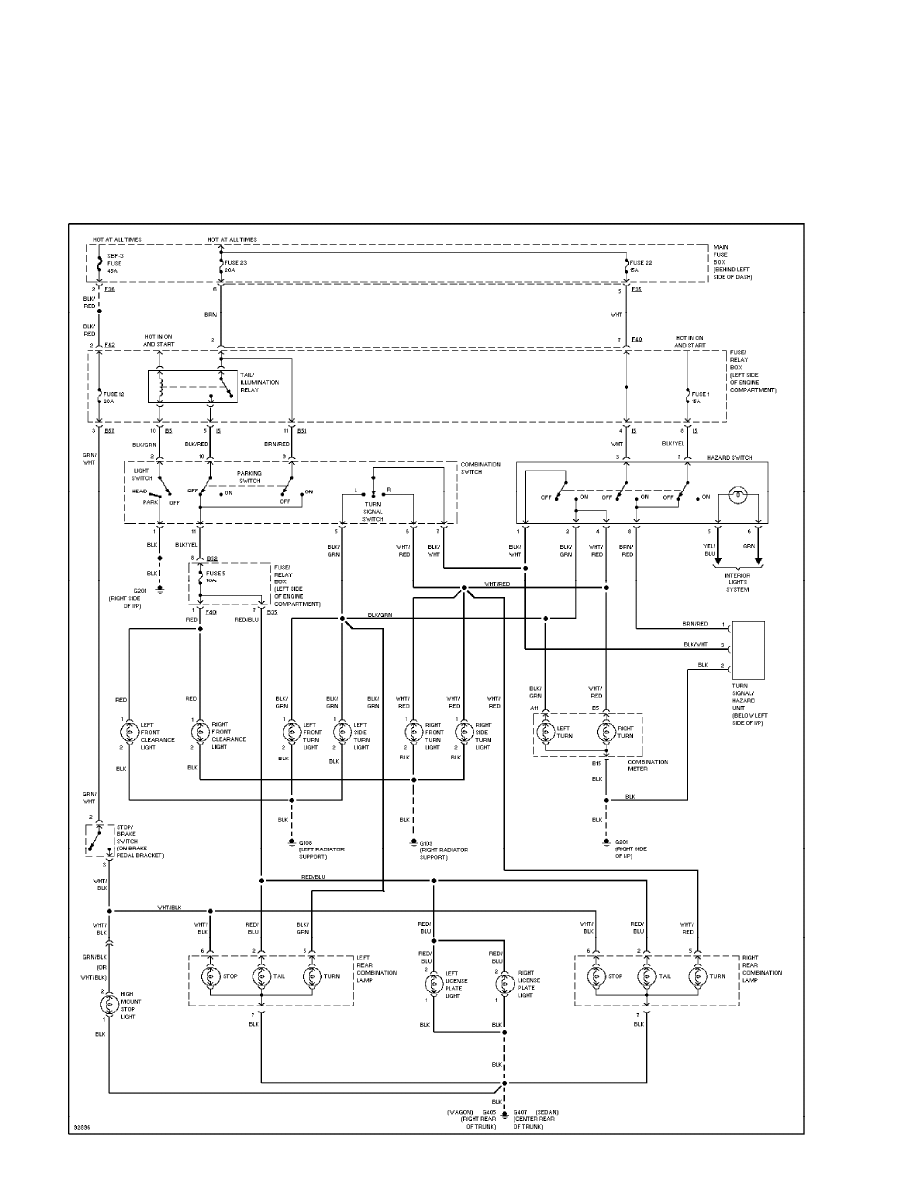

Exterior Lamps Circuit (p. 15)

1997 Subaru Impreza

For cdr101@wp.pl

Thursday, March 31, 2005 07:26PM

SYSTEM WIRING DIAGRAMS

Ground Distribution Circuit (1 of 2) (p. 16)

1997 Subaru Impreza

For cdr101@wp.pl

Thursday, March 31, 2005 07:26PM

SYSTEM WIRING DIAGRAMS

Ground Distribution Circuit (2 of 2) (p. 17)

1997 Subaru Impreza

For cdr101@wp.pl

Thursday, March 31, 2005 07:26PM

SYSTEM WIRING DIAGRAMS

Headlight Circuit (p. 18)

1997 Subaru Impreza

For cdr101@wp.pl

Thursday, March 31, 2005 07:26PM

SYSTEM WIRING DIAGRAMS

Horn Circuit (p. 19)

1997 Subaru Impreza

For cdr101@wp.pl

Thursday, March 31, 2005 07:26PM

SYSTEM WIRING DIAGRAMS

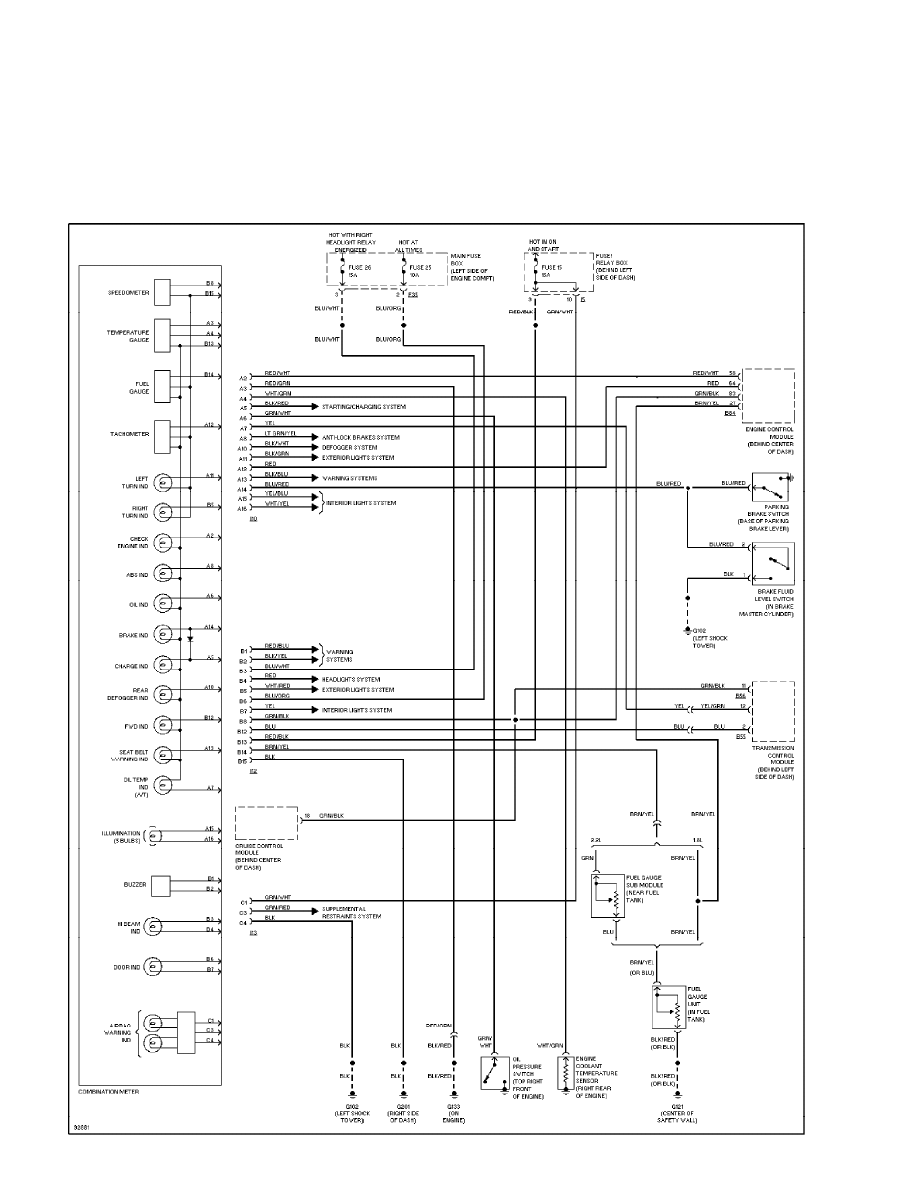

Instrument Cluster Circuit (p. 20)

1997 Subaru Impreza

For cdr101@wp.pl

Thursday, March 31, 2005 07:26PM

SYSTEM WIRING DIAGRAMS

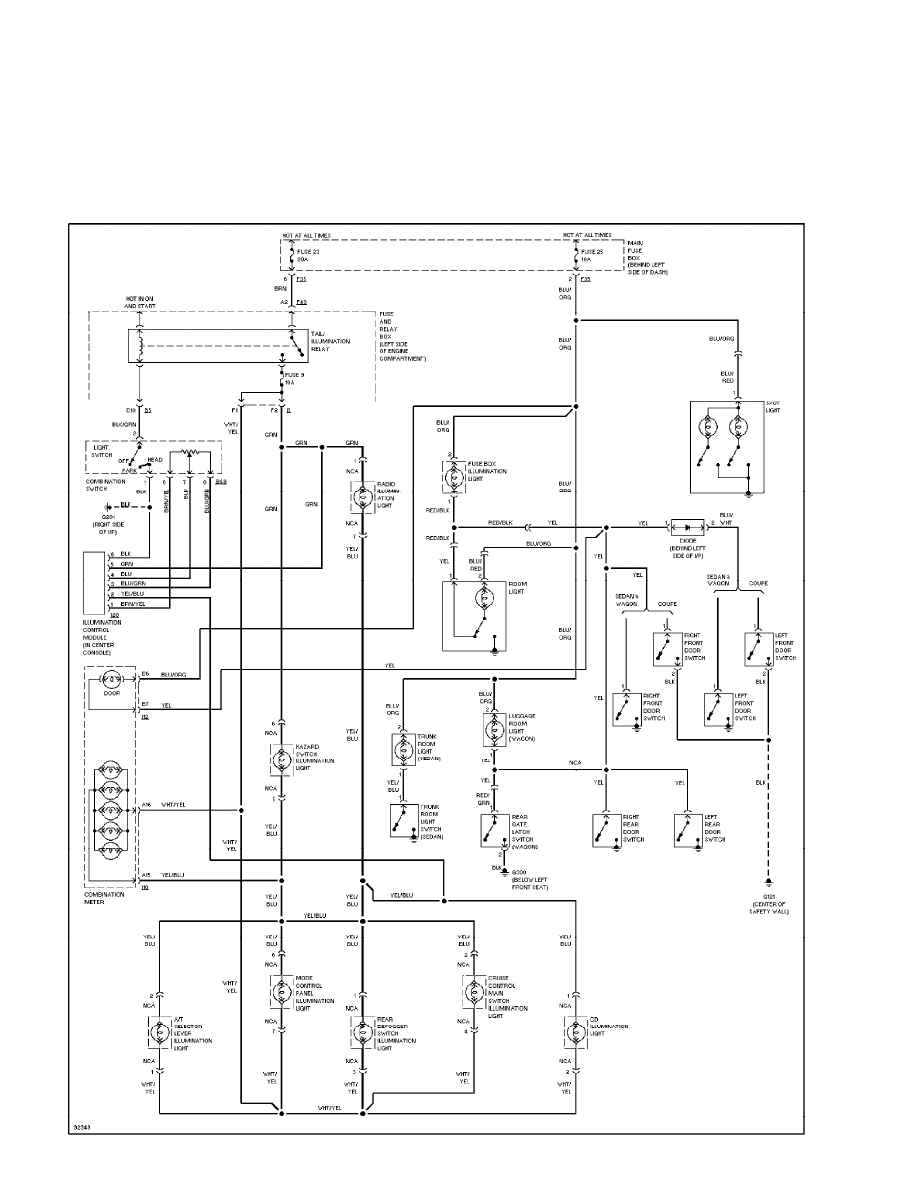

Interior Light Circuit (p. 21)

1997 Subaru Impreza

For cdr101@wp.pl

Thursday, March 31, 2005 07:26PM

SYSTEM WIRING DIAGRAMS

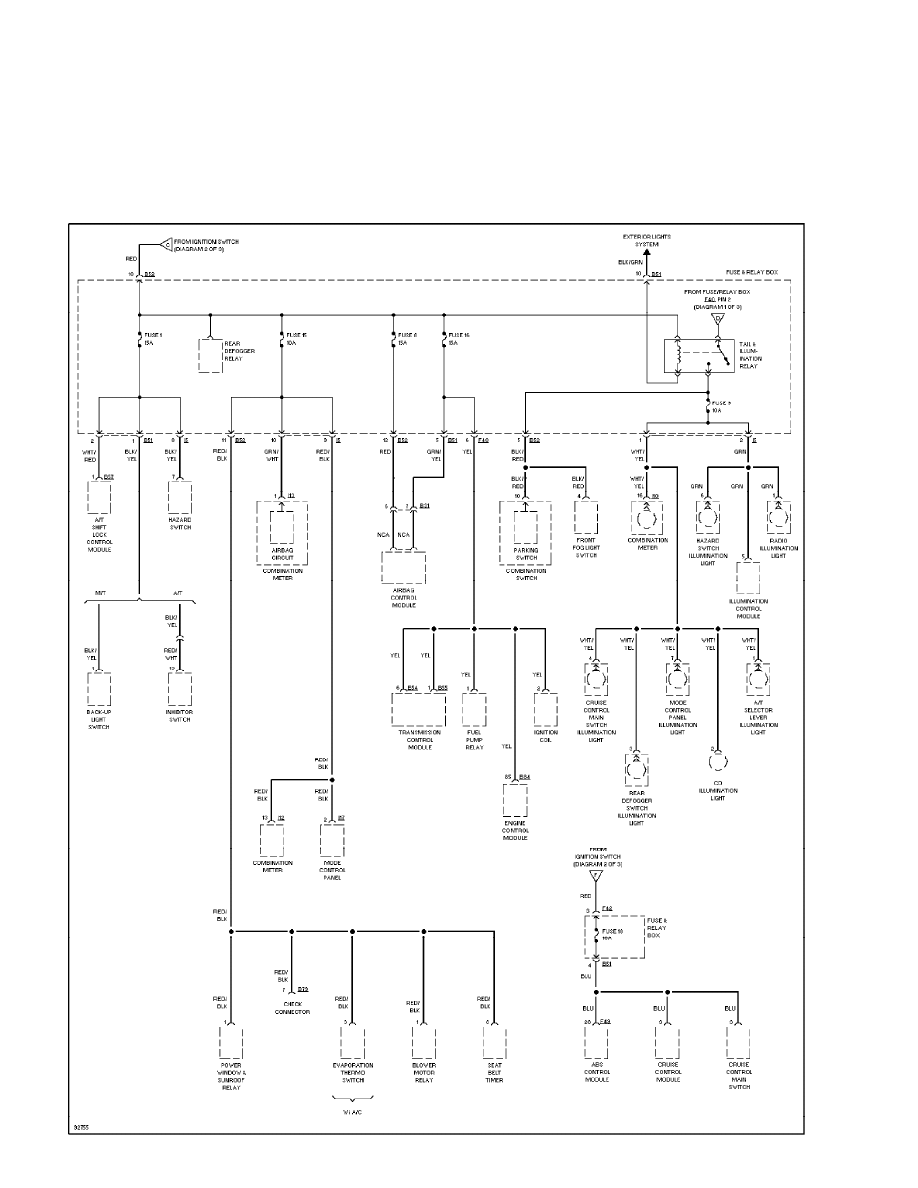

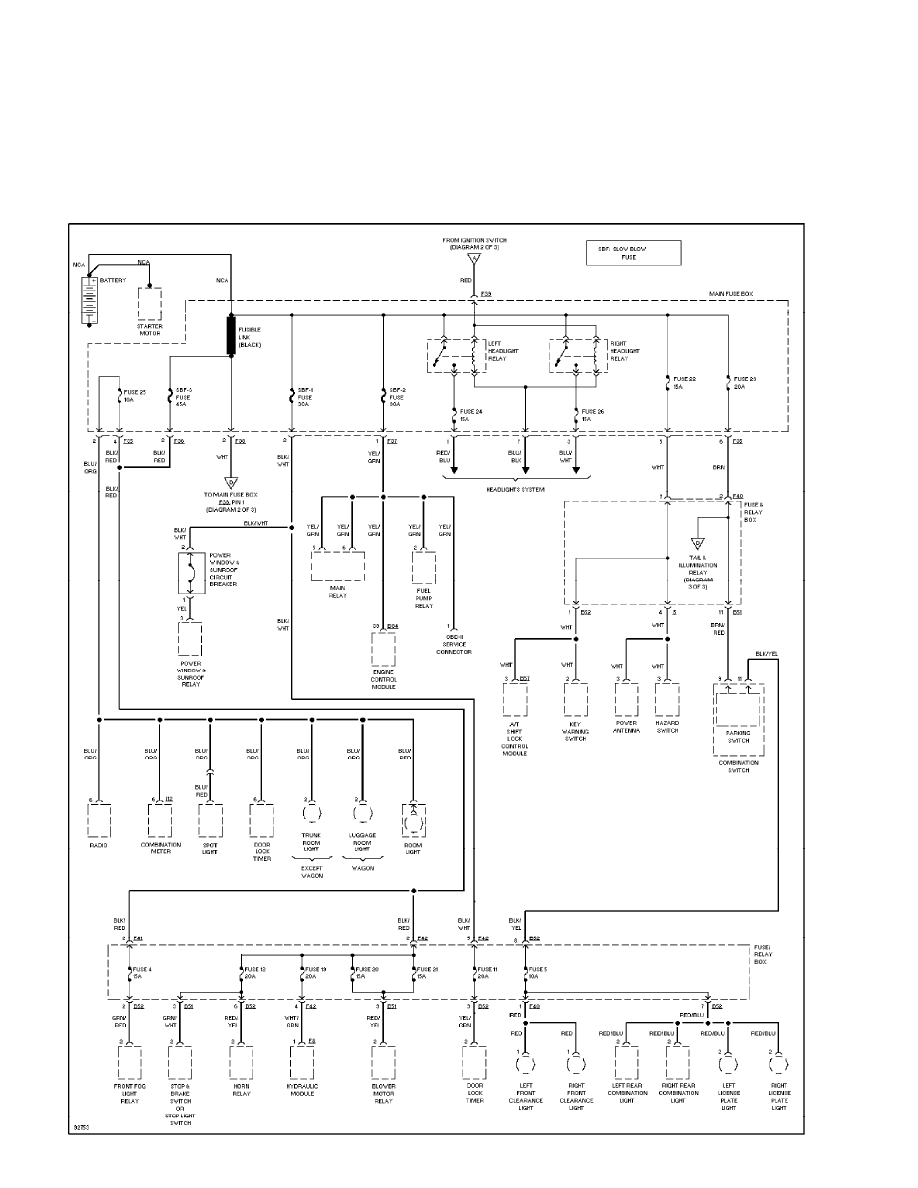

Power Distribution Circuit (1 of 3) (p. 22)

1997 Subaru Impreza

For cdr101@wp.pl

Thursday, March 31, 2005 07:26PM

SYSTEM WIRING DIAGRAMS

Power Distribution Circuit (2 of 3) (p. 23)

1997 Subaru Impreza

For cdr101@wp.pl

Thursday, March 31, 2005 07:26PM

SYSTEM WIRING DIAGRAMS

Power Distribution Circuit (3 of 3) (p. 24)

1997 Subaru Impreza

For cdr101@wp.pl

Thursday, March 31, 2005 07:26PM

SYSTEM WIRING DIAGRAMS

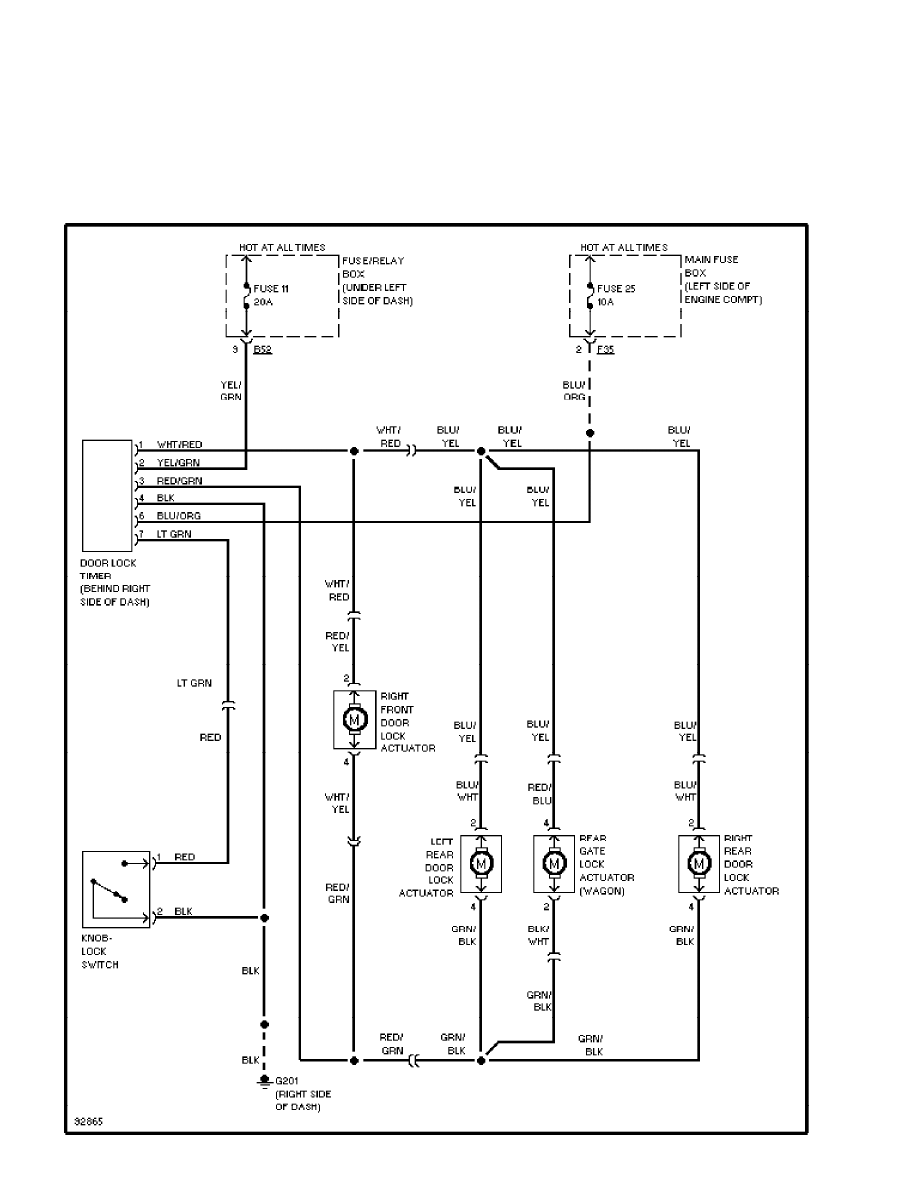

Power Door Lock Circuit (p. 25)

1997 Subaru Impreza

For cdr101@wp.pl

Thursday, March 31, 2005 07:26PM

SYSTEM WIRING DIAGRAMS

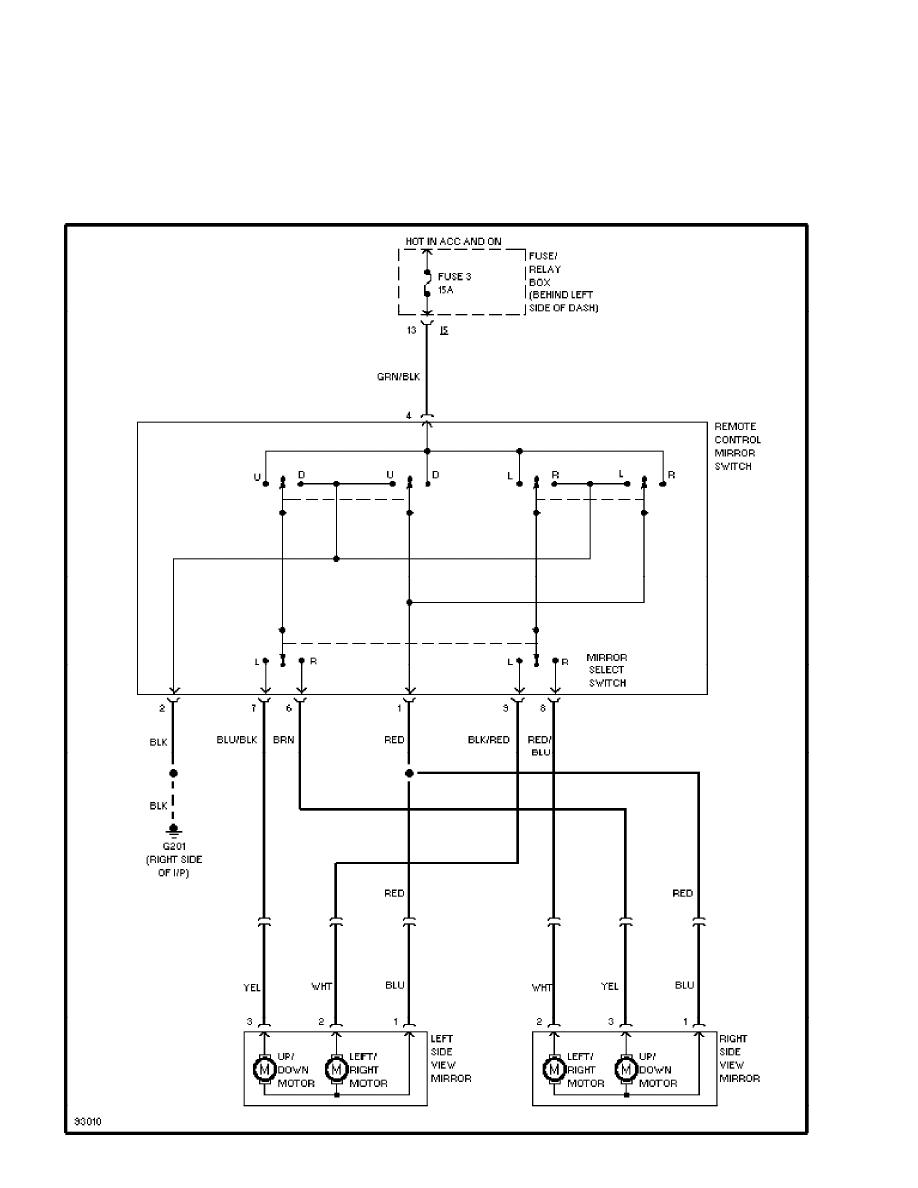

Power Mirror Circuit (p. 26)

1997 Subaru Impreza

For cdr101@wp.pl

Thursday, March 31, 2005 07:26PM

SYSTEM WIRING DIAGRAMS

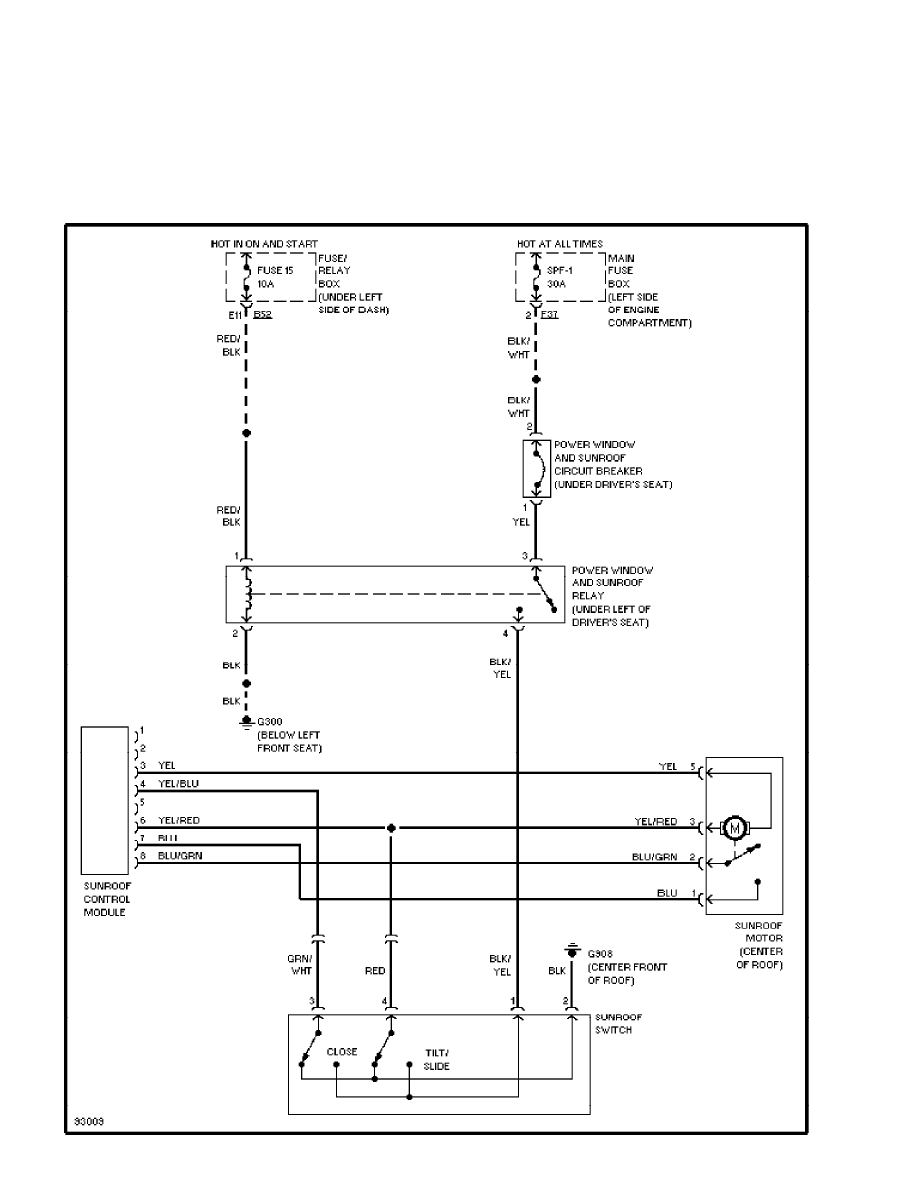

Sunroof Circuit (p. 27)

1997 Subaru Impreza

For cdr101@wp.pl

Thursday, March 31, 2005 07:26PM

SYSTEM WIRING DIAGRAMS
Power Window Circuit (p. 28)

1997 Subaru Impreza

For cdr101@wp.pl

Thursday, March 31, 2005 07:26PM

SYSTEM WIRING DIAGRAMS

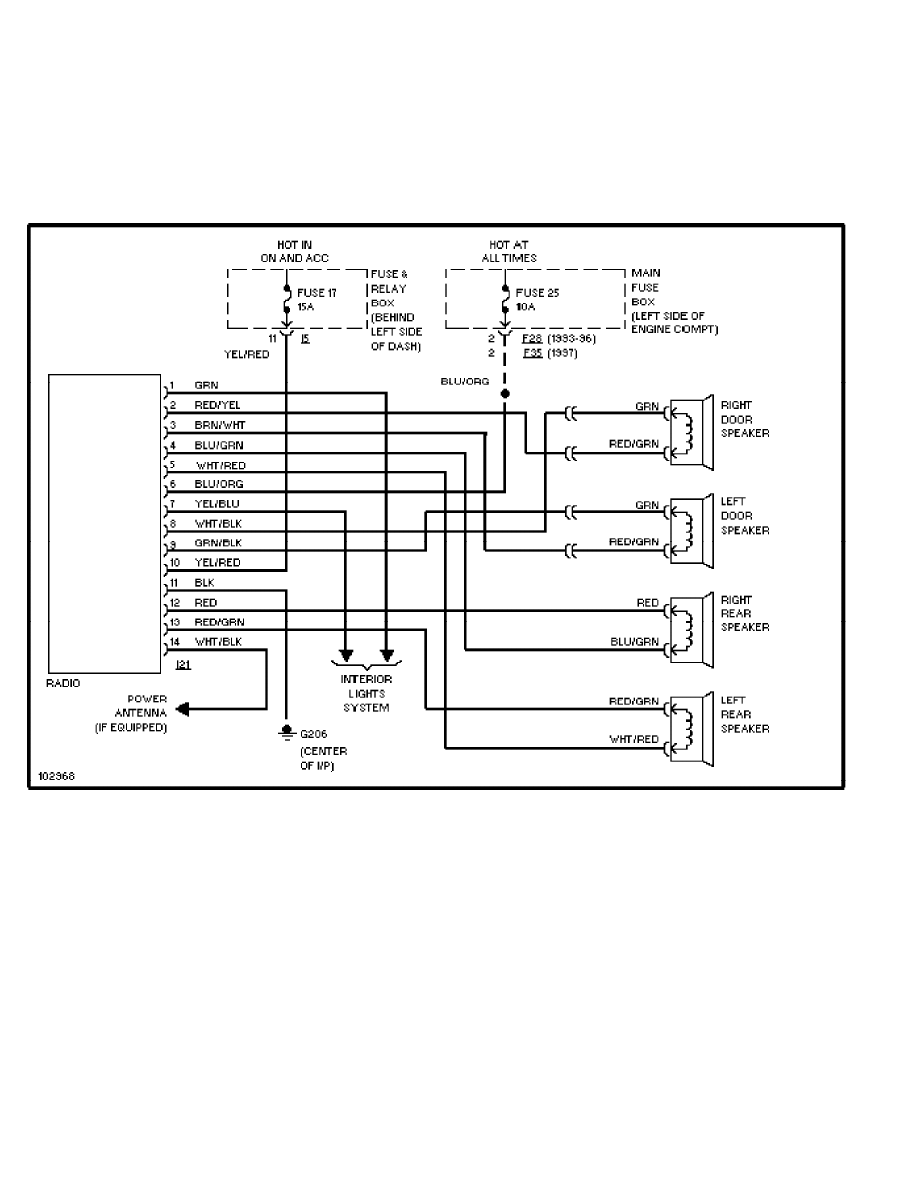

Radio Circuits (p. 29)

1997 Subaru Impreza

For cdr101@wp.pl

Thursday, March 31, 2005 07:26PM

SYSTEM WIRING DIAGRAMS

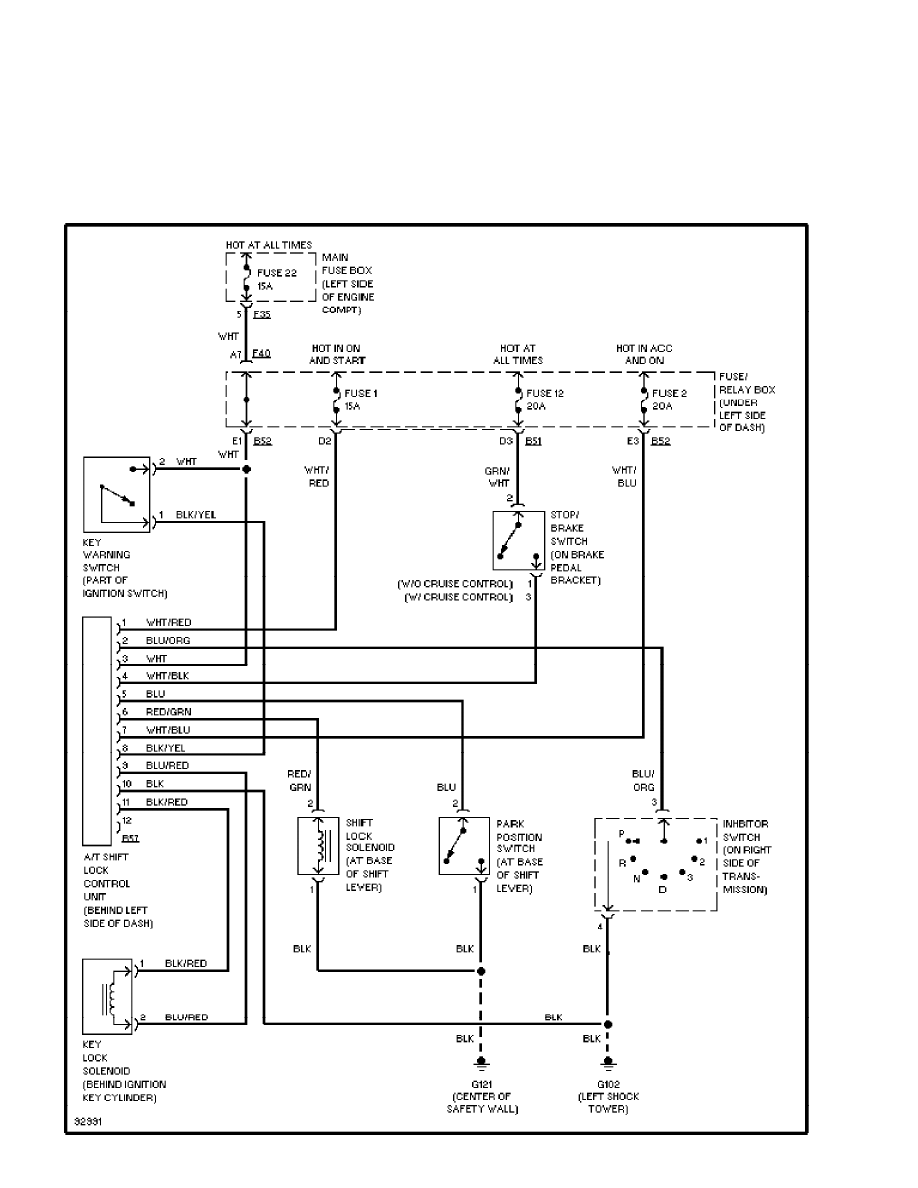

Shift Interlock Circuit (p. 30)

1997 Subaru Impreza

For cdr101@wp.pl

Thursday, March 31, 2005 07:26PM

SYSTEM WIRING DIAGRAMS

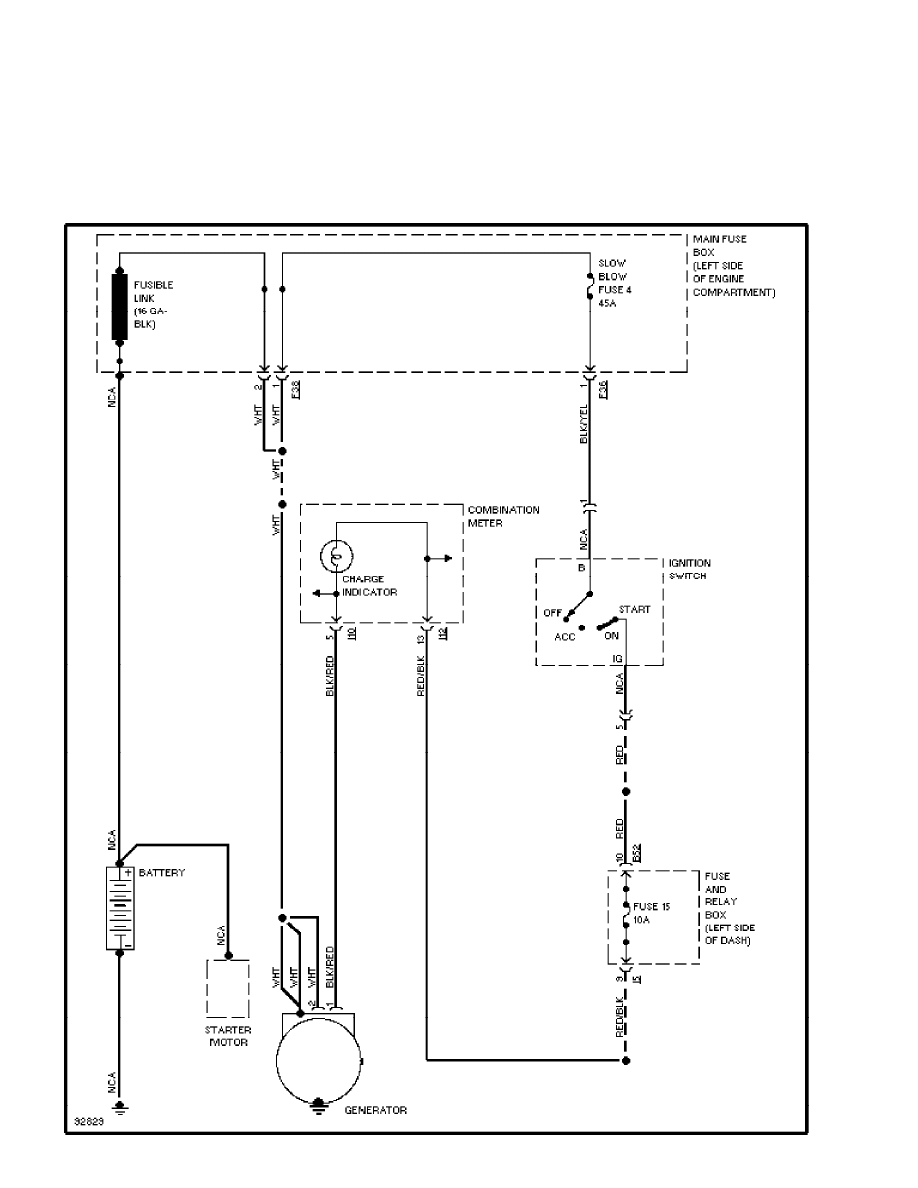

Charging Circuit (p. 31)

1997 Subaru Impreza

For cdr101@wp.pl

Thursday, March 31, 2005 07:26PM

SYSTEM WIRING DIAGRAMS

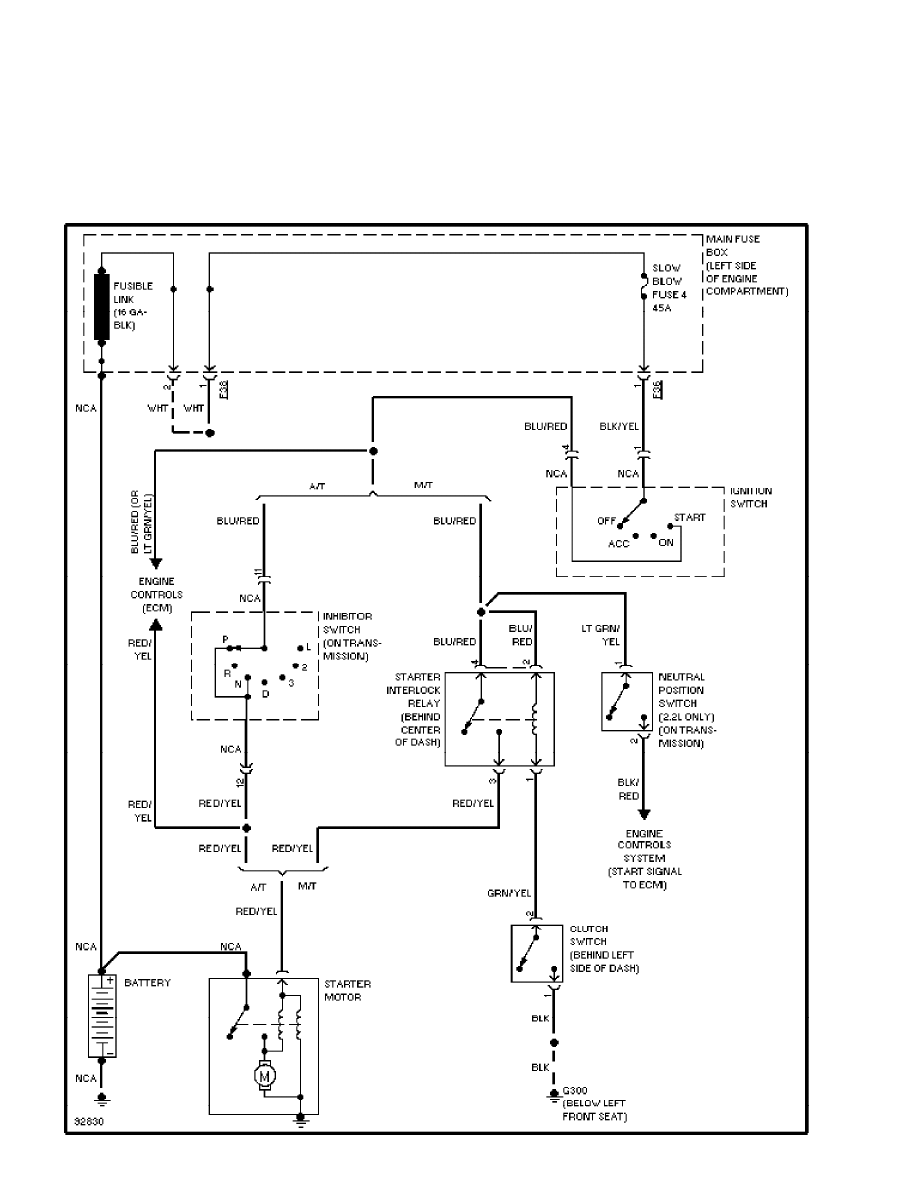

Starting Circuit (p. 32)

1997 Subaru Impreza

For cdr101@wp.pl

Thursday, March 31, 2005 07:26PM

SYSTEM WIRING DIAGRAMS

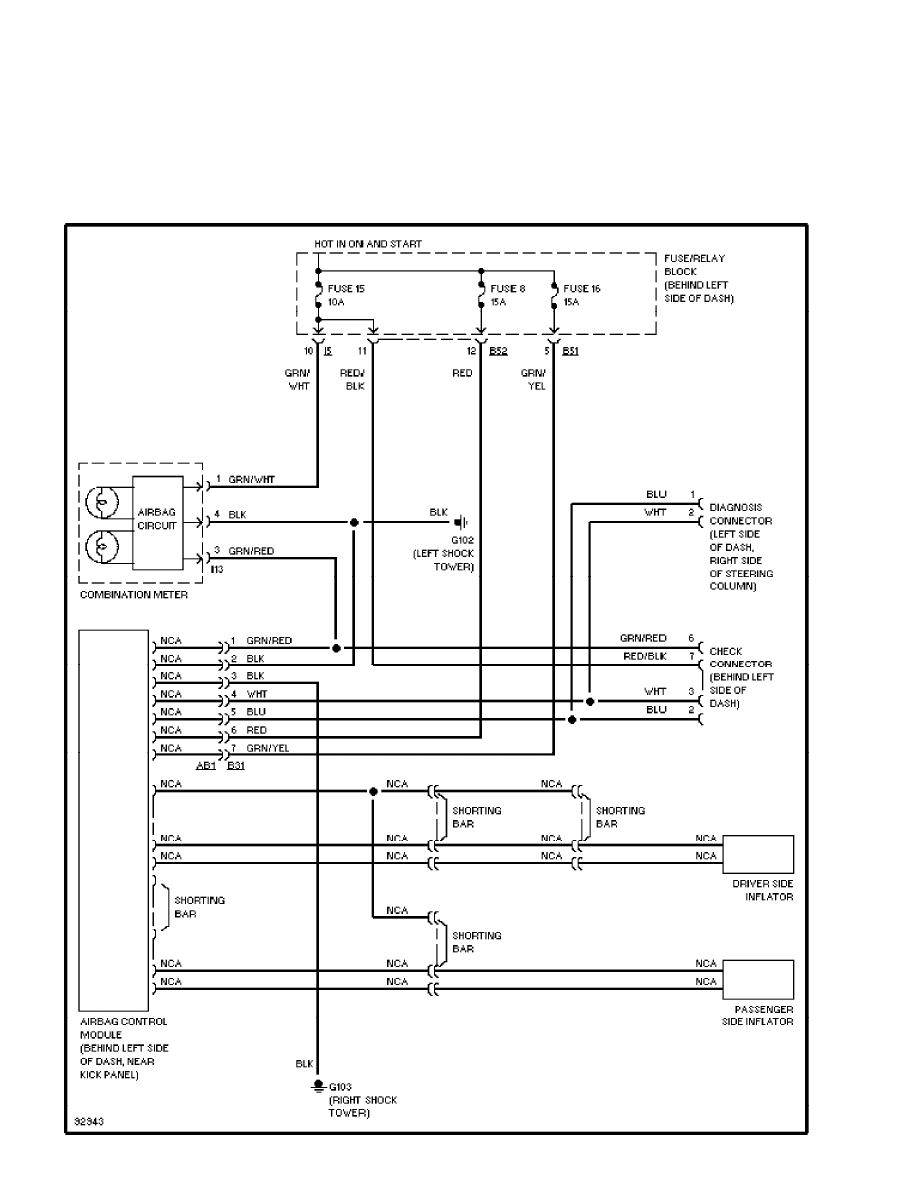

Supplemental Restraint Circuit (p. 33)

1997 Subaru Impreza

For cdr101@wp.pl

Thursday, March 31, 2005 07:26PM

SYSTEM WIRING DIAGRAMS

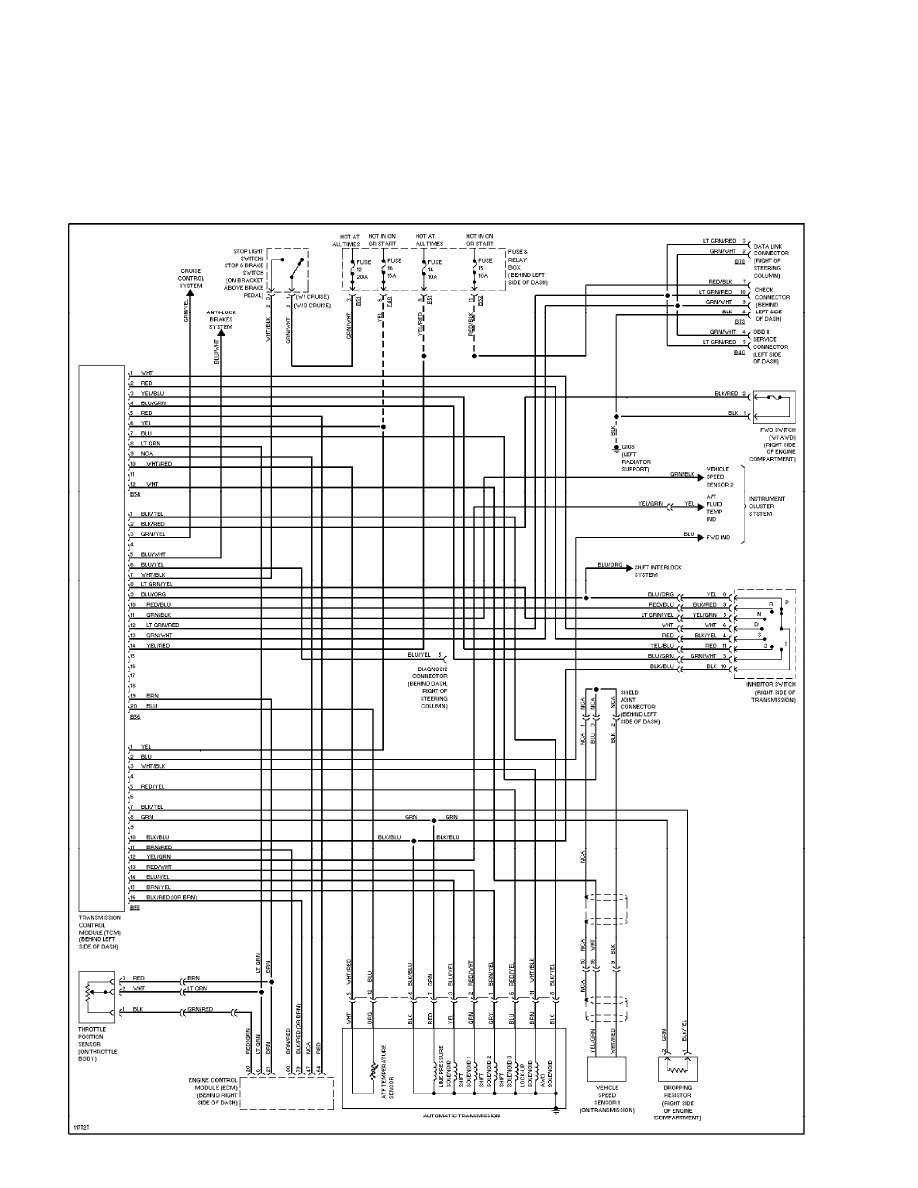

A/T Circuit (p. 34)

1997 Subaru Impreza

For cdr101@wp.pl

Thursday, March 31, 2005 07:26PM

SYSTEM WIRING DIAGRAMS

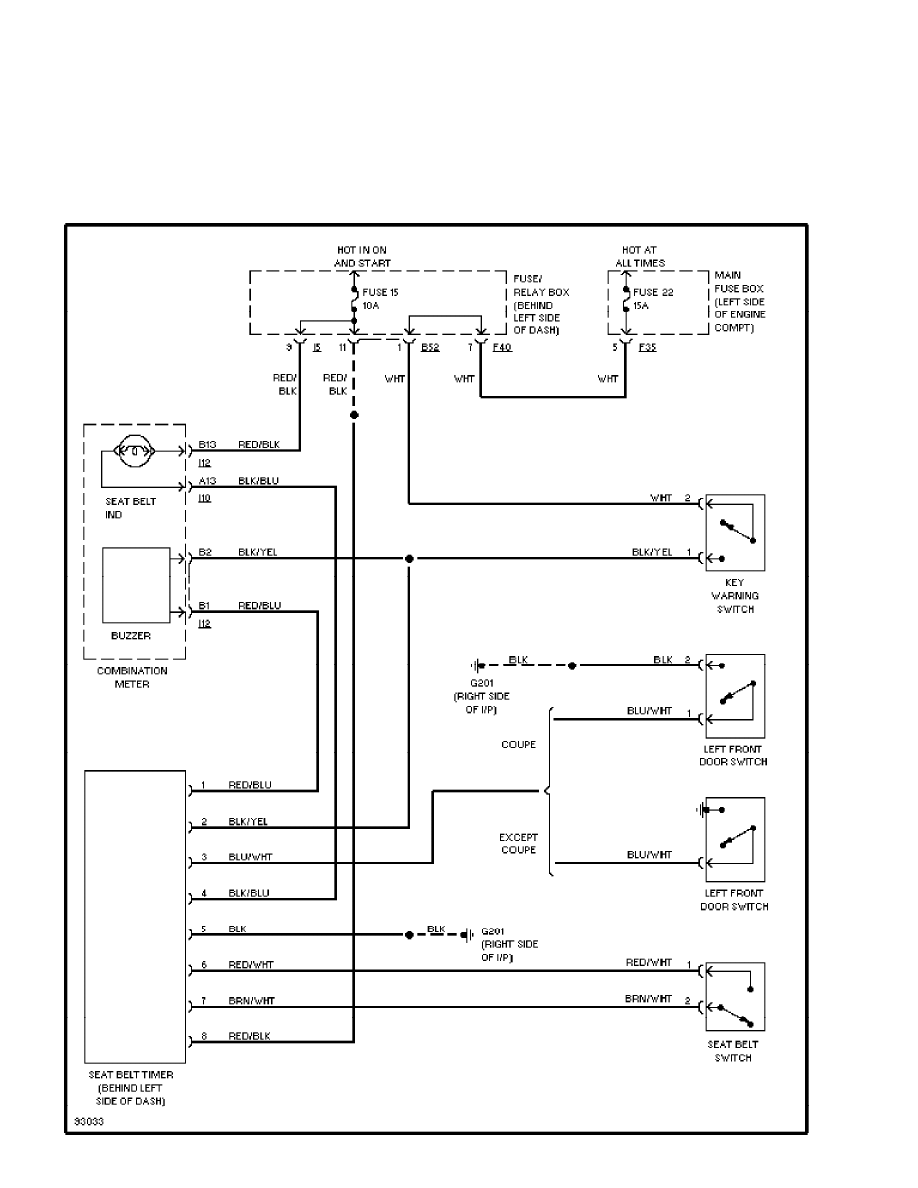

Warning System Circuits (p. 35)

1997 Subaru Impreza

For cdr101@wp.pl

Thursday, March 31, 2005 07:26PM

SYSTEM WIRING DIAGRAMS

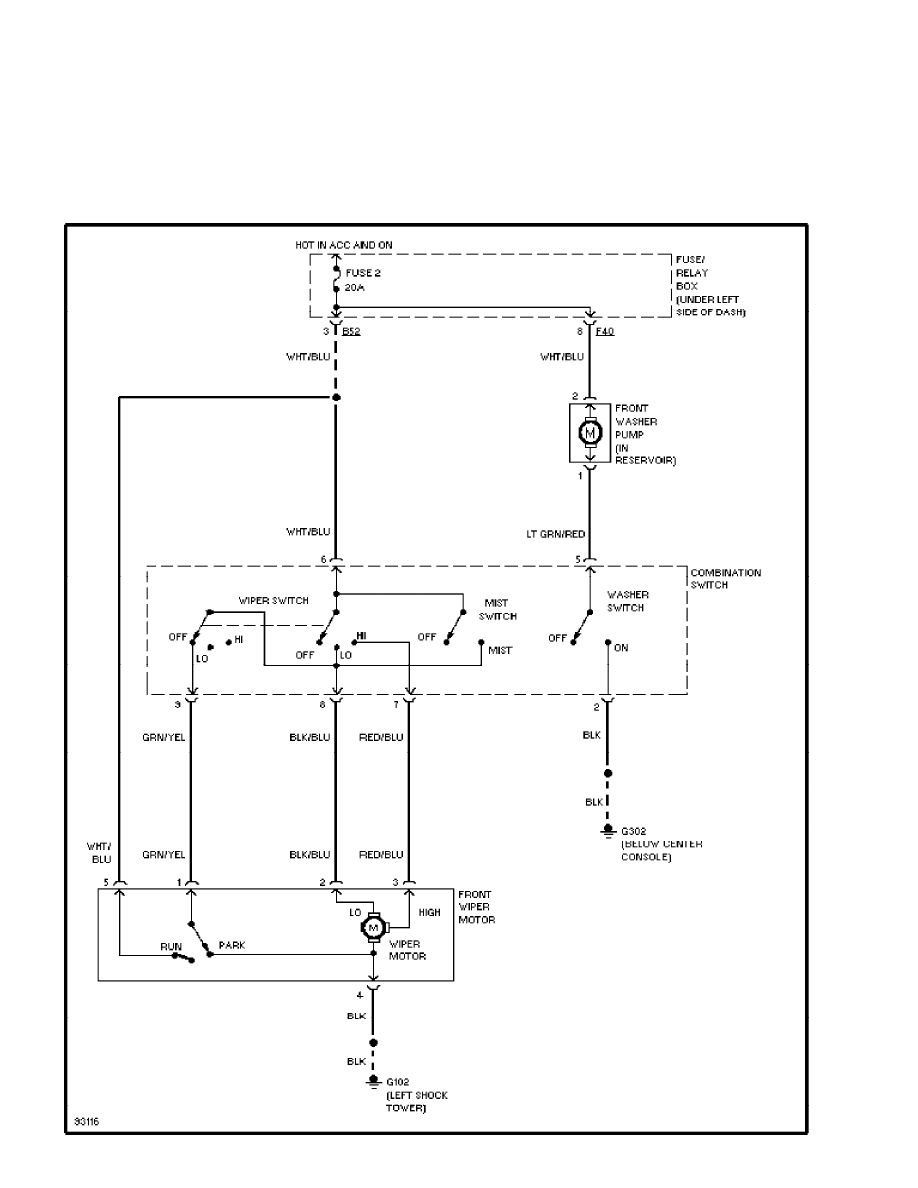

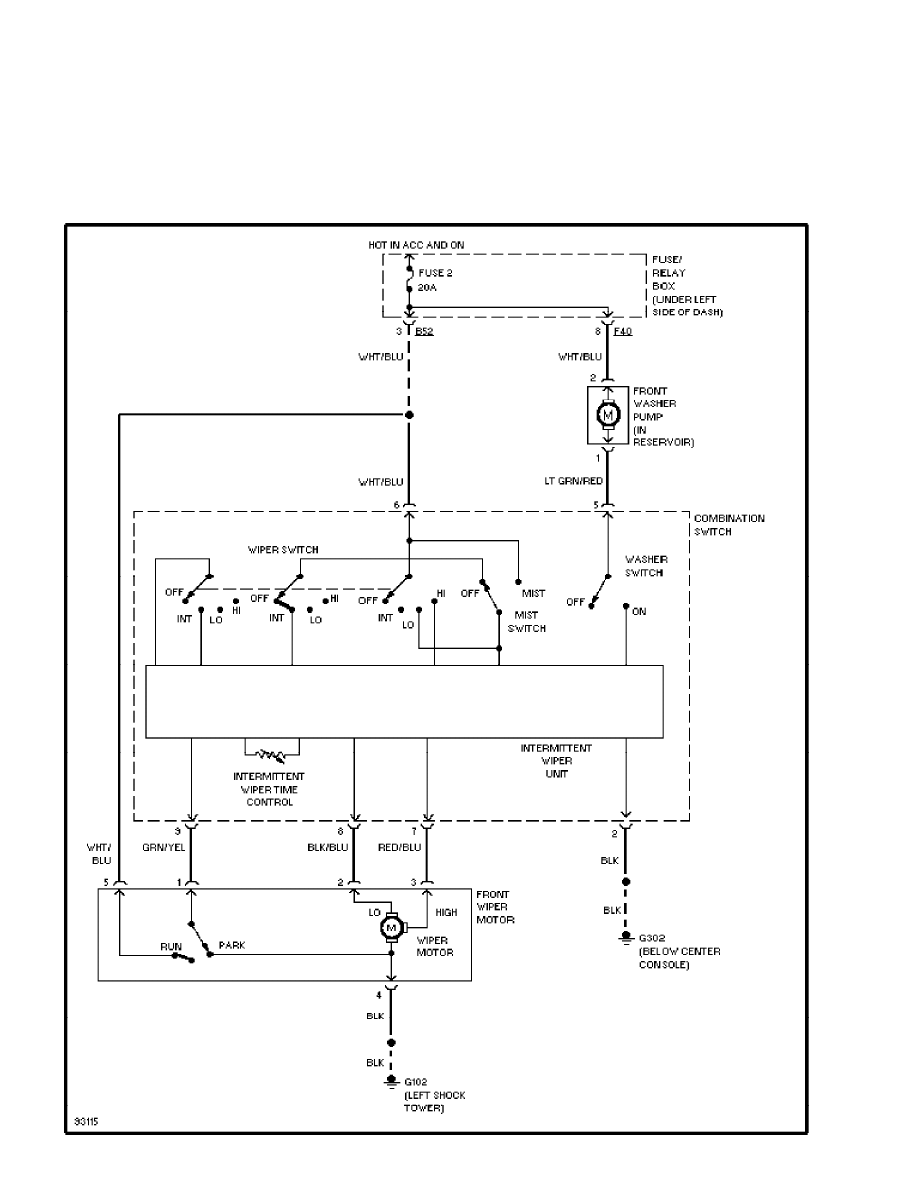

2-Speed Wiper/Washer Circuit (p. 36)

1997 Subaru Impreza

For cdr101@wp.pl

Thursday, March 31, 2005 07:26PM

SYSTEM WIRING DIAGRAMS

Interval Wiper/Washer Circuit (p. 37)

1997 Subaru Impreza

For cdr101@wp.pl

Thursday, March 31, 2005 07:26PM

SYSTEM WIRING DIAGRAMS

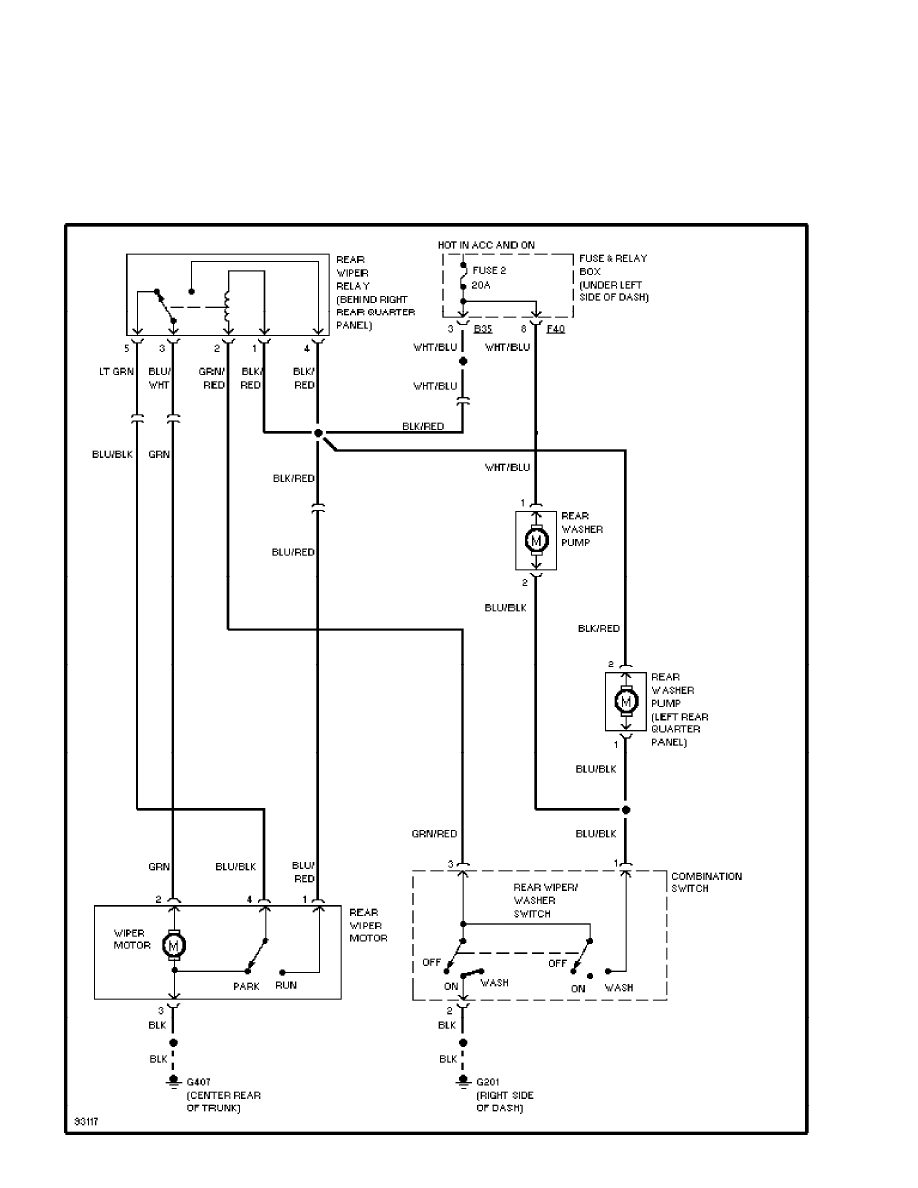

Rear Washer/Wiper Circuit (p. 38)

1997 Subaru Impreza

For cdr101@wp.pl

Thursday, March 31, 2005 07:26PM
