MINING INDUCTION MOTORS

SG4 562Y-4

Page

1/1

File No: 300 kW, 3300V, SG4 562Y-4.doc/2005
Translated by: PTU -DAMAR- Sosnowiec

APPLICATION

The one –speed motors of SG4 562Y-4 type are intended for driving mining machines and equipment, and
especially for driving getting units of combined cutter loaders.
The motors can be used in underground parts of mines and surface installations of the mines, where there are
possible explosion conditions for methane and/ or coal dust.

CHARACTERISTIC FEATURES OF MOTORS

•

Induction 3-phase motors with welded single squirrel-cage rotor,

•

Explosion-proof construction with flame-proof casing of motor „d” - mark

I M2 EExd I, equipment ranked as

group I of category M2 according to Directive 94/9/EC,

•

The degree of protection IP 55 acc. to PN-EN 60034-5:2002U,

•

The motors are cooled by water flowing through the channels of body and bearing disks N and P,

•

The form of execution: special flanged execution – IM 4301,

•

Basic voltage execution: 3300V – 50Hz

After settlement it is possible to execute the motors for other voltage and frequency of 50/60Hz,
•

Class of insulation F or H,

•

Thermal protection of motors: bimetal sensors NC or posistor sensors PTC,

•

Thermometric resistors Pt100 are built in winding and bearings for temperature control,

•

Two-inlet terminal box with cable inlet Wk3u/d... produced by Damel for feeder cable and inlet 54232…- M36
produced by Gothe for conductor with auxiliary circuits,

•

The motor is equipped with the final link of protection conductor continuity control circuit, mounted in the
terminal box – primary execution: the final link CK-OA (with diode) produced by Damel,

•

Feeding and start-up: the motors are intended for feeding from power network – start-up by direct switching on
the voltage,

•

The motors adapted for work in temperate climate; after settlement the adaptation for work in tropical climate TA
or TH is possible.

COMPATIBILITY WITH REQUIREMENTS OF STANDARDS

The motors meet requirements of Directive 94/9/EC (ATEX), european harmonized standards and domestic

norms:

- norms for electrical equipment in areas of explosion hazard:

- EN 50014:1997+A1:1999+A2:1999 – Polish equivalent PN-EN 50014:2002U,
- EN 50018:2000+A1:2002 – Polish equivalent PN-EN 50018:2002U,
- EN 50019:2000 – Polish equivalent PN-EN 50019:2002U,

- norms for rotational electric machines:

- EN 60034-1:1998+A1:1998+A2:1999+AC:2000 – Polish equivalent PN-EN 60034-1:2001

- domestic norms for induction motors for mining machines:

- PN G-38010:1997 (domestic norm).

CERTIFICATES

The motors have the certificates and permissions:

-

certificate EC No KDB 04 ATEX 300X issued by notified Testing Station GIG KDB,
valid on the area of European Union.

CATALOGUE CARD

K4-15-123

Issue

2

MINING INDUCTION MOTORS

SG4 562Y-4

Page

2/2

File No: 300 kW, 3300V, SG4 562Y-4.doc/2005
Translated by: PTU -DAMAR- Sosnowiec

TECHNICAL DATA

Table 1

Parameters

SG4 562Y-4

Rated power P

N

[kW]

300

Rated voltage U

N

[V]

3300

Current at rated voltage I

N

[A]

67

Power factor cos

φ

0,83

Efficiency

η

[%] 94,5

Rotational speed n

[1/min]

1475

Rated moment M

N

[Nm]

1942

Multiplicity of start-up current I

k

/I

N

6,0

Multiplicity of start-up moment M

l

/M

N

1,6

Multiplicity of critical moment M

max

/M

N

2,2

Min. flow of cooling water

[dm

3

/min] 15

Mode of operation

S1;

S4-60%, 40c/h J

ext

/J

M

=1

Rotor moment of inertia J

M

(without torsional

shaft)

[kgm

2

] 3,2

Mass of the motor

[kg]

1450

1. The parameters of motor: rated current, efficiency, power factor, rotational speed and rated moment relate to

rated load at rated feeding conditions – 50Hz.

2. Multiplicities of start-up current , start-up moment and critical moment refer to direct connection of the motor to

the supply network (mains).

3. J

ext

– inertia moment of motor load referred to the shaft of motor

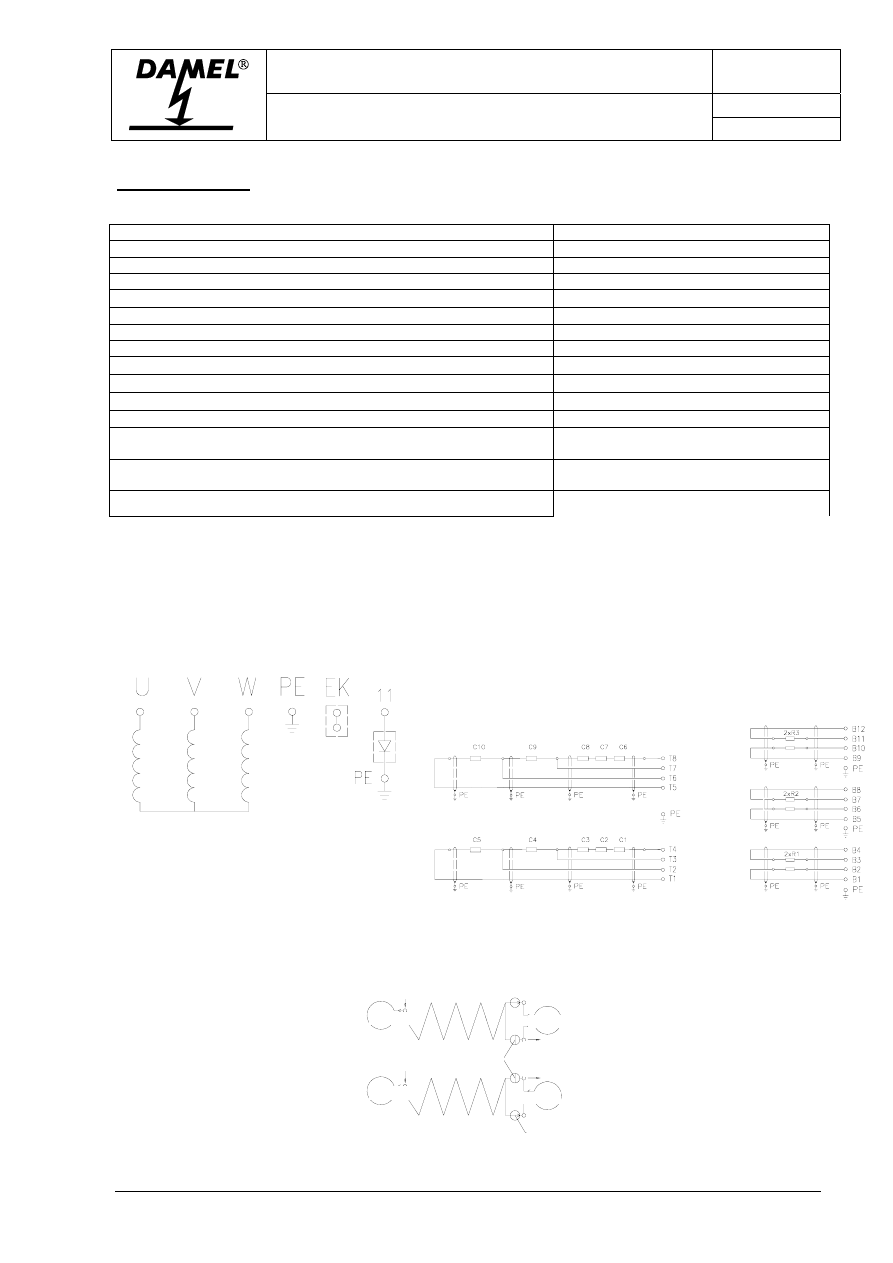

Fig. 1 Diagram of motor connections

Fig.2 Diagram of cooling system

EK - feeder cable control general

screen terminal

BIMETAL TEMPERATURE SENSORS

OR POSISTOR PTC SENSORS

THERMOMETRIC RESISTORS

Pt 100

BEARING P

BEARING N

BEARING N

BEARING P

WINDING

WINDING

BEARING P

BEARING N

WINDING

Diagram of cooling water circulation

BODY

BODY

Water inlet M20 x 1,5

Disk N

Disk P

Water inlet

M20 x 1,5

Disk N

Disk P

Water outlet

M27 x 2

Water outlet

Special plug M38 x

1,5 with orifice M27x 2

Passage plug M38 x 1,5

CATALOGUE CARD

K4-15-123

Issue

2

MINING INDUCTION MOTORS

SG4 562Y-4

Page

3/3

File No: 300 kW, 3300V, SG4 562Y-4.doc/2005
Translated by: PTU -DAMAR- Sosnowiec

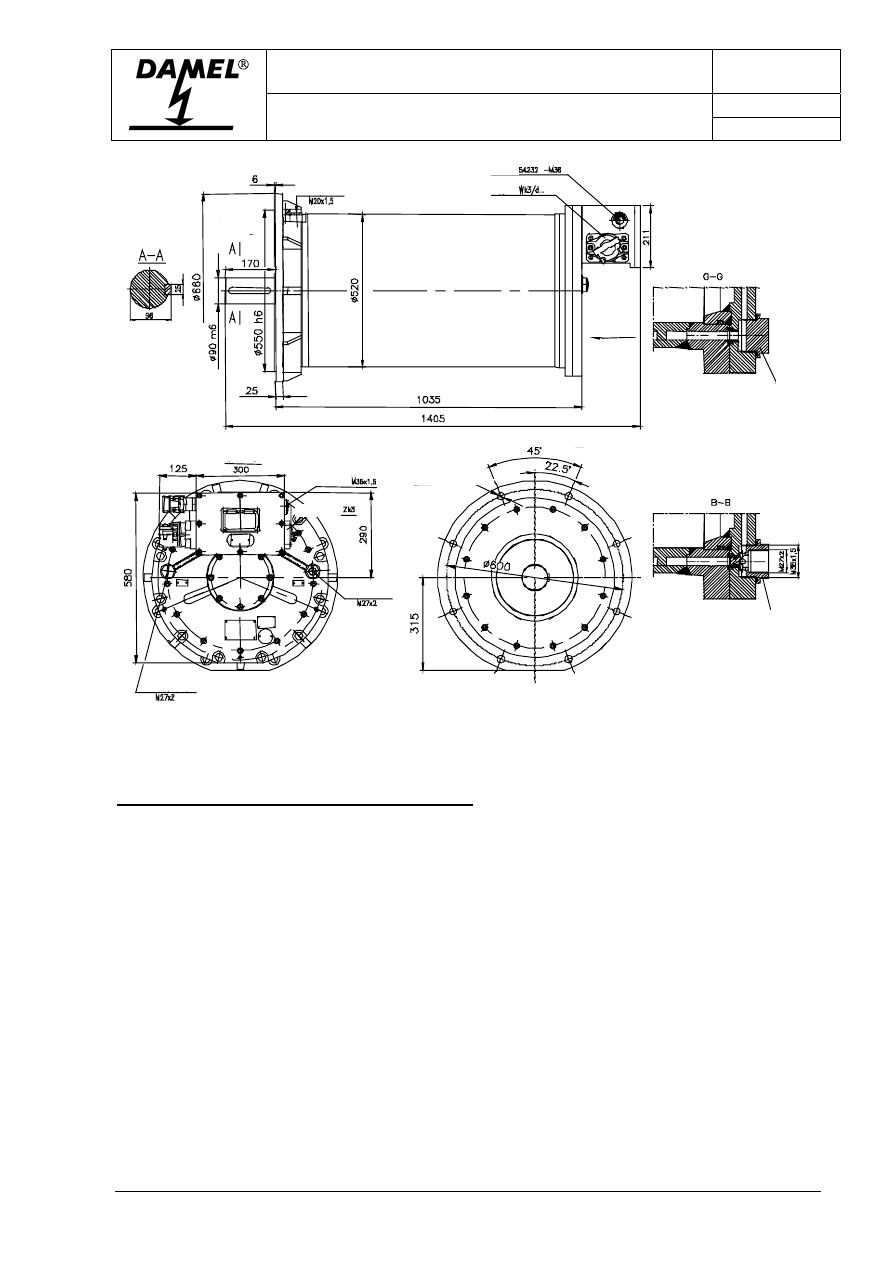

Fig.3 Overall and assembly dimensions

CONDITIONS OF OPERATION AND APPLICATION

•

Ambient temperature

0÷40

o

C

•

Relative humidity at temperature of 35

o

C 97÷100%

•

Height above the sea level

≤ 1000m

•

Degree of corrosive aggressiveness C acc. to PN-71/H-04651

•

Admissible inclination of the shaft axis to level

≤ 30

o

•

Parameters of cooling water at inlet of cooling system

- maximum temperature

30

o

C

- maximum static pressure

3MPa

•

Supply voltage

(0,95÷1,05)U

N

•

Electrical terminal
Power supply connection – mining armour conductor with rubber armour and insulation, multicore, screened for
voltage of 1,9/3,3kV, with section area of cores selected to operating conditions.
Connection of auxiliary circuits of temperature sensors – auxiliary cores of feeder cable or pilot wire with
section area of wires up to 4 mm

2

.

•

Leading the armour conductors to terminal box through cable inlets selected according to the outer diameter of
conductors acc. to table 2.

View U

Water inlet

Inlet

Inlet

View W

Passage plug

M38x1,5 with
orifice M27x2

View W

View U

Stopper

Stopper

Water outlet

Water outlet

8 holes Φ 24

Special plug

M38x1,5 with
orifice M27x2

CATALOGUE CARD

K4-15-123

Issue

2

MINING INDUCTION MOTORS

SG4 562Y-4

Page

4/4

File No: 300 kW, 3300V, SG4 562Y-4.doc/2005
Translated by: PTU -DAMAR- Sosnowiec

Table

2

Type of inlet

The range of diameters of conductors for cable inlets

Wk3u/d80...

34 ÷ 38 36 ÷ 40 40 ÷ 44 41 ÷ 46

44÷49 48 ÷ 53

52-57

Wk3u/d100... 52-57 55-61 59-65 62-68 68-74

54232...M-36

18 ÷ 21 20 ÷ 24 22 ÷ 26 25 ÷ 28

In case the Orderer does not state the type of cable inlet together with outer diameter of conductor the
motor is delivered with cable inlet determined acc. to table 3, column 2.

OFFER FOR DELIVERIES OF MOTORS

The producer offers motors in primary execution and in options executed against the order from customer
(additional, diversified equipment).

Table 3

1

Constructional

characteristic of motor

2

Primary execution

3

Execution against order

rated voltage

3300V

other voltage

Frequency 50Hz

50/60Hz

class of insulation

F

H

Thermal

protection – type of sensors

bimetal NC + Pt100

posistor PTC + Pt100

cable inlets

Wk3u/d80-48-53

54232.28-M36

Wk3u/d80... or Wk3u/d100…

54232…M36.

with selected gasket - see table 2

final link

of control circuit

CK-0A Damel prod.

CK … appointed by Orderer

(acc. to catalogue card K4-15-121)

climatic execution

for temperate climate

for tropical climate TH or TA

constructional characteristic

other than above mentioned

–

acc. to settlements, it can require

acceptance of the unit certifying the

product

The following items are included to the delivered motor by producer:
- running-technical documentation ( RTD - Service Manual of the motor).
- declaration of conformity EC.

ORDERING PROCEDURE

The following data should be stated in the order directed to the address of manufacturer given below:

- type of motor, power
- rated voltage and frequency
- motor execution: preliminary – see table 3 column 2 or execution against order, for which required equipment

and constructional characteristic should be determined acc. to table 3 column 3.

When ordering we recommend to fill up the questionary „Statement of technical data of the motor...” – accessible at
internet (web) sites and in Marketing Department of DFME DAMEL.

The producer offers additionally:

- guarantee and after guarantee service,
- delivery of spare parts,
- training of employees in the range of correct maintenance and operating the motor.

Producer reserves the right to implement to the motor changes resulting from technical progress.

Dąbrowska Fabryka Maszyn Elektrycznych DAMEL S. A.

Aleja Józefa Piłsudskiego 2, 41-300 Dąbrowa Górnicza, POLSKA, tel: [phone] do 39

Faks (32) 264-34-26, 264-10-12, http: www.damel.com.pl, email: [e-mail]

CATALOGUE CARD

K4-15-123

Issue

2

MINING INDUCTION MOTORS

SG4 562Y-4

Page

5/5

File No: 300 kW, 3300V, SG4 562Y-4.doc/2005
Translated by: PTU -DAMAR- Sosnowiec

Elaboration: „DAMEL” – TK/LP/01/2005
