Proview 572 772DT

background image

1






572V

772DT

Service Manual





background image

2

TABLE OF CONTENTS

SERVICE WARNING

·································································

3

A. IMPORTANT SAFETY INSTRUCTION

······································

3

B. SPECIFICATIONS

·································································

4

C. TIMING CHART

···································································

5

D. CONTROL LOCATION

···························································

6

E. CONDUCTION VIEW

·····························································

7

F. ADJUSTMENT PROCEDURE

·················································

12

G. TROUBLE SHOOTING HINTS

················································

13

H. REPLACEMENT PARTS LIST

················································

19

I. BLOCK DIAGRAM

······························································

27

J. SCHEMATIC DIAGRAM

·······················································

28






















background image

3

WARNING

To prevent from fire or shock hazard,do not expose monitor to any rain or any form of water.High voltage is
inside the monitor so please do not remove the back cover of the cabinet if you are not a qualified monitor
engineer.Contact the local dealer or the nearest Proview branch office if you need help.

A. IMPORTANT SAFETY INSTRUCTION

Prior to using this service manual,please ensure that you have carefully followed all the procedures outlined in the
user's manual for this product.
1. Read all of these instructions.
2. Save these instructions.
3. Follow all warnings and instructions a marked on the product.
4. Unplug this product from the wall outlet before cleaning.Do not use liquid cleaners or aerosol
cleaners, use a damp cloth for cleaning.
5. Do not use this product near water.
6. Do not place this product on an unstable cart,stand or tablle.The product may fall,causing serious
damage to the product.
7. Slots and openings in the cabinet and the back or bottom are provided for ventilation,to ensure
reliable operation of the product and to protect it from overheating,those openings must not be
blocked or covered.The openings should never be blocked by placing the product on a bed,sofa, rug,
or other similar surface.This product should not be placed in a built-in installation less proper
ventilation is provided.
8. This products should be operated from the type of power source indicated on the marketin label.
If you are not sure of the type of power available, consult your dealer or local power company
9. This product is equipped with a 3-wire grounding type plug,a plug having a third (grounding)
pin.This plug will only fit into a grounding-type power outlet.This is a safety feature,if you are
unable to insert the plug into the outlet,contact your electrician to replace your obsolete outlet.Do
not defeat the purpose of the grounding-type plug.
10. Do not allow anything to rest on the power cord.Do not locate this product where persons will walk
on the cord.
11. If an extension cord is used with this product,make sure that the total of the ampere ratings on the
product plugged into the extension cord to the waplugged into outlet does not exceed 15 ampere.
12. Never push objects of any kind into this product through cabinet slots as they may touch dangerous
voltage points or short out parts that could result in a risk of fire or electric shock.Never spill liquid
of any kind on the product.
13. Do not attempt to service this product yourself,as opening or removing covers may expose you to
dangerous voltage points or other risks.Refer all servicing to service personnel.
14. Unplug this product from the wall outlet and refer servicing to qualified service personnel under the
following conditions.

a. When the power cord or plug is damaged or frayed.
b. If liquid has been spilled into the product.
c. If the product has been exposed to rain or water.
d. If the product does not operate normally,when the operating instructions are followed.Adjust
only those controls that are covered by the operating instructions since improper adjustment of
other controls may result in damage and will often require extension work by a qualified
technician to restore the product to normal operation.
e. If the product has been dropped or the cabinet has been damaged.
f. If the product exhibits a distinct change in performance,indicating a need for service.

background image

4

B. SPECIFICATIONS

Model

17”

15”

1. Maximum Resolution

1280 x 1024 @ 75Hz

1024 x 768 @ 75Hz

2. Recommend Resolution

1280 x 1024 @ 60Hz

1024 x 768 @ 60Hz

3. Synchronization Range

Horizontal
Vertical


31 – 80 KHz
60 – 75 Hz


30 – 60 KHz
60 – 75 Hz

4. Active Display Area

337mm (H) x 270mm (V)

304mm (H) x 228mm (V)

5. Dot Pitch

0.264(H) x 0.264(V) mm

0.297(H) x 0.297(V) mm

6. Support display colors

16.7M color

16.7M color

7. Contrast Ratio (Typical)

350 : 1 (QDI)

400 : 1

8. Luminance of White

300cd/m²

250cd/m²

9. Bandwidth

135MHz

80MHz

10. User Control

6 Key Switch

11. OSD Function

Brightness, Conrast, H-Pos, V-Pos, H. Size, Phase, Color Select,
Auto, Reset, Language, OSD Adjust, Exit

12. View Angle
Horizontal
Vertical


75 / 75
65 / 60


70 / 70
60 / 60

13. Power Source

100 – 240 Vac 60 / 50 Hz

14. Power Consumption

60W (max.)

48W (max.)

15. Connection Type

15 Pin D Type

16. Input Signal

Video
Sync.


Analog R.G.B. , 0.7Vp-p / 75 Ohms

TTL level,positive or negative polarity

17. Color Temperature

Cool / Natural / Warm

Cool / Warm

18. Dimension (WxHxD) Packing
Set

525mm x 510mm x 155mm
438mm x 440mm x 177mm

410mm x 420mm x 130mm
381mm x 373mm x 150mm

19. Monitor Weight Net
Gross

6.3kg
7.5kg

3.4kg
4.8kg

20. Base Operation

Tilt


0 / + 15 degree

21. Power Saving

ON
STAND BY
OFF


< 60W
< 5W
< 5W


< 48W
< 5W
< 5W

22. Signal Connector Pin Assignment

Pin No.

1. Red 9. V

DD

from PC for DDC

2. Green 10. Sync. Ground

3. Blue 11. Ground

4. Ground 12. SDA (For DDC)

5. Self Test 13. Horizontal Sync.

6. Red Ground 14. Vertical Sync.

7. Green Ground 15. SCL (For DDC)

8. Blue Ground

23. Audio signal

3.5F stereo phone jack
2.5+2.5W 8O Speaker

background image

5

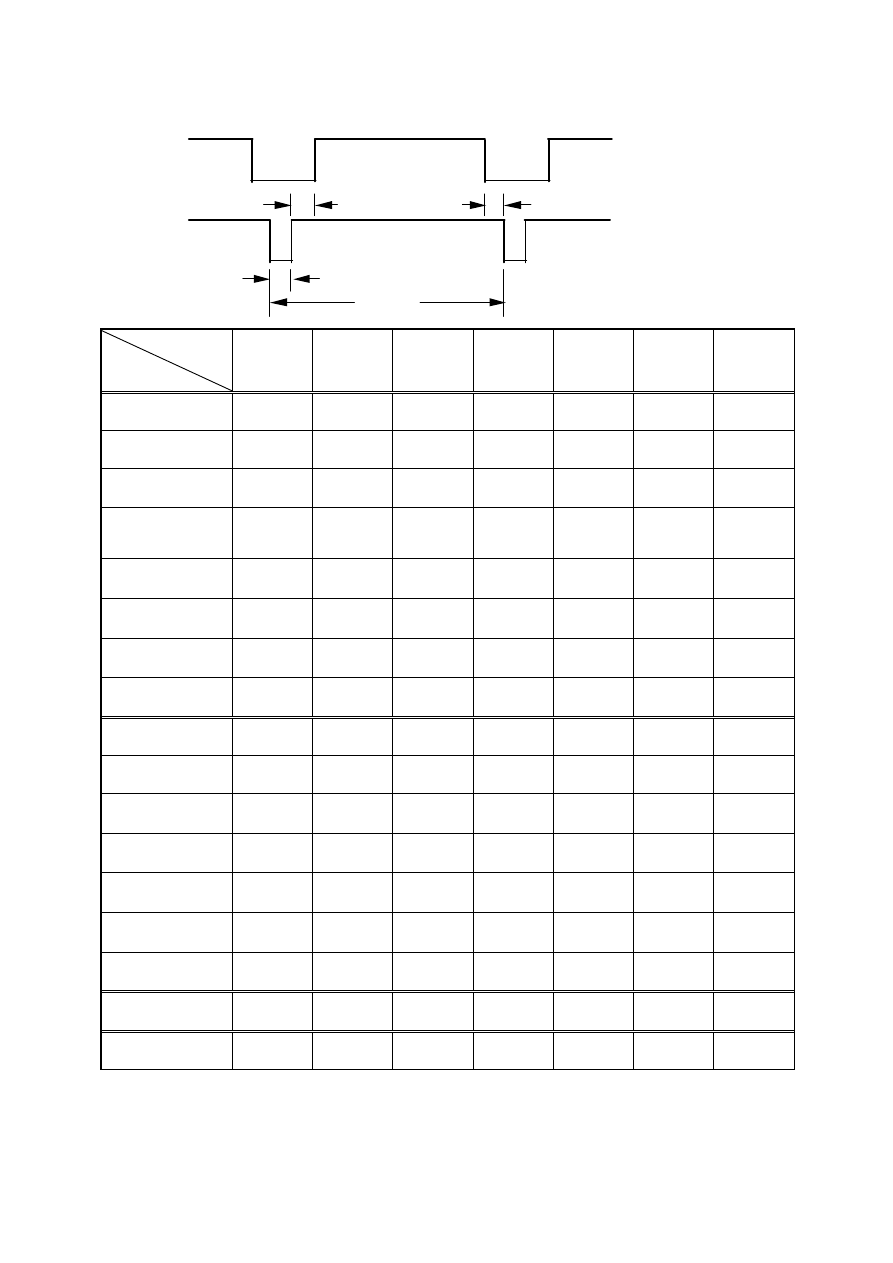

C.TIMING CHART




Video

Back porch Active display Front porch

Sync.

Sync-width
Total

Preset

Modes

VGA

720X400

VGA

640X480

VESA

640X480

VESA

640X480

VESA

800X600

VESA

800X600

VESA

800X600

Pixel clock

(MHz)

28.325

25.175

31.500

31.500

36.000

40.000

50.000

H-Frequency

(KHz)

31.472

31.469

37.861

37.500

35.156

37.879

48.077

H-Total

(

µ

s)

31.774

31.778

26.413

26.667

28.444

26.400

20.800

H-Active Display

(µs)

25.419

25.422

20.317

20.317

22.222

20.000

16.000

H-Blanking
(µs)

6.355

6.356

6.095

6.349

6.222

6.400

4.800

Front Porch
(µs)

0.635

0.636

0.762

0.508

0.667

1.000

1.120

H-Sync-width (µs)

3.813

3.813

1.270

2.032

2.000

3.200

2.400

H-Back Porch
(µs)

1.906

1.907

4.063

3.810

3.556

2.200

1.280

V-Frequency
(Hz)

70.1

59.94

72.81

75.0

56.25

60.3

72.2

V-Total
(ms)

14.267

16.683

13.735

13.333

17.778

16.579

13.853

V-Active Display
(ms)

12.710

15.253

12.678

12.800

17.067

15.840

12.480

V-Blanking
(ms)

1.557

1.430

1.057

0.533

0.711

0.739

1.373

V-Front Porch (ms)

0.413

0.318

0.238

0.027

0.028

0.026

0.770

V-Sync-width (ms)

0.064

0.064

0.079

0.080

0.057

0.106

0.125

V-Back Porch (ms)

1.080

1.049

0.740

0.427

0.626

0.607

0.478

H/V Sync. Polarity

- +

- -

- -

- -

+ +

+ +

+ +

Interlace

NONE

NONE

NONE

NONE

NONE

NONE

NONE

background image

6

Preset

Modes

VESA

800X600

VESA

1024X768

VESA

1024X768

VESA

1024X768

* VESA

1280X1024

* VESA

1280X1024

Pixel clock
(MHz)

49.500

65.000

75.000

78.750

108.00

135.00

H-Frequency (KHz)

46.875

48.363

56.476

60.023

63.981

79.976

H-Total (µs)

21.333

20.677

17.707

16.660

15.630

12.540

H-Active Display (µs)

16.162

15.754

13.563

13.003

11.852

9.481

H-Blanking
(µs)

5.172

4.923

4.053

3.657

3.778

3.022

Front Porch
(µs)

0.323

0.369

0.320

0.203

0.444

0.119

H-Sync-width (µs)

1.616

2.092

1.813

1.219

1.037

1.067

H-Back Porch (µs)

3.232

2.462

1.920

2.235

2.296

1.837

V-Frequency (Hz)

75.0

60.0

70.1

75.0

60.0

75.0

V-Total (ms)

13.333

16.666

14.272

13.328

16.661

13.329

V-Active Display (ms)

12.800

15.880

13.599

12.795

16.005

12.804

V-Blanking (ms)

0.533

0.786

0.673

0.533

0.656

0.525

V-Front Porch (ms)

0.021

0.062

0.053

0.017

0.016

0.013

V-Sync-width (ms)

0.064

0.124

0.106

0.050

0.047

0.038

V-Back Porch (ms)

0.448

0.600

0.513

0.466

0.594

0.475

H/V Sync. Polarity

+ +

- -

- -

+ +

+ +

+ +

Interlace

NONE

NONE

NONE

NONE

NONE

NONE


* 1280×

1024 resulation is not available in 15” model.







background image

7

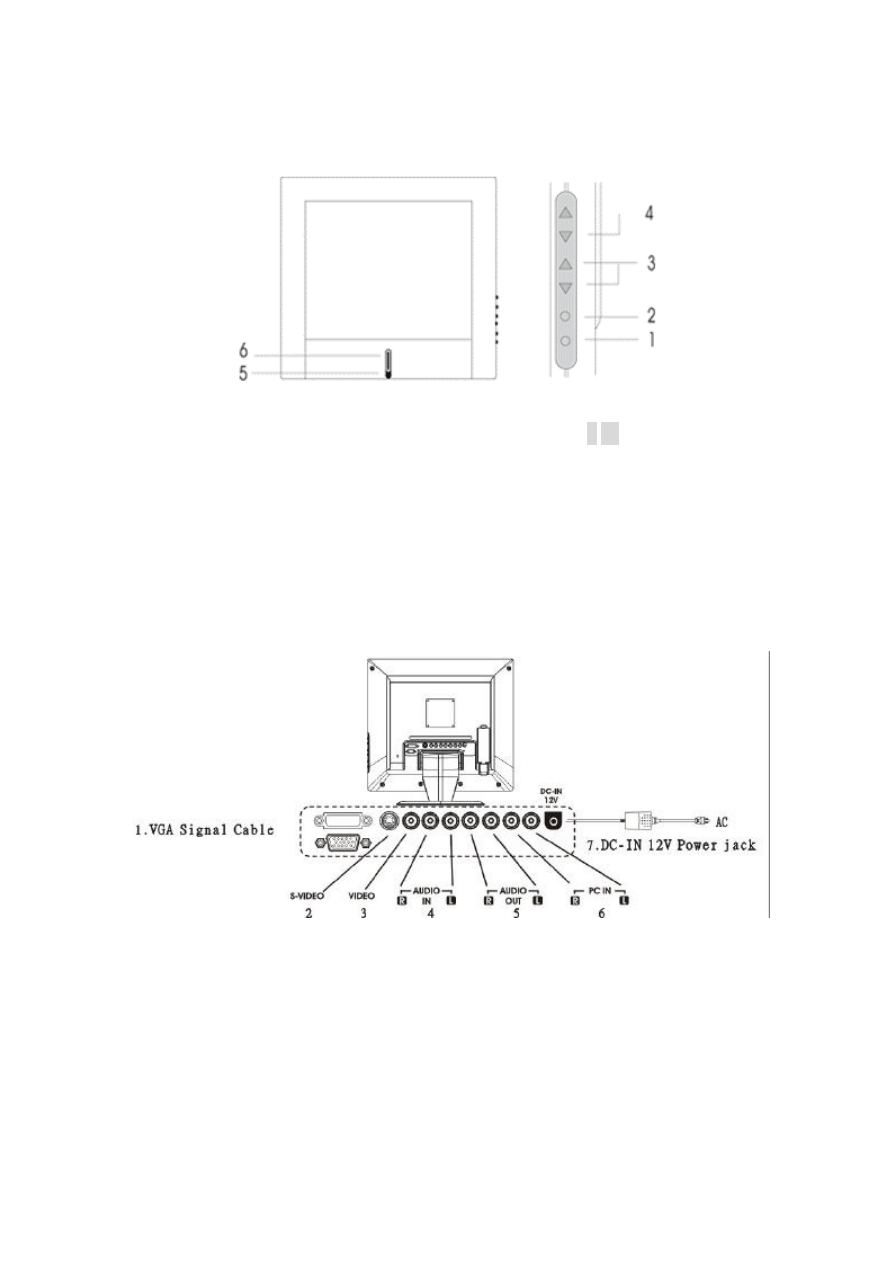

D. CONTROL LOCATION

Font control panel

1 . Auto Button (AUTO) 4 . VOL Button (+,─)

2 . Menu Button (MENU) 5. Power Button

3 . CH Button (▲,▼) 6 . Power indicator

Rear panel

1. VGA/DVI IN 5. AUDIO OUT

2. S-VIDEO IN 6. PC AUDIO IN

3. VIDEO 7. DC IN

4. AUDIO IN

background image

8

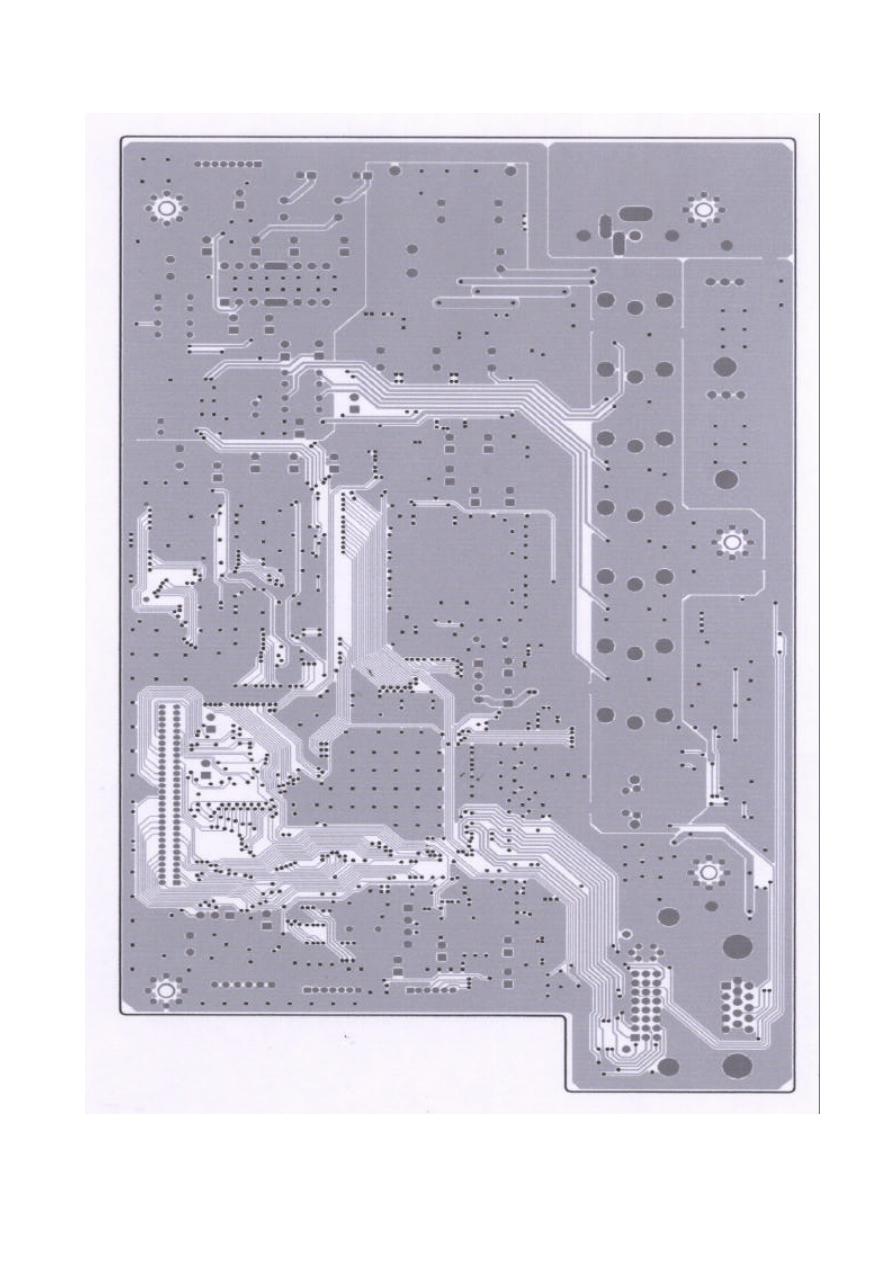

E. CONDUCTION VIEW

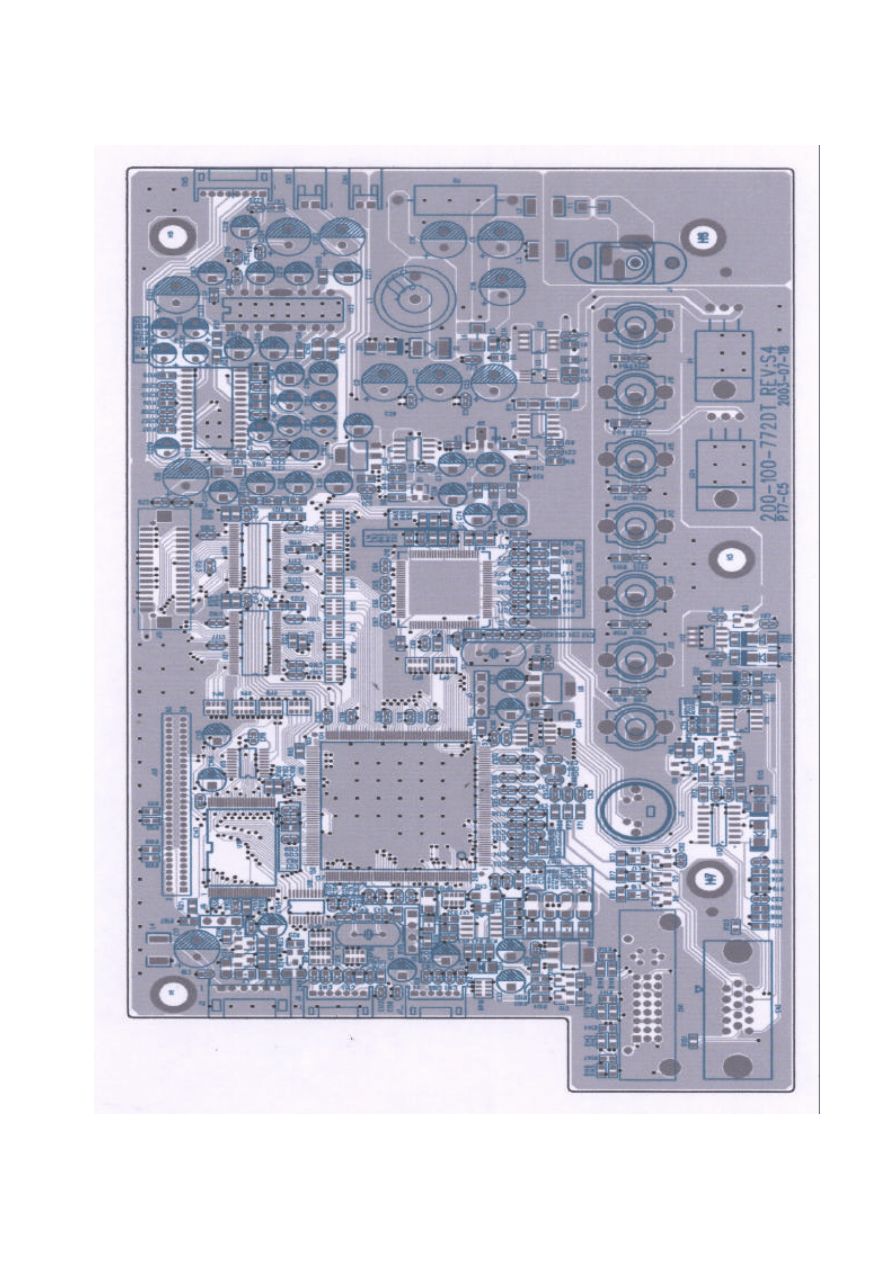

772DT MAIN BOARD (Component Side)

background image

9

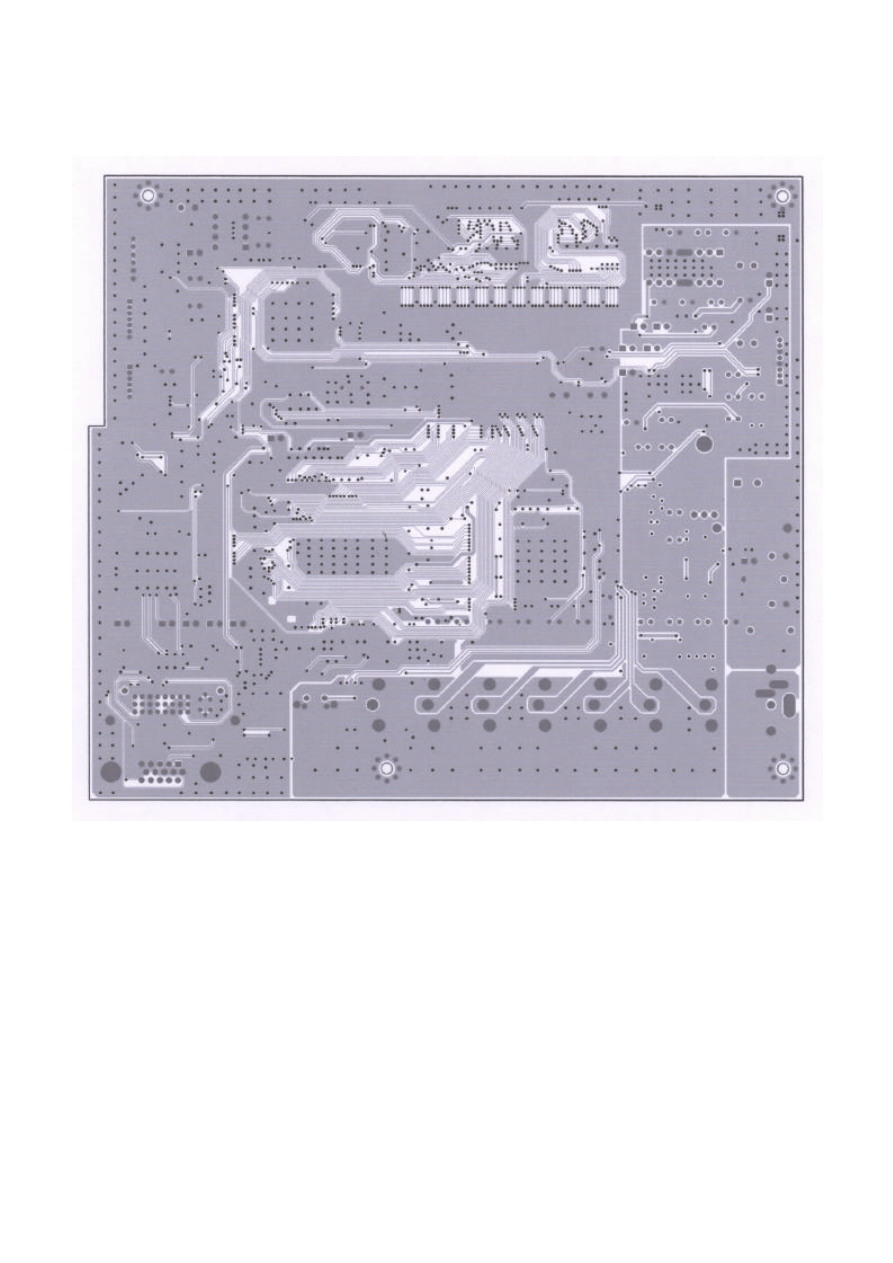

772DT MAIN BOARD (Solid Side)


background image

10

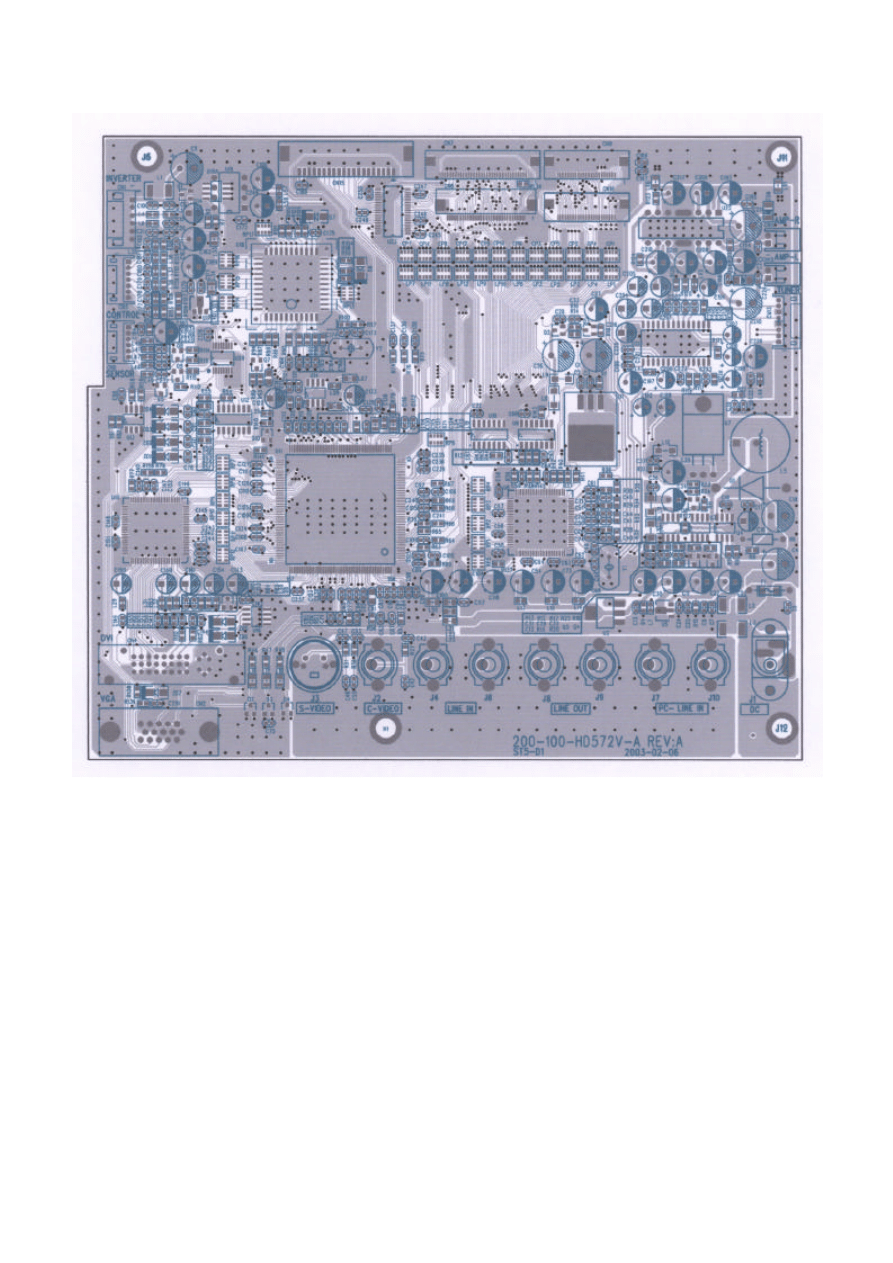

572V MAIN BOARD (Component Side)














background image

11

572V MAIN BOARD (Solid Side)














background image

12

F. ADJUSTMENT PROCEDURE

ITEM

Program Menu.

﹟Test Meter
﹡Test Point
﹫Pattern

Operation


Check
Value




A


B+
Check


﹟Digital Voltmeter
﹡CN7
﹫Crosshatch Pattern
(31.5KHz,640x480)

1. Plug power cable into the adapter, check adapter
power indicator light up green.
2. Make sure the voltage of the power plug (

CN7

)

on the main

PCB

to the value shown at right.


12.0V
±0.2V




B



Power Saving
Check


﹟Wattmeter
﹟PC or Pattern
generator
﹫Crosshatch Pattern
(31.5KHz,640x480)

1. Unplug the signal cable into the monitor.
2. Turn the power switch of the monitor

ON

.

3. Check monitor power indicator light up orange.
4. Make sure the wattmeter value shown at right.
5.

OSD

will be display “

NO SIGNAL

” Picture.





‹ 5W

C


Into Factory
mode




﹟PC or Pattern
generator
﹫Crosshatch Pattern
(31.5KHz,640x480)

1. Hold key,then turn the power switch of the

monitor

OFF

.

2. Hold key,then turn the power switch of the

monitor

ON

.

3. You can into factory adjustment mode.


D


Auto mode
Check






﹟PC or Pattern
generator
﹫Crosshatch Pattern
(1024x768/60Hz)

1. Press and relese the

MENU

knob to activate the

OSD

menu.

2. Move the

OSD

to the

AUTO

function,press

MENU

key auto adjuat display mode to its utmost

performance according to

VGA

setting.

3. In the event of the display image needs further

adjustment

E


White
Balance
Adjust


﹟PC or Pattern
generator
﹫White Pattern
(1024x768/60Hz)

1. Move the

OSD

to the

COLOR mode

(

AUTO COLOR).

2. set color is 9300

°K

using the

OSD

,Check the value

shown at right.

Y = 220±0.1FL x = 0.283±0.01 y = 0.297±0.01

3. set color is 7500

°K

using the

OSD

,Check the value

shown at right.
Y = 220±0.1FL x = 0.299±0.01 y = 0.315±0.01

3. set color is 6500

°K

using the

OSD

,Check the value

shown at right.
Y = 220±0.1FL x = 0.313±0.01 y = 0.329±0.01

F


OSD
Language
Setting


﹟PC or Pattern
generator

1. Move the

OSD

to the

LANGUAGE mode

.

2. You can choose one of the eight language you need.

background image

13

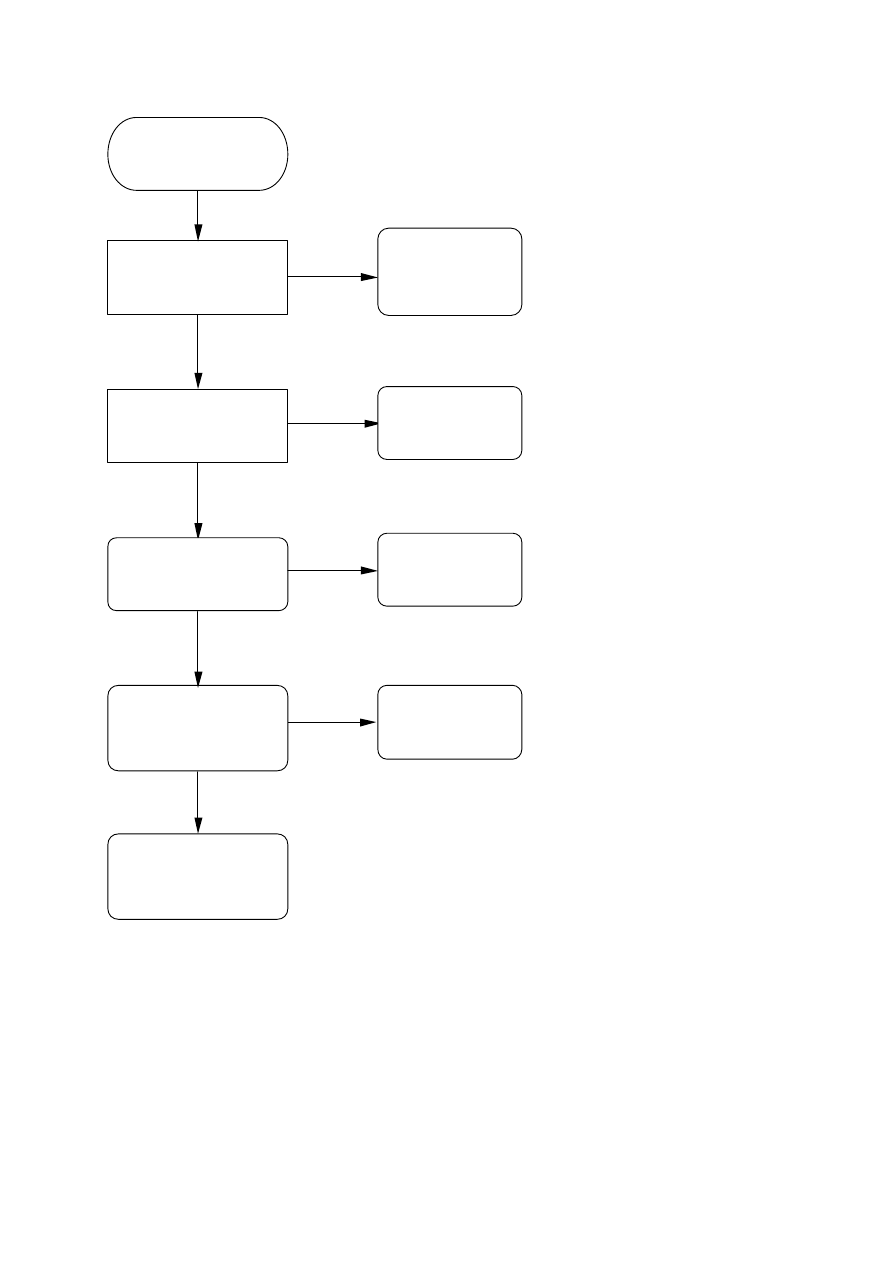

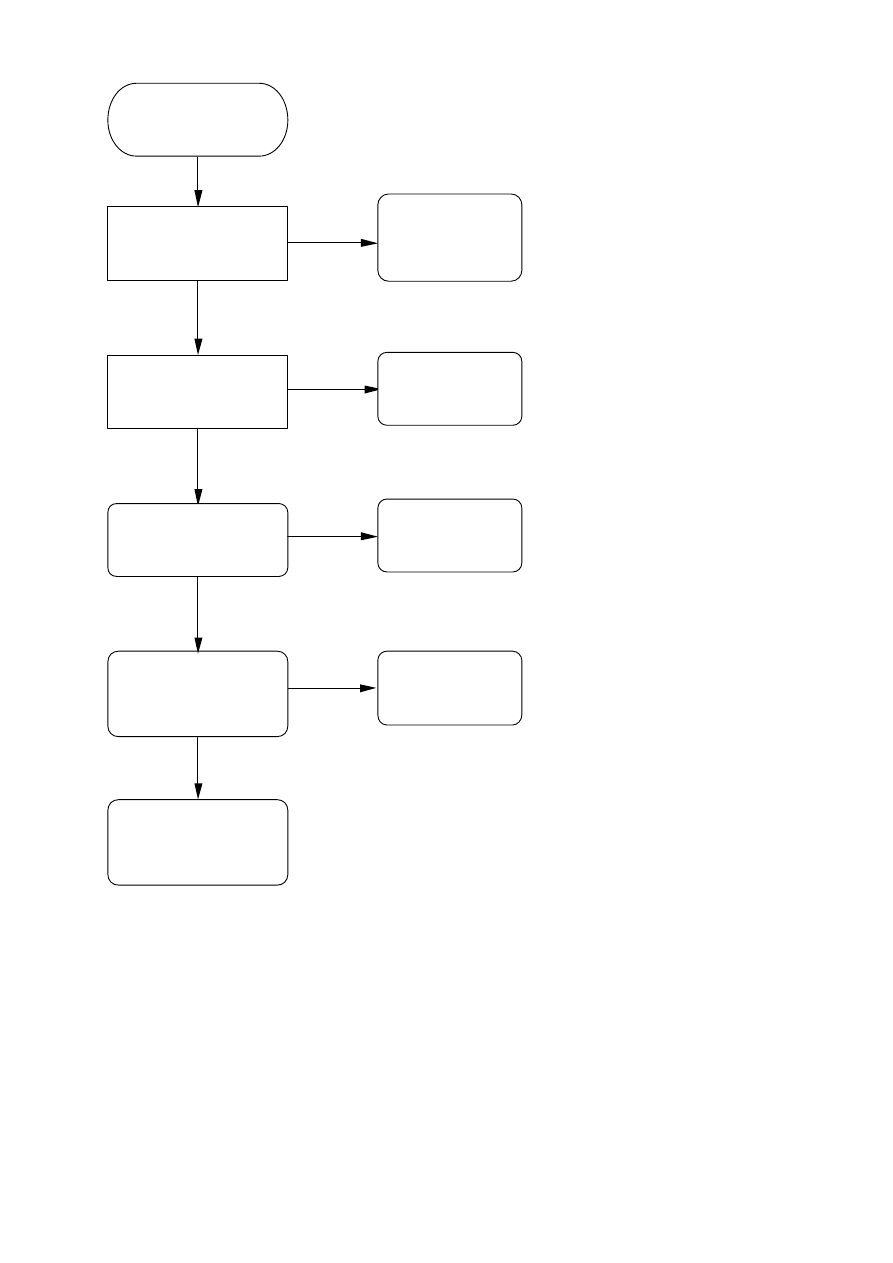

G. TROUBLE SHOOTING HINTS




NO NO

YES YES

YES

YES

NO NO

High Voltage !

NO

YES

YES

NO

NO

YES

No Display

( Black )

LED ON

?

Push the power

ON/OFF

switch

LED Color

change ?

Check main board

Control

Circuit

Hi / Lo under

push power sw?

Back light

ON?

To Step 2

Make sure the
connection of
Inverter is fine

+12V ?

Check

Inverter Circuit

Check

Fuse of inverter

B

Display ?

OK !

A

To Step 2

Power

adapter ?

Change
adapter

background image

14

NO

YES

YES

NO

YES

NO

B

Hi / Lo under

push power sw?

Change the

Inverter

Display ?

OK !

To Step 2

A

Check

A/D & Scaler

Circuit

Display ?

OK !

Change the

main board

Change the

main board

background image

15

NO

YES

NO

YES

NO

YES

YES

NO

NO

YES

Step 2

Check the main

board

12V

?

+5.0 V ?

Check

5V Circuit

H/V input

Signal ?

Check

3.3V Circuit

Change

A/D & Scaler

Circuit

Check

H/V Signal

Display ?

OK !

Change

Signal Cable

Check

12V Circuit

Check

3.3V Circuit

background image

16

NO

YES

NO

YES

NO

YES

YES

NO

NO

YES

No display

(White)

Check

5V

Circuit

+3.3V ?

H/V Input

Signal ?

Check the main
board

U9/Pin3

?

Change

U9

Check

H/V Signal

OK !

Change

Signal Cable

Repair

5V Circuit

Repair

3.3V Circuit

Check

3.3V Circuit

background image

17

NO

YES

NO

YES

NO

YES

YES

NO

Check

AV Input

Signal

Check

Video Circuit

Repair

Video IC

Check

3.3V Circuit

Check

A/D & Scaler

Circuit

Repair

AV input

Signal

Repair

Video Circuit

Repair

3.3V Circuit

Change

A/D & Scaler

Circuit

No Video

background image

18

NO

YES

NO

YES

NO

YES

NO

YES

Check

TV Input

Signal

Check

Tuner Vcc

Circuit

Change

Tuner Circuit

Check

Tuner PCB

Connector

Check

Tuner Circuit

Repair

TV input

Signal

Repair

Vcc Circuit

Change

Tuner PCB

Connector

Change

A/D & Scaler

Circuit

No TV

Signal

background image

19

H. REPLACEMENT PARTS LIST

772DT

NO

Parts No.

Description

Part Location

Q’ty

1 200-100-772DT

HD772DT PCB

MAIN PCB

1

2 518-1AO-4801

AO4801 SOP-8

U1,5

2

3 518-1AO-4403

AO4403 SOP-8

U2

1

4 506-1LM-3485

LM3485 MSOP-8

U3

1

5 506-XLT-1117-3

LM1117-33 SOT-223

U6

1

6 506-0AI-C1084

AIC1084-33 TO-263

U7

1

7 506-XLT-1117-18

LM1117-18 SOT-223

U8

1

8 506-RMC-76381-3

76381-33 SOT-89

U9

1

9 506-A00-7114

SAA7114 LQFP-100

U10

1

10 506-524-LC21

24LC21 SOP-8

U11,12

2

11 506-774-LCX14

74LCX14 SOP-14

U13

1

12 506-5NM-24C16

24LC16 SOP-8

U14

1

13 506-774-LVX273

74LV273A TSSOP-20

U15

1

14 506-XPW-131-20

PW131 PQFP-208

U16

1

15 506-774-LCX541

74LVC541A TSSOP-20

U18

1

16 506-5HY-29LV8-7 HY29LV800 TSSOP-48

U19

1

17 506-0CS-5828

SN75LVDS83 SOP-56

U20,21

2

18 506-0PT-2314

PT2314 SOP-28

U22

1

19 504-A00-8227

TA8227P DIP-12H

U23

1

20 505-091-7809

7809 TO-220

U24

1

21 330-331-16205

EC8D 330U/16V

C1,2,17,18,25,29,30,221

8

22 330-100-16255

EC5D 10U/16V

C115,140,163,194,195,196,197

7

23 330-101-10275

EC5D 100U/10V

C22,23,33,34,37,59,70,74,94,103,112,117,129,

133,137,146, 154,157,166,174,179,187,189,192,

201,202,219

27

24 330-220-16255

EC4D 22U/16V

C209

1

25 330-2R2-50255

EC4D 2.2U/25V

C35,184,185,186,191,198,199,200,222

9

26 330-470-16255

EC5D 47U/25V

C38,210,211,212

4

27 330-471-25205

EC8D 470U/25V

C6,16,203,204

4

28 381-100-032554

CAP 0603 10P/25V

C85,88,93

3

29 381-101-032554

CAP 0603 100P/25V

C77,78,80,81,83

5

30 381-220-032554

CAP 0603 22P/25V

C51,52,142,143,148,149,150, 151,152,153,159,160,

161,162

14

31 381-271-032554

CAP 0603 271/25V

C144

1

32 381-471-032554

CAP 0603 470P/25V

C14

1

33 382-103-032564

CAP 0603 103/25V

C13,168,170,172,176,178,181,183

8

34 382-272-035064

CAP 0603 272/25V

C213,214

2

35 382-392-032564

CAP 0603 392/25V

C128

1

36 385-104-032584

CAP 0603 104/25V

C3,4,7,8,9,10,11,12,19,20,21,24,26,27,31,36,39,

40,43,44,47, 48,53,54,55,56,60,61,62,63,64,

65,66,67,68,69,71,72,73,75,76,79,82,95,96,97,

98,99,100,101, 102,104,105,106,107,108,109,110,

111,113,114,116,118,119,120,121,122,123,124,125,

102

background image

20

36 385-104-032584

CAP 0603 104/25V

127, 130,131,132,134,135,136,138,139,141,145,

147,155,158,165,167,169,171,175,177,180,182,

188,190,193,205,206,207,208, 215,216,220

102

37 385-105-041684

CAP 0805 105/16V

C28,32

2

38 385-334-042584

CAP 0603 334/25V

C217,218

2

39 385-393-045084

CAP 0603 393/25V

C126

1

40 385-473-032584

CAP 0603 473/25V

C84,87,92

3

41 282-330-2454

S8RP 33RP

RP1,2,3,4,5,6,7,8,9,10,11,12,13,14

14

42 282-472-2454

S8RP 4.7K

RP15

1

43 281-035-0R04

RES 0603 0R

R7,11,29,31,32,34,38,43,47,49,51,83,88,89,92,

114,117,123, 130,138,L12,L13,L14,L42, L43,L44

26

44 281-035-1014

RES 0603 100

R4,14,19,60,61,66,67,72,78

9

45 281-035-1024

RES 0603 1K

R1,21,25,46,91,101,112,113

8

46 281-035-1034

RES 0603 10K

R56,57,58,68,74,93,94,95,96, 97,98,99,106

13

47 281-035-1044

RES 0603 100K

R8,102,107

3

48 281-035-1054

RES 0603 1M

R90

1

49 281-035-2024

RES 0603 2K

R70,79

2

50 281-035-2034

RES 0603 20K

R6

1

51 281-035-2214

RES 0603 220

R104,105

2

52 281-035-2224

RES 0603 2.2K

R26,27,100,115,128,129,131, 132,133

9

53 281-035-2234

RES 0603 22K

R2,12,15

3

54 281-035-3304

RES 0603 33R

R48,50,62,64,69,76,118,119,120,121,124,125,

126,127

14

55 281-035-3314

RES 0603 330

R13,20,28,30,

4

56 281-035-3324

RES 0603 3.3K

R45,84,108,109,110,111

6

57 281-035-5614

RES 0603 560

R82

1

58 281-035-2704

RES 0603 27R

R139,140,142,143,145,146, 148,149

8

59 281-035-4724

RES 0603 4.7K

R16,17,18,23,24,52,53,55,65, 86,87

11

60 281-035-5114

RES 0603 510

R134,135

2

61 281-035-5604

RES 0603 56R

R39,40,41,42

4

62 281-035-5624

RES 0603 5.6K

R136,137

2

63 281-035-6234

RES 0603 62K

R5

1

64 281-035-7504

RES 0603 75R

R73,77,81,141,144, 147,150

7

65 281-035-7534

RES 0603 75K

R3

1

66 281-035-R184

RES 0603 18R

R33,35,36,37

4

67 745-330-2072

DIP-CK 33UH-5A

L1

1

68 780-103-1510

IND 0603 Bead_150R

R71,75,80

3

69 780-103-600B07

IND 0603 Bead_60R

L9,10,11,15,19,20,21,22,23,24,25,26,27,28,29,

30,31,32,33,34,35,36,37,38,39,40,41

27

70 780-104-8000A

IND 0805 Bead_80R

L7,8

2

71 780-104-2600

IND 0805 Bead_26R

L16,18

2

72 780-104-100K06

IND 0805 Bead_10R

L17

1

73 780-107-8000

IND 1206 Bead_80R

L5,6

2

74 780-112-8000

IND 1812 Bead_80R

L2,3,4

3

75 528-300-SR34

SR34 D1812

D1

1

76 528-2DA-N202U

DAN202U SOT-23

D2,3

2

background image

21

77 528-200-BAV99

BAV99 SOT-23

D4,5,6

3

78 528-R1N-4148

1N4148 D1206

D7

1

79 529-350-05R1

Zener 5.1V D1206

ZD1,2,3,4,5,6,7,8,9

9

80 558-352-5000

FRSE 5A/24A F1206

F1

1

81 518-02N-3904

3904 SOT-23

Q1,2,3,4,5,6,8,9,10,11

10

82 518-02N-3906

3906 SOT-23

Q7

1

83 531-240-0003

XTAL 24.576MHz DIP

Y1

1

84 531-143-49US

XTAL 14.318MHz DIP

Y2

1

85 409-003-0110

DC Power Jack DIP_180

J1

1

86 152-000-SH570

DC Jack Support

J1

1

87 630-006-4002R

Connector 6PIN 2.0mm DIP_90 J2

1

88 486-000-5704

S-Video DIP_180

J3

1

89 409-003-0113-H

RCA_Y DIP_180

J4

1

90 483-002-104S3

Jumper 4PIN DIP_2.54mm

J5

1

91 630-007-C001

Connector 7PIN 1.5mm DIP_90 J6

1

92 630-006-C001

Connector 6PIN 1.5mm DIP_90 J7

1

93 483-004-2300

Pin connector

30x2 1.0mm DIP_180

J10

1

94 630-030-B000

JSTB30B-PHDSS-DF14 SMD

J11

1

95 409-003-0111-H

RCA_Red DIP_180

J12,13,16

3

96 409-003-0112-H

RCA_White DIP_180

J14,15,17

3

97 485-D29-S118

DVI DIP_180

CN1

1

98 485-415-S060

D-SUB DIP_180

CN2

1

99 630-002-1008

Connector 2PIN 2.0mm DIP_90 CN3.4

2

100 630-008-C001

Connector 8PIN 1.5mm DIP_90 CN5

1

101 631-030-S001-B

Wire

For Panel

1

102 849-4AX-0772

Inverter

(E-MAX)

1

103 849-4AS-0772

Inverter

(SAMPO)

104 631-006-7772

Wire

For Inverter

1

105 631-006-G572V

Wire

For Power Board

1

106 631-007-G772D

Wire

For Control Board

1

107 631-008-G872T

Wire

For Tuner

1

108 824-002-772VL-A

8R / 2.5W

1

109 824-002-772VR-A

8R / 2.5W

1

110 610-151-15R22

VGA Cable

1

111 621-151-2520WC

Wire

Ear phone to RCA Cable

1

112 621-151-3020

RCA Cable

1

113 846-120-E0AL-SA

Adapter

12V/5A

1

114 600-161-5700P

Power Cable

1

115 845-032-572V

Remote control

PROVIEW Logo Color : black

1

116 845-S32-572V-A

Remote control

PROVIEW Logo Color : silver

117 845-S32-572V-MB Remote control

MAG Logo Color : silver

118 845-032-572V-X

Remote control

No Logo Color : black

119 845-032-572V-N

Remote control

INX Logo Color : black

120 109-948-0860

Screw

For D-SUB

2

background image

22

121 109-948-1000

Screw

For DVI

2

122 610-151-19R2

DVI-D Cable

1

background image

23

572V

NO

Parts No.

Description

Part Location

Q’t

y

1 200-100-HD572V-A HD572V Main Board PCB

Main PCB

1

2 506-0AI-C1084

AIC1084-33 TO-263

U1

1

3 506-00G-95063

G950T63U SOT-223

U2

1

4 518-1AO-4403

AO4403 SOP-8

U3

1

5 506-2AI-C1578

AIC1578 SOP-8

U4

1

6 506-RMC-76381-3 AMC76381-3 SOT-89

U5

1

7 518-1AO-4801

AO4801 SOP-8

U6

1

8 505-091-7809

LM7809 TO-220

U7

1

9 506-A00-7114

SAA7114 LQFP-100

U8

1

10 506-774-LCX14

74LCX14 SOP-14

U9,12

2

11 506-774-LV125

74LV125 SOP-14

U10

1

12 506-SSD-2000

SD2000-208 QFP-208

U11

1

13 120-005-SH770

Heatsink

U11

1

14 506-524-LC21

24LC21 SOP-8

U13,16

2

15 506-THC-635151 THC63DV151 TQFP-100

U15

1

16 506-SSM-0230

SM0230 PLCC-44

U18

1

17 481-LCC-0440

IC SOCKET-44 SMD

U18

1

18 506-5NM-24C16

24LC16 SOP-8

U19A

1

19 506-X74-LV4053A 74LV4053 TSSOP-16

U20

1

20 506-0PT-2314

PT2314 SOP-28

U21

1

21 504-A00-8227

TA8227P DIP-12H

U22

1

22 330-100-1622

EC4D 10U/16V

C14,16,133,143,201, 202,204,205

8

23 330-101-16255

EC5D 100U/16V

C11,22,27,30,34,35,54,68,73,100,118,190,193,194,1

97,208,209,226, 249

19

24 330-102-06205

EC8D 1000U/6.3V

C18

1

25 330-220-16255

EC4D 22U/16V

C150,154,159,161,216

5

26 330-2R2-50255

EC4D 2.2U/25V

C188,191,192,198,200, 206,207

7

27 330-331-16205

EC8D 330U/16V

C1,5,26

2

28 330-470-16255

EC5D 47U/16V

C23,104,162,217,218, 219

6

29 330-471-25205

EC8D 470U/25V

C4,210,211

3

30 381-100-032554

CAP 0603 10P/25V

C38,39,42,43,46,47,52,53,79,83,87,140

12

31 381-101-032554

CAP 0603 100P/25V

C80,90,91,105,106,141,144,251

8

32 382-103-032554

CAP 0603 103/25V

C7,21,102,135

4

33 381-220-032554

CAP 0603 22P/25V

C48,49,89,165,173,174,177,178,179,180,181,

182,183,230, 231,232

16

34 381-221-032554

CAP 0603 220P/25V

C10,164

2

35 381-330-032554

CAP 0603 33P/25V

C136,137,138,139

4

36 382-272-035064 CAP 0603 272/25V

C220,221

2

background image

24

37 385-104-032584

CAP 0603 104/25V

C2,3,6,8,9,12,13,15,17,19,20,24,25,28,29,31,32,33,3

6,37,40,41,44,45,50,51,55,56,57,58,59,60,61,62,63

,64,66, 69,70,71,72,74,75,76,85,86,88,93,94,

95,96,97,98,99,101,103,107,108,109,110,111,112,

113,114,115,116,117,123,124,125,126,127,128,129,

130,131,132,134,142,145,146,147,148,149,151,152,

153,155,156,157,158,160,163,168,172,175,176,184,1

86,187,195,196,199,212,213,214,215,222,223,227,2

35,236,237,238,239,240,241, 242,243,244

120

38 385-105-041684

CAP 0805 105/16V

C167

1

39 385-334-042584 CAP 0603 334/25V

C224,225

2

40 385-473-032584 CAP 0603 473/25V

C77,82,84

3

41 282-101-2454

S8RP 100RP

RP6

1

42 282-330-2454

S8RP 33RP

RP1,2,3,4,5,7,8,9,10,11,12,LP1,2,3,4,5,6,7,8,9,10,11,1

2

23

43 282-472-2454

S8RP 4.7KRP

RP13,14,15,16,17

5

44 232-R02-505T

DIP_5mm 0.02R/5W

R6

1

45 281-031-20014

RES 0603 2K/1%

R9

1

46 281-031-62014

RES 0603 6.2K/1%

R8

1

47 281-035-0R04

RES 0603 0R

R45,60,77,85,79,122, 127,131,134,143,L22,L60,L61 13

48 281-035-1014

RES 0603 100

R15,44,61,62,63,64,65,66,67,68,69,80,82,92,135,

136,139

17

49 281-035-1024

RES 0603 1K

R37,86,93,104,114,115

6

50 281-035-1034

RES 0603 10K

R11,14,49,50,58,59,94,95,96,105,138,140,141

13

51 281-035-1044

RES 0603 100K

R16

1

52 281-035-1054

RES 0603 1M

R100

1

53 281-035-1064

RES 0603 10M

R5

1

54 281-035-1214

RES 0603 120

R52,56,57

3

55 281-035-1514

RES 0603 150

R97

1

56 281-035-2024

RES 0603 2K

R7,18,19,23,24,53,54

7

57 281-035-2204

RES 0603 22R

R25,27,31,36,39,70,71,72,78

9

58 281-035-2214

RES 0603 220

R111,112

2

59 281-035-2224

RES 0603 2.2K

R108,113,117,118,119,120,121

7

60 281-035-2234

RES 0603 22K

R12

1

61 281-035-3304

RES 0603 33R

R40,42,51,55,74,75,76,90,91,107,109

11

62 281-035-3314

RES 0603 330

R1,4,10,13,21

5

63 281-035-3324

RES 0603 3.3K

R38

1

64 281-035-4704

RES 0603 47R

R116

1

65 281-035-4724

RES 0603 4.7K

R3,87,88,98,99,101,102,103,106,110

10

66 281-035-5114

RES 0603 510

R83,89,123,124

4

67 281-035-5604

RES 0603 56R

R32,33,34,35

4

68 281-035-5624

RES 0603 5.6K

R125,126

2

69 281-035-7504

RES 0603 75R

R46,47,48

3

70 281-035-R184

RES 0603 18R

R26,28,29,30

4

71 745-330-2072

DIP_5mm 33UH-CK

L5

1

72 780-103-6000

IND 0603 Bead_60R

L4,6,7,13,14,15,29,30,31,32,35,36,37,38,39,40,41,4

2,43,44,46,47,48,49

24

73 780-104-8000A

IND 0805 Bead_80R

L19,20,21,23,24,26,27,33

8

background image

25

74 780-104-8000C

IND 0805 Bead_80R(RGA)

L16,17,18

3

75 780-107-8000

IND 1206 Bead_80R

L8,10,11,12

4

76 780-112-8000

IND 1812 Bead_80R

L1,2,3

3

77 520-010-5820

1N5820 DIP_200mm

D1

1

78 528-200-BAV99

BAV99 SOT-23

D2,3,4

3

79 528-2DA-N202U DAN202U SOT-23

D5,8

2

80 528-R1N-4148

1N4148 D1206

D6,7

2

81 529-350-05R1

Zener 5.1V D1206

ZD1,2,3,4,5,6,7,8,9

9

82 518-02N-3904

MMBT3904L SOT-23

Q1,3,4,6,7,8,9,10

8

83 518-000-3400

AO3400 SOT-23

Q2

1

84 558-352-5000

Fuse 24V/5A F1206

F1

1

85 531-240-0003

XTAL 24.576MHz DIP

Y1

1

86 531-110-49US

XTAL 11.059MHz DIP

Y2

1

87 630-006-4002R

Connector 6PIN 2.0mm DIP_90

CN1

1

88 485-415-S060

DB-15 DIP_180 (Blue)

CN2

1

89 485-D29-S118

DVI DIP_180 (White)

CN4

1

90 631-009-C001

Connector 7PIN 1.5mm DIP_90

CN5

1

91 630-006-C001

Connector 6PIN 1.5mm DIP_90

CN6

1

92 630-045-9003

XF2H-4515-1 SMD-40

CN7

1

93 630-303-9003

XF2H-3015-1 SMD-30

CN9

1

94 630-002-1008

Connector 2PIN 2.0mm DIP_90

CN11,12

2

95 630-008-C001

Connector 8PIN 1.5mm DIP_90

CN13

1

96 409-003-0110

DC Power Jack DIP_180

J1

1

97 152-000-SH570

DC Power Support

J1

1

98 409-003-0113

RCA_Yellow DIP_180

J2

1

99 409-003-0111

RCA_Red DIP_180

J4,7,8

3

100 409-003-0112

RCA_White DIP_180

J6,9,10

3

101 486-000-5704

S-Video DIP_180

J3

1

102 849-4NX-0572

Inverter

(E-MAX)

1

103 631-006-7772

Wire

For Inverter

1

104 631-006-G572V

Wire

For Power Board

1

105 631-007-G572V

Wire

For Control Board

1

106 631-008-G872T

Wire

For Tuner

1

107 631-045-F0003

Wire

For Pnnel (FFC 45 PIN)

1

108 631-030-F0003

Wire

For Panel (FFC 30 PIN)

1

109 842-2R5-772VL

Speaker

L

1

110 824-2R5-772VR

Speaker

R

1

111 610-151-15R2

VGA Cable

1

112 621-151-2520WC RCA Cable

Earphone to RCA Cable

1

113 621-151-3020

RCA Cable

1

114 846-120-E0AL-A

ADAPTER

12V/5A

1

115 600-161-5700P

Power Cable

1

116 845-032-572V

Remote Control

Color : Black

1

117 845-B32-572V

Remote Control

color : Black

background image

26

118 845-S32-572V

Remote Control

color : Silver

119 845-032-572V-T

Remote Control

For TCL

120 845-S32-572V-MB Remote Control

MAG Logo color : Silver

121 845-S32-572V-A Remote Control

PROVIEW Logo color : Silver

1

122 705-350-2605

Panel

AU M150XN04

1

123 109-948-0860

Wire

For D-SUB connector

1

124 109-948-1000

Wire

For DVI connector

1

background image

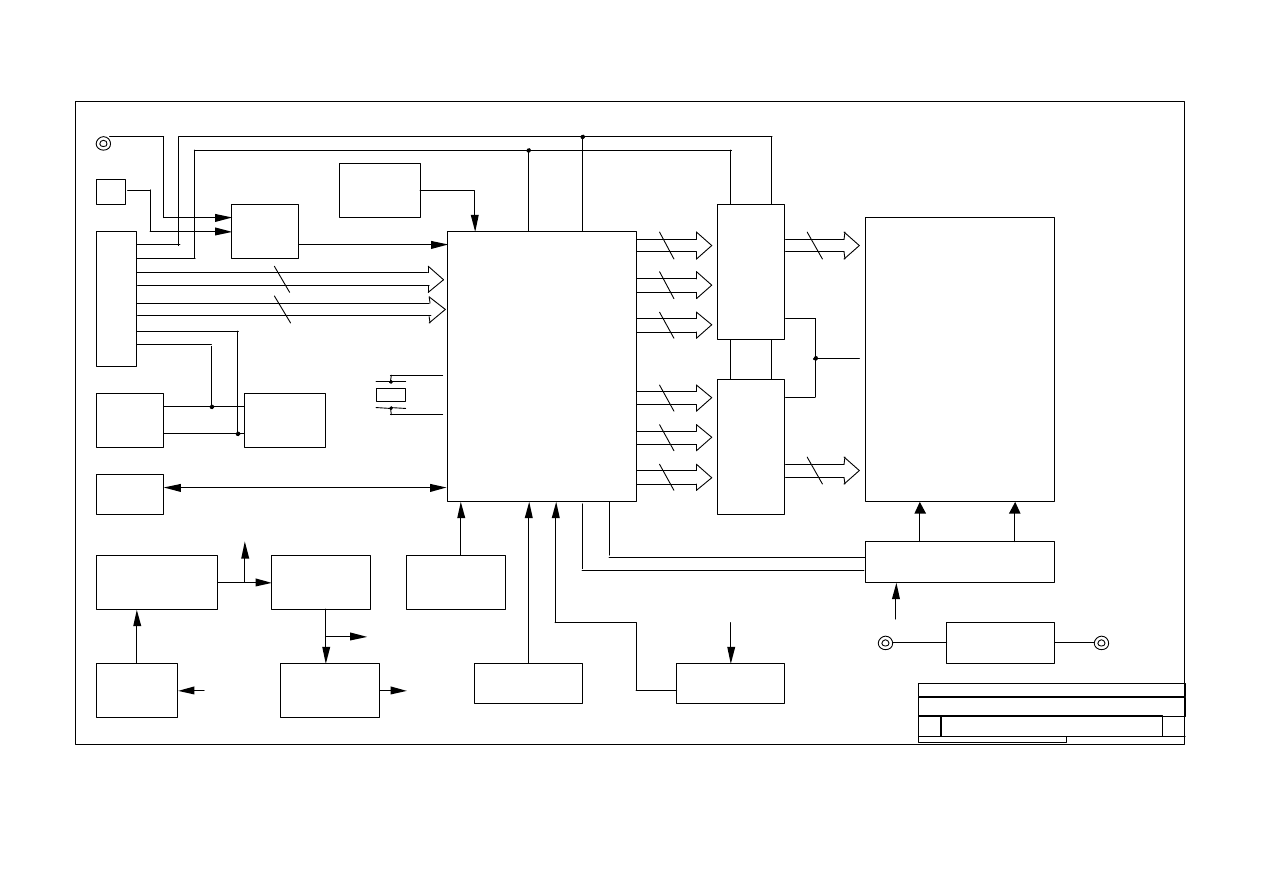

I. BLOCK DIAGRAM

Size: Document Number Rev

8 BB0~BB7

8 GB0~GB7

8 RB0~RB7

8 BA0~BA7

8 GA0~GA7

8 RA0~RA7

Date: 2003 Sep. 13

H SYNC.

V SYNC.

D -

DE

BLK-ON/OFF

BRIGHTNESS

DDC SCL

DDC SDA

AC

100-240V

5V

DVI

D.D.C

12V

3.3V

3

{R.G.B}

CRYSTAL

14.31818M Hz

10 ODD

10 EVEN

D.D.C

Title

BLOCK DIAGRAM

200-100-772DT (PT7-C5)

8 Line{DVI-D}

S4

VIDEO

12V

POWER

ADAPTER

Power Switch

POWER SUPPLY
5V REGULATOR

1.8V

REGULATOR

3.3V

REGULATOR

24C16
EEPROM

Analog
24C21
EEPROM

Digital
24C21
EEPROM

Flash

Memory

Function Key
Connector

C
O
N
N
E
C
T
O
r

Scaler

LVDS

S-Video

AV

IR

Receiver

LVDS

LCD Panel


















High Voltage

Inverter

Audio CKT

Audio IN

Audio OUT

Tuner

SDA/SCL

background image

28

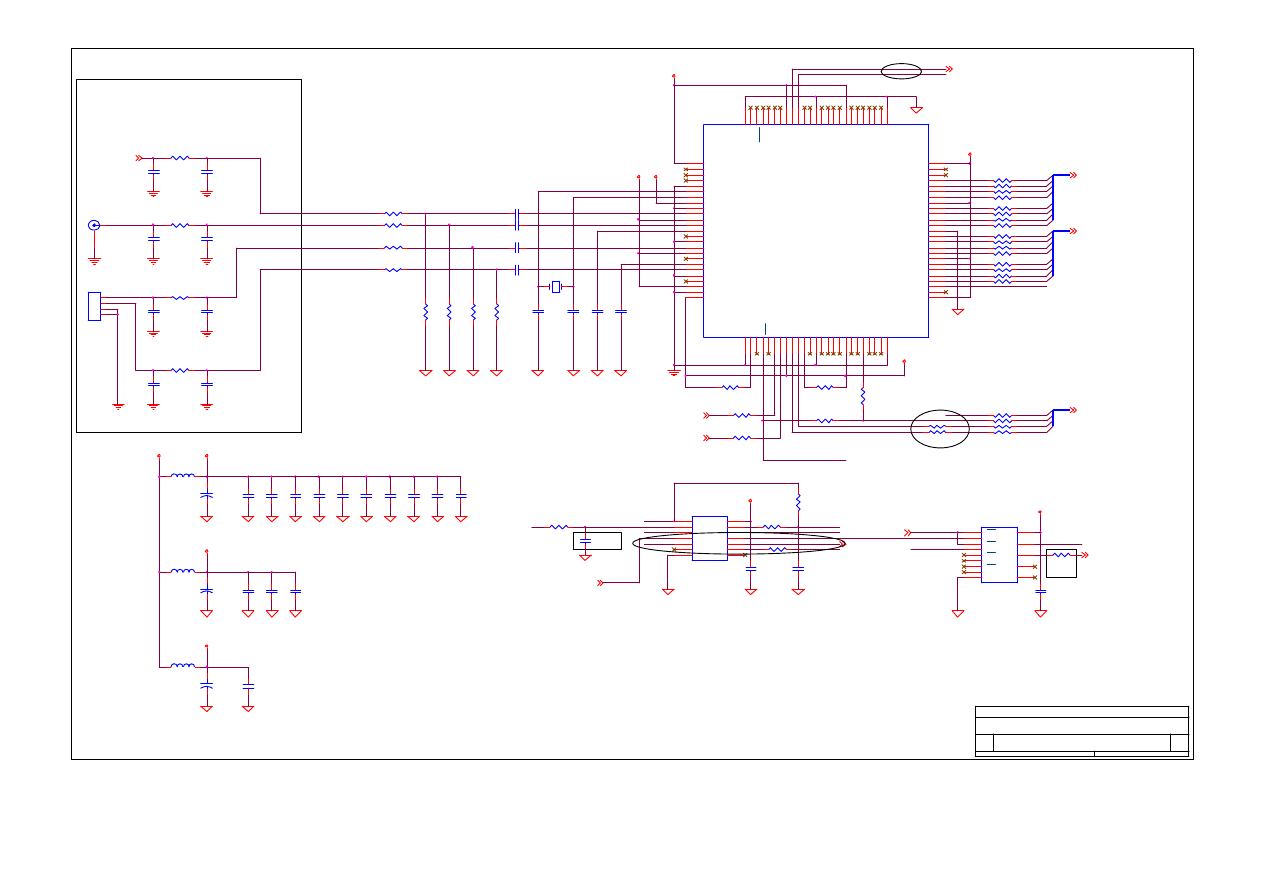

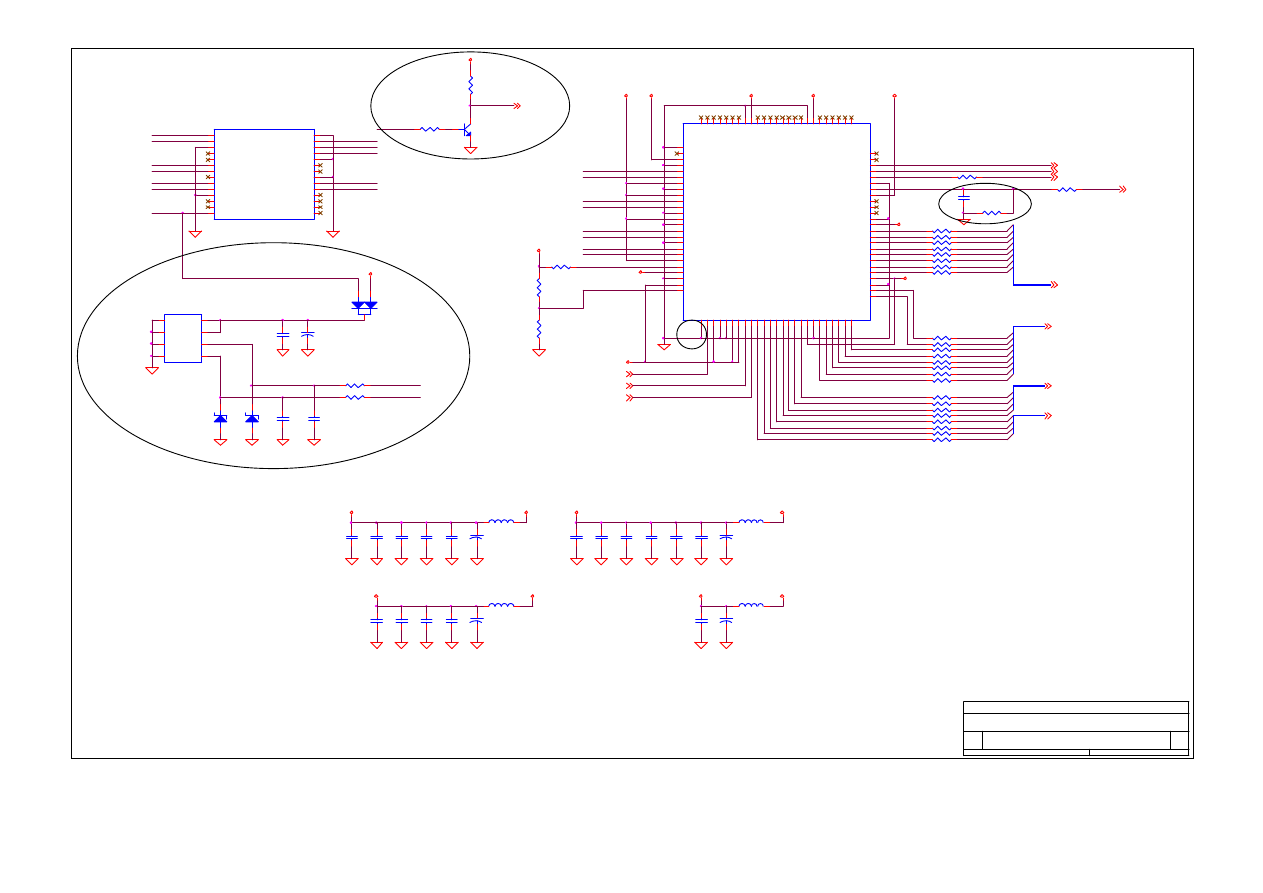

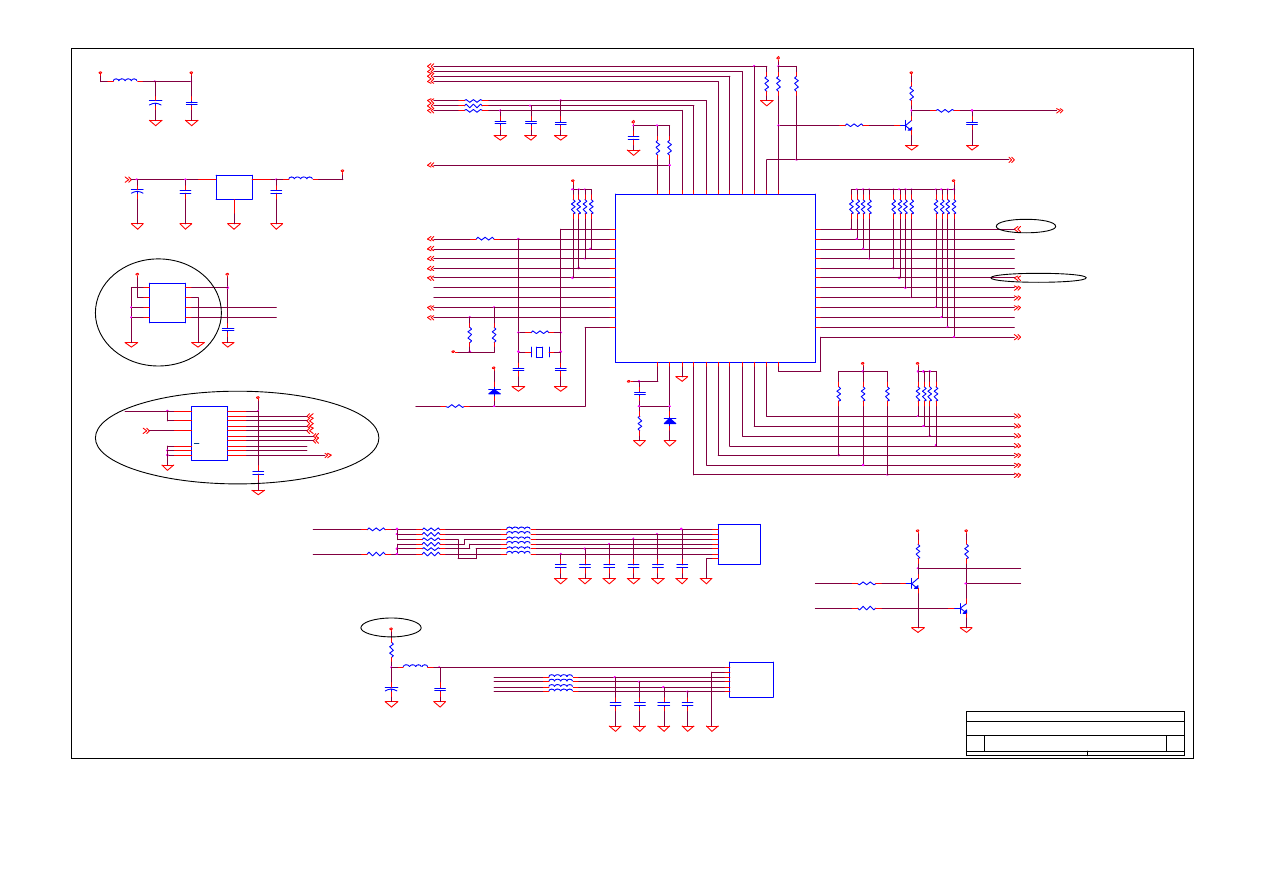

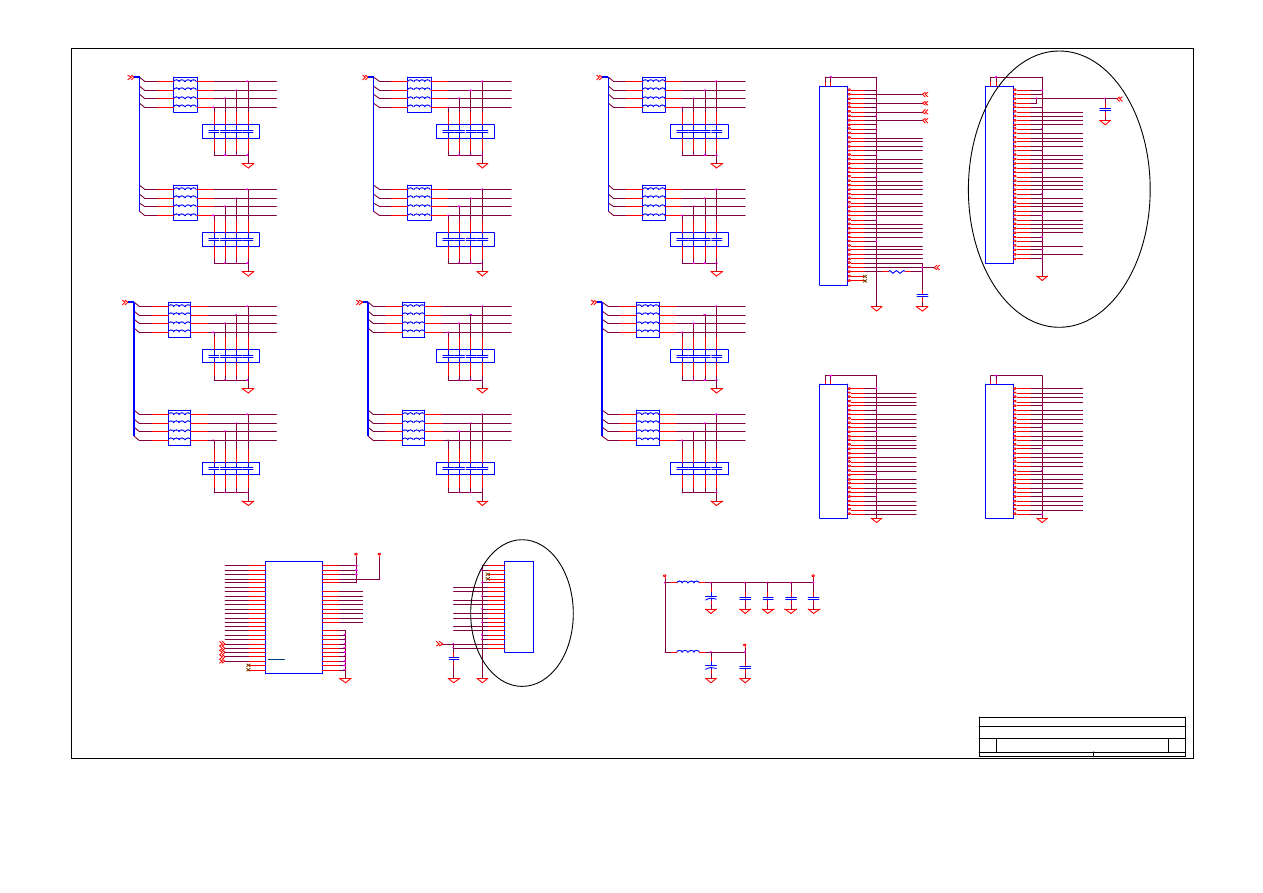

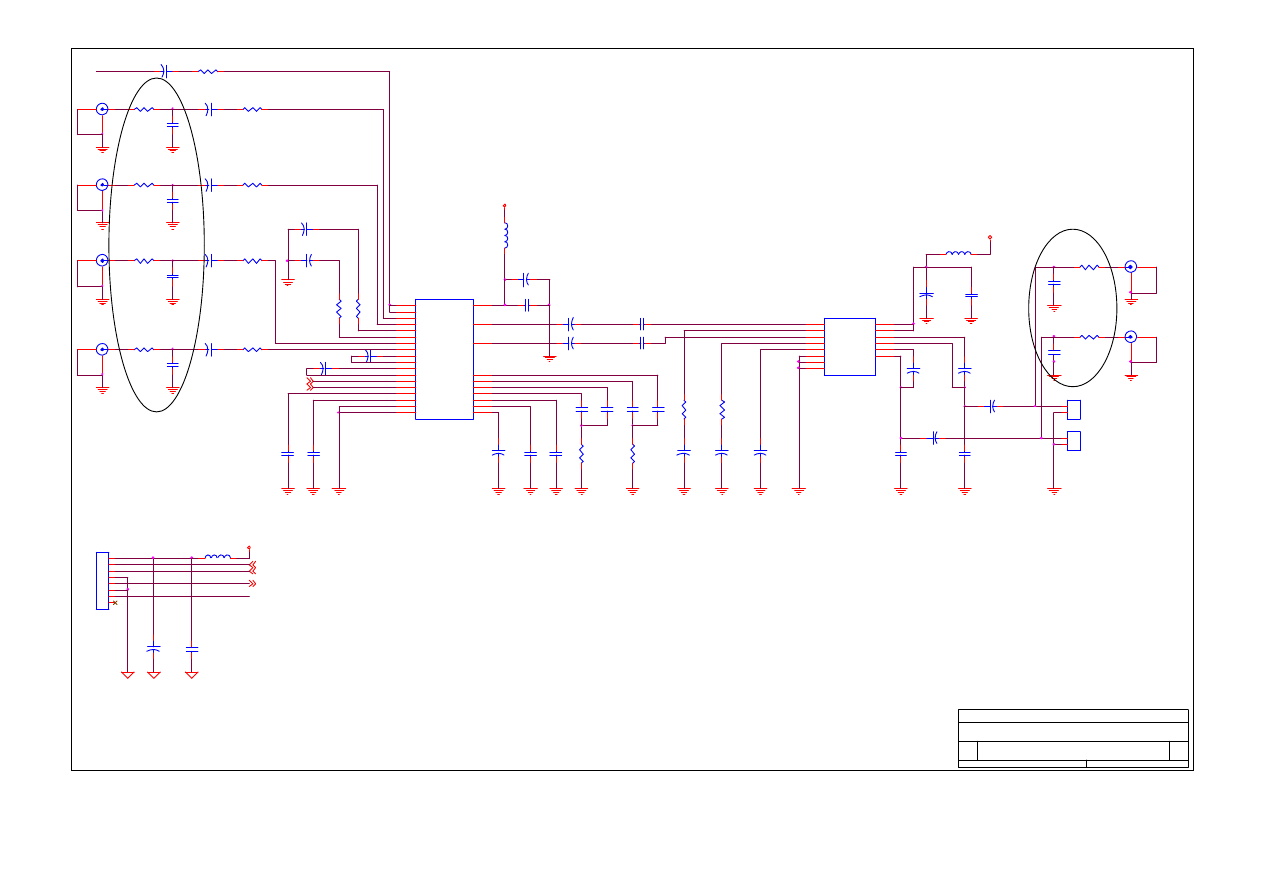

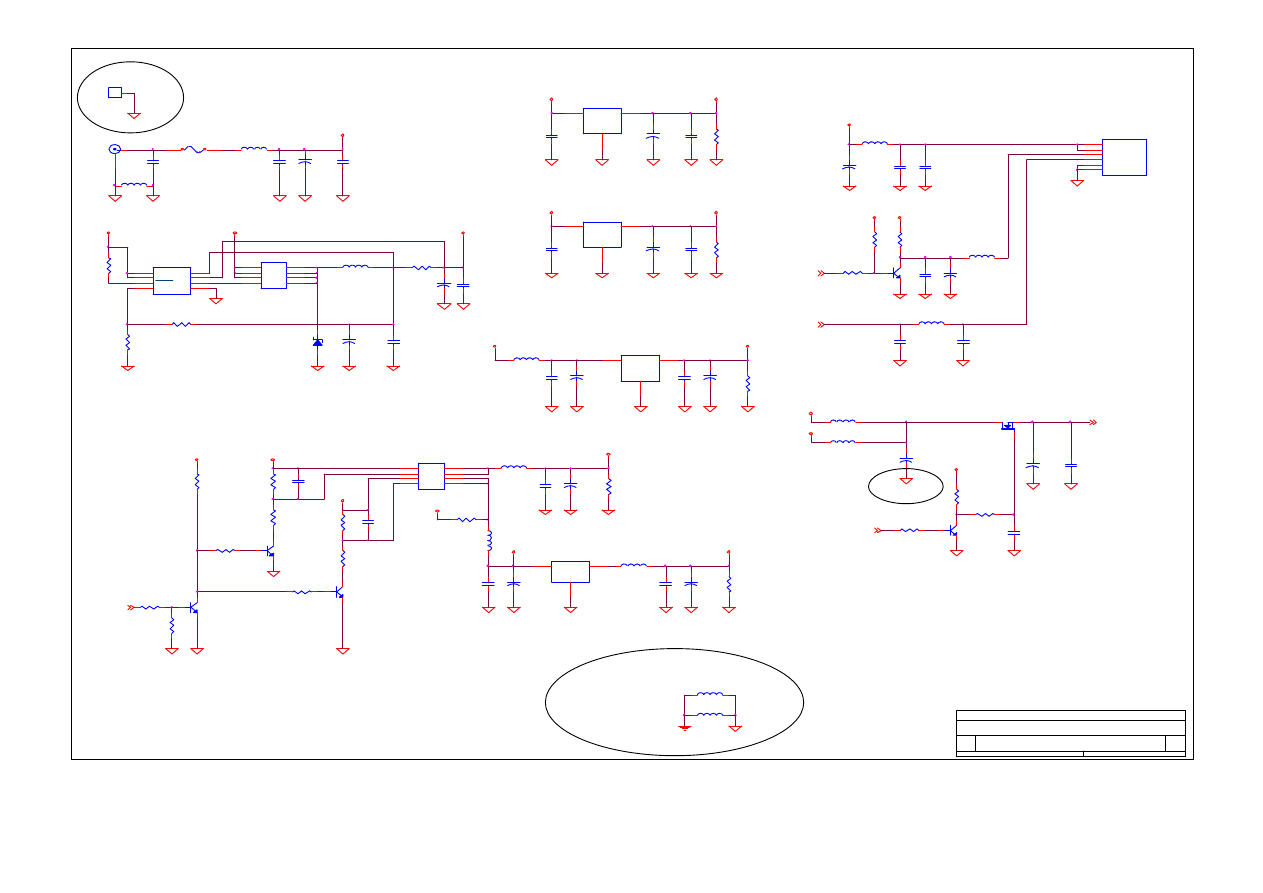

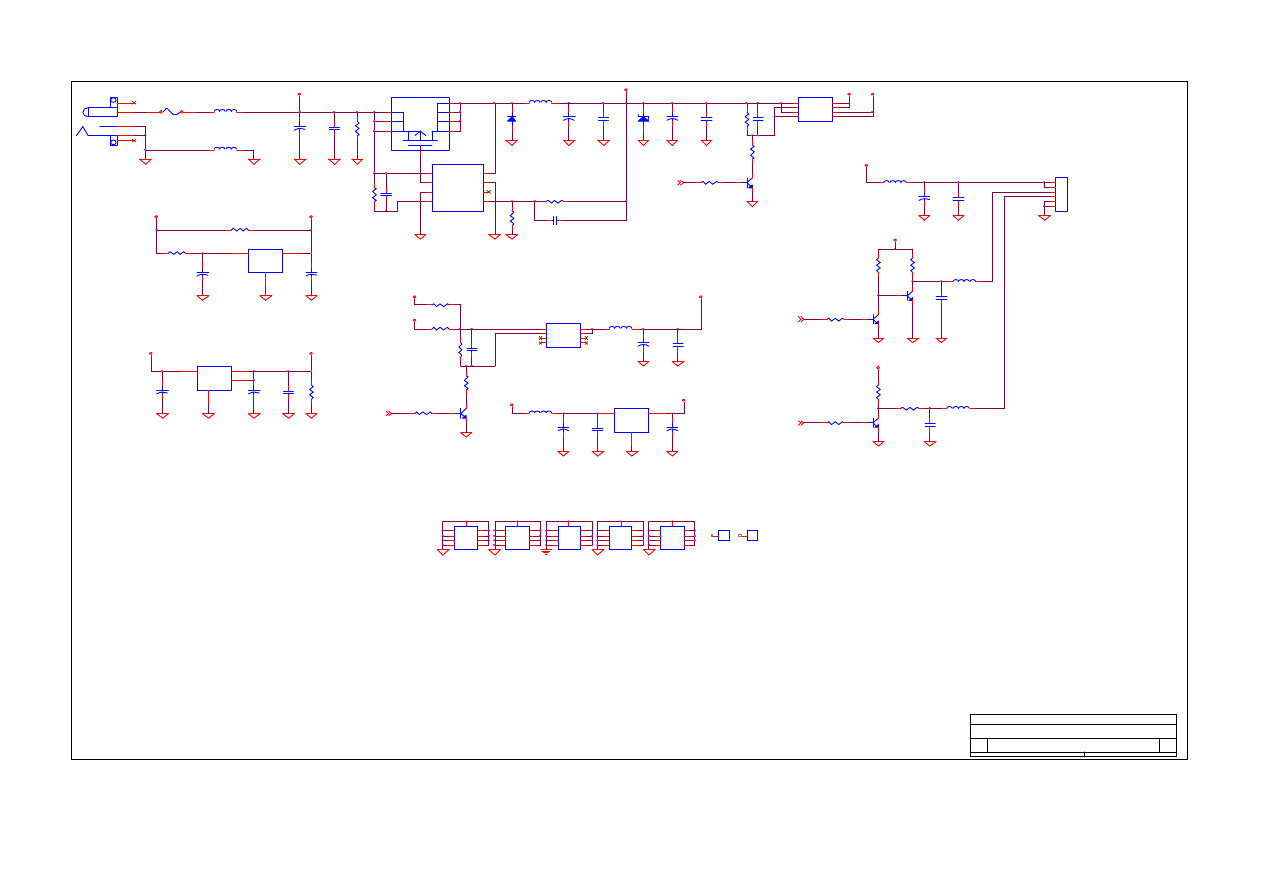

J. SCHEMATIC DIAGRAM ( 17” / 19”)

POWER

S4

HD772DT

C

1

7

Friday, July 11, 2003

Title

Size

Document Number

Rev

Date:

Sheet

of

AGND

AGND

GND

19V

5V

VCC

3V3

19V

12VIN

GND

GND

12VIN

5V

LCD_VCC

19V

5V

5V

SGND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

9V

GND

GND

GND

VCC

TUNER-5V

12VIN

LCDON

4

BRI_ON/OFF

4

BRI_ADJ

4

DPMS

4

+

C6

470U/25V

L3
BEAD_80R

R8
100K

H2

1
2
3
4

5

6

7

8

9

H1

1
2
3
4

5

6

7

8

9

U3
LM3485

1

2

3

4

5

6

7

8

ISENSE

GND

NC

FB

ADJ

PWR_GND

PGATE

VIN

F1
FUSE_5A

H4

1
2
3
4

5

6

7

8

9

H5

1
2
3
4

5

6

7

8

9

H3

1
2
3
4

5

6

7

8

9

U1
AO4801

1
2
3
4

5

6

7

8

S1
G1
S2
G2

D2

D2

D1

D1

L2
BEAD_80R

R1
1K

C11
104

Q3
3904

1

2

3

Q4
3904

1

2

3

R21
1K

R17
4.7K

R16
4.7K

L5
BEAD_80R

C27
104

+

C18
330U/16V

C20
104

L6
BEAD_80R

L7
BEAD_80R

+

C25
330U/16V

R3
75K

+

C29
100U/10V

U7
LM1117-33

1

3

2

4

GND

VIN

VOUT

VOUT

C13
103

C28
105

U2
AO4403

1

2

3

4

5

6

7

8

S

S

S

G

D

D

D

D

+

C30
100U/10V

C31
104

Q1
3904

1

2

3

R6
20K

C14
470P

R5
62K

R20
330

D1
SR34

L1
33UH

Q6
3904

1

2

3

R25
1K

C4
104

+

C2
330U/16V

C3
104

+

C1
330U/16V

C19
104

L4
BEAD_80R

J2

1
2
3
4
5
6

U5
AO4801

1
2
3
4

5

6

7

8

S1
G1
S2
G2

D2

D2

D1

D1

+

C17
330U/16V

ZD1
5.1V

1

2

R23
4.7K

R11
0R

R10
0R(NC)

C32
105

R24
4.7K

R12
22K

R9
12R-3W(NC)

U4
7812(NC)

2

1

3

GND

VIN

VOUT

R7
0R

J1

19V_POWER

5

4

3

2

1

+

C16

470U/25V

+

C15

470U/25V(NC)

U24
7809

2

1

3

GND

VIN

VOUT

+

C221
330U/16V

R2
22K

C12
104

C21
104

R18
4.7K

Q2
3904

1

2

3

R14
100

H7

1

H6

1

L8
BEAD_80R

R4
100

BRI_VCC
BRI_ON/OFF

BRI_ADJ

BRI_GND

background image

29

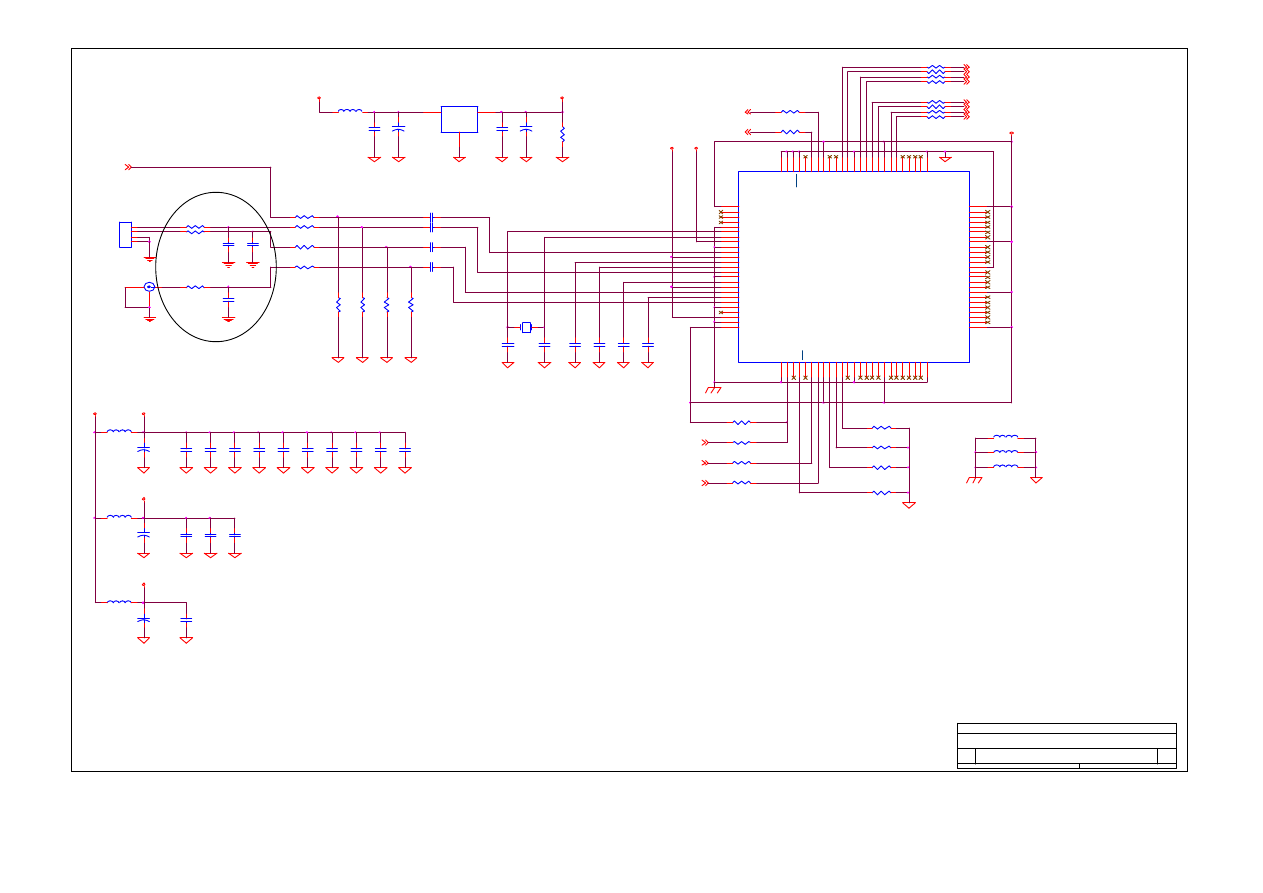

SAA7114(VIDEO INPUT)

S4

HD772DT

C

2

7

Friday, July 11, 2003

Title

Size

Document Number

Rev

Date:

Sheet

of

GND

GND

GND

GND

GND

GND

GND

3V3A

GND

GND

GND

GND

VCC

GND

GND

DGND

GND

3V3A1

3V3A3

3V3A2

GND

GND

GND

GND

GND

SGND

GND

GND

GND

GND

3V3A2

GND

GND

GND

GND

3V3A3

GND

3V3A

GND

GND

GND

GND

3V3A1

GND

GND

GND

GND

DGND

SGND

SGND

SGND

SGND

TV

7

AV0

4

AV1

4

AV2

4

AV3

4

AV4

4

AV5

4

AV6

4

AV7

4

VCLK

4

VPEN

4

SCL

4,7

SDA

4,7

DECOE

4

+

C74
100U/10V

L15
BEAD_60R

C75
104

C51
22P

C52
22P

Y1
24.576M

R30
330

R29
0R

R31
0R

R51
0R

R49
0R

R47
0R

R45
3.3K

C7
NC

R22

0R

R19

0R

C8
NC

C9
NC

R92
0R

U10

SAA7114

1
2
3
4
5
6
7
8
9

10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

97

98

99

100

VDDD(EP1)
TDO
TDI
XTOUT
VSS(XTAL)
XTALO
XTALI
VDD(XTAL)
VSSA2
AI24
VDDA2
AI23
AI2D
AI22
VSSA1
AI21
VDDA1
AI12
AI1D
AI11
AGND
AOUT
VDDA0
VSSA0
VDDD(EP2)

VSSD(EP1)

CE

LLC

LLC2

RES

SCL

SDA

VDDD(ICO1)

RTS0

RTS1

RTCO

AMCLK

VSSD(ICO1)

ASCLK

ALRCLK

AMXCLK

ITRDY

VDDD(ICO2)

TEST0

ICLK

IDQ

ITRI

IGP0

IGP1

VSSD(EP2)

VDDD(EP3)

IGPV

IGPH

IPD7

IPD6

IPD5

IPD4

VDDD(ICO3)

IPD3

IPD2

IPD1

IPD0

VSSD(ICO2)

HPD7

HPD6

HPD5

HPD4

VDDD(ICO4)

HPD3

HPD2

HPD1

HPD0

TEST1

TEST2

VDDD(EP4)

VSSD(EP3)

TEST3

TEST4

TEST5

XTRI

XPD7

XPD6

VDDD(ICO5)

XPD5

XPD4

XPD3

XPD2

VSSD(ICO3)

XPD1

XPD0

XRV

XRH

VDDD(ICO6)

XCLK

XDQ

XRDY

TRST

TCK

TMS

VSSD(EP4)

R48
33R

R50
33R

C48

104

R37

18R

C47

104

R36

18R

R35

18R

C44

104

C43

104

R33

18R

R44
1K(NC)

R46
1K

+

C59
100U/10V

L10
BEAD_60R

C60
104

C62
104

C61
104

L14
0R

+

C70
100U/10V

L11
BEAD_60R

C73
104

C72
104

C71
104

C66
104

R39
56R

C65
104

R42
56R

C64
104

R41
56R

C63
104

R40
56R

C69
104

L9
BEAD_60R

U9
76381-33

2

1

3

VIN

GND

VOUT

C68
104

C67
104

+

C37
100U/10V

C39
104

RP2
33RP

1
2
3
4

5

6

7

8

C56
104

C54
104

C55
104

RP1
33RP

1
2
3
4

5

6

7

8

J4
RCA_Y

1

2

3

C53
104

L12
0R

L13
0R

+

C38
47U/25V

C40
104

J3

S-VIDEO

1

2

3

4

7/11

新 增

EMI

LC

電路

background image

30

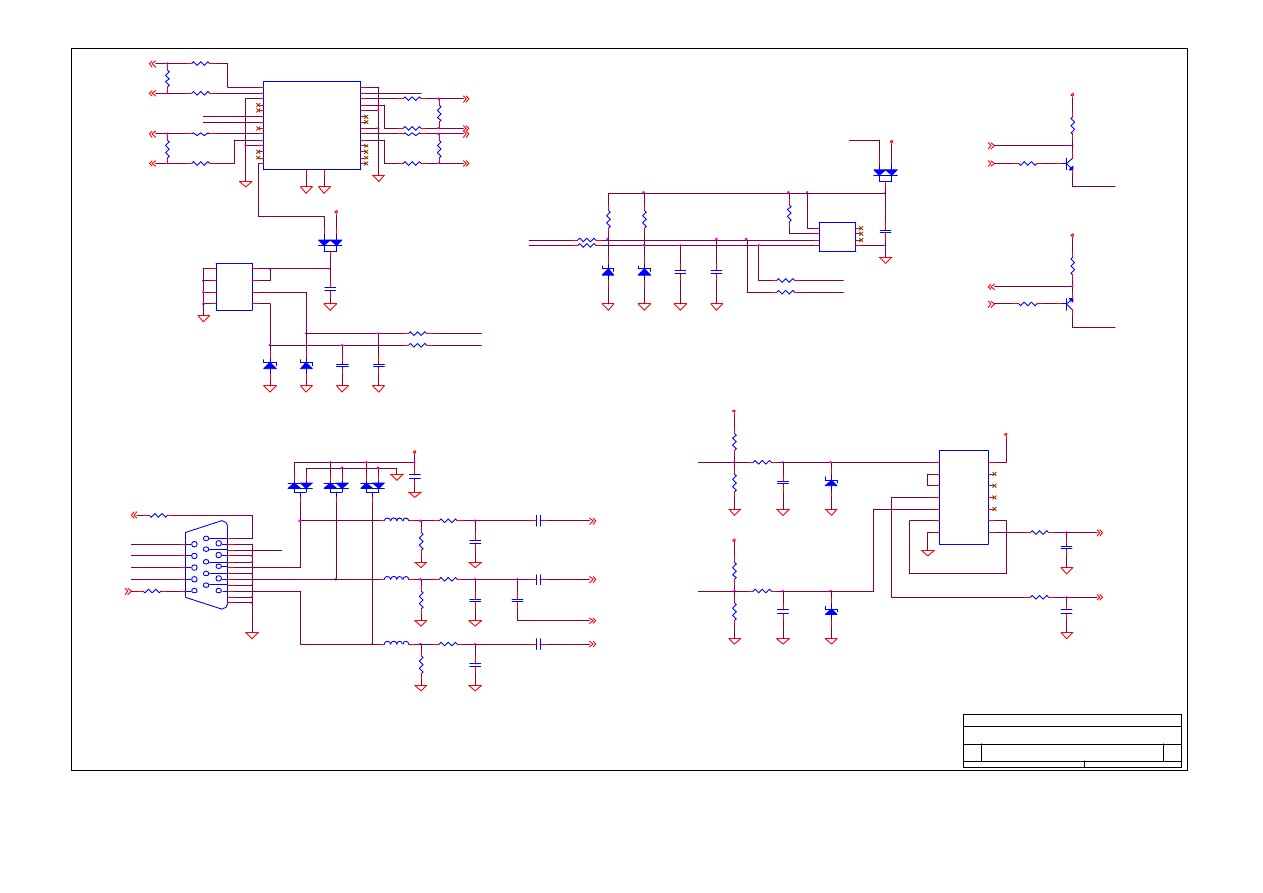

VGA & DVI & DDC INPUT

S4

HD772DT

Custom

3

7

Friday, July 11, 2003

Title

Size

Document Number

Rev

Date:

Sheet

of

GND

GND

GND

GND

GND

3V3

GND

GND

GND

GND

GND

5V

GND

GND

GND

GND

GND

GND

GND

GND

5V

VCC

VCC

GND

GND

GND

GND

3V3S

3V3S

GND

GND

GND

GND

GND

3V3S

GND

GND

GND

GND

GND

GND

232E

4

232E

4

RXD

4

TXD

4

AHSYNC

4

AVSYNC

4

BIN

4

GIN

4

RIN

4

RX_D0-

4

RX_D0+

4

RX_CLK+

4

RX_CLK-

4

RX_D2-

4

RX_D2+

4

RX_D1-

4

RX_D1+

4

SOGIN

4

TXD

4

RXD

4

D_DDC_SDA

D_DDC_SCL

D_DDC_5V

D_DDC_SDA

D_DDC_SCL

VGA_R

VGA_B

VGA_HS

V_DDC_5V

V_DDC_SCL

V_DDC_SDA

VGA_G

V_DDC_SDA

V_DDC_SCL

V_DDC_5V

TXD_PC

RXD_PC

D_DDC_5V

RXD_PC

TXD_PC

VGA_VS

VGA_HS

VGA_VS

R64

33R

R62

33R

C91
47P(NC)

C86
47P(NC)

R78
0R

R72
0R

R151

0R

R153

0R

D3

DAN202U

3

2

1

C78
100P(NC)

C77
100P(NC)

R70
2K

Q9

3904

1

2

3

Q8
3904

1

2

3

ZD4
5.1V(NC)

1

2

R63
4.7K(NC)

R52
4.7K

R55

4.7K

R65

4.7K

C79
104

R66
100

24LC21

U12

1

2

3

4

5

6

7

8

A0

A1

A2

VSS

SDA

SCL

WP

VDD

D2
DAN202U

3

2

1

R68
10K

C81
100P(NC)

C80
100P(NC)

C83
100P(NC)

R69
33R

ZD6
5.1V(NC)

1

2

R141
100

R140
27R

R139
27R

R150
100

R149

27R

R148

27R

R147
100

R146

27R

R145

27R

R144
100

R143
27R

R142

27R

CN1
DVI

1
2
3
4
5
6
7
8
9

10

15
16
17
18
19
20
21
22
23
24

11
12
13
14

25
26
27
28

33

34

TMDS D2-
TMDS D2+
TMDS D2/4 SH
TMDS D4-
TMDS D4+
DDC CLK
DDC DATA
A_V_SYNC
TMDS D1-
TMDS D1+

GND

H_P_DETECT

TMDS D0-

TMDS D0+

TMDS D0/5 SH

TMDS D5-

TMDS D5+

TMDS CLK_SH

TMDS CLK+

TMDS CLK-

TMDS D1/3 SH
TMDS D3-
TMDS D3+
+5V

C1
C2
C3
C4

33

34

U11

24LC21

1
2
3
4

5

6

7

8

NC
NC
NC

GND

SDA

SCL

VSYNC

VCC

ZD5
5.1V(NC)

1

2

R56
10K

C89
105(NC)

R67
100

CN2

DB-15

1

2

3

4

5

10

9

8

7

6

11

12

13

14

15

16
17

1

2

3

4

5

10

9

8

7

6

11

12

13

14

15

16
17

R80

0R

C85
10P(NC)

U13

74LCX14

1

2

3

4

5

6

7

8

9

10

11

12

13

14

A1

B1

A2

B2

A3

B3

GND

B4

A4

B5

A5

B6

A6

VCC

D5
BAV99

3

2

1

C88
10P(NC)

C92
473

R73
75R

C84
473

R77
75R

R81
75R

D6
BAV99

3

2

1

L16

0R

R75

0R

R71

0R

C93
10P(NC)

L18

0R

C87
473

L17

0R

D4
BAV99

3

2

1

C82
104

R79
2K

C90
22P(NC)

R74
10K

ZD7
5.1V(NC)

1

2

R76
33R

C76
104

R61
100

R57
10K(NC)

ZD3
5.1V(NC)

1

2

R60
100

ZD2
5.1V(NC)

1

2

R58
10K(NC)

background image

31

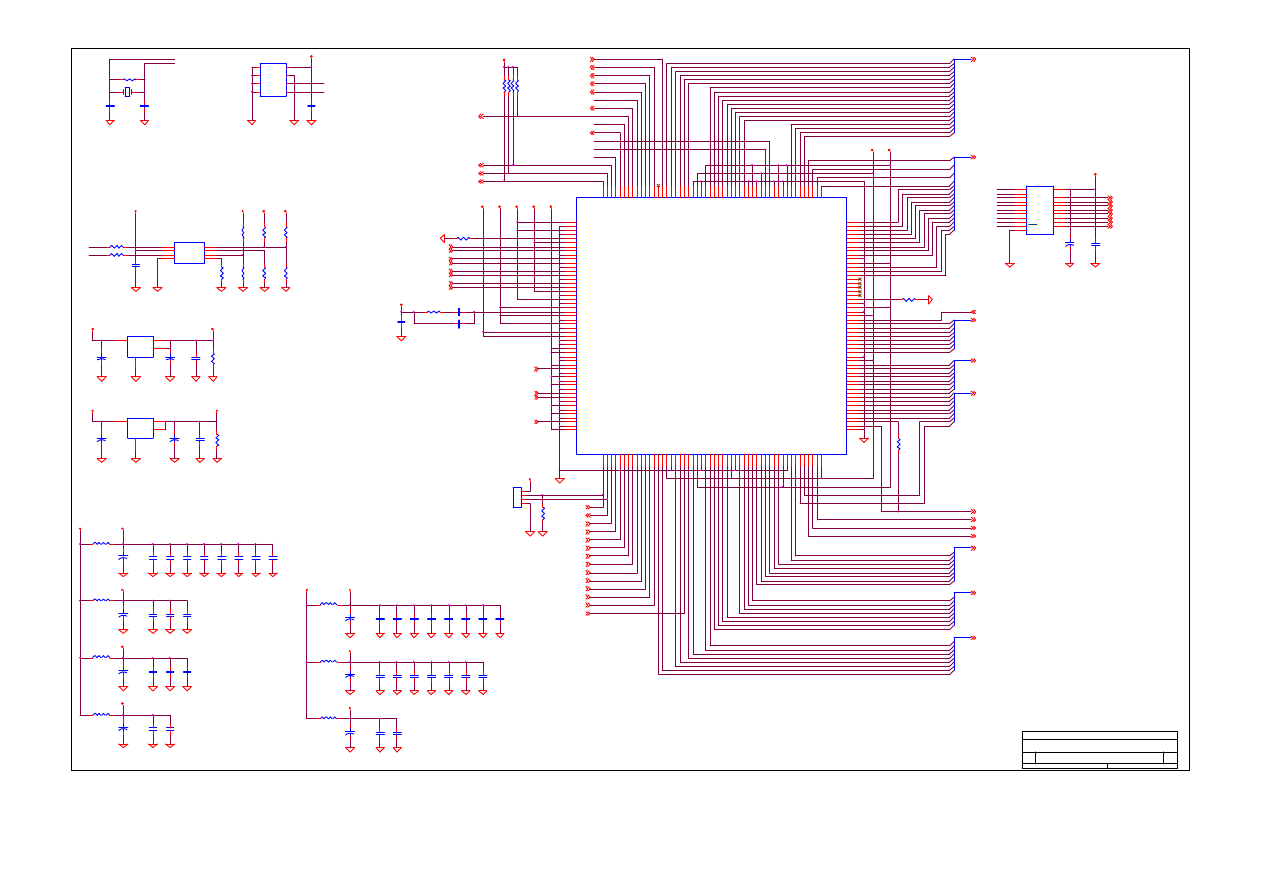

A/D & SCALER

S4

HD772DT

Custom

4

7

Friday, July 11, 2003

Title

Size

Document Number

Rev

Date:

Sheet

of

GND

GND

3V3S

GND

GND

GND

GND

GND

GND

3V3S1

3V3S2

3V3S3

1V8S3

GND

GND

GND

GND

1V8S2

1V8

1V8S1

GND

GND

1V8S4

GND

GND

3V3S1

3V3S2

3V3S3

1V8S1

1V8S2

1V8S3

1V8S4

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

1V8S3

GND

GND

5V

GND

GND

GND

GND

GND

GND

GND

GND

3V3S

GND

GND

GND

3V3S1

3V3S

GND

GND

GND

GND

GND

3V3S

5V

GND

5V

1V8

GND

GND

GND

GND

GND

GND

3V3S

GND

GND

GND

GND

3V3S

3V3S

3V3S

RX_D2+

3

RX_D2-

3

RX_D1+

3

RX_D1-

3

RX_D0+

3

RX_D0-

3

RX_CLK+

3

RX_CLK-

3

RIN

3

GIN

3

SOGIN

3

BIN

3

RXD

3

TXD

3

VPEN

2

AV7

2

AV6

2

AV5

2

AV4

2

AV3

2

AV2

2

AV1

2

AV0

2

AVSYNC

3

AHSYNC

3

VCLK

2

DEN

6

DGO[0..7]

6

DCLK

6

DBO[0..7]

6

DBE[0..7]

6

RESETn

5

DRO[0..7]

6

DVS

6

DGE[0..7]

6

DRE[0..7]

6

DHS

6

D[0..15]

5

A[1..19]

5

SDA

2,7

SCL

2,7

SDA1

7

SCL1

7

BRI_ADJ

1

CS0n

5

ROMWEn

5

ROMOEn

5

RDn

5

NMI

5

LED_G

5

LED_A

5

DPMS

1

LCDON

1

BRI_ON/OFF

1

DECOE

2

232E

3

LVDSON

6

IRRCVR

5

DRO5

DBO3

DGE1

DRE2

DBO7

DGO3

DGE6

DRO7

DBO4

DBE2

DRO6

DBE6

DBO2

DRE5

DGE5

DGO1

DRE7

DRE0

DRO4

DRO0

DGO7

DBE0

DGE7

DGE0

DRO3

DRO1

DRE3

DRO2

DBO5

DGO0

DRE1

DGE3

DGO2

DBE1

DBO6

DBE4

DBO1

DGO6

DGO4

DBE7

DRE4

DBE3

DBO0

DGE4

DGE2

DBE5

DRE6

DGO5

D11

D9

D14

D7

D4

D1

D12

D6

D8

D13

D15

D10

D5

D3

D2

D0

A19

A18

A17

A16

A15

A14

A13

A12

A11

A10

A9

A8

A7

A6

A5

A4

A3

A2

A1

CS1n

CLK-I

XO

XI

XI
XO

D0
D1
D2
D3
D4
D5
D6
D7
CS1n
RESETn

SCL

SDA

CLK-O

CLK-I

CLK-O

C139
104

C128
392

C126
393

R84 3.3K

+

C34
100U/10V

C127
104

R83
0R

C36
104

+

C33
100U/10V

U8
LM1117-18

1

3

2

4

GND

VIN

VOUT

VOUT

R28
330

R59
2.2K

R54
2.2K(NC)

R53
10K(NC)

R43
10K(NC)

R38
10K(NC)

C104
104

R88
2.2K

R87
2.2K(NC)

R90
1M

C134
104

C118
104

+

C115
10U/16V

C116
104

U15

74LV273A

20

3
4
7
8

13
14
17
18
11

1

10

2
5
6
9
12
15
16
19

VDD

D1
D2
D3
D4
D5
D6
D7
D8
CLK
CLR
GND

Q1
Q2
Q3
Q4
Q5
Q6
Q7
Q8

+

C129

22U/6.3V

U6
LM1117-33

1

3

2

4

GND

VIN

VOUT

VOUT

C130
104

+

C23
100U/10V

L24
22uH

+

C117
22U/6.3V

+

C22
100U/10V

+

C133
22U/6.3V

R13
330

U16

PW131A-20Q

1
2
3
4
5
6
7
8
9

10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

DVDD1
DGND1
DVDD1
DGND1
RTERM
DVDD
RX2_P
RX2_N
DGND
RX1_P
RX1_N
DGND
RX0_P
RX0_N
DGND
RXC_P
RXC_N
DVDD
DGND1
DVDD1
PGND
PVD
FILT
PVD
PGND
PVD
PGND
ALVDD
ALVDD
ALGND
ALGND
AVDD
AVDD
AGND
AGND
AVDD
RAIN
AGND
AVDD
AGND
AVDD
AGND
GAIN
SOGIN
AGND
AVDD
AGND
AVDD
AGND
BAIN
AGND
AVDD

RXD

TXD

VPEN

VYUV7

VYUV6

VYUV5

VYUV4

VYUV3

VYUV2

VYUV1

VYUV0

VSYNC

HSYNC

DB7

DB6

VDDQ3

VSSQ

DB5

DB4

VCLK

DB3

DB2

VDD1

VSS

DB1

DB0

DG7

DG6

DG5

DG4

VDDQ3

VSSQ

DG3

DG2

DG1

DG0

DR7

DR6

DR5

DR4

DR3

DR2

VDD1

VSS

DR1

DR0

DGB7

DGB6

DVS

DHS

DEN

VDDQ3

VSSQ

DCLK

DCLKNEG

DGB5

DGB4

DGB3

DGB2

DGB1

DGB0

DGG7

DGG6

DGG5

DGG4

DGG3

DGG2

DGG1

DGG0

VDDQ3

VSSQ

DGR7

DGR6

DGR5

DGR4

DGR3

DGR2

DGR1

DGR0

RESET_N

VDDQ3

VSSQ

VDD1

VSS

TESTEN

TDO

TDI

TMS

TCK

TRST_N

D15

D14

D13

VDD1

VSS

D12

D11

D10

D9

D8

D7

D6

D5

D4

D3

D2

D1

D0

A19

A18

A17

A16

VDDPA2

VSSPA2

VDDPA1

VSSPA1

XI

XO

VDDQ3

VSSQ

VDD1

VSS

A15

A14

A13

A12

A11

A10

A9

A8

A7

VDD1

VSS

VDDQ3

VSSQ

A6

A5

A4

A3

A2

A1

NMI

WR

RD

ROMOE

ROMWE

CS0

CS1

PORTA7

PORTA6

PORTA5

PORTA4

PORTA3

PORTA2

PORTA1

PORTA0

C142
22P

C143
22P

L23
22uH

Y2

14.318

C24
104

L22
22uH

RP15
4.7KRP

1

2

3

4

5

6

7

8

J5

1

2

3

4

C138
104

L25
22uH

C95
104

L21
22uH

C41
22U/6.3V

L20
22uH

L19
22uH

C100
104

C99
104

+

C137
22U/6.3V

C98
104

C97
104

C96
104

C102
104

C101
104

C114
104

C106
104

C110
104

C108
104

C107
104

C109
104

C111
104

C125
104

C121
104

C123
104

C119
104

C122
104

U14

24LC16

1

2

3

4

5

6

7

8

A0

A1

A2

VSS

SDA

SCL

WP

VDD

C120
104

C124
104

R34
33R(NC)

R32
33R(NC)

U17

P1707A

1
2
3
4

5

6

7

8

CLK-I
VCC
GND
CLK-O

LEE

S0

S1

SD

+

C94
22U/6.3V

R82 560

C132
104

C131
104

R85
100(NC)

+

C103
22U/6.3V

C105
104

R86
4.7K

C113
104

C135
104

C136
104

+

C112
22U/6.3V

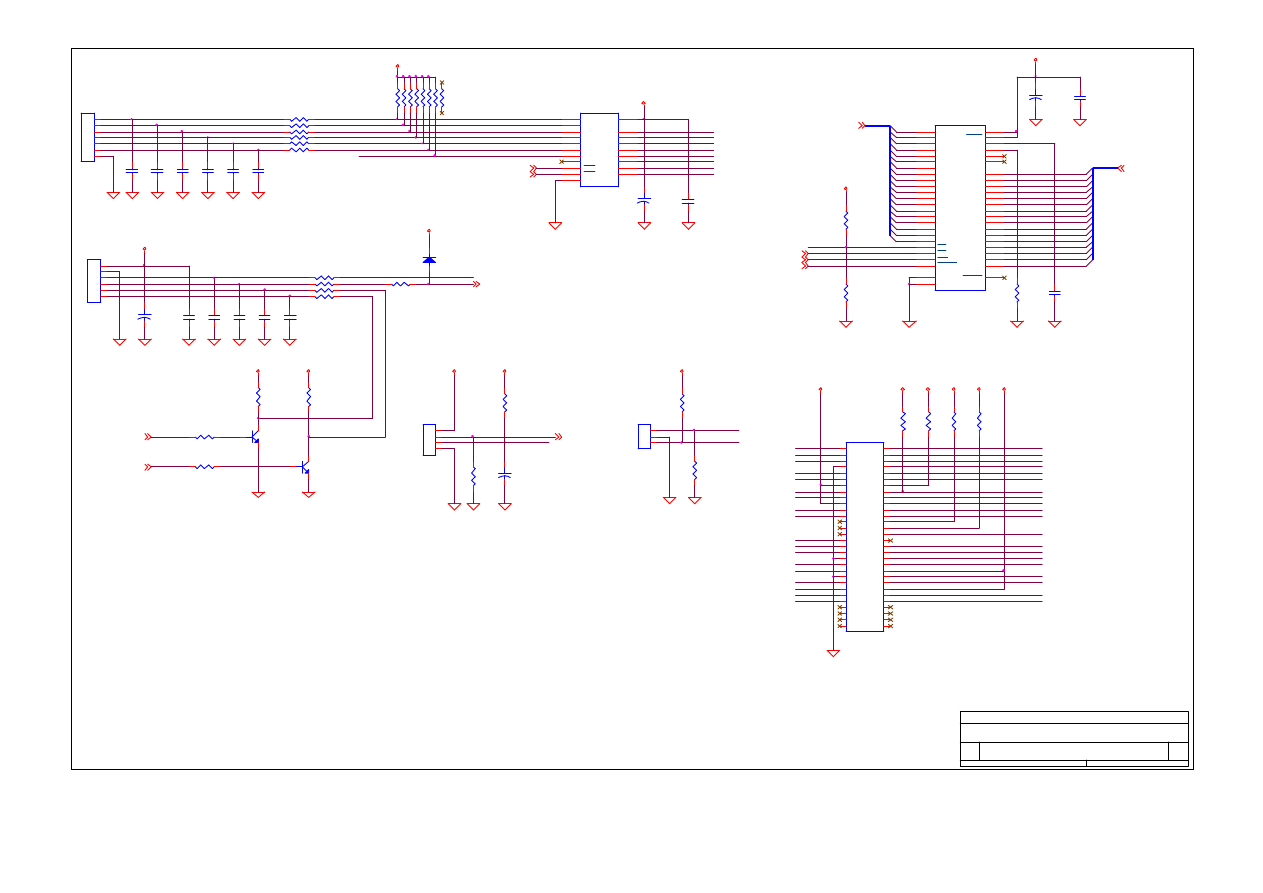

background image

32

MEMORY & CONTROL

S4

HD772DT

Custom

5

7

Friday, July 11, 2003

Title

Size

Document Number

Rev

Date:

Sheet

of

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

5V

GND

5V

GND

5V

3V3S

GND

GND

3V3S

3V3S

GND

GND

GND

GND

3V3S

3V3S

GND

GND

3V3S

3V3S

3V3S

3V3S

3V3S

3V3S

3V3S

GND

GND

3V3S

GND

GND

GND

3V3S

GND

GND

LED_A

4

LED_G

4

IRRCVR

4

RDn

4

CS0n

4

A[1..19]

4

ROMOEn

4

ROMWEn

4

RESETn

4

NMI

4

D[0..15]

4

POWER

D3

AUTO

VOL+

D2

D1

D0

D7

D6

D5

D4

VOL-
CH+
CH-
NEMU

POWER

A2
A4
A6

A9
A11

A12
A14

A17
A19

D15
D14

D5
D4

D3
D2
D9
D8

ROMOEn

ICEn

A18

ROMWEn

A5

A1

A5

A10

A9

A4

D0

A3

A10

A8

D12

A16

D11

D13

A17

A16

A7

A2

D10

A15

D1

A14

A8

A13

A6

D6

A3

A19

A18

A11

A7

A1

A13

A15

A12

D7

RESETn

ICEn

FCEn

FCEn

D11

D8

D2

D10

D4

D1

D13

D12

D5

D9

D0

D15

D6

D14

D7

D3

R114
0R(NC)

C155
104

+

C154
100U/10V

J7

SENSOR

1
2
3
4
5
6

J6

CONTROL

1
2
3
4
5
6
7

U18

74LVC541A

20

2
3
4
5
6
7
8
9
1

19
10

18
17
16
15
14
13
12
11

VCC

A1
A2
A3
A4
A5
A6
A7
A8
OE1
OE2
GND

Y1
Y2
Y3
Y4
Y5
Y6
Y7
Y8

J10

1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39
41
43
45
47
49

2
4
6
8

10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50

51

52

53

54

55

56

57

58

59

60

U19

HY29LV800

25
24
23
22
21
20
19
18

8
7
6
5
4
3
2
1

48
17
16
26
28
11
12

47

37

29
31
33
35
38
40
42
44
30
32
34
36
39
41
43
45

27
46

15

13
14
9
10

A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
CE
OE
WE
RESET

BYTE

VCC

D0
D1
D2
D3
D4
D5
D6
D7
D8
D9

D10
D11
D12
D13
D14
D15

GND
GND

RY/BY

NC
NC
NC
NC

C149
22P

C148
22P

C162
22P

C161
22P

C160
22P

C159
22P

C153
22P

C152
22P

R105
220

C151
22P

C150
22P

RP19
33RP

1
2
3
4

5

6

7

8

RP16
33RP

1
2
3
4

5

6

7

8

R91

33R

R89

33R

R104
220

R107
100K

J9

CON3(NC)

1
2
3

J8

CON4(NC)

1
2
3
4

R106
10K

R101

1K

R115
2.2K

+

C163
10U/16V

R113

1K

R112

1K

R103
100K(NC)

+

C157
100U/10V

C158
104

R100
2.2K

R102
100K

D7
1N4148(NC)

R108
3.3K

RP17
4.7KRP

1

2

3

4

5

6

7

8

RP18
4.7KRP

1

2

3

4

5

6

7

8

R111
3.3K

R110
3.3K

R109
3.3K

+

C146
100U/10V

C147
104

C156
104(NC)

Q11
3904

1

2

3

Q10
3904

1

2

3

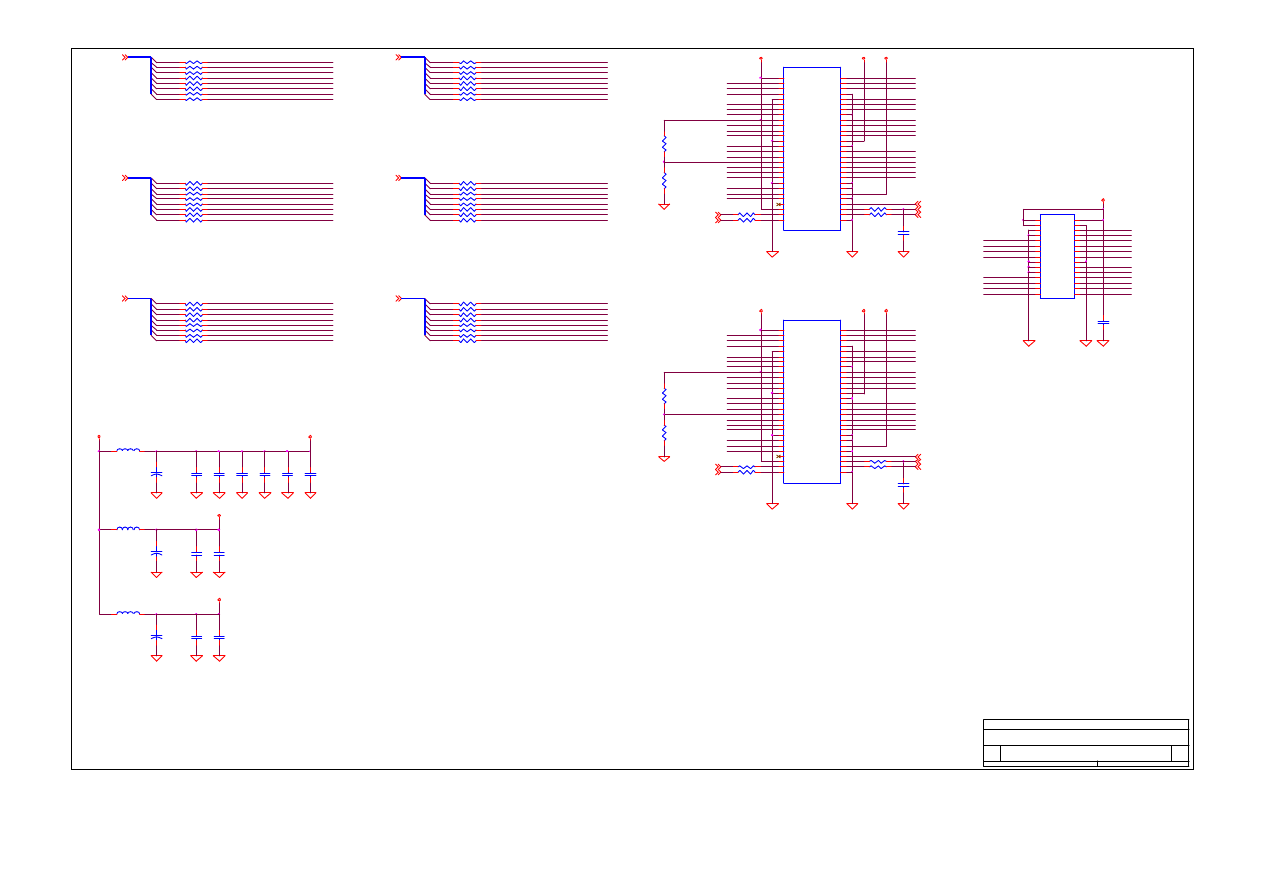

background image

33

LVDS

S4

HD772DT

Custom

6

7

Friday, July 11, 2003

Title

Size

Document Number

Rev

Date:

Sheet

of

3V3

GND

GND

GND

GND

GND

GND

3V3L1

3V3L2

3V3L3

3V3L1

GND

GND

GND

3V3L2

3V3L3

GND

GND

GND

GND

GND

GND

GND

GND

3V3L3

3V3L1

GND

GND

GND

GND

3V3L2

GND

GND

LCD_VCC

GND

DGE[0..7]

4

DBE[0..7]

4

DRO[0..7]

4

DGO[0..7]

4

DBO[0..7]

4

LVDSON

4

DCLK

4

DEN

4

DHS

4

DVS

4

LVDSON

4

DVS

4

DHS

4

DCLK

4

DEN

4

DRE[0..7]

4

RE0

RE6

RE1
RE2
RE3
RE4
RE5

RE7

DRE0
DRE1
DRE2
DRE3
DRE4
DRE5
DRE6
DRE7

GE3

GE2

GE4

DGE2

GE5

DGE5

GE1

DGE7

DGE4

DGE0

GE6

DGE6

DGE1

GE0

DGE3

GE7

BE5

BE3

DBE2

DBE5

BE1

BE6

DBE7

DBE4

DBE0

DBE6

DBE1

DBE3

BE7

BE4

BE0

BE2

DRO2

RO5

DRO5

RO1

RO6

DRO7

DRO4

RO3

DRO0

RO7

DRO6

DRO1

RO0

DRO3

RO4

RO2

GO5

GO3

GO2

DGO2

DGO5

GO6

DGO7

DGO4

DGO0

DGO6

DGO1

DGO3

GO7

GO4

GO0
GO1

BO2

BO4

DBO2

BO5

DBO5

BO6

DBO7

DBO4

BO3

DBO0

DBO6

DBO1

DBO3

BO7

BO0
BO1

RE7
RE5
GE0

GE1
GE2
GE6

GE7
GE3
GE4

GE5
BE0
BE6

BE7
BE1
BE2

BE3
BE4
BE5

RE4
RE3
RE2

RE1
RE0
RE6

RXE0-
RXE0+
RXE1-
RXE1+

RXE2-
RXE2+
RXECLK-
RXECLK+
RXE3-
RXE3+

RO1

GO4

GO6

GO7

RXO1-

BO7

GO5

BO6

RXO0-

RXO3-

BO2

GO1

BO0

GO2

BO3

RO7

RO3

RXO1+

RO6

BO5

RO5

RXO0+

RXOCLK-

RXO2-

BO4

GO0

RO0

RXOCLK+

BO1

RO2

GO3

RXO3+

RXO2+

RO4

RXE2-
RXE2+
RXECLK-
RXECLK+
RXE3-
RXE3+

RXO0-
RXO0+
RXO1-
RXO1+
RXO2+
RXO2-

RXE1+
RXE1-
RXE0+
RXE0-

RXO3+
RXO3-
RXOCLK+
RXOCLK-

RP11
33RP

1
2
3
4

5

6

7

8

RP13
33RP

1
2
3
4

5

6

7

8

RP4
33RP

1
2
3
4

5

6

7

8

R127

33R

C172
104

R126

33R

C171
104

C170
104

C169
104

C168
104

RP6
33RP

1
2
3
4

5

6

7

8

R125

33R

R123
0R

R122
4.7K(NC)

C173
22P(NC)

RP8
33RP

1
2
3
4

5

6

7

8

R124

33R

U21

SN75LVDS83

1
2
3
4
5
6
7
8
9

10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

VCC
D5
D6
D7
GND
D8
D9
D10
VCC
D11
D12
D13
GND
D14
D15
D16
CLKSEL
D17
D18
D19
GND
D20
D21
D22
D23
VCC
D24
D25

GND

D26

CLKIN

SHTDN

PLLGND

PLLVCC

PLLGND

LVDSGND

Y3P

Y3M

CLKOUTP

CLKOUTM

Y2P

Y2M

LVDSGND

LVDSVCC

Y1P

Y1M

Y0P

Y0M

LVDSGND

D27

D0

D1

GND

D2

D3

D4

RP10
33RP

1
2
3
4

5

6

7

8

R116
4.7K(NC)

R117
0R

U20

SN75LVDS83

1
2
3
4
5
6
7
8
9

10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

VCC
D5
D6
D7
GND
D8
D9
D10
VCC
D11
D12
D13
GND
D14
D15
D16
CLKSEL
D17
D18
D19
GND
D20
D21
D22
D23
VCC
D24
D25

GND

D26

CLKIN

SHTDN

PLLGND

PLLVCC

PLLGND

LVDSGND

Y3P

Y3M

CLKOUTP

CLKOUTM

Y2P

Y2M

LVDSGND

LVDSVCC

Y1P

Y1M

Y0P

Y0M

LVDSGND

D27

D0

D1

GND

D2

D3

D4

RP3
33RP

1
2
3
4

5

6

7

8

R121

33R

R119

33R

C165
104

R120

33R

R118

33R

J11

1
3
5
7
9
11
13
15
17
19
21
23
25

2
4
6
8

10
12
14
16
18
20
22
24
26

27

28

29

30

RP5
33RP

1
2
3
4

5

6

7

8

RP12
33RP

1
2
3
4

5

6

7

8

RP14
33RP

1
2
3
4

5

6

7

8

C182
104

C177
104

+

C166
100U/10V

C167
104

L36
BEAD_60R

C175
104

+

C174
100U/10V

L37
BEAD_60R

+

C179
100U/10V

L38
BEAD_60R

C180
104

C164
22P(NC)

RP7
33RP

1
2
3
4

5

6

7

8

RP9
33RP

1
2
3
4

5

6

7

8

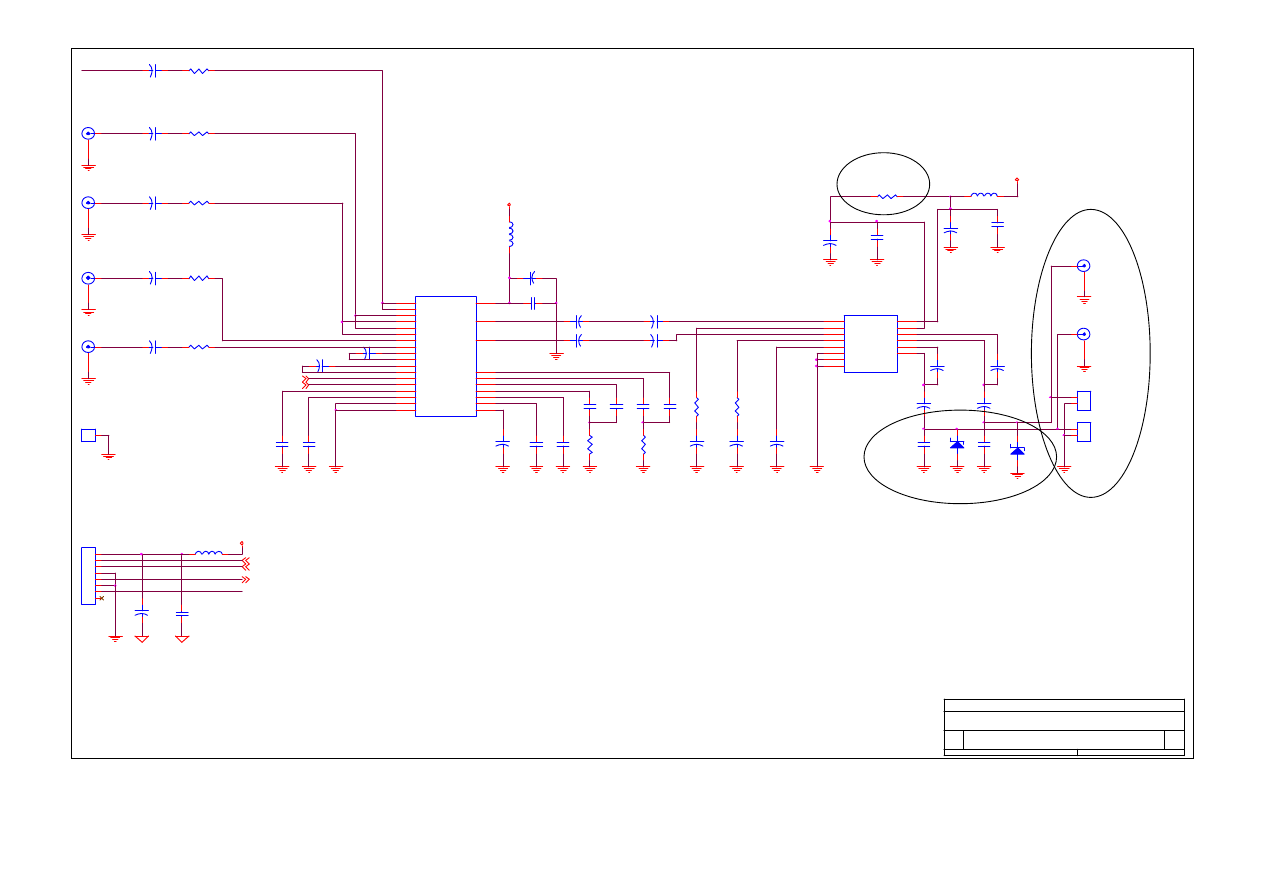

background image

34

AUDIO

S4

HD772DT

Custom

7

7

Friday, July 11, 2003

Title

Size

Document Number

Rev

Date:

Sheet

of

SGND

SGND

SGND

SGND

9V

TUNER-5V

GND

GND

GND

SGND

SGND

SGND

SGND

SGND

SGND

SGND

SGND

SGND

SGND

SGND

SGND

SGND

SGND

9V

SGND

SGND

SGND

SGND

SGND

SGND

SGND

SGND

SGND

SGND

SGND

SGND

SGND

TV

2

SCL1

4

SDA1

4

SCL

2,4

SDA

2,4

MXIN

MXIN

R-OUT

L-OUT

AUDIO-R

AUDIO-L

PC-R

PC-L

R129
2.2K

+

C186
2.2U/25V

+

C185
2.2U/25V

R131
2.2K

+

C191
2.2U/25V

C197
105

C195
105

+

C184
2.2U/25V

+

C198
2.2U/25V

U23

TA8227P

12
1
3
2
10
11

13
14

4

6
5
7
8
9

VCC1
VCC2

B.S.1

OUT1

B.S.2

OUT2

FIN1
FIN2

GND

IN1
NF1
IN2
NF2
RIPPLE

R27
2.2K

R26
2.2K

+

C210
47U/25V

R128
2.2K

R133
2.2K

R132
2.2K

R138
0R

C213
272

C214
272

R135
510

+

C199

2.2U/25V

+

C211
47U/25V

+

C200

2.2U/25V

+

C212
47U/25V

+

C209
22U/16V

+

C219
100U/10V

C224
NC

R154
0R

C220
104

L41
BEAD_60R

C216
104

C215
104

CN5

TUNER-8P

1
2
3
4
5
6
7
8

C205
104

R136
5.6K

C206
104

R152
0R

+

C201
100U/10V

C190
NC

C207
104

C217
334

+

C203
470U/25V

R137
5.6K

C218
334

+

C204
470U/25V

+

C202
100U/10V

C193
104

R134
510

C208
104

C189
NC

R130
0R

CN4

AMP_2P

1
2

CN3

AMP_2P

1
2

J15

RCA_W

1

2

3

J13

RCA_R

1

2

3

U22

PT2314

1

2

3

4

11
16
10
15

9

14

8

13

5
6

17
18

25

26
27

28

24

23

7
12

21
22
19
20

VDD

AGND

TREB_L

TREB_R

RIN1
LIN1
RIN2
LIN2
RIN3
LIN3
RIN4
LIN4
RIN
ROUT
LIN
LOUT

DGND

SDA
SCL

REF

OUT_L

OUT_R

LOUD_R

LOUD_L

BIN_R

BOUT_R

BIN_L

BOUT_L

+

C222
2.2U/25V

+

C192
100U/10V

+

C35
2.2U/25V

L39
BEAD_60R

J12
RCA_R

1

2

3

L40
BEAD_60R

J17
RCA_W

1

2

3

J16
RCA_R

1

2

3

J14
RCA_W

1

2

3

C188
104

+

C187
100U/10V

C223
NC

R156

0R

R155
0R

+

C194
10U/16V

+

C196
10U/16V

C226
NC

C225
NC

7/11

新 增 EMI

LC

電 路

7/11

新 增 EMI

LC

電 路

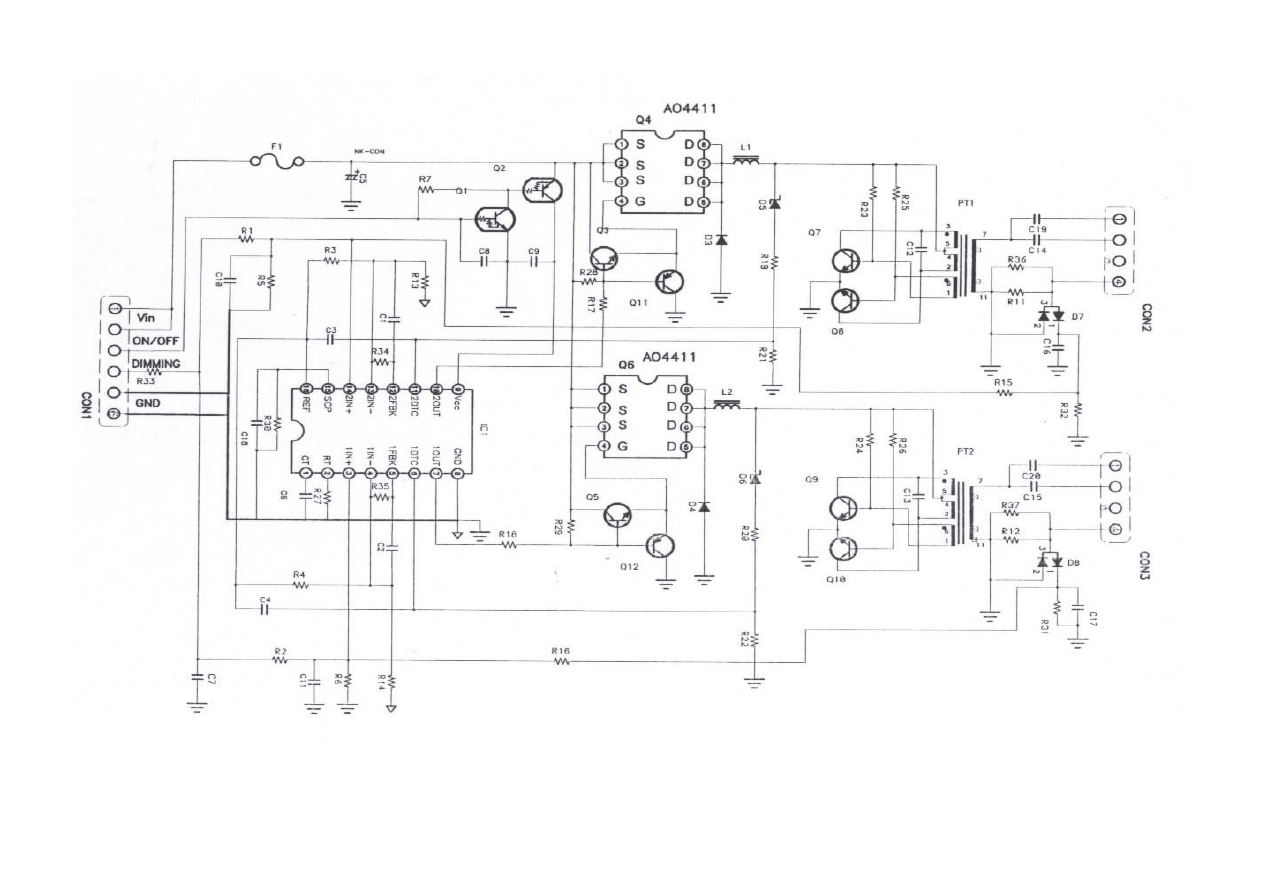

background image

35

Inverter

background image

36

POWER

A

200-100-HD572V-A

Custom

1

7

Thursday, February 06, 2003

Title

Size

Document Number

Rev

Date:

Sheet

of

PGND

PGND

PGND

GND

GND

GND

GND

GND

12VIN

PGND

12VIN

12VIN

GND

5V

PGND

5V

5V

GND

GND

GND

GND

GND

GND

GND

GND

GND

12VIN

GND

GND

GND

GND

GND

5V

3V3

GND

GND

GND

GND

VCC

2V5

GND

3V3

5V

GND

GND

GND

GND

5V

GND

GND

GND

5V

12VIN

GND

GND

GND

VCC

GND

GND

GND

GND

GND

9V

GND

3V3A

GND

GND

GND

GND

VCC

GND

GND

GND

12V

SGND

DGND

12V

GND

GND

12VIN

DGND

BRI_ADJ

5

BRI_ON_OFF

5

LCD_VCC

6

PSC0

5

PSC1

5

L61
BEAD_60R

L60
BEAD_60R

R12
22K

L12
BEAD_80R

+

C35
100U/16V

R21
330

C37
104

C29
104

C10
220P

C9
104

L1
BEAD_80R

+

C5
330U/16V

C32
104

R20
100

R17
22K

R5
10M

R9
2K/1%

U4

AIC1578

1
2
3
4

5

6

7

8

VIN
DUTY
SHDN
FB

GND

DRI

CS-

CS+

Q2
AO3400

L9
BEAD_80R

L8
BEAD_80R

+

C26
330U/16V

CN1

INVERTER_6P

1
2
3
4
5
6

12V
12V
BRI_ON/OFF
BRI_ADJ
GND
GND

R127
0R(NC)

R4
330

R10
330

R8
6.2K/1%

R18
2K

R2
NC

R7
2K

R14
10K

Q3
3904

1

2

3

U3

SI9435DY

1
2
3
4

5

6

7

8

S
S
S
G

D

D

D

D

Q1
3904

1

2

3

R16
100K

C33
104

H2

1

R3
4.7K

C15
104

R23
2K

+

C14
10U/16V

+

C27
100U/16V

D1
1N5820

C28
104

L10
BEAD_80R

L4
BEAD_60R

R13
330

+

C30
100U/16V

C31
104

R24
2K

C19
104

L5
33UH-CK

+

C18
1000U/6.3V

C2
104

U1
AIC1084

1

3

2

GND

VIN

VOUT

Q6
3904

1

2

3

R11
10K

C21
103

L6
BEAD_60R

C20
104

R1
330

C3
104

+

C1
330U/16V

L7
BEAD_60R

U5
AIC1732

2

1

3

VIN

GND

VOUT

+

C22
100U/16V

C24
104

R6
0.02R/5W

L11
BEAD_80R

Q5
3904

1

2

3

C17
104

Q4
3904

1

2

3

+

C16
10U/16V

C36
104

+

C34
100U/16V

R22
10K

R19
2K

U6

AO4801

1
2
3
4

5

6

7

8

S1
G1
S2
G2 D2

D2

D1

D1

U2
G950T63U

1

3

2

GND

VIN

VOUT

C12
104

U7
7809

I

O

G

IN

OUT

GND

+

C11
100U/16V

J1
DC-JACK

1

2

C13
104

C6
104

F1
5A

+

C4
470U/25V

C7
103

+

C23
47U/25V

L2
BEAD_80R

C25
104

L3
BEAD_80R

C8
104

R15
100

PICH 2.0mm

11/6

修 改

11/6

修 改

11/6

修 改

background image

37

SAA7114

A

200-100-HD572V-A

Custom

2

7

Thursday, February 06, 2003

Title

Size

Document Number

Rev

Date:

Sheet

of

3V3A

3V3A1

3V3A1

3V3A1

3V3A3

3V3A2

3V3A1

3V3A1

3V3A3

3V3A1

GND

GND

GND

GND

GND

GND

GND

GND

3V3A2

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

AGND

GND

GND

GND

GND

GND

GND

GND

GND

SGND

SGND

SGND

SGND

SGND

SGND

SGND

SGND

SGND

SGND

MCU_SCL

5,7

MCU_SDA

5,7

MX2

5

VCLK01

3,4

AVOUT_EN

5

12MHZ

3

TV

7

BIN[0..3]

3,4

GIN[0..7]

3,4

RIN[0..7]

3,4

AV_H

5

RIN0

RIN3

RIN2

RIN1

RIN7

RIN6

RIN5

RIN4

GIN4
GIN5
GIN6
GIN7

GIN0

GIN2

GIN1

GIN3

AV1_H

AV1_CLK

AV1_H_B

BIN0
BIN2
BIN1
BIN3

AV1_CLK

2Y1

2Y1

AV1_H_B

OUTCLK

AV1_H

OUTCLK

S-Y

S-C

AV1_F

AV1_V

AV_V

AV1_V

AV_V

+

C73
100U/16V

C51
104

R31
22R

C47
10P

L15
BEAD_60R

C74
104

C46
10P

C53
10P

R41
0R(NC)

R36
22R

C52
10P

R25
22R

C50
104

C39
10P

C38
10P

R38
3.3K

C65
NC

R44
100

C48
22P

C49
22P

Y1
24.576M

R143

0R

R137
0R(NC)

R142

NC(0R)

R42
33R

R40
33R

R37
1K

RP5

33RP

1
2
3
4

5

6

7

8

U9

74LV14

1
3
5
9

11
13

7

2
4
6

14

8
10
12

1A
2A
3A
4A
5A
6A
GND

1Y
2Y
3Y

VCC

4Y
5Y
6Y

C45

104

R30

18R

C44

104

R29

18R

C41

104

R28

18R

C40

104

R26

18R

U10

74LV125

1
2
4
5

10

9

13
12

7

14

3

6

8

11

1OE
1A
2OE
2A
3OE
3A
4OE
4A
GND

VCC

1Y

2Y

3Y

4Y

+

C54
100U/16V

L13
BEAD_60R

RP1
33RP

1
2
3
4

5

6

7

8

C55
104

C66
104

C57
104

C56
104

+

C68
100U/16V

L14
BEAD_60R

C71
104

C70
104

C69
104

C61
104

R32
56R

C60
104

R35
56R

C59
104

R34
56R

C58
104

R33
56R

C64
104

C63
104

C62
104

R39
22R

C67
100P(NC)

R45
0R

RP4
33RP

1
2
3
4

5

6

7

8

RP3
33RP

1
2
3
4

5

6

7

8

RP2
33RP

1
2
3
4

5

6

7

8

C72

104

J2
RCA_Y

1

2

U8

SAA7114

1
2
3
4
5
6
7
8
9

10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

97

98

99

100

VDDD(EP1)
TDO
TDI
XTOUT
VSS(XTAL)
XTALO
XTALI
VDD(XTAL)
VSSA2
AI24
VDDA2
AI23
AI2D
AI22
VSSA1
AI21
VDDA1
AI12
AI1D
AI11
AGND
AOUT
VDDA0
VSSA0
VDDD(EP2)

VSSD(EP1)

CE

LLC

LLC2

RES

SCL

SDA

VDDD(ICO1)

RTS0

RTS1

RTCO

AMCLK

VSSD(ICO1)

ASCLK

ALRCLK

AMXCLK

ITRDY

VDDD(ICO2)

TEST0

ICLK

IDQ

ITRI

IGP0

IGP1

VSSD(EP2)

VDDD(EP3)

IGPV

IGPH

IPD7

IPD6

IPD5

IPD4

VDDD(ICO3)

IPD3

IPD2

IPD1

IPD0

VSSD(ICO2)

HPD7

HPD6

HPD5

HPD4

VDDD(ICO4)

HPD3

HPD2

HPD1

HPD0

TEST1

TEST2

VDDD(EP4)

VSSD(EP3)

TEST3

TEST4

TEST5

XTRI

XPD7

XPD6

VDDD(ICO5)

XPD5

XPD4

XPD3

XPD2

VSSD(ICO3)

XPD1

XPD0

XRV

XRH

VDDD(ICO6)

XCLK

XDQ

XRDY

TRST

TCK

TMS

VSSD(EP4)

R43
0R(NC)

C43
10P

C42
10P

R27
22R

R131
0R

J3

S-VIDEO

1

2

3

4

8 /21

修改

8/21

修改

11/6

修 改

1 2

月6 日修改

1 2

月6 日修改

1 2

月6 日修改

background image

38

AUDIO

S4

HD772DT

Custom

7

7

Friday, July 11, 2003

Title

Size

Document Number

Rev

Date:

Sheet

of

SGND

SGND

SGND

SGND

9V

TUNER-5V

GND

GND

GND

SGND

SGND

SGND

SGND

SGND

SGND

SGND

SGND

SGND

SGND

SGND

SGND

SGND

SGND

9V

SGND

SGND

SGND

SGND

SGND

SGND

SGND

SGND

SGND

SGND

SGND

SGND

SGND

TV

2

SCL1

4

SDA1

4

SCL

2,4

SDA

2,4

MXIN

MXIN

R-OUT

L-OUT

AUDIO-R

AUDIO-L

PC-R

PC-L

R129
2.2K

+

C186
2.2U/25V

+

C185
2.2U/25V

R131
2.2K

+

C191
2.2U/25V

C197
105

C195
105

+

C184
2.2U/25V

+

C198
2.2U/25V

U23

TA8227P

12
1
3
2
10
11

13
14

4

6
5
7
8
9

VCC1
VCC2

B.S.1

OUT1

B.S.2

OUT2

FIN1
FIN2

GND

IN1
NF1
IN2
NF2
RIPPLE

R27
2.2K

R26
2.2K

+

C210
47U/25V

R128
2.2K

R133
2.2K

R132
2.2K

R138
0R

C213
272

C214
272

R135
510

+

C199

2.2U/25V

+

C211
47U/25V

+

C200

2.2U/25V

+

C212
47U/25V

+

C209
22U/16V

+

C219
100U/10V

C224
NC

R154
0R

C220
104

L41
BEAD_60R

C216
104

C215
104

CN5

TUNER-8P

1
2
3
4
5
6
7
8

C205
104

R136
5.6K

C206
104

R152
0R

+

C201
100U/10V

C190
NC

C207
104

C217
334

+

C203
470U/25V

R137
5.6K

C218
334

+

C204
470U/25V

+

C202
100U/10V

C193
104

R134
510

C208
104

C189
NC

R130
0R

CN4

AMP_2P

1
2

CN3

AMP_2P

1
2

J15

RCA_W

1

2

3

J13

RCA_R

1

2

3

U22

PT2314

1

2

3

4

11
16
10
15

9

14

8

13

5
6

17
18

25

26
27

28

24

23

7
12

21
22
19
20

VDD

AGND

TREB_L

TREB_R

RIN1
LIN1
RIN2
LIN2
RIN3
LIN3
RIN4
LIN4
RIN
ROUT
LIN
LOUT

DGND

SDA
SCL

REF

OUT_L

OUT_R

LOUD_R

LOUD_L

BIN_R

BOUT_R

BIN_L

BOUT_L

+

C222
2.2U/25V

+

C192
100U/10V

+

C35
2.2U/25V

L39
BEAD_60R

J12
RCA_R

1

2

3

L40
BEAD_60R

J17
RCA_W

1

2

3

J16
RCA_R

1

2

3

J14
RCA_W

1

2

3

C188
104

+

C187
100U/10V

C223
NC

R156

0R

R155
0R

+

C194
10U/16V

+

C196
10U/16V

C226
NC

C225
NC

7/11

新 增 EMI

LC

電 路

7/11

新 增 EMI

LC

電 路

background image

39

SI151

A

200-100-HD572V-A

Custom

4

7

Thursday, February 06, 2003

Title

Size

Document Number

Rev

Date:

Sheet

of

P3_3V

O3_3V

A3_3V

D3_3V

D3_3V

O3_3V

D3_3V

3V3

O3_3V

D3_3V

A3_3V

3V3

P3_3V

3V3

3V3

A3_3V

O3_3V

O3_3V

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

5V

GND

3V3

RIN[0..7]

2,3

PD

5

HS_STV

5

BIN[4..7]

3

VCLK01

2,3

BIN[0..3]

2,3

GIN[0..7]

2,3

PDO

5

VS_STV

5

DE_STV

3

SCDT

5

DVI_LINK

5

RX_D0+

GIN0

RIN[0..7]

RX_D0-

D_DDC_SCL

BIN5
BIN4

GIN[0..7]

RIN2

D_DDC_SCL

RX_D2+

RX_CLK-

GIN6

RIN1

BIN2

BIN6

RX_D1+

RIN7

GIN3

BIN1

RX_D1+

D_DDC_5V

RX_D2+

GIN1

RX_D2-

BIN[0..3]

RIN4

GIN5

RIN3

D_DDC_5V

GIN7

RX_CLK+

RX_D1-

GIN2

RIN0

RX_D0-

BIN3

RIN6

RX_D2-

RIN5

BIN0

D_DDC_SDA

RX_D1-

BIN7

BIN[4..7]

RX_CLK-

RX_CLK+

RX_D0+

GIN4

D_DDC_SDA

D_DDC_5V

R128
150

D8

DAN202U

3

2

1

ZD5
5.1V

1

2

R84
0R

C149
104

RP7

33RP

1
2
3
4

5

6

7

8

C157
104

RP12
33RP

1
2
3
4

5

6

7

8

C159
22U/16V

C151
104

C142
104

C150
22U/16V

C156
104

RP8

33RP

1
2
3
4

5

6

7

8

RP9

33RP

1
2
3
4

5

6

7

8

L30
BEAD_60R

R140

10K

R80
100

L29
BEAD_60R

24LC21

U16

1

2

3

4

5

6

7

8

A0

A1

A2

VSS

SDA

SCL

WP

VDD

C160
104

R83

510

R141
10K

Q10
3904

1

2

3

U15

SI151

77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99

100

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

76

QO23
OVCC
AGND
RX2+
RX2-
AVCC
AGND
AVCC
RX1+
RX1-
AGND
AVCC
AGND
RX0+
RX0-
AGND
RXC+
RXC-
AVCC
EXT_RES
PVCC
PGND
RESERVED
OCK_INV

DFO

PD

ST

PIXS

GND

VCC

STAG_OUT

SCDT

PDO

QE0

QE1

QE2

QE3

QE4

QE5

QE6

QE7

OVCC

OGND

QE8

QE9

QE10

QE11

QE12

QE13

QE14

QE15

OGND

OVCC

QE16

QE17

QE18

QE19

QE20

QE21

QE22

QE23

VCC

GND

CTL1

CTL2

CTL3

OVCC

ODCK_O_CLK

OGND

DE

VSYNC

HSYNC

QO0

QO1

QO2

QO3

QO4

QO5

QO6

QO7

OVCC

OGND

QO8

QO9

QO10

QO11

QO12

QO13

QO14

QO15

VCC

GND

QO16

QO17

QO18

QO19

QO20

QO21

QO22

OGND

R85
NC

C148
104

C145

104

RP10

33RP

1
2
3
4

5

6

7

8

R77

0R

C144
100P

C141
100P

R78

0R

C154
22U/16V

RP11

33RP

1
2
3
4

5

6

7

8

C158
104

C140

10P

CN4
DVI

1
2
3
4
5
6
7
8
9

10

15
16
17
18
19
20
21
22
23
24

11
12
13
14

25
26
27
28

TMDS D2-
TMDS D2+
TMDS D2/4 SH
TMDS D4-
TMDS D4+
DDC CLK
DDC DATA
A_V_SYNC
TMDS D1-
TMDS D1+

GND

H_P_DETECT

TMDS D0-

TMDS D0+

TMDS D0/5 SH

TMDS D5-

TMDS D5+

TMDS CLK_SH

TMDS CLK+

TMDS CLK-

TMDS D1/3 SH
TMDS D3-
TMDS D3+
+5V

C1
C2
C3
C4

C143
10U/16V

ZD6
5.1V

1

2

C147
104

C161
22U/16V

C153
104

C155

104

C152
104

L31
BEAD_60R

C146
104

L32
BEAD_60R

R82
100

C244
104

C243
104

C242
104

11/5

修 改

11/5

修 改

11/5

修 改

background image

40

MCU

A

200-100-HD572V-A

C

5

7

Thursday, February 06, 2003

Title

Size

Document Number

Rev

Date:

Sheet

of

3V3_MCU

3V3

3V3_MCU

5V

5V

3V3

5V

3V3_MCU

3V3_MCU

3V3_MCU

3V3

3V3_MCU

3V3

3V3_MCU

3V3_MCU

5V

3V3_MCU

5V

3V3_MCU

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

DDC_5V

3

HS_VGA

3

HS_STV

4

VS_VGA

3

VS_STV

4

ISP_SDA

3

PSC1

1

HS_OUT

3

VS_OUT

3

ADC_PWDN

3

OSD_EN

3

OSD_B

3

MX2

2

ASIC_RESET

3

OSD_R

3

OSD_G

3

V_IN

3

ISP_SCL

3

OSD_CLK

3

BRI_ADJ

1

ASIC_SDA

3

PSC0

1

PD

4

BRI_ON_OFF

1

ASIC_SCL

3

ADC_SDA

3

MCU_SCL

2,7

MCU_SDA

2,7

PLL1_PD

3

AVOUT_EN

2

PDO

4

SCDT

4

LVDS_PD

6

PLL_H

3

HSYNC_X

3

AV_H

2

AVOUT_EN

2

VGA_LINK

3

DVI_LINK

4

SOFT_START

AMBER

A

GRN

G

HS_TO_MCU
VS_TO_MCU

GRN

HS_TO_MCU

VS_TO_MCU

AMBER

SYNC_SEL

SOFT_START

CLT_2

CLT_1

SYNC_SEL

MCU_SCL

CLT_1

CLT_2

IR_OUT

MCU_SDA

A

IR_OUT

G

IR_VCC

CN6

POWER_BOARD_6P

3

2

1

4

6

5

PW_ON_OFF

GND

5V

REMOTE

GRN

AMB

CN5

CONTROL_BOARD_7P

1
2
3
4
5
6
7

VOL+
VOL-
CH+
CH-
MENU
SOURCE_SEL
GND

RP14
4.7KRP

1

8

7

6

5

2

3

4

C176
104

L33
BEAD_80R

C169
47U/25V(NC)

L34
BEAD_60R(NC)

C181
22P

C180
22P

C179
22P

C178
22P

C171
104(NC)

R103
4.7K

C170
104(NC)

L35

BEAD_60R

R136

100

R135

100

L36

BEAD_60R

C182
22P

L38

BEAD_60R

L37

BEAD_60R

L46
BEAD_60R

L39

BEAD_60R

R101
4.7K

R102
4.7K

R112
220

R111
220

C232
22P

C231
22P

C230
22P

R98
4.7K

R99
4.7K

R87

4.7K

R115

1K

R114

1K

R88

4.7K

L49

BEAD_60R

L48

BEAD_60R

L47

BEAD_60R

C163
104

R86

1K

RP15
4.7KRP

1

8

7

6

5

2

3

4

C162
47U/25V

C165
22P

U18

SM0230

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

ROUT

XIN

OSDHS

OSDVS

P4.7/VBLANK

P4.6/HBLANK

X1

X2

P4.5

P4.4

P4.3

P4.2

P4.1/VSYNC

P4.0/HSYNC

P3.0/Rxd/HSCL

P3.1/Txd/HSDA

P3.2/INT0

VDD

RST

VSS

P3.4/T0

P3.5/T1

P6.0/ISCL

P6.1/ISDA

P1.0

P1.1

P1.2

P1.3

P1.4

P1.5

P1.6

P1.7

P5.0/AD0

P5.1/AD1

P5.2/AD2

P5.3/AD3

P5.4/DA0

P5.5/DA1

P5.6/DA2

P5.7/DA3

INT/P6.2

FBKG

BOUT

GOUT

R95

10K

R91

33R

C167
105

C164
220P

Y2
11.059M

1

2

RP17
4.7KRP

1

8

7

6

5

2

3

4

R96

10K

RP13
4.7KRP

1

8

7

6

5

2

3

4

R94

10K

C173
22p

R92

100

C174
22P

R90

33R

C177
22P

R93
1K

L40

BEAD_60R

C166
22P(NC)

C175
104

D7

1N4148

R100
1M

R105
10K

C168
104

RP16

4.7KRP

1

8

7

6

5

2

3

4

U19

24LC16

1

2

3

4

5

6

7

8

A0

A1

A2

VSS

SDA

SCL

WP

VDD

R89
1k

R104
1K

Q7
3904

1

2

3

D6
1N4148

R97
150

R116
47R

C185
100U/16V(NC)

C184
104

C172
104

R110

4.7K

R108

2.2K

R106

4.7K

U20

74LV4053

16

6
7
8

12
13
2
1
5
3

11

10

9

14
15
4

VCC

E
VEE
GND

1Y0
1Y1
2Y0
2Y1
3Y0
3Y1

S1

S2

S3

1Z
2Z
3Z

R113

2.2K

R109

33R

R107

33R

C183
22P

L41

BEAD_60R

U17
AIC1732(NC)

2

1

3

VIN

GND

VOUT

Q9
3904

1

2

3

Q8
3904

1

2

3

PICH_1.5mm

PICH_1.5mm

11/5

修改

11/6

修改

11/6

修改

SMD

background image

41

PANEL

A

200-100-HD572V-A

Custom

6

7

Thursday, February 06, 2003

Title

Size

Document Number

Rev

Date:

Sheet

of

3V3

3V3L1

3V3L2

3V3L1

3V3L2

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

LCD_VCC

1

LCD_VCC

1

LCD_HS

3

LCD_DE

3

LCD_CLK

3

BE[0..7]

3

LCD_VS

3

BO[0..7]

3

RO[0..7]

3

RE[0..7]

3

GO[0..7]

3

GE[0..7]

3

LCD_VS

3

LCD_CLK

3

LCD_HS

3

LCD_DE

3

LVDS_PD

5

LCD_VCC

1

GA1

LCD_HS

GA0

BA7

GB6

BE5

RA7

BE0

RA6

GA6

RB1

LCD_VS

GB0

BA4

GB5

BB1

GB1

BB1

GA0

BE6

BB0

RB5

GB4

BA3

RB4

GA3

BA1

BE1

RB6

RA2

BB2

BB5

RA7

BA4

BA3

GA2

RA6

BB6

RA1

RB6

BB3

GA5

RB0

BB2

RA3

RA5

GA4

GB7

BB6

GA5

RB7

BA2

RB5

BB2

RB2

RB3

BB3

GB3

RB0

BB4

RA0

RA1

BB4

RA3

GA4

BB7

BA0

RB1

GA7

GB0

BB1

RB7

RA5

BA0

GB5

BE4

BA5

BA7

LCD_CLK

BA4

LCD_CLK

GA6

RA2

BA5

RA4

GA7

GB3

LCD_DE

BA6

BB7

BA5

BB5

BB4

BA6

BE7

GB6

BE3

RA4

RB3

BA0

GB7

GA3

RA0

BE2

RB2

GB2

GA1

LCD_DE

BA2

BA1

GA2

BB3

GB4

BB0

BB0

GB2

GB1

RB4

BA6

BA1

BO1

BO4

BO5

BB6

BO2

BO3

BO6

BB5

BB7

BO7

BO0

BA3

GO5

GB2

GA1

GA3

GB6

GB7

GO6

GE4

GE7

GE5

GE3

GB5

GO3

GE1

GB4

GA2

GB1

GA0

GO0

GO4

GO1

GE0

GE2

GO7

GB3

GE6

GO2

GB0

RB4

RE5

RE4

RO0

RB0

RO7

RO5

RO3

RO6

RE7

RA1

RB2

RO4

RB5

RE3

RB6

RA2

RB3

RE0

RB1

RO1

RA0

RE2

RE1

RB7

RE6

RO2

RA2

BA4

RA6

GA7

BA7

GA5

RA3

GA6

BA7

BA6

GA4

RA7

BA5

GA5

GA2

RA7

BA2

RA5

BA2

GA4

RA4

RA6

RA3

GA6

GA3

RA4

GA7

BA3

RA5

DIN0-
DIN0+

DIN1-
DIN1+
DIN2-
DIN2+
DCLKIN-

DCLKIN+

DCLKIN+
DCLKIN-

DIN2+
DIN2-

DIN1+
DIN1-

DIN0+
DIN0-

C189
104

LP4

33RP

8

1

7

6

5

4

3

2

LP1

33RP

8

1

7

6

5

4

3

2

CP1
22CP(NC)

1

5

6

8

4

3

2

7

C186

104

LP10

33RP

8

1

7

6

5

4

3

2

LP7

33RP

8

1

7

6

5

4

3

2

CP10
22CP(NC)

1

5

6

8

4

3

2

7

CN15

FI-SEB20P-HF

1
2
3
4
5

6
7
8
9

10

11
12
13
14
15

16
17
18
19
20

GND
GND
NC
NC
GND

CLKIN+
CLKIN-
GND
TC+
TC-

GND
TB+
TB-
GND
TA+

TA-
GND
GND
VDD
VDD

CP7
22CP(NC)

1

5

6

8

4

3

2

7

CP4
22CP(NC)

1

5

6

8

4

3

2

7

C187
104

R134
0R(NC)

C250
104

C248
104

C247
104

C246
104

+

C249
100U/16V

L58
BEAD_60R

LP12

33RP

8

1

7

6

5

4

3

2

CN8
XF2H-4015-1(NC)

30
29

28
27
26
25
24

23
22
21
20
19

18
17
16
15
14

13
12
11
10

9
8

7
6
5
4
3

2
1

31

32

33

34

35

36

37

38

39

40

41

42

CP9
22CP(NC)

1

5

6

8

4

3

2

7

CP3
22CP(NC)

1

5

6

8

4

3

2

7

LP6

33RP

8

1

7

6

5

4

3

2

U23

THC63LVDM63A

44
45
47
48

1

3
4
6
7
9

10
12
13
15
16

18
19
20
22
23
25

2
8
21
29
37

41
40
39
38

35
34
33
32

26
27

46

24

17

11

5

31
36
42
28
30

14
43

TA0
TA1
TA2
TA3
TA4

TA5
TA6
TB0
TB1
TB2

TB3
TB4
TB5
TB6
TC0

TC1
TC2
TC3
TC4
TC5

TC6

VCC
VCC
VCC

PLL_VCC

LVDS_VCC

TA-

TA+

TB-

TB+

TC-

TC+

TCLK-

TCLK+

CLK-IN
PDWN

GND

GND

GND

GND

GND

LVDS_GND
LVDS_GND
LVDS_GND

PLL_GND
PLL_GND

R/F
NC

CP6
22CP(NC)

1

5

6

8

4

3

2

7

CN7
XF2H-4515-1

30
29

28
27
26
25
24

23
22
21
20
19

18
17
16
15
14
13

12
11
10

9
8

7
6
5
4
3

2
1

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

LP9

33RP

8

1

7

6

5

4

3

2

LP3

33RP

8

1

7

6

5

4

3

2

LP11

33RP

8

1

7

6

5

4

3

2

CP8
22CP(NC)

1

5

6

8

4

3

2

7

CP12
22CP(NC)

1

5

6

8

4

3

2

7

CN10
XF2H-3015-1(NC)

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

LP8

33RP

8

1

7

6

5

4

3

2

LP5

33RP

8

1

7

6

5

4

3

2

CP2
22CP(NC)

1

5

6

8

4

3

2

7

CP5
22CP(NC)

1

5

6

8

4

3

2

7

LP2

33RP

8

1

7

6

5

4

3

2

CP11
22CP(NC)

1

5

6

8

4

3

2

7

CN9
XF2H-3015-1

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

+

C190
100U/16V

L57
BEAD_60R

C245
104

LAYOUT

包 裝 修 改

LAYOUT

包 裝 修改

background image

42

AUDIO

A

200-100-HD572V-A

Custom

7

7

Thursday, February 06, 2003

Title

Size

Document Number

Rev

Date:

Sheet

of

SGND

SGND

SGND

SGND

SGND

SGND

SGND

SGND

SGND

SGND

SGND

SGND

9V

SGND

SGND

SGND

VCC

SGND

SGND

SGND

SGND

GND

SGND

SGND

SGND

SGND

SGND

9V

SGND

GND

SGND

SGND

SGND

SGND

SGND

TV

2

MCU_SCL

2,5

MCU_SDA

2,5

MCU_SCL

2,5

MCU_SDA

2,5

AUDIO-L

MXIN

R-OUT

AUDIO-R

MXIN

L-OUT

PC-L

PC-R

J6
RCA_W

1

2

J4
RCA_R

1

2

U21

PT2314

1

2

3

4

11
16
10
15

9

14

8

13

5
6

17
18

25

26
27

28

24

23

7
12

21
22
19
20

VDD

AGND

TREB_L

TREB_R

RIN1
LIN1
RIN2
LIN2
RIN3
LIN3
RIN4
LIN4
RIN
ROUT
LIN
LOUT

DGND

SDA
SCL

REF

OUT_L

OUT_R

LOUD_R

LOUD_L

BIN_R

BOUT_R

BIN_L

BOUT_L

R117
2.2K

CN13

TUNER_8P

1
2
3
4
5
6
7
8

+

C191
2.2U/25V

+

C188
2.2U/25V

R118
2.2K

+

C192
2.2U/25V

+

C200
2.2U/25V

+

C198
2.2U/25V

U22

TA8227P

12
1
3
2
10
11

13
14

4

6
5
7
8
9

VCC1
VCC2

B.S.1

OUT1

B.S.2

OUT2

FIN1
FIN2

GND

IN1
NF1
IN2
NF2
RIPPLE

+

C217
47U/25V

R123
510

R121
2.2K

R120
2.2K

R119
2.2K

H1

1

C220
272

C221
272

R124
510

+

C206

2.2U/25V

+

C218
47U/25V

+

C207

2.2U/25V

+

C219
47U/25V

+

C216
22U/16V

+

C226
100U/16V

C227
104

L44
BEAD_60R

C223
104

C222
104

+

C205
10U/16V

+

C202
10U/16V

C212
104

R125
5.6K

C213
104

+

C208
100U/16V

C214
104

C224
334

+

C210
470U/25V

R126
5.6K

C215
104

C225
334

+

C211
470U/25V

+

C209
100U/16V

CN12

AMP_2P

1
2

CN11

AMP_2P

1
2

J9

RCA_W

1

2

J8

RCA_R

1

2

L43
BEAD_60R

J10
RCA_W

1

2

J7
RCA_R

1

2

C199
104

+

C197
100U/16V

ZD9

5.1V

1

2

ZD8

5.1V

1

2

C195
104

+

C193
100U/16V

L42
BEAD_60R

C196
104

+

C194
100U/16V

R122
0R

+

C201
10U/16V

+

C204
10U/16V

1/30

新 增ZD8,ZD9

1/22

阻 值 修 改

1/22

修改

background image

43

Memu


Wyszukiwarka

Podobne podstrony:
Proview 572 772DT
Proview RA783 LCD Service Manual
Proview PZ456 LCD Service Manual
bourdieu 572 595
572
Proview SH770I LCD Service Manual
Proview AY765 LCD Service Maunal
572
Proview RA583 LCD Service Manual (Xerox)
oswiadczenie sprawcy kolizji drogowej 572
Alber Bandura i teoria uczenia się społecznego r14 572 607
572 20
572
572
572
Proview SH970I LCD Service Manual
572
572 573

więcej podobnych podstron
