© MOTOROLA 2002

This document contains information on a new product. Specifications and information herein are subject to change without notice.

MOTOROLA

SEMICONDUCTOR

TECHNICAL DATA

MC9S12C-FamilyPP

Rev 2.1, 1-Jul-03

MC9S12C-Family

Product Brief

16-Bit Microcontroller

Based on Motorola’s market-leading flash technology, members of the MC9S12C-Family deliver the
power and flexibility of our 16 Bit core (CPU12) family to a whole new range of cost and space sensitive,
general purpose Industrial and Automotive network applications. All MC9S12C-Family members are
comprised of standard on-chip peripherals including a 16-bit central processing unit (CPU12), up to
128K bytes of Flash EEPROM or ROM, up to 4K bytes of RAM, an asynchronous serial communications
interface (SCI), a serial peripheral interface (SPI), an 8-channel 16-bit timer module (TIM), a 6-channel
8-bit Pulse Width Modulator (PWM), an 8-channel, 10-bit analog-to-digital converter (ADC) and a CAN
2.0 A, B software compatible module (MSCAN12). The MC9S12C-Family has full 16-bit data paths
throughout. The inclusion of a PLL circuit allows power consumption and performance to be adjusted
to suit operational requirements. In addition to the I/O ports available in each module, up to 10 dedicated
I/O port bits are available with Wake-Up capability from STOP or WAIT mode. The MC9S12C-Family is
available in 48, 52 and 80 pin QFP packages, with the 80 Pin version pin compatible to the HCS12 B
and D- Family derivatives.

The C-Family includes ROM versions MC3S12C128/96/64/32 of all devices which provide a further cost
reduction path for applications with high volume and stable code.

Features

• 16-bit HCS12 CORE

— HCS12 CPU
— MMC (memory map and interface)
— INT (interrupt control)
— BDM (background debug mode)
— DBG12 (enhanced debug12 module including breakpoints and change-of-flow trace buffer)
— Multiplexed Expansion Bus (available only in 80 pin package version)

• 16-bit HCS12 CPU

— Upward compatible with M68HC11 instruction set
— Interrupt stacking and programmer’s model identical to M68HC11
— Instruction queue
— Enhanced indexed addressing

• Wake-up interrupt inputs

— Up to 10-port bits available for wake up interrupt function

• Memory options

— 32K, 64K, 96K and 128K Byte Flash EEPROM (erasable in 512-byte sectors) or
— 32K, 64K, 96K and 128K Byte ROM
— 2K and 4K Byte RAM

• Analog-to-Digital Converters

— One 8-channel module with 10-bit resolution.
— External conversion trigger capability

• One 1M bit per second, CAN 2.0 A, B software compatible modules

— Five receive and three transmit buffers

MOTOROLA

MC9S12C-Family

2

PRODUCT BRIEF, Rev 2.1, 1-Jul-03

— Flexible identifier filter programmable as 2 x 32 bit, 4 x 16 bit or 8 x 8 bit
— Four separate interrupt channels for receive, transmit, error and wake-up
— Low-pass filter wake-up function
— Loop-back for self test operation

• Timer Module (TIM)

— 16-bit Counter with 7-bit Prescaler
— 8 programmable input capture or output compare channels
— Simple PWM Mode
— Modulo Reset of Timer Counter
— 16-Bit Pulse Accumulator
— External Event Counting
— Gated Time Accumulation

• 6 PWM channels

— Programmable period and duty cycle
— 8-bit 6-channel or 16-bit 3-channel
— Separate control for each pulse width and duty cycle
— Center-aligned or left-aligned outputs
— Programmable clock select logic with a wide range of frequencies
— Fast emergency shutdown input

• Serial interfaces

— One asynchronous serial communications interface (SCI)
— One synchronous serial peripheral interface (SPI)

• CRG (Clock Reset Generator Module)

— Windowed COP watchdog,
— Real time interrupt,
— Clock monitor,
— Clock generation
— Reset Generation
— Phase-locked loop clock frequency multiplier
— Limp home mode in absence of external clock
— Low power 0.5 to 16 MHz crystal oscillator reference clock

• Operation frequency

— 32MHz equivalent to 16MHz Bus Speed for single chip
— 32MHz equivalent to 16MHz Bus Speed in expanded bus modes
— Option: 50MHz equivalent to 25MHz Bus Speed

• Internal 2.5V Regulator

— Supports an input voltage range from 3.3V-10% to 5.5V
— Low power mode capability
— Includes low voltage reset (LVR) circuitry
— Includes low voltage interrupt (LVI) circuitry

• 48-Pin LQFP, 52-Pin LQFP or 80-Pin QFP package

— Up to 58 I/O lines with 5V input and drive capability
— Up to 2 dedicated 5V input only lines (IRQ, XIRQ)
— 5V A/D converter inputs and 5V I/O

• Development support

— Single-wire background debug™ mode (BDM)
— On-chip hardware breakpoints
— Enhanced DBG12 debug features

MC9S12C-Family

MOTOROLA

PRODUCT BRIEF, Rev 2.1, 1-Jul-03

3

• Pin out explanations:

— I/O is the sum of ports capable to act as digital input or output.

For 80 Pin Versions:

Port A = 8, B = 8, E = 6 + 2 input only, J = 2, M = 6, P = 8, S = 4, T = 8, PAD = 8.
12 inputs provide Interrupt capability (P= 8, J = 2, IRQ, XIRQ)

For 52 Pin Versions:

Port A = 3, B = 1, E = 2 + 2 input only, M = 6, P = 3, S = 2, T = 8, PAD = 8.
5 inputs provide Interrupt capability (P= 3, IRQ, XIRQ)

For 48 Pin Versions:

Port A = 1, B = 1, E = 2 + 2 input only, M = 6, P = 1, S = 2, T = 8, PAD = 8.
3 inputs provide Interrupt capability (P= 1, IRQ, XIRQ)

Table 1 List of MC9S12C-Family members

Flash

ROM

RAM

Package

Device

CAN

SCI

SPI

A/D

PWM

Timer

I/O

128K

0

4K

48LQFP

MC9S12C128

1

1

1

8ch

6ch

8ch

31

52LQFP

MC9S12C128

1

1

1

8ch

6ch

8ch

35

80QFP

MC9S12C128

1

1

1

8ch

6ch

8ch

60

96K

0

4K

48LQFP

MC9S12C96

1

1

1

8ch

6ch

8ch

31

52LQFP

MC9S12C96

1

1

1

8ch

6ch

8ch

35

80QFP

MC9S12C96

1

1

1

8ch

6ch

8ch

60

64K

0

4K

48LQFP

MC9S12C64

1

1

1

8ch

6ch

8ch

31

52LQFP

MC9S12C64

1

1

1

8ch

6ch

8ch

35

80QFP

MC9S12C64

1

1

1

8ch

6ch

8ch

60

32K

0

2K

48LQFP

MC9S12C32

1

1

1

8ch

6ch

8ch

31

52LQFP

MC9S12C32

1

1

1

8ch

6ch

8ch

35

80QFP

MC9S12C32

1

1

1

8ch

6ch

8ch

60

0

128K

4K

48LQFP

MC3S12C128

1

1

1

8ch

6ch

8ch

31

52LQFP

MC3S12C128

1

1

1

8ch

6ch

8ch

35

80QFP

MC3S12C128

1

1

1

8ch

6ch

8ch

60

0

96K

4K

48LQFP

MC3S12C96

1

1

1

8ch

6ch

8ch

31

52LQFP

MC3S12C96

1

1

1

8ch

6ch

8ch

35

80QFP

MC3S12C96

1

1

1

8ch

6ch

8ch

60

0

64K

4K

48LQFP

MC3S12C64

1

1

1

8ch

6ch

8ch

31

52LQFP

MC3S12C64

1

1

1

8ch

6ch

8ch

35

80QFP

MC3S12C64

1

1

1

8ch

6ch

8ch

60

0

32K

2K

48LQFP

MC3S12C32

1

1

1

8ch

6ch

8ch

31

52LQFP

MC3S12C32

1

1

1

8ch

6ch

8ch

35

80QFP

MC3S12C32

1

1

1

8ch

6ch

8ch

60

MOTOROLA

MC9S12C-Family

4

PRODUCT BRIEF, Rev 2.1, 1-Jul-03

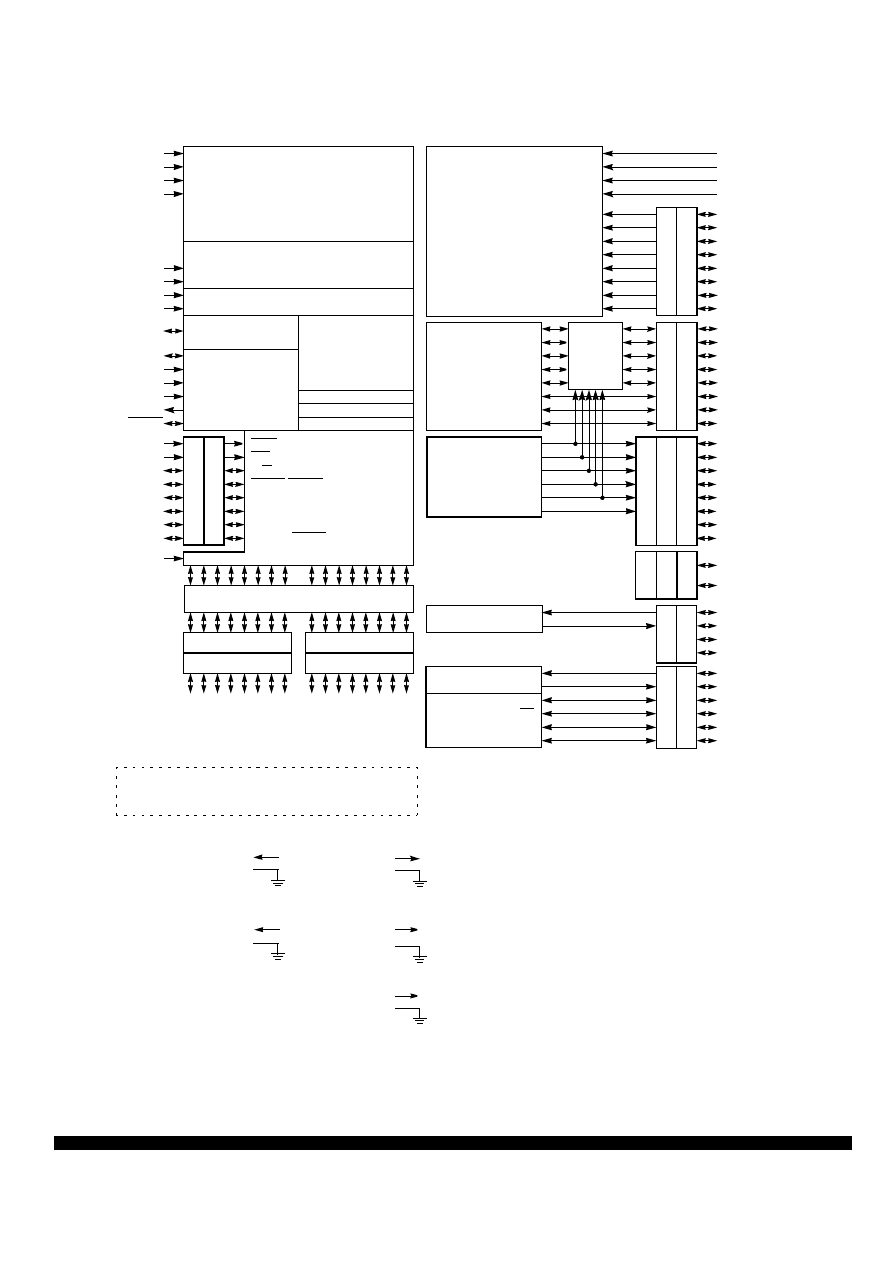

Figure 1 Block Diagram

32K, 64K, 96K, 128K Byte Flash/ROM

2K, 4K Byte RAM

MSCAN

VDDR

VDDA
VSSA

VRH

VRL

ATD

AN2

AN6

AN0

AN7

AN1

AN3
AN4
AN5

PAD3
PAD4
PAD5
PAD6
PAD7

PAD0
PAD1
PAD2

IOC2

IOC6

IOC0

IOC7

IOC1

IOC3
IOC4
IOC5

PT3
PT4
PT5
PT6
PT7

PT0
PT1
PT2

RXCAN

TXCAN

SCK

MISO

PS3

PS0
PS1
PS2

SS

SPI

PTAD

PT

T

D

DRT

PT

S

DDRS

Voltage Regulator

VDD1

VSS1

PWM

Signals shown in Bold are not available on the 52 or 48 Pin Package

DDRA

D

VDDA

VSSA

Timer
Module

VDDX

VSSX

VRH
VRL

VSSR

RESET

EXTAL

XTAL

BKGD

R/W

MODB/IPIPE1

XIRQ

NOACC/XCLKS

System

Integration

Module

(SIM)

HCS12

Periodic Interrupt

COP Watchdog

Clock Monitor

Single-wire Background

PLL

VSSPLL

XFC

VDDPLL

Multiplexed Address/Data Bus

Multiplexed
Wide Bus

IRQ

LSTRB/TAGLO
ECLK
MODA/IPIPE0

PA

4

PA

3

PA

2

PA

1

PA

0

PA

7

PA

6

PA

5

TEST/VPP

ADDR1

2

ADDR1

1

ADDR1

0

ADDR9

A

DDR8

ADDR1

5

ADDR1

4

ADDR1

3

DA

T

A

1

2

DA

T

A

1

1

DA

T

A

1

0

DA

T

A

9

DA

T

A

8

DA

T

A

1

5

DA

T

A

1

4

DA

T

A

1

3

PB

4

PB

3

PB

2

PB

1

PB

0

PB

7

PB

6

PB

5

A

DDR4

ADDR3

ADDR2

ADDR1

ADDR0

ADDR7

ADDR6

ADDR5

DA

T

A

4

DA

T

A

3

DA

T

A

2

DA

T

A

1

DA

T

A

0

DA

T

A

7

DA

T

A

6

DA

T

A

5

PE3
PE4
PE5
PE6
PE7

PE0
PE1
PE2

DDRA

DDRB

PTA

PTB

DDR

E

PT

E

Clock and
Reset
Generation
Module

Debug12 Module

VDD2

VSS2

Signals shown in Bold Italic are available in the 52, but not the 48 Pin Package

CPU

PM3
PM4
PM5

PM0
PM1
PM2

PTM

DDRM

PW2

PW0
PW1

PW3
PW4
PW5

PP3
PP4
PP5
PP6
PP7

PP0
PP1
PP2

PT

P

DD

RP

PJ6

PJ7

PTJ

DDRJ

VDD1,2

VSS1,2

VDDX

VSSX

Internal Logic 2.5V

VDDPLL

VSSPLL

PLL 2.5V

I/O Driver 5V

VDDA

VSSA

A/D Converter 5V

VDDR

VSSR

Voltage Regulator 5V & I/O

VRL is bonded internally to VSSA
for 52 and 48 Pin packages

MOSI

Module

Ke

y

p

a

d

I

n

te

rr

u

p

t

Ke

y

I

n

t

SCI

RXD

TXD

MUX

MC9S12C-Family

MOTOROLA

PRODUCT BRIEF, Rev 2.1, 1-Jul-03

5

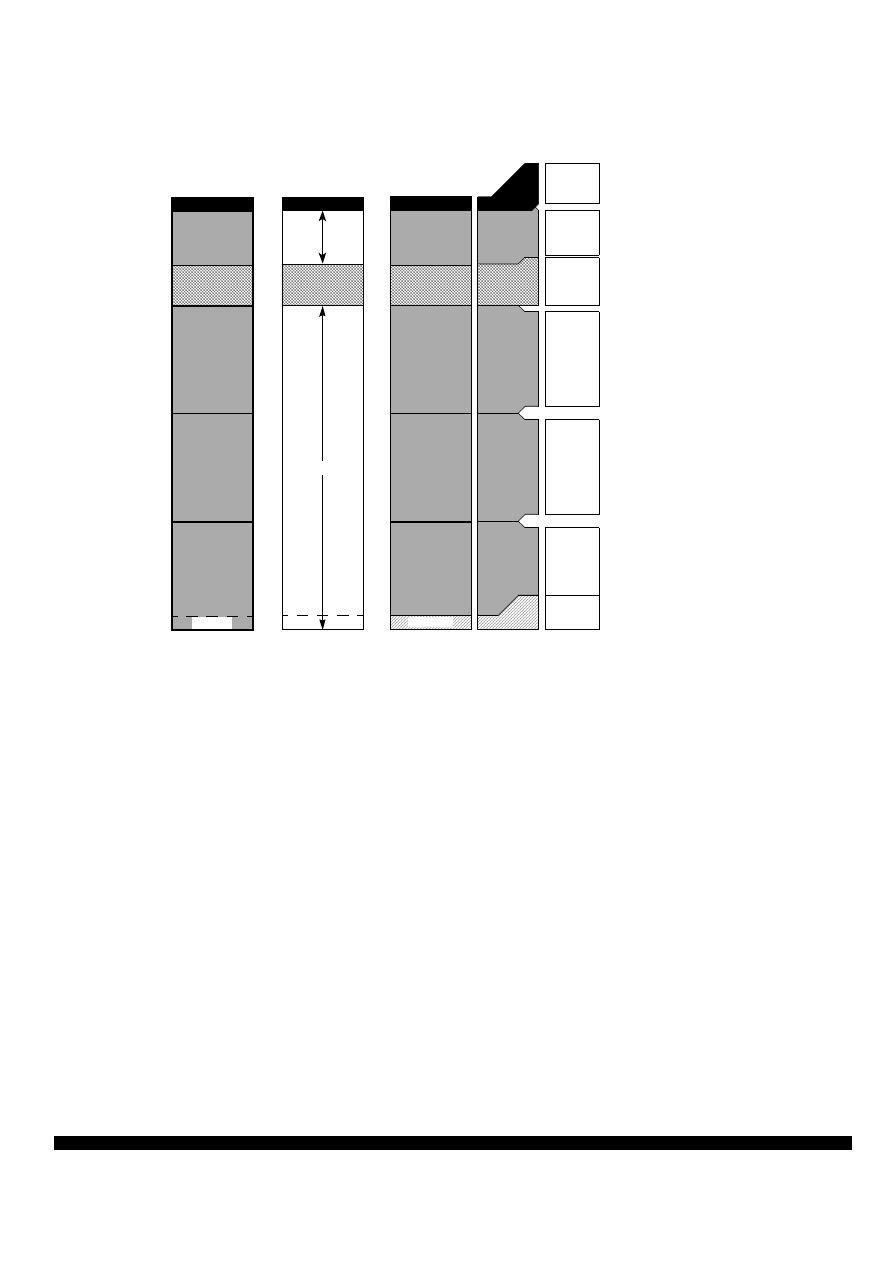

Figure 2 MCxS12C128 User Configurable Memory Map

$0000

$FFFF

$C000

$8000

$4000

$0400

$FF00

EXT

NORMAL

SINGLE CHIP

EXPANDED

SPECIAL

SINGLE CHIP

VECTORS

VECTORS

$FF00

$FFFF

BDM
(If Active)

$C000

$FFFF

16K Fixed Flash EEPROM/ROM

$8000

$BFFF

16K Page Window
8 * 16K Flash EEPROM/ROM Pages

$4000

$7FFF

16K Fixed Flash EEPROM/ROM

$3000

$3FFF

$0000

$03FF

1K Register Space

Mappable to any 2K Boundary

Mappable to any 4K Boundary

4K Bytes RAM

$3000

The figure shows a useful map, which is not the map out of reset. After reset the map is:

$0000 - $03FF: Register Space
$0000 - $0FFF: 4K RAM (only 3K visible $0400 - $0FFF)

$0000

$3FFF

16K Fixed Flash EEPROM/ROM

VECTORS

Flash Erase Sector Size is 1024 Bytes

MOTOROLA

MC9S12C-Family

6

PRODUCT BRIEF, Rev 2.1, 1-Jul-03

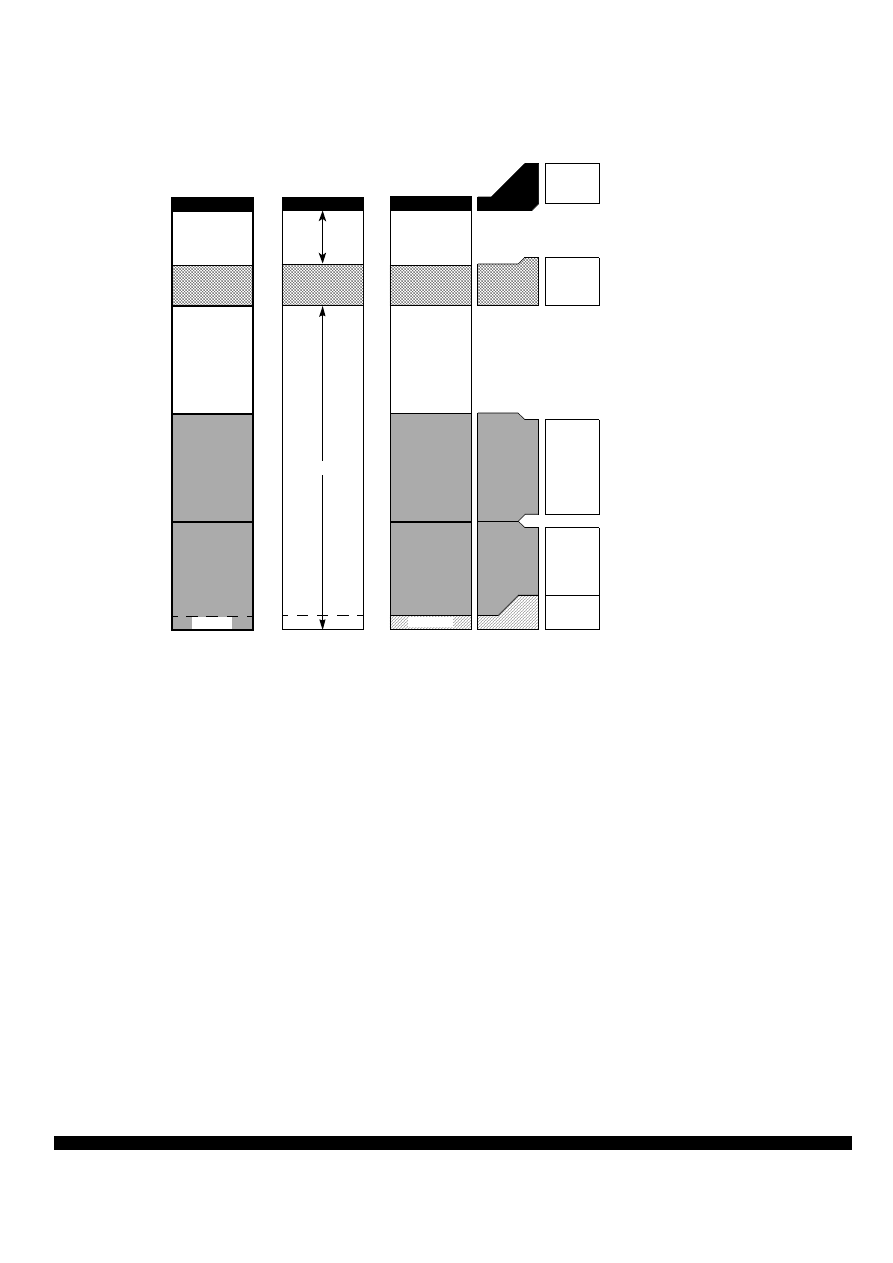

Figure 3 MCxS12C96 User Configurable Memory Map

$0000

$FFFF

$C000

$8000

$4000

$0400

$FF00

EXT

NORMAL

SINGLE CHIP

EXPANDED

SPECIAL

SINGLE CHIP

VECTORS

VECTORS

$FF00

$FFFF

BDM
(If Active)

$C000

$FFFF

16K Fixed Flash EEPROM/ROM

$8000

$BFFF

16K Page Window
6 * 16K Flash EEPROM/ROM Pages

$4000

$7FFF

16K Fixed Flash EEPROM/ROM

$3000

$3FFF

$0000

$03FF

1K Register Space

Mappable to any 2K Boundary

Mappable to any 4K Boundary

4K Bytes RAM

$3000

The figure shows a useful map, which is not the map out of reset. After reset the map is:

$0000 - $03FF: Register Space
$0000 - $0FFF: 4K RAM (only 3K visible $0400 - $0FFF)

$0000

$3FFF

16K Fixed Flash EEPROM/ROM

VECTORS

Flash Erase Sector Size is 1024 Bytes

MC9S12C-Family

MOTOROLA

PRODUCT BRIEF, Rev 2.1, 1-Jul-03

7

Figure 4 MCxS12C64 User Configurable Memory Map

$0000

$FFFF

$C000

$8000

$4000

$0400

$FF00

EXT

NORMAL

SINGLE CHIP

EXPANDED

SPECIAL

SINGLE CHIP

VECTORS

VECTORS

$FF00

$FFFF

BDM
(If Active)

$C000

$FFFF

16K Fixed Flash EEPROM/ROM

$8000

$BFFF

16K Page Window
4 * 16K Flash EEPROM/ROM Pages

$4000

$7FFF

16K Fixed Flash EEPROM/ROM

$3000

$3FFF

$0000

$03FF

1K Register Space

Mappable to any 2K Boundary

Mappable to any 4K Boundary

4K Bytes RAM

$3000

The figure shows a useful map, which is not the map out of reset. After reset the map is:

$0000 - $03FF: Register Space
$0000 - $0FFF: 4K RAM (only 3K visible $0400 - $0FFF)

$0000

$3FFF

16K Fixed Flash EEPROM/ROM

VECTORS

Flash Erase Sector Size is 512 Bytes

MOTOROLA

MC9S12C-Family

8

PRODUCT BRIEF, Rev 2.1, 1-Jul-03

Figure 5 MCxS12C32 User Configurable Memory Map

$0000

$FFFF

$C000

$8000

$4000

$0400

$FF00

EXT

NORMAL

SINGLE CHIP

EXPANDED

SPECIAL

SINGLE CHIP

VECTORS

VECTORS

$FF00

$FFFF

BDM
(If Active)

$C000

$FFFF

16K Fixed Flash EEPROM/ROM

$8000

$BFFF

16K Page Window
2 * 16K Flash EEPROM/ROM Pages

$3800

$3FFF

$0000

$03FF

1K Register Space

Mappable to any 2K Boundary

Mappable to any 2K Boundary

2K Bytes RAM

$3800

The figure shows a useful map, which is not the map out of reset. After reset the map is:

$0000 - $03FF: Register Space
$0800 - $0FFF: 2K RAM

VECTORS

Flash Erase Sector Size is 512 Bytes

MC9S12C-Family

MOTOROLA

PRODUCT BRIEF, Rev 2.1, 1-Jul-03

9

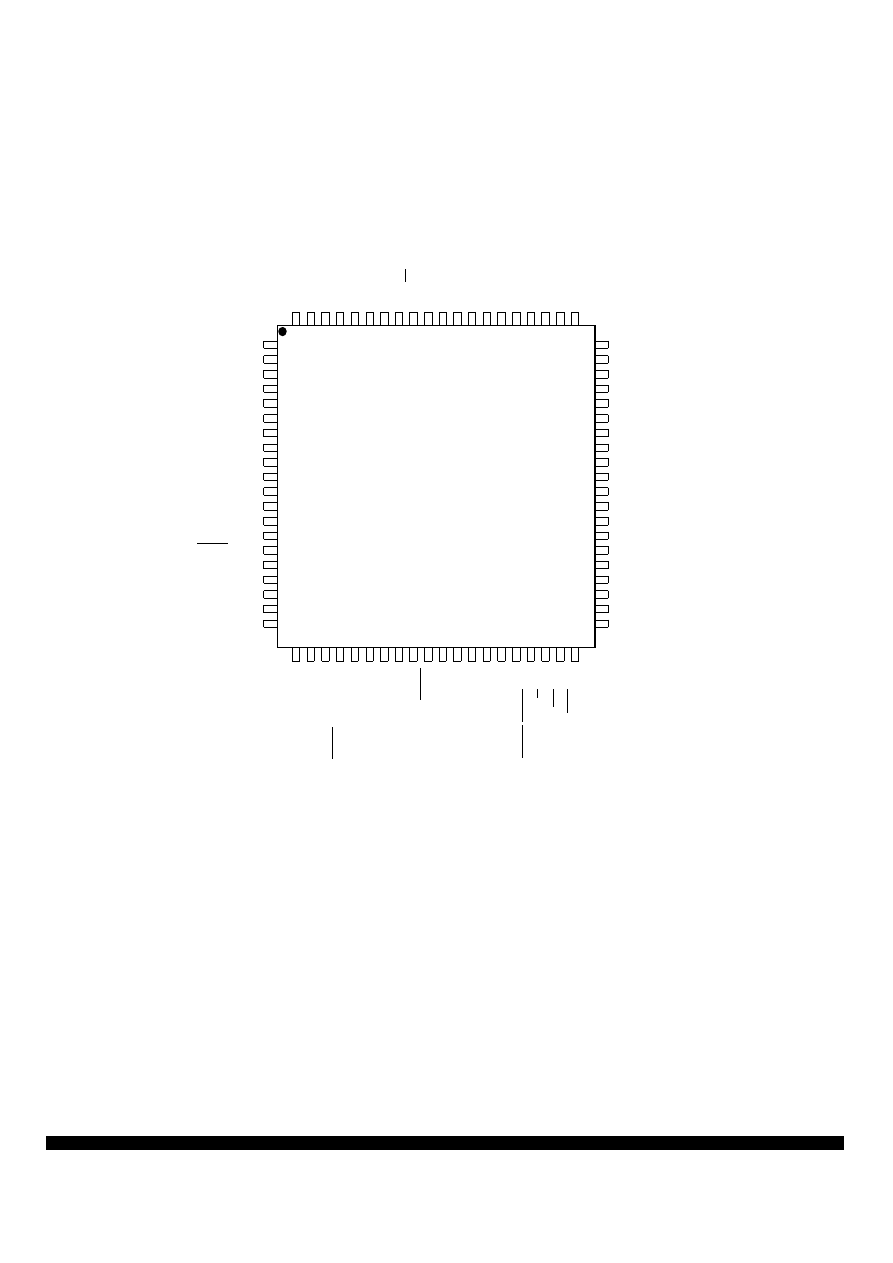

Figure 6 Pin Assignments in 80 QFP for MC9S12C-Family

!!! Pin-out is Subject to Change!!!

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

80

79

78

77

76

75

74

73

72

71

70

69

68

67

66

65

64

63

62

61

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

MC9S12C-Family

80 QFP

VRH
VDDA
PAD07/AN07
PAD06/AN06
PAD05/AN05
PAD04/AN04
PAD03/AN03
PAD02/AN02
PAD01/AN01
PAD00/AN00
VSS2
VDD2
PA7/ADDR15/DATA15
PA6/ADDR14/DATA14
PA5/ADDR13/DATA13
PA4/ADDR12/DATA12
PA3/ADDR11/DATA11
PA2/ADDR10/DATA10
PA1/ADDR9/DATA9
PA0/ADDR8/DATA8

PP

4/

K

W

P

4/

P

W

4

P

P

5/

KW

P5/

PW

5

PP

7/

K

W

P

7

VD

D

X

V

SSX

P

M

0/

RX

CA

N

PM

1/

T

X

C

A

N

PM

2/

M

ISO

PM

3/

S

S

PM

4/

M

O

S

I

PM

5/

S

C

K

P

J6/

K

W

J6

P

J7/

K

W

J7

PP

6/

K

W

P

6/

R

OM

ON

E

PS

3

PS

2

PS

1/

T

X

D

PS

0/

R

X

D

V

SSA

VR

L

PW3/KWP3/PP3
PW2/KWP2/PP2
PW1/KWP1/PP1
PW0/KWP0/PP0

PW0/IOC0/PT0
PW1/IOC1/PT1
PW2/IOC2/PT2
PW3/IOC3/PT3

VDD1

VSS1

PW4/IOC4/PT4

IOC5/PT5
IOC6/PT6
IOC7/PT7

MODC/TAGHI/BKGD

ADDR0/DATA0/PB0
ADDR1/DATA1/PB1
ADDR2/DATA2/PB2
ADDR3/DATA3/PB3

ADDR4/DATA4/PB4

ADD

R5

/D

A

TA5

/P

B

5

ADD

R6

/D

A

TA6

/P

B

6

ADD

R7

/D

A

TA7

/P

B

7

XC

LKS

/NO

A

CC

/P

E

7

M

O

D

B

/IP

IPE1/

PE6

M

O

D

A

/IPI

PE0/

PE5

EC

LK/

PE4

VS

SR

V

DDR

RE

S

E

T

V

D

D

PLL

XF

C

V

SSPLL

EX

TA

L

XT

AL

T

E

S

T

/VPP

LS

T

R

B

/T

A

G

LO

/PE3

R/W

/PE2

IR

Q

/PE1

XI

R

Q

/PE0

60
59
58
57
56
55
54
53
52
51
50
49
48
47
46
45
44
43
42
41

Signals shown in Bold are not available on the 52 or 48 Pin Package
Signals shown in Bold Italic are available in the 52, but not the 48 Pin Package

MOTOROLA

MC9S12C-Family

10

PRODUCT BRIEF, Rev 2.1, 1-Jul-03

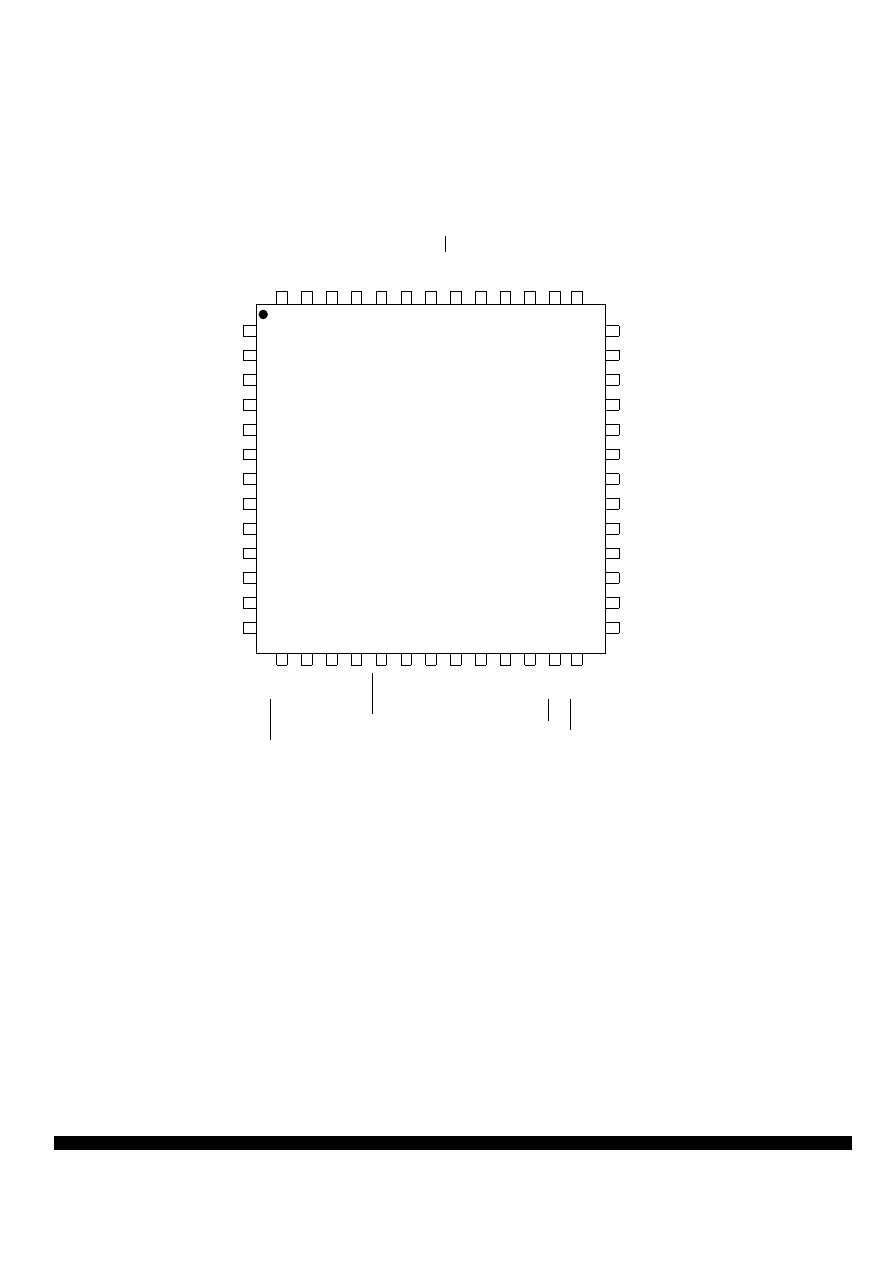

Figure 7 Pin assignments 52 QFP for MC9S12C-Family

MC9S12C-Family

52 QFP

1

2

3

4

5

6

7

8

9

10

11

12

13

39

38

37

36

35

34

33

32

31

30

29

28

27

14

15

16

17

18

19

20

21

22

23

24

25

26

52

51

50

49

48

47

46

45

44

43

42

41

40

* Signals shown in Bold are not available on the 48 Pin Package

PP4

/K

W

P

4

/PW

4

PP5

/K

W

P

5

/PW

5

VD

DX

VSS

X

PM

0

/R

X

CAN

PM

1

/TX

CAN

PM

2

/M

IS

O

PM

3

/S

S

PM

4

/M

O

SI

PM

5

/S

C

K

PS1

/T

XD

PS0

/R

X

D

VSS

A

VRH

VDDA

PAD07/AN07

PAD06/AN06

PAD05/AN05

PAD04/AN04

PAD03/AN03

PAD02/AN02

PAD01/AN01

PAD00/AN00

PA2

PA1

PA0

XC

L

K

S

/PE7

E

C

L

K

/PE4

VSS

R

VDD

R

RES

E

T

VDD

P

L

L

XF

C

VS

SPL

L

EX

TA

L

XT

A

L

TE

ST/V

PP

IR

Q

/PE1

XIR

Q

/PE0

PW3/KWP3/PP3

PW0/IOC0/PT0

PW1/IOC1/PT1

PW2/IOC2/PT2

PW3/IOC3/PT3

VDD1

VSS1

PW4/IOC4/PT4

IOC5/PT5

IOC6/PT6

IOC7/PT7

MODC/BKGD

PB4

MC9S12C-Family

MOTOROLA

PRODUCT BRIEF, Rev 2.1, 1-Jul-03

11

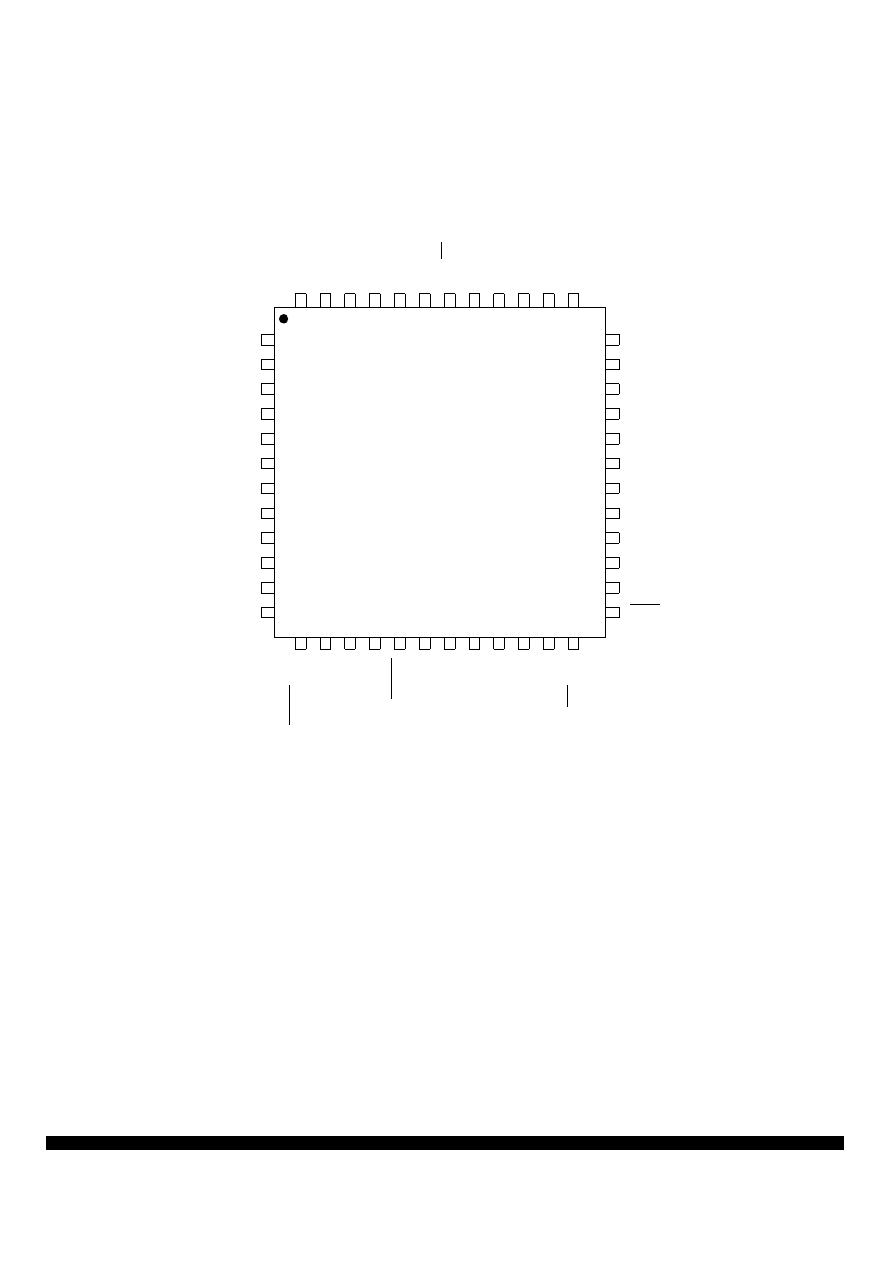

Figure 8 Pin Assignments in 48 LQFP for MC9S12C-Family

MC9S12C-Family

48 LQFP

1

2

3

4

5

6

7

8

9

10

11

12

36

35

34

33

32

31

30

29

28

27

26

25

13

14

15

16

17

18

19

20

21

22

23

24

48

47

46

45

44

43

42

41

40

39

38

37

PP5

/K

W

P

5

VDD

X

VSSX

PM

0

/RX

CAN

PM

1

/TXC

A

N

PM

2

/M

ISO

PM

3

/SS

PM

4

/M

O

SI

PM

5

/SC

K

PS1

/T

XD

PS0

/R

XD

VSSA

PW0/IOC0/PT0

PW1/IOC1/PT1

PW2/IOC2/PT2

PW3/IOC3/PT3

VDD1

VSS1

PW4/IOC4/PT4

IOC5/PT5

IOC6/PT6

IOC7/PT7

MODC/BKGD

PB4

XCL

K

S

/P

E7

EC

L

K

/P

E4

VSSR

V

DDR

RESE

T

VDDP

L

L

XFC

VSSP

L

L

EXT

AL

XT

AL

TEST

/VP

P

IRQ

/P

E1

VRH

VDDA

PAD07/AN07

PAD06/AN06

PAD05/AN05

PAD04/AN04

PAD03/AN03

PAD02/AN02

PAD01/AN01

PAD00/AN00

PA0

XIRQ/PE0

MOTOROLA

MC9S12C-Family

12

PRODUCT BRIEF, Rev 2.1, 1-Jul-03

Package mechanical information

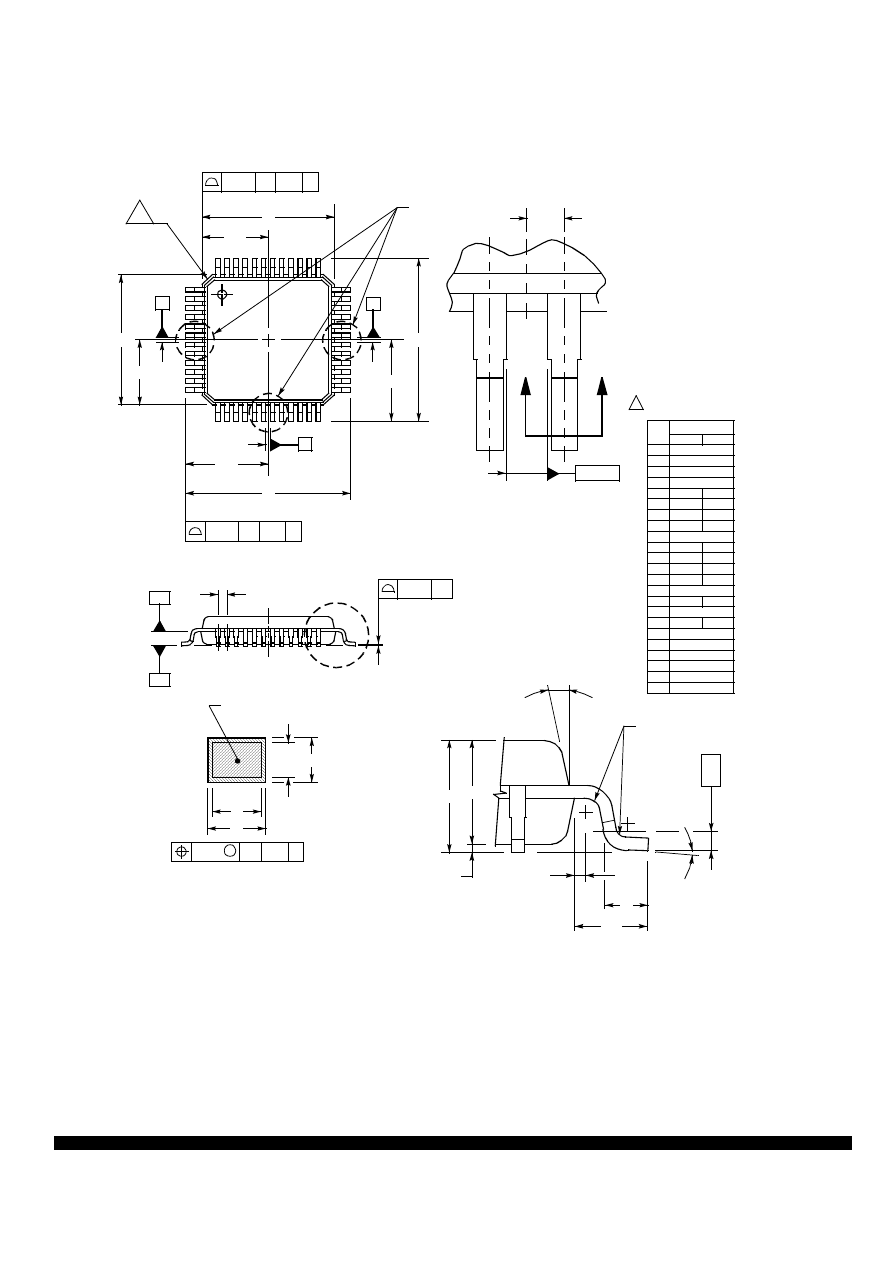

Figure 9 48-pin LQFP Mechanical Dimensions (case no.932-03 ISSUE F)

A

A1

Z

0.200 AB T-U

4X

Z

0.200 AC T-U

4X

B

B1

1

12

13

24

25

36

37

48

S1

S

V

V1

P

AE

AE

T, U, Z

DETAIL Y

DETAIL Y

BASE METAL

N

J

F
D

T-U

M

0.080

Z

AC

SECTION AE-AE

AD

G

0.080 AC

M

°

TOP & BOTTOM

L

°

W

K

AA

E

C

H

0.

250

R

9

DETAIL AD

NOTES:
1.

DIMENSIONING AND TOLERANCING PER
ASME Y14.5M, 1994.

1.

CONTROLLING DIMENSION: MILLIMETER.

2.

DATUM PLANE AB IS LOCATED AT BOTTOM
OF LEAD AND IS COINCIDENT WITH THE
LEAD WHERE THE LEAD EXITS THE PLASTIC
BODY AT THE BOTTOM OF THE PARTING
LINE.

3.

DATUMS T, U, AND Z TO BE DETERMINED AT
DATUM PLANE AB.

4.

DIMENSIONS S AND V TO BE DETERMINED
AT SEATING PLANE AC.

5.

DIMENSIONS A AND B DO NOT INCLUDE
MOLD PROTRUSION. ALLOWABLE
PROTRUSION IS 0.250 PER SIDE. DIMENSIONS
A AND B DO INCLUDE MOLD MISMATCH AND
ARE DETERMINED AT DATUM PLANE AB.

6.

DIMENSION D DOES NOT INCLUDE DAMBAR
PROTRUSION. DAMBAR PROTRUSION
SHALL NOT CAUSE THE D DIMENSION TO
EXCEED 0.350.

T

U

Z

AB

AC

G

AUG

E

P

L

ANE

DIM

A

MIN

MAX

7.000 BSC

MILLIMETERS

A1

3.500 BSC

B

7.000 BSC

B1

3.500 BSC

C

1.400

1.600

D

0.170

0.270

E

1.350

1.450

F

0.170

0.230

G

0.500 BSC

H

0.050

0.150

J

0.090

0.200

K

0.500

0.700

M

12 REF

N

0.090

0.160

P

0.250 BSC

L

0

7

R

0.150

0.250

S

9.000 BSC

S1

4.500 BSC

V

9.000 BSC

V1

4.500 BSC

W

0.200 REF

AA

1.000 REF

°

°

°

MC9S12C-Family

MOTOROLA

PRODUCT BRIEF, Rev 2.1, 1-Jul-03

13

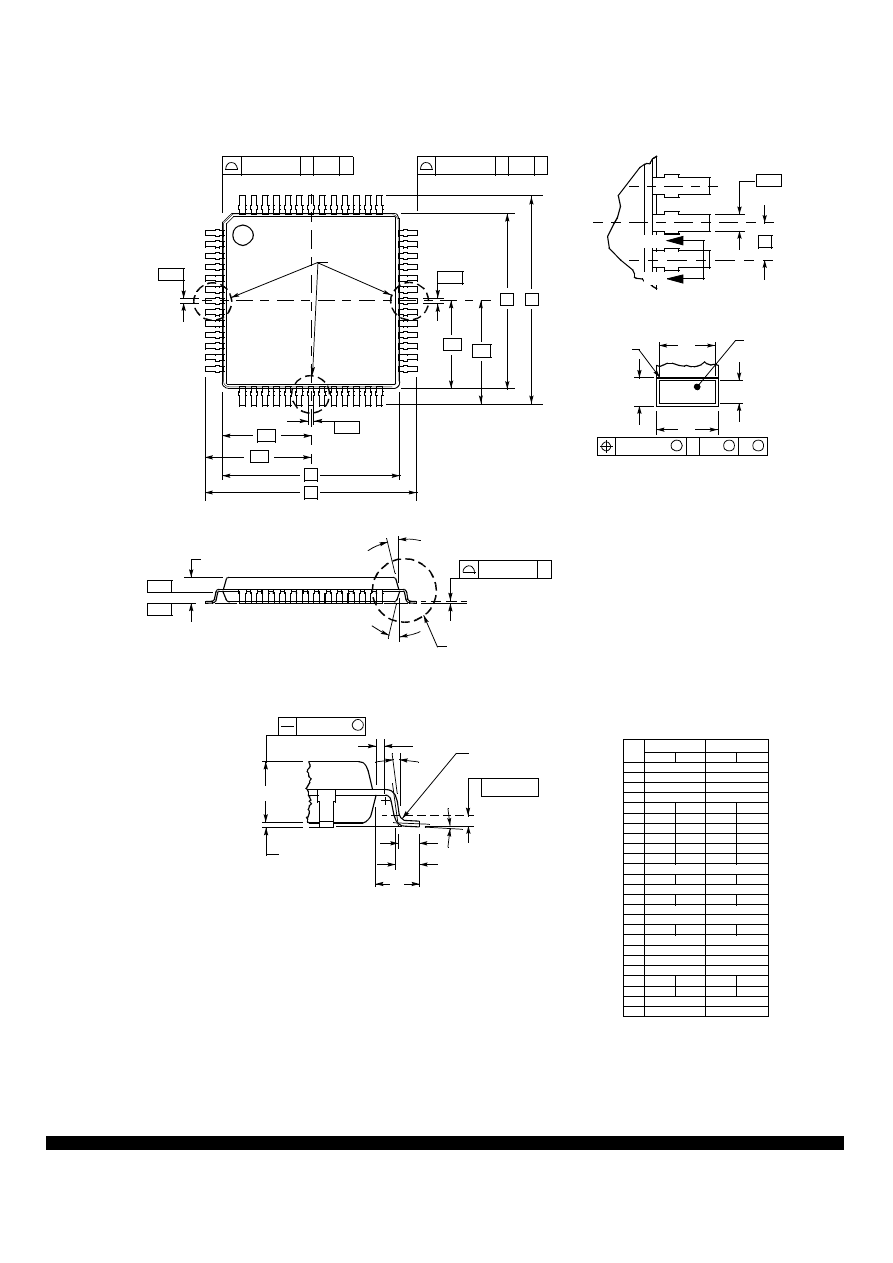

Figure 10 52-pin LQFP Mechanical Dimensions (case no. 848D-03)

F

NOTES:
2.

DIMENSIONING AND TOLERANCING PER ANSI
Y14.5M, 1982.

3.

CONTROLLING DIMENSION: MILLIMETER

4.

DATUM PLANE -H- IS LOCATED AT BOTTOM OF
LEAD AND IS COINCIDENT WITH THE LEAD WHERE
THE LEAD EXITS THE PLASTIC BODY AT THE
BOTTOM OF THE PARTING LINE.

5.

DATUMS -L-, -M- AND -N- TO BE DETERMINED AT
DATUM PLANE -H-.

6.

DIMENSIONS S AND V TO BE DETERMINED AT
SEATING PLANE -T-.

7.

DIMENSIONS A AND B DO NOT INCLUDE MOLD
PROTRUSION. ALLOWABLE PROTRUSION IS 0.25
(0.010) PER SIDE. DIMENSIONS A AND B DO
INCLUDE MOLD MISMATCH AND ARE DETERMINED
AT DATUM PLANE -H-

8.

DIMENSION D DOES NOT INCLUDE DAMBAR
PROTRUSION. DAMBAR PROTRUSION SHALL NOT
CAUSE THE LEAD WIDTH TO EXCEED 0.46 (0.018).
MINIMUM SPACE BETWEEN PROTRUSION AND

VIEW AA

AB

AB

VIEW Y

SECTION AB-AB

ROTATED 90

°

CLOCKWISE

DIM

A

MIN

MAX

MIN

MAX

INCHES

10.00 BSC

0.394 BSC

MILLIMETERS

A1

5.00 BSC

0.197 BSC

B

10.00 BSC

0.394 BSC

B1

5.00 BSC

0.197 BSC

C

---

1.70

---

0.067

C1

0.05

0.20

0.002

0.008

C2

1.30

1.50

0.051

0.059

D

0.20

0.40

0.008

0.016

E

0.45

0.030

F

0.22

0.35

0.009

0.014

G

0.65 BSC

0.75

0.018

0.026 BSC

J

0.07

0.20

0.003

0.008

K

0.50 REF

0.020 REF

R1

0.08

0.20

0.003

0.008

S

12.00 BSC

0.472 BSC

S1

6.00 BSC

0.236 BSC

U

0.09

0.16

0.004

0.006

V

12.00 BSC

0.472 BSC

V1

6.00 BSC

0.236 BSC

W

0.20 REF

0.008 REF

Z

1.00 REF

0.039 REF

CL

-X-

X=L, M, N

1

13

14

26

27

39

40

52

4X 13 TIPS

4X

N

0.20 (0.008) H L-M

N

0.20 (0.008) T L-M

SEATING
PLANE

C

0.10 (0.004) T

4X

θ

3

4X

θ

2

S

0.05 (0.002)

0.25 (0.010)

GAGE PLANE

C2

C1

W

K

E

Z

S

L-M

M

0.13 (0.005)

N

S

T

PLATING

BASE METAL

D

J

U

B

V

B1

A

S

V1

A1

S1

-L-

-N-

-M-

-H-

-T-

θ

1

θ

G

θ

1

θ

θ

3

θ

2

0

7

°

°

12

°

0

7

°

°

0

°

0

°

---

---

REF

12

°

REF

3X

VIEW Y

VIEW AA

2X R

R1

12

°

REF

12

°

REF

MOTOROLA

MC9S12C-Family

14

PRODUCT BRIEF, Rev 2.1, 1-Jul-03

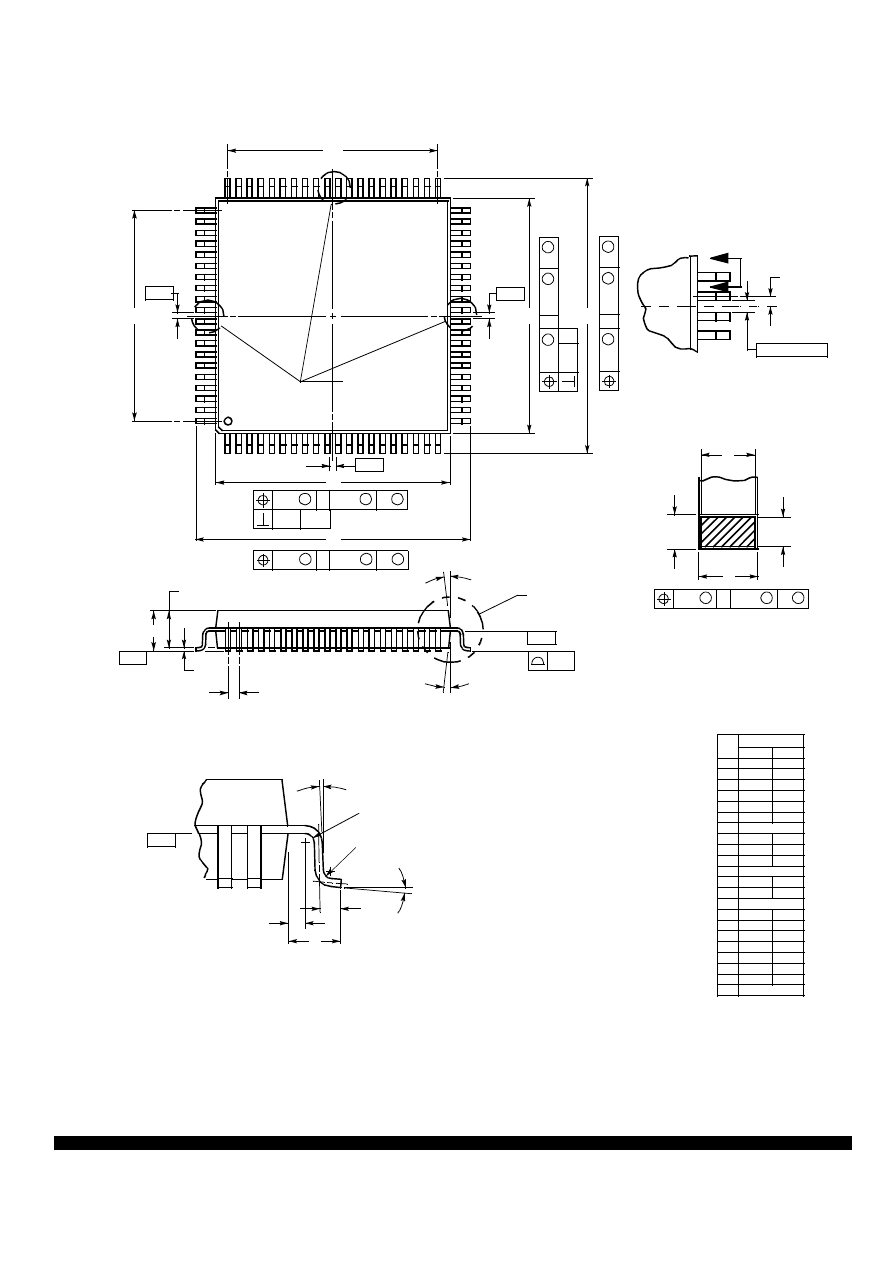

Figure 11 80-pin QFP Mechanical Dimensions (case no. 841B)

NOTES:

1. DIMENSIONING AND TOLERANCING PER

ANSI Y14.5M, 1982.

2. CONTROLLING DIMENSION: MILLIMETER.
3. DATUM PLANE -H- IS LOCATED AT BOTTOM OF

LEAD AND IS COINCIDENT WITH THE
LEAD WHERE THE LEAD EXITS THE PLASTIC
BODY AT THE BOTTOM OF THE PARTING LINE.

4. DATUMS -A-, -B- AND -D- TO BE

DETERMINED AT DATUM PLANE -H-.

5. DIMENSIONS S AND V TO BE DETERMINED

AT SEATING PLANE -C-.

6. DIMENSIONS A AND B DO NOT INCLUDE

MOLD PROTRUSION. ALLOWABLE
PROTRUSION IS 0.25 PER SIDE. DIMENSIONS
A AND B DO INCLUDE MOLD MISMATCH
AND ARE DETERMINED AT DATUM PLANE -H-.

7. DIMENSION D DOES NOT INCLUDE DAMBAR

PROTRUSION. ALLOWABLE DAMBAR
PROTRUSION SHALL BE 0.08 TOTAL IN
EXCESS OF THE D DIMENSION AT MAXIMUM
MATERIAL CONDITION. DAMBAR CANNOT
BE LOCATED ON THE LOWER RADIUS OR
THE FOOT.

SECTION B-B

61

60

DETAIL A

L

41

40

80

-A-

L

-D-

A

S

A-B

M

0.20

D

S

H

0.05

A-B

S

1

20

21

-B-

B

V

J

F

N

D

VIEW ROTATED 90

°

DETAIL A

B

B

P

-A-,-B-,-D-

E

H

G

M

M

DETAIL C

SEATING
PLANE

-C-

C

DATUM
PLANE

0.10

-H-

DATUM
PLANE

-H-

U

T

R

Q

K

W

X

DETAIL C

DIM

MIN

MAX

MILLIMETERS

A

13.90

14.10

B

13.90

14.10

C

2.15

2.45

D

0.22

0.38

E

2.00

2.40

F

0.22

0.33

G

0.65 BSC

H

---

0.25

J

0.13

0.23

K

0.65

0.95

L

12.35 REF

M

5

10

N

0.13

0.17

P

0.325 BSC

Q

0

7

R

0.13

0.30

S

16.95

17.45

T

0.13

---

U

0

---

V

16.95

17.45

W

0.35

0.45

X

1.6 REF

°

°

°

°

°

S

A-B

M

0.20

D

S

C

S

A-

B

M

0.

20

D

S

H

0.

05

D

S

A-

B

M

0.

20

D

S

C

S

A-B

M

0.20

D

S

C

Motorola reserves the right to make changes without further notice to any products herein. Motorola makes no warranty, representation or guarantee regarding
the suitability of its products for any particular purpose, nor does Motorola assume any liability arising out of the application or use of any product or circuit, and
specifically disclaims any and all liability, including without limitation consequential or incidental damages. “Typical” parameters can and do vary in different
applications. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. Motorola does not
convey any license under its patent rights nor the rights of others. Motorola products are not designed, intended, or authorized for use as components in systems
intended for surgical implant into the body, or other applications intended to support or sustain life, or for any other application in which the failure of the Motorola
product could create a situation where personal injury or death may occur. Should Buyer purchase or use Motorola products for any such unintended or
unauthorized application, Buyer shall indemnify and hold Motorola and its officers, employees, subsidiaries, affiliates, and distributors harmless against all
claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with
such unintended or unauthorized use, even if such claim alleges that Motorola was negligent regarding the design or manufacture of the part. Motorola
and

are registered trademarks of Motorola, Inc. Motorola, Inc. is an Equal Opportunity/Affirmative Action Employer.

How to reach us:

USA/EUROPE: Motorola Literature Distribution; P.O. Box 5405, Denver, Colorado 80217. 1-303-675-2140
HOME PAGE: http://mcu.motsps.com/
JAPAN: Motorola Japan Ltd.; SPS, Technial Information Center, 3-20-1, Minami-Azabu, Minato-ku, Tokyo 106-8573 Japan.

81-3-3440-3569

ASIA/PACIFIC: Motorola Semiconductors H.K. Ltd.; Silicon Harbour Centre, 2 Dai King Street, Tai Po Industrial Estate,

Tai Po, N.T., Hong Kong. 852-266668334

CUSTOMER FOCUS CENTER: 1-800-521-6274

© Motorola, 2002
