1MRS751885-MUM
Issued:
15.03.2002
Version:
A
Program revision: 4.0.4
We reserve the right to change data without prior notice.
LIB 500 Operator’s Manual
User’s Guide
LIB 500
Notice 1
The information in this document is subject to change without notice and should not
be construed as a commitment by ABB. ABB assumes no responsibility for any error
that may occur in this document.
Notice 2
This document complies with the program revision 4.0.4.
Notice 3
Additional information such as Release Notes and Last Minute Remarks can be
found on the program distribution media.
Trademarks
Microsoft is a registered trademark of Microsoft Corporation.
Windows NT is a trademark of Microsoft Corporation.
L
ON
W
ORKS
is a registered trademark of Echelon Corporation.
Other brand or product names are trademarks or registered trademarks of their respective holders.
All Microsoft products referenced in this document are either trademarks or registered trademarks of Microsoft
Corporation.
MicroSCADA Technology Manuals
SYS 500 manuals
COM 500 manuals
Application Objects
1MRS751848-MEN
Introduction to MicroSCADA Technology
1MRS751852-MUM
JAVA-API for MicroSCADA
1MRS751851-MEN
Programming Language SCIL
1MRS751849-MEN
SCIL-API for MicroSCADA
1MRS752199-MEN
Status Codes
1MRS751850-MEN
System Configuration
1MRS751846-MEN
System Objects
1MRS751847-MEN
Configuring MicroSCADA for OPC DA Client
1MRS752246-MEN
Installation
1MRS751853-MEN
Picture Editing
1MRS751854-MEN
System Management
1MRS751857-MEN
Visual SCIL Objects
1MRS751856-MEN
Visual SCIL User Interface Design
1MRS751855-MEN
COM 500 Engineering
1MRS751858-MEN
Connecting LONWORKS Devices to MicroSCADA
1MRS751845-MEN
Communication Programming Interface (CPI)
1MRS751859-MEN
Configuring MicroSCADA for DNP V3.00 Master Protocol
1MRS751860-MEN
Configuring MicroSCADA for DNP V3.00 Slave Protocol
1MRS751861-MEN
Configuring MicroSCADA for IEC 60870-5-101 Master Protocol
1MRS751862-MEN
Configuring MicroSCADA for IEC 60870-5-101 Slave Protocol
1MRS751863-MEN
Configuring MicroSCADA for IEC 60870-5-103 Master Protocol
1MRS752012-MEN
Configuring MicroSCADA for IEC 60870-5-104 Master Protocol
1MRS751964-MEN
Configuring MicroSCADA for IEC 60870-5-104 Slave Protocol
1MRS751965-MEN
Configuring MicroSCADA for Modbus Master Protocol
1MRS752242-MEN
Configuring MicroSCADA for Modbus Slave Protocol
1MRS751864-MEN
LIB 500
LIB 500 Operator’s Manual
User’s Guide
1MRS751885-MUM
LIB 500 manuals
LIB 510 manuals
SMS 510 manuals
CAP 505 manuals
Common manual for LIB, CAP and SMS
LIB 500 Configuration Manual
1MRS751880-MEN
LIB 500 Operator’s Manual
1MRS751885-MUM
LIB 510 Configuration
1MRS751886-MEN
LIB 510 MV Process Configuration
1MRS751887-MEN
LIB 510 MV Process Operator’s Manual
1MRS751891-MUM
LIB 510 Operator’s Manual
1MRS751888-MUM
SMS 510 Installation and Commissioning
1MRS751897-MEN
SMS 510 Operator’s Manual
1MRS751898-MUM
CAP 505 Installation and Commissioning
1MRS751901-MEN
CAP 505 Operator’s Manual
1MRS751902-MUM
Relay Configuration Tool Tutorial
1MRS751903-MEN
Relay Mimic Editor Configuration
1MRS751904-MEN
Relay Configuration Tool Quick Start Reference
1MRS751905-MEN
SPTO Configuration Tool
1MRS751906-MEN
Protocol Editing Tool
1MRS751982-MUM
Tools for Relays and Terminals
1MRS752008-MUM
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
User’s Guide
1
2
3
4
5
6
1
2
3
4
5
6
LIB 500
LIB 500 Operator’s Manual
User’s Guide
1MRS751885-MUM
LIB 500
Contents
User’s Guide
Contents:
1. Introduction ............................................................................... 1
1.1. Reference documentation ............................................................. 1
1.2. Safety instruction........................................................................... 1
1.3. General about LIB 500 and LIB 510.............................................. 1

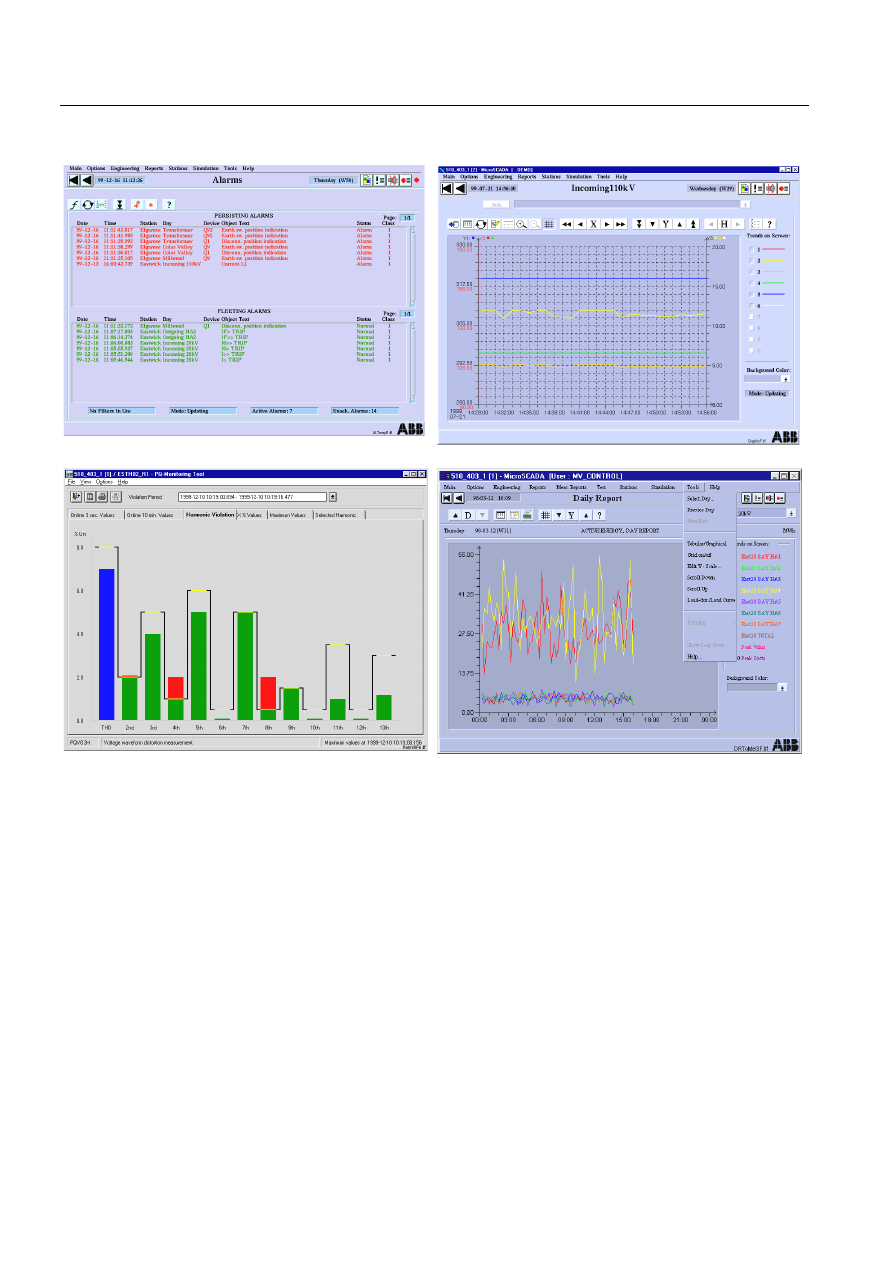

1.4. Application pictures ....................................................................... 2

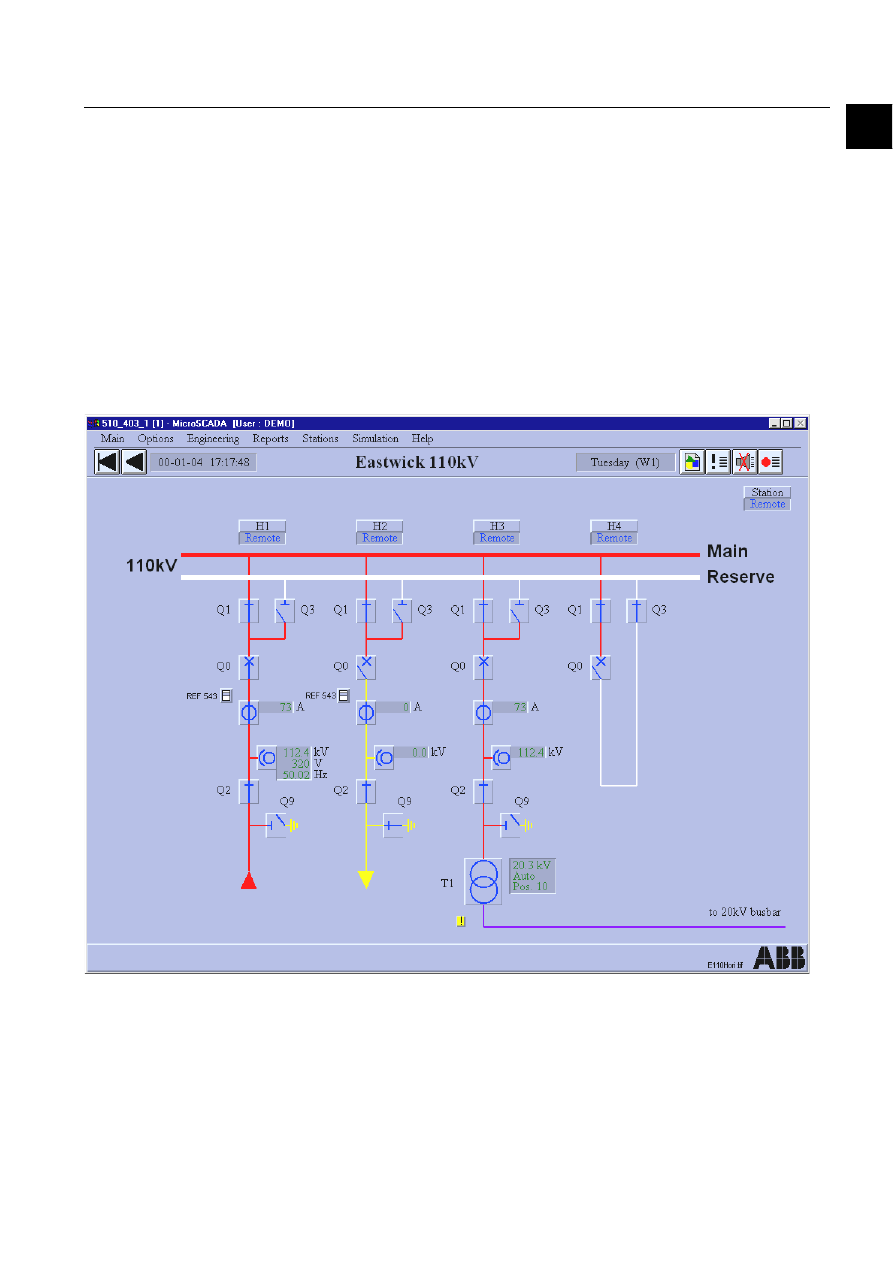

1.5. Process picture (station) ............................................................... 3

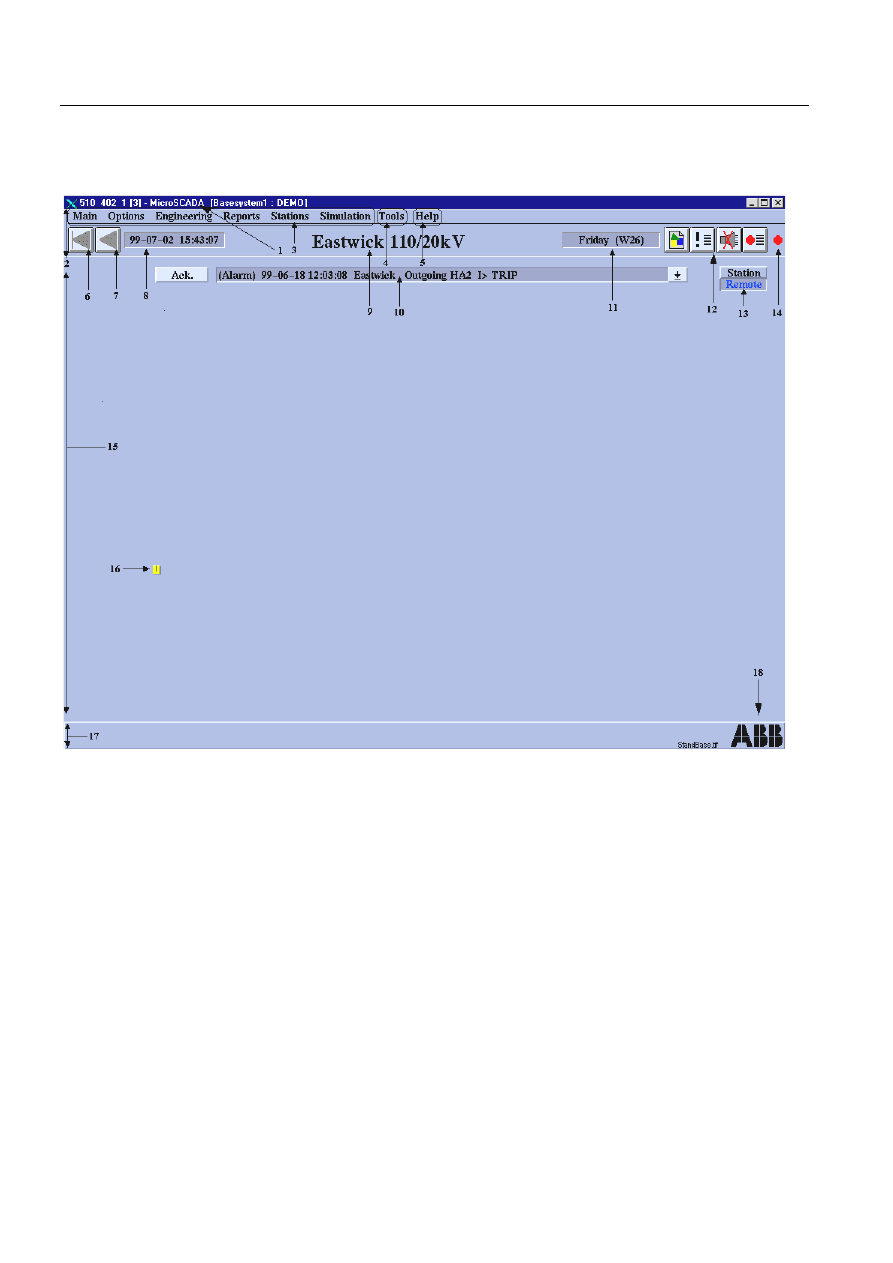

1.6. Picture layout ................................................................................ 4
1.6.1. Overview ............................................................................ 4

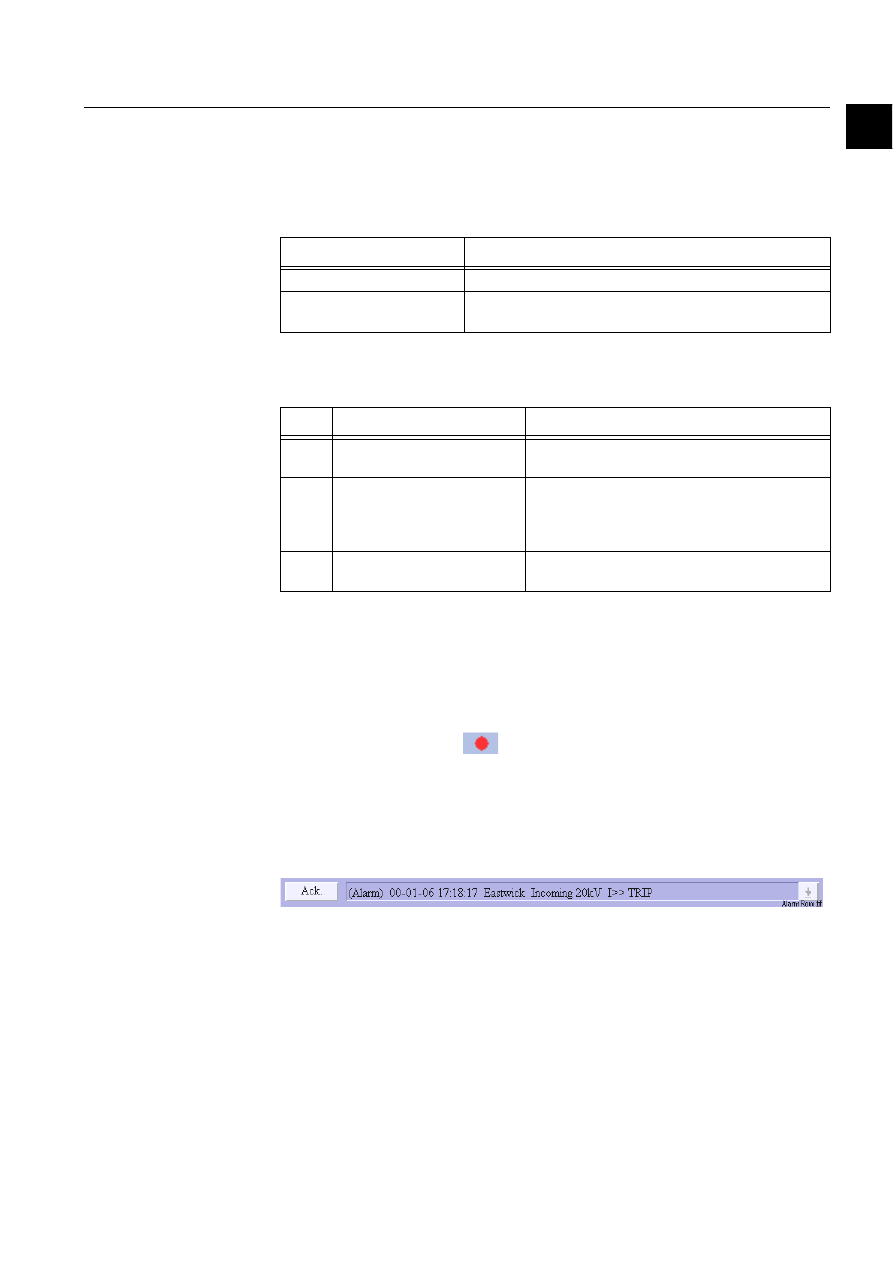

1.6.2. Alarm indication ................................................................. 5
1.6.3. Alarm row ........................................................................... 5
1.6.4. Information bar ................................................................... 6
1.6.5. Note marker ....................................................................... 6
1.7. Push buttons in the picture layout ................................................. 6
1.8. Drop-down menus in the picture header ....................................... 7
1.8.1. Standard menu .................................................................. 8
1.8.1.1. Main menu functions ............................................ 8
1.8.1.2. Options menu functions ....................................... 9

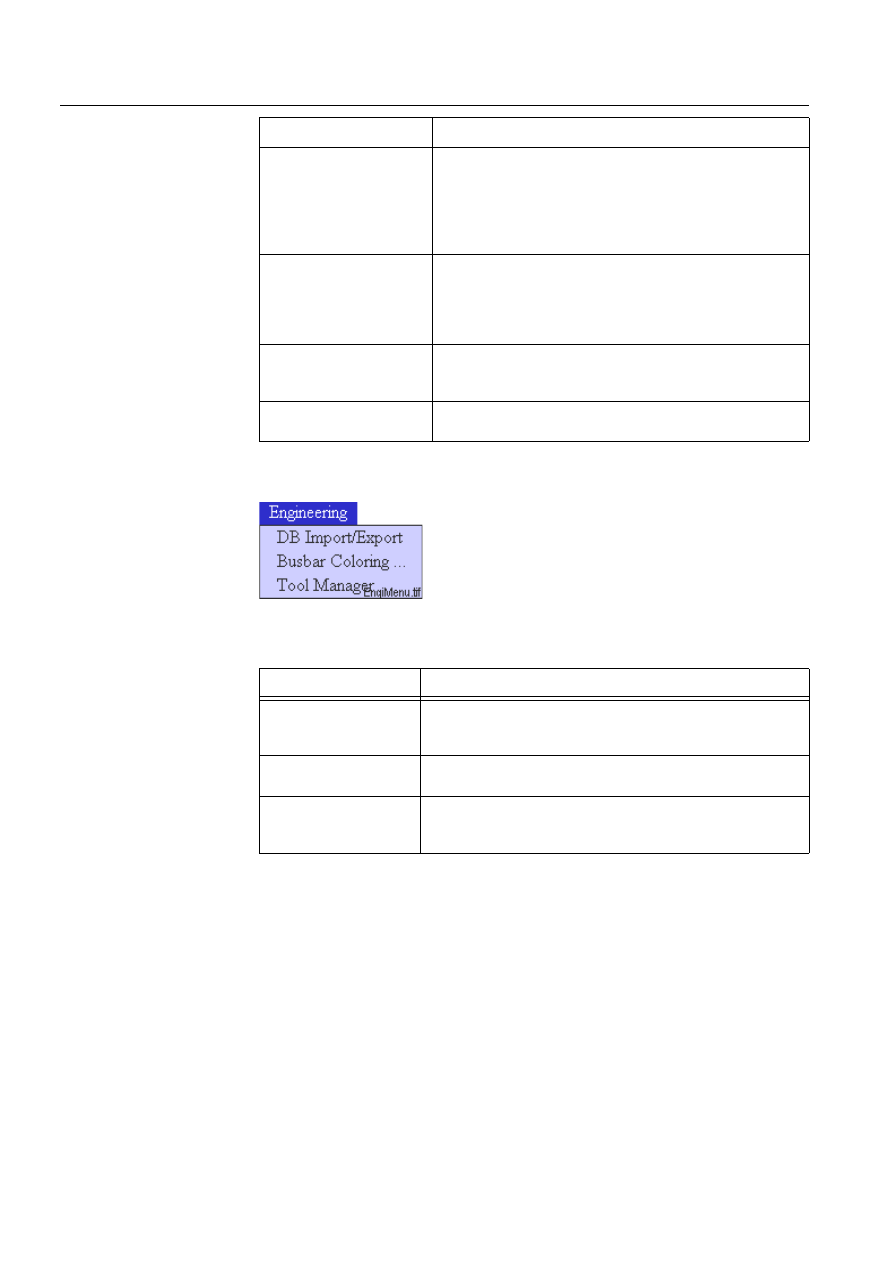

1.8.1.3. Engineering menu functions............................... 10

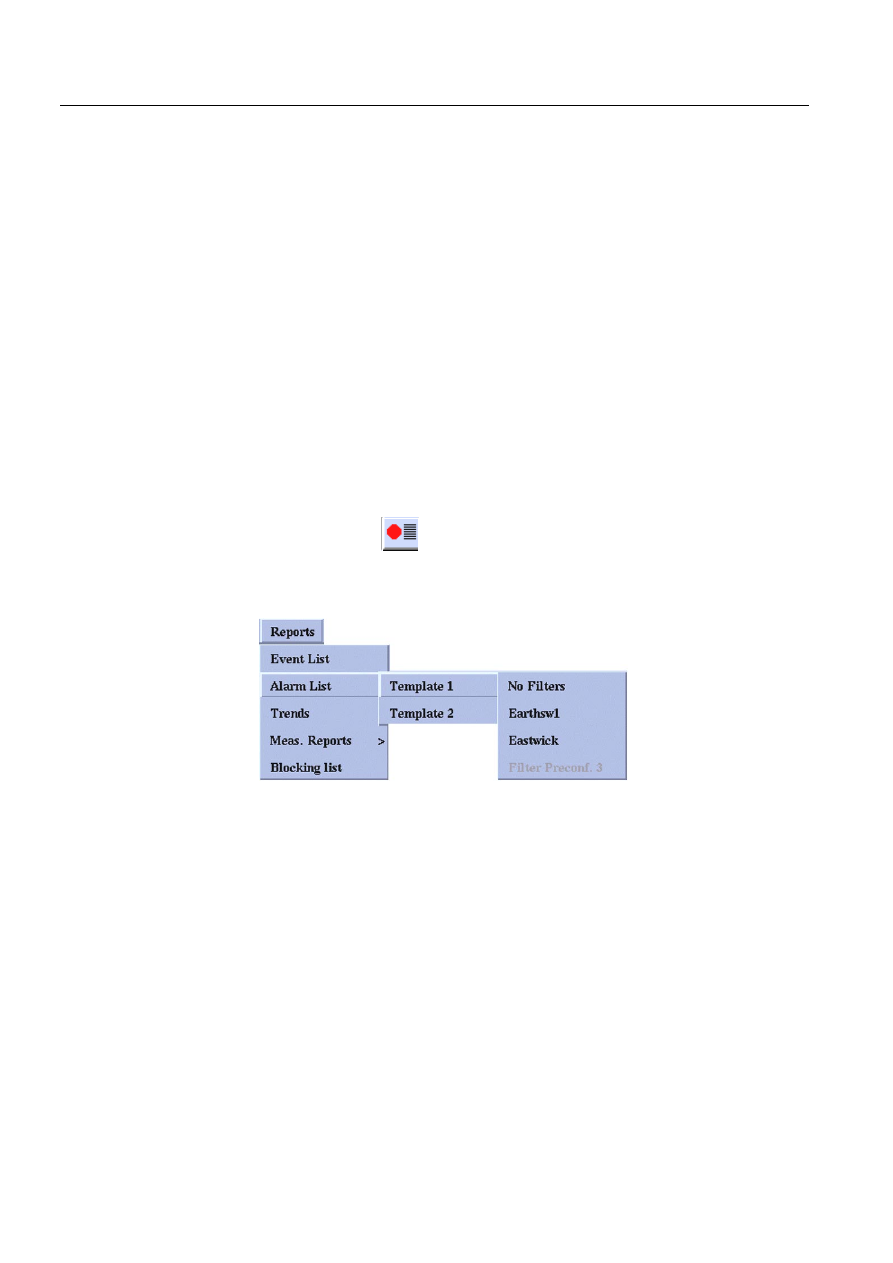

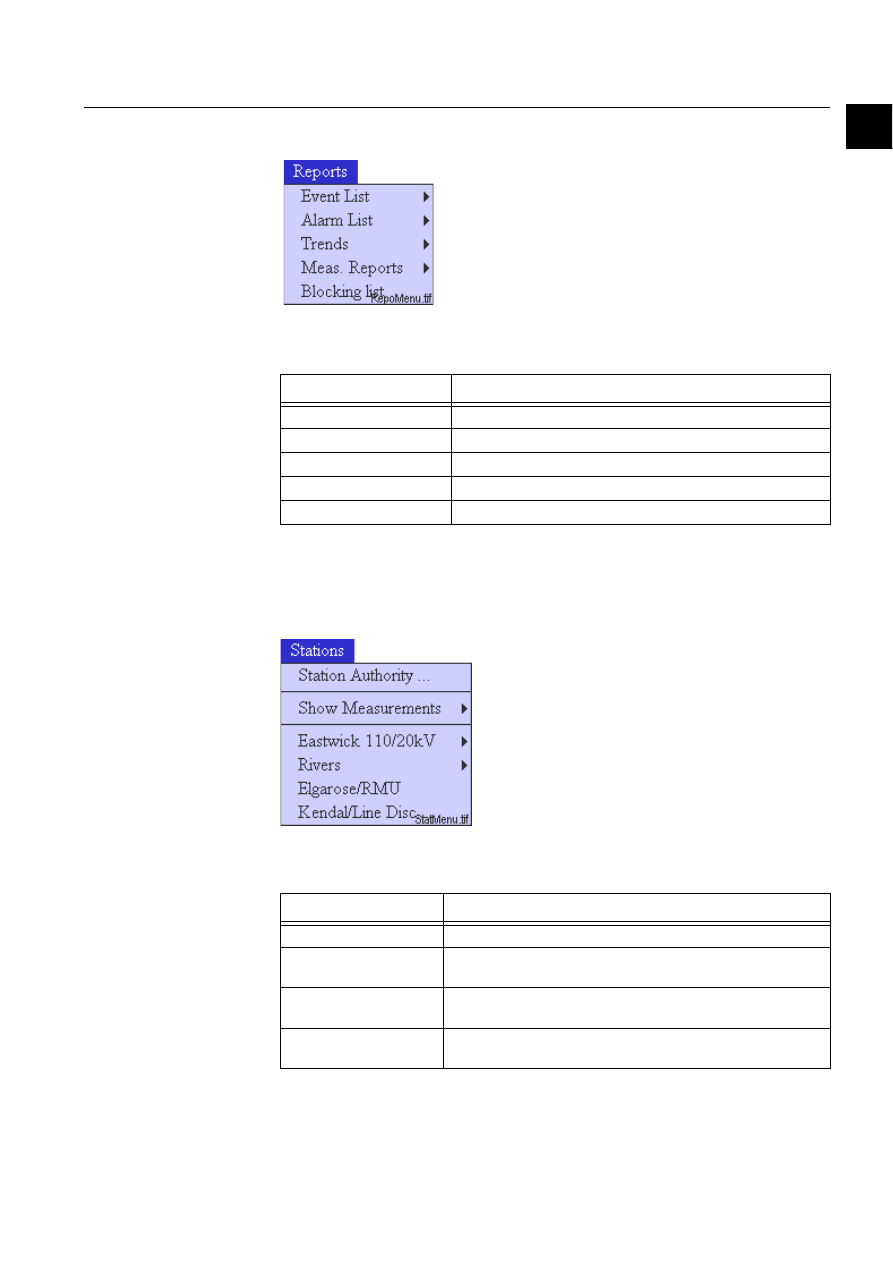

1.8.1.4. Reports menu functions ..................................... 11

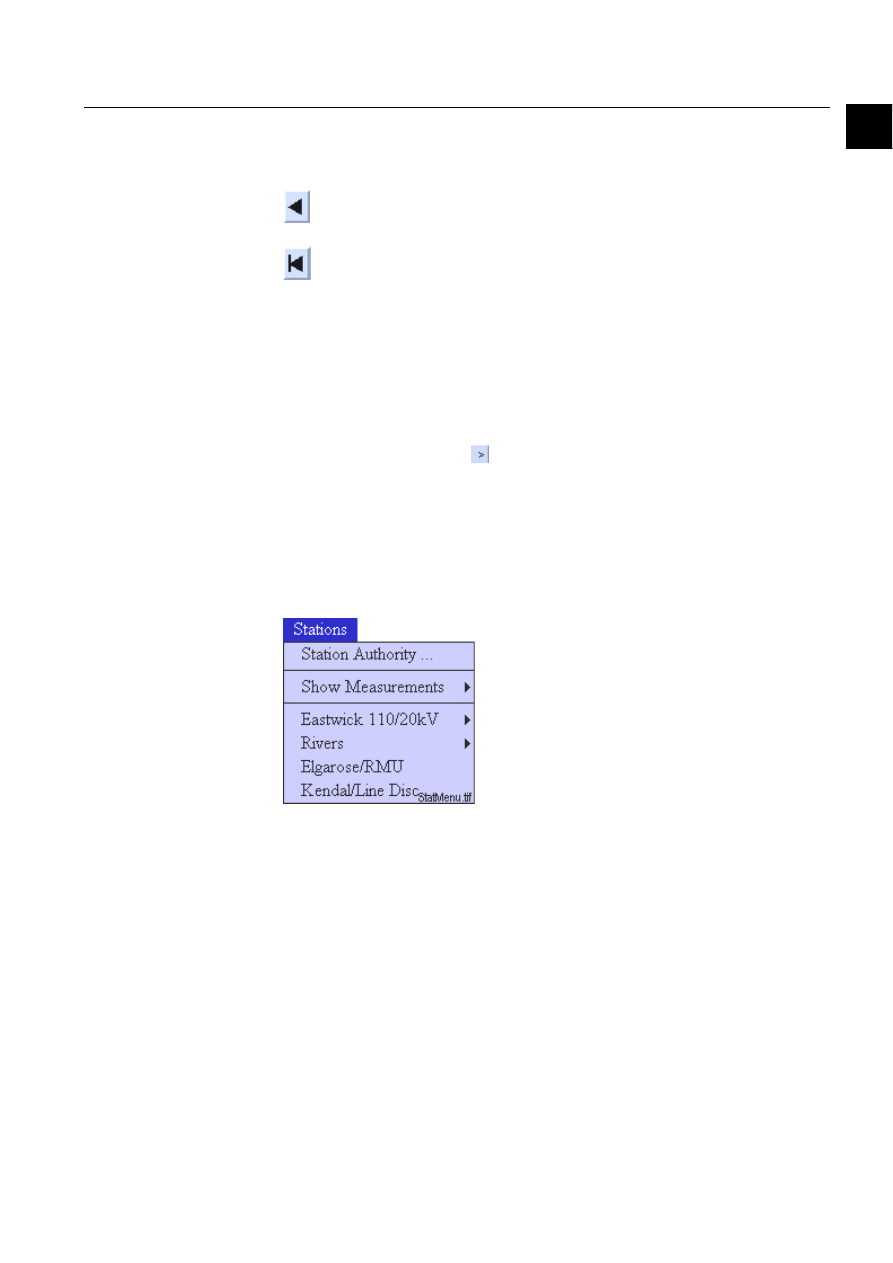

1.8.1.5. Stations menu functions..................................... 11

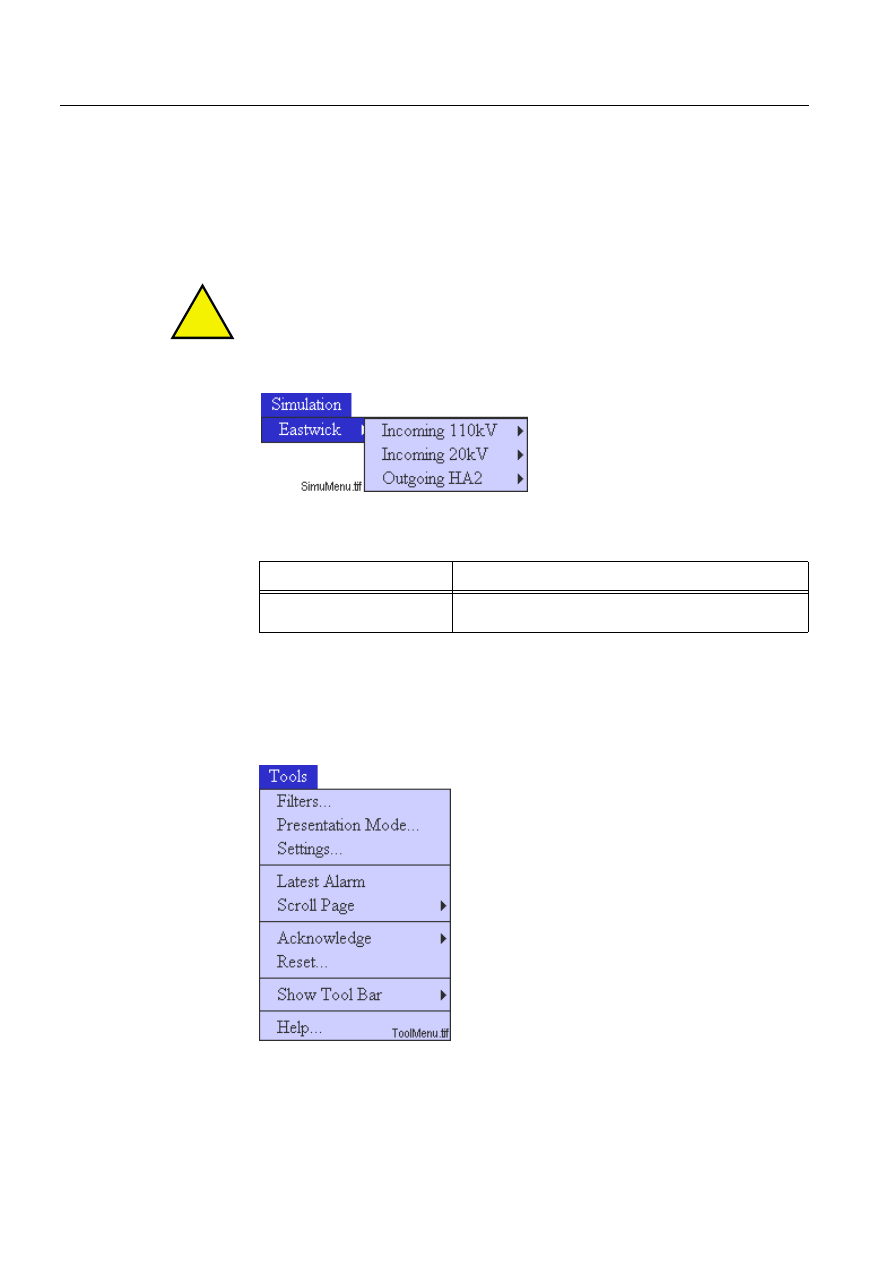

1.8.1.6. Simulation menu functions ................................. 12
1.8.2. Picture specific menu....................................................... 12

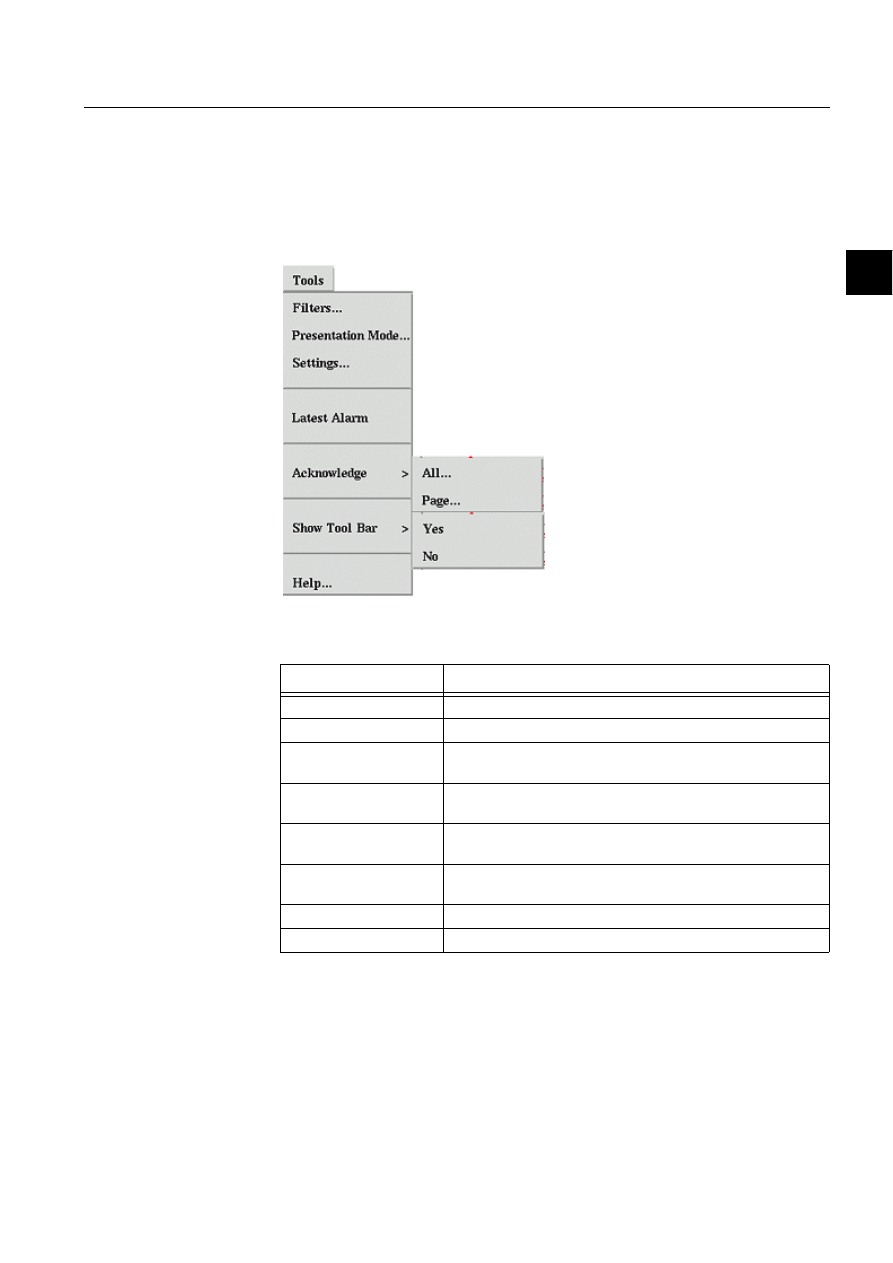

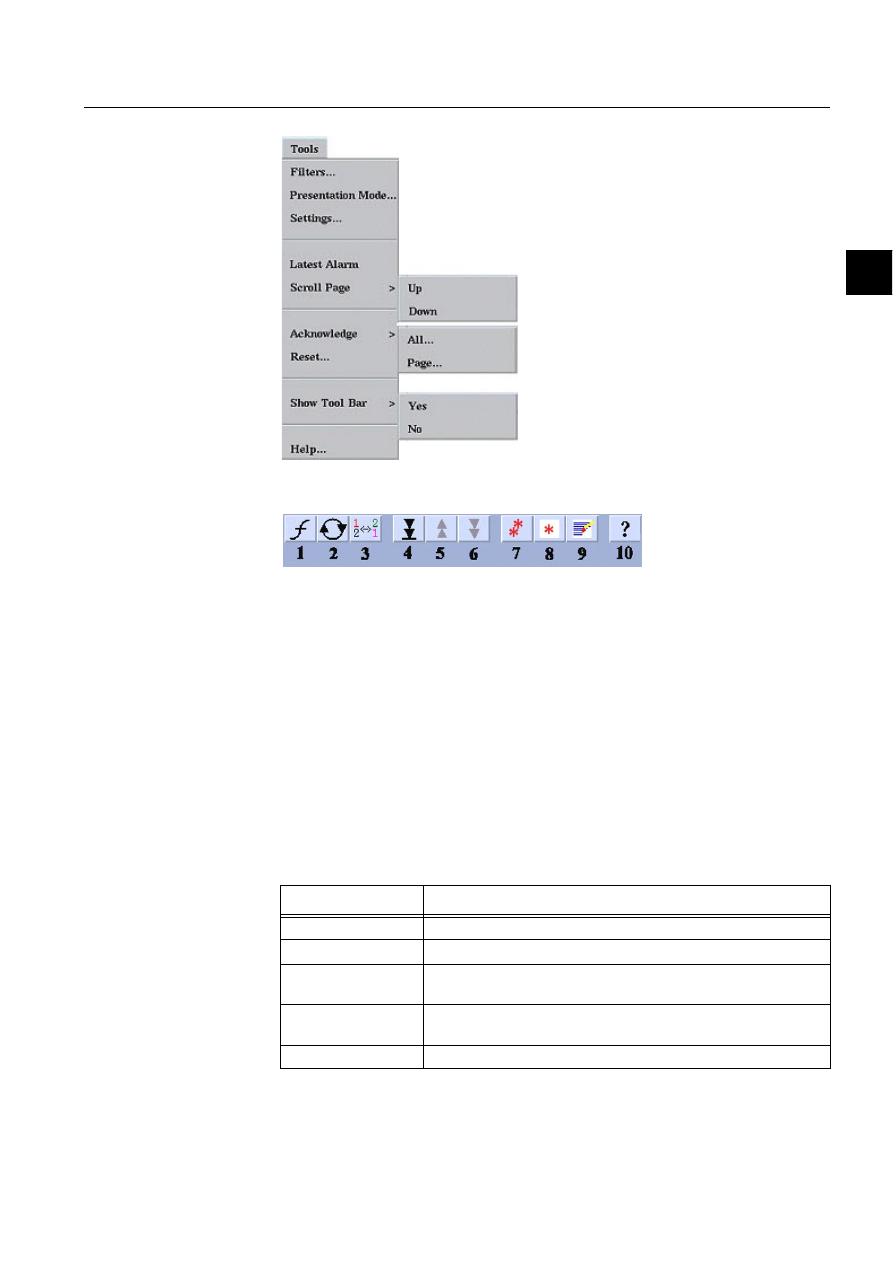

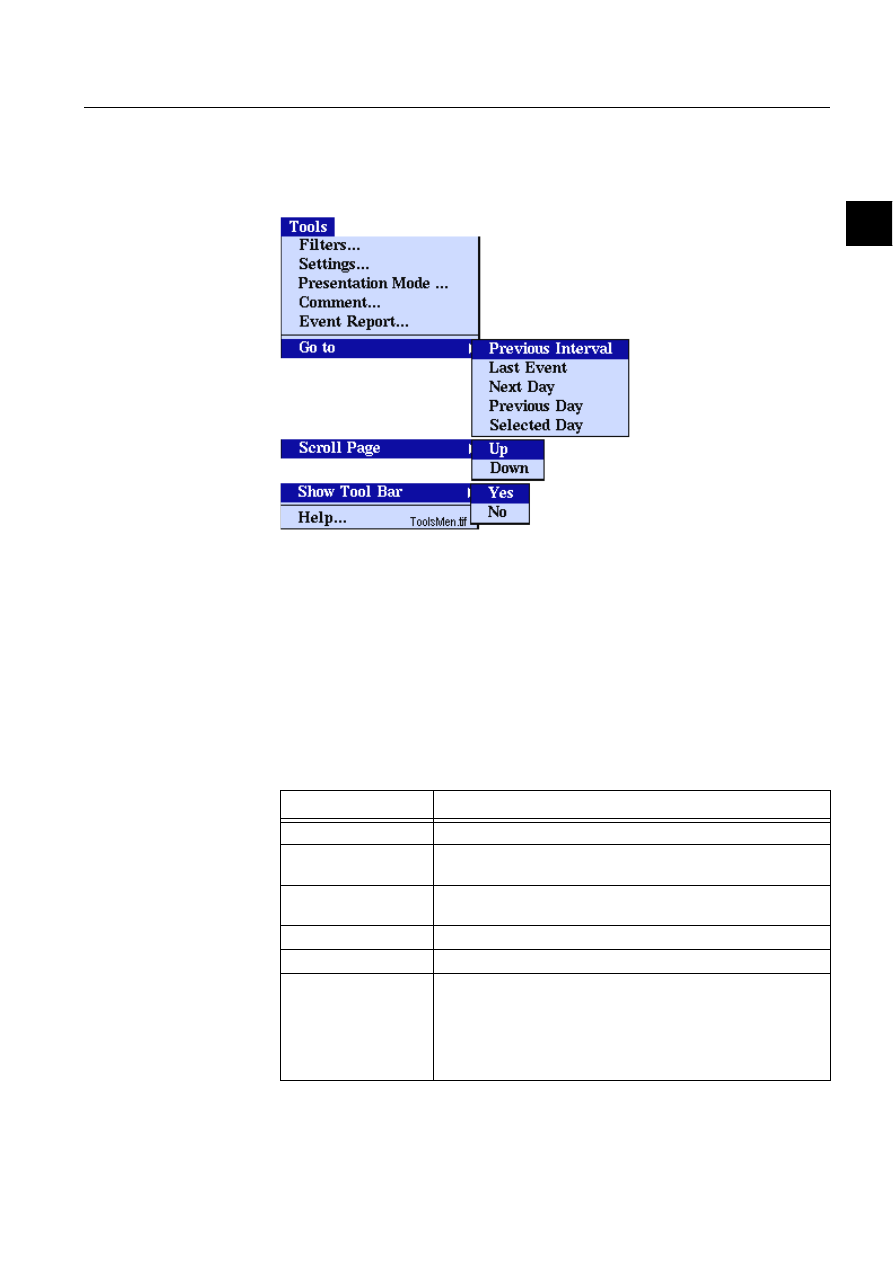

1.8.2.1. Tools menu functions ......................................... 12
1.8.3. Help menu........................................................................ 13
1.8.3.1. Help menu functions .......................................... 13
1.9. Process lists ................................................................................ 13
1.10.Reports ....................................................................................... 14
1.11.Tools ........................................................................................... 14
1.12.Application window ..................................................................... 14
1.13.Opening an application window .................................................. 15
1.13.1.User login......................................................................... 16

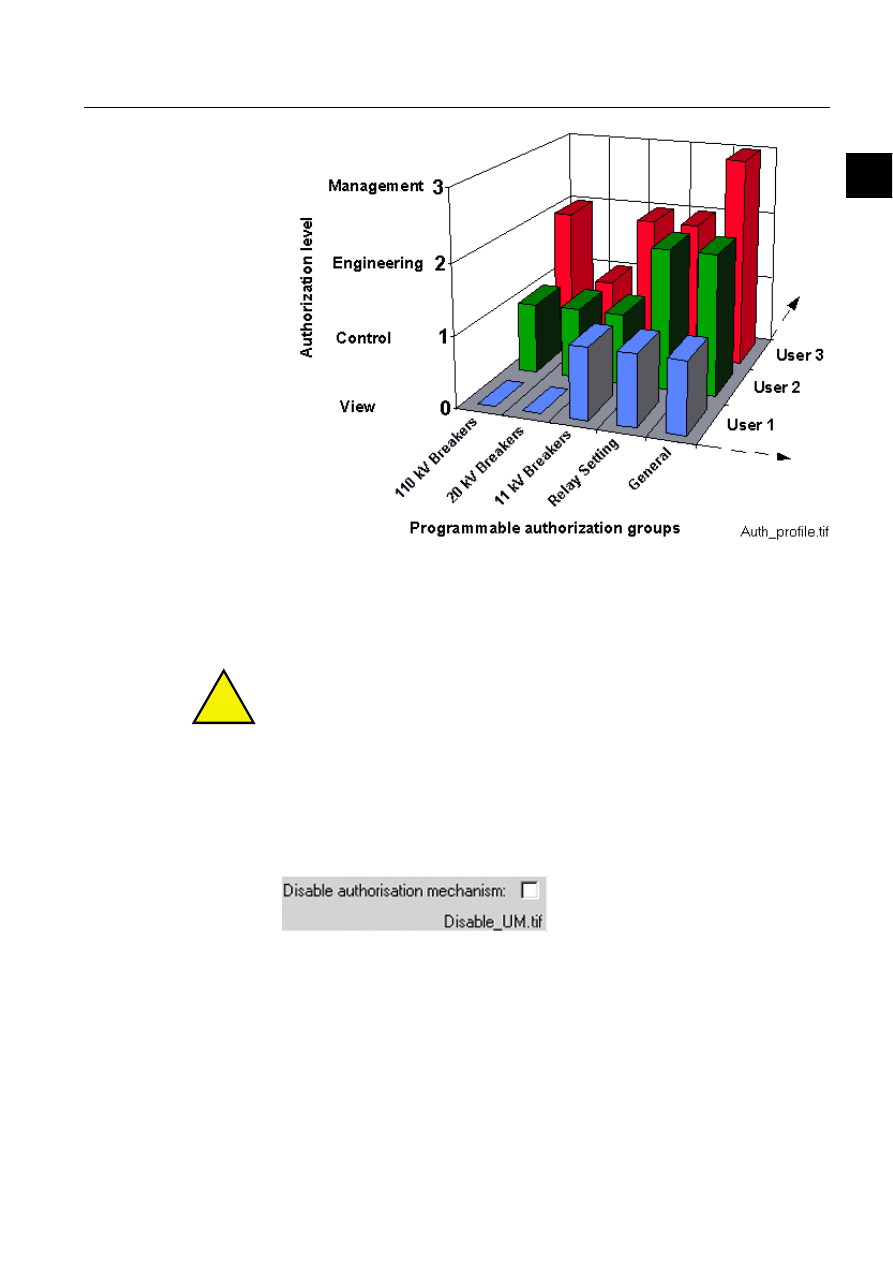

1.13.2.Authorization .................................................................... 17
1.13.3.Closing ............................................................................. 18
1.14.Shifting pictures on screen ......................................................... 18
1.14.1.Navigating in the drop-down menus ................................ 19
1.15.Basic handling of application pictures ........................................ 21
1.15.1.General ............................................................................ 21
1.15.2.Push buttons .................................................................... 21
1.15.3.Folder ............................................................................... 22
1.15.4.Selecting options.............................................................. 23
1.15.5.Scroll folder’s arrow buttons............................................. 23
1MRS751885-MUM
LIB 500 Operator’s Manual
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
Contents
User’s Guide
1.15.6.Entering data ................................................................... 23
1.15.7.Moving dialogs................................................................. 25

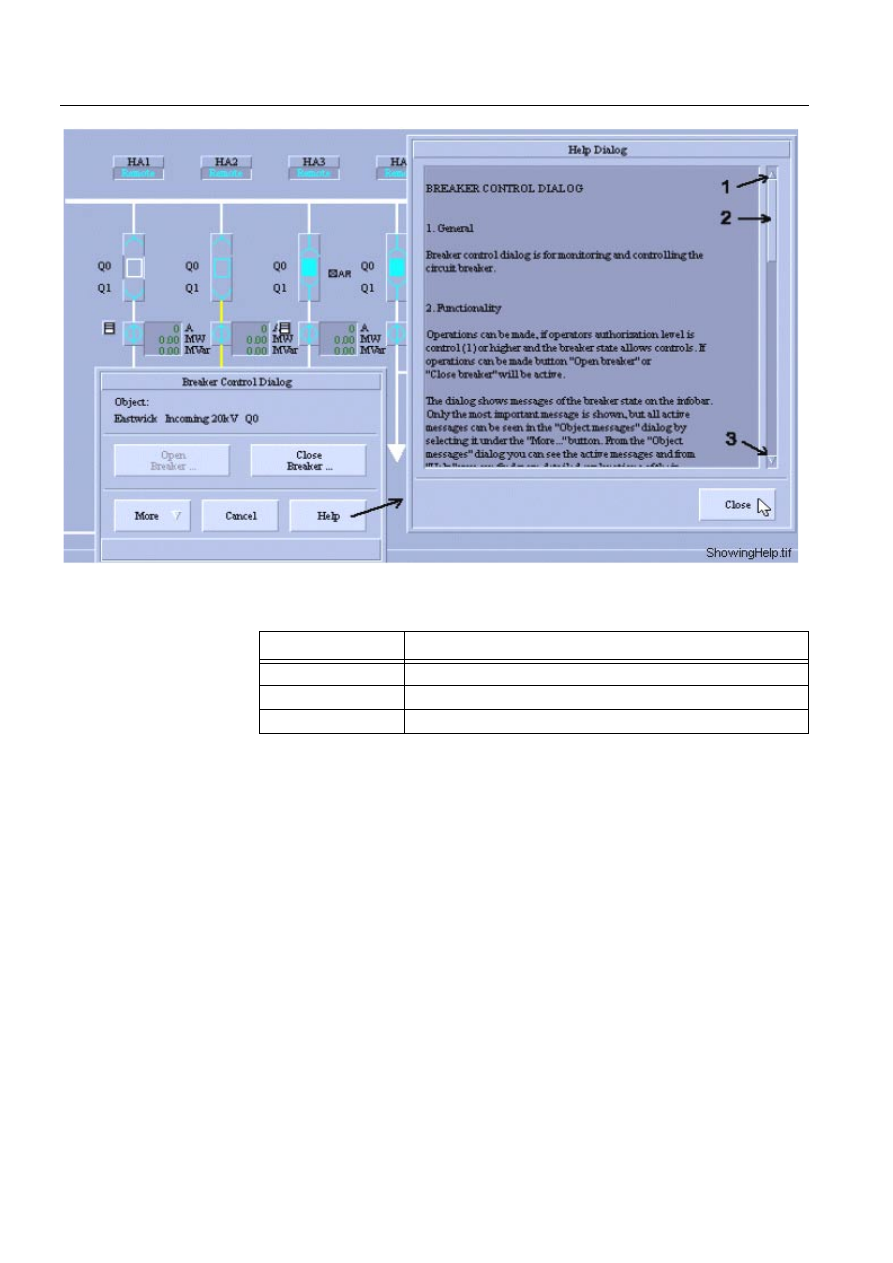

1.15.8.Viewing HELP texts ......................................................... 25
1.15.9.Inquiring picture name ..................................................... 26
1.16.Some terms used in the Operator’s Manual............................... 27
2. LIB 500 Backbone .................................................................. 29
2.1.1. Start-up procedure........................................................... 29

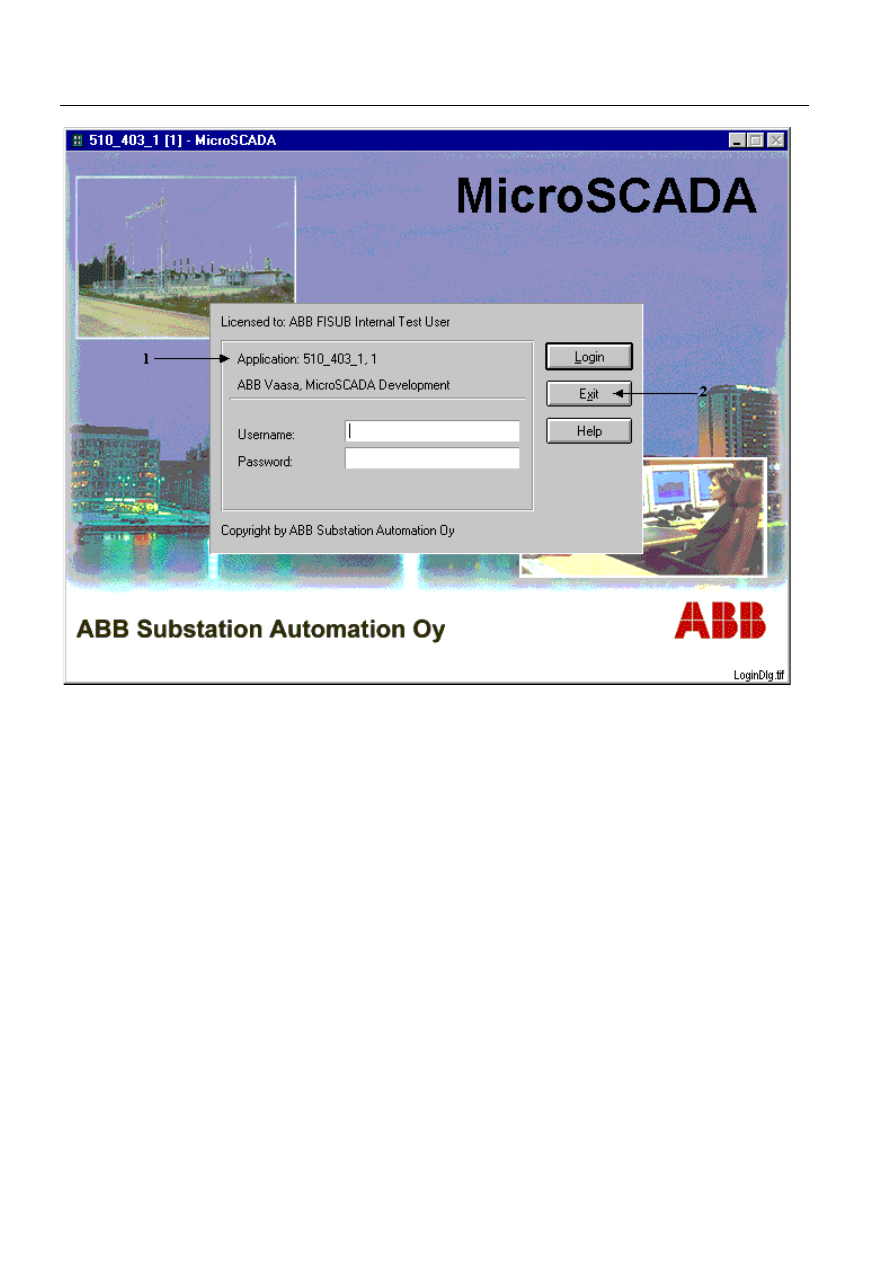

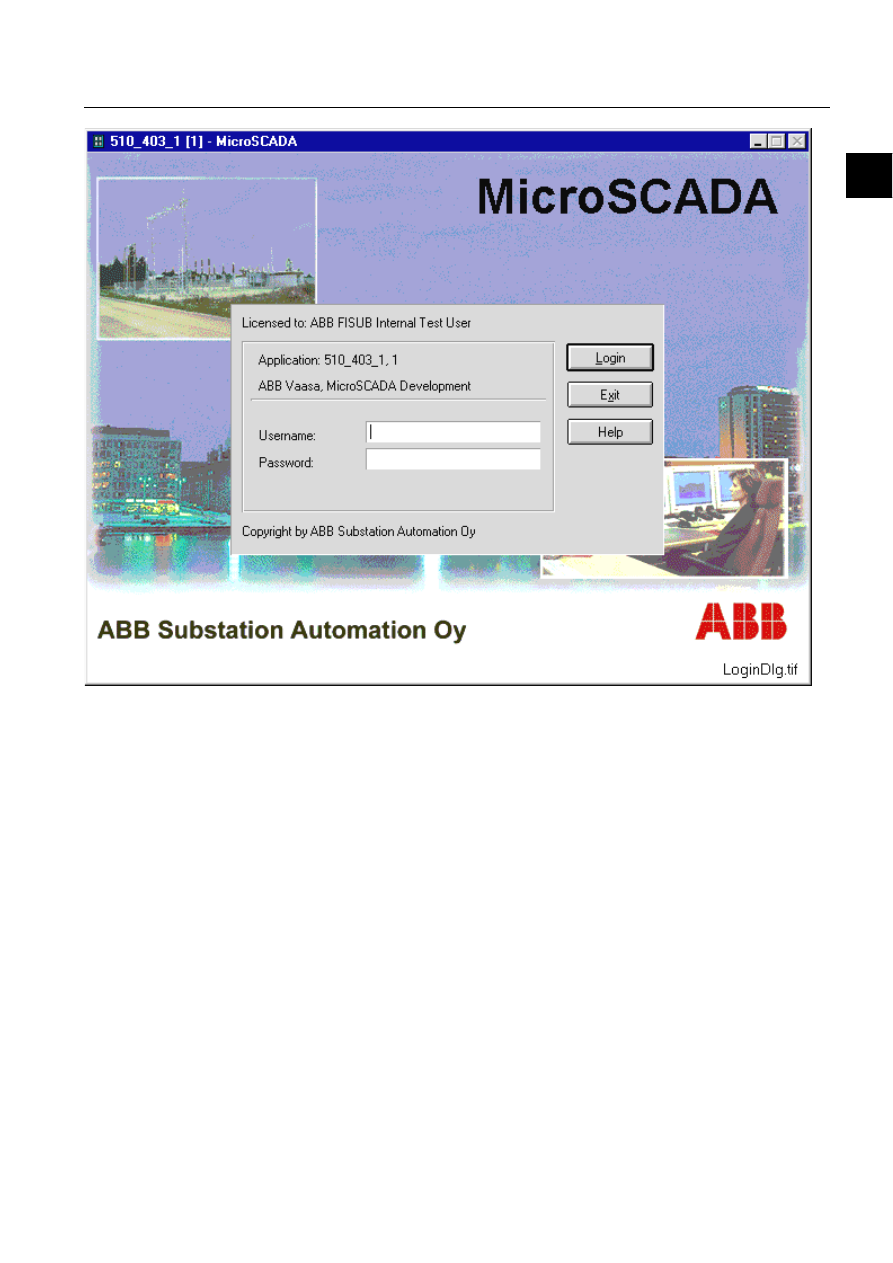

2.1.2. Login dialog ..................................................................... 30
2.2. Standard Function Base ............................................................. 32
2.2.1. Overview.......................................................................... 32
2.2.1.1. Description......................................................... 32
2.2.2. Features/options .............................................................. 32

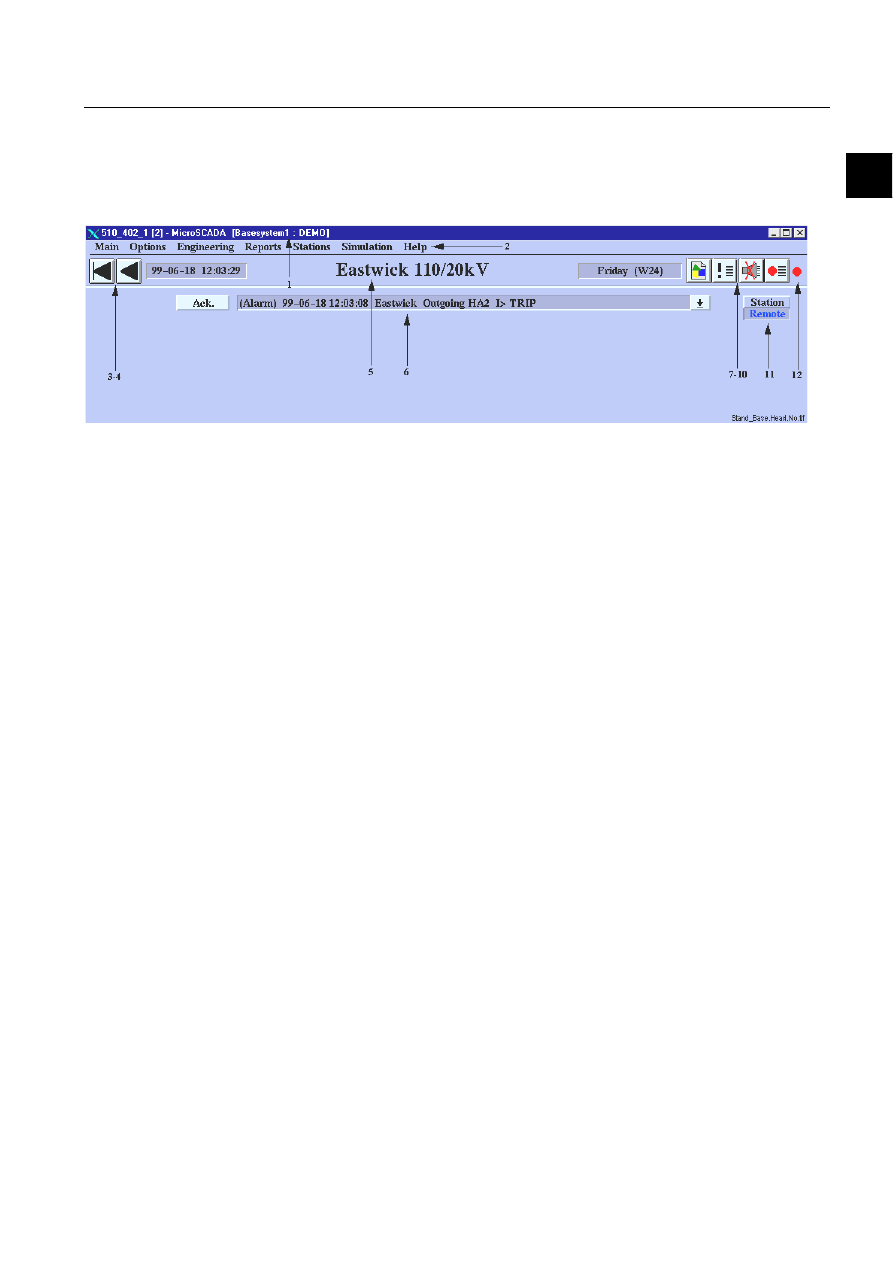

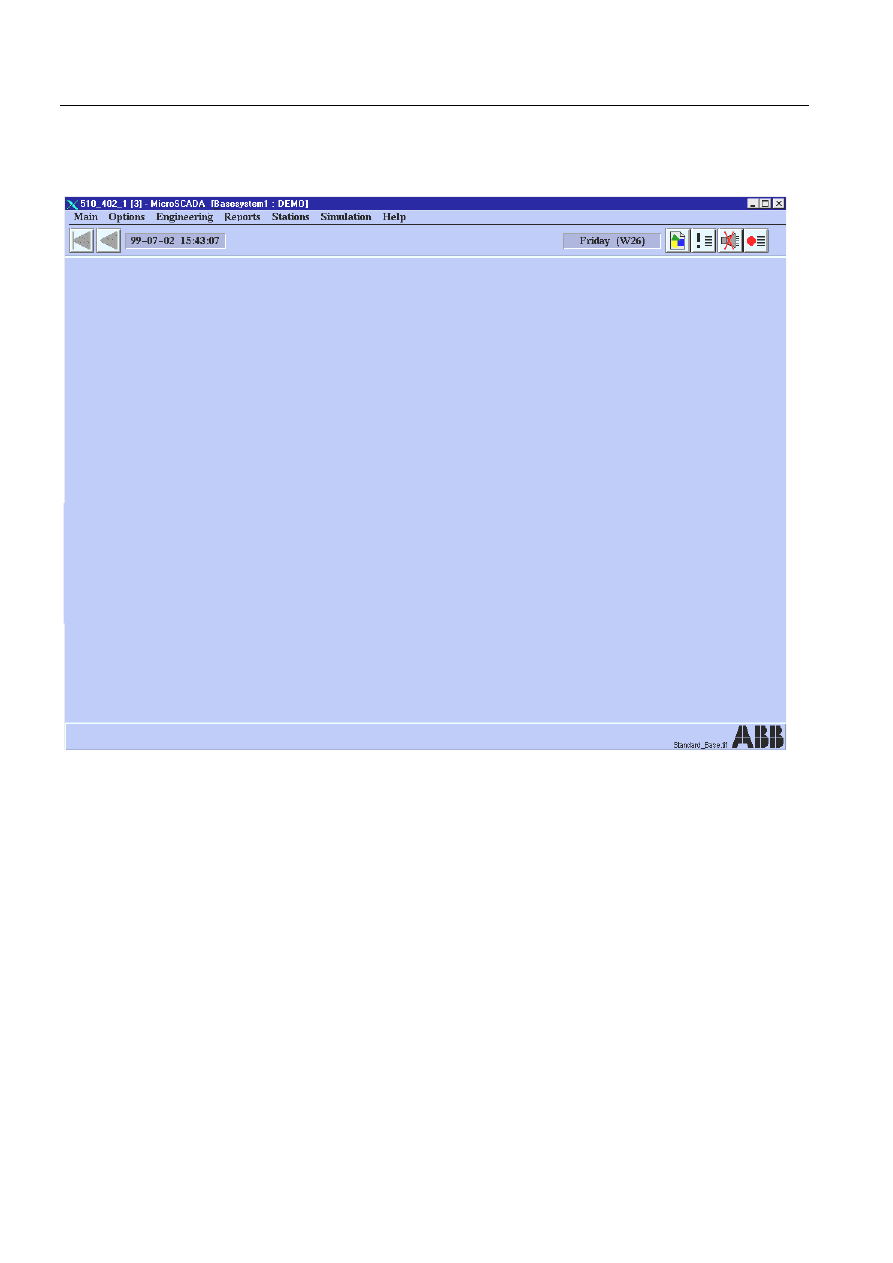

2.3. Picture header ............................................................................ 33
2.3.2.1. Activation of shortcuts........................................ 34
2.3.5.1. Displaying computer and user name ................. 35
2.3.5.2. Information dialog when a standard menu item is not
2.4. On-line system debugging .......................................................... 36

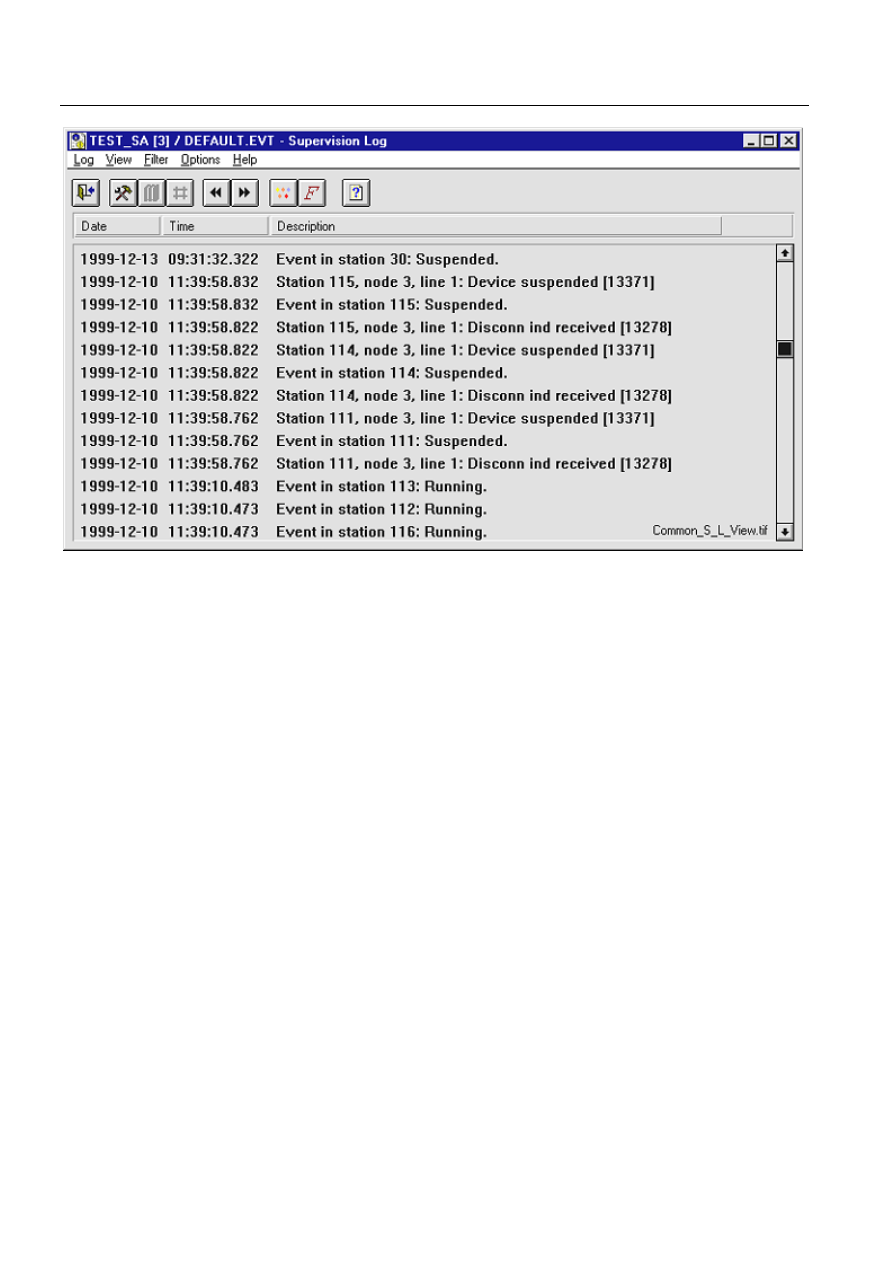

2.4.1. System Message ............................................................. 36
2.5. Application Settings .................................................................... 37
2.5.1. Overview.......................................................................... 37

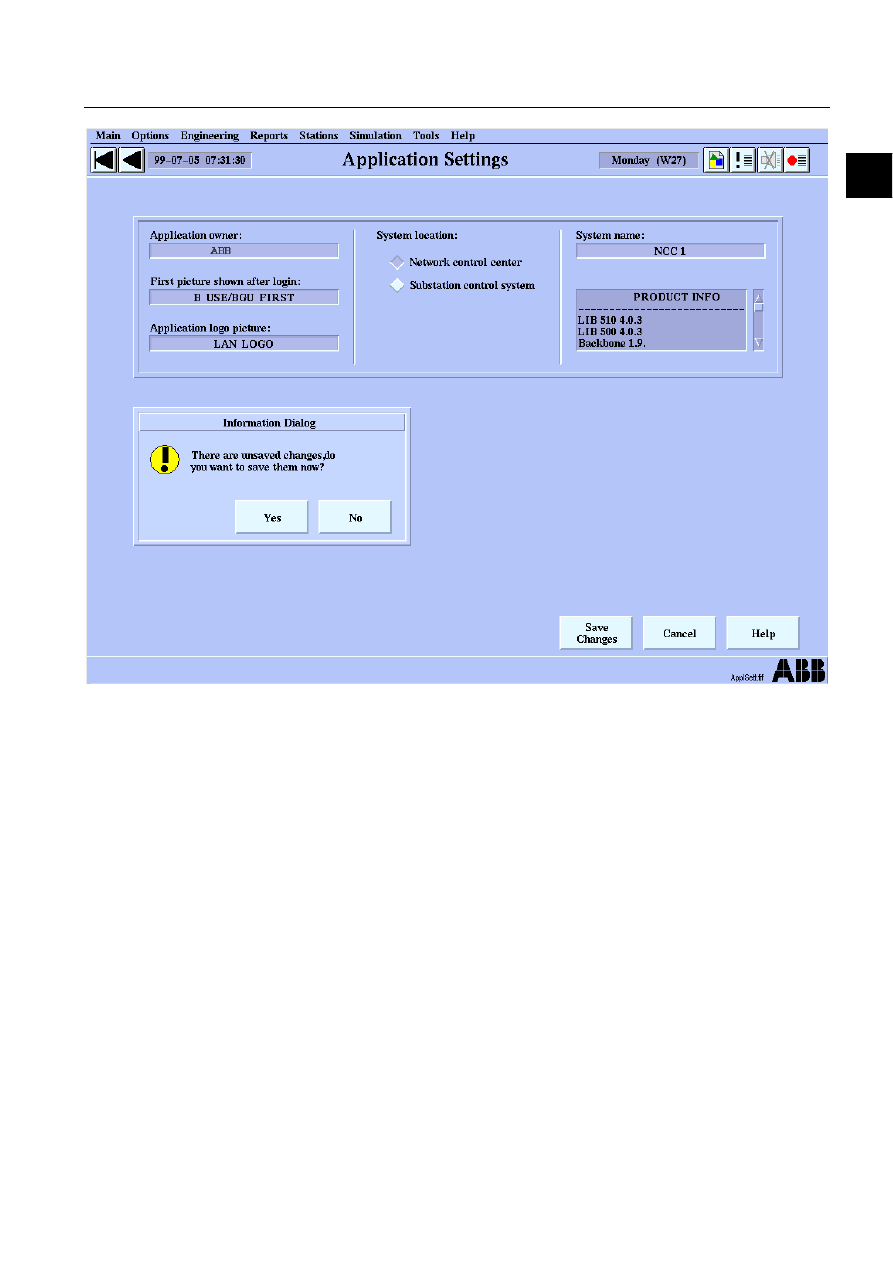

2.5.2. Main picture ..................................................................... 37

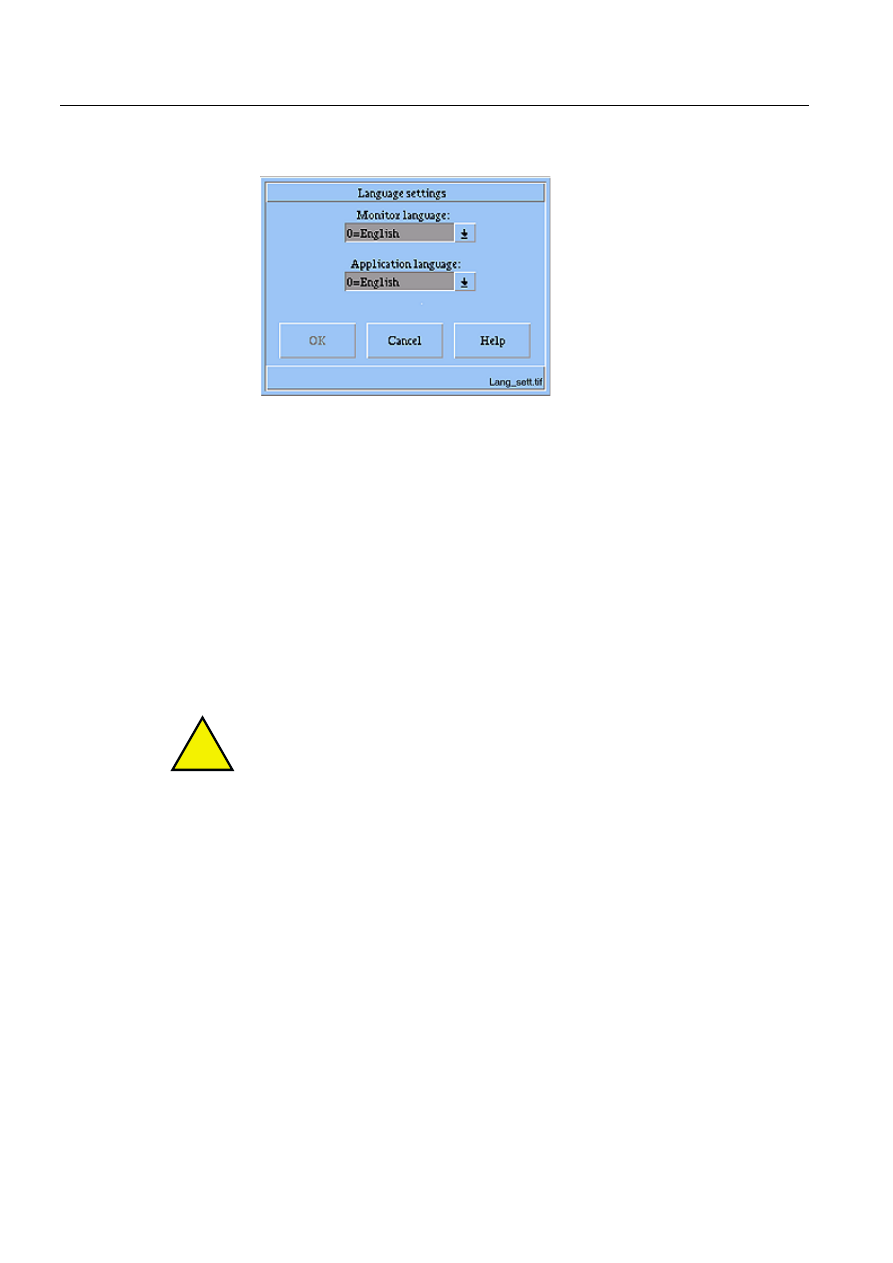

2.5.3. Language settings ........................................................... 39

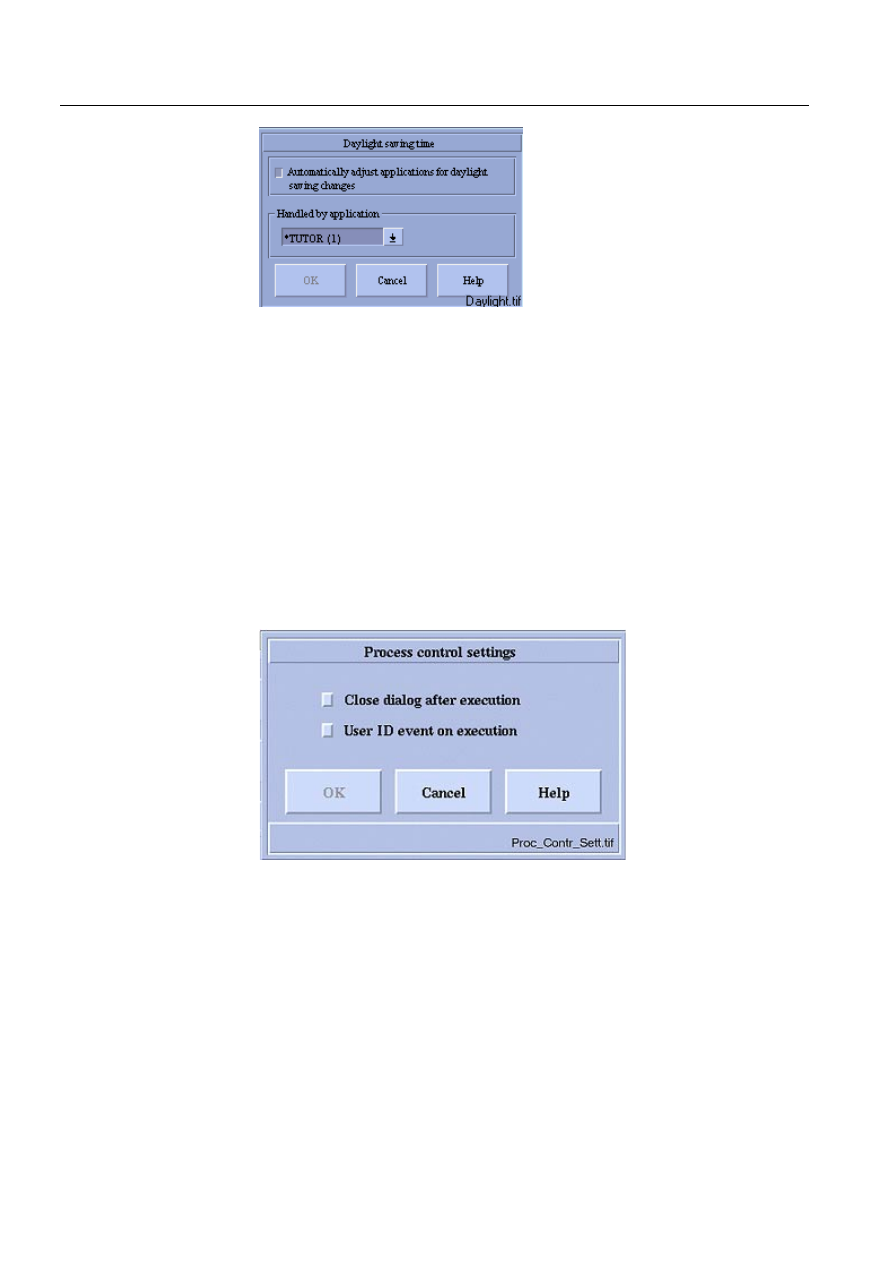

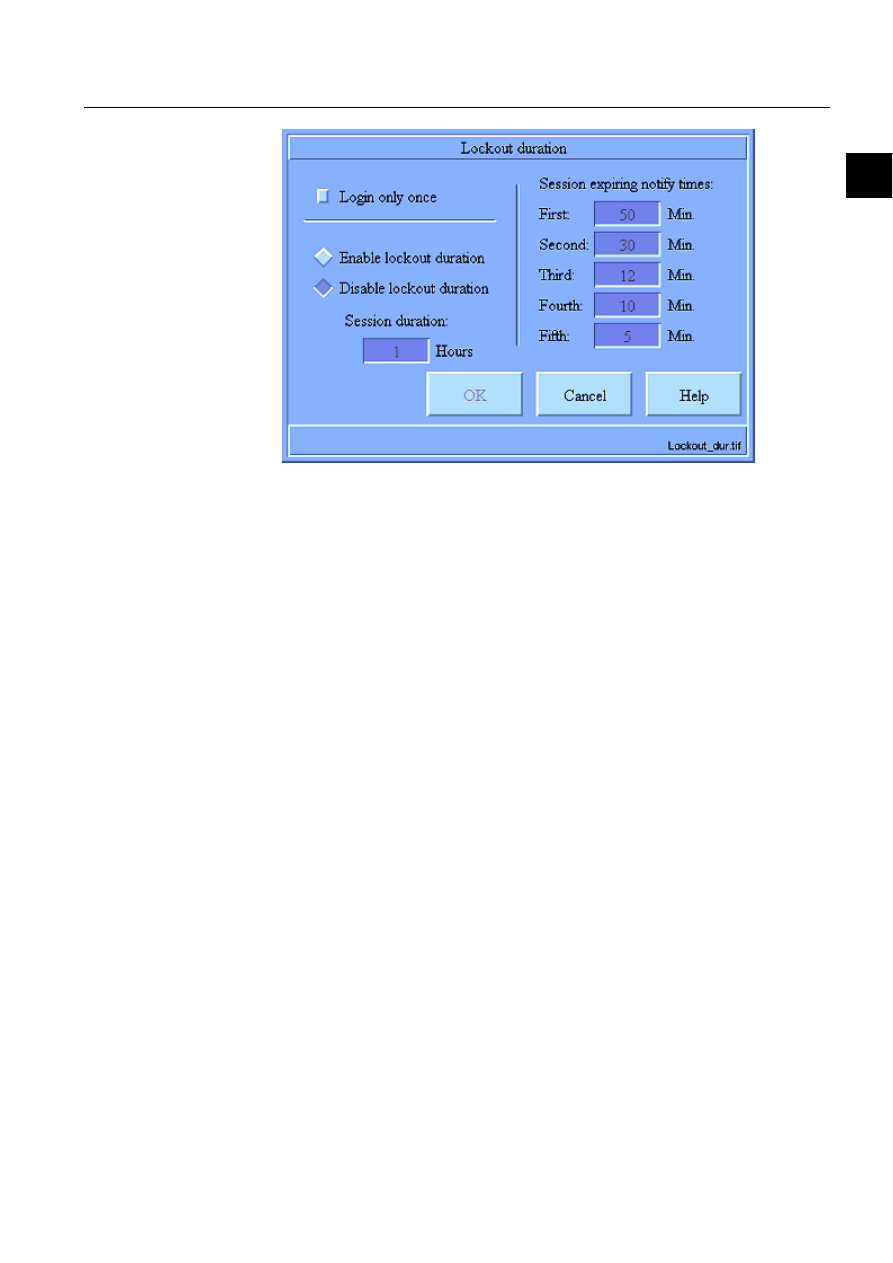

2.5.4. Lockout duration .............................................................. 40
2.5.5. Daylight saving time ........................................................ 41
2.5.6. Process control settings .................................................. 42

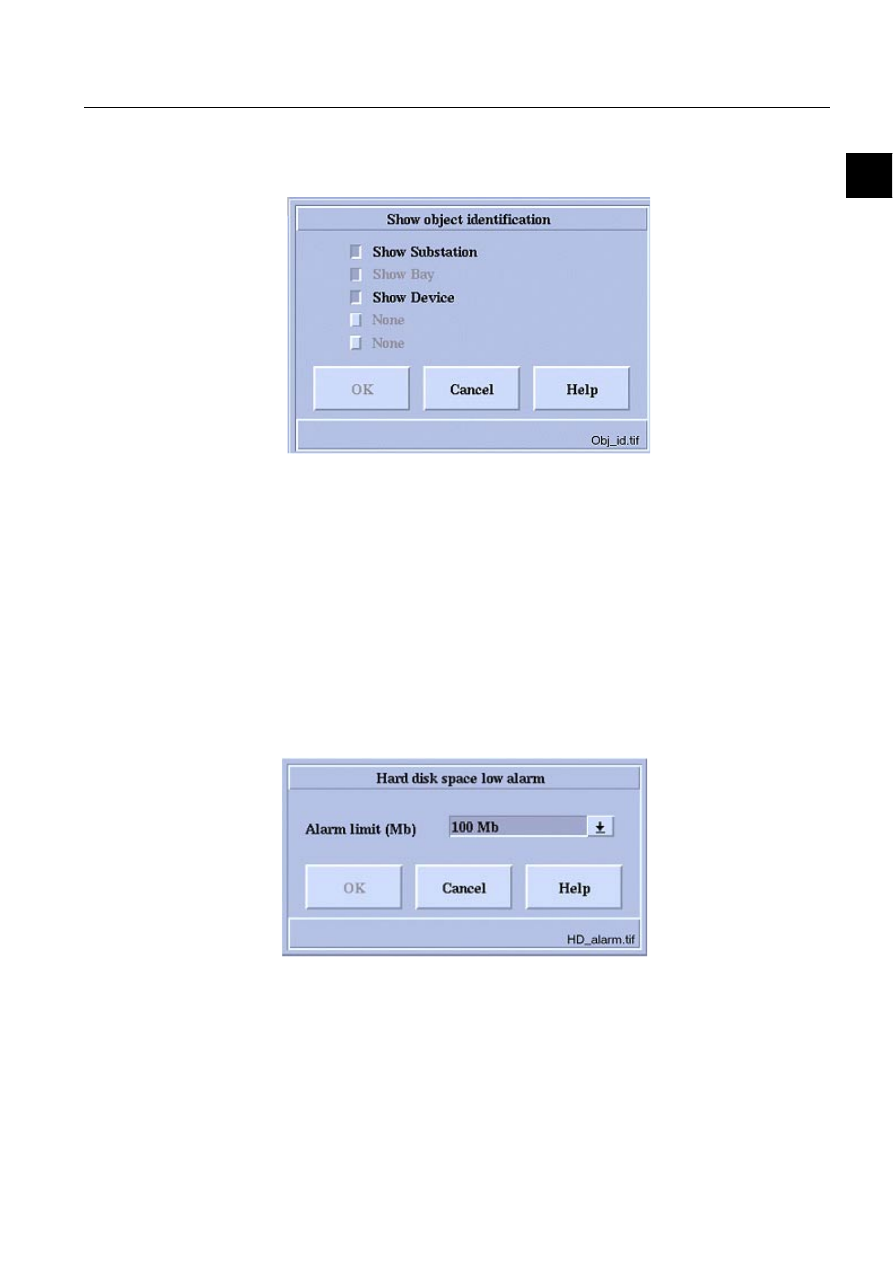

2.5.7. Show object identification ................................................ 42
2.5.8. HD space alarm ............................................................... 43
2.5.9. Report Settings ................................................................ 43

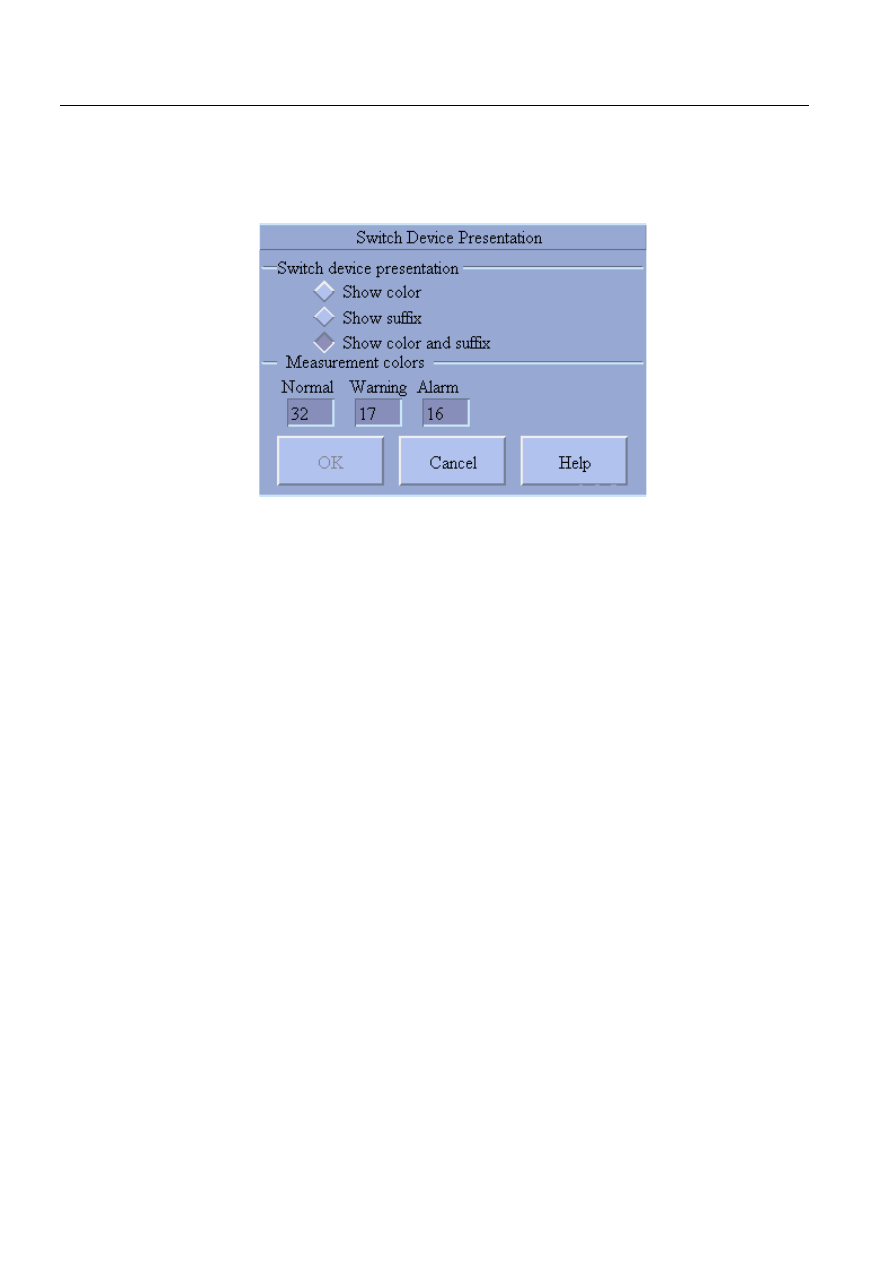

2.5.10.Switching Device Presentation ........................................ 45
2.6. User Management ...................................................................... 46
2.6.1. General ............................................................................ 46
2.6.2. User Management main switch ....................................... 47
1MRS751885-MUM
LIB 500
Contents
LIB 500 Operator’s Manual
User’s Guide
2.6.2.1. User language.................................................... 47
2.6.2.2. User interface..................................................... 48

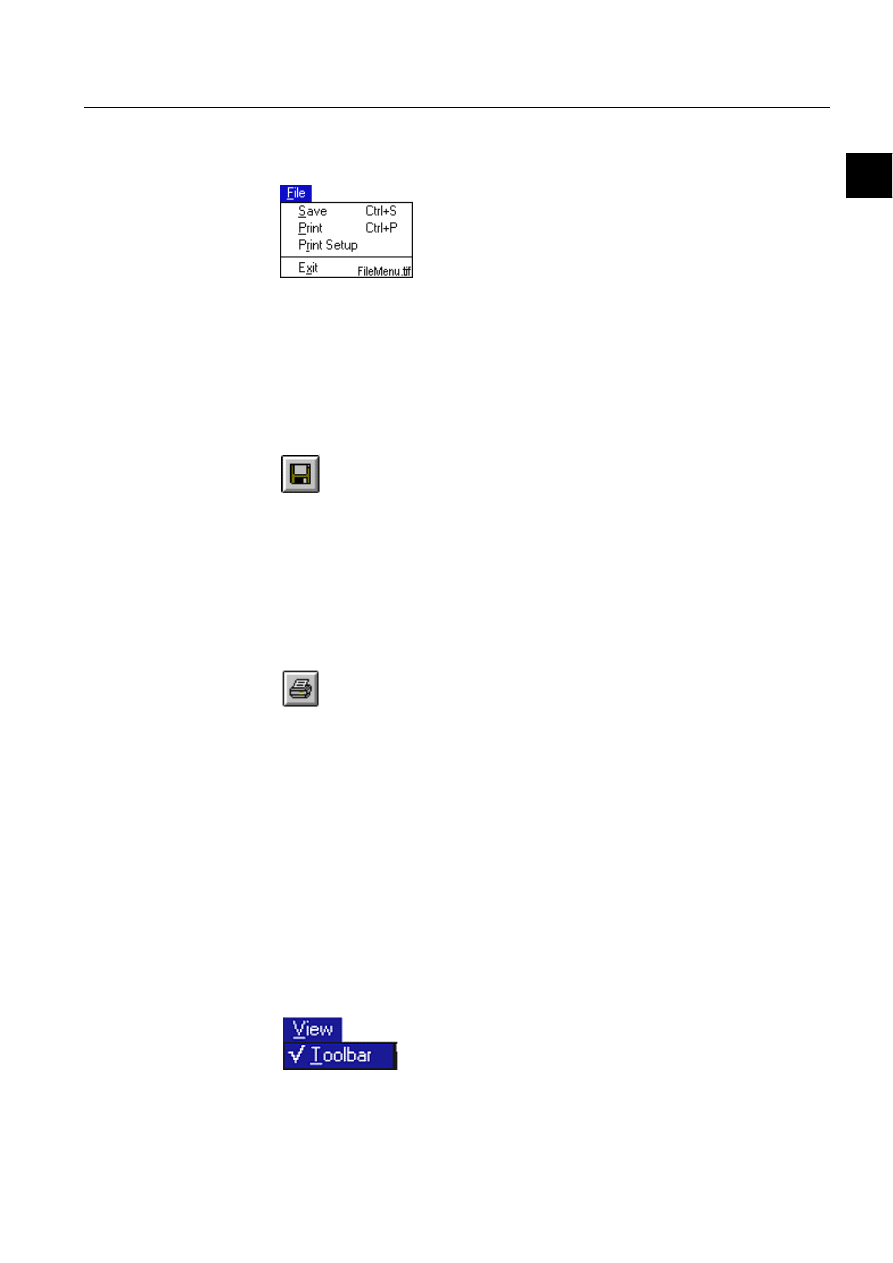

2.6.3. File menu ......................................................................... 49
2.6.4. View menu ....................................................................... 49
2.6.5. Tools menu ...................................................................... 50

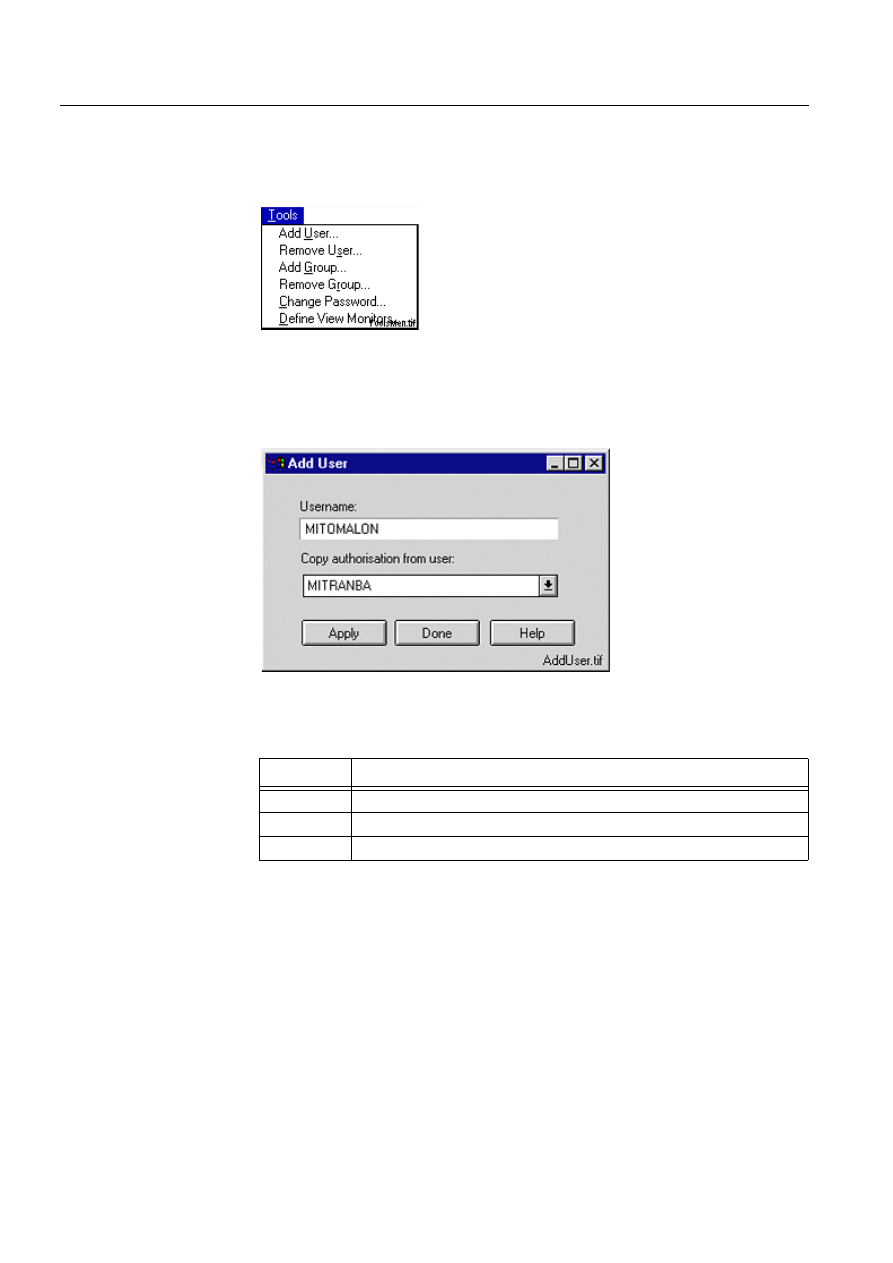

2.6.5.1. Add User ............................................................ 50
2.6.5.2. Remove User ..................................................... 51
2.6.5.3. Add Group.......................................................... 51
2.6.5.4. Remove Group................................................... 52
2.6.5.5. Change Password.............................................. 53
2.6.5.6. Define view monitors.......................................... 54

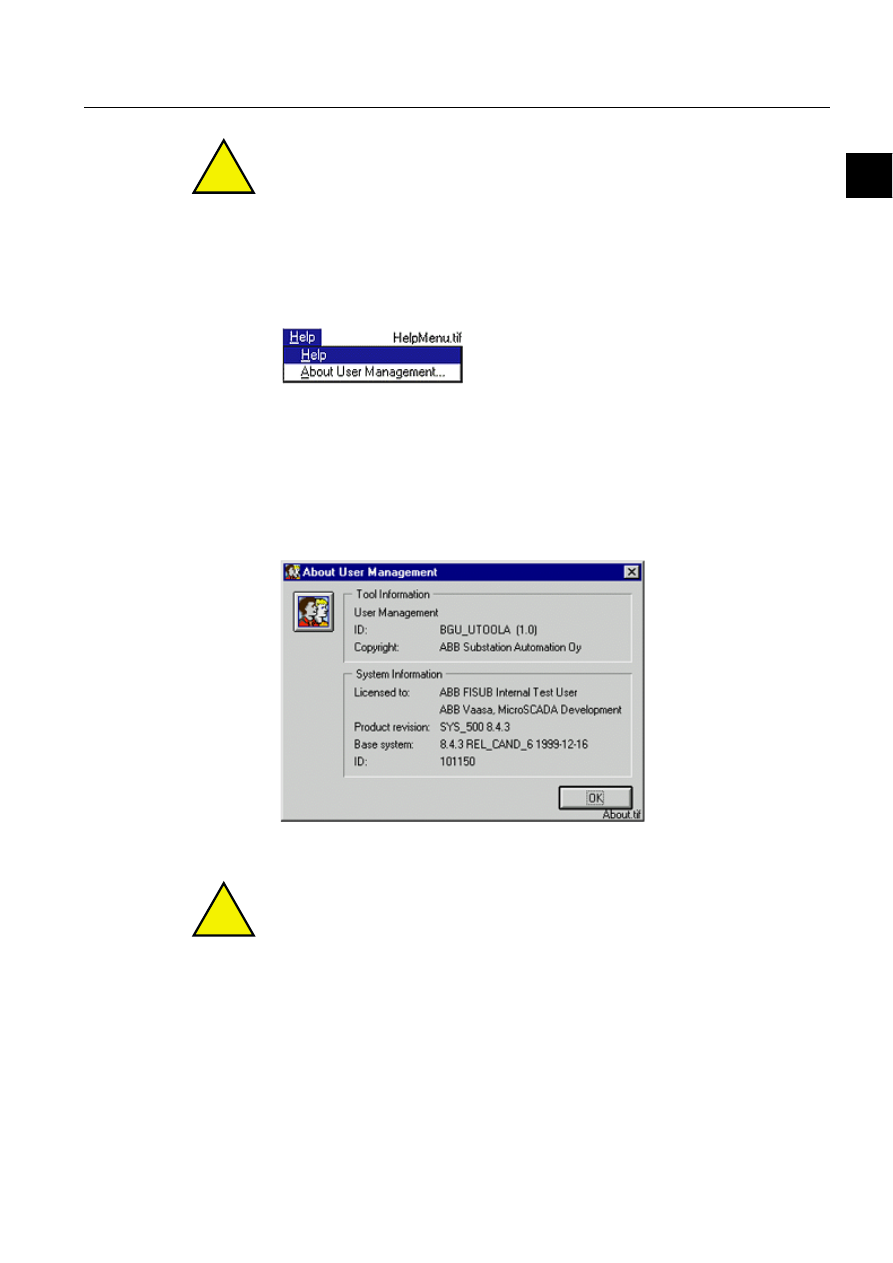

2.6.6. Help menu........................................................................ 55

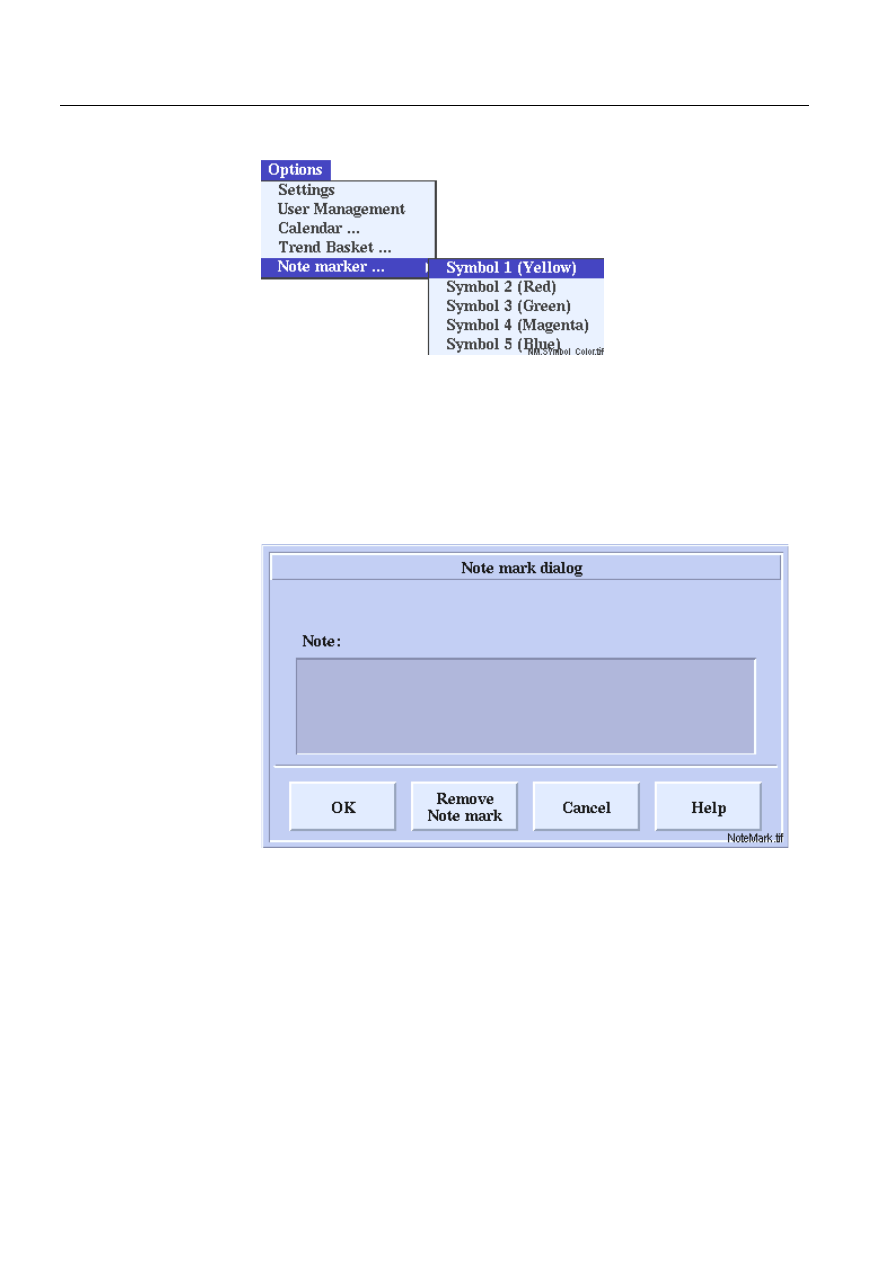

2.7. Note marker ................................................................................ 56

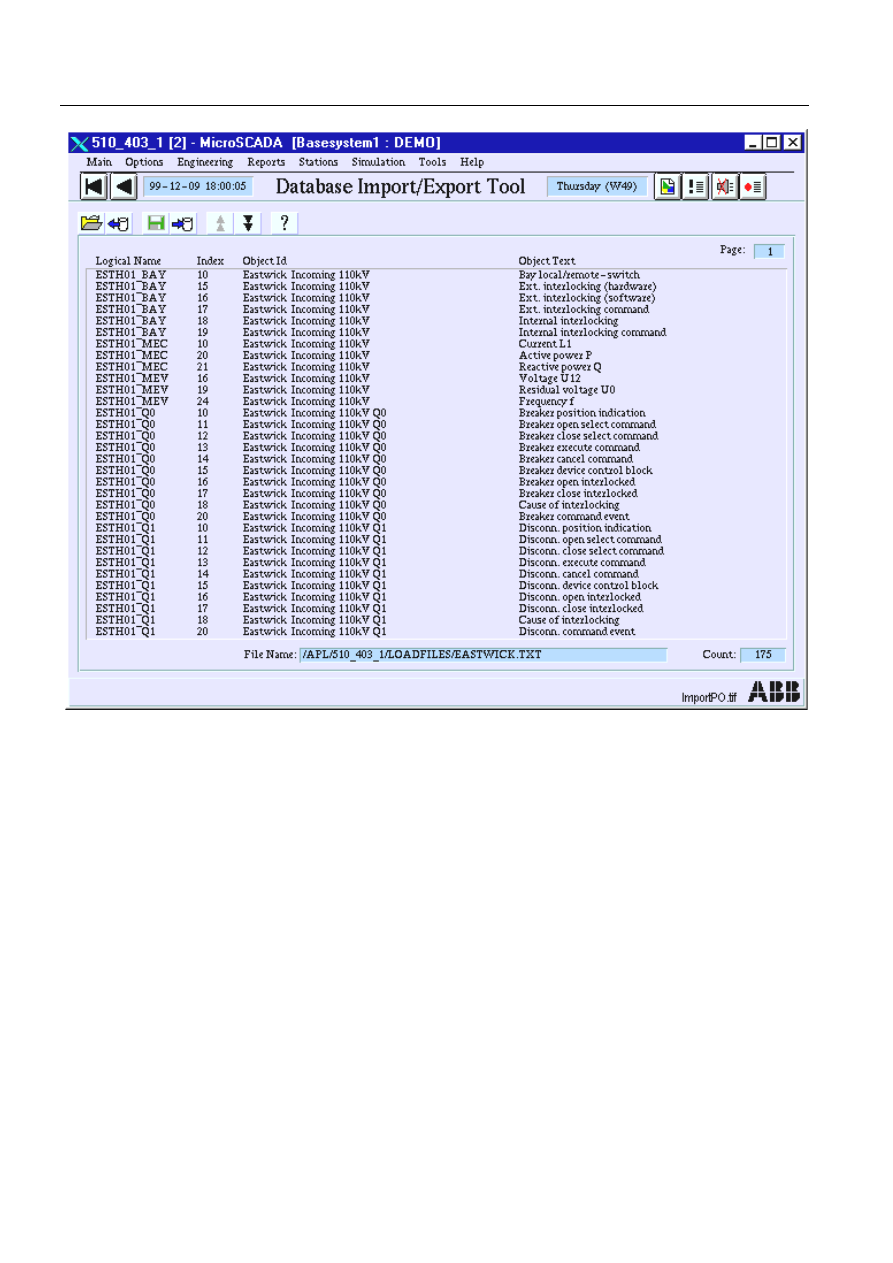

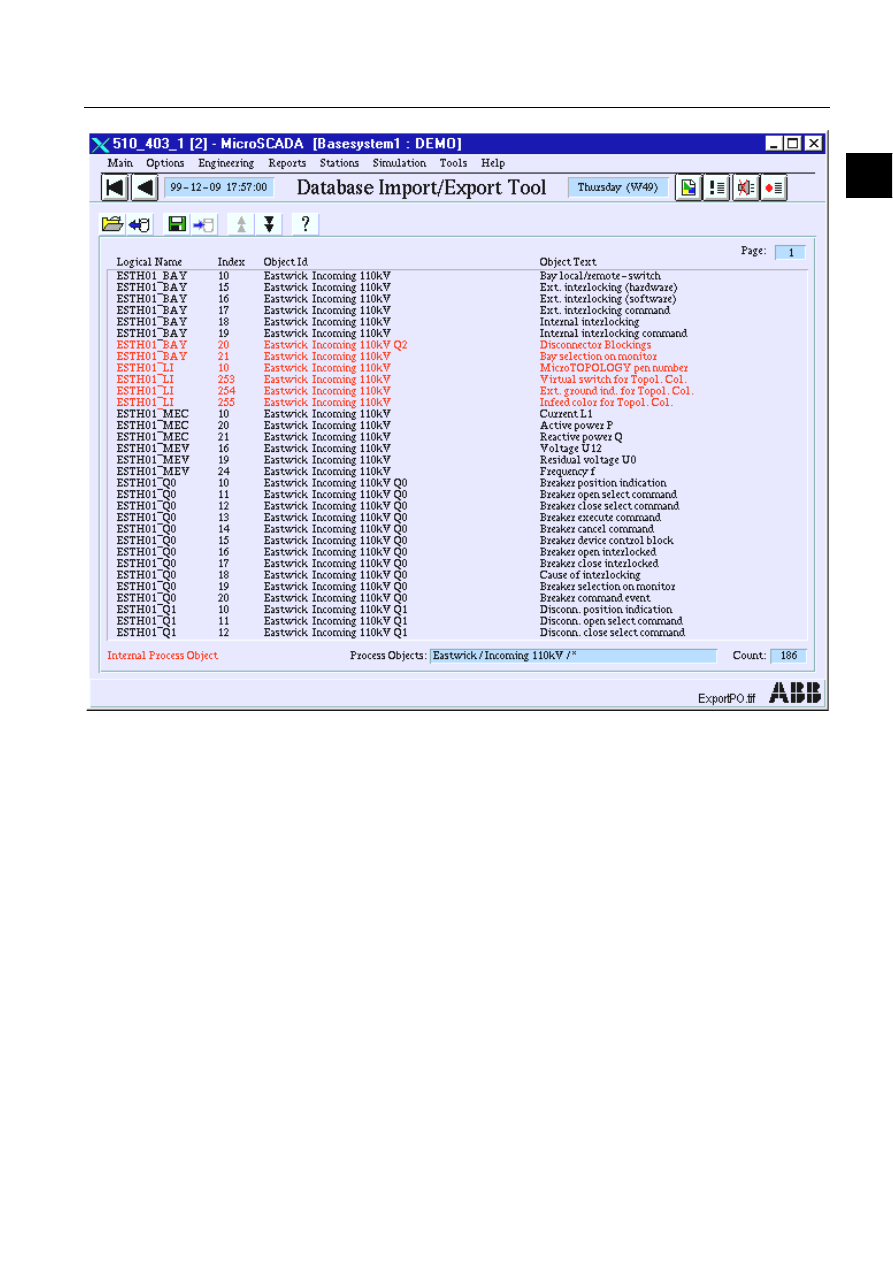

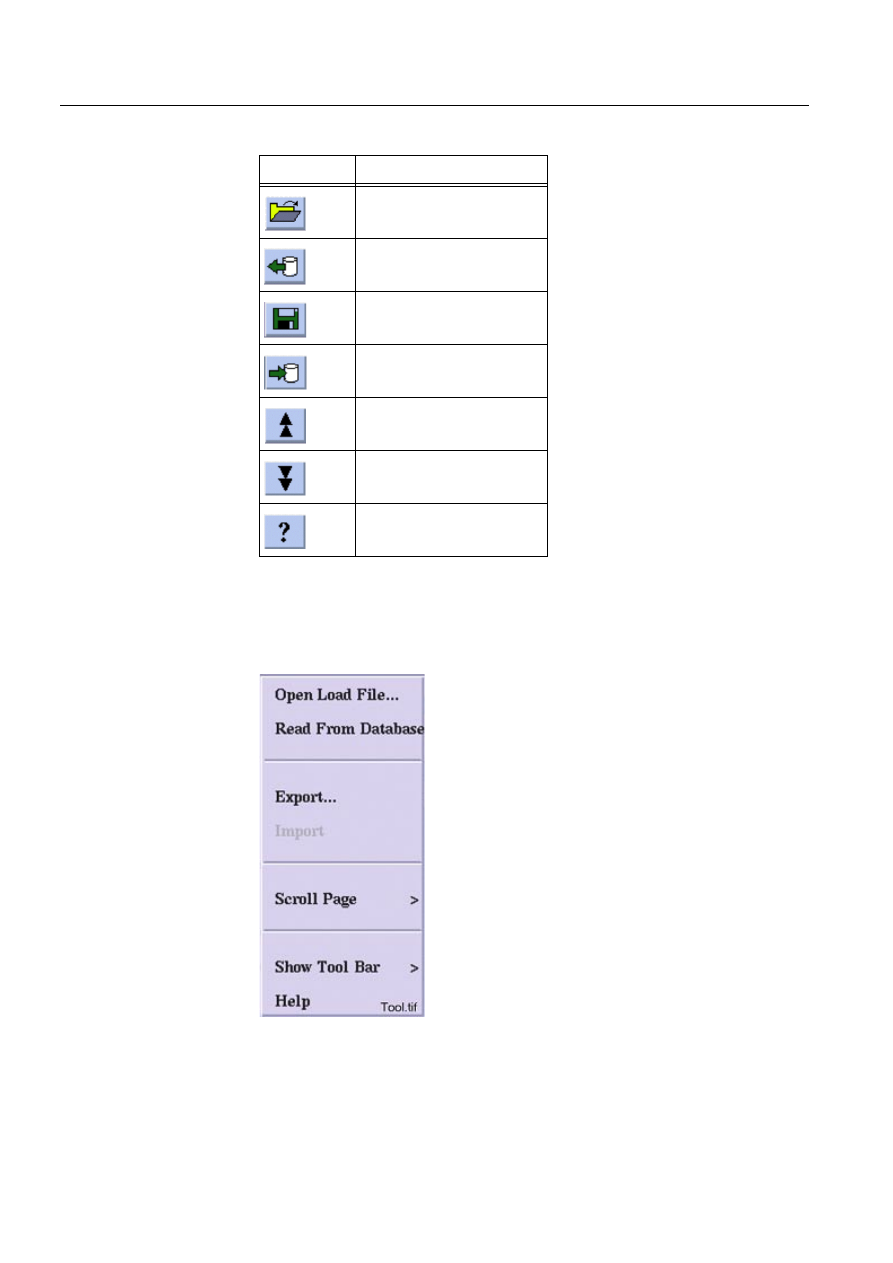

2.8. Database Import/Export tool ....................................................... 57
2.8.1. General ............................................................................ 57
2.8.2. Main picture ..................................................................... 58

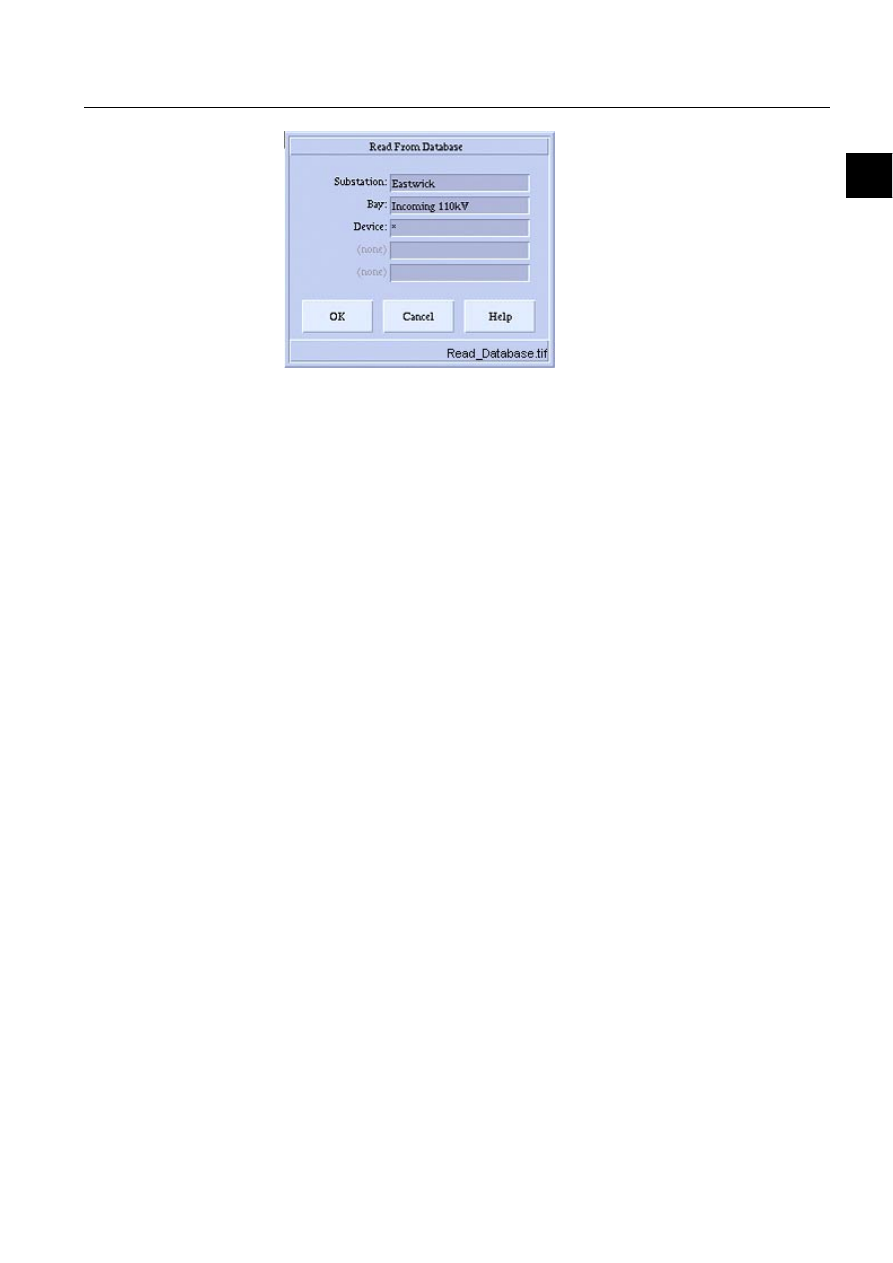

2.8.3. Read From Database....................................................... 60
2.8.4. Export To Load File.......................................................... 61

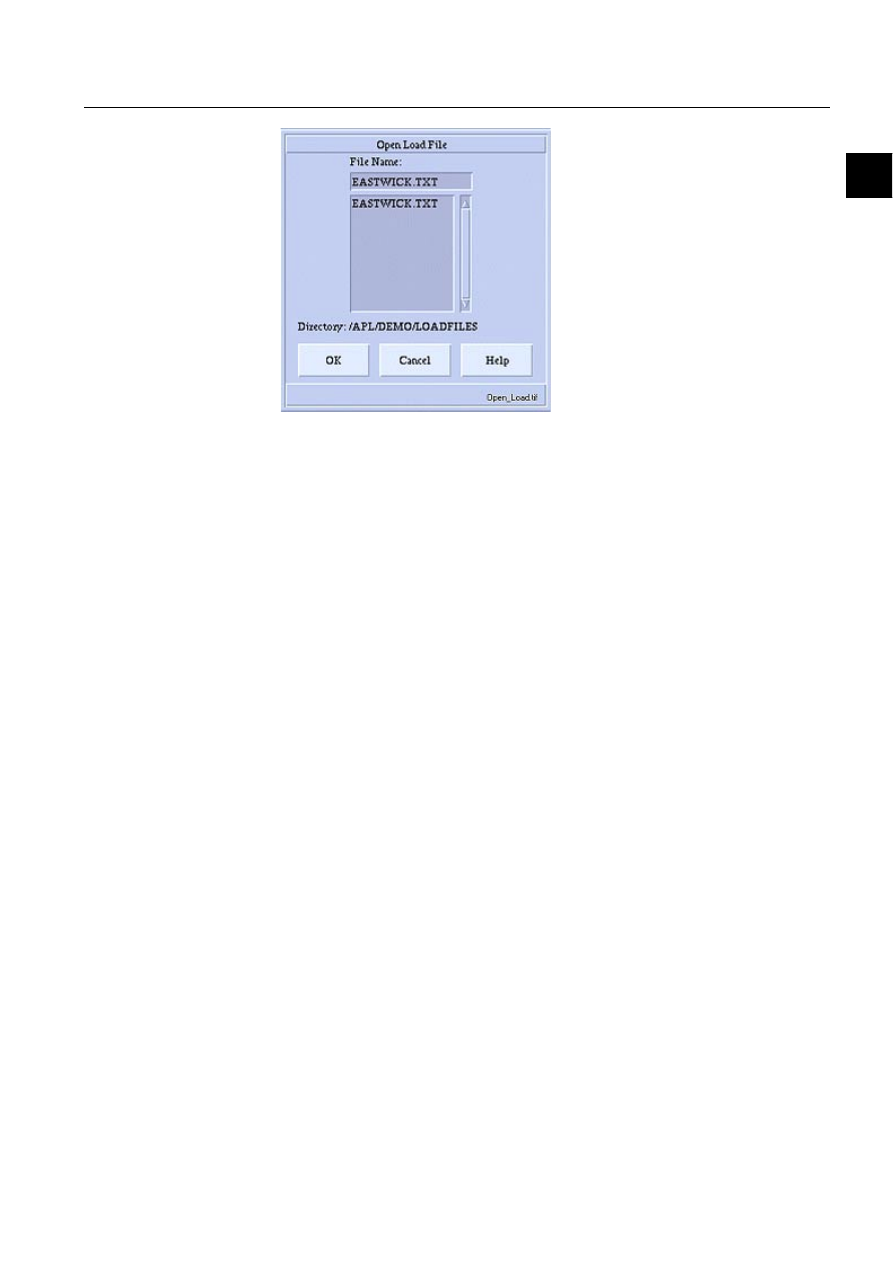

2.8.5. Open Load File ................................................................ 62
2.8.6. Other functions................................................................. 63
2.9.3.1. Making selections............................................... 67
2.9.3.2. Adding day type to group of days....................... 67

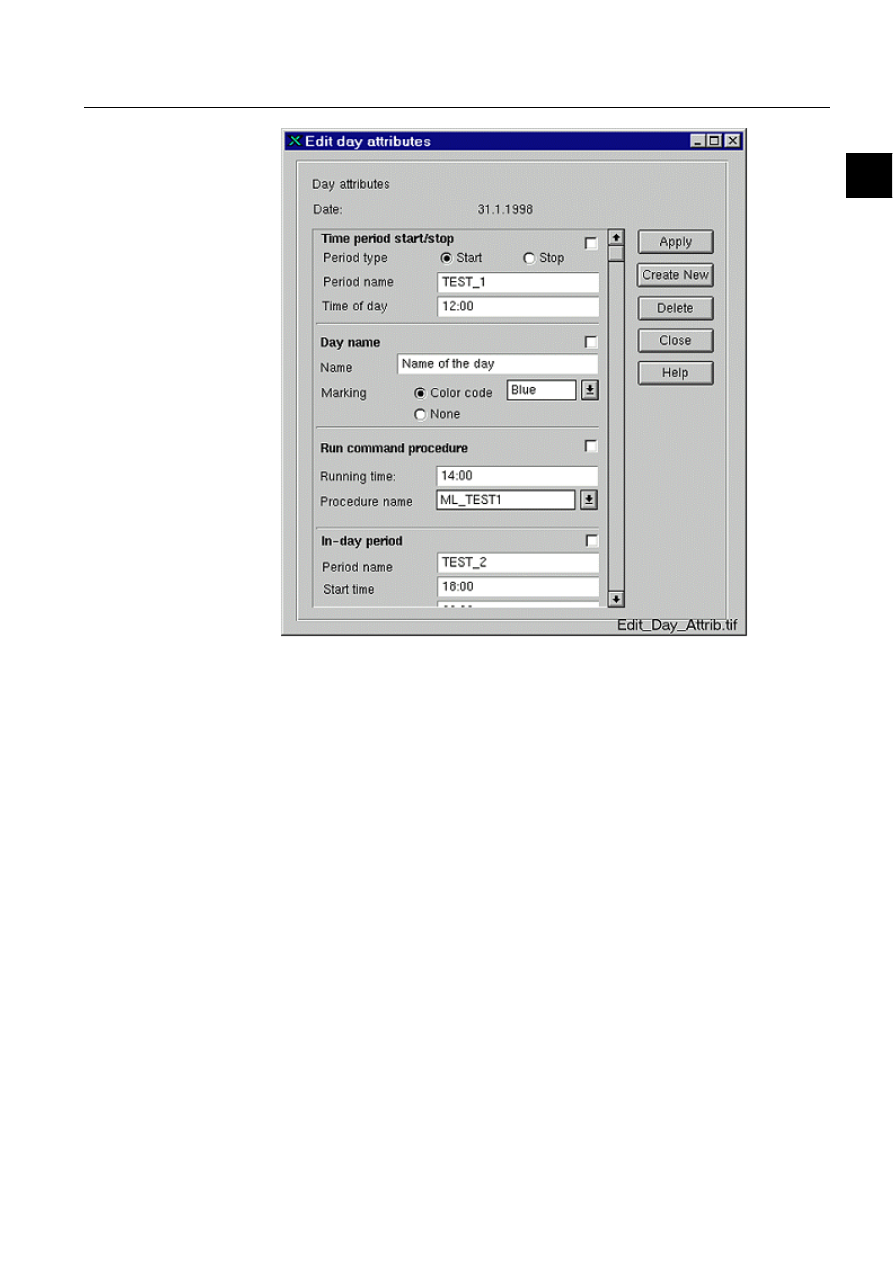

2.9.3.3. Setting day type attributes.................................. 68
2.9.3.4. Saving attributes ................................................ 68
2.9.5.1. Available attributes............................................. 69
2.9.6. Setting Calendar options.................................................. 71

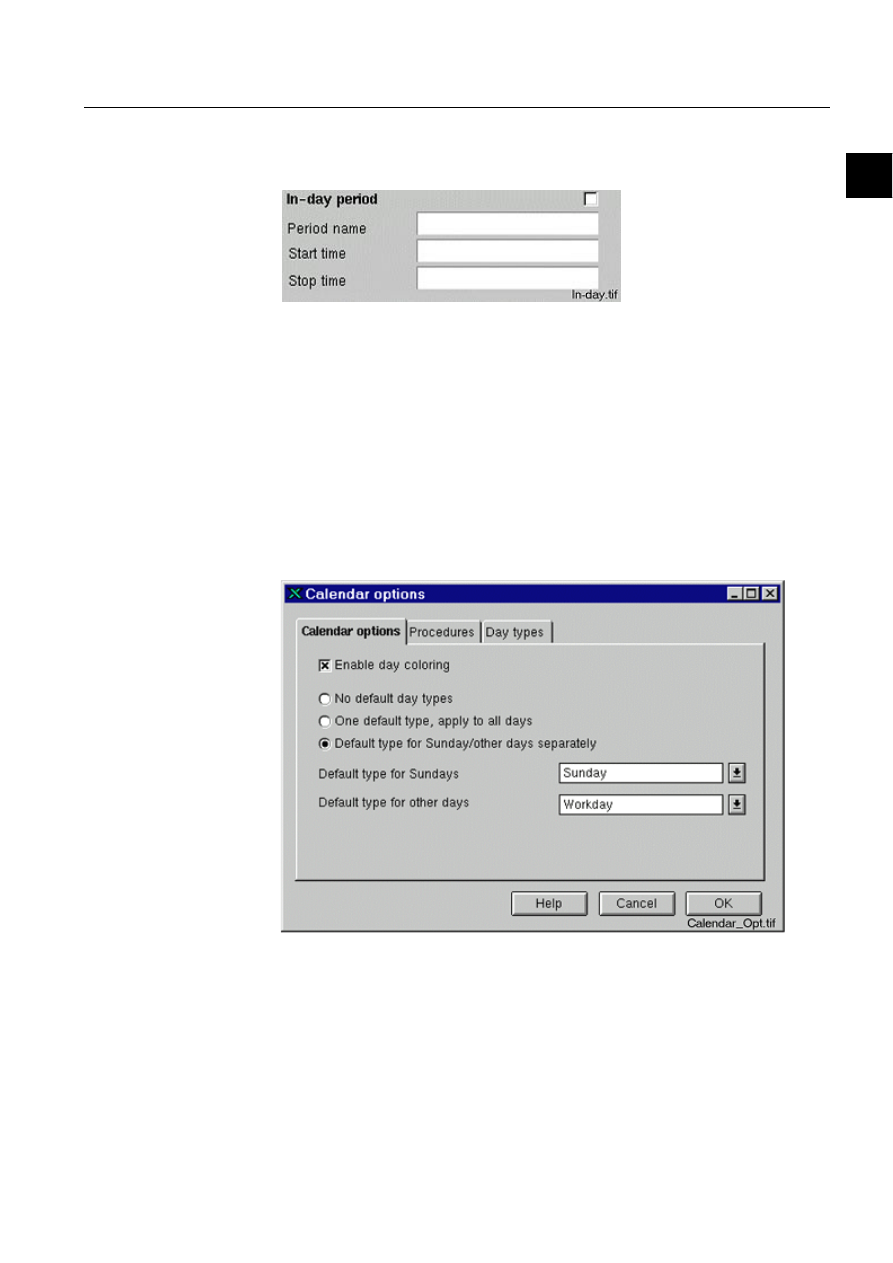

2.9.6.1. Sheet 1: General Calendar options.................... 71
2.9.6.2. Sheet 2: Procedures .......................................... 72

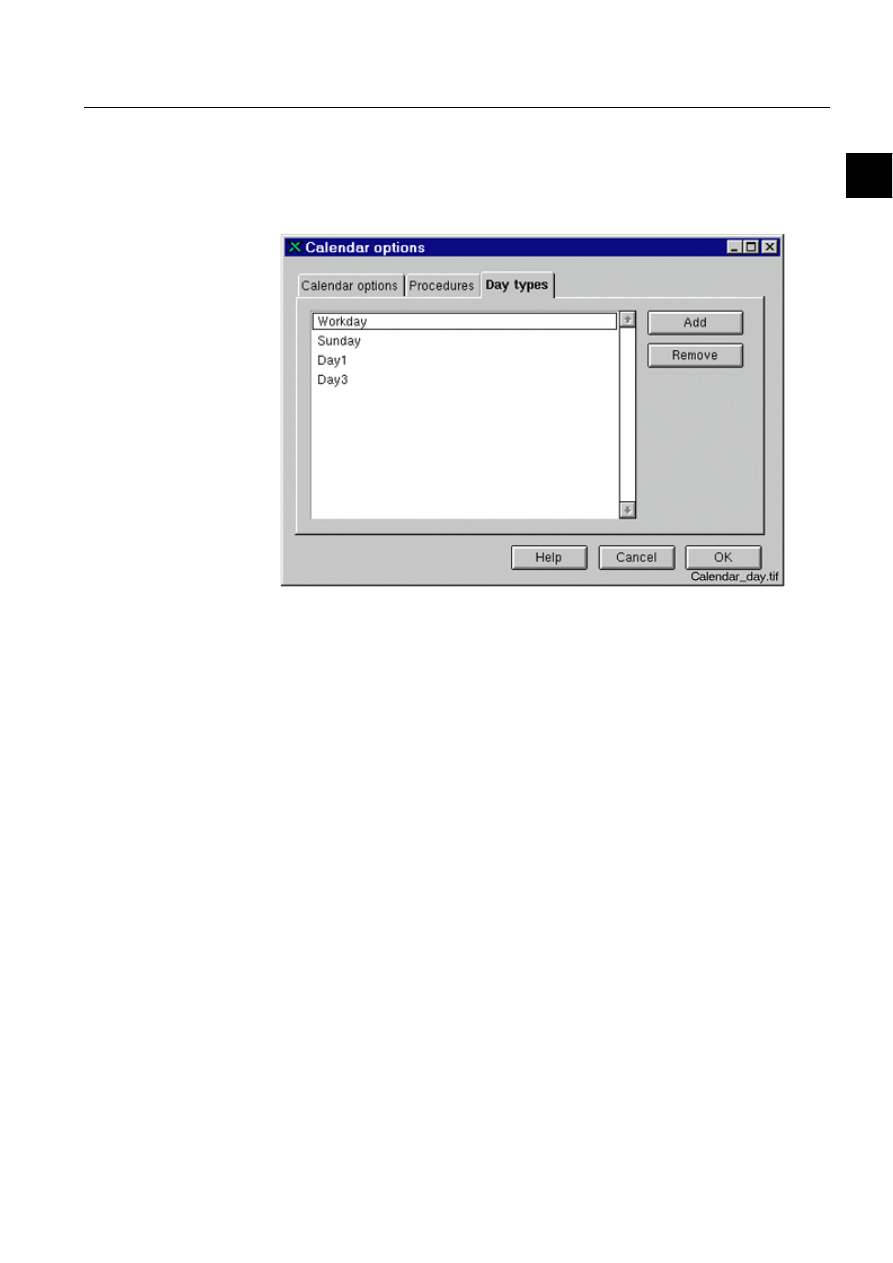

2.9.6.3. Sheet 3: Day types............................................. 73

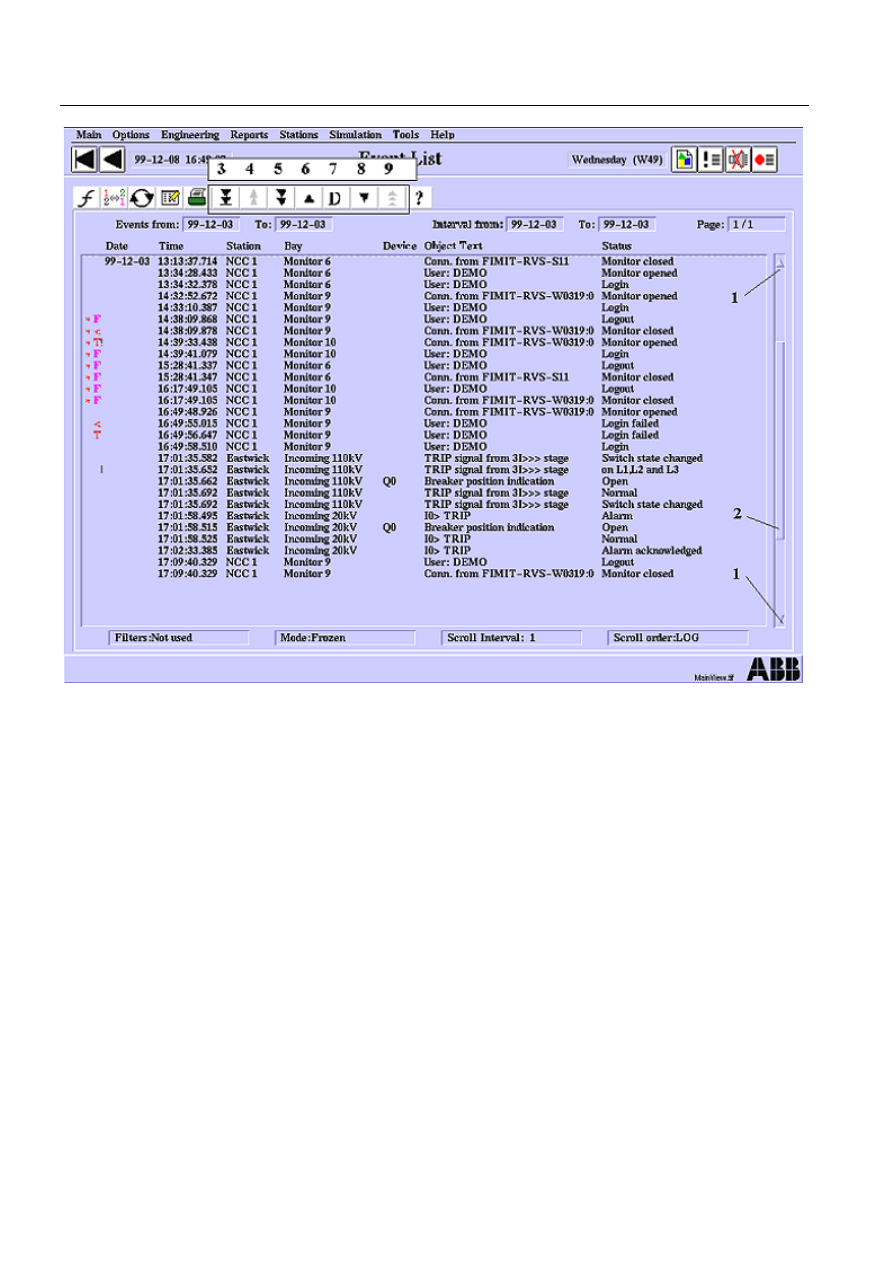

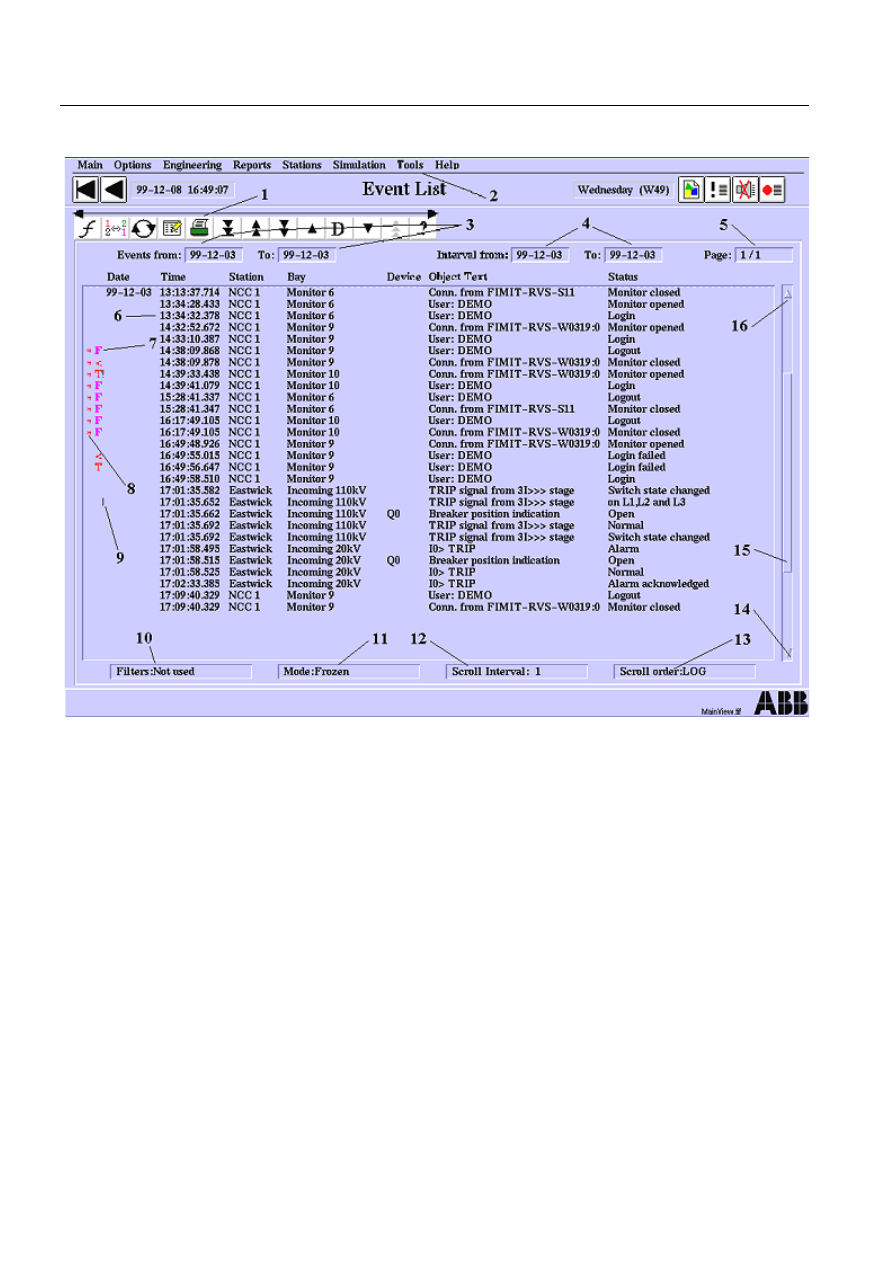

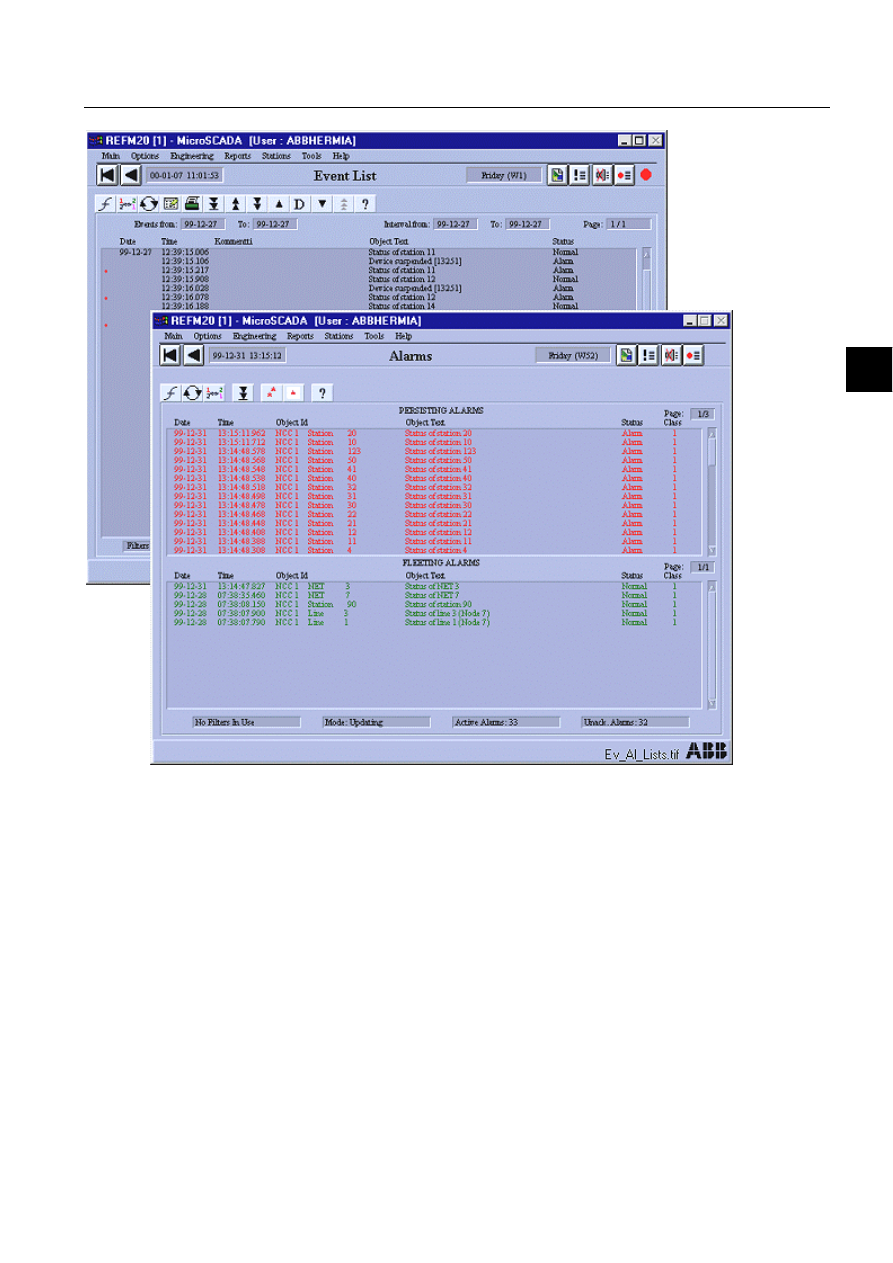

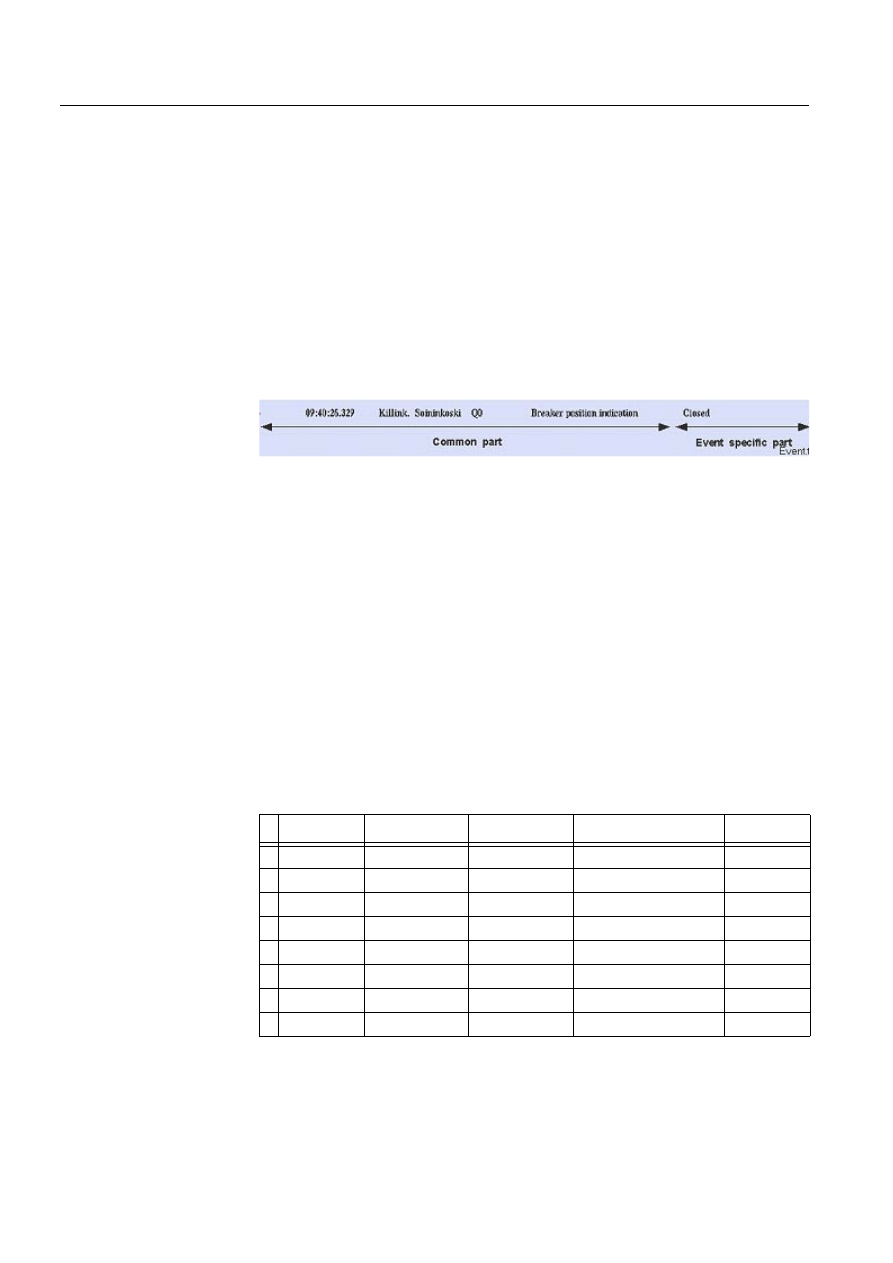

3. Event List ................................................................................. 75
3.1. Purpose and description ............................................................. 75
3.1.1. Features/options .............................................................. 75
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
Contents
User’s Guide
3.1.2. System requirements....................................................... 76
3.3. General description..................................................................... 77
3.3.1. Events.............................................................................. 78
3.3.2. Event logging ................................................................... 78
3.3.3. Event viewing and listing ................................................. 78
3.3.4. Event handling ................................................................. 78
3.3.5. Comments ....................................................................... 79
3.3.6. Event reports ................................................................... 79
3.4. Getting started ............................................................................ 79
3.4.1. Access to Event List ........................................................ 79
3.4.2. Basic view........................................................................ 80

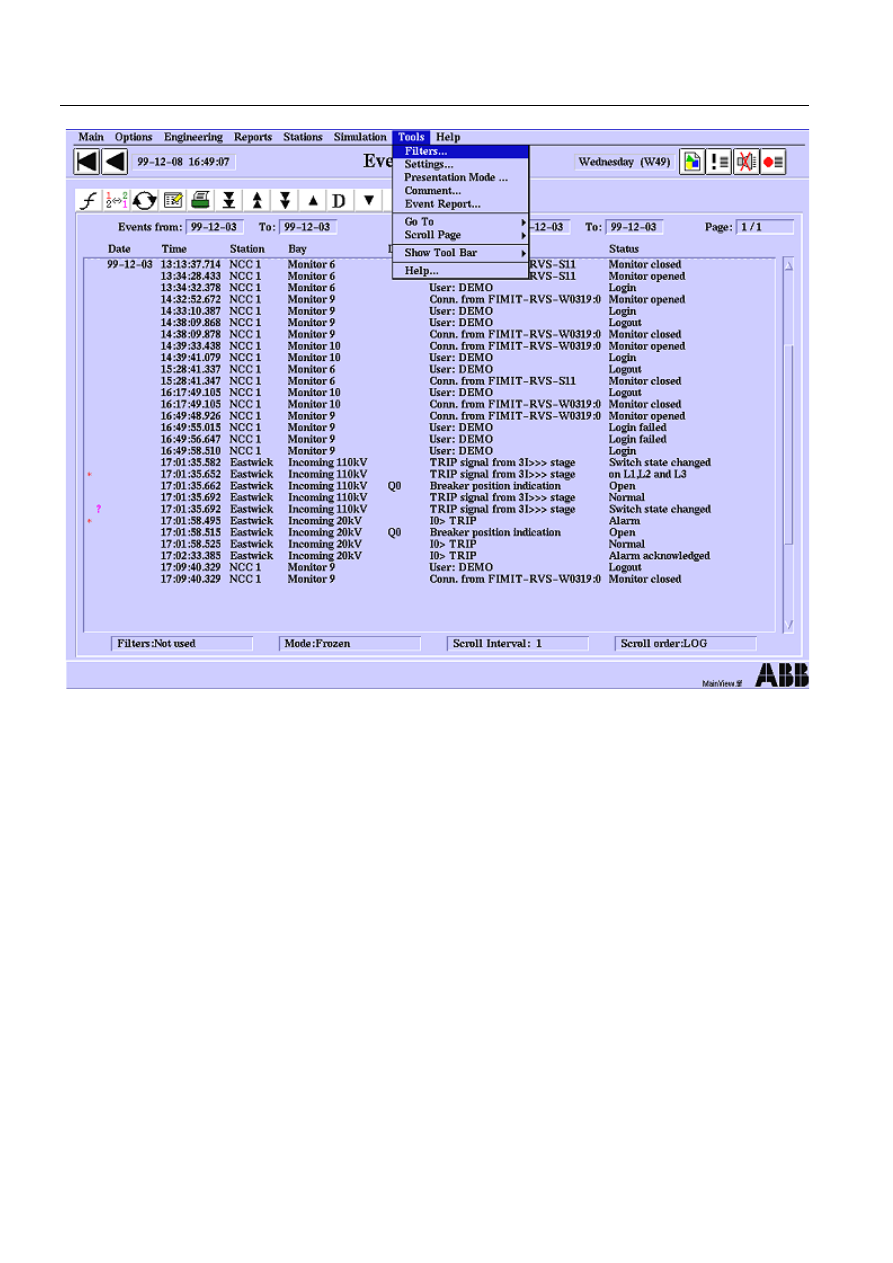

3.4.3. Tools menu ...................................................................... 81
3.4.4. Toolbar ............................................................................ 82
3.4.5. Screen display ................................................................. 82
3.4.5.1. Default event text............................................... 82
3.4.5.2. Event text layout ................................................ 83
3.4.5.3. Changing event texts ......................................... 85
3.4.6. Event List layout .............................................................. 85
3.4.7. Scrolling ........................................................................... 86
3.4.8. Updating .......................................................................... 87
3.4.9. Settings............................................................................ 87

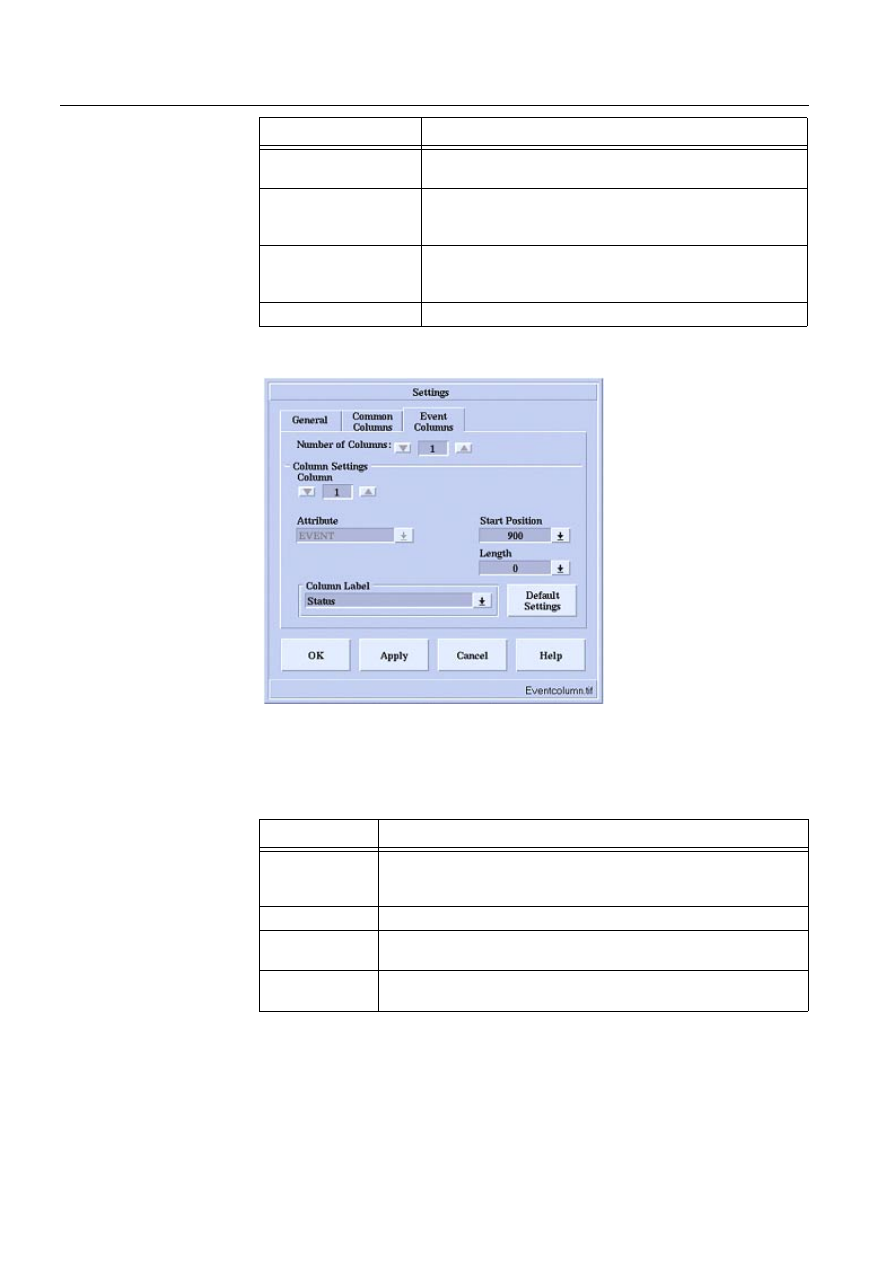

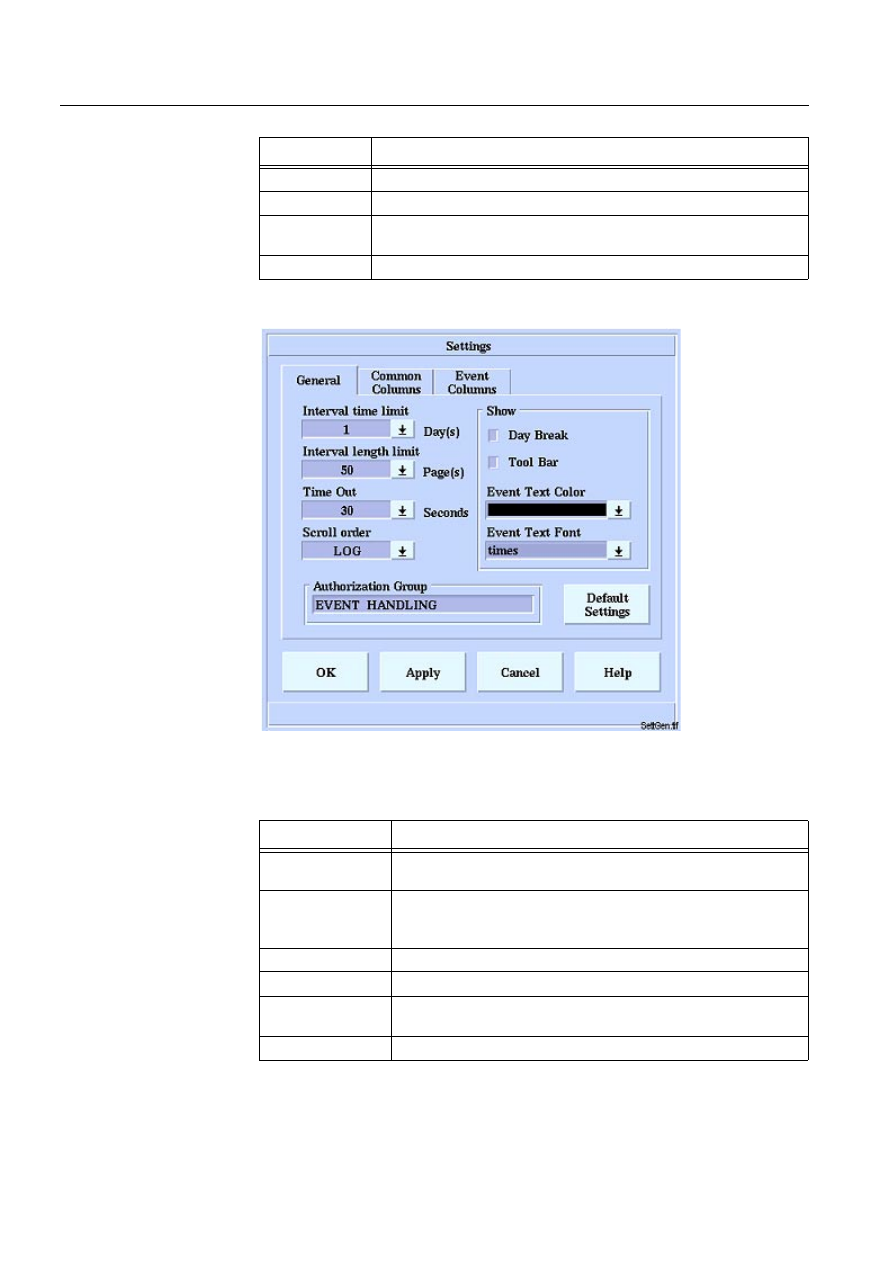

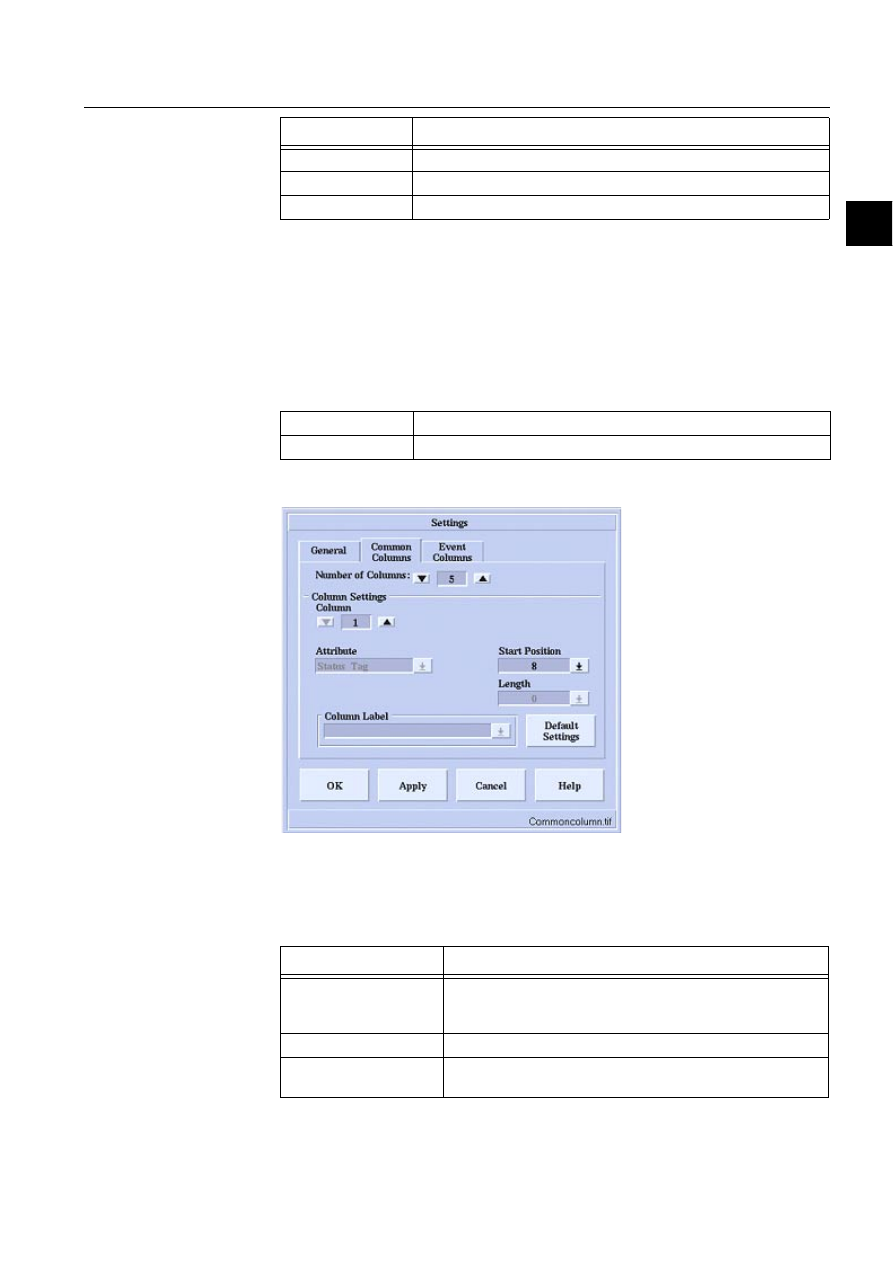

3.4.9.1. Settings dialog ................................................... 87

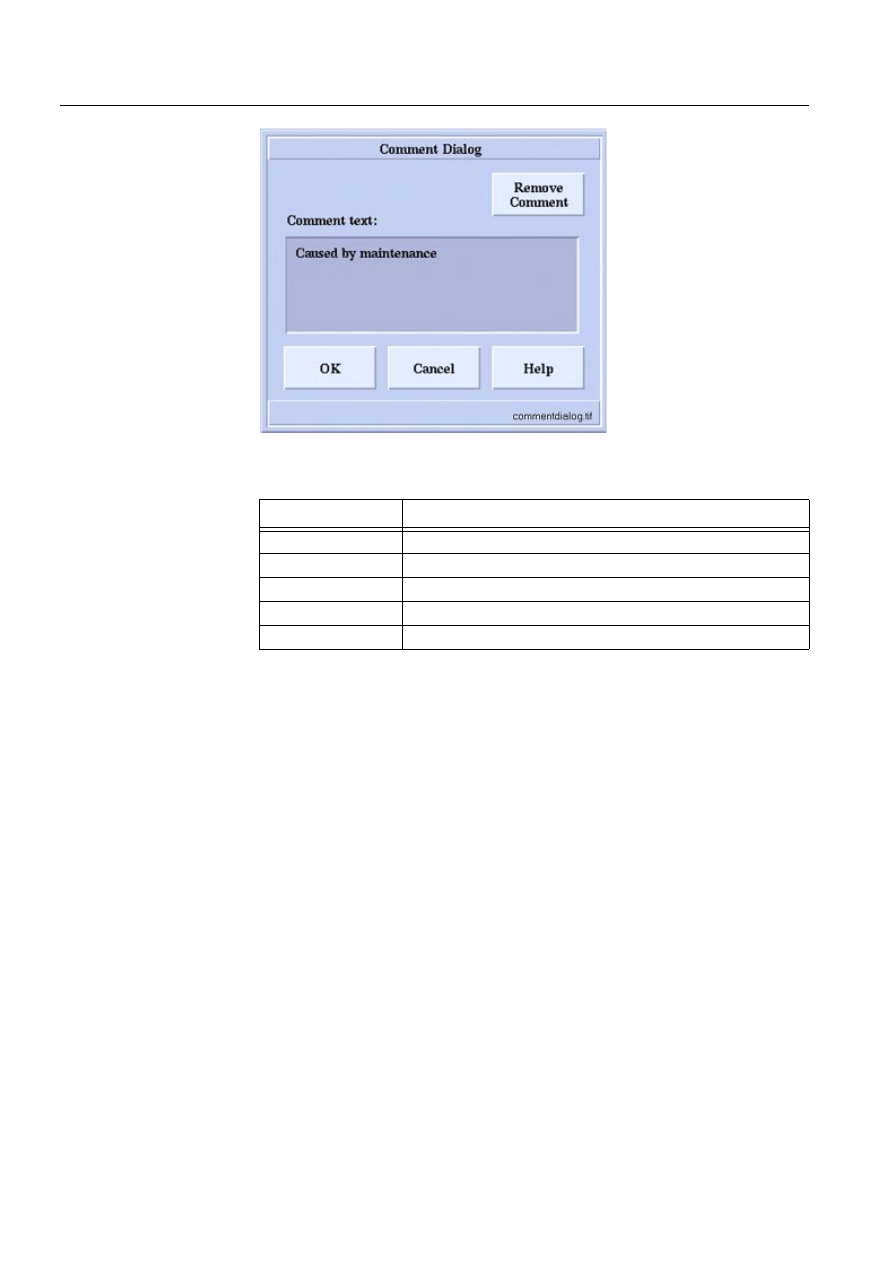

3.4.11.1.Accessing the Comment dialog ......................... 91
3.4.12.Event reports ................................................................... 93

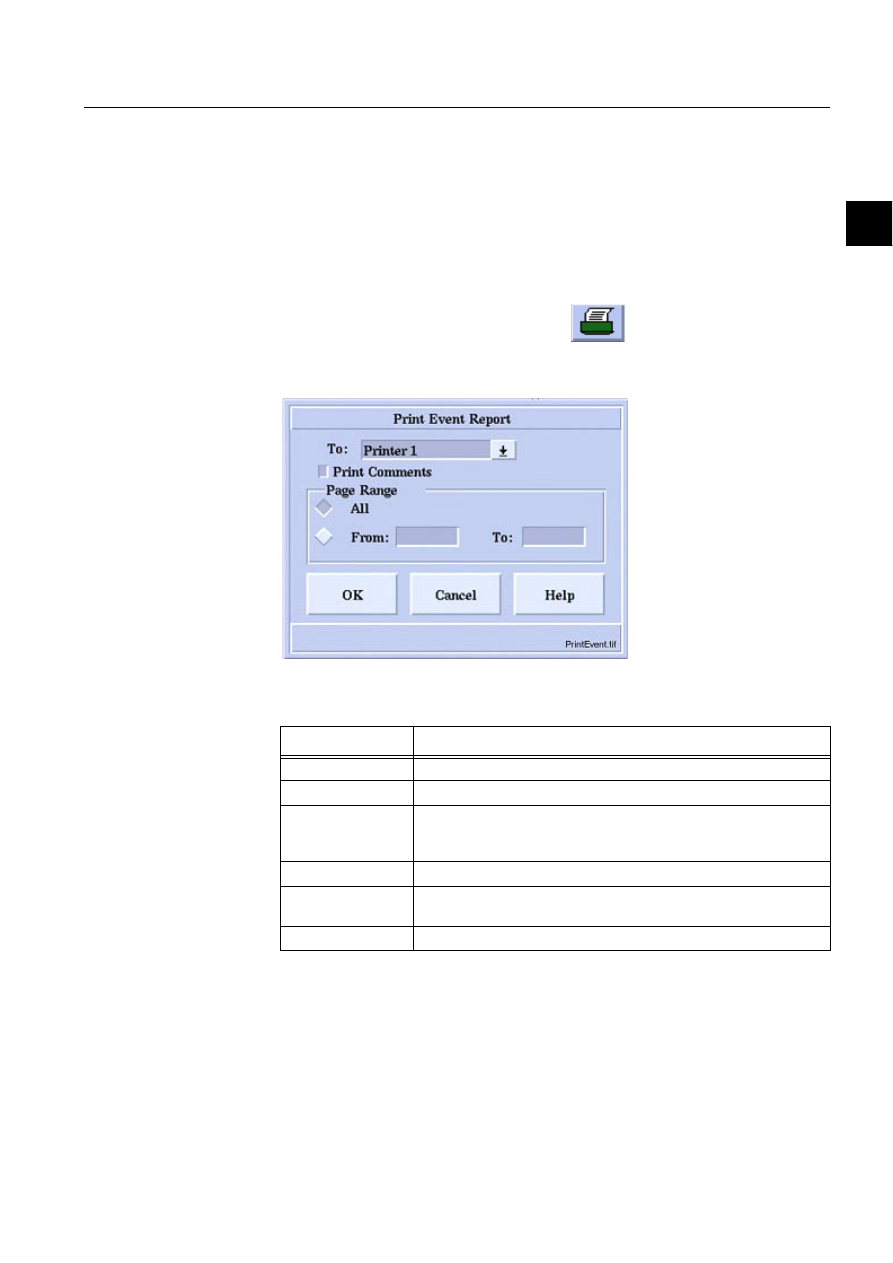

3.4.12.1.Starting the Print Event Reports function........... 93
3.4.14.1.Reading events from HDB files.......................... 94

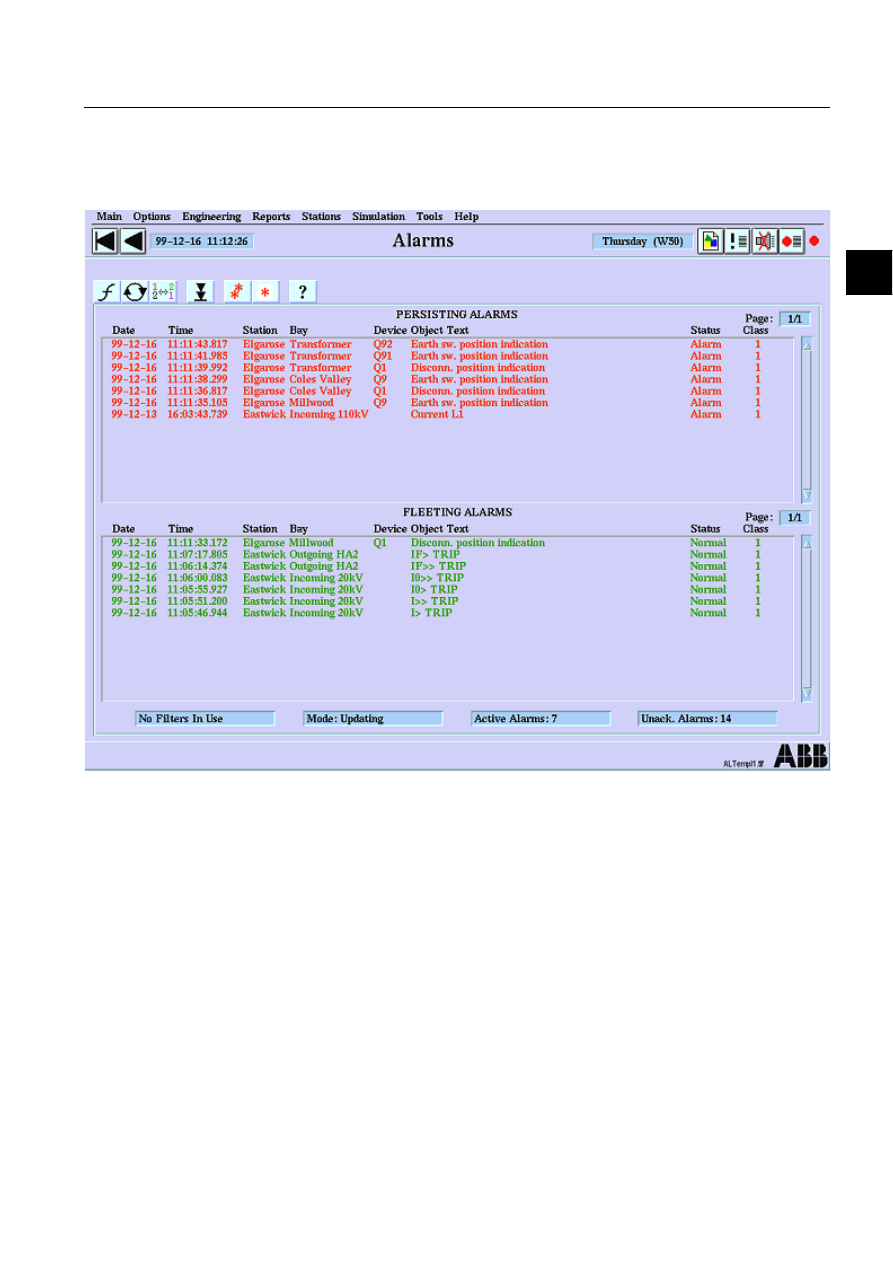

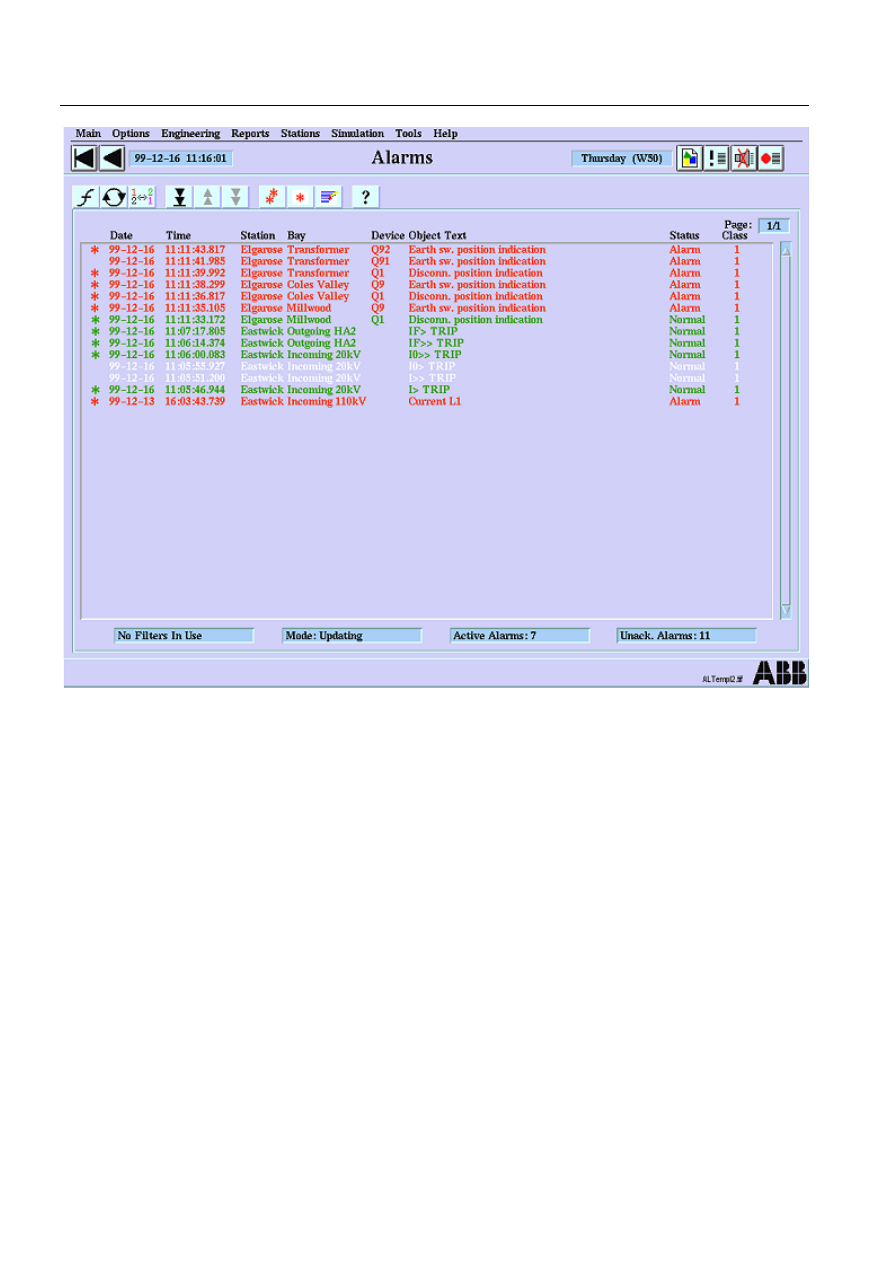

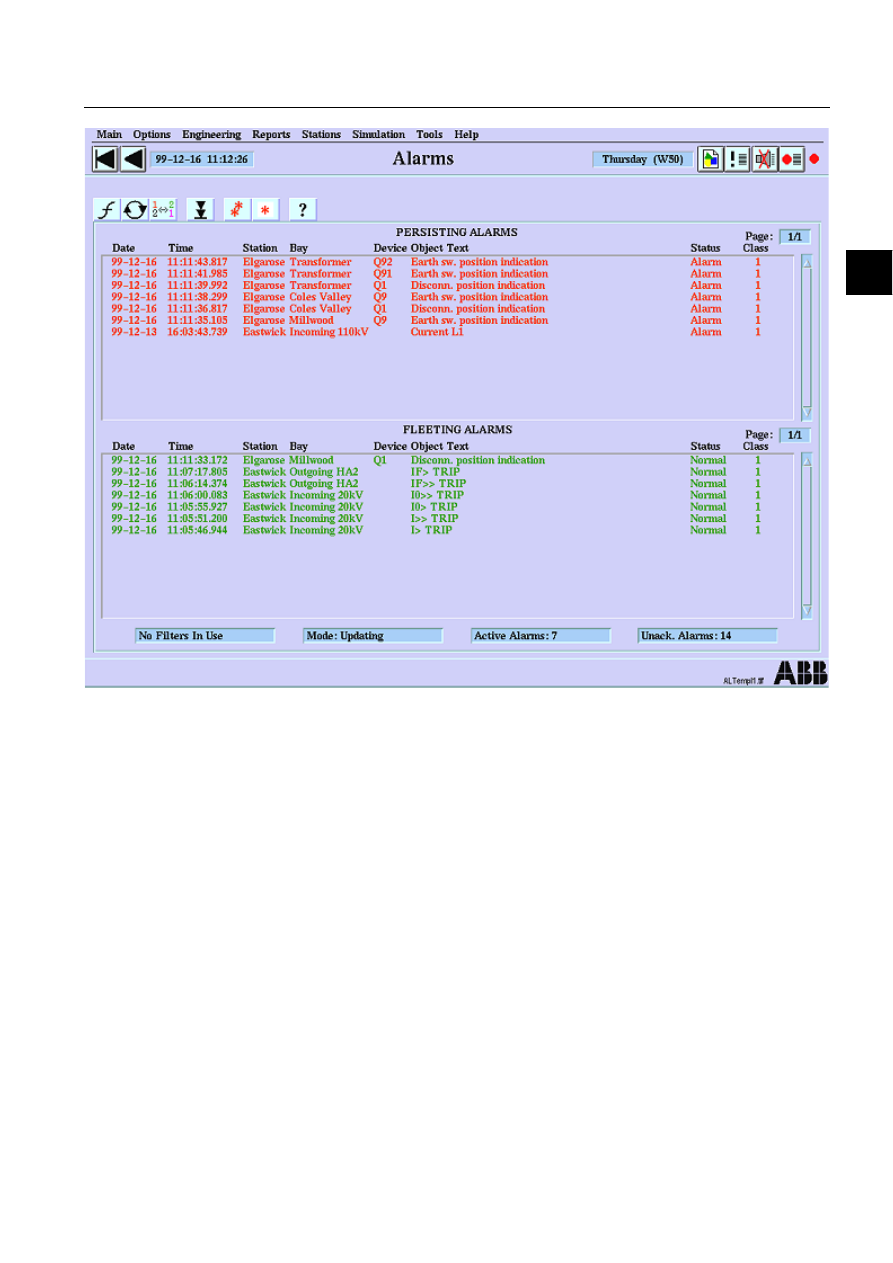

4. Alarm List................................................................................ 95
4.2. General description..................................................................... 97
4.2.1. Process database ............................................................ 97
4.2.2. Process alarms ................................................................ 97
4.2.3. Internal alarms ................................................................. 97
4.2.4. System alarm................................................................... 97

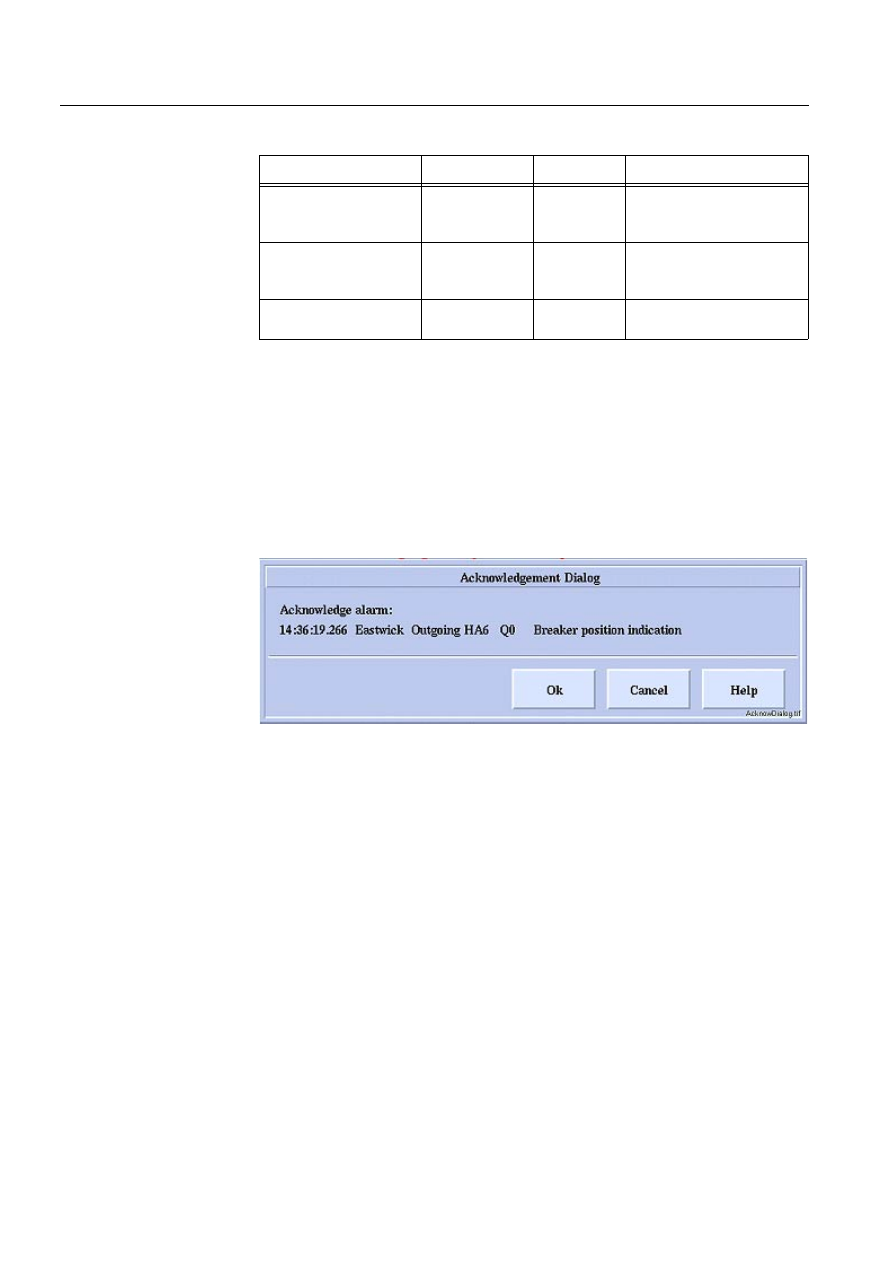

4.2.5. Alarm acknowledgement ................................................. 97
1MRS751885-MUM
LIB 500
Contents
LIB 500 Operator’s Manual
User’s Guide
4.2.6. Alarm blocking ................................................................. 97
4.2.7. Alarm classes................................................................... 98
4.3. General functionality ................................................................... 98
4.3.1. Alarm handling mechanism.............................................. 98

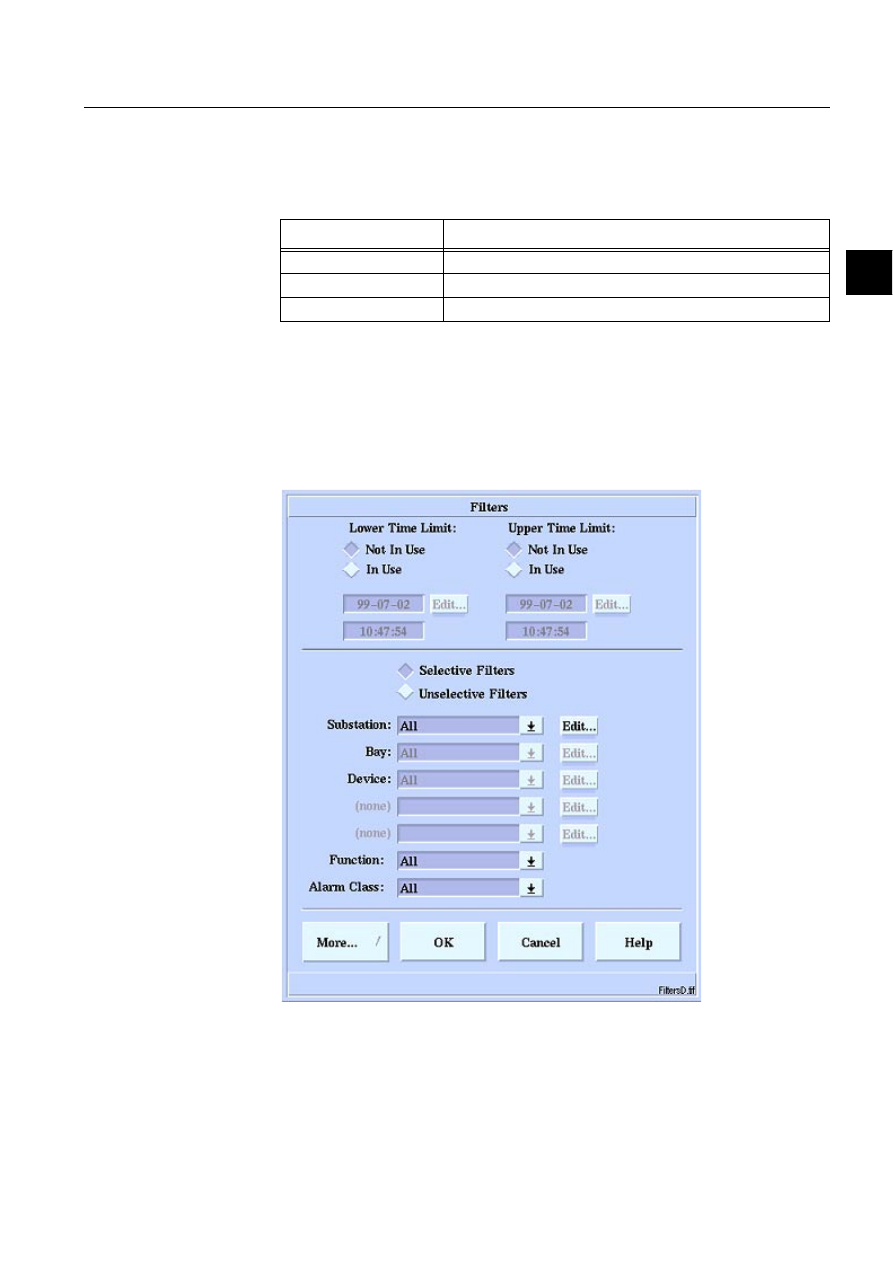

4.3.2. Filters ............................................................................... 99

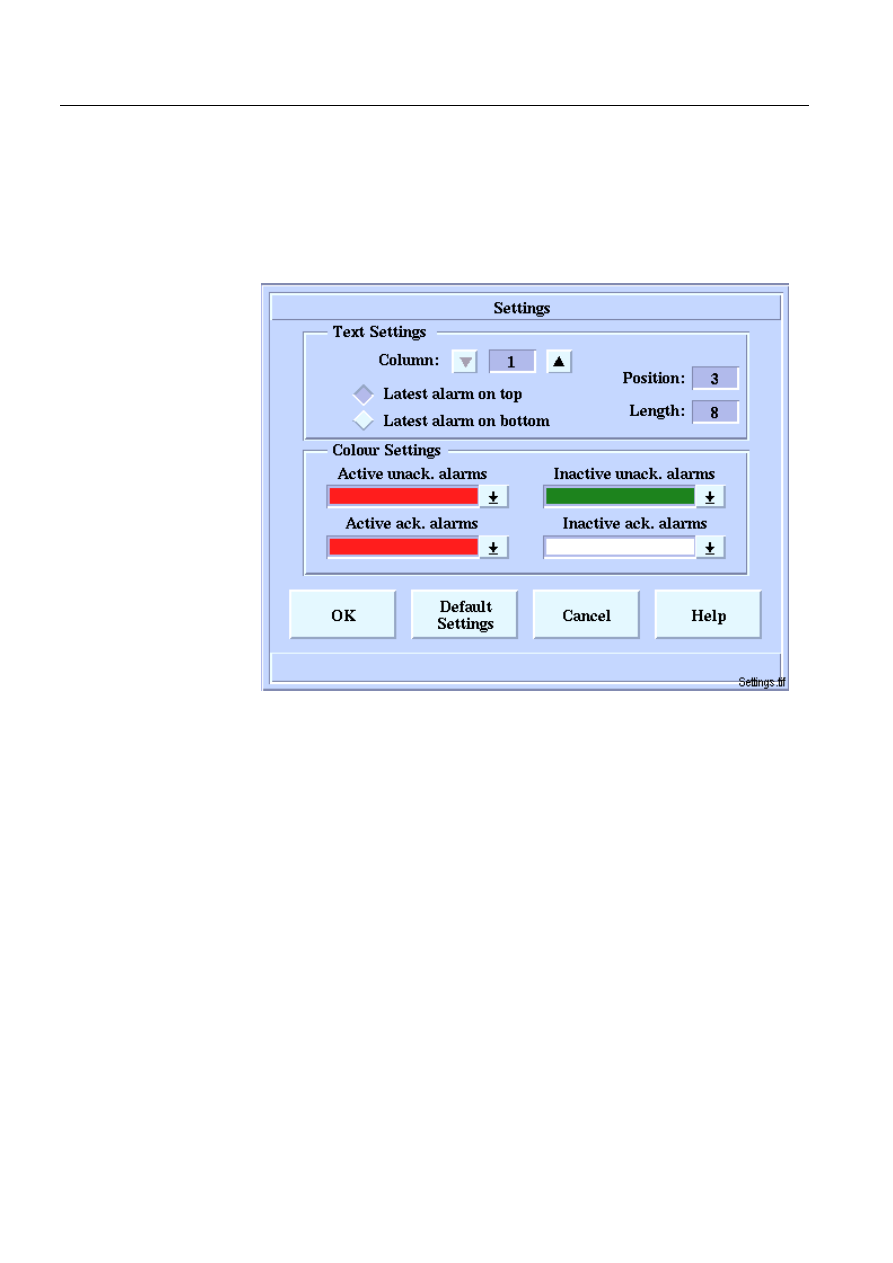

4.3.3. Alarm List settings............................................................ 99
4.3.4. Alarm List presentation modes ........................................ 99
4.4. Presentation .............................................................................. 100
4.4.1. Template 1 ..................................................................... 100
4.4.1.1. Alarm text ......................................................... 101
4.4.1.2. Acknowledgement............................................ 102
4.4.1.3. Paging .............................................................. 102
4.4.1.4. Tools ................................................................ 103
4.4.1.5. Other features .................................................. 104
4.4.2. Template 2 ..................................................................... 104
4.4.2.1. Alarm text and indication.................................. 105
4.4.2.2. Acknowledgement and paging ......................... 106
4.4.2.3. Resetting .......................................................... 106
4.4.2.4. Tools ................................................................ 106
4.5.1. Authorization level.......................................................... 109
4.5.2. Main filters’ functionality ................................................. 109
4.5.3. Time filters ..................................................................... 112
4.5.4. Selecting objects to the filter configuration .................... 113
4.5.5. Function and alarm class ............................................... 113
4.5.6. Menu shortcut configuration for filters ............................ 113
4.6.1. Colour settings ............................................................... 113
4.6.2. Text settings................................................................... 113
4.6.3. Main settings functionality .............................................. 114
4.6.4. Colour settings ............................................................... 114
4.6.5. Text settings................................................................... 115
4.6.6. Saving and reading settings........................................... 115
4.6.7. OI column settings ......................................................... 116

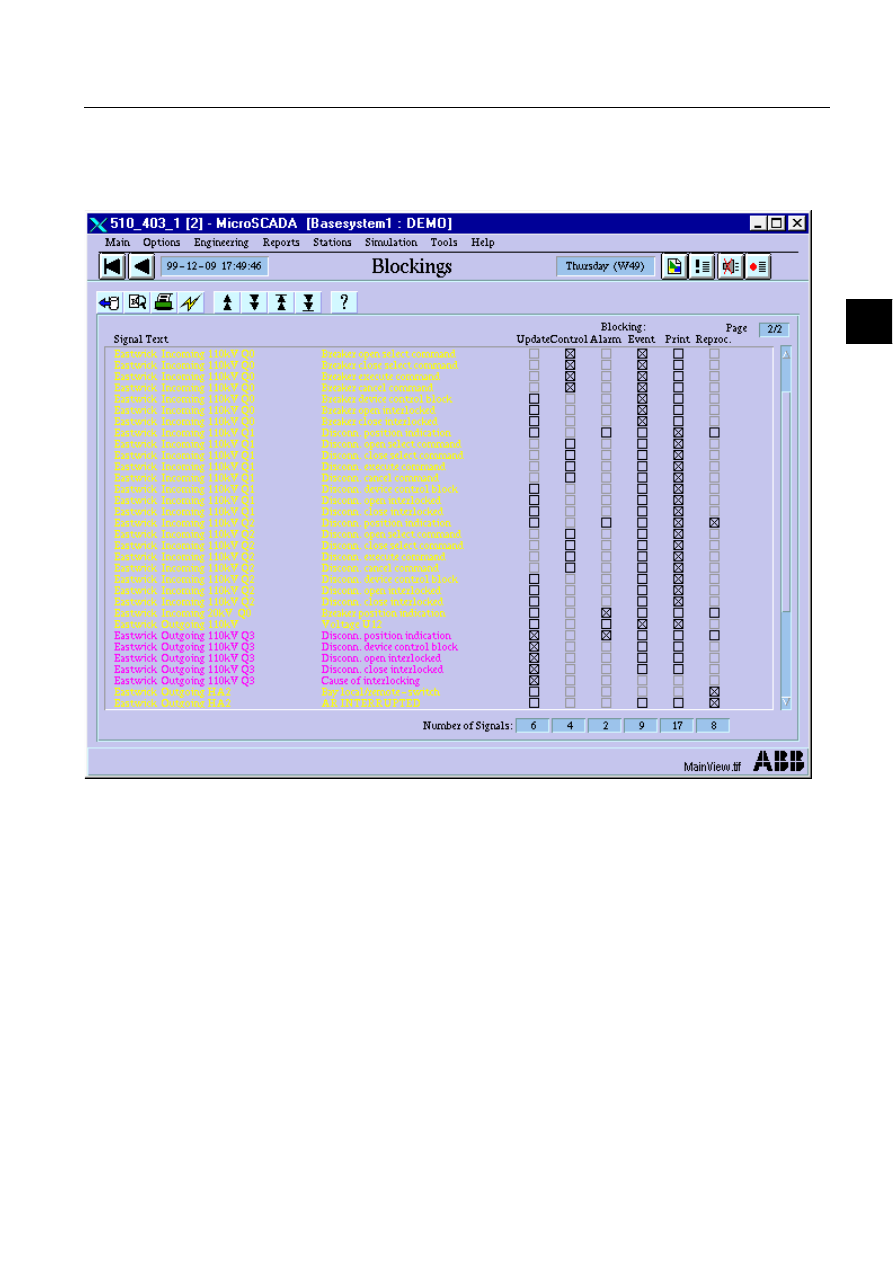

5. Blocking List.......................................................................... 117
5.2. General description ................................................................... 118
5.3. Functional description ............................................................... 119
5.3.1. Blocking attribute handling ............................................. 119
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
Contents
User’s Guide
5.4. Human Machine Interface......................................................... 119
5.4.1. Main picture functions.................................................... 120

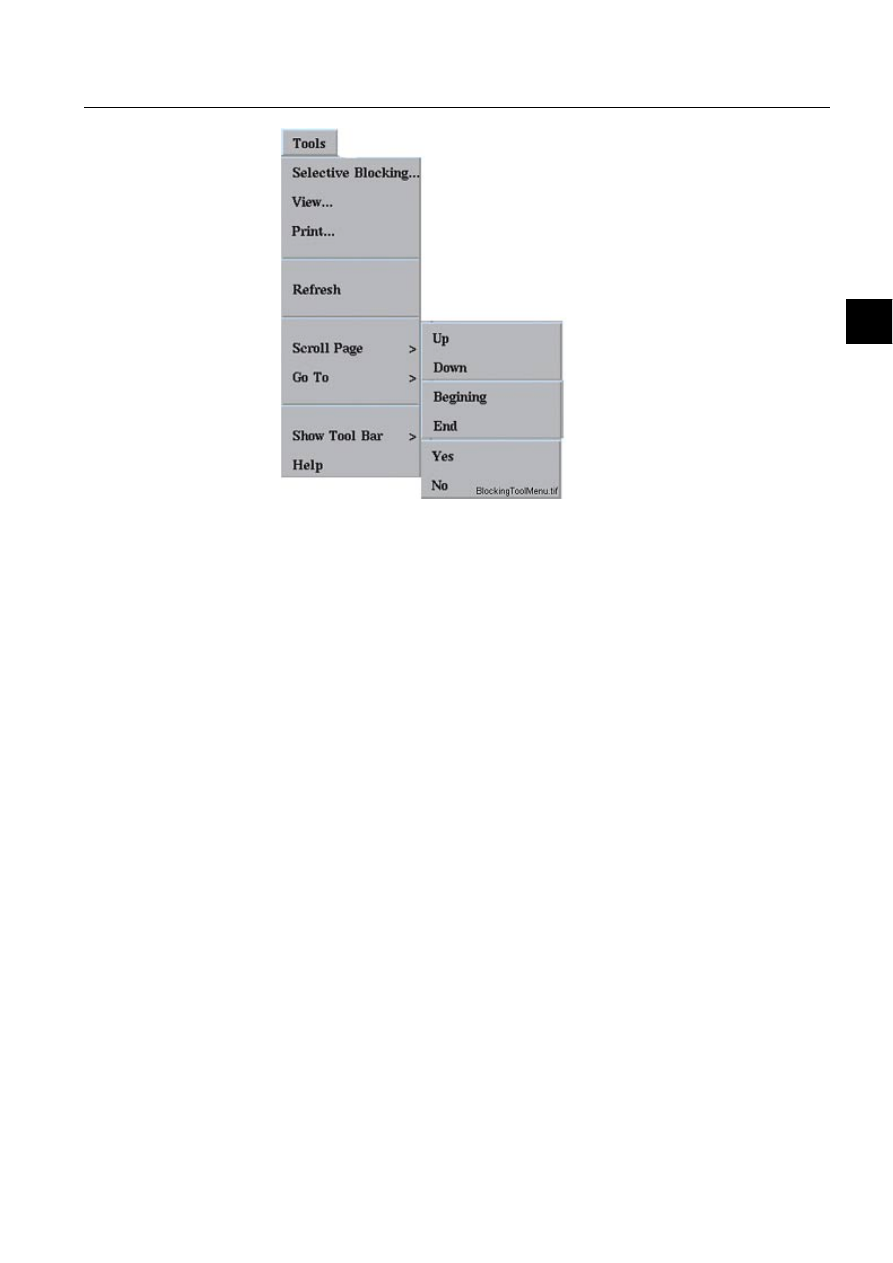

5.4.1.1. Toolbar and Tools menu.................................. 122
5.4.1.2. Other Blocking List tools .................................. 123
5.4.2. Blocking List tools and dialog functions ......................... 123

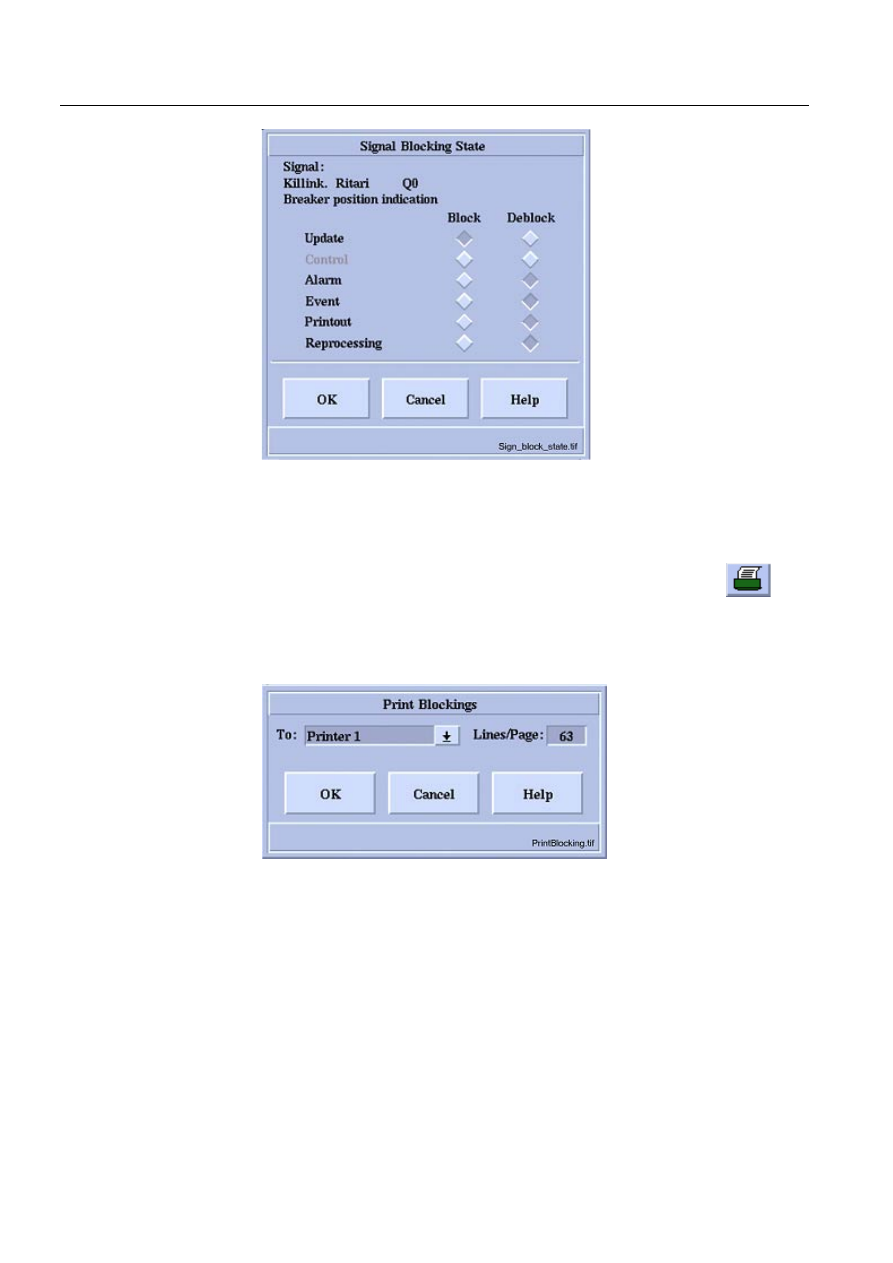

5.4.2.1. Signal Blocking State....................................... 123
5.4.2.2. Print Blockings ................................................. 124

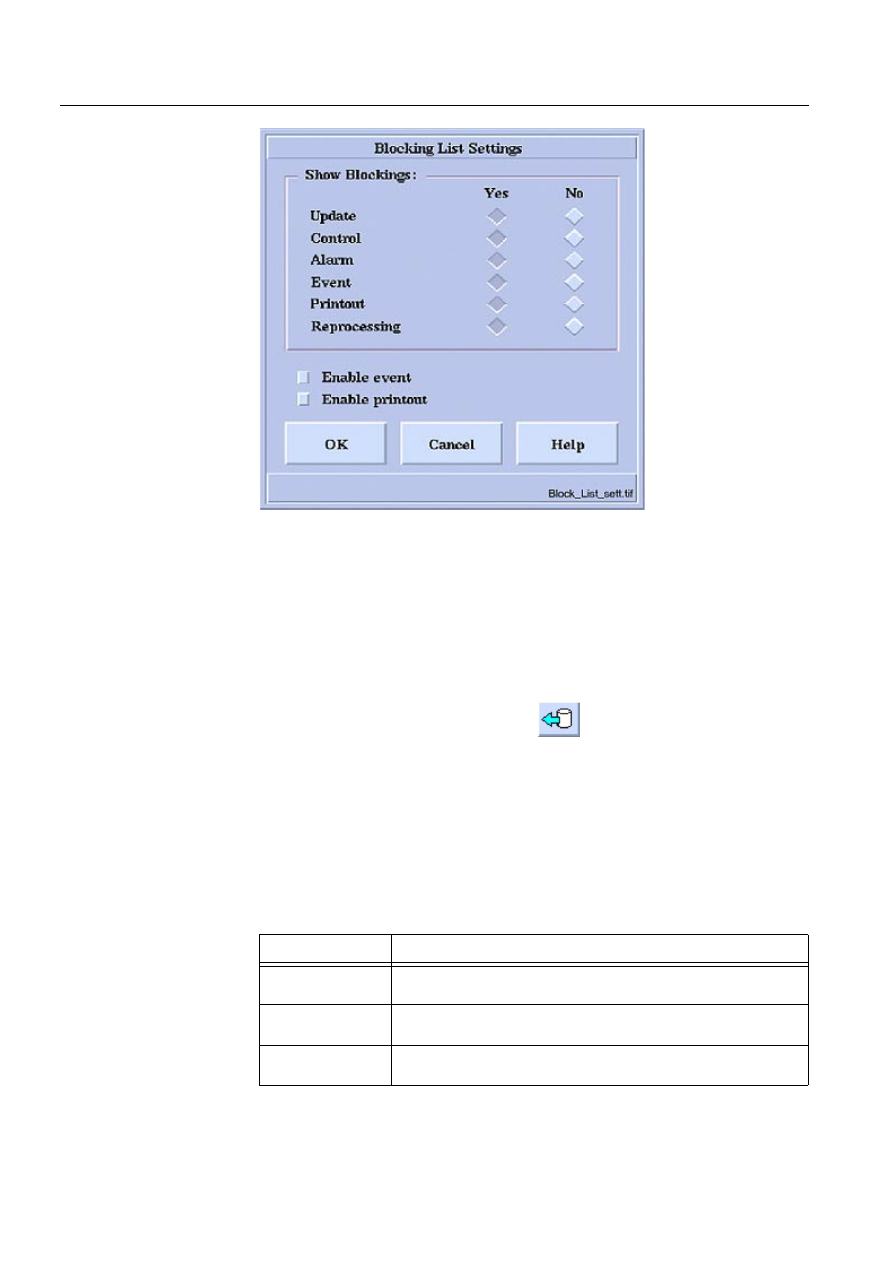

5.4.2.3. Blocking List Settings....................................... 125
5.4.2.4. Selective Signal Blocking................................. 126
5.4.3. User authorization ......................................................... 129
5.5. Application engineering information.......................................... 129
5.5.1. Blocking attributes and blocking types........................... 129
5.5.2. Blocking in LIB 500 picture functions............................. 129
5.5.3. Blocking conditions ........................................................ 130
6. System Self Supervision ..................................................... 131

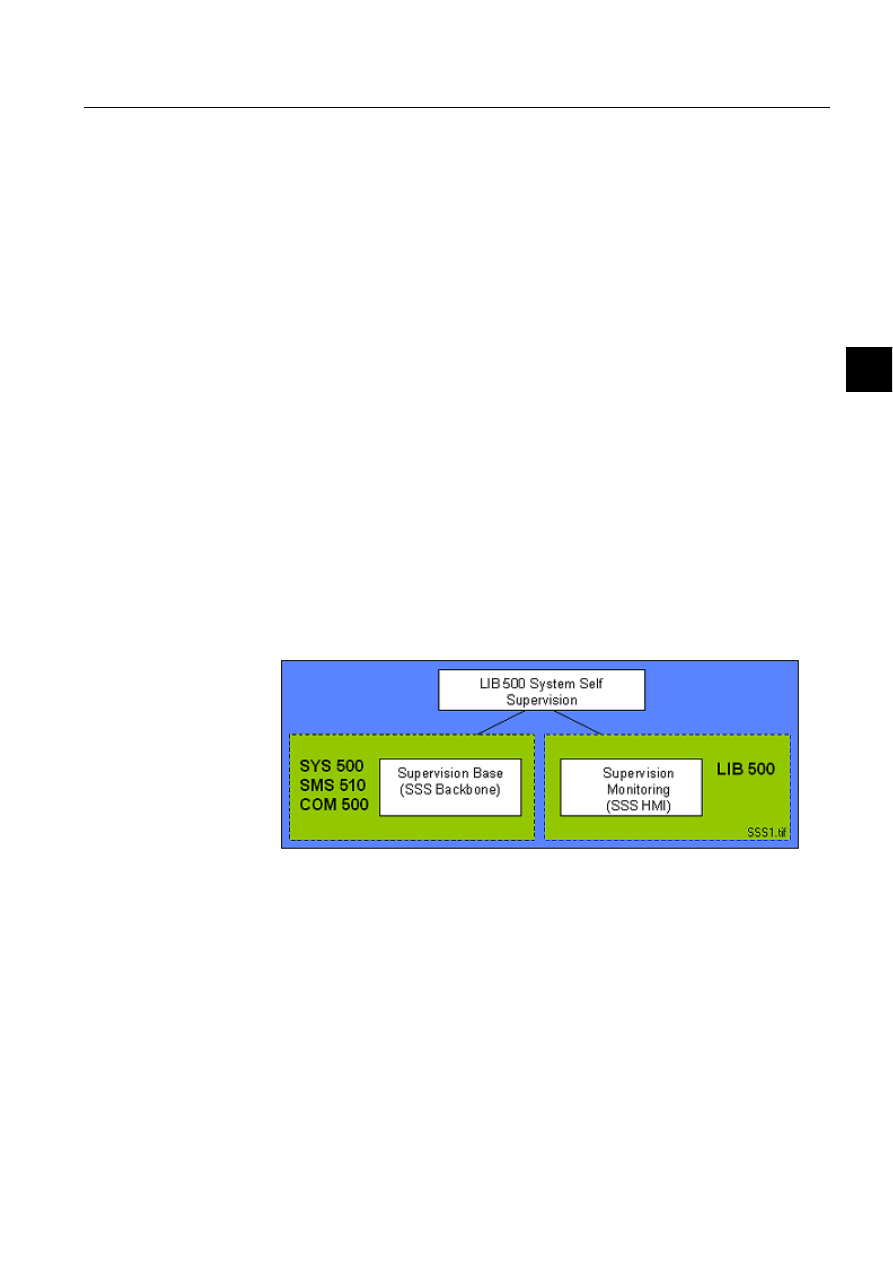

6.1. Overview and description ......................................................... 131

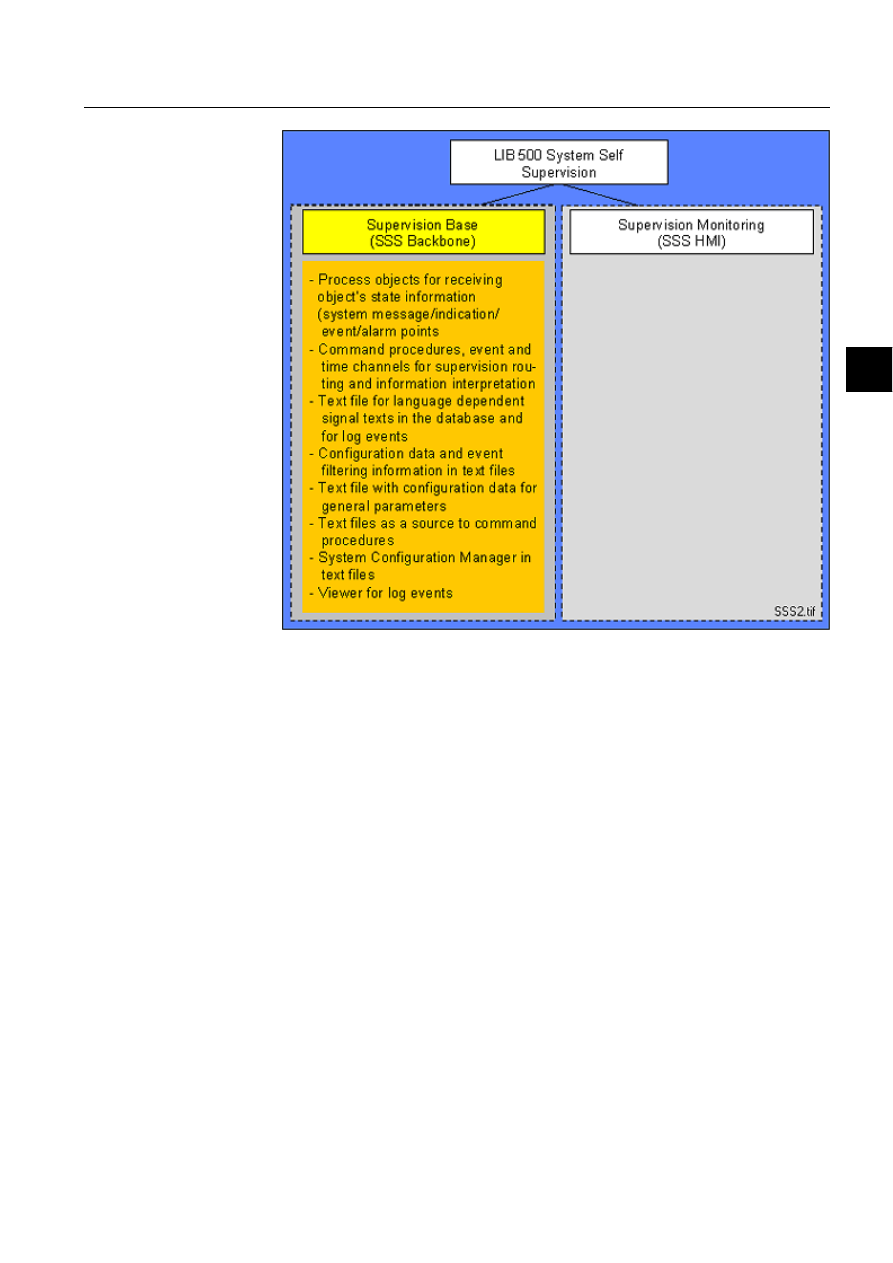

6.1.1. Features/options ............................................................ 131

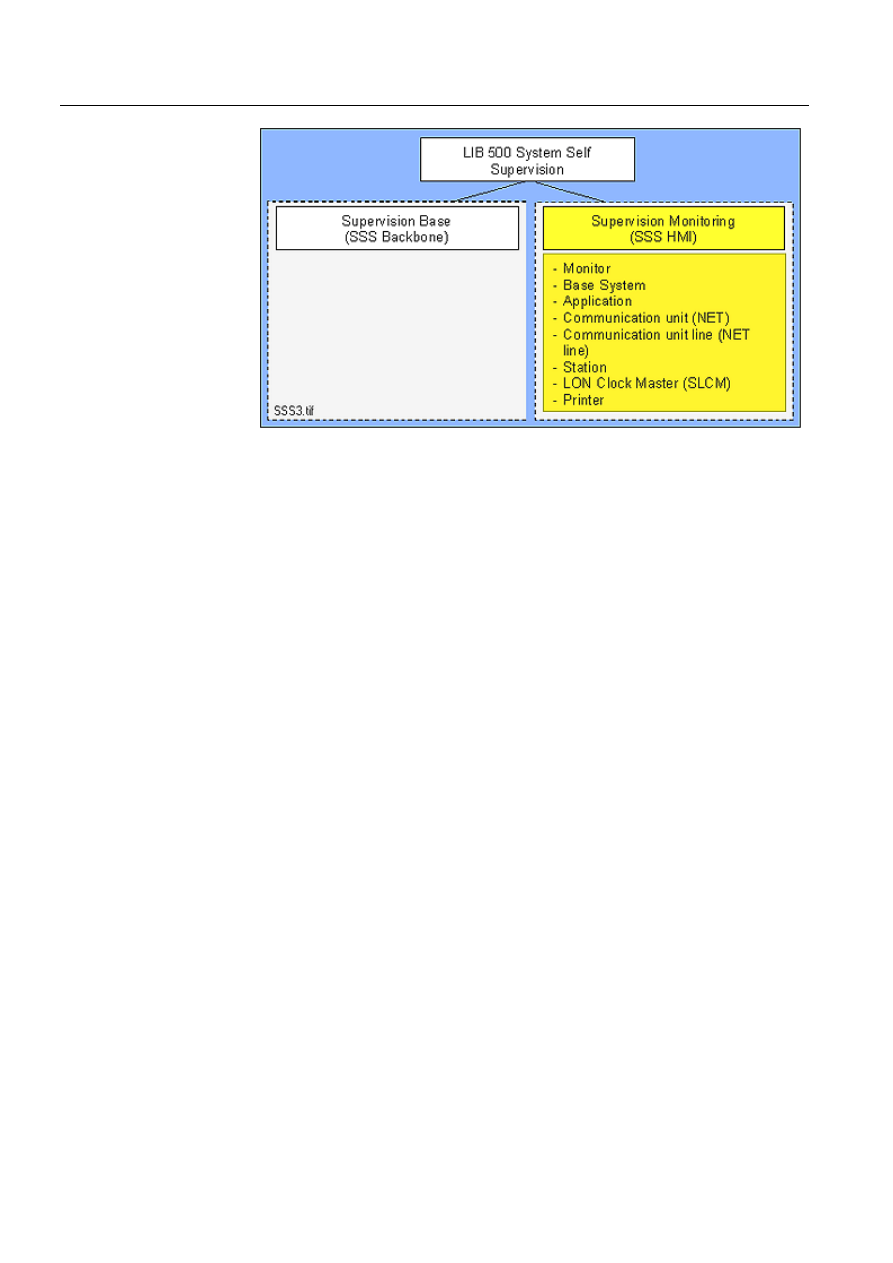

6.1.1.1. Supervision Base (SSS Backbone) ................. 131
6.1.1.2. Supervision Monitoring (SSS HMI) .................. 133
6.2. Supervision Monitoring ............................................................. 134
6.2.1. Supervision picture ........................................................ 134
6.2.1.1. Picture specific functions ................................. 134
6.2.2. Graphical representations and functions ....................... 135
6.2.2.1. Status indication .............................................. 135
6.2.2.2. Colour coding................................................... 135
6.2.2.3. Colour definitions ............................................. 136
6.2.2.4. Event and alarm indications............................. 136
6.2.2.5. Log events ....................................................... 137
6.2.3. System Self Supervision dialogs ................................... 137
6.2.3.1. Main dialog, general ........................................ 137
6.2.3.2. Main dialog, Base System ............................... 140
6.3.1. Description..................................................................... 140

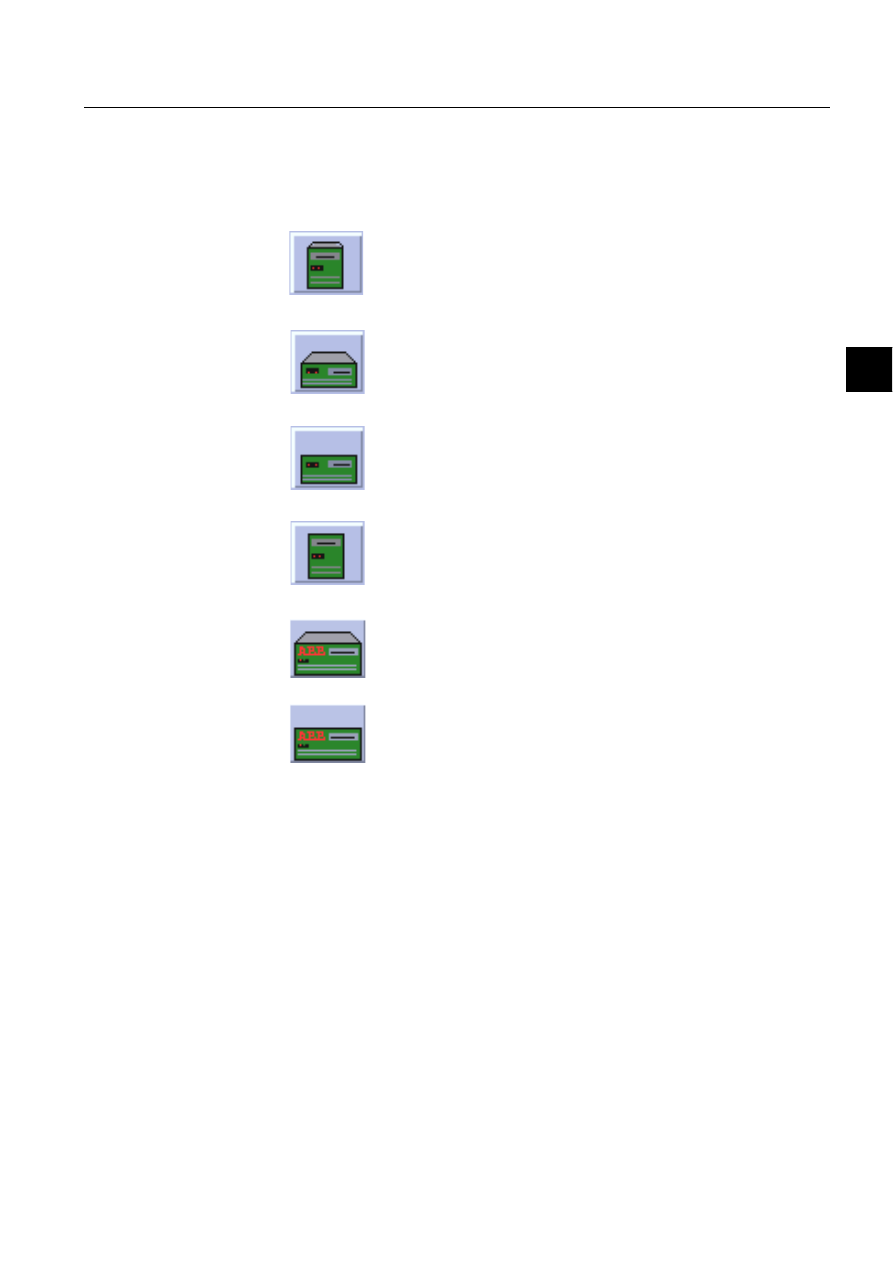

6.3.2. Object presentation ....................................................... 141
6.3.3. Supervision Function dialog .......................................... 141
6.4. Base System............................................................................. 141
6.4.1. Description..................................................................... 141
6.4.2. Object presentation ....................................................... 142
6.4.3. Supervision Function dialog .......................................... 143
6.5.1. Description..................................................................... 144
6.5.2. Object presentation ....................................................... 144
6.5.3. Supervision Function dialog .......................................... 145
1MRS751885-MUM
LIB 500
Contents
LIB 500 Operator’s Manual
User’s Guide

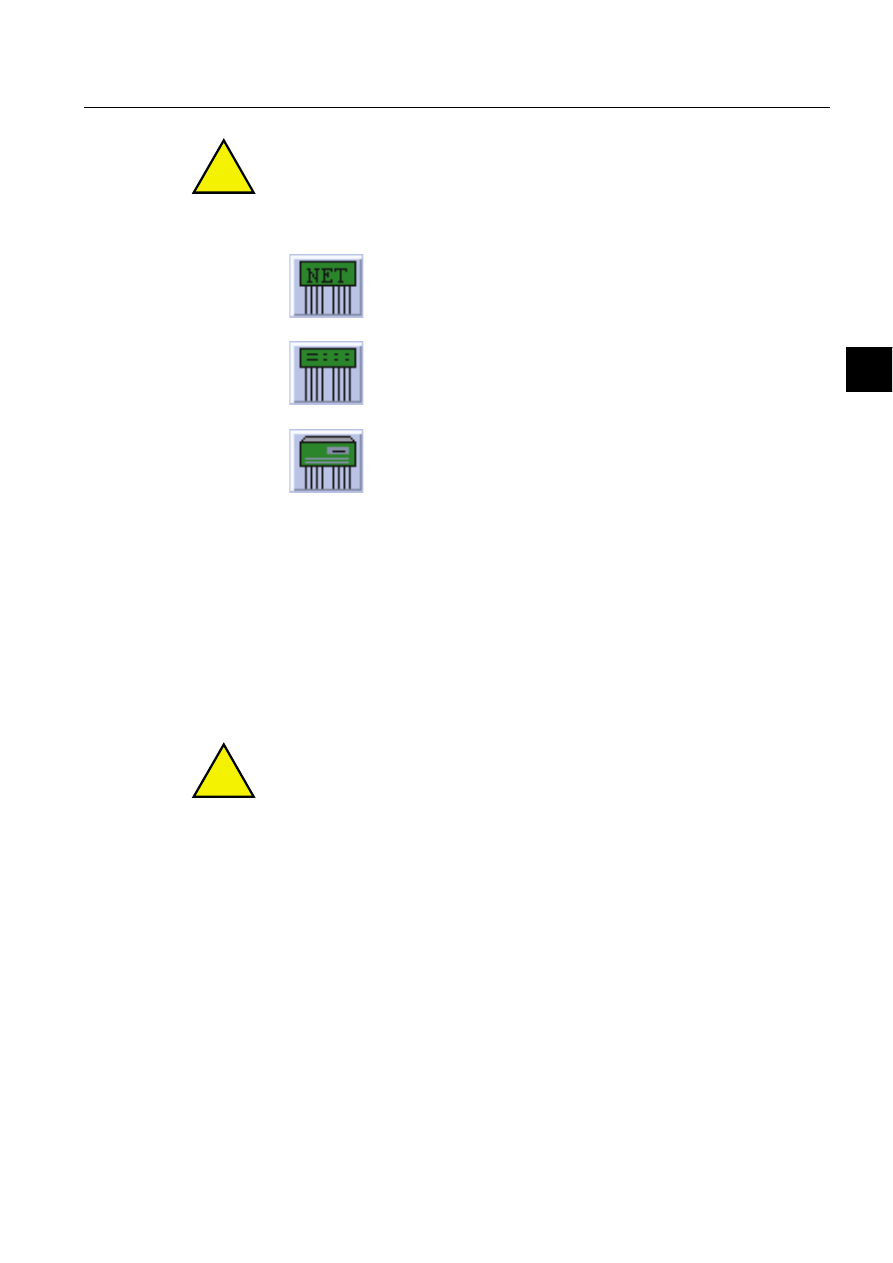

6.6. Communication unit (NET)........................................................ 146
6.6.1. Description ..................................................................... 146
6.6.2. Object presentation ........................................................ 146
6.6.3. Supervision Function dialog ........................................... 147
6.7. Communication unit line (NET line)........................................... 147
6.7.1. Description ..................................................................... 147
6.7.2. Object presentation ........................................................ 148
6.7.3. Supervision Function dialog ........................................... 148
6.8.1. Description ..................................................................... 149
6.8.2. Object presentation ........................................................ 149
6.8.3. Supervision Function dialog ........................................... 150
6.9. LON Clock Master (SLCM) ....................................................... 150
6.9.1. Description ..................................................................... 150
6.9.2. Object presentation ........................................................ 151
6.9.3. Supervision Function dialog ........................................... 152

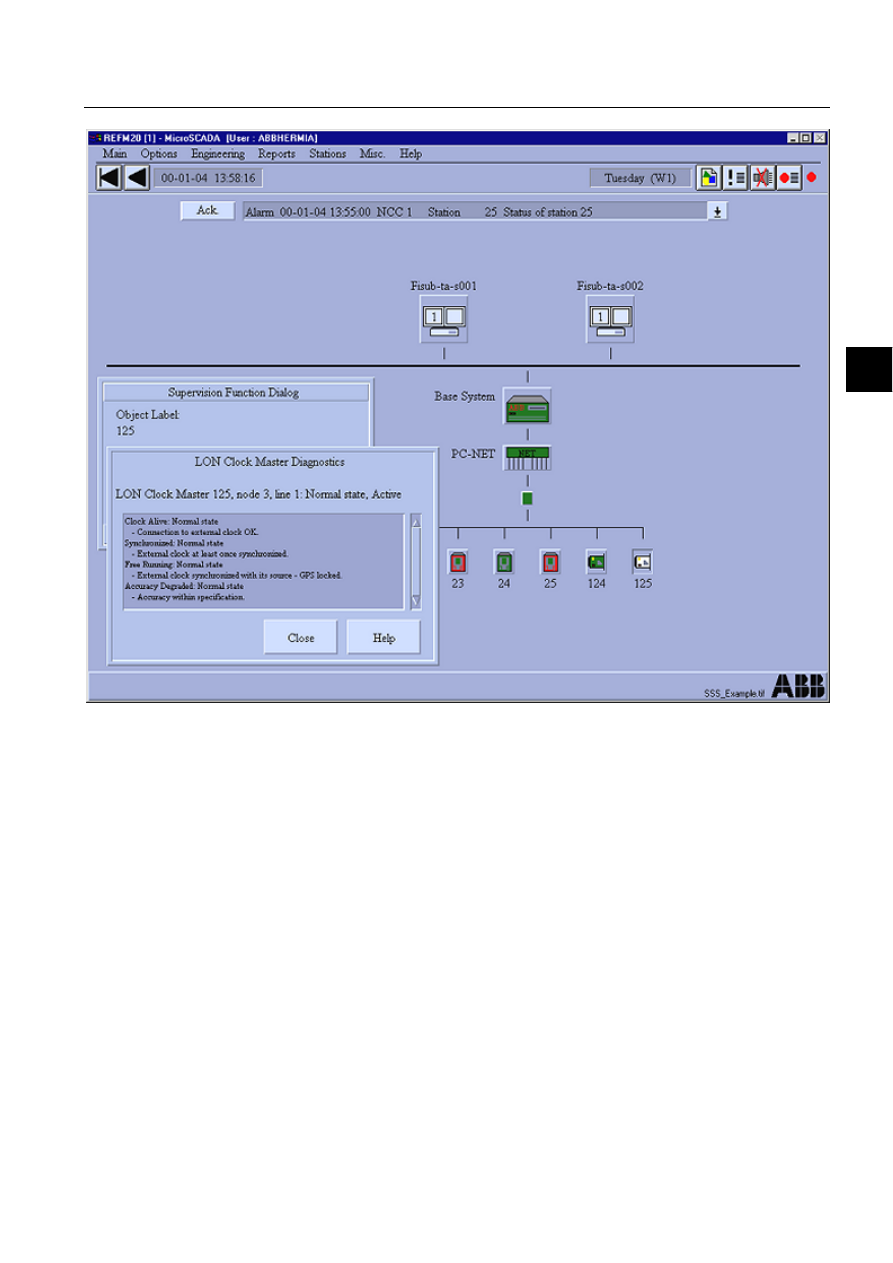

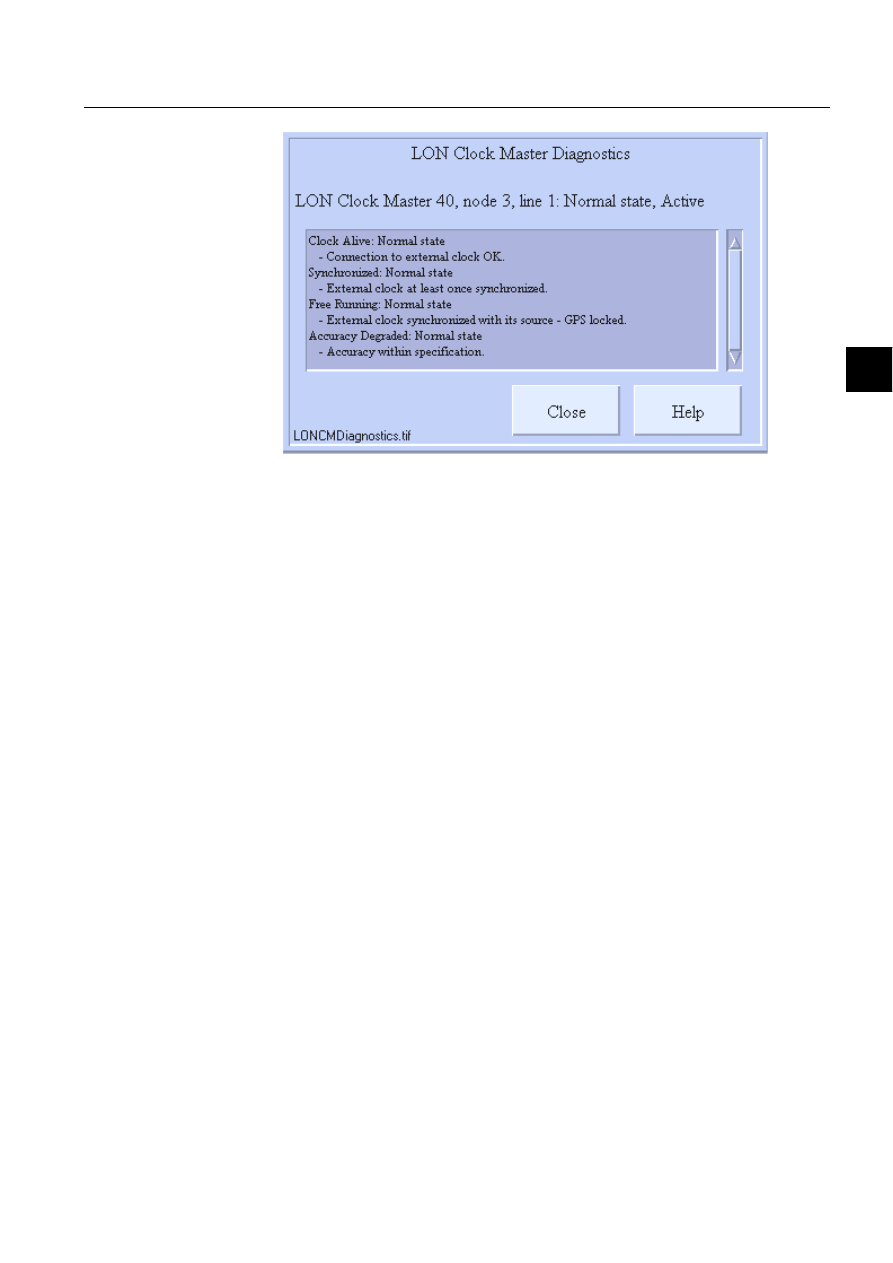

6.9.4. LON Clock Master Diagnostics dialog ........................... 152
6.10.1.Description ..................................................................... 154
6.10.2.Object presentation ........................................................ 155
6.10.3.Supervision Function dialog ........................................... 156

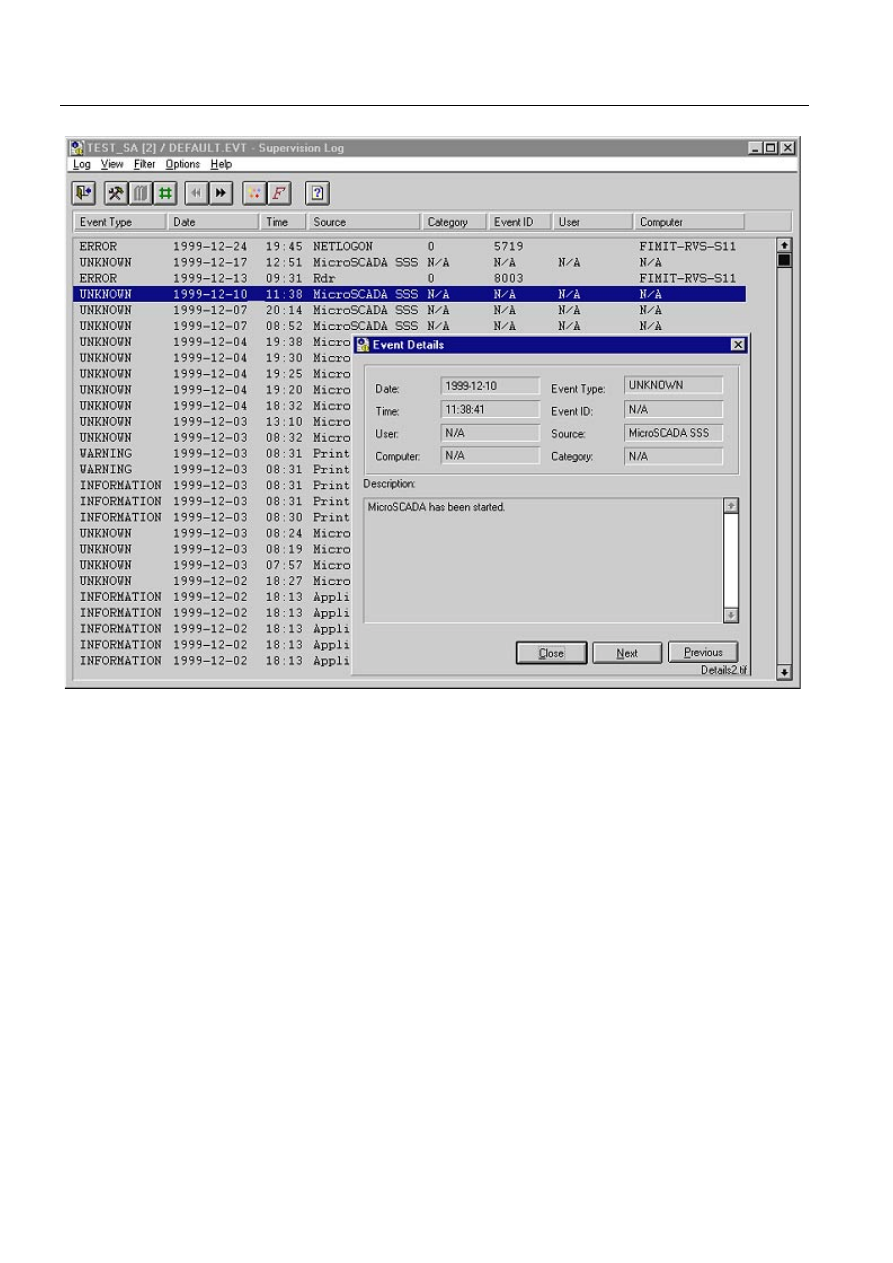

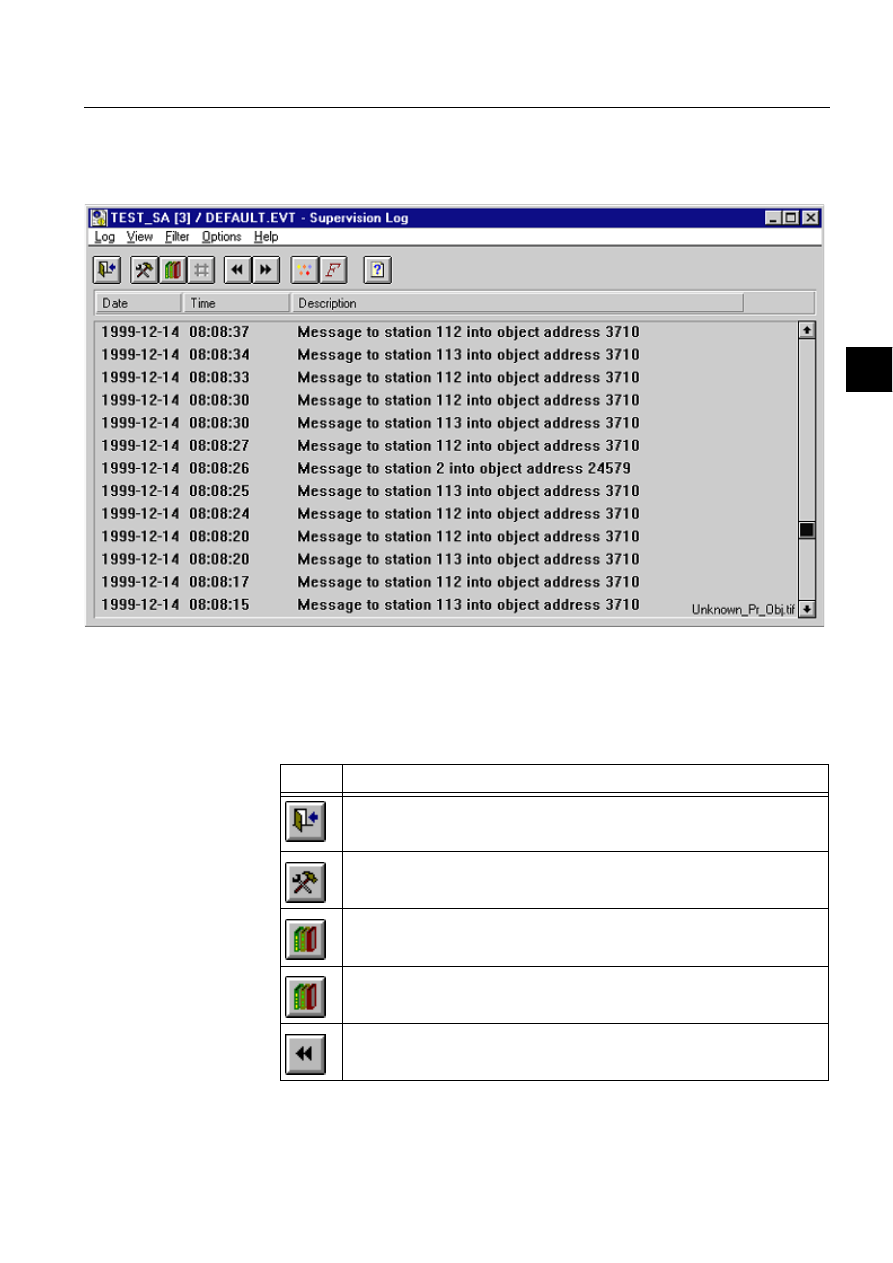

6.11.Supervision Log Viewer ............................................................ 156
6.11.1.Overview ........................................................................ 156
6.11.1.1.Users................................................................ 156
6.11.2.Types of log events ........................................................ 157
6.11.2.1.Common events ............................................... 157
6.11.2.2.Undefined Process Object events.................... 158

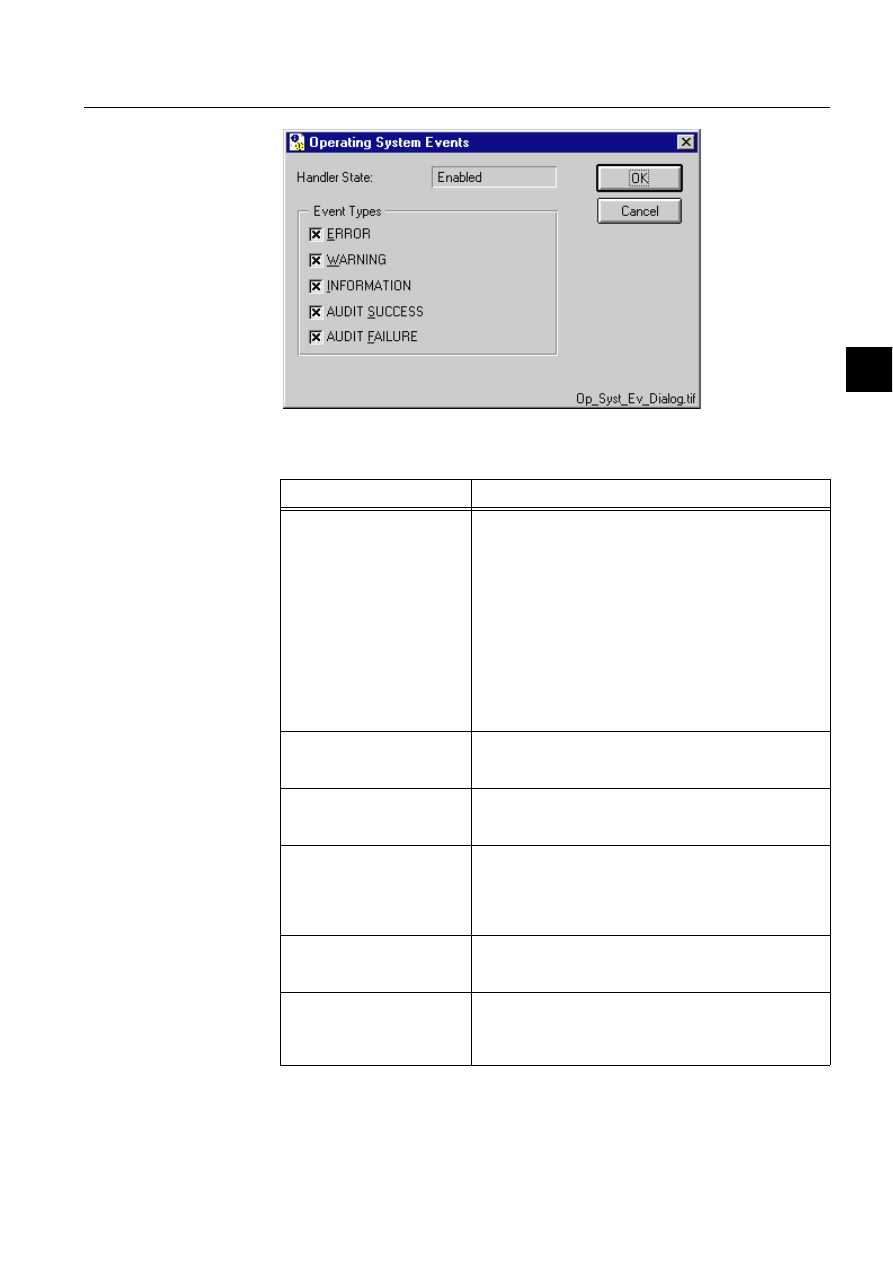

6.11.2.3.Operating System events................................. 159

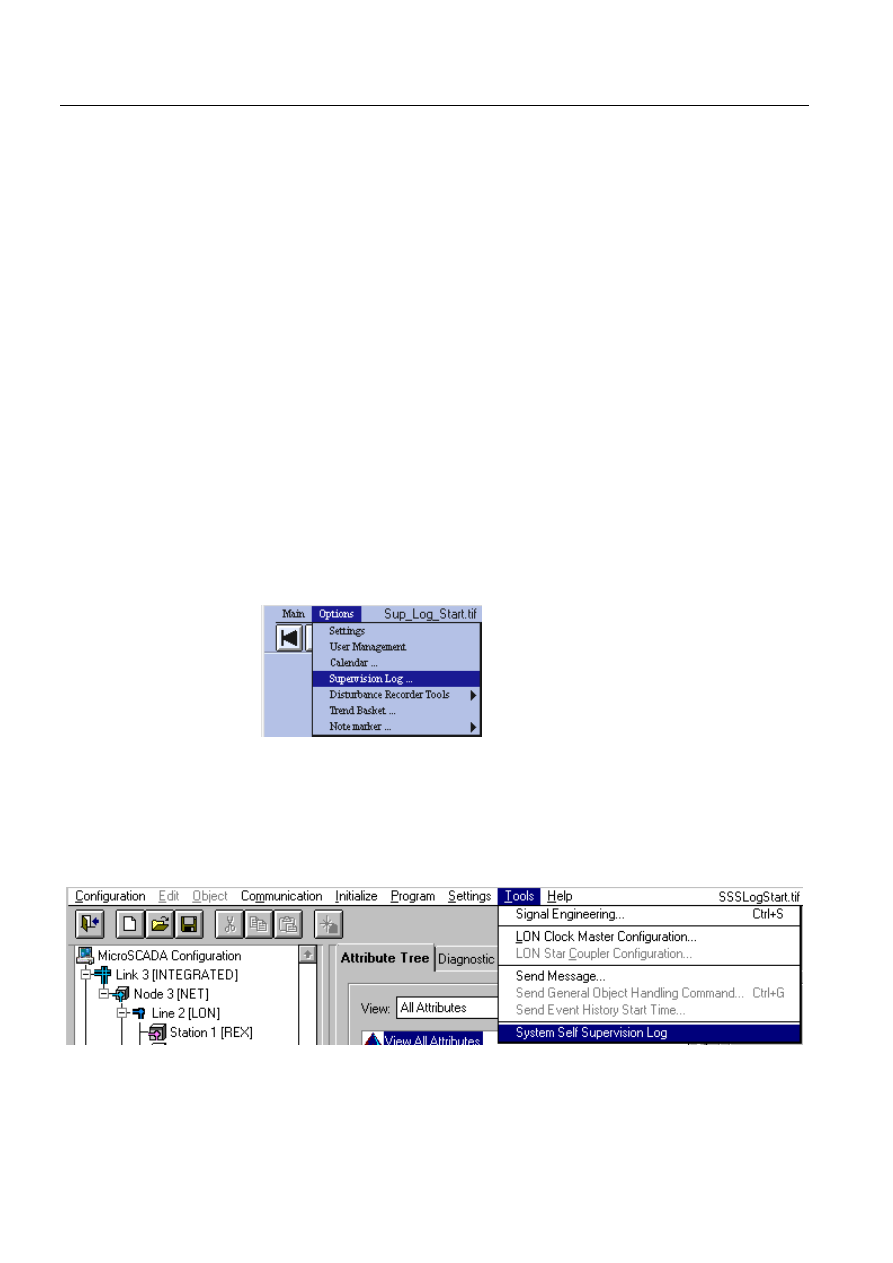

6.11.3.Starting Supervision Log Viewer .................................... 162
6.11.4.Toolbar and menus ........................................................ 163

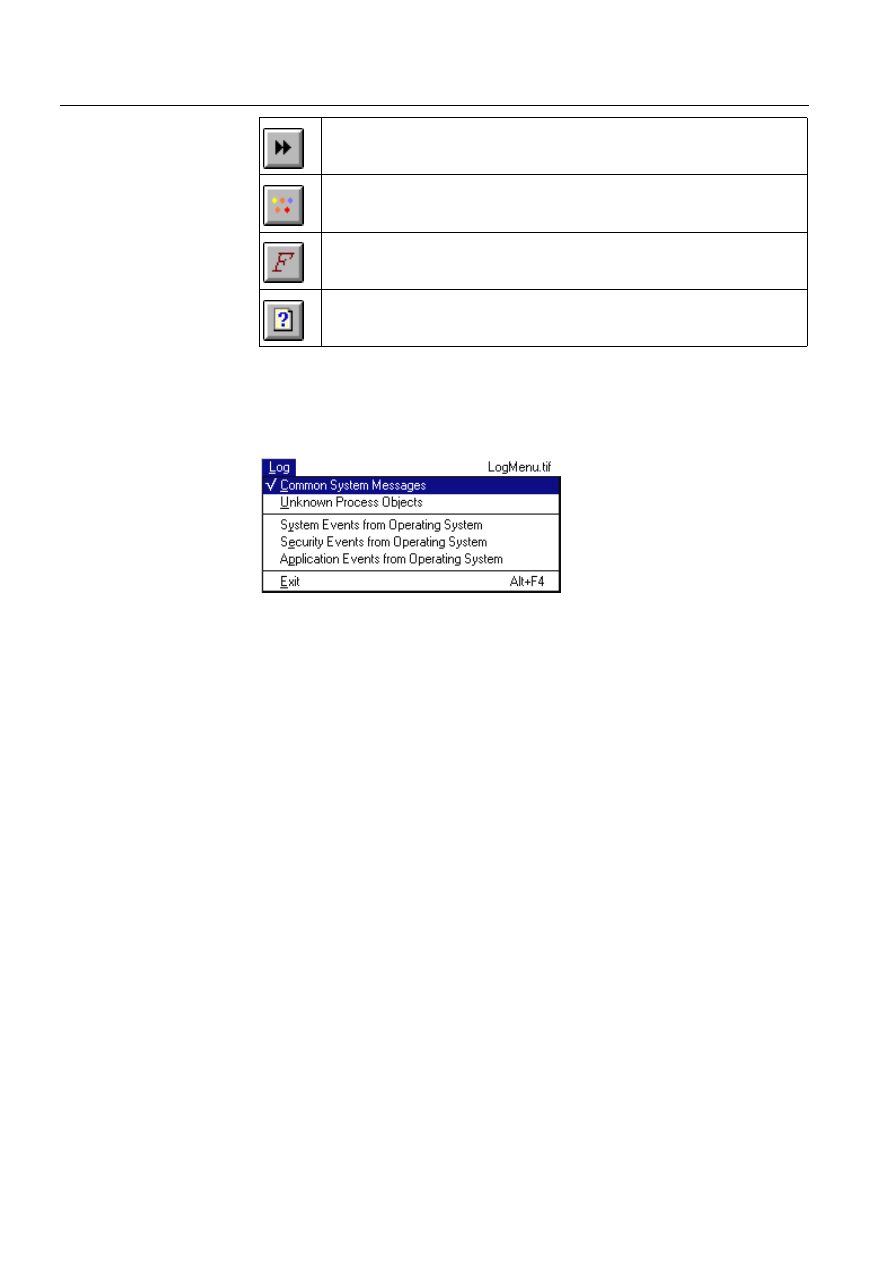

6.11.4.1.Log menu ......................................................... 164

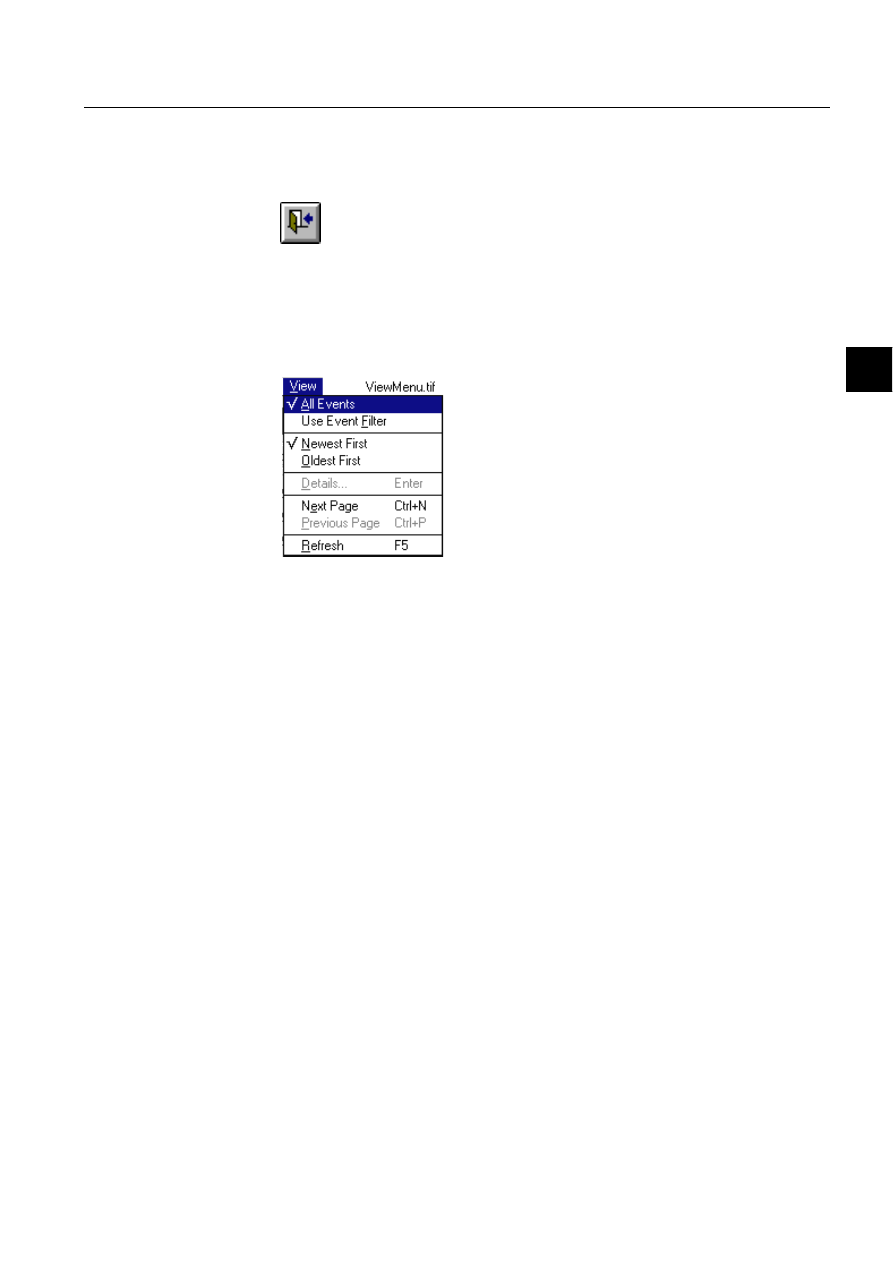

6.11.4.2.View menu ....................................................... 165

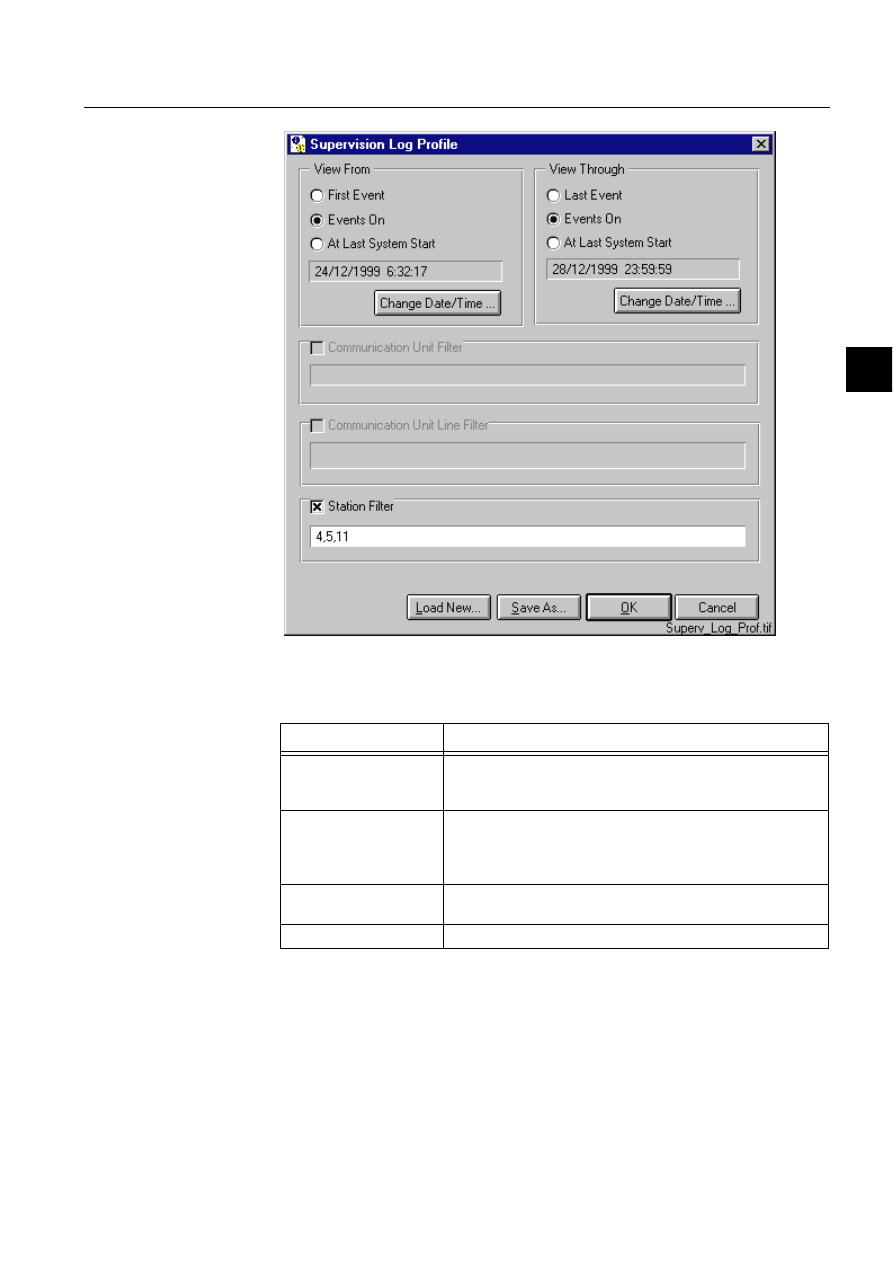

6.11.4.3.Filter menu ....................................................... 167
6.11.4.4.Options menu................................................... 172
6.11.4.5.Help menu........................................................ 174
1MRS751885-MUM
LIB 500
1
1. Introduction
LIB 500 Operator’s Manual
User’s Guide
1
1. Introduction
The intention of this chapter is to give an introduction into LIB 500 and LIB 510
functions. The functions are to some parts described in more detail.
Two separate phases can be identified:
1. The Engineering phase, when configuring the application by means of the
system tools.
2. The “runtime” phase, when the prepared and configured application is used and
connected to the process.
This Operator’s Manual does not deal with phase 1. The focus is set on using the LIB
500 and LIB 510 related functionality after a proper configuration.
However, as a user you may notice that all application areas and functions provided
by LIB 500 and LIB 510 described in this Operator’s Manual are not covered by
your application. This is because the functionality of individual applications is
designed according to the needs of the user. Vice versa, your application may feature
functionality which is not described in the scope of this Operator’s Manual.
1.1.
Reference documentation
The handling of LIB 500 is divided into two operator’s manuals. For LIB 510, please
see the LIB 510 Operator’s Manual.
1.2.
Safety instruction
!
We strongly recommend that you familiarize yourself with the basic handling of the
functionality in the application pictures and picture functions in order to avoid
situations that may cause danger to the personnel. Therefore, the use of authorization
levels is advisable in order to allow only dedicated personnel to perform control
operations of e.g. switching devices.
1.3.
General about LIB 500 and LIB 510
LIB 500 consists of basic functions needed for application handling (e.g. backbone,
user management, event and alarm list, busbar colouring). Furthermore, LIB 500 is
the platform to which support packages (e.g. LIB 510) are added. LIB 510 is a
support package containing functions such as MV process, procedures for handling
relays and terminals (SPACOM and RED), tools needed for configuring the process
terminals or for e.g. uploading recordings from the disturbance recorders etc.
1MRS751885-MUM
2
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
1.
Introduction
User’s Guide
1.4.
Application pictures
)LJ ([DPSOHVRIDSSOLFDWLRQSLFWXUHV
Figure 1.4.-1 is composed of some examples of application pictures. In this case an
Alarm List, a Trend Report, Harmonic Violation period bars provided by the PQ-
Monitoring Tool, and a Daily Report from the Measurement Reports 2 are
displayed.
Application pictures visualise the supervised processes. There are many different
types of application pictures: single line diagrams, process pictures, system
supervision, lists, application tools, measurement reports and trend reports.
When a picture is presented on the screen, first you see the picture background. Then
the start program is executed. The start program may imply that windows are
displayed, the process database is contacted, the picture process objects are given
initial values etc. The start program cannot be interrupted by pressing any function
key.
Generally, only one application picture is presented within the same monitor. The
opening of another function closes or hides the previous one. However, several
1MRS751885-MUM
LIB 500
3
1. Introduction
LIB 500 Operator’s Manual
User’s Guide
1
monitors can be opened to the same application. Thereby the same or different
application pictures can be shown in different places at the same time. If two or more
monitors are open to the same application processes, viewing/using the LIB 500 and
LIB 510 functions are settled by the user’s authorization level.
Your application may contain one or more application or process pictures, which can
be accessed from the pull down menus.
1.5.
Process picture (station)
Figure 1.5.-1 shows an example of a station (process) picture in form of a single line
diagram. The MV processes can generally be shown in the process picture by
different representations, but the representation to be used is selected during the
picture configuration phase. Different colours are normally used for indicating the
status, but also to indicate whether an object is connected to the process or not, etc.
)LJ $QH[DPSOHRISURFHVVHVLQIRUPRIDVLQJOHOLQHGLDJUDPLQDSURFHVVSLFWXUHVWDWLRQSLFWXUH
4
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
1.
Introduction
User’s Guide
1.6.
Picture layout
1.6.1.
Overview
)LJ
3LFWXUHOD\RXWLWHPV
1. Application Name, Computer Name and User Name
2. Picture Header
3. Standard Menu
4. Picture Specific Menu
5. Help Menu
6. First Picture
7. Previous Picture
8. Date and Time
9. Picture Name
10.Latest unacknowledged alarm
11.Day and Week
12.Shortcut buttons for Hard Copy, Event List, Audio Alarm Acknowledgement,
Alarm List
13.Station Symbol
14.Alarm Indication (flashing)
1MRS751885-MUM
LIB 500
5
1. Introduction
LIB 500 Operator’s Manual
User’s Guide
1
15.Picture Specific Area
16.Note Marker
17.Information Bar
18.ABB Logo
Table 1.6.1-1
Figure 1.6.1.-1 can be divided into two sections
There are three types of drop-down menus:
Table 1.6.1-2
Different types of drop-down menus
The meaning of the notifications in Figure 1.6.1.-1 is mostly self-evident, but the
following sections will give further information regarding some items in Figure
1.6.1.-1
1.6.2.
Alarm indication
A red flashing alarm bullet
is presented on the right of the header bar when
there are unacknowledged alarms present in the system. Acknowledging of the
alarm turns the flashing red bullet into a red bullet with a steady light, provided that
there are more alarms.
1.6.3.
Alarm row
)LJ
$QDODUPURZLQIRUPLQJWKDWWKHUHKDVEHHQDWULSGXHWR
RYHUFXUUHQW
An alarm row appears on the screen below the header when an alarm is active. The
alarm indication, which provides information of the alarm, is displayed flashing
until the alarm is acknowledged or a new alarm is activated.
The alarm row gives the operator a quick notification of an alarming event in the
system. The advantage is not only that it can be noticed easily, it also instantly tells
Section
Remarks
Picture header
Normally the same for different application pictures.
Picture specific area
Specific for the process viewed or the application picture
opened.
Menu type
Remarks
1
Standard Menu
Contains standard menu functions, which
normally are the same within the application.
2
Picture Specific Menu
Picture specific menu functions. The menus and
menu items are different from one application
picture to another, or not available in all pictures.
The Tools menu is a typical example.
3
Help Menu
Contains system messages and representation
symbols.
6
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
1.
Introduction
User’s Guide
the operator what has happened and where. With the alarm row the alarms can easily
be acknowledged.
The alarm row shows all unacknowledged active and inactive alarms in the system.
The latest alarm is shown on the top of the list. Any of the alarms shown on the list
can be selected to be acknowledged.
The user’s authorization level has to be at least Control (1) before alarms can be
acknowledged. (The alarm row uses authorization group ALARM_HANDLING.)
On the alarm row, active and inactive alarms are separated by showing the alarm text
in parentheses (Alarm) if the alarm is inactive. Thereafter, the date and time of the
alarm and the object text of the alarming object are presented.
1.6.4.
Information bar

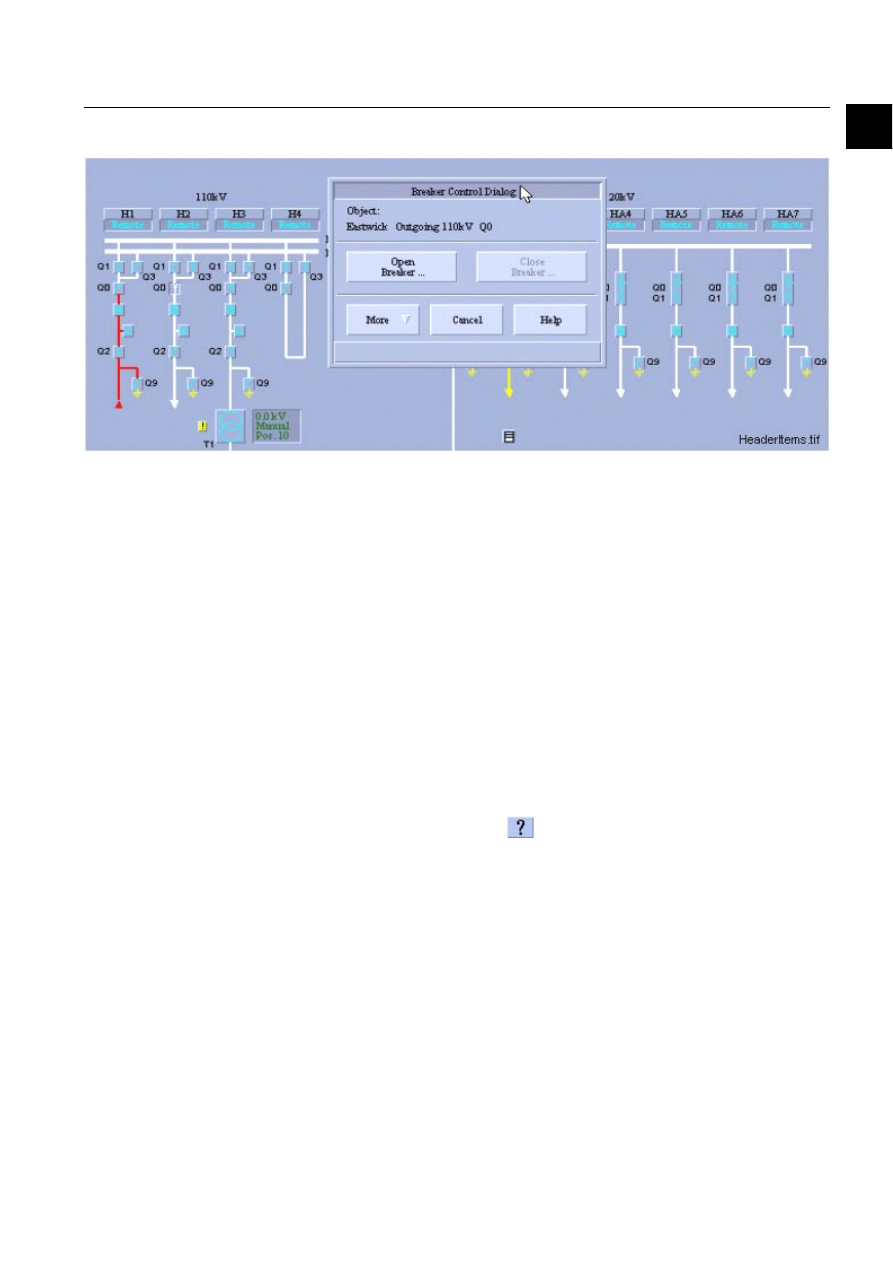

)LJ
7KHLQIRUPDWLRQDERYHWHOOVWKDWWKHGLDORJIRURSHUDWLQJWKH
EUHDNHUZDVFORVHGDIWHUDFHUWDLQWLPHEHFDXVHRIWKHXVHU¶V
LQDFWLYLW\

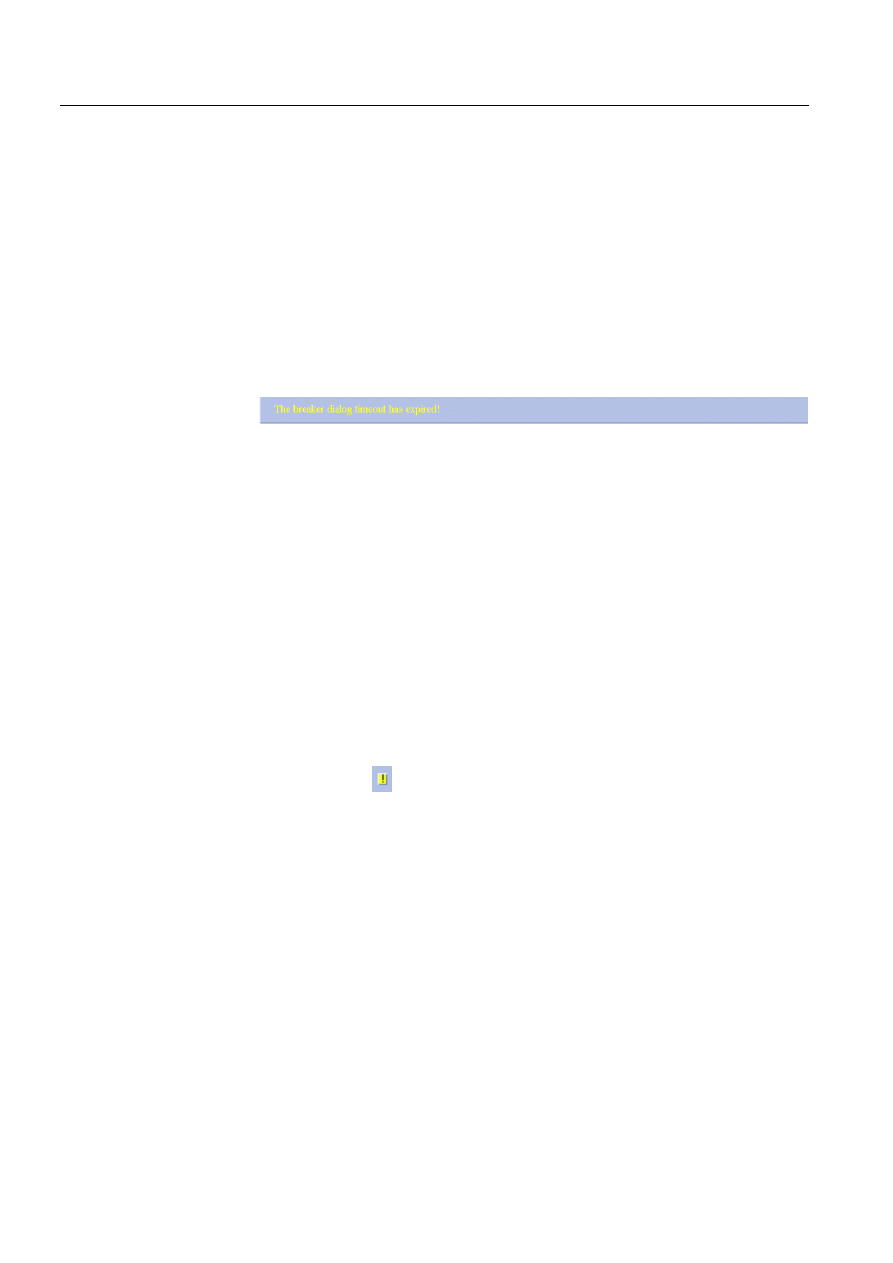

The information bar, which is located at the bottom of the application picture,
informs about e.g. ongoing processes or the progress of the process, when there is
no object specific dialog available.
The information bar also informs about the possible SCIL status messages that
might occur. The Help drop-down menu contains more information about the
elapsed events, and also a log book.
A new system message or SCIL status code replaces the previous one.
Information on the information bar can be reset by clicking it with the mouse. The
SCIL status messages are still available from the Help drop-down menu.
1.6.5.

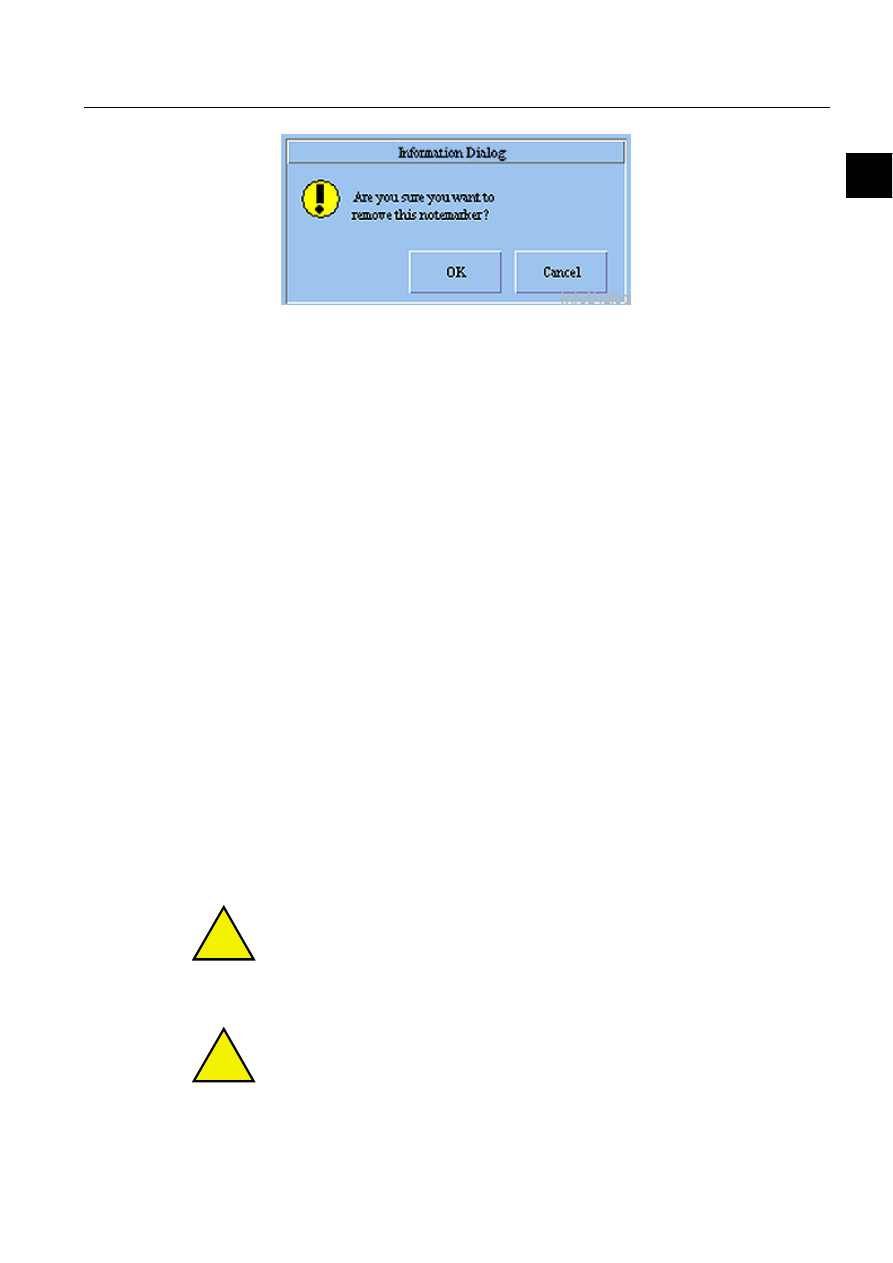

Note marker
The note marker
is used for writing notes, and it is also readable by other users.
The note marker is application picture specific, which means that when you open the
same view into another monitor, the same note marker is presented. You may use as
many note markers as needed. Open a note marker by clicking it with the mouse.
1.7.
Push buttons in the picture layout
Push buttons in the picture layout are buttons that can be activated during the run
mode (click with the mouse).
1MRS751885-MUM
LIB 500
7
1. Introduction
LIB 500 Operator’s Manual
User’s Guide
1
)LJ 3LFWXUHOD\RXWSXVKEXWWRQV

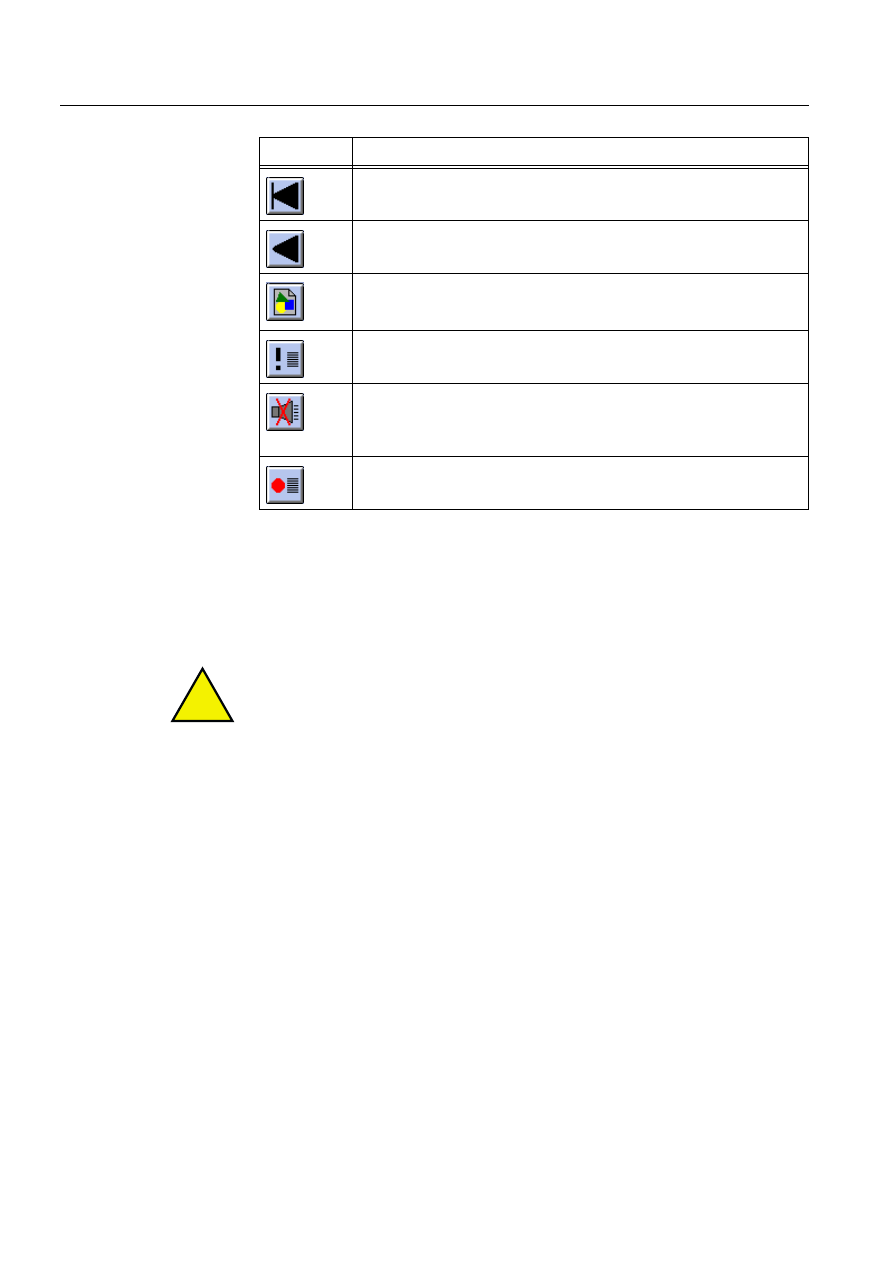

Table 1.7.-1 Push buttons in the main view
1.8.
Drop-down menus in the picture header
)LJ 7KH3LFWXUH+HDGHUdrop-downPHQXV
This section describes the drop-down menus, and some menu functions in more
detail. This section cannot depict all the tailor-made drop-down menu
configurations. Therefore, the focus is set on the drop-down menus that are
implemented in most cases.
Navigation between the application pictures in the application is performed by using
the drop-down menus, which enable a direct access to all pictures/views in the
system.
Some menu items in the menus may be unavailable when another view than the main
view is open, or the menu item has not been configured during the system
Push button
Number
Function
Remarks
1
Shortcut to the first picture
The first picture, shown after login.
2
Shortcut to the previous picture
The previous picture opened.
3
Acknowledge Alarms
Pops up when the alarm bar appears.
4
Scroll in the Alarm List
Shows the unacknowledged alarms.
5
Shortcut to the Hard Copy
A hard copy of the active
MicroSCADA window will be printed
out by clicking the hard copy button in
the upper right corner of the VS-
header.
6
Shortcut to the Event List
7
Shortcut to the Audio Alarm
Acknowledgement
Audible alarms coming from a
MicroSCADA alarm unit will be
acknowledged by clicking the
Acknowledge audible alarms button in
the upper right corner of the VS-
header.
8
Shortcut to the Alarm List
8
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
1.
Introduction
User’s Guide
configuration. The menus can also be configured to contain other menu items than
described in this section. This section explains the basic menus and some optional
alternatives. The application may, however, contain several customized menus and
menu items.
The LIB 500/510 based applications provide a hierarchical menu structure. This
menu is mainly common to all application pictures. Some of the menu items in the
main menu, e.g. the Event List, Alarm List, DR-Collector Tool, include an
additional picture specific Tools menu.
Table 1.8.-1 Drop-down menus
1.8.1.
Standard menu
1.8.1.1.
Main menu functions

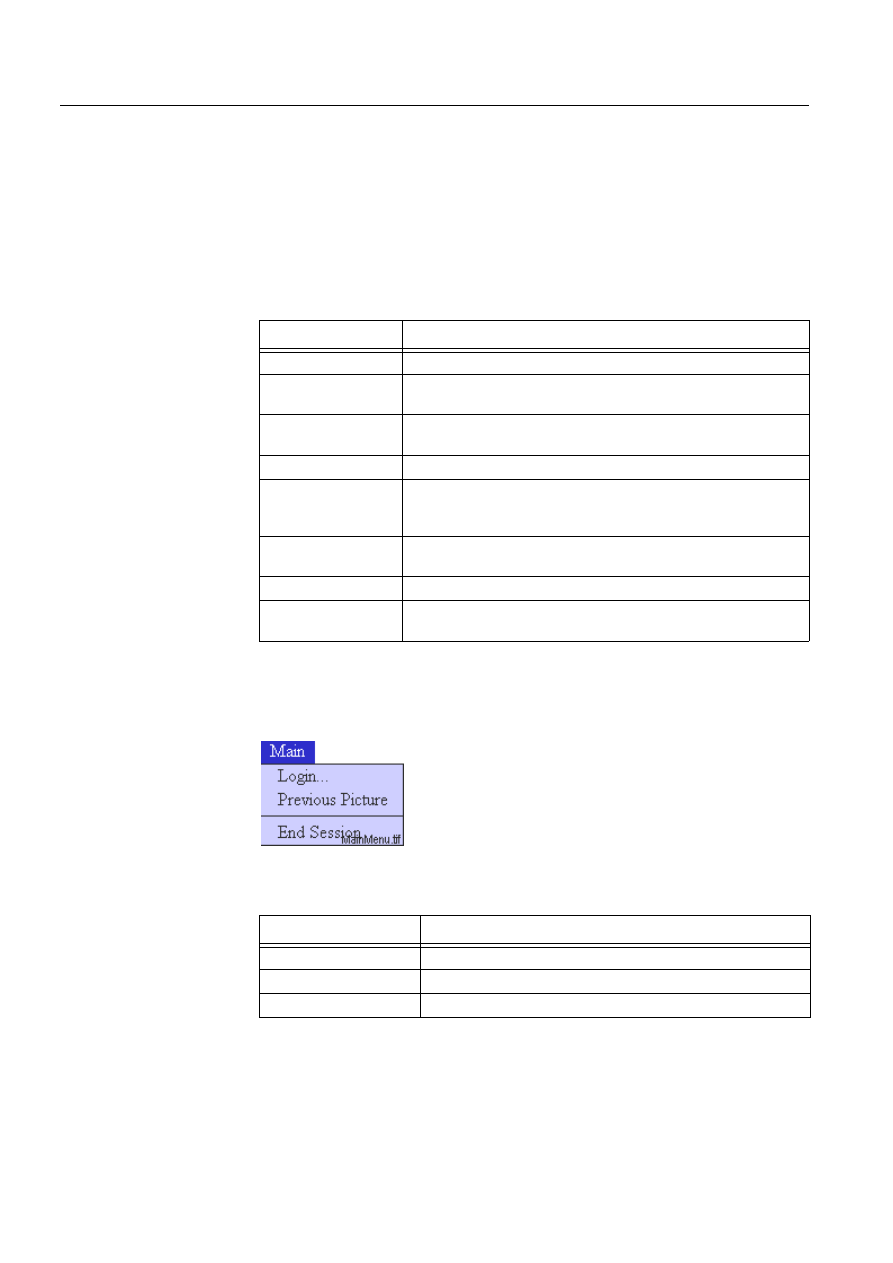

)LJ 7KH0DLQdrop-downPHQX
Table 1.8.1.1-1
Main menu items
Drop-down menus
Function
MAIN
Login, Previous Picture and End Session are the default options.
OPTIONS
Produces a menu with assistant pictures, e.g. User Management,
Trend Basket and system tools.
ENGINEERING
Displays the Tool Manager, i.e. the menu to the engineering and
system handling tools.
REPORTS
Provides various lists, e.g. event lists and measurement reports.

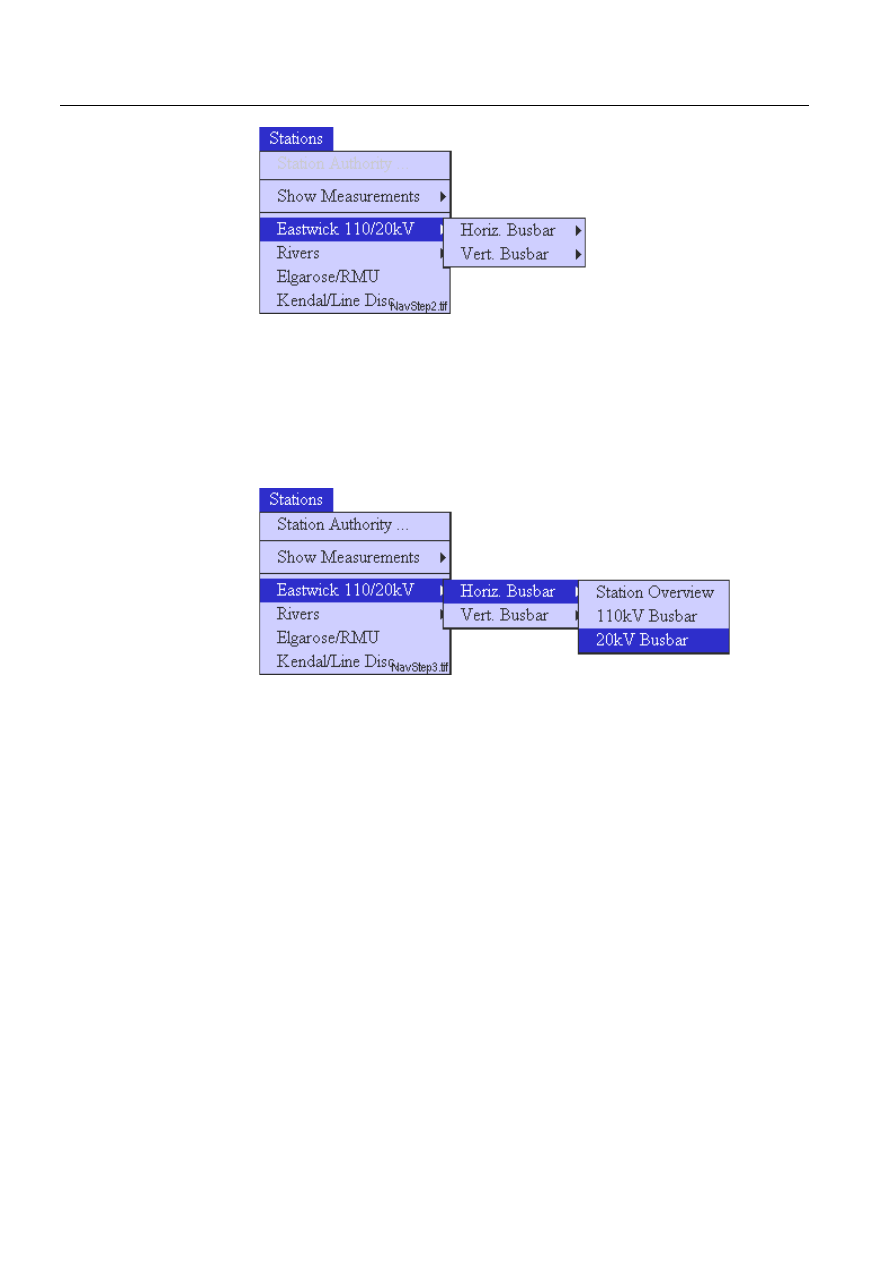

STATIONS
Displays the station menu. Contains the Station Authority and Show
Measurements. The configured station pictures can also be given
real names for the process to open.
SIMULATION
This is an example of an additional menu that is added to the main
menu. It enables the simulating of processes and operations.
TOOLS
This is an example of a picture specific menu.
HELP
System messages and Representation symbols used for the
process pictures.
Menu item
Explanation
Login
Used for login and logout for authorized users.
Previous Picture
Takes the user back to the previous picture.
End Session
Ends the session and closes the monitor.
1MRS751885-MUM
LIB 500
9
1. Introduction
LIB 500 Operator’s Manual
User’s Guide
1
Login dialog
This Login dialog is started from the Main drop-down menu by selecting LOGIN.
Another automatic login session can be started when entering the system at start-up.
This login is available when the application is already running.
The login dialog is for preventing unauthorized persons from making operations to
the actual process. The login determines the authorization level of the user to be used
in the system.
Functionality
The user fills in a user name and a password. If the user is defined and the password
is correct, then the actual application will be opened when Login is selected.
When the application is entered the very first time, the user who first logs in becomes
the system manager and s/he cannot be removed afterwards.The system manager is
the only user who can define other users and their authorization levels. The login and
authorization mechanisms can also be set out of use by the system manager.
!
The user name may not include special characters and it may not contain two letters
followed by a number. The name may also not begin with a number.
1.8.1.2.

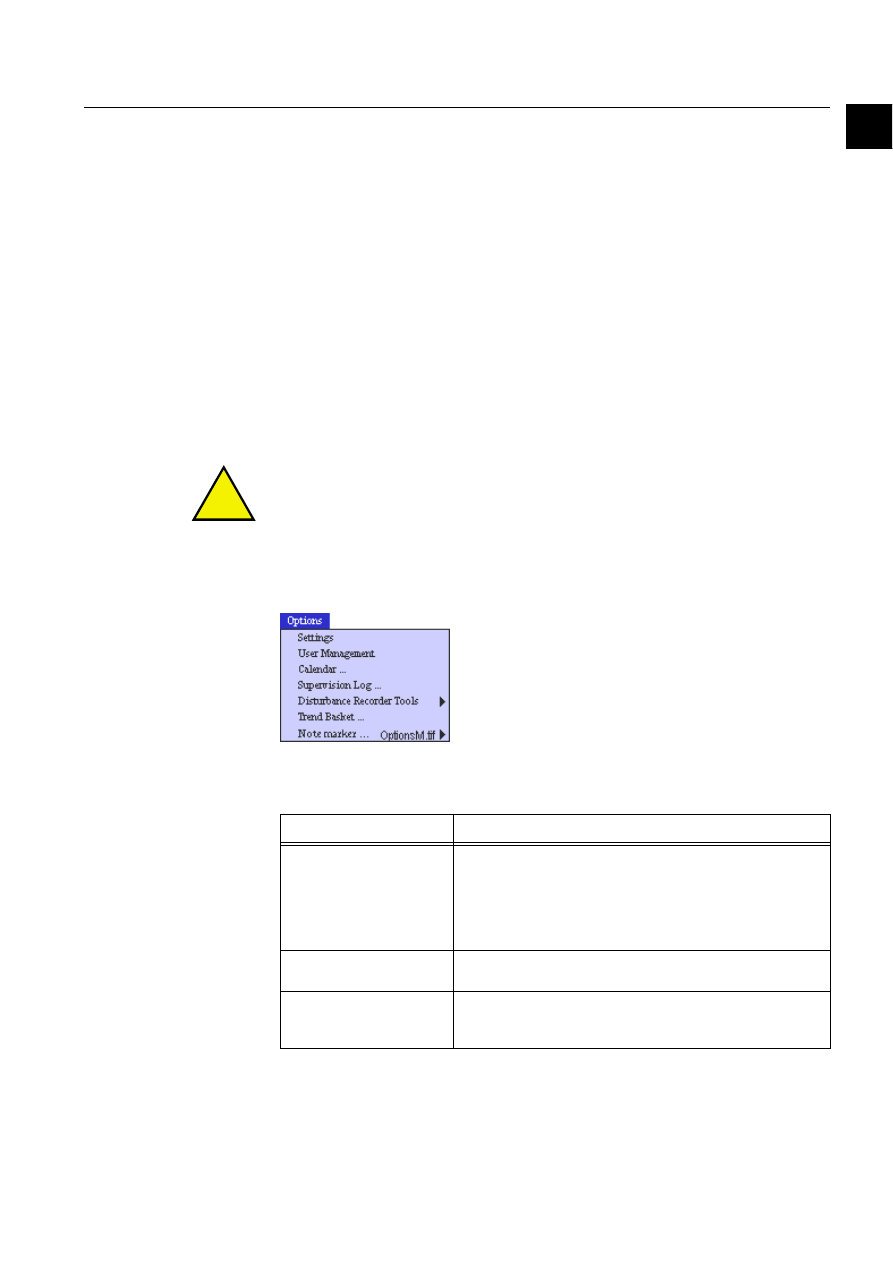

Options menu functions
)LJ 7KH2SWLRQVdrop-downPHQX
Table 1.8.1.2-1
Options menu items
Menu item
Explanation
Settings
Menu item for changing or viewing the Application owner, First
picture shown after login, Application logo picture, System
location, System name, Product info, Lockout duration,
Language settings, Daylight Saving time, Process control,
Show object ID, HD space alarm, Report Settings, Switch
device presentation.
User Management
Menu item for changing a User’s profile, password or adding/
removing users.

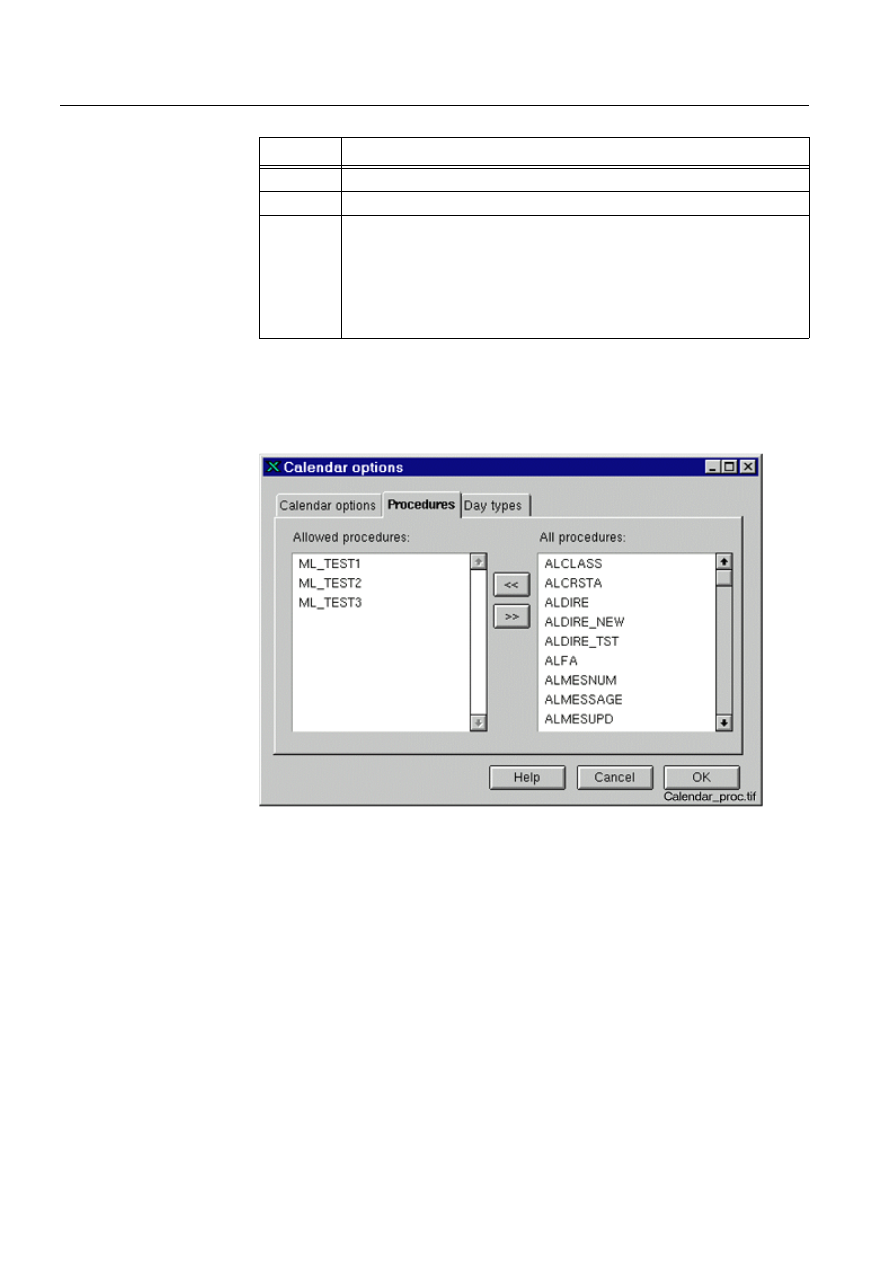

Calendar
Menu item for starting the calendar program. It is used for
defining features, activities or command procedures to be
performed on a certain day or several days.
10
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
1.
Introduction
User’s Guide
1.8.1.3.
Engineering menu functions
)LJ 7KH(QJLQHHULQJdrop-downPHQX
Table 1.8.1.3-1
Engineering menu items
The DB Import/Export function will be described in Chapter 2, LIB 500 Backbone.
Supervision Log
The Supervision Log Viewer is used to monitor information
that has been collected by the System Self Supervision and
the NT operating system. These files contain information in
form of events coming from both hardware and software. For
more information, see Chapter 6. System Self Supervision in
this manual.
Disturbance Recorder Tools This submenu contains the items DR-Collector Tool and HV/
Collect. DR-Collector Tool is a disturbance recorder tool used
in LIB 510/MicroSCADA, CAP 501, CAP 505, and in SMS 510
environments. HV/Collect is used for disturbance uploading
function for high-voltage relays (LIB 520).
Trend Basket
Menu item giving access to the basket function which is a
method for gathering objects for display in trends. The basket
function will be described in a later chapter.
Note Marker
Menu item for access to the Note mark dialog for displaying
and writing notes. Five different colours can be selected.
Menu item
Explanation
Menu item
Explanation

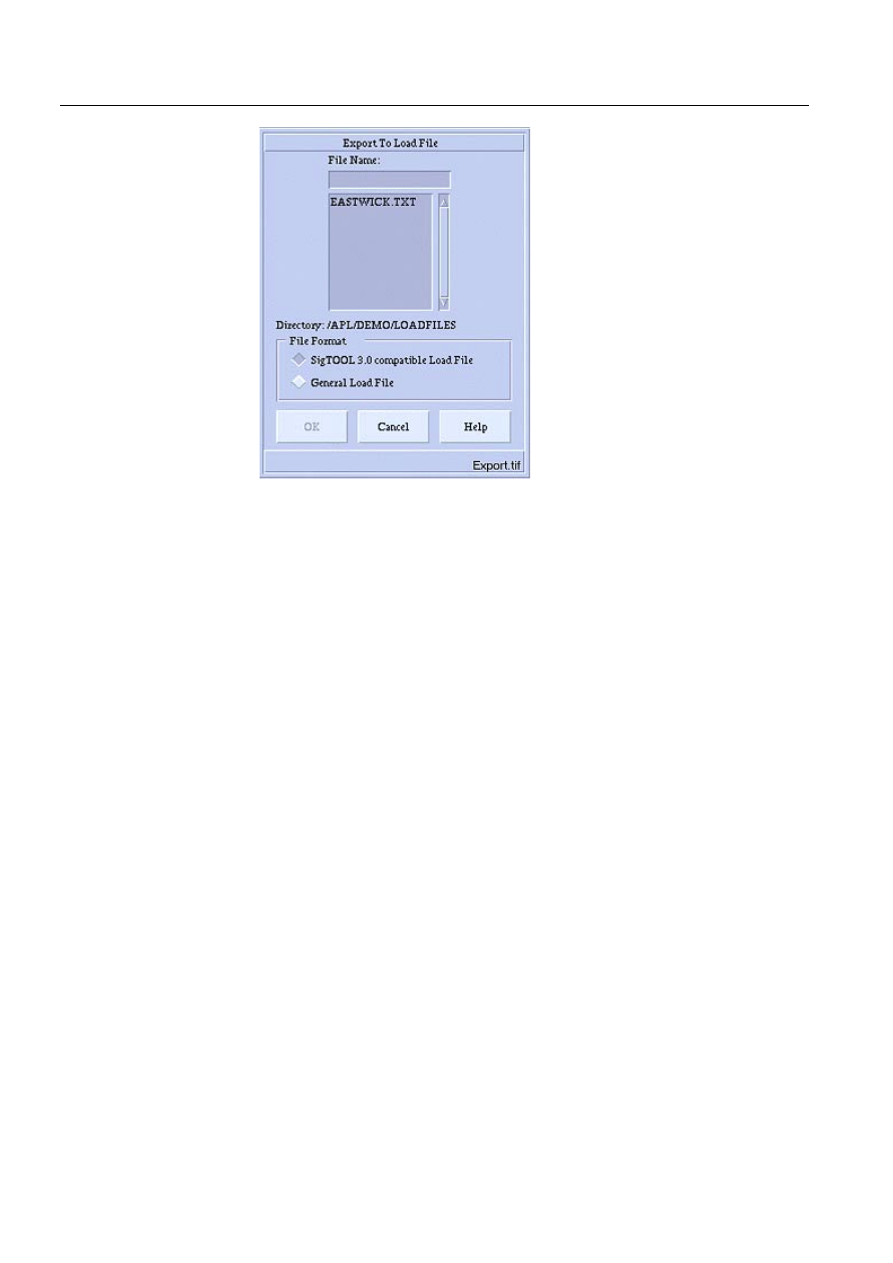

DB Import/Export
Exporting process objects from a MicroSCADA database to a
file. Importing process objects from a file to a MicroSCADA
database.
Busbar Colouring
Shows the status of the busbar colouring. Busbar colouring can
also be stopped.
System Tools
System tools used for configuring the applications and picture
functions, used when building the application with its process
pictures.
1MRS751885-MUM
LIB 500
11
1. Introduction
LIB 500 Operator’s Manual
User’s Guide
1
1.8.1.4.
Reports menu functions
)LJ 7KH5HSRUWVdrop-downPHQX
Table 1.8.1.4-1
Reports menu items
More information about the functions above can be found in the Operator’s and
Configuration Manuals of LIB 500 and LIB 510.
1.8.1.5.
Stations menu functions
)LJ 7KH6WDWLRQVdrop-downPHQX
Table 1.8.1.5-1
Stations menu items
Menu item
Explanation
Event List
Opens the view to the Event List.
Alarm List
Opens the view to the Alarm List.
Trend List
Opens the view to the Trend List.
Meas. Reports
Opens the view to Measurements Reports 2.
Blocking List
Opens the view to the Blocking List.
Menu item
Explanation
Station Authority
For defining control centers to control the picture.
Show Measurement
Provides an easy and a fast way to monitor the processes in the
picture.
Station 1
Opens the view to a defined process picture, unavailable until
configured.
Station 2
Opens the view to a defined process picture, unavailable until
configured.
12
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
1.
Introduction
User’s Guide
The Stations menu can, of course, contain more than two stations because it is
customer application dependent. Station 1 (etc.) is normally given a relevant name
of the station or process. You can return back to the previous picture by clicking the
push button number 2, or depending on the case, you can return to the first picture
by clicking the push button number 1 (See Figure 1.7.-1).
1.8.1.6. Simulation
menu
functions
!
The simulation menu is normally included only in the demo application.
)LJ 7KH6LPXODWLRQVdrop-downPHQX
Table 1.8.1.6-1
Simulation menu items
In this example the simulation menu is an additional menu of the main menu.
1.8.2.
Picture specific menu
1.8.2.1.
Tools menu functions
)LJ 7KH7RROVdrop-downPHQXDVDQH[DPSOHRIDSLFWXUHVSHFLILF
PHQX
Menu item
Explanation
According to configuration
Simulations like overcurrent situations, auto-reclose
sequences, tripping of protections etc. can be added.
1MRS751885-MUM
LIB 500
13
1. Introduction
LIB 500 Operator’s Manual
User’s Guide
1
Table 1.8.2.1-1
Tools menu items
The Tools menu in Figure 1.8.2.1.-1 is an example of a picture specific drop-down
menu. The Tools menu is available only when the user has selected a picture which
is equipped with the functions of Tools menu. The contents of the Tools menu
depend on which tool is active (open). Therefore, there is no generic description of
the contents of the Tools menu. The content is described in the respective manual
for the tool in question.
The Tools menu disappears when the application picture is closed.
1.8.3.
Help menu
1.8.3.1.
Help menu functions

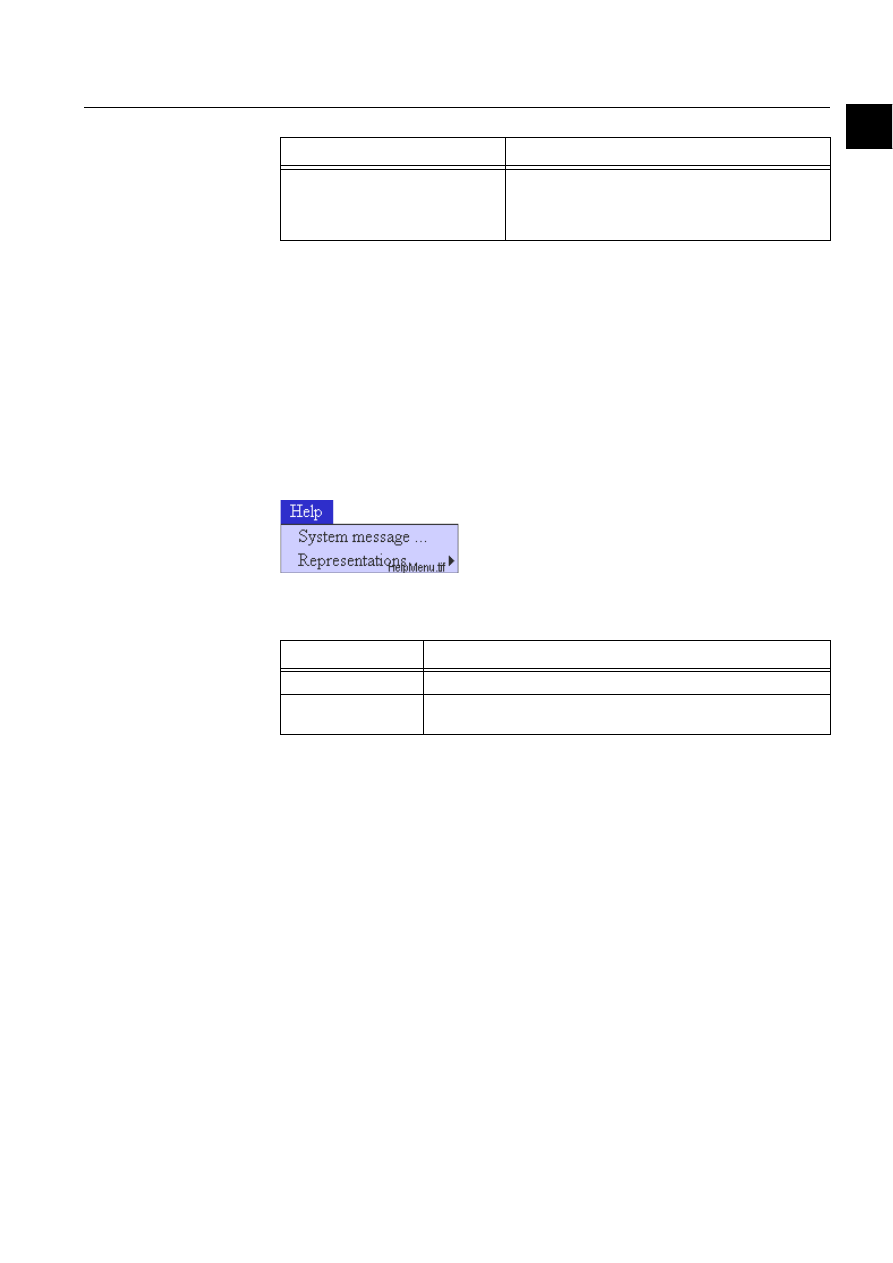

)LJ 7KH+HOSdrop-downPHQX
Table 1.8.3.1-1
Help menu items
The Help menu consists of two parts: system messages and representations. The
system messages contain a list of messages given by the system. The representations
function shows a map of the used symbols for the MV process objects and the
meaning of the used colours.
The System Message dialog has been made as an aid for system engineering and
debugging. When the dialog is opened, it is updated with information of the SCIL
status codes which occurred in a particular picture. The list can be scrolled, if there
are more than one SCIL-status code message. The first or the oldest status is shown
first. If additional statuses occur while the dialog is open, the dialog can be refreshed
by clicking the Refresh button.
1.9.
Process lists
There are three types of process lists:
Menu item
Explanation
Depends on which application
picture is active.
The contents of the menu are related to the
application picture which is open. Trends, Alarm List,
Event List, Blocking List etc. all have their own lists of
menu items in the Tools menu.
Menu option
Explanation
System message
Works as an aid for system engineering and debugging.
Representation
Selectable symbols for switching devices, protection trip and auto-
reclosing.
14
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
1.
Introduction
User’s Guide
Table 1.9.-1 Process list types
Some typical blockings are alarm, event and control blocking. These lists are all
described in separate chapters.
1.10.
Reports
Reports are used for analysing sampled measurements. The collected data can be
presented in a graphical or in a numerical form. Typical reports are energy reports,
currents, process disturbance reports (e.g. trippings, earth-faults, overcurrents, auto-
reclosures). These reports can be used for analysing fault situations, for improving
service and maintenance, but also for normal supervision.
1.11.
Tools
Tools are used in order to provide the user with functions adapted to the system. The
tools are used for various needs: system engineering and maintenance, configuration
of relay terminals, uploading of disturbance recordings from disturbance recorders
etc. The tools are all described in separate sections/chapters.
Examples of tools are:
• User Management
• Application Settings
• Database Import/Export
• Login
• RED Relay Tool
• SPA Relay Tool for SPACOM
• DR Collector Tool
1.12.
Application window
An application window is a view, an application or a process picture which is shown
when MicroSCADA is running. The application pictures in Figure 1.4.-1 are
examples of application windows. Before the user has an access to these application
pictures, s/he normally has to perform a login.
Number
Type of list
Explanation
1
Alarm list
Presents the actual alarm state in the process data base.
2
Event list
Presents all events reported to the system.
3
Blocking list
Presents the blocking situation in the process data base.
1MRS751885-MUM
LIB 500
15
1. Introduction
LIB 500 Operator’s Manual
User’s Guide
1
Normally, the login dialog pops up directly after system start-up. However, it is
worth mentioning the three methods of getting to the stage of opening an
application window and the login sequence:
Table 1.12.-1Methods of opening an application window and login sequence
Setting up the MicroSCADA system is described in the MicroSCADA Installation
and System Configuration manuals. That is beyond the scope of this Operator’s
Manual since it is a question of a system configuration that has to be carried out
before starting to use the system on daily basis.
1.13.
Opening an application window
An application specific start picture is the first picture displayed after an application
window has been opened. The start picture generally requires a user login (see
below) before the session can continue.
The Exit button in the start picture and the ‘End Session/Yes’ in the End Session
Information dialog closes the application window. Use these buttons only when you
want to end the session.
Number
Method
Explanation
1
Automatic system start-up
Turning on the PC and starting NT automatically
starts the MicroSCADA services and the login
dialog is shown.
2
Start-up icon
The MicroSCADA session is started from an icon
on the PC desktop.
3
Manual start
Manual start of the MicroSCADA services as well
as manual opening of a monitor.
16
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
1.
Introduction
User’s Guide
)LJ $QH[DPSOHRIWKH/,%VWDUWSLFWXUHZLWKDORJLQGLDORJ
1. Application name
2. Exit button to close the application window.
1.13.1.
User login
In applications built with LIB 500, the start picture requests a user name and a
password. Each MicroSCADA user name is associated with a certain user profile
defined by the system manager.
The password is not displayed on the screen. If the user name and the password do
not match, or the user name does not exist, the start picture re-appears and you can
make a new attempt. Each attempt to log in is registered by the system (even the
failing attempts).
If the login succeeds, the first picture will be produced on the screen. All operations
subsequently performed on the monitor or in the application window in question will
be related to the authority profile associated with the user name. The user name will
also be included as an identifier in the event register when certain manual operations
are performed.
1MRS751885-MUM
LIB 500
17
1. Introduction
LIB 500 Operator’s Manual
User’s Guide
1
A new login or a logout can be performed any time in the start picture and in the
login window, which is accessed from the main menu.
!
In order to prevent anybody else from using your user name and authority profile,
always logout or reset the authority level when leaving the control room.
1.13.2.
Authorization
Each user name is associated with a certain user profile which may restrict the user’s
access to pictures or data. An additional dimension in the authorization mechanism
is that the objects in process pictures can be freely grouped into authorization
groups. This means that the user can have different authorization levels for different
apparatuses. Users can also be defined to have different authorization levels for
different substations etc.
Table 1.13.2-1 Applications built with LIB 500 provide the following four
levels of authorization for the user
If a standard function does not have an authorization group defined or the group is
not included in the authorization definitions, then an authorization level from the
predefined GENERAL group is used. Thus, the GENERAL group cannot be
removed.
!
System Tools are managed from an authorization group of their own called Tools.
This means that the authorization group TOOLS must be defined in order to be able
to dedicate the system tools to a certain user(s).
The system manager is the only one who is able to add and remove users and grant
rights to the users. The password, however, is selected and may be changed by the

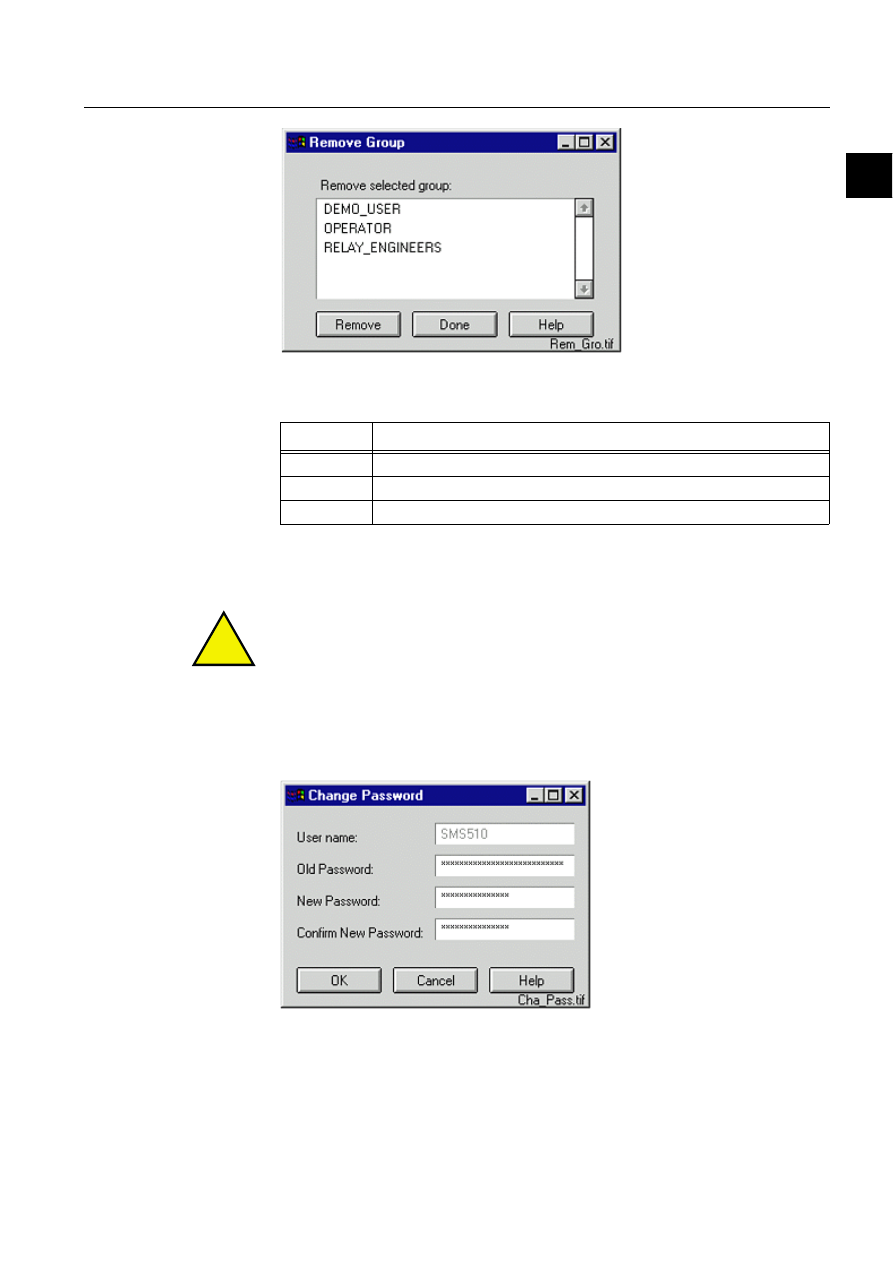

user exclusively. This is done in the Change Password dialog.
Authorization
level
Authorization
Group
Remarks
0
View
The operator is allowed to view the functions but
not to make control operations.
1
Control
The operator is allowed to make control
operations, e.g. to control switching devices
(limited rights).
2
Engineering
All rights are granted, excluding user
management, which can be performed only by the
system manager.
5
System
Management
The user with this authority level is the system
manager. All rights are granted, including the rights
to add and remove users and authorization
groups. The user who first logs into an application
will be the system manager. Thus, each
application has only one system manager.
18
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
1.
Introduction
User’s Guide
The authorization level of the user is reduced to the “View“ level when a certain time
(default = 8 hours) has elapsed since the last login.
1.13.3.
Closing
Logging out
In the LIB 500 based applications logging out means that the user name and user
authority are cleared. The user is logged out:
• When the application is closed as described below.
• When a new login is performed in the start picture or in the login window.
• After an emergency picture exit in the X-monitor.
Time based logout
After a certain time has elapsed, e.g. 8 hours, an automatic logout is done. The logout
duration is defined in the Application Settings Picture, i.e. the setting is application
specific. The user has to login again via the Login dialog found in the Main menu.
The Main menu login is described earlier in the Main drop-down menu section.
Emergency picture exit
If you, for some reason, get into a locked situation where the Previous picture item
cannot be applied, you can always exit the operated picture by means of an
invisible function key.This key is one character in size and it is located in the upper
left corner. It is present on all screens and application windows, independently of
the displayed picture. In order to use the emergency exit key:
• Click three times on the upper left corner.
First, the on-going control commands in the picture are completed, although e.g. an
on-going data entry is interrupted. Then the picture will be exited and the screen
which is defined as the first picture in your application will be shown.
Depending on what kind of a monitor is used, the emergency picture exit returns to
different start pictures. When using VS local or VS Remote monitors, you will be
shown the first picture after login. However, the X-monitor will show the login
picture.
1.14.
Shifting pictures on screen
Generally, shifting picture functions on screen can be done in any of the following
ways:
• By advancing through menus displayed on screen (see the Stations example in
the next section).
• By selecting the function keys in the picture functions.
The push buttons in the picture header are described in the section “Push buttons in
the picture header,” while the basic drop-down menus are described in the section
“Picture header drop-down menus,” all in this chapter.The picture function related
menus and push buttons are described with a corresponding description of the
picture function, e.g. Event List, DR-Collector Tool etc.
1MRS751885-MUM
LIB 500
19
1. Introduction
LIB 500 Operator’s Manual
User’s Guide
1
You can switch between the station pictures by selecting the station to be opened
from the Station menu. A station picture can be open on several monitors
simultaneously.
This buttons opens the previously opened picture.
This button opens the first picture.
1.14.1.
Navigating in the drop-down menus
The stations menu will be used as an example of how to access the menu items and
submenus provided by the drop-down menus. This example also shows how shifting
between the process pictures is done.
Generally, the menu items are functions or process pictures. A drop-down menu
contains one or several menu items.
The cascading menu symbol
after a menu item indicates that it is a cascade menu
with more items.
You can select an item by pointing it with the mouse. The selected item will then be
highlighted, i.e. it seems to be “lifted” compared to the environment.
6WHS
Select the menu from the menu bar in the picture header.
)LJ 6HOHFWLQJWKH6WDWLRQVPHQXLWHP
6WHS
Select a menu item in the drop-down menu.
20
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
1.
Introduction
User’s Guide
)LJ 6HOHFWLQJWKH(DVWZLFNN9VWDWLRQZKLFKFRQWDLQVVHYHUDO
SURFHVVSLFWXUHVHLWKHULQDKRUL]RQWDORULQDYHUWLFDOIRUP
6WHS
After the items in the submenu are revealed, select the appropriate one with the
mouse.
)LJ6HOHFWLQJWKHN9EXVEDULWHPZKLFKZLOOEHRSHQHG
1MRS751885-MUM
LIB 500
21
1. Introduction
LIB 500 Operator’s Manual
User’s Guide
1
1.15.
Basic handling of application pictures
1.15.1.
General

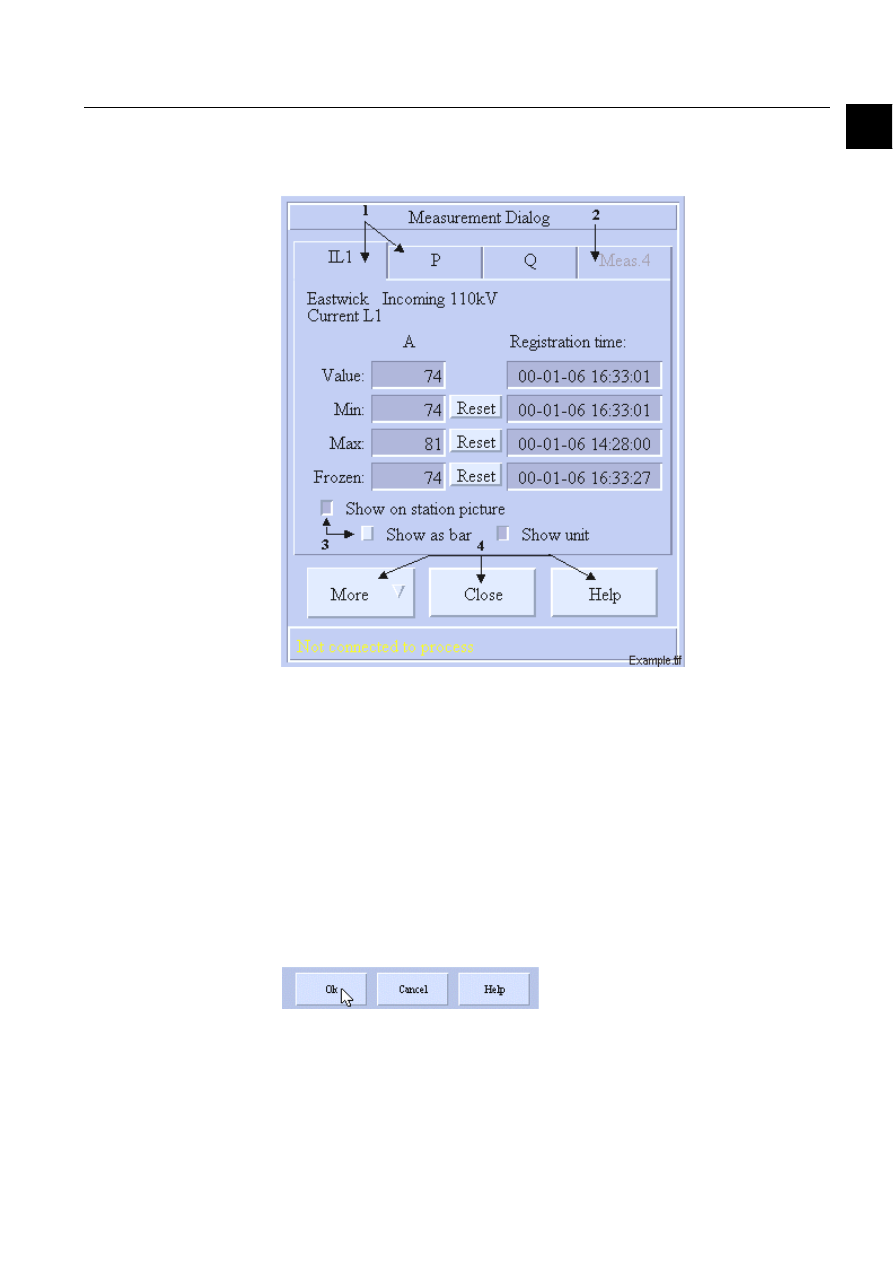

)LJ $SLFWXUHFRQWDLQLQJIROGHUVDQXQDYDLODEOHIROGHUVHOHFWLRQ
EXWWRQVDQGSXVKEXWWRQV
1. Available folders
2. An unavailable (disabled) folder
3. Selection buttons
4. Push buttons
The principles for handling the elements listed in Figure 1.15.1.-1 are applicable to
all similar looking dialogs regardless of the picture function.
The listed elements in Figure 1.15.1.-1 can be selected or activated by the mouse.
When the function is dimmed, it is not available.
1.15.2.
Push buttons
)LJ ([DPSOHVRISXVKEXWWRQV
22
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
1.
Introduction
User’s Guide
In order to execute a push button command:
• Place the pointer of the mouse on the button you want to use. Click the left mouse
button or press Enter on the keyboard. The selected button can be recognised by
the shadows around it and by the text attached upon it.
The push button has been activated when the button changes its appearance and
colour so that it seems to be pressed down. When a push button is activated, the
program or the data input of the button is executed from the beginning to the end.
Meanwhile, no other push button can be applied.

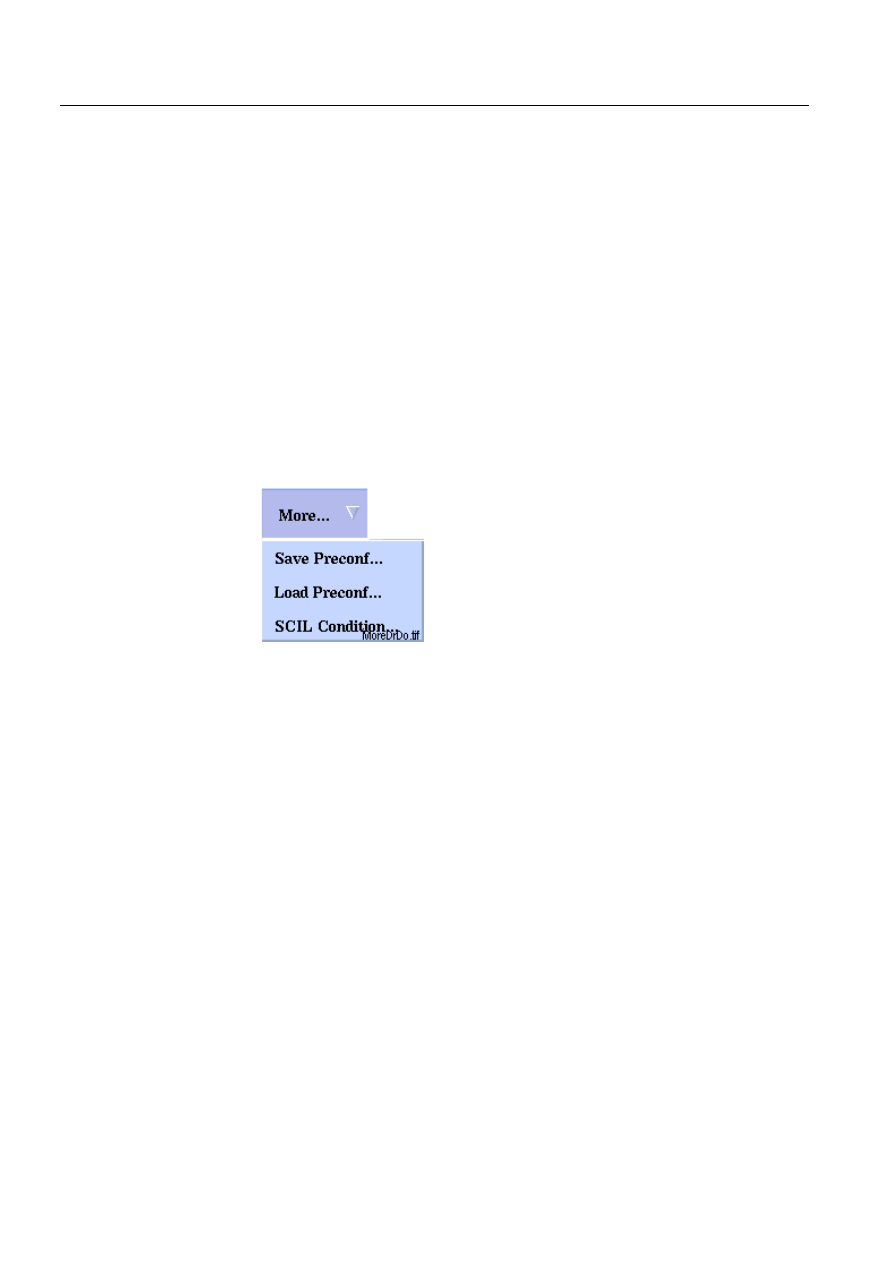

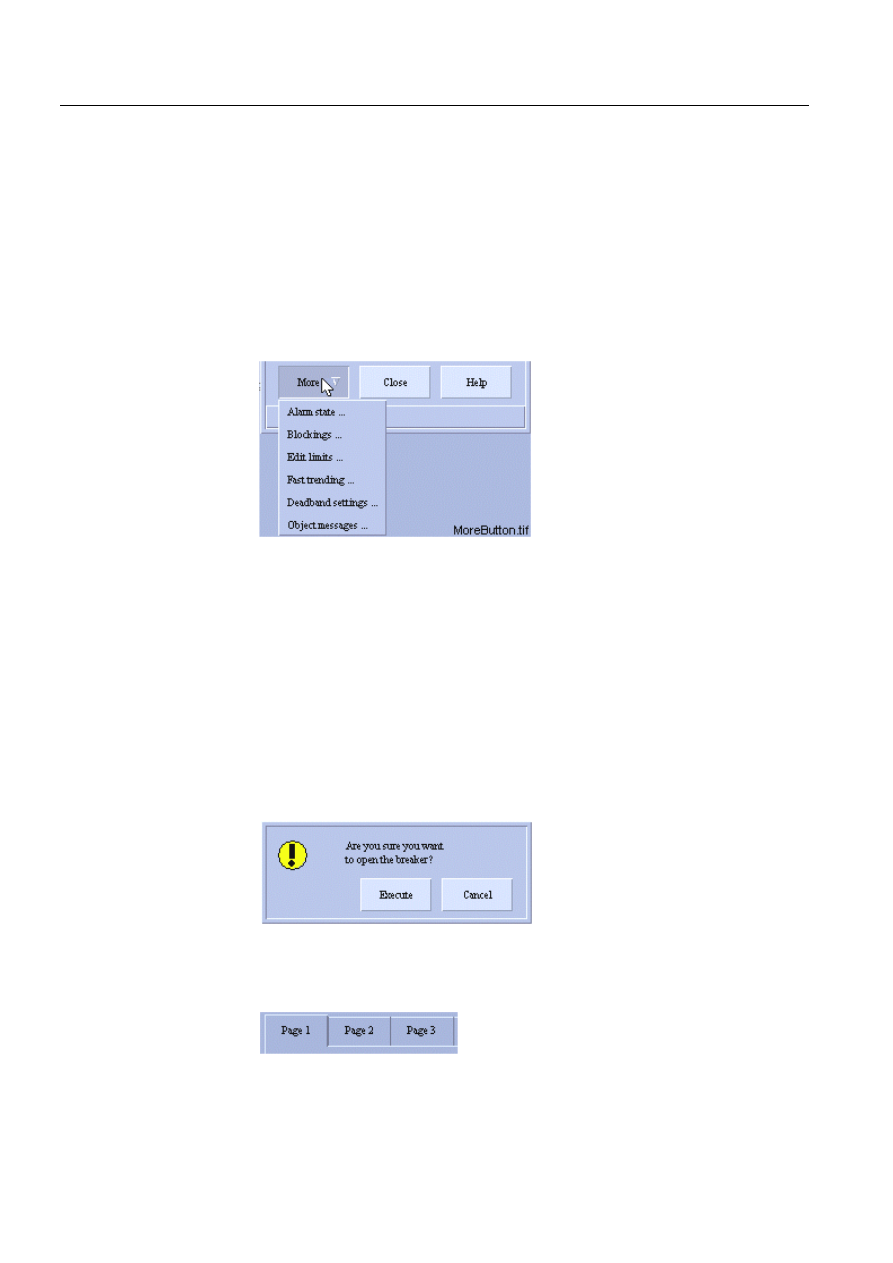

Some push buttons like More contain more items, which can be selected by clicking
on the desired menu item.
)LJ 7KH0RUHEXWWRQLVSUHVVHG
The More button contains various kinds of functions depending on which dialog it
is opened from.
After the user has pressed a push button, a verification dialog is opened for all
operations which execute certain types of operations, e.g. open a circuit breaker,
raise the tap changer position etc. The user is then asked to confirm the operation by
pressing Execute. The operation can also be annuled by pressing Cancel (see Figure
1.15.2.-3). If the authorization level of the user is not high enough, the push button
will be dimmed or not available. The push button may also be unavailable or
dimmed because of other ongoing processes or other conditions. Other operations
are also carried out after the user has pressed push buttons. For example, submenus
are opened or other picture functions are directly started.
)LJ9HULI\LQJWKHDFWLRQWREHSHUIRUPHG
1.15.3.
Folder
)LJ 7KHIROGHUODEHOOHG3DJHLVVHOHFWHGDQGDFWLYH
1MRS751885-MUM
LIB 500
23
1. Introduction
LIB 500 Operator’s Manual
User’s Guide
1
To select a folder, just place the mouse on the folder (e.g. Page 2) and click the
mouse button. The selected folder becomes active.
1.15.4.
Selecting options

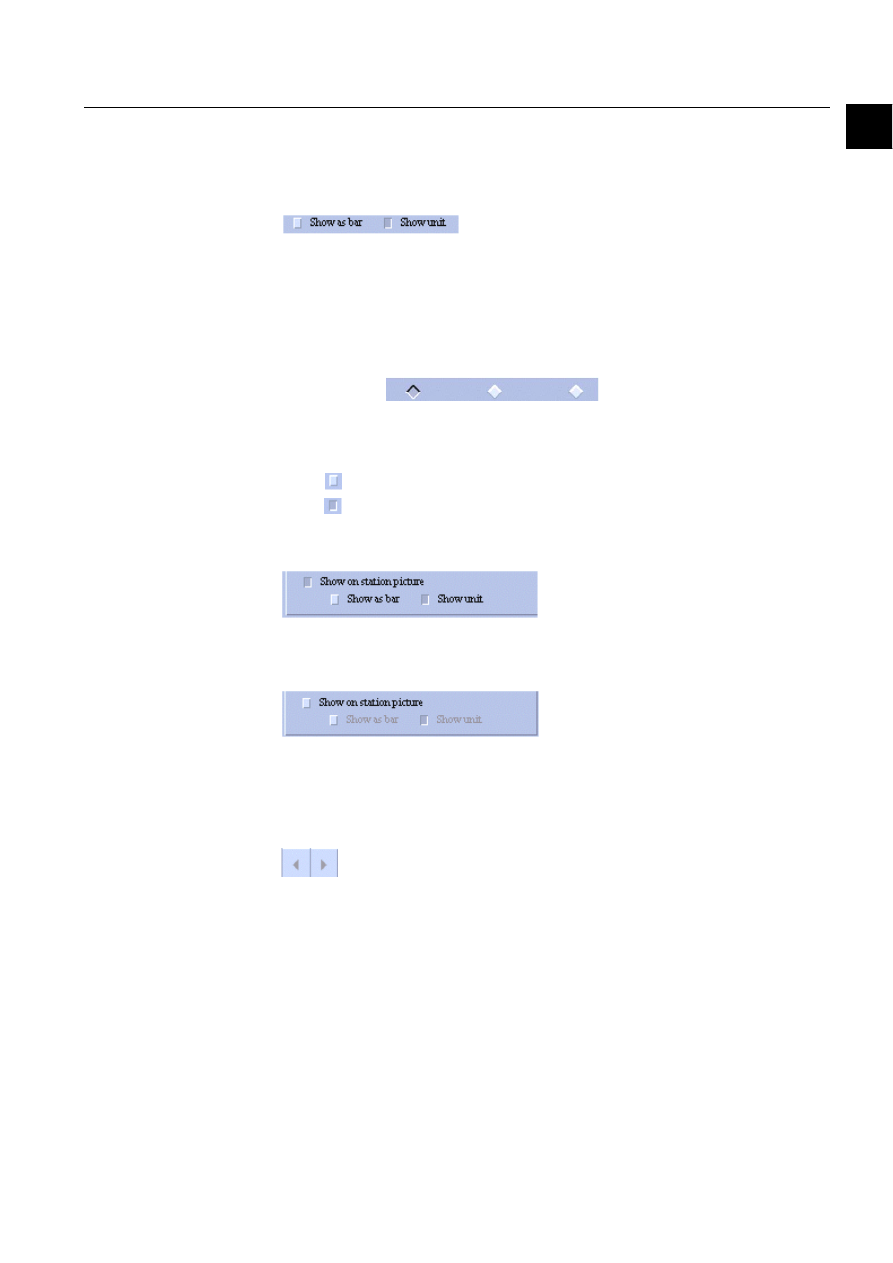

)LJ ([DPSOHRIRSWLRQVZLWKVHOHFWLRQEXWWRQV
The options, both diamond and square, are also selected by the mouse. Press down
the option you want to be activated or selected. If you want to deselect or change a
selection, then press down another option for the same setting. In some cases another
click toggles the state to be on/off. The options may already be selected due to
preconfigured or default settings. Depending on the implementation, one or
several options
can be pressed down for the
setting. Selecting of options can also be done vertically or horizontally, depending
on where it is implemented.
Definitions and Examples:
1a
not pressed or selected
1b
pressed down and selected.
2 One option may be more important than the rest:
)LJ ³6KRZRQVWDWLRQSLFWXUH´LVVHOHFWHGZKLFKPHDQVWKDWWKHRWKHU
WZRFDQEHFKDQJHG
)LJ³6KRZRQVWDWLRQSLFWXUH´LVQRORQJHUVHOHFWHGZKLFKPHDQVWKDW
WKHRWKHUWZRDUHQRWLQXVHWKXVEHLQJXQDYDLODEOH
1.15.5.
Scroll folder’s arrow buttons
)LJ 6FUROODUURZVIRUOHIWDQGULJKWGLUHFWLRQ
If you click an arrow button of a scroll folder, you can scroll the folders rightward
or leftward depending on the direction the arrow is pointing at. This function is used
when there are more folders than what is applicable in one view.
1.15.6.
Entering data
Text and data can be entered in the input fields which appear in the picture. The
system indicates the input cursor, which it is waiting for a data entry, with a
horizontal flashing stroke or a vertical stroke. If there is previously entered data in
24
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
1.
Introduction
User’s Guide
the field, the character below the input cursor is flashing, and the text or data can be
edited.
Typical situations when data is to be entered are in the SPA Relay Tool and RED
Relay Tool for configuring relays and terminals, in the Edit Value Limits dialog, for
simulating off-line process values, in Trends etc.
In order to enter data:
• If the input cursor is not visible, initiate the input by pressing the input field or the
input text.
• Type in the data by using the keyboard or a soft key panel in the picture.
!
If the field contains previously entered data, a space or another character in the first
character position will empty the rest of the field. In order to edit, but not to remove
previous data, start by moving the input cursor.
• Complete the entry by pressing Enter on the keyboard. If the data entry comprises
several fields, activation of another field is achieved by clicking the field with
one of the mouse buttons or by moving the cursor over to the field and by
pressing Enter.
As long as the input cursor is visible, the system is waiting for additional data. As a
basic rule, no other push buttons can be applied except the character keys, cursor
positioning keys Del, Backspace and Enter. However, the emergency exit key can
be used, as well as certain push buttons (push buttons which perform Enter as the
first command). All updating in the picture pauses during data entry.
The input fields are intended for either numerical data or texts.

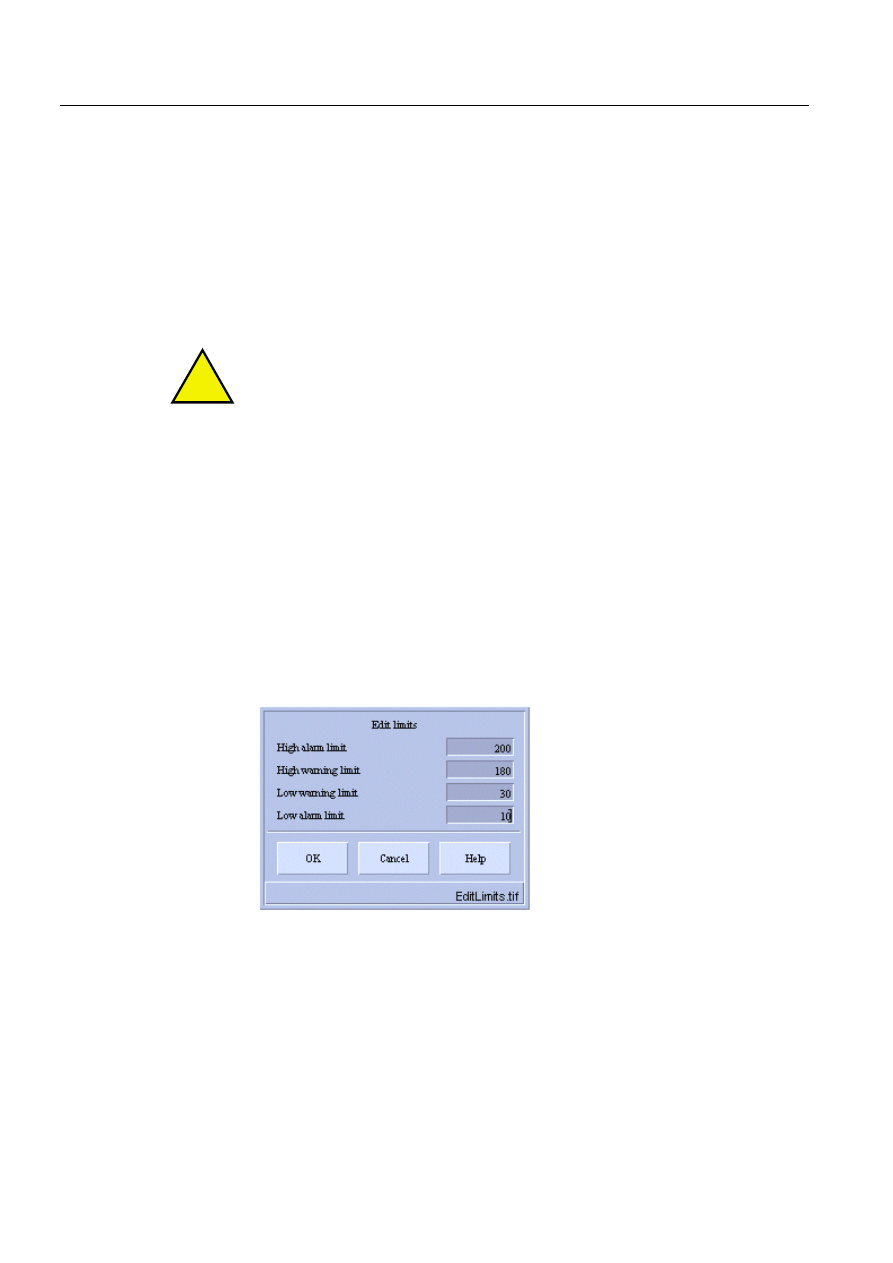

)LJ (GLWOLPLWVZKLFKLVDW\SLFDOIXQFWLRQIRUWKH09SURFHVV
1MRS751885-MUM
LIB 500
25
1. Introduction
LIB 500 Operator’s Manual
User’s Guide
1
1.15.7.
Moving dialogs
)LJ 3LFWXUHKHDGHULWHPV
Push buttons which are hidden under a dialog cannot be activated when they are
covered. Therefore, many dialogs are supplied with a feature for moving them from
one location to another. In order to move a dialog:
• Click the header of the dialog.
• Hold down the left mouse key on the header of the dialog.
• Drag the dialog to the new location.
The dialog is now moved to the new location. However, the move is not permanent.
The dialog remains on its new location only as long as the picture is displayed on the
screen.
1.15.8.

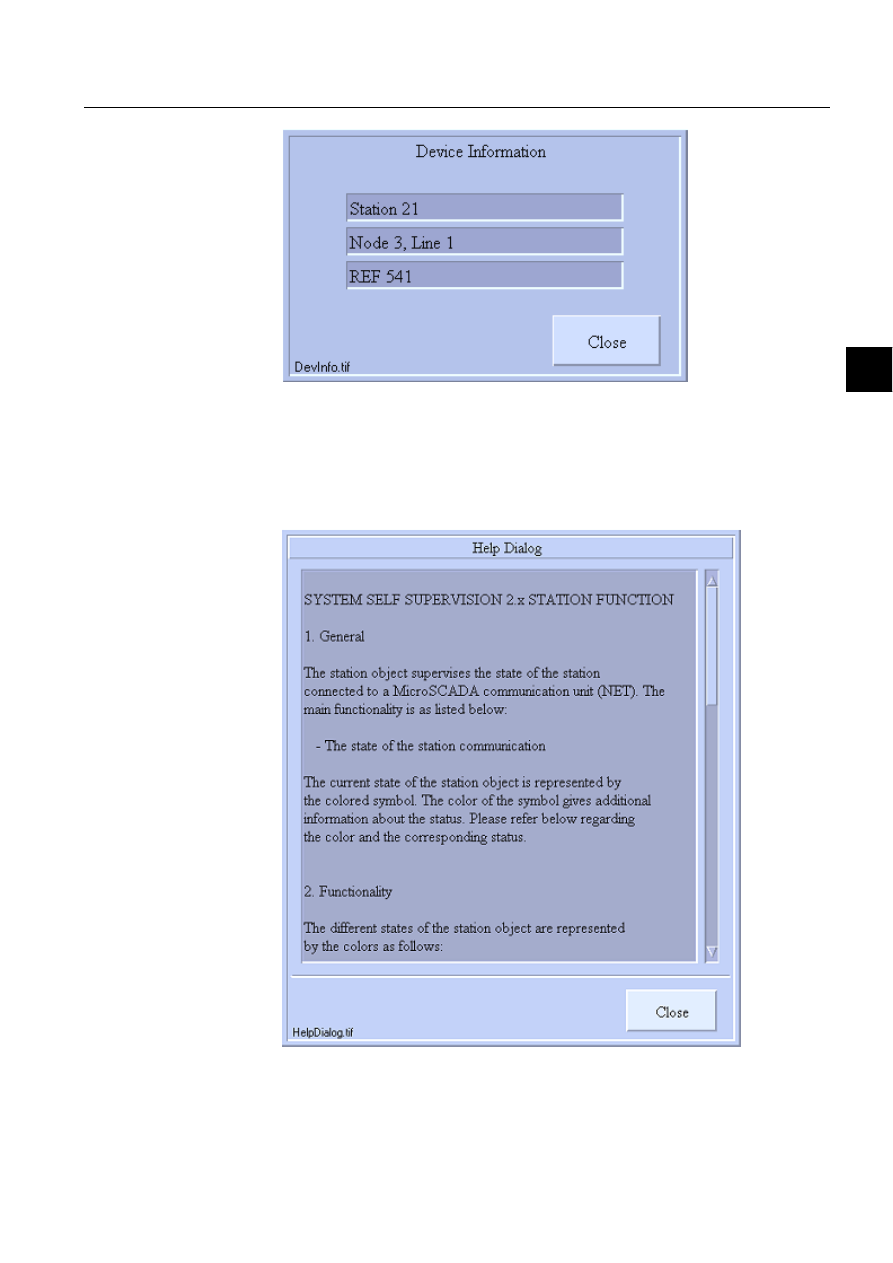

Viewing HELP texts
When there is a Help button in the picture or in a dialog, the help text can be accessed
as follows:
• Press the Help button in the picture or in the dialog.
• Press the question mark symbol
A dialog will be shown with information of the entire picture or function. The Help
dialog can be closed by pressing Close.
26
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
1.
Introduction
User’s Guide
)LJ 6KRZLQJWKHKHOSWH[WV
Table 1.15.8-1 Explanations of the numbers in Figure 1.15.8.-1
1.15.9.
Inquiring picture name
In order to view the name of the main picture currently shown on the screen or in the
application window:
• Click twice on the upper left corner.
The picture name is shown in the upper left corner. You can remove the name by
clicking it.
Number in figure
Meaning
1
Scroll arrow, upwards
2
Scroll box
3
Scroll arrow, downwards
1MRS751885-MUM
LIB 500
27
1. Introduction
LIB 500 Operator’s Manual
User’s Guide
1
1.16.
Some terms used in the Operator’s Manual
Table 1.16.-1 Some used terms in the manual
Term
Explanation
Application or customer
application
All the processes and views included in an application. Normally
an application consists of an overview or a first picture and
several process pictures and application pictures.
Application picture
An application picture is a picture, which gives the user a quick
overview of the application, e.g. an Overview picture or a System
picture.
A station picture is a picture, which shows a specific station
where you can see the processes in the station.
A process picture is a picture, which shows a specific process in
a station.
In a very small application they can all be the same.
Attribute
Attributes contain the settings and definitions for the properties
of the picture functions. They are stored in the process data
base.
Authorization
Different users can have different access rights to the same
picture functions and processes.
Authorization level
Different levels of authorization give the users different types of
access (view, control operations, system manager etc.).
Authorization group
Picture functions and application pictures can be grouped into
authorization groups, thereby requiring a certain authorization
level of the user for e.g. control operations
Dialog
A dialog is a two-way communication box between the user and
the system. The dialog informs the user about what is
happening, help texts, what can be done, which functions to be
executed etc. The user responds by selecting the appropriate
push button.
First picture
The first picture which is opened after the login, also the one that
push button 1 opens (see Figure 1.7.-1).
Library function
A library function is a function in a software package that is ready
made and only needs configuration of the attributes.
LIB 500
LIB 500 contains the needed base functionality for installing
support packages like LIB 510, LIB 5xx... LIB 500 also provides
functions like the Event list, Alarm list, Busbar colouring etc.
LIB 510
LIB 510 is a support package, which contains the library
functions for using e.g. MV process functions, Trend reports,
SPA Relay Tool, RED Relay Tool, DR-Collector Tool.
Monitor
A monitor is a window which is opened to show the processes.
The size of the monitor can be 12-15 or 16-20. The type of is
also determined: VS-Local, VS-Remote or X-Monitor. One or
several monitors can be open at the same time.
MicroSCADA session
The whole operation from starting up the system, performing
login, running the system with its customer application to ending
the session.
Menu item
The available options that are listed when opening a drop-down
menu.
MFU
Multi-function unit, such as a relay, a terminal etc. with various
functions.
28
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
1.
Introduction
User’s Guide
MV Process
Medium Voltage functions like Circuit breaker, Transformer,
Three state switch, Station, Bay etc. used as picture functions in
the process pictures.
Process data base
A data base, which contains the individual process objects and
related attributes.
Process object
A process object is a defined picture function (e.g. a
disconnector).
Process picture
A type of an application picture containing process objects (e.g.
MV Process picture functions), which are connected to the
processes. In the process picture, e.g. measurements, the states
of disconnectors and breakers are normally updated and
switching devices can be operated.
Picture function
The functionality is built in with the application picture presented
on the monitor. However, the application picture can not only
contain one or several different picture functions, but also
several similar ones (disconnectors, transformers etc.).
Representation symbol
The symbol used for a picture function, e.g. a circuit breaker,
transformer, measurement, relay etc. The representation symbol
is selected during the configuration of the picture function.
Picture specific area
An area where process specific functions are presented.
Push button
Typical push buttons are buttons like OK, Cancel, Help, More,
Close etc. Upon pointing at the push button and clicking the (left)
mouse button, the action behind the push button is performed.
Dialogs are typical providers of push buttons.
Station picture
A type of an application picture, which gives an overview of the
processes in a station. The station picture is often designed
according to a single line diagram, e.g. with MV Process picture
functions.
Switching device
Devices in the MV process that can be operated (circuit
breakers, three state switches, transformers etc.).
Term
Explanation
1MRS751885-MUM
LIB 500
29
2. LIB 500 Backbone
LIB 500 Operator’s Manual
User’s Guide
2
2.
LIB 500 Backbone
2.1.
General
The backbone serves as a common base for all the other LIB 500 functions. It
includes all the application and monitor starting procedures, user management and
authorization handling mechanisms and other functionalities described in this
document.
Further information on LIB 500 Backbone is provided in the LIB 500 Configuration
Manual, Chapter 3. Backbone.
2.1.1.
Start-up procedure
The first time a monitor is opened for a new application, an initialization procedure
is carried out. When a VS-monitor is opened for an application, first a VS-main
dialog APL_INIT.VSO is executed from the application directory (APL_). It then
triggers further initialization procedures needed by different parts of the
MicroSCADA system.
The following items are created during the initialization procedure of LIB 500:
Table 2.1.1-1
Command procedures
Table 2.1.1-2
Process objects
Table 2.1.1-3
Scale object
Command procedure
Description
APL_INIT_1
Executed when application is set hot.
APL_INIT_2
Executed when application is set hot and reporting has
caught real time.
APL_INIT_H
Executed after take-over in the hot stand-by system.
LIB4INIT_1
Executed when application is set hot.
LIB4INIT_2
Executed when application is set hot and reporting has
caught real time.
LIB4INIT_H
Executed after take-over in the hot stand-by system.
BGU_HDS
Procedure for the LIB 500 Hard Disk Supervision.
BGU_HDSACT
Procedure is activated when the HD size alarm is
activated.
MON_EVENT
Starts the printing of monitor connection events.
Process object
Description
A_EVENTS
Support for the old MicroLIBRARY.
B_HDS
Hard disk Supervision object (the free disk space).
B_LOGIN
Object for login event printouts.
B_MONITOR
Object for monitor event printouts.
Scale object
Description
BGU_HDS1_1
Hard disk Supervision scale (1:1).
1MRS751885-MUM
30
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
2.
LIB 500 Backbone
User’s Guide
Table 2.1.1-4
Data object
Table 2.1.1-5
Time channel
Table 2.1.1-6
Event channel
Table 2.1.1-7
File
2.1.2.
Login dialog
The login dialog will be opened, if the application is prepared for LIB 500 (see
Figure 2.1.2.-1). The first user who logs into an application becomes the System
Manager. The system manager can then create new users via the User Management
picture, which is accessible from the Options menu.
Data object
Description
A_PASS’monitor_number’
Support for the old MicroLIBRARY.
Time channel
Description
B_HDS
Time channel for hard disk supervision.
Event channel
Description
B_HDSACT
Event channel for hard disk supervision.
APL_INIT_1
Executed when application is set hot.
APL_INIT_2
Executed when application is set hot and reporting has
caught real time.
APL_INIT_H
Executed after take-over in the hot stand-by system.
MON_EVENT
Starts the printing of monitor connection events.
File
Description
PATH4.TXT
Path definition file is rebuild when the application gets hot.
INDEX4.TXT
A file holding structures of installable picture functions in
the system, is rebuild when the application gets hot.
1MRS751885-MUM
LIB 500
31
2. LIB 500 Backbone
LIB 500 Operator’s Manual
User’s Guide
2
)LJ
/RJLQGLDORJLQWKH96PRQLWRU
32
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
2.
LIB 500 Backbone
User’s Guide
2.2.
Standard Function Base
2.2.1.
Overview
)LJ
6WDQGDUG%DVH
2.2.1.1.
Description
The base function (Figure 2.2.1.-1) is used as a base in all the LIB 500 application
pictures regarding:
• Menu configuration.
• Default links to the LIB 500 base functions via the default menu items.
2.2.2.
Features/options
• Title bar.
• Date and Time presentation.
• Toolbar shortcuts to Event and Alarm List, Hard Copy, Audio Alarm
Acknowledgement.
• Alarm indication.
• Alarm row drop-down list for alarm acknowledgement.
1MRS751885-MUM
LIB 500
33
2. LIB 500 Backbone
LIB 500 Operator’s Manual
User’s Guide
2
• Authorization support.
• Help.
2.3.
Picture header
)LJ 3LFWXUHKHDGHU
1. Computer and user name
2. Drop-down menus
3. First Picture
4. Previous Picture
5. Picture Name
6. Alarm Row
7. Hard Copy
8. Event List
9. Audio Alarm Acknowledgement
10.Alarm List
11.Station Symbol
12.Alarm Indication (flashing)
2.3.1.
Drop-down menus
Navigation between the LIB 500 pictures and other pictures created in the customer
applications is possible by using the drop-down menus. Hence, direct access to all
pictures in the system is enabled. The menus are fully configurable as described
earlier.
2.3.2.
Shortcuts
The header bar has a number of shortcuts to enable faster navigation in the system.
On the left side there are the First Picture and Previous Picture shortcuts, which are
active (except for the first picture).
The buttons in the header on the right offer a shortcut to the following functions:
34
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
2.
LIB 500 Backbone
User’s Guide
Table 2.3.2-1
Shortcut buttons
2.3.2.1.
Activation of shortcuts
Hard copy
1. Click the Hard copy button in the VS-header.
2. Choose the hard copy printer/Print to file from a WinNT printer dialog.
3. Send the Print command.
!
Steps 2 and 3 apply only to VS-Local monitors. On VS-Remote monitors Hard copy
is started directly after pushing the button.
Event List
The Event List shortcut becomes active when at least one of the following
statements is true:
1. There is a file called
EVENTS.PIC
in
\APLMOD4\USE
directory under the
application.
2. There is the Standard Event List called
BEU_EVENTS.PIC
in
\LIB4\BBONE\EVENT\USE
directory.
The statement will be first searched from the application and then from the standard
Event List.
Audio alarm acknowledgement
Audio Alarm Acknowledgement becomes active when the function in question is
installed.

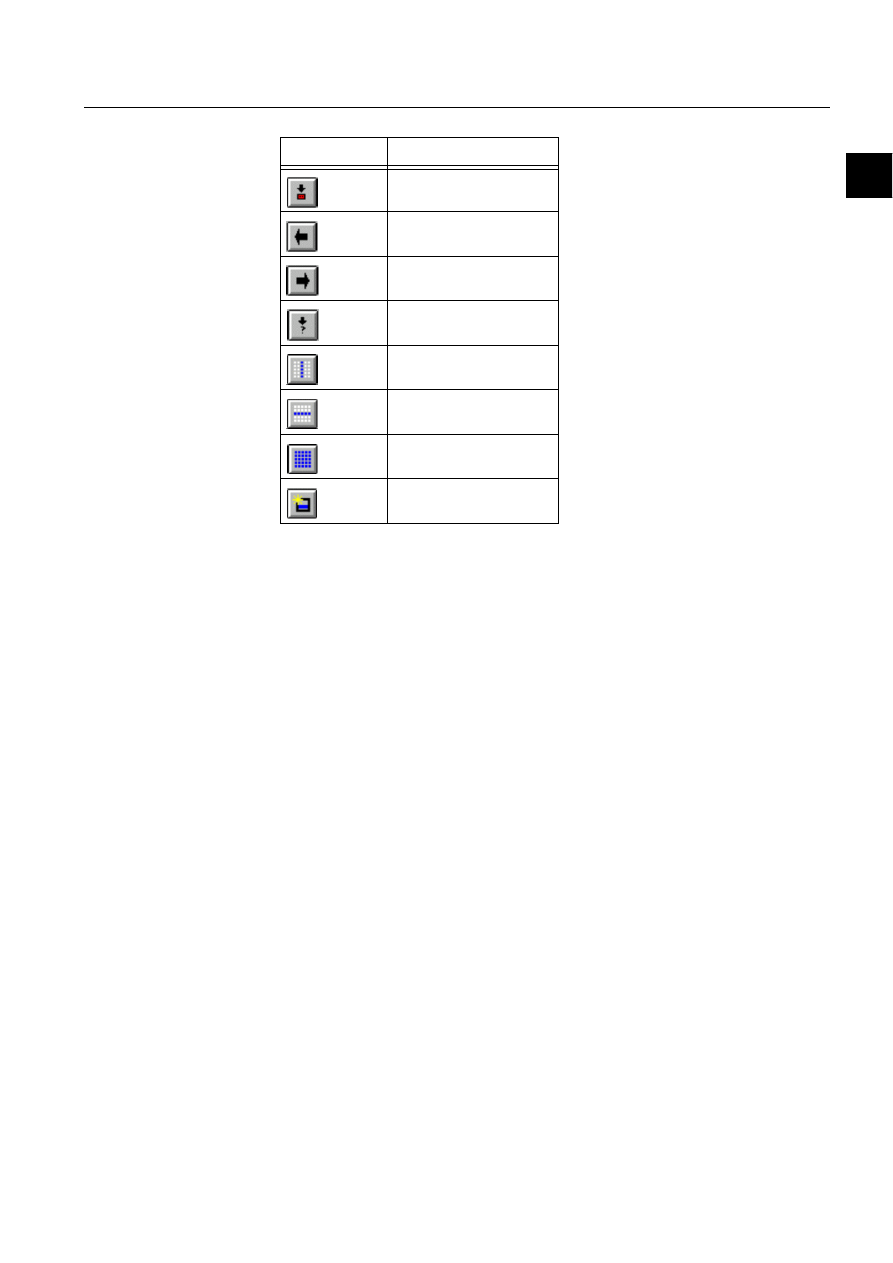

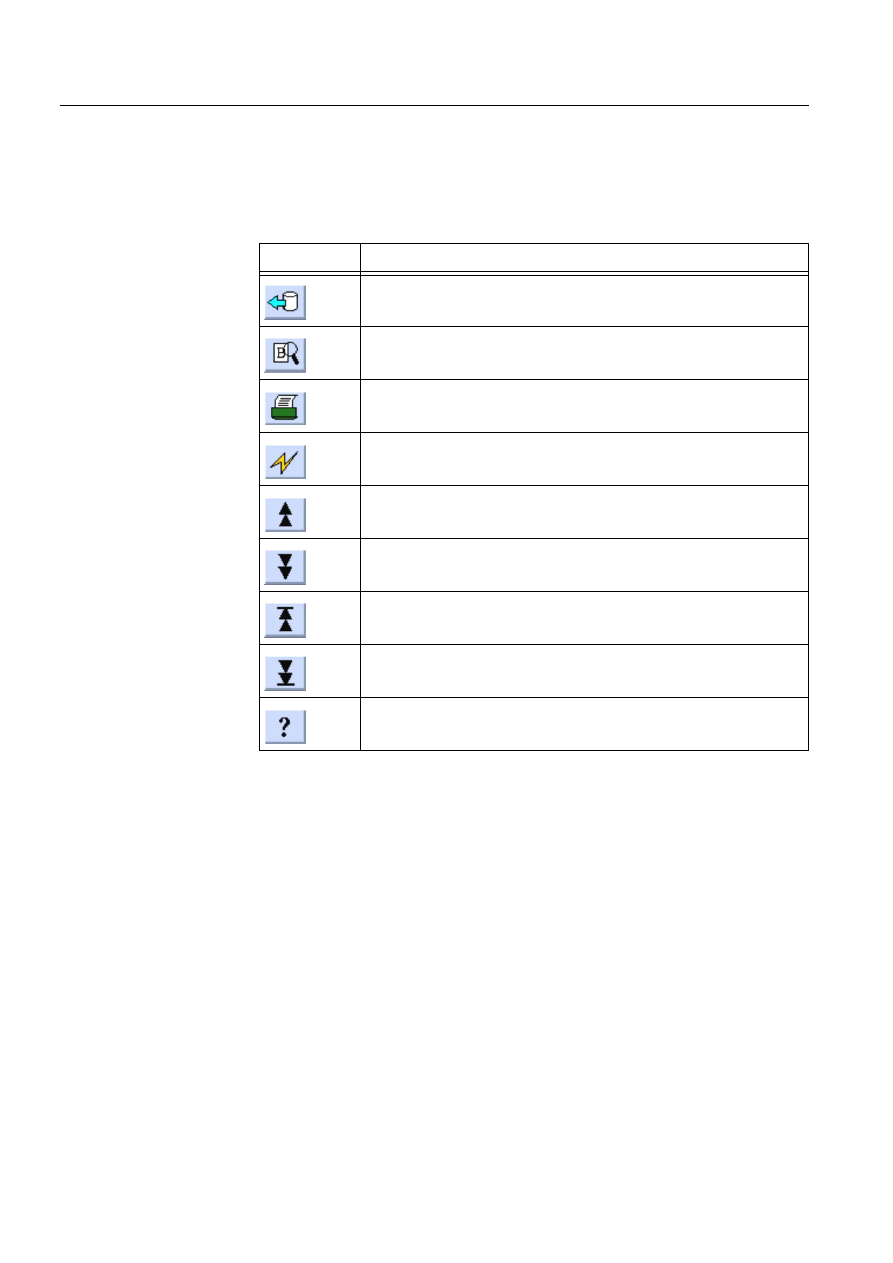

Button
Function
A shortcut to the First Picture.
A shortcut to the Previous Picture.
A shortcut to the Hard copy.
A hard copy of the active MicroSCADA-window will be printed out by
clicking the Hard copy button in the upper right corner of the VS-header.
A shortcut to the Event List.
A shortcut to the Audio Alarm Acknowledgement.
Audible alarms coming from a MicroSCADA alarm unit will be
acknowledged by clicking the ‘Acknowledge audible alarms’ button in the
upper right corner of the VS-header.
A shortcut to the Alarm List.
1MRS751885-MUM
LIB 500
35
2. LIB 500 Backbone
LIB 500 Operator’s Manual
User’s Guide
2
Alarm List
The Alarm List shortcut becomes active when at least one of the following two
statements is true:
1. There is a file called
ALARMS.PIC
in
\APLMOD4\USE
directory under the
application.
2. There is the Standard Alarm List (template 1) called
BAU_ALARM1.PIC
in
\LIB4\BBONE\ALARM\USE
directory.
The statement will be first searched from the application and then from the Standard
Alarm List (template 1).
2.3.3.
Alarm indication
A flashing alarm dot is presented on the right of the header bar when there are
unacknowledged alarms present in the system.
2.3.4.
Alarm row
The alarm row gives the operator a quick notification of an alarming event in the
system. The advantage is not only that it can be noticed easily, it also instantly tells
the operator what has happened and where. The alarms can easily be acknowledged
with the alarm row.
The alarm row shows all the unacknowledged active and inactive alarms in the
system. The latest alarm is shown on the top of the list. Any of the alarms shown on
the list can be selected to be acknowledged.
The user’s authorization level has to be at least Control (1) before alarms can be
acknowledged. (The alarm row uses authorization group ALARM_HANDLING.)
On the alarm row, active and inactive alarms are separated by showing the alarm text
in parentheses (Alarm) if the alarm is inactive. Thereafter, the date and time of the
alarm and the object text of the alarming object are presented.
2.3.5.
Functions
2.3.5.1.
Displaying computer and user name
The computer name and the name of the MicroSCADA user that has been logged in
the current MicroSCADA monitor will be displayed as a part of the title bar in the
form of:
<computername> : <MicroSCADA-username>
It is placed in the title bar of the VS_DIALOG in the MicroSCADA monitor (blue
top-line, where the MicroSCADA application name and monitor number are also
displayed).
!
If the computer name is not defined, the word User will be displayed instead. The
computer and User names are not displayed when the picture is shown through the
Tool Manager.
36
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
2.
LIB 500 Backbone
User’s Guide
2.3.5.2.
Information dialog when a standard menu item is not found
If an information dialog appears on the screen saying “Required SW package or file
not found,” please check if it is correctly installed! The Status Code is:
<statuscode>” when trying to execute a not yet installed SW package from the
header’s drop-down menus or when there is an error in the action part of this menu
item.
2.3.5.3.
Colour of the note marker symbols
The background colour of the note marker is shown after the text of the note marker
symbol, which is used by the MicroSCADA symbol in the drop-down menu in the
header
This name will be displayed on the right hand side beside the already
displayed note marker text in the header’s drop-down menu, e.g. “Symbol 3
(Green)”.
2.3.5.4.
Search order in the drop-down menus
When a standard SW-package (e.g. Alarm List, Event List) is started from the drop-
down menu of the header, it will first be searched from the application
sc\apl\<application name>\aplmod4\use. If no file related to the SW package is
found there, the file will be searched from
sc\Lib4\base\backbone\use. This has been
made for giving the customers an opportunity to bring customer specific
modifications into a SW-package. The modified version will be stored under the
application (sc\apl\<application name>\aplmod4\use).
2.3.5.5.
ABB logo
An ABB logo in black is displayed in the lower right corner of the MicroSCADA
VS-monitor.
2.3.5.6.
New configuration file format
The new file format of the configuration files of the VS-header contains combined
data for the action, as well as for the language part, concerning the standard menu
and the help menu of the VS-header. The configuration files are located in the
directory sc\Lib4\base\backbone\use.
2.4.
On-line system debugging
2.4.1.
System Message
Figure 2.4.1.-1 shows the System Message dialog, which is an aid for system
engineering and debugging. When the dialog is opened, it is updated with
information of the SCIL errors occurred in that picture. If there is more than one
SCIL error, the errors can be scrolled. The first or the oldest error is shown first. If
additional errors occur while the dialog is open, the dialog can be refreshed by
clicking the Refresh button.
1MRS751885-MUM
LIB 500
37
2. LIB 500 Backbone
LIB 500 Operator’s Manual
User’s Guide
2
)LJ
7KH6\VWHP0HVVDJH+HOSGLDORJ
2.5.
Application Settings
2.5.1.
Overview
An Application Settings picture can be given new settings by selecting Options--
Settings in the main menu bar. It is used for creating some application specific
settings such as:
• Application owner
• First picture shown after login
• Application logo picture
• System location
• System name
• Product info
• Lockout duration
• Language settings
• Daylight Saving time
• Process control
• Show object ID
• HD space alarm

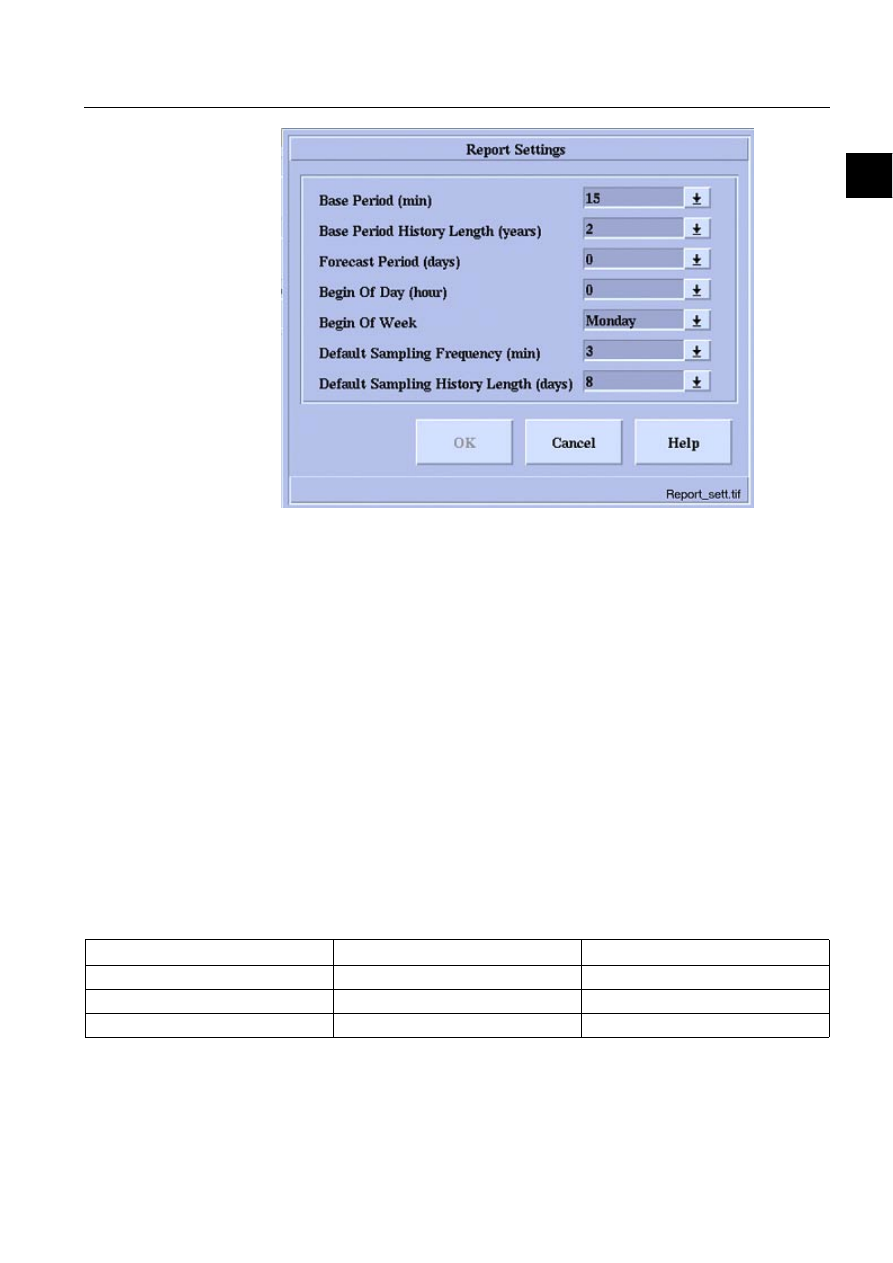

• Report Settings
• Switch device presentation
2.5.2.
Main picture
The application owner is shown e.g. in the login dialog. In practice, this is the name
of the customer to whom this product is licensed. The name of the application owner
cannot be changed in the Application Settings picture (see Figure 2.5.2.-1).
Another attribute related to the login procedure is the Application logo picture. This
is the name of the picture shown under the login dialog box. This setting works in
the X-windows.
38
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
2.
LIB 500 Backbone
User’s Guide
The first picture to pop up after logging in is defined in the field “First picture shown
after login.” This picture such as “Application logo picture” is any xxx.PIC type of
picture. The .PIC extension can be omitted.
System location is an attribute that needs to be configured. This defines whether
MicroSCADA is running as Network Control Center (NCC) or Substation Control
System (SCS).
To be able to make any changes in the Application settings picture, the authorization
level must be System Manager (5). The only exception to this rule is the monitor
language that can be set by all users.
When “First picture shown after login” or “Application logo picture” is changed, the
program checks whether the given picture exists or not. If the result is negative, the
latest accepted value will be returned to the field and an information message about
an invalid picture name will be shown in the information bar.
If something is changed in the picture settings, the Save and Cancel buttons are
activated. The old values of unsaved data can be returned by clicking the Cancel
button. If you try to exit the picture while there are unsaved changes, an Information
dialog box will appear to confirm the exit. It is only possible to select “Yes“ or “No”
before exiting the picture. The Help button shows the common LIB 500 help dialog
box.
It is not possible to change the Application owner and items in the Product
information list box in the Application Settings picture. Subdialogs can be accessed
from the Tools menu in the header bar.
1MRS751885-MUM
LIB 500
39
2. LIB 500 Backbone
LIB 500 Operator’s Manual
User’s Guide
2
)LJ
7KH$SSOLFDWLRQVHWWLQJVSLFWXUH
2.5.3.
Language settings
The Language settings dialog box is opened by selecting Tools/Language settings
under the main menu bar.
You are given the available choices of languages in the drop-down list box (see
Figure 2.5.3.-1). The first language (0) is always English and the following
customized languages (if any) are defined as local languages.
The option Monitor language changes the language used in pictures and dialogs. The
selected language will remain active as long as the monitor is open.
When printing to an event printer, the application language is used. The application
language is the same for all users within the same application regardless of the used
monitor language. The change of the application language will be valid until it is
altered again in the Language settings dialog. The application language does not
have any influence on the language shown in the monitors.
The monitor language and the application language are selected from the drop-down
list box. The operation is applied with the OK button or cancelled with the Cancel
40
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
2.
LIB 500 Backbone
User’s Guide
button. Saving is done with the Save button in the Application settings picture. The
Help button opens the common LIB 500 help dialog box.
)LJ
7KH/DQJXDJHVHWWLQJVGLDORJ
When copying a user profile from an existing user to a new user, the user language
is also copied.
2.5.4.
Lockout duration
The Lockout duration dialog box is opened by selecting Tools - Lockout duration
under the main menu bar. The lockout duration sets the session length (see Figure
2.5.4.-1). When the lockout duration time expires, the authorization level is reset to
View (0). The lockout duration time is given in hours (from 1 to 254).
The user is informed about the authorization level reset by an information dialog.
This information dialog box appears according to the times defined in the “Session
expiring notify times.” The given times are minutes before the resetting. A
maximum of five different notifications can be given.
!
If you change the lockout duration or session length notify times, the new values will
not be taken in use until the next login.
The “Login only once” feature is enabled by pressing the toggle button down. When
“Login only once” is in use, the login to an application is required only for the first
monitor to be opened. The monitors that are opened after this inherit the
authorization from the first monitor found in the monitor mapping of the application
for this user in the workstation. The picture opened is the "first picture" defined in
the application settings. All monitors open in the workstation for the current user
will be closed when "End session" is selected from the LIB 500 menus.
The session duration can be activated or deactivated with the option buttons. If the
session duration is in use, the session duration time and the session expiring notify
times can be changed. Otherwise the session duration is unlimited and the session
expiring notify times are not accessible.You can apply the changes with the OK
button and cancel with the Cancel button. The final saving is done with the Save
button in the main picture.
1MRS751885-MUM
LIB 500
41
2. LIB 500 Backbone
LIB 500 Operator’s Manual
User’s Guide
2
)LJ
7KH/RFNRXWGXUDWLRQGLDORJ
2.5.5.
Daylight saving time
The Daylight Saving Time dialog box is opened by selecting Tools - Daylight
Saving, which can be found under the main menu bar. If the daylight saving time
function is set in use, the system time will be automatically adjusted to the normal
time and to the daylight saving time (see Figure 2.5.5.-1).
When the Operating system changes the time to daylight saving time/standard time,
there might be application specific actions to be done in MicroSCADA. With this
dialog a standard interface for those actions is offered. If adjusting applications for
daylight saving is enabled, the following functionality is available:
Event is set to the Event List and event printer.
Two command procedures are created where application specific programming can
be done. BGU_TIMEFO:C is executed when the clock is moved forwards and
BGU_TIMEBA:C is executed when the clock is moved backwards. The point of
execution time is 20 seconds after the change. Command procedures mentioned
above are executed in each application found.
It is recommended to define the point of the time change few minutes over an even
hour in order to avoid unnecessary system load.
When "Automatically adjust applications for daylight saving changes" is enabled,
the application handling the actions can be selected from the drop-down list.
The OK button applies changes and the final saving is done with the Save Changes
button, which is situated in the main picture.
42
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
2.
LIB 500 Backbone
User’s Guide
)LJ
7KH'D\OLJKWVDYLQJWLPHGLDORJ
2.5.6.
Process control settings
The Process control dialog box is opened by selecting Process control under the
Tools menu. The dialog box consists of two attributes for general behaviour of
printing and MV Process control dialog boxes when operations are executed (see
Figure 2.5.6.-1). When “Close dialog after execution” is selected, the control
dialogs, e.g. breaker dialogs, are closed after the operation is done. When “Print user
on execution” is active, the following information <time>,<system name>,<monitor
number>, <user>,<"operation performed"> is sent to the printer after the operation
is executed.
To activate or deactivate the function, press the toggle button and confirm the
operation with the OK button. Saving is done from the Application Settings picture.
The Cancel button closes the dialog without doing any changes.
)LJ
7KH3URFHVVFRQWUROVHWWLQJVGLDORJ
2.5.7.
Show object identification
The Show object identification dialog box is opened by selecting Tools-Show object
ID under the main menu bar. The OI attribute settings dialog defines the parts of the
OI attributes that are to be shown in Alarm lists, Event list, dialogs of MV process
etc. (see Figure 2.5.7.-1).
The listed options between the start point and the end point cannot be left out. For
example, if the first and the last toggle buttons are pressed down, the buttons in the
middle are automatically pressed down, too. A listed option can only be removed
from the start or from the end.
1MRS751885-MUM
LIB 500
43
2. LIB 500 Backbone
LIB 500 Operator’s Manual
User’s Guide
2
To include the listed option(s), press the toggle button and confirm the operation
with the OK button and then save the changes in the Application Settings picture.
The Cancel button closes the dialog without making any changes.
)LJ
7KH6KRZREMHFWLGHQWLILFDWLRQGLDORJ
2.5.8.
HD space alarm
The dialog box Hard disk space low alarm is opened by selecting Tools - Show
object ID under the main menu bar. The Hard Disk Supervision function supervises
the free Hard Disk space. This function gives the operator an early warning if there
is a risk of running out of space on the hard disk (see Figure 2.5.8.-1).
It is possible to give a lower alarm limit for the disk space. The limit can be picked
from the drop-down list. It is also possible to type the limit from the keyboard. The
supervision function is stopped by setting the alarm limit to zero (0) or by selecting
“Not in use” from the drop-down list. A warning limit is calculated from the alarm
limit that has been given by the operator. The warning limit is 10% higher than the
low alarm limit.
)LJ
7KH+'VSDFHDODUPGLDORJ
2.5.9.
Report Settings
The dialog box Report Settings is opened by selecting Tools - Report Settings,
which can be found under the main menu bar. The Report Settings function defines
the application specific parameters used by the LIB 510 Measurement Reports 2 (see
44
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
2.
LIB 500 Backbone
User’s Guide
Figure 2.5.9.-1). For more information, please see the LIB 510 Configuration Guide,
Chapter 7. Measurement Reports 2.
Table 2.5.9-1
Before defining the reports, the following definitions should
be settled:
OK applies the changes and the final saving is done with the button Save Changes,
which is situated in the main picture. Cancel closes the dialog without doing any
changes.
!
These definitions are valid for the entire application and changing these definitions
(the ones marked with *) afterwards will cause loss of all existing history data.
Each parameter can be selected from the drop-down combo boxes, where all
available choices are listed. OK applies the changes and the final saving is done with
the button Save Changes, which is situated in the main picture.
If there are any previous report settings made within the application, the existing
report database will be reset and all data will be lost. The report database is checked
during the saving and if resetting is needed, an information dialog will be shown to
confirm or cancel the saving.
Setting
Explanation
Default
Base Period (min) *
Defines a period cycle to be used within the
reports. The period cycle can be either 15 min.,
30 min. or 60 min.
60 min.
Base Period History Length
(years) *
Defines the length of the period values history
in years. The history length can be from 1 year
up to 5 years.
2 years
Forecast Period (days)
Defines the length of the forecast period area
in days. The forecast period area can be used
within the reports, e.g. for monitoring predicted
future values. The forecast period area can be
up to 15 days.
0 days
Begin Of Day (hour) *
Defines the beginning of the report day in
hours after midnight.
0
Begin of Week
Defines the beginning of the report week.
Monday
Default Sampling Frequency
(min) *
Defines a sampling cycle to be used within the
reports.
3 min.
Default Sampling History
Length (days) *
Defines the length of the sampled values
history in days. The history length can be up to
15 days. If the history length is set to 0, the
only sampled values of the current period will
be stored into the report database.
-
1MRS751885-MUM
LIB 500
45
2. LIB 500 Backbone
LIB 500 Operator’s Manual
User’s Guide
2
)LJ
7KH5HSRUW6HWWLQJVGLDORJ
2.5.10.
Switching Device Presentation
General
Figure 2.5.10.-1 shows a dialog for setting the behaviour of switching device status
presentation in single line diagrams.
There are three options to select.
1. Show colour: Switching device picture functions installed into the stations
pictures follow the standard colour coding of LIB 5xx, i.e. the status of the
switching device can be seen from the colour of the representation.
2. Show suffix: The representation of the switching device is always green and the
status is shown with a suffix beside the picture function.
3. Show colour and suffix: Both the colour and the suffix are shown.
The colour for the MV Process measurement field for normal, warning and alarm
states can be configured. The numbers in the fields refer to the M-scope colour. The
default settings for measurement colours are:
M-scope colours can be found in Section 5.3 of the SYS 500 8.4.3 manual
Configuring User Interface.
Table 2.5.10-1 The default colours for measurements
State
M-scope number
Default colour
Normal
32
Green
Warning
17
Yellow
Alarm
16
Red
46
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
2.
LIB 500 Backbone
User’s Guide
Functionality
To activate the wanted functions of the switching device presentation, press the
toggle button in question. Then confirm the operation with the OK button and save
the changes. The Cancel button closes the dialog without doing any changes.
)LJ 7KH6ZLWFK'HYLFH3UHVHQWDWLRQGLDORJ
2.6.
User Management
This chapter describes the elements and functions of the User Management tool. The
user with rights on level 5 (system manager), can make changes in the User
Management function.
2.6.1.
General
The User Management tool is for defining users and their authorization levels. In the
LIB 500 applications the standard functions in the process pictures can be freely
grouped into authorization groups. This means that a user can have different
authorization levels for different apparatus. Users can also be defined to have
different authorization levels for different tools, substations etc. (see Figure 2.6.1.-
1).
The authorization levels used:
1. View (0) = Not authorized to make operations
2. Control (1) = Authorized to make operations
3. Engineering (2) = All rights, but user definition
4. Reserved (3) = Reserved for the future
5. Reserved (4) = Reserved for the future
6. (System manager (5) = All rights)
1MRS751885-MUM
LIB 500
47
2. LIB 500 Backbone
LIB 500 Operator’s Manual
User’s Guide
2
)LJ
$XWKRUL]DWLRQSURILOHH[DPSOH
The user levels of the selected user are displayed in the Main View. The levels can
be directly modified. Note that the GENERAL level of the system manager cannot
be changed. Valid values are 0 (View), 1 (Control) and 2 (Engineering).
!
The modifications cannot be taken into use until they are saved in the User
Management picture!
2.6.2.
User Management main switch
The whole login mechanism can be disabled by the system manager from this tool
by setting the User management and authorization mechanism "Off". Then the login
dialog is not shown at the start-up. In that case all authorization rights are granted.
)LJ
7KHDXWKRUL]DWLRQPHFKDQLVPFDQEHGLVDEOHGE\FOLFNLQJWKHER[
Authorization will be restored by emptying the box (see Figure 2.6.2.-1).
2.6.2.1.
User language
The language for the user can be chosen from a list of supported languages. The
default language is English (0).
48
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
2.
LIB 500 Backbone
User’s Guide
2.6.2.2.
User interface
The authorization levels of the selected users are displayed. The levels can be
directly modified by the system manager.
The GENERAL level for the system manager himself cannot be changed. You can
change the levels by selecting the authorization group(s) from the list and by
selecting the new authorization level in the combo box below the list.
Access to the various tools and functions is provided by means of a toolbar, menus
and keyboard shortcuts. Figure 2.6.2.2.-1 illustrates the user interface and its
elements of the User Management function.
)LJ 7KHXVHULQWHUIDFHRIWKH8VHU0DQDJHPHQW
Table 2.6.2.2-1
User interface elements
Function
Explanation
Caption bar
Displays the name of the tool. It also contains the standard
operating system’s window management commands for
minimizing, maximizing and closing the window.
Menu bar
File, Edit, Tools and Help menu.
Toolbar
Contains shortcuts for fast access to the frequently used
functions.
Disable authorization
mechanism
Enabling/Disabling of the User Management ("main switch").
User
Contains a list of users.
User Language
Contains a list of supported languages.
Authorization group
Contains all authorization groups that have been defined.
Authorization level
The authorization level is shown for the corresponding
authorization group.
Level for selected row
Opens a list of the access rights 0... 4. The selected level is
updated to the authorization level list for the selected authorization
group.
1MRS751885-MUM
LIB 500
49
2. LIB 500 Backbone
LIB 500 Operator’s Manual
User’s Guide
2
2.6.3.
File menu
Figure 2.6.3.-1 shows the File menu, which contains the saving functions and Exit.
)LJ
7KH)LOHPHQX
2.6.3.1.
File save
.H\ERDUG(QWU\&WUO!6!
7RROEDUHQWU\
By selecting this function, the currently open User Management settings are saved.
2.6.3.2.
.H\ERDUG(QWU\&WUO!3!
7RROEDUHQWU\
By selecting this function the following will be printed:
• User
• User's language
• Authorization group list
• Authorization level list
2.6.3.3.
Print setup
By selecting this menu item the user can setup the printer.
2.6.4.
View menu
Figure 2.6.4.-1 shows the View menu, which enables/disables the viewing of the
Toolbar buttons.
)LJ
7KH9LHZPHQX
50
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
2.
LIB 500 Backbone
User’s Guide
2.6.5.
Tools menu
Figure 2.6.5.-1 shows the Tools Menu, which contains the tools for User
Management.
)LJ
7KH7RROV0HQX
2.6.5.1.
Add User
The system manager can add users with this dialog.
)LJ $GGLQJWKHXVHU0,750$/21DQGLQKHULWLQJDXWKRUL]DWLRQIURP
0,75$1%$
Table 2.6.5.1-1
Explanation of the dialog buttons
The name for the new user can be given to the "Username" field. The name must not
include special characters and it must not consist of two characters followed by a
number.
The name can also not begin with a number. The authority levels can be copied from
the other normal users (not from the system manager) by selecting the source. The
password for a new user is <enter> before the user changes it with the Change
Password dialog.
Buttons
Explanation
Apply
Saves the changes without closing the dialog.
Done
Closes the dialog, NO SAVING.
Help
Run-time help.
1MRS751885-MUM
LIB 500
51
2. LIB 500 Backbone
LIB 500 Operator’s Manual
User’s Guide
2
!
The modifications will not become active until being saved in the User Management
picture!
2.6.5.2.
Remove User
The system manager can remove users with this dialog.
)LJ 6HOHFWWKHXVHUWREHUHPRYHGWKHQSUHVVWKHUHPRYHEXWWRQ
Table 2.6.5.2-1
Explanation of the dialog buttons
The user you have selected from the list will be removed when you click the remove
button. The system manager cannot be removed.
!
The modifications will not become active until being saved in the User Management
picture!
2.6.5.3.
Add Group
The system manager can add authorization groups with this dialog.
All the tools and standard picture functions configured to the group will use the
defined authorization levels for different users (see Figure 2.6.5.3.-1).
Buttons
Explanation
Remove
Removes the selected user without closing the dialog.
Done
Closes the dialog, NO SAVING.
Help
Run-time help.
52
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
2.
LIB 500 Backbone
User’s Guide

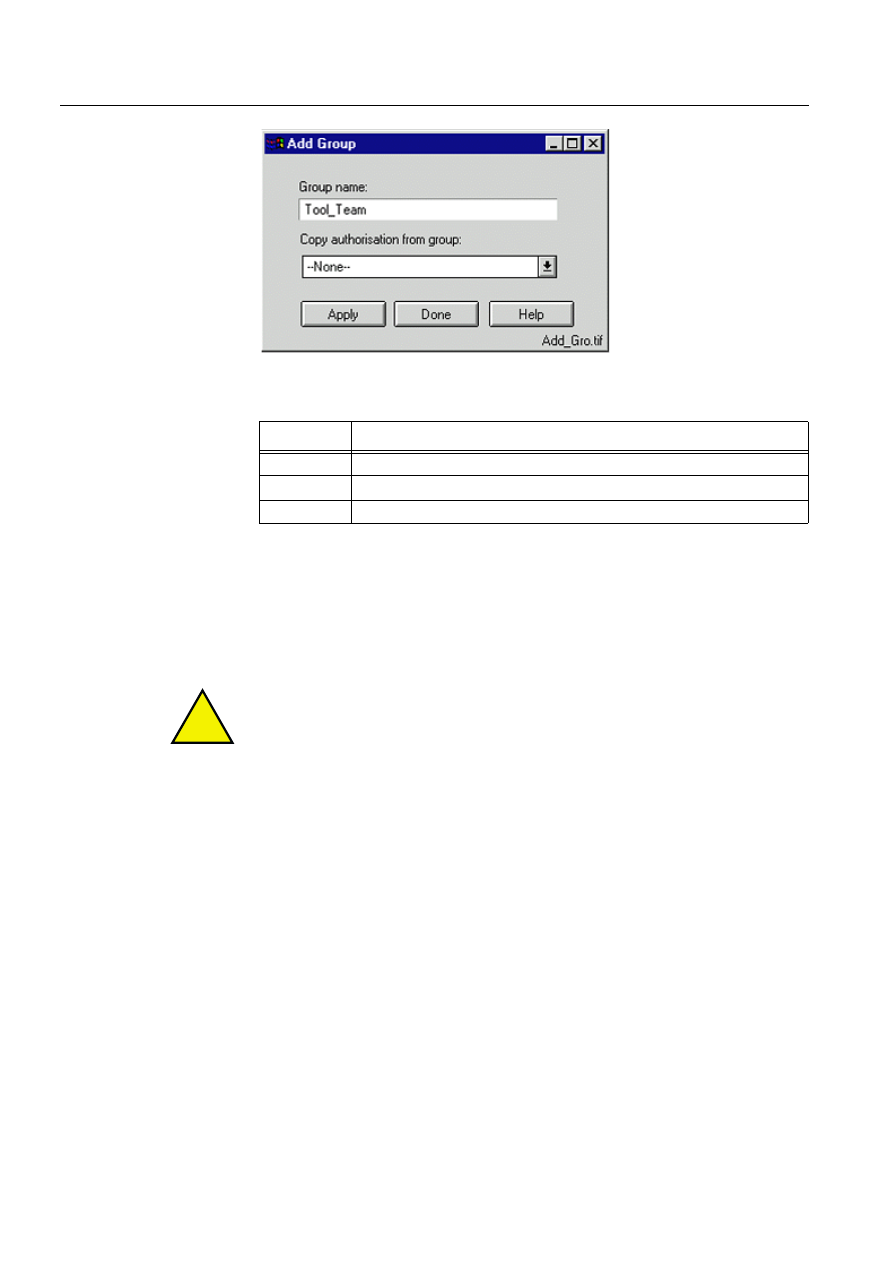

)LJ AddDQDXWKRUL]DWLRQJURXSLQWKLVFDVH7RROB7HDPLVDGGHG
Table 2.6.5.3-1
Explanation of the dialog buttons
You can create a new authorization group name given in the "Group name" field
when you click "Apply." The group name must not include special characters and it
must not consist of two characters followed by a number. The name can also not
begin with a number. If the user levels are not copied from another group, then all
the users get view rights (0) as default. Copying cannot be made from the
GENERAL group.
!
The modifications will not become active until being saved in the User Management
picture!
2.6.5.4.
Remove Group
The system manager can remove authorization groups with this dialog (See Figure
2.6.5.4-1).
All the tools and standard picture functions configured to the group will
automatically start using the definitions of the GENERAL group.
Buttons
Explanation
Apply
Saves the changes without closing the dialog.
Done
Closes the dialog, NO SAVING.
Help
Run-time help.
1MRS751885-MUM
LIB 500
53
2. LIB 500 Backbone
LIB 500 Operator’s Manual
User’s Guide
2
)LJ 6HOHFWDQDXWKRUL]DWLRQJURXSIURPWKHOLVWWREHUHPRYHG
Table 2.6.5.4-1
Explanation of the dialog buttons
The authorization group you have selected will be removed when you click
"Remove". The group GENERAL cannot be removed.
!
The modifications will not become active until being saved in the User Management
picture!
2.6.5.5.
Change Password
All users can change their own password in this dialog.
)LJ &KDQJHWKHSDVVZRUGDQGFRQILUPWKHQHZSDVVZRUGE\UHW\SLQJLW
Buttons
Explanation
Remove
Removes the selected user group without closing the dialog.
Done
Closes the dialog, NO SAVING.
Help
Run-time help.
54
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
2.
LIB 500 Backbone
User’s Guide
Table 2.6.5.5-1
Explanation of the dialog buttons
If the old password is correct, then the password will be changed to the one given in
the new password field. The new password has to be given twice to be confirmed.
!
The modifications will not become active until being saved in the User Management
picture!
2.6.5.6.
Define view monitors
Figure 2.6.5.6.-1 shows a dialog by which the system manager can restrict the
authorization level to view (0) for all the users logging in from a workplace defined
in this dialog.
)LJ 'HILQHDYLHZPRQLWRU
Table 2.6.5.6-1
Explanation of the dialog buttons
If the system device name (MON:BSD) of the monitor logging in is defined by this
dialog, then the user will get the view (0) authorization level.
When you select the OK button, the items on the list are defined to be view monitors.
Buttons
Explanation
OK
Approves the changed password and closes the dialog.
Cancel
Cancels the proposed change of password and closes the dialog.
Help
Run-time help.
Buttons
Explanation
Add
Adds the given system device name to the list.
Remove
Removes the selected system device name.
OK
Approves the changed password and closes the dialog.
Cancel
Cancels the proposed change of password and closes the dialog.
Help
Run-time help.
1MRS751885-MUM
LIB 500
55
2. LIB 500 Backbone
LIB 500 Operator’s Manual
User’s Guide
2
!
The modifications will not become active until being saved in the User Management
picture!
2.6.6.
Help menu
Figure 2.6.6.-1 shows the Help Menu, which contains the General User Management
Help and the About User Management dialogs.
)LJ
7KH+HOSPHQX
2.6.6.1.
Help
A run-time help is a feature that gives the user information about the User
Management functions.
2.6.6.2.
About User Management
)LJ $ERXWWKH8VHU0DQDJHPHQWIXQFWLRQ
!
You should have the information presented in this dialog available when you contact
ABB in a problem solving situation.
56
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
2.
LIB 500 Backbone
User’s Guide
2.7.
Note marker

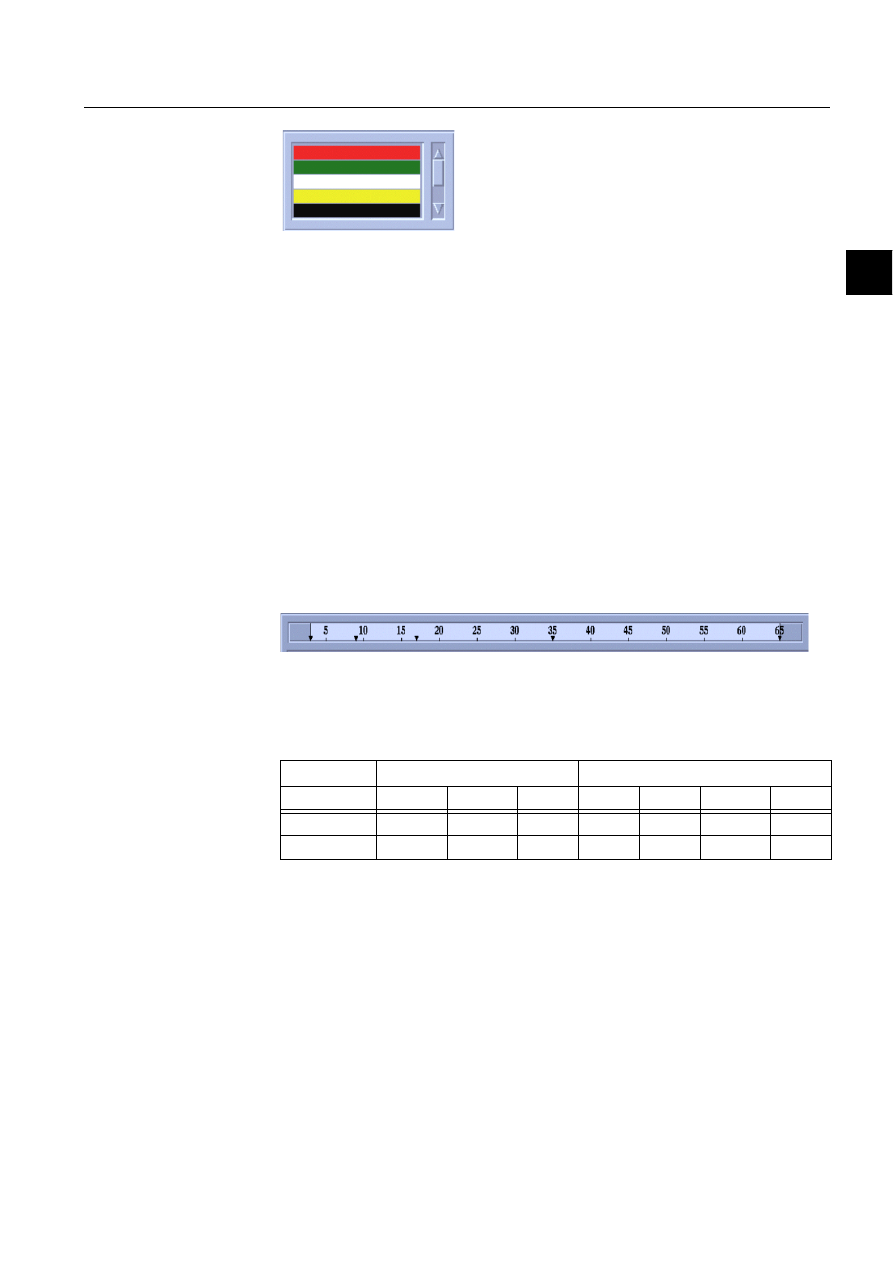

)LJ 7KH1RWHPDUNHU6\PEROFRORXUV
The Note marker can be found in the Options Menu, and the symbol colours are
included in the drop-down menu.
Note marks can be freely added and placed into pictures. Note marks can be moved
by dragging them with the mouse. When you click a note mark, then a dialog will
open for displaying and writing a note. You can open up to 999 note marks per
picture.
)LJ 1RWH0DUNHU
You can write a note into the field by clicking it (see Figure 2.7.-2). The made
changes are stored with OK and cancelled with Cancel. A selected note mark can be
removed with the Remove Note Mark button. After pressing this button, the user
will be asked “Are you sure you want to remove this notemarker?” to ensure that no
accidental removals will happen (See Figure 2.7.-3). If you select another note mark
while the previous note mark dialog is open, the program will interpret it as Cancel
and a dialog will be opened for the new note mark.
1MRS751885-MUM
LIB 500
57
2. LIB 500 Backbone
LIB 500 Operator’s Manual
User’s Guide
2
)LJ7KH,QIRUPDWLRQGLDORJ
2.8.
Database Import/Export tool
2.8.1.
General
The MicroSCADA application database can be created either by using the LIB 5xx
picture functions, or by using the SigTOOL ver. 6.20 software, made by ABB Power
Automation AG, Switzerland. Both methods have advantages of their own, but in
order to combine these advantages, a link between LIB and SigTOOL must be
established. This is done by providing a tool that uses ASCII load files to transfer
the application database from the LIB 5xx-created application to SigTOOL and
back. In this method, application engineering is performed roughly as follows: by
using the LIB 5xx picture function, first a “draft” application database is created
along with the application pictures. This “draft” is then transferred to SigTOOL
using the import/export tool specified in this document. Signal engineering is
performed with the SigTOOL, after which the modified database is brought back to
MicroSCADA by using the same import/export tool. SigTOOL also provides
communication configuration files as well as the relay event masks.
In addition to SigTOOL support, the LIB 500 Database Import/Export tool also
provides a general import/export function. This can be used for example for making
a temporary back-up of the process objects in a MicroSCADA application or for
transferring process objects from one application to another. A separate file format
is provided for SigTOOL and general export; importing is similar for both file
formats.
The LIB 500 Database Import/Export tool consists of a main picture and several
dialogs and subdialogs, which will be described in the following chapters. When
using the database import/export tool, the following notifications should be made.
!
The maximum length of a load file is 10000 lines, which equals to approximately
5000 (SigTOOL compatible file format) or 3300 (general file format) process
objects.
!
Exporting or importing a large amount of process objects can temporarily load the
system, thus making the response slower.
58
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
2.
LIB 500 Backbone
User’s Guide
!
The process objects can only be transferred from a database to a load file or vice
versa, not for example from one load file to another.
2.8.2.
Main picture
The design in the Database Import/Export tool’s main picture (shown in Figure
2.8.2.-1 and Figure 2.8.2.-2) is similar to the other LIB 500 list pictures. The main
picture can be opened from the DB Import/Export option of the Engineering drop-
down menu.
The use and view of the Database Import/Export tool is determined by the direction
of data, i.e. whether the process objects are being exported from the application
database to a load file or the objects are imported from a file to the data base. In both
cases, the process objects can be viewed on the list before the actual import/export
procedure. This way the risk of an error is reduced.
The Database Import/Export tool dialogs can be opened by using the toolbar on the
upper left part of the main picture or by using the Tools drop-down menu. The
toolbar can be hidden temporarily.
When exporting process objects, they must first be brought to the list by using the
Read From Database dialog (the functionality of each dialog will be explained later
in this document). After this step, the main picture looks as in Figure 2.8.2.-1. Each
process object is presented as a text line containing the following attributes: logical
name (LN), index (IX), Object Identification (OI) and Object Text (OX).
In order to maintain the internal data structure of SigTOOL, each process object to
be exported to a SigTOOL 6.20 compatible load file must have the name of the
physical protection device written into its RX attribute. This is done with the
configurable attribute DATA_ACQUISITION_UNIT at LIB 5xx standard function
configuration. The second condition for exporting a process object to SigTOOL is
that it must not be a so-called internal process object, i.e. a process object used
internally by MicroSCADA and with no connection to the actual process. Internal
process objects are also identified by their RX attribute. In order to separate the
process objects not to be exported to a SigTOOL 6.20 compatible load file, they are
presented with red colour in the main picture. When exporting by using the general
load file format, all process objects brought to the list are included.
The fields on the bottom of the list indicate the OI “path” and the number of the
process objects. The field in the upper right part of the dialog indicates the number
of the current page (32 process objects/page). The list can be scrolled page by page
by using the toolbar’s double arrow keys or the corresponding Tools menu items.
The actual export to a load file is carried out by using the Export To Load File dialog.
1MRS751885-MUM
LIB 500
59
2. LIB 500 Backbone
LIB 500 Operator’s Manual
User’s Guide
2
)LJ
0DLQSLFWXUHZKHQH[SRUWLQJSURFHVVREMHFWV
In order to import process objects they must first be brought to the main picture list
by using the Open Load File dialog. Then the main picture looks as in Figure 2.8.2.-
2. Each process object read from the load file is presented as a text line containing
the following attributes: logical name (LN), index (IX), Object Identification (OI)
and Object Text (OX). No definition is made between importing from a SigTOOL
6.20 compatible load file or a general format load file.
The fields at the bottom of the list indicate the directory and name of the load file,
and also the number of process objects in the load file. The field in the upper right
part of the picture indicates the number of the current page (32 process objects/
page).
The list can be scrolled page by page by using the double arrow keys of the toolbar
or the corresponding Tools menu items. The actual importing to the application
database is carried out by selecting the option Import in the toolbar or in the Tools
menu.
60
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
2.
LIB 500 Backbone
User’s Guide
)LJ
0DLQSLFWXUHZKHQLPSRUWLQJSURFHVVREMHFWV
2.8.3.
Read From Database
This dialog is used when process objects are read from the process database of the
current application to be viewed on the main picture list and possibly exported to a
load file. The Database Import/Export tool supports the division of the process
object’s OI attribute into five fields, like all the other LIB 5xx functions do. The
Read From Database dialog has a field for each OI field (substation, bay and device
by default). The title of each field is shown on the left side of the field. If an OI field
is not in use, it is set insensitive and its title “(none)” is shown dimmed (see Figure
2.8.3.-1).
1MRS751885-MUM
LIB 500
61
2. LIB 500 Backbone
LIB 500 Operator’s Manual
User’s Guide
2
)LJ
7KH5HDG)URP'DWDEDVHGLDORJ
In order to read process objects from the application database, the text for each OI
field must be entered to the fields, according to the set of process objects to be read.
An asterisk “*” can be entered to indicate a free text and an empty space can be
entered to indicate an empty text string. In the example of Figure 2.8.2.-2, all non-
internal process objects related to the substation Eastwick and bay Incoming 110 kV
are read from the database.
If you click the OK button, the desired process objects will be read from the database
and set to the list of the main picture. The Cancel button withdraws all the changes
and the Help button opens the Help dialog. Due to the maximum load file length
(10000 lines), you should carefully select the process objects to be exported, for
example by creating a separate load file for each station or bay, depending on the
size of the application.
2.8.4.
Export To Load File
With the Export To Load File dialog (see Figure 2.8.4.-1), the process objects read
from the application database can be exported to the selected load file.
62
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
2.
LIB 500 Backbone
User’s Guide
)LJ
7KH([SRUW7R/RDG)LOHGLDORJ
Two load file formats can be selected by the radio buttons on the lower part of the
dialog: SigTOOL 6.20 compatible format and general format. Only SigTOOL 6.20
compatible format can be used for exporting process objects to SigTOOL, but this
format contains only some process objects in a specific order. General format
contains all the process object attributes and it is more suitable for general purposes.
The target load file is saved to the directory APL/’NAME’/LOADFILES, where
’NAME’ refers to the name of the current application. This directory will be created
by this dialog, if it does not already exist.
All the files in the directory stated above are shown on the list of this dialog. The
name of the target load file can be given either by entering the name to the field
above the list, or by selecting any name from the list with the mouse. Note that also
the extension of the file (for example .TXT) must be included in the name.
OK exports the process objects on the main picture list to the selected load file,
Cancel withdraws all the changes.
2.8.5.
Open Load File
Also when the process objects are imported from a load file to the application
database, the objects must first be brought to the list for viewing, before the actual
import procedure. This can be done with the Open Load File dialog shown in Figure
2.8.5.-1.
1MRS751885-MUM
LIB 500
63
2. LIB 500 Backbone
LIB 500 Operator’s Manual
User’s Guide
2
)LJ
WKH2SHQ/RDG)LOHGLDORJ
With this dialog the user can open any compatible (SigTOOL 6.20 compatible or
general format) load file. Before a load file is opened, its compatibility is checked.
The load file to be opened must be located in the directory APL/’NAME’/
LOADFILES, where ’NAME’ refers to the name of the current application. This
directory will be created by the dialog, if it does not already exist.
All the files in the directory stated above are shown on the list of this dialog. The
name of the file to be opened can be given either by entering the name to the field
above the list, or by selecting any name from the list with the mouse. Note that also
the extension of the file (for example .TXT) must be included in the name.
OK opens the selected load file, provided that it is compatible, and sets the process
objects in the file to the list of the main picture. Cancel withdraws all the changes.
After the process objects are brought to the list, they can be imported by selecting
the option Import in the toolbar or in the Tools drop-down menu.
2.8.6.
Other functions
All the dialogs described in the previous chapters can be opened either by using the
toolbar or the Tools drop-down menu (see Figure 2.8.6.-1). The toolbar can be
temporarily hidden with the “Show Tool Bar” item of the Tools menu.
64
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
2.
LIB 500 Backbone
User’s Guide
Table 2.8.6-1
The buttons of the Database Import/Export tool have the
following functions:
Some other functions than those within the dialogs are also available. The main
picture list can be scrolled page by page with the double arrow buttons of the toolbar
or with the corresponding Tools menu items. General help can be found in the Help
function.
)LJ
7KH7RROVGURSGRZQPHQXRI'DWDEDVH,PSRUW([SRUWWRRO
Button
Function
Opens the load file.
Reads from the database.
Exports to the load file.
Imports to the database.
Scrolls the page up.
Scrolls the page down.
Help.
1MRS751885-MUM
LIB 500
65
2. LIB 500 Backbone
LIB 500 Operator’s Manual
User’s Guide
2
2.9.
Calendar
2.9.1.
General
MicroSCADA Calendar is a tool for defining features or activities that depend on
time.
Time periods can be applied for example to define day/night tariffs, specifying
contracts that are in force, general holidays etc. Calendar data can then be utilized in
the other MicroSCADA pictures, e.g. in the report tool.
It is possible to use the Calendar to define command procedures which are to be run
by MicroSCADA on a defined day or on all days that are marked as a certain type
of day.
Default day settings are available either for all days or for workdays and Sundays
separately.
Settings that determine the operations or properties which will take place at a certain
moment of time, are defined in a day specific graphical attribute list. The attribute
list is maintained by using an attribute tool that is integrated into the calendar. Each
attribute has a graphical user interface of its own in the list.
Individual days can be configured independently with the attribute tool to have day
specific attributes.
The attribute list can also be defined for the day type. The day type is a logical name
that can be used for connecting an attribute list to a day. All attributes defined for a
day type are then applied to all days that have a link to the day type. Fast
modifications can be performed simultaneously for several days by using the
predefined day types. New day types can be created freely.
2.9.2.
Installation
Calendar is installed automatically with the LIB 500 Backbone.
2.9.3.
Opening Calendar dialog
Calendar can be started in the application main picture. Select “Calendar” in the
Options menu.
The main calendar view is used for browsing general calendar information. The
calendar shows one month at a time as a notebook sheet. The month can be changed
by clicking the notebook sheet tabs. The current day is marked with a red box (see
Figure 2.9.3.-1).
66
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
2.
LIB 500 Backbone
User’s Guide
)LJ
7KH&DOHQGDUWRRO
1MRS751885-MUM
LIB 500
67
2. LIB 500 Backbone
LIB 500 Operator’s Manual
User’s Guide
2
Table 2.9.3-1
Buttons in the Calendar tool
2.9.3.1.
Making selections
Multiple selections can be made when the attribute dialog is not open. Close the
attribute dialog before making a multiple selection.
• Single-click with the left mouse button to add a day into the selection.
• To deselect days, single-click the day label again. The current label state can also
be changed by pressing the Space bar. The opening of the attribute dialog by
double-clicking a day label also removes all other days selected except for the
current day.
• Selection can be expanded by using the selection buttons in the toolbar.
• Any day type can be added to the selection.
• Any day type setting can be removed from the selection.
2.9.3.2.
Adding day type to group of days
• When a selection is made, a day type can be added to the day group. Select a day
type in the day type list and click the Set button. When the button is clicked, all
the selection marks disappear and the number fonts of the selected day change to
bold to indicate that they are provided with the relevant settings. If the day colour
is set in the day type attribute list, all the days are marked with that colour.
• To remove a day type setting from a day: make a multiple selection, select the day
type to be removed and click Remove.
• Another way to remove a day type setting is to open the day attribute dialog and
to delete the corresponding day type block from the attribute list.
Button
Function
Go to today
Previous year
Next year
Go to year X
Select the day of the week
Select the week
Select the month
Add the day type
68
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
2.
LIB 500 Backbone
User’s Guide
2.9.3.3.
Setting day type attributes
• Double-click the day type item in the list box containing the day type names. This
opens the attribute dialog.
• The day type attributes are defined in a similar way as the day attributes. The only
difference is the text box in the upper part of the dialog where the type name is
displayed. This name is also visible in the list box of the main calendar view.
• Changes made in the day type attributes are applied to all the days defined as that
day type.
2.9.3.4.
Saving attributes
• Attributes can be saved by pressing the Apply button.
• If you did not press the Apply button and you selected another day, all the blocks
containing invalid data will be deleted. It is recommended to press the Apply
button to check the data validity before moving to another day or closing the
dialog.
• Saving is also done when the Go to today button is pressed. This is the most
recommended way to save changes to the day or to day type attributes.
• When the attribute dialog is closed, data validity is checked and valid data is
saved.
2.9.4.
Changing current time
• To step one year forward, press the button Next year. Similarly, to move to the
previous year, press the button Previous year.
• To move to any year between the years 1978-2045, press the button Go to year X
and type the year into the input dialog.
2.9.5.
Day attribute dialog
Day and day type attributes are set by using the attribute tool (see Figure 2.9.5.-1).
Table 2.9.5-1
Explanation of the buttons in the attribute tool dialog
Button
Action
Apply
Checks the validity of the data and saves the changes.
If data is not valid, an error message will be displayed.
New
Adds a new block on the attribute list.
Delete
Deletes all the marked blocks.
Close
Closes the window.
Help
Displays the attribute tool help text.
1MRS751885-MUM
LIB 500
69
2. LIB 500 Backbone
LIB 500 Operator’s Manual
User’s Guide
2
)LJ
7KH(GLWGD\DWWULEXWHVGLDORJ
• Double-click the day label (day number) to open the day properties dialog box.
• New attributes can be added into the day profile by pressing the button Create
New. In the subsequent dialog box, the type of the new attribute can be selected.
After pressing the Add button, an attribute specific box will appear into the
attribute list. Attribute parameters can be defined directly into the list.
• A maximum of 10 attributes per day (or per day type) is allowed.
2.9.5.1.
Available attributes
The following attributes are used in the attribute tool. Some of the blocks are
available only for the day attribute list. Every block has a check-box in the upper
right corner. It is used for selecting the block.
1. Assign type (see Figure 2.9.5.1.-1). Inserting this block into the attribute list of a
day connects the day to a day type. All settings made for the named day type are
then applied to the current day. This block is available only for a day, not for a
day type. All the day types that are defined in the Options tool are visible in the
combo-popdown list.
70
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
2.
LIB 500 Backbone
User’s Guide
)LJ 7KH$VVLJQW\SHGLDORJ
2. Day name (see Figure 2.9.5.1.-2). A day is named with a given text string. The
day colour in the main calendar view is selected with the help of the combo-
popdown list. The block is available both for days and day types.
)LJ 7KH'D\QDPHGLDORJ
3. Run command procedure (see Figure 2.9.5.1.-3). It executes a command
procedure at a given time of day. The running time is given with the time
resolution of 1 minute. This block is available both for days and for day types.
)LJ7KH5XQFRPPDQGSURFHGXUHGLDORJ
4. Time period start/stop (see Figure 2.9.5.1.-4). This block is used to define
periods which are in effect for several days. The block is available only for days.
)LJ 7KH7LPHSHULRGVWDUWVWRSGLDORJ
1MRS751885-MUM
LIB 500
71
2. LIB 500 Backbone
LIB 500 Operator’s Manual
User’s Guide
2
5. In-day period (see Figure 2.9.5.1.-5). The block defines a period that starts and
ends during the current day 0:00-23:59. Time resolution is 1 minute. This block
is available both for days and day types.
)LJ 7KH,QGD\SHULRGGLDORJ
2.9.6.
Setting Calendar options
The calendar option dialog is opened from the menu bar by selecting the command
Edit - Options. The option dialog consists of three notebook sheets:
1. The general Calendar options
2. Procedures
3. Day types
2.9.6.1.
Sheet 1: General Calendar options
)LJ 7KH*HQHUDOFDOHQGDURSWLRQV
72
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
2.
LIB 500 Backbone
User’s Guide
Table 2.9.6.1-1
Three default day types are available:
To add more day types into the combo box, select the sheet Day types and add new
types on the list.
2.9.6.2.
Sheet 2: Procedures
)LJ 7KH/LVWRIDOORZHGSURFHGXUHV
Allowed procedures can be defined in the second sheet of the options dialog. There
are two lists on the sheet: the right one contains all the command procedures that
exist in the system, the left one contains the command procedures that are allowed
in the calendar. To add new procedures to the list of allowed procedures, select a line
from the list of all procedures and press the button marked with a symbol “<<“. To
remove a procedure from the list of allowed procedures, select a procedure and press
the button marked with a symbol “>>”.
Allowed procedures are used by the “Run command procedure “ calendar attribute.
Only allowed procedures are included in the combo box of the attribute (see Figure
2.9.5.1.-3).
No
Type
1
No default types.
2
One default type which is applied to all days.
3
Default types for Sundays and other days separately. Default types are
selected from the combo box where all the available day types are visible. The
default type of an individual workday can be overridden by assigning it to
Sunday type. Likewise, Sunday settings can be overridden with the day type
of workday. If the default type of an individual day is to be overridden, select
the day from the calendar’s main view and assign it to an appropriate day
type.
1MRS751885-MUM
LIB 500
73
2. LIB 500 Backbone
LIB 500 Operator’s Manual
User’s Guide
2
The user is required to have at least the engineering authorization level (2) to be able
to modify the list of allowed procedures.The list is initially empty but it will be filled
according to your above-mentioned actions.
2.9.6.3.
Sheet 3: Day types
)LJ 7KH'D\W\SHOLVW
Adding new day types
Press the Add button and then write a name for the type in the opening dialog. The
day type will appear on the list. Close the option dialog with the OK button to save
the changes.
Removing day types
Select a day type from the list and press the Remove button. Please note that all
references to the type are deleted from the calendar database.
§1MRS751885-MUM
LIB 500
75
3. Event List
LIB 500 Operator’s Manual
User’s Guide
3
3. Event
List
3.1.
Purpose and description
The purpose of the Event List is to provide the user with information about events
occurring in the system. Thus, the user can make the right decisions and verify that
taken measures are successfully performed. It is also possible to receive information
about activities carried out by other users, operations of objects, acknowledging of
alarms, editing of limit values, logging in etc. (see Figure 3.1.1.-1).
The Event List presents the data in a structured way for the user’s convenience.
Each event is normally presented by displaying an event text line, which describes
the cause of the event in the process.
Event text lines normally consist of a time stamp, object identification, a signal text
and a text indicating the status.
3.1.1.
Features/options
• Event List layout can be configured. There can be even more than 80 characters
per line.
• Printouts can also be configured to contain more than the standard 80 characters
per line.
• Scroll intervals are configurable from 10 to 100 pages, in steps of 10.
• Fast navigation in the list can be done by using the scroll bar: jump to the last
page, one page back or forward, or one interval backwards.
• Possibility to navigate to the previous day/next day or to a day typed into the
input dialog.
• User-friendly filters.
• Updating/Frozen presentation modes.
• Authorization support.
• Help in all dialogs.
• Additional comments can be given to the events (up to 250 characters per event).
• Event Reports to a printer on demand.
• Possibility to display events either in log order or event order.
§1MRS751885-MUM
76
§1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
3.
Event List
User’s Guide
)LJ
7KH(YHQW/LVWPDLQYLHZ
3.1.2.
System requirements
• MicroSCADA 8.4.3
• Backbone of LIB 500
3.2.
Events
Event is a wide term that also comprises alarms. The event activation and
consequential actions are defined in the process database separately for each
individual object.
Typical examples of events are:
• Changes or updating of an object value
• Changes of an alarm and a warning state
• Changes of reliability stamp
• Changes of the alarm definition, alarm blocking, acknowledgement etc.
When an event occurs in the system, the operator wants to receive an answer to the
following questions (answers provided below each question):
§1MRS751885-MUM
LIB 500
77
3. Event List
LIB 500 Operator’s Manual
User’s Guide
3
1. What happened?
- A change in the state of the object or an executed operation.
-
2. Where did it happen?
- A descriptive text (object identification, OI and object text, OX) comprising e.g. a
device notation and the type of object or operation.
3. When did it happen?
- The point of time when the event occurred. If the event originates from a station
providing a time stamp, this time stamp will be used. Depending on the station, the
time is on a second or a millisecond level. In other cases, the time stamp is the
MicroSCADA system time with an accuracy of 10 milliseconds.
3.2.1.
Event functions
The following functions can be activated by an event:
• Updating monitor pictures.
• Automatic printout. Like alarms, events can cause automatic printouts on the
event and alarm printer.
• Registration is made in the history buffer and, in connection to this, also in the
Event List.
• Activation in the report database, e.g. automatic control operations, registration,
report printout, etc.
3.2.2.
Event activation
Depending on how crucial an object is, the following events in the object may
activate an event printout, a registration in the history buffer, or an activity in the
report database (from the least to the most crucial object):
• No activation.
• An alarm is activated and deactivated.
• The alarm or warning state changes.
• The object value changes.
• The object value is updated, although it is not changed.
3.3.
General description
This chapter explains the event logging functions and displays.
Event handling is divided into two main groups:
• Event logging.
• Event viewing.
The event presentation is divided into subgroups, such as:
• Viewing events on display (Event List).
• Sequential listing to the printer.
78
§1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
3.
Event List
User’s Guide
3.3.1.
Events
Events are the activities that are registered by the MicroSCADA base system in the
history database, HDB. There are two types of events: process events and internal
events. The process events are events that belong to the supervised process such as
indications, protecting events, alarm limits for measurements, tripped breakers, etc.
The internal events are events which indicate disturbances in the supervision system.
They are normally initialized by the system.
When an event occurs in the system, it is instantly printed on the event printer and
stored in the history archive. The history archive is used when the Event List is
produced on the screen. The archive contains all dynamic information related to the
event. All dynamic data from the history archive can be used to define filters. The
history archive consists of the computers RAM and of the HDB files stored on the
PC hard disk. The history database consists of the history database files, of which
each contains events of one day. The files are named according to the date as
APL_yymmdd.PHD. For example, the file APL_980115.PHD contains the events
logged on 15-Jan.-1998. The files are stored in the directory C:/SC/APL/nnn/APL_,
where nnn is the name of the application.
3.3.2.
Event logging
All activities in the supervised processes that are logged by the Base system are
stored in the process database. The process database handles all registration of the
incoming and outgoing process data. The process database is located in the
application; it is project specific but the main functions remain the same, regardless
of the application.
The events that are logged by the Base system and the database are stored on a mass
storage (the hard disk). In other words, the Base system creates files on the hard disk
where the events are stored. Every time when an event occurs in the system, the
program writes a new item in the HDB. The item in the HDB is a “snap-shot” of the
situation for the object in question when the event occurred. All dynamic data from
the actual process point is stored in the HDB.
3.3.3.
Event viewing and listing
The events can be viewed on the display by using the Event List. The default display
format of the Event List is similar to the format of the sequential printouts.
The user can define different filters to display specific events or additional
information about the events. The Event List can contain more information than the
sequential printout. The sequential printouts to the event printer are sent to the event
printer by the Base system instantly after the event has occurred in the application.
The filters do not affect the sequential printouts.
3.3.4.
Event handling
The event handling is based on the information in the HDB. In other words, the
information displayed in the Event List comes from the HDB. When the Event List
is displayed on the screen, files in the HDB on the hard disk are read and the content
is organized into a chronological order. After the content has been organized, the
events are displayed on the screen by using the format picture. The format picture
retrieves the status text from a language dependent text file. The default language is
§1MRS751885-MUM
LIB 500
79
3. Event List
LIB 500 Operator’s Manual
User’s Guide
3
English. The files are translated into local languages by the project engineer during
the engineering. The Text translation tool is used for the translation of the text files.
3.3.5.
Comments
Comments can be used for making remarks to events. The comments are available
to all Event List users and they can give additional information. Comments can also
be removed.
3.3.6.
Event reports
The event reporting function is used for printing events to a printer on demand. The
user can select whether to print the event report with or without comments.
3.4.
Getting started
After the LIB 500 has been installed and prepared according to the instructions, the
Event List can be used in the process pictures.
This section will take the presentation of the events into account, both on the display
and on the printers.
3.4.1.
Access to Event List
There are two ways of accessing the Event List:
Either 1) by using the shortcut button
or 2) by selecting the Event List in the
Reports menu:
)LJ
6WDUWWKH(YHQW/LVWIURPWKH5HSRUWVPHQXRUE\FOLFNLQJWKH(YHQW/LVWEXWWRQ
To be able to access the Event List by clicking the shortcut button, the button has to
be activated first. To activate the Event List shortcut button, copy bgu_events.pic
from the library package lib4/base/event/use under the application uplmod4/use.
When you click the shortcut button, the picture will be opened from the application
(not from the library).
The Event List can be divided into three parts:
• Basic view (described in Section 3.4.2)
• Tool menu (described in Section 3.4.3)
• Toolbar (described in Section 3.4.4)
80
§1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
3.
Event List
User’s Guide
3.4.2.
Basic view
)LJ
7KHEDVLFYLHZRIWKH(YHQW/LVW
Explanations to Figure 3.4.2.-1:
1. Toolbar (can be shown/not shown).
2. Tools menu.
3. Date stamp for events presented on the current page.
4. Date from the first event to the last event that can be accessed by the scroll bar
functions (13-15) and Previous Interval button.
5. Actual page and the total amount of pages.
6. Line with event specific data.
7. Object status symbol.
8. Indication that the event has also caused an alarm.
9. Comment marker, showing that there are additional remarks for the event.
10. Settings information, the used filters.
11. Settings information, mode for the Event List.
12. Settings information, the amount of pages loaded when scrolling.
13. Settings information, time scroll.
14. Scroll arrow for the events, downwards.
§1MRS751885-MUM
LIB 500
81
3. Event List
LIB 500 Operator’s Manual
User’s Guide
3
15. Scroll box for scrolling the events.
16. Scroll arrow for the events, upwards.
3.4.3.
Tools menu
)LJ
7KH7RROVGURSGRZQPHQXZLWKWKHVXEPHQXV
The Tools menu for the Event List is available when the Event List is active (shown
on the screen).
In order to make Event List handling more efficient and convenient, the LIB 500
Event List provides a set of tools. As the LIB 500 standard, tools are opened from
the Tools drop-down menu of the picture header bar. Items ending in three dots open
a subdialog and those ending in a symbol > open a cascade menu or a submenu. The
Event List provides also a Toolbar as an alternative for the drop-down menu. The
toolbar does not contain all functions that can be found in the drop-down menu. The
toolbar should be considered as a shortcut to the most used functions.
Table 3.4.3-1
The options in the Tools menu
Tools
Function
Filters
Opens a dialog where filters can be selected and edited.
Settings
Opens a dialog where event list texts and colour settings can be
changed.
Presentation Mode
Opens a dialog where the user can toggle between the updating
mode and the frozen mode.
Comments
A dialog for adding or removing comments to events.
Event Reports
Printing of events on demand.
Go to
Opens a dialog where the user can:
go to the latest events
go to the end of the previous interval
go to the previous day
go to the next day
go to the day selected in a dialog
82
§1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
3.
Event List
User’s Guide
3.4.4.

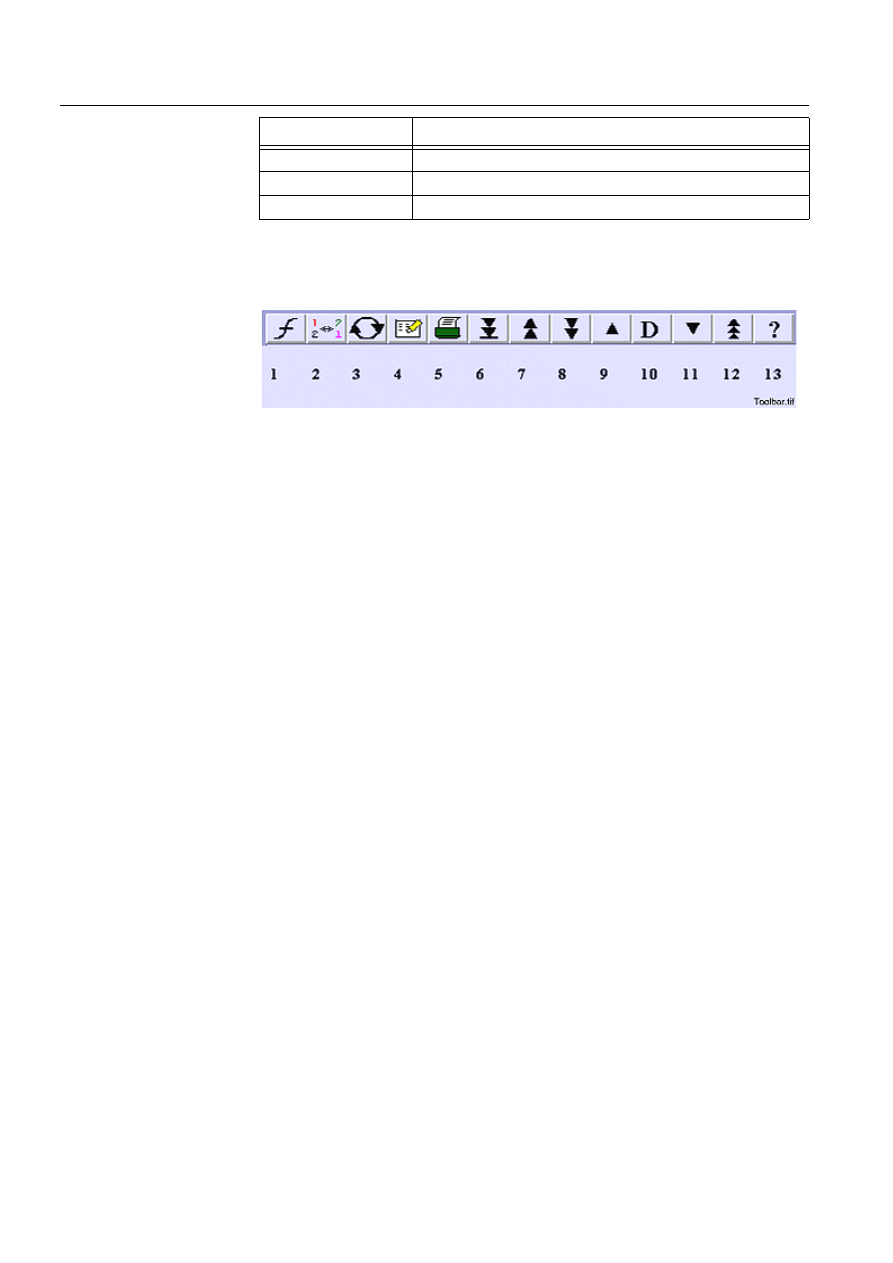

Toolbar
The toolbar is a shortcut that can be used in parallel with the drop-down menu.
)LJ
7KHWRROEDU
The buttons in Figure 3.4.4.-1 are:
1. Filters...
2. Settings
3. Presentation Mode (Updating or Frozen)
4. Comments
5. Event Report
6. Go to the last events
7. Scroll one page up
8. Scroll one page down
9. Go to the previous day
10. Go to the selected day
11. Go to the next day
12. Go to the previous interval
13. Help
3.4.5.
Screen display
The information presented on the screen consists of several elements, which will be
described in the following sections.
3.4.5.1.
Default event text
The default event text that describes the event consists of (see Table 3.4.5.1-1).
a) status sign
b) time stamp
c) object identification
d) signal name
e) status text
The status text is connected to the object value. Furthermore, the status text is event
or customer specific. The most important task that the event text has is to provide
the operator with information about the event.
Scroll Page
Scrolls one page up or down.
Show Toolbar
Displays/hides the toolbar.
Help
Opens the LIB 500 help dialog with general help.
Tools
Function
§1MRS751885-MUM
LIB 500
83
3. Event List
LIB 500 Operator’s Manual
User’s Guide
3
The Event List supports a standard layout, which is designed to meet the demands
of the normal event display. Sequential printouts are also done according to the same
standard layout.
Table 3.4.5.1-1
The following is an example of the standard event text in the
default layout:
Explanations to Table 3.4.5.1-1:
By default, the first column starts from position 1 and the length is one character.
The column presents the object status for the object in question. In version 2.4 (and
newer) it is possible to configure the first column to be 2 characters wide, including
the alarm indicator and the status symbol. See further information in the LIB 500
Configuration Manual, Chapter 4. Event List.
The second column starts from position 2 and the length is 21 characters. This
column presents the time stamp of the event.
The third column starts from position 26 and the length is 20 characters. The column
presents the object identification (OI). The length of the text is 30 characters. In
version 2.4 it is possible to divide the OI column up to five columns. See further
information in the LIB 500 Configuration Manual, Chapter 4. Event List.
The fourth column starts from position 47 and the length is 20 characters. The
column presents the object text (OX). The length of the text is 30 characters.
The fifth column starts from position 68 and the length is 13 characters. The column
presents the status text.
The default event text
DOZD\V gives an answer to the questions What?, When? and
Where? Thus, the event texts contain these basic data both on the screen and on the
sequential event printouts. The event text will be the same in the Event List and on
the sequential event printers. Filters that are used in the Event List presentation do
not limit the normal printouts to the printer. The default event text will always fit on
the display and on the paper printouts.
3.4.5.2.
Event text layout
See Settings/Common Columns and the Event Columns folder how to change the
layout.
However, different users do not pay attention to same kind of information. In some
applications there is a need to change or to extend the event text. When extending
*
yy:mm:dd
hh:mm:ss:mss
Object Id
Signal Name
Status text
1999-12-10
12:01:32.010
Green Bay
F01-CB1
Breaker
Operation
Open
1999-12-10
12:01:33.000
Green Bay
F01-CB1
Breaker
Operation
Execute
1999-12-10
12:01:34.456
Green Bay
F01-CB1
Breaker Indication Open
1999-12-10
12:01:35.457
Green Bay L1 Current
Measurement
Warning
*
1999-12-10
12:01:36.234
Green Bay L1 Current
Measurement
Alarm
84
§1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
3.
Event List
User’s Guide
the event text, there may be some limitations that need to be taken into account. In
some cases, one limitation can be the width of the matrix printer that is used as the
event printer. The printing width is normally 80 characters and it is impossible to
print more information. Then the alternative is to leave out some of the basic
information.
The event text layout can be configured according to the different needs of different
applications or countries. The user can configure the event display to view
information other than the default. The event text can be changed back to the default
any time by using the Settings dialog. The additional information is displayed as
columns on the same line as the basic information. The event text layout can be
configured to allow more information displayed on the screen than what is listed to
the event printer. The event text consists of two parts: the common part and the event
specific part.
)LJ $W\SLFDOHYHQWOLQHLQWKH(YHQW/LVWFDQEHGLYLGHGLQWRWZRSDUWV
The common part of the event text contains data that the user wants to display on all
event views. The configuration of the common part can be changed in the Settings
dialog box/Common Columns folder.
The event specific data is all data, which is not common to other events. The event
specific data consists of two parts: the status text and additional data. The status text
displays the object status (Open, Close, Warning, Alarm etc.). The additional data is
determined by the event. The additional data can be any attribute that is stored in the
history buffer and the HDB. The event specific part and the Event List header can
be configured by the user. If the additional data is the same for all events, it can be
written as a label text which is common to all columns. The following example
shows a list with additional data, in this case the attributes RA (Event Number of
Starting Event) and RB (Relative Time). At present, the RA and RB attributes are
used only in the RP 571 protocol. The event specific data can be configured in the
Settings dialog box/Event Columns folder.
Table 3.4.5.2-1
Event text when using one line (Note! Smaller font size):
*
Date
Time
Object Id
Signal Name
Status
1999-12-10
12:01:32.000
Green Bay
Dist Anr L1
Activated
1999-12-10
12:01:42.900
Green Bay
Dist Aus-Kom
1999-12-10
12:01:45.457
Green Bay L1
Current Measurement
Warning
*
1999-12-10
12:01:46.234
Green Bay L1
Current Measurement
Alarm
1999-12-10
12:01:48.010
Green Bay
Distance to fault
112 km
1999-12-10
12:01:48.020
Green Bay
Distance reactance
10000 ohm
1999-12-10
12:01:48.030
Green Bay
Distance resistance
10000 ohm
1999-12-10
12:01:52.800
Green Bay
Dist Anr L1
Deactivated
§1MRS751885-MUM
LIB 500
85
3. Event List
LIB 500 Operator’s Manual
User’s Guide
3
Explanations to Table 3.4.5.2-1:
7KHILUVWIRXUFROXPQVEHORQJWRWKHFRPPRQSDUWRIWKHHYHQWWH[W
The first column starts from position 1 and the length is one character. The column
presents the alarm state of the event. The alarm indicator is configurable.
The second column starts from position 2 and the length is 23 characters. This
column presents the time stamp of the event.
The third column starts from position 26 and the length is 20 characters. The column
presents the object identification (OI). The text length is configurable up to 30
characters.
The fourth column starts from position 47 and the length is 20 characters. The
column presents the object text (OX). The text length is configurable up to 30
characters.
7KHODVWFROXPQVEHORQJWRWKHHYHQWVSHFLILFSDUWRIWKHHYHQWWH[W
The fifth column starts from position 68 and the length is 13 characters. The column
presents the status text.
3.4.5.3.
Changing event texts
Events stored in the History Database cannot be changed.
Event texts can be changed in the process database. The changes affect the new
events. The texts can be edited using following tools:
A) Object Navigator
B) Standard Configuration Tool
Event specific texts can be configured in form pictures and corresponding text files.
Changes made to the form picture files affect all the concerned events that are
displayed in the Event List. See further information in LIB 500 Configuration
Manual, Chapter 4. Event List.
3.4.6.
Event List layout
The Event List is designed to be easy to understand and easy to use; the layout is
clear and consistent. There are four types of navigation objects in the Event List: a
scroll box, the scroll arrows, the drop-down menus and the toolbar buttons.
1999-12-10
12:01:54.000
Green Bay F01-
CB1
Breaker Operation
Open
1999-12-10
12:01:59.000
Green Bay F01-
CB1
Breaker Operation
Execute
1999-12-10
12:01:59.456
Green Bay F01-
CB1
Breaker Indication
Open
*
Date
Time
Object Id
Signal Name
Status
86
§1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
3.
Event List
User’s Guide
)LJ
$QH[DPSOHRIWKH(YHQW/LVWOD\RXW
3.4.7.
Scrolling
Normally, the amount of events exceeds the amount that can be shown on one page.
To enable navigation in the list, a scrolling function is needed. The list is divided into
scroll intervals. A full scroll interval is the amount of events which are referenced
from the history archive. The scroll intervals are configurable from 10 to 100 pages
in steps of 10. The scroll bar (1 and 2) located on the right hand side, scrolls the list
within the interval.
Navigation in the list is carried out according to the following functions (see Figure
3.4.6.-1):
• scroll box (2) within an interval
• scroll arrows (1) one line up/down (relocate all the events one line up or down in
the list without clearing the whole presentation window)
• scroll to the last page (“home”) (3)
• scroll one page up (4)
• scroll one page down (5)
• scroll to the previous day (6)
§1MRS751885-MUM
LIB 500
87
3. Event List
LIB 500 Operator’s Manual
User’s Guide
3
• scroll to the day typed in the input box (7). The current day is given as default. If
interval time limit is more than one day, the input day is considered to be the last
day of the interval. For example, if the interval time limit is 3 days, and 17.
March 1999 is given as input, the events of 15. – 17. March 1999 will be included
in the interval.
• scroll to the next day (8)
• scroll to the next/previous interval (9)
Navigating between the days equals to moving the time “window” forward or
backwards when the interval time limit is more than one day. It is not possible to
navigate to days past the current day.
3.4.8.
Updating
If the Event List is in the updating mode, the list will be updated when a new event
occurs in the system. When the list is in the frozen mode (non-updating), a message
will be displayed informing the user to proceed to the last events and to change the
mode to the updating mode.
When the Event List is in the updating mode, half a page will be shown when the list
is presented on the screen. All the new events are presented on the remaining half a
page until the page is full. When the page is full, it scrolls up a half page and new
events begin to fill the page again.
The Event List update is not automatic when:
1. the user has scrolled the list and the focus is not on the latest events.
2. the user has chosen the frozen mode.
3. the time filters are active.
In the cases mentioned above, the Event List displays a message to the user about
the new events in the system. After this the user may proceed to the Last Events. If
the time filters are on, the user will be informed to reset the filters before changing
to the updating mode.
3.4.9.
Settings
3.4.9.1.
Settings dialog
To use Settings, the authorization level Control is required.
The Settings dialog is used when customizing the list. It is possible to change a large
number of parameters in the list. The parameters can be grouped into several
subgroups. The different subgroups are grouped into folder sheets. The available
folder sheets are General and Common Columns.
The OK, Apply, Cancel and Help buttons are common to the different folder sheets.
88
§1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
3.
Event List
User’s Guide
Table 3.4.9.1-1
The buttons function as follows:
General folder
)LJ *HQHUDOVHWWLQJV
Table 3.4.9.1-2
The General folder contains the following setting
parameters:
Button
Function
OK
Applies all the pending changes and closes the dialog window.
Apply
Applies all the pending changes but leaves the dialog window open.
Cancel
Discards all the pending changes and closes the dialog window. Does
not cancel or undo changes that have already been applied.
Help
Opens the help window.
Setting
Explanation
Interval time limit
Interval time limit is the count of days that will be included in one
interval.
Interval length limit
Interval length limit is the length in pages that will be presented when
the list is opened. The user can select the amount of pages from the
list.
Time Out
Time out is the maximum time for reading an interval.
Scroll Order
Sorting order of the events in the frozen mode.
Day Break
Defines if a dotted line will be presented between events that have
time stamps from different days.
Toolbar
Defines if the Toolbar will be presented when the list is opened.
§1MRS751885-MUM
LIB 500
89
3. Event List
LIB 500 Operator’s Manual
User’s Guide
3
Interval time limit defines the count of days whose events are included in the
interval. The interval length limit prevents the vertical scroll bar to become unusable
due to large amount of events and to reduce query times when counting the events
of the interval.
When the Event List is in the updating mode, the events are sorted in order which
they were written into history database, i.e. logging order. The order defined in the
Settings dialog is applied in the frozen mode. The following settings can be selected
in the Scroll Order list:
Common Columns folder
)LJ 6HWWLQJ&RPPRQ&ROXPQV
The common part contains data which the user wants to display in all event rows.
Table 3.4.9.1-3
The Common Columns folder contains the following setting
parameters:
Event Text Colour
Defines the colour for the event text.
Event Text Font
Defines the font for the event text.
Default Settings
Load the default settings for the General settings.
Setting
Explanation
LOG
Events are sorted in logging order in the frozen mode.
EVENT
Events are sorted in event time order in the frozen mode.
Setting
Explanation
Number of Columns
Defines the maximum number of columns that can be used in
the event text row. The number of Columns can have the values
1... 10.
Column
The column number that is being edited at the moment.
Attribute
Defines the attribute that will be presented in the current
column.
90
§1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
3.
Event List
User’s Guide
Event Columns folder
)LJ 6HWWLQJ(YHQW&ROXPQV
The event part contains data which the user wants to display as status for the events.
Table 3.4.9.1-4
The Event Columns folder contains the following setting
parameters:
Column Label
Defines the label for the column. The text value is a free text
string. The label will be printed as a label for the column.
Start Position
Defines the start position for the column in question. The start
position can be picked from a list. It is also possible to enter the
value from the keyboard.
Length
Defines the length for the column in question. The length can be
picked from a list. It is also possible to enter the value from the
keyboard.
Default Settings
Loads the default settings for the Common Columns settings.
Setting
Explanation
Setting
Explanation
Number of
Columns
Defines the maximum number of columns that can be used in the event
text row. The number of used columns is NOT editable in the current
version.
Column
The column number that is being edited at the moment.
Attribute
Defines the attribute that will be presented in the current column. The
attribute is NOT editable in the current version.
Column Label
Defines the label for the column. The text value is a free text string. The
label will be printed as a label for the column.
§1MRS751885-MUM
LIB 500
91
3. Event List
LIB 500 Operator’s Manual
User’s Guide
3
3.4.10.
Filters
Filters are used when the user wants to display or concentrate on specific
information. Filters are activated from a subdialog in the list. The dialog contains
standard filters that can be selected by the user. The filter dialog provides at least the
following standard filters: all events, event time, per station, per feeder, per object.
It is possible to change the existing filters or add new filters that can be stored and
reused by other operators. The filter dialog contains a specification form where the
user can create new filters or change the existing filters.
For more details about setting filters, please see the LIB 500 Configuration Manual,
Chapter 5. Alarm List and the LIB 500 Operator’s Manual, Chapter 4. Alarm List.
The setting principles and functions are common to the Event and Alarm Lists, and
therefore, they are described only once.
3.4.11.
Comments
The Comments function enables adding, reading and removing of additional
comments to the events. These event specific comments are saved into the history
database with the event data. These comments can be read by all the Event List
readers by opening the comment dialog. A dialog box (see Figure 3.4.11.1.-1) then
presents the comment. The comments can also be printed. Please see the Event
Reports section for details.
3.4.11.1.
Accessing the Comment dialog
You can open the Comments dialog 1) by clicking the Comments button
in
the toolbar or 2) by selecting Comments from the Tools menu and then clicking on
an event line with or without the comment marker
. Events with comment markers
are shown in Figure 3.4.2.-1
Start Position
Defines the start position for the column in question. The start position
can be picked from a list. It is also possible to enter the value from the
keyboard.
Length
Defines the length for the column in question. The length can be picked
from a list. It is also possible to enter the value from the keyboard. If the
length is defined to be zero (0), the length will be equal to the length of
the text that will be presented in the column.
Default Settings
Loads the default settings for the Common Columns settings.
Setting
Explanation
92
§1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
3.
Event List
User’s Guide
)LJ 7KH&RPPHQWVGLDORJ
Table 3.4.11.1-1 Functions in the Comments dialog
Adding a comment
Open the Comments dialog as described earlier in Accessing the Comments dialog.
Point at the event to which you want the comment to be added. When an event is
selected, the Comments dialog appears on the screen.
Write the comment to the dialog and press OK. Comment lines are preserved as
typed. Press Enter after each line. If no comment text is given, no comment mark
will be displayed in the Event List.
Reading and changing a comment
Open the Comments dialog as described earlier in Accessing the Comments dialog.
Select the event for which you want the comment to be read or changed (it is then
assumed that this event is already equipped with a comment marker).
Removing a comment
Open the Comments dialog as described earlier in Accessing the Comments dialog.
To remove the comment, open the comment dialog and press Remove Comment
button.
Used format for comments
The comment text is saved as TEXT data type in the EX attribute of the event with
a length of 255 characters separated ASCII 10 (new_line). Event data is saved in the
History Database (HDB).
Button/field
Function
Remove comment
Removes the comments from the Comment Text field.
Comment text:
The field where to add and read comments.
OK
Closes the dialog and accepts the changes.
Cancel
Discards all the changes and closes the dialog window.
Help
Opens the help window.
§1MRS751885-MUM
LIB 500
93
3. Event List
LIB 500 Operator’s Manual
User’s Guide
3
3.4.12.
Event reports
The Print Event Reports dialog prints the currently listed events to the matrix printer
which is configured as a transparent printer in MicroSCADA. The whole Event List
or a selected page/pages can be printed. The printout contains the same data as the
Event List. Comments can also be included.
3.4.12.1.
Starting the Print Event Reports function
The Print Event Reports function can be started either from:
1) the Event Reports button in the toolbar
2) from the Tools menu by selecting Event Report... (see Figure 3.4.3.-1).
)LJ 7KH3ULQW(YHQW5HSRUWVGLDORJ
Table 3.4.12.1-1 Functions in the Print Event Reports dialog
Transparent printers, which can be found in the printer mapping vector of the current
application, can be selected from the combo box in the upper left part of the dialog.
Please note that if no transparent printers are found, the OK button of the dialog will
not be available and the events cannot be printed.
Button/field
Function
To
Selects the printer.
Print Comments
Prints eventual comments.
Page Range
Selects to print the full event list with all pages or selected pages,
(from-to range) The first and the last pages are given as default, but
the desired pages can be entered into the fields.
OK
Performs the printing.
Cancel
Discards all the changes and closes the dialog window without
printing.
Help
Opens the help window.
94
§1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
3.
Event List
User’s Guide
3.4.13.
User authorization
The default authorization group for the Event List is Event_Handling.
Table 3.4.13-1 The authorization group consists of the following three levels:
3.4.14.
Searching procedure
3.4.14.1.
Reading events from HDB files
All the events that are inside the history time limit (defined in the Settings dialog),
are read into the list until the history length limit is reached. When the history length
limit has been exceeded, the reading of the events is stopped and the Previous
interval button is activated. If the interval is full when new events occur, the oldest
event of the interval will be moved to the previous interval.
Auth. level (min.)
Operations allowed
Engineering (2)
Editing station and bay lists of the filters.
Control (1)
Selecting filters.
View (0)
All other operations.
1MRS751885-MUM
LIB 500
95
4. Alarm List
LIB 500 Operator’s Manual
User’s Guide
4
4. Alarm
List
4.1.
Overview
)LJ $ODUP/LVW7HPSODWH
1MRS751885-MUM
96
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
4.
Alarm List
User’s Guide
)LJ $ODUP/LVW7HPSODWH
4.1.1.
Description
The Alarm List within the LIB 500 Applications displays a summary of the present
alarm situation of the supervised process. Each alarm is normally presented as an
alarm text line, which describes the cause of the alarm in the process. The alarm text
line normally consists of a time stamp, an object id, an object text, a text indicating
the alarm status, as well as a number ranging from 1-7 indicating the alarm class.
Information on configuration is provided in the LIB 500 Configuration Manual,
Chapter 5. Alarm List.
4.1.2.
Features/options
• Two types of Alarm List templates
• User-friendly filters
• Alarm List setting tool for colours and text layout
• Updating/Frozen presentation modes
• Alarm acknowledgement
• Alarm reset function
1MRS751885-MUM
LIB 500
97
4. Alarm List
LIB 500 Operator’s Manual
User’s Guide
4
• Authorization support
• Help in all dialogs
• Visible Alarm Class
4.2.
General description
This chapter explains the basics of the Alarm List and concentrates primarily on
explaining the functionality and the concepts.
4.2.1.
Process database
The process database is the part of the base system where all the registration of
incoming and outgoing process data takes place. The process database also
supervises the current alarm situation of the various process objects by storing
information of process objects with an alarm generating state into a special alarm
buffer. The interface for the alarm handling is the application process database,
which is project specific, but the main functionality of the process database is always
the same.
4.2.2.
Process alarms
The process alarms are alarms that are related to the supervised process, for
example, measurement values exceeding or going below the preset alarm limits,
breakers tripping or getting into a faulty position etc.
4.2.3.
Internal alarms
The internal alarms are alarms caused by the network control system itself. Reasons
for these alarms include communication problems between a communication unit
and a substation, printer device errors, substation getting suspended, etc. These
kinds of erroneous states are detected and converted from internal system messages
to alarms by the System Self Supervision function of LIB 500.
4.2.4.
System alarm
A system alarm is an alarm generated by an external module supervising the Base
System. The external module is working as a Watch Dog for the base system and it
will generate an external alarm if the base system stops. It is not possible to include
this alarm in the Alarm List.
4.2.5.
Alarm acknowledgement
Acknowledgement of an alarm is a way to show that the operator has registered and
identified the alarm. Generally, acknowledging an alarm does not affect the alarm
state. An unacknowledged alarm remains in the alarm buffer until it is
acknowledged, even if the alarm state has passed. A required acknowledgement can
be set individually for each process object (RC attribute).
4.2.6.
Alarm blocking
Alarm blocking blocks a signal so that it cannot generate an alarm. (The same
implies for history blocking, printout blocking and reprocessing blocking.) Since the
alarm is blocked, it is not registered in the MicroSCADA database when the process
object gets into an alarm generating state.
98
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
4.
Alarm List
User’s Guide
It is not possible to block a feature that has not been activated (e.g. alarm, history,
printout and reprocessing features). Alarm blocking is set individually for each
process object (AB attribute).
4.2.7.
Alarm classes
The term alarm class means that the alarms can be grouped into seven equally
significant alarm classes. This feature can be used when the user wants to group
alarms caused by process objects with common properties, e.g. object location.
From the base system point of view there is no internal priority between the different
alarm classes. The alarm classes can also be used when searching alarms from the
alarm buffer. By setting the alarm class (AC attribute) to 0, the alarm function of a
process object is set off. The use of the alarm classes is user-defined.
4.3.
General functionality
This chapter describes the alarm handling mechanism of the process database, the
functionality of the LIB 500 Alarm List and the way in which the alarms are
presented on the list.
There are two ways to start the Alarm List, and the Alarm List works differently
depending on where it is started from. If the Alarm List is started by clicking the
Alarm List button
, all alarms and classes will be shown. If it is started by
selecting Reports/Alarm List/Template x, filters can also be used. When using
filters, only alarms belonging to the filter configuration are shown.
)LJ $ODUP/LVWVWDUWHGIURPWKH5HSRUWVPHQX
4.3.1.
Alarm handling mechanism
An alarm is activated in the following situations:
• An incoming binary signal (BI type process object) changes to an alarming state.
• A double indication (DB type process object) changes to an alarming state, e.g. a
breaker mid state due to a faulty operation.
• An analog measured value (AI type process object) exceeds the alarm limits (the
preset upper and lower limits).
• An object is marked faulty by a process device.
• A system error or communication failure occurs.
If the process object has an alarm function and the alarm is not blocked, information
about the alarming process object (predefined set of attribute values) will be
transferred to the alarm buffer. An alarm remains in the alarm buffer until the object
1MRS751885-MUM
LIB 500
99
4. Alarm List
LIB 500 Operator’s Manual
User’s Guide
4
returns to a non-alarming state and the alarm has been acknowledged, provided that
the object requires an acknowledgement. Process alarms and internal alarms are
handled in the same way, provided that the System Self Supervision function is in
use.
4.3.2.
Filters
Filters are used when the user wants to concentrate on certain information in the
alarm buffer. This is done by defining criteria to filter out unwanted information. A
single criterion or multiple criteria can be used. These criteria include:
• Time (lower and upper time limit, one second accuracy).
• Object identification (support to five levels, default levels: station, bay and
device, names can be read from the process database).
• Function (breakers, disconnectors, measurements etc.).
• Alarm class.
SCIL condition can also be entered manually if there are not enough ready-made
options available.
These criteria can be freely combined to create grid-like filters. Object identification
names (by default station, bay and device names) can be saved into an application
specific text file. In order to avoid unwanted filtering, the filters are reset every time
the Alarm List picture is closed. However, the filter settings (i.e. the selected
combination of filtering criteria) are saved and re-read when the Alarm List picture
is closed and re-opened.
4.3.3.
Alarm List settings
The Alarm List layout should be as configurable as possible, so that operators can
receive the information in the form they desire. The following issues in the LIB 500
Alarm List are user-defined and included in the Alarm List settings tool:
• The length of each text column (except for object identification field).
• The position of each text column (within limits).
• The colour in which each type of alarm is presented (a predefined set of colours).
• The order in which the alarms are presented (the latest alarm on the top or at the
bottom of the Alarm List).
These settings can be saved into an application specific text file. Default settings can
be returned. The length of the object identification column is defined in the
application settings picture.
It is possible to save filters and to open the Alarm List by using preconfigured filters.
4.3.4.
Alarm List presentation modes
The alarm buffer is updated every time the alarm state of a process object changes.
Basically, the Alarm List should be updated at each update of the alarm buffer to
give correct and up-to-date information. However, if the list is updated frequently,
it is almost impossible to concentrate on a single alarm line.
This is the reason why the LIB 500 Alarm List has two presentation modes: frozen
and updating. When the list is in the frozen mode, it is not updated, and the alarm
information can be read undisturbed. If the alarm buffer is updated while the Alarm
100
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
4.
Alarm List
User’s Guide
List is in the frozen mode, the operator is notified with an informative text on the
information bar. When in the updating mode, the Alarm List is updated at every
update of the alarm buffer. The frozen mode is automatically selected when the list
is scrolled or when a tool affecting the alarm buffer is used. The current mode is
always indicated.
4.4.
Presentation
In order to meet customer requirements the LIB 500 Alarm List has two templates:
Template 1 and Template 2. Customers should select one of these templates to be
used as the Alarm List, although the templates have been designed to enable parallel
use. The templates share some of the dialogs while others are template specific.
The Alarm List is started:
1. by clicking the
button or
2. by selecting Reports/Alarm List/Template x/Menu item.
To be able to access the Alarm List by clicking the shortcut button, the button has to
be activated first. To activate the Alarm List shortcut button, copy bgu_events.pic
from the library package lib4/base/event/use under the application uplmod4/use.
When you click the shortcut button, the picture will be opened from the application
(not from the library).
4.4.1.
Template 1
In Template 1, alarms are presented on two separate lists: the upper list contains
active acknowledged and unacknowledged alarms (persisting alarms) while the
lower list contains inactive unacknowledged alarms (fleeting alarms). All the alarms
contained in the alarm buffer are presented. Both lists are scrollable. Figure 4.4.1.-1
presents the Alarm List Template 1.
1MRS751885-MUM
LIB 500
101
4. Alarm List
LIB 500 Operator’s Manual
User’s Guide
4
)LJ
7KH$ODUP/LVW7HPSODWH
4.4.1.1.
Alarm text
In Template 1 each alarm is presented as a single alarm text line. This text line
consists of a time stamp (date and time), an object id, an object text and a status text.
As stated before, the length and position of each text column can be defined within
limits. The colour of each alarm type can be selected from a predefined set of nine
colours.
102
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
4.
Alarm List
User’s Guide
Table 4.4.1.1-1
The default colours and related status texts of the presented
alarm types are as follows:
* = included in persisting alarms
** = included in fleeting alarms
4.4.1.2.
Acknowledgement
Acknowledgement of a single alarm is done by clicking the line of the desired alarm
on the list. If the selected alarm is unacknowledged, the line will be shown
highlighted and the Acknowledgement Dialog in Figure 4.4.1.2.-1 will be opened.
At the same time the Alarm List is set to the frozen mode to prevent unwanted
scrolling.
)LJ 7KH$FNQRZOHGJHPHQWGLDORJ
In the dialog, the alarm text line (except for the status text) is shown to ensure that
the right alarm is acknowledged. If OK is clicked, the alarm will be acknowledged,
the dialog closed, and the Alarm List will be set to the updating mode and also
updated. Cancel only closes the dialog and returns the Alarm List mode that was
valid when the dialog was opened. Help opens the help dialog. All alarms on the list
can also be acknowledged at the same time with the Acknowledge All tool, and the
alarms currently visible on the list can be acknowledged with the Acknowledge Page
tool (see the following chapter).
4.4.1.3.
Paging
Both lists of Template 1 can be scrolled separately. The lists are scrollable only if
there is more than one page (14 lines) of alarms. Scrolling is done with the scroll bars
on the right side of each list. The scroll arrows on the top and at the bottom of the
scroll bars scroll the list one line up or down. The scroll box between the scroll
arrows indicates the number of alarms on each list. If you click under or above the
scroll box, the list will be scrolled by three lines. Lists can also be scrolled by
dragging the scroll box with the mouse.
Alarm type
Default colour
Status text
Explanation
Active unacknowledged*
Red
Alarm
An alarm has been reported,
but it has not been
acknowledged.
Active acknowledged*
White
Ack.
An alarm has been reported,
and it has been
acknowledged.
Inactive
unacknowledged**
Green
Normal
The state has been alarming,
but it is no longer alarming.
1MRS751885-MUM
LIB 500
103
4. Alarm List
LIB 500 Operator’s Manual
User’s Guide
4
4.4.1.4.
Tools
To make alarm handling more effective and convenient, the LIB 500 Alarm List
templates provide a set of tools. As in line with the LIB 500 standard, tools are
opened from the Tools drop-down menu of the Alarm List picture header bar. Figure
4.4.1.4.-1 presents the Template 1 Tools menu. Items ending in three dots open a
dialog and those ending in the symbol > open a cascade menu.
)LJ 7KH7RROVGURSGRZQPHQXRI7HPSODWH
Table 4.4.1.4-1
A short description of each tool in Template 1
The following facts about the tools should be noted:
• Whenever a dialog is opened, all the main picture buttons and scroll bars are not
available (they will be available again when the dialog is closed).
• The Presentation Mode is set to frozen while the Acknowledge or Acknowledge
All tool is being used.
Tool
Description
Filters
Opens a dialog where filters can be selected and edited.
Presentation Mode
Opens a dialog where the presentation mode can be selected.
Settings
Opens a dialog where the Alarm List text and colour settings
can be changed.
Latest Alarm
Scrolls the list to show the latest alarm and sets the mode to
updating.
Acknowledge Page
Acknowledges all the alarms on the current pages (both lists). A
confirmation dialog is opened to confirm the operation.
Acknowledge All
Acknowledges all the alarms on the list. A confirmation dialog is
opened to confirm the operation.
Show Tool Bar
Displays/hides the toolbar.
Help
Opens the LIB 500 help dialog with general help.
104
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
4.
Alarm List
User’s Guide
To provide a shortcut for more experienced users, all tools are also available on the
toolbar in the upper left part of the Alarm List picture. The toolbar can also be hidden
by using the drop-down menu item Show Tool Bar. Figure 4.4.1.4.-2 shows the
toolbar of Template 1.

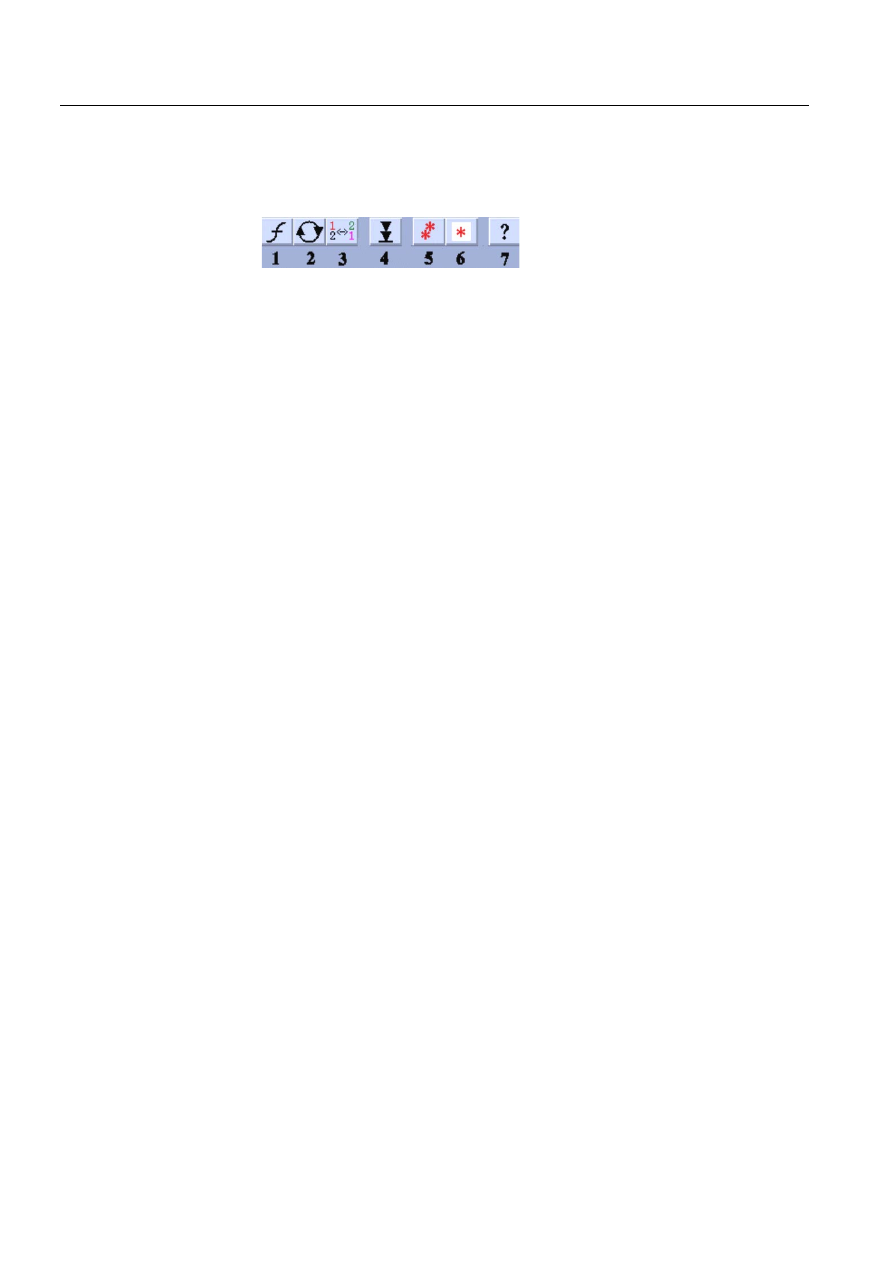

)LJ 7KHWRROEDURI7HPSODWH
The numbers in the picture correspond to the following tools:
1. Filters
2. Presentation Mode (toggles between the updating and the frozen mode)
3. Settings
4. Latest Alarm
5. Acknowledge all
6. Acknowledge current page
7. Help
4.4.1.5.
Other features
Template 1 (as well as Template 2) also has other features than those described
above. These templates include:
• Fields indicating the number of active and unacknowledged alarms.
• A field indicating the use of filters.
• A field indicating the current presentation mode.
• Current/total page number indication on both lists.
4.4.2.
Template 2
Template 2 in the LIB 500 Alarm List has a new approach both for functions and
design. The most significant feature is that while the list is open, inactive
acknowledged alarms are also kept on the list, unless dropped out by using filters.
Due to this, Template 2 functions as a sort of alarm log. The inactive acknowledged
alarms are not included in the alarm buffer, and therefore, these types of alarms are
erased from the list when the Alarm List picture is closed. The same can be done by
using the Reset tool. A few other new tools have been implemented, such as the tool
Acknowledge page.
Additionally, the way of presenting alarms on the list has been renewed. There are
two main changes. Firstly, all alarms are shown on a single list containing 32 lines
of alarms. Secondly, a flashing character “
*
” indicates all unacknowledged alarms,
both active and inactive. Template 2 also has a new scroll page up/down feature.
Template 2 is presented in Figure 4.4.2.0.-1.
1MRS751885-MUM
LIB 500
105
4. Alarm List
LIB 500 Operator’s Manual
User’s Guide
4
)LJ 7HPSODWH
4.4.2.1.
Alarm text and indication
The alarm text itself has the same components and is shown in the same way as in
Template 1. Only the number of alarm types and the indication of acknowledgement
is different. The following table gives the alarm text colours, status texts and the
state on acknowledgement indication of each alarm type.
Table 4.4.2.1-1
Alarm indications
An explanation for the different alarm types is provided in the following table:
Alarm type
Default colour
Status text
Indication
Active unacknowledged
Red
Alarm
Flashing
Active acknowledged
Red
Alarm
Off
Inactive unacknowledged
Green
Normal
Flashing
Inactive acknowledged
White
Normal
Off
106
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
4.
Alarm List
User’s Guide
Table 4.4.2.1-2
Alarm types
4.4.2.2.
Acknowledgement and paging
The acknowledging of alarms in Template 2 is similar to that in Template 1.
Basically, also paging is carried out in the same way, except for the fact that there is
only one list. Page up/down tools have been implemented to enable faster scrolling.
These tools can be used from the drop-down menu or from the toolbar.
4.4.2.3.
Resetting
As stated before, inactive acknowledged alarms, which are not included in the alarm
buffer, are collected to the Alarm List as long as the picture is open. This means that
the alarm information must be processed and sorted by the list itself, not by the alarm
buffer like in Template 1. Thus, Template 2 is somewhat slower than Template 1,
but when the amount of alarms is in reasonable proportions, this should not cause
any problems.
As a matter of fact, inactive acknowledged alarms are not really alarms. The only
reason to keep this type of information on the list is to show that certain process
objects have been in the alarming state and in this way to collect a kind of alarm
history. However, to get up-to-date alarm information, the user should be able to
erase inactive acknowledged alarms from the list. This can be done with the Reset
tool, which returns the contents of the alarm buffer to the list. Closing the Alarm List
picture and opening it again resets the list, too.
4.4.2.4.
Tools
Template 2 has a wider variety of tools than Template 1, but the principle of the
operation is exactly the same. For instance, the same filters are used in both alarm
list templates. The Figure 4.4.2.4.-1 shows the Tools drop-down menu and Figure
4.4.2.4.-2 shows the toolbar of Template 2. The tools are briefly described in
Table 4.4.2.4-1.
Alarm Type
Explanation
Active unacknowledged
An alarm has been reported, but it has not been
acknowledged.
Active acknowledged
An alarm has been reported, and it has been
acknowledged.
Inactive unacknowledged
The state has been alarming, but it is no longer alarming.
Inactive acknowledged
The alarm has been inactivated (the state is normal again).
1MRS751885-MUM
LIB 500
107
4. Alarm List
LIB 500 Operator’s Manual
User’s Guide
4
)LJ 7KH7RROVGURSGRZQPHQXRI7HPSODWH
)LJ 7KHWRROEDURI7HPSODWH
The numbers in the figure correspond to the following tools:
1. Filters
2. Presentation Mode (toggles between the updating and the frozen mode)
3. Settings
4. Latest Alarm
5. Scroll page up
6. Scroll page down
7. Acknowledge all
8. Acknowledge current page
9. Reset
10.Help
Table 4.4.2.4-1
The different tools and descriptions of them
Tool
Description
Filters
Opens a dialog where filters can be selected and edited.
Presentation Mode
Opens a dialog where the presentation mode can be selected.
Settings
Opens a dialog where Alarm List text and colour settings can be
changed.
Latest Alarm
Scrolls the list to show the latest alarm and sets the mode to
updating.
Scroll page up/down
Scrolls the list one page (32 lines) up or down.
108
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
4.
Alarm List
User’s Guide
4.5.
Filters
The ability to create filters in the Alarm List is based on a SCIL feature, which
allows to state conditions when making queries from the process database or from
the alarm and history buffers. The following filtering criteria are typical:
• Time, upper and/or lower time limit.
• Object identification (OI attribute).
• Function (breaker, disconnector, measurement etc.).
• Alarm class (can be used in grouping objects).
It is also possible to give a search condition in SCIL language.
In this chapter, OI attribute is assumed to have its default configuration, which
contains the following fields:
The LIB 500 filters support the division of object identification into five fields. The
configuration of object identification is carried out in SYS_BASCON.COM. If other
than default configuration is used, the information of this chapter must be applied
accordingly.
A single criteria or multiple criterion can be used to create grid-like filters. The
operator can save the filters in order to use them later. The station and bay names
should be produced from the actual application process database so that the filters
could be modified to follow changes in the process.
Acknowledge All
Acknowledges all the alarms on the list. A confirmation dialog is
opened to confirm the operation.
Acknowledge Page
Acknowledges all the alarms on the current page. A confirmation
dialog is opened to confirm the operation.
Reset
Resets the Alarm List to show the contents of the alarm buffer
(inactive acknowledged alarms are erased).
Show Tool Bar
Displays/hides the toolbar.
Help
Opens the LIB 500 help dialog with general help.
Tool
Description
Label
Length (characters)
Station
10
Bay
15
Device
5
1MRS751885-MUM
LIB 500
109
4. Alarm List
LIB 500 Operator’s Manual
User’s Guide
4
4.5.1.
Authorization level
The user will need authorization level 1 or 2 according to the following to be able
to use or create filters:
Table 4.5.1-1
Authorization levels
4.5.2.
Main filters’ functionality
When you open the dialog box, active filters will be shown (Figure 4.5.2.-1). Figure
4.5.2.-1 shows the Filters main dialog with the items in their default states. As shown
in the picture, object identification combo boxes are given the label defined in
SYS_BASCON.COM. If an OI field is given a zero length, the corresponding
combo box is set insensitive and given the label (none).
)LJ
7KH)LOWHUVGLDORJ
If the option Not In Use has been selected for the Lower and/or the Upper Time
Limit in the upper part of the Filters dialog, the limits can be set by clicking the Edit
button and by entering the desired date and time in the dialog box which appears on
Authorization Level
Rights
0
The user cannot select or create filters.
1
The user can select ready made filters.
2
The user can select and create filters.
110
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
4.
Alarm List
User’s Guide
the screen (See Figure 4.5.3.-1 and Figure 4.5.3.-2). In case the option In Use has
been selected for the Lower and/or the Upper Time Limits in the Filters dialog, the
fields below are unavailable but indicate the selected date and time.
If the option button Selective Filters has been selected, only the options concerning
the substation in the drop-down combo box can be selected. This means that only
bays that belong to the station, are available in the Bay combo box. Similarly, only
devices that belong to the selected bay, can be selected in the Device combo box. If
the option button Unselective Filters has been selected, the options concerning Bay
and Device can be selected in the respective drop-down combo boxes without
limitations. It is, for example, possible to select a device without selecting a bay or
a station. As a result, all the devices with the selected name will be displayed in
filtered data, regardless of the bay or station. The lower part of the Filters dialog
contains the drop-down combo boxes where it is possible to select one alarm class
out of the seven available alarm classes, e.g. Substation, Function and the Alarm
class.
Click the More button in the Filters dialog box to view the options provided (Save
Proconf..., Load Preconf.., SCIL Condition…). See Fig. 4.5.2.-2:
)LJ
7KH0RUHGURSGRZQFRPERER[GLDORJ
To save the active filter configuration into a file, select the command Save
preconf… from the More… menu of the filter dialog. The Save Preconfiguration
dialog is opened and you can type a name for the filter (Figure 4.5.2.-3). To rename
or delete the existing filter, first click the filter name in the list box, then press the
Rename or Delete button. When renaming the filter, a dialog is opened for entering
a new name. When deleting a filter, a dialog is displayed for confirmation. Note that
deleting or renaming the filter will not be possible if the edit box is clicked for typing
a name for the filter. It is only possible to close the dialog by using the OK or Cancel
button in this case.
1MRS751885-MUM
LIB 500
111
4. Alarm List
LIB 500 Operator’s Manual
User’s Guide
4

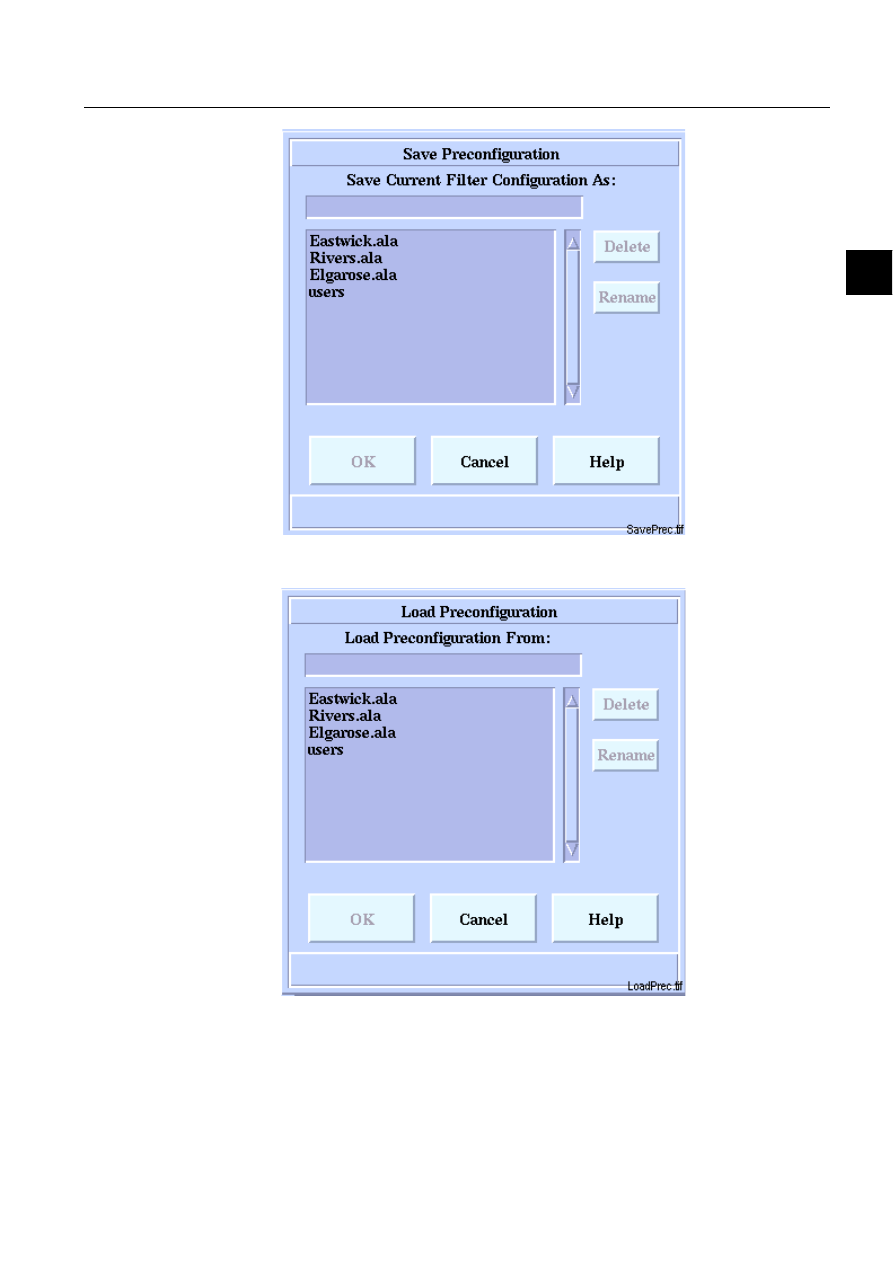

)LJ6DYH3UHFRQILJXUDWLRQGLDORJER[
)LJ
/RDG3UHFRQILJXUDWLRQGLDORJER[
To load a preconfigured filter from a file, select the command Load preconf… from
the More… menu of the filter main dialog. A dialog, where all the saved filters are
listed, will open (Figure 4.5.2.-4). Click a filter name in the list to be loaded, then
112
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
4.
Alarm List
User’s Guide
press OK. After this, the Load dialog is closed and the selected filter is loaded to the
main filter dialog. To activate the filter, press the OK button in the main filter dialog.
Deleting and renaming a preconfigured filter is not possible in the Load dialog.
These functions are available only in Save Preconfiguration dialog.
4.5.3.
Time filters
There are two pairs of radio buttons in the upper part of the filters main dialog by
which the Upper and Lower Time Limits can be set on/off. If the Lower Time Limit
is not in use (off), the alarms will be presented from the oldest alarm on. If the Upper
Time Limit is not in use, the alarms will be presented up to the latest alarm. Only
when a time limit is in use, the corresponding time field and the Edit button are
available. By default, the current time (the time when the main dialog is opened) is
shown in both time fields. This is possible, unless one or both of the time limits is/
are in use, in which case the value in question will be set.
The clicking of the Edit button opens the Edit Time dialog, by which the time limits
can be edited. The dialog title text indicates which time limit is being edited. Each
time unit value can be changed either by inserting a new value to the field or by
clicking the arrow buttons beside each field. These buttons set the corresponding
value up or down by one unit. If the inserted value is not valid, the previous value
will be returned. The earliest possible year is 1978 and the latest 2045; other time
units have their “natural” limits. The different number of days in different months
has been taken into account. The OK button applies the value to the main dialog and
closes the dialog. Cancel only closes the dialog.

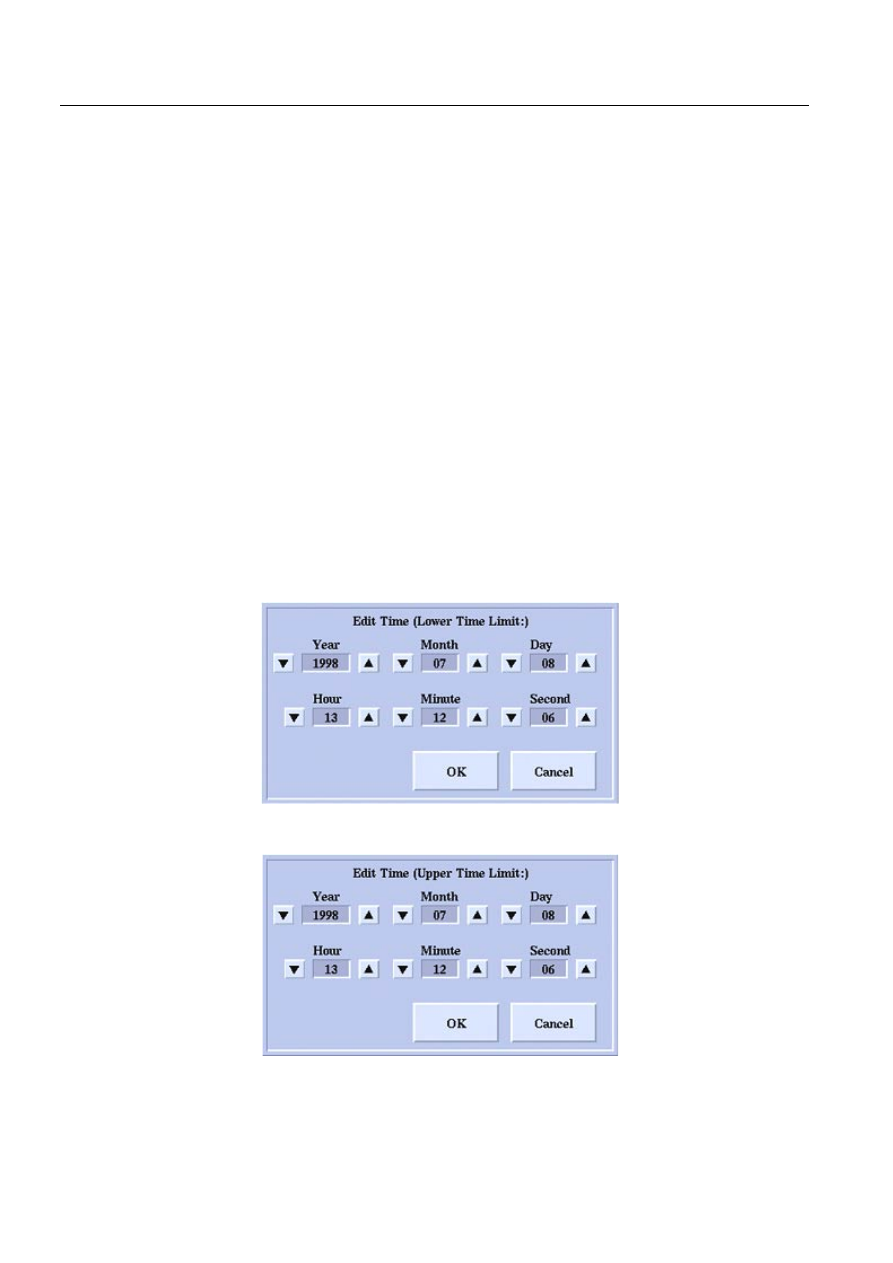

)LJ
(GLW7LPH/RZHU7LPH/LPLWGLDORJ
)LJ
7KH(GLW7LPH8SSHU7LPH/LPLWGLDORJ
1MRS751885-MUM
LIB 500
113
4. Alarm List
LIB 500 Operator’s Manual
User’s Guide
4
4.5.4.
Selecting objects to the filter configuration
Search filtering can be done with the help of the five combo boxes. If Selective
filters are in use, the lower level becomes active when the upper level has been
selected. If Unselective filters are in use, all the combo boxes that are configured to
be used in the system, are active. The option All means that all signals below the
level are included.
4.5.5.
Function and alarm class
These lists differ from the object lists since they are not editable and they are not
saved into a file. This is to simplify modifications. The number of the selected alarm
class refers directly to the alarm class of the alarms to be shown on the Alarm List.
Any combination between these two lists is possible.
4.5.6.
Menu shortcut configuration for filters
It is possible to configure a filter with a certain name to be loaded when the shortcut
command in the menu bar is selected. The preconfigured names can be used, for
example, to define a dedicated filter for each bay.
For more information, please refer to LIB 500 Configuration Guide, Chapter 5.
Alarm List.
4.6.
Settings
The ability to change the layout of the Alarm List is based simply on the use of
variables such as the alarm type colour numbers, text column positions and string
lengths. These settings can be saved into an application specific text file and they
can also be read from there. Therefore, the settings which were once selected will
not be lost.
4.6.1.
Colour settings
The Alarm List colours are so-called M-scope colours. These colours are monitor
specific, i.e. used by all pictures shown in the monitor in question.They can also be
determined with the TOOL Colour Settings picture by changing the RGB
components of the colours. The M-scope colours are identified by a number, for
example, 16 equals to red in
³0´. By giving a new value, each colour used in the
Alarm List can be changed. Since these colours can be remixed, they must be
selected from a colour palette instead of the written colour names to avoid
confusion.
4.6.2.
Text settings
In the Alarm List settings tools the starting position of each of the five text columns
(date, time, object id, object text and status text) is given in semigraphic characters
(16*20 pixels). A ruler indicating the current column positions and setting limits is
also shown.
To avoid excessive string lengths, an upper length limit is determined for each
column. Since four of the five columns consist of attribute values, the maximum
lengths of the attributes provide these limits. It must be noted that as a proportional
font is used, the function between the column lengths and positions is not linear, i.e.
114
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
4.
Alarm List
User’s Guide
different characters require a different amount of space. As stated before, the length
of the object identification column is determined in the application settings picture.
4.6.3.
Main settings functionality
The two Alarm List Templates have settings dialogs of their own but since the
difference is limited to the amount of alarm types, both of the dialogs can be
described at the same time.
)LJ
7KH6HWWLQJVGLDORJRIWKH$ODUP/LVW7HPSODWH
When the dialog is opened (Figure 4.6.3.-1), active settings are shown.
As it can be seen in Figure 4.6.3.-1, the Settings dialog has two main parts, Text
Settings and Colour Settings. The former contains length (except for the OI column)
and position fields for each of the five Alarm List text columns. There is also a pair
of radio buttons which can be used to determine the drawing order of the Alarm List,
i.e. whether the latest alarm will be shown on the top or at the bottom of the list. The
Colour Settings part includes colour palettes for each alarm type.
4.6.4.
Colour settings
This is where the settings dialogs of the two Templates differ: since inactive
acknowledged alarms are not included in Template 1, its setting dialog has only
three colour palettes while Template 2 has four. With these palettes the user can
select a drawing colour for each alarm type from a set of nine M-scope colours.
Figure 4.6.4.-1 shows an example of the colour palette.
1MRS751885-MUM
LIB 500
115
4. Alarm List
LIB 500 Operator’s Manual
User’s Guide
4
)LJ
2QHRIWKHFRORXUSDOHWWHVLQWKH6HWWLQJVGLDORJ
4.6.5.
Text settings
Three different properties of the Alarm List can be modified with the Text Settings
part of the Settings dialog: 1) the position of each text column, 2) the length of each
text column (except for the OI column) and 3) the order of the alarms on the list. The
column lengths are shown in the fields on the upper left part of the dialog. A new
value can be inserted into each field. If it is between 0 and the preset upper limit
(given later), it will be accepted, otherwise the old value will be returned.
The fields on the upper right part of the dialog contain the position of each column
in semigraphic characters. A new value can also be inserted here. If the value is
valid, i.e. the value is between the preset upper and lower limit (given later) and the
order of the columns from left to right does not change, the new value will be
accepted, otherwise the old value will be returned. In order to illustrate the positions
and limits, the ruler in Figure 4.6.5.-1 will be shown when the Settings dialog is
opened. The lighter grey area in the ruler represents the range of limits and the black
triangles represent the current positions.
)LJ
7KH$ODUP/LVWWH[WUXOHU
The following table contains the text settings limits of both Alarm Lists Templates.
These limits are set to prevent the use of irrational settings. Due to a slightly different
layout of the Templates, also the limits are somewhat different.
4.6.6.
Saving and reading settings
Clicking OK in the Settings dialog saves the settings into the same text file they were
read from.
The settings tool also has a mechanism to return the default settings to the dialog and
to the Alarm List. This feature is implemented in order to ensure that the original
values can be returned whenever needed. This function can be utilised in cases when
the settings made by the user are incorrect or need restoration. Please note that no
settings are saved to the default settings files. Cancel and Help buttons function as
in the Filters main dialog.
The column. pos limits (sg) The length limit of column (char.)
Template
Lower
Upper
1
2
3
4
4
1
1
63
8
12
-
30
10
2
3
65
8
12
-
30
10
116
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
4.
Alarm List
User’s Guide
4.6.7.
OI column settings
In alarm list 1.5 there is a possibility to set the object identifier (OI) column to be
displayed as up to 5 “subcolumns”. This means that the OI fields are presented as
separate, left-aligned columns. This feature will be taken into use automatically, if
the list is using default settings. If the settings are not visible when you open the list,
open the Settings dialog and press the Default settings button.
The columns are treated as one column in the Settings dialog. When the OI column
position is set in the Settings dialog, all the OI fields are moved accordingly. For
information how to configure the column widths or disable the feature, see the LIB
510 Configuration Guide, Chapter 5. Alarm List.
1MRS751885-MUM
LIB 500
117
5. Blocking List
LIB 500 Operator’s Manual
User’s Guide
5
5. Blocking
List
5.1.
Overview
)LJ 7KH%ORFNLQJ/LVWPDLQYLHZ
5.1.1.
Description
The Blocking List within the LIB 500 Applications summarizes the present blocking
situation of the signals of the supervised process. Each signal is presented as a signal
text line, which describes the signal in the process. The signal text line normally
consists of a signal text and a group of check boxes indicating the blocking state.
5.1.2.
Features/options
• Easy signal selection.
• Selection of signal(s) for blocking/deblocking.
• Blocking List setting tool for the view layout.
• Printout of blocking situation.
• Event and printout enabling/disabling.
1MRS751885-MUM
118
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
5.
Blocking List
User’s Guide
• Authorization support.
• Help in all dialogs.
5.2.
General description
This chapter explains the basics and the functions of the Blocking List.
5.2.1.
Process objects and signals
The process database is the part of the Base System where all the registration of
incoming and outgoing process data takes place. Each process device is represented
in the database as a group of process objects, which provides a data image of the
physical device.
On the other hand, process objects form a link between MicroSCADA and the
physical device. Setting the values of the process objects carries out the control
commands. The indication signals are also stored as process object values. From this
point of view, process objects can be regarded as input and output signals, which
will be the targets of the blocking activity.
5.2.2.
Blocking attributes and blocking types
The MicroSCADA version 8.4.3 provides a wide range of blocking attributes, which
are included in the Blocking List. To provide a blocking handling mechanism in a
more clear and rational way, the following blocking types are provided by the LIB
500 Blocking List:
• Alarm blocking: alarms are not raised, regardless of the object state.
• Update blocking: indications are not updated by the process.
• Control blocking: operation commands are not sent to the process.
• Event blocking: event registrations are not made, events are not shown on the
event list.
• Printout blocking: events are not sent to the printer.
• Reprocessing blocking: event channel activation is blocked.
Figure 5.2.2.-1 shows the Bay Blockings dialog as an example.
1MRS751885-MUM
LIB 500
119
5. Blocking List
LIB 500 Operator’s Manual
User’s Guide
5
)LJ
7KH%D\EORFNLQJVGLDORJ
5.3.
Functional description
This chapter describes the blocking handling mechanism of the process database and
the functionality of the LIB 500 Blocking List.
5.3.1.
Blocking attribute handling
As stated before, simply setting the corresponding blocking attribute value to 0 or 1
performs the blocking and deblocking of a signal. This, and the fact that there is no
tag in the database indicating when an individual signal has been blocked or
deblocked, means that the Blocking List cannot be a dynamic picture. Polling the
blocking attributes of all the signals in the database at regular intervals would be a
too heavy load for the system. A Refresh function is provided to enable updating of
the blocking information.
Finally, the blocking activity must be expanded to the signal level. The reason for
this is that, for example, in case of an oscillating signal, the user must be able to
block it but leave the other signals (related to the device in question) unblocked to
minimize the information loss. Blocking should be possible in two ways: 1) the user
should be able to set the blocking state of each signal presented on the list and 2) the
user should be able to fetch any signal from the database and set its blocking.
When a signal is update-deblocked, its state in the database is not necessarily up-to-
date, since the state of the process device may have changed while the signal has
been update-blocked. Therefore, the state of each signal must be updated from the
process when the signal is update-deblocked. This can be done by a command
procedure similar to the one used by the LIB 500 picture functions in the same
situation.
5.4.
Human Machine Interface
The Human Machine Interface (HMI) of the LIB 500 blocking handling consists
mainly of the Blocking List main picture and of various dialogs and subdialogs.
Figure 5.4.1.-1 presents the main picture.
120
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
5.
Blocking List
User’s Guide
5.4.1.
Main picture functions
A signal with required properties (at least one non-zero blocking attribute value) is
presented on the Blocking List in form of a text line (See Figure 5.4.1-1). This text
line consists of a signal text (5) (the OI and OX attributes of the process object) and
a row of check boxes (3) indicating the blocking state of the signal. An X in the
check box means that the corresponding blocking is set to the signal. In addition to
the check boxes, the blocking state is also indicated by the colour of the signal text
line. The default colours correspond to those in the LIB 500 picture functions and
are listed below in an ascending priority order:
• Brown: control blocked.
• Yellow: alarm, event, printout or reprocessing blocked.
• Magenta: update blocked.
At the bottom of the picture there is a row of fields (8) indicating the number of
signals within each blocking type. Please note that since a signal can have more than
one blocking type set on, the sum of the numbers shown in the above-mentioned
fields has no meaning.
The length of the list is 32 lines per page. The current page and the total number of
pages is shown in the page number field (4). If there are more than 32 signals on the
list, the list can be scrolled by the scroll arrows (7), by clicking below or above the
scroll box (6), by dragging the scroll box, or by using the (2) arrow buttons of the
toolbar or the corresponding items of the Tools menu (1). The Blocking List tools
will be described in detail in the following two sections.
1MRS751885-MUM
LIB 500
121
5. Blocking List
LIB 500 Operator’s Manual
User’s Guide
5

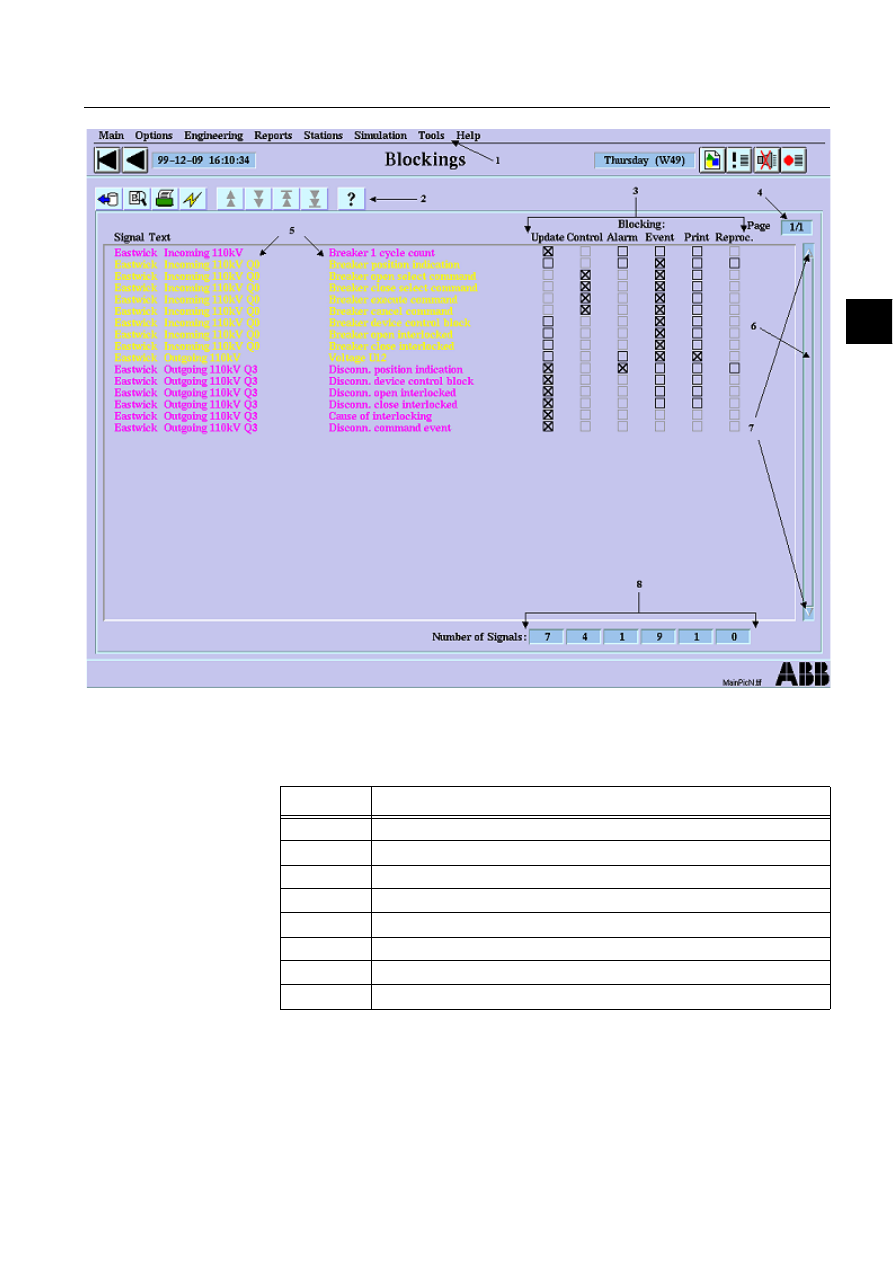

)LJ
7KH%ORFNLQJ/LVWPDLQSLFWXUH
Table 5.4.1-1
Explanations to Figure 5.4.1.-1:
Number
Explanation
1
Tool menu for Blocking List.
2
Push buttons.
3
Check boxes indicating the blocking state of the signal.
4
Current page and the total amount of pages.
5
Signal text.
6
Scroll box.
7
Arrows for scrolling the page up or down.
8
Fields presenting sum of signals for each blocking type.
122
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
5.
Blocking List
User’s Guide
5.4.1.1.
Toolbar and Tools menu
All the tools (except for the signal blocking state) can be used either by clicking the
shortcut buttons in the toolbar or by selecting the corresponding items in the Tools
menu.
Table 5.4.1.1-1
The Blocking List toolbar:
Figure 5.4.1.1.-1 presents the Blocking List Tools menu which contains the same
functions as the toolbar. The toolbar can be temporarily hidden and all the tools can
still be used by the Tools menu items.
Button
Function
Selective signal blocking.
View.
Print blockings.
Refresh.
Scroll the page up.
Scroll the page down.
Go to the beginning.
Go to the end.
Help.
1MRS751885-MUM
LIB 500
123
5. Blocking List
LIB 500 Operator’s Manual
User’s Guide
5
)LJ 7KH%ORFNLQJ/LVW7RROVPHQX
5.4.1.2.
Other Blocking List tools
The other Blocking List tools are:
• Refresh: updates the Blocking List.
• Scroll page up/down: scrolls the list 32 lines up/down, if there are more than 32
signals on the list.
• Go to the beginning/end: scrolls the list to the first/last signal, if there are more
than 32 signals on the list.
5.4.2.
Blocking List tools and dialog functions
5.4.2.1.
Signal Blocking State
By simply clicking the line of the signal in question, you can set the blocking state
of each signal shown on the list. This shows the line highlighted and opens the Signal
Blocking State dialog of Figure 5.4.2.1.-1. This dialog has two columns of radio
buttons, which indicate the blocking state of the signal. If the Block button is set, the
signal will be blocked, otherwise the Deblock button will be set. Since a signal can
be either of indication or control type, the pair of radio buttons corresponding to
either one of the blocking types is unset and unavailable, depending on the signal.
The blocking state of the signal can be set with the radio buttons. By clicking the OK
button, the selections are set, the Blocking List is updated and the dialog is closed.
The Cancel button redraws the list (the highlight effect is removed in this way) and
closes the dialog. Help opens the LIB 500 Help dialog with an appropriate help text.
Please note that if all the blockings are deblocked, the signal will be removed from
the Blocking List. If a non-internal signal is in the update-deblocked mode and it is
connected to a process, its state will be updated. Please also see Chapter 5.5.3
concerning the blocking conditions.
124
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
5.
Blocking List
User’s Guide
)LJ 7KH6LJQDO%ORFNLQJ6WDWHGLDORJ
5.4.2.2.
Print Blockings
The Blocking List provides a printout option for a printed “snapshot” of the blocking
situation. You can select this option by clicking the printer push button
or by selecting Print in the Tools menu.
This Blocking List function requires that there is a printer in the printer mapping
vector of the current application configured as a transparent printer. The Print
Blockings dialog is presented in Figure 5.4.2.2.-1.
)LJ 7KH3ULQW%ORFNLQJVGLDORJ
The numbers of all the transparent printers found are shown in the combo box, where
the target printer can also be selected. The field next to the combo box indicates the
number of lines printed on each page. The default value is 63 and the range is from
1 to 999. A header and a footer are also printed on each page. The blocking state of
each signal is indicated by using the blocking type abbreviations stated in the
previous chapter.
1MRS751885-MUM
LIB 500
125
5. Blocking List
LIB 500 Operator’s Manual
User’s Guide
5
Table 5.4.2.2-1
An example of a typical printout is shown below:
The OK button sends the printout to the target printer and closes the dialog. The
Cancel button only closes the dialog. Help opens the LIB 500 Help dialog with an
appropriate help text.
5.4.2.3.
Blocking List Settings
The settings part of the Blocking List functions consists of two main parts: view and
event/printout settings. The user can concentrate on one or more blocking types by
excluding the other blocking types from the list with the view part of the Blocking
List Settings dialog (shown in Figure 5.4.2.3.-1).
Concerning the presentation of the Blocking List Settings, the dialog has a HMI like
the previous dialog. When the dialog is opened, the radio buttons indicate the current
view, and the same buttons can be used to include or exclude blocking types. At least
one blocking type must be included, otherwise the OK button will not be available.
The current view is also the master switch of all the Blocking List activities: only
those blocking types within the current view are included in the blocking,
deblocking and printing activities. If a blocking type is not within the current view,
the corresponding radio buttons in all Blocking List dialogs will be unavailable.
The two toggle buttons in the lower part of the dialog determine whether an event
and/or a printout is enabled, and when signals are blocked or deblocked by using the
Blocking List. Events and printouts are enabled/disabled regardless of the attributes
(e.g. HE and PB) of the target signal.
The OK button sets the selected settings to the Blocking List and closes the dialog.
The Cancel button only closes the dialog. Help opens the LIB 500 Help dialog with
an appropriate help text.
Blockings in application: LIB500 Printed: 99-11-22 11:34:07
Killink. Ähtäri RELAY CH4 INPUT UB AB EB PB RB
Killink. Ähtäri RELAY CH5 INPUT PB RB
Killink. Ähtäri RELAY CH6 INPUT PB RB
Killink. Ähtäri TR1 Tap position PB RB
Killink. Ähtäri TR1 Tap ch. manual / auto ind. PB EB RB
Killink. Ähtäri F01 Current L1 AB
Page 1
126
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
5.
Blocking List
User’s Guide
)LJ 7KH%ORFNLQJ/LVW6HWWLQJVGLDORJ
5.4.2.4.
Selective Signal Blocking
The Selective Signal Blocking tool of the Blocking List fulfils the other basic
purpose of the Blocking List: the ability to fetch an individual signal or any group
of signals, previously blocked or not, from the database and set the blocking state of
these signals. This tool consists of three dialogs: the main dialog (Figure 5.4.2.4.-1),
the Search Signals dialog (Figure 5.4.2.4.-2) and the Select Blockings dialog (Figure
5.4.2.4.-3).
You can select this option by clicking the
push button or by choosing
Selective Blocking in the Tools menu.
The Selective Signal Blocking main dialog has a HMI similar to that of the LIB 510
Trend basket. The dialog has two lists: the one to the left with a title “Signals”
contains the signals fetched from the database and the one to the right with a title
“Selected Signals” contains the signals selected to be blocked or deblocked. On both
of these lists, each signal is presented as a three-line block (an OI attribute, an OX
attribute and a dashed line to separate the signals). Both lists are scrollable.
Table 5.4.2.4-1
The buttons in the Selective Signal Blocking dialog have the
following functions:
Button
Function
Add All
This button adds all the signals from the Signals list to the Selected
Signals list.
Add
This button adds the selected signals from the Signals list to the
Selected Signals list.
Remove
This button removes the selected signals from the Selected Signals
list.
1MRS751885-MUM
LIB 500
127
5. Blocking List
LIB 500 Operator’s Manual
User’s Guide
5
)LJ 7KH6HOHFWLYH6LJQDO%ORFNLQJPDLQGLDORJ
The Search Signals dialog is a tool by which the signals can be fetched from the
database. Navigation is based on the OI attribute, which by default consists of the
following three parts: a station name (10 characters), a bay name (15 characters) and
a device name (5 characters). Up to five parts of the OI attributes are supported.
When the dialog is opened, it reads the label and the length of each of the three parts
from APL:BSV(15). The station, bay, device etc. names of the desired signal(s) can
be entered into the dialog fields, but the following rules must be followed:
• The bay and device name fields can be left empty if the desired signal has no bay
or device name (e.g. station L/R switch signal).
• An asterisk (*) can be given as a bay and/or device name to indicate a free name.
Remove All
This button removes all the signals from the Selected Signals list.
Search Signals
This button opens a dialog to search for signals in the database.
Select Blockings
This button opens a dialog to set the blocking state of the selected
signals.
OK
This button sets the selected blockings to the selected signals,
updates the Blocking List and closes the dialog.
Cancel
This button closes the dialog.
Help
This button opens the LIB 500 Help dialog with an appropriate help
text.
Button
Function
128
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
5.
Blocking List
User’s Guide

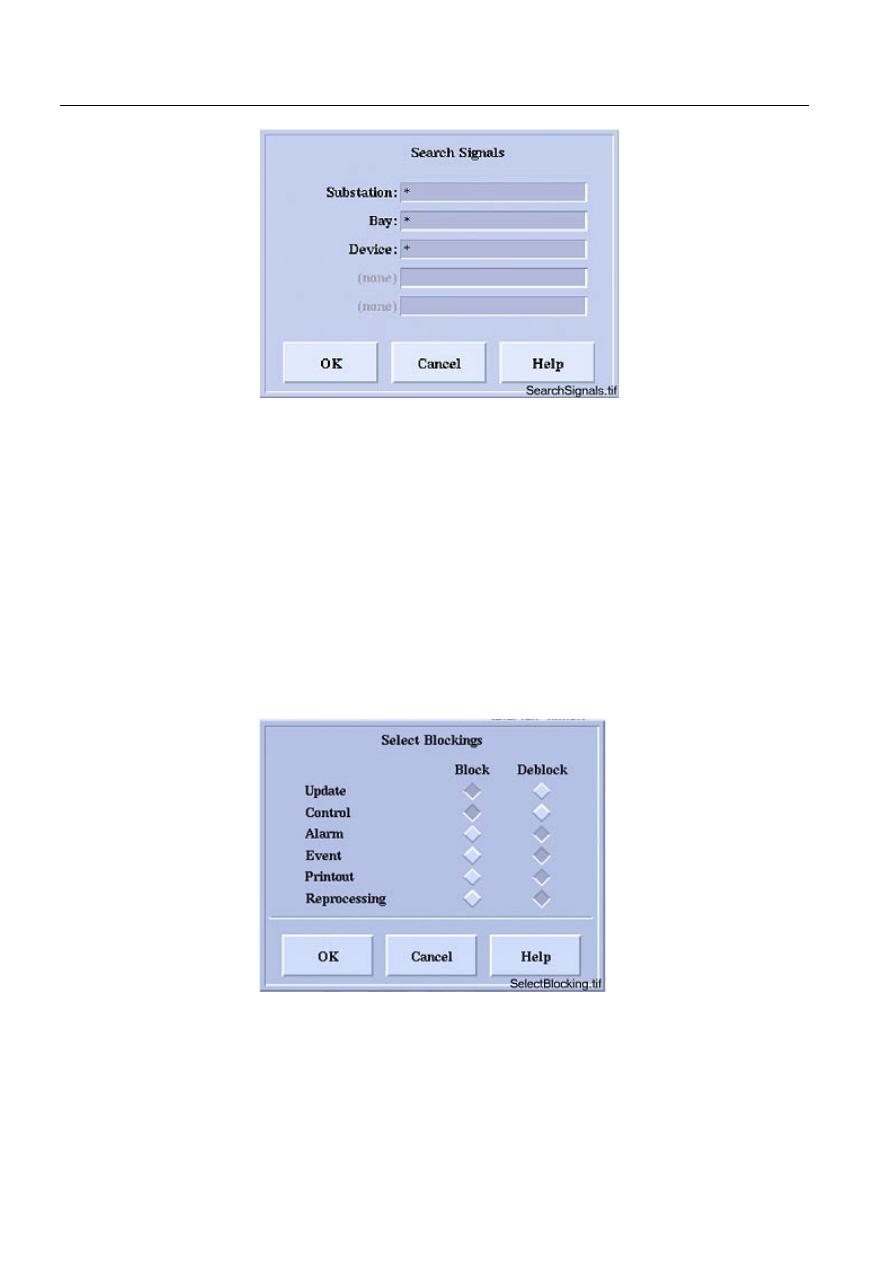

)LJ 7KH6HDUFK6LJQDOVGLDORJ
The OK button searches for the signals, sets them to the Signals list of the main
dialog and closes the dialog. The Cancel button only closes the dialog. Help opens
the LIB 500 Help dialog with an appropriate help text.
The blocking state of the selected signals can be set with the Select Blockings dialog.
When the dialog is opened, the radio buttons are set to indicate the blocking state of
the selected signals. If the Block button of a blocking type is set, it means that all the
signals have been blocked. On the other hand, if the corresponding Deblock button
is set, it means that none of the signals has been blocked. If only some of the signals
have been blocked, both radio buttons are in non-set position. Furthermore, if all the
signals represent the indication type, the control blocking buttons are unavailable.If
all the signals represent the control type, the update blocking buttons are
unavailable. If blocking is not possible, the buttons are up and the text is dimmed.
Please also see Chapter 5.5.3 concerning the blocking conditions.
)LJ7KH6HOHFW%ORFNLQJVGLDORJ
The OK button sets the selected blockings to the main dialog and closes the dialog.
The Cancel button only closes the dialog. Help opens the LIB 500 Help dialog with
an appropriate help text. It must be noted that the blockings are set to the actual
signals when OK is clicked on the main dialog. If a non-internal signal is set to be
1MRS751885-MUM
LIB 500
129
5. Blocking List
LIB 500 Operator’s Manual
User’s Guide
5
in the update-deblocked mode and it is connected to a process, its state will be
updated by the process.
5.4.3.
User authorization
The Blocking List belongs to the user authorization group GENERAL. All blocking/
deblocking and printing activities require at least level 1 (Control) authorization. All
dialogs can be opened and the View can be set with the authorization level 0 (View).
5.5.
Application engineering information
5.5.1.
Blocking attributes and blocking types
The MicroSCADA provides a wide range of blocking attributes, which are included
in the Blocking List. To provide a blocking handling mechanism in a more clear and
rational way, the following blocking types are provided by the LIB 500 Blocking
List:
• Alarm blocking (AB): alarms are not raised, regardless of the object state.
• Update blocking (UB): indications are not updated by the process.
• Control blocking (CB): operation commands are not sent to the process.
• Event blocking (EB): event registrations are not made, events are not shown on
the event list.
• Printout blocking (PB): events are not sent to the printer.
• Reprocessing blocking (RB): event channel activation is blocked.
It must be noted that the abbreviations in the list above are not process object
attributes, but abbreviations used in the LIB 500 Blocking List. To clarify the
connection between the blocking types and the attribute values, they are given
together in the following table.
Table 5.5.1-1
Blocking types and their attribute values
5.5.2.
Blocking in LIB 500 picture functions
The LIB 500 picture functions have a blocking functionality by which the process
objects can be blocked on the following levels: station, bay and device. For example,
blocking on the bay level means that all process objects (except for the internal
objects) within the bay in question are blocked. The process objects are in this case
identified by their OI attribute, which by default has the following three parts: a
station name (10 characters), a bay name (15 characters) and a device name (5
characters). In this way, all process objects within each station, bay and device can
be found in the database. Blocking is handled by a special blocking dialog, which
Blocking type
Attribute values
Alarm blocked
AB = 1
Update blocked
UB = 1
Control blocked
UB = 1
Event blocked
HB = 1
Printout blocked
PB = 1
Reprocessing blocked
XB = 1
130
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
5.
Blocking List
User’s Guide
can be opened with the More button in the control dialog. Figure 5.2.2.-1 shows the
Bay Blockings dialog as an example.
Internal objects are process objects used internally by the LIB 500 picture functions,
for example for alarm generation. These objects have no connection to the physical
process. Internal objects are identified by their RX attribute.
5.5.3.
Blocking conditions
A blocking can be made only if an alarm class has been defined for it.
The values of the process object attributes are viewed to judge whether it is
reasonable to make a blocking for it or not.
The following conditions apply for blockings. These conditions have been defined
for blockings in order to prevent unnecessary operations.
Table 5.5.3-1
Conditions that apply for blockings
Blocking type
Condition
Alarm blocking
Alarm blocking is possible when AC
≠
0.
Printout blocking
Printout can be blocked (a printer has been defined) when
LD
≠
0.
Reprocessing blocking
Reprocessing blocking is possible when AE
≠
0.
Event blocking
Event blocking is possible when HE
≠
0.
Update blocking
Update blocking is always possible for an input object.
1MRS751885-MUM
LIB 500
131
6. System Self Supervi-
sion
LIB 500 Operator’s Manual
User’s Guide
6
6.
System Self Supervision
6.1.
Overview and description
The LIB 500 System Self Supervision (SSS) is used with the MicroSCADA systems
for supervising and monitoring the system. It provides status information of
hardware and software, as well as picture functions for the supervision of system
objects.
The LIB 500 System Self Supervision consists of:
• Supervision Base (SSS Backbone)
• Supervision Monitoring (SSS HMI)
The Supervision Base and the Supervision Monitoring are to be seen as independent
components. The SSS Backbone functionality includes the basic functions of the
System Self Supervision and it can be used in several system environments.
The Supervision Base operates without the presence of the Supervision Monitoring
part.Therefore, it can be used in various system environments (SYS 500, SMS 510
and COM 500).
The Supervision Monitoring includes the HMI, which provides a set of supervised
picture functions that can be inserted to the system supervision picture. The
Supervision Monitoring part is attached to the Supervision Base through the process
database, i.e. indications for the object’s state is used as an interface between the
Supervision Base and the Supervision Monitoring part. The SSS HMI provides the
monitoring part of the System Self Supervision and it can be used only in the LIB
500 environment.
)LJ 7KH6\VWHPFRQFHSWGHVLJQIRUWKH6\VWHP6HOI6XSHUYLVLRQ
6.1.1.
Features/options
6.1.1.1.
Supervision Base (SSS Backbone)
The main function of SSS Backbone is to provide the mechanism for routing
supervision information into the MicroSCADA process database from the process
devices and other supervised objects. More information can be found in the LIB 500
Configuration Manual, Chapter 8. System Self Supervision.
The Supervision Base (See Figure 6.1.1.1.-1) consists of:
1MRS751885-MUM
132
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
6.
System Self Supervision User’s Guide
• Process objects which receive system messages from the MicroSCADA
communication units; indicate the object’s state and generate events and alarms.
• Command procedures, event channels and time channels which perform the
actual supervision routing and information interpreting (Supervision Routing
Interpreter).
• A text file for language dependent signal texts in the database and for log events
shown in the Supervision Log.
• Initialization files for storing the configuration data and event filtering
information.
• A text file which contains the configuration data for the general parameters of the
System Self Supervision.
• Text files which contain the source code for the command procedures.
• Text files related to System Configuration Manager.
• Viewer for log events (Supervision Log).
It includes:
• All the common system message points.
• Event channels for predefined events.
• Command procedures and indication points for handling system messages and
events.
• Indication points for handling system messages and events.
It provides the status information of the:
• Hardware.
• System components.
• Communication equipment.
• Process control.
• Protection units.
1MRS751885-MUM
LIB 500
133
6. System Self Supervi-
sion
LIB 500 Operator’s Manual
User’s Guide
6
)LJ 7KH6\VWHP&RQFHSW'HVLJQRIWKH666%DFNERQHSDUW
6.1.1.2.
Supervision Monitoring (SSS HMI)
The main function of the SSS HMI is to provide the visual monitoring part for
supervision of the running system, using the system supervision picture.
Supervision Monitoring provides following components (See Figure 6.1.1.2.-1):
• Monitor
• Base System
• Application
• Communication unit (NET)
• Communication unit line (NET line)
• Station
• LON Clock Master (SLCM)
• Printer
Each component, i.e. picture function, can be installed on the system supervision
picture and configured according to the supervised system. The state of the
supervised system objects (i.e. normal state, alarm etc.) is represented by colour
indications.
134
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
6.
System Self Supervision User’s Guide
)LJ 7KH6\VWHP&RQFHSW'HVLJQRIWKH666+0,SDUW
6.2.
Supervision Monitoring
This chapter describes the monitoring part (SSS HMI) as seen from the library
implementations in the LIB 500 System Self Supervision. For terminology, please
see the document Introduction to MicroSCADA Technology.
6.2.1.
Supervision picture
6.2.1.1.
Picture specific functions
A system supervision picture is located in the picture specific area and it consists of
the installed picture functions. The supervision monitoring objects are typical
examples of picture specific functions. Picture specific functions can be activated
during the run mode by clicking on the representation symbol with the mouse.
1MRS751885-MUM
LIB 500
135
6. System Self Supervi-
sion
LIB 500 Operator’s Manual
User’s Guide
6
)LJ $QH[DPSOHRIDV\VWHPVXSHUYLVLRQSLFWXUH
A main dialog of the object is opened when you click the installed picture function.
The main dialog may also contain subdialogs. Both dialogs (the main dialog and the
subdialogs) contain a Help function, which gives further assistance, if needed.
6.2.2.
Graphical representations and functions
Some principles are general and used for all the supervision monitoring objects of
the System Self Supervision (symbols and colours etc.). A description of these
general principles is given in this section.
6.2.2.1.
Status indication
The status presentation for an object consists of two parts: a representation symbol
and a colour. These two define the exact object status. Also in certain cases,
additional information may be given as text beside the picture function.
6.2.2.2.
Colour coding
The current state is indicated by different symbols. The colour of the symbol
provides additional information on the object.
136
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
6.
System Self Supervision User’s Guide
Table 6.2.2.2-1
Colour coding
6.2.2.3.
Colour definitions
The colours used in the LIB 500 System Self Supervision refer to the following
System Colours (M scope). The colours can be changed by using the Colour Settings
Tool that is opened from the System Configuration folder in the Tool Manager.
Table 6.2.2.3-1
Colour definitions
6.2.2.4.
Event and alarm indications
Each object may include several events and/or alarms generated to the Event and the
Alarm List. Events and alarms of each supervised object are generated according to
the event filtering specified during the configuration phase of the Supervision Base
functionality (see the LIB 500 Configuration Manual, Chapter 8. System Self
Supervision for further details).
Please note that in case of an alarm, both the group and informative alarms are
generated to the Alarm List. The group alarm indicates the current state of the
supervised object and it is set to the normal value as the alarm is lowered (i.e. the
supervised object receives the normalised event). The informative alarm indicates
the cause of the alarm (e.g. Device suspended [13371]) and it is set to the normal
value as the alarm is being acknowledged.
The following figure displays both an Event and an Alarm list with the system
supervision events and alarms.
Colour
Status
DARK GREY
Not in use.
GREY
Static (i.e. no supervision diagnostic available).
WHITE
Selected on monitor.
MAGENTA
Undefined (i.e. not sampled, not updated, update
blocked or invalid value).
RED, FLASHING
Alarm, unacknowledged.
RED
Alarm, acknowledged.
GREEN
Normal state, in use.
Colour
Colour definition
System Colour
DARK GREY
Bottom shadow
(“M”,9)
GREY
Normal background
(”M”,1)
WHITE
Selected object
(“M”,27)
MAGENTA
Not updated
(“M”,30)
RED
Alarm
(“M”,16)
GREEN
Normal, dynamics
(“M”,32)
1MRS751885-MUM
LIB 500
137
6. System Self Supervi-
sion
LIB 500 Operator’s Manual
User’s Guide
6
)LJ 7KH(YHQWDQG$ODUP/LVWVZLWKHYHQWVDQGDODUPV
6.2.2.5.
Log events
In addition to the event and alarm indications, each object may have the event
history stored in the log file. The events of each supervised object are stored to the
log file according to the event filtering specified during the configuration phase of
the Supervision Base functionality (see the LIB 500 Configuration Manual, Chapter
8. System Self Supervision for further details).
6.2.3.
System Self Supervision dialogs
6.2.3.1.
Main dialog, general
The main dialog is intended for monitoring the supervision monitoring objects.
138
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
6.
System Self Supervision User’s Guide
Functionality
The main dialog shows the label text of the object on the upper part of the dialog.
The device information of the selected object can be seen in the device information
dialog by selecting it under the More… button. More detailed explanation of the
functionality of the selected object can be found in Help.
)LJ 7KH6XSHUYLVLRQ)XQFWLRQ'LDORJ
If the state of the selected symbol is changed while the Supervision Function dialog
is open, an informative message will be shown on the info bar of the dialog. The
Help Dialog will also be closed, if it is open.
Table 6.2.3.1-1
The dialog buttons have the following functions:
Device Information dialog
Figure 6.2.3.1.-2 presents the Device Information dialog, which can be opened from
the main dialog of the selected object. The function of the dialog is to display the
three lines of device information given at the configuration phase.
Button
Functions
More
Opens a selection list of the circuit breaker sub-functionality.
Close
Closes the dialog and its subdialogs.
Help
Opens the help dialog.
1MRS751885-MUM
LIB 500
139
6. System Self Supervi-
sion
LIB 500 Operator’s Manual
User’s Guide
6
)LJ 7KH'HYLFH,QIRUPDWLRQ'LDORJ
Help Dialog
Figure 6.2.3.1.-3 represents the Help dialog, which is opened from the main dialog
of the selected object. The function of the dialog is to display the help functions
provided with the object.
)LJ 7KH+HOS'LDORJ
140
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
6.
System Self Supervision User’s Guide
6.2.3.2.
Main dialog, Base System
The main dialog is intended for supervision of the Base System monitoring objects.
Functionality
The main dialog shows the label text of the object on the upper part of the dialog.
The supervised applications show more detailed information in the list as follows:
• The application number.
• The application name.
• The application translation type (NONE/LOCAL/EXTERNAL).
• The state of the application (HOT/WARM/COLD/NONE).
• The state of the shadowing phase (in case of a hot-stand-by system).
!
The current application (if supervised) is marked with a leading star (*). If the state
of a supervised application is undefined, (-?-) will be displayed or if there is no value
given, a minus sign (-) will be displayed instead.
The device information of the selected object can be seen in the device information
dialog by selecting it under the More… button. More detailed explanation of the
functionality of the selected object can be found in Help.
)LJ 7KH6XSHUYLVLRQ)XQFWLRQ'LDORJIRUWKH%DVH6\VWHP
If the state of the selected symbol is changed while the Supervision Function dialog
is open, an informative message will be shown on the info bar of the dialog. The
Help Dialog will also be closed, if it is open.
6.3.
Monitor
6.3.1.
Description
The monitor object is used for indicating the number of open the MicroSCADA
monitors in a predefined network address. This way it is easy to detect from which
1MRS751885-MUM
LIB 500
141
6. System Self Supervi-
sion
LIB 500 Operator’s Manual
User’s Guide
6
computer the connections are made to the MicroSCADA system and also to
supervise the amount of open monitors in the system.
A main dialog of the monitor object is opened when clicking the installed picture
function. Through the dialog the user is able to see:
• The device information
6.3.2.
Object presentation
The current state of the monitor object, i.e. the number of the open MicroSCADA
monitors is presented by showing the monitor count on the monitor object. Number
0 is not shown.
)LJ
2EMHFWSUHVHQWDWLRQVIRUDPRQLWRUREMHFW
6.3.3.
Supervision Function dialog
The Supervision Function dialog is the main dialog for the monitor object. It shows
the label text (if defined during the configuration phase) of the selected object as a
general information.
The device information (if defined during the configuration phase) of the selected
object can be obtained by selecting the More... button. Help for the monitor object
can be found by clicking the Help button.
!
If the state of the monitor object changes (i.e. monitors are opened or closed) while
it is selected, the Help dialog will be erased and a warning text "The state of the
selected object has changed!" will be shown on the info bar of the Supervision
Function dialog (See Figure 6.2.3.1.-1).
6.4.
Base System
6.4.1.
Description
The Base System object is used for supervising the state of the supervised
applications in a single or in a hot-stand-by (warm-stand-by) system. In case of a
hot-stand-by (warm-stand-by) system, the shadowing phase of the applications is
also indicated. The main functionality is as listed below:
Single monitor (small)
Single monitor (big)
Double monitor
142
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
6.
System Self Supervision User’s Guide
• The state of the application (HOT/WARM/COLD/NONE).
• The state of the shadowing phase (in case of a hot-stand-by system).
• The state of the MicroSCADA Base System (global memory pool).
The current state of the Base System object is represented by the coloured symbol.
The colour of the symbol provides additional information about the status. Please
see the chapter Object Presentation regarding the colour and the corresponding
status.
!
The state, which is shown within the Base System object, is a combination of the
states of the supervised applications and the MicroSCADA Base System (if the
supervised applications are located in the current MicroSCADA Base System node).
Detailed information of the supervised applications is shown in the Supervision
Function dialog.
A main dialog of the Base System object is opened when clicking the installed
picture function. Through the dialog the user is able to see:
• The application states in more detail.
• The device information.
6.4.2.
Object presentation
The different states of the supervised Base System object are represented by the
colours as follows:
!
The colours are mentioned in the order of their priority in appearance (Normal state
refers to the lowest priority).
Table 6.4.2-1
The colour coding has the corresponding status
!
If the Base System object is set to the alarming state (due to the overflow of global
memory pool or local memory pools) or some application queue is exceeded over its
limit, the Base System object will not be set to the normal state until the
Colour
Status
DARK GREY
Not in use (i.e. application/-s does/do not exist).
GREY
Static (i.e. no supervision diagnostic available).
WHITE
Selected on monitor.
MAGENTA
Undefined (i.e. not sampled, not updated, update
blocked or invalid value).
RED, FLASHING
Alarm, unacknowledged.
RED
Alarm, acknowledged.
GREEN
Normal state, in use.
1MRS751885-MUM
LIB 500
143
6. System Self Supervi-
sion
LIB 500 Operator’s Manual
User’s Guide
6
MicroSCADA has been restarted. Otherwise the Base System object is set to the
normal state as the alarm is lowered (i.e. the Base System object receives the
normalised event).
)LJ
2EMHFWSUHVHQWDWLRQVIRUD%DVH6\VWHPREMHFW
6.4.3.
Supervision Function dialog
The Supervision Function dialog is the main dialog for the Base System object. It
shows the label text (if defined during the configuration phase) of the selected object
as a general information. In addition to the object label text, detailed information of
the supervised applications is shown in the list with the following information:
• The application number.
• The application name.
• The application translation type (NONE/LOCAL/EXTERNAL).
• The state of the application (HOT/WARM/COLD/NONE).
• The state of the shadowing phase (in case of a hot-stand-by system).
Tower model medium size (3-D)
Desktop medium size (3-D)
Desktop medium size
Tower model medium size
Desktop large size (3-D)
Desktop large size
144
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
6.
System Self Supervision User’s Guide
!
The current application (if supervised) is marked with a leading star (*). If the state
of a supervised application is undefined, (-?-) will be displayed or if there is no value
given, a minus sign (-) will be displayed instead.
Device information (if defined during the configuration phase) of the selected object
can be obtained by selecting the More... button. Help for the Base System object can
be found by clicking the Help button.
!
If the state of the Base System object changes while it is selected, the Help dialog
will be erased and a warning text "The state of the selected object has changed!" will
be shown on the info bar of the Supervision Function dialog.
6.5.
Application
6.5.1.
Description
The application object is used for supervising the state of the application in a single
or in a hot-stand-by (warm-stand-by) system. In case of a hot-stand-by (warm-stand-
by) system, the shadowing phase of the application is also indicated. The main
functionality is as listed below:
• The state of the application (HOT/WARM/COLD/NONE).
• The state of the shadowing phase (in case of a hot-stand-by system).
• The state of the MicroSCADA Base System (global memory pool).
• The application number.
• The node number of the MicroSCADA Base System.
• The application name.
The current state of the application object is represented by a coloured symbol. The
colour of the symbol provides additional information about the status. Please see the
chapter Object Presentation regarding the colour and the corresponding status.
!
The state, which is shown within the application object, is a combination of the state
of the supervised application and the MicroSCADA Base System (if the supervised
application is located in the MicroSCADA Base System node).
A main dialog of the application object is opened when clicking the installed picture
function. Through the dialog the user is able to see the device information
6.5.2.
Object presentation
The different states of the supervised application object are represented by the
colours as follows:
1MRS751885-MUM
LIB 500
145
6. System Self Supervi-
sion
LIB 500 Operator’s Manual
User’s Guide
6
!
The colours are mentioned in the order of their priority in appearance (Normal state
refers to the lowest priority).
Table 6.5.2-1
The colour coding has the corresponding status
In addition to this, if the application information is enabled during the configuration
phase, the application state and shadowing phase (in case of a hot-stand-by system)
will be shown as text beside the application object.
!
If the application object is set to the alarming state (due to the overflow of global
memory pool or local memory pools) or some application queue is exceeded over its
limit, the application object will not be set to the normal state until MicroSCADA
has been restarted. Otherwise the application object is set to the normal state as the
alarm is lowered (i.e. the application object receives the normalised event).
)LJ
2EMHFWSUHVHQWDWLRQIRUDQDSSOLFDWLRQREMHFW
6.5.3.
Supervision Function dialog
The Supervision Function dialog is the main dialog for the application object. It
shows the label text (if defined during the configuration phase) of the selected object
as a general information.
Device information (if defined during the configuration phase) of the selected object
can be obtained by selecting the More... button. Help for the application object can
be found by clicking the Help button.
!
If the state of the application object changes while it is selected, the Help dialog will
be erased and a warning text "The state of the selected object has changed!" will be
shown on the info bar of the Supervision Function dialog.
Colour
Status
DARK GREY
Not in use (i.e. application does not exist)
GREY
Static (i.e. no supervision diagnostic available)
WHITE
Selected on monitor
MAGENTA
Undefined (i.e. not sampled, not updated, update
blocked or invalid value)
RED, FLASHING
Unacknowledged alarm
RED
Acknowledged alarm
GREEN
Normal state, in use
146
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
6.
System Self Supervision User’s Guide
6.6.
Communication unit (NET)
6.6.1.
Description
The communication unit (NET) object is used for supervising the state of the
MicroSCADA communication unit. In case of a redundant communication frontend
pair, the redundancy mode and the shadowing phase of the communication unit is
also indicated. The main functionality is as listed below:
• The state of the communication unit.
• The state of the redundancy (in case of a redundant frontend pair).
The current state of the communication unit object is represented by a coloured
symbol. The colour of the symbol provides additional information about the status.
Please see the chapter Object Presentation regarding the colour and the
corresponding status.
A main dialog of the communication unit object is opened when clicking the
installed picture function. Through the dialog the user is able to see:
• The device information
6.6.2.
Object presentation
The different states of the supervised communication unit object are represented by
the colours as follows:
!
The colours are mentioned in the order of their priority in appearance (Normal state
refers to the lowest priority)
Table 6.6.2-1
The colour coding has the corresponding status
Colour
Status
DARK GREY
Not in use.
GREY
Static (i.e. no supervision diagnostic available).
WHITE
Selected on monitor.
MAGENTA
Undefined (i.e. not sampled, not updated, update
blocked or invalid value).
RED, FLASHING
Alarm, unacknowledged.
RED
Alarm, acknowledged.
GREEN
Normal state, in use.
1MRS751885-MUM
LIB 500
147
6. System Self Supervi-
sion
LIB 500 Operator’s Manual
User’s Guide
6
!
In case of a redundant frontend pair, if redundancy information is enabled during the
configuration phase, the redundancy mode and shadowing state will be shown as
text beside the communication unit object.
)LJ
2EMHFWSUHVHQWDWLRQVIRUDFRPPXQLFDWLRQXQLWREMHFW
6.6.3.
Supervision Function dialog
The Supervision Function dialog is the main dialog for the communication unit
object. It shows the label text (if defined during the configuration phase) of the
selected object as a general information.
Device information (if defined during the configuration phase) of the selected object
can be obtained by selecting the More... button. Help for the communication unit
object can be found by clicking the Help button.
!
If the state of the communication unit object changes while it is selected, the Help
dialog will be erased and a warning text "The state of the selected object has
changed!" will be shown on the info bar of the Supervision Function dialog.
6.7.
Communication unit line (NET line)
6.7.1.
Description
The communication unit line (NET line) object is used for supervising the state of
the MicroSCADA communication unit line. The main functionality is as listed
below:
• The state of the communication unit line.
The current state of the communication unit line object is represented by the
coloured symbol. The colour of the symbol provides additional information about
the status. Please see the chapter Object Presentation regarding the colour and the
corresponding status.
PC-NET
DCP-NET
MFL
148
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
6.
System Self Supervision User’s Guide
A main dialog of the communication unit line object is opened when clicking the
installed picture function. Through the dialog the user is able to see:
• The device information.
6.7.2.
Object presentation
The different states of the supervised communication unit line object are represented
by the colours as follows:
!
The colours are mentioned in the order of their priority in appearance (Normal state
refers to the lowest priority).
Table 6.7.2-1
The colour coding has the corresponding status
)LJ
2EMHFWSUHVHQWDWLRQIRUDFRPPXQLFDWLRQXQLWOLQHREMHFWDVDSDUW
RIWKHV\VWHPVXSHUYLVLRQSLFWXUHDQG]RRPHGWRWKHULJKW
6.7.3.
Supervision Function dialog
The Supervision Function dialog is the main dialog for the communication unit line
object. It shows the label text (if defined during the configuration phase) of the
selected object as a general information.
Device information (if defined during the configuration phase) of the selected object
can be obtained by selecting the More... button. Help for the communication unit
line object can be found by clicking the Help button.
Colour
Status
DARK GREY
Not in use.
GREY
Static (i.e. no supervision diagnostic available).
WHITE
Selected on monitor.
MAGENTA
Undefined (i.e. not sampled, not updated, update
blocked or invalid value).
RED, FLASHING
Alarm, unacknowledged.
RED
Alarm, acknowledged.
GREEN
Normal state, in use.
1MRS751885-MUM
LIB 500
149
6. System Self Supervi-
sion
LIB 500 Operator’s Manual
User’s Guide
6
!
If the state of the communication unit line object changes while it is selected, the
Help dialog will be erased and a warning text "The state of the selected object has
changed!" will be shown on the info bar of the Supervision Function dialog.
6.8.
Station
6.8.1.
Description
The station object is used for supervising the state of the station connected to a
MicroSCADA communication unit (NET). The main functionality is as listed
below:
• The state of the station communication.
The current state of the station object is represented by the coloured symbol. The
colour of the symbol provides additional information about the status. Please see the
chapter Object Presentation regarding the colour and the corresponding status.
A main dialog of the station object is opened when clicking the installed picture
function. Through the dialog the user is able to see:
• The device information.
6.8.2.
Object presentation
The different states of the supervised station object are represented by the colours as
follows:
!
The colours are mentioned in the order of their priority in appearance (Normal state
refers to the lowest priority)
Table 6.8.2-1
The colour coding has the corresponding status
Colour
Status
DARK GREY
Not in use.
GREY
Static (i.e. no supervision diagnostic available).
WHITE
Selected on monitor.
MAGENTA
Undefined (i.e. not sampled, not updated, update
blocked or invalid value).
RED, FLASHING
Alarm, unacknowledged.
RED
Alarm, acknowledged.
GREEN
Normal state, in use.
150
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
6.
System Self Supervision User’s Guide
)LJ
2EMHFWSUHVHQWDWLRQVIRUDVWDWLRQREMHFW
6.8.3.
Supervision Function dialog
The Supervision Function dialog is the main dialog for the station object. It shows
the label text (if defined during the configuration phase) of the selected object as a
general information.
Device information (if defined during the configuration phase) of the selected object
can be obtained by selecting the More... button. Help for the station object can be
found by clicking the Help button.
!
If the state of the station object changes while it is selected, the Help dialog will be
erased and a warning text "The state of the selected object has changed!" will be
shown on the info bar of the Supervision Function dialog.
6.9.
LON Clock Master (SLCM)
6.9.1.
Description
The LON Clock Master (SLCM) object is used for supervising the state of the LON
Clock Master connected to a MicroSCADA communication unit (NET). The main
functionality is as listed below:
• The state of the station communication.
• The state of the clock status.
Station, general
REx type of station, e.g. REF 543
SRIO type of station
RTU type of station
SACO type of station
1MRS751885-MUM
LIB 500
151
6. System Self Supervi-
sion
LIB 500 Operator’s Manual
User’s Guide
6
The current state of the LON Clock Master object is represented by the coloured
symbol. The colour of the symbol provides additional information about the status.
Please see the chapter Object Presentation regarding the colour and the
corresponding status.
!
The state, which is shown within the LON Clock Master object, is a combination of
the state of the station communication and the state of the clock status of the LON
Clock Master. Detailed information of the clock status of the LON Clock Master is
shown in the subdialog of Supervision Function dialog.
A main dialog of the LON Clock Master object is opened when clicking the installed
picture function. Through the dialog the user is able to get the following:
• Device information.
• Detailed information on the clock status.
6.9.2.
Object presentation
The different states of the supervised LON Clock Master object are represented by
the colours as follows:
!
The colours are mentioned in the order of their priority in appearance (Normal state
refers to the lowest priority)
Table 6.9.2-1
The colour coding has the corresponding status
Colour
Status
DARK GREY
Not in use.
GREY
Static (i.e. no supervision diagnostic available).
WHITE
Selected on monitor.
MAGENTA
Undefined (i.e. not sampled, not updated, update
blocked or invalid value).
RED, FLASHING
Alarm, unacknowledged.
RED
Alarm, acknowledged.
GREEN
Normal state, in use.
152
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
6.
System Self Supervision User’s Guide
)LJ
2EMHFWSUHVHQWDWLRQIRUD/21&ORFN0DVWHUREMHFW
6.9.3.
Supervision Function dialog
The Supervision Function dialog is the main dialog for the LON Clock Master
object. It shows the label text (if defined during the configuration phase) of the
selected object as general information.
Detailed information of the clock status of the LON Clock Master can be found by
selecting the More... button.
Device information (if defined during the configuration phase) of the selected object
can be obtained by selecting the More... button. Help for the LON Clock Master
object can be found by clicking the Help button.
!
If the state of the LON Clock Master object changes while it is selected, the Help
dialog will be erased and a warning text "The state of the selected object has
changed!" will be shown on the info bar of the Supervision Function dialog.
6.9.4.
LON Clock Master Diagnostics dialog
Figure 6.9.4.-1 presents the LON Clock Master Diagnostics dialog, which can be
opened from the main dialog of the LON Clock Master object. The dialog presents
detailed information about the clock status of the LON Clock Master
LON Clock Master card
Connection to GPS
Clock Status
1MRS751885-MUM
LIB 500
153
6. System Self Supervi-
sion
LIB 500 Operator’s Manual
User’s Guide
6
)LJ
7KH/21&ORFN0DVWHU'LDJQRVWLFVGLDORJ
General information about the LON Clock Master is shown on the top of the list. The
following information is displayed:
• The station number of LON Clock Master.
• The node number of the communication unit, i.e. to which communication unit
the current LON Clock Master is connected to.
• The line number of the LON Clock Master, i.e. to which communication unit line
the current LON Clock Master is connected to.
• The current state of the LON Clock Master (active/redundant/unknown).
Detailed information of the clock status is shown in the information list after the
general information part. The information list has the following structure:
<Name>: <State>
<Descriptive Text>
The meaning of the information messages is explained below in Table 6.9.4-1.
154
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
6.
System Self Supervision User’s Guide
Table 6.9.4-1
The meaning of the information messages:
*) Significant when Meinberg Standard Time String protocol is being used between
the GPS receiver and the SLCM card, not applicable when the Trimble ASCII
Interchange Protocol (TAIP) protocol is being used. The communication protocol is
selected during the configuration of the SLCM card. More details about the SLCM
card configuration can be found from the documents LIB 500 Configuration
Manual, Chapter 8. System Self Supervision and Connecting
LON
W
ORKS
devices to
MicroSCADA.
**) "Accuracy within specification" is the constant value at the current revision of
System Self2Supervision v. 2.0, while “Full accuracy can not be guaranteed" is
reserved for future use.
6.10.
Printer
6.10.1.
Description
The printer object is used for supervising the state of the printer connected to a
MicroSCADA communication unit (NET). Otherwise the state of the supervised
printer object is shown as static (i.e. no supervision diagnostic available). The main
functionality is as listed below:
• The state of the printer communication (for the printers that are connected to a
MicroSCADA communication unit).
The current state of the printer object is represented by a coloured symbol. The
colour of the symbol provides additional information about the status. Please see the
chapter Object Presentation regarding the colour and the corresponding status.
Name
State
CLOCK ALIVE
Shows the state of the connection between the LON Clock Master
(SLCM) and the external clock (GPS).
Possible values are:
• "No connection to external clock."
• "Connection to external clock OK."
SYNCHRONIZED*)
Shows the state of the synchronization of the external clock, i.e. is
the GPS synchronized with its source after start-up or not?
Possible values are:
• “External clock not synchronized after last start-up.”
• “External clock at least once synchronized.”
FREE RUNNING*)
Shows the state of the connection between the external clock and
its source, i.e. is the external clock synchronized with the radio-
signal from the satellites or has it lost the connection to its source?
Possible values are:
• “External clock synchronized with its source – GPS locked."
• “External clock running free without its synchronization – GPS not
locked."
ACCURACY
DEGRADED**)
Shows the state of the time accuracy (time and position), i.e. is the
time accuracy of the external clock within the specification or not?
Possible values are:
• "Accuracy within specification."
• “Full accuracy can not be guaranteed."
1MRS751885-MUM
LIB 500
155
6. System Self Supervi-
sion
LIB 500 Operator’s Manual
User’s Guide
6
A main dialog of the printer object is opened when clicking the installed picture
function. Through the dialog the user is able to see:
• The device information.
6.10.2.
Object presentation
The different states of the supervised printer object are represented by the colours as
follows:
!
The colours are mentioned in the order of their priority in appearance (Normal state
refers to the lowest priority)
Table 6.10.2-1 The colour coding has the corresponding status
!
If the printer object is set to the alarming state (due to the overflow of printer queue),
the printer object will not be set to the normal state until the printer is switched off/
on or the MicroSCADA has been restarted. Otherwise the printer object is set to the
normal state as the alarm is lowered (i.e. the printer object receives the normalised
event).
Colour
Status
DARK GREY
Not in use.
GREY
Static (i.e. no supervision diagnostic available).
WHITE
Selected on monitor.
MAGENTA
Undefined (i.e. not sampled, not updated, update
blocked or invalid value).
RED, FLASHING
Alarm, unacknowledged.
RED
Alarm, acknowledged.
GREEN
Normal state, in use.
Matrix event printer
Colour matrix event printer
156
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
6.
System Self Supervision User’s Guide
)LJ 2EMHFWSUHVHQWDWLRQIRUDSULQWHUREMHFW
6.10.3.
Supervision Function dialog
The Supervision Function dialog is the main dialog for the printer object. It shows
the label text (if defined during the configuration phase) of the selected object as
general information.
Device information (if defined during the configuration phase) on the selected object
can be obtained by selecting the More... button. Help for the printer object can be
found by clicking the Help button.
!
If the state of the printer object changes while it is selected, the Help dialog will be
erased and a warning text "The state of the selected object has changed!" will be
shown on the info bar of the Supervision Function dialog.
6.11.
Supervision Log Viewer
6.11.1.
Overview
The Supervision Log Viewer is used to monitor the information that has been
collected by the System Self Supervision and the Microsoft Windows NT operating
system. The Supervision Log Viewer displays transparently the information
included into several log file types stored into the hard disk. These files contain
information in form of events coming from both hardware and software.
Filters can also be used to focus on information from certain objects of interest. The
user can view the log entries in the Supervision Log Viewer, but editing is not
possible. Updating of the Supervision Log Viewer is based on the user’s actions; it
is not updated spontaneously, when new log entries are received into the system.
The information collected by System Self Supervision can also appear in event and
alarm lists, but as default always in the generated log files.
6.11.1.1.
Users
Who can benefit from the Supervision Log Viewer and why?
Colour laser event printer, i.e. hardcopy printer
Matrix event printer
Matrix event printer, old presentation
1MRS751885-MUM
LIB 500
157
6. System Self Supervi-
sion
LIB 500 Operator’s Manual
User’s Guide
6
Table 6.11.1.1-1 Users of the Supervision Log Viewer
6.11.2.
Types of log events
Each type of the log information can be viewed only from the appropriate menu item
in the Log Menu. Simultaneously, one log event type can be viewed at a time in the
Supervision Log Viewer.
Views containing information about the MicroSCADA system:
• Common System Messages
• Unknown Process Messages
Views containing information about the Microsoft Windows NT Operating System:
• System Events
• Security Events
• Application Events
6.11.2.1.
Common events
Common events include events from the communication unit, as well as predefined
events in stations and in the MicroSCADA Base System. Predefined events occur,
for example, when a connection to a station is lost or re-established. A
MicroSCADA Base System event occurs related to certain events from a printer, a
communication unit or an external clock connected to the system.
The Supervision Base stores the incoming events and the information related to
them into a common system message file, which is located in the subfolder of the
current application. In this file each line allocates one event.
The Supervision Log Viewer adapts the functionality according to the definitions
done during the configuration of the Supervision Base functionality. For the
common system message file these are: location, length and used delimiter for event
information in this common system message file. The LIB 500 Configuration
manual, Chapter 8. System Self Supervision, should be available during the
configuration phase.
User
Why?
Operators
This category of users needs accurate information
about the system parts that inhibit or limit the operation.
Maintenance people
Maintenance people need detailed information about
the failing system parts that must be replaced.
Engineers and after sales support
engineers
This category of users need appropriate information
about incorrect engineering and behaviour of the
system, e.g. application load, communication load.
Developers of system products
Developers need detailed information on faults that
occurs in SW and HW. This information is regarded as
trace information.
158
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
6.
System Self Supervision User’s Guide
)LJ 7KH&RPPRQ(YHQWVYLHZ
Common Events contain the following information:
• Time stamp with milliseconds, e.g. 1999-12-10 11:39:58.832.
• Object type, e.g. Station.
• Object number, e.g. 115.
• Communication unit (NET) number (if any), e.g. 2.
• Communication unit line (NET Line) number (if any), e.g. 1.
• Status code, e.g. Device suspended [13371] (system message from the
communication unit) or text, e.g. Running (if application or Base System event).
6.11.2.2.
Undefined Process Object events
Undefined Process Objects are events, which have not been predefined in the
MicroSCADA system. Typical events are e.g. spontaneous messages from the relay
modules. Supervision Base stores the incoming undefined process object events to
the undefined process objects file if it has been activated by the user (see Figure
6.11.4.3.-2 Mechanism In Use). The file is located in the subfolder of the current
application. In this file each line includes one event.
The Supervision Log Viewer adapts the functionality according to the definitions
done during the configuration of the Supervision Base functionality. For the
undefined process object file these are: location, length and used delimiter for event
information in this undefined process object file. The LIB 500 Configuration
manual, Chapter 8. System Self Supervision, should be available during the
configuration phase.
1MRS751885-MUM
LIB 500
159
6. System Self Supervi-
sion
LIB 500 Operator’s Manual
User’s Guide
6
)LJ 7KH8QGHILQHG3URFHVV2EMHFWVYLHZ
Undefined Process Objects events contain the following information:
• Time stamp with seconds, e.g. 1999-12-14 08:08:34.
• Unit number attribute name, e.g. Message to station.
• Unit number, i.e. station number, e.g. 113.
• Object address attribute name, e.g. object address.
• Object address value, e.g. 3710.
6.11.2.3.
Operating System events
The Operating System based events are generated by Microsoft Windows NT. The
information in the log file is consistent with events visible through Windows NT
Event Viewer. Three different event types are generated by Microsoft Windows NT:
System, Security and Application. The Supervision Log Viewer stores these
incoming events into files of their own, if defined so. These different event types
will be described in the following sections.
System events
Microsoft Windows NT System Events are saved in the file system events log file,
which is located in the subfolder of current application. In this file multiple lines are
allocated for information of one event. The Supervision Log Viewer recognizes the
beginning of each event from the event tag header.
160
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
6.
System Self Supervision User’s Guide
)LJ 7KH6\VWHP(YHQWVYLHZGHWDLOVIRUWKHVHOHFWHGHYHQWDUHVKRZQ
System Events contain the following information:
• Time stamp with seconds, e.g. 1999-12-03 08:30:52.
• Source specific event id, which identifies the message together with the name of
the source, e.g. 9.
• Type of the event (ERROR, WARNING, INFORMATION, AUDIT_SUCCESS,
AUDIT_FAILURE), e.g. INFORMATION.
• Source specific subcategory. This information is shown only in the Event Details
dialog.
• Active user (if possible to define) at the time when the event was logged, e.g.
Administrator.
• Name of the computer that generated the event, e.g. FIMIT-RVS-S11.
• Domain name of the computer that generated the event.
• Name of the source, i.e. application, service, driver, subsystem that generated the
entry, e.g. Print.
• Log type of the event is always SYSTEM. When SYSTEM events are shown in
the Supervision Log Viewer, it is not possible to view SECURITY or
APPLICATION events simultaneously.
1MRS751885-MUM
LIB 500
161
6. System Self Supervi-
sion
LIB 500 Operator’s Manual
User’s Guide
6
• Source specific message string. Each line of the message is in different elements
of the vector. If the line is longer than 255 characters, it will be cut to 255
characters. This information is shown only in the Event Details dialog.
If the text N/A, i.e. Not Applicable, is shown for an event it means that the specified
item is not included in the received event information.
Security events
Microsoft Windows NT Security Events are saved in the security events log file,
which is located in the subfolder of the current application. In this file multiple lines
are allocated for information on one event. The Supervision Log Viewer recognizes
the beginning of each event from the event tag header.
Security Events contain the following information:
• Time stamp with seconds, e.g. 1999-12-03 08:30:52.
• Source specific event id, which identifies the message together with the name of
the source, e.g. 9.
• Type of the event (ERROR, WARNING, INFORMATION, AUDIT_SUCCESS,
AUDIT_FAILURE), e.g. ERROR.
• Source specific subcategory. This information is shown only in the Event Details
dialog.
• Active user (if possible to define) at the time when the event was logged, e.g.
Administrator.
• Name of the computer that generated the event, e.g. FIMIT-RVS-S11.
• Domain name of the computer that generated the event.
• Name of the source, i.e. application, service, driver, subsystem that generated the
entry, e.g. Print.
• Log type of the event is always SECURITY. When SECURITY events are shown
in the Supervision Log Viewer, it is not possible to view SYSTEM or
APPLICATION events simultaneously.
• Source specific message string. Each line of the message is in different elements
of the vector. If the line is longer than 255 characters, it will be cut to 255
characters. This information is shown only in the Event Details dialog.
If the text N/A, i.e. Not Applicable, is shown for an event it means that the specified
item is not included into the received event information.
Application events
Microsoft Windows NT Application Events are saved in the application events log
file, which is located in the subfolder of the current application. In this file multiple
lines are allocated for information on one event. The Supervision Log Viewer
recognizes the beginning of each event from the event tag header.
Application Events contain the following information:
• Time stamp with seconds, e.g. 1999-12-03 08:30:52.
• Source specific event id, which identifies the message together with the name of
the source, e.g. 9.
• Type of the event (ERROR, WARNING, INFORMATION, AUDIT_SUCCESS,
AUDIT_FAILURE), e.g. WARNING.
162
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
6.
System Self Supervision User’s Guide
• Source specific subcategory. This information is shown only in the Event Details
dialog.
• Active user (if possible to define) at the time, when event was logged, e.g.
Administrator.
• Name of the computer that generated the event, e.g. FIMIT-RVS-S11.
• Domain name of the computer that generated the event.
• Name of the source, i.e. application, service, driver, subsystem that generated the
entry, e.g. Print.
• Log type of the event is always APPLICATION. When APPLICATION events
are shown in the Supervision Log Viewer, it is not possible to view SYSTEM or
SECURITY events simultaneously.
• Source specific message string. Each line of the message is in different elements
of the vector. If the line is longer than 255 characters, it will be cut to 255
characters. This information is shown only in the Event Details dialog.
If the text N/A, i.e. Not Applicable, is shown for an event it means that the specified
item is not included in the received event information.
6.11.3.
Starting Supervision Log Viewer
There are two ways of starting the Supervision Log Viewer:
Start it from the Options menu in the header of the application by selecting
Supervision Log… (The default menu item from LIB 500).
)LJ 6WDUWLQJWKH6XSHUYLVLRQ/RJ9LHZHUIURPWKH2SWLRQVPHQX
Select Tool Manager from the Engineering menu, then select System
Configuration from the System Configuration folder. In the System
Configuration Tool select the Tools menu and select System Self Supervision
Log. (The required authorization level in the User Management is Engineering).
)LJ 6WDUWLQJWKH6XSHUYLVLRQ/RJ9LHZHUIURPWKH7RROVPHQX
1MRS751885-MUM
LIB 500
163
6. System Self Supervi-
sion
LIB 500 Operator’s Manual
User’s Guide
6
6.11.4.
Toolbar and menus
The following chapter describes the toolbar buttons and the menus in the
Supervision Log Viewer.
)LJ 7KH8QNQRZQ3URFHVVREMHFWYLHZ
The buttons are explained both as a group and also later when the similar function
in the menu items is presented. Some of the toolbar buttons and menu items are
enabled only when a certain function or view is selected in the Log menu.
Table 6.11.4-1 Toolbar buttons
Button
Function
Exits the Supervision Log Viewer.
Log Settings, selects the amount of events to show.
Setting of Mechanism Parameters for the Unknown Process Object. The button
is available when the view Unknown Process Objects is selected.
Select the Operating System Events and Events Types. This button is available,
when the view System Messages from the Operating System is active.
Scrolls one page backward in the list.
164
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
6.
System Self Supervision User’s Guide
6.11.4.1.
Log menu
Different views of events can be selected or the Supervision Log Viewer can be
exited in the Log menu.
)LJ 7KH/RJ0HQXIRUVHOHFWLQJWKHW\SHVRIHYHQWVWREHVKRZQRUIRU
H[LWLQJWKHSURJUDP
Common system messages
This selection shows the events in the scope of Common System Events. More
information is given in section 6.11.2.1. Common Events.
Unknown process objects
This selection shows the events in the scope of Unknown Process Objects. More
information is given in section 6.11.2.2. Undefined Process Object Events.
System events from operating system
This selection shows the events in the scope of System Events from the Operating
System. More information is given in section 6.11.2.3.
Security events from operating system
This selection shows the events in the scope of Security Events from the Operating
System. More information is given in section 6.11.2.3.
Application events from operating system
This selection shows the events in the scope of Application Events from the
Operating System. More information is given in section 6.11.2.3.
Exit
Exit ends the Supervision Log Viewer session.
Scrolls one page forward in the list.
Defines the colour settings for the Supervision Log Viewer and views the system
colours.
Defines the font settings for the Supervision Log Viewer and views the font
settings of the MicroSCADA Base System.
Views the About Supervision Log Viewer dialog.
1MRS751885-MUM
LIB 500
165
6. System Self Supervi-
sion
LIB 500 Operator’s Manual
User’s Guide
6
.H\ERDUGHQWU\$OW!)!
7RROEDUHQWU\
6.11.4.2.
View menu
The view menu contains several functions, which are described in the following
sections. The menu items in the View menu affect the view selected from the Log
menu.
)LJ 7KH9LHZ0HQXLWHPV
All events
This option displays all the events of the selected log type, no filtering. This is the
default selection, if not otherwise defined into the Supervision Log profile by the
user.
Use event filter
Filtering is activated according to the definitions in the Supervision Log profile
dialog in the Filters menu.
Newest first
This option sorts the events in the view presented in time order with the newest event
on the top. This is the default selection, if not otherwise defined into the Supervision
Log profile by the user.
Oldest first
This option sorts the events in the view presented in time order with the oldest event
on the top.
There are three ways of presenting details for an event:
Details
This first way is to select the Details option, which displays all the event information
in the Details dialog for the selected event in the view. Applicable only when an
Operating system log type is active in the Supervision Log Viewer, i.e. system
events, security events or application events.
The second way is to use:
166
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
6.
System Self Supervision User’s Guide
.H\ERDUGHQWU\(QWHU!
The third way to present details is to double click on an event line in the view, see
the example in Figure 6.11.2.3.-1.
)LJ (YHQW'HWDLOVGLDORJ
Table 6.11.4.2-1 Buttons in the dialog
Next page
This function scrolls forward one page in the list. The count of events to be shown
in the view page in Supervision Log Viewer is defined in the Log Settings dialog
accessed from the Options menu.
.H\ERDUGHQWU\&WUO!1!
7RROEDU(QWU\
Button
Explanation
Close
Finishes the event details presentation
Next
Shows details of the event on the next line
Previous
Shows details of the event on the previous line
1MRS751885-MUM
LIB 500
167
6. System Self Supervi-
sion
LIB 500 Operator’s Manual
User’s Guide
6
Previous page
This function scrolls the list backward one page. The count of events to be shown in
the view page in the Supervision Log Viewer is defined in the Log Settings dialog
accessed from the Options menu.
.H\ERDUGHQWU\&WUO!1!
7RROEDU(QWU\
Refresh
The Supervision Log Viewer is not automatically updated if new events are received
into log files simultaneously. When you refresh the view, these new events become
visible in the view. Note that if the Oldest First selection is active in the View menu,
the newest events will be included at the bottom of the last page.
.H\ERDUGHQWU\)!
6.11.4.3.
Filter menu
The Filter Menu is used to select filters and the Supervision Log profile.
)LJ )LOWHU0HQX
Unknown process objects
This function is used to select stations (e.g. relay units), from which the unknown
process object events are to be supervised. Unknown Process Objects are events that
are not preconfigured in the system. You will find more information in Section
6.11.2.2 Undefined Process Object Events.
7RROEDUHQWU\
The Unknown Process Objects are available only when the view is selected from the
Log Menu.
168
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
6.
System Self Supervision User’s Guide
)LJ 7KH8QNQRZQ3URFHVV2EMHFWVVHWWLQJGLDORJ
Table 6.11.4.3-1 Selections in the dialog
Operating system events
This function is used to display the configuration of how Microsoft Windows NT
Operating System events are to be supervised in the system. You will find more
information in Section 6.11.2.2 Undefined Process Object Events.
7RROEDUHQWU\
The function Operating System Events can be activated when any of the Operating
System events views are active, i.e. selected from the Log Menu.
Selection
Explanation
Mechanism In Use
Enables or disables the collecting of events related to the
Unknown Process Objects. Note! If a large number of
events are received into the system, the enabling of this
function increases the system load.
Common System Messages
Enabled
Enables or disables the Common System Messages.
Station Numbers to Capture
The addresses of the stations to be supervised. Value 0
means all the stations, while any other numbers, separated
by commas, are interpreted as addresses.
Append Numbers
Defines whether the new station numbers listed above are
appended to the list of Station Numbers to Capture or not.
1MRS751885-MUM
LIB 500
169
6. System Self Supervi-
sion
LIB 500 Operator’s Manual
User’s Guide
6
)LJ 6HOHFWLQJWKH2SHUDWLQJ6\VWHP(YHQWV
Table 6.11.4.3-2 The Event types
Selection
Explanation
Handler State
The configuration of whether Microsoft Windows NT
Operating System Events are to be supervised into the
MicroSCADA system (Enabled) or not (Disabled). If the
handler is in the enabled state, it is possible to log five
types of events in Microsoft Windows NT. If the appropriate
dialog item for ERROR, WARNING, INFORMATION,
AUDIT SUCCESS or AUDIT FAILURE is selected in the
Operating System Events dialog, it means that it has been
configured to be supervised into the MicroSCADA Base
System.
The LIB 500 Configuration Manual, Chapter 8. System Self
Supervision, should be available during the configuration
work.
ERROR
Error events indicate significant problems that should be
informed to the user. These types of events usually indicate
a loss of functionality or data.
WARNING
Warning events indicate problems which are not significant
immediately. However, they are indicators for conditions,
which may cause problems in the future.
INFORMATION
Information events indicate the typically infrequent, but
significantly successful operations in Microsoft Windows
NT. E.g. when Microsoft SQL Server has been initialized
successfully, there may be a need to log an information
event stating that “SQL Server has started successfully.”
AUDIT SUCCESS
Success audit events are security events which occur,
when an audited access attempt has been successful. E.g.
a successful logon has occurred in Microsoft Windows NT.
AUDIT FAILURE
Failure audit events are security events which occur, when
an audited access attempt has not been successful. E.g.
an unsuccessful logon has occurred in Microsoft Windows
NT.
170
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
6.
System Self Supervision User’s Guide
!
You can provide the settings in Figure 6.11.4.3.-3 on-line via the HMI and they are
in use until the MicroSCADA system is shut down. The settings in the
MicroSCADA Base System configuration file, (SYS_BASCON.COM), are read at
start-up. Therefore, permanent changes have to be made in the MicroSCADA Base
System (SYS_BASCON.COM), e.g. settings like enabled or disabled, and picking
of the types of events to be supervised. Therefore, if the basic configuration is that
the whole function is set disabled or some of the selectable events are not supervised,
these events are unavailable in the dialog.
Supervision Log Profile
By using the Supervision Log Profile dialog, it is possible to filter the displayed
event information in the Supervision Log Viewer. Only the events which fulfil the
filter conditions and are found in the log files are shown in the Supervision Log
Viewer. In this way it is easier to focus on events received from a certain supervised
object item.
The Supervision Log Profile is available for log types selected from the Log menu.
By means of this function you can select the following for all the log types:
• Events from the first event to the last event.
• Events within a certain time period.
• Events after the last system start-up.
By means of this function you can also select the following for the Unknown Process
Object log type:
• Select station items of interest to be monitored.
By means of this function you can also select the following for the Common System
Message log type:
• Select the communication unit, communication unit line and station items of
interest to be monitored.
1MRS751885-MUM
LIB 500
171
6. System Self Supervi-
sion
LIB 500 Operator’s Manual
User’s Guide
6
)LJ 7KH6XSHUYLVLRQ/RJ3URILOHZKHUHHYHQWVIURPVWDWLRQVDQG
DUHVHOHFWHG
Table 6.11.4.3-3 Buttons in the Supervision Log Profile dialog
The profile settings are used immediately and also at the next start-up of the
Supervision Log Viewer, i.e. until they are changed for the next time or another
profile is loaded. The profiles are also user-specific.
Button
Explanation
Load New…
Opens the File Chooser for loading the Supervision Log profile
from a specified folder. The Supervision Log profile files include
extension .evt
Save As…
Opens the File Chooser for saving the defined Supervision Log
profile at that moment in the Supervision Log Viewer to the
specified folder. It is preferred to use the default file extension
.evt, when renaming the profile file.
OK
Activates the profile settings to be used in the Supervision Log
Viewer.
Cancel
No change is being made to the profile settings.
172
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
6.
System Self Supervision User’s Guide
6.11.4.4.
Options menu
The Options menu provides settings for changing the environment in the
Supervision Log Viewer.
The Options menu contains the following menu items. The changes done in the
Supervision Log Viewer by using these menu items have an immediate effect on the
functionality of the Supervision Log Viewer and are also stored into a user-specific
parameter file. When the Supervision Log Viewer is opened the next time, these
definitions are taken into use again.
)LJ 7KH2SWLRQV0HQX
Toolbar visible
By selecting this option, you can choose to have the toolbar buttons visible or
invisible.
Background colour…
If you select this menu item, the Colour Chooser will be displayed. Then you can
select the colour that you want to use as the background colour in the Supervision
Log Viewer. You can also see the System colours, but not change them.
Foreground colour…
If you select this menu item, the Colour Chooser will be displayed. Then you can
select the colour that you want to use as the foreground colour in the Supervision
Log Viewer. You can also see the System colours, but not change them.
Default colours
Restores the default colours to be used both for the background and foreground in
the Supervision Log Viewer.
Configure font…
If you select this menu item, the Font Chooser will be displayed. Then you can select
the font and size of the text.
1MRS751885-MUM
LIB 500
173
6. System Self Supervi-
sion
LIB 500 Operator’s Manual
User’s Guide
6
)LJ 6HWWLQJ)RQWVIRUWKH6XSHUYLVLRQ/RJ9LHZHU
Default font
Restores the default font settings in the Supervision Log Viewer.
Enlarge font
Enlarges the font size used in the Supervision Log Viewer.
Reduce font
Reduces the font size used in the Supervision Log Viewer.
Log settings…
The Log Settings function is used to access the Log Settings dialog. In this dialog it
is possible to define how many events should be shown in each page of the
Supervision Log Viewer. For performance reasons it is better to use a lower amount,
because increasing the event count increases also the opening time of the
Supervision Log Viewer. The default value is 100. The value range for the event
count is between 100 and 1000.
7RROEDUHQWU\
174
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
6.
System Self Supervision User’s Guide
)LJ7KH/RJ6HWWLQJV
6.11.4.5.
Help menu
The Help menu offers additional information about the Supervision Log Viewer.
)LJ 7KH$ERXW6XSHUYLVLRQ/RJGLDORJ
LIB 500
Index
User’s Guide
Index
Page
6\PEROV
*
$
AC attribute
Accessing the Event Lis
................................................................................................ 79
ACCURACY DEGRADED
........................................................................................ 154
Accuracy within specification
..................................................................................... 154
Acknowledge
DOO
FXUUHQWSDJH
Acknowledgement Dialog
........................................................................................... 102
Acknowledgement indication
...................................................................................... 105
Activation
Active acknowledged alarms
...................................................................... 100
Active alarm
Active unacknowledged alarms
................................................................................... 102
AI type process object
Alarm blocking
............................................................................................. 97
Alarm buffer
....................................................................97
Alarm classes
Alarm history
Alarm indication (flashing)
.....................................................................................33
Alarm limit
Alarm List
Alarm row
Alarm state
Alarm text line
.............................................................................................. 96
Alarm types
Allowed procedures
Analog measured value
................................................................................................. 98
Append Numbers
Application database
...............................................................................................57
Application Events
Application language
Application logo picture
................................................................................................ 37
Application name
Application object
Application owner
Application Settings
......................................................................................... 14
Application window
................................................................................................14
Assign type
Attribute list
Audible alarms
Authorization group
................................................................................................35
Authorization level
.......................................................................... 38
%
Base System
............................................................................................... 118
Basic view
Bay name
1MRS751885-MUM
LIB 500 Operator’s Manual
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
Index
User’s Guide
BGU_TIMEBA:C
BGU_TIMEFO:C
BI type process object
Blocking activity
Blocking attribute value
.............................................................................................. 119
Blocking attributes
.............................................................................................. 118
Blocking conditions
....................................................................................123
Blocking functionality
Blocking handling
Blocking List Settings
Blocking list toolbar
Blocking on bay level
Blocking state
Blocking type
..............................................................................................118
Blocking/deblocking activities
.................................................................................... 129
&
Calendar
Cascade menu
Changing event texts
Changing password
CLOCK ALIVE
Clock Status object presentation
................................................................................. 152
Colour laser event printer object presentation
............................................................ 156
Colour matrix event printer object presentation
......................................................... 155
Colour palette
Colour Settings
Command procedures
Comments
Common Columns
Common part
Common System Messages Enabled
.......................................................................... 168
Communication failure
................................................................................................. 98
Communication unit (NET)
................................................................................ 146
Communication Unit Line presentation
...................................................................... 148
Configuration
Connection to external clock OK
................................................................................ 154
Connection to GPS object presentation
...................................................................... 152
Control (1) authorization level
...................................................................................... 94
Control blocking
Current alarm situation
Current view
'
Daily Report
Database Import/Export tool
................................................................................... 14
Date and Time
Day colour
Day name
Day type
Day type setting
Daylight Saving Time
DB type process object
................................................................................................. 98
DCP-NET object presentation
.................................................................................... 147
1MRS751885-MUM
LIB 500
Index
LIB 500 Operator’s Manual
User’s Guide
Deblocking
Default colors
Default day settings
Default event text
Default settings files
Default value
Desktop large size object presentation
........................................................................ 143
Desktop medium size object presentation
................................................................... 143
Device name
Double indication
Double monitor object presentation
............................................................................ 141
DR Collector Tool
Drop-down menus
(
Edit Time dialog
Emergency picture exit
Engineering (2) authorization level
............................................................................... 94
Entering data
Event
Event activation
Event blocking
Event Columns
Event handling
Event line
Event logging functions
................................................................................................. 77
Event presentation
Event reporting
Event Reports dialog
Event specific part
Event text layout
Event text line
Event/printout settings
Exit button in the start picture
.................................................................................15
Export To Load File
External clock
)
Filter settings
Filtering criteria
Filters
....................................................................................... 78
First picture
Fleeting alarms
Folder sheets
FREE RUNNING
Frozen mode
.................................................................................... 87
Full accuracy can not be guaranteed
........................................................................... 154
*
General folder
General format
Go to the beginning/end
......................................................................................122
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
Index
User’s Guide
+
Hard disk space low alarm
............................................................................................ 43
Harmonic Violation period bars
...................................................................................... 2
Help
History archive
History buffer
History database
...................................................................................78
Human Machine Interface (HMI)
............................................................................... 119
,
Inactive acknowledged alarms
........................................................... 104
Inactive alarms
Inactive unacknowledged alarms
................................................................100
Incoming binary signal
Incoming process data
In-day period
Index (IX)
Indication signals
Information bar
Internal alarms
Internal events
Internal objects
Internal process object
Interval length limit
Interval time limit
Item
/
Language settings
Latest Alarm
Latest unacknowledged alarm
......................................................................................... 4
Layout
List
Load file
Load file format
Local language
Lockout duration
Logging out
Logical name (LN)
Login dialog
Login only once
LON Clock Master (SLCM)
....................................................................................... 150
LON Clock Master card object presentation
............................................................... 152
LON Clock Master Diagnostics
.................................................................................. 152
Lower time limit
0
Matrix event printer object presentation
............................................................. 155
Matrix event printer, old object presentation
.............................................................. 156
Mechanism In Use
Meinberg Standard Time String protocol
.................................................................... 154
MFL object presentation
............................................................................................. 147
MicroSCADA application database
.............................................................................. 57
1MRS751885-MUM
LIB 500
Index
LIB 500 Operator’s Manual
User’s Guide
Monitor language
M-scope colours
Multiple selection
1
Navigation
Navigation objects
Network Control Center (NCC)
.................................................................................... 38
New value
No connection to external clock
.................................................................................. 154
Non-internal signal
..............................................................................................123
Non-set position
Note marker
2
Object identification (OI)
.................................................................59
Object identification names
........................................................................................... 99
Object status
Object text (OX)
............................................................................................... 59
OI attribute
OI field
Old value
Open Load File
Oscillating signal
Outgoing process data
3
Page up/down tools
Paging
Parameters
PC-NET object presentation
........................................................................................ 147
Persisting alarms
Picture header
Picture Name
Picture Specific Area
Picture Specific Menu
PQ-Monitoring Tool
Presentation Mode
................................................................................82
Previous Picture
Print blockings
Printing activities
Printout
............................................................................................ 75
Printout blocking
.................................................................................................118
Process alarms
Process control settings
................................................................................................. 42
Process database
............................................................................................. 78
Process events
Process list types
Process object
............................................................... 58
Process object attributes
.............................................................................................. 130
Process object values
Push buttons
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
Index
User’s Guide
5
RC attribute
Reading objects from database
..................................................................................... 60
RED Relay Tool
Refresh
Registration
Remove Comment
Report Settings
Reprocessing blocking
........................................................................................ 118
Reset
REx type of station object presentation
...................................................................... 150
RTU type of station object presentation
...................................................................... 150
Run command procedure
.............................................................................................. 70
6
SACO type of station object presentation
................................................................... 150
SCIL status codes
Scroll interval
Scroll page down
Scroll page up
Scrollbar
Scrolling
Search Signals dialog
Security Events
Select Blockings dialog
............................................................................................... 128
Selective Signal Blocking main dialog
............................................................... 126
Selective Signal Blocking tool
............................................................................ 122
Sequential printouts
................................................................................................. 78
Session duration
Session expiring notify times
........................................................................................ 40
Setting Calendar options
............................................................................................... 71
Setting parameters
Settings
Settings tool
Shifting pictures on screen
............................................................................................ 18
Shortcut buttons
Show object identification
............................................................................................ 42
Signal
Signal Blocking State dialog
....................................................................................... 124
Signal engineering
Signal text
SigTOOL
SigTOOL 6.20 compatible format
................................................................................ 62
Single monitor (big) object presentation
..................................................................... 141
Single monitor (small) object presentation
................................................................. 141
SPA Relay Tool
SRIO type of station object presentation
.................................................................... 150
SSS
SSS Backbone
SSS HMI
Standard filters
Starting the Alarm List
Starting the Event List
Station (process) picture
.................................................................................................. 3
1MRS751885-MUM
LIB 500
Index
LIB 500 Operator’s Manual
User’s Guide
Station name
Station Numbers to capture
......................................................................................... 168
Station Symbol
Station, general object presentation
............................................................................. 150
Status text
Subdialog
Submenu
Substation Control System (SCS)
................................................................................. 38
Supervision Base
.................................................................................................131
Supervision Function
........................................ 141
Supervision Log Profile
............................................................................................... 170
Supervision Log Viewer
.....................................................................156
Supervision Monitoring
............................................................................................... 131
Switch Device Presentation
........................................................................................... 46
SYNCHRONIZED
System error
System events
System location
System Manager
System Message dialog
................................................................................................. 36
System Self Supervision
................................................................................................ 99
7
Template 1
........................................................................... 95
Template 1 Tools menu
............................................................................................... 103
Template 2
............................................................................................ 96
Text column
Text Settings
Text settings limits
The Day type list
Time filters
Time limits
Time period start/stop
Time stamp
Toolbar of Template 1
Toolbar of Template 2
Tools
Tools menu
Tower model medium size object presentation
........................................................... 143
Transparent printers
...............................................................................................93
Trend Report
Trimble ASCII Interchange Protocol (TAIP) protocol
................................................ 154
8
Unacknowledged active alarm
...................................................................................... 35
Unacknowledged alarms
................................................................... 5
Unacknowledged inactive alarms
.................................................................................. 35
Undefined Process Objects
.......................................................................................... 158
Unknown Process Objects
........................................................................................... 167
Update blocking
Update-deblocked mode
.............................................................................................. 123
Updating mode
.......................................................................................87
Upper time limit
Up-to-date alarm information
...................................................................................... 106
1MRS751885-MUM
LIB 500 Operator’s Manual
LIB 500
Index
User’s Guide
User authorization group
............................................................................................. 129
User interface
User language
User levels
User Management
.............................................................................................14
User profile
9
Value
Variables
View
View (0) authorization level
.......................................................................................... 94
View settings
VS-monitor
;
X-window
