REAR WHEEL/BRAKE/SUSPENSION

DISASSEMBLY

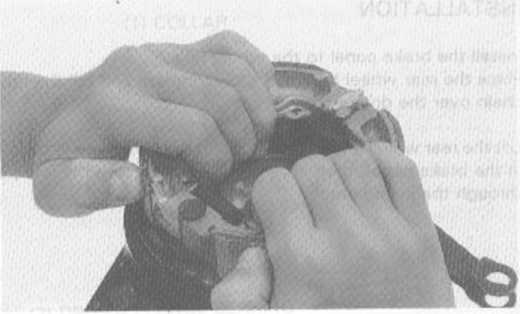

Remove the brake shoes and springs form the brake panel. NOTĘ

• Mark the shoes to indicate their original positions before re-moving them.

Remove the following parts form the brake panel:

—    Bolt and nut, then brake arm

—    Indicator piąte

—    Brake cam

—    Thrust piąte

—    Dust seals

Clean all parts thoroughly.

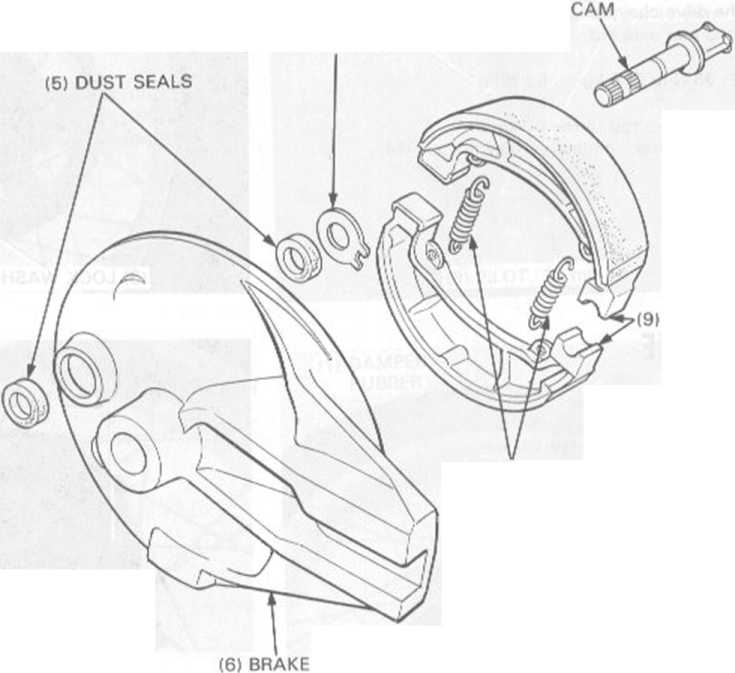

ASSEMBLY


(10) BRAKE

(7) THRUST PLATĘ

I4I INDICATOR PLATĘ

(1) BRAKE ARM

BRAKE SHOES

(2) NUT

(8) SPRINGS

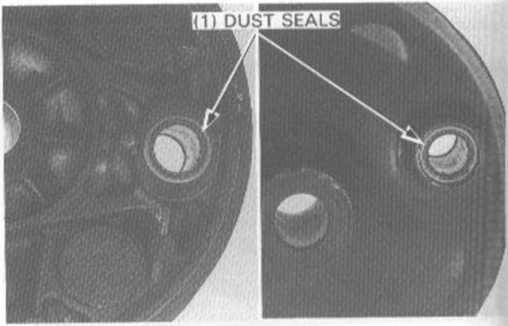

Install the dust seals into the brake panel.

14-8

PANEL
