89 TransAlp Manual Lights Instraments Switches 1
CLIP
LIGHTS/INSTRUMENTS/SWITCHES
HEADLIGHT
BULB REPLACEMENT
Remove the right upper cover łpage 12-2).
Disconnect the headlight connector and remove the dust cover.
Release the retainer clip and replace the headlight bulb with a new one.
CAUTIOIM
• Wear a g/ove when instal/ing the halogen bulb. If you touch the bulb with your bare hands, clean it with a cloth moistened with alcohol to prezent its early failure.
Install the dust cover with its TOP mark facing up.
Connect the headlight connector securely.
Install the right upper cover Ipage 12-21.
REMOVAL
Remove the front cowling (page 12-2).
Disconnect the headlight connector.

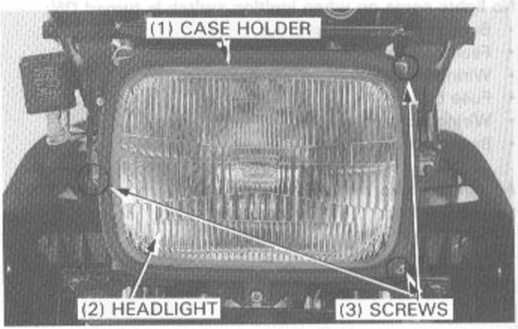

Remove the three screws and headlight case holder. Remove the headlight.
INSTALLATION
Install the headlight case in the reverse order of removal. Adjust the headlight aim (page 3-14).
19-2
