NOTĘ
• You can remove the ignition switch without removing the front cowling.
Remove the left upper cover łpage 12-2).
Disconnect the ignition switch connector.
Remove the two ignition switch mounting bolts and ignition switch.
Remove the wire clamp.
Remove the three screws, push the lugs in the slots and puli the contact base out of the cylinder.
Install the ignition switch in the reverse order of removal.
Remove the right upper cover (page 12-2).
Disconnect the 6P connector of the left handlebars switch. Disconnect the 9P connector of the right handlebars switch.
Check the components of the handlebars switches for electric continuity as follows.
Continuity should exsist between the color coded wires in each chart below.
STARTER SWITCH
TERMINAL |
BAT4 |
ST |
HL |
FREE |
O— |
—O | |
PUSH |
O— |
—O | |
COLOR |
W/G |
Y/R |
Bu.‘W |

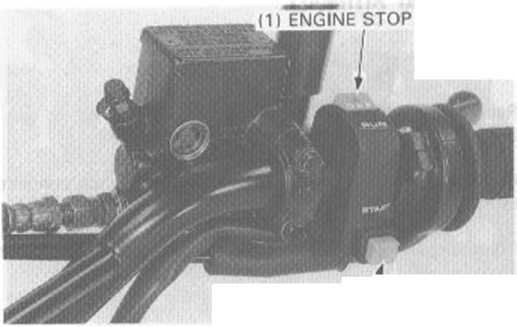

ENGINE STOP SWITCH
TERMINAL |
BAT 3 |
IG |
OFF | ||
RUN |
O— |
—O |
COLOR |
Bl/R |
BI/W |
(11 IGNITION SWITCH
(1) LUGS
r*
Hcontact base^^
SWITCH
L
(2) STARTER SWITCH
