CYLINDER HEAD/VALVE

CYLINDER HEAD COVER REMOVAL

Drain the coolant (page 5-3).

Remove the fuel tank (page 4-3).

Remove the carburetor (page 4 8).

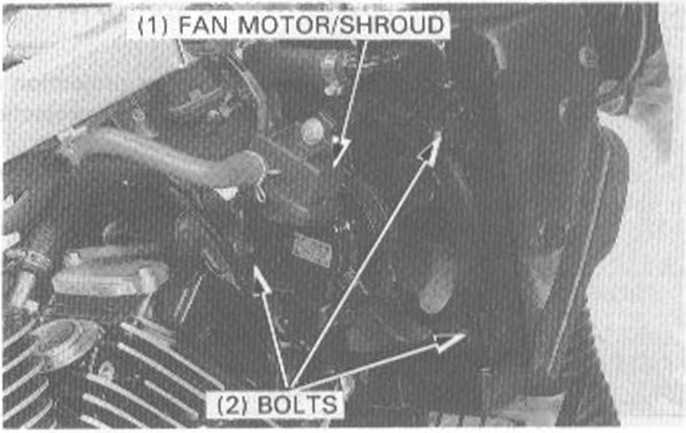

Remove the fan motor and fan motor shroud as an assembly. Hang it from the handlebars using a string not to be damaged.

Remov© the spark pług cap from the spark pług.

Remove the bolt and ignition coil stay from the frame.

r


(1) BOLT/IGNITION COIL STAY


(2) SPARK PŁUG CAP_


Remove the frame bridge mounting bolts and frame bridge.

Disconnect the cylinder head cover breather tubę at the cylinder head cover.

^ĘTTl) BEARTHER TUBĘ


(2) FRAME BRIDGE


Remove the bolts and water pipes from both the cylinder fieads.

Remove the cylinder head cover mounting bolts, rubber washer covers, rubber washers and cylinder head covers.

(1) BOLTS/WATER PIPES


(2) CYLINDER HEAD COVERS


(3) BOLTS/WASHER COVERS/

RUBBER WASHERS

9-3
