CYLINDER HEAD/VALVE

REAR CYLINDER

NOTĘ

• If the front cylinder was not serviced, remove the front cylinder head cover and check the front cylinder camshaft po-sition as follows:

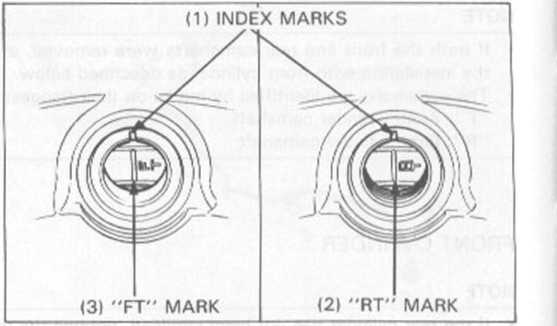

Remove the timing hole cap, turn the crankshaft counter clockwise and align the "FT" mark on the flywheel with the index mark on the right crankcase cover, then check the Identification mark on the camshaft flange.

If the “F" mark on the camshaft flange faces up, turn the crankshaft counter clockwise 232° (approximately 2/3 turnsl and begin installation of the rear camshaft.

If the "F" mark faces down jcannot be seen), turn the crankshaft counter clockwise 592° (approximately 1-2/3 turnsl and begin installation.

Make surę that the "RT” mark on the flywheel aligns with the index mark on the right crankcase cover.

Place the camshaft on its correct position with the "R” mark on the flange facing up and install the cam sprocket in the same procedurę as for the front cylinder.

Remove the 2 mm pin, holding the cam chain tensioner wedge A.

NOTĘ__

•    Be careful not to let the 2 mm pin fali into the crankcase.

•    Do not forget to remove the 2 mm pin before installing the cylinder head cover.

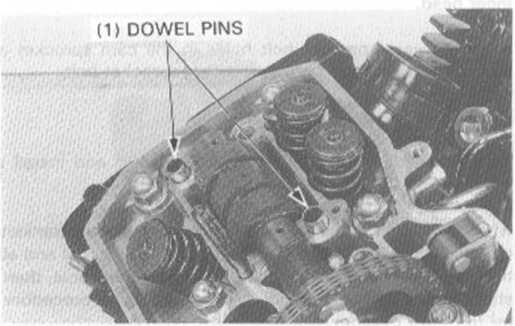

Install the dowel pins into the cylinder head.
