BRAKE LIGHT SWITCH

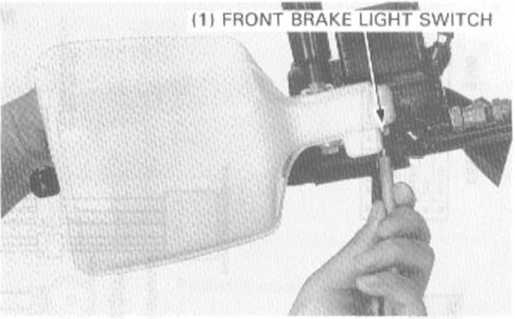

FRONT INSPECTION

Disconnect the front brake light switch wire connectors and check for continuity between the switch terminals.

There should be continuity with the front brake applied, and should be no continuity when the brake released.

Replace the switch with a new one if necessary.

REAR INSPECTION

Remove the seat (page 4-3).

Disconnect the rear brake light switch connector and check for continuity between the terminals.

There should be continuity with the rear brake applied, and should be no continuity with the rear brake released.

Replace the rear brake light switch with a new one if necessary.

(1) REAR BRAKE LIGHT SWITCH CONNECTOR

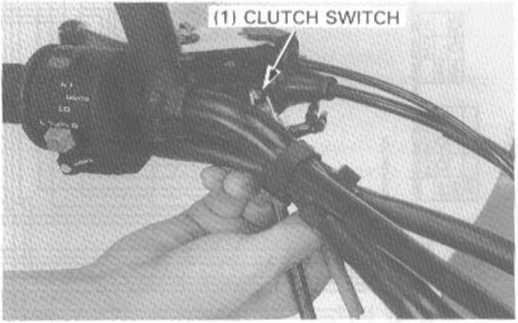

CLUTCH SWITCH

INSPECTION

Disconnect the clutch switch wire connectors.

Check for continuity between the switch terminals.

There should be continuity with the clutch lever applied, and should be no continuity with the clutch lever released.

Replace the clutch switch with a new one if necessary.

HORN

INSPECTION

Disconnect the horn wire connectors and connect a fully charged 1 2 V bartery to the horn terminals.

The horn is normal if it sounds when the battery is connected across the terminals.

(1) BATTERY]

(2> HORN
