89 TransAlp Manual Electric Starter 3
ELECTRIC STARTER
STARTER MOTOR

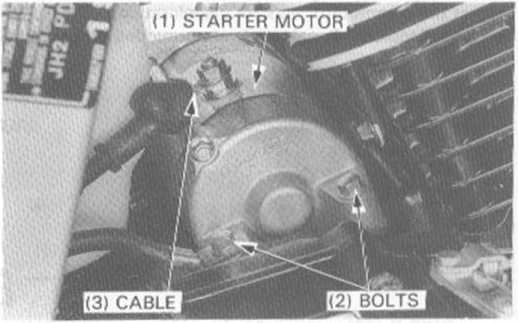

REMOVAL
Awarning
• With the ignition switch OFF, remove the negative cable at the battery before servicing the starter motor.
Disconnect the starter motor cable.
Remove the motor mounting bolts and motor.
DISASSEMBLY
Remove the following components:
— Motor case bolts.
— Front cover and rear cover.
— Armaturę.
NOTĘ
• Record the location and number of shims.
INSPECTION
Measure each brush length.
SERN/ICE LIMIT: 6.5 mm (0.26 In)

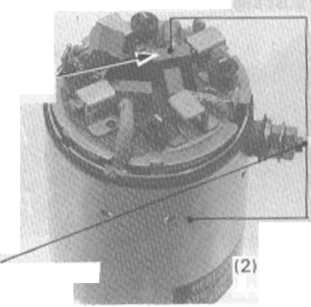

Check for continuity from the cable terminal to the motor case and from the cable terminal to the black brush wire.
CABLE TERMINAL-MOTOR CASE NO CONTINUITY: NORMAL
CABLE TERMINAL-BLACK BRUSH WIRE CONTINUITY: NORMAL
Disassemble them if necessary.
COVER
(31 CASE
(4) BLACK BLUSH WIRE
(1) CONTINUITY
(3) CABLE TERMINAL
NO
CONTINUITY
