ELECTRIC STARTER

ASSEMBLY

#»

r>

m

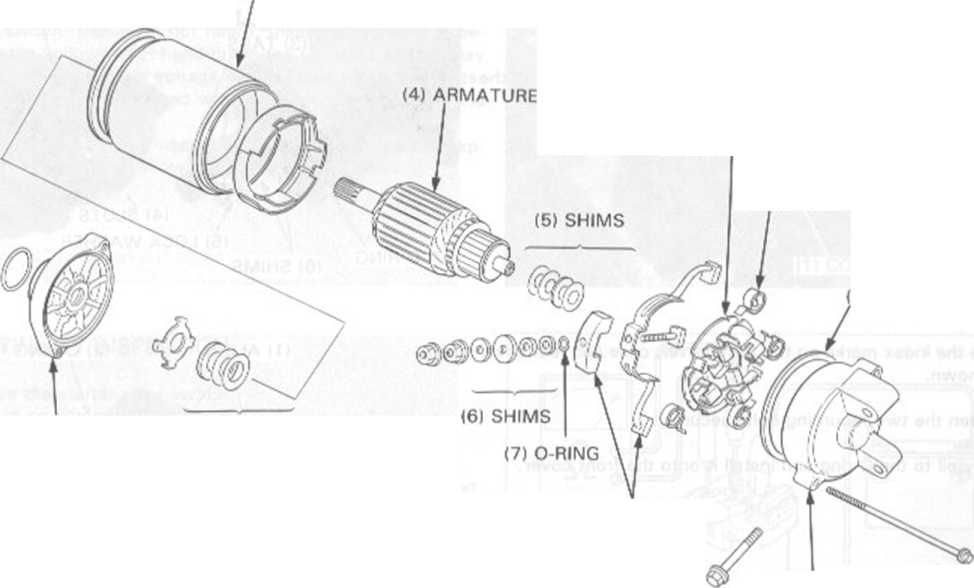

(3) CASE

(9) BRUSH HOLDER

(10) BRUSH SPRING

11) O RING

m FRONT COVER _{(2) SH},_MS

(8) CABLE TERMINAL AND BRUSHES

(12) REAR COVER

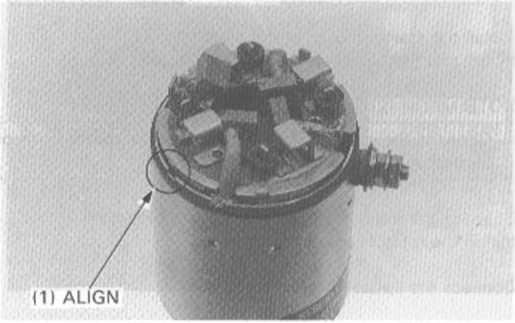

Align the starter motor case notch with the brush holder tab.

(1) BRUSH SPRINGS (2) ALIGN (3) BRUSHES

4

4

Set the brushes on the brush holder.

Install the armaturę into the case.

Set the brush springs.

Install the shims in the same location and number when disas-sembled.

Install the O-ring onto the case.

Install the rear cover, aligning its slot with the brush holder pin.

(5) O-RING (4) SHIMS

(3) REAR COVER
