COOLING SYSTEM


RESERVE TANK

REMOVAL

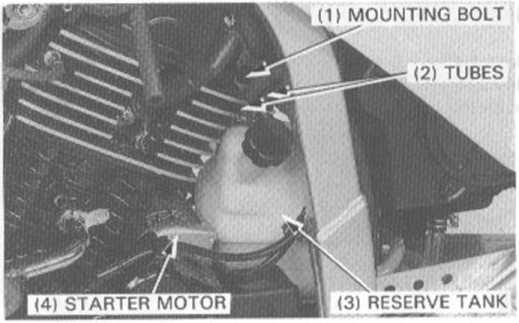

Remove the starter motor (page 18-3).

Remove the reserve tank mounting bolt.

Disconnect the overflow tubę (black) and breather tubę (red) from the reserve tank.

Remove the reserve tank.

INSTALLATION

Install the reserve tank in the reverse order of removal.

5-10
