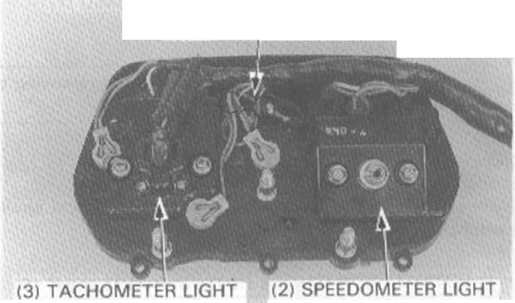

Remove the following screws, connectors and components: TACHOMETER
— Three connectors and four screws.
TEMPERATURĘ GAUGE
— Three screws.
SPEEDOMETER
— Two screws.
Install the instruments in the reverse order of removal.
NOTĘ
• Install the temperaturę gauge wires with screws according to the support on the lower cover.
• Route the wire properly (page 1-9).
Remove the right upper cover (page 12-2).
Disconnect the ignition switch red 4P connector.
Check for continuity between the ignition switch connector terminals in each switch position.
Continuity should exsist between the color coded wires in the chart below.
<1) TEMPERATURĘ GAUGE
mwmmmmmm
ftWWWWWW
«
TERMINAL |
BAT1 |
BAT2 |
FAN |
ON |
O— |
—O— |
—O |
OFF | |||
LOCK |
_ | ||
COLOR |
R |
R/BI |
Bu/O |
t
