FRONT WHEEL/SUSPENSION/STEERING

(1) BEARING REMOVER SHAFT L

Remove the wheel bearings and distance collar.

TOOLS:

Bearing remover head    07746 — 0050400

or equivalent commercially available in U.S.A.

Bearing remover shaft    07746 — 0050100

or equivalent commercially available in U.S.A.

NOTĘ

<2) BEARING REMOVER HEAD, 15 mm

• Replace the wheel bearing with a new one, whenever a bearing has been removed.

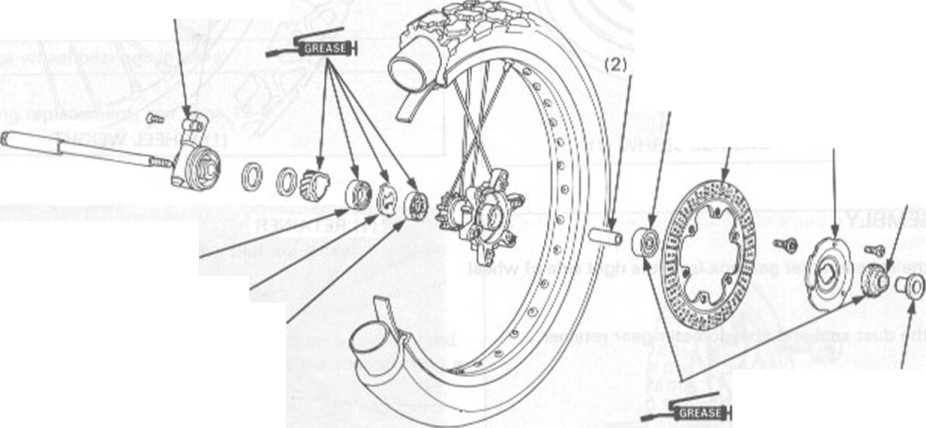

ASSEMBLY

(1) SPEEDOMETER GEARBOX

16) DUST SEAL

<10)

DUST SEAL

(9) RETAINER (8) BEARING

171 SIDE COLLAR

DISTANCE COLLAR (3) BEARING

(4) DISC (5) HUB COVER

Pack all bearing cavities with grease.

Drive in the right bearing first until it seats.

Install the distance collar and drive in the left wheel bearing.

NOTĘ

• Install the bearings with the sealed faces toward the out-side. Be surę to dirve the bearing in sguarely.

(1) ATTACHMENT

32 x 35 mm

(2) DRIVER

TOOLS:

Driver

Attachment, 32 x 35 mm Pilot, 1 5 mm

07749-0010000

07746-0010100

07746-0040300

(3) PILOT, 15 mm

13-8
